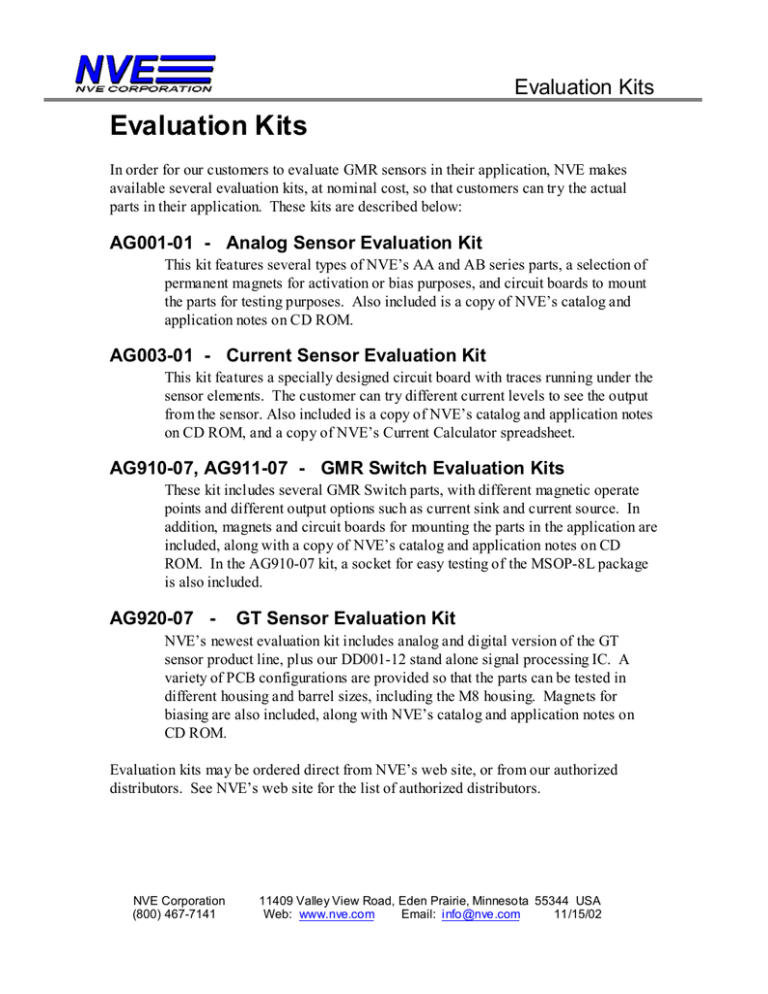

Evaluation Kits
Evaluation Kits
In order for our customers to evaluate GMR sensors in their application, NVE makes
available several evaluation kits, at nominal cost, so that customers can try the actual
parts in their application. These kits are described below:
AG001-01 - Analog Sensor Evaluation Kit
This kit features several types of NVE’s AA and AB series parts, a selection of
permanent magnets for activation or bias purposes, and circuit boards to mount
the parts for testing purposes. Also included is a copy of NVE’s catalog and
application notes on CD ROM.
AG003-01 - Current Sensor Evaluation Kit
This kit features a specially designed circuit board with traces running under the
sensor elements. The customer can try different current levels to see the output
from the sensor. Also included is a copy of NVE’s catalog and application notes
on CD ROM, and a copy of NVE’s Current Calculator spreadsheet.
AG910-07, AG911-07 - GMR Switch Evaluation Kits
These kit includes several GMR Switch parts, with different magnetic operate
points and different output options such as current sink and current source. In
addition, magnets and circuit boards for mounting the parts in the application are
included, along with a copy of NVE’s catalog and application notes on CD
ROM. In the AG910-07 kit, a socket for easy testing of the MSOP-8L package
is also included.
AG920-07 -
GT Sensor Evaluation Kit
NVE’s newest evaluation kit includes analog and digital version of the GT
sensor product line, plus our DD001-12 stand alone signal processing IC. A
variety of PCB configurations are provided so that the parts can be tested in
different housing and barrel sizes, including the M8 housing. Magnets for
biasing are also included, along with NVE’s catalog and application notes on
CD ROM.
Evaluation kits may be ordered direct from NVE’s web site, or from our authorized
distributors. See NVE’s web site for the list of authorized distributors.
NVE Corporation
(800) 467-7141
11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
Web: www.nve.com
Email: [email protected]
11/15/02
Analog Sensor, Current Sensor Evaluation Kits
Analog Sensor and Current Sensor Evaluation Kits
AG001-01
Analog Sensor Evaluation Kit
The NVE GMR Engineering Evaluation Kit (PN AG001-01) was created as an aid to the
technical user of GMR sensors to facilitate laboratory experimentation and development.
The kit consists of an assortment of NVE sensors, printed circuit boards and permanent
magnets sufficient to demonstrate sensor functionality in the laboratory. The kit consists
of the following:
Part Number
Quantity
Description
AA002-02
AAH002-02
AAL002-02
AA003-02
AA004-02
AA005-02
AA006-02
AB001-02
AG004-06
AG005-06
SN 12031
SN 12030
2
1
1
2
2
2
2
2
2
2
2
2
1
15 Oe/5 kΩ Field Sensor
6 Oe/2 kΩ Field Sensor
15 Oe/5 kΩ Field Low Hysteresis Sensor
20 Oe/5 kΩ Field Sensor
50 Oe/5 kΩ Field Sensor
100 Oe/5 kΩ Field Sensor
50 Oe/30 kΩ Field Sensor
250 Oe/5 kΩ Field Gradient Sensor
Long PCB- 3.0” x 0.3”
Square PCB- 0.5” x 0.5”
Ceramic 5- Disc Magnets
Sintered 8 Alnico- Rectangular magnets
Catalog and Application Notes on CD
ROM
NVE Corporation
(800) 467-7141
11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
Web: www.nve.com
Email: [email protected]
11/15/02
Analog Sensor, Current Sensor Evaluation Kits
AG003-01
Current Sensor Evaluation Kit
The NVE GMR Current Sensor Evaluation Assembly (P/N AG003-01) was created to
facilitate laboratory experimentation and development using GMR current sensors. The
kit consists of (4) four NVE current sensors (P/N AA003-02) assembled to a printed
circuit board (P/N AG002-01). Please note that the AA003-02 was selected for inclusion
in this kit because it is a good medium sensitivity current sensor. In fact, any of NVE’s
AA sensor products can be used in this application, for more or less sensitivity to the
magnetic field generated by the current. The PCB included in the kit has (4) four trace
geometries to simulate various PCB current ranges. The details are as follows:
Trace
no.
Trace Width
(inches)
Maximum1 Trace Input
Current (A)
Nominal Sensitivity
([mV/V]out/Ain)
1
2
3
4
0.090
0.060
0.010
7X 0.010
±9.0
±6.0
±0.25
±0.25
3.5
3.7
4.0
20.0
Notes:
1.
The maximum current is based on the rated current carrying capability of each trace geometry.
2.
The minimum current the assembly can sense is arbitrary. The absolute value is dependent on many
system design parameters and must be determined by the user.
3.
For functional characteristics of the AA003-02 current sensor, refer to the AA Sensors section of this
catalog.
4.
Refer to NVE’s Engineering & Application Notes, Appendix APP 003, “GMR Current Sensing” for
additional technical details.
5.
The AG003-01 assembly can be subdivided into (4) four separate sub-assemblies. All connections
to each input trace and current sensor are isolated on each sub-section.
2.00
NVE
Trace 2
NVE
AC00401
Trace 3
NVE
AC00401
NVE
AC00401
Trace 4
NVE Corporation
(800) 467-7141
NVE
AC00401
Trace 1
Current Sensor Evaluation Board
1-800-GMR-7141
AG002-01
11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
Web: www.nve.com
Email: [email protected]
11/15/02
GMR Switch and GT Sensor Evaluation Kits
GMR Switch and GT Sensor Evaluation Kits
AG910-07, AG911-07
GMR Switch Evaluation Kit
These kits were created to facilitate laboratory experimentation and development using
NVE’s GMR Switch Digital Output Sensors. The kits consist of sixteen distinct NVE
GMR Switches that span the magnetic field range and output types available in the
AD series sensors. All sensors in
this kit are packaged in the
MSOP8 miniature surface mount
package. The kits also
include a ceramic bar magnet, and
printed circuit boards (PCBs) for
testing in the actual application, In
addition, the AG910-07 kit includes
a high temperature (175°C) MSOP8
ZIF socket with Kelvin contacts.
GMR Switch Digital Evaluation Kits Parts List
Part
Part Marking
Output type
Designator
AD004-00
BBH
AD005-00
BBG
AD006-00
BBJ
Single
AD020-00
BBK
Current
AD021-00
BBB
Sink
AD022-00
BBC
AD023-00
AD024-00
ADH025-00
AD105-00
AD122-00
AD824-00
AD924-00
AD320-00
AD324-00
AD624-00
AD724-00
AG910-06
BBD
BBF
MBL
DBG
DBC
MBF
NBF
GBK
GBF
KBF
LBF
N/A
Single Source
“
Dual Output
with SCP
Sink/Sink
“
Sink/Source/Vreg
Sink/Sink/Vreg
N/A
SN 12100
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
SN 12032
N/A
N/A
AG918-06
AG919-06
NVE Corporation
(800) 467-7141
Description
See
GMR Switch
Section of
This Catalog
l”x2” PCB Board
(AG910-07 Kit Only)
.25” X 2” PCB Board
.25” X 2” PCB Board
CD ROM Catalog/App Notes
MSOP8 ZIF Socket
(AG910-07 Kit Only)
Ceramic Magnet,l”x0.25”x0.39”
11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
Web: www.nve.com
Email: [email protected]
11/15/02
GMR Switch and GT Sensor Evaluation Kits
AG920-07 GT Sensor Evaluation Kit
This kit was created to facilitate laboratory
experimentation and development using
NVE’s GT Sensor products. Because of the
wide variety of mechanical orientations
where these sensors can be used, this kit
contains a large variety of circuit boards, to
simplify the customer’s fixturing and testing
of the parts. Included in the kit are one of
each type of NVE’s GT Sensor products, both
analog and digital, plus two of the DD001-12
signal processing ICs, to convert the analog
output of the ABL sensors to a digital output. Also included is a small container of solder
paste, with instructions on soldering to the TDFN-SO8 package. The contents of each kit
are listed below:
Quantity
1
1
1
Part Number
ABL004-00
ABL005-00
ABL014-00
Marking
FDB
FDC
FDD
1
ABL015-00
FDF
1
AKL001-12
P/N
1
AKL002-12
P/N
2
2
2
1
DD001-12
AG915-06
AG914-06
AG918-06
P/N
N/A
N/A
N/A
1
AG919-06
N/A
1
1
AG913-06
AG916-06
N/A
N/A
1
AG917-06
N/A
1
AG911-06
N/A
1
AG912-06
N/A
5
5
1
1
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
NVE Corporation
(800) 467-7141
Description
Single Differential Sensor, 1.0mm Element Spacing
Single Differential Sensor, 0.5mm Element Spacing
Dual Differential Sensor, 1.0mm Element Spacing,
0.5mm Phase Shift
Dual Differential Sensor, 0.5mm Element Spacing,
0.25mm Phase Shift
Digital Output Differential Sensor, 1.0mm Element
Spacing
Digital Output Differential Sensor, 0.5mm Element
Spacing
Digital Output Signal Processing IC for ABL Sensors
M8 Round PCB, for mounting ABL Sensor
M10 Round PCB, for mounting AKL Sensor
Long, Narrow PCB for Mounting ABL Sensor Parallel to
Long axis
Long, Narrow PCB for Mounting ABL Sensor
Perpendicular to Long axis
PCB for Mounting 2 DD001-02 ICs
Long, Narrow PCB for Mounting AKL Sensor Parallel to
Long axis
Long, Narrow PCB for Mounting AKL Sensor
Perpendicular to Long axis
Long, Narrow PCB for Mounting ABL Sensors Parallel to
Long axis, and 1 or 2 DD001-12 ICs
Long, Narrow PCB for Mounting ABL Sensors
Perpendicular to Long axis, and 1 or 2 DD001-12 ICs
6mm Diameter X 4mm Thick Round Ferrite Magnets
3.5mm Diameter X 4mm Thick Round Ferrite Magnets
Catalog and Application Notes on CD ROM
Small container of solder paste
11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
Web: www.nve.com
Email: [email protected]
11/15/02
