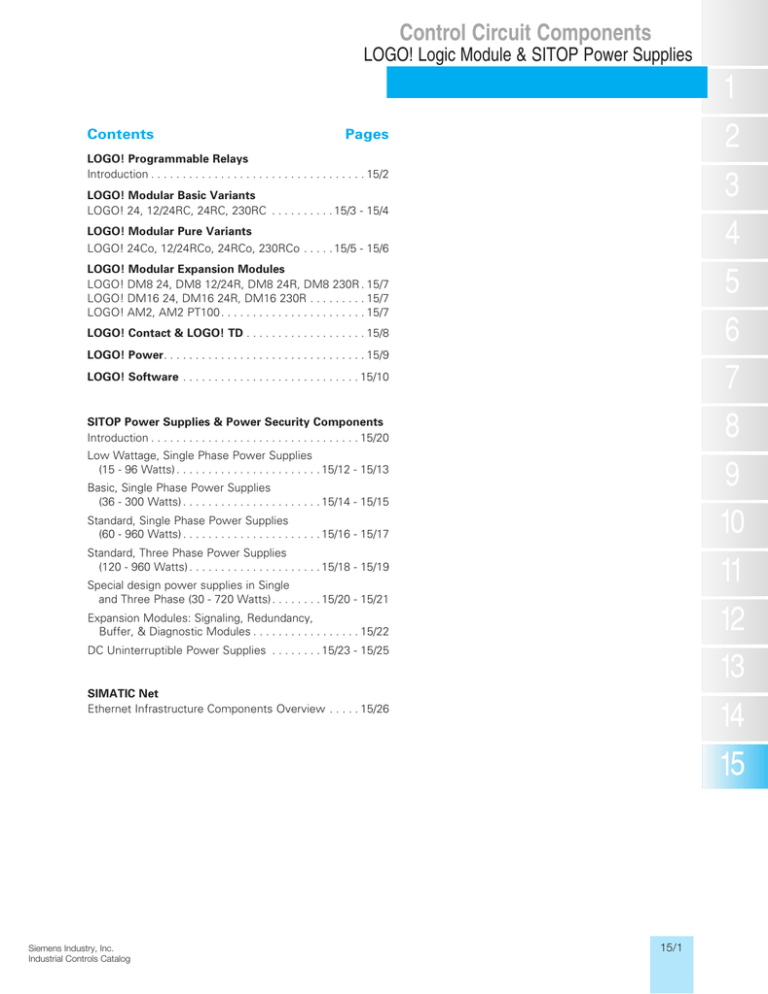

Contents Pages

LOGO! Programmable Relays

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15/2

LOGO! Modular Basic Variants

LOGO!.24,.12/24RC,.24RC,.230RC . . . . . . . . . . . 15/3.-.15/4

LOGO! Modular Pure Variants

LOGO!.24Co,.12/24RCo,.24RCo,.230RCo. . . . . . 15/5.-.15/6

LOGO! Modular Expansion Modules

LOGO!.DM8.24,.DM8.12/24R,.DM8.24R,.DM8.230R. . 15/7

LOGO!.DM16.24,.DM16.24R,.DM16.230R. . . . . . . . . . 15/7

LOGO!.AM2,.AM2.PT100. . . . . . . . . . . . . . . . . . . . . . . . 15/7

LOGO! Contact & LOGO! TD. . . . . . . . . . . . . . . . . . . . 15/8

LOGO! Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15/9.

LOGO! Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15/10

SITOP Power Supplies & Power Security Components

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15/20

Low.Wattage,.Single.Phase.Power.Supplies.

. (15.-.96.Watts). . . . . . . . . . . . . . . . . . . . . . . . 15/12.-.15/13

Basic,.Single.Phase.Power.Supplies.

. (36.-.300.Watts). . . . . . . . . . . . . . . . . . . . . . . 15/14.-.15/15

Standard,.Single.Phase.Power.Supplies..

. (60.-.960.Watts). . . . . . . . . . . . . . . . . . . . . . . 15/16.-.15/17

Standard,.Three.Phase.Power.Supplies.

. (120.-.960.Watts). . . . . . . . . . . . . . . . . . . . . . 15/18.-.15/19

Special.design.power.supplies.in.Single.

. and.Three.Phase.(30.-.720.Watts). . . . . . . . . 15/20.-.15/21

Expansion.Modules:.Signaling,.Redundancy,.

. Buffer,.&.Diagnostic.Modules. . . . . . . . . . . . . . . . . . 15/22

DC.Uninterruptible.Power.Supplies . . . . . . . . . 15/23.-.15/25

SIMATIC Net

Ethernet.Infrastructure.Components.Overview. . . . . . 15/26

15/1

Siemens Industry, Inc.

Industrial Controls Catalog

Siemens / Industrial Controls Previous folio: 15/1

LOGO! logic module

Introduction

LOGO! logic module

Overview

LOGO! logic module

• The compact, easy-to-use and low-cost solution for simple control tasks

• Compact, easy to operate, universally applicable without accessories

• "All in one": Integrated display and operator panel

• 36 different functions can be connected at the click of a button or by means of PC software; up to 130 times over

• Functions are easily changed at the press of a key.

No more time-consuming rewiring

15/2

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

Siemens / Industrial Controls Previous folio: ST-70 2013 pg2-2

Siemens Industry, Inc.

Industrial Controls Catalog

Overview

LOGO! logic module

LOGO! modular

LOGO! modular basic variants

• The space-saving basic variants

• Interface for the connection of expansion modules, up to

24 digital inputs, 16 digital outputs, 8 analog inputs and

2 analog outputs can be addressed

• With connection option for LOGO! text display TD

(can be connected to all LOGO! 0BA6 basic variants)

New in LOGO! 0BA7 variants:

• Ethernet interface for communication with SIMATIC Controller,

SIMATIC Panel and PC

• Networking of max. 8 LOGO! devices

• Use of standard SD card or SIMATIC memory card

Ordering data

LOGO! logic module 24C

24 V DC power supply,

8x 24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V),

4x 24 V DC digital outputs,

0.3 A, integral time switch;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 12/24RC

12/24 V DC power supply,

8x 12/24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V)

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 24RC

24 V AC/DC power supply,

8x 24 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

O r d e r N o .

6ED1 052-1CC01-0BA6

6ED1 052-1MD00-0BA6

6ED1 052-1HB00-0BA6

LOGO! logic module 230RC

115/230 V AC/DC power supply,

8x 115/230 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 12/24RCE

12/24 V DC power supply,

8x 12/24 V DC digital inputs, of which 4 can be used in analog mode (0 to 10 V)

4x 10 A relay outputs, integral time switch;

400 function blocks can be interlinked,

Ethernet interface, modular expansion capability

LOGO! logic module 230RCE

115/230 V AC/DC power supply,

8x 115/230 V AC/DC digital inputs,

4x 10 A relay outputs, integral time switch;

400 function blocks can be interlinked,

Ethernet interface, modular expansion capability

O r d e r N o .

6ED1 052-1FB00-0BA6

6ED1 052-1MD00-0BA7

6ED1 052-1FB00-0BA7

Siemens Industry, Inc.

Industrial Controls Catalog

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

Siemens / Industrial Controls Previous folio: ST-70 2013 pg2-3 & 2-4

15/3

LOGO! logic module

LOGO! modular

LOGO! modular basic variants

Ordering data Order No.

Accessories

LOGO! TD text display

4-line text display, can be connected to all LOGO! 0BA6 Basic and Pure versions, including connecting cable

LOGO! Manual

German

English

French

Spanish

Italian

Chinese

LOGO! Memory Card

Program module for copying, with know-how protection

LOGO! battery card

Battery module for backing up the integral real-time clock

(not LOGO! 24)

LOGO! memory/battery card

Combined program and battery module, with know-how protection and for backing up the integral realtime clock (not LOGO! 24)

LOGO! PROM

Programming device used to simultaneously reproduce program module contents on up to 8 program modules

LOGO!Soft Comfort V7.0

For programming on the PC in

LAD/FBD; executes on Windows 7,

VISTA, XP, NT4.0, 2000, 98SE, Linux and MAC OSX; on CD-ROM

LOGO!Soft Comfort V7.0 upgrade

Upgrade from V1.0 to V7.0

6ED1 055-4MH00-0BA0

6ED1 050-1AA00-0AE8

6ED1 050-1AA00-0BE8

6ED1 050-1AA00-0CE8

6ED1 050-1AA00-0DE8

6ED1 050-1AA00-0EE8

6ED1 050-1AA00-0KE8

6ED1 056-1DA00-0BA0

6ED1 056-6XA00-0BA0

6ED1 056-7DA00-0BA0

6AG1 057-1AA01-0BA6

6ED1 058-0BA02-0YA1

6ED1 058-0CA02-0YE1

LOGO! PC cable

For program transfer between

LOGO! and the PC

LOGO! USB PC cable

For transferring the program between LOGO! and PC, including driver on CD-ROM

LOGO! modem cable

Adapter cable for analog modem communication

Front panel mounting set

Width 4 MW

Width 4 MW, with keys

Width 8 MW

Width 8 MW, with keys

Order No.

6ED1 057-1AA00-0BA0

6ED1 057-1AA01-0BA0

6ED1 057-1CA00-0BA0

6AG1 057-1AA00-0AA0

6AG1 057-1AA00-0AA3

6AG1 057-1AA00-0AA1

6AG1 057-1AA00-0AA2

15/4

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

Siemens / Industrial Controls Previous folio: 15/14

Siemens Industry, Inc.

Industrial Controls Catalog

Overview

LOGO! logic module

LOGO! modular

LOGO! modular pure variants

• The cost-optimized basic variants

• Interface for the connection of expansion modules, up to

24 digital inputs, 16 digital outputs, 8 analog inputs and

2 analog outputs can be addressed

• With connection option for LOGO! TD text display

(can be connected to all LOGO! 0BA6 basic variants)

Ordering data

LOGO! logic module 24Co

24 V DC power supply,

8 digital inputs 24 V DC, of which 4 can be used in analog mode (0 to 10 V),

4 digital outputs 24 V DC, 0.3 A, integrated time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 12/24RCo

12/24 V DC power supply,

8 digital inputs 12/24 V DC, of which 4 can be used in analog mode (0 to 10 V),

4 relay outputs 10 A, integral time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 24RCo

24 V AC/DC power supply,

8 digital inputs 24 V AC/DC,

4 relay outputs 10 A, integral time switch; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

LOGO! logic module 230RCo

115/230 V AC/DC power supply,

8 digital inputs 115/230 V AC/DC,

4 relay outputs 10 A, integral time clock; without display and keyboard;

200 function blocks can be interlinked, modular expansion capability

O r d e r N o .

6ED1 052-2CC01-0BA6

6ED1 052-2MD00-0BA6

6ED1 052-2HB00-0BA6

6ED1 052-2FB00-0BA6

Accessories

LOGO! TD text display

4-line text display, can be connected to all LOGO! 0BA6

Basic and Pure versions, including connecting cable

SIPLUS LOGO! TD text display

(extended temperature range

-10 ... +60 °C and medial loading)

4-line text display, can be connected to all LOGO! 0BA6

Basic and Pure versions, including connecting cable

LOGO! Manual

German

English

French

Spanish

Italian

Chinese

LOGO! Memory Card

Program module for copying, with know-how protection

LOGO! battery card

Battery module for backing up the integral real-time clock

(not LOGO! 24)

O r d e r N o .

6ED1 055-4MH00-0BA0

6AG1 055-4MH00-2BA0

6ED1 050-1AA00-0AE8

6ED1 050-1AA00-0BE8

6ED1 050-1AA00-0CE8

6ED1 050-1AA00-0DE8

6ED1 050-1AA00-0EE8

6ED1 050-1AA00-0KE8

6ED1 056-1DA00-0BA0

6ED1 056-6XA00-0BA0

Siemens Industry, Inc.

Industrial Controls Catalog

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

Siemens / Industrial Controls Previous folio: 15/15

15/5

LOGO! logic module

LOGO! modular

LOGO! modular pure variants

Selection and ordering data (continued)

LOGO! memory/battery card

Combined program and battery module, with know-how protection and for backing up the integral realtime clock (not LOGO! 24o)

LOGO! PROM

Programming device used to simultaneously reproduce program module contents on up to 8 program modules

LOGO!Soft Comfort V7.0

For programming on the PC in

LAD/FBD; executes on Windows 7,

VISTA, XP, NT4.0, 2000, 98SE, Linux and MAC OSX; on CD-ROM

LOGO!Soft Comfort V7.0 upgrade

Upgrade from V1.0 to V7.0

6ED1 056-7DA00-0BA0

6AG1 057-1AA01-0BA6

6ED1 058-0BA02-0YA1

6ED1 058-0CA02-0YE1

LOGO! PC cable

For program transfer between

LOGO! and the PC

LOGO! USB PC cable

For transferring the program between LOGO! and PC, including driver on CD-ROM

LOGO! modem cable

Adapter cable for analog modem communication

LOGO! Starter kits (0BA6)

LOGO! TD Starter kit

Language-neutral with LOGO! 12/24RCo + LOGO! TD

6ED1 057-1AA00-0BA0

6ED1 057-1AA01-0BA0

6ED1 057-1CA00-0BA0

6ED1 057-3BA10-0AA6

15/6

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

Siemens / Industrial Controls Previous folio: 15/16

Siemens Industry, Inc.

Industrial Controls Catalog

Overview

LOGO! logic module

LOGO! modular

LOGO! modular expansion modules

• Expansion modules for connection to LOGO! modular

• With digital inputs and outputs, analog inputs, or analog outputs

Ordering data

LOGO! DM8 24

Supply voltage 24 V DC,

4 digital inputs 24 V DC,

4 digital outputs 24 V DC, 0.3 A

LOGO! DM16 24

Supply voltage 24 V DC,

8 digital inputs 24 V DC,

8 digital outputs 24 V DC, 0.3 A

LOGO! DM8 12/24R

Supply voltage 12/24 V DC,

4 digital inputs 12/24 V DC,

4 relay outputs 5 A

LOGO! DM8 24R

Supply voltage24 V AC/DC,

4 digital inputs 24 V AC/DC,

4 relay outputs 5 A

LOGO! DM16 24R

Supply voltage 24 V DC,

8 digital inputs 24 V DC,

8 relay outputs 5 A

LOGO! DM8 230R

Supply voltage 115/230 V AC/DC,

4 digital inputs 115/230 V AC/DC,

4 relay outputs 5 A

LOGO! DM16 230R

Supply voltage 115/230 V AC/DC,

8 digital inputs 115/230 V AC/DC,

8 relay outputs 5 A

LOGO! AM2

Supply voltage 12/24 V DC,

2 analog inputs 0 ... 10 V or

0 ... 20 mA, 10-bit resolution

LOGO! AM2 PT 100

Supply voltage 12/24 V DC,

2 analog inputs Pt100, temperature range -50 °C ... 200 °C

LOGO! AM2 AQ

Supply voltage 24 V DC,

2 analog outputs 0 to 10 V,

0/4 to 20 mA

O r d e r N o .

6ED1 055-1CB00-0BA0

6ED1 055-1CB10-0BA0

6ED1 055-1MB00-0BA1

6ED1 055-1HB00-0BA0

6ED1 055-1NB10-0BA0

6ED1 055-1FB00-0BA1

6ED1 055-1FB10-0BA0

6ED1 055-1MA00-0BA0

6ED1 055-1MD00-0BA1

6ED1 055-1MM00-0BA1

O r d e r N o .

Accessories

LOGO! Manual

German

English

French

Spanish

Italian

Chinese

LOGO! Memory Card

for copying, with know-how protection

LOGO!Soft Comfort V7.0

For programming on the PC in

LAD/FBD; executes on Windows 7,

VISTA, XP, NT4.0, 2000, 98SE, Linux and MAC OSX; on CD-ROM

LOGO!Soft Comfort V7.0 upgrade

Upgrade from V1.0 to V7.0

LOGO! PC cable

For program transfer between

LOGO! and the PC

6ED1 050-1AA00-0AE8

6ED1 050-1AA00-0BE8

6ED1 050-1AA00-0CE8

6ED1 050-1AA00-0DE8

6ED1 050-1AA00-0EE8

6ED1 050-1AA00-0KE8

6ED1 056-1DA00-0BA0

6ED1 058-0BA02-0YA1

6ED1 058-0CA02-0YE1

6ED1 057-1AA00-0BA0

Siemens Industry, Inc.

2/14

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

15/7

LOGO! logic module

LOGO! modular

LOGO! contact & LOGO! TD

Overview

Ordering Data

LOGO!Contact

Module for direct switching of resistive consumers up to 20 A and motors up to 4 kW

Switching voltage 24 V

Switching voltage 230 V

Order No.

6ED10574CA000AA0

6ED10574EA000AA0

• Switching module for the direct switching of resistive loads and motors

LOGO! TD Text Display 6ED10554MH000BA0

• 4-line backlit LCD, 128x64 pixel resolution

• 24 VDC/VAC input voltage, includes connecting cable (2.5M)

& mounting hardware

• 6 screen navigation keys and 4 user function buttons

• Power-on screen and backlight activate function

• Text, numeric display and timer/counter set point changes

• Advanced bar-graph and text ticker features

15/8

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

Siemens Industry, Inc.

Industrial Controls Catalog

LOGO! logic module

LOGO! Power

LOGO! Power

Overview

The flat power supply unit for distribution boards

The new miniature power supply units now offer even greater performance in the smallest space: The efficiency has been improved across the entire load range, and the power loss in

Ordering data

LOGO!Power 5 V

Stabilized power supply; output: 5 V DC/3 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

Stabilized power supply; output: 5 V DC/6.3 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

LOGO!Power 12 V

Stabilized power supply; output: 12 V DC/1.9 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

Stabilized power supply; output: 12 V DC/4.5 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

O r d e r N o .

6EP1 311-1SH03

6EP1 311-1SH13

6EP1 321-1SH03

6EP1 322-1SH03

no-load operation has been cut in half. The wide-range input now also allows operation with direct voltage, the switch-on behavior has been optimized for capacitive loads, and the operating temperature range has been extended to +70 °C. The power supplies with logic module design can be used extremely flexibly in numerous applications – thanks to their flat, stepped profile in distribution boards, for example.

Essential product features

• 2 performance classes, each with 5 V, 12 V, and 15 V

• 3 performance classes with 24 V

• Flat LOGO! design

• Wide-range input for 85 V to 264 V AC or 110 V to 300 V DC

• Constant current for connection of loads with high inrush current

• Power reserve on starting up through 1.5 times the rated current for capacitive loads

• Adjustable output voltage

• Green LED for "Output voltage OK"

• Temperature range from –20 °C to +70 °C

• Comprehensive certification, e.g. ATEX and GL

O r d e r N o .

LOGO!Power 15 V

Stabilized power supply; output: 15 V DC/1.9 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

Stabilized power supply; output: 15 V DC/4 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

LOGO!Power 24 V

Stabilized power supply; output: 24 V DC/1.3 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

Stabilized power supply; output: 24 V DC/2.5 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

Stabilized power supply; output: 24 V DC/4 A

• Input rated value:

100 … 240 V AC; extended operating temperature range: up to +70 °C

6EP1 351-1SH03

6EP1 352-1SH03

6EP1 331-1SH03

6EP1 332-1SH43

6EP1 332-1SH52

Siemens Industry, Inc.

Industrial Controls Catalog

Further information see Siemens Catalog ST 70

Further information about LOGO! Logic Module on the internet: www.siemens.com/logo

15/9

LOGO! logic module

LOGO! Power

LOGO! software

Overview Ordering data

LOGO!Soft Comfort V7.0

For programming on the PC in

LAD/FBD; executes on Windows 7

(32/64 bit), VISTA, XP, NT4.0, 2000,

98SE, Linux and MAC OSX; on CD-ROM

LOGO!Soft Comfort V7.0 upgrade

Upgrade from V1.0 to V7.0

Order No.

6ED1 058-0BA02-0YA1

6ED1 058-0CA02-0YE1

• The user-friendly software for creating control programs on a PC

• Creation of control programs in Function Block Diagram (FBD) or Ladder Diagram (LAD)

• Plus testing, simulation, online testing and archiving of control programs

• Professional documentation via numerous comment and print functions

Minimum system requirements

Windows 98 SE, NT 4.0, ME, 2000, XP (32 bit),

Vista or 7 (32/64 bit)

• PC Pentium.

• 90 MB free disk capacity.

• 64 MB RAM.

• SVGA graphics card with minimum resolution 800x600

(256 colors).

Mac OS X

• Mac OS X 10.4 with J2SE 1.5.0

• Mac OS X 10.5 with J2SE 1.6.0

• PowerMac G3, G4, G4 Cube, IMac, PowerBook G3, G4 or iBook.

Linux

• Tested with SUSE Linux 10 SP2, kernel 2.6.16

• Runs on all Linux distributions on which the Java 2 SDK

Version 1.3.1 runs.

• Please refer to your relevant Linux distribution for the necessary hardware requirements.

15/10

Siemens / Industrial Controls Previous folio: 15/17

Siemens Industry, Inc.

Industrial Controls Catalog

DC Power supplies for single phase applications

15 watts to 96 watts

SITOP Power Supplies

Switched Mode Regulated Technology

Introduction

DC Power Supplies for basic, single phase applications

36 watts to 300 watts

• Wide input voltage range on AC and DC networks for wide range of application uses, worldwide

• Output voltages of 5, 12, 15, or 24 VDC

• Wide operating temperature range from -20° to +70° C

• Worldwide agency approvals allow for universal applications

DC Power supplies for standard and demanding single phase applications 60 watts to 960 watts

• Designed for basic applications that require switched-mode, regulated technology at a competitive price.

• SITOP Lite available in 24 VDC 2.5A, 5A, or 10 A

• SITOP Direct Mount available in 12 VDC and 24 VDC output voltages up to 300 Watts

• SITOP Direct Mount: direct wall mounting, allowing for variable mounting positions

DC Power Supplies for three-phase applications

120 watts to 960 watts

• SITOP Smart available in 12 VDC or 24 VDC output voltages

• SITOP Modular 5A and 10A can be used on single phase and three phase networks

• Built-in relay contact for feedback to upper level control system for most units

• SITOP Smart 24 VDC/10A wall-mount version available for high shock and vibration requirements

• Comprehensive certifications for HazLoc and Marine applications

• Great for use with power security add-on modules

Power Security Add-ons

• Robust metal housing and metal DIN rail clip

• SITOP Smart available in 24 VDC 10A, 20A, or 40A

• SITOP Modular available in 24VDC and 48VDC output voltages

• Integrated signaling contact for “24 V OK”, high efficiencies, and slim, compact design

• Extra power of 150% for brief operational overloads for most units. SITOP Modular units feature power boost of 300% for

25ms for tripping protective devices.

• Great for use with power security add-on modules

DC Uninterruptible Power Supplies

• The signaling module with signal contacts and remote ON/OFF function optimally integrates SITOP modular devices without integral signaling contact into automated plants.

• For maximum availability, the redundancy module decouples

SITOP power supplies of the same type.

• The buffer module bridges short power failures up to 3 seconds with capacitors as energy storage.

• The SITOP select diagnosis and the newer, selectivity module offer selective protection of individual 24 V paths against overload and short-circuits. With this protection and by means of fast fault localization, downtimes can be reduced to a minimum.

• DC UPS Modules (6A, 15A or 40A) in conjunction with battery modules (ranging from 1.2 Ah to 12 Ah) offer high security and availability of the power network

• DC UPS with capacitor back-up with with integrated energy storage 2.5 or 5 kWs, combinable with up to three expansion modules for absolutely maintenance free back-up thanks to high-capacity double layer capacitors

• The new DC UPS 1600 modules now offer reliable back-up in conjunction with DC UPS 1100 battery modules in 1.2, 3.2, or

7 Ah with even more possibilities for diagnostics and system integration thanks to an integrated web server and the option of an Ethernet/PROFINET interface

Siemens Industry, Inc.

Industrial Controls Catalog

15/11

SITOP Power Supplies

Low Wattage, Single Phase Switched-Mode Technology

LOGO! Power:

The flat power supply unit for distribution boards

Overview

These miniature power supply units offer great performance in a small space. They feature high efficiencies across the entire load range and lower power losses in no-load operation.

The wide-range input allows operation on both AC and DC networks and the switch-on behavior has been optimized for capacitive loads. The operating temperature range has been extended to -20°C to +70°C allowing these power supplies with logic module design to be used in numerous applications

- particularly suited for use in distribution boards thanks to their flat, stepped profile. n

2 peformance classes each for 5 VDC, 12 VDC, and 15 VDC n

3 performance classes for 24 VDC units n

Flat, stepped profile design n

Wide-range input for 85 - 264 VAC or 110 - 300 VDC n

Constant current for connection of loads with high inrush current n

Power reserve on starting up through 1.5x rated current

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

5

12

15

24

5

12

15

24

24

3

1.9

1.9

1.3

6.3

4.5

4

2.5

4

15 85..264 VAC

110..300 VDC

54x90x55 -20°C…+70°C 77%

23

29

31

32

54

60 85..264 VAC

110..300 VDC

72x90x55 -20°C…+70°C 85%

60

85..264 VAC

110..300 VDC

54x90x55

85..264 VAC

110..300 VDC

54x90x55

85..264 VAC

110..300 VDC

54x90x55

85..264 VAC

110..300 VDC

72x90x55

85..264 VAC

110..300 VDC

72x90x55

85..264 VAC

110..300 VDC

72x90x55

-20°C…+70°C 80%

-20°C…+70°C 80%

-20°C…+70°C 85%

-20°C…+70°C 83%

-20°C…+70°C 85%

-20°C…+70°C 88%

96 85..264 VAC

110..300 VDC

90x90x55 -20°C…+70°C 89%

Constant

Current

CE, cULus, GL,

ABS, ATEX, NEC

Class2, Class I

Div 2, FM

6EP1311-1SH03

Constant

Current

CE, cULus, FM,

GL, ABS, ATEX,

NEC Class 2,

Class I Div 2

6EP1321-1SH03

Constant

Current

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL , ABS

6EP1351-1SH03

Constant

Current

CE, cULus, FM,

GL, ABS, ATEX,

NEC Class 2,

Class I Div 2

6EP1331-1SH03

Constant

Current

CE, cULus, GL,

ABS, ATEX,

Class I Div 2

6EP1311-1SH13

Constant

Current

Constant

Current

Constant

Current

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL, NEC

Class 2

CE, cULus, FM,

GL, ABS, ATEX, cCSAus Class I

Div 2, NEC

Class 2

CE, cULus, FM,

GL, ABS, ATEX, cCSAus Class I

Div 2

6EP1322-1SH03

6EP1352-1SH03

6EP1332-1SH43

Constant

Current

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL

6EP1332-1SH52

15/12

Siemens Industry, Inc.

Industrial Controls Catalog

SITOP Power Supplies

Low Wattage, Single Phase Switched-Mode Technology

SITOP Compact:

The slim power supply unit for control boxes

Overview

Thanks to the extremely space-saving slim design, this power supply series for lower performance ranges is especially suited to distributed applications in control boxes or in small control cabinets. These power supplies are characterized by their low power losses throughout the load range. The losses are extremely low even while idling, which makes them great for supply machines and plants which are frequently in stand-by mode. These power supply units have a wide range input for

AC and DC networks and plug-in terminals that facilitate the electrical connection.

n

Small mounting surface thanks to its slim design n

Wide-range input for 85 - 264 VAC or 110 - 300 VDC n

Low energy consumption during no-load operation or stand-by n

High efficiency across the entire load range n

Up to 28% energy savings in comparison to similar devices n

Plug-in terminals for easy electrical connection

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

24

12

24

24

12

24

24

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

0.6

2

1.3

2.5

6.5

3.7

4

14

24

31

60

78

89

85..264 VAC

110..300 VDC

22.5x80x100

-20°C…+70°C 82%

85..264 VAC

110..300 VDC

30x80x100 -20°C…+70°C 82%

85..264 VAC

110..300 VDC

30x80x100 -20°C…+70°C 86%

85..264 VAC

110..300 VDC

45x80x100 -20°C…+70°C 89%

85..264 VAC

110..300 VDC

52.5x80x100

-20°C…+70°C 85%

85..264 VAC

110..300 VDC

52.5x80x100

-20°C…+70°C 87%

96 85..264 VAC

110..300 VDC

52.5x80x100

-20°C…+70°C 88%

Auto

Restart

Auto

Restart

Auto

Restart

Auto

Restart

Auto

Restart

Auto

Restart

Auto

Restart

CE, cULus, cCSAus,

ATEX, Class I

Div 2 GL, ABS,

NEC Class 2

6EP1331-5BA00

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL ABS

6EP1321-5BA00

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL, ABS,

NEC Class 2

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL, ABS,

NEC Class 2

6EP1331-5BA10

6EP1332-5BA00

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL, ABS

6EP1322-5BA10

CE, cULus, cCSAus,

ATEX, NEC

Class 2, GL,

ABS, Class I

Div 2

CE, cULus, cCSAus,

ATEX, Class I

Div 2, GL, ABS

6EP1332-5BA20

6EP1332-5BA10

Siemens Industry, Inc.

Industrial Controls Catalog

15/13

SITOP Power Supplies

Basic, Single Phase Switched-Mode Technology

SITOP Lite: Low-cost basic power supply

Overview

This new range of power supplies is designed for standard requirements in industrial environments and offers all important functions at a favorable price, of course without compromising quality and the proverbial SITOP reliability. The wide range input with manual switchover supports connection to a wide range of

1-phase supply systems.

Thanks to the narrow width, the primary switched-mode units require little space on the DIN rail, and the good efficiency results in low thermal losses in the control cabinet. Short-circuit and overload protection as well as UL approval for export ensure problem- free use.

n

24 VDC/ 2.5A, 5A,10A for industrial applications with standard requirements n

1-phase wide-range input with manual switch-over n

Narrow mounting width n

High degree of efficiency n

Parallel connection possible n

Ambient temperature range of 0…+60°C

(above +45°C with derating)

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

24 2.5

60 85..132/ VAC

170…264 VAC

(manual switch)

32.5x125x125 0°C…+60°C 85% Constant

Current

CE, cULus

6EP1332-1LB00

24 5 120 85..132/ VAC

170…264 VAC

(manual switch)

50x125x125 0°C…+60°C 86% Constant

Current

CE, cULus

6EP1333-1LB00

24 10 240 85..132/ VAC

170…264 VAC

(manual switch)

70x125x125 0°C…+60°C 90% Constant

Current

CE, cULus

6EP1334-1LB00

15/14

Siemens Industry, Inc.

Industrial Controls Catalog

Overview

This attractively priced regulated power supplies can be screwed directly onto the wall. The rugged aluminum enclosure with IP20 degree of protection can be variably mounted in different positions, even in applications with high temperatures and high shock and vibration requirements.

SITOP Power Supplies

Basic, Single Phase Switched-Mode Technology

SITOP Direct Mount:

Cost-effective power supply for wall mounting

The wide-range input enables connectivity to the most diverse supply networks worldwide and ensures reliable 12 V DC or 24

V DC supply even if there are large voltage fluctuations. Short circuit and overload protection as well as international certifications ensure problem free and universal use.

n

Wall mounting for variable mounting positions n

Aluminum, IP 20 enclosure n

High shock and vibration resistance for harsh environments n

1 phase wide-range input 85..264 VAC n

UL 508 rated

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

12 3

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

36 85..264 VAC 97x98x38 -10°C…+70°C 84% Auto

Restart

CE, cULus, cURus

6EP1321-1LD00

24 2.1

50 85..264 VAC 97x128x38 -10°C…+70°C 86% Auto

Restart

CE, cULus, cURus

6EP1331-1LD00

24 3.1

74 85..264 VAC 97x128x38 -10°C…+70°C 86% Auto

Restart

CE, cULus, cURus

6EP1332-1LD00

12 8.3

100 85..264 VAC 97x158x38 -10°C…+70°C 84% Auto

Restart

CE, cULus, cURus

6EP1322-1LD00

24 4.1

98 85..264 VAC 97x158x38 -10°C…+70°C 86% Auto

Restart

CE, cULus, cURus

6EP1332-1LD10

24 6.2

149 85..264 VAC 97x178x38 -10°C…+70°C 86% Auto

Restart

CE, cULus, cURus

6EP1333-1LD00

24 12.5

300 85..264 VAC 105x199x38 -10°C…+70°C 86% Auto

Restart

CE, cULus, cURus

6EP1334-1LD00

Siemens Industry, Inc.

Industrial Controls Catalog

15/15

SITOP Power Supplies

Standard, Single Phase Switched-Mode Technology

SITOP Smart:

The powerful standard power supply

Overview

SITOP smart is the optimum power supply for standard applications in 12 VDC or 24 VDC. They offer compact dimensions, a strong performance, and a favorable price.

Despite its compactness it offers an outstanding overload withstand capability. Thanks to the extra power feature with

1.5 times the rated current for 5 seconds, even large loads can be switched on without any problems. With a continuous rated power of 120 percent, the slim power supply units are among the most reliable of their kind. Numerous certifications facilitate the universal and global use and permit their use in hazardous areas.

n

Output voltages in 12 VDC or 24 VDC n

All 24 VDC units feature 120% continuous overload at

45°C or less n

All units with extra power of 1.5x rated current for 5s/min n

All 12 VDC and 24 VDC units (except the Wallmount variation) feature automatic input range detection and an integrated relay contact n

SITOP Smart Wallmount 24V/10 A version for applications that require high shock and vibration

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

24 2.5

3 (to 45°C)

60 85..132/ VAC

170…264 VAC

(automatic switch

32.5x125x125 -10°C…+70°C 85% Constant

Current

CE, cULus,

ATEX, GL,

Class I Div 2

6EP1332-2BA20

24 5

6 (to 45°C)

120 85..132/ VAC

170…264 VAC

(automatic switch

50x125x125 -10°C…+70°C 88% Constant

Current

CE, cULus,

ATEX, GL,

Class I Div 2

6EP1333-2BA20

12 7 84 85..132/ VAC

170…264 VAC

(automatic switch

50x125x125 -10°C…+70°C 84% Constant

Current

CE, cULus,

ATEX, GL,

Class I Div 2

6EP1322-2BA00

24 10

12 (to 45°C)

240 85..132/ VAC

170…264 VAC

(automatic switch

70x125x125 -10°C…+70°C 87% Constant

Current

CE, cULus,

ATEX, GL,

Class I Div 2

6EP1334-2BA20

12 14 168 85..132/ VAC

170…264 VAC

(automatic switch

70x125x125 -10°C…+70°C 87% Constant

Current

CE, cULus,

ATEX, GL,

Class I Div 2

6EP1323-2BA00

24 10

12 (to 45°C)

240 85..132/ VAC

170…264 VAC

(automatic switch

70x125x125 0°C…+60°C 90% Constant

Current

CE, UL, CSA,

ATEX, GL,

Class I Div 2

6EP1334-2AA01-

0AB0

24 20

24 (to 45°C)

480 85..132/ VAC

170…264 VAC

(automatic switch

115x145x150 0°C…+70°C 90% Auto

Restart

CE, UL, CSA,

ATEX, GL,

Class I Div 2

6EP1336-2BA10

15/16

Siemens Industry, Inc.

Industrial Controls Catalog

SITOP Power Supplies

Standard, Single Phase Switched-Mode Technology

SITOP Modular: The technology power supply for demanding solutions

Overview

SITOP modular fulfills the highest functionality requirements, e.g. for use in complex plants and machines. The wide-range input allows a connection to almost any electrical power system worldwide and ensures a high degree of safety even if there are large voltage fluctuations. The power boost provides up to three times the rated current for brief periods. In the event of an overload, you have two options: Constant current with automatic restart or latching shutdown. The newly innovated PSU100M features a DC input voltages and an integrated signaling contact.

n

SITOP Modular 5A and 10A feature extra wide input voltage range for uses on either 1-phase or 3-phase networks in one unit n

SITOP Modular PSU100M 24V/20A features integrated relay contact, DC input voltage range, and high efficiency of 93% n

All units feature power boost of 3x rated current for 25ms n

Load sharing functionality makes this the ideal product for use with power security add-ons (e.g. Redundancy

Modules)

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

24 5

24 10

24 20

Power

(W)

Rated

Input

Voltage

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

120 85..264 VAC/

176..550 VAC

(manual switch)

70x125x125 -25°C…+70°C 87%

240 85..264 VAC/

176..550 VAC

(manual switch)

90x125x125 -25°C…+70°C 87%

480 85..275 VAC

88..350 VDC

90x125x125 -25°C…+70°C 93%

Constant

Current or

Latching

Shutdown

CE, cULus,

GL, ABS,

ATEX, Class

I Div 2, SEMI

F47

1)

6EP1333-3BA00

Constant

Current or

Latching

Shutdown

CE, cULus,

GL, ABS,

ATEX, Class

I Div 2, SEMI

F47 1)

6EP1334-3BA00

Constant

Current or

Latching

Shutdown

CE, cULus,

GL, ABS,

ATEX, Class I

Div 2

6EP1336-3BA10

24 20

24 40

480 85..132/ VAC

176…264 VAC

(manual switch)

160x125x125 0°C…+70°C 89% Constant

Current or

Latching

Shutdown

CE, cULus,

GL, ABS,

ATEX

6EP1336-3BA00

960 85..132/ VAC

176…264 VAC

(manual switch)

240x125x125 0°C…+70°C 88% Constant

Current or

Latching

Shutdown

CE, cULus,

ATEX

6EP1337-3BA00

1)

At input voltage 208 to 230 VAC

Siemens Industry, Inc.

Industrial Controls Catalog

15/17

SITOP Power Supplies

Standard, Three Phase Switched-Mode Technology

SITOP Smart:

The powerful standard power supply

Overview

SITOP smart is the optimum power supply for many applications in 24 VDC. They offer compact dimensions, a strong performance, and a favorable price. Despite its compactness it offers an outstanding overload withstand capability.

Thanks to the extra power feature with 1.5 times the rated current for 5 seconds, even large loads can be switched on without any problems. With a continuous rated power of 120 percent, the slim power supply units are among the most reliable of their kind. Numerous certifications facilitate the universal and global use and permit their use in hazardous areas.

n

Output voltages in 24 VDC n

All units feature 120% continuous overload at

45°C or less.

n

All units feature extra power of 1.5x rated current for 5s/min n

All units with built-in signaling contact for

“24 V DC ok” n

Robust metal housing and metal DIN rail clip n

Expandable with power security add-on components

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

Smart Family

24 10 240

Dimensions

(WxHxD) mm

Ambient

Temperature

340…550 V 3 AC 90x145x150 0°C…+70°C

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

91% Auto

Restart

CE, cULus,

ATEX, Class I

Div 2, GL

6EP1434-2BA10

24 20 480 340…550 V 3 AC 90x145x150 0°C…+70°C 91% Auto

Restart

CE, cULus,

ATEX, Class I

Div 2, GL

6EP1436-2BA10

24 40 960 340…550 V 3 AC 150x145x150 0°C…+70°C 91.5% Auto

Restart

CE, cULus,

ATEX, Class I

Div 2, GL

6EP1437-2BA20

15/18

Siemens Industry, Inc.

Industrial Controls Catalog

SITOP Power Supplies

Standard, Three Phase Switched-Mode Technology

SITOP Modular: The technology power supply for demanding solutions

Overview

SITOP modular fulfills the highest functionality requirements,e.g. for use in complex plants and machines.

The wide-range input allows a connection to almost any electrical power system worldwide and ensures a high degree of safety even if there are large voltage fluctuations.

The power boost provides up to three times the rated current for brief periods. In the event of an overload, you have two options: Constant current with automatic restart or latching shutdown. The newly innovated PSU300M features a DC input voltages and an integrated signaling contact.

n

SITOP Modular 5A and 10A feature extra wide input voltage range for uses on either 1-phase or 3-phase networks in one unit n

Output voltages in 24 VDC and 48 VDC n

SITOP Modular PSU300M 24V/20A, 24V/40A, 48V/10A features integrated relay contact, extra power of 1.5x rated current, and high efficiency of 93% n

All units feature power boost of 3x rated current for 25ms n

Robust metal housing and metal DIN Rail clip n

Load sharing functionality makes this the ideal product for use with power security add-ons (e.g. Redundancy

Modules)

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

Modular Family

24 5 120 85..264 VAC/

176..550 VAC

(manual switch)

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

70x125x125 -25°C…+70°C 87%

24

24

48

24

10

20

10

20

240

480

480

480

85..264 VAC/

176..550 VAC

(manual switch)

90x125x125 -25°C…+70°C 87%

320…575 V 3 AC 70x125x125 -25°C…+70°C 93%

320…575 V 3 AC 70x125x125 -10°C…+70°C 93%

340...550 V 3 AC 160x125x125 0°C…+70°C 90%

Contant

Current or latching shutdown

CE, cULus,

GL, ABS,

ATEX, Class

I Div 2, SEMI

F471)

Contant

Current or latching shutdown

Contant

Current or latching shutdown

Constant

Current or

Latching

Shutdown

CE, cULus,

GL, ABS,

ATEX, Class

I Div 2, SEMI

F471)

CE, cULus,

GL, ABS,

SEMI F47,

ATEX, Class I

Div 2

CE, cULus,

GL, ABS,

ATEX, Class I

Div 2

6EP1333-3BA00

6EP1334-3BA00

6EP1436-3BA10

6EP1456-3BA00

Auto

Restart

CE, UL, CSA,

GL, ABS,

SEMI F47

6EP1436-3BA00

24 40 960 320...550 V 3 AC 150x125x150 -25°C…+70°C 93%

24 40 960 340…550 V 3 AC 240x125x125 0°C…+70°C 90%

Auto

Restart

Auto

Restart

CE, UL, CSA,

GL, ABS,

SEMI F47,

ATEX, Class I

Div 2

CE, UL, CSA,

SEMI F47

6EP1437-3BA10

6EP1437-3BA00

48 20

1)

At input voltage 208 to 230 VAC

960 340…550 V 3 AC 240x125x125 0°C…+60°C 90% Auto

Restart

CE, UL, CSA,

GL, ABS

6EP1457-3BA00

Siemens Industry, Inc.

Industrial Controls Catalog

15/19

SITOP Power Supplies

Three Phase Power Supplies in Special Design

SITOP in Special Design:

Well prepared for special tasks and conditions

Revised

08/01/14

Overview

SITOP PSU300E: three-phase power supply with low output and removable plug-in terminals.

n

Sturdy metal enclosure is only 42 mm wide and does not require mounting distances on the sides to other devices n

Low heat generation due to the high efficiency level of 90% n

The wide input range of 320 V to 550 V 3AC allows for mains buffering times of 50 ms, thus enabling use in unstable three-phase systems n

Removable plug-in terminals simplify the connection to

AC and DC n

An LED and an integrated “DC 24 V OK” signaling contact indicate the status of the output voltage n

Output voltage can be adjusted from 24 V to 29 V

SITOP PSU300B: three-phase power supply optimized for battery charging n

Available in output in 12 VDC and 24 VDC output voltages n

High efficiencies up to 93% n

Slim, compact design without the need for lateral mounting clearance n

Constant current characteristic makes them optimal for battery charging n

Wide range input for voltages 3AC 320 to 575 V allow for use in traditional three-phase applications

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

PSU300E Family

24 5 120

Dimensions

(WxHxD) mm

Ambient

Temperature

320…575 V 3 AC 42x125x125 0°C…+60°C

Efficiency Short

Circuit

Protection

Certificates

Approvals

Order No.

90% Auto

Restart

CE, cULus,

ATEX, cCSAus

Class I Div

2, GL

6EP1433-0AA00

PSU300B Family

12 20 240 320…575 V 3 AC 70x125x125 -25°C…+60°C 86%

24

24

17

30

408 320…575 V 3 AC 70x125x125 -25°C…+70°C 93%

720 320…575 V 3 AC 150x125x125 -25°C…+70°C 93%

Contant

Current or latching shutdown

CE, cULus

Contant

Current or latching shutdown

CE (cULus pending)

Contant

Current or latching shutdown

CE, cULus

6EP1424-3BA00

6EP1436-3BA20

6EP1437-3BA20

15/20

Siemens Industry, Inc.

Industrial Controls Catalog

SITOP Power Supplies

Single Phase Power Supplies in Special Design

SITOP in Special Design:

Well prepared for special tasks and conditions

Overview

SIMATIC Design:

n

The original SIMATIC power supplies merge perfectly into the PLC network in terms of their design and functionality.

n

SIMATIC S7-200: this flat power supply unit is also used for low installation depths n

SIMATIC S7-1200: the compact PM1207 power module supplies power to the S7-1200 micro PLC.

n

SIMATIC S7-300: these innovative power supplies feature automatic switchover on 120/230 VAC networks and a slimmer design than older versions of the PS307 n

SIMATIC S7-1500: the compact PM1507 power modules supply power to the newly released, SIMATIC S7-1500 PLC

Other Types:

n

DC/DC Converter: features a narrow DIN rail housing and needs a 24 V DC input voltage - it can also be used in conjuction with a DC UPS to provided an uninterruptible 12 VDC.

n

Dual: the electronics power supply for the control cabinet; the industry-standard rail mounted device has two 15 VDC outputs for loads that may require ±15 V DC n

Flexi: limitless diversity thanks to variable output. Allows flexible adjustment between 3 and 52 VDC so just one standard power supply can be used for different voltages n

PSU400M: compact DC/DC converter with wide DC input voltage range from 200 to 900 VDC. Ideally suited for use with frequency-controlled drive systems

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

SIMATIC Design

SIMATIC S7-200 24 3.5

84 85..132 V AC/

176..264 VAC

(auto switch)

Dimensions

(WxHxD) mm

160x80x62

Ambient

Temperature

Efficiency Certificates

Approvals

0°C…+60°C 84% CE, cULus

Order No.

6EP1332-1SH31

SIMATIC S7-1200

SIMATIC S7-300

SIMATIC S7-1500

SIMATIC S7-1500

24

24

24

24

24

24

2.5

2

5

10

3

8

60

48

120

240

72

192

85..132 V AC/

176..264 VAC

(auto switch)

85..132 V AC/

170..264 VAC

(auto switch)

85..132 V AC/

170..264 VAC

(auto switch)

85..132 V AC/

170..264 VAC

(auto switch)

85..132 V AC/

176..264 VAC

(auto switch)

85..132 V AC/

176..264 VAC

(auto switch)

70x100x75 0°C…+60°C 83%

40x125x120 0°C…+60°C 84%

60x125x120 0°C…+60°C 86%

80x125x120 0°C…+60°C 90%

50x141x135 0°C…+60°C 87%

75x147x135 0°C…+60°C 91%

CE, cULus,

ATEX, cCSAus

Class I Div 2,

GL, ABS

6EP1332-1SH71

CE, cULus,

ATEX, cULus

Class I Div 2,

GL, ABS

CE, cULus,

ATEX, cULus

Class I Div 2,

GL, ABS

CE, cULus,

ATEX, cULus

Class I Div 2,

GL, ABS

CE, cULus, FM,

ATEX, pending: cULus Class I

Div 2, GL, ABS

6ES7307-1BA01-

0AA0

6ES7307-1EA01-

0AA0

6ES7307-1KA02-

0AA0

6EP1332-4BA00

CE, cULus, FM,

ATEX, pending: cULus Class I

Div 2, GL, ABS

6EP1333-4BA00

Other Types

DC/DC 12 2.5

30 24 VDC

(18.5..30.2 V DC)

32.5x125x125 0°C…+60°C 80% CE, cULus

6EP1621-2BA00

Dual 2x15 3.5

105 93..264 V AC 75x125x125 0°C…+60°C 80% CE

6EP1353-0AA00

Flexi

PSU400M

Siemens Industry, Inc.

Industrial Controls Catalog

3.52

10

24 20 max

120W

85..132 V AC/

170…264 V AC

75x125x125 0°C…+60°C 84%

480 200…900 V DC

(start-up from

400 V DC)

90x125x125 -25°C…

+70°C

95%

CE, cULus

6EP1353-2BA00

CE, cULus, GL

(ABS pending)

6EP1536-3AA00

15/21

SITOP Power Supplies

Power Security Add-On Modules

SITOP Expansion Modules

Overview

A power supply unit on its own cannot guarantee a fault-free

24 V DC supply. Power failures, extreme variations in the mains voltage, or a faulty load can bring plant operation to a standstill and cause high costs. The expansion modules offer everything from extensive protection against interference on the primary and secondary side right up to complete all-round protection. n

Signaling Module: Module for snapping onto the side of the basic unit SITOP modular (6EP1x3x-3BA00, 6EP1457-

3BA00); automatic contacting, with floating signaling contacts for “Output voltage o.k.” and “Operating readiness o.k.”; with signal input for switching the basic unit ON/OFF remotely.

n

Buffer Module: Module for mains buffering; parallel connection at output of 24 V basic units (6EP1x3x-3BAxx); buffering time 200 ms at 40 A to 1.6 s at 5 A load current; multiplication possible through parallel connection; maximum buffer time 10 s.

n

Redundancy Module: Module for redundancy mode.

Floating relay contact and green LED for signaling “Infeed 1 and 2 o.k.”, switching threshold adjustable between 20 to

25 V DC.

n

Selectivity/Select Diagnosis Module: Module for distributing the 24 V DC supply over up to four load circuits and their monitoring for overload; selective shutdown of faulty

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Power

(W)

Rated

Input

Voltage

SITOP Expansion Modules

Signaling N/A N/A 84 Contact

Rating:

240 V AC/ 6 A

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Certificates

Approvals

25x125x125 0…+60°C N/A CE, UL,

CSA

Notes Order No.

6EP1961-3BA10

Buffer

Redundancy 24

Redundancy 24

Selectivity

24

24

24

24

Select Diagnosis 12

40

10*

3.5*

40*

60 24 V DC

(24..28.8 VDC)

70x125x125 0…+60°C N/A

48 24 V DC

(19..29 VDC)

30x80x100 -20°…+60°C 97%

120 24 V DC

(19..29 VDC)

30x80x100 -20°…+60°C 95%

240 24 V DC

(24..28.8 VDC)

70x125x125 0…+60°C 97%

4 x 3A

(0.5A…3A)

72 24 V DC

(22...30 VDC)

72x80x72 0…+60°C 97%

4 x 10 A

(3A...10 A)

192 24 V DC

(22...30 VDC)

72x80x72 0…+60°C 97%

4 x 10 A

(2A...10 A)

30 24 V DC

(22...30 VDC)

72x90x90 0…+60°C 97%

CE, UL,

CSA, GL,

ABS, ATEX,

Class I Div 2

6EP1961-3BA01

CE, cULus Decouple of 2

5 A or one 10A power supply per redundancy module

6EP1964-2BA00

CE, cULus,

NEC Class 2

CE, cULus, cCSAus

Class I Div 2,

ATEX, GL,

ABS

Decoupling and limitation of the output to Class

2 limit (100 W) of

2 power supplies

5 to 40.

6EP1962-2BA00

Decouple of

2 5 to 20 A or one 40A power supply per redundancy module

6EP1961-3BA21

CE, UL, cURus, cCSAus

Class I Div 2,

ATEX, GL

(ABS pending)

CE, UL, cURus, cCSAus

Class I Div 2,

ATEX, GL

(ABS pending)

Individual load circuits can be switched on sequentially.

Status indication via 3-color LED per channel; remote reset with 24 V signal and reset via pushbutton per channel; common signaling contact

CE, UL, cURus, cCSAus

Class I Div 2,

ATEX

Status indication via 2-color LED per channel; common reset via pushbutton, plug-in fuse per channel; status indication via 3-color LED per channel; common signaling contact.

6EP1961-2BA11

6EP1961-2BA31**

6EP1961-2BA21

6EP1961-2BA41**

6EP1961-2BA00

*Total Current

**With single channel signaling for individual channel specific analyses

15/22

Siemens Industry, Inc.

Industrial Controls Catalog

SITOP Power Supplies

DC Uninterruptible Power Supplies

DC UPS with Battery Back-up

Overview

Reliable 24 VDC at all times, even when power fails

Compact DC UPS modules ensure continued operation, even over a period of hours, depending on battery capacity and power requirements. The sophisticated battery management ensures optimal charging of the batteries – and means that the unit is always reliably available for buffering. The active battery test function even checks the age of the battery. This means that precautionary replacement of the battery isn’t necessary

–a substantial cost saving for your plant. All relevant messages are output via floating contacts,or optionally via a serial interface or USB port.

n

DC UPS Modules 6A, 15A, and 40 A n

Maintenance-free battery modules up to 12 Ah n

Monitoring of operational readiness, battery feeder, aging, and charging status n

Extended life of loads and batteries due to built-in intelligent battery management n

Uninterrupted transition into buffer mode

Selection and ordering data

Output

Voltage

(V DC)

Output

Current

(A)

Storage Rated

Input

Voltage

DC UPS Module 24

24

DC UPS Module 24

6

15

40

Depends on battery

24 V DC

(22…29 V DC)

Depends on battery

24 V DC

(22…29 V DC)

Depends on battery

24 V DC

(22…29 V DC)

Dimensions

(WxHxD) mm

50x125x125

50x125x125

Ambient

Temperature

Efficiency Short-

Circuit

Protection

Certificates

Approvals

-25°…+60°C 94%

-25°…+60°C 96%

102x125x125 -25°…+60°C 97%

Order No.

Auto

Restart

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

6EP1931-2DC21

6EP1931-2DC31*

6EP1931-2DC42**

Auto

Restart

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

Auto

Restart

CE, cULus,

ATEX; cCSAus

Class I Div 2,

GL, ABS

6EP1931-2EC21

6EP1931-2EC31*

6EP1931-2EC42**

6EP1931-2FC21

6EP1931-2FC42**

DC UPS Battery 24 6 1.2 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

96x106x108 -10°…+50°C N/A Installed

Fuse

7.5 A/ 32 V

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

6EP1935-6MC01

DC UPS Battery 24 15

DC UPS Battery 24 30

DC UPS Battery 24 30

DC UPS Battery 24 15

3.2 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

190x151x82 -10°…+50°C N/A Installed

Fuse

15 A/ 32 V

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

6EP1935-6MD11

7 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

186x168x121 -10°…+50°C N/A Installed

Fuse

30 A/ 32 V

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

6EP1935-6EM21

12 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

253x168x121 -10°…+50°C N/A Installed

Fuse

30 A/ 32 V

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

6EP1935-6MF01

2.5 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

265x151x91 -40°…+60°C N/A Installed

Fuse

15 A/ 32 V

CE, cULus,

ATEX; Class I

Div 2, GL, ABS

6EP1935-6MD31

EOC = End of Charge

Siemens Industry, Inc.

Industrial Controls Catalog

*With Serial Interface

**With USB Interface

15/23

SITOP Power Supplies

DC Uninterruptible Power Supplies

DC UPS with Battery and Capacitor Back-up

Overview

UPS 1600/1100 System with Ethernet/PROFINET Interface

New UPS1600 now offers all of the same functionality as older

DC UPS system with even more possibilities for diagnostics and system integration. The UPS 1600 offers comprehensive functions, open communication via USB or Ethernet/PROFINET, and remote monitoring with integrated web server functionality. With conjunction with the UPS1100 battery modules, the system automatically detects the type of battery and charges it at the optimal, temperature-controlled charging characteristics.

n

DC UPS 1600 Modules in 24VDC/ 10 A or 20 A n

DC UPS 1100 Modules up to 7 Ah n

Increased diagnostics with Ethernet/PROFINET interface and integrated webserver

Selection and ordering data

24 V DC UPS with maintenance-free capacitor back-up

These highly-capacitive double-layer capacitors store sufficient energy to shut down PC-based systems safely. The capacitors have an extremely long life even at high ambient temperatures.

No maintenance or replacement of the energy buffer is required, which means that the DC UPS pays for itself within a short time.

And because the capacitors do not emit any gas, no ventilation of the control cabinet is required. The buffering time can be extended by adding expansion modules .

n

SITOP UPS500S 15A up to 20 kWS with expansion modules n

Capacitors eliminate replacement of batteries n

Long life even at high ambient temperatures

Output

Voltage

(V DC)

Output

Current

(A)

Storage Rated

Input

Voltage

Dimensions

(WxHxD) mm

Ambient

Temperature

Efficiency Short-

Circuit

Protection

Certificates

Approvals

Order No.

DC UPS

1600 Module

1)

24

24

DC UPS

1100 Battery

1)

24

10

20

10

Depends on battery

24 VDC

(21…29 VDC)

50x125x125

Depends on battery

24 VDC

(21…29 VDC)

50x125x125

1.2 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

89x130x107

-25°…+70°C 97.3% Auto

Restart

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP4134-3AB00-0AY0

6EP4134-3AB00-1AY0**

6EP4134-3AB00-2AY0***

-25°…+70°C 97.5%

-10°…+50°C N/A

Auto

Restart

Installed

Fuse

15 A/32 V

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP4136-3AB00-0AY0

6EP4136-3AB00-1AY0**

6EP4136-3AB00-2AY0***

6EP4131-0GB00-0AY0

DC UPS

1100 Battery

1)

24 20 3.2 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

190x169x79.5

-10°…+50°C N/A Installed

Fuse

25 A/32 V

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP4133-0GB00-0AY0

DC UPS

1100 Battery

1)

24 40 7 Ah EOC (> +20°C)

26.4..27.3 VDC

EOC (<+20°C)

27.3..29.0 VDC)

186x186x110.5 -10°…+50°C N/A Installed

Fuse

2 x 25A

A/32 V

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP4134-0GB00-0AY0

DC UPS

Capacitor

Module

DC UPS

Capacitor

Expansion

24

24

N/A

15

15

N/A

2. 5 kWs

24 VDC

(22..29 VDC) infeed from 24

VDC SITOP

120x125x125 0…+60°C

5 kWs 24 VDC

(22..29 VDC) infeed from 24

VDC SITOP

120x125x125 0…+60°C

5 kWs Infeed from

2.5 kWs or

5 kWs basic unit

70x125x125 0…+60°C

97.5% Auto

Restart

97.5% Auto

Restart

N/A Auto

Restart

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP1933-2EC41

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP1933-2EC51

CE, cULus,

ATEX; Class

I Div 2, GL,

ABS

6EP1935-5PG01

EOC = End of Charge

15/24

1)

To be released Q1 2014 **With USB Interface ***With Ethernet/PROFINET Interface

Siemens Industry, Inc.

Industrial Controls Catalog

SITOP Power Supplies

DC Uninterruptible Power Supplies

Back-Up Times

Overview

6EP1935-

6MC01

1.2 Ah

14A

16A

20A

25A

6A

8A

10A

12A

1A

34.5 min

2A

15.5 min

3A

4A

9 min

6.5 min

3.5 min

30A

6EP1935-

6MD11

3.2 Ah

2.6 h

1 h

39.3 min

27.1 min

17.5 min

12.1 min

9 min

6EP1935-

6EM21

7 Ah

5.4 h

2.6 h

1.6 h

1.2 h

41 min

28.6 min

21.8 min

17.3 min

15.1 min

12.5 min

9.1 min

6EP1935-

6MF01

12 Ah

9 h

4.6 h

2.9 h

2.2 h

1.2 h

53.3 min

43.5 min

33.3 min

27.5 min

23.8 min

20.1 min

12.6 min

9.1 min

6EP1935-

6MD31

2.5 Ah

2 h

1 h

37.5 min

27 min

17.6 min

12.5 min

8.8 min

6.8 min

5.1 min

4.3 min

6EP4131-

0GB00-0AY0

1.2 Ah

24.5 min

15.5 min

9 min

6.5 min

3.5 min

2 min

1 min

6EP4133-

0GB00-0AY0

3.2 Ah

2.6 h

1 h

39.3 min

27.1 min

17.5 min

12.1 min

9 min

7 min

5 min

4 min

1 min

6EP4134-

0GB00-0AY0

7 Ah

5.4 h

2.6 h

1.6 h

1.2 h

41 min

28.6 min

21.8 min

17.3 min

15.1 min

12.5 min

9.1 min

6EP1933-

2EC41

6EP1933-

2EC51

6EP1935-5PG01

Basic Units

Expansion modules

Combined

Energy Storage at load current

Charging Times at load current

7 A

8 A

10

12

15

2A

3A

4 A

5 A

6 A

0.5

0.8

1A

2 A

1 A

2.5 kWs

2.5 kWs

15 s

12 s

10 s

8 s

6 s

4 s

3 s

134 s

90 s

75 s

38 s

26 s

19 s

54 s

110 s

5 kWs

5 kWs

31 s

26 s

21 s

18 s

15 s

12 s

9 s

236 s

167 s

138 s

76 s

52 s

39 s

120 s

205 s

2.5 kWs

1 x 5 kWs

7.5 kWs

49 s

40 s

34 s

29 s

23 s

19 s

14 s

390 s

266 s

219 s

122 s

82 s

61 s

158 s

311 s

5 kWs

1 x 5 kWs

Please use the SITOP Selection Tool for more detailed back-up time information www.siemens.com/sitop-selection-tool

10 kWs

65 s

55 s

47 s

40 s

32 s

26 s

20 s

478 s

346 s

296 s

156 s

106 s

81 s

223 s

425 s

2.5 kWs

2 x 5 kWs

12.5 kWs

81 s

67 s

58 s

50 s

39 s

32 s

25 s

632 s

440 s

365 s

203 s

136 s

101 s

263 s

503 s

5 kWs

2 x 5 kWs

15 kWs

95 s

80 s

69 s

59 s

47 s

38 s

30 s

748 s

527 s

414 s

230 s

159 s

120 s

318 s

625 s

Siemens Industry, Inc.

Industrial Controls Catalog

2.5 kWs

3 x 5 kWs

17.5 kWs

111 s

94 s

81 s

69 s

54 s

44 s

35 s

851 s

580 s

490 s

265 s

186 s

139 s

355 s

695 s

5 kWs

3 x 5 kWs

20 kWs

1007 s

706 s

572 s

306 s

213 s

160 s

130 s

106 s

82 s

79 s

62 s

52 s

40 s

417 s

816 s

15/25

SIMATIC Net

Ethernet Infrastructure Components

Scalance Unmanaged Switches Ordering Data Order No.

XB005 (5 RJ45 ports)

XB008 (8 RJ45 ports)

6GK5005-0GA00-1AB2

6GK5008-0BA00-1AB2

Scalance Unmanaged Industrial Ethernet Switches

The SCALANCE unmanaged Industrial Ethernet switch with up to eight RJ45 10/100 Mbit/s ports. These products provide a costoptimized solution for the design of small star or line structures with switching functionality in isolated machines or plant sections. These

SCALANCE switches are designed for space saving installation on standard DIN rail and include a removable terminal block for the 24

VDC power connection.

Scalance Managed Switches

15/26

Ordering Data Order No.

XB208 (8 RJ45 ports)

6GK5208-0BA00-2AA3

Scalance Managed Industrial Ethernet Switches

The SCALANCE managed Industrial Ethernet switch is offered with on-site diagnostics via LEDs. The unit can be included in network management systems via SNMP. SCALANCE X-208 switch has an integrated redundant ring manager. The SCALANCE X-208 product has a redundant voltage supply (2 x 24 V DC) and a fault-signaling contact on the front of the housing. For diagnostics purposes the unit can also be accessed via a Web Browser.

Ordering Data Order No.

IE FC RJ45 Plug 90 deg - 1 unit

IE FC RJ45 Plug 90 deg - 10 units

IE FC RJ45 Plug 90 deg - 50 units

IE FC RJ45 Plug 180 deg - 1 unit

IE FC RJ45 Plug 180 deg - 10 unit

IE FC RJ45 Plug 180 deg - 50 unit

6GK19011BB202AA0

6GK19011BB202AB0

6GK19011BB202AE0

6GK19011BB102AA0

6GK19011BB102AB0

6GK19011BB102AE0

Industrial Ethernet FastConnect RJ45 Plugs

The compact and rugged design of the plug-in connectors allow the

FC RJ45 Plugs to be used in the industrial environment.

IE FC Stripping Tool

IE FC Blade Cassettes ( 5pack)

6GK19011GA00

6GK19011GB01

Industrial Ethernet FastConnect Stripping Tool

Preadjusted stripping tool for fast stripping of Industrial Ethernet

FC cables.

IE TP RJ45/RJ45 CAT 5e Cable - 0.5 m

6XV18502GE50

IE TP RJ45/RJ45 CAT 5e Cable - 1 m

6XV18502GH10

IE TP RJ45/RJ45 CAT 5e Cable - 2 m

IE TP RJ45/RJ45 CAT 5e Cable - 6 m

6XV18502GH20

6XV18502GH60

IE TP RJ45/RJ45 CAT 5e Cable - 10 m

6XV18502GN10

Industrial Ethernet Twisted Pair Cables

Premolded Cat5e (2x2) patch cables in pre-assembled lengths from 0.5 - 10m.

Siemens Industry, Inc.

Industrial Controls Catalog

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
