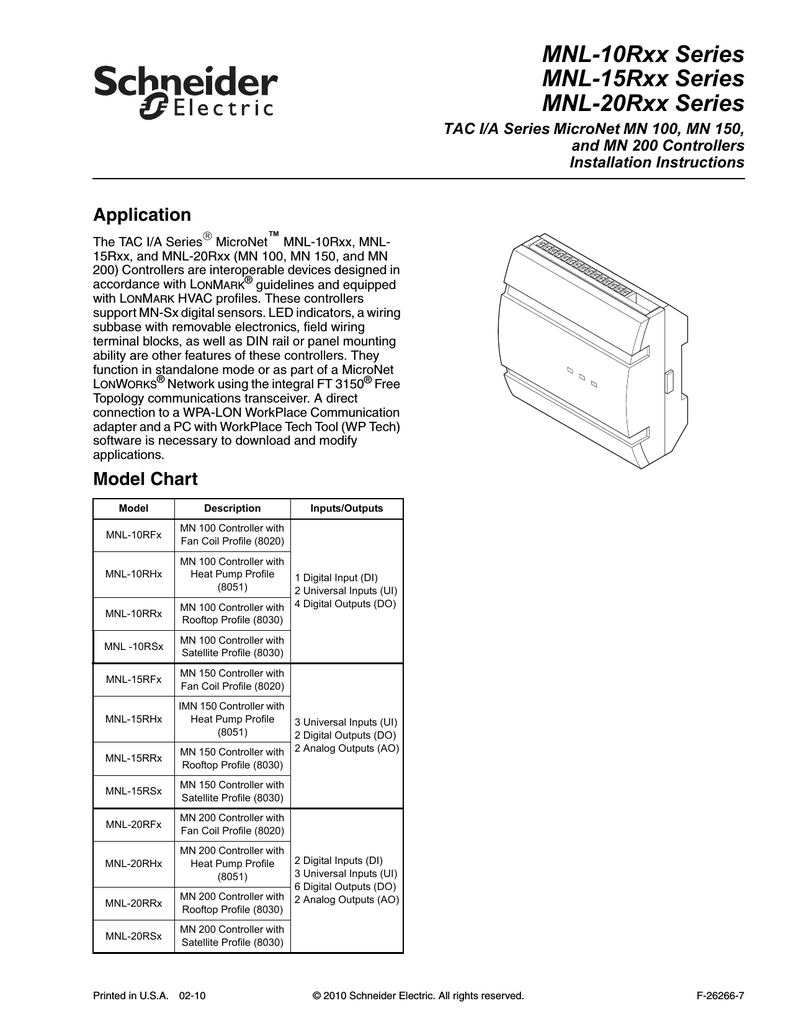

Schneider Electric Micronet MNL-100, MNL-150 and MNL-200 Series Controllers User Guide

MNL-10Rxx Series
MNL-15Rxx Series
MNL-20Rxx Series
TAC I/A Series MicroNet MN 100, MN 150,
and MN 200 Controllers
Installation Instructions
Application
The TAC I/A Series MicroNet™ MNL-10Rxx, MNL15Rxx, and MNL-20Rxx (MN 100, MN 150, and MN
200) Controllers are interoperable devices designed in
accordance with LONMARK® guidelines and equipped
with LONMARK HVAC profiles. These controllers
support MN-Sx digital sensors. LED indicators, a wiring
subbase with removable electronics, field wiring
terminal blocks, as well as DIN rail or panel mounting
ability are other features of these controllers. They
function in standalone mode or as part of a MicroNet
LONWORKS® Network using the integral FT 3150® Free
Topology communications transceiver. A direct
connection to a WPA-LON WorkPlace Communication
adapter and a PC with WorkPlace Tech Tool (WP Tech)
software is necessary to download and modify
applications.
Model Chart
Model
Description
MNL-10RFx
MN 100 Controller with
Fan Coil Profile (8020)
MNL-10RHx
MN 100 Controller with
Heat Pump Profile
(8051)
MNL-10RRx
MN 100 Controller with
Rooftop Profile (8030)
MNL -10RSx
MN 100 Controller with
Satellite Profile (8030)
MNL-15RFx
MN 150 Controller with
Fan Coil Profile (8020)
MNL-15RHx
MNL-15RRx
1 Digital Input (DI)
2 Universal Inputs (UI)
4 Digital Outputs (DO)
IMN 150 Controller with
Heat Pump Profile
3 Universal Inputs (UI)
(8051)
2 Digital Outputs (DO)
MN 150 Controller with 2 Analog Outputs (AO)
Rooftop Profile (8030)
MNL-15RSx
MN 150 Controller with
Satellite Profile (8030)
MNL-20RFx
MN 200 Controller with
Fan Coil Profile (8020)
MNL-20RHx
MN 200 Controller with
Heat Pump Profile
(8051)
MNL-20RRx
MN 200 Controller with
Rooftop Profile (8030)
MNL-20RSx
MN 200 Controller with
Satellite Profile (8030)
Printed in U.S.A.
Inputs/Outputs
02-10
2 Digital Inputs (DI)
3 Universal Inputs (UI)
6 Digital Outputs (DO)
2 Analog Outputs (AO)
© 2010 Schneider Electric. All rights reserved.
F-26266-7
Applicable Documentation
F-Number
Description
Audience
Purpose
F-26277
TAC I/A Series MicroNet
MN-Sx Series Sensors
General Instructions
–
–
–
–
Application Engineers
Installers
Service Personnel
Start-up Technicians
Provides step-by-step installation and checkout procedures for TAC
I/A Series MicroNet MN-Sx Series Sensors. Also contains
instructions for sensor operation.
F-26303
TAC I/A Series MicroNet
System Overview
–
–
–
–
Application engineers
Installers
Start-up technicians
Service personnel
Provides an overview of the TAC I/A Series MicroNet System. It
includes brief descriptions of the hardware and software components,
and how they may be combined to create MicroNet networks and
stand-alone systems.
F-27254
WorkPlace Tech Tool 4.0
Engineering Guide
–
–
–
–
Application Engineers
Installers
Service Personnel
Start-up Technicians
Provides engineering and technical information for applying and
using all aspects of WorkPlace Tech Tool.
F-26507
TAC I/A Series MicroNet
Systems Engineering
Guide
–
–
–
–
Application Engineers
Installers
Service Personnel
Start-up Technicians
Provides engineering and technical information to assist in
designing a complete MicroNet controller system using different
architectures, components, and software.
F-27255
WorkPlace Tech Tool 4.0
User’s Guide
–
–
–
–
Application Engineers
Installers
Service Personnel
Start-up Technicians
Provides step-by-step instructions for using WorkPlace Tech Tool.
F-26363
EN-206 Guidelines for
Powering Multiple FullWave and Half-Wave
Rectifier Devices from a
Common Transformer
– Application Engineers
– Installers
– Service Personnel
Offers guidelines for avoiding equipment damage associated with
improperly wiring devices of varying rectifier types. Contains
instructions for identifying device rectifier type, guidelines for
correctly powering devices of varying rectifier types, and examples
illustrating proper power wiring techniques.
Installation
Inspection
Requirements
(These items not provided)
Inspect carton for damage. If damaged, notify carrier immediately. Inspect controllers for
damage upon receipt.
• Installer must be a qualified, experienced technician.
• Job wiring diagrams
• Tools:
– Drill and bits for panel mounting screws
– Digital Volt-ohm meter (DVM)
– Static protection wrist strap
• MNA-FLO-1 enclosure for connecting to conduit (optional)
• Class 2 power transformer supplying a nominal 24 Vac (20.4 to 30 Vac) with a minimum
rating of 15 Va, 50/60 Hz per controller plus Digital Output (DO) loads (if same
transformer is used). In European Community, transformer must conform to EN 60742
• Terminators:
– One LON-TERM1 terminator required for each free topology segment
– Two LON-TERM2 terminators required for each bus topology segment
• Two #6 pan head panel mounting screws or 35mm DIN rail for mounting
2
© 2010 Schneider Electric. All rights reserved.
F-26266-7
Precautions
General
Warning: Electrical shock hazard! Disconnect power before installing or removing the
cover.
• Follow Static precautions when installing this equipment.
• Use copper conductors that are suitable for 167°F (75°C).
• Make all connections according to electrical wiring diagram, national and local electrical
codes.
Static Precautions
Static charges damage electronic components. The microprocessor and associated circuitry
are extremely sensitive to static discharge. Use the following precautions when installing,
servicing, or operating the system.
• Work in a static-free area.
• Discharge static electricity by touching a known, securely grounded object.
• Use a wrist strap connected to earth ground when handling the controller’s printed
circuit board.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radio frequency energy and may cause harmful
interference if not installed and used in accordance with the instructions. Even when
instructions are followed, there is no guarantee that interference will not occur in a particular
installation. If this equipment causes harmful interference to radio or television reception—
which can be determined by turning the equipment off and on—the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/television technician for help.
Canadian Department of Communications (DOC)
This class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
European Community Directives
This equipment meets all requirements of European Community Directives for Low Voltage
(72/23/EEC), General Safety (92/59/EEC), and Electromagnetic Compatibility
(89/336/EEC).
Location
These controllers are suitable for indoor use only.
Caution:
• Avoid locations where excessive moisture, corrosive fumes, vibration, or explosive
vapors are present.
• Avoid electrical noise interference. Do not install near large contactors, electrical
machinery, or welding equipment.
• Locate where ambient temperatures do not exceed 140°F (60 °C) or fall below -40°F
(-40 °C) and relative humidity does not exceed 95% or fall below 5%, non-condensing.
F-26266-7
© 2010 Schneider Electric. All rights reserved..
3
Mounting
Panel or DIN Rail Mounting
1. Select mounting location. Enclosure mounting is recommended.
2. Do one of the following:
a. Using two #6 pan head screws, mount base of controller to a panel (Figure-1).
b. Snap controller base on a 35mm DIN mounting rail (not provided). Multiple units can
be mounted side by side on a DIN mounting rail.
3. Wire controller base (See Wiring section).
4. After wiring, insert cover tabs into brackets on base of the controller and gently push
until cover snaps into place.
Side View
Base View
4-3/8 (111)
3 (76)
1-13/32
(36)
1-13/32
(36)
2 4-5/16
(51) (109)
2 (51)
Dimensions shown are in inches (mm).
Figure-1 Mounting Dimensions.
4
© 2010 Schneider Electric. All rights reserved.
F-26266-7
Wiring
Review Figures 2, 3, and 4 when making electrical connections to controller.
The following electrical connections can be made to the controllers:
• Sensor Link (S-Link) connection to TAC I/A Series MicroNet Sensor (MN-Sx).
• MicroNet LONWORKS network (LON®) connection.
• I/O connections including Universal Inputs, Digital Inputs (MN 100 and MN 200), Analog
Outputs (MN 150 and MN 200), and Digital Outputs.
• Power connection to a 24 Vac nominal Class 2 power source and earth ground.
Universal Inputs
5 0 to 5 Vdc
0 to 20mA 3
10K Thermistor 6
5
1K Balco
1K Platinum
Digital 1
2
Digital Input 1 4
Dry Contact
Sensor Link
Supports
1 TAC I/A Series MN-Sx
Sensor
LONWORKS Network
Communications
FTT 3150 Transceiver
Ul1
COM
UI2
COM
24H
24G
GND
C1
NO1
C2
NO2
C3
NO3
C4
NO4
COM
DI1
S-LK
S-LK
LON
LON
AC Power
24 Vac, 50/60 Hz
Class 2 (EN 60742)
15 VA per Controller
plus DO load if
same transformer is
used.
Digital Outputs
24 Vac, Class 2,
or 24 Vdc (or less)
24 VA per output
Pilot Duty
Form A (SPST)
Normally Open (NO)
Service Pin Button
LONWORKS Network Jack
1 To detect a closed switch, maximum resistance must be less than 300 ohms .
2 To detect an open switch, minimum resistance must be greater than 1.5K ohms.
3
Applications which use 0 to 20 mA analog inputs require a 250 ohm shunt resistor kit, AD-8969-202.
Install resistor across universal input and common.
4 To detect an open switch, minimum resistance must be greater than 100K ohms.
5 .Input signals of 1 to 11 Vdc must be converted to 0.45 to 5 Vdc with a voltage divider, AD-8961-220.
5 Applications
6
.
which use a 10K Thermistor Sensor (non-850 series) universal input require
an 11K ohm shunt resistor kit, AD-8969-206. Install resistor across universal input and common.
Figure-2 MN 100 Terminal Connections.
F-26266-7
© 2010 Schneider Electric. All rights reserved..
5
Universal Inputs
5 0 to 5 Vdc
0 to 20mA 3
10K Thermistor 6
5
1K Balco
1K Platinum
Digital 1
2
Analog Outputs
0 to 20mA into an
80 to 550Ω load
Sensor Link
Supports
1 TAC I/A Series MN-Sx
Sensor
LONWORKS Network
Communications
FT 3150 Transceiver
Ul1
COM
UI2
COM
UI3
AO2
COM
AO1
24H
24G
GND
C1
NO1
C2
NO2
S-LK
S-LK
LON
LON
AC Power
24 Vac, 50/60 Hz
Class 2 (EN 60742)
15 VA per Controller
plus DO load if
same transformer is
used.
Digital Outputs
24 Vac, Class 2,
or 24 Vdc (or less)
24 VA per output
Pilot Duty
Form A (SPST)
Normally Open (NO)
Service Pin Button
LONWORKS Network Jack
1 To detect a closed switch, maximum resistance must be less than 300 ohms .
2 To detect an open switch, minimum resistance must be greater than 1.5K ohms.
3
Applications which use 0 to 20 mA analog inputs require a 250 ohm shunt resistor kit, AD-8969-202.
Install resistor across universal input and common.
4 To detect an open switch, minimum resistance must be greater than 100K ohms.
5 .Input signals of 1 to 11 Vdc must be converted to 0.45 to 5 Vdc with a voltage divider, AD-8961-220.
5 .Applications which use a 10K Thermistor Sensor (non-850 series) universal input require
6
an 11K ohm shunt resistor kit, AD-8969-206. Install resistor across universal input and common.
Figure-3 MN 150 Terminal Connections.
6
© 2010 Schneider Electric. All rights reserved.
F-26266-7
Universal Inputs
5 0 to 5 Vdc
0 to 20mA 3
10K Thermistor 6
5
1K Balco
1K Platinum
Digital 1
2
Analog Outputs
0 to 20mA into an
80 to 550Ω load
Digital Inputs 1 4
Dry Contact
Sensor Link
Supports
1 TAC I/A Series MN-Sx
Sensor
LONWORKS Network
Communications
FT 3150 Transceiver
Ul1
COM
UI2
COM
UI3
AO2
COM
AO1
DI2
COM
DI1
S-LK
S-LK
LON
LON
24H
24G
GND
C1
NO1
C2
NO2
C3
NO3
C4
NO4
C5
NO5
C6
NO6
AC Power
24 Vac, 50/60 Hz
Class 2 (EN 60742)
15 VA per Controller
plus DO load if
same transformer is
used.
Digital Outputs
24 Vac, Class 2,
or 24 Vdc (or less)
24 VA per output
Pilot Duty
Form A (SPST)
Normally Open (NO)
Service Pin Button
LONWORKS Network Jack
1 To detect a closed switch, maximum resistance must be less than 300 ohms .
2 To detect an open switch, minimum resistance must be greater than 1.5K ohms.
3
Applications which use 0 to 20 mA analog inputs require a 250 ohm shunt resistor kit, AD-8969-202.
Install resistor across universal input and common.
4 To detect an open switch, minimum resistance must be greater than 100K ohms.
5 .Input signals of 1 to 11 Vdc must be converted to 0.45 to 5 Vdc with a voltage divider, AD-8961-220.
5 Applications
6
.
which use a 10K Thermistor Sensor (non-850 series) universal input require
an 11K ohm shunt resistor kit, AD-8969-206. Install resistor across universal input and common.
Figure-4 MN 200 Terminal Connections.
F-26266-7
© 2010 Schneider Electric. All rights reserved..
7
Communications Wiring
Caution:
• Communication wire pairs must be dedicated to MN-Sx (S-Link) and MicroNet
LONWORKS network (LON) communications. They cannot be part of an active, bundled
telephone trunk.
• Shielded cable is not required for S-Link or LON wiring.
• If the cable is installed in areas of high RFI/EMI, the cable must be in conduit.
• If shielded wire is used, the shield must be connected to earth ground at one end only
by a 470K ohm 1/4 watt resistor. Shield must be continuous from one end of the trunk
to the other.
Communications wiring includes a connection between the controller and a TAC I/A Series
MicroNet Sensor via the S-Link and a connection between the controller and the MicroNet
LONWORKS Network (LON). An optional LONWORKS Network connection between the
controller and one TAC I/A Series MicroNet Sensor is also possible.
Sensor Link (S-Link) Wiring
S-Link wiring powers and enables the MN-Sx sensor. The S-Link needs at least 24 gage
(0.51mm), twisted pair, voice grade telephone wire. The capacitance between conductors
cannot be more than 32 pF per foot (0.3m). If shielded cable is used, the capacitance
between any one conductor and the others, connected to the shield, cannot be more than
60 pF per foot (0.3m). Maximum wire length is 200 ft. (61m).
Note:
• Controller supports one TAC I/A Series MicroNet Sensor (MN-Sx).
• S-Link wiring is polarity insensitive.
• If conduit is used between a TAC I/A Series Sensor and a controller, the MicroNet
LONWORKS network and S-Link wiring can be in the same conduit, however, they must
be separate cables.
• S-Link wiring can be in the same conduit with UI, AO, and DI Wiring.
MicroNet LONWORKS Network (LON) Wiring
An approved Category 4 or 5, twisted-pair (two conductors) cable may be used for both
connecting to the MicroNet LONWORKS Network and the optional LONWORKS Network
connection between the controller and MN-Sx sensor. LONWORKS Network wiring is polarity
insensitive.
Caution: Do not mix with UI, AO, DI or DO types of wiring. If conduit is used between a
TAC I/A Series Sensor and a controller, LONWORKS Network wiring and S-Link wiring can
be in the same conduit, however, they must be separate cables.
MN 100, MN 150, and MN 200 controllers use LONWORKS Free Topology Transceiver (FT
3150) and support polarity insensitive bus (daisy-chain) and free (all combinations of star,
tee, and loop) wiring topologies. A maximum of 62 nodes can be connected per segment.
Note: See TAC I/A Series MicroNet System Engineering Guide, F-26507 to design a
MicroNet LONWORKS TP/FT-10 network, including recommended topologies and
approved cable types.
• Use of the LON terminals to connect to the MN-Sx sensor permits use of the
sensor’s built-in LON Jack.
• To preserve the integrity of the network, the LON wiring connecting a TAC I/A Series
MicroNet controller to an MN-Sx sensor must be run to the sensor and back, in
daisy-chain fashion. A wire “spur” must not be used to connect the sensor to the
controller.
• While the MN-Sx sensor is not counted as a “node” in the LonWorks network
(LON), all LON wiring to the sensor must be counted when determining the length
of the FTT wiring segment.
8
© 2010 Schneider Electric. All rights reserved.
F-26266-7
I/O Wiring
I/O connections include universal inputs, analog outputs, digital inputs, and digital outputs.
See Figure-2, Figure-3, and Figure-4 for proper wire terminal information.
Caution: If shielded cable is used, connect only one end of the shield to earth ground at
controller.
Universal Inputs (UI), Analog Outputs (AO), and Digital Inputs (DI)
Caution:
• Input and output devices cannot share common wiring. Each connected device requires
a separate signal and return conductor.
• Power wiring cannot share conduit with UI, AO, S-Link, LON, or DI wiring.
Note:
• If maximum closed switch voltage is not more than 1.0 V and minimum open switch
voltage is at least 4.5 V, then solid state switches may be used for a UI or a DI.
• UI, AO, DI, and S-Link wiring can share a single conduit.
UI, AO, DI, wiring needs at least 24 gage (0.51mm), twisted pair, voice grade telephone wire.
The capacitance between conductors cannot be more than 32 pF per foot (0.3m). If shielded
cable is used, the capacitance between any one conductor and the others, connected to the
shield, cannot be more than 60 pF per foot (0.3m). Table-1 provides wiring specifications.
Table-1 UI, AO, and DI Wiring Specifications.
Connection
UI, AO, and DI
F-26266-7
Gage
AWG (mm)
Maximum Distance
ft. (m)
18 (1.02)
300 (91)
20 (.81)
200 (61)
22 (.65)
125 (38)
24 (.51)
75 (23)
© 2010 Schneider Electric. All rights reserved..
9
Controller
Outputs
Controller
4 to 20mA
Actuator
AO1
+
-
AO1
COM
0 to 10Vdc
500
COM
+
-
AO2
AO2
Figure-5 Analog Output Connections for 4 to 20mA and 0 to 10Vdc Actuators.
10K Thermistor (with
an11K ohm shunt
resistor)
0 to 5Vdc
Transmitter
Controller
Inputs
Controller
+
-
UI1
COM
UI1
COM
UI2
UI2
Sensor Power
Source
4 to 20mA
Transmitter
+
-
Controller
Inputs
UI1
250
Configure controller
input as 0 - 5Vdc
COM
UI2
Sensor Power
Figure-6 Universal Input Connections for 10K (with 11K ohm shunt) Thermistor Sensor,
4 to 20mA Transmitter, and 0 to 5 Vdc Transmitters.
10
© 2010 Schneider Electric. All rights reserved.
F-26266-7
Digital Outputs (DO)
Caution:
• DO terminals accept one 16 gage (1.29mm) wire or two 18 gage (1.02mm) wires. The
selected wire gage must be consistent with the load current rating.
• DO wiring cannot be intermixed with DI, UI, S-Link, LON and AO wiring.
• MN 100, MN 150, and MN 200 controllers are Class 2 devices. Each digital output can
support up to 24 Vac/Vdc at 1.0 amp (24 VA) pilot duty.
Note: Digital Output wiring can be intermixed with class 2 power wiring.
Each DO is an isolated Form A (SPST) relay. If the transformer is sized correctly, the 24 Vac
Class 2 Controller power source (Figure-7) may be used for load power.
Table-2 Relay Output Load Specifications.
Specification
Value
Maximum Relay Contact Switched Output Voltage
voltage at 24H
terminala
Maximum Output Load @ 24 VAC, Pilot Duty
24 VA
Minimum Permissible Load
10.0 mA at 5Vdc
Maximum Off-state Leakage Current
3.5 mA
Minimum Cycles at Rated Load @ 0.4 Power Factor
300,000 cycles
a
Switched output voltage is equivalent to value of input voltage.
24 H
24 G
GND
Primary
24 Vac
Class 2
Transformer
NO1
Load
C1
NO2
Load
C2
NOx
Load
Cx
Figure-7 DO Loads and Controller Power Sharing Common Transformer.
F-26266-7
© 2010 Schneider Electric. All rights reserved..
11
Power Supply Wiring
Caution:
• MicroNet I/A Series Controllers are Class 2 only devices and must be connected to a
Class 2 source. Class 2 circuits must not intermix with Class 1 circuits.
• This product contains a non-isolated half-wave rectifier power supply and must not be
powered by transformers used to power other devices containing non-isolated full-wave
rectifier power supplies. Refer to EN-206, Guidelines for Powering Multiple Devices
from a Common Transformer, F-26363, for detailed information.
• Power wiring cannot be intermixed with LON, S-Link, UI, AO, or DI wiring.
• Use a Class 2 power transformer supplying a nominal 24 Vac (20.4 to 30 Vac) with a
minimum rating of 15 VA at 50/60 Hz plus digital output loads (144VA using 6 DOs or
96VA using 4 DOs if same transformer is used). The supply to the transformer must be
provided with a breaker or disconnect. In European Community, transformer must
conform to EN 60742.
• The Class 2 power transformer may be used to power multiple Class 2 powered devices
provided that the transformer is properly sized to power all equipment simultaneously
and all devices contain the same type of rectifier power supplies or internal isolation.
• The transformer frame must be grounded.
• When powering multiple Class 2 devices from the same Class 2 power transformer,
polarity must be observed (24H connected to 24H and 24G connected to 24G).
Note:
•
•
•
•
Power wiring terminals accept one 16 gage (1.29mm) or two 18 gage (1.02mm) wires.
Power wiring can be intermixed with DO wiring.
Twisted or untwisted cable can be used for power wiring.
To preserve the integrity of the network, the LON wiring connecting a TAC I/A Series
MicroNet controller to an MN-Sx sensor must be run to the sensor and back, in daisychain fashion. A wire “spur” must not be used to connect the sensor to the controller.
Figure-8 and Figure-9 are acceptable wiring configurations.
Primary
24 Vac
Secondary
Class 2
1
Ground Frame
of Transformer
to Known Ground
Optional connection
provides local access
to the LONWORKS network.
To rest of the LONWORKS
network.
MNL-10Rxx
MNL-15Rxx
MNL-20Rxx
1
LON
MN-Sx
Sensor
S-Link
Observe Free or Daisy chain topology when making connection to rest of network.
Figure-8 Single Controller Powered from a Separate Class 2 Power Source.
12
© 2010 Schneider Electric. All rights reserved.
F-26266-7
To other
MN 100, MN 150, MN 200, MN 440,
MN 620 and VAV controllers.
Primary
To rest of the LONWORKS
network.
24 Vac
Secondary
Class 2
Ground Frame
of Transformer
to Known Ground
MNL-10Rxx
MNL-15Rxx
MNL-20Rxx
1
Class 2 Wiring
2
Optional connection
provides local access
to the LONWORKS network.
2
LON
1
S-Link
MN-Sx
Sensor
MNL-10Rxx
MNL-15Rxx
MNL-20Rxx
2
LON
S-Link
MN-Sx
Sensor
MNL-10Rxx
MNL-15Rxx
MNL-20Rxx
2
LON
S-Link
MN-Sx
Sensor
To rest of the LONWORKS
network.
MNL-10Rxx
MNL-15Rxx
MNL-20Rxx
2
LON
S-Link
MN-Sx
Sensor
Observe Free or Daisy chain topology when making connection to rest of network.
Figure-9 Multiple Controllers Powered from a Single Class 2 Power Source and Sharing
Communications in a Free Topology Segment.
F-26266-7
© 2010 Schneider Electric. All rights reserved..
13
Checkout
Mechanical Hardware
Checkout
1. Verify wiring between TAC I/A Series MicroNet Sensor and controller is installed
according to job wiring diagram and national and local wiring codes.
Note: Wiring of the S-Link and MicroNet LONWORKS network between the sensor and the
controller is not polarity sensitive.
2. If controller is part of a MicroNet LONWORKS network, verify the TP/FT-10 LONWORKS
network wiring between controller and other devices is installed according to job wiring
diagram and national and local electrical codes.
3. Verify 24 Vac power is provided from a Class 2 power transformer and wiring is installed
according to job wiring diagrams and national and local electrical codes.
4. If multiple devices are powered from the same transformer, verify wiring polarity has
been maintained between all connected devices (24H connected to 24H and 24G
connected to 24G).
5. If multiple devices are powered from a common transformer, verify all issues associated
with powering multiple devices from a common transformer have been addressed.
Note: For more information, refer to EN-206, Guidelines for Powering Multiple Full-Wave
and Half-Wave Rectifier Devices from a Common Transformer, F-26363.
6. Verify digital outputs are wired according to job wiring diagram and national and local
electrical codes.
7. Make certain current requirements of the controlled device do not exceed rating of
controller’s digital outputs.
Communications
Hardware Checkout
1. Verify controlled equipment is in a manually controlled, safe state.
2. Place controller power breaker in the ON position. See job wiring diagrams.
3. Observe green Data Transmission LED (Figure-10) and do the following:
a. If green Data Transmission LED is steady on or blinking, go to step 4.
b. If green Data Transmission LED is off, check power.
4. Observe red Service LED (Figure-10) and do the following:
a. If the red Service LED is off or flashing, proceed with downloading an application
using WorkPlace Tech Tool and configuring the controller with a third party network
management tool. Refer to WorkPlace Tech Tool 4.0 Engineering Guide, F-27254,
for details on downloading applications.
b. If red Service LED is steady on, turn power to controller OFF, wait five seconds, and
turn power ON. If red Service LED is still steady on, turn power OFF and replace
controller.
Red Service
LED
Amber Data Reception LED
Green Power and Data
Transmission LED
Figure-10 Location of Controller LEDs.
14
© 2010 Schneider Electric. All rights reserved.
F-26266-7
Table-3 LED Indication.
Indicator
Data Reception LED – amber
Context
Anytime
Status
Corrective Action
Blinks when the controller receives data from the
LONWORKS Network.
None required.
On indicates a possible network connection problem, or a
large amount of network traffic is present.
Remove the LONWORKS Network
connections from the controller
and determine if the LED goes off.
If the LED does not go off, replace
the controller. If the LED does go
off, check the network topology
(connections to each node, routers, terminators, etc.) and the
amount of traffic on the network.
Off indicates that data reception is not taking place.
Blinks when the controller transmits data to the
LONWORKS Network.
Data Transmission LED –
Green
Anytime
Off indicates no power to controller.
Check power
Power-up
The LED blinks once to indicate successful power-up.
Wink mode
Blinks (3 seconds on, 1 second off) three times to indicate
None Required
physical location of the controller. If a sensor (MN-Sx) is
connected, its red occupancy LED will flash (1/sec) during
the wink period.
Anytime
On indicates that the neuron application is not running.
Neuron applications are not field replaceable.
Replace the controller.
Blinks (1/sec) to indicate that the neuron application is
loaded, but the neuron’s communication parameters are
not loaded, are being reloaded, or have been corrupted.
Neuron is considered unconfigured. Communication
parameters cannot be configured by field personnel.
Use a third party network management tool to commission the
controller, or use the change state
tool in WorkPlace Tech Tool (version 4.0 or greater) to set the
Neuron® to the configured/on-line
state.
While the controller is unconfigured, WP Tech can be used to
download an application, but at
the completion of the download,
WP Tech versions 4.0 and higher
will restore the Neuron to the
unconfigured state.
Anytime
Off may indicate that the neuron application is loaded but
the device is off-line. In this state, a pre-loaded HVAC
application will not run.
Use a third party network management tool to commission the
controller, or use the change state
tool in WorkPlace Tech Tool (version 4.0 or greater) to set the
Neuron to the configured/on-line
state.
While the controller is off-line, WP
Tech can be used to download an
application, but at the completion
of the download, WP Tech
versions 4.0 and higher will
restore the Neuron to the off-line
state.
Anytime
Off usually indicates a normal state. In this state, the
controller operates normally, and you can download
and/or run HVAC applications.
If the controller is able to accept
and/or run a downloaded HVAC
application, no action is required.
Anytime
Service LED – Red
F-26266-7
None Required
On indicates that the controller is not transmitting data.
On also indicates that power is being applied to the
controller.
© 2010 Schneider Electric. All rights reserved..
15
Controller Selection
Identical pairs of factory barcode labels are attached to each controller. The labels can be
used to select controllers for application downloading purposes. Each pair of labels contains
a unique Neuron ID. One of the labels remains on the controller permanently; the other label
can be placed on a job site plan.
The Neuron ID may be entered into the WorkPlace Tech Tool. The WorkPlace Tech Tool
(must be version 4.0 or greater) can then download an application to the selected controller.
See WorkPlace Tech Tool 4.0 Users Guide, F-27255, for additional information.
Caution: Do not hold service pin button when selecting a controller. Holding the service
pin button for 6 seconds or longer will completely unconfigure controller. See WorkPlace
Tech Tool 4.0 Engineering Guide, F-27254, for additional information.
The service pin button is also used to select controllers. When this button is pressed, the
controller sends a broadcast message containing its Neuron ID to the online or connected
WorkPlace Tech Tool. After the message is received, the controller can be selected for
application downloading. See WorkPlace Tech Tool 4.0 Users Guide, F-27255, for additional
information.
Service
Components within MN 100, MN 150, and MN 200 controllers cannot be field repaired. If
there is a problem with a controller, follow the steps below before contacting your local
Schneider Electric office.
1. Make sure controllers are connected and communicating to desired devices.
2. Check all sensors and controlled devices are properly connected and responding
correctly.
3. If controller is operating, make sure the correct profile and application is loaded by
checking the LONMARK Program ID and the nvoDeviceInfo using Work PLace Tech Tool.
For more information, see WorkPlace Tech Tool 4.0 Engineering Guide, F-27254.
4. Record precise hardware setup indicating the following:
Version numbers of applications software.
Controller firmware version number.
Information regarding the WorkPlace Tech Tool.
A complete description of difficulties encountered.
Distributed, manufactured, and sold by Schneider Electric. I/A SERIES
trademarks are owned by Invensys Systems, Inc. and are used on this
product under master license from Invensys. Invensys does not
manufacture this product or provide any product warranty or support.
For service, support, and warranty information, contact Schneider
Electric at 1-888-444-1311.
On October 1st, 2009, TAC became the Buildings Business of its parent company Schneider Electric. This document reflects the visual identity of Schneider Electric, however there
remains references to TAC as a corporate brand in the body copy. As each document is updated, the body copy will be changed to reflect appropriate corporate brand changes.
All brand names, trademarks and registered trademarks are the property of their respective owners. Information contained within this document is subject to change without notice.
Schneider Electric 1354 Clifford Avenue, P.O. Box 2940, Loves Park, IL 61132-2940, USA
F-26266-7
1-888-444-1311
www.schneider-electric.com/buildings
February 2010 tl
© 2010 Schneider Electric. All rights reserved.
•
•
•
•

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
