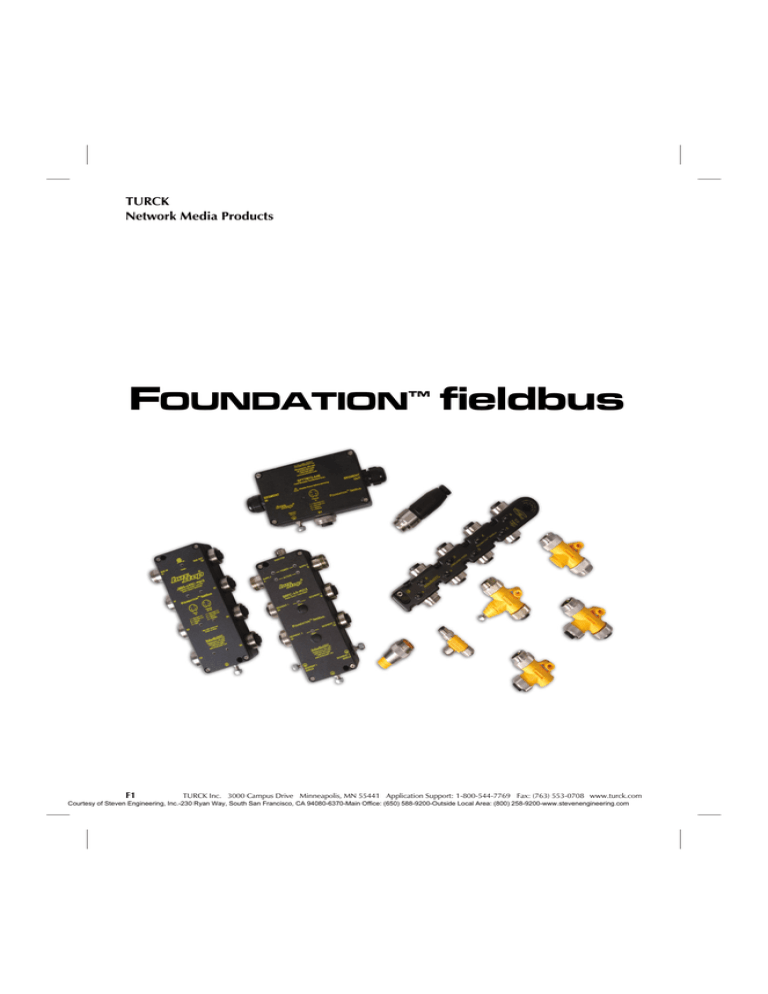

FOUNDATION fieldbus

TURCK

Network Media Products

F

OUNDATION

™ fieldbus

F1

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION

™ fieldbus General Specifications

F

OUNDATION fieldbus is a communication protocol and physical method to interconnect smart devices such as temperature transmitters, pressure transmitters and valve actuators. The physical layer conforms to ISA SP50.02 and IEC 1158-2 standards for fieldbuses.

Fieldbus technology allows many smart devices to share one communication medium. The digital communication signal is superimposed onto a DC carrier. This reduces the amount of terminations to connect all the field devices to a host system and allows greater flexibility for future additions of I/O points.

A F

OUNDATION fieldbus device is addressable and can store and transmit data. The devices can store values, track changes and use pre-set alarms to trigger. Based on pre-defined tag names host systems can read transmitter values such as temperature and pressure to set values of a valve actuator.

Digital signal encoding is done using Manchester BiPhase-L and error checking is done with the CRC method. F

OUNDATION fieldbus has two types of devices - A Basic Device (BD) which reads inputs, track values and set outputs if programmed to do so - A Link Active Scheduler (LAS) performs the same features as a BD and handles network communication timing between all the active devices on the network.

Topology

Power Supplies

Fieldbus I/O host

RSV 490-1M

BRPC-49-M213

RKV 50-1M

A

A

A

JTBS-49SC-M633

A

Trunk Line

A

JTBS-49SC-M633

A

A

RSV 49-TR

RSFK-BC

A

A

Transmitters

Transmitters

A = RSV RKV 490-1M

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F2

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Selection Guide

Cables

F4 - F9

Terminating Resistors

F10

Feed Through Connectors

F11

Field Wireable Tee

F12

Junctions

F13 - F22

Conduit Adapters

F23 - F24

Power Supply Conditioner

F25 - F26

Tees

F27

Gender Changers

F28, F41

Surge Suppressor

F29

Receptacles

F31 - F38

Field Wireable Connectors

F39 - F40

F3

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, Cable Specifications

Cable that Meets the Requirements of ISA/SP50 and

F

OUNDATION™ fieldbus Requirements for Type A Cable

Cables are Available in 3-wire Versions with a Device

Ground or 2-wire Versions

Figure A

Type A Cable Specifications

Temperature range: -40 to +105°C

Governed by: ISA SP50.02 specification

Sunlight Resistant

PLTC and ITC Rated (CSA FT4)

Impedance [Z

0 at f r

(31.25 kHz)] = 100 Ohms + 20 %

Maximum Attenuation at 1.25 f r

(39 kHz) = 3.0 dB/km

Maximum Capacitive Unbalance to Shield = 2 nF/km

Maximum DC Resistance (per conductor) = 24 Ohms/km

Figure B

Maximum Propagation Delay Variance 0.25 f r to 1.25 f r

= 1.7

µs/km

Conductor Cross-sectional area (wire size) = nominal 0.8 mm

2

(#18 AWG) or 1.2 mm

2

(#16 AWG)

Shield Coverage =100 % (90 % minimum)

Jacket

Type Approvals

Data Pair

AWG

Color Code

DCR (/1000 feet)

Insulation

Device Ground

AWG

Color Code

Jacket

Outer Jacket

Material Color

Nominal O.D.

Foil Shield

Braid Shield*

Device Ground*

Data

Drain Wire

Brown

Blue

Green/Yellow

*Available on some cable types

Aluminum Armor

Foil Shield

Inner Jacket

Device Ground

Data

Drain Wire

Brown

Blue

Green/Yellow

Shields

Type

Drain Wire

Bulk Cable

Part Number /

Weight/300 M

Figure

490

AWM 2517

105°C 300 Volts

490B

AWM 2517

105°C 300 Volts

492A

105°C 300 Volts

NEC ITC PLTC

Open Wiring

CEC [CMG]

AWM I/II A/B FT4

NEC ITC PLTC

Open Wiring

CEC [CMG]

AWM I/II A/B FT4

NEC ITC PLTC/CM

CEC [CMG HLBCD]

2/18 AWG

BU/BN

2/18 AWG

BU/BN

2/18 AWG

BU/BN

2/18 AWG

BU/BN

6.5 Ohms

XLPE

6.5 Ohms

XLPE

6.5 Ohms

XLPE

6.5 Ohms

XLPE

18 AWG

GN/YE

18 AWG

GN/YE

18 AWG

GN/YE

18 AWG

GN/YE

PVC Yellow

7.9 mm (.310 in)

PVC Blue

7.9 mm (.310 in)

Armor/PVC Yellow

12.7 mm (0.5 in)

Armor/PVC Blue

12.7 mm (0.5 in)

Foil

20 AWG

Foil

20 AWG

Foil

18 AWG

Foil

18 AWG

RB50693-*M

58 lbs.

RB50783-*M

58 lbs.

RB50874-*M

96 lbs.

armorfast

®

RB50803-*M

96 lbs.

armorfast

®

A

A

B

B

492BA

105°C 300 Volts

NEC ITC PLTC/CM

CEC [CMG HLBCD]

493

AWM 2517

105°C 300 Volts

493B

AWM 2517

105°C 300 Volts

493O

AWM 2517

105°C 300 Volts

496

AWM 2517

105°C 300 Volts

NEC ITC PLTC

Open Wiring

CEC [CMG]

AWM I/II A/B FT4

NEC ITC PLTC

Open Wiring

CEC [CMG]

AWM I/II A/B FT4

NEC ITC PLTC

Open Wiring

CEC [CMG]

AWM I/II A/B FT4

NEC ITC PLTC

Open Wiring

CEC [CMG]

AWM I/II A/B FT4

* Indicates length in meters.

2/18 AWG

BU/BN

2/18 AWG

BU/BN

2/18 AWG

BU/BN

2/16 AWG

BU/BN

6.5 Ohms

XLPE

6.5 Ohms

XLPE

6.5 Ohms

XLPE

4.1 Ohms

XLPE

None

None

None

None

PVC Yellow

7.9 mm (.310 in)

PVC Blue

7.9 mm (.310 in)

PVC Orange

7.9 mm (.310 in)

PVC Yellow

8.5 mm (.335 in)

Foil/Braid

20 AWG

Foil/Braid

20 AWG

Foil/Braid

20 AWG

Foil

18 AWG

RB50784-*M

59 lbs.

RB50786-*M

59 lbs.

RB50785-*M

59 lbs.

RB50891-*M

64 lbs.

A

A

A

A

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F4

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Cable and Cordset Selection Matrix

minifast

®

1

RSV

Pin (Male)

2

WSV

3

RKV

Socket (Female)

4

WKV

5

eurofast

®

Pin (Male)

RSCV

RSV 49x-*M WSV 49x-*M RKV 49x-*M WKV 49x-*M RSCV 49x-*M

Bare

1

RSV RSV 49x-*M RSV WSV 49x-*M RSV RKV 49x-*M RSV WKV 49x-*M RSV RSCV 49x-*M

RSV

2

WSV WSV 49x-*M WSV RKV 49x-*M WSV WKV 49x-*M WSV RSCV 49x-*M

WSV

3

RKV RKV 49x-*M RKV WKV 49x-*M RKV RSCV 49x-*M

RKV

4

WKV WKV 49x-*M WKV RSCV 49x-*M

WKV

5

RSCV RSCV 49x-*M

RSCV

6

WSCV

7

RKCV

8

WKCV

See pages F7 - F8 for dimensional drawings.

* Indicates length in meters.

x Indicates cable type.

Refer to the Cordset Builder at www.turck.com for assistance with cordset/cable combinations.

Standard cable lengths are 0.3, 0.5, 1.0, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 8.0, 10, 15....50 Meters. Consult factory for other lengths.

For stainless steel coupling nuts change part number RSM ... to RSV, WSM ... to WSV. For eurofast armorfast

®

cable RSC ... to RSA.

minifast eurofast

Male Female

Pinouts

1. Blue (- Voltage)

2. Brown (+ Voltage)

3. Bare (Shield Drain Wire)

4. Green/Yellow (Ground)

Male Female

F5

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

6

F

OUNDATION™ fieldbus, Cable and Cordset Selection Matrix

Pin (Male)

7

eurofast

®

Socket (Female)

8 9

minifast

®

Bulkhead

Pin (Male) Socket (Female)

10 11

eurofast Bulkhead

Pin (Male) Socket (Female)

12

WSCV RKCV WKCV RSFPV RKFPV FSFDV FKFDV

WSCV 49x-*M RKCV 49x-*M WKCV 49x-*M RSFPV 49x-*M RKFPV 49x-*M FSFDV 49x-*M FKFDV 49x-*M

RSV WSCV 49x-*M RSV RKCV 49x-*M RSV WKCV 49x-*M RSV RSFPV 49x-*M RSV RKFPV 49x-*M RSV FSFDV 49x-*M RSV FKFDV 49x-*M

WSV WSCV 49x-*M WSV RKCV 49x-*M WSV WKCV 49x-*M WSV RSFPV 49x-*M WSV RKFPV 49x-*M WSV FSFDV 49x-*M WSV FKFDV 49x-*M

RKV WSCV 49x-*M RKV RKCV 49x-*M RKV WKCV 49x-*M RKV RSFPV 49x-*M RKV RKFPV 49x-*M RKV FSFDV 49x-*M RKV FKFDV 49x-*M

WKV WSCV 49x-*M WKV RKCV 49x-*M WKV WKCV 49x-*M WKV RSFPV 49x-*M WKV RKFPV 49x-*M WKV FSFDV 49-*M WKV FKFDV 49x-*M

RSCV WSCV 49x-*M RSCV RKCV 49x-*M RSCV WKCV 49x-*M RSCV RSFPV 49x-*M RSCV RKFPV 49x-*M RSCV FSFDV 49x-*M RSCV FKFDV 49x-*M

WSCV WSCV 49x-*M WSCV RKCV 49x-*M WSCV WKCV 49x-*M WSCV RSFPV 49x-*M WSCV RKFPV 49x-*M WSCV FSFDV 49x-*M WSCV FKFDV 49x-*M

RKCV RKCV 49x-*M RKCV WKCV 49x-*M RKCV RSFPV 49x-*M RKCV RKFPV 49x-*M RKCV FSFDV 49x-*M RKCV FKFDV 49x-*M

WKCV WKCV 49x-*M WKCV RSFPV 49x-*M WKCV RKFPV 49x-*M WKCV FSFDV 49x-*M WKCV FKFDV 49x-*M

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F6

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, minifast

®

Cordset and Receptacle Connector Dimensions

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

PUR (polyurethane)

Nickel-Plated CuZn or Stainless Steel

TPU (polyurethane)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

300 V

Rated Current:

9 A

Ambient Temperature:

-30°C to +75°C

1 3

RSV ..

2

Pages F5 - F6 RKV ..

4

Pages F5 - F6

WSV ..

9

Pages F5 - F6 WKV ..

10

Pages F5 - F6

RSFPV ..

Pages F5 - F6 RKFPV ..

Pages F5 - F6

F7

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, eurofast

®

Cordset and Receptacle Connector Dimensions

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

PUR (polyurethane)

Nickel-Plated CuZn or Stainless Steel

TPU (polyurethane) or POM (Nylon)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

250 V

Rated Current:

4 A

Ambient Temperature:

-30°C to +75°C

5 7

RSCV ..

6

Pages F5 - F6 RKCV ..

8

Pages F5 - F6

WSCV ..

11

Pages F5 - F6 WKCV ..

12

Pages F5 - F6

FSFDV ..

Pages F5 - F6 FKFDV ..

Pages F5 - F6

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F8

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, eurofast

®

Heavy Duty Cordsets

Heavy Duty Coupling Nut Completely Supports the Molded Plug Body

Provides Superior Strength

Housing Part Number Specs Applications Pinouts

Male

RSGV-49x-*M

RKGV-49x-*M

TPU (polyurethane)

Nickel Plated CuZn or Stainless Steel

250 V, 4 A

-30°C to +75°C

eurofast Heavy Duty Cordsets

Heavy coupling nut completely supports the molded plug body to provide superior strength

Female

* Indicates length in meters.

x Indicates cable type.

For nickel plated brass coupling nut change: RSGV ... to RSG ... or RKGV ... to RKG ...

F9

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, Terminating Resistors

Terminating Resistors Stabilize and Minimize Reflections on the Bus Line

A Terminating Resistor is Required at the Beginning and End of the Main Bus Line

Housing Part Number

RSV 49-TR

RSEV 49-TR

Specs Application

minifast

®

Terminating Resistor

Male minifast connector

Nickel Plated Brass or

Stainless Steel

250 V, 4 A

-30°C to +75°C

eurofast

®

Terminating Resistor

Male eurofast connector

Pinouts

Male

Male

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F10

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Feed Through Connectors

Receptacles Provide Transition from Male to Female Connectors

Available for Bulkhead and Feed Through Applications

Housing Part Number Specs Application

RSFV RKF 49/22

Nickel Plated CuZn or Stainless Steel

300 V, 9 A

-30°C to +75°C

minifast

®

Receptacle

Bulkhead

Straight male/female feed-through

For use with

minifast cordsets

FKV FSV 49/M12

Nickel Plated CuZn or Stainless Steel

250 V, 4 A

-30°C to +75°C

eurofast

®

Receptacle

Bulkhead

Straight male/female connector

For use with

eurofast cordsets

Standard housing material is nickel plated brass. "RSF RKF .."; "RSFV RKFV .." indicates stainless steel housing.

Male

Male

Pinouts

Female

Female

Panel Cutout

RSF RKF 49/22

Panel Cutout

FKM FS 49/M12

F11

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, Field Wireable Tee

A Hybrid Connection System Offering Reliable Connections on Short

Drops and Ease of Installation on Long Trunk Runs

Features Standard minifast

® connector for the Drop Connection and

Terminal Connectors on the Trunk Connections

Housing Part Number Specs Application

See Drawing 1

See Drawing 2

SPTT1-A49

SPTTM13-A49

Anodized Aluminum

250 V, 4 A

-30°C to +75°C

NEMA 1, 3, 4, 6P and IEC IP 68

Field wireable terminals and (7/8-16UN)

minifast connector on drop connection

1

2

Pinout

Female

Wiring Diagram

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F12

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Junction Box for Din Rail Mounting

IP20 DIN Rail Mounted Junctions

Available in 4, 6, and 8 Channel

Part Number

JRBS-40-4/EX

JRBS-40SC-4/EX

JRBS-40-6/EX

JRBS-40SC-6/EX

JRBS-40-8/EX

Application

4-port Junction Tee

Four cage clamp device ports

Approval: ATEX II 2 G EEx ib IIC/IIB T4

4-port Junction Tee

Four cage clamp device ports

Short-circuit protection: adjustable 30, 35, 45, 60 mA

Open circuit voltage: 32 V

Current consumption: 7 mA

LED indicators

Power: Green = On

Short-circuit: Red = On

Approval: ATEX II 2 G EEx ib IIC/IIB T4

6-port Junction Tee

Six cage clamp device ports

Approval: ATEX II 2 G EEx ib IIC/IIB T4

6-port Junction Tee

Six cage clamp device ports

Short-circuit protection: adjustable 30, 35, 45, 60 mA

Open circuit voltage: 32 V

Current consumption: 7 mA

LED indicators

Power: Green = On

Short-circuit: Red = On

Approval: ATEX II 2 G EEx ib IIC/IIB T4

8-port Junction Tee

Eight cage clamp device ports

Approval: ATEX II 2 G EEx ib IIC/IIB T4

JRBS-40SC-8/EX

8-port Junction Tee

Eight cage clamp device ports

Short-circuit protection: adjustable 30, 35, 45, 60 mA

Open circuit voltage: 32 V

Current consumption: 7 mA

LED indicators

Power: Green = On

Short-circuit: Red = On

Approval: ATEX II 2 G EEx ib IIC/IIB T4

Wiring Diagram

F13

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Housing:

Contact Carrier:

Contacts:

Protection:

Aluminum

PA (Nylon)

Gold-Plated CuZn

NEMA 1 and IP 20

Rated Voltage:

Rated Current:

250 V

4 A

Ambient Temperature:

-25°C to +70°C

Specifications

Dimensions

4 Channel

6 Channel

8 Channel

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F14

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, minifast

®

Passive Multiport Junctions

Rugged, Fully Encapsulated Enclosure

For Connecting I/O in Concentrated Areas

Part Number

JBBS-49-M413

JBBS-49SC-M413

JBBS-49-M613

Specs

No short-circuit protection

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

No short-circuit protection

JBBS-49SC-M613

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

JBBS-49-M813

No short-circuit protection

JBBS-49SC-M813

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

Application

4-port Junction

Bus in/bus out connections

(7/8-16UN) minifast

Four (7/8-16UN) minifast connectors for field devices

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

6-port Junction

Bus in/bus out connections

(7/8-16UN) minifast

Six (7/8-16UN) minifast connectors for field devices

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

8-port Junction

Bus in/bus out connections

(7/8-16UN) minifast

Eight (7/8-16UN) minifast connectors for field devices

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

Wiring Diagrams

F15

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

Anodized Aluminum

Nickel-Plated CuZn or Stainless Steel

TPU (polyurethane)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

300 V

Rated Current:

9 A

Ambient Temperature:

-30°C to +75°C

Dimensions

8-Port 6-Port

4-Port

Male

Pinouts

minifast

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F16

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, eurofast

®

Passive Multiport Junctions

Rugged, Fully Encapsulated Enclosure

For Connecting I/O in Concentrated Areas

Part Number

JBBS-49-E413

JBBS-49SC-E413

JBBS-49-E613

Specs

No short-circuit protection

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

No short-circuit protection

JBBS-49SC-E613

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

JBBS-49-E813

No short-circuit protection

JBBS-49SC-E813

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

Application

4-port Junction

Bus in/bus out connections

(M12x1) eurofast

Four (M12x1) eurofast connectors for field devices

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

6-port Junction

Bus in/bus out connections

(M12x1) eurofast

Six (M12x1) eurofast connectors for field devices

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

8-port Junction

Bus in/bus out connections

(M12x1) eurofast

Eight (M12x1) eurofast connectors for field devices

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

Wiring Diagrams

F17

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

Anodized Aluminum

Nickel-Plated CuZn or Stainless Steel

TPU (polyurethane)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

250 V

Rated Current:

4 A

Ambient Temperature:

-30°C to +75°C

Dimensions

8-Port

6-Port

4-Port

Male

Pinouts

eurofast

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F18

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, minifast

®

Junction Tees

Indoor Use Only (for outdoor applications use JBBS family)

Multi-port Junction Provides a Rugged Connection to Network Devices

Bus-in/Bus-out Feature Eliminates Need for Splitter Tee

Short-Circuit Protection Available

Part Number

JTBS-49-M433

JTBS-49SC-M433

JTBS-49-M633

Specs

No short-circuit protection

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

No short-circuit protection

JTBS-49SC-M633

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

Application

4-port Junction Tee

(7/8-16UN) minifast bus in/bus out connections

Four (7/8-16UN) minifast device ports

For nickel plated brass connectors change part number to JTBS 49SC-M434

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

6-port Junction Tee

(7/8-16UN) minifast bus in/bus out connections

Six (7/8-16UN) minifast device ports

For nickel plated brass connectors change part number to JTBS 49SC-M634

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

Wiring Diagrams

F19

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

PUR (polyurethane)

Nickel-Plated CuZn or Stainless Steel

POM (Nylon)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

250 V

Rated Current:

4 A

Ambient Temperature:

-30°C to +75°C

Dimensions

4-port 6-port

Male

Pinouts

minifast

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F20

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, eurofast

®

Junction Tees

Indoor Use Only (for outdoor applications use JBBS family)

Multi-port Junction Provides a Rugged Connection to Network Devices

Bus-in/Bus-out Feature Eliminates Need for Splitter Tee

Short-Circuit Protection Available

Part Number

JTBS-49-E433

No short-circuit protection

Specs

JTBS-49SC-E433

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

JTBS-49-E633

No short-circuit protection

JTBS-49SC-E633

Electrical

Short-circuit protection: 55 mA (Isc)

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostic

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

Application

4-port Junction Tee

(M12x1) eurofast bus in/bus out connections

Four (M12x1) eurofast device ports

For nickel plated brass connectors change part number to JTBS 49SC-E434

Short-circuit threshold: 280 mA

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

6-port Junction Tee

(M12x1) eurofast bus in/bus out connections

Six (M12x1) eurofast device ports

For nickel plated brass connectors change part number to JTBS 49SC-E634

Short-circuit threshold: 280 mA

CL 1, Div 2; Groups A-D see

TURCK drawing N1-2.400

T6, Ta = 70°C (SC Only)

Wiring Diagrams

F21

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

PUR (polyurethane)

Nickel-Plated CuZn or Stainless Steel

POM (Nylon)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

250 V

Rated Current:

4 A

Ambient Temperature:

-30°C to +75°C

Dimensions

4-port 6-port

Male

minifast

Pinouts

Female

eurofast

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F22

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, minifast

®

Conduit Adapters

Gasket and Mounting Screws Provided

Same Housing Style for Single or Double Port

Housing Part Number

BCA 49-M123

Nylon Housing

300 V, 9 A

-30°C to +75°C

Specs Application Pinout

BCA 49SC-M123

Electrical

Short-circuit protection: 55 mA

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostics

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

BCA 49-M223

Nylon Housing

300 V, 9 A

-30°C to +75°C

Attaches to standard conduit body* for transition to 4-wire (7/8-16UN)

minifast connector

*Crouse Hinds 3/4" Form 8,

Mark 9 or equivalent

Female

BCA 49SC-M223

Electrical

Short-circuit protection: 55 mA

Open circuit voltage: 35 VDC

Current consumption: 5 mA

Diagnostics

LED indicators

Power: Green = On

Short-circuit: Red = Shorted

1-port Wiring Diagram 2-port Wiring Diagram

F23

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, eurofast

®

Conduit Adapters

Gasket and Mounting Screws Provided

Same Housing Style for Single or Double Port

Housing Part Number Specs Application Pinout

BCA 49-E123

Nylon Housing

250 V, 4 A

-30°C to +75°C

Attaches to standard conduit body* for transition to

4-wire (M12x1) eurofast connector

*Crouse-Hinds 3/4" Form 8, or Mark 9 or equivalent.

Female

BCA 49-E223

Attaches to standard conduit body* for transition to

4-wire (M12x1) eurofast connector

*Crouse-Hinds 3/4" Form 8, or Mark 9 or equivalent.

1-port Wiring Diagram 2-port Wiring Diagram

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F24

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Power Supply Conditioner

Meets the Needs of Redundant Power Supplies for F

OUNDATION fieldbus

Has Primary and Secondary Power Inputs to Supply Two Fieldbus H1 Segments

Filters the Fieldbus Signal from the Power Source

Part Number

BRPC-49-M213

Specs

Electrical

Supply voltage (Supply A & B): 12-32 VDC

Supply surge protection (Supply A & B): > 36 VDC

Supply redundancy (Supply A & B):

Supply "A" is primary. If Supply "A" Voltage drops below 11 Volts, Supply "B" becomes Active.

Supply "A" becomes active once voltage > 11 Volts

Output voltage (Segment 1 & 2): Input Voltage - 3 Volts

Output current (Segment 1 & 2): < 1 Amp

Short-circuit protection (Segment 1 & 2): > 1 Amp to infinite

Diagnostic

Power LED indications:

Green - Active / Red - No Power

Segment LED indications: Green - Active

Supply monitor contacts (Supply A & B): Solid State, AC/DC <400 Volts, <70 mA when supply voltage >11 Volts, contact is closed.

Application

4-port Power Supply Conditioner

Primary and secondary power inputs

Diagnostics for each power supply

Internal switches for terminators

F25

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Specifications

Housing:

Coupling Nut:

Contact Carrier:

Contacts:

Anodized Aluminum

Nickel-Plated CuZn or Stainless Steel

TPU (polyurethane)

Gold-Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

250 V

Rated Current:

4 A

Ambient Temperature:

-30°C to +75°C

Dimensions

BRPC-49-M213

Male

minifast

Pinouts

Female

eurofast

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F26

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Tees

Creates a Drop or Branch from the Main Bus Line

minifast

®

Connectors on Bus Line

minifast or eurofast

®

Connectors on Dropline

Housing Part Number Specs

RSV 2RKV 49

Application Wiring Diagrams

minifast Tee

Data, ground, shield

Stainless steel coupling nuts

RSV FKV RKV 49

TPU (polyurethane)

250 V, 4 A

-30°C to +75°C

minifast to eurofast Drop

Data, ground, shield

Stainless steel coupling nuts

RSCV 2RKCV 49

eurofast Tee

Stainless steel coupling nuts

Male

minifast

Female

Pinouts

Male

eurofast

Female

F27

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, Gender Changers and Elbow Connectors

Allows Quick and Easy Changes from Male to Female minifast

®

Connectors

Housing Part Number Specs

RSV RSV 49

Application

Male minifast Gender

Changer

Changes female cordset to male receptacle

Wiring Diagrams

RKV RKV 49

TPU (polyurethane)

250 V, 4 A

-30°C to +75°C

Female minifast Gender

Changer

Changes female cordset to male receptacle

WSV RKV 49

minifast Elbow

Right angle male to female connector

Male

Pinouts

minifast

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F28

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION

™ fieldbus, Surge Suppressor

Protects Data Communication Lines (V+ and V-)

Absorbs the Front End of the Transient, Responding in Less Than a Nanosecond

Diverts the Surge Energy to Ground

Automatically Resets and waits for Next Surge

Housing

See Drawing 1

Part Number

RSV RKV 49 SS

Specs

Electrical

Maximum operating voltage: 27 Volts

Maximum operating current: 200mA

Clamping action turn-on: 28.5 Volts

Maximum clamping at 2 kA: (8 x 20 Sec): 44 Volts

Maximum surge voltage: 20 kV

Maximum surge current: 2.5 kA

Current leakage/line at operating voltage: 5A

Capacitance /line at operating voltage: 500pF

Response time: less than 1 nanosecond

Mechanical

Ground stud: 10-32 stainless steel

Operating temperature: -40°C to +85°C

Application

Male and Female minifast

®

,

4-pin

1

Pinouts

Male

Female

F29

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Notes

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F30

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, (7/8-16UN) minifast

®

Male Receptacles

Provides Quick Connection to Field Devices

Available for 1/2-14NPT, 1/2-14NPSM, 3/4-14NPT and M20 Threads

Housing

13

Part Number

RSF 49-*M/14.5

Specs Application

1/2-14NPT full length threads

Pinouts

15

RSF 49-*M/14.75

3/4-14NPT full length threads

14 Male

RSF 49-*M/M20

Nickel Plated CuZn or Stainless Steel

300 V, 9 A

-30°C to +75°C

M20x1.5 threads

1. BU

2. BN

3. N/C

4. GN/YE

16

RSF 49-*M

1/2-14NPSM threads

17

RSF 49-*M/NPT

1/2-14NPT modified length threads

See page F35 for dimensional drawings.

Standard cable length is 0.3 Meters. Consult factory for other lengths.

Receptacles require a 13/16" (21 mm) clearance hole for panel mounting.

Standard housing material is nickel plated brass. "RKF .."; "RKFV .." indicates 316 stainless steel housing.

For locknuts to be included, add "W/LN" to the end of the part number.

F31

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, (7/8-16UN) minifast

®

Female Receptacles

Provides Quick Connection to Field Devices

Available for 1/2-14NPT, 1/2-14NPSM, 3/4-14NPT and M20 Threads

Housing

18

Part Number

RKF 49-*M/14.5

Specs Application

1/2-14NPT full length threads

Pinouts

20

RKF 49-*M/14.75

3/4-14NPT full length threads

19

Female

RKF 49-*M/M20

Nickel Plated CuZn or Stainless Steel

300 V, 9 A

-30°C to +75°C

M20x1.5 threads

1. BU

2. BN

3. GY

4. GN/YE

21

RKF 49-*M

1/2-14NPSM threads

22

RKF 49-*M/NPT

1/2-14NPT modified length threads

See page F36 for dimensional drawings.

Standard cable length is 0.3 Meters. Consult factory for other lengths.

Receptacles require a 13/16" (21 mm) clearance hole for panel mounting.

Standard housing material is nickel plated brass. "RKF .."; "RKFV .." indicates 316 stainless steel housing.

For locknuts to be included, add "W/LN" to the end of the part number.

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F32

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, (M12x1) eurofast

®

Male Receptacles

Mounted for Quick Connection to Enclosures

Available for 1/2-14NPT, 1/2-14NPSM, 3/4-14NPT and M20 Threads

Housing

23

Part Number

FS 49-*M/14.5

Specs Application

1/2-14NPT full length threads

25

FS 49-*M/14.75

3/4-14NPT full length threads

24

FS 49-*M/M20

Nickel Plated CuZn or Stainless Steel

250 V, 4 A

-30°C to +75°C

M20x1.5 threads

1. BU

2. BN

3. N/C

4. GN/YE

26

FS 49-*M

PG 9 threads

27

FS 49-*M/NPT

1/2-14NPT modified length threads

See page F37 for dimensional drawings.

Standard cable length is 0.3 Meters. Consult factory for other lengths.

Receptacles require a 13/16" (21 mm) clearance hole for panel mounting.

Standard housing material is nickel plated brass. "RKF .."; "RKFV .." indicates 316 stainless steel housing.

Pinout

Male

F33

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, (M12x1) eurofast

®

Female Receptacles

Mounted for Quick Connection to Enclosures

Available for 1/2-14NPT, 1/2-14NPSM, 3/4-14NPT and M20 Threads

Housing

28

Part Number

FK 49-*M/14.5

Specs Application

1/2-14NPT Full

Length Threads

30

FK 49-*M/14.75

3/4-14NPT Full

Length Threads

29

FK 49-*M/M20

Nickel Plated CuZn or Stainless Steel

250 V, 4 A

-30°C to +75°C

M20x1.5 Threads

1. BU

2. BN

3. GY

4. GN/YE

31

FK 49-*M

PG 9 Threads

32

FK 49-*M/NPT

1/2-14NPT

Modified Length

Threads

See page F38 for dimensional drawings.

Standard cable length is 0.3 Meters. Consult factory for other lengths.

Receptacles require a 13/16" (21 mm) clearance hole for panel mounting.

Standard housing material is nickel plated brass. "RKF .."; "RKFV .." indicates 316 stainless steel housing.

Pinouts

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F34

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

minifast

®

Male Receptacles

13 15

RSF .. 1/2-14NPT

14

Page F31 RSF .. 3/4-14NPT

16

Page F31

RSF .. M20x1.5

17

Page F31 RSF .. 1/2-14NPSM Page F31

RSF .. 1/2-14NPT Page F31

F35

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

18

minifast

®

Female Receptacles

20

RKF .. 1/2-14NPT

19

Page F32 RKF .. 3/4-14NPT

21

Page F32

RKF .. M20x1.5

22

Page F32 RKF .. 1/2-14NPSM Page F32

RKF .. 1/2-14NPT Page F32

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F36

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

eurofast

®

Male Receptacles

23 25

FS .. 1/2-14NPT

24

Page F33 FS .. 3/4-14NPT

26

Page F33

Page F33 FS .. M20x1.5

27

Page F33 FS .. PG 9

FS .. 1/2-14NPT Page F33

F37

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

28 30

FK .. 1/2-14NPT

29

Page F34 FK .. 3/4-14NPT

31

Page F34

FK .. M20x1.5

32

Page F34 FK .. PG 9 Page F34

FK .. 1/2-14NPT Page F34

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F38

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, minifast

®

Field Wireable Connectors

Screw Terminals Accept up to 16 AWG Conductors

Housing Part Number

BS 4149-0/9

BS 4149-0/13.5

Specs

Glass filled nylon

PG 9 cable gland, accepts 6-8 mm cable diameter

85°C

250 V, 9 A

Glass filled nylon

PG 13.5 cable gland accepts 10-12 mm cable diameter

85°C

250 V, 9 A

B 4149-0/9

Glass filled nylon

PG 9 cable gland, accepts 6-8 mm cable diameter

85°C

250 V, 9 A

Glass filled nylon

PG 13.5 cable gland accepts 10-12 mm cable diameter

B 4149-0/13.5

85°C

250 V, 9 A

For stainless steel coupling nuts change part number BS ... to BSV ...

Application

Mates with all 4-pin cordsets and receptacles

Pinouts

Male

Female

F39

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

F

OUNDATION™ fieldbus, eurofast

®

Field Wireable Connectors

Screw Terminals Accept up to 18 AWG Conductors

Housing Part Number Specs

BS 8141-0/PG9

PBT, Black

PG 7 cable gland accepts 4-8 mm cable diameter

85°C

125 V, 4 A

Application

BS 8241-0/PG9

PBT, Black

PG 7 cable gland accepts 4-8 mm cable diameter

85°C

125 V, 4 A

B 8141-0/PG9

PBT, Black

PG 7 cable gland accepts 4-6 mm cable diameter

85°C

250 V, 4 A

B 8241-0/PG9

PBT, Black

PG 7 cable gland accepts 4-6 mm cable diameter

85°C

250 V, 4 A

Mates with standard key

4-pin cordsets and receptacles

Pinouts

Male

Female

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F40

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

TURCK

Network Media Products

F

OUNDATION™ fieldbus, Gender Changer

Allows Quick and Easy Changes from Male to Female and

minifast

® to eurofast

®

Connectors

Housing Part Number Specs Application

RSM 49-FK 4.5

Nickel Plated CuZn or Stainless Steel

250 V, 4 A

-30°C to +75°C

Female eurofast, male

minifast, 4-pin

Wiring Diagram

minifast

Male

Pinouts

eurofast

Female

F41

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Industrial

Automation

Notes:

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708 www.turck.com

F42

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
