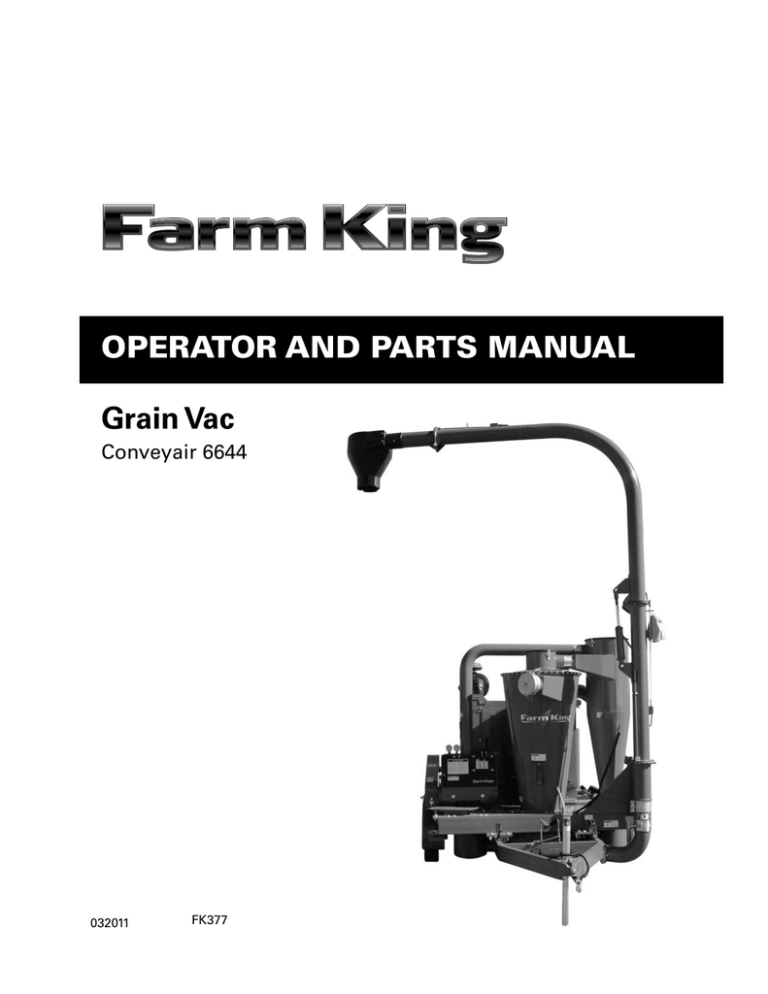

OperatOr and parts Manual

Grain Vac

Conveyair 6644

032011

FK377

Table of Contents - 6644 Grain Vac

Table of Contents

Introduction .................................................................................................................................5

Safety ............................................................................................................................................6

• Operation Safety ..............................................................................................................7

• Safety Decal Locations ....................................................................................................8

• Transport Safety .............................................................................................................10

• BPS and Receiver Tank Screens ....................................................................................10

• Oil Level ..........................................................................................................................10

Operation ...................................................................................................................................11

• Boom Swivel .................................................................................................................. 11

• Airlock Rotation ..............................................................................................................12

• Break In ...........................................................................................................................12

• Set Airlock Speed ...........................................................................................................13

• Short Distance Transfer ..................................................................................................14

• Long Distance Transfer ..................................................................................................15

• Clean-up ..........................................................................................................................15

• Filing Bins and Temporary Storage ..............................................................................16

Accessories .................................................................................................................................17

Lubrication .................................................................................................................................18

• Fluids and Lubricants ....................................................................................................18

• Greasing .........................................................................................................................19

• Service Record ...............................................................................................................21

Maintenance ..............................................................................................................................22

• Airlock Tips......................................................................................................................23

• Reservoir Breather .........................................................................................................24

• Clamp #GV26042 Installation Instructions ...................................................................24

• Air Pump Reservoir ........................................................................................................25

• BPS (Blower Protection System) ..................................................................................25

• Hydraulic Safety ............................................................................................................26

• Bolt Torque ......................................................................................................................27

• Hydraulic Fitting Torque .................................................................................................28

• Hydraulic Hose Drawing ................................................................................................29

3

Table of Contents - 6644 Grain Vac

Troubleshooting .........................................................................................................................30

Storage .......................................................................................................................................32

Parts ............................................................................................................................................34

• Hitch Drawing .................................................................................................................34

• Hitch Parts List ................................................................................................................35

• Receiver Tank and Dust Collector Drawing ..................................................................36

• Receiver Tank and Dust Collector Parts List .................................................................37

• Airlock and Blower Assemby Drawing .........................................................................38

• Airlock and Blower Assembly Parts List .......................................................................39

• Boom and Cyclone Drawing .........................................................................................40

• Boom and Cyclone Parts List ........................................................................................41

• Direct Drive Assembly Drawing ....................................................................................42

• Direct Drive Parts List ....................................................................................................43

• Cleanup and Full Bin Nozzles Drawing ........................................................................44

• Cleanup and Full Bin Nozzles Parts List .......................................................................45

• Steel Flex Hose and Couplers Drawing........................................................................46

• Steel Flex Hose and Couplers Parts List.......................................................................47

• Cleanup Hose and Couplers Drawing ..........................................................................48

• Cleanup Hose and Couplers Parts List .........................................................................49

Warranty Policy ..........................................................................................................................50

Manufacturer’s statement: for technical reasons Buhler Industries Inc. reserves the right to modify machinery design and specifications provided herein without any preliminary notice.

Information provided herein is of descriptive nature. Performance quality may depend on soil fertility, applied agricultural techniques, weather conditions and other factors.

4

Introduction - 6644 Grain Vac

Introduction

Congratulations, you have selected a Farm King Grain Vac which is designed and engineered to help you make farming Easier, Healthier and Safer.

Our knowledgeable engineering and production staff have built both performance and durability into each Farm King Grain Vac. Our grain vacs have been sold to farmers in Canada, Europe, the

USA, Australia and the Middle East.

To get the maximum benefit from your Farm King Grain Vac please read the owner’s manual carefully.

We recommend that you study this manual from beginning to end BEFORE operating your new

Farm King Grain Vac. We have tried to keep it brief and to the point. It is important that you pay special attention to the safety cautions in this book and on your equipment.

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

Please ensure that you reference the Cummins Diesel Manual, Twin Disc Clutch Manual and

Dexter Manual to ensure safe and correct operation of all aspects of this implement.

5

Safety - 6644 Grain Vac

6

Safety

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

Before You Start

Read the safety messages on the implement and shown in your manual.

Observe the rules of safety and common sense!

The alert symbol is used throughout this manual. It indicates attention is required and identifies hazards. Follow the recommended precautions.

The safety alert symbol means…

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Understand Signal Words

Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal word for each has been selected using the following guidelines:

DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations typically for machine components which, for functional purposes, cannot be guarded.

WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices.

CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or the manufacturer directly.

Important Safety Information

Working with unfamiliar equipment can lead to careless injuries. Read this manual before assembly or operating to acquaint yourself with the machine. It is the owner’s responsibility, if this machine is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating:

1. Reads and understands the operator’s manuals.

2. Is instructed in safe and proper use.

CAUTION

Do not modify the equipment in any way. Unauthorized modifications may impair the function and/or safety and could affect the life of the equipment.

Safety - 6644 Grain Vac

Operation Safety

• Wear appropriate ear protection.

• Never wear ill-fitting, baggy or frayed clothing when working around or on any of the drive system components.

• Always know where all overhead electrical wires are located and stay away from them.

• Do not allow riders.

• Install and secure all guards and shields before starting or operating.

• Keep hands, feet, hair and clothing away from moving parts.

• Place all controls in neutral, stop engine, block tires, remove ignition key and wait for all moving parts to stop before servicing, adjusting, repairing or unplugging.

• Place all machine controls in neutral before starting.

• Never operate the Grain Vac and power unit inside a closed building.

• Clear area of bystanders, especially small children, before starting.

• Stay away from PTO clutch shaft, intake nozzle and discharge when engaging PTO clutch.

• Keep all hydraulic lines, fittings and couplers tight and free of leaks.

• Clean reflector and lights before transporting.

• Use proper lighting when transporting.

• Stay away from overhead electrical wires when operating boom or when moving.

• Do not remove receiver inspection window while engine is running.

• Do not remove elbow from airlock outlet when engine is running.

• Stay clear of truck loading boom when raising or folding it.

• Review safety instructions with all operators annually.

7

8

Safety - 6644 Grain Vac

Safety Decal Locations

Decals with “CAUTION”, “DANGER”, “WARNING”, and other information appear on your machine for your safety. Read the information carefully and replace the decals that are no longer legible.

B

A

D

E

C

DANGER

ELECTROCUTION HAZARD

To prevent serious injury from electrocution:

Stay away from overhead electrical wires when operating the discharge boom.

Electrocution can occur without direct contact.

68 056

Control Panel ”A“

WARNING

ROTATING PART HAZARD

To prevent serious injury or death from rotating parts:

1. Close and secure guard before operating.

2. Shut-off engine and wait for moving parts to stop before opening to adjust, service, lubricate or unplug.

3. Keep hands, feet, clothing and hair away from moving parts.

Guard ”B“

Safety - 6644 Grain Vac

CAUTION

EMPTY DUST CANISTER

FREQUENTLY

AS PER OPERATORS MANUAL

Dust Canister ”C“

WARNING ROTATING AIRLOCK HAZARD

To prevent serious injury or death from airlock blades:

1. Do not place hands in tank when airlock is turning.

2. Shut-off engine and wait for moving parts to stop before opening door to adjust, service or unplug.

Receiver Tank ”D“

WARNING

ROTATING AIRLOCK HAZARD

To prevent serious injury or death from airlock blades:

1. Do not place hands in tank when airlock is turning.

2. Shut-off engine and wait for moving parts to stop before opening door to adjust, service or unplug.

Back Frame ”E“

WARNING

Do not place intake tube near feet when standing on top of grain. Sufficient material can be removed to draw the operator and intake tube into the grain.

Submersion in grain can cause suffocation.

Bin Nozzle ”F“

Dust Canister ”D“

“F” Airlock behind frame

Bin Nozzle ”G“

9

Safety - 6644 Grain Vac

Transport

The Farm King Grain Vac is designed to be easily moved from location to location. When transporting, follow this procedure:

• The towing vehicle must have a class IV Hitch.

• Do not allow anyone to ride on the grain vac during transport.

• Do not exceed 60mph (100 km/h). Reduce speed on rough roads and surfaces.

• Use a retainer on ball and socket hitch, and install a safety chain before transporting (make sure the locking jaws are pinned securely in position).

• Always use proper lighting and braking system on towing vehicle when transporting. The towing vehicle must be connected to the vac's wiring harness so that the braking system, brake and signal lights are operational.

• Stay away from overhead electrical wires. Electrocution can occur without direct contact.

• Make sure all components and accessories are retracted and securely stowed before moving.

BPS and Receiver Tank Screens

Before moving grain or other materials ensure both BPS screen and main receiver tank screen are installed in machine properly at all times. (see: location on drawing, page 14)

Oil Level

Check the oil level in the blower reservoir. Add correct oil as required.

10

Operation

Operation - 6644 Grain Vac

Boom Swivel

1. Unlatch boom transport clamp, flip up the boom lock and swing boom back until it clears the transport step.

2. Remove cover from vertical boom joint.

3. Set speed control at rear of control panel between 1 and 2 to raise boom.

4. Use hydraulic boom lever (Up to raise, down to lower). Carefully raise boom high enough to allow cyclone assembly (at end of boom) to swivel into position.

5. Secure cyclone into position, using overcenter clamp.

6. Now lift boom all the way into working position.

7. Secure boom with Over Centre Clamp.

8. Attach suction line to the receiver tank intake coupler. Close camlock couplers.

WARNING

All bystanders should stay well clear of boom when raising or lowering it.

DANGER

Stay atleast 5 m (15 ft.) away from overhead power lines when moving the boom. Electrocution can occur without direct contact.

11

Operation - 6644 Grain Vac

Airlock Rotation

WARNING

Do not run the airlock in the reverse direction. Damage may occur to the hydraulic motor.

For Best Performance:

1. Working area should be reasonably level and dry.

2. The Farm King Grain Vac should be located so the intake line is as straight and as short as possible.

3. When using the Farm King Grain Vac to load trucks, make sure there is adequate room for the receiving vehicle to get under the discharge cyclone.

Check the rotation of the airlock. Coupler should turn as indicated by arrow.

Breaking In

Your machine has been operated for a short time at the factory to assure good performance. It can however not be considered broken in. It normally takes 5 to 10 hours of operation for all parts to be polished by the grain stream and for the machine to come up to full capacity.

We recommend the following checks during the break in period:

After operating for 1/2 hour

1. Check for overheated bearing. Lubricate or adjust as required*.

2. Check for oil leaks. Tighten or replace part and oil as required*

3. Retorque all hardware - Wheel bolts and fasteners.

4. Check belt tension and adjust as required*.

WARNING

High pressure fluids can penetrate the skin and cause infection and toxic reaction.

5. Check the oil levels in the blower reservoirs. If low, add oil as required. Check for leaks and correct if problem persists*.

*

Check maintenance section for proper procedures. (Also see page 26 for hydraulic safety)

12

Operation - 6644 Grain Vac

After operating for 2 to 10 hours

1. Perform the same checks and inspections as done at 1/2 hour.

2. After the 10 hour inspection, go to normal service and maintenance procedures.

Set Airlock Speed

For maximum performance adjust speed most suitable for material moved.

Material consistency varies widely in the field. Airlock speed is also affected by suction and discharge length. To obtain maximum performance, try different airlock speed, using above guide.

A rule of thumb is the larger and heavier the kernel, the faster the airlock should turn.

Tip - with light oats, or other light grains, slow

PTO speed down to 900 or 950 RPM.

Adjusting Speed

Using a stop watch, the airlock can be set by counting the number of turns the coupler makes. Coupler is visible through the three slots in the deck of the machine (photo right).

One turn per second equals 60 RPM.

Adjust airlock RPM by moving the airlock speed lever on your control panel towards

# 10 to increase speed, toward # 1 to slow down. Move lever slowly, a small movement will make a significant change in airlock speed.

Material

Barley

Canola

Corn

Flax

Wheat

Oats

Airlock Speed (RPM)

50 - 60

45 - 60

45 - 60

35 - 55

45 - 60

45 - 60

13

Operation - 6644 Grain Vac

Short Distance Transfer

Insert bin nozzle.

Connect hose from receiver intake to bin nozzle. Set the air slide on the full bin nozzle all the way open and push the nozzle into the material to be moved.

WARNING

Airslide (Full bin nozzle)

Do not cover airslide with grain.

The line of the grain can be horizontal, angled or vertical depending on conditions.

Adjust the airslide on the full bin nozzle so that the material moves across the sight glass window of the receiver tank to approximately half way (no more than 2/3) up the window. If the machine starts to surge, slowly open slide till surging stops.

Sight

Glass

NOTE: Should the material stop moving and completely cover the sight glass window in the receiver tank, the machine will quickly plug. Immediately open the air slide fully, on the full bin nozzle, to allow the machine to clear itself. Remove the nozzle from the grain and forward and reverse the airlock several times to empty the tank. Then ensure the airlock is turning counter clockwise and resume operation as normal. Otherwise follow the next 6 steps:

IMPORTANT: If the machine still does not clear itself do the following:

• Stop machine by slowly reducing engine

RPM to an idle, then disengage PTO clutch. Remove dust pail which will allow any material in the bottom of Blower

Protection Cyclone (BPS) to run out.

• Remove nozzle from grain source

• Start the machine and allow the Receiver tank to empty itself. Then stop machine again

• Remove the top on the BPS and clean out any material in the top of the cyclone and in the pipe between the receiver tank and the BPS.

• Replace the Dust pail and the Top on the

BPS.

• Start machine, (RECHECK AIRLOCK

SPEED, page 14) and reset the air slide as per start up instructions.

NOTE: Airlock should not turn faster than

65 RPM or slower than 30 RPM.

14

Operation - 6644 Grain Vac

Long Distance Transfer

WARNING

Do not use P.V.C. or other plastic tubing for long distance application. The build-up of static electricity could lead to an explosion.

Auxiliary airslide. Located on the airline between the receiver tank and the air pump.

If discharge length is more than 40 ft. (12 m) or if blower gets too hot to the touch, open the airslide approximately 1/4" - 1/2" (6 - 12 mm) for every 100 ft. (30 m) discharge. Open further if blower still gets hot.

Opening the airslide too far will affect capacity as adversely as not opening it at all.

Top Loading (push only)

For top loading, remove top cover of large cyclone. To avoid feedback be sure grain enters below opening to BPS (smaller) cyclone.

Long Distance Suction

For sucking grain more than thirty feet, use straight piping where possible!

Remember: The straighter the suction line the greater the capacity of the grain vac.

Auxiliary

Airslide

Feed grain below opening to second cyclone

Clean-up

When the machine needs not to be at full capacity, e.g. when cleaning bins, the engine can be throttled down.

The rougher walls of the steel flex hose and the poly intake hose provide more resistance than smooth pipe. Capacity may be lowered by 20% to 40% compared to straight piping.

Use Poly hose for clean-up only.

For regular cleanup use a combination of steel flex line, straight piping and poly hose. This will give you the needed flexibility to easily get into corners and around obstructions without sacrificing too much capacity.

Steel Flex Hose

Poly

Intake Hose

NOTE: Do not dent, stretch or overbend steel flex line excessively.

Do not store poly hose in sunshine, avoid sharp obstructions that could cut or puncture the hose.

15

Operation - 6644 Grain Vac

Seed Drill Clean Out

When using the seed drill clean out kit, operate the engine at idle only to reduce suction air flow. The receiver tank can be used as a holding tank by stopping the airlock until the seed can be discharged into a truck or storage

Cleanup of Spills and Ground Stored Grain

Extreme caution should be exercised when cleaning spills or grain stored on dirt. Sand and dirt may cause excessive wear to blower, and life expectancy of the unit can be reduced significantly.

Filling Bins and Temporary Storage

Rear discharge option required.

When discharging into bins, remove the airlock discharge elbow and couple the machine to stationary or movable piping.

For best performance, review recommended installation schematics. Use OEM parts to insure good sealing and maximum performance.

Contact your dealer for more information.

Silos over 100 feet tall can be filled with your

Farm King Grain Vac!

Multiple Bins (Parallel)

Multiple Bins (Series)

Bin Cyclone

30º Elbow

Compression Clamp

Top Bin Bracket

60º Elbow

Bin Bracket

Tubing

Quick Coupler approx. 4ft. (1.2m)

From Grain Vac

Bin Fill System

16

Accessories - 6644 Grain Vac

Accessories

1. Horizontal Pipe Section.

- Steel or aluminum. Matched to Farm

King Grain Vac.

2. Vertical Pipe Section. Specs as above.

Sections may be welded or coupled together with 3-bolt clamp.

3. Bin Top Cyclone. Cyclones come equipped with a rain cap and can also double as aeration vents.

For temporary installations, use the lightweight poly cyclone and attach with quick couplers.

4. 90 degree long radius elbow. Weld in place or secure with 3-bolt clamp.

5. 6" Female quick couplers.

6. Delivery from the grain vac to bin. Use a combination of short stainless lined steel flex and long radius 90 degree elbow.

7. Side wall bin brackets.

8. Angle top mount bracket.

9. 3 Bolt clamp.

10. See parts list for standard hose and other parts.

9 1 8 3

4

9

7

2

7

5

6

Bin Accessories

Cam Lock Couplers

Cyclone Extension Boot

Seed Drill Clean out Kit

17

Lubrication - 6644 Grain Vac

Lubrication

Fluids and Lubricants

Reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Axle Manual for lubrication requirements of those components.

Grease

Use any SAE multi -purpose high temperature grease with extreme pressure (EP) performances and containing at least 1.5% molybdenum disulfide or SAE Multi-Purpose Lithium Base Grease.

Use cold temperature grease during the winter.

Oil

Only use Blower Oil HD Synthetic Gear & Bearing Oil. Do not blend with other oil. Available through your nearest Farm King Dealer.

• Part # GV14220

- Capacity drive end 850 ml/28.7 fl. oz US

- Capacity gear end 1000 ml/33.8 fl oz US

• Hydraulic Oil Reservoirs: Self Contained Hyd.

- AW32 Hydraulic oil equal to or exceeding

- SAE “SF” specifications.

- Capacity - (31 qt. US)

Cleaning agent

• WD40 or equivalent.

CAUTION

1. Stop engine and remove ignition key.

2. Before applying pressure to a hydraulic system, make sure all lines, fittings and couplers are tight and in good condition.

3. Relieve pressure from hydraulic circuit before servicing.

18

Lubrication - 6644 Grain Vac

Greasing

1. Use only a manual grease gun for all greasing. Air powered grease guns may damage the seal on bearings, leading to early bearing failure.

IMPORTANT

Do not over grease, it can damage bearing seals.

2. Wipe grease fitting with a clean cloth before greasing, to avoid injecting dirt and grit.

3. Replace and repair broken fittings immediately.

CAUTION

Machine is shown with guard open for illustrative purposes only. Do not operate machine with guard open.

19

8 Hours or Daily

Lubrication - 6644 Grain Vac

100 Hours or 6 Months

Check air pump oil levels in reservoirs, front and rear (2 locations). Add as required

NOTE:

Check when the oil is cold and the machine is level.

50 Hours

Change the oil in air pump reservoirs, front and rear.

NOTE:

Change every 30 hours if operating in very dusty conditions

200 Hours or Annually

Clean oil reservoir breather caps (2 locations)

Repack wheel bearings (4 locations)

Grease as Required

Boom elbow clamps. Use winter friendly white lithium grease

20

Lubrication - 6644 Grain Vac

Service Record

See Lubrication and Maintenance sections for details of service. Copy this page to continue record.

Action:

4

- Check

L - Lubricate

C - Change

R - Repack

CL - Clean

Hours

Serviced

By

Maintenance

8 Hours or Daily

4

Belt Tension

4

Air Pump Oil Level

in Reservoir (2)

4

& CL - System Filter

L -

Boom Grease Nipples

50 Hours

CL -

Oil Reservoir.

Breather Caps (2)

100 Hours or 6 Months

C -

Oil in Air Pump

Reservoir Front & Rear

Annually or 12,000 Miles

R -

Wheel Bearings (4) *

CL -

Machine

NOTE: Reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Manual for service and maintenance requirements.

* Refer to Dexter Manual

21

Maintenance - 6644 Grain Vac

Maintenance

1. Place PTO clutch and hydraulic controls in neutral and shut-off engine.

2. Unlatch belt shield cover and open cover.

3. Loosen lower tensioner clamp.

4. Raise tensioner pulley to achieve correct tension then tighten lower tensioner clamp.

5. Place a straight edge across the faces of the two pulleys. Maximum allowable misalignment is 1/16" (2 mm) on any of the pulley edges. Adjust as required.

6. Be sure the belt tension is correct.*

7. Close and latch belt cover.

CAUTION

Machine is shown with guard open for illustrative purposes only. Do not operate machine with guard open.

BELT TENSION

Belt should be tensioned to 8 lbs at 5/8" deflection, dead center between the sheaves.

Check belt tension after initial one (1) to two (2) hours of operation and daily thereafter.

Belt tension testers are available at most belt service centres.

22

Maintenance - 6644 Grain Vac

Airlock Tips

Check Airlock Tips clearance when there is a noticeable drop in capacity of the grain vac.

If clearance exceeds 0.015" (0.38mm) adjust as shown below.

Checking clearance:

1. Disengage PTO clutch and shut off engine. Wait for all moving parts to stop.

2. Remove hydraulic lines from the airlock drive motor to allow rotation of the airlock.

CAUTION

High pressure fluids can penetrate the skin and cause infection and toxic reaction.

3. Open the inspection door on the receiver tank. Use a feeler gauge to check the clearance between the tips and the shell.

Airlock Tip Adjustment

1. Remove the connector on the air line between the BPS and the receiver tank.

2. Attach an overhead hoist to the receiver tank.

3. Remove the eight bolts securing the receiver tank to the airlock mount plate. Remove the receiver tank from the frame.

4. Position tip next to top of shell.

5. Loosen slightly the 5 bolts attaching the tip to the blade of the airlock.

6. Move the tip until you have 0.006" (0.15 mm) clearance between tip end and clockwise side of shell.

7. Tighten the bolts and torque to 20-25 ft. lbs. (34-40 Nm).

CAUTION

Rotating Airlock Hazard

To prevent serious injury or death from airlock blades:

1. Do not place hands in tank when airlock is turning.

2. Shut-off engine and wait for moving parts to stop before opening door to adjust, service or unplug.

23

Maintenance - 6644 Grain Vac

8. Rotate the rotor clockwise to ensure that there is no contact between the tips, end plates and the shell. Adjust if there is contact.

9. Mark the tip with a felt pen as done and proceed with remaining tips till all have been adjusted.

10. Replace receiver tank and check that all connections are airtight.

........................................................................................

Blower Serial Number

Reservoir Breather

Clean every 50 hours

Clean breathers allow the pressure in the oil reservoir to equalize with the outside as the temperature changes.

1. Remove breather from the top of the reservoirs.

2. Soak/Wash in a good grade of solvent.

3. Dry with an air hose and re-install.

Clamp #GV26042 Installation Instructions

Remove burrs, dirt, grease from pipe ends.

10 O’Clock

2 O’Clock

4"

1. Measure and mark both ends of the pipe at a distance that is half the length of the coupling.

2. Slide coupling over one pipe until it meets your mark, Insert next pipe section until pipes butt.

Avoid disturbing gasket or inner sleeve.

3. Partially tighten the center bolt first, then uniformly alternate tightening all the bolts to 65 lbs torque.

4. Tighten until top of flange is touching and there is approx. 3/16" of space at bottom of flange.

5. Make sure gasket joint and inner sleeve joint are at proper locations. (10 o’clock - 2 o’clock)

24

Maintenance - 6644 Grain Vac

Air Pump Reservoir

Change oil every 100 hours, more often if conditions are very dusty

1. Place small pan under the drain plug and remove plug. Drain for 10 minutes.

2. Re-install and tighten the drain plug.

3. Remove breather and add oil through the breather hole. Fill to center of the sight glass and re-install breather.

4. Repeat on other reservoir.

CAUTION

Breather hole

Sight glass

• Overfilling causes heating from the oil churning

• Underfilling causes heating from lack of lubrication

BPS

(Blower Protection System)

The air which is sucked from the receiver tank and drawn toward the air-pump contains dust which is harmful to the pump. This dust is trapped by the BPS system and collected in the dust canister. The amount of dust collected depends on the amount of dust and fines in the grain being moved.

Remove and empty dust canister regularly.

Do not allow to overfill. When canister is three quarters full it should be considered full!

NOTE:

If machine is allowed to overfill (plug):

• Remove screen on top of BPS and clean if required and reinstall.

• Empty canister and also allow any grain which may have accumulated in BPS to run out.

Refer to unplugging instructions under Operation.

BPS Lid

Dust Canister

CAUTION

Do not strike the screen with any hard object as damage to the screen will diminish its effectiveness.

25

Maintenance - 6644 Grain Vac

Hydraulic Safety

1. Make sure that all components in the hydraulic system are kept in good condition.

2. Replace any worn, cut, abraded, flattened or crimped hoses and metal lines.

3. Before applying pressure to the system, make sure all components are tight and that lines, hoses and couplings are not damaged.

4. Wear proper hand and eye protection when searching for a high pressure hydraulic leak. Use a piece of wood or cardboard as a backstop instead of hands to isolate and identify leak.

5. If injured by a concentrated high pressure stream of hydraulic fluid, seek attention immediately. Serious infection or toxic reaction can develop from hydraulic fluid piercing the skin surface.

CAUTION

Do not use tape, clamps or cement to repair hydraulic lines. The hydraulic system operates under high pressure, creating a hazardous unsafe condition when such repairs fail suddenly.

WARNING

High pressure fluids can penetrate the skin and cause infection and toxic reaction.

26

Maintenance - 6644 Grain Vac

Bolt Torque

Check tightness of bolts periodically, using bolt torque chart as a guide. Always replace hardware with the same strength bolt.

English Torque Specifications

1/4"

5/16"

3/8"

7/16"

1/2"

9/16"

5/8"

3/4"

7/8"

1"

Bolt dia.

“A”

Bolt Torque*

SAE 2 SAE 5 SAE 8

N.m (lb-ft) N.m (lb-ft) N.m (lb-ft)

8 (6)

13 (10)

12 (9)

25 (19)

17 (12)

36 (27)

27 (20)

41 (30)

45 (33)

72 (53)

63 (45)

100 (75)

61 (45) 110 (80) 155 (115)

95 (70) 155 (115) 220 (165)

128 (95) 215 (160) 305 (220)

225 (165) 390 (290) 540 (400)

230 (170) 570 (420) 880 (650)

345 (225) 850 (630) 1320 (920)

A

SAE-2 SAE-5 SAE-8

M3

M4

M5

M6

M8

M10

M12

M14

M15

M20

M24

Metric Torque Specifications

Bolt dia.

“A”

Bolt Torque*

8.8

N.m (lb-ft)

.5 (.4)

3 (2.2)

6 (4)

10 (7)

25 (18)

50 (37)

90 (66)

140 (103)

225 (166)

435 (321)

750 (553)

10.9

N.m (lb-ft)

1.8 (1.3)

4.5 (3.3)

9 (7)

15 (11)

35 (26)

70 (52)

125 (92)

200 (148)

310 (228)

610 (450)

1050 (774)

A

8.8 10.9

* Torque value for bolts and capscrews are identified by their head markings.

Torque values indicated above are valid for non-greased or non oiled threads and heads unless otherwise specified. Do not grease or oil bolts or capscrews unless otherwise specified in this manual. When using locking elements, increase torque values by 5%.

27

Maintenance - 6644 Grain Vac

Hydraulic Fitting Torque

Tighten Flare Tube Fittings*

1. Check flare and flare seat for defects that might cause leakage.

2. Align tube with fitting before tightening.

3. Lubricate connection and hand tighten swivel nut.

4. To prevent twisting the tube(s), use two wrenches. Place one wrench on the connector body and with the second tighten the swivel nut to the torque shown.

in.

3/16

1/4

5/16

3/8

1/2

5/8

3/4

7/8

Tube size

O.D.

Nut size across flats in.

7/16

9/16

5/8

11/16

7/8

1

1–1/4

1–3/8

Torque value*

N.m

(lb-ft)

8 (6)

12 (9)

16 (12)

24 (18)

46 (34)

62 (46)

102 (75)

122 (90)

Recommended turns to tighten (after finger tightening)

Flats

1

1

1

1

1

1

3/4

3/4

Turns

1/6

1/6

1/6

1/6

1/6

1/6

1/8

1/8

* The torque values shown are based on lubricated connections as in reassembly.

28

Hydraulic Hose Drawing

Boom

Cylinder

Hydraulic

Oil Tank

Filter

Maintenance - 6644 Grain Vac

Boom

Hydraulic Valve

Control

Panel

Hydraulic

Motor

Hydraulic

Pump

29

Troubleshooting - 6644 Grain Vac

Troubleshooting

The heart and lungs of the Grain Vac are the airlock and the blower (air pump). Both components must be operating at their recommended speed to obtain maximum efficiency from the machine.

The blower is driven by a belt and pulley system from the drive system attached to the engine. The airlock is driven by a hydraulic motor that is attached to the diesel engine.

If you encounter a problem that is difficult to solve, even after having read through this trouble shooting section, please call your local dealer or the factory. Before you call, please have this

Operators Manual and the serial numbers from your Grain Vac ready.

In North America call (204) 822-4467

Problem

Low capacity

Excessive grain damage.

Cause

Belts are slipping.

Airlock runs too fast.

Solution

Tighten belts.

Slow down airlock speed until grain builds up to the level of inspection door.

Adjust air intake.

Improper air intake.

Improper use of nozzle.

Air leaks - Intake.

Air leaks - Machine.

Improper piping.

Use full bin nozzle for larger piles and full bins. Use cleanup nozzle with flair for cleanup only. Do not submerge airslide in grain.

Check for worn coupler levers or missing coupler gaskets.

Check BPS, receiver section, and airlock gaskets.

Check pressure and vacuum relief valve.

Check clamps on airline between receiver tank and BPS and between BPS and blower.

Keep suction lines as short as possible.

Minimize bends.

Use straight length of pipe wherever possible.

Use the poly hose for clean up only!

Airlock tip clearance high.

Airlock end plate clearance

Adjust airlock tips.

If rotor to end plate clearance is more than 0.015", consult the dealer or factory.

Too much air intake.

Adjust air intake nozzle.

Blower running too fast. Throttle down engine.

Damaged tubing or flexline.

Repair or replace.

Insufficient grain supply. Reposition nozzle.

30

Troubleshooting - 6644 Grain Vac

Problem

Pulsation

BPS plugs

Airlock not turning at all.

Cause Solution

Insufficient air at intake. Open slide until grain flow becomes even.

Airlock turning too fast.

Improper piping.

Adjust airlock speed until grain is at level of the inspection door.

Replace steel flex or poly hose with rigid tubing wherever possible.

Suction line too small.

Use proper line size.

Engine running too slow. Increase engine RPM to recommended speed.

Belts are slipping.

Excessive airlock tip clearance.

Tighten belt.

Adjust airlock tips.

Airlock turning too slow.

Adjust airlock speed until grain is at the proper level on the inspection door.

Obstruction in suction.

Shut down machine and clear line obstruction.

Airlock turning too slowly.

Airlock turning too fast.

Airlock not turning.

Flow control valve wrong.

Increase airlock speed until grain is at the proper level on the inspection window.

Decrease airlock speed until the grain is at the proper level on the inspection door.

Check for and remove obstruction in airlock

Reset flow control.

Obstruction in airlock.

Shift Forward/Reverse lever from FORWARD to REVERSE and back to FORWARD. Repeat if obstruction does not clear up. If obstruction does not clear up, shut off engine, open inspection door and remove cause of obstruction.

Hydraulic oil heating up excessively.

Low oil level.

Add oil.

Excessive wear on air lines.

Improper piping.

Too much air flow.

Minimize bends.

Adjust airslides and airlock speed.

Insufficient grain supply. Reposition intake nozzle. Open grain supply doors.

Excessive engine speed. Operate at proper recommended engine speed.

NOTE: Also reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Manual for proper troubleshooting instructions.

31

Storage - 6644 Grain Vac

Storage

Prior to storage we recommend that you thoroughly inspect your Grain Vac.

1. Replace any worn or damaged components.

2. Wash and clean the machine. After cleaning, run machine at low idle for 2-3 minutes to dry the internal components.

3. While machine is running at an idle, open the cleaning port and inject a cleaning agent such as WD40 for 45 - 60 seconds.

This will coat the inside of the air pump to help prevent rusting.

4. Lubricate all grease points. Make sure all grease cavities have been filled with grease to remove any water residue.

5. Retract and stow all components and accessories and install cover over the boom pivot. (Keeps out dirt and small animals).

6. Inspect all hydraulic hoses, couplers, fittings and lines. Tighten any loose fittings.

Replace any hose that is badly cut, nicked, abraded or is separating from the fitting.

7. Inspect, clean or empty the BPS.

8. Check the fluid level in the air pump oil reservoirs. Add oil as required.

9. Touch up all paint nicks and scratches to help prevent rusting.

10. For storage, select an area which is dry and level. Make sure unit is firmly blocked and will not tip or sink into a soft area. Place a plank under jack for added support.

Inject

Cleaning

Agent

Here

NOTE: Reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Manual for proper storage instructions.

32

Hitch Drawing

Parts - 6644 Grain Vac

34

10

11

12

13

14

15

16

Item No.

1

2

3

6

7

8

9

4

5

Part No.

36705

36703

36719

60016

36730

36706

36716

36715

36717

36718

56016

56036

56035

36704

56071

36013

Description

A Frame Coupler (Shelby)

A Frame Jack

Hitch Sub Assembly

Wand Band Attach

Wand Rack

Attach Plates

3/4" x 3-1/2" Gr8 Bolt

3/4" x 2-1/2" Gr8 Bolt

3/4" Sae Washer Gr8

3/4" Lock Nut Gr8

3/8" x 1-1/4" Bolt

3/8" Lock Washer

3/8" Washer Flat Sae

Foot Detachable

1/4" x 1" Bolt

Rubber Attach Clamp

Parts - 6644 Grain Vac

3

3

10

3

1

5

2

Quantity

1

1

1

4

2

2

1

8

20

35

Receiver Tank and Dust Collector Drawing

20a

20b

24

25

Parts - 6644 Grain Vac

36

16

17

18

19

20a

20b

21

22

23

24

24

9

10

11

12

13

14

15

Item No.

1

2

3

6

7

4

5

7a

8

Part No.

GV19504 Dust Cyclone Top Plate

Description

GV19514 Screen, Blower Protection System

GV36860 Dust Cyclone

GV15525 Ring, Pail Seal

GV19512 Dust Cyclone Pail

GV26011 5" Seal Clamp

GV36850 Top Loading Receiver Tank Without Coupler

GV15632 Receiver Tank Top Plate

GV64510 Pail Gasket, 825 - 045 - 4' Required

GV26052 Female Coupler

GV64001 Foam Gasket -1/4" x 1" - 3' Required

GV15520 Window Receiver

GV64504 Foam Gasket - 6' Required

GV10627 Airlock - See Page 36

GV36870 Airline Blower Inlet

GV26119 Vacuum Relief Valve

GV14400 Blower Complete w/ Oil Filter - See Page 36

GV45630 2 Piece Airline Blower Output - See Page 36

GV64030 Gasket Blower, 5.3 1/8

GV64501 Blower Gasket, 1/16 Rubber

GV64500 Rubber Channel, 1/4 x 3/8 - 5' Required

GV64500 Rubber Channel, 1/4 x 3/8 - 4' Required

GV64503 Foam Gasket - 5' Required

1/4" Flat Washer & Lock Nut

GV26013 Pressure Relief Valve

GV15651 Screen Main Receiver Tank (Anti-Plug)

GV15653 Screen Handle, Factory Installed

Parts - 6644 Grain Vac

1

1

1

1

1

1

1

Quantity

1

1

1

2

1

1

1

1

1

1

2

1

1

2

1

1

1

37

Airlock and Blower Assembly Drawing

Parts - 6644 Grain Vac

26

27

38

Parts - 6644 Grain Vac

Item No.

9

9A

10

11

12

13

5

6

7

8

3

4

1

2

22

23

24

25

26

27

14

15

16

18

19

20

21

Part No.

GV10627

GV10630

GV10631

GV10632

GV20011

GV20007

GV20010

GV10021

GV10513

GV20006

GV22228

GV10017

GV10637

GV14400

GV45603

GV26044

GV26011

GV64030

GV64501

GV14400A

GV22136

GV22044

GV22149

GV14431

GV20015

GV26013

GV45650

Description

Airlock Assembly, Complete w/ Motor

Wiper

Retainer Wiper

Bolt, 1/4" x 1-1/2" Complete w/ Flat/L Washer & Nut

Flex Tip Wiper

Bolt, 1/4" x 1-1/2" Complete w/ Flat/L Washer & Nut

Chain Coupler Cover (To mid 1997)

Chain Coupler Sprocket (To mid 1997)

Chain - Chain Coupler (To mid 1997)

Chain Coupler Sprocket - Splined (To mid 1997)

Coupler Weldment (Mid 1997 models and up)

Woodruff Key

Hydraulic Motor - White

Bracket for Mounting Airlock Motor

Airlock, Less Motor

Blower Complete With Breather Vents

Flange Airlock Inlet

Reducer 6" to 5"

Seal Clamp. 5"

Gasket, 5" x 3-1/8"

Gasket, 1/16" Rubber

Blower Less Breathers

Galvanized Steel Nipple, 3/4" x 2-1/2"

Galvanized Coupler Nipple, 3/4"

Galvanized Hexagon Bushing, 3/4" x 2-1/2"

Breather Vent

O-Ring

Pressure Relief Valve

Silencer

2

1

2

2

1

1

1

1

1

1

2

1

2

1

1

1

1

1

1

1

Quantity

1

1

1

2

1

1

1

3

1

39

28

Boom and Cyclone Drawing

29

Parts - 6644 Grain Vac

See pg. 25 for installation instruction.

40

Item No.

1

2

16

17

18

19

20

21

22

9

10

11

12

13

14

15

5

6

7

8

3

4

23

24

25

26

27

28

29

GV29535

GV29643

GV20015

GV29540

GV26042

GV60032

GV22502

GV31007

GV31010

GV60033

GV60030

GV20019

GV31004

GV31038

Part No.

GV36500

GV29690

GV29691

GV43688

GV29698

GV29630

GV31046

GV31039

GV45695

GV45603

GV29507

GV56051

GV56003

GV64033

GV27032

GV29508

Description

Boom Mount Assembly

Bottom Boom Standard

Bottom Boom for High Boom

Discharge Swivel

Upper Boom

Boom Extension

Poly Cyclone Shell

Cyclone Thimble Assembly

Elbow Airlock Outlet

Airlock Outlet Flange

Threaded Rod Boom Clamp

1/2" Coupler Nut

1/2" Jam Nut

Boom Gasket

Boom Handle 32"

Boom Hingle Pin

Boom Extension Hinge Pin

Boom Bearing Washer

O-Ring

Boom Lock

2 Bolt Compression Clamp

Boom Handle Clamp

HYD Cylinder (2508 ASE c/w Pins)

Cyclone Steer Liner Long

Cyclone Poly Liner Long

Cyclone Extension Boot

Boom Cover

Grease Fitting - 1/4 x 28

Poly Cyclone Assembly

Cyclone Liner Kit

Parts - 6644 Grain Vac

1

1

1

1

3

1

1

1

1

1

1

2

1

1

2

4

1

2

2

1

1

Quantity

1

1

1

1

1

1

1

1

1

41

Direct Drive Assembly Drawing

Parts - 6644 Grain Vac

42

Item No.

1

2

3

6

7

4

5

8

Part No.

36645

36648

36644

36657

36651

36654

36646

36647

Direct Drive Pulley

2-1/2" Bushing

Drive Belt

Auto Tensioner

Idler Pulley

Tensioner Shaft

Blower Pulley

1-7/16" Bushing

Description

Parts - 6644 Grain Vac

Quantity

1

1

1

1

1

1

1

1

43

Cleanup and Full Bin Nozzles Drawing

Parts - 6644 Grain Vac

44

Parts - 6644 Grain Vac

Item No.

18

19

20

21

22

13

14

16

17

5

8

9

10

3

4

1

2

10

11

12

13

14

15

Part No.

Description

GV43030 Cleanup Assembly Complete

GV60021 Shoulder Strap

GV60008 Handle Grip

Nylon Nut 3/8"

GV26006 Male Coupler

Carriage Bolt, 1/4" x 3/4" Complete w/ Flat Washer

GV43525 Rotary Elbow Weldment

GV26011 Seal Clamp

Wing Nut & Flat Washer, 3/8"

GV43004 Bottom Slide Assembly

GV43003 Top Slide

GV60009 Rigid Caster

Carriage Bolt, 1/4" x 3/4". Complete w/ Washer & Nut

GV43060 Spacer Pipe Intake Flare

Machine Bolt, 1/4" x 3", Flat Lock Washer & Nut

GV43129 Bored Intake Flare

GV26063 Quick Release T-Bolt Clamp

GV43031 Aluminum Tube

GV43082 Intake Flare Assembly, 16 to 20 (T-bolt clamp not included)

GV43610 Full Bin Nozzle Assembly

Wing Nut And Flat Washer, 3/8"

GV26051 Male Coupler

GV43608 Handle

GV43004 Bottom Slide Assembly

GV43003 Top Slide

GV43609 Tube

1

1

1

1

2

11

1

2

2

1

2

1

2

2

1

1

1

Quantity

1

1

1

4

1

1

2

2

1

45

Parts - 6644 Grain Vac

Steel Flex Hose and Couplers Drawing

9

7

6 5

8

2 3

4a

4b

4

4c

2

3 1

46

Item No.

4a

4b

4c

5

6

3

4

1

2

7

8

9

Part # Description

GV43047 Steel Flex Hose Assembly - Includes 1-9

GV26051 Male Coupler

GV56030 Lock Nut, 1/4" NC x 3/4"

GV56027 Carriage Bolt, 1/4" NC x 3/4"

GV43048 Steel Flex Hose, 10 ft.

GV43050 Tubing

GV26073 Steel Flex Poly Lock, 10 ft.

GV26047 Hose End Reducer

GV26086 Cam Lever

GV26085 Finger Ring

GV26082 Cam Lever Pin

GV26052 Female Coupler Assembly - Includes 5-7

GV64029 Coupler Gasket

Parts - 6644 Grain Vac

Quantity

1

1

8

1

1

8

1

1

2

2

2

1

1

47

Parts - 6644 Grain Vac

Cleanup Hose and Couplers Drawing

10

9

8 7

6

2

5

4 3 2

1

48

Parts - 6644 Grain Vac

10

10

10

9

9

7

8

4

5

1

2

6

4

5

6

1

2

Item No.

3

4

1

2

5

6

3

4

1

2

5

6

GV26051

GV56027

GV26120

GV43050

GV26052

GV43079

GV26006

GV56027

GV26113

GV43029

GV26007

Part No.

Description

GV43034 Complete Hose Assembly - 4" x 14', 4" Female x 5" Male

GV26006 Male Coupler, 5"

GV56027 Carriage Bolt, 1/4" NC X 3/4", Lock Nut & Washer

GV26028 Reducer, 5" - 4"

GV26112 Poly Hose, 4" x 14'

GV43035 Tube

GV26005 Female Coupler, 4" - Includes 7 - 9

GV43056 Complete Hose Assembly - 5" x 14', 5" Female x 6" Male

GV26051 Male Coupler, 6"

GV56027 Carriage Bolt, 1/4" NC x 3/4", Lock Nut & Washer

GV26044 Reducer, 6" - 5"

GV26113 Poly Hose, 5" x 14'

GV43029

GV26007

GV43019

Tube

Female Coupler, 5" - Includes 7 - 9

Complete Hose Assembly - 6" x 14', 6" Female x 6" Male

GV26086

GV26085

GV26081

GV26082

GV64027

GV64028

GV64029

Male Coupler, 6"

Carriage Bolt, 1/4" NC x 3/4", Lock Nut & Washer

Poly Hose, 6" x 14'

Tube

Female Coupler, 6" - Includes 7 - 9

Complete Hose Assembly - 5" x 14', 5" Female x 5" Male

Male Coupler, 5"

Carriage Bolt, 1/4" NC x 3/4", Lock Nut & Washer

Poly Hose, 5" x 14'

Tube

Female Coupler, 5" - Includes 7 - 9

Coupler Parts

Cam Lever, For 4" & 5"

Finger Ring

Pin Cam Lever, For 4" & 5"

Pin Cam Lever, For 6"

Coupler Gasket, For 4"

Coupler Gasket, For 5"

Coupler Gasket, For 6"

1

8

14 ft.

2

1

1

1

8

14 ft.

2

1

Quantity

1

1

8

1

14 ft.

1

1

1

1

8

1

14 ft.

1

1

1

2

2

2

2

2

2

2

49

Warranty - 6644 Grain Vac

Warranty Policy

Buhler Industries Ltd. (hereafter referred to as “Buhler”) products are warranted for a period of twenty-four (24) months from the date of delivery to the original purchaser, to be free from defects in material and workmanship when used under correct, normal agricultural use and proper applications.

Buhler’s obligation under the warranty shall be limited to the repair or exchange (at Buhler’s option) of any part which proves to be defective as provided.

The buyer shall be responsible for all expenses incurred as a result of repairs, labour, parts, transportation or any other work unless a Buhler dealer has authorized such expenses in advance. It is the responsibility of the dealer to get approval from Buhler before authorizing warranty work being done. Buhler reserves the right to either inspect the product at the buyer’s location or have the defective part returned to the factory for inspection.

The above warranty does not extend to goods damaged or subject to accidents, abuse or misuse after shipment from Buhler’s factory, nor to goods altered or repaired without authorization from Buhler.

Buhler makes no Express Warranty other than those which are specifically described. Anydescription of goods, including any reference to specifications in catalogues, circulaires, and other written material published, is for the sole purpose of identifying goods and shall conform to such descriptions. Any sample or model is for illustration purposes only, and does not create an Express Warranty that the goods conform to the sample or model.The dealer is solely responsible for determining the suitability of goods sold.

BUHLER MAKES NO WARRANTY OF

MERCHANTABILITY OF FITNESS FOR A

PARTICULAR PURPOSE.

This warranty is expressly in lieu of all other warranties expressed or implied. Buhler will in no event, be liable for any incidental or consequential damages, nor for any sum in excess of the price received for the goods for which liability is claimed.

Claims for warranty must be made on Buhler Warranty Claim Forms within 10 days of the failure occurrence.

Warranty Authorization numbers are available from the factory and must be indicated on the Warranty Claim Form for all claims over a total dollar value of $100.00.

The labour rate for warranty work where applicable will be credited at a rate determined by Buhler.

IMPORTANT: Components or accessories, including blower, airlock, flex, hose and hose accessories that come in contact with material being moved, carry no warranty for wear. Warranty is void when unit is used for moving material other than cereal grains, grass seeds or pulse crops. With respect to vendor warranty items such as

Cummins engines and TwinDisc clutch which shall be warranted by their manufacturer, or local representative thereof.

50

301 Mountain Street South

Morden, Manitoba Canada R6M 1X7

Ph.: 204.822.4467 | Fax: 204.822.6348

Toll Free: 888.524.1004

E-mail: [email protected]

www.farm-king.com

Equipment shown is subject to change without notice.

©2010 Buhler Trading Inc. Printed in Canada. TSX:BUI

a division of Buhler Industries Inc.

www.farm-king.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
