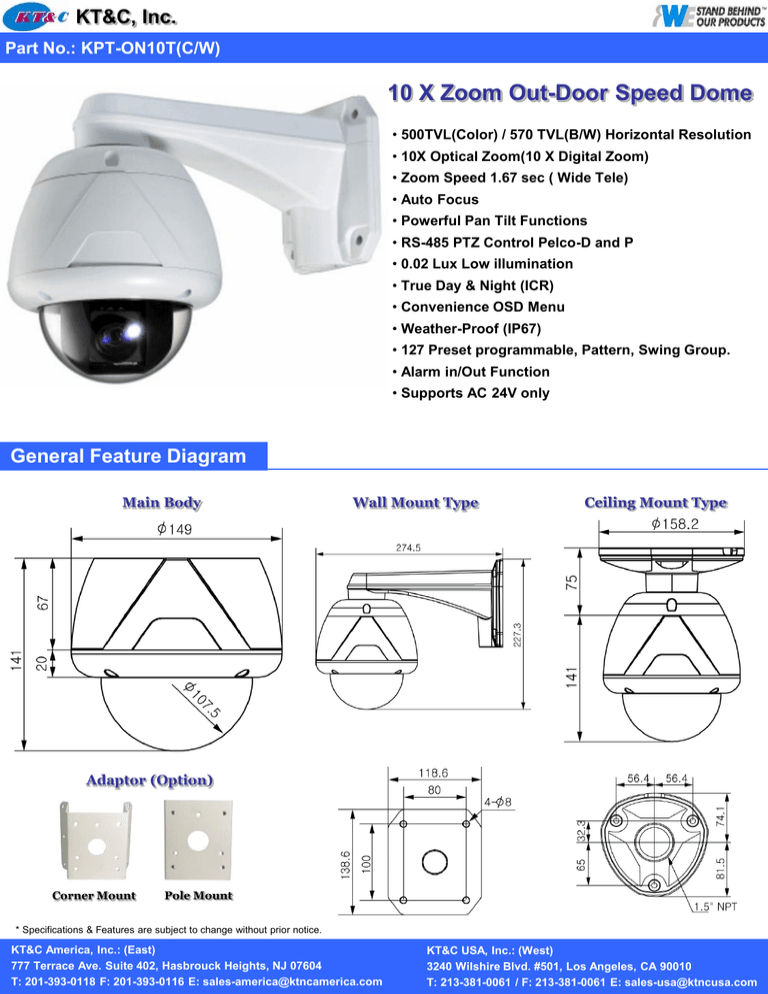

KPT-ON10T(C/W) Specification

KPT-ON10T(C/W) Specification
KT&C, Inc.
Part No.: KPT-ON10T(C/W)
10 X Zoom Out-Door Speed Dome
• 500TVL(Color) / 570 TVL(B/W) Horizontal Resolution
• 10X Optical Zoom(10 X Digital Zoom)
• Zoom Speed 1.67 sec ( Wide Tele)
• Auto Focus
• Powerful Pan Tilt Functions
• RS-485 PTZ Control Pelco-D and P
• 0.02 Lux Low illumination
• True Day & Night (ICR)
• Convenience OSD Menu
• Weather-Proof (IP67)
• 127 Preset programmable, Pattern, Swing Group.
• Alarm in/Out Function
• Supports AC 24V only
General Feature Diagram
Main Body
Wall Mount Type
Ceiling Mount Type
Adaptor (Option)
Corner Mount
Pole Mount
* Specifications & Features are subject to change without prior notice.
KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [email protected]
KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [email protected]
KT&C, Inc.
Part No.: KPT-ON10T(C/W)
Technical Specification
Model
KPT-ON10T (C:Ceiling Mount or W: Wall Mount)
Signal System
NTSC
Image Sensor
PAL
1/4" Interline Transfer CCD
Total Pixels : Effective Pixels
811(H) x 508(V) : 768(H) x 494(V)
Shutter Speed
795(H) x 596(V) : 752(H) x 582(V)
X128~ 1/120000 sec
Horizontal Resolution
550 TV Lines (Color) , 570 TV Line (B/W)
S/N
More than 50dB (AGC Off)
Zoom
10 X Optical Zoom (10 X Digital Zoom)
Zoom Speed
1.67 sec (Wide to Tele)
1.75 sec (Wide to Tele)
Focus
Auto / Manual/ SemiAuto
Lens Size
F=3.8mm ~ 38mm (F1.8)
H: 51.2.˚ (Wide)~5.58˚ (Tale) / V: 39.3˚ (Wide)~4.27˚ (Tele)
Angle of View
Day & Night
True Mechanical Day & Night (ICR) : Auto, Day and Night
Iris
Auto / Manual
Min. Illumination.
0.02 Lux (B/W) / 50 IRE
OSD
Built-in
SSNR (Super Noise Reduction)
Low / Middle / High / Off
Back Light Compensation (BLC)
Low / middle / High / Off
Auto Gain Control (AGC)
Function
Normal/ High / Off
White Balance
Auto / Manual R / B Gain Adjustable
Privacy Zone
4 Masks, Spherical Coordinate
Preset
127 Presets (Label Independent Camera Parameter Setting)
Pattern
4 Patterns (1200 Commands (Approx. 5 Minute) / Pattern)
Swing
8 Groups (Max 20 Actions with the Combination of Preset, Pattern and Swing)
Movement Range (Pan / Tilt)
360° (Endless) / 90°
Speed (Preset / Jog / Swing)
360°/sec (Preset) / 0.05~360°/sec (Jog) / 1~180°/ sec (Swing)
Other Pan/Tilt Functions
Auto Flip, Auto Parking, Power up Action
Communication
RS-485 (Pelco-D , Pelco-P)
Sensor Input
3 Inputs ( Photo-Coupler Type, DC5V-12V
Alarm Outputs
Fan/Heater
1 Output, Relay Output, Max. Load DC24V 1A / AC125 0.5A
Fan equipped (Always ON)/ Heater equipped (Operation Start 50° F internal Temp)
Operation Temperature
Power Supply
-30°C ~ 50°C (-22°F ~ 122°F)
AC 24V / 1.5A
* Specifications & Features are subject to change without prior notice.
