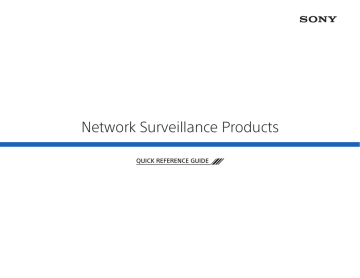

Network Surveillance Products
QUICK REFERENCE GUIDE
New Lineup of IPELA ENGINE Network Cameras
Powered by the IPELA ENGINE™ signal processing system*, Sony’s new generation of cameras delivers excellent
HD image quality with high sensitivity and wide dynamic range.
W Serieswith IPELA ENGINE PRO System
The W Series cameras are the most advanced rapid dome cameras in the security industry and adopt the top-end
signal processing system – IPELA ENGINE™ PRO. This series consists of four models – two indoor and two outdoor unitized
models – all of which provide advanced features such as a 130dB dynamic range in FHD with View-DR technology, 60p
high frame rate, 30x optical zoom, pan speed of 700°/s, Gyroscopic Image Stabilizer, Defog Image Processing, and Focal
Plane Distortion Correction. The SNC-WR630 and SNC-WR600 are 1080p and 720p models, while the SNC-WR632 and
SNC-WR602 are 1080p and 720p unitized models.
V and E Series with IPELA ENGINE EX System
The V Series cameras are the top of the line in the EX series with value-added features, while the E Series cameras are
more cost-effective compared to the V Series, and are best suited for entry-to-mid level applications. Both series provide
a variety of features, such as View-DR®, picture mode, H.264 CBR/VBR with high/main profiles, Image Stabilizer, easy
installation (Easy Zoom, Easy Focus), and DEPA™ Advanced Intelligent Video Analytics. The value-added features for the
V Series include a 60p high frame rate and Edge Storage (onboard recording with SD cards). Both series offer a range
of models with various form factors including vandal-resistant, IR ruggedized mini dome, and box-type models.
IR Ruggedized Cameras
Table of Contents
New Lineup of IPELA ENGINE Network Cameras
Network Fixed Cameras
2
3, 4
Network Mini Dome Cameras
5, 6, 7, 8
Network Rapid Dome and PTZ Cameras
9, 10, 11
Hybrid Camera Solutions
12, 13
Surveillance Video Encoders
14, 15
Network Surveillance Recording Servers
16
Intelligent Monitoring Software
17
IP Mini Dome Cameras Enclosures and Mounts18
Sony’s IR ruggedized mini dome cameras are designed for use in harsh outdoor environments, where lighting conditions during the night
are poor, and dust/water ingress as well as vandalism may pose challenges. This type of camera features a minimum illumination of 0 lx in
B/W mode using built-in IR illuminators, an operating temperature range from -40°F (-40°C) to +122°F (+50°C), and IK10-rated vandal resistant
and IP66-rated water-resistant/dust-tight features. There are four models in the product range: The V Series offers the SNC-VM632R 1080p and
SNC-VM602 720p models, while the E Series offers the SNC-EM632R 1080p and SNC-EM602 720p models.
Half-inch Full HD CMOS Sensor Camera
The SNC-VB635 camera is designed for use in highly demanding conditions such as transportation, municipality, and energy applications.
Thanks to the high sensitivity of its 1/1.9-type 1080p Exmor® CMOS sensor, this camera can provide high picture quality even in very low-light
conditions. Other key features include a 90 dB dynamic range with View-DR technology, True Day/Night, and RS-485 external control.
C Series with IPELA ENGINE EX System
The C Series offers 720/30p compact cameras that adopt an all-in-one design, incorporating a passive IR sensor,
white-light LED illuminators, a speaker, and a microphone. Another convenient feature is Edge Storage (onboard
recording with micro SD cards). These cameras provide high picture quality with a wide horizontal viewing angle of 120°.
There are two models in the C Series: The SNC-CX600W is a wireless network model that offers easy, reliable, and stable
network operation thanks to the WPS (Wi-Fi Protected Setup) standard, Wi-Fi certification, and the WMM (Wi-Fi Multimedia)
standard, while the SNC-CX600 is a PoE (Power over Ethernet) model that requires just a single network cable for data
transmission and power supply.
X Series with IPELA ENGINE EX System
X Series cameras are 1080/30p mini dome models that are primarily designed for use in vehicles and for outdoor
applications such as retail, banking, and education. Key features include a 90 dB dynamic range with View-DR
technology, IK10 vandal resistance, IP66 ingress protection, and Image Stabilization. There are three models in the X
Series: The SNC-XM632 is a perfect choice for for general outdoor applications, while the SNC-XM636 and SNC-XM637 are
ideal for train surveillance, providing high picture quality with a wide horizontal viewing angle of approximately 83° and
113°, respectively.
360° Hemispheric-view Camera (H Series)
IP Fixed Cameras Enclosures and Mounts19
IP Rapid Dome and PTZ Cameras Enclosures and Mounts20
The SNC-HM662 is a 360° hemispheric-view dome camera with a 5 megapixel CMOS sensor. It can be used for activity monitoring and
situational awareness in various environments such as retail outlets, education, and office buildings. The SNC-HM662 provides a variety of 11
view modes that include a 360° hemispheric view, 180° panoramic view, and multiple view. Other key features include IP66 ingress protection,
IK10 vandal resistance, two-way audio, and Edge Storage (onboard recording with micro SD cards).
Mount Options and Enclosures22
* The SNC-HM662 is not equipped with an IPELA ENGINE processor.
All other V, E, X and Z series do not include IPELA ENGINE signal processing system.
IP Fixed Cameras
V Series with IPELA ENGINE EX
Series Name
Model Name
SNC-VB632D
SNC-VB635
SNC-VB630
E Series with IPELA ENGINE EX
SNC-VB600
SNC-EB632R
SNC-EB602R
SNC-EB630
C Series with IPELA ENGINE EX
SNC-EB600
SNC-EB630B
SNC-EB600B
SNC-CX600W
SNC-CX600
(lens not included)
Video Compression Format
H.264 (High/Main/Baseline Profile)/JPEG
H.264 (High/Main/Baseline Profile)/JPEG
Multi Streaming Capability
Triple streaming
Triple streaming
Computer Display Format
(*1)
Maximum Resolution
IR Illuminators
White-light LED Illuminator
Built-in Speaker and
Microphone
Outdoor Use/Ingress
Protection
Vandal Resistant
Horizontal Viewing Angle
Zoom Ratio
Focal Length
Lens
Image Sensor
Tone Correction
Wide Dynamic Range
Minimum Illumination
(50 IRE)
Maximum Frame Rate
Day/Night
Noise Reduction
Image Stabilizer
Edge Storage
Card Slot
Wireless Network
Analog Video/Monitor
Output
Analytics Architecture
Audio Capability
ONVIF™ Conformance
Power Requirements
Power Consumption
Operating Temperature
Dimensions
1920 x 1080
1280 x 1024
(*1)
1920 x 1080
1280 x 1024
Yes (Wave length:
850 nm [typical],
IR LED: 20 pieces)
Yes (Wave length:
850 nm [typical],
IR LED: 10 pieces)
1920 x 1080
Yes (White LED: 4 pieces)
No
No
No
No
No
Yes/IP66
No
IK08
No
Optical zoom 3x; Digital zoom 4x;
Total zoom 12x
NA
(*1)
1280 x 1024
No
NA
Triple streaming
(*1)
Yes (Wave length: 850 nm
[typical], IR LED: 20 pieces)
105.3° to 35.6°
H.264 (High/Main/Baseline Profile)/JPEG
1920 x 1080
(*1)
1280 x 1024
1280 x 720
No
No
Yes
Yes
Yes/IP66
No
No
No
114.2° to 40.0°
100.0° to 35.7°
2.9x optical zoom
105.3° to 35.6°
92.9° to 31.8°
100.0° to 35.7°
114.2° to 40.0°
100.0° to 35.7°
120°
Optical zoom 3x, Digital zoom 4x, Total
zoom 12x
2.9x optical zoom
2.7x optical zoom
2.9x optical zoom
2.7x optical zoom
NA
f = 2.8 mm to 8.0
mm
f = 3.0 mm to 8.0
mm
f = 2.8 mm to 8.0
mm
f = 3.0 mm to 8.0
mm
f = 1.83 mm
f = 3.0 mm to 9.0 mm
NA
f = 2.8 mm to 8.0 mm
f = 3.0 mm to 9.0 mm
Built-in varifocal lens
C/CS mount lens
(not included)
CS mount varifocal lens
Built-in varifocal lens
1/2.9-type progressive scan
Exmor® CMOS sensor
1/1.9-type
progressive scan
Exmor CMOS
sensor
1/2.9-type
progressive scan
Exmor CMOS
sensor
1/3-type
progressive scan
Exmor CMOS
sensor
No
114.2° to 40.0°
1/2.9-type
progressive scan
Exmor CMOS
sensor
CS mount varifocal lens
1/3-type
progressive scan
Exmor CMOS
sensor
1/2.9-type
progressive scan
Exmor CMOS
sensor
Visibility Enhancer (VE)
1/3-type
progressive scan
Exmor CMOS
sensor
Fixed lens
1/2.9-type
progressive scan
Exmor CMOS
sensor
1/3-type
progressive scan
Exmor CMOS
sensor
Visibility Enhancer (VE)
Equivalent to 130
dB with View-DR
technology
Equivalent to 90 dB Equivalent to 130 Equivalent to 90 dB
Equivalent to 90 dB with View-DR technology
with View-DR
dB with View-DR
with View-DR
technology
technology
technology
Color: 0.04 lx,
Color: 0.1 lx,
Color: 0.1 lx (F1.2, Color: 0.05 lx (F1.2,
Color: 0.1 lx,
Color: 0.05 lx, B/W:
Color: 0.1 lx (F1.2, View-DR OFF, VE
B/W: 0.03 lx
B/W: 0.07 lx
View-DR OFF, VE OFF, View-DR OFF, VE OFF,
B/W: 0.07 lx
0.04 lx (F1.2, ViewOFF, AGC ON, 1/30 s, 30 fps)
(F1.2, View-DR OFF, (F1.2, View-DR OFF,
AGC ON, 1/30 s,
AGC ON, 1/30 s,
(F1.2, View-DR OFF,
DR OFF, VE OFF, AGC
B/W: 0 lx (IR illuminator ON)
VE OFF, AGC ON,
VE OFF, AGC ON,
30 fps) B/W: 0 lx
30 fps) B/W: 0 lx
VE OFF, AGC ON,
ON, 1/30 s, 30 fps)
1/30 s, 30 fps)
1/30 s, 30 fps)
(IR illuminator ON) (IR illuminator ON)
1/30 s, 30 fps)
60 fps (H.264/
30 fps (H.264/
30 fps (H.264/
60 fps (H.264) at 1920 x 1080, 60 fps (JPEG)
30 fps (H.264) at
JPEG) at
JPEG) at 1920 x
JPEG) at
at 1280 x 720
1280 x 1024
1280 x 1024
1080
1920 x 1080
True D/N
1/4-type progressive scan Exmor CMOS
sensor
Visibility Enhancer (VE)
Equivalent to 130
dB with View-DR
technology
Color: 0.05 lx,
B/W: 0.04 lx
(F1.0, View-DR OFF,
VE OFF, AGC ON,
1/30 s, 30 fps)
30 fps (H.264/
JPEG) at
1280 x 1024
Equivalent to 90 dB with View-DR
technology
Color: 0.1 lx,
B/W: 0.1 lx
(F1.2, View-DR OFF,
VE OFF, AGC ON,
1/30 s, 30 fps)
30 fps (H.264/
JPEG) at
1920 x 1080
True D/N
Color: 0.05 lx,
B/W: 0.05 lx
(F1.0, View-DR OFF,
VE OFF, AGC ON,
1/30 s, 30 fps)
30 fps (H.264/
JPEG) at
1280 x 1024
More than 60 dB
Color: 1.0 lx (F2.0, VE OFF, AGC MAX,
1/30 s, 30 fps)
30 fps (H.264/JPEG) at 1280 x 720
Electrical D/N
No
XDNR® Technology
XDNR® Technology
XDNR® Technology
Yes
Yes
Yes
Yes
No
Yes
SD card
No
micro SD card
No
No
Yes
Yes/for setup only
DEPA Advanced
DEPA Advanced
DEPA Advanced
Yes, 2-way Audio
No
Yes, 2-way Audio
Profile S
IEEE802.3at compliant (PoE/PoE+
system), AC 24 V ±20%, 50 Hz/60
IEEE802.3af compliant (PoE), AC 24 V, DC 12 V
Hz, DC 12 V ±10%
Max. 21 W (AC 24 V/DC 12 V)
Max. 17 W (IEEE802.3at (PoE+)
6 W max.
Max. 12.5 W (IEEE802.3af (PoE)
-40°F to +140°F (-40°C to +60°C)
(LED OFF, PoE+, AC 24 V, DC 12 V)
-40°F to +122°F (-40°C to +50°C)
14°F to 140°F
14°F to 122°F
(LED ON, PoE+, AC 24 V, DC 12 V)
(-10°C to +60°C)
(-10°C to +50°C)
14°F to +140°F (-10°C to +60°C)
(LED OFF, PoE)
14°F to 122°F (-10°C to +50°C)
(LED ON, PoE)
3 3/4 x 3 3/4 x 7 1/8 inches
Approx. 3 1/8 x 3 x 5
(93 × 93 × 180.9 mm)
3/4 inches (79 x 74 x 2 7/8 x 2 1/2 x 7 7/8 inches (72 x 63 x 197
ø5 5/8 x 12 3/8 inches
145 mm) without
mm) with lens
(ø140 x 313.4 mm) including arm
lens
IEEE802.11b/g/n
Profile S
Profile S
IEEE 802.3af compliant (PoE)
Max. 11.4 W (IEEE
802.3af-compliant
PoE system)
Max. 10.0 W (IEEE
802.3af-compliant
PoE system)
No
No
IEEE802.3af
compliant
(PoE)
DC 5 V
6 W max.
5.0 W max.
Wired: 32°F to 122°F
(0°C to 50°C)
Wireless: 32°F to
104°F
(0°C to 40°C)
-22°F to +122°F (-30°C to +50°C)
14°F to 122°F
(-10°C to +50°C)
3 3/4 x 3 3/4 x 6 3/8 inches
(93 × 93 × 160.9 mm)
ø5 3/8 x 12 3/8 inches
(ø140 x 313.4 mm) including the arm
2 7/8 x 2 1/2 x 7 7/8 2 7/8 x 2 1/2 x 7 1/2 2 7/8 x 2 1/2 x 7 7/8
2 7/8 x 2 1/2 x 7
inches (72 x 63 x 199 inches (72 x 63 x 188 inches (72 x 63 x 199 1/2 inches (72 x 63
mm) with lens
mm) with lens
mm) with lens
x 188 mm) with lens
32°F to 122°F
(0°C to +50°C)
Approx. 2 13/32 x 3 3/4 x 1 5/8 inches
(61 x 95 x 41 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
All cameras in this chart comply with UL2044.
3
IP Fixed Cameras
V Series
Series Name
Model Name
SNC-CH280
SNC-CH180
E Series
SNC-CH240
SNC-CH140
SNC-CH260
SNC-CH160
X Series
SNC-CH220
SNC-CH120
Video Compression Format
H.264/MPEG-4/JPEG
H.264/MPEG-4/JPEG
Multi Streaming Capability
Dual streaming
Dual streaming
Computer Display Format
Maximum Resolution
(*1)
1920 x 1440
(*1)
1280 x 1024
IR Illuminators
1920 x 1440
Yes
1280 x 1024
1920 x 1440
SNC-CH110
Dual streaming
(*1)
1280 x 1024
SNC-CH210
H.264/MPEG-4/JPEG
(*1)
No
SNC-EB520
1920 x 1440
1280 x 1024
Yes
(*1)
SD
800 x 600
2048 x 1536
1280 x 960
No
No
White-light LED Illuminator
No
No
No
Built-in Speaker and
Microphone
No
No
No
Outdoor Use/Ingress
Protection
Yes/IP66
No
Vandal Resistant
Horizontal Viewing Angle
Yes/IP66
No
No
96.5° to 33.9°
88.5° to 32.3°
85.4° to 31.2°
101.2° to 47.0°
96.5° to 33.9°
89.2° to 34.6°
2.9x optical zoom
2.1x optical zoom
2.9x optical zoom
2.9x optical zoom
2.9x optical zoom
2.1x optical zoom
2.9x optical zoom
2.6x optical zoom
Focal Length
f=3.1 mm to 8.9 mm
f=2.8 mm to 6.0 mm
f = 2.8 mm to 8.0 mm
f = 2.8 mm to 8.0 mm
f = 3.0 mm to 8.0 mm
Lens
Built-in varifocal lens
Image Sensor
85.4° to 31.2°
No
101.2° to 47.0°
Zoom Ratio
88.5° to 32.3°
No
No
1/2.8-type progressive
scan Exmor CMOS
sensor
1/3-type progressive
scan Exmor CMOS
sensor
Equivalent to 90 dB
with View-DR
technology
Equivalent to 130 dB
with View-DR
technology
Tone Correction
Wide Dynamic Range
Minimum Illumination
(50 IRE)
Maximum Frame Rate
CS mount varifocal lens
1/2.8-type progressive
scan Exmor CMOS
sensor
1/3-type progressive
scan Exmor CMOS
sensor
f=3.1 mm to 8.9 mm
f = 2.8 mm to 6.0 mm
Built-in varifocal lens
1/2.8-type progressive
scan Exmor CMOS
sensor
CS mount varifocal lens
1/3-type progressive
scan Exmor CMOS
sensor
Visibility Enhancer (VE)
Color: 0.40 lx, B/W: 0 lx Color: 0.22 lx, B/W: 0 lx
(IR illuminator ON)
(IR illuminator ON)
(F1.2, View-DR OFF,
(F1.2, View-DR OFF,
XDNR ON-Middle,
XDNR ON-Middle,
VE OFF, AGC High)
VE OFF, AGC High)
Equivalent to 90 dB
with View-DR
technology
Equivalent to 130 dB
with View-DR
technology
Color: 0.40 lx, B/W:
0.25 lx (F1.2, View-DR
OFF, XDNR ON-Middle,
VE OFF, AGC High)
Color: 0.20 lx, B/W: 0.1
lx (F1.2, View-DR OFF,
XDNR ON-Middle,
VE OFF, AGC High)
Color: 0.7 lx, B/W: 0 lx
(IR illuminator ON)
(F1.2, AGC 42 dB)
Color: 0.5 lx, B/W: 0 lx
(IR illuminator ON)
(F1.2, AGC 42 dB)
1/2.8-type progressive
scan Exmor CMOS
sensor
89°
80.7°
NA
f = 3.3 mm
f = 2.3 mm
Built-in fixed focal lens
1/3-type progressive scan
Exmor CMOS sensor
1/2.8-type progressive
scan Exmor CMOS
sensor
1/3.8-type progressive
scan CMOS sensor
No
No
More than 60 dB
NA
Color: 0.7 lx, B/W: 0.45 Color: 0.5 lx, B/W: 0.3 lx
Color: 0.47 lx, B/W:
lx (F1.2, AGC 42 dB)
(F1.2, AGC 42 dB)
0.27 lx (F1.0, AGC ON)
2.0 lx (AGC 38 dB)
5.0 lx (AGC 30 dB)
30 fps (H.264/MPEG-4/
30 fps (H.264)/20 fps
30 fps (H.264)/20 fps
30 fps (H.264)/20 fps
30 fps (H.264)/20 fps
30 fps (H.264/MPEG-4/
30 fps (H.264/MPEG-4/
30 fps (H.264/MPEG-4/
30 fps (H.264/MPEG-4/ 30 fps (H.264/MPEG-4/ JPEG) at 1280 x 720, 30 fps (H.264/MPEG-4/
(MPEG-4)/16 fps
(MPEG-4)/16 fps
(MPEG-4)/16 fps
(MPEG-4)/16 fps
JPEG) at 1280 x 720
JPEG) at 1280 x 720
JPEG) at 1280 x 720
JPEG) at 1280 x 720
JPEG)
15 fps (H.264/MPEG-4/ JPEG) at 1280 x 720
(JPEG) at 1920 x 1080
(JPEG) at 1920 x 1080
(JPEG) at 1920 x 1080
(JPEG) at 1920 x 1080
JPEG) at 1920 x 1080
Day/Night
True D/N
True D/N
Electrical D/N
Noise Reduction
XDNR® Technology
Yes
Yes
Image Stabilizer
No
No
No
Edge Storage
Yes
No
No
CF card
No
No
Yes (option)
No
No
Yes
Yes/for setup only
Yes/for setup only
Analytics Architecture
DEPA Advanced
DEPA
DEPA
Audio Capability
Yes, 2-way Audio
No
No
Profile S
Profile S
Profile S
Card Slot
Wireless Network
Analog Video/Monitor
Output
ONVIF Conformance
Power Requirements
Power Consumption
Operating Temperature
IEEE 802.3af compliant (PoE system), AC 24 V, DC 12 V
33 W max.
30 W max.
-22°F to +122°F (-30°C to +50°C)
for 24VAC/12VDC
Dimensions
ø3 3/4 x 7 3/8 inches
(ø93 X 186 MM)
11.2 W max.
IEEE802.3af compliant (PoE system)
9 W max.
14°F to 122°F (-10°C to +50°C)
ø2 7/8 x 2 1/2 x 7 3/4
inches (ø72 x 63 x
197.3 mm) with lens
2 7/8 x 2 1/2 x 7 7/8
inches (72 X 63 X 197
mm) with lens
IEEE802.3af compliant (PoE system)
12.9 W max.
5 W max.
2.4 W max.
-22F° to +122F° (-30°C to +50°C)
14°F to 122°F (-10°C to +50°C)
32°F to 122°F (0°C to +50°C)
2 7/8 x 2 1/2 x 7 7/8
inches
(72 x 63 x 197 mm)
with lens
ø1 3/4 x 3 3/4 inches
(ø44 x 93 mm)
ø3 3/4 x 7 3/8 inches
(ø93 x 186 mm)
ø2 7/8 x 2 1/2 x 7 3/4
inches (ø72 x 63 x
197.3 mm) with lens
2 7/8 x 2 1/2 x 7 7/8
inches
(72 x 63 x 187.8 mm)
with lens
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
4
All cameras in this chart comply with UL2044.
IP Mini Dome Cameras
V Series with IPELA ENGINE EX
Series Name
Model Name
SNC-VM632R
SNC-VM602R
SNC-VM631
SNC-VM601
Video Compression Format
H.264 (High/Main/Baseline Profile)/JPEG
Multi Streaming Capability
Triple streaming
Computer Display Format
Maximum Resolution
(*1)
1920 x 1080
1920 x 1080
Yes
1280 x 1024
No
No
Outdoor Use/Ingress
Protection
Yes/IP66
No
IK10
Vandal Resistant
105.2° to 35.4°
93.0° to 31.6°
No
105.2° to 35.4°
93.0° to 31.6°
105.2° to 35.4°
93.0° to 31.6°
1/3-type progressive scan Exmor
CMOS sensor
1/2.9-type progressive scan Exmor
CMOS sensor
1/3-type progressive scan Exmor
CMOS sensor
3.0x optical zoom
Zoom Ratio
Focal Length
f=3.0 mm to 9.0 mm
Lens
Built-in varifocal lens
Image Sensor
1920 x 1080
(*1)
1280 x 1024
Built-in Speaker and
Microphone
Horizontal Viewing Angle
SNC-VM600
(*1)
1280 x 1024
IR Illuminators
SNC-VM630
1/2.9-type progressive scan Exmor
CMOS sensor
1/3-type progressive scan Exmor
CMOS sensor
1/2.9-type progressive scan Exmor
CMOS sensor
Wide Dynamic Range
Equivalent to 90 dB with
View-DR technology
Equivalent to 130 dB with
View-DR technology
Equivalent to 90 dB with
View-DR technology
Equivalent to 130 dB with
View-DR technology
Equivalent to 90 dB with
View-DR technology
Equivalent to 130 dB with
View-DR technology
Minimum Illumination
(50 IRE)
Color: 0.1 lx
(F1.2, View-DR OFF, VE OFF,
AGC ON, 1/30 s, 30 fps)
B/W: 0 lx (IR illuminator ON)
Color: 0.05 lx
(F1.2, View-DR OFF, VE OFF,
AGC ON, 1/30 s, 30 fps)
B/W: 0 lx (IR illuminator ON)
Color: 0.1 lx, B/W: 0.07 lx
(F1.2, View-DR OFF, VE OFF,
AGC ON, 1/30 s, 30 fps)
Color: 0.05 lx, B/W: 0.04 lx
(F1.2, View-DR OFF, VE OFF,
AGC ON, 1/30 s, 30 fps)
Color: 0.1 lx, B/W: 0.07 lx
(F1.2, View-DR OFF, VE OFF,
AGC ON, 1/30 s, 30 fps)
Color: 0.05 lx, B/W: 0.04 lx
(F1.2, View-DR OFF, VE OFF,
AGC ON, 1/30 s, 30 fps)
Maximum Frame Rate
60 fps (H.264) at 1920 x 1080,
60 fps (JPEG) at 1280 x 720
60 fps (H.264/JPEG) at
1280 x 1024
60 fps (H.264) at 1920 x 1080, 60
fps (JPEG) at 1280 x 720
60 fps (H.264/JPEG) at
1280 x 1024
60 fps (H.264) at 1920 x 1080, 60
fps (JPEG) at 1280 x 720
60 fps (H.264/JPEG) at
1280 x 1024
Visibility Enhancer (VE)
Tone Correction
True D/N
Day/Night
Noise Reduction
XDNR® Technology
Image Stabilizer
Yes
Yes
Edge Storage
SD card
Card Slot
Wireless Network
No
Analog Video/Monitor
Output
Yes
Yes, 2-way Audio
Audio Capability
Profile S
ONVIF Conformance
Power Requirements
IEEE 802.3at compliant (PoE/PoE+ system), AC 24V, DC 12V
IEEE802.3af compliant (PoE system), AC 24 V, DC 12 V
Power Consumption
Max. 22 W (AC 24 V/DC 12 V, heater ON)
Max. 18 W (IEEE802.3at (PoE+), heater ON)
Max. 12.8 W (IEEE802.3af/at (PoE/PoE+), heater OFF)
6.0 W max.
Operating Temperature
-40°F to 140°F (*2) (-40°C to +60°C) (*2)
14°F to 122°F (-10°C to +50°C)
Dimensions
ø6 5/8 x 5 1/8 inches (ø166 x 128 mm)
ø5 7/8 x 4 3/8 inches (ø148 x 109 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
(*2) If the camera is installed in high-temperature environments and subjected to direct sunlight, it is highly recommended to use the optional SNCA-WP602 Weather Protector.
All cameras in this chart comply with UL2044.
5
IP Mini Dome Cameras
E Series with IPELA ENGINE EX
Series Name
Model Name
SNC-EM632RC
SNC-EM602RC
SNC-EM631
Video Compression Format
Multi Streaming Capability
Computer Display Format
Maximum Resolution
Horizontal Viewing Angle
Zoom Ratio
Focal Length
Lens
Image Sensor
1920 x 1080
2560 x 1920
1280 x 1024
5MP
1280 x 1024
No
No
IK10
105.2° to 35.4°
93.0° to 31.6°
105.2° to 35.4°
No
Yes (built-in
microphone)
Yes/IP66
No
Yes/IP66
IK10
93.0° to 31.6°
113°
83°
f = 2.8 mm
f = 3.8 mm
3.0x optical zoom
Built-in varifocal lens
Equivalent to 130 dB
with View-DR
technology
Equivalent to 90 dB
with View-DR
technology
Minimum Illumination
(50 IRE)
Color: 0.1 lx
(F1.2, View-DR OFF, VE
OFF, AGC ON, 1/30 s,
30 fps) B/W: 0 lx
(IR illuminator ON)
Color: 0.05 lx
(F1.2, View-DR OFF, VE
OFF, AGC ON, 1/30 s,
30 fps) B/W: 0 lx
(IR illuminator ON)
Color: 0.1 lx,
B/W: 0.07 lx
(F1.2, View-DR OFF, VE
OFF, AGC ON, 1/30 s,
30 fps)
Maximum Frame Rate
30 fps (H.264) at
1920 x 1080,
30 fps (JPEG) at
1280 x 720
IK10
113°
182°
f = 2.8 mm
f= 0.98 mm to 1.12 mm
4x digital zoom
f=3.0 mm to 9.0 mm
Equivalent to 90 dB
with View-DR
technology
No
Yes (built-in microphone)
No
Wide Dynamic Range
Dimensions
1920 x 1080
Yes/IP66
1/2.9-type progressive
scan Exmor CMOS
sensor
Operating Temperature
(*1)
No
Tone Correction
SNC-HM662
Triple streaming
1920 x 1080
93.0° to 31.6°
SNC-XM631
H.264 (High/Main/
Baseline Profile)/JPEG
No
105.2° to 35.4°
H Series
SNC-XM637
Triple streaming
1/3-type progressive
scan Exmor CMOS
sensor
Power Consumption
SNC-XM636
H.264 (High/Main/Baseline Profile)/JPEG
1/2.9-type progressive
scan Exmor CMOS
sensor
Day/Night
Noise Reduction
Image Stabilizer
Edge Storage
Card Slot
Wireless Network
Analog Video/Monitor
Output
Analytics Architecture
Audio Capability
Alarm I/O
ONVIF Conformance
Power Requirements
SNC-XM632
Triple streaming
Yes
Built-in Speaker and
Microphone
Outdoor Use/Ingress
Protection
Vandal Resistant
SNC-EM600
(*1)
1280 x 1024
IR Illuminators
SNC-EM630
H.264 (High/Main/Baseline Profile)/JPEG
(*1)
1920 x 1080
X Series with IPELA ENGINE EX
SNC-EM601
1/3-type progressive
scan Exmor CMOS
sensor
1/2.9-type progressive
scan Exmor CMOS
sensor
1/3-type progressive
scan Exmor CMOS
sensor
Equivalent to 130 dB
with View-DR
technology
Equivalent to 90 dB
with View-DR
technology
Equivalent to 130 dB
with View-DR
technology
Color: 0.05 lx,
B/W: 0.04 lx
(F1.2, View-DR OFF, VE
OFF, AGC ON, 1/30 s,
30 fps)
Color: 0.1 lx,
B/W: 0.07 lx
(F1.2, View-DR OFF, VE
OFF, AGC ON, 1/30 s,
30 fps)
Color: 0.05 lx,
B/W: 0.04 lx
(F1.2, View-DR OFF, VE
OFF, AGC ON, 1/30 s,
30 fps)
12x digital zoom
Fixed lens
Fixed lens
1/2.9-type progressive scan Exmor CMOS sensor
1/2.5-type progressive
scan
CMOS sensor
Visibility Enhancer (VE)
Yes
Equivalent to 90 dB with View-DR technology
More than 60 dB
Color: 0.3 lx, B/W: 0.3 lx
(F2.0, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Color: 0.7 lx,
B/W: 0.01 lx
(F2.0, AGC ON, 1/30 s,
10 fps)
30 fps (H.264/JPEG) at 1920 x 1080
30 fps (H.264/JPEG) at
1920 x 1080
13 fps (JPEG)/10 fps
(H.264) at 2560 x 1920
Visibility Enhancer (VE)
30 fps (H.264/JPEG) at 30 fps (H.264/JPEG) at 30 fps (H.264/JPEG) at 30 fps (H.264/JPEG) at 30 fps (H.264/JPEG) at
1280 x 1024
1920 x 1080
1280 x 1024
1920 x 1080
1280 x 1024
True D/N
Electrical D/N
True D/N
XDNR® Technology
XDNR® Technology
No
Yes
Yes
No
No
Yes
Yes
No
SD Card
micro SD card
No
No
No
Yes/for setup only
No
No
No
DEPA Advanced
No
Yes
No
No
Profile S
IEEE 802.3at compliant (PoE/PoE+ system)
IEEE 802.3af compliant (PoE system)
Max. 17 W (IEEE802.3at-compliant (PoE+
system)
Max. 12.95 W (IEEE802.3af/at-compliant
(PoE/PoE+ system)
6.0 W max.
-40°F to +122°F (-40°C to +50°C) (PoE+) (*2)
-22°F to +122°F (-30°C to +50°C) (PoE) (*2)
14°F to 122°F
(-10°C to +50°C)
ø16 5/8 x 5 1/8 inches
(ø166 x 129 mm)
ø5 7/8 x 4 3/8 inches
(ø148 x 108 mm)
Max. 10.0 W (heater
ON) Max. 3.8 W
(heater OFF)
equivalent to PoE Class
1, RJ45 Connector
No
No
Yes
Yes(1/1)
Yes(1/1)
Profile S
Profile S
IEEE 802.3af compliant (PoE system)
IEEE 802.3af compliant
(PoE system), DC 12 V
Max. 10.0 W (heater ON)
Max. 3.8 W (heater OFF) equivalent to PoE
Class 1, M12 Connector
4.0 W max.
6.0 W max.
-13°F to +122°F
(-25°C to +50°C)
14°F to 122°F
(-10°C to +50°C )
-22°F to +122°F
(-30°C to +50°C)
Approx.
ø 1/2 x 1 27/32 inches
(ø114 x 47 mm)
ø4 1/8 x 2 1/4 inches
(ø104.5 x 56.5 mm)
Approx.
5.71 x 5.71 x 1.43 inches
(145 x 145 x 36.3 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels. (*2) If the camera is installed in high-temperature environments and subjected to direct sunlight, it is highly recommended to use the optional SNCA-WP602 Weather Protector.
6
All cameras in this chart comply with UL2044.
IP Mini Dome Cameras
V Series
Series Name
Model Name
SNC-DH280
SNC-DH180
SNC-DH240T
E Series
SNC-DH140T
Video Compression Format
H.264/MPEG-4/JPEG
Multi Streaming Capability
Dual streaming
Computer Display Format
Maximum Resolution
1920 x 1440
1280 x 1024
SNC-DH260
SNC-DH160
Dual streaming
(*1)
1920 x 1440
(*1)
1280 x 1024
Yes
1920 x 1440
1280 x 1024
(*1)
1920 x 1440
1280 x 1024
No
Built-in Speaker and
Microphone
Yes
No
Outdoor Use/Ingress
Protection
Vandal Resistant
Horizontal Viewing Angle
SNC-DH140
H.264/MPEG-4/JPEG
(*1)
IR Illuminators
SNC-DH240
No
Yes/IP66
No
Yes/IP66
IK10
88.5° to 32.3°
85.4° to 31.2°
No
88.5° to 32.3°
85.4° to 31.2°
88.5° to 32.3°
IK10
85.4° to 31.2°
88.5° to 32.3°
85.4° to 31.2°
Zoom Ratio
2.9x optical zoom
Focal Length
f = 3.1mm to 8.9 mm
f=3.1 mm to 8.9 mm
Lens
Built-in varifocal lens
Built-in varifocal lens
Image Sensor
1/2.8-type progressive scan
Exmor CMOS sensor
1/3-type progressive scan
Exmor CMOS sensor
1/2.8-type progressive scan
Exmor CMOS sensor
Tone Correction
Wide Dynamic Range
Minimum Illumination
(50 IRE)
Maximum Frame Rate
2.9x optical zoom
1/3-type progressive scan
Exmor CMOS sensor
1/2.8-type progressive scan
Exmor CMOS sensor
1/3-type progressive scan
Exmor CMOS sensor
1/2.8-type progressive scan
Exmor CMOS sensor
Visibility Enhancer (VE)
1/3-type progressive scan
Exmor CMOS sensor
No
Equivalent to 90 dB with
View-DR technology
Equivalent to 130 dB with
View-DR technology
Equivalent to 90 dB with
View-DR technology
Equivalent to 130 dB with
View-DR technology
Equivalent to 90 dB with
View-DR technology
Equivalent to 130 dB with
View-DR technology
Color: 0.40 lx, B/W: 0 lx
(IR illuminator ON) (F1.2,
View-DR OFF, XDNR ON-Middle,
VE OFF, AGC High)
Color: 0.22 lx, B/W: 0 lx
(IR illuminator ON) (F1.2,
View-DR OFF, XDNR ON-Middle,
VE OFF, AGC High)
Color: 0.40 lx, B/W: 0.25 lx
(F1.2, View-DR OFF,
XDNR ON-Middle, VE OFF,
AGC High)
Color: 0.20 lx, B/W: 0.10 lx
(F1.2, View-DR OFF,
XDNR ON-Middle, VE OFF,
AGC High)
Color: 0.40 lx, B/W: 0.25 lx
(F1.2, View-DR OFF,
XDNR ON-Middle, VE OFF,
AGC High)
Color: 0.20 lx, B/W: 0.10 lx
(F1.2, View-DR OFF,
XDNR ON-Middle, VE OFF,
AGC High)
Color: 0.7 lx, B/W: 0 lx
(IR illuminator ON)
(F1.2, AGC 42 dB)
Color: 0.5 lx, B/W: 0 lx
(IR illuminator ON)
(F1.2, AGC 42 dB)
30 fps (H.264)/20 fps (MPEG-4)/
16 fps (JPEG) at 1920 x 1080
30 fps (H.264/MPEG-4/JPEG)
at 1280 x 720
30 fps (H.264)/20 fps (MPEG-4)/
16 fps (JPEG) at 1920 x 1080
30 fps (H.264/MPEG-4/JPEG)
at 1280 x 720
30 fps (H.264)/20 fps (MPEG-4)/
16 fps (JPEG) at 1920 x 1080
30 fps (H.264/MPEG-4/JPEG)
at 1280 x 720
30 fps (H.264)/20 fps (MPEG-4)/
16 fps (JPEG) at 1920 x 1080
30 fps (H.264/MPEG-4/JPEG)
at 1280 x 720
Day/Night
More than 60 dB
True D/N
True D/N
Noise Reduction
XDNR® Technology
Yes
Image Stabilizer
No
No
Edge Storage
No
No
Card Slot
No
No
Wireless Network
No
No
Analog Video/Monitor
Output
Yes
Yes / for setup only
Audio Capability
Yes, 2-way Audio
No
ONVIF Conformance
Yes
Yes
Power Requirements
IEEE 802.3af compliant
(PoE system), AC 24 V, DC 12 V
IEEE802.3af compliant
(PoE system)
Power Consumption
Operating Temperature
Dimensions
29 W max.
28 W max.
10.2 W max.
-22°F to +122°F (-30°C to +50°C) for AC 24 V/DC 12 V,
14°F to 122°F (-10°C to +50°C) for PoE
ø6 5/8 x 4 3/4 inches
(ø166 x 119 mm)
8.0 W max.
10.2 W max.
14°F to 122°F (-10°C to +50°C)
ø5 5/8 x 4 3/4 inches
(ø140 x 119 mm)
8.0 W max.
12.9 W max.
-22 to +122°F (-30 to +50°C)
ø5 5/8 x 4 3/4 inches
(ø140 x 118 mm)
ø6 5/8 x 4 3/4 inches
(ø166 x 119 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
All cameras in this chart comply with UL2044.
7
IP Mini Dome Cameras
E Series
Series Name
Model Name
SNC-DH220T
SNC-DH120T
SNC-EM521
X Series
SNC-DH220
Video Compression Format
H.264/MPEG-4/JPEG
Multi Streaming Capability
Dual streaming
Computer Display Format
Maximum Resolution
(*1)
1920 x 1440
SNC-EM520
800 x 600
1920 x 1440
SNC-DH210T
SNC-DH110T
SNC-DH210
Dual streaming
(*1)
SD
1280 x 1024
800 x 600
2048 x 1536
(*1)
1280 x 960
2048 x 1536
IR Illuminators
No
No
Built-in Speaker and
Microphone
No
No
No
No
Outdoor Use/Ingress
Protection
Vandal Resistant
Horizontal Viewing Angle
IK10
88.5° to 32.3°
No
85.4° to 31.2°
88.5° to 32.3°
Zoom Ratio
f=3.1 mm to 8.9 mm
Lens
Built-in varifocal lens
Image Sensor
1/2.8-type progressive
scan Exmor CMOS sensor
1/3-type progressive scan
Exmor CMOS sensor
Tone Correction
Wide Dynamic Range
Minimum Illumination
(50 IRE)
Maximum Frame Rate
IK10
85.4° to 31.2°
1/2.8-type progressive
scan Exmor CMOS sensor
79°
88°
80.7°
f = 3.3 mm
f = 2.34 mm
NA
f = 3.3 mm
f = 2.34 mm
Built-in fixed focal lens
1/3-type progressive scan
Exmor CMOS sensor
1/2.8-type progressive
scan Exmor CMOS sensor
1/3.8-type progressive
scan CMOS sensor
1/2.8-type progressive
scan Exmor CMOS sensor
No
No
More than 60 dB
NA
1/3.8-type progressive
scan CMOS sensor
Color: 0.7 lx, B/W: 0.45 lx
(F1.2, AGC 42 dB)
Color: 0.5 lx, B/W: 0.3 lx
(F1.2, AGC 42 dB)
Color: 0.7 lx, B/W: 0.45 lx
(F1.2, AGC 42 dB)
Color: 0.5 lx, B/W: 0.3 lx
(F1.2, AGC 42 dB)
2.3 lx (AGC 38 dB)
5.5 lx (AGC 30 dB)
2.0 lx (AGC 38 dB)
5.0 lx (AGC 30 dB)
30 fps (H.264)/20 fps
(MPEG-4)/16 fps (JPEG)
at 1920 x 1080
30 fps (H.264/MPEG-4/JPEG)
at 1280 x 720
30 fps (H.264)/20 fps
(MPEG-4)/16 fps (JPEG)
at 1920 x 1080
30 fps (H.264/MPEG-4/JPEG)
at 1280 x 720
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720,
15 fps (H.264/MPEG-4/
JPEG) at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 960/720
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720,
15 fps (H.264/MPEG-4/
JPEG) at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 960/720
Day/Night
True D/N
Electrical D/N
Noise Reduction
Yes
Yes
Image Stabilizer
No
No
Edge Storage
No
No
Card Slot
No
No
Wireless Network
No
No
Yes / for setup only
Yes / for setup only
Analog Video/Monitor
Output
Audio Capability
No
No
ONVIF Conformance
Yes
Yes
Power Requirements
IEEE802.3af compliant (PoE system)
IEEE802.3af compliant (PoE system)
Power Consumption
6.0 W max.
2.4 W max.
14°F to 122°F
(-10°C to +50°C)
32°F to 122°F
(0°C to +50°C)
Operating Temperature
Dimensions
1280 x 960
No
86°
2.9x optical zoom
Focal Length
SNC-DH110
H.264/MPEG-4/JPEG
(*1)
SD
1280 x 1024
SNC-DH120
ø5 5/8 x 4 3/4 inches
(ø140 x 119 mm)
ø5 5/8 x 4 3/4 inches
(ø140 x 118 mm)
ø4 1/4 x 2 1/4 inches
(ø106 x 56.5 mm)
ø4 1/4 x 2 inches
(ø106 x 50.5 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
8
All cameras in this chart comply with UL2044.
IP Rapid Dome and PTZ Cameras
W Series with IPELA ENGINE PRO
Series Name
Model Name
SNC-WR632C
SNC-WR602C
Video Compression Format
SNC-WR630
Triple streaming
Computer Display Format
Outdoor Use/Ingress
Protection
Vandal Resistant
Horizontal Viewing Angle
Zoom Ratio
Focal Length
Lens
Image Sensor
SNC-WR600
H.264 (High/Main/Baseline Profile)/JPEG
Multi Streaming Capability
Maximum Resolution
P/T/Z: PAN/TILT/ZOOM
(*1)
1920 x 1080
(*1)
1280 x 720
1920 x 1080
1280 x 720
Yes/IP66
No
IK10
No
63.7° to 2.3°
58.3° to 2.1°
63.7° to 2.3°
58.3° to 2.1°
1/2.8-type progressive scan
Exmor CMOS sensor
1/3-type progressive scan
Exmor CMOS sensor
30x optical zoom
f = 4.3 mm to 129.0 mm
Auto-focus zoom lens
1/2.8-type progressive scan
Exmor CMOS sensor
1/3-type progressive scan
Exmor CMOS sensor
Tone Correction
Visibility Enhancer (VE)
Wide Dynamic Range
Equivalent to 130 dBwith View-DR technology (30 fps)
Minimum Illumination
(50 IRE)
Color: 0.4 lx, B/W: 003. lx (F1.6, View-DR OFF,
VE OFF, AGC ON, 1/30 s, 30 fps)
Color: 0.2 lx, B/W: 0.015 lx (F1.6, View-DR OFF,
VE OFF, AGC ON, 1/30 s, 30 fps)
Color: 0.4 lx, B/W: 003. lx (F1.6, View-DR OFF,
VE OFF, AGC ON, 1/30 s, 30 fps)
Color: 0.2 lx, B/W: 0.015 lx (F1.6, View-DR OFF,
VE OFF, AGC ON, 1/30 s, 30 fps)
Maximum Frame Rate
60 fps (H.264/JPEG) at 1920 x 1080
60 fps (H.264/JPEG) at 1280 x 720
60 fps (H.264/JPEG) at 1920 x 1080
60 fps (H.264/JPEG) at 1280 x 720
Day/Night
True D/N
Noise Reduction
XDNR® Technology
Image Stabilizer
Gyroscopic Image Stabilizer
Defog Image Processing
Yes
Edge Storage
Yes
Card Slot
SD card
Wireless Network
No
Analog Video/Monitor
Output
Rapid Dome or PTZ
Yes
Rapid Dome
Pan/Tilt Angle (Mechanical)
360° endless rotation/220°
Pan Speed
700°/s (max.)
Analytics Architecture
DEPA Advanced
Audio Capability
Yes, 2-way Audio
ONVIF Conformance
Profile S
Power Requirements
HPoE+, AC 24 V
IEEE802.3at compliant (HPoE system), AC 24 V, DC 12 V
Power Consumption
Max. 30.0 W (AC 24 V/HPoE+, Heater OFF) (*3) Max. 80.0 W (AC 24 V, Heater ON)
Max. 55.0 W (HPoE+, Heater ON) (*3)
25 W max.
AC 24V: -40°F to +122°F (-40°C to +50°C)
HPoE+: -22°F to 122°F (-30°C to +50°C) (*3)
23°F to 122°F (-5°C to +50°C)
ø8 3/4 x 12 7/8 inches (ø222.0 X 324.1 mm)
ø5 7/8 x 8 1/8 inches (ø146.3 x 205.0 mm)
Operating Temperature
Dimensions WHD
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
(*2) When using DynaView technology, the maximum frame rate becomes 15 fps.
(*3) Power supply is generated from PowerDsine® 9501G/B by using 4 wires.
Definition of Rapid Dome: 360 degree endless rotation. Definition of Pan Tilt Zoom: 340 degrees.
All cameras in this chart comply with UL2044.
9
IP Rapid Dome and PTZ Cameras
E Series (Rapid Dome PTZ)
Series Name
Model Name
SNC-ER585
UNI-ONER580C7
UNI-ONER520C7
UNI-ONER550C7
(*1)
Maximum Resolution
1920 x 1080
(*1)
SD
1280 x 720
720 x 480
1920 x 1080
59.5° to 2.1°
55.4° to 2.9°
20x optical zoom
28x optical zoom
Focal Length
f = 4.3 mm to 129.0 mm
f = 4.7 mm to 94.0 mm
f = 3.5 mm to 98 mm
Lens
Auto-focus zoom lens
No
57.8° to 1.7°
55.4° to 2.9°
55.9° to 2.1°
57.8° to 1.7°
36x optical zoom
20x optical zoom
28x optical zoom
36x optical zoom
20x optical zoom
28x optical zoom
36x optical zoom
f = 3.4 mm to 122.4 mm
f = 4.7 mm to 94.0 mm
f = 3.5 mm to 98 mm
f = 3.4 mm to 122.4 mm
f = 4.7 mm to 94.0 mm
f = 3.5 mm to 98 mm
f = 3.4 mm to 122.4 mm
No
1/2.8-type progressive scan Exmor CMOS sensor
Auto-focus zoom lens
1/4-type progressive
scan Exmor CMOS
sensor
1/4-type EXview HAD
CCD
No
1/2.8-type progressive
scan Exmor CMOS
sensor
1/4-type EXview HAD
CCD
1/2.8-type progressive
scan Exmor CMOS
sensor
1/4-type progressive
scan Exmor CMOS
sensor
1/4-type EXview HAD
CCD
No
Color: 1.7 lx, B/W: 0.3 lx (F1.6, AGC ON, 1/30 s)
Color: 1.0 lx, B/W: 0.1 lx
(F1.35, AGC ON, 1/30 s)
Color: 1.4 lx, B/W: 0.15 lx
(F1.6, AGC ON, 1/60
s/1/50 s)
Color: 1.7 lx, B/W: 0.3 lx
(F1.6, AGC ON, 1/30 s)
Color: 1.0 lx, B/W: 0.1 lx
(F1.35, AGC ON, 1/30 s)
Color: 1.4 lx, B/W: 0.15 lx
(F1.6, AGC ON, 1/60
s/1/50 s)
Color: 1.7 lx, B/W: 0.3 lx
(F1.6, AGC ON, 1/30 s)
Color: 1.0 lx, B/W: 0.1 lx
(F1.35, AGC ON, 1/30 s)
Color: 1.4 lx, B/W: 0.15 lx
(F1.6, AGC ON, 1/60
s/1/50 s)
30 fps (H264)/20 fps (MPEG-4)/16 fps (JPEG) (*2)
at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720
30 fps (H.264/MPEG-4/
JPEG) (*2)
30 fps (H264)/20 fps
(MPEG-4)/16 fps
(JPEG) (*2) at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720
30 fps (H.264/MPEG-4/
JPEG) (*2)
30 fps (H264)/20 fps
(MPEG-4)/16 fps
(JPEG) (*2)
at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720
30 fps (H.264/MPEG-4/
JPEG) (*2)
True D/N
Yes
Yes
No
No
Edge Storage
Yes
Card Slot
SD/SDHC card
Wireless Network
No
Analog Video/Monitor
Output
Rapid Dome or PTZ
No
Rapid Dome
Pan/Tilt Angle (Mechanical)
360° endless rotation/210° (15° above horizon)
Pan Speed
300°/s (max.)
Analytics Architecture
DEPA
Audio Capability
Dimensions (WHD)
1/4-type progressive
scan Exmor CMOS
sensor
Auto-focus zoom lens
86 dB (theoretical) with DynaView technology
Defog Image Processing
Operating Temperature
SD
720 x 480
55.9° to 2.1°
Noise Reduction
Power Consumption
(*1)
55.4° to 2.9°
Day/Night
Power Requirements
720 x 480
57.8° to 1.7°
Wide Dynamic Range
ONVIF Conformance
1280 x 720
SNC-ER520
No
Tone Correction
Image Stabilizer
1920 x 1080
SD
1280 x 720
No
30x optical zoom
Maximum Frame Rate
SNC-ER550
Yes/IP66
IK10
Zoom Ratio
Minimum Illumination
(50 IRE)
SNC-ER580
Dual streaming
Computer Display Format
Image Sensor
UNI-ONER520C2
H.264/MPEG-4/JPEG
Multi Streaming Capability
Horizontal Viewing Angle
UNI-ONER550C2
UNI-ONER580C2
Video Compression Format
Outdoor Use/Ingress
Protection
Vandal Resistant
P/T/Z: PAN/TILT/ZOOM
Yes, 2-way Audio
Profile S
Yes
AC 24 V
HPoE+ (60W) injector included
AC 24 V
IEEE 802.3at compliant (HPoE system), AC 24 V
IEEE 802.3at compliant
(HPoE system), AC 24 V
75 W max. (heater ON)/
25 W max. (heater OFF)
60 W max.
52 W max.
25 W max.
25 W max.
-40°F to +140°F
(-40°C to +60°C)
-20°F to +122°F
(-30°C to +50°C)
23°F to 122°F
(-5°C to +50°C)
23°F to 122°F
(-5°C to +50°C)
ø8 3/4 x 12 7/8 inches
(ø222.0 x 323.9 mm)
11 1/2 x 2 1/2 x 11 1/2 inches
(292.1 x 546.1 x 292.1 mm)
ø5 7/8 x 7 5/8 inches
(ø147.4 x 190.9 mm)
ø5 7/8 x 7 5/8 inches
(ø147.4 x 190.9 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels. (*2) When using DynaView technology, the maximum frame rate becomes 15 fps.
Definition of Rapid Dome: 360 degree endless rotation. Definition of Pan Tilt Zoom: 340 degrees.
10
All cameras in this chart comply with UL2044.
IP Rapid Dome and PTZ Cameras
E Series (PTZ)
Series Name
Model Name
UNI-ONEP550C7
UNI-ONEP580C7
UNI-ONEP520C7
UNI-ONEP580C2
UNI-ONEP550C2
Video Compression Format
SNC-EP580
SNC-EP550
SNC-EP520
Dual streaming
Computer Display Format
(*1)
1920 x 1080
1280 x 720
(*1)
SD
720 x 480
1920 x 1080
Outdoor Use/Ingress
Protection
Vandal Resistant
Horizontal Viewing Angle
UNI-ONEP520C2
H.264/MPEG-4/JPEG
Multi Streaming Capability
Maximum Resolution
P/T/Z: PAN/TILT/ZOOM
1280 x 720
(*1)
SD
720 x 480
1920 x 1080
SD
1280 x 720
Yes/IP66
720 x 480
No
No
55.4° to 2.9°
55.9° to 2.1°
57.8° to 1.7°
55.4° to 2.9°
55.9° to 2.1°
57.8° to 1.7°
55.4° to 2.9°
55.9° to 2.1°
57.8° to 1.7°
Zoom Ratio
20x optical zoom
28x optical zoom
36x optical zoom
20x optical zoom
28x optical zoom
36x optical zoom
20x optical zoom
28x optical zoom
36x optical zoom
Focal Length
f = 4.7 mm to 94.0 mm
f = 3.5 mm to 98 mm
f = 3.4 mm to 122.4 mm
f = 4.7 mm to 94.0 mm
f = 3.5 mm to 98 mm
f = 3.4 mm to 122.4 mm
f = 4.7 mm to 94.0 mm
f = 3.5 mm to 98 mm
f = 3.4 mm to 122.4 mm
Lens
Image Sensor
No
1/2.8-type progressive scan
Exmor CMOS sensor
Auto-focus zoom lens
1/4-type progressive scan
Exmor CMOS sensor
1/4-type EXview HAD CCD
No
1/2.8-type progressive scan
Exmor CMOS sensor
Tone Correction
Wide Dynamic Range
Minimum Illumination
(50 IRE)
Maximum Frame Rate
Auto-focus zoom lens
1/4-type progressive scan
Exmor CMOS sensor
86 dB (theoretical) with DynaView technology
92 dB (theoretical) with
DynaView technology
86 dB (theoretical) with DynaView technology
92 dB (theoretical) with
DynaView technology
86 dB (theoretical) with
DynaView technology
86 dB (theoretical) with
DynaView technology
92 dB (theoretical) with
DynaView technology
Color: 1.4 lx, B/W: 0.15 lx
(F1.6, AGC ON, 1/60 s/1/50 s)
Color: 1.7 lx, B/W: 0.3 lx
(F1.6, AGC ON, 1/30 s)
Color: 1.0 lx, B/W: 0.1 lx
(F1.35, AGC ON, 1/30 s)
Color: 1.4 lx, B/W: 0.15 lx
(F1.6, AGC ON, 1/60 s/1/50 s)
Color: 1.7 lx, B/W: 0.3 lx
(F1.6, AGC ON, 1/30 s)
Color: 1.0 lx, B/W: 0.1 lx
(F1.35, AGC ON, 1/30 s)
Color: 1.4 lx, B/W: 0.15 lx
(F1.6, AGC ON, 1/60 s/1/50 s)
30 fps (H264)/20 fps
(MPEG-4)/16 fps (JPEG) (*2)
at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720
30 fps/25 fps
(H.264/MPEG-4/JPEG) (*2)
30 fps (H264)/20 fps
(MPEG-4)/16 fps (JPEG) (*2)
at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720
30 fps/25 fps
(H.264/MPEG-4/JPEG) (*2)
30 fps (H264)/20 fps
(MPEG-4)/16 fps (JPEG) (*2)
at 1920 x 1080
30 fps (H.264/MPEG-4/
JPEG) at 1280 x 720
30 fps/25 fps
(H.264/MPEG-4/JPEG) (*2)
True D/N
Yes
No
Defog Image Processing
No
Edge Storage
Yes
Card Slot
SD/SDHC card
Wireless Network
No
Analog Video/Monitor
Output
Rapid Dome or PTZ
PTZ
No
Pan/Tilt Angle (Mechanical)
340°/105° (15° above horizon)
Pan Speed
300°/s (max.)
Analytics Architecture
DEPA
Audio Capability
Yes, 2-way Audio
ONVIF Conformance
Dimensions (WHD)
1/4-type EXview HAD CCD
Color: 1.0 lx, B/W: 0.1 lx
(F1.35, AGC ON, 1/30 s)
Image Stabilizer
Operating Temperature
1/4-type progressive scan
Exmor CMOS sensor
Color: 1.7 lx, B/W: 0.3 lx
(F1.6, AGC ON, 1/30 s)
Noise Reduction
Power Consumption
1/2.8-type progressive scan
Exmor CMOS sensor
No
Day/Night
Power Requirements
1/4-type EXview HAD CCD
Yes
HPoE+ (60W) injector included
AC 24 V
60 W max
52 W max.
IEEE 802.3at compliant (HPoE system), AC 24 V
25 W max.
-20°F to +122°F
(-30°C to +50°C)
23°F to 122°F
(-5°C to +50°C)
11 1/2 x 2 1/2 x 11 1/2 inches
(292.1 x 546.1 x 292.1 mm)
ø5 7/8 x 7 5/8 inches
(ø147.4 x 190.9 mm)
(*1) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels. (*2) When using DynaView technology, the maximum frame rate becomes 15 fps.
Definition of Rapid Dome: 360 degree endless rotation. Definition of Pan Tilt Zoom: 340 degrees.
All cameras in this chart comply with UL2044.
11
Hybrid Camera Solutions
IPELA HYBRID™– Sony’s IP and Analog-over-Coax Technology*1 –
Offers Cost-effective Retrofit Solutions for Existing Analog CCTV Systems
Sony offers a new video surveillance technology that can simultaneously transmit both IP and analog signals
Simple Migration from Analog to IP
Analog
IP
Before
on a single coaxial cable. It allows customers to easily migrate to HD IP video surveillance systems with
minimal investment, utilizing their existing analog infrastructure. Based on this technology – IPELA HYBRID – Sony
Digital Video
Recorder
offers solutions comprised of hybrid cameras and a compatible SLOC device*2.
Monitor
These unique solutions deliver the following advantages:
Network Video Recorder
Analog Cameras
Cost-effective surveillance systems that can be easily migrated from an analog CCTV system to an IP
(with Video Management Software)
network-based system, making the most of any existing surveillance infrastructure (e.g. coaxial cables, local
power supplies, matrix switchers, controllers, and video wall monitors)
After
SYSTEM
FAN
NETWORK
REC
1
2
Monitor
Simultaneous transmission of IP HD video and analog SD video (see diagram below)
Utilization of the advanced features and functionalities offered by IP network cameras
SLOC-compatible
Device
Maximum cable length of 1,000 feet (300 m) with an RG-59 coaxial cable*3
Network
Minimized latency of analog video and PTZ control for video monitoring
Client PC
Hybrid Cameras
Sony’s hybrid camera solutions can be used in a wide variety of surveillance applications, and in locations
such as commercial facilities, financial institutions, office buildings, casinos, airports, government-related
facilities, and schools.
*1 Sony’s IP and analog-over-coax technology is developed based on Intersil Corporation’s SLOC™ (Security Link Over Coax) technology.
*2 For information on SLOC-compatible devices, please contact your nearest Authorized Sony Reseller.
*3Cable length varies according to cable grade and quality.
Hybrid Migration
Analog
Before
Hybrid Camera Solution from Sony
Controller
Monitors
Analog SD Video
Low Latency Monitoring
IP
Matrix Switcher
Digital Video
Recorder
Analog Cameras
Analog SD Signal
Matrix Switcher
Video Wall & Matrix Switcher
IP HD Signal
Hybrid
Camera
SLOC-compatible
Device
Coaxial Cable
12
Controller
After
HD Video
High Quality Recording
SYSTEM
FAN
NETWORK
REC
1
2
Network Video Recorder
(with Video Management Software)
SYSTEM
Simultaneous transmission of IP HD video and analog SD
video over single coaxial cable
Monitors
FAN
NETWORK
REC
1
2
SLOC-compatible
Device
Network Video
Recorder
Hybrid Cameras
Network
Client PC
Hybrid Cameras
Hybrid Camera Receiver
Z Series
Series Name
Model Name
SNCA-ZX104
Model Name
SNC-ZB550
SNC-ZM551
SNC-ZM550
SNC-ZR550
SNC-ZP550
Hybrid Fixed HD Camera
Hybrid Vandal-resistant
Mini Dome HD Camera
Hybrid Mini Dome
HD Camera
Hybrid Rapid Dome
HD Camera
Hybrid PTZ
HD Camera
Camera Connection
Number of Cameras Supported
4
Supported Serial PTZ Control
Protocol
Pelco-D
Interface
Video Compression Format
H.264/MPEG-4/JPEG
Network Port
Multi Streaming Capability
100BASE-TX, 10BASE-T (RJ-45 x1)
Dual streaming (*1)
Serial Interface
RS-485 x1 (I/O port for PTZ camera control)
SLOC Port
BNC x4 (75 Ω)
Analog Video Output
BNC x4 (1.0 Vp-p, 75 Ω, NTSC or PAL)
Computer Display Format
(*2)
Maximum Resolution (IP)
1280 x 1024
1280 x 720
Signal System
Vandal Resistant
Horizontal Viewing Angle
NTSC/PAL (switchable)
No
IK10
96.5° to 33.9°
Zoom Ratio
Focal Length
Lens
No
85.4° to 31.2°
28x optical zoom
f=2.8 mm to 8 mm
f=3.1 mm to 8.9 mm
CS mount lens
Built-in varifocal lens
Auto-focus zoom lens
1/4-type progressive scan Exmor CMOS sensor
More than 60 dB
More than 60 dB with DynaView
Color: 0.50 lx, B/W: 0.30 lx
(F1.2, shutter 1/30 s,
AGC 42 dB by IP)
Color: 1.0 lx, B/W: 0.10 lx (F1.35, AGC ON,
shutter 1/30 s by IP)
Minimum Illumination
(50 IRE)
Maximum Frame Rate
Power Consumption
Approx. 12.0 W
Approx . 0.22 A/0.12 A
(AC adaptor, AC 100 V to AC 240 V)
Dimensions (W x H x D)
Approx. 210 mm x 44 mm x 250 mm
(without projecting parts)
(Approx. 210 mm x 44 mm x 250 mm, without
projecting parts)
30 fps (H.264/MPEG-4/JPEG) at 1280 x 720
Day/Night
Hybrid Receiver Rack Mount Kit
True D/N
Noise Reduction
Model name
Yes
Card Slot
No
SD/SDHC card
Analog Video Output
No
Pan/Tilt Angle (Powered)
No
Pan Speed
No
DEPA
ONVIF Conformance
Yes
6 W max.
7 W max.
14°F to 122°F
(-10°C to +50°C)
2 7/8 × 2 1/2 × 7 7/8 inches
(72 x 63 x 197 mm)
(15 degrees above horizon)
(15 degrees above horizon)
IEEE 802.3at compliant (HPoE system) (*3),
AC 24 V
AC 24 V, DC 12 V
Operating Temperature
PTZ
340°/105°
Unit color
ø5 5/8 × 4 3/4 inches
(ø140 x 118 mm)
Black / Steel construction
Supplied Accessories
Eight (8) screws (4flat / 4 round head) to attach
SNCA-ZX104 to the rack kit, and four (4) rack
mount screws.
Optional Accessories
Rack mount clips are not included.
300°/s (max.)
Analytics Architecture
Power Requirements
Rapid Dome
360° endless rotation/210°
RMM-ZX104
19”, 1U rack mount kit for the SMCA-ZX104.
Two units can be installed side-by-side per rack kit.
Made in USA.
Yes
Rapid Dome or PTZ
Dimensions
DC 12 V
(AC 100 V to AC 240 V, 50/60 Hz for AC adaptor)
f=3.5 mm to 98 mm
1/3-type progressive scan Exmor CMOS sensor
Wide Dynamic Range
Power Requirements
55.9° to 2.1°
2.9x optical zoom
Image Sensor
Power Consumption
General
Dimensions (WHD)
19” x 1-3/4” x 12
25 W max.
23°F to 122°F
(-5°C to +50°C)
ø5 7/8 × 7 5/8 inches
(ø147.4 x 190.9 mm)
(*1) Dual streaming is not available when an analog video signal is output from the SLOC port.
(*2) Definition of HD: Vertical resolution of at least 720 pixels, and streaming capability of more than 30 fps at 1280 x 720 pixels.
(*3) HPoE is available when the camera is connected to HPoE-compatible equipment via an Ethernet cable.
All cameras in this chart comply with UL2044.
13
Surveillance Video Encoders
Full
Full
Full
Full
FullFunction
Function
Full Function
BasicFunction
Function
Basic
Basic Basic
Basic Basic Function
Scalability
Scalability
Scalability
RACK STATION
Blade
BladeType
TypeEncoder
Encoder
Blade
Type Encoder
SNT-EX154
SNT-EX154
(4CH)
(4CH)
SNT-EX154
(4CH)
Full
Full
SNT-RS1U
(Space
saving,
scalable
solution)
(Space
saving,
scalable
solution)
(Space
saving,
scalable
solution)
Full
Blade
Type
Blade
Type
Blade
Type
Blade
BladeType
TypeEncoder
Encoder
Blade
Type Encoder
SNT-EP154
SNT-EP154
(4CH)
(4CH)
SNT-EP154
(4CH)
Basic
Basic
Rack
RackStation
Station
Rack
Station(Up
SNT-RS3U
SNT-RS3U
(Upto
to48CH)
48CH)
SNT-RS3U (Up to 48CH)
Basic
Blade
BladeType
TypeEncoder
Encoder
Blade
Type Encoder
SNT-EX154
SNT-EX154
(4CH)
(4CH)
SNT-EX154
(4CH)
Full
Full
Full
Blade
BladeType
TypeEncoder
Encoder
Blade
Type Encoder
SNT-EP154
SNT-EP154
(4CH)
(4CH)
SNT-EP154
(4CH)
Basic
Basic
Accepts up to 4 blade encoders
(up to 16 ch)
Universal power capability
AC 100V - AC240V, 50/60 Hz
SNT-RS3U
Accepts up to 12 blade encoders
(up to 48 ch)
Universal power capability
AC 100V - AC240V, 50/60 Hz
Rack
RackStation
Station
Rack
Station(Up
SNT-RS1U
SNT-RS1U
(Upto
to16CH)
16CH)
SNT-RS1U (Up to 16CH)
Box
Type
Box
Type
Box
Type
(Standalone,
quick
solution)
(Standalone,
quick
solution)
(Standalone,
quick
solution)
Basic
Box
BoxType
TypeEncoder
Encoder(AC24V)
(AC24V)
Box
Type Encoder(1CH)
(AC24V)
SNT-EX101
SNT-EX101
(1CH)
SNT-EX101
(1CH)
Full
Full
Full
Box
BoxType
TypeEncoder
Encoder(PoE)
(PoE)
Box
Type Encoder (1CH)
(PoE)
SNT-EX101E
SNT-EX101E
(1CH)
SNT-EX101E
(1CH)
Full
Full
Full
OPTIONAL ACCESSORY
Full
Full
Full
Box
BoxType
TypeEncoder
Encoder
Box
Type Encoder
SNT-EP104
SNT-EP104
(4CH)
(4CH)
SNT-EP104
(4CH)
Basic
Basic
Basic
SNTA-RP1
1CH
1CH
1CH
14
Box
BoxType
TypeEncoder
Encoder
Box
Type Encoder(4CH)
SNT-EX104
SNT-EX104
(4CH)
SNT-EX104 (4CH)
4CH
4CH
4CH
16CH
16CH
16CH
48CH
48CH
48CH
Number
NumberofChannels
ofChannels
Number ofChannels
Redundant Power Supply Unit
(for SNT-RS3U only)
Surveillance Video Encoders
Full Function
1CH Box
SNT-EX101
Codec Image Size (HxV)
SNT-EX101E
Basic Function
4CH Box
4CH Blade
4CH Box
4CH Blade
SNT-EX104
SNT-EX154
SNT-EP104
SNT-EP154
D1 (NTSC: 720 x 480)
VGA (640 x 480),
CIF (384 x 288),
QVGA (320 x 240)
D1 (NTSC: 720 x 480)
VGA (640 x 480),
CIF (384 x 288),
QVGA (320 x 240)
D1 (NTSC: 720 x 480)
VGA (640 x 480),
CIF (384 x 288),
QVGA (320 x 240)
H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
Dual streaming (Any combination with JPEG/MPEG-4/H.264,
including multiple streams of the same format)
Dual streaming (Any combination with JPEG/MPEG-4/H.264,
including multiple streams of the same format)
Dual streaming (Any combination with JPEG/MPEG-4/H.264,
including multiple streams of the same format)
H.264/MPEG-4/JPEG: 30 fps (NTSC: 720 x 480)
H.264/MPEG-4/JPEG: 30 fps (NTSC: 720 x 480)
H.264/MPEG-4/JPEG: 30 fps (NTSC: 720 x 480)
Yes
Yes
No
Tone Correction
Visibility Enhancer (VE)
Visibility Enhancer (VE)
Visibility Enhancer (VE)
Noise Reduction
XDNR® Technology
XDNR® Technology
XDNR® Technology
Yes
Yes
No
RS-422/RS-485
RS-485
-
Video Compression
Format
Multi Streaming Capability
Maximum Frame Rate
PTZ Control
Coaxitron Control
Serial Interface
USB Slots
x1
Sensor Input
x4
( 1)
*
-
x2
Alarm Output
Audio Interface (IN/OUT)
( 1)
*
x2
-
x4
IN x 1, OUT x 1
Audio Support
-
x4
-
IN x 4, OUT x 4
IN x 1, OUT x 1
-
Full Duplex
Full Duplex
Analytics Architecture
DEPA Advanced
DEPA Advanced
No
ONVIF Conformance
Yes
Yes
Yes
Dimensions (W x H x D)
Power Requirements
2 7/8 ×1 3/8 × 6 1/8 inches
(73 x 34 x 155 mm)
AC 24 V in, with loop
through output
Input: AC 24 V, +/- 20%
(*1) USB slots are inside the chassis, not on the front or rear panels.
PoE
(Class 2)
No
8 3/8 × 1 3/4 × 9 7/8 inches
(210 x 44 x 250 mm)
3 1/8 × 1 3/8 × 15 1/8 inches
(78 x 34 x 382 mm)
8 3/8 × 1 3/4 × 9 7/8 inches
(210 x 44 x 250 mm)
3 1/8 × 1 3/8 × 15 1/8 inches
(78 x 34 x 382 mm)
DC12 V
From Rack Station
DC12 V
From Rack Station
These products include software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
All encoders in this chart comply with UL60950-1. (Except blades).
15
Network Surveillance Recording Servers
NSBK-EB05
NSR-500
Video/Audio
Video/Recording
Number of cameras supported
Number of analog cameras
Video compression (IP camera)
Max. 16
(Max. 24ch w/NSBK-CL05) (IP/Analog total)
16, using optional (NSBK-EB05)
H.264 / MPEG-4 / JPEG
Audio codec
Video compression (Analog camera)
Option (NSBK-EB05) H.264/JPEG
Interface
Recording frame rate
480fps (at H.264, Full-HD, 4Mbps)
Input connector
(by supplied cable)
Hard disk drives (Physical capacity)
Hard disk drives (RAID level)
Up to 12TB
RAID 0, 1, 10 (1+0), 5, 5+hot spare
Optical disc drive
No
Expansion storage
iSCSI storage (max. 16TB)
Video Output
Monitor OUT 1
Analog RGB (D-sub 15-pin) x 1
Monitor OUT 2
No
Stereo mini jack x 1
Sensor Input/Alarm Output
Sensor input
Compatible with DC3.3V to 24V,
photo coupler input x 8
(insulated from main unit)
Alarm output
Max. DC 24V/ 1A, mechanical relay
output x 8
(insulated from main unit)
Other Interfaces
Ethernet
1000BASE-T/100BASE-TX/10BASE-T x 2
USB
USB2.0 x 2 (Front), USB2.0 x 2 (Rear)
Serial interface (for UPS)
Serial interface
(for analog camera control)
RS-232C : D-sub 9-pin x 1
Weight
Weight
Approx. 20 lb 12 oz
(9.4Kg) (Without HDD model)
Power requirements
100V to 127V AC / 200V to 240V (50/60Hz)
Power consumption
max. 250W
(100-240V 3.5-1.5A)
Operating temperature
Operation humidity
Optional accessories
41 to 104˚F (5 to 40˚C)
20 to 80% (no condensing)
NSBK-EB05, NSBK-CL04/05, NSBK-HS05/1T,
NSBK-HS05/2T, RM-NS1000
Audio input
connector (cable)
RCA (x4) (white)
Board
Cable
Supplied accessories
41 to 104 ˚F (5 to 40 ˚C)
20 to 80%
Approx. 7 5/8 x 2 3/4 inches (192 x 69 mm)
(exclusive projections)
Approx. 3.5 oz (100 g)
Approx. 8.5 oz (240 g)
Analog video/audio input cable (1),
Installation manual (1), Warranty booklet (1)
*2:The audio channels from No. 1 to No. 4 are allotted the video channels 1 to 4 respectively.
*3:When using a JPEG format, the total frame rate for the system is decreased to 240 fps in High quality mode
and 160 fps in Highest quality mode.
NSBK-DH05
Video/Audio
Maximum Decoding Resolution
Video Decoding Format
Monitor Output (Display Resolution)
Up to 1,920 x 1,080
H.264/MPEG-4
Display Frame Rate
Max. 60 fps (30 fps x 2 channels) at 1920 x 1080 at 4 Mbps
Max. 60 fps (15 fps x 4 channels) at 1920 x 1080 at 4 Mbps
Max. 120 fps (30 fps x 4 channels) at 1280 x 720 at 2 Mbps
Max. 135 fps (15 fps x 9 channels) at 1280 x 720 at 2 Mbps
Max. 270 fps (30 fps x 9 channels) at 720 x 480/576 at 1 Mbps
Max. 240 fps (15 fps x 16 channels) at 720 x 480/576 at 1 Mbps
General
17 3/8 x 3 1/2 x 15 1/2 inches
(440 x 89 x 392mm)
* excluding protrusions
BNC (x16) (black)
Operating temperature
Operating humidity
Dimensions (Board)
RS-232C : D-sub 9pin x 1,
RS-422/485 x 1
(when installing NSBK-EB05) *1
Dimensions (W x H x D)
Video input
connector (cable)
General
Audio Output
Audio OUT
Video input (x16)/Audio input (x4)*3
NTSC
H.264/JPEG
Yes
Yes
NTSC: 720 x 480; 720 x 240; 704 x 480; 704 x 240; 352 x 240
NTSC: 30 fps/camera (total 480 fps)
Bitrate: 64 Kbps to 2 Mbps (H.264)
Quality: Low, Medium, High, Highest (JPEG)*4
G.711, 64 Kbps
Number of analog input
Input video format
Video codec
Motion detection
Noise reduction
Video resolution
Maximum frame rate
Video quality
1920 x 1200 (not supported by HDMI); 1920 x 1080; 1360 x 768;
1600 x 1200; 1280 x 1024; 1024 x 768
Interface
Monitor Output *4
Audio Output
HDMI (x1), analog RGB (D-sub 15-pin) (x1)
1 channel (HDMI) *5
General
Operating Temperature
41˚F to 104˚F (5˚C to 40˚C)
20% to 80%
6 3/4 inches x 3 1/4 inches x 1 1/8 inches
(170 mm x 80 mm x 27 mm) (exclusive projections)
5 oz (130 g)
Analog RGB cable (for internal wiring) (1), Connector cover (1),
Installation manual (1), Warranty booklet (1)
*4:Either the HDMI or analog RGB interface can be used.
*5:When using the HDMI interface, the alarm sound (beep tone) may not be properly produced
(this depends on the monitor connected). If so, please use the NSR-500’s audio line output.
*1: VISCA and Pelco-D are supported.
16
All encoders in this chart comply with UL60950-1. (Except blades).
Intelligent Monitoring Software
REALSHOT® MANAGER ADVANCED AND REALSHOT MANAGER LITE
IMZ-NS101
IMZ-NS104
IMZ-NS109
IMZ-NS116
IMZ-NS132
RSM Lite (Free Software)
RSM Advanced with
1 camera license
RSM Advanced with
4 camera licenses
RSM Advanced with
9 camera licenses
RSM Advanced with
16 camera licenses
RSM Advanced with
32 camera licenses
RSM Lite with
9 camera licenses
Specifications
Video Compression Format
H.264/MPEG-4/JPEG
Audio Compression Format
G.711/G.726
Number of Clients
(Recommendation) *1
10
3
Number of Cameras Supported
1 *2
4 *2
9 *2
16 *2
32
9
Number of Audio Supported
1
4
9
16
32
9-Sony cameras only
System Requirements
Operating System
Windows 7 Professional, Windows 7 Enterprise, Windows Vista® Business SP2 (32 bit), Windows Vista® Enterprise SP2 (32 bit),
Windows® XP Professional SP3 (32 bit), Windows® Server 2003 Standard Edition SP2(32bit), Windows® Server 2008 Standard Edition SP2 (32 bit), Windows Server 2008 R2 Standard
CPU
Intel Core™ 2Duo 2.0-GHz or higher
Main Memory
1 GB or more (2 GB Recommended)
HDD
Video Card
2 GB spare capacity
1024 x 768, 16/24 bit color
Network Interface Card (NIC)
100BASE-TX or higher
Display Resolution
1024 x 768 or higher
Optional Accessories
RM-NS1000 (System Controller)
*1: The figures in the table are recommended numbers of clients to assure high performance. It is possible to connect more clients to a server, but such increase may deteriorate the overall performance.
*2: It is possible to combine multiple licenses.
17
IP Mini Dome Cameras Enclosures and Mounts
How to select
a camera and
mount:
Choose a
Camera
IP MINI DOME CAMERAS
Series
Model Name
X Series
Indoor Mini Dome
SNC-DH110/B
If you select the Gooseneck Wall Mount you can
stop or continue to select an adapter (ie: Conduit
Box, Corner Adapter, or Pole Adapter).
If you select Outdoor,
select the type of Wall
Mount
Select
Outdoor or
Indoor Use
If you select Indoor,
select the type of
Enclosure:
If you choose Pendant Enclosures,
select a type of mount – Gooseneck
Wall, Conduit Box or Corner Adapter
OUTDOOR
If you choose Flush/Recessed, then
select Plenum Enclosure or Bracket
Mounting Kit (selection is complete)
INDOOR
SURFACE
PENDANT
PENDANT WALL MOUNT and ADAPTERS
BACKBOX
PENDANT
CAP
GOOSENECK
WALL
CONDUIT
BOX
CORNER
ADAPTER
–
–
–
–
–
WALL
PENDANT
PENDANT WALL MOUNT and ADAPTERS
POLE
ADAPTER
WALL
BRACKET
PENDANT CAP
ONLY
GOOSENECK
WALL
CONDUIT
BOX
CORNER
ADAPTER
POLE
ADAPTER
PLENUM
ENCLOSURE
FLUSH / RECESSED
BRACKET MOUNTING KIT
DOME COVER
SMOKE
–
–
UNI-MDPX
UNI-WMB4
(requires
cap sold
separately)
UNI-WMBB1
UNI-CMA1
UNI-PMA1
–
–
–
SNC-DH110/W
SNC-DH110T/B
SNC-DH110T/W
SNC-DH210/B
SNC-DH210/W
SNC-DH210T/B
SNC-DH210T/W
SNC-XM631
E&V Series
Indoor Mini Dome
(incl. Hybrid)
SNC-EM520
SNC-DH120
SNC-DH140
UNI-LD140S
SNC-DH220
SNC-DH240
SNC-ZM550
E&V Series
Indoor Vandal
Mini Dome
(incl. Hybrid)
SNC-EM521
–
–
–
–
–
–
UNI-UMB1
UNI-MDPDH120
SNC-DH120T
UNI-WMB4
(requires
cap sold
separately)
UNI-WMBB1
UNI-CMA1
UNI-PMA1
UNI-ILD3C3
YT-ICB140/
YT-ICB600
SNC-DH140T
UNI-LD280S
SNC-DH220T
SNC-DH240T
SNC-ZM551
IPELA ENGINE EX
E&V Series
Indoor Mini Dome
SNC-EM600
SNC-EM630
SNC-VM600B
YT-LD600S
SNC-VM600
SNC-VM630
IPELA ENGINE EX
E&V Series
Indoor Vandal
Mini Dome
SNC-EM601
–
–
–
–
–
–
UNI-UMB1
UNI-MDPDH120
SNC-EM631
UNI-WMB4
(requires
cap sold
separately)
UNI-WMBB1
UNI-CMA1
UNI-PMA1
–
YT-ICB600
SNC-VM601B
YT-LD601S
SNC-VM601
SNC-VM631
E&V Series
Outdoor Mini
Dome
SNC-DH160
SNC-DH180
SNC-DH260
SNC-DH280
IPELA ENGINE EX
E&V Series
Outdoor Mini
Dome
SNC-EM602RC
UNI-BBB2
UNI-MDPDH180
-
UNI-MDPHM
SNC-EM632RC
UNI-WMB4
/UNI-MDB3
(consists of UNI-WMBB1
UNI-MDPDH180
+ UNI-WMB4)
UNI-CMA1
UNI-PMA1
–
UNI-MDPDH180
UNI-WMB4
(requires
cap sold
separately)
UNI-WMBB1
UNI-CMA1
UNI-PMA1
–
YT-ICB45
UNI-LD280S
UNI-CMA1
UNI-PMA1
–
UNI-MDPHM
UNI-WMB4
UNI-WMBB1
UNI-CMA1
UNI-PMA1
–
–
–
UNI-WMB4
UNI-ILD3C3
SNC-VM602R
SNC-VM632R
360-Degree View
UNI-MDB3
18
SNC-HM662
UNI-WMBB1
UNI-CMA1
UNI-WMB4
UNI-WMB3
UNI-WMBB1
UNI-UMB1
UNI-MDPDH120
UNI-MDPDH180
YT-ICB140
YT-ICB45
UNI-MDPX
YT-ICB600
UNI-BBB2
IP Fixed Cameras Enclosures and Mounts
How to select
a camera and
mount:
Choose a
Camera
Select Outdoor
or Indoor Use
If you select Outdoor,
select the type of
Enclosure:
If you select Indoor,
select the type of
Enclosure:
OUTDOOR
INDOOR
ENCLOSURES / MOUNTS
Model Name
SNC-CH110/B
SNC-CH110/S
SNC-CH210/B
SNC-CH210/S
If you choose Flush/Recessed, then
select Normal Enclosure or Bracket
Mounting Kit (selection is complete)
WALL MOUNT
FLUSH / RECESSED
ENCLOSURE W/WALL MOUNT
WALL MOUNT W/ENCLOSURE
WALL MOUNT ONLY
PLENUM ENCLOSURE
–
–
UNI-XBB1/T (black)
UNI-XBS1/T (silver)
–
SNC-CH120
SNC-CH140
SNC-CH220
SNC-CH240
UNI-XBB1/T
UNI-XBS1/T
SNC-UNIHB/1
SNC-UNI
UNI-IFF7C3 (clear)
UNI-IFF7T3 (tinted)
UNI-BBB1
SNC-ZB550
SNC-VB600B
SNC-VB600
SNC-VB635
SNC-UNIHB/1
SNC-UNI
–
UNI-IFF7C3 (clear)
UNI-IFF7T3 (tinted)
SNC-VB630
SNC-EB520
SNC-EB600B
SNC-EB600
SNC-EB630B
SNC-EB630
SNC-VB632D
SNC-EB602R
SNC-EB632R
SNC-CH160
SNC-CH180
Bullet Cameras can use optional
UNI-BBB1 back box suitable for
surface wall or pole mount
Bullet Cameras can use optional
UNI-BBB1 back box suitable for
surface wall or pole mount
Bullet Cameras can use
optional UNI-BBB1 back
box suitable for surface
wall or pole mount
–
-
-
Included Accessory
-
SNC-CH260
SNC-CH280
SNC-CX600W
SNC-CX600
19
IP Rapid Dome and PTZ Cameras Enclosures and Mounts
How to select
a camera and
mount:
Choose a
Camera
If you choose one of the following:
– Flush/Recessed (selection is complete)
– Surface (selection is complete)
If you select Outdoor,
select the type of
Enclosure:
Select Outdoor
or Indoor Use
If you choose one of the Pendant Enclosures:
– Pressurized, Ruggedized, or Normal, select a type
of mount – Parapet, Low Profile Wall or Gooseneck
If you select the Low Profile Wall Mount or the Gooseneck Wall
Mount you can stop or continue to select an adapter (ie: Wall
Surface Conduit Box, Corner Adapter, Pole Adapter or Power
Block). Adapters not needed for Parapet Roof Mount.
OUTDOOR
IP RAPID DOME AND PTZ
SURFACE
Series
Model Name
G5
Indoor PTZ
- ER/EP Series
(inc. Hybrid)
SNC-EP520
PENDANT ENCLOSURES
PENDANT MOUNTS and ADAPTERS
FLUSH /
RECESSED
SURFACE
PRESSURIZED
RUGGEDIZED
NORMAL
UNI-OFL7C2
(clear)
UNI-OSL7C2
(clear)
UNI-OPL7C2
(clear)
UNI-ORL7C2
(clear)
UNI-ONL7C2
(clear)
UNI-OFL7T2
(tinted)
UNI-OSL7T2
(tinted)
UNI-OPL7T2
(tinted)
UNI-ORL7T2
(tinted)
UNI-ONL7T2
(tinted)
PARAPET ROOF
LOW
PROFILE
WALL MOUNT
GOOSENECK
WALL
WALL
SURFACE
(CONDUIT)
BOX
CORNER
ADAPTER
POLE
ADAPTER
POWER
BLOCK
TINTED
DOME
COVER
UNI-RMB1
or
UNI-RMB2
UNI-WMB3
UNI-WMB1
UNI-WMBB1
UNI-CMA1
UNI-PMA1
UNI-PBU1
–
SNC-EP550
SNC-EP580
SNC-ER520
SNC-ER550
SNC-ER580
SNC-RH124
SNC-RS44N
SNC-RS46N
SNC-ZR550
SNC-ZP550
G6
Indoor PTZ
- SNC-WR600/630
SNC-WR600
Outdoor PTZ
- SNC-WR602/632
- SNC-ER585
- RH/RS Series
- UNI-ON Series
SNC-ER585
SNC-WR630
SNC-WR632C
SNC-WR602C
SNC-RH164
YT-LDR632S
–
–
–
–
–
UNI-RMB1
or
UNI-RMB2
UNI-WMB3
UNI-WMB1
UNI-WMBB1
UNI-CMA1
UNI-PMA1
UNI-PBU1
SNC-RS84N
–
SNC-RS86N
UNI-ONEP520C7
UNI-ONEP550C7
UNI-ONEP580C7
UNI-ONEP520C7
UNI-ONEP550C7
UNI-ONEP580C7
UNI-ONEP520C2
UNI-ONEP550C2
UNI-ONEP580C2
UNI-ONEP520C2
UNI-ONEP550C2
UNI-ONEP580C2
20
–
–
–
–
–
UNI-RMB1
or
UNI-RMB2
UNI-WMB3
UNI-WMB1
UNI-WMBB1
UNI-CMA1
UNI-PMA1
UNI-PBU1
Models
with tinted
dome
cover are also
available
(T2, T7
instead of C2,
C7 suffix)
If you choose Flush/Recessed, then select
Normal Enclosure or Bracket Mounting Kit
(selection is complete)
If you select Indoor, select
the type of Enclosure:
If you choose one of the Pendant Enclosures:
– Ruggedized or Normal, select a type of mount – Gooseneck Wall or Low
Profile Wall and stop or select either the Conduit Box or Corner Adapter
INDOOR
FLUSH / RECESSED
NORMAL
ENCLOSURE
FLUSH
MOUNT KIT
UNI-ID7C3
(clear)
YT-ICB124
(w/o Dome
Cover)
UNI-ID7T3
(tinted)
COMMON
PENDANT ENCLOSURES
CLEAR
DOME
COVER for
FLUSH
TINTED
DOME
COVER for
FLUSH
YT-LD124C
YT-LD124S
(for YT-ICB124 (for YT-ICB124
/YT-ICB630)
/YT-ICB630)
RUGGEDIZED
NORMAL
UNI-IRL7C2
(clear)
UNI-INL7C2
(clear)
UNI-IRL7T2
(tinted)
UNI-INL7T2
(tinted)
PENDANT MOUNTS and ADAPTERS
GOOSENECK WALL
LOW
PROFILE
WALL
MOUNT
CONDUIT
BOX
WALL MOUNT
CORNER
ADAPTER
NONPENDANT
WALL
BRACKET
DOME COVERS
NORMAL
UNI-RD7C
UNI-WMB1
UNI-WMB3
UNI-WMBB1
UNI-CMA1
UNI-UMB1
TINTED
UNI-RD7T
UNI-OFL7C2
(clear)
UNI-OSL7C2
(clear)
UNI-OPL7C2
(clear)
UNI-OFL7T2
(tinted)
UNI-OSL7T2
(tinted)
UNI-OPL7T2
(tinted)
UNI-ORL7C2
(clear)
UNI-ONL7C2
(clear)
UNI-ORL7T2
(tinted)
UNI-ONL7T2
(tinted)
UNI-RMB1
(Dome Cover (Dome Cover
Replacement Replacement
for UNIfor UNIEnclosures)
Enclosures)
UNI-WMB3
UNI-WMB1
UNI-WMBB1
YT-ICB630
(w/o Dome
Cover)
UNI-PMA1
UNI-PBU1
UNI-IRL7C2
(clear)
UNI-INL7C2
(clear)
UNI-ID7C3
(clear)
UNI-IRL7T2
(tinted)
UNI-INL7T2
(tinted)
UNI-ID7T3
(tinted)
UNI-CMA1
–
–
–
–
–
–
–
–
–
–
–
–
–
C2 - AC24V input,
AC24V output
inside dome.
UNI-RD7C
–
–
–
–
–
–
–
–
–
–
–
UNI-RD7T
(Dome
(Dome
Cover
Cover
Replacement Replacement
for UNIfor UNIEnclosures)
Enclosures)
YT-ICB124
YT-LD124C
(clear)
C3 - no electronics.
Cables are direct
feed to camera.
YT-LD124S
(smoked)
(for use with
YT-ICB124,YT-ICB600
& YT-ICB630)
21
Mount Options and Enclosures
Wall Mount Bracket
Wall Mount Bracket
Power Block Unit (Wall/Pole Mount)
• UNI-WMB1 - 1.5'' NPT threaded
• UNI-WMB3 - low profile wall mount for 7''
pendant dome enclosure
• UNI-PBU1 - AC 110/220V input, AC24V output, 100VA
• Shown with 7'' pendant enclosure
• Shown with UNI-WMB1 and 7'' dome enclosure
• Shown with 7'' pendant enclosure
Pole Mount Adaptor
Surface/Pole Mount Adaptor
Roof Mount (Parapet)
Corner Mount
• UNI-PMA1
• Used with UNI-WMB1, UNI-WMB3, UNIWMB4 wall mount brackets
• UNI-RMB1 parapet mount extends
approximately 2 feet out from vertical
Mount Enclosures Needed:
• Shown with UNI-WMB1 gooseneck wall
mount and 7'' dome enclosure
• 1.5'' threaded
• Shown with 7'' pendant enclosure
22
• UNI-CMA1 Aluminum Corner Mount
Adapter shown with
UNI-WMB1 and 7'' pendant mount
enclosure
Glossary and Warranty Info
IP66
View-DR® Technology
DEPA™ System
The “IP” of IP66 stands for Ingress Protection, and its two-digit number shows the
durability rating of equipment for outdoor use. The first digit of IP66 relates to the
ingress protection against dust, and “6” means “dust tight”. The second digit of IP66
relates to the ingress protection against water, and “6” means protected against
“heavy jet sprays,” such as conditions that can be encountered in hurricanes.
View-DR is Sony’s latest technology to produce images with an extremely wide
dynamic range. View-DR is a combination of Sony’s full-capture Wide-D technology,
the high-speed Exmor CMOS sensor, and Visibility Enhancer (VE). The full-capture
Wide-D technology used in View-DR technology uses an electronic shutter to capture
multiple images, to reproduce each frame. One image is taken using a ‘standard’
exposure time and either one or three images are taken using very short exposure
times depending on the camera type. With the newly developed View-DR algorithm,
all of the electrons converted from the captured light is fully used by the imager, which
is quite different from DynaView technology and some other Wide-D technologies in
the industry that discard approximately ½ of the electrons. As a result, View-DR nearly
doubles the sensitivity compared to conventional Wide-D technologies. To capture
multiple HD resolution images at a very high speed, the “Exmor” CMOS sensor was
adopted because of its high-speed readout characteristics. During the process of
combining multiple images, the Visibility Enhancer (VE) is employed to provide a high
level of chrominance and luminance. With View-DR, the monitored images become
very visible – sometimes even more than when viewed with our naked eyes.
With a Sony DEPA system, DEPA-enabled cameras send not only video images but
also related metadata, including object data (size and position) to the DEPA-enabled
recorder. Since part of the image processing is done on the camera side, the load
to the recorder can be reduced enabling camera expansion. Conventional video
analytic systems, on the other hand, process images solely on the recorder side often
causing CPU overload.
IK10
The IK rating system classifies the level of protection provided by electrical
appliances against external impacts from the outside.
An IK10-rated camera can withstand the impact of 20 Joules, meaning the camera
will withstand the impact of a 5 kg weight dropped on it from a height of 40 cm.
Day/Night
A day/night camera has two modes of operation: a day mode and a night mode.
The camera switches from day mode (Color) to night mode (B/W) by replacing its
infrared-cut filter with a clear filter. In night mode, the camera becomes sensitive to
near-IR light and is capable of reproducing images even when the scene is not
visible to the naked eye.
Electrical D/N
Electrical D/N is a technology to make the image more visible in low-light conditions
by removing the chroma signal to produce a B/W image.
Wide-D
State-of-the-art technologies to expand the video dynamic range of the camera to
improve the visibility of images even in extremely high-contrast environments.
Wide-D is a powerful feature to compensate for scenes with extremely poor contrast.
Visibility Enhancer (VE)
VE is one of Sony’s new technologies that optimizes contrast and makes a scene
more visible. It is ideal for scenes where objects are hard to recognize due to severe
backlight or shadows. VE optimizes the brightness and color reproduction of an
image dynamically on a pixel-by-pixel basis while continuously adapting to the
scene. Technically, VE stretches the contrast in both the backlit portions and the
shadows within the given dynamic range, which is different from Wide-D.
VE also contributes to the high sensitivity of the camera. By combining VE with XDNR,
the camera can reproduce clear and bright images in very low-light conditions,
while keeping noise at a minimal level.
XDNR® Technology (eXcellent Dynamic Noise Reduction)
XDNR is Sony’s latest technology for noise reduction in IP security cameras. XDNR
utilizes 2D and 3D noise reduction methods adaptively to scenes. Under low-light
conditions, XDNR technology provides clear images for both moving objects and still
portions of the image, using 2DNR and 3DNR, respectively. This method provides
clear images while minimizing motion blur which is a challenge in any outdoor
surveillance monitoring applications, such as in parking lots.
ONVIF® Software
ONVIF software defines a common protocol for the exchange of information between
different network video devices regardless of manufacturer, and achieves greater
interoperability in multi-vendor network video systems.
PoE (Power-over-Ethernet, IEEE 802.3af)
PoE enables networked devices to receive power up to 12.95 W from PoE-enabled
equipment through the same Ethernet cable that transports data. It provides
substantial savings in installation costs and can simplify the installation process.
HPoE (High PoE, IEEE 802.3at)
DEPA Advanced
DEPA Advanced is an enhanced DEPA technology. Unlike DEPA, a camera
incorporating DEPA Advanced completes the entire DEPA analysis such as intrusion
detection with a virtual borderline on the camera side, and sends only an alarm to
the recorder. Enhancements also include a tamper alarm, shadow cancellation,
a beam intrusion detector, and audio analysis. Since the analytic processing is
completed in the camera, end users can benefit from DEPA Advanced because it can
be easily integrated with a variety of recorders and/or video management solutions.
3-Year Warranty for Network
Cameras, Encoders,and Accessories
The Sony Security Products 3-year warranty covers labor
and materials for repair of defective IPELA™ ‘SNC’ cameras,
‘SNT’ encoders, and ‘UNI’ accessories purchased within the
United States on or after July 1, 2010. Offer excludes
discontinued models and accessories for a period of three
years from the date of purchase. For more details, please visit
sony.com/security or contact your Sony Sales Representative.
1-Year Warranty for Security Accessories
The Sony Security 1-year warranty covers labor from date of
purchase and covers YS, YT, SNCA, NSBK, RMM and SSMA
accessories.
HPoE enables networked devices to receive power up to 25 W from hPoE-enabled
equipment through the same Ethernet cable that transports data. HPoE is useful
especially for PTZ/Rapid Dome cameras that require motor control.
HPoE+
HPoE+ enables networked devices to receive power in excess of 25W from
HPoE-enabled equipment through the same Ethernet cable that transports data.
HPoE is usefull especially for outdoor PTZ/Rapid Dome cameras that require motor
control plus heaters.
23
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2120_Jan2015 (MK10974V3)
©2015 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. Features and specifications are
subject to change without notice. The values for wieght and measurements are approximate. Sony, IPELA, IPELA ENGINE, IPELA HYBRID, Exmor,
View-DR, XDNR, DynaView, DEPA, Onvif and the Sony logo are trademarks of Sony. SLOC is a trademark of Intersil Corporation. All other trademarks
are the property of their respective owners.
(1/15)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
