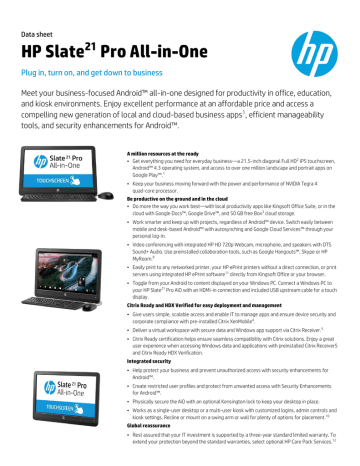

Data sheet
HP Slate21 Pro All-in-One
Plug in, turn on, and get down to business
Meet your business-focused Android™ all-in-one designed for productivity in office, education,
and kiosk environments. Enjoy excellent performance at an affordable price and access a
compelling new generation of local and cloud-based business apps1, efficient manageability
tools, and security enhancements for Android™.
A million resources at the ready
• Get everything you need for everyday business—a 21.5-inch diagonal Full HD2 IPS touchscreen,
Android™ 4.3 operating system, and access to over one million landscape and portrait apps on
Google Play™.1
• Keep your business moving forward with the power and performance of NVIDIA Tegra 4
quad-core processor.
Be productive on the ground and in the cloud
• Do more the way you work best—with local productivity apps like Kingsoft Office Suite, or in the
cloud with Google Docs™, Google Drive™, and 50 GB free Box3 cloud storage.
• Work smarter and keep up with projects, regardless of Android™ device. Switch easily between
mobile and desk-based Android™ with autosynching and Google Cloud Services™ through your
personal log-in.
• Video conferencing with integrated HP HD 720p Webcam, microphone, and speakers with DTS
Sound+ Audio. Use preinstalled collaboration tools, such as Google Hangouts™, Skype or HP
MyRoom.8
• Easily print to any networked printer, your HP ePrint printers without a direct connection, or print
servers using integrated HP ePrint software11 directly from Kingsoft Office or your browser.
• Toggle from your Android to content displayed on your Windows PC. Connect a Windows PC to
your HP Slate21 Pro AiO with an HDMI-in connection and included USB upstream cable for a touch
display.
Citrix Ready and HDX Verified for easy deployment and management
• Give users simple, scalable access and enable IT to manage apps and ensure device security and
corporate compliance with pre-installed Citrix XenMobile4.
• Deliver a virtual workspace with secure data and Windows app support via Citrix Receiver.5
• Citrix Ready certification helps ensure seamless compatibility with Citrix solutions. Enjoy a great
user experience when accessing Windows data and applications with preinstalled Citrix Receiver5
and Citrix Ready HDX Verification.
Integrated security
• Help protect your business and prevent unauthorized access with security enhancements for
Android™.
• Create restricted user profiles and protect from unwanted access with Security Enhancements
for Android™.
• Physically secure the AiO with an optional Kensington lock to keep your desktop in place.
• Works as a single-user desktop or a multi-user kiosk with customized logins, admin controls and
kiosk settings. Recline or mount on a swing arm or wall for plenty of options for placement.10
Global reassurance
• Rest assured that your IT investment is supported by a three-year standard limited warranty. To
extend your protection beyond the standard warranties, select optional HP Care Pack Services.12
HP Slate21 Pro All-in-One
Hardware Specifications
Product Name
HP Slate21 Pro All-in-One
Operating systems
Preinstalled: Android™ 4.3, Jelly Bean
Processor
Nvidia Tegra 4 Quad-Core T40S Processor6 (1.66 GHz - Dual-Core/Single-Core mode up to 1.8 GHz)
Memory
2GB DDR3–800 MHz SDRAM
Storage
22
Flash storage:
16 GB eMMC23
Media Card Reader: SD Media Card Reader
Display
21.5" (54.6 cm) diagonal IPS full HD widescreen LED-backlit touch-enabled

16:9 Wide Aspect Ratio

2 point optical touchscreen using 3 cameras

1920 x 1080 resolution (Full HD)

Up to 178° viewing angles
Audio/Visual
DTS Sound + integrated audio
(2) Integrated stereo speakers – 2W x 2W
Integrated Webcam (720p HD ) with built-in microphone
Headphone-microphone combo out (disables integrated speakers)
Wireless Support
Integrated 10/100 Ethernet
802.11 a/b/g/n wireless16
Bluetooth 4.0
Wi-Fi Direct
Ports and Connectors
Side I/O Ports
One (1) USB 2.0 port
One (1) Headphone-microphone combo out (disables integrated speakers)
One (1) SD Card reader
Rear I/O Ports
Two (2) USB 2.0 ports
One (1) RJ45 network connection
One (1) HDMI input
One (1) USB 2.0 upstream port
Input Devices
HP USB Keyboard (black), HP USB Optical Scroll Mouse (black)
Software
The HP Slate21 All-in-One comes with a variety of software titles including:
Productivity: Kingsoft Office, Citrix Receiver, Adobe PDF Reader, HP File Manager, HP ePrint17, Evernote, Splashtop Personal
Manageability: Citrix Worx20
Cloud Storage: Box (50GB free cloud storage offer)6, Google Drive™
Video Conferencing: Skype21, Google Hangouts, HP MyRoom19
Education: HP Classroom Manager (student version)9
Google Apps and Services: Google Play Store, Chrome browser, Gmail, YouTube, Google Calendar, Google Search
Dimensions (w x d x h)
20.9 x 3.25 x 14.4 in (53.1 x 8.25 x 36.6 cm)15
Weight
13.6 lb (5.97 kg)15
Power
Integrated Power Supply. 100-240 V, 50/60 Hz, 1.5 (1,5A). 1.9 m power cord included
Industry Standard
Certifications
ENERGY STAR®
EPEAT® Gold14
WW Safety and EMC certifications
Accessories13
(sold separately)
HP LCD Monitor Quick Release – EM870AA
HP Single Monitor Arm – BT861AA
HP Business Security Lock – PV606AA
HP Basic Capacitive Stylus – E7U18AA
HP Bluetooth Wireless Headset H7000 – H6Z97AA
HP Pocket Playlist – H4D65AA
HP Wireless Keyboard – P/N Pending
HP Wireless Mouse – P/N Pending
HP 5 year Next Business Day Advance Exchange Service- U0J11E
Color
Black
What’s in the box?
HP Slate21 All-in-One
1.8 m USB upstream cable
2
Data sheet | HP Slate21 Pro All-in-One
1.9 m power cable
Wired USB keyboard and mouse
Quick Start Guide
Warranty
3-year limited warranty, including telephone support 24/7; terms and conditions may vary by country; other HP Care Pack Services
available.12
1. Internet access required. Apps may require purchase. Google Play is not available in all countries. App compatibility based on Google Play
2. High-definition (HD) content is required to view high-definition images.
3. Requires Box registration. Offer subject to change without notice.
4. Citrix Worx Home for Android is pre-installed and ready to be managed by Citrix XenMobile. Customers who have already purchased Citrix
XenMobile can enroll immediately. A 30- or 60-day Citrix XenMobile trial is available though the Citrix icon on the HP Slate21 Pro home screen.
Subscription service required after trial period ends.
5. Citrix Receiver is pre-installed and ready to be utilized for customers who have already purchased Citrix XenDesktop.
6. Quad Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit
from use of this technology.
7. Wireless access point and Internet service required.
8. The preinstalled MyRoom app for Android allows you to attend meetings set up by others.
9. HP Classroom Manager for Windows required to enable Android functionality (download for free for 30 days at
http://www.hp.com/go/hpclassroommanager). Control and device locking originate from the teacher’s Windows desktop console; no locking and
control functionality originates from HP Classroom Manager for Android.
10. Mounting hardware sold separately.
11. Requires an Internet connection to a HP web-enabled printer and HP ePrint account registration. For complete details, see
www.hp.com/go/mobileprinting.
12. HP Care Pack Services are sold separately. Service levels and response times for HP Care Pack Services may vary depending on your geographic
location. Service starts from date of hardware purchase. Restrictions and limitations apply. See www.hp.com/go/cpc for details.
13. Sold separately or as an optional feature.
14. EPEAT® Gold registered in the US. See www.epeat.net for registration status by country.
15. Weight and system dimensions may fluctuate due to configuration and manufacturing variances.
16. Wireless Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area.
17. Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents
and image types and other HP ePrint details, see www.hp.com/go/eprintcenter). Mobile devices require Internet connection and email capability. May
require wireless access point. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
18. 50GB of free storage available. For complete details and terms of use, including cancellation policies, visit the website at box.com. Internet service
required and not included.
19. You can try MyRoom Premium 4-person account free for 1 year from the MyRoom app. Please review the MyRoom system requirements on this
site. Purchase required after the 1-year trial offer ends. For additional capabilities, you can purchase MyRoom that will work for your needs from
www.myroom.hp.com.
20. Citrix Worx Home for Android is pre-installed and ready to be managed by Citrix XenMobile. Customers who have already purchased Citrix
XenMobile can enroll immediately. A 30- day Citrix XenMobile trial is available through the Citrix icon on the HP Slate21 Pro home screen. Subscription
service required after trial period ends.
21. Internet access is required and sold separately.
22. For Solid State Drives (SSD), GB = 1 billion bytes. Actual formatted capacity is less.
23.12.4 GB is available for user. Total flash storage used for OS, preinstalled apps, recovery is up to 3.6 GB.
Learn more at
www.hp.com/go/businessdesktopPCs
Sign up for updates
hp.com/go/getupdated
© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ENERGY STAR is a registered mark owned by the U.S. government. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under
license. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Android, Google, Google Play, Google logo and other
marks are trademarks of Google Inc. Used with permission. All other trademarks are the property of their respective owners. December 2013
3
