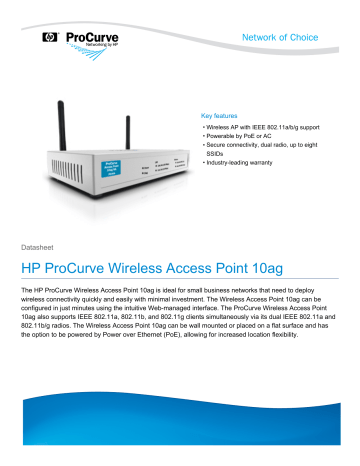

ProCurve | 10ag | HP ProCurve Wireless Access Point 10ag

HP ProCurve Wireless Access Point 10ag
Key features
b
Wireless AP with IEEE 802.11a/b/g support
Powerable by PoE or AC
b Secure connectivity, dual radio, up to eight
SSIDs
b Industry-leading warranty
b
Datasheet
HP ProCurve Wireless Access Point 10ag
The HP ProCurve Wireless Access Point 10ag is ideal for small business networks that need to deploy
wireless connectivity quickly and easily with minimal investment. The Wireless Access Point 10ag can be
configured in just minutes using the intuitive Web-managed interface. The ProCurve Wireless Access Point
10ag also supports IEEE 802.11a, 802.11b, and 802.11g clients simultaneously via its dual IEEE 802.11a and
802.11b/g radios. The Wireless Access Point 10ag can be wall mounted or placed on a flat surface and has
the option to be powered by Power over Ethernet (PoE), allowing for increased location flexibility.
HP ProCurve Wireless Access Point 10ag
Features and benefits
Manageability
Industry-leading warranty
• Intuitive Web interface: enables simple management via an
easy-to-use Web browser interface for access point configuration,
monitoring, and administration
• Integration with HP ProCurve Manager: enables discovery and
mapping via ProCurve Manager, available as a free download
from the Web
Mobility
• Interoperability: Wi-Fi Alliance certifications including IEEE
802.11a, 802.11b, 802.11g Wi-Fi, and WPA2 to help ensure
multivendor interoperability
Ease of use
• Comprehensive LED display: provides an at-a-glance view of
status, activity, speed, and radio operation
Connectivity
Flexibility
• Simultaneous IEEE 802.11a and 802.11g dual radio
operation: supports up to 64 wireless clients and provides
backward compatibility for IEEE 802.11b wireless devices
• Choice of power supply (standard AC power or IEEE 802.3af
PoE): provides location flexibility for where the access point is
deployed. To use the Power over Ethernet (PoE) option, the
access point must be connected to a PoE switch or PoE injector.
Security
• Choice of Wi-Fi Protected Access 2 (WPA2) or WPA: locks
out unauthorized wireless access by authenticating users prior to
granting network access; robust Advanced Encryption Standard
(AES) or Temporal Key Integrity Protocol (TKIP) encryption
secures the data integrity of the wireless traffic
• Supports up to eight SSIDs (four per radio): allows multiple
authentication and encryption settings to accommodate the widest
range of client capabilities
• IEEE 802.1X: provides port-based user authentication with
support for Extensible Authentication Protocol (EAP) MD-5, TLS,
TTLS, and PEAP with choice of AES, TKIP, and static or dynamic
WEP encryption for protecting wireless traffic between
authenticated clients and the access point
• RADIUS-based MAC authentication: a wireless client is
authenticated with a RADIUS server based on the MAC address
of the client; this is useful for clients that have minimal or no user
interface
• Deployment options: access point can be mounted on a
vertical wall or placed on a flat surface
Warranty and support
• ProCurve Lifetime Warranty: for as long as you own the
product, with next-business-day advance replacement (available
in most countries).
• Electronic and telephone support: limited electronic and
telephone support is available from HP. Refer to the HP Web site
at www.procurve.com/support for details on the support provided
and the period during which support is available.
• Software releases: refer to the HP Web site at
www.procurve.com/support for details on the software releases
provided and the period during which software releases are
available.
• MAC address lockout: prevents configured particular MAC
addresses from connecting to the network
• Management password: provides security so that only
authorized access to the Web browser interface is allowed
♦ For as long as you own the product, with next-business-day advance replacement (available in most countries). The following hardware products and their related series modules have a one-year
hardware warranty with extensions available: HP ProCurve Routing Switch 9300m Series, HP ProCurve Switch 8100fl Series, and HP ProCurve Network Access Controller 800. The following hardware
mobility products have a one-year hardware warranty with extensions available: HP ProCurve M111 Client Bridge, HP ProCurve MSM3xx-R Access Points, HP ProCurve MSM7xx Mobility and Access
Controllers, HP ProCurve RF Manager IDS/IPS Systems, HP ProCurve MSM Power Supplies, HP ProCurve 1-Port Power Injector, and HP ProCurve CNMS Appliances. Disk drives in the HP ProCurve
ONE Services zl Modules have a five-year hardware warranty. Standalone software, upgrades, or licenses may have a different warranty duration. For details, refer to the ProCurve Software License,
Warranty, and Support booklet at http://www.procurve.com/warranty.
2
HP ProCurve Wireless Access Point 10ag
Specifications
HP ProCurve Wireless Access Point 10ag NA (J9140A)
HP ProCurve Wireless Access Point 10ag WW (J9141A)
Ports
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE
802.3u Type 100Base-TX); Duplex: half or full
1 RJ-45 auto-sensing 10/100 port (IEEE 802.3 Type 10Base-T, IEEE
802.3u Type 100Base-TX); Duplex: half or full
Dimensions
4.06(d) x 7.01(w) x 1.34(h) in. (10.3 x 17.8 x 3.4 cm)
4.06(d) x 7.01(w) x 1.34(h) in. (10.3 x 17.8 x 3.4 cm)
Weight
0.62 lb. (0.28 kg)
0.62 lb. (0.28 kg)
MIPS 4000 @ 220 MHz, 16 MB SDRAM, 2 MB flash ROM
MIPS 4000 @ 220 MHz, 16 MB SDRAM, 2 MB flash ROM
Operating temperature
32ºF to 104ºF (0ºC to 40ºC)
32ºF to 104ºF (0ºC to 40ºC); PoE mode
Operating relative humidity
5% to 95% @ 104ºF (40ºC), non-condensing
5% to 95% @ 104ºF (40ºC), non-condensing
Non-operating/Storage temperature
-40ºF to 158ºF (-40ºC to 70ºC)
-40ºF to 158ºF (-40ºC to 70ºC)
Non-operating/Storage relative humidity
5% to 95% @ 158ºF (70ºC), non-condensing
5% to 95% @ 158ºF (70ºC), non-condensing
Altitude
up to 10000 ft. (3 km)
up to 10000 ft. (3 km)
Description
Voltage: 48 VDC (PoE); 12 VDC (power adapter); 110/220 V 50/60
Hz
Voltage: 48 VDC (PoE); 12 VDC (power adapter); 110/220 V 50/60
Hz
Maximum heat dissipation
25 / 33 BTU/hr (26.38 / 34.82 kJ/hr)
25 / 33 BTU/hr (26.38 / 34.82 kJ/hr)
Current
0.6 / 0.2 A
0.6 / 0.2 A
Power consumption
7W
7W
Notes
Maximum power rating is the worst-case theoretical maximum power
number with fully loaded PoE, 100% traffic, all ports plugged in, and
all modules populated.
Maximum power rating is the worst-case theoretical maximum power
number with fully loaded PoE, 100% traffic, all ports plugged in, and
all modules populated.
Physical characteristics
Memory and processor
Processor
Environment
Electrical characteristics
Frequency band and Operating
FCC (US & Canada)
2.412 - 2.462 GHz (11 channels)
5.150 - 5.250 GHz (4 channels)
5.725 - 5.825 GHz (5 channels)
Taiwan
2.412 - 2.462 GHz (11 channels)
5.725 - 5.825 GHz (5 channels)
European Union
2.412 - 2.472 GHz (13 channels)
5.150 - 5.250 GHz (4 channels)
Japan
2.412 - 2.484 GHz (14 channels)
5.150 - 5.350 GHz (8 channels)
China
2.412 - 2.472 GHz (13 channels)
5.725 - 5.825 GHz (5 channels)
Singapore
2.412 - 2.472 GHz (13 channels)
5.150 - 5.350 GHz (8 channels)
5.725 - 5.825 GHz (5 channels)
3
HP ProCurve Wireless Access Point 10ag
Korea
2.412 - 2.472 GHz (13 channels)
5.150 - 5.350 GHz (8 channels)
5.470 - 5.725 GHz (7 channels)
5.725 - 5.825 GHz (4 channels)
Australia
2.412 - 2.472 GHz (13 channels)
5.725 - 5.825 GHz (5 channels)
Radio
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN
300 328; ARIB STD-T66; ARIB STD-T71; ARIB STD-33; RSS-Gen
(Canada); EN 301 893 V1.2.3 (Europe)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN
300 328; ARIB STD-T66; ARIB STD-T71; ARIB STD-33; RSS-Gen
(Canada); EN 301 893 V1.2.3 (Europe)
UL 60950-1; CAN/CSA 22.2 No. 60950-1
IEC 60950-1; EN 60950-1
FCC Part 15.107; EN 60601-1-2; EN 301 489-1; EN 301 489-17;
FCC Part 15.109; ICES-003 (Canada)
FCC Part 15.107; EN 60601-1-2; EN 301 489-1; EN 301 489-17;
FCC Part 15.109; ICES-003 (Canada)
FCC Bulletin OET-65C; IEEE C95.1; RSS-102
EN 50385
HP ProCurve Manager; Web browser
HP ProCurve Manager; Web browser
Safety
Emissions
RF Exposure
Management
Notes
Antennas: integral 2.4 GHz 1.8 dBi diversity antennas; 5 GHz 1.8 dBi
diversity antennas
Services
3-year, 4-hour onsite, 13x5 coverage for hardware (U4683E)
3-year, 4-hour onsite, 24x7 coverage for hardware (U4835E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software
phone support (U6321E)
3-year, 24x7 SW phone support, software updates (UF792E)
3-year, 4-hour onsite, 13x5 coverage for hardware (U4683E)
3-year, 4-hour onsite, 24x7 coverage for hardware (U4835E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software
phone support (U6321E)
3-year, 24x7 SW phone support, software updates (UF792E)
Refer to the HP Web site at www.procurve.com/services for details
on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your
local HP sales office.
Refer to the HP Web site at www.procurve.com/services for details
on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your
local HP sales office.
4
HP ProCurve Wireless Access Point 10ag
HP ProCurve Wireless Access Point 10ag NA (J9140A)
Radio characteristics: IEEE 802.11g
Data rate
54 Mbps
48 Mbps
36 Mbps
24 Mbps
18 Mbps
12 Mbps
9 Mbps
6 Mbps
Receiver sensitivity
-71 dBm
-73 dBm
-77 dBm
-80 dBm
-85 dBm
-87 dBm
-88 dBm
-89 dBm
Transmit power
19 dBm
20 dBm
20 dBm
20 dBm
20 dBm
20 dBm
20 dBm
20 dBm
Data rate
11 Mbps
5.5 Mbps
2 Mbps
1 Mbps
Receiver sensitivity
-86 dBm
-88 dBm
-90 dBm
-94 dBm
Transmit power
20 dBm
20 dBm
20 dBm
20 dBm
Data rate
54 Mbps
48 Mbps
36 Mbps
24 Mbps
18 Mbps
12 Mbps
9 Mbps
6 Mbps
Receiver sensitivity
-72 dBm
-73 dBm
-79 dBm
-82 dBm
-85 dBm
-87 dBm
-89 dBm
-90 dBm
Transmit power
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
IEEE 802.11b
IEEE 802.11a
HP ProCurve Wireless Access Point 10ag WW (J9141A)
Radio characteristics: IEEE 802.11g
Data rate
54 Mbps
48 Mbps
36 Mbps
24 Mbps
18 Mbps
12 Mbps
9 Mbps
6 Mbps
Receiver sensitivity
-71 dBm
-73 dBm
-77 dBm
-80 dBm
-85 dBm
-87 dBm
-88 dBm
-89 dBm
Transmit power
17.5 dBm
17.5 dBm
17.5 dBm
17.5 dBm
17.5 dBm
17.5 dBm
17.5 dBm
17.5 dBm
Data rate
11 Mbps
5.5 Mbps
2 Mbps
1 Mbps
Receiver sensitivity
-86 dBm
-88 dBm
-90 dBm
-94 dBm
Transmit power
17 dBm
17 dBm
17 dBm
17 dBm
Data rate
54 Mbps
48 Mbps
36 Mbps
24 Mbps
18 Mbps
12 Mbps
9 Mbps
6 Mbps
Receiver sensitivity
-72 dBm
-73 dBm
-79 dBm
-82 dBm
-85 dBm
-87 dBm
-89 dBm
-90 dBm
Transmit power
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
18 dBm
IEEE 802.11b
IEEE 802.11a
Standards and protocols
General protocols
IEEE 802.3 Type 10BASE-T
IEEE 802.3af Power over Ethernet
IEEE 802.3u 100BASE-X
Layer in the 5 GHz Band
IEEE 802.11b Higher-Speed Physical
Layer Extension in the 2.4 GHz Band
IEEE 802.11g Further Higher Data
Rate Extension in the 2.4 GHz Band
Security
IEEE 802.1X Port Based Network
Access Control
WPA (Wi-Fi Protected Access)
Mobility
IEEE 802.11a High Speed Physical
5
HP ProCurve Wireless Access Point 10ag accessories
HP ProCurve 1-Port Power Injector (J9407A)
HP ProCurve Wireless Access Point 10ag NA
(J9140A)
HP ProCurve Wireless Access Point 10ag WW
(J9141A)
HP ProCurve Manager 2.3 (-)
HP ProCurve Manager 2.3 (-)
For more information
To learn more about HP ProCurve Networking, please visit ProCurve.com
© 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein. January 2009
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
