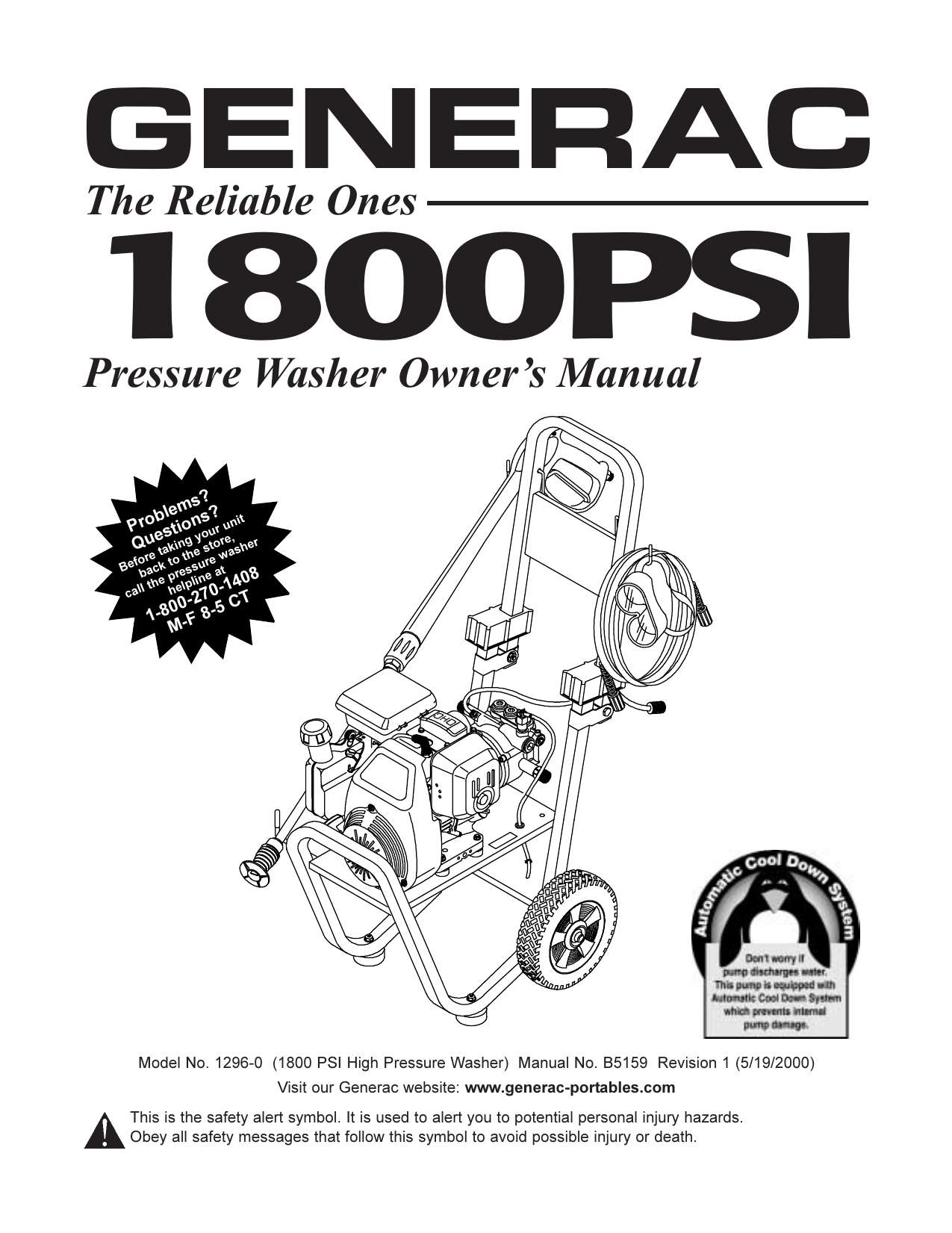

Simplicity 01296-0 Operator's Manual

GENERAC

The Reliable Ones

1800

PSI

Pressure Washer Owner’s Manual

Problems?

Questions?

Before call taking the your unit store, pressure helpline at

CT

Model No. 1296-0 (1800 PSI High Pressure Washer) Manual No. B5159 Revision 1 (5/19/2000)

Visit our Generac website:

www.generac-portables.com

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Generac Portable Products 1,800 PSI High Pressure Washer

EQUIPMENT DESCRIPTION

CONGRATULATIONS

on your purchase of a

GENERAC high pressure washer. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

This manual contains information for a high pressure washer that operates at 1,800 PSI at a flow rate of

2.0 gallons per minute. This high quality residential system features large 8 wheels and an axial cam pump with stainless steel pistons, aluminum pump head construction, automatic cool down system,and a chemical injection system. System includes an adjustable spray nozzle, safety goggles, a heavy duty

25 hose, and more.

Please read and retain this manual. The instructions will enable you to assemble your unit without tools, and maintain your high pressure washer properly.

Every effort has been made to ensure that the information in this manual is both accurate and current. However, Generac reserves the right to change, alter or otherwise improve the product and its documentation at any time without prior notice.

Should you experience any problem you cannot easily remedy, call the pressure washer helpline at

1-800-270-1408

CUSTOMER

RESPONSIBILITIES

Read and observe the safety rules.

Follow regular schedule in maintaining, caring for and using your high pressure washer.

For off-season storage, review Preparing Unit for

Storage on page 14.

SAFETY RULES

CAUTION!

When setting up, transporting, adjusting or making repairs to your high pressure washer, always disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

DANGER!

Engine exhaust gases contain

DEADLY carbon monoxide gas. This dangerous gas, if breathed in sufficient concentrations, can cause unconsciousness or even death. Operate this equipment only in the open air where adequate ventilation is available.

DANGER!

Gasoline is highly FLAMMABLE and its vapors are EXPLOSIVE.

Do Not

permit smoking, open flames, sparks or heat in the vicinity while handling gasoline. Avoid spilling gasoline on a hot engine. Allow unit to cool for

2 minutes before refueling. Comply with all laws regulating storage and handling of gasoline.

Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations, and any hazards involved.

WARNING:

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Operate this pressure washer in areas away from combustible materials, combustible fumes or dust.

The high pressure equipment is designed to be used with Generac authorized parts

ONLY

. If you use this equipment with parts that do not comply with minimum specifications, the user assumes all risks and liabilities.

Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning. The harmful elements may cause property damage or severe injury.

Units with broken or missing parts, or without protective housing or covers, should

Never

be operated.

Generac Portable Products 1,800 PSI High Pressure Washer

Do Not

allow CHILDREN to operate the pressure washer at any time.

Operate engine only at governed speed. Running the engine at excessive speeds increases the hazard of personal injury.

Do Not

tamper with parts which may increase or decrease the governed speed.

Do Not

wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.

Before starting the pressure washer in cold weather, check all parts of the equipment and be sure ice has not formed there.

Never

use a spray gun which does not have a trigger lock or trigger guard in place and in working order.

Keep the hose connected to machine or the spray gun while the system is pressurized. Disconnecting the hose while the unit is pressurized is dangerous.

Check the fuel system for leaks or signs of deterioration, such as chafed or spongy hose, loose or missing clamps, or damaged tank or cap. Correct all defects before operating the pressure washer.

Do Not

spray flammable liquids.

Use a respirator or mask whenever there is a chance that vapors may be inhaled. Read all instructions with mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors.

Never

aim the spray gun at people, animals or plants. The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Never

allow any part of the body to come in contact with the fluid stream.

Do Not

come in contact with a fluid stream created by a leak in the high pressure hose.

Always wear eye protection when you use this equipment or when you are in the vicinity where the equipment is in use.

High pressure spray can cause paint chips or other particles to become airborne.

Do Not

operate the pressure washer above the rated pressure.

Never

move the machine by pulling on the high pressure hose. Use the handle provided on the unit.

Always be certain the spray gun, nozzles and accessories are correctly attached.

Do Not

secure the spray gun in the (open) position.

High pressure spray may damage fragile items including glass.

Do Not

point spray gun at glass when in the jet spray mode.

Operate and store this unit on a stable surface.

Hold the spray gun firmly in your hand before you start the unit. Failure to do so could result in an injury from a whipping spray gun.

Do Not

leave the spray gun unattended while the machine is running.

The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.

Keep water spray away from electric wiring or fatal electric shock may result.

Do Not

bypass any safety device on this machine.

The muffler and engine heat up during operation and remain hot immediately after shutting it down.

Avoid contact with a hot muffler or engine as you could be severely burned.

High pressure hose can develop leaks from wear, kinking, abuse, etc. Water spraying from a leak is capable of injecting material into skin. Inspect hose each time before using it. Check all hoses for cuts, leaks, abrasions or bulging of cover, or damage or movement of couplings. If any of these conditions exist, replace hose immediately.

Never

repair high pressure hose. Replace it with another hose that exceeds maximum pressure rating of your unit.

The muffler and air cleaner must be installed and in good condition before operating the pressure washer. These components act as spark arresters if the engine backfires.

In the State of California a spark arrester is required by law (Section 4442 of the California Public

Resources Code). Other states may have similar laws.

Federal laws apply on federal lands.

NOTE:

If you equip the muffler with a spark arrester, it must be maintained in effective working order. You can order a spark arrester through your authorized Honda service dealer.

Generac Portable Products 1,800 PSI High Pressure Washer

KNOW YOUR PRESSURE WASHER

Read this owners manual and safety rules before operating your high pressure washer.

Compare the illustrations with your high pressure washer to familiarize yourself with the location of the controls.

Save this manual for future reference.

Spray Gun

High Pressure Hose

High Pressure Outlet

Air Cleaner

Safety Goggles

Choke Lever

Throttle Lever

Chemical Injection Tube

Recoil Starter

Pump

equipped with

Automatic Cool Down

System

Water Inlet

Oil Fill

Adjustable Nozzle attached to

Nozzle Extension

Adjustable Nozzle

Always attached to nozzle extension. Adjustable nozzle allows you to adjust spray pressure and spray pattern.

Air Cleaner

Dry type filter element limits the amount of dirt and dust that gets in the engine.

Automatic Cool Down System

Cycles water through pump when water reaches 140°-145°F.

Warm water will discharge from pump onto ground.

This system prevents internal pump damage.

Chemical Injection Tube

Used to siphon chemical from the detergent container into the water stream.

Choke Lever

Prepares a cold engine for starting.

High Pressure Hose

Connect one end to high pressure outlet and the other end to spray gun.

High Pressure Outlet

Connection for high pressure hose.

Oil Fill

Add and check engine oil here.

Pump

Develops high pressure.

Recoil Starter

Used for starting the engine.

Safety Goggles

Always use the supplied goggles or other eye protection when running your pressure washer.

Spray Gun

Controls the application of water onto cleaning surface with trigger device. Includes safety latch.

Throttle Lever

Sets engine in starting mode and stops a running engine.

Water Inlet

Connection for garden hose.

Generac Portable Products 1,800 PSI High Pressure Washer

Read entire owners manual before you attempt to assemble or operate your new pressure washer.

REMOVE PRESSURE

WASHER FROM CARTON

Remove the high pressure hose and parts box included with pressure washer.

Slice two corners at the end of carton from top to bottom so the panel can be folded down flat, then remove all packing material.

Roll pressure washer out of carton.

Carton Contents

Items in the carton include:

Main Unit

High Pressure Hose

Parts Box (includes the following):

Oil Bottle

Wire Form

Goggles

Nozzle Cleaning Kit

ORing Maintenance Kit

Owners Manual

Engine Manual

Engine Warranty

Emissions Control Warranty

Warranty Card

Spray Gun

Adjustable Nozzle Extension

If any of the above parts are missing or damaged, call the pressure washer helpline at

18002701408.

PREPARING PRESSURE

WASHER FOR USE

If you have any problems with the assembly of your pressure washer or if parts are missing or damaged, call the pressure washer helpline at

18002701408.

To prepare your pressure washer for operation you will need to perform these tasks:

Unfold the handle and attach the wire form that holds high pressure hose and spray gun.

Add oil to the engine crankcase.

Add fuel to the fuel tank.

Connect the high pressure hose to the spray gun and the pump.

Connect the water supply to the pump.

Secure Handle and Wire Form

Lift the handle upward and allow the locking caps to slide over the bottom part of the handle to secure it in place. (Figure 1).

Figure 1 Secure Handle

Lift handle and slide locking caps into place

Standing behind the unit, insert the wire form into the handle with the longer arm positioned on the left.

The hook should resemble a J (Figure 2) from this view.

Figure 2 Attach Wire Form to Handle

Generac Portable Products 1,800 PSI High Pressure Washer

Add Engine Oil

WARNING!

Any attempt to crank or start the engine before it has been properly serviced with the recommended oil will result in an engine failure.

Place the pressure washer on a level surface.

Refer to the engine owners manual and fill the engine with the recommended oil as described.

NOTE: Review engine owners manual regarding engine breakin.

Add Gasoline

DANGER!

Never

fill fuel tank indoors. or when engine is running or hot.

Do Not smoke

when filling fuel tank.

WARNING!

Never

fill fuel tank completely full.

Fill tank to provide space for fuel expansion.

Wipe away any fuel spillage from engine and equipment before starting.

Use clean fuel and store in approved, clean covered containers. Use clean fill funnels.

Never

use stale gasoline left over from last season or gasoline stored for long periods.

Clean the area around the fuel fill cap, remove the cap (Figure 3).

Figure 3 Add Regular Unleaded Gasoline to Fuel Tank

Maximum Fuel

Level

Fuel Level

Mark

Connect Hose and Water Supply to

Pump

IMPORTANT:

You must attach all hoses before you start the engine. Starting engine without all hoses connected and water supplied will damage the pump.

Uncoil the high pressure hose and attach one end of the hose to the base of the spray gun (Figure 4).

Tighten by hand.

Figure 4 Connect High Pressure Hose to Spray Gun

Connect high pressure hose here.

Attach the other end of the high pressure hose to the high pressure outlet on the pump (Figure 5).

Tighten by hand.

Figure 5 Connect High Pressure Hose to Pump

Slowly add

regular UNLEADED gasoline

to fuel tank. Use a funnel to prevent spillage.

Install the fuel cap and wipe up any spilled gasoline.

Before you connect your garden hose to the water inlet, inspect the inlet screen (Figure 6). Clean the screen if it contains debris or replace it if it is damaged.

Do Not

run the pressure washer if the screen is damaged.

Generac Portable Products 1,800 PSI High Pressure Washer

Figure 6 Connect the Garden Hose to Water Inlet and

Turn ON the Water

Inspect inlet screen.

Do Not

use if damaged, clean if dirty.

Run water through your garden hose for 30 seconds to clean out any debris. Turn off water.

Connect the garden hose to the water inlet

(Figure 6). Tighten by hand.

WARNING!

There MUST be at least ten feet of unrestricted garden hose between the pressure washer inlet and any flow shut off device, such as a Y shut-off connector or other convenience-type water shut-off valve. Damage to pressure washer resulting from disregarding this warning will not be covered by the warranty.

Turn ON the water and squeeze the trigger on the spray gun to purge the pump system of air and impurities.

CAUTION:

Before starting the pressure washer, be sure you are wearing adequate eye protection.

CHECKLIST BEFORE

STARTING ENGINE

Review the units assembly to confirm you have performed all of the following:

Make sure the handle and wireform are in place and secure.

Check that oil has been added to the proper level in the engine crankcase.

Add the proper gasoline to fuel tank.

Check for properly tightened hose connections.

Check to make sure that there are no kinks, cuts, or damage to the high pressure hose.

Provide a proper water supply (not to exceed 140°F) at an adequate flow.

Be sure to read Safety Rules and How To Start

Your Engine before operating your pressure washer.

HOW TO USE YOUR

PRESSURE WASHER

If you have any problems operating your pressure washer, please call the pressure washer helpline at

1-800-270-1408

How to Start Your Engine

The best way to start your engine-powered pressure washer for the first time is to follow these instructions step-by-step. You may also refer to your engine owners manual. This starting information also applies whenever you start the engine after you have let the pressure washer sit idle for at least a day.

Generac Portable Products 1,800 PSI High Pressure Washer

CAUTION:

Before starting the pressure washer, be sure you are wearing adequate eye protection.

Place the pressure washer in an area close enough to a water source capable of supplying water at a flow rate greater than 2.0 gallons per minute.

Check that the high pressure hose is tightly connected to the spray gun and to the pump. See

Preparing Pressure Washer for Use on page 5.

Make sure unit is in a level position.

Connect the garden hose to the water inlet on the pressure washer pump.

Turn ON the water

CAUTION:

Do Not

run the pump without the water supply connected and turned on. You must follow this caution or the pump will be damaged.

Pull the Choke rod to the CLOSED position (all the way out, Figure 7).

Figure 7 Choke Positions

Choke Rod

Ensure that the nozzle extension is NOT attached to the spray gun. The spray gun should be held in the

left

hand, as shown in Figure 9.

Note that your unit will differ slightly in appearance from this view.

The left hand should also be used to steady the unit if positioned as shown.

Figure 9 Recommended Engine Starting Posture

Right Hand

pulls recoil starter handle

Safety Goggles

Left Hand

stabilizes unit and squeezes trigger

Open

Closed

NOTE:

For a warm engine, be sure the choke is in the

OPEN position (no choke).

Move the Throttle Control lever to the

Fast

position

(Figure 8). Always keep the throttle in the

Fast

position while pressure washing.

Figure 8 Throttle Control Lever Positions

Throttle Lever

Fast

Slow

Stop

Left Foot

holds base

Do Not

attach nozzle extension

Standing at the rear of the unit, place your

left foot

on the base of the unit.

Squeeze the trigger on the spray gun. Water will flow out of the spray gun in a thin stream. Continue to squeeze the trigger.

Grasp the recoil starter handle with your

right

hand and pull slowly until you feel some resistance. Then pull rapidly to start the engine.

Return the starter handle slowly.

Do Not

let the rope

snap back against the starter.

If the engine fails to start repeat above steps or refer to the engine owners manual.

Generac Portable Products 1,800 PSI High Pressure Washer

If the choke was pulled to the CLOSED position to start the engine, slowly push it to the OPEN position as the engine runs smoother.

Engage the safety latch to the spray gun trigger

(Figure 10).

Figure 10 Engage Safety Latch

On the end of your spray gun nozzle extension is a nozzle that permits you to adjust the spray pressure and pattern, as follows:

Slide the nozzle forward to adjust the spray to low pressure mode, slide it backward to achieve high pressure (Figure 12).

Figure 12 - Adjusting Spray Pressure

Safety Latch

Attach the nozzle extension to the spray gun.

Tighten by hand (Figure 11).

Figure 11 Connect Nozzle Extension to Spray Gun

Slide nozzle backward for high pressure mode.

Slide nozzle forward for low pressure mode and detergent application.

Twisting the nozzle adjusts the spray pattern from a narrow pattern to a fan pattern Figure 13).

Figure 13 - Adjusting Spray Pattern

How to Stop Your Pressure Washer

Move the throttle lever to the

Stop

position.

Squeeze trigger on the spray gun to relieve pressure in the hose.

NOTE:

A small amount of water will squirt out from the spray gun when you squeeze the trigger.

How to Use the Adjustable Nozzle

You now should know how to

START

your pressure washer and how to

STOP

it. The information in this section will tell you how to adjust the spray pattern and apply detergent or other cleaning chemicals.

DANGER!

Never

adjust spray pattern when spraying.

Never

put hands in front of nozzle to adjust spray pattern.

Twist nozzle counterclockwise for fan spray pattern.

Twist nozzle clockwise for narrow spray pattern.

Point the nozzle down toward a hard surface and press the trigger to test the pattern (Figure 14).

Generac Portable Products 1,800 PSI High Pressure Washer

Figure 14 Testing the Spray Pattern

Figure 15 Insert the Small Filter Into Cleaning

Solution Container

For most effective cleaning, keep the spray nozzle between 8 to 24 inches away from cleaning surface.

If you get the spray nozzle too close, especially using high pressure mode, you may damage the surface being cleaned.

Do Not

get closer than 6 inches when cleaning tires.

Applying Detergent with the

Adjustable Nozzle

IMPORTANT: Use soaps designed specifically for pressure washers.

Household detergents could damage the pump.

IMPORTANT:

You must

attach all hoses

before you start the engine. Starting the engine without all the hoses connected and without the water turned ON will damage the pump.

To apply detergent, follow these steps:

Review the use of the adjustable nozzle.

Prepare detergent solution as required by the job.

Hang the detergent solution on the hook of the wireform attached to the handle (Figure 15).

Place the small filter end of the detergent siphoning tube into the detergent container (Figure 15).

CAUTION:

Keep the detergent siphoning tube from coming in contact with the hot muffler. This will damage the plastic tube. When inserting the filter into a cleaning solution bottle, route the tube so as to keep it from inadvertently contacting the hot muffler.

Make sure the garden hose is connected to the water inlet. Check that the high pressure hose is connected to the spray gun and the pump.

Start the engine, then attach the nozzle extension.

Slide the adjustable nozzle forward to low pressure mode. Detergent cannot be applied with the nozzle in high pressure position.

Apply detergent to a dry surface, starting from the bottom and working up.

Allow the detergent to soak in for 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying.

For washing, start at lower portion of area to be washed and work upward, using long, even, overlapping strokes.

Generac Portable Products 1,800 PSI High Pressure Washer

Pressure Washer Rinsing

WARNING:

Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location. Pressure in a running washer builds as you climb. When you press the trigger, the recoil from the initial spray could cause you to fall. The high pressure spray could also cause you to fall if you are too close to the cleaning surface.

For Rinsing:

Slide the nozzle backward to high pressure, press the trigger and wait for the detergent to clear.

NOTE:

You can also stop detergent from flowing by simply removing detergent siphoning tube from bottle.

Keep the spray gun a safe distance from the area you plan to spray.

Apply a high pressure spray to a small area, then check the surface for damage. If no damage is found, it is okay to continue cleaning.

Start at the top of the area to be rinsed, working down with same overlapping strokes as you used for washing and applying detergent.

Automatic Cool Down System

(Thermal Relief)

If you run the engine on your pressure washer for

3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach a temperature between 140145°F. When the water reaches this temperature, the automatic cool down system engages and cools the pump by

discharging the warm water onto the ground.

This system prevents internal damage to the pump.

SPECIFICATIONS

Outlet Pressure

. . . . . . . 1,800 psi

Flow Rate

. . . . . . . . . . . 2.0 gallons per minute

(gpm)

Detergent

. . . . . . . . . . . . Use detergent approved for pressure washers

Water Supply Temp.

. . . Not to Exceed 140°F

Automatic Cool

. . . . . . Will cycle when water

Down System

reaches 140°-145°F

Generac Portable Products 1,800 PSI High Pressure Washer

GENERAL MAINTENANCE

RECOMMENDATIONS

The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the high pressure washer as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your high pressure washer.

All maintenance in this manual and the engine owners manual should be made at least once each season.

Once a year you should clean or replace the spark plug, clean or replace the air filter and check the spray gun and adjustable nozzle extension assembly for wear. A new spark plug and clean air filter assure proper fuelair mixture and help your engine run better and last longer.

Before Each Use

Check engine oil level.

Check water inlet screen for damage.

Check in-line filter for damage.

Check high pressure hose for leaks.

Check detergent siphoning tube and filter for damage.

Check spray gun and adjustable nozzle extension assembly for leaks.

Rinse out garden hose to flush out debris

before

attaching it to the pressure washer.

PRESSURE WASHER

MAINTENANCE

Check and Clean Inlet Screen

Examine the screen on the water inlet. Clean it if the screen is clogged or replace it if screen is damaged.

Check High Pressure Hose

The high pressure hose can develop leaks from wear, kinking, or abuse. Inspect the hose each time before using it. Check for cuts, leaks, abrasions or bulging of cover, damage or movement of couplings. If any of these conditions exist, replace the hose immediately.

WARNING:

Water spraying from a leak is capable of injecting material into skin. Inspect hose each time before using it.

Never

repair a high pressure hose. Replace it with another hose that exceeds the maximum pressure rating of your pressure washer.

Check Detergent Siphoning Tube

Examine the filter on the detergent hose and clean if clogged. The tube should fit tightly on the barbed fitting. Examine the tube for leaks or tears. Replace the filter or tube if either is damaged.

Check Spray Gun and Adjustable

Nozzle Extension

Examine the hose connection to the spray gun and make sure it is secure. Test the trigger by pressing it and making sure it springs back into place when you release it. Put the safety latch in the ON position and test the trigger. You should not be able to press the trigger.

Generac Portable Products 1,800 PSI High Pressure Washer

Check In-Line Filter

Refer to Figure 16 and service the in-line filter if it becomes clogged, as follows:

Figure 16 Service In-Line Filter

Filter Screen

Nozzle Extension

O-Ring

1. Detach spray gun and nozzle extension from high pressure hose. Detach nozzle extension from spray gun and remove o-ring and screen from nozzle extension. Flush the screen, spray gun, and nozzle extension with clean water to clear debris.

2. If the screen is damaged, the o-ring kit contains a replacement in-line filter screen and an o-ring. If undamaged, reuse screen.

3. Place the in-line filter screen into the threaded end of the nozzle extension. Direction does not matter.

Push the screen in with the eraser end of a pencil until it rests flat at the bottom of the opening. Take care to not bend the screen.

4. Place the o-ring into the recess. Push the o-ring snugly against the in-line filter screen.

5. Assemble the nozzle extension to the spray gun, as described earlier in this manual.

Purge Pump of Air and

Contaminants

To remove air from the pump, follow these steps:

Set up the pressure washer as described in

Preparing Pressure Washer for Use on page 5.

Connect the water supply and turn water ON.

Squeeze the trigger on the spray gun and hold.

When the water supply is steady and constant, engage the safety latch.

To remove contaminants from the pump, follow these steps:

Set up the pressure washer as described in

Preparing Pressure Washer for Use on page 5.

Connect the water supply and turn water ON.

Start the engine according to instructions given in

How To Start Your Engine.

Squeeze the trigger on the spray gun and hold.

When the water supply is steady and constant, engage the safety latch and attach the nozzle extension.

Cleaning Detergent Siphon Tube

If the detergent siphoning system is used, you must flush it with clean water

before

stopping the engine.

Place the chemical injection tube in a bucket full of clean water.

Slide the adjustable nozzle forward to the low pressure position. Flush for 12 minutes.

Shut off the engine.

IMPORTANT:

Simply shutting OFF engine will not release pressure in the system.

When the engine has shut down, squeeze the trigger on the spray gun to relieve the pressure in the hose.

Nozzle Maintenance

If an adjustable nozzle becomes restricted or clogged with foreign materials, such as dirt, a pulsing sensation during use may occur. If pulsing occurs or the nozzle becomes partially restricted, immediately clean the nozzle with the kit included with your pressure washer.

To clean the nozzle:

Shut off the engine and turn off the water supply.

Separate the nozzle extension from the spray gun.

Adjust the nozzle extension to the stream position.

Remove nozzle from the end of the nozzle extension

(Figure 17) using a 2mm or 5/64 allen wrench (like the one included in the kit).

Generac Portable Products 1,800 PSI High Pressure Washer

Figure 17 Remove and Clean Nozzle

Nozzle

Use the wire included in the kit (Figure 17) or a small paper clip to free the foreign materials clogging or restricting the nozzle.

Remove additional debris by back flushing water supply through nozzle extension (Figure 18). Back flush between 30 to 60 seconds. Turn nozzle extension to stream spray and move nozzle from low to high while flushing.

Figure 18 Backflush the Nozzle

Reinstall nozzle into the nozzle extension.

Do Not

overtighten.

Reconnect the water supply, turn on the water, and start the engine.

Reconnect the nozzle extension to the spray gun.

Test the pressure washer by operating with nozzle in the high and in the low positions.

ORing Maintenance

Through the normal operation of your pressure washer, orings, which keep the connections of the hoses and spray gun tight and leakfree, may become worn or damaged.

Provided with your pressure washer is an ORing

Maintenance Kit which includes replacement o-rings, rubber washer and water inlet filter. Refer to the instruction sheet provided in the kit to service your units o-rings. Note that not all of the parts in the kit will be used on your unit.

To remove a worn or damaged oring:

Use a small flathead screwdriver to get underneath the o-ring and pry it off.

ENGINE MAINTENANCE

See the engine owners manual for instructions on how to properly maintain the engine.

PREPARING UNIT FOR

STORAGE

Water should not remain in the unit for long periods of time. Sediments or minerals can deposit on pump parts and freeze pump action. If you do not plan to use the pressure washer for more than 30 days, follow this procedure:

1. Flush detergent siphoning tube by placing the filter into a pail of clean water while running pressure washer in low pressure (adjustable nozzle in forward position). Flush for one to two minutes.

2. Shut off the engine and let it cool, then remove all hoses. Disconnect spark plug wire from spark plug.

3. Place the throttle lever in STOP position.

4. Empty the pump of all pumped liquids by pulling the recoil handle about 6 times. This should remove most of the liquid in the pump.

NOTE:

To protect the unit from freezing temperatures, draw RV antifreeze (non-alcohol) into the pump by pouring the solution into a 3foot section of garden hose connected to inlet adapter and pulling recoil handle twice.

5. Store unit in a clean, dry area.

STORING THE ENGINE

See the engine owners manual for instructions on how to properly prepare the engine for storage.

Generac Portable Products 1,800 PSI High Pressure Washer

TROUBLESHOOTING

Problem Cause

1. Nozzle in low pressure mode.

Pump has following problems: failure to produce pressure, erratic pressure, chattering, loss of pressure, low water volume.

2. Water inlet is blocked.

3. Inadequate water supply.

4. Inlet hose is kinked or leaking.

5. Clogged inlet hose strainer.

Detergent fails to mix with spray.

6. Water supply is over 140°F.

7. High pressure hose is blocked or leaks.

8. Gun leaks.

9. Nozzle is obstructed.

10. Pump is faulty.

1. Detergent siphoning tube is not submerged.

2. Chemical filter is clogged.

3. Nozzle is in high pressure mode.

Engine runs good at no-load but bogs when load is added.

Engine speed is too slow.

Engine will not start; or starts and runs rough.

Engine shuts down during operation.

Engine lacks power.

Engine hunts or falters.

1. Low oil level.

2. Dirty air cleaner.

3. Out of gasoline.

4. Stale gasoline.

5. Spark plug wire not connected to spark plug.

6. Bad spark plug.

7. Water in gasoline.

8. Overchoking.

9. Excessively rich fuel mixture.

10. Intake valve stuck open or closed.

11. Engine has lost compression.

1. Out of gasoline.

2. Low oil level.

Dirty air filter.

Choke is opened too soon.

Correction

1. Pull nozzle backward for high pressure mode.

2. Clear inlet.

3. Provide adequate water flow.

4. Straighten inlet hose, patch leak.

5. Check and clean inlet hose strainer.

6. Provide cooler water supply.

7. Clear blocks in outlet hose.

8. Replace gun.

9. Clean nozzle.

10. Contact Generac service facility.

1. Insert detergent siphoning tube into detergent.

2. Clean or replace filter/detergent siphoning tube.

3. Push nozzle forward for low pressure mode.

Move throttle control to FAST position.

If engine still bogs down, contact

Honda service facility.

1. Fill crankcase to proper level.

2. Clean or replace air cleaner.

3. Fill fuel tank.

4. Drain gas tank; fill with fresh fuel.

5. Connect wire to spark plug.

6. Replace spark plug.

7. Drain gas tank; fill with fresh fuel.

8. Open choke fully and crank engine.

9. Contact Honda service facility.

10. Contact Honda service facility.

11. Contact Honda service facility.

1. Fill fuel tank.

2. Fill crankcase to proper level.

Replace air filter.

Move choke to halfway position until engine runs smoothly.

Generac Portable Products 1,800 PSI High Pressure Washer

EXPLODED VIEW UNIT

Generac Portable Products 1,800 PSI High Pressure Washer

PART LIST UNIT

Item Part # Qty. Description

AB27891 BASE, HSPW

NSP 1 ENGINE

B4925E 1 ASSY, Pump (See pages 18-19)

AB2534 1 HANDLE

BB3061B 1 OIL BOTTLE, 20 oz

2 NUT, M8 Locking Flange

2 HHCS, M8 - 1.25 x 45

52858

39287

8 27007

9B2142

2 MOUNT, Rubber Foot

2 " Black Mag

10 75402 2 PUSHNUT

11 B2168A 1 WIREFORM, Bagged

12 B1460 2 CAP, Vinyl

13 B17792 COVER, Hinge

14 B2347

15 46476

2 CAP, End

2 CAPLUG

16 316691 BOLT, 1/4" - 20 x 1-3/4" Carriage

17 B2071 2 NUT, 1/4" - 20 Locking Flange

18 B27591 HOOK, Square Neck 1/4" - 20

19B1631A 1 BILLBOARD

20 B5158

21 B2796

22 92659

23 B3294

1 DECAL, 1800 PSI

DECAL, Instructions

NOZZLE, Replacement

MANUAL, Engine

25 A1040A 1 HOSE, Chemical

26 A1041

28 21217

1 FILTER, Chemical Hose

4 MOUNT, Vibration

29679 NUT, M8 Flange Serrated

30 21424

31 23707

1 CONNECTOR, Garden Hose

4 SHCS, 5/16" - 24 x 1"

32 50190 2 WASHER, Flat .34" x 1"

33 48031G 2 CLAMP, Hose

34 B2218

35 B4224

37 B5693

38 97837

1 O-RING

1 SCREEN, Gun Inlet

1 HOSE, 1/4" x 25'

1 O-RING, Hi-Pressure Transfer

39B3263

40 B5830

1 GUN, High Pressure

1 KIT, Maintenance

41 B3107 1 HOSE, Thermal Relief

42 308091 GROMMET, Drain Hose

43 87815

44 97566

1 GOGGLES, Safety

1 TAG, Nozzle

45 B51591 MANUAL, Owners

46 B3335B 1 EXTENSION, Adjustable Nozzle

47 B2163 1 KIT, Nozzle Cleaning

48 48031B 1 CLAMP, Hose 3/8"

499 WASHER, M8 Conical Ribbed

Generac Portable Products 1,800 PSI High Pressure Washer

EXPLODED VIEW PUMP

Generac Portable Products 1,800 PSI High Pressure Washer

PARTS LIST PUMP

Item Part # Qty. Description

B2218

97962

B5710

97835

B3090

93680

797

B2702

1 O-RING, 1.625 ID x .103

3 SHCS, M6 - 1 x 25

1 VALVE, 1/8 npt 1-5 PSI

1 O-RING, Housing Seal

9 B4813

10 97841

1 VALVE, Thermal Relief

3 SEAL, Oil Piston

3 SPACER, Pilot

1 HOUSING, Piston

1 ADAPTER, Engine

3 CAP, Outlet Check Valve

11 40946 4 SHCS, M6-1.0 x 35

12 185715 0 KIT, AXIAL CAM

. . . . . .

1 O-RING, Engine Seal

. . . . . .

3 SHCS, M6 - 1 x 25

4 . . . . . .

1 O-RING, Housing Seal

13 . . . . . .

1 WASHER, Brg. 36 x 65 x 6

Thk

14 . . . . . .

2 ASSY., Brg. Cage 45 x 65

15 . . . . . .

3 WASHER, Brg. 45 x 65 x 1

16 . . . . . .

1 CAM, Axial 5.6 3/4"SAE

171852870 KIT, CHEM INJECT

18 . . . . . .

1 FITTING, Chem Inject

19. . . . . .

1 BALL, Chem Inject

20 . . . . . .

1 SPRING, Chem Inject

21 . . . . . .

1 O-RING, Venturi & Seat, Black

22 . . . . . .

1 VENTURI, Chem Inject

28 . . . . . .

1 O-RING, Venturi, Yellow

23 185711 0 KIT, UNLOADER 2000

21 . . . . . .

1 O-RING, Venturi & Seat, Black

24 . . . . . .

1 CAP, Unloader

25 . . . . . .

1 O-RING, Unloader Cap

26 . . . . . .

1 SPRING, Unloader

27 . . . . . .

1 PISTON, Unloader

29. . . . . .

1 SEAT, Unloader

Item Part # Qty. Description

31 185712 0 KIT, CHECK VALVES

11 . . . . . .

4 SHCS, M6-1.0 x 35

32 . . . . . .

3 O-RING, Check Valve

33 . . . . . .

6 ASSY., Check Valve

45 . . . . . .

3 O-RING, Check Valve, White

34 B4186 0 KIT, HEAD ALUM EG

11 . . . . . .

4 SHCS, M6-1.0 x 35

35 . . . . . .

1 HEAD, Pump

36 . . . . . .

1 PLUG, 1/8-28

371857 0 KIT, PISTON & SPRING

. . . . . .

1 O-RING, Engine Seal

. . . . . .

3 SHCS, M6 - 1 x 25

4 . . . . . .

1 O-RING, Housing Seal

38 . . . . . .

3 RETAINER, Piston Spring

39. . . . . .

3 PISTON, Dia. 15 x 65

40 . . . . . .

3 SPRING, Piston Return

B5752

. . . . . .

0 KIT, O-RING/SEAL 2000

. . . . . .

1 O-RING, Engine Seal

SHCS, M6 - 1 x 25

O-RING, Housing Seal

6 . . . . . .

3 SEAL, Oil Piston

11 . . . . . .

4 SHCS, M6-1.0 x 35

21 . . . . . .

2 O-RING, Venturi & Seat, Black

25 . . . . . .

1 O-RING, Unloader Cap

28 . . . . . .

1 O-RING, Venturi, Yellow

32 . . . . . .

3 O-RING, Check Valve

42 . . . . . .

3 SEAL, Double-Lip

43 . . . . . .

1 O-RING, High Pressure

Transfer

44 . . . . . .

3 O-RING, Outlet CV Cap

45 . . . . . .

3 O-RING, Check Valve, White

Item numbers 12, 17, 23, 31, 34, 37, and 41 are service kits and include all parts shown within the box. Certain parts may only be available as components of a kit.

LIMITED PRESSURE WASHER WARRANTY

GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original retail purchaser the pressure washer manufactured by the COMPANY to be free from defects in material and workmanship for the period(s) set forth below from the date of original purchase. This warranty is not transferable.

The term original purchaser means the person for whom the pressure washer is originally purchased.

Warranty Schedules

Electric Power Washer

All Other Engine-driven

1 year

(does not apply to commercial or rental applications)

Engine

Pump

CONSUMER*

Warranted solely by

Engine Manufacturer

1 year

COMMERCIAL*

Warranted solely by

Engine Manufacturer

90 days

* NOTE: For the purpose of this warranty, consumer use means personal residential household use by original purchaser. Commercial use means all other uses, including rental, construction, commercial and income producing purposes. Once a pressure washer has experienced commercial use, it shall thereafter be considered a commercial use pressure washer for the purposes of this warranty.

During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination by the COMPANY or COMPANY-authorized dealers, is found to be defective under normal use and service**. All transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser and prepaid by the purchaser.

** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and replacement to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or pressure washer pump.

This warranty does not include

: Used products and demonstration equipment. Parts, such as GUNS, HOSES,

WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing, etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

SPECIFICALLY, THE COMPANY MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES

WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE

EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL

DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE

A DIRECT RESULT OF THE COMPANY'S NEGLIGENCE. THE COMPANY ALSO DISCLAIMS ANY

RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, SUCH AS THE LOSS OF

TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE

FAILURE OF THE EQUIPMENT. ANY IMPLIED WARRANTIES ARE LIMITED TO THE DURATION

OF THIS WRITTEN

WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

For service, see your nearest COMPANY-authorized warranty service facility or call 1-877-544-0982. Warranty service can be performed only by a COMPANY-authorized service facility. This warranty will not apply to service at any other facility. At the time of requesting warranty service, evidence of original purchase date must be presented.
