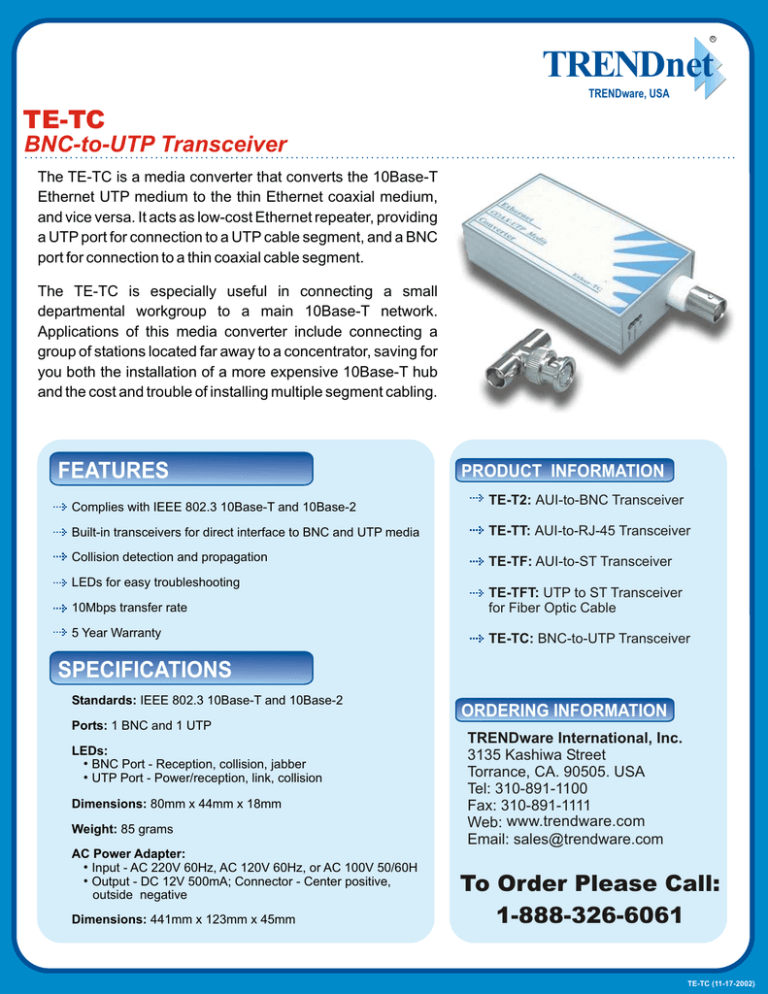

Spec_TE-TC
R
TRENDnet
TRENDware, USA
TE-TC
BNC-to-UTP Transceiver
The TE-TC is a media converter that converts the 10Base-T
Ethernet UTP medium to the thin Ethernet coaxial medium,
and vice versa. It acts as low-cost Ethernet repeater, providing
a UTP port for connection to a UTP cable segment, and a BNC
port for connection to a thin coaxial cable segment.
The TE-TC is especially useful in connecting a small
departmental workgroup to a main 10Base-T network.
Applications of this media converter include connecting a
group of stations located far away to a concentrator, saving for
you both the installation of a more expensive 10Base-T hub
and the cost and trouble of installing multiple segment cabling.
FEATURES
PRODUCT INFORMATION
Complies with IEEE 802.3 10Base-T and 10Base-2
TE-T2: AUI-to-BNC Transceiver
Built-in transceivers for direct interface to BNC and UTP media
TE-TT: AUI-to-RJ-45 Transceiver
Collision detection and propagation
TE-TF: AUI-to-ST Transceiver
LEDs for easy troubleshooting
10Mbps transfer rate
5 Year Warranty
TE-TFT: UTP to ST Transceiver
for Fiber Optic Cable
TE-TC: BNC-to-UTP Transceiver
SPECIFICATIONS
Standards: IEEE 802.3 10Base-T and 10Base-2
Ports: 1 BNC and 1 UTP
LEDs:
• BNC Port - Reception, collision, jabber
• UTP Port - Power/reception, link, collision
Dimensions: 80mm x 44mm x 18mm
Weight: 85 grams
AC Power Adapter:
• Input - AC 220V 60Hz, AC 120V 60Hz, or AC 100V 50/60H
• Output - DC 12V 500mA; Connector - Center positive,
outside negative
Dimensions: 441mm x 123mm x 45mm
ORDERING INFORMATION
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web: www.trendware.com
Email: [email protected]
To Order Please Call:
1-888-326-6061
TE-TC (11-17-2002)
