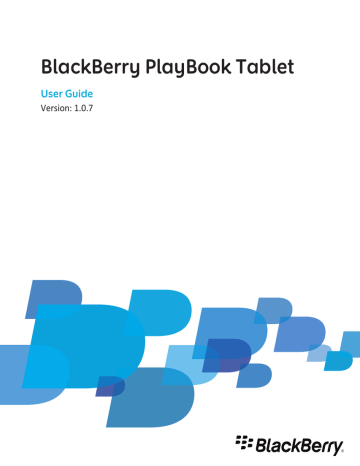

BlackBerry PlayBook Tablet
User Guide
Version: 1.0.7
SWDT1526983-1526983-0812090701-001
Contents
26
26
26
26
27
27
24
24
25
22
22
23
23
28
28
28
29
29
30
30
20
21
21
15
15
18
19
11
12
13
13
6
8
4
4
32
32
33
33
33
30
31
31
35
35
36
36
38
38
39
37
37
37
38
42
42
43
43
43
44
44
44
45
40
40
41
41
51
51
51
52
53
49
49
49
50
50
45
45
47
47
47
47
46
46
46
46
4
User Guide
Getting started
Getting to know your BlackBerry PlayBook tablet
Watch the video
Watch all videos
Getting started
User Guide Getting started
5
User Guide
6
Using the touch screen
Watch the video
Here are some common gestures to help you get started using your BlackBerry® PlayBook™ tablet.
Getting started
User Guide
Swipe
To scroll a list, pan a webpage, move between pictures, and more, touch the screen and slide your finger up and down or right and left.
Getting started
Pinch
To zoom in and out of a webpage, picture, video, or other content, touch the screen with your finger and thumb and pinch them together or apart.
7
User Guide
Drag
To move an item from one place to another, touch and hold the item. Slide your finger to the position where you want it.
Getting started
8
Gestures to use with your BlackBerry® PlayBook™
Watch the video
User Guide
Show the home screen and minimize apps
Swipe up from the bottom frame onto the screen.
Show the menu
In many apps, you can find additional features, options, and help in the menu.
In an app, swipe down from the top frame onto the screen. To close the menu, tap away from the menu.
Switch between apps
You can flip between your open apps without having to return to the home screen.
In an app, swipe in from the left or right frame onto the screen.
Getting started
9
User Guide
Show the status bar
You can peek at the status bar without leaving the app you're using. This is a great way to quickly check your notifications, see the time, keep an eye on your battery power level, change system options, and more.
In an app, swipe in from the top-left frame onto the screen.
Close an app
Show the home screen to minimize the app. Touch the minimized app and swipe up.
Switch between views on the home screen
Swipe left or right in the lower part of the home screen.
Getting started
10
User Guide
Wake up your tablet
Your tablet enters sleep mode after a certain period of time to conserve battery power. To wake it up, swipe from one side of the frame to the other.
Show the keyboard
Swipe in from the bottom-left frame onto the screen.
Zoom in and zoom out quickly
Double-tap a webpage, picture, or other content.
Personalizing your tablet
Watch the video
Getting started
11
User Guide Getting started
There are many ways you can personalize your BlackBerry® PlayBook™ tablet. In addition to the personalization suggestions listed here, the Options menu provides many additional settings you can use to customize your PlayBook tablet.
Set the date and time on the home screen
Change the keyboard type
Change the language
Set a password
Move an app
Run applications in the background
In the status bar, tap > Date and Time.
To set up a custom clock, on the home screen, tap the Clock application.
In the status bar, tap > Keyboard. Tap a keyboard type.
In the status bar, tap > Language. Tap a language.
In the status bar, tap > Security > Password > Change
Password. Set the Enable Password switch to On. Complete the fields.
Touch and hold an icon. When it starts to blink, drag the icon in any direction.
On the home screen, in the status bar, tap > General. In the Application Behavior drop-down list, select Showcase.
View your notifications
Watch the video
Your BlackBerry® PlayBook™ tablet uses notifications to keep you informed about software updates, new messages, calendar reminders, battery power level, and much more. When new notifications come in, the top-left or top-right corner of the screen glows red.
Do any of the following:
• If you're in an application, swipe in from the top-left frame onto the screen. Tap .
• If you're on the home screen, on the status bar, tap .
Return to what you were doing
Dismiss a notification
View a specific type of notification
Tap away from the status bar.
Tap .
On the status bar, tap the icon for the type of notification that you want to see.
12
User Guide Getting started
Jump to the related app Tap the notification message. For example, if you tap an email notification, the email opens in the Messages app.
Status bar icons and indicators
The following icons and indicators appear in the status bar of the home screen.
Airplane mode
Battery power level
Bluetooth® connection
Music
Orientation lock
Settings
Wi-Fi® indicator
Alarm
BlackBerry® Bridge™
Development mode
Presentation mode
All notifications
Software update
The following additional indicators appear to notify you of new email messages, appointments, and more when you connect to a BlackBerry smartphone through BlackBerry Bridge:
Calendar notification
Task
Switch to a new tablet
If you want to start using a new BlackBerry® PlayBook™ tablet, you can use the BlackBerry® Desktop Software on your computer to move your media files, applications, and settings from your current tablet to your new tablet.
1. On your computer, in the BlackBerry Desktop Software, click Help > Check for updates. If an update is available, click the update to update your version of the BlackBerry Desktop Software.
2. Click Device > Switch devices.
3. Click the icon for your current tablet.
4. Select the media files, applications, or settings you want to transfer, and select the appropriate options.
13
User Guide Getting started
5. Follow the instructions on the screen to back up your tablet data and connect your new tablet to your computer.
6. Click the icon for your new tablet to import your tablet data.
Remember to delete your tablet data before reselling it, giving it away or recycling it. In an effort to help the environment, please visit www.blackberry.com/recycling for information about returning your tablet to RIM for recycling and safe disposal.
14
User Guide Connections
Connections
Wi-Fi
Connect to a Wi-Fi network
Watch the video
Your BlackBerry® PlayBook™ tablet can connect to the Internet using Wi-Fi®. Public Wi-Fi networks are available in many public places, such as libraries, airports, hotels, coffee shops, and so on. When you connect to a Wi-Fi network, your tablet saves the network and connects to it automatically the next time you're within range.
1. On the Status bar, tap > Wi-Fi.
2. Tap the network you want to connect to.
To only see networks that don't require a password, in the Networks drop-down list, select Open Networks.
3. If necessary, type the network password.
4. Tap Connect.
Connect using a Wi-Fi Protected Setup™ button
Connect using a Wi-Fi Protected Setup PIN code
Connect manually
Tap > Wi-Fi >Use WPS > Press WPS Button on Router. On your Wi-Fi router, press the button. On your tablet, tap Start.
Tap > Wi-Fi >Use WPS > Enter PIN into Router > Start. On the administration screen for your Wi-Fi router, type the PIN displayed.
If you want to connect to a hidden Wi-Fi network or save the settings for a network that's not currently available, you can connect manually.
Tap > Wi-Fi > Connect Manually. Type the name of the network. If the network is hidden, select Hidden SSID. Select the security type and specify any additional information. Tap
Connect to connect now or tap Save to save without connecting.
15
User Guide Connections
Change, delete, or reorder saved Wi-Fi networks
Your BlackBerry® PlayBook™ tablet remembers the Wi-Fi® networks you connect to and automatically connects whenever you're in range. If multiple networks are available, your tablet connects to the one closest to the top of your list of saved networks.
1. On the status bar, tap > Wi-Fi.
2. In the drop-down list, tap Saved Networks.
• To change options for a saved network, tap the network.
• To move a saved network up or down in the list, touch and hold the network. Drag it to where you want it.
• To delete a saved network, tap . Beside the network, tap .
• To stop your tablet from automatically connecting to a saved network, tap the network. Clear the Enable Profile checkbox. Tap Save.
Wi-Fi network options
For most Wi-Fi® networks, you won't need to change the network options. If you're having trouble connecting or if you need to connect manually, you can set the network options yourself.
The options available depend on the type of network you're connecting to. To find out what settings to use, if you're connecting to a home network, see the information that came with your Wi-Fi router; if you're connecting to an enterprise Wi-
Fi network, talk to your administrator; if you're connecting to a hotspot, see the information provided about the hotspot or talk to an employee at the hotspot who might have details about how to connect.
Option
Name
SSID
Hidden SSID
Security Type
Security Sub Type
VPN Profiles
Automatically Obtain IP Address
Enable IPv6
Description
Enter the name that you want to see in your list of saved Wi-Fi networks.
If the Wi-Fi network is hidden, type the SSID (the name the network uses to identify itself). Your BlackBerry® PlayBook™ tablet uses this name to find the network.
If the Wi-Fi network is hidden, select this checkbox. Hidden networks don't appear in the list of available networks.
Set the security type that the Wi-Fi network uses.
If you're connecting to an enterprise Wi-Fi network, set the security subtype that the Wi-Fi network uses.
To use a VPN Profile when connecting to this network, select the profile you want to use. For more information, see the Security section of the help.
Clear this checkbox if you need to manually specify an IP address for your tablet.
When you clear this checkbox, additional options appear. To find out what information to enter, talk to your administrator.
Set whether the network uses the IPv6 protocol.
16
User Guide Connections
Option
Use HTTP Proxy
Allow inter-access point handover
CA Certificate
Client Certificate
Description
Select this checkbox if you want to connect to a proxy server. When you select this checkbox, additional options appear. To find out what options to use, see the information provided for the proxy server.
If the network spans multiple access points, set whether your tablet should remain connected when you move from one access point to another.
If necessary, set the root certificate that your tablet should use to verify that it's connecting to the correct Wi-Fi network. If the network requires a certificate, you need to transfer it to your tablet before you can connect. For more information, talk to your administrator.
If necessary, set the authentication certificate that your tablet should use to connect to the Wi-Fi network. If the network requires a certificate, you need to transfer it to your tablet before you can connect. For more information, talk to your administrator.
I can't connect to a Wi-Fi network
Try one of the following actions:
• On the status bar, tap and verify that the switch is set to On.
• The connection might have timed out. Try connecting again.
• Your BlackBerry® PlayBook™ tablet might be too far away from the wireless access point or wireless router to connect.
Move your tablet closer and try connecting again.
• Verify that you're in a Wi-Fi® coverage area. If you're connecting to a home network, see if other wireless devices are able to connect. If you're connecting to an enterprise Wi-Fi network or a hotspot, talk to your administrator or an employee at the hotspot.
• Verify that the time on your tablet is synchronized with the network time. If the times are different, it could prevent your tablet from connecting (for example, if connecting to the network requires you to have a certificate on your tablet and the certificate has an expiration date).
• If the Wi-Fi network doesn't appear in the list of available networks, the network might be hidden. If you know the network name, try connecting to it manually.
• Verify that the options for the Wi-Fi network are correct. To find out what options to use, for a home network, refer to the information that came with your router; for an enterprise Wi-Fi network, talk to your administrator; for a public hotspot, refer to any information provided for the hotspot or talk to an employee at the hotspot who might have details about how to connect.
• If you switched Wi-Fi networks manually, try switching to another Wi-Fi network.
• If you are using the Push Button Setup method, verify that the access point uses Wi-Fi Protected Setup™, and that it has been set to send its profile. Verify that another device is not also attempting to connect at the same time, and that not more than one access point within range is in this mode. For more information, see the information that came with your router.
17
User Guide Connections
• If you use PEAP, EAP-TLS, EAP-FAST, or EAP-TTLS to connect to a Wi-Fi network, verify that you have installed the root certificate for the certificate authority server that created the certificate for the authentication server. The certificate must be transferred to your tablet before you can connect to the network. For more information, talk to your administrator.
• If you use EAP-TLS to connect to a Wi-Fi network, verify that you have added your authentication certificate to your tablet.
The certificate must be transferred to your tablet before you can connect to the network. For more information, talk to your administrator.
• To view details about your tablet and the network you're connected to that might help with advanced troubleshooting, on the status bar, tap > Wi-Fi. In the lower-left corner, tap .
Bluetooth technology
Connect a Bluetooth enabled device
Watch the video
You can use Bluetooth® technology to connect your BlackBerry® PlayBook™ tablet to a wireless keyboard, mouse, mobile phone, headset, or other device that uses a supported Bluetooth profile. The first time you connect to a device, you pair it with your tablet. Your tablet remembers paired devices and usually connects to them automatically whenever they're in range.
For information about connecting your tablet to a BlackBerry smartphone, see the BlackBerry Bridge section of the Help.
1. On the status bar, tap > Bluetooth.
2. Set the Bluetooth switch to On.
3. Tap Add New Device > Search.
4. Tap a device.
5. If necessary, do one of the following:
• Type a pairing passkey of your choice on both the device you're pairing with and on your tablet.
• On your tablet, type the pairing passkey that appears on the device you're pairing with or in the information that came with the device. If you don't know the passkey, try 0000.
Reconnect to a paired device
Change options for a paired device
Delete a paired device
Make your tablet discoverable
In the list of paired devices, tap the device > Connect.
In the list of paired devices, tap the device.
In the list of paired devices, tap the device > Delete.
To allow other Bluetooth enabled devices to search for your tablet and attempt to connect to it, you can make it discoverable. Set the Discoverable switch to On.
18
User Guide Connections
To help protect your tablet against unauthorized access, you can make it discoverable for 2 minutes only. Tap Add New
Device > Listen.
Supported Bluetooth profiles
Your BlackBerry® PlayBook™ tablet uses Bluetooth® profiles to communicate with different types of Bluetooth enabled devices. To find out if your tablet supports a specific Bluetooth enabled device, you can check the information available for the device to see what profiles it uses. Your tablet supports the profiles listed here.
Profile
Dial-up Networking (DUN)
Human Interface Device (HID)
Serial Port Profile (SPP)
Description
Your tablet uses this profile to connect to a tethered mobile phone or other Internetenabled device to access its Internet connection.
Your tablet uses this profile to connect to a wireless keyboard.
Your tablet uses this profile to connect to your BlackBerry smartphone through the
BlackBerry® Bridge™ application.
I can't connect to a Bluetooth device
Try the following actions:
• Verify that the Bluetooth® enabled device is compatible with your BlackBerry® PlayBook™ tablet. Check the information that came with the Bluetooth enabled device to find out what Bluetooth profiles it uses and verify that your tablet supports those profiles.
• If you don't know the passkey for the Bluetooth enabled device, see the information that came with the device. If you can't find any passkey information, try 0000.
• If your tablet can't detect the Bluetooth enabled device, try making the Bluetooth enabled device discoverable, or try making your tablet discoverable and searching for your tablet from the Bluetooth enabled device.
My list of paired Bluetooth devices doesn't appear
Verify that the Bluetooth® connection on your BlackBerry® PlayBook™ is turned on.
Tether your tablet to a Bluetooth enabled device
Need Internet on the go, but you're not near a Wi-Fi® hotspot? When there's no other way to access the Internet, you can tether your BlackBerry® PlayBook™ tablet to a Bluetooth® enabled smartphone.
19
User Guide Connections
Note: In order to tether your tablet to a Bluetooth enabled device, your smartphone must have a data plan that supports tethering, and your wireless service provider must allow tethering.Your smartphone must also be Bluetooth enabled, and the
IT policy for Bluetooth DUN must be enabled. For more information about any of these requirements, contact your wireless service provider or administrator, check your wireless service plan, and consult the documentation that came with your smartphone.
1. On your tablet, tap > Internet Tethering.
2. Select a Bluetooth enabled smartphone from the list.
3. To assign an Internet tethering profile, do one of the following:
• Select a wireless service provider from the list.
• To create a custom profile, tap Add and complete the fields.
4. Tap Connect.
When you are not using the tethering connection, you should disconnect the session. To disconnect, tap > Internet
Tethering > Disconnect.
While your smartphone is tethered to your tablet, you might not be able to use your smartphone's Phone application,
Messaging applications, or applications that use the Internet. To receive a phone call, your smartphone might turn off the tethered internet connection. In addition, when your tablet is tethered to a smartphone, you cannot send messages from your tablet to the tethered smartphone.
Share files between your computer and tablet using Wi-Fi
Want an easy way to connect your BlackBerry® PlayBook™ tablet for easy file sharing? By using the file-sharing option with Wi-
Fi®, you can drag and drop documents, pictures, videos, music, and other files from your computer to your tablet. If you set a password to help protect your files, you are prompted to enter it before you can move files between your tablet and your computer.
1. On your tablet, tap > Storage and Sharing.
2. Set the Wi-Fi Sharing switch to On.
3. To set a password to help protect your files, tap Password.
4. On your tablet, tap > About.
5. In the drop-down list, tap Network and make note of the USB IPv4 address for your tablet.
6. Do one of the following:
• If your computer uses a Windows® operating system, click Start > Run. Type your tablet IP address in the following format: \\xx.xxx.xxx.xxx.
• If your computer uses a Mac operating system, select Go > Connect to Server. Type your tablet IP address in the following format: smb://xx.xxx.xxx.xxx.
7. Drag a file from a location on your computer to a folder on your tablet.
20
User Guide Connections
Share files between your computer and tablet using a USB connection
There's no need to leave your favorite pictures, videos, music, and other files behind! By connecting your BlackBerry®
PlayBook™ tablet to your computer using a USB cable, you can move the files you need between your tablet and computer. To perform this task, you must have the BlackBerry® Desktop Software installed on your computer. To install the latest version, visit www.blackberry.com/desktop . If you set a password to help protect your files, you are prompted to enter it before you can move files between your tablet and your computer.
1. On your tablet, tap > Storage and Sharing.
2. Set the USB Sharing switch to On.
3. To set a password to help protect your files, tap Password.
4. On your tablet, tap > About.
5. In the drop-down list, tap Network and make note of the USB IPv4 address for your tablet.
6. Connect your tablet to your computer using a USB cable. Your computer automatically maps your tablet to a drive on your computer.
7. Drag a file from a location on your computer to a folder on your tablet.
• After you disconnect the USB cable, the drive for your tablet no longer appears on your computer.
• If you want to browse to the Certs folder, on your computer, use the file browser to navigate to your tablet USB IPv4 address. To find your tablet IPv4 address, tap > About > Network.
Turn on airplane mode
You should turn off the network connections on your BlackBerry® PlayBook™ tablet in certain places, such as on an airplane or in a hospital.
1. In the status bar, tap > Airplane Mode.
2. Set the switch to ON.
21
User Guide BlackBerry Bridge
BlackBerry Bridge
About BlackBerry Bridge
Watch the video
If you're running BlackBerry® Device Software 5.0 or later on your BlackBerry smartphone, you can connect your BlackBerry®
PlayBook™ tablet to your smartphone to access email, calendars, BlackBerry® Messenger, files, and other data directly from your tablet.
Your tablet connects to your smartphone using Bluetooth® technology. To connect, you need BlackBerry® Bridge™ installed on your smartphone. You can download it from the BlackBerry App World™ storefront.
When your tablet and smartphone are connected, these icons appear on your tablet home screen:
BBM
Communicate virtually instantly with other BlackBerry® Messenger users. It's everything you love about chatting with BBM™, on your tablet.
Messages
Take advantage of the reading pane and larger screen on your tablet to work through your message inbox more quickly. Attach files from your tablet or smartphone, or save attachments to your smartphone for later use.
Calendar
Keep on top of your schedule at a glance with Day and Month views or a convenient split-screen view.
Contacts
Connect with the people in your network through the Contacts app. Quickly jump to a contact to send an email, schedule a meeting, or start a BBM chat.
Tasks
Have a growing to-do list? Use the Tasks app to help you stay focused on important actions.
Memos
Instead of jotting notes on scraps of paper that can be easily misplaced, use memos to keep your information organized and easy to find.
22
User Guide BlackBerry Bridge
Bridge Files
Browse and open files stored on your smartphone.
Bridge Browser
Browse the Internet using your smartphone’s connection to the Internet. If your administrator allows corporate intranet browsing, you can also browse your organization's intranet.
Connect your tablet and smartphone using BlackBerry Bridge
To connect your BlackBerry® PlayBook™ tablet to your BlackBerry smartphone, you need to install the BlackBerry® Bridge™ app on your smartphone. You can download it from the BlackBerry App World™ storefront.
1. On your tablet home screen, on the status bar, tap > BlackBerry Bridge.
2. Tap Setup > Next > Continue.
3. In BlackBerry Bridge on your smartphone, click Add New Tablet > Continue.
4. Point your smartphone camera at the barcode that appears on your tablet to scan the barcode.
Tips for using BlackBerry Bridge
Lock BlackBerry® Bridge™
View email for a specific address
View email in a folder
Move an email to a folder
You can lock BlackBerry Bridge to prevent unauthorized access to your BlackBerry smartphone data. Your smartphone password is required to unlock BlackBerry
Bridge.
On the home screen, in the status bar, tap > Lock.
If you have multiple email addresses on your smartphone, such as an enterprise address and a Yahoo!® Mail address, you can view all email together or you can view email for each address separately.
At the top of your message inbox, depending on the current view, tap All
Messages or the name of the address currently displayed. Tap the email address you want to view.
At the top of your inbox, depending on the current view, tap All Messages or the name of the address currently displayed. Tap View Folder.
View the message. Below the message, tap .
23
User Guide BlackBerry Bridge
Multiselect email
View a single calendar
Start a multiperson chat
View your BBM profile or display your barcode
At the bottom of your inbox, tap . Select the checkbox beside each email you want to select. Tap an icon at the bottom of your inbox to perform an action, such as marking your email as opened or filing your email.
At the bottom of the screen, tap .
At the bottom of your BBM™ contact list, tap . Tap the people you want to include.
Tap your name or your profile picture.
About synchronizing Wi-Fi profiles and VPN profiles between your tablet and smartphone
When you connect your BlackBerry® PlayBook™ tablet to your BlackBerry smartphone using BlackBerry® Bridge™, your saved
Wi-Fi® profiles and VPN profiles are automatically synchronized between your tablet and smartphone to make connecting to the networks you use easier. Then, when you use your tablet in a Wi-Fi coverage area where you've previously used your smartphone, your tablet automatically connects to the access point.
For security reasons, Wi-Fi profiles and VPN profiles that are associated with a BlackBerry® Enterprise Server are not synchronized. Passwords for secure networks are also not synchronized.
The order and how quickly your smartphone or tablet attempts to connect to a network is determined by the priority level of a profile. By default, profiles that connect directly from either a tablet or a smartphone have a high-priority level. Profiles that are synchronized through BlackBerry Bridge have priority level 0 (the lowest level). You can change your network profiles on your tablet to increase or decrease the priority, or to add other information, such as passwords for secure networks.
If a profile requires a client authentication certificate, you must import the certificate manually.
About using BlackBerry Bridge with a BlackBerry Enterprise
Server
To help protect your organization's data, when you use BlackBerry® Bridge™ to connect your BlackBerry® PlayBook™ tablet to a smartphone that uses a BlackBerry® Enterprise Server, the following security restrictions apply:
• You can open files on your smartphone only through the BlackBerry Bridge Files application, or from an email attachment.
• You can't save files that you create on your tablet onto your smartphone.
• You can browse your organization's intranet only if your administrator has turned on corporate intranet browsing.
24
User Guide BlackBerry Bridge
Troubleshooting: BlackBerry Bridge
Issue
I can't pair my BlackBerry® PlayBook™ tablet with my BlackBerry smartphone
I can't reconnect to my BlackBerry smartphone
The Bridge Browser icon is dimmed or missing
I can't find a draft message I saved
I can't find a memo I'm searching for
Possible cause or solution
Verify that the BlackBerry® Bridge™ app is installed on your smartphone. You can download the application from the BlackBerry App World™ storefront.
Verify that the Bluetooth® connection on your smartphone is turned on and that your smartphone is within range.
Verify that the Bluetooth connection on your smartphone is turned on and that your smartphone is within range.
The BlackBerry Bridge app on your smartphone might not be set to automatically connect to your tablet. Try opening BlackBerry Bridge and connecting manually.
Your smartphone might already be connected to another tablet. In the BlackBerry
Bridge app on your smartphone, disconnect the other tablet and then try connecting again.
Verify that your tablet is connected to the BlackBerry Bridge app.
You might need a smartphone data plan that supports tethering, or this feature might not be supported by your wireless service provider. For more information, contact your wireless service provider.
When you save a draft message, the message appears in your message inbox with a draft icon. If you have multiple email addresses, look for the draft message in the inbox of the address you are sending the message from. If you received a lot of email since you saved the draft, it might appear far down in the inbox.
You can search only the titles of memos, not the contents.
25
User Guide Security
Security
Set a password
Watch the video
1. On the home screen, swipe down from the top frame.
2. Tap Security > Password.
3. Set the Enable Password switch to On.
4. Complete the fields.
5. Tap OK.
Change your password
Wipe your tablet data
Swipe down from the top frame. Tap Security > Password >
Change Password. Complete the fields. Tap OK.
Swipe down from the top frame. Tap Security > Device Wipe.
Complete the field. Tap Wipe Data.
Note: If you wipe data from your tablet, the BlackBerry ID connection is broken. You will need to re-establish the bond.
Managing VPN profiles
Add a new VPN profile
View the details of a VPN profile
Swipe down from the top frame. Tap Security > VPN > Add
New. Complete the fields. Tap Save.
Swipe down from the top frame. Tap Security > VPN > .
Managing certificates
Import a certificate Swipe down from the top frame. Tap Security > Certificates>
Import.
26
User Guide Security
View details for a certificate Swipe down from the top frame. Tap Security > Certificates.
Tap a certificate.
Import a certificate from your computer using a Wi-Fi connection
1. If Wi-Fi® file sharing is not turned on, on your BlackBerry® PlayBook™ tablet, tap > Storage and Sharing. Set the Wi-Fi
Sharing switch to On. To set a password to help protect your data, tap Password.
2. On your tablet, tap > About.
3. In the drop-down list, tap Network and make note of the USB IPv4 address for your tablet.
4. On your computer, navigate to your tablet IPv4 address.
5. In a separate file browser window, navigate to and copy the certificate.
6. On the tablet drive on your computer, navigate to the Certs folder and paste the certificate.
7. Tap Next.
8. On your tablet, swipe down from the top frame.
9. Tap Security > Certificates > Import.
Import a certificate from your computer using a USB connection
1. If USB file sharing is not turned on, on your BlackBerry® PlayBook™ tablet, tap > Storage and Sharing. Set the USB
Sharing switch to On. To set a password to help protect your data, tap Password.
2. Connect your tablet to your computer using a USB cable.
3. On your tablet, tap > About.
4. In the drop-down list, tap Network and make note of the USB IPv4 address for your tablet.
5. On your computer, navigate to your tablet IPv4 address.
6. In a separate file browser window, navigate to and copy the certificate.
7. On the tablet drive on your computer, navigate to the Certs folder and paste the certificate.
8. Tap Next.
9. On your tablet, swipe down from the top frame.
10. Tap Security > Certifiates > Import.
27
User Guide Browser
Browser
Browsing the web
Watch the video
When you browse to a webpage using your BlackBerry® PlayBook™ tablet, you might have the option of viewing either the mobile or the regular version of the webpage. Choose the regular view to take advantage of your tablet's full screen.
Search for or go to a webpage
Reload a webpage
Open a new tab for a webpage
Switch between tabs
Save an image from a webpage
View your browsing history
Zoom
Open a file that you downloaded
Hide the navigation bar
In the address bar, type search terms or a web address. Tap
Go.
In the address bar, tap .
Swipe down from the top frame. Tap .
Swipe down from the top frame. Tap a thumbnail.
Touch and hold an image. Tap Save Image.
Tap .
Slide your fingers together or apart to zoom in or zoom out.
Double-tap to zoom in to an image or a column of text.
Swipe down from the top frame. Tap .
On the navigation bar, tap .
Show the navigation bar
Swipe down from the top frame. Tap .
Bookmarking webpages
Bookmark a page in your browser
Add a bookmark on your home screen
Go to the page. Tap . Tap Add to Bookmarks.
Go to the page. Tap . Tap Add to Home Screen. Change the name of the shortcut.
28
User Guide Browser
View your bookmarks
Delete a bookmark
Tap .
On the Bookmarks screen, tap . Beside the bookmark, tap
.
Change browser options
Watch the video
1. Swipe down from the top frame to show the menu.
2. Tap .
Turn on private browsing
Delete saved data
Share your location with websites
When private browsing is turned on, the browser only stores your history, cached files, cookies, and other information temporarily. This information is deleted when you close the browser.
Tap Privacy & Security. Set the Private Browsing switch to
On.
Tap Privacy & Security > Clear All.
Some websites use your location to show you customized content.
Tap Permissions. Set the Allow Websites to Access My
Location switch to On.
Troubleshooting: Browser
Issue
I can't play a song or video on a web page
Possible cause or solution
The media format might not be supported or the link might be broken.
29
User Guide Camera
Camera
Taking pictures
Watch the video
Your BlackBerry® PlayBook™ tablet has a 5 megapixel rear-facing camera that you can use to capture great pictures. The 3 megapixel front-facing camera is perfect for quickly taking a self-portrait or creating a profile picture. Pictures that you take are saved in the Pictures app. For more info, see the Pictures section of the Help.
Take a picture
Switch between the front-facing camera and the rear-facing camera
Change the camera scene mode and settings
Turn on geotagging
Look at pictures you took
Zoom in or out on a subject
Show more camera options
Record a video from the camera screen
Tap
Tap
.
.
Swipe down from the top frame until more modes appear.
Tap the one you want to use.
Tap .
Swipe down from the top frame. Tap Camera Pictures.
Tap .
Tap the screen.
Tap .
Recording videos
Watch the video
Record crisp, clear, 1080p high definition videos with your BlackBerry® PlayBook™ tablet, no matter what the occasion. You can instantly switch between the video camera and cameras to capture a moment in time.
Record a video
Switch between the video camera and camera
Record a video from the Videos app
Tap > . To stop recording, tap .
Tap .
Swipe down from the top frame. Tap Take Videos.
30
User Guide Pictures
Pictures
Viewing your pictures
Watch the video
Your BlackBerry® PlayBook™ tablet is the perfect way to take your pictures with you and share them with friends and family on a high-resolution screen. Pictures that you take are saved in the Pictures app.
Zoom in to a picture
Move between pictures
Pan a picture
Delete a picture
Set a picture as your wallpaper
Play a slideshow
Move pictures between your tablet and your computer
Take a screen shot
Pinch out. Double-tap to fit the picture to the screen.
Swipe left or right.
When you are zoomed into a picture, touch and drag in any direction.
Tap a picture. Swipe down from the top frame. Tap Delete.
Tap a picture. Swipe down from the top frame. Tap Set as
Wallpaper.
Tap an album. Tap a picture. Tap .
Connect your tablet and computer using a USB cable. On your computer, open the BlackBerry® Desktop Software. Click
Pictures and complete the instructions on the screen.
Press the Volume Up key and the Volume Down key at the same time.
31
User Guide Videos
Videos
Playing videos
Watch the video
Watch videos wherever you go with your BlackBerry® PlayBook™ tablet. Your tablet plays high-resolution videos and supports a variety of video formats, such as AVI, ASF, Fv4, MP4, and WMV. For information about recording videos, see the Camera section of the Help.
Stop playing a video
Delete a video
Play a video using HDMI
Mute a video
Record a video
Move videos between your tablet and your computer
Tap the screen. Tap .
Swipe down from the top frame. Tap .Tap a video. Tap .
Connect your tablet and an HDMI display, such as a TV, projector, or computer monitor, using the HDMI cable.
Press and hold the Play/Pause key on the top of your tablet.
Swipe down from the top frame. Tap Take Videos.
Connect your tablet and computer using a USB cable. On your computer, open the BlackBerry® Desktop Software. Click
Videos and complete the instructions on the screen.
32
User Guide Music
Music
Playing your music
Watch the video
Your BlackBerry® PlayBook™ tablet supports popular types of audio formats, including MP3, M4A, WMA, and WAV. Plug in your headphones, use the built-in stereo speakers, or hook up your tablet to a home entertainment system using HDMI for some serious sound.
Change the volume
Mute a song
Shuffle or repeat songs
Switch to a different music category
See what's next in a playlist
Search your music
Jump to a specific song or album
Control music from the status bar
Touch and drag the volume bar.
Press and hold the Play/Pause key on the top of your tablet.
Tap or .
Swipe down from the top frame. Tap a category.
Tap beside the album art of the song that is currently playing.
Tap Search All. Enter the title or artist you're looking for.
On the All Songs or Album screen, swipe up from the bottomleft corner. Enter the first letters of the song or album. Click
Return to jump to that section of your music list.
Tap . Tap , , or .
Creating playlists and organizing your music
Watch the video
Your BlackBerry® PlayBook™ tablet comes with an empty PlayBook Playlist that you can use to add your favorite songs and artists. You can also use the BlackBerry® Desktop Software on your computer to add music to your tablet that you have on your computer or BlackBerry smartphone.
PlayBook Playlists are limited to 5000 items.
33
User Guide
Add a song to your PlayBook Playlist
Delete a song from your PlayBook Playlist
Add playlists from your computer to your tablet
Music
Tap a song, artist, album, or genre. Swipe down from the top frame. Tap Edit. Tap Add.
Tap PlayBook Playlist > Edit. Tap a song or songs. Tap
Remove.
Connect your tablet and computer using a USB cable. On your computer, open the BlackBerry Desktop Software. Click Music and complete the instructions on the screen to add playlists that you created using a music library such as Windows
Media® Player or iTunes.
34
User Guide Music Store
Music Store
Buy and download music
Watch the video
Buy and download your favorite music on the go. If you don't already have a Music Store account, when you first visit the
Music Store, you can create one to download music.
Before you buy or download music, make sure that the time and date on your BlackBerry® PlayBook™ tablet are correct.
1. Tap a song or album.
2. Tap the price button.
3. If prompted, enter your login information and click Sign In.
4. Confirm your payment method and tap Buy Now.
Preview a song
Sign in to your Music Store account
Turn off explicit content
Create a Music Store account
Add or change your payment method
Access your music
Tap the song.
Swipe down from the top frame. Tap > Sign In.
Swipe down from the top frame. Tap . Clear the Allow
explicit content checkbox.
Swipe down from the top frame. Tap > Sign In > Create
account. Enter your information. Tap Sign Me Up.
Swipe down from the top frame. Tap > Sign In. Enter your login information. Tap Update.
Tap the Music icon > My Purchases.
In case of accidental deletion, you can download your music purchases up to three times. To download the music again, tap the Music icon > My Purchases. Find the music that you want to download again. Tap Download.
Additional terms and conditions might apply to content made available through the Music Store. Data charges might apply when you download content over the wireless network.
35
User Guide Podcasts
Podcasts
Downloading and subscribing to podcasts
Watch the video
You can use the BlackBerry® Podcasts app to download or subscribe to your favorite podcasts. When you download a podcast, it appears on the Downloads screen.
Download a podcast
Display an indicator when new podcasts have downloaded
Tap a podcast > Download.
Tap . Select the Display new Podcast alerts checkbox.
Turn off explicit content Tap . Clear the Allow explicit content checkbox.
Set how many podcast episodes your BlackBerry® PlayBook™ tablet keeps
Subscribe to a podcast channel
Tap . Change the When new episodes arrive, keep field.
Tap a podcast channel. Tap Subscribe.
36
User Guide Video chat
Video chat
About video chats
Watch the video
See your friends, colleagues, or family members in high-resolution, real-time video as you chat with them directly from one
BlackBerry® PlayBook™ tablet to another. You can easily share your surroundings by switching between the front-facing and rear-facing cameras, or turn off video altogether for a voice-only chat or one-way video chat.
To start a video chat, both BlackBerry PlayBook tablets must be connected to Wi-Fi®. The first time that you start a video chat, you must enter the BlackBerry® ID email address for the person that you want to chat with.
Whether or not the request is answered, all incoming and outgoing chats are recorded in the chat history for both tablets.
Starting video and audio-only chats
The first time you start the Video Chat application on your BlackBerry® PlayBook™ tablet, you must enter a BlackBerry® ID email address for the person that you want to talk to.
The next time you chat, you can either select a contact from the contacts list, or enter a new email address.
Start a video chat
Start a video chat with a contact
Start an audio-only chat
Accept a chat request
End the chat
Switch between the front-facing camera and rear-facing camera
Move the preview image
Turn on or turn off mute
Adjust the call volume
Enter the BlackBerry ID email address for the person you want to chat with. Tap
.
Tap Contacts. Tap a contact.
Tap . Tap Contacts. Tap a contact.
Tap Accept or No Video.
Tap .
Tap .
Touch your preview image and drag it to a different corner of the screen.
During a chat, tap the screen. Tap . Tap again to enable the sound.
During a chat, touch and drag the volume bar to the left or to the right.
37
User Guide Video chat
Add, change, or delete a contact
You are not required to add contacts in order to make video chats. However, adding contacts means that you don't have to type the BlackBerry® ID email address or search your chat history for the contact every time you want to start a chat.
Add a contact
Add a contact from your chat history
Change a contact
Add or change a contact picture
Delete a contact
Tap New Contact. Enter the contact information.
Tap Recent or Frequent. Tap beside the contact you want to add.
Swipe down from the top frame. Tap . Tap a contact.
Swipe down from the top frame. Tap . Tap a contact. Tap the contact picture. Tap a new image. Zoom and position the new image.
Swipe down from the top frame. Tap . Tap beside the contact you want to delete.
View chat history
You can review the list of incoming and outgoing chats in order to return a chat request or add a contact. The Recent and
Frequent tabs do not appear until you have at least one incoming or outgoing chat.
Tap Recent or Frequent to view your chat history.
Add a contact from your chat history
Start a chat from your chat history
Tap . Enter the contact's information. Tap Done.
Tap a contact in the Recent or Frequent tab.
Turn on the Do Not Disturb feature
Don't want to be interrupted by a video chat request? If you turn on the Do Not Disturb feature, you won't receive notification of incoming video chat requests, but they'll still be recorded in the chat history. The caller receives a message that you're unavailable. So you don't forget your status, appears in red on your Status bar when you turn on the feature.
To turn on the Do Not Disturb feature, tap .
38
User Guide Video chat
Troubleshooting: Video chat
Issue
I can't start a video chat
My chat was dropped
I want to improve the chat quality
Possible cause or solution
Verify that you are connected to a Wi-Fi® network or try connecting to a different Wi-Fi network.
Try connecting to a different Wi-Fi network. You cannot switch
Wi-Fi networks during a call.
You or the person you are having the Video Chat with may not have a sufficiently strong Wi-Fi signal. Try a different Wi-Fi network with a stronger connection, or move closer to the wireless access point.
39
User Guide Voice notes
Voice notes
Recording voice notes
Watch the video
Record a reminder or audio from your lectures or meetings with a single tap. Voice notes are listed by the date and time that you record them.
Record a voice note
Stop or pause the playback
Delete a voice note
Tap . To stop recording, tap .
Tap or tap .
Swipe down from the top frame. Tap Edit. Tap a voice note.
Tap Delete.
40
User Guide BlackBerry App World
BlackBerry App World
Download apps with BlackBerry App World
Watch the video
Enhance your BlackBerry® PlayBook™ tablet with the many games, and social networking and productivity apps available through the BlackBerry App World™ storefront. Search for apps or browse the top downloaded and best selling apps. You can pay for items using your credit card or PayPal® account. The My World screen shows a streamlined view of all your apps and statuses, so you can quickly see which apps are installed, archived, deleted, or pending.
1. If prompted, enter your BlackBerry® ID to log in.
2. Search for an app or tap the app you want to download.
• To download a free or trial version of an app, if available, tap Install or Download Trial.
• To buy an app, tap Purchase > Buy Now.
Update an app
Delete or remove an app
Update your BlackBerry ID account information
Tap My World > Upgrade. Complete the instructions on the screen.
Tap an app. Tap Delete.
Go to https://blackberryid.blackberry.com/bbid/login/
Additional terms and conditions might apply to software and services made available through BlackBerry App World. Data charges might apply when you add or use an application over the wireless network.
41
User Guide Clock
Clock
Setting the clock
Watch the video
You can add multiple clocks to your BlackBerry® PlayBook™ tablet to keep track of different time zones. Your tablet also includes a stopwatch and a timer.
Set an alarm
Display the date
Edit a clock
Add a new clock
Delete a clock
Time laps with the stopwatch
Set the timer
Tap a clock. Tap Alarm. Set the alarm options. Tap On.
Swipe down from the top frame. Set the Date switch to On.
Tap a clock. Change the options.
Swipe down from the top frame. Tap New Clock. Set options for the time zones and clock face. To close the options, tap away from the options panel.
Tap a clock. Tap Delete. You can't delete your Home Clock.
Tap the stopwatch. Tap Start > Lap.
Tap the timer. Set the options. Tap Start.
42
User Guide Battery and power
Battery and power
Turning off your tablet and using standby mode
Watch the video
Check the battery power level
Enter standby mode
Exit standby mode
Turn off your tablet
On the status bar, tap . When the battery power level is low, your BlackBerry®
PlayBook™ tablet notifies you.
Press the Power button on the top of your tablet.
Swipe down from the top frame to bottom frame.
Press and hold the Power button. Tap Shut Down.
Extending your battery life
To help extend your BlackBerry® PlayBook™ tablet battery life, charge it regularly, close applications that you're not using, and keep it out of the sun and other hot places. Also consider the following guidelines:
Dim the screen
Turn off the screen automatically
Enter standby mode automatically
Turn off Wi-Fi®
Turn off Bluetooth® connectivity
Pause apps when you show the home screen or switch between apps
On the status bar, tap > Screen. Change the Brightness setting.
On the status bar, tap > Screen. Change the Backlight Time-out field.
On the status bar, tap > Screen. Change the Standby Time-out field.
On the status bar, tap . Set the Wi-Fi switch to Off.
On the status bar, tap . Set the Bluetooth switch to Off.
On the status bar, tap > General. Set the Application Behavior switch to
Paused.
43
User Guide Keyboard and typing
Keyboard and typing
Using the keyboard
Watch the video
Show the keyboard
Hide the keyboard
Change the keyboard type
Tap a text field or swipe in from the bottom-left corner of the frame.
Tap the Hide Keyboard icon on the bottom-left corner of the keyboard.
On the home screen, in the status bar, tap > Keyboard.
Tap a keyboard type.
Typing tips
Capitalize a letter
Turn on CAP lock
Type a symbol
Type an accented or special character
Type a number in a text field
Tap the Shift key. Tap the letter.
Touch and hold the Shift key. To turn off CAP lock, tap the
Shift key again.
Tap the 123 sym key. If the symbol you're looking for isn't displayed, tap the More Symbols key.
Touch and hold a letter key to display a list of accented versions of the letter and special characters. Tap the accented or special character.
Tap the 123 sym key. Tap the number. To show the standard keys again, tap the ABC key.
44
User Guide Keyboard and typing
Copy and paste
Copy text
Paste text
Touch and hold the text. Tap Copy. Touch the cursor and slide it to select the text you want.
Touch and hold where you want to paste the text. Tap Paste.
Checking spelling
Check spelling
Add, change, or delete a word in the custom dictionary
Add, change, or delete an autotext entry
You can add words to the custom dictionary on your tablet.
AutoText replaces words that you type with other words, usually to correct typos and common spelling mistakes. You can also use custom autotext entries as typing shortcuts to type common words with a few quick keystrokes.
Change options for checking spelling
Troubleshooting: keyboard and typing
Possible cause or solution Issue
A word I type is not recognized
I cannot check spelling
The touch screen keyboard is not displayed
You can only check the spelling of text that you type.
If you have an external Bluetooth keyboard connected, the touch screen keyboard is not displayed. Turn off or disconnect your Bluetooth keyboard to use the touch screen keyboard.
45
User Guide
Navigating Facebook for BlackBerry PlayBook tablets
Watch the video
Go to a different screen
Refresh your News Feed
Log out of Facebook® for BlackBerry®
PlayBook™ tablets
Tap .
In your News Feed, drag down.
Swipe down from the top frame. Tap Log out.
Contacting your friends
Send a message to a friend
Write on a friend's Wall
Chat with a friend
Turn off chat
Tap > Messages > New Message.
Tap a friend's profile picture. Tap Post.
Tap > Chat. Tap a friend's name.
Swipe down from the top frame. Tap . Set the Chat switch to Off.
Posting and tagging photos and videos
Post a photo or video
Tag friends in a photo or video
Change your photo and video permissions
Tap Media. Tap a photo or video. Tap Open.
Open a photo or video. Tap the photo or video. Tap .
Swipe in from the top-right frame. Tap > Security > Facebook.
46
User Guide Facebook
Posting comments and liking items
Post a comment
Comment on a photo
Like an item
On a News Feed item, tap > Comment.
Open a photo. Tap the photo. Tap . Tap the Write a comment field.
Tap > Like.
Adding friends and pages
Send a friend request
Add a Page to your Pages list
Tap > Everyone. Type a name. Tap the person's profile picture. Tap Add as friend.
Tap > Pages. Type a page name. Tap the page. Tap Like.
Keeping up with events
Respond to an event invitation Tap > Events. Next to an event, tap Respond.
View the Wall and details for an event Tap > Events. Tap an event.
Write on the Wall for an event Tap > Events. Tap an event. Tap Write on Wall.
Check in to a place
1. On the News Feed screen, tap Check in.
2. Do one of the following:
• Tap a place.
• Type a place name and tap Add <place>.
3. Tap Check in.
47
User Guide
View a place on a map
Stop sharing your location with
Facebook®
Tap > Places. Tap a place. Tap the map.
Swipe in from the top-right frame. Tap > Security > Facebook.
48
User Guide
Word to Go
Creating and editing documents
Watch the video
With your BlackBerry® PlayBook™ and Word to Go you can edit, update, and save your important information in one convenient location.
Create a new document
Open a document
Save a document
Tap New Document.
Tap Browse. Tap a file that you want to open. Tap OK.
Swipe down from the top frame. Tap the Save icon.
Word To Go icons
Change the font.
Change text alignment.
Increase or decrease an indent.
Apply a font style.
Find the word count for a document.
Apply paragraph formatting.
Word to Go
49
User Guide Sheet to Go
Sheet to Go
Creating and editing spreadsheets
Watch the video
Create a new spreadsheet
Open a spreadsheet
Save a spreadsheet
Change the font
Change number formatting
Hide a column or row
Clear a cell
Apply a font style to a cell
Tap New Document.
Tap Browse.
Swipe down from the top frame. Tap the Save icon.
Tap > Font.
Tap > Number.
Tap the column or row that you want to hide. Tap . To show a column or row again, tap .
Tap the cell that you want to clear. Tap .
Tap the cell that you want to apply a font style to. Tap ,
or .
50
User Guide Bing Maps
Bing Maps
Finding a location or business
Search for a business or location
Filter search results using current location
Search for a coffee shop, restaurant, or bar
View a business or location by category
In the search field, type the name of a business or an address. Tap Return.
Tap .
Swipe down from the top frame to show the quick search icons. To search for a coffee shop, tap . To search for a restaurant, tap . To search for a bar, tap .
Tap > view businesses > category.
Get directions
1. Tap > get directions.
2. In the location field, type the name of a business or an address.
3. Tap Get directions.
Find your current location
Change route options
Add another location to your route
Change units of measure
Tap .
Tap Edit route. Select the checkbox beside the route option you want to change.
Tap Edit route > Add to route. In the location field, type the name of a business or an address. Tap Get directions.
Tap Edit route > Settings.
51
User Guide
Troubleshooting: Bing Maps
Issue
I can't find my current location
Possible cause or solution
Verify that the Wi-Fi® connection is turned on.
Verify that you're in a Wi-Fi coverage area.
To reload your current location, tap .
Bing Maps
52
User Guide Legal notice
Legal notice
©2011 Research In Motion Limited. All rights reserved. BlackBerry®, RIM®, Research In Motion®, and related trademarks, names, and logos are the property of Research In Motion Limited and are registered and/or used in the U.S. and countries around the world.
7digital is a trademark of 7digital Limited. iTunes is a trademark of Apple Inc. Bluetooth is a trademark of Bluetooth SIG.
Windows Media Player is a trademark of Microsoft Corporation. PayPal is a trademark of PayPal, Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. Yahoo! Mail is a trademark of Yahoo! Inc. All other trademarks are the property of their respective owners.
This documentation including all documentation incorporated by reference herein such as documentation provided or made available at www.blackberry.com/go/docs is provided or made accessible "AS IS" and "AS AVAILABLE" and without condition, endorsement, guarantee, representation, or warranty of any kind by Research In Motion Limited and its affiliated companies
("RIM") and RIM assumes no responsibility for any typographical, technical, or other inaccuracies, errors, or omissions in this documentation. In order to protect RIM proprietary and confidential information and/or trade secrets, this documentation may describe some aspects of RIM technology in generalized terms. RIM reserves the right to periodically change information that is contained in this documentation; however, RIM makes no commitment to provide any such changes, updates, enhancements, or other additions to this documentation to you in a timely manner or at all.
This documentation might contain references to third-party sources of information, hardware or software, products or services including components and content such as content protected by copyright and/or third-party web sites (collectively the "Third
Party Products and Services"). RIM does not control, and is not responsible for, any Third Party Products and Services including, without limitation the content, accuracy, copyright compliance, compatibility, performance, trustworthiness, legality, decency, links, or any other aspect of Third Party Products and Services. The inclusion of a reference to Third Party Products and Services in this documentation does not imply endorsement by RIM of the Third Party Products and Services or the third party in any way.
EXCEPT TO THE EXTENT SPECIFICALLY PROHIBITED BY APPLICABLE LAW IN YOUR JURISDICTION, ALL CONDITIONS,
ENDORSEMENTS, GUARANTEES, REPRESENTATIONS, OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS OR WARRANTIES OF
DURABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, MERCHANTABLE QUALITY, NON-
INFRINGEMENT, SATISFACTORY QUALITY, OR TITLE, OR ARISING FROM A STATUTE OR CUSTOM OR A COURSE OF DEALING OR
USAGE OF TRADE, OR RELATED TO THE DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE OF ANY
SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN, ARE HEREBY
EXCLUDED. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR PROVINCE. SOME JURISDICTIONS MAY NOT ALLOW
THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES AND CONDITIONS. TO THE EXTENT PERMITTED BY LAW, ANY
IMPLIED WARRANTIES OR CONDITIONS RELATING TO THE DOCUMENTATION TO THE EXTENT THEY CANNOT BE EXCLUDED AS
SET OUT ABOVE, BUT CAN BE LIMITED, ARE HEREBY LIMITED TO NINETY (90) DAYS FROM THE DATE YOU FIRST ACQUIRED THE
DOCUMENTATION OR THE ITEM THAT IS THE SUBJECT OF THE CLAIM.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, IN NO EVENT SHALL RIM BE LIABLE FOR
ANY TYPE OF DAMAGES RELATED TO THIS DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE OF ANY
SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN INCLUDING WITHOUT
LIMITATION ANY OF THE FOLLOWING DAMAGES: DIRECT, CONSEQUENTIAL, EXEMPLARY, INCIDENTAL, INDIRECT, SPECIAL,
PUNITIVE, OR AGGRAVATED DAMAGES, DAMAGES FOR LOSS OF PROFITS OR REVENUES, FAILURE TO REALIZE ANY EXPECTED
SAVINGS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF BUSINESS OPPORTUNITY, OR CORRUPTION OR
LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE ANY DATA, PROBLEMS ASSOCIATED WITH ANY APPLICATIONS USED IN
CONJUNCTION WITH RIM PRODUCTS OR SERVICES, DOWNTIME COSTS, LOSS OF THE USE OF RIM PRODUCTS OR SERVICES OR
53
User Guide Legal notice
ANY PORTION THEREOF OR OF ANY AIRTIME SERVICES, COST OF SUBSTITUTE GOODS, COSTS OF COVER, FACILITIES OR
SERVICES, COST OF CAPITAL, OR OTHER SIMILAR PECUNIARY LOSSES, WHETHER OR NOT SUCH DAMAGES WERE FORESEEN OR
UNFORESEEN, AND EVEN IF RIM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, RIM SHALL HAVE NO OTHER OBLIGATION,
DUTY, OR LIABILITY WHATSOEVER IN CONTRACT, TORT, OR OTHERWISE TO YOU INCLUDING ANY LIABILITY FOR NEGLIGENCE
OR STRICT LIABILITY.
THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS HEREIN SHALL APPLY: (A) IRRESPECTIVE OF THE NATURE OF THE CAUSE OF
ACTION, DEMAND, OR ACTION BY YOU INCLUDING BUT NOT LIMITED TO BREACH OF CONTRACT, NEGLIGENCE, TORT, STRICT
LIABILITY OR ANY OTHER LEGAL THEORY AND SHALL SURVIVE A FUNDAMENTAL BREACH OR BREACHES OR THE FAILURE OF
THE ESSENTIAL PURPOSE OF THIS AGREEMENT OR OF ANY REMEDY CONTAINED HEREIN; AND (B) TO RIM AND ITS AFFILIATED
COMPANIES, THEIR SUCCESSORS, ASSIGNS, AGENTS, SUPPLIERS (INCLUDING AIRTIME SERVICE PROVIDERS), AUTHORIZED RIM
DISTRIBUTORS (ALSO INCLUDING AIRTIME SERVICE PROVIDERS) AND THEIR RESPECTIVE DIRECTORS, EMPLOYEES, AND
INDEPENDENT CONTRACTORS.
IN ADDITION TO THE LIMITATIONS AND EXCLUSIONS SET OUT ABOVE, IN NO EVENT SHALL ANY DIRECTOR, EMPLOYEE, AGENT,
DISTRIBUTOR, SUPPLIER, INDEPENDENT CONTRACTOR OF RIM OR ANY AFFILIATES OF RIM HAVE ANY LIABILITY ARISING FROM
OR RELATED TO THE DOCUMENTATION.
Prior to subscribing for, installing, or using any Third Party Products and Services, it is your responsibility to ensure that your airtime service provider has agreed to support all of their features. Some airtime service providers might not offer Internet browsing functionality with a subscription to the BlackBerry® Internet Service. Check with your service provider for availability, roaming arrangements, service plans and features. Installation or use of Third Party Products and Services with RIM's products and services may require one or more patent, trademark, copyright, or other licenses in order to avoid infringement or violation of third party rights. You are solely responsible for determining whether to use Third Party Products and Services and if any third party licenses are required to do so. If required you are responsible for acquiring them. You should not install or use
Third Party Products and Services until all necessary licenses have been acquired. Any Third Party Products and Services that are provided with RIM's products and services are provided as a convenience to you and are provided "AS IS" with no express or implied conditions, endorsements, guarantees, representations, or warranties of any kind by RIM and RIM assumes no liability whatsoever, in relation thereto. Your use of Third Party Products and Services shall be governed by and subject to you agreeing to the terms of separate licenses and other agreements applicable thereto with third parties, except to the extent expressly covered by a license or other agreement with RIM.
Certain features outlined in this documentation require a minimum version of BlackBerry® Enterprise Server, BlackBerry®
Desktop Software, and/or BlackBerry® Device Software.
The terms of use of any RIM product or service are set out in a separate license or other agreement with RIM applicable thereto. NOTHING IN THIS DOCUMENTATION IS INTENDED TO SUPERSEDE ANY EXPRESS WRITTEN AGREEMENTS OR
WARRANTIES PROVIDED BY RIM FOR PORTIONS OF ANY RIM PRODUCT OR SERVICE OTHER THAN THIS DOCUMENTATION.
BlackBerry® Tablet OS incorporates certain third party software. The license and copyright information associated with this software is available at http://worldwide.blackberry.com/legal/thirdpartysoftware.jsp
.
BlackBerry® PlayBook™ tablet model number: RDJ21WW
54
User Guide
This is a Wi-Fi® enabled device subject to restrictions of use in some member states of the European Community.
Research In Motion Limited
295 Phillip Street
Waterloo, ON N2L 3W8
Canada
Research In Motion UK Limited
Centrum House
36 Station Road
Egham, Surrey TW20 9LF
United Kingdom
Published in Canada
Legal notice
55
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 6 Getting started
- 6 Getting to know your BlackBerry PlayBook tablet
- 8 Using the touch screen
- 10 Gestures to use with your BlackBerry® PlayBook™
- 13 Personalizing your tablet
- 14 View your notifications
- 15 Status bar icons and indicators
- 15 Switch to a new tablet
- 17 Connections
- 17 Wi-Fi
- 20 Bluetooth technology
- 21 Tether your tablet to a Bluetooth enabled device
- 22 Share files between your computer and tablet using Wi-Fi
- 23 Share files between your computer and tablet using a USB connection
- 23 Turn on airplane mode
- 24 BlackBerry Bridge
- 24 About BlackBerry Bridge
- 25 Connect your tablet and smartphone using BlackBerry Bridge
- 25 Tips for using BlackBerry Bridge
- 26 About synchronizing Wi-Fi profiles and VPN profiles between your tablet and smartphone
- 26 About using BlackBerry Bridge with a BlackBerry Enterprise Server
- 27 Troubleshooting: BlackBerry Bridge
- 28 Security
- 28 Set a password
- 28 Managing VPN profiles
- 28 Managing certificates
- 29 Import a certificate from your computer using a Wi-Fi connection
- 29 Import a certificate from your computer using a USB connection
- 30 Browser
- 30 Browsing the web
- 30 Bookmarking webpages
- 31 Change browser options
- 31 Troubleshooting: Browser
- 32 Camera
- 32 Taking pictures
- 32 Recording videos
- 33 Pictures
- 33 Viewing your pictures
- 34 Videos
- 34 Playing videos
- 35 Music
- 35 Playing your music
- 35 Creating playlists and organizing your music
- 37 Music Store
- 37 Buy and download music
- 38 Podcasts
- 38 Downloading and subscribing to podcasts
- 39 Video chat
- 39 About video chats
- 39 Starting video and audio-only chats
- 40 Add, change, or delete a contact
- 40 View chat history
- 40 Turn on the Do Not Disturb feature
- 41 Troubleshooting: Video chat
- 42 Voice notes
- 42 Recording voice notes
- 43 BlackBerry App World
- 43 Download apps with BlackBerry App World
- 44 Clock
- 44 Setting the clock
- 45 Battery and power
- 45 Turning off your tablet and using standby mode
- 45 Extending your battery life
- 46 Keyboard and typing
- 46 Using the keyboard
- 46 Typing tips
- 47 Copy and paste
- 47 Checking spelling
- 47 Troubleshooting: keyboard and typing
- 48 Facebook
- 48 Navigating Facebook for BlackBerry PlayBook tablets
- 48 Contacting your friends
- 48 Posting and tagging photos and videos
- 49 Posting comments and liking items
- 49 Adding friends and pages
- 49 Keeping up with events
- 49 Check in to a place
- 51 Word to Go
- 51 Creating and editing documents
- 51 Word To Go icons
- 52 Sheet to Go
- 52 Creating and editing spreadsheets
- 53 Bing Maps
- 53 Finding a location or business
- 53 Get directions
- 54 Troubleshooting: Bing Maps
- 55 Legal notice
