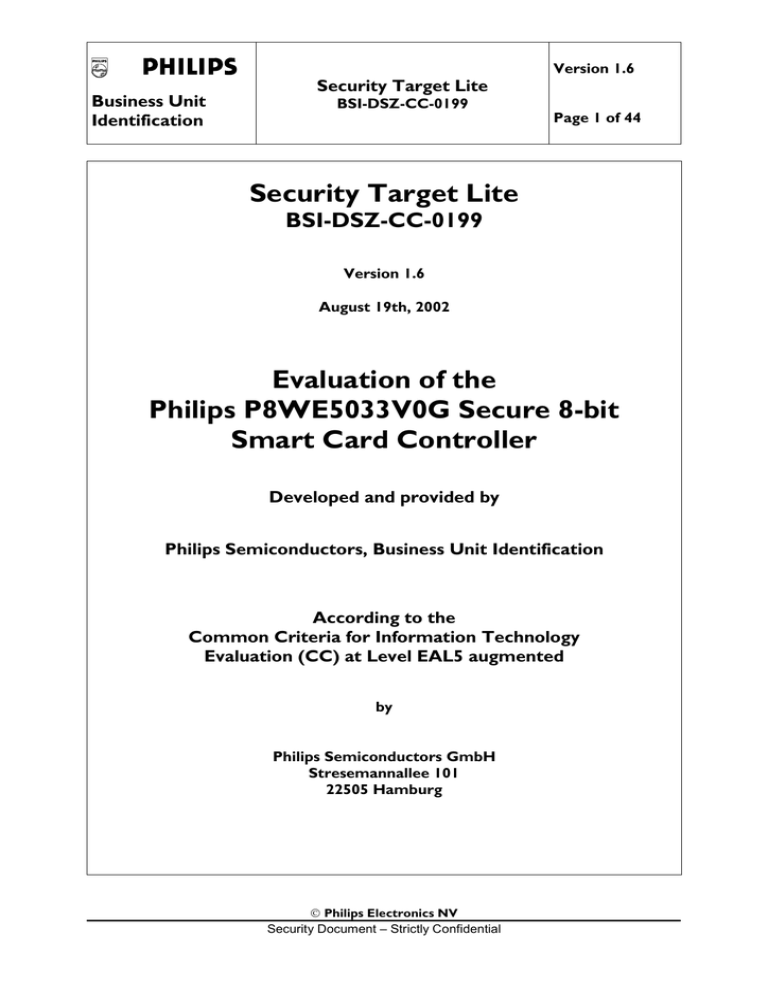

Security Target: 0199b

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 1 of 44

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

August 19th, 2002

Evaluation of the

Philips P8WE5033V0G Secure 8-bit

Smart Card Controller

Developed and provided by

Philips Semiconductors, Business Unit Identification

According to the

Common Criteria for Information Technology

Evaluation (CC) at Level EAL5 augmented by

Philips Semiconductors GmbH

Stresemannallee 101

22505 Hamburg

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 2 of 44

Document Information

Document History

Version

1.6

Date

August 19 th

, 2002

Changes Remarks

ST-lite, derived from ST

V1.5

Latest version is: Version 1.6 (August 19th, 2002)

Document Invariants

Name Value (to be edited)

File name and length Automatically

Latest version Version 1.6

Date of this version August 19 th

, 2002

Classification Security Document – Strictly

Confidential

TOE name (long) Philips P8WE5033V0G Secure 8bit Smart Card Controller

TOE name (short) P8WE5033V0G

Developer (long) Philips Semiconductors, Business

Unit Identification

Developer (short)

Sponsor (long)

Sponsor (short)

Philips

Philips Semiconductors, Business

Unit Identification

Philips

Certification ID BSI-DSZ-CC-0199

Evaluation facility Prüfstelle IT-Sicherheit

T-Systems ISS GmbH list of authors Hans-Gerd Albertsen certific. body (long) Bundesamt für Sicherheit in der

Informationstechnik certific. body (short) BSI

Test Output (to copy)

st-lite_5033V0G_v1_6.doc

(312832 Byte)

Version 1.6

August 19th, 2002

Security Document – Strictly

Confidential

Philips P8WE5033V0G Secure 8bit Smart Card Controller

P8WE5033V0G

Philips Semiconductors, Business

Unit Identification

Philips

Philips Semiconductors, Business

Unit Identification

Philips

BSI-DSZ-CC-0199

Prüfstelle IT-Sicherheit

T-Systems ISS GmbH

Hans-Gerd Albertsen

Bundesamt für Sicherheit in der

Informationstechnik

BSI

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 3 of 44

Table of Contents

1

2

3

4

5

ST Introduction

1.1

ST Identification

1.2

ST Overview

1.2.1

Introduction

1.2.2

Life-Cycle

1.2.3

Specific Issues of Smartcard Hardware and the Common

Criteria

1.3

CC Conformance and Evaluation Assurance Level

TOE Description

2.1

TOE Definition

2.1.1

Hardware Description

2.1.2

Software Description

2.1.3

Documentation

2.1.4

Interface of the TOE

2.1.5

Life Cycle and Delivery of the TOE

2.1.6

TOE Intended Usage

2.1.7

TOE User Environment

2.1.8

General IT features of the TOE

2.2

Further Definitions and Explanations

TOE Security Environment

3.1

Description of Assets

3.2

Assumptions

3.3

Threats

3.4

Organisational Security Policies

Security Objectives

4.1

Security Objectives for the TOE

4.2

Security Objectives for the Environment

IT Security Requirements

5.1

TOE Security Requirements

5.1.1

TOE Security Functional Requirements

Philips Electronics NV

Security Document – Strictly Confidential

13

14

14

14

11

11

12

13

9

10

10

10

8

8

7

7

18

20

20

20

15

15

17

17

5

5

5

5

6

7

8

Version 1.6

Business Unit

Identification

6

9

Security Target Lite

BSI-DSZ-CC-0199

5.1.2

TOE Security Assurance Requirements

5.1.3

Refinements of the TOE Security Assurance

Requirements

5.2

Security Requirements for the Environment

5.2.1

Security Requirements for the IT-Environment

5.2.2

Security Requirements for the Non-IT-Environment

TOE Summary Specification

6.1

TOE Security Functions

6.2

Assurance measures

PP Claims

Rationale

8.1

Security Objectives Rationale

8.2

Security Requirements Rationale

8.2.1

Rationale for the security functional requirements

8.2.2

Dependencies of security functional requirements

8.2.3

Rationale for the Assurance Requirements and the

Strength of Function Level

8.2.4

Security Requirements are Mutually Supportive and

Internally Consistent

8.3

TOE Summary Specification Rationale

8.3.1

Rationale for TOE security functions

8.3.2

Rationale for assurance measures

8.4

PP Claims Rationale

Annexes

9.1

Further Information contained in the PP

9.2

Glossary and Vocabulary

9.3

List of Abbreviations

9.4

Bibliography

9.4.1

Evaluation Documents

9.4.2

Developer Documents

9.4.3

Other Documents

Page 4 of 44

23

28

28

30

33

24

25

26

26

34

34

35

35

36

37

38

40

40

40

37

37

37

38

42

43

43

44

44

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 5 of 44

1 ST Introduction

This chapter is divided into the following sections: “ST Identification”, “ST Overview” and “CC

Conformance and Evaluation Assurance Level”.

1.1

ST Identification

This Security Target (st-lite_5033V0G_v1_6.doc, Version 1.6, August 19th, 2002) refers to the

"Philips P8WE5033V0G Secure 8-bit Smart Card Controller" (TOE) provided by Philips

Semiconductors, Business Unit Identification for a Common Criteria evaluation.

1.2

ST Overview

1.2.1

Introduction

The TOE is the hardware of the microcontroller chip P8WE5033V0G composed of a processing unit, security components, I/O ports, cryptographic co-processors and volatile and non-volatile memories produced by Philips. The P8WE5033V0G includes IC Dedicated Software for test purposes stored in the Test-ROM of the microcontroller. The TOE includes the documentation, which consists of a Data Sheet and an additional Guidance Document. The documentation contains a description of the architecture, the secure configuration of the chip by the application software and the instruction set.

The security features of the P8WE5033V0G are mostly independent from the application software and support the usage for a wide range of security applications within the information technology. The TOE is embedded in a micro-module or another sealed package. The micromodules are embedded into a credit card sized plastic card.

The non-volatile EEPROM makes the TOE ideal for applications requiring non-volatile data storage, including smart cards and portable data banks. Security functions protect data in the onchip ROM, EEPROM and RAM. In particular when being used in the banking and finance market or in electronic commerce applications the smart card must provide security. Hence the

TOE shall

maintain the integrity and the confidentiality of data stored in the memory of the TOE and

maintain the integrity, the correct operation and the confidentiality of security functions

(security mechanisms and associated functions) provided by the TOE.

This is ensured by the construction of the TOE and the security functions provided by the TOE.

Usually the smart card is assigned to a single individual only but may store and process secrets of the system, too. So the TOE must meet security requirements to be applied to security modules.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 6 of 44

The "Philips P8WE5033V0G Secure 8-bit Smart Card Controller" (TOE) mainly provides a hardware platform for a smart card with

functions to calculate the Data Encryption Algorithm (Triple-DES) with two keys,

support for large integer arithmetic (multiplication, addition and logical operations) with up to a length of 8192 bits,

a random number generator and

mode control regarding a test mode and an user mode.

In addition several security features independently implemented in hardware or controlled by software will be provided to ensure proper operation as well as integrity and confidentiality of stored data. This includes for example measures for memory protection and sensors to allow operation only under specified conditions.

1.2.2

Life-Cycle

Regarding the life cycle of the smartcard (refer to the “Smartcard IC Platform Protection Profile”,

[5] section 8.1), the development and the production phase of the IC with its dedicated software as described for the Target of Evaluation (TOE) is part of the evaluation.

Referring to the description in the PP [5], the TOE is delivered at the end of phase 3 in form of wafers as described in section 2.1. Regarding the Application Note 1 of [5] the TOE supports the authentic delivery using the Fabkey feature (see section 18.4 in the Data Sheet, P8WE5033

Secure 8-bit Smart Card Controller as well as section 2.4 in the Guidance, Delivery and

Operation Manual of the P8WE5033V0G).

Security during Development and Production

During the design and the layout process only people involved in the specific development project for an IC have access to sensitive data. The trustworthiness of used components is ensured with simulation and verification tools that use test patterns generated by Philips Semiconductors,

Business Unit Identification. Different people are responsible for the design data and for customer related data. The security measures installed within Philips ensure a secure computer system and provide appropriate storage equipment for the different development tasks.

The verified layout data for the wafer fab is provided by the developer of the chip. The wafer fab provides the layout data of the different photomasks to the manufacturer of the photomasks. The photomasks are generated off-site and verified against the design data of the development before the usage. The accountability and the traceability is ensured among the wafer fab and the photomask provider.

The production of the wafers includes two different steps regarding the production flow. In the first step the wafers are produced with the fixed masks independent of the customer. After that step the wafers are completed with the customer specific masks and the remaining masks. The computer tracking ensures the control of the complete process including the storage of the semifinished wafers.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 7 of 44

The test process of every die is performed by Philips. Delivery processes between the involved

Philips sites provide accountability and traceability of the produced wafers. Non-functional ICs are marked on the wafer but will be delivered on the wafer to the customer.

1.2.3

Specific Issues of Smartcard Hardware and the Common Criteria

Regarding the Application Note 2 of [5] the TOE provides additional functionality which is not covered in the “Smartcard IC Platform Protection Profile”. This additional functionality is added using the policy “P.Add-Func” (see section 3.4 of this Security Target).

1.3

CC Conformance and Evaluation Assurance Level

The evaluation is based upon

Common Criteria for Information Technology Security Evaluation, Part 1: Introduction and General Model; Version 2.1, August 1999, [1]

Common Criteria for Information Technology Security Evaluation, Part 2: Security

Functional Requirements; Version 2.1, August 1999, [2]

Common Criteria for Information Technology Security Evaluation, Part 3: Security

Assurance Requirements; Version 2.1, August 1999, [3]

For the evaluation the following methodology will be used:

Common Methodology for Information Technology Security Evaluation CEM-99/045

Part 2: Evaluation Methodology, Version 1.0, August 1999, [4]

The chosen level of assurance is EAL 5 augmented. The minimum strength level for the TOE security functions is SOF-high (Strength of functions high).

This Security Target claims the following CC conformances:

Part 2 extended, Part 3 conformant, EAL 5 augmented

Conformance to the Protection Profile “Smartcard IC Platform Protection Profile”, [5]

The level of evaluation and the functionality of the TOE are chosen in order to allow the confirmation that the TOE is suitable for use within devices compliant with the German Digital

Signature Law.

Note: The “Smartcard IC Platform Protection Profile”, [5] requires the assurance level EAL4 augmented. Regarding the Application Note 3 of [5] the changes which are needed for

EAL5 are described in the different relevant sections of this Security Target.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 8 of 44

2 TOE Description

This chapter is divided into the following sections: “TOE Definition” and “Further Definitions and Explanations”. TOE Definition has the sub-sections “Hardware Description”, “Software

Description”, “Documentation”, “Interface of the TOE”, “Life Cycle and Delivery of the TOE”,

“TOE Intended Usage”, “TOE User Environment” as well as “General IT features of the TOE”.

2.1

TOE Definition

The Target of Evaluation (TOE) is the smartcard integrated circuit depicted in figure 1 as block diagram. The TOE named P8WE5033V0G is manufactured in an advanced CMOS process.

The TOE includes IC Designer/Manufacturer proprietary IC Dedicated Software in an 8kByte part of the ROM. This software (also known as IC firmware) is used for testing purposes during production only and does not provide additional services. All other software is called Smartcard

Embedded Software and is not part of the TOE.

Figure 1 Block Diagram of the P8WE5033V0G

The device is developed for most high-end safeguarded applications, and is designed for embedding into chip cards according to ISO 7816 [12]. The secret data shall be used as input for the calculation of authentication data, the calculation of signatures and the encryption of data and keys. Each security measure is designed to act as an integral part of the complete system in order to strengthen the design as a whole. The security measures can be divided into hardware controlled security measures that do not allow for software guided exceptions and security measures that shall be controlled by software.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 9 of 44

The following table lists the TOE components.

Type Name

Hardware Philips P8WE5033V0G Secure 8bit Smart Card Controller

Software Test ROM Software (the IC

dedicated software)

Document Guidance, Delivery and Operation

Manual for V0G

Document Data Sheet, P8WE5033 Secure 8bit Smart Card Controller

3.2

Release Date Form of delivery

V0G 2001-11-06

(GDS2 File

1

) wafer

(dice include reference C012G or

P012G) yl038 2001-04-19 Test ROM on the chip printed document

2002 July 05 printed document

Table 1: Components of the TOE

Note that the first character of the die reference for the P8WE5033V0G depends on the production site of the wafer.

2.1.1

Hardware Description

The CPU of the P8WE5033V0G is a derivative of the 80C51 family and has the same instruction set. The instruction set contains 255 different instructions, each instruction has a length of one byte which can be followed by parameters consisting of one or two additional bytes.

The on-chip hardware is controlled by software via Special Function Registers. These registers are correlated to the activities of the CPU, Interrupt, I/O, EEPROM, Timers, UART and the two co-processors. The communication with the TOE can be performed through a serial interface

I/O according to ISO standard 7816-3 [13]. Two 16-bit timers and six vectorized interrupts provide further functionality for I/O, timers, FameX and EEPROM.

The device includes ROM (96kByte User-ROM + 8kByte Test-ROM), RAM (2304 Byte) and

EEPROM (32kByte) memory. The EEPROM can be accessed as data memory as well as program memory. The Triple-DES co-processor supports single DES and Triple-DES operations, but only Triple-DES will be used in this evaluation. The FameX co-processor supplies basic arithmetic functions to perform asymmetric crypto algorithms implemented by the

Smartcard Embedded Software. The random number generator provides true random numbers without pseudo random calculation.

The P8WE5033V0G operates with a single 3V or 5V nominal power supply at a nominal maximum external clock frequency of 8 MHz. The controller provides an internal clock to

1

Note that since the TOE will be produced in two different wafer fabs, two different files are needed because

Philips wants to be able to identify the origin. Both files were prepared at the same date and can be distinguished by the file name.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 10 of 44

perform security algorithms. The controller provides two power saving modes with reduced activity: the IDLE Mode and the SLEEP Mode, which includes the CLOCK STOP Mode.

The TOE protects the secret data stored in and operated by the TOE against physical tampering.

Within the composition of this TOE, the operating system, and the smart card application the security functionality is only partly provided by the TOE and causes dependencies between the

TOE security functions and the functions provided by the operating system or the smart card application on top.

2.1.2

Software Description

The smart card operating system and the application are developed by the customer and called

Smartcard Embedded Software in the following. The Smartcard Embedded Software is stored in the User-ROM and/or in the EEPROM and is not a part of the TOE. The application software depends on the usage of the smartcard.

The code in the Test-ROM of the TOE is used by the TOE Manufacturer of the smart card to check the chip function. This IC Dedicated Software is disabled before the operational use of the smart card. The IC Dedicated Software (called firmware in the following) is developed by Philips and embedded in the Test-ROM. The firmware includes the test operating system, test routines for the various blocks of the circuitry, control flags for the status of the EEPROM’s security area and shutdown functions to ensure that security relevant test operations cannot be executed illegally after phase 3.

2.1.3

Documentation

The Data Sheet [8] of the P8WE5033V0G is also part of the TOE. It contains a functional description needed to develop software, guidelines for the use of security features and the instruction set of the TOE. Additional application notes describe aspects of the program interface and the use of programming techniques to improve the security. The provided documentation can be used by the application software developer to develop the Smartcard Embedded Software.

2.1.4

Interface of the TOE

In the user mode the electrical interface of the TOE are the pads to connect the lines power supply, reset input, clock input, ground and I/O1.

The software interface of the TOE depends on the operation mode of the TOE:

In the user mode the software interface is the set of instructions, the bits in the special function registers that are related to the user mode and described in the data sheet as well as the address map of the CPU including memories.

Note: The interface of the TOE after phase 3 is based on the embedded software developed by the application software developer.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 11 of 44

In the Test Mode the interface is the set of test functions based on the test operating system in the Test-ROM and provided at the electrical interface.

The chip surface can be seen as an interface of the TOE, too. This is in the case of an attack where the attacker manipulates the chip surface.

2.1.5

Life Cycle and Delivery of the TOE

For the usage phase the P8WE5033V0G chip will be implemented in a credit card sized plastic card (micro-module embedded into the plastic card) or another sealed package. The chip provides a hardware computing platform to run smart card applications executed by a smart card operating system. Smart card applications will be used to store secret data and calculate cryptographic functions.

The module and card embedding of the TOE provide external security mechanisms because they make it harder for an attacker to access parts of the TOE for physical manipulation.

Regarding the Application Note 4 of [5] Philips will deliver the TOE at the end of phase 3 after the production test in form of wafers. Module production and embedding (card production) shall take place at the Card Manufacturer (see A.Process-Card).

Regarding the Application Note 5 of [5] Philips will deliver the TOE without IC Dedicated

Support Software. The IC Dedicated Software stored in the Test-ROM is disabled before the

TOE is delivered by Philips and cannot be used in the following phases.

The TOE is able to control two different logical phases. After production the chip is in the Test

Mode that means under the control of the test software. At the end of the production test the

chip will be switched into the User Mode so that the chip is under the control of the application software.

2.1.6

TOE Intended Usage

Regarding to phase 7, the combination of the smartcard hardware and the application software is used by the end-user. The method of use of the product in this phase depends on the application.

During the other phases of the product construction and product usage there are several administrator- and user-functions.

Phase 1: The smartcard embedded software developer develops software for the smartcard, including a smartcard operating system and/or application specific software parts.

By using the software interface of the TOE (in user mode) as defined in section

2.1.4 he/she is the user of the smartcard hardware with the hardware features.

Phase 2: The IC designer is responsible for the design of the chip that is developed within this phase. In parallel the IC designer develops the IC Dedicated Software for the production test of the chip that is included in the Test-ROM. Therefore the IC designer takes the role of the administrator during this phase.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 12 of 44

Phase 3:

Note: The definition of the user roles regarding the TOE for the phases 4 to 7 is provided here as additional information and is not in the scope of the evaluation. However the operation manuals address some of the user roles defined for phase 1 and the following phases.

Phase 4:

The function of the administrator is split into two parts: The IC manufacturer is responsible for the IC production itself. Regarding to the production test after the manufacturing process the test engineer is the administrator.

Phase 5: the IC packaging manufacturer (administrator), the smartcard embedded software developer (user), the system integrators such as the terminal software developer (user).

the smartcard product manufacturer (administrator), the smartcard embedded software developer (user), the system integrators such as the terminal software developer (user).

Phase 6:

Phase 7: the personaliser (administrator), the smartcard issuer (administrator), the smartcard embedded software developer (user), the system integrators such as the terminal software developer (user).

the smartcard issuer (administrator), the smartcard end-user (user), the smartcard embedded software developer (user), the system integrators such as the terminal software developer (user).

The smartcard embedded software developer and the system integrators such as the terminal software developer are listed in Phases 4-7 because they may use samples of the TOE in these phases for their testing purposes. It is not intended that they are able to change the behaviour of the smartcard in another way than an user.

The IC manufacturer and the smartcard product manufacturer may receive ICs from different phases for analysis purpose, if problems should occur during the smartcard usage.

2.1.7

TOE User Environment

The TOE user environment is the environment of phases 4 to 7. At phases 4, 5 and 6, the TOE user environment must be a controlled environment.

In the end-user environment (phase 7) Smartcard ICs are used in a wide range of applications to assure authorised conditional access. Examples of such are Pay-TV, Banking Cards, Portable communication SIM cards, Health cards, Transportation cards. The end-user environment therefore covers a wide spectrum of very different functions, thus making it difficult to avoid and monitor any abuse of the TOE.

Phases 4 to 7 of the smart card life cycle are not part of the TOE construction process in the sense of this Security Target. Information about those phases are just included to describe how the

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 13 of 44

TOE is used after its construction. Nevertheless the security features of the Smartcard IC hardware that are independent of the software are active from the end of phase 3 and cannot be disabled by the application software in the phases 4 to 7.

2.1.8

General IT features of the TOE

The TOE IT functionality consist of:

tamper resistant data storage

basic cryptographic functions (Triple-DES co-processor)

basic arithmetic functions (FameX co-processor for the calculation of asymmetric crypto algorithms)

physical random number generator

data communication

2.2

Further Definitions and Explanations

Since the Security Target claims conformance to the PP “Smartcard IC Platform Protection

Profile”, the concepts are used in the same sense. For the definition of terms refer to the

Protection Profile [5]. This chapter does not need any supplement in the Security Target.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 14 of 44

3 TOE Security Environment

This Security Target claims conformance to the Smartcard IC Platform Protection Profile. The

Assets, Assumptions, Threats and Organisational Security Policies are completely taken from the

Protection Profile. In the following only the extension of the different sections are listed. The titles of the chapters that are not extended are cited here for completeness.

3.1

Description of Assets

Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection

Profile”, the assets defined in section 3.1 of the Protection Profile apply to this Security Target.

Regarding the Application Notes 6 and 7 of [5] there are no additional assets defined in this

Security Target. The keys for the cryptographic co-processors are seen as User Data.

3.2

Assumptions

Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection

Profile”, the assumptions defined in section 3.2 of the Protection Profile are valid for this Security

Target. The following table lists the assumptions of the Protection Profile.

Name

A.Process-Card

A.Plat-Appl

A.Resp-Appl

Title

Protection during Packaging, Finishing and Personalisation

Usage of Hardware Platform

Treatment of User Data

Table 2: Assumptions defined in the Protection Profile

Additionally, two more assumptions are defined considering the Application Notes 8 and 9 of [5] related to the specialised encryption hardware of the P8WE5033V0G.

The personaliser or the smartcard issuer together with the developer of the Smartcard Embedded

Software must ensure the appropriate “Usage of Strong Keys (A.Strong-Key)” as specified below.

A.Strong-Key Usage of Strong Keys

The Smartcard Embedded Software shall use only appropriate secret keys

(chosen from a large key space) as input for the cryptographic function of the TOE to ensure the strength of cryptographic operation.

The developer of the Smartcard Embedded Software must ensure the appropriate “Keydependent Functions (A.Key-Fun)” as specified below.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 15 of 44

A.Key-Fun Key-dependent Functions

When the Smartcard Embedded Software is just being executed no information about cryptographic keys can be gathered by analysing leakage of the Smartcard IC. The different types of leakage are described in the threat T.Leak-Inherent.

3.3

Threats

Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection

Profile”, the threats defined in section 3.3 of the Protection Profile are valid for this Security

Target. The following table lists the threats defined by the PP:

Name

T.Leak-Inherent

T.Phys-Probing

T.Malfunction

T.Phys-Manipulation

T.Leak-Forced

T.Abuse-Func

T.RND

Subject

Inherent Information Leakage

Physical Probing

Malfunction due to Environmental Stress

Physical Manipulation

Forced Information Leakage

Abuse of Functionality

Deficiency of Random Numbers

Table 3: Threats defined by the Protection Profile

Considering the Application Notes 10 and 11 of [5] there are no additional high-level security concerns or additional new threats defined in this Security Target.

3.4

Organisational Security Policies

Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection

Profile”, the policy P.Process-TOE “Protection during TOE Development and Production” of the Protection Profile is applied here also.

The TOE provides specific security functionality which can be used by the Smartcard Embedded

Software. In the following specific security functionality is listed which is not derived from threats identified for the TOE’s environment because it can only be decided in the context of the smartcard application, against which threats the Smartcard Embedded Software will use the specific security functionality.

The IC Developer / Manufacturer must apply the policy “Additional Specific Security

Functionality (P.Add-Func)” as specified below.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 16 of 44

P.Add-Func

-

-

Additional Specific Security Functionality

The TOE shall provide the following additional security functionality to the Smartcard Embedded Software:

Triple DES encryption and decryption

Basic support for large integer arithmetic (calculation of e.g. RSA)

Regarding the Application Note 12 of [5] there are no other additional policies defined in this

Security Target.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 17 of 44

4 Security Objectives

This chapter contains the following sections: Security Objectives for the TOE and Security

Objectives for the Environment.

4.1

Security Objectives for the TOE

The TOE shall provide the following security objectives, taken from the Protection Profile

Smartcard IC Platform Protection Profile:

O.Leak-Inherent

O.Phys-Probing

O.Malfunction

O.Phys-Manipulation

O.Leak-Forced

O.Abuse-Func

O.Identification

O.RND

Protection against Inherent Information Leakage

Protection against Physical Probing

Protection against Malfunctions

Protection against Physical Manipulation

Protection against Forced Information Leakage

Protection against Abuse of Functionality

TOE Identification

Random Numbers

Table 4: Security objectives defined in the PP

Regarding the Application Notes 13 and 14 of [5] the following additional security objectives are defined based on the cryptographic functionality provided by the TOE as specified below.

O.DES3

Triple DES Functionality

The TOE shall provide the cryptographic functionality of Triple DES encryption and decryption to the Smartcard Embedded Software.

Note: The TOE shall ensure the confidentiality of the User Data (and especially cryptographic keys) during Triple DES operation. This is supported by O.Leak-Inherent.

O.MOD_ARITH

Basic support for modular arithmetic with large integer numbers

The TOE shall provide support for modular arithmetic (especially modular exponentiation) with large integer numbers to the Smartcard

Embedded Software.

Note: Based on the principles of the co-processor, the confidentiality of the User Data (and especially cryptographic keys) during arithmetic operation must be ensured by the TOE together with suitable Smartcard

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 18 of 44

Embedded Software. The part provided by the TOE is supported by

O.Leak-Inherent.

4.2

Security Objectives for the Environment

According to the Protection Profile, the following security objectives for the environment are specified:

Security objective Description

OE.Plat-Appl Usage of Hardware Platform

OE.Resp-Appl Treatment of User Data

OE.Process-TOE Protection during TOE Development and

Production

OE.Process-Card Protection during Packaging, Finishing and

Personalisation

Applies to phase...

Phase 1

Phase 1

Phase 2 up to the TOE

Delivery

Starting with delivery by the

TOE Manufacturer up to the end of phase 6 *

Table 5: Security objectives for the environment, taken from the PP

Additionally, the Security Target defines three security objectives for the environment related to the specialised encryption hardware of the P8WE5033V0G (Triple-DES co-processor, FameX co-processor):

OE.Gen-Key Generation of Keys

If a key or a key pair is generated, this process must be performed in a confidential way and the keys generated must be unique with a very high probability and cryptographically strong. In addition, it must not be possible to derive the private key from a public key.

The objective is applicable to phase 1 when the Smartcard Embedded Software is developed because the internal key generation is under control of the Smartcard Embedded Software.

OE.Key-Fun Key-dependent Functions

Key-dependent functions shall be implemented in the Smartcard

Embedded Software in a way that they are not susceptible to attacks where cryptographic keys are compromised for instance by analysing leakage of the Smartcard IC. The different types of leakage are described in the threat

T.Leak-Inherent.

Note that here the routines which may compromise keys when being executed are part of the Smartcard Embedded Software. In contrast to this the threats T.Leak-Inherent and T.Leak-Forced address (see [5], section

3.3) the cryptographic routines being a part of the TOE.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 19 of 44

The above objective is applicable to phases 4 to 7 when the Smartcard IC is under control of the application software.

OE.Strong-Key Usage of Strong Keys

The Smartcard Embedded Software will only use appropriate secret cryptographic keys (chosen from a sufficient key space and with sufficient entropy) as an input for the TOE’s cryptographic function.

This objective is applicable to phases 4 to 7 when the Smartcard IC is under control of the application software. The objective must be supported by the Smartcard Embedded Software for the keys that are generated within the Smartcard IC as well as by the personaliser and the smartcard issuer since cryptographic keys can be loaded from the environment into the Smartcard

IC.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 20 of 44

5 IT Security Requirements

5.1

TOE Security Requirements

This section consists of the subsections “TOE Security Functional Requirements”, “TOE

Security Assurance Requirements” and “Refinements of the TOE Security Assurance

Requirements”.

5.1.1

TOE Security Functional Requirements

To support a better understanding of the combination Protection Profile vs. Security Target, the

TOE SFRs are presented in the following two different sections.

5.1.1.1

SFRs of the Protection Profile

Table 6 below shows all SFRs which are specified in the Protection Profile Smartcard IC Platform

Protection Profile (in the order of definition in the PP). Some of the SFRs are CC Part 2 extended and defined in the Protection Profile. This is shown in the third column of the table.

SFR Title

FRU_FLT.2

Limited fault tolerance

FPT_FLS.1

Failure with preservation of secure state

FPT_SEP.1

TSF domain separation

FMT_LIM.1 Limited capabilities

FMT_LIM.2 Limited availability

FAU_SAS.1

Audit storage

FPT_PHP.3

Resistance to physical attack

FDP_ITT.1

Basic internal transfer protection

FPT_ITT.1

Basic internal TSF data transfer protection

FDP_IFC.1

Subset information flow control

FCS_RND.1 Quality metric for random numbers

Table 6: SFRs taken from the PP

Defined in ...

CC, Part 2

CC, Part 2

CC, Part 2

PP, Section 8.5

PP, Section 8.5

PP, Section 8.6

CC, Part 2

CC, Part 2

CC, Part 2

CC, Part 2

PP, Section 8.4

With one exception, all assignment and selection operations are performed. The exception is the left open definition of a quality metric for the random numbers required by FCS_RND.1. This assignment operation is filled in by the following statement:

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 21 of 44

FCS_RND.1

FCS_RND.1.1

Quality metric for random numbers

The TSF shall provide a mechanism to generate random numbers that meet the requirement to provide an entropy of at least 7 bit in each byte

2

.

Dependencies:

Note:

No dependencies.

The entropy of the random number is measured by the Shannon-Entropy as follows:

E

=

255

å

i

=

0

p i

⋅ log

2

p i

, where

p i

is the probability that the byte

(

b

7

,

b

6

,

K

,

b

0

)

is equal to

i

as binary number. Here term “bit” means measure of the Shannon-

Entropy.

By this, all assignment/selection operations are performed. This Security Target does not perform any other/further operations than stated in the Protection Profile.

Regarding the Application Note 16 of [5] an additional generation of audit is not defined for

“Limited fault tolerance” (FRU_FLT.2) and “Failure with preservation of secure state”

(FPT_FLS.1).

Considering the Application Note 17 of [5] no additional requirement is defined for the TOE, since the Initialisation Data (refer to FAU_SAS.1) is protected by standard mechanisms of the

TOE and will not be further processed by the TOE itself.

5.1.1.2

Additional SFRs

Considering the Application Note 15 of [5] in the following paragraphs the additional cryptographic functions are defined. The CC operation iteration will be used with the component

FCS_COP.1. To distinguish between the two, a label written in square brackets is attached to the component name. If anywhere it happens that the label is missing, the statement refers to both iterations of the component.

The following table lists the additional SFRs for cryptographic support which are taken from CC

Part 2 and which are not defined in the Protection Profile.

2

[assignment: a defined quality metric]

Philips Electronics NV

Security Document – Strictly Confidential

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 22 of 44

SFR Title

FCS_COP.1[DES] Cryptographic operation

FCS_COP.1[Fame] Cryptographic operation

Table 7: Additional SFRs

Defined in ...

CC, Part 2

CC, Part 2

The (DES co-processor of the) TOE shall meet the requirement “Cryptographic operation

(FCS_COP.1[DES])” as specified below.

FCS_COP.1[DES] Cryptographic operation

FCS_COP.1.1

The TSF shall perform encryption and decryption

3

in accordance with a specified cryptographic algorithm Triple Data Encryption Algorithm

(TDEA)

4

and cryptographic key sizes of 112 bit

list of standards

6

:

5

that meet the following

FIPS PUB 46-3 FEDERAL INFORMATION PROCESSING

STANDARDS PUBLICATION DATA ENCRYPTION STANDARD

(DES) Reaffirmed 1999 October 25, keying option 2

Dependencies: [FDP_ITC.1 Import of user data without security attributes or

FCS_CKM.1 Cryptographic key generation], FCS_CKM.4

Cryptographic key destruction, FMT_MSA.2 Secure security attributes.

The (FameX co-processor of the) TOE shall meet the requirement “Cryptographic operation

(FCS_COP.1[Fame])” as specified below.

FCS_COP.1[Fame] Cryptographic operation

FCS_COP.1.1

The TSF shall perform operations to support raising to a power modulo an

integer

7

in accordance with a specified cryptographic algorithm Rivest-

Shamir-Adleman (RSA)

8

and cryptographic key sizes of at least 1024 bit that meet the following list of standards

10

:

9

PKCS #1: RSA Cryptography Specifications, Version 2.0. RSA Laboratories,

September 1998

3

7

[assignment: list of cryptographic operations]

4

6

[assignment: cryptographic algorithm]

5

[assignment: cryptographic key sizes]

[assignment: list of standards]

[assignment: list of cryptographic operations]

8

10

[assignment: cryptographic algorithm]

9

[assignment: cryptographic key sizes]

[assignment: list of standards]

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 23 of 44

Dependencies: [FDP_ITC.1 Import of user data without security attributes or

FCS_CKM.1 Cryptographic key generation], FCS_CKM.4

Cryptographic key destruction, FMT_MSA.2 Secure security attributes.

Note that the mathematical function "exponentiation to a defined basis modulo an integer" may be used in different cryptographic algorithms, e.g. RSA, DSA, SHA-1 and elliptic curve. The padding algorithms are not performed by the function.

5.1.1.3

SOF claim for TOE security functional requirements

Since the assurance level is augmented with AVA_VLA.4 the required level for the Strength of

Function (SOF) of the above listed security functional requirements (refer to Table 6 and

Table 7) is “SOF-high”. Note that the cryptographic algorithms are not assessed as part of the evaluation (refer to chapter 1 of [1]).

5.1.2

TOE Security Assurance Requirements

Table 8 below lists all security assurance components that are valid for this Security Target. These security assurance components are required by EAL5 (see section 1.3) or by the Protection

Profile.

Considering the Application Note 18 of [5] the column “Required by” shows the differences in the requirements of security assurance components between the PP and the Security Target. The entry “EAL5 / PP” denotes that an SAR is required by both EAL5 and the requirement of the PP,

“EAL5” means that this requirement is due to EAL5 and beyond the requirement of the PP, and

“PP” identifies this component as a requirement of the PP which is beyond EAL5. The Security

Target does not include additional augmentations. The refinements of the PP “Smartcard IC

Platform Protection Profile” that must be adapted for EAL5 are described in section 5.1.3.

SAR Title

ACM_AUT.1

Partial CM automation

ACM_CAP.4

Generation support and acceptance procedures

ACM_SCP.3

Development tools CM coverage

ADO_DEL.2

Detection of modification

ADO_IGS.1

Installation, generation, and start-up procedures

ADV_FSP.3

Semiformal functional specification

ADV_HLD.3

Semiformal high-level design

ADV_IMP.2

Implementation of the TSF

ADV_INT.1

Modularity

ADV_LLD.1

Descriptive low-level design

ADV_RCR.2

Semiformal correspondence demonstration

Philips Electronics NV

Security Document – Strictly Confidential

Required by

EAL5 / PP

EAL5 / PP

EAL5

EAL5 / PP

EAL5 / PP

EAL5

EAL5

EAL5 / PP

EAL5

EAL5 / PP

EAL5

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 24 of 44

SAR Title

ADV_SPM.3

Formal TOE security policy model

AGD_ADM.1 Administrator guidance

AGD_USR.1

User guidance

ALC_DVS.2

Sufficiency of security measures

ALC_LCD.2

Standardised life-cycle model

ALC_TAT.2

Compliance with implementation standards

ATE_COV.2

Analysis of coverage

ATE_DPT.2

Testing: low-level design

ATE_FUN.1

Functional testing

ATE_IND.2

Independent testing – sample

AVA_CCA.1

Covert channel analysis

AVA_MSU.3

Analysis and testing for insecure states

AVA_SOF.1

Strength of TOE security function evaluation

AVA_VLA.4

Highly resistant

Table 8: Security Assurance Requirements EAL5 and PP augmentations

Required by

EAL5

EAL5 / PP

EAL5 / PP

PP

EAL5

EAL5

EAL5 / PP

EAL5

EAL5 / PP

EAL5 / PP

EAL5

PP

EAL5

PP

5.1.3

Refinements of the TOE Security Assurance Requirements

The ST claims conformance to the Protection Profile “Smartcard IC Platform Protection

Profile”, and therefore it has to be conform to the refinements of the TOE security assurance requirements (see Application Note 19 of the PP). Because the refinements in the PP are defined for the security assurance components of EAL4, some refinements have to be applied to assurance components of the higher level EAL5 stated in the Security Target.

Table 9 lists the influences of the refinements of the PP on the ST. Most of the refined security assurance components have the same level in both documents (Protection Profile and Security

Target). Note that section 5.1.3.10 “Additional Guidance regarding Vulnerability Analysis

(AVA_VLA) and Strength of Functions (AVA_SOF)” also applies to this Security Target and the two assurance components, although it is not a refinement. The following two subsections apply the refinements to ACM_SCP.3 and ADV_FSP.3 which are different between the PP and the

ST.

Refined in PP

ACM_CAP.4

ACM_SCP.2

ADO_DEL.2

Influence on ST

Same as in ST, refinement valid without change

ACM_SCP.3, refinements have to be applied

Same as in ST, refinement valid without change

Philips Electronics NV

Security Document – Strictly Confidential

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 25 of 44

Refined in PP

ADO_IGS.1

ADV_FSP.2

AGD_ADM.1

AGD_USR.1

ALC_DVS.2

ATE_COV.2

Influence on ST

Same as in ST, refinement valid without change

ADV_FSP.3, refinements have to be applied

Same as in ST, refinement valid without change

Same as in ST, refinement valid without change

Same as in ST, refinement valid without change

Same as in ST, refinement valid without change

Table 9: Security Assurance Requirements, overview of differences of refinements

5.1.3.1

Refinements regarding CM scope (ACM_SCP)

This Security Target requires a higher evaluation level for the CC family ACM_SCP, namely

ACM_SCP.3 instead of ACM_SCP.2. The refinement of the PP regarding ACM_SCP.2 is a clarification of the configuration item “TOE implementation representation”. Since in

ACM_SCP.3, the content and presentation of evidence element ACM_SCP.3.1C only adds a further configuration item to the list of items to be tracked by the CM system, the refinement can be applied without changes.

The refinement of the configuration item “TOE implementation representation” of ACM_SCP.2

can be found in section 5.1.3.3 of the Protection Profile [5] and is not cited here.

5.1.3.2

Refinements regarding functional specification (ADV_FSP)

This Security Target requires a higher evaluation level for the CC family ADV_FSP, namely

ADV_FSP.3 instead of ADV_FSP.2. The refinement of the PP regarding ADV_FSP.2 is concerned with the description of the TSF and its external interfaces, the purpose and method of use of all external TSF interfaces, the complete representation of the TSF and the accuracy and completeness of the TOE SFR instantiations. The refinement is not a change in the wording of the action elements, but a more detailed definition of the above items.

Since the higher level ADV_FSP.3 requires a Functional Specification in a “semiformal style, supported by informal, explanatory text where appropriate” (ADV_FSP.3.1C) the changes only affect the style of description, the refinements can be applied without changes and are valid for

ADV_FSP.3.

The refinement of the original component ADV_FSP.2 can be found in section 5.1.3.5 of the

Protection Profile [5] and is not cited here.

5.2

Security Requirements for the Environment

This chapter consists of the sections Security Requirements for the IT-Environment and Security

Requirements for the Non-IT-Environment

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 26 of 44

5.2.1

Security Requirements for the IT-Environment

There are no Security Requirements for the IT-Environment defined in the PP “Smartcard IC

Platform Protection Profile”. This Security Target does not define Security Requirements for the

IT-Environment, too.

5.2.2

Security Requirements for the Non-IT-Environment

Since this ST claims conformance to the PP “Smartcard IC Platform Protection Profile”, the following security requirements for the Non-IT-Environment are taken from the PP:

RE.Phase-1

RE.Process-Card

The Security Target specifies the following additional security requirements for the Non-IT-

Environment.

The Smartcard Embedded Software shall meet the requirements “Key-dependent Functions

(RE.Key-Fun)” and “Usage of Strong Keys (RE.Strong-Key)” as specified below.

RE.Key-Fun Key-dependent Functions

The developers of Smartcard Embedded Software must not implement routines in a way which may compromise keys when the routines are executed as part of the Smartcard Embedded Software.

Performing functions which access cryptographic keys could allow an attacker to misuse these functions to gather information about the key which is used in the computation of the function.

RE.Strong-Key Usage of Strong Keys

The developers must design the Smartcard Embedded Software in a way that it will use only appropriate cryptographic keys as input of the TOE’s cryptographic function as required in FCS_COP.1.

This may be ensured by generating cryptographic keys with the support of the random number generator provided by the TOE (see FCS_RND.1).

However there are other possibilities to work with strong keys, i. e.

securely loading them from outside of the smart card, by derivation from

Masterkeys or by other key exchange protocols. In this case the personaliser or the smartcard issuer must ensure that the Masterkeys meet the requirements for strong keys.

In addition this requirement implies that an appropriate key management has to be realised in the environment.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

RE.Gen-Key

Security Target Lite

BSI-DSZ-CC-0199

Page 27 of 44

Generation of Keys

The developer must ensure that keys or key pairs are treated confidential when they are generated by the Smartcard Embedded Software running on the TOE. The generation procedure must ensure that the keys are unique with a very high probability and cryptographically strong. In addition, it must be ensured that it is not possible to derive the private key from a public key.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 28 of 44

6 TOE Summary Specification

This chapter is divided in the sections TOE Security Functions and Assurance measures.

6.1

TOE Security Functions

The TOE Security Functions (TSF) directly correspond to the TOE security functional requirements defined in chapter 5.1.1.

The following security functions are applicable to the phases 4 to 7.

Note: Some of the security functions are configured at the end of phase 3 and all security functions are already active during the delivery from phase 3 to phase 4.

F.RNG: The random number generator continuously produces random numbers with a length of one byte. Each byte will at least contain a 7 bit entropy. The TOE implements the F.RNG by means of a physical hardware random number generator working stable within the limits guaranteed by F.OPC (operational conditions).

The TOE provides random numbers according to the functionality class P2 as defined in [6] with a strength of function (consistently with other claims) SOFhigh.

Note: The application software shall observe a minimum of 4800 internal clocks between reading two random numbers.

F.DEA: The TOE provides the Triple Data Encryption Algorithm (TDEA) according to the Data Encryption Standard (DES). F.DEA is a modular basic cryptographic function which provides the TDEA algorithm as defined by FIPS PUB 46 by means of a hardware co-processor and supports the 2-key Triple DEA algorithm according to keying option 2 in FIPS PUB 46-3 [10]. The two 56 bit keys (112 bit) for the 2-key Triple DES algorithm shall be provided by the application software. For encryption the application software provides 8 bytes of the plain text and F.DEA calculates 8 bytes cipher text. The calculation output is read by the application software. For decryption the application software also provides 8 bytes of cipher text and F.DEA calculates 8 bytes plain text. The calculation output is read by application software.

F.FAME:

The TSF provides specific implementation features to reduce leakage of confidential user and TSF data to ensure that attackers are unable to observe the keys and plain text by measuring the external behaviour during the Triple-DESoperation.

The TOE provides basic support for large integer modular arithmetic. The arithmetic functions can be used to accelerate asymmetric crypto algorithms, e.g.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 29 of 44

F.OPC:

F.PHY:

RSA. The Smartcard Embedded Software must select the appropriate functions of the co-processor and provide the operands for the arithmetic functions.

Note that the TOE does not calculate e.g. the RSA algorithm itself in a single operation. In fact, it provides functions for modular multiplication, modular addition and bit operations, and is therefore not limited to RSA. The functions can be used by the application software, maybe in form of a special crypto library.

This software is not part of the evaluation.

The TSF provides specific implementation features to reduce leakage of confidential user and TSF data. These features must be supplemented by measures of the Smartcard Embedded Software, since F.FAME only provides support for modular arithmetic and not for a single/specific algorithm.

The function F.OPC has the following sub-functions: A function that filters power supply and clock input and a function that monitors the power supply, the frequency of the clock and the temperature of the chip by means of sensors.

If one of these parameters is out of the specified range a reset of the actual running program and a CPU reset will be initiated. Before TOE delivery the mode-switch is set to user mode. In user mode the TOE enables the sensors automatically when operated. Furthermore it prevents that the application software disables the sensors.

Beside these sensors the security function comprises an additional sensor to check the high voltage for the write process to the EEPROM during every write sequence. The result of this sensor must be read from a Special Function Register and does not force an automatic event (e.g. reset).

The function F.PHY protects the TOE against manipulation of (i) the hardware,

(ii) the IC Dedicated Test Software in the ROM, (iii) the Smartcard Embedded

Software in the ROM and the EEPROM, (iv) the application data in the

EEPROM and RAM, (v) the configuration data in the security row and (vi) the mode-switch. It also protects secret user data against disclosure when stored in

EEPROM and RAM or while being processed by the TOE.

The protection of the TOE comprises different features of the construction which makes a tamper attack more difficult. By this the security function F.PHY also supports in general the secure implementation of all Security Functional

Requirements defined in chapter 5.1.1.

F.COMP: The function F.COMP provides access control by means of TOE modes of operation selected by a mode-switch: (i) Test Mode and (ii) User Mode. The TSF

F.COMP has two aspects:

Access control: In the Test Mode the TOE (i) allows to execute the IC

Dedicated Test Software and (ii) prevents to execute the Smartcard

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 30 of 44

-

Embedded Software. In the User Mode the TOE (i) allows to execute the

Smartcard Embedded Software and (ii) prevents to execute the IC

Dedicated Test Software.

Mode switch: The initial TOE mode is the Test Mode. The TOE allows to change the mode-switch only one time from the Test Mode into the

User Mode. The TOE prevents to change the mode-switch from the User mode into the Test Mode.

Further the security function F.COMP maintains the security domain for its own execution that protects it from interference and tampering by untrusted subjects both in the Test Mode and in the User Mode. It also enforces the separation between the security domains of subjects within each mode.

The function F.COMP also provides test personnel during Phase 3 with the capability to store the identification and/or pre-personalisation data and/or supplements of the Smartcard Embedded Software in the EEPROM.

SOF claim

According to the CEM [4] a Security Target shall identify all mechanisms which can be assessed according to the assurance requirement AVA_SOF.1.

The following mechanisms contributing to these functions were identified, which can be analysed for their permutational or probabilistic properties:

1.

The output of the Random Number Generator F.RNG can be analysed with probabilistic methods.

2.

The quality of the mechanism contributing to the leakage attacks of F.DEA can be analysed using probabilistic methods on power consumption of the TOE.

Therefore an explicit SOF claim of “high” is made for these mechanisms.

Note, that the cryptographic algorithm of F.DEA can also be analysed with permutational or probabilistic methods but that this is not in the scope of CC evaluations.

6.2

Assurance measures

Appropriate assurance measures will be employed to satisfy the security assurance requirements defined in section 5.1.2. The developer will provide documents containing the measures and further information needed to examine conformance of the measures to the assurance requirements. The following table gives a mapping between the assurance requirements and the documents containing the information needed for the respective requirement either directly or referring to further documents containing this information.

Philips Electronics NV

Security Document – Strictly Confidential

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 31 of 44

Document(s) containing or referring the relevant information

Functional Specification,

Data Sheet

Formal Model

High Level Design,

Design Report

Correspondence

Demonstration,

Design Report

Implementation representation, Source

Code

Quality Management

Manual and Security

Management Manual

Input evidence according to CC Part 3, which is contained or referred to in the document(s)

semiformal functional specification correspondence analysis between the

TOE summary specification and the functional specification

TSP model (formal) high-level design (semiformal) correspondence analysis between functional specification and high-level design low level design architectural description correspondence analysis between highlevel design and low-level design correspondence analysis between lowlevel design and implementation representation implementation representation

Input for assurance families (according to developer actions in CC

Part 3)

ADV_FSP

ADV_RCR

ADV_SPM

ADV_HLD

ADV_RCR

ADV_LLD

ADV_INT

ADV_RCR

ADV_RCR

ADV_IMP configuration management documentation development tools documentation development security documentation life cycle definition documentation parts of the delivery documentation

ACM

ALC

ADO

Philips Electronics NV

Security Document – Strictly Confidential

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 32 of 44

Document(s) containing or referring the relevant information

Guidance, Delivery and

Operation Manual, Data

Sheet

Vulnerability Assessment

Test Documentation

Roadmap, Verification

Test, Characterisation

Report, Electrical Test

Specification

Input evidence according to CC Part 3, which is contained or referred to in the document(s)

administrator guidance secure installation, generation, and startup procedures user guidance parts of the delivery documentation vulnerability assessment covert channel analysis strength of function claims analysis test documentation test coverage analysis depth of testing analysis

Input for assurance families (according to developer actions in CC

Part 3)

AGD_ADM, AVA_MSU

ADO_IGS

AGD_USR, AVA_MSU

ADO_DEL

AVA

ATE

Table 10: List of documents describing the measures regarding the assurance requirements

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 33 of 44

7 PP Claims

This Security Target claims conformance to the following Protection Profile:

Smartcard IC Platform Protection Profile, Version 1.0, July 2001; registered and certified by

Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference

BSI-PP-0002-2001, [5]

The short term for this Protection Profile used in this document is “Smartcard IC Platform

Protection Profile”.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 34 of 44

8 Rationale

This chapter contains the following sections: Security Objectives Rationale, Security

Requirements Rationale, TOE Summary Specification Rationale and PP Claims Rationale.

8.1

Security Objectives Rationale

Section 7.1 of the Protection Profile provides a rationale of the security objectives that are subject of the PP “Smartcard IC Platform Protection Profile”. Table 1 in section 7.1 of [5] lists the objectives.

The justification provided in the Protection Profile is completely valid for this Security Target.

The additional security objective are in line with the security objectives of the Protection Profile and supplement these according to the additional functionality.

Assumption/Policy

P.Add-Func

A.Strong-Key

Security Objective

O.DES3

O.MOD_ARITH

OE.Gen-Key

OE.Strong-Key

Note

(Phase 1) or (Phases 4 to 6)

A.Key-Fun OE.Key-Fun (Phase 1)

Table 11: Additional Security Objectives versus Assumptions or Policies

The justification related to the policy “Additional Specific Security Functionality (P.Add-Func)” is as follows:

Since the objectives O.DES3 and O.MOD_ARITH defines the functionality required by P.Add-

Func, this policy is covered by the two objectives.

The justification related to the assumption “Usage of Strong Keys (A.Strong-Key)” is as follows:

OE.Gen-Key requires the software developer to implement the functions for the generation of keys in a way that they ensure the confidentiality and strongness of the key. In addition

OE.Strong-Key requires the software developer to use only appropriate keys as input for the cryptographic functions. OE.Strong-Key shall be applied for keys generated using external equipment and loaded from outside into the Smartcard IC as well as for keys generated by the

TOE inside the Smartcard IC. Therefore the assumption is covered by the objectives.

The justification related to the assumption “Key-dependent Functions (A.Key-Fun)” is as follows:

Since OE.Key-Fun requires the developer of the Smartcard Embedded Software to implement functions which perform operations on keys in such a manner that they do not disclose information on the key when being executed, the assumption is covered by the objective.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 35 of 44

The justification of the additional policy and the additional assumptions show that they do not contradict to the rationale already given in the Protection Profile for the assumptions, policy and threats defined there.

8.2

Security Requirements Rationale

8.2.1

Rationale for the security functional requirements

Section 7.2 of the PP “Smartcard IC Platform Protection Profile” provides a rationale for the security functional requirements defined in this Protection Profile.

The Security Target additionally defines two SFRs for the TOE and three Security Requirements for the Environment. The following table gives an overview, how the requirements are combined to meet the security objectives.

Objective

O.DES3

O.MOD_ARITH

OE.Key-Fun

OE.Strong-Key

OE.Gen-Key

TOE Security Functional

Requirement

FCS_COP.1[DES]

FCS_COP.1[Fame]

Security Requirements for the environment

RE.Key-Fun

RE.Strong-Key

RE.Gen-Key

Table 12: Mapping of Security Objectives and Requirements

The justification related to the security objective “Triple DES Functionality” (O.DES3) is as follows:

O.DES3 requires the TOE to support Triple DES encryption and decryption. Exactly this is the requirement of FCS_COP.1[DES]. Therefore FCS_COP.1[DES] is suitable to meet O.DES3.

The justification related to the security objective “Basic support for modular arithmetic with large integer numbers” (O.MOD_ARITH) is as follows:

O.MOD_ARITH requires the TOE to support the calculation of asymmetric cryptographic functions providing modular arithmetic operations. Exactly this is the requirement of

FCS_COP.1[Fame]. Therefore FCS_COP.1[Fame] is suitable to meet O.MOD_ARITH.

The justification related to the security objective “Generation of Keys” (OE.Gen-Key) is as follows:

The requirements for the generation of keys that are defined for the developer by RE.Gen-Key are suitable for to meet the objective OE.Gen-Key.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 36 of 44

The justification related to the security objective “Key-dependent Functions” (OE.Key-Fun) is as follows:

RE.Key-Fun requires the Smartcard Embedded Software developer to design and implement the software in a way, which is suitable to meet OE.Key-Fun.

The justification related to the security objective “Usage of Strong Keys” (OE.Strong-Key) is as follows:

RE.Strong-Key addresses the usage of keys generated inside the Smartcard IC as well as keys downloaded into the Smartcard IC. The requirement for the usage of appropriate cryptographic keys for the cryptographic functions is suitable to meet OE.Strong-Key.

8.2.2

Dependencies of security functional requirements

The following discussion demonstrates how the dependencies defined by Part 2 of the Common

Criteria for the requirement FCS_COP.1 (both iterations) are satisfied.

The dependencies defined in the Common Criteria are

[FDP_ITC.1 Import of user data without security attributes or FCS_CKM.1

Cryptographic key generation],

FCS_CKM.4 Cryptographic key destruction,

FMT_MSA.2 Secure security attributes.

The dependency requirements completely address the appropriate management of cryptographic keys used by the specified cryptographic function. All requirements concerning key management shall be fulfilled by the environment (Smartcard Embedded Software in this case) according to the requirements RE.Resp-Appl and RE.Strong-Key.

It was decided not to include the functional requirements [FDP_ITC.1 or FCS_CKM.1],

FCS_CKM.4 and FMT_MSA.2 explicitly as security functional requirements for the environment because this would mean a restriction for the realisation of the Smartcard

Embedded Software that is not justifiable. The possibility was seen that special smart card applications may be designed that are able to resolve the dependencies without use of all the explicit functional requirements (for example by moving some of the functional responsibilities to organisational measures outside of the smart card). So the more abstract requirements RE.Resp-

Appl, RE.Strong-Key and RE.Gen-Key were chosen to give the developers of the Smartcard

Embedded Software the freedom to choose how to fulfil them.

The same argument holds for further indirect dependencies of FCS_COP.1.1 according to [2]

(FDP_ACC.1, FDP_IFC.1, FDP_ACF.1, FDP_IFF.1, FMT_MSA.3, FCS_CKM.2,

FMT_MSA.1, FMT_SMR.1, FIA_UID.1 and ADV_SPM.1).

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 37 of 44

8.2.3

Level

Rationale for the Assurance Requirements and the Strength of Function

The selection of assurance components is based on the underlying Protection Profile [5]. The

Security Target uses the same augmentations as the PP, but chooses a higher assurance level. The level EAL5 is chosen in order to meet assurance expectations of digital signature applications and electronic payment systems. Additionally, the requirement of the PP to choose at least EAL4 is fulfilled.

The rationale for the augmentations is the same as in the PP. The assurance level EAL5 is an elaborated pre-defined level of the CC, part 3 [3]. The assurance components in an EAL level are chosen in a way that they build a mutually supportive and complete set of components. The requirements chosen for augmentation do not add any dependencies, which are not already fulfilled for the corresponding requirements contained in EAL 5. Therefore, these components add additional assurance to EAL 5, but the mutual support of the requirements is still guaranteed.

As stated in the Protection Profile, section 7.2.3, it has to be assumed that attackers with high attack potential try to attack smart cards used for digital signature applications or payment systems. Therefore specifically AVA_VLA.4 was chosen by the PP in order to assure that even these attackers cannot successfully attack the TOE. For the same reason the Strength of Function level “high” is required.

Note that for the augmentation to EAL5 the document “ Smartcard Integrated Circuit Platform

Augmentations” as supposed by Application Note 21 was not considered because at the time of writing the document has not reached a final state.

8.2.4

Security Requirements are Mutually Supportive and Internally

Consistent

The discussion of security functional requirements and assurance components in the preceding sections has shown that mutual support and consistency are given for both groups of requirements. The arguments given for the fact that the assurance components are adequate for the functionality of the TOE also shows that the security functional requirements and assurance requirements support each other and that there are no inconsistencies between these groups.

8.3

TOE Summary Specification Rationale

8.3.1

Rationale for TOE security functions

Note: The rational is present here in a tabular form. The remainder of this chapter (8.3.1) was not intended to be published.

Philips Electronics NV

Security Document – Strictly Confidential

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 38 of 44

FCS_RND.1

FCS_COP.1[DES]

FCS_COP.1[Fame]

FDP_ITT.1

FPT_ITT.1

FDP_IFC.1

FPT_PHP.3

FRU_FLT.2

FPT_FLS.1

FPT_SEP.1

FMT_LIM.1

FMT_LIM.2

FAU_SAS.1

F.RNG

X

F.DEA

X

X

X

X

F.FAME

X

X

X

X

F.OPC

X

X

X

F.PHY

X

X

X

X

X

X

X

X

X

X

X

X

X

F.COMP

X

X

X

X

Table 13: Mapping of Security Functional Requirements and the TOE Security Functions

The "X" means that the TOE Security Function realises or supports the functionality required by the respective Security Functional Requirement.

8.3.2

Rationale for assurance measures

Note: This chapter (8.3.2) was not intended to be published.

8.4

PP Claims Rationale

According to chapter 7 this Security Target claims conformance to the Protection Profile

“Smartcard IC Platform Protection Profile, Version 1.0, July 2001; registered and certified by

Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference

BSI-PP-0002-2001” [5].

The sections of this document where threats, objectives and security requirements are defined, clearly state which of these items are taken from the Protection Profile and which are added in this ST. Therefore this is not repeated here. Moreover all additional stated items in this ST do not contradict to the items included from the PP (see the respective sections in this document).

The operations done for the SFRs taken from the PP are also clearly indicated.

The assurance level claimed for this target (EAL5+) is shown in section 5.1.2 to include resp.

exceed the requirements claimed by the PP (EAL4+).

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 39 of 44

These considerations show that the Security Target correctly claims conformance to the

Smartcard IC Platform Protection Profile.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 40 of 44

9 Annexes

9.1

Further Information contained in the PP

The Annex of the Protection Profile ([5], chapter 9) provides further information. Section 8.1 of the PP describes the development and production process of smartcards, containing a detailed life-cycle description and a description of the assets of the Integrated Circuits

Designer/Manufacturer. Section 8.2 is concerned with security aspects of the Smartcard

Embedded Software (further information regarding A.Resp-Appl and examples of specific

Functional Requirements for the Smartcard Embedded Software). Section 8.3 gives examples of

Attack Scenarios.

9.2

Glossary and Vocabulary

Note: To ease understanding of the used terms the Glossary of the Protection Profile [5] is reproduced here. Readers familiar with the Protection Profile may skip this subsection.

Administrator (in the sense of the Common Criteria) The TOE may provide security functions which can or need to be administrated (i) by the Smartcard Embedded Software or

(ii) using services of the TOE after delivery to Phases 4-6.

Then a privileged user (in the sense of the Common

Criteria, refer to definition below) becomes an administrator.

Card Manufacturer

Integrated Circuit (IC)

IC Dedicated Software

The customer of the TOE Manufacturer who receives the

TOE during TOE Delivery. The Card Manufacturer includes all roles after TOE Delivery up to Phase 7 (refer to

[5], Figure 4 on page 17 and Section 8.1.1).

The Card Manufacturer has the following roles (i) the

Smartcard Product Manufacturer (Phase 5) and (ii) the

Personaliser (Phase 6). If the TOE is delivered after Phase 3 in form of wafers or sawn wafers (dice) he has the role of the IC Packaging Manufacturer (Phase 4) in addition.

Electronic component(s) designed to perform processing and/or memory functions.

IC proprietary software embedded in a smartcard IC (also known as IC firmware) and developed by the IC

Developer. Such software is required for testing purpose

(IC Dedicated Test Software) but may provide additional services to facilitate usage of the hardware and/or to

Philips Electronics NV

Security Document – Strictly Confidential

Business Unit

Identification

IC Dedicated Test Software

IC Dedicated Support Software

Initialisation Data

Pre-personalisation Data

Smartcard

Smartcard Embedded Software

Test Features

Security Target Lite

BSI-DSZ-CC-0199

Version 1.6

Page 41 of 44

provide additional services (IC Dedicated Support

Software).

That part of the IC Dedicated Software (refer to above) which is used to test the TOE before TOE Delivery but which does not provide any functionality thereafter.

That part of the IC Dedicated Software (refer to above) which provides functions after TOE Delivery. The usage of parts of the IC Dedicated Software might be restricted to certain phases.

Any data defined by the TOE Manufacturer and injected into the non-volatile memory by the Integrated Circuits manufacturer (Phase 3). These data are for instance used for traceability and for TOE identification (identification data).

Any data supplied by the Card Manufacturer that is injected into the non-volatile memory by the Integrated

Circuits manufacturer (Phase 3). These data are for instance used for traceability and/or to secure shipment between phases.

(as used in the Protection Profile [5]) Composition of the

TOE, the Smartcard Embedded Software, User Data and the package (the smartcard carrier).

Software embedded in a smartcard IC and not being developed by the IC Designer. The Smartcard Embedded

Software is designed in Phase 1 and embedded into the

Smartcard IC in Phase 3 or in later phases of the smartcard product life-cycle.

Some part of that software may actually implement a smartcard application others may provide standard services.

Nevertheless, this distinction doesn’t matter here so that the Smartcard Embedded Software can be considered as being application dependent whereas the IC Dedicated

Software is definitely not.

All features and functions (implemented by the IC

Dedicated Test Software and/or hardware) which are designed to be used before TOE Delivery only and delivered as part of the TOE.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 42 of 44

TOE Delivery

TOE Manufacturer

TSF data

User

User Data

The period when the TOE is delivered which is (refer to

[5], Figure 4 on page 17) either (i) after Phase 3 (or before

Phase 4) if the TOE is delivered in form of wafers or sawn wafers (dice) or (ii) after Phase 4 (or before Phase 5) if the

TOE is delivered in form of modules.

The TOE Manufacturer must ensure that all requirements for the TOE (as defined in Section 2.1) and its development and production environment are fulfilled

(refer to [5], Figure 4 on page 17).

The TOE Manufacturer has the following roles: (i) IC

Developer (Phase 2) and (ii) IC Manufacturer (Phase 3). If the TOE is delivered after Phase 4 in form of modules, he has the role of the (iii) IC Packaging Manufacturer (Phase

4) in addition.

Data created by and for the TOE, that might affect the operation of the TOE (for example configuration data).

Note that the TOE is the Smartcard IC.

Initialisation Data defined by the Integrated Circuits manufacturer to identify the TOE and to keep track of the product’s production and further life-cycle phases are also considered as belonging to the TSF data.

(in the sense of the Common Criteria) The TOE serves as a platform for the Smartcard Embedded Software.

Therefore, the “user” of the TOE (as used in the Common

Criteria assurance class AGD: guidance) is the Smartcard

Embedded Software. Guidance is given for the Smartcard

Embedded Software Developer.

On the other hand the Smartcard (with the TOE as a major element) is used in a terminal where communication is performed through the ISO interface provided by the

TOE. Therefore, another “user” of the TOE is the terminal

(with its software).

All data managed by the Smartcard Embedded Software in the application context. User data comprise all data in the final Smartcard IC except the TSF data.

9.3

List of Abbreviations

DEA Data Encryption Algorithm.

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 43 of 44

DES

CC

SOF

ST

TOE

TSC

TSF

TSFI

TSP

UART

EAL

IC

IT

NDA

PP

SAR

SFR

SF

SIM

9.4

Bibliography

Data Encryption Standard.

Common Criteria Version 2.0 or Version 2.1. Note that the Version 2.1 (ISO

15408) is technically identical with Version 2.0 of the Common Criteria.

Evaluation Assurance Level.

Integrated circuit.

Information Technology.

Non Disclosure Agreement.

Protection Profile.

Security Assurance Requirement.

Security Functional Requirement.

Security function.

Subscriber Identity Module.

Strength of function.

Security Target.

Target of Evaluation.

TSF Scope of control.

TOE Security functions.

TSF Interface.

TOE Security Policy.

Universal Asynchronous Receiver and Transmitter.

9.4.1

Evaluation Documents

[1] Common Criteria for Information Technology Security Evaluation, Part 1: Introduction and General Model; Version 2.1, August 1999

[2] Common Criteria for Information Technology Security Evaluation, Part 2: Security

Functional Requirements; Version 2.1, August 1999

[3] Common Criteria for Information Technology Security Evaluation, Part 3: Security

Assurance Requirements; Version 2.1, August 1999

[4] Common Methodology for Information Technology Security Evaluation CEM-99/045

Part 2: Evaluation Methodology, Version 1.0, August 1999

Philips Electronics NV

Security Document – Strictly Confidential

Version 1.6

Business Unit

Identification

Security Target Lite

BSI-DSZ-CC-0199

Page 44 of 44

[5] Smartcard IC Platform Protection Profile, Version 1.0, July 2001; registered and certified by Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference

BSI-PP-0002-2001

[6] Anwendungshinweise und Interpretationen zum Schema, AIS31: Funktionalitätsklassen und Evaluationsmethodologie für physikalische Zufallszahlengeneratoren, Version 1,

25.09.2001, Bundesamt für Sicherheit in der Informationstechnik

9.4.2

Developer Documents

[7] Security Target for the P8WE5033V0G, BSI-DSZ-CC-0199, Version

Philips Semiconductors, 19.08.2002

[8] Data Sheet, P8WE5033 Secure 8-bit Smart Card Controller, Product Specification,

Philips Semiconductors, Revision 3.2, Document Number: 047632, 2002 July 05

[9] Guidance, Delivery and Operation Manual of the P8WE5033V0G, Secure 8-bit Smart

Card Controller

9.4.3

Other Documents

[10] FIPS PUB 46-3 FEDERAL INFORMATION PROCESSING STANDARDS

PUBLICATION DATA ENCRYPTION STANDARD (DES) Reaffirmed 1999

October 25

[11] PKCS #1: RSA Cryptography Specifications, Version 2.0. RSA Laboratories, September

1998

[12] ISO/IEC 7816-2:1996 Information technology – Identification cards – Integrated circuit(s) cards with contacts – Part 2: Dimensions and location of contacts

[13] ISO/IEC 7816-3:1997 Information technology – Identification cards – Integrated circuit(s) cards with contacts – Part 3: Electronic signals and transmission protocols

Philips Electronics NV

Security Document – Strictly Confidential

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
