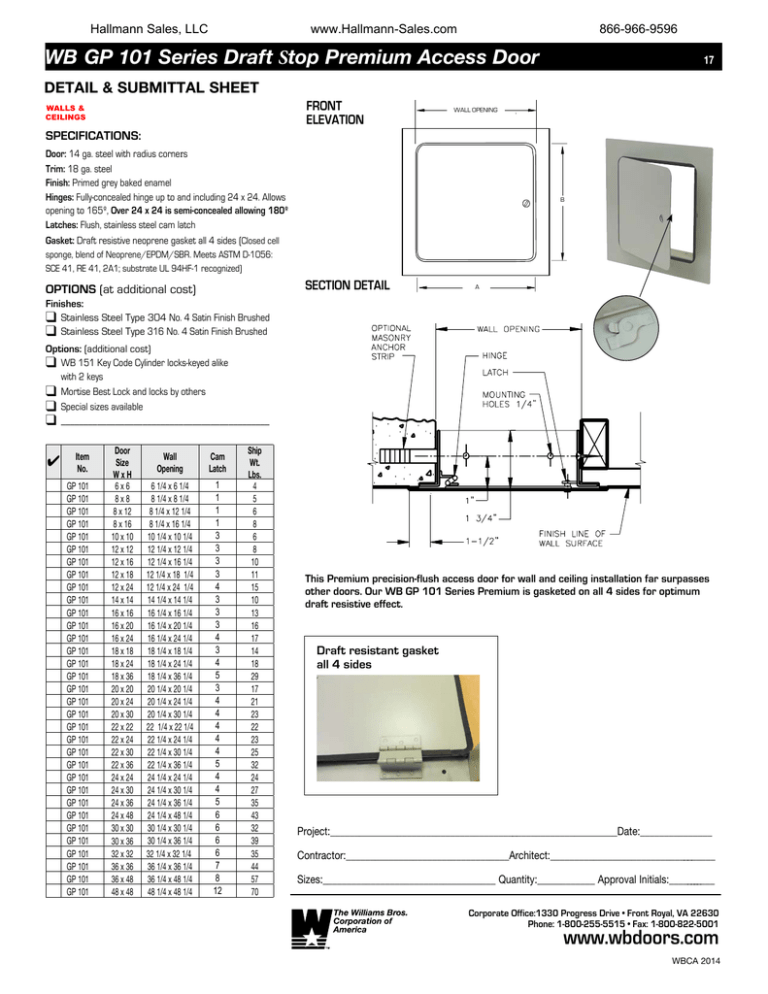

WB GP 101 Series Draft Stop Premium Access Door FRONT ELEVATION

WB GP 101 Series Draft Stop Premium Access Door FRONT ELEVATION
Hallmann Sales, LLC
www.Hallmann-Sales.com
866-966-9596
WB GP 101 Series Draft Stop Premium Access Door
17
17
FRONT VIEW
DETAIL & SUBMITTAL SHEET
WALLS &
CEILINGS
FRONT
ELEVATION
WALL OPENING
SPECIFICATIONS:
Door: 14 ga. steel with radius corners
Trim: 18 ga. steel
Finish: Primed grey baked enamel
Hinges: Fully-concealed hinge up to and including 24 x 24. Allows
opening to 165º, Over 24 x 24 is semi-concealed allowing 180º
Latches: Flush, stainless steel cam latch
Gasket: Draft resistive neoprene gasket all 4 sides (Closed cell
B
sponge, blend of Neoprene/EPDM/SBR. Meets ASTM D-1056:
SCE 41, RE 41, 2A1; substrate UL 94HF-1 recognized)
SECTION DETAIL
OPTIONS (at additional cost)
A
Finishes:
q Stainless Steel Type 304 No. 4 Satin Finish Brushed
q Stainless Steel Type 316 No. 4 Satin Finish Brushed
Options: (additional cost)
qWB 151 Key Code Cylinder locks-keyed alike
with 2 keys
q Mortise Best Lock and locks by others
q Special sizes available
q ______________________________________________
4
Item
No.
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
GP 101
Door
Size
WxH
6x6
8x8
8 x 12
8 x 16
10 x 10
12 x 12
12 x 16
12 x 18
12 x 24
14 x 14
16 x 16
16 x 20
16 x 24
18 x 18
18 x 24
18 x 36
20 x 20
20 x 24
20 x 30
22 x 22
22 x 24
22 x 30
22 x 36
24 x 24
24 x 30
24 x 36
24 x 48
30 x 30
30 x 36
32 x 32
36 x 36
36 x 48
48 x 48
Wall
Opening
Cam
Latch
6 1/4 x 6 1/4
8 1/4 x 8 1/4
8 1/4 x 12 1/4
8 1/4 x 16 1/4
10 1/4 x 10 1/4
12 1/4 x 12 1/4
12 1/4 x 16 1/4
12 1/4 x 18 1/4
12 1/4 x 24 1/4
14 1/4 x 14 1/4
16 1/4 x 16 1/4
16 1/4 x 20 1/4
16 1/4 x 24 1/4
18 1/4 x 18 1/4
18 1/4 x 24 1/4
18 1/4 x 36 1/4
20 1/4 x 20 1/4
20 1/4 x 24 1/4
20 1/4 x 30 1/4
22 1/4 x 22 1/4
22 1/4 x 24 1/4
22 1/4 x 30 1/4
22 1/4 x 36 1/4
24 1/4 x 24 1/4
24 1/4 x 30 1/4
24 1/4 x 36 1/4
24 1/4 x 48 1/4
30 1/4 x 30 1/4
30 1/4 x 36 1/4
32 1/4 x 32 1/4
36 1/4 x 36 1/4
36 1/4 x 48 1/4
48 1/4 x 48 1/4
1
1
1
1
3
3
3
3
4
3
3
3
4
3
4
5
3
4
4
4
4
4
5
4
4
5
6
6
6
6
7
8
12
Ship
Wt.
Lbs.
4
5
6
8
6
8
10
11
15
10
13
16
17
14
18
29
17
21
23
22
23
25
32
24
27
35
43
32
39
35
44
57
70
WB GP Premium
This Premium precision-flush access door for wall and ceiling installation far surpasses
other doors. Our WB GP 101 Series Premium is gasketed on all 4 sides for optimum
draft resistive effect.
Draft resistant gasket
all 4 sides
Project:____________________________________________________________Date:_______________
Contractor:__________________________________Architect:___________________________________
Sizes:____________________________________ Quantity:____________ Approval Initials:___________
Corporate Office:1330 Progress Drive • Front Royal, VA 22630
Phone: 1-800-255-5515 • Fax: 1-800-822-5001
www.wbdoors.com
WBCA 2014
