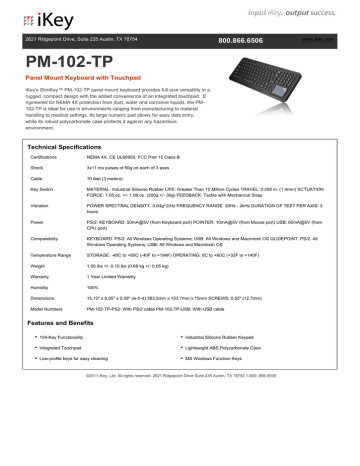

PM 102 TP
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com
PM-102-TP
Panel Mount Keyboard with Touchpad
iKey's SlimKey™ PM-102-TP panel mount keyboard provides full-size versatility in a
rugged, compact design with the added convenience of an integrated touchpad. E
ngineered for NEMA 4X protection from dust, water and corrosive liquids, the PM102-TP is ideal for use in environments ranging from manufacturing to material
handling to medical settings. Its large numeric pad allows for easy data entry,
while its robust polycarbonate case protects it against any hazardous
environment.
Technical Specifications
Certifications
NEMA 4X, CE UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
10 feet (3 meters)
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION
FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration
POWER SPECTRAL DENSITY: 0.04g^2/Hz FREQUENCY RANGE: 20Hz - 2kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS/2: KEYBOARD: [email protected] (from Keyboard port) POINTER: [email protected] (from Mouse port) USB: [email protected] (from
CPU port)
Compatability
KEYBOARD: PS/2: All Windows Operating Systems; USB: All Windows and Macintosh OS GLIDEPOINT: PS/2: All
Windows Operating Systems; USB: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +65C (-40F to +194F) OPERATING: 0C to +60C (+32F to +140F)
Weight
1.50 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)
Warranty
1 Year Limited Warranty
Humidity
100%
Dimensions
15.10" x 6.05" x 0.59" (w-h-d) 383.5mm x 153.7mm x 15mm SCREWS: 0.50" (12.7mm)
Model Numbers
PM-102-TP-PS2: With PS/2 cable PM-102-TP-USB: With USB cable
Features and Benefits
104-Key Functionality
Industrial Silicone Rubber Keypad
Integrated Touchpad
Lightweight ABS Polycarbonate Case
Low-profile keys for easy cleaning
MS Windows Function Keys
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
