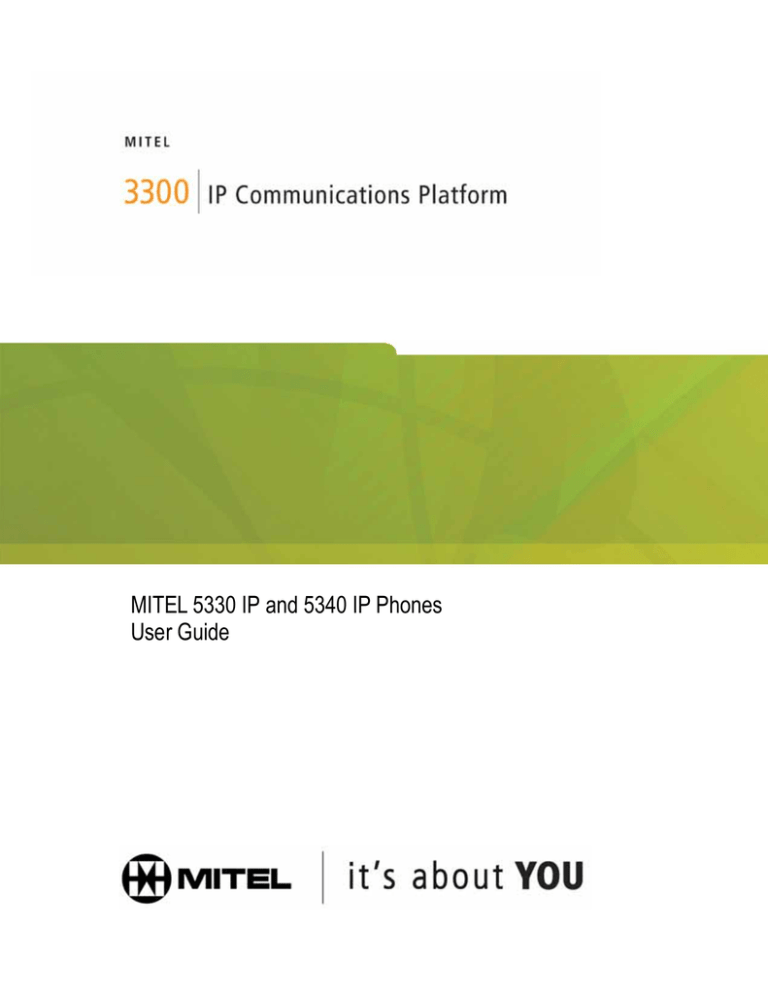

MITEL 5330 IP and 5340 IP Phones

User Guide

NOTICE

The information contained in this document is believed to be accurate in all respects but is not warranted by Mitel Networks™ Corporation (MITEL

®

). The information is subject to change without notice and should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document.

Revisions of this document or new editions of it may be issued to incorporate such changes.

No part of this document can be reproduced or transmitted in any form or by any means - electronic or mechanical - for any purpose without written permission from Mitel Networks Corporation.

TRADEMARKS (example only)

Mitel and [email protected] are trademarks of Mitel Networks Corporation.

Windows and Microsoft are trademarks of Microsoft Corporation.

Other product names mentioned in this document may be trademarks of their respective companies and are hereby acknowledged.

Mitel 5330 IP and 5340 IP Phones - User Guide

July 2007

®,™ Trademark of Mitel Networks Corporation

© Copyright 2007, Mitel Networks Corporation

All rights reserved

Table of Contents

ABOUT YOUR PHONE ............................................................................................................ 7

Elements of Your Phone ......................................................................................................... 8

Ring/Message indicators ....................................................................................................... 10

For Users on Resilient 3300 ICP Systems ............................................................................ 10

Mitel

®

Line Interface Module ............................................................................................... 10

TIPS FOR YOUR COMFORT AND SAFETY ....................................................................... 11

Don't cradle the handset!....................................................................................................... 11

Protect your hearing .............................................................................................................. 11

Adjust the viewing angle ...................................................................................................... 11

USING YOUR DEFAULT PHONE WINDOW AND KEYS................................................. 12

Getting Started with Your Phone .......................................................................................... 12

USING YOUR PHONE APPLICATIONS .............................................................................. 14

Using the Settings Application ............................................................................................. 15

Getting Help.......................................................................................................................... 16

Tips for Setting up your Phone ............................................................................................. 16

CUSTOMIZING YOUR PHONE ............................................................................................ 17

Specify User Information...................................................................................................... 17

Specify Language.................................................................................................................. 18

Specify Display Brightness and Contrast ............................................................................. 18

Specify Audio Feedback Options ......................................................................................... 19

Specify Text Size .................................................................................................................. 19

Specify Call Notification Behavior....................................................................................... 20

Adjust the Ringer .................................................................................................................. 20

Enable a Screen Saver........................................................................................................... 21

Program Receipt of External Messaging .............................................................................. 22

Enable URL Displays on your Phone ................................................................................... 22

Enable PC Connectivity ........................................................................................................ 22

3

5330/5340 IP Phones – User Guide

USING THE PC COMPANION APPLICATION ................................................................... 23

About the PC Companion Application ................................................................................. 23

Configuring the PC Companion Application on Your Phone .............................................. 23

Installing the PC Companion Application ............................................................................ 23

Opening the PC Companion Application ............................................................................. 24

Programming Feature Keys Using the PC Companion Application .................................... 25

Clearing, Editing or Copying Key Programming ................................................................. 26

PROGRAMING FEATURES ON YOUR KEYS.................................................................... 27

Tips on Programming Features ............................................................................................. 27

Program Feature Keys Using the Settings Application ........................................................ 30

Clear Programming from a Key............................................................................................ 31

SETTING UP YOUR CONTACT LIST (5340 ONLY) .......................................................... 32

Adding names to your contact list ........................................................................................ 32

Editing information in your contact list ................................................................................ 32

MAKING AND ANSWERING CALLS.................................................................................. 33

Dial from your People Application (5340 IP Phone only) ................................................... 33

Phone Book ........................................................................................................................... 33

Answer a call......................................................................................................................... 34

End a call............................................................................................................................... 34

Redial .................................................................................................................................... 34

Redial - Saved Number ......................................................................................................... 34

Handsfree Operation ............................................................................................................. 35

Auto-Answer......................................................................................................................... 36

Using the Analog line ........................................................................................................... 36

CALL HANDLING .................................................................................................................. 37

Hold....................................................................................................................................... 37

Mute ...................................................................................................................................... 37

Transfer ................................................................................................................................. 38

4

Table of Contents

Conference ............................................................................................................................ 38

Conference Split.................................................................................................................... 38

Add Held ............................................................................................................................... 39

Swap...................................................................................................................................... 39

Call Forwarding .................................................................................................................... 39

USING OTHER FEATURES................................................................................................... 42

Account Codes ...................................................................................................................... 42

ACD ...................................................................................................................................... 42

Attendant Call Hold - Remote Retrieve................................................................................ 43

Callback ................................................................................................................................ 43

Call Forward - Remote (I'm Here) ........................................................................................ 43

Call Forward - End Chaining ................................................................................................ 44

Call Forward - Forced ........................................................................................................... 44

Call Forward - Override........................................................................................................ 45

Call History ........................................................................................................................... 45

Call Park................................................................................................................................ 46

Call Pickup............................................................................................................................ 47

Campon ................................................................................................................................. 47

Direct Paging ........................................................................................................................ 47

Do Not Disturb...................................................................................................................... 51

Emergency Calls ................................................................................................................... 51

Group Listen ......................................................................................................................... 53

Group Paging / Meet Me Answer ......................................................................................... 53

Headset Operation................................................................................................................. 54

Hot Desking .......................................................................................................................... 55

Hot Desk Remote Logout ..................................................................................................... 55

Hot Desk - PIN Change ........................................................................................................ 56

Make Busy ............................................................................................................................ 56

5

5330/5340 IP Phones – User Guide

Message Waiting Indicator ................................................................................................... 57

Messaging - Advisory ........................................................................................................... 57

Messaging - Callback............................................................................................................ 57

Messaging - Cancel Callback................................................................................................ 59

Messaging - Cancel All Callbacks ........................................................................................ 59

Music..................................................................................................................................... 59

Night Answer ........................................................................................................................ 59

Override (Intrude) ................................................................................................................. 60

Paging ................................................................................................................................... 60

Record a Call......................................................................................................................... 60

Reminder............................................................................................................................... 61

[email protected]™...................................................................................................................... 62

Speed Call ............................................................................................................................. 62

Tag Call................................................................................................................................. 62

Trunk Flash ........................................................................................................................... 63

USING YOUR PHONE WITH THE 5310 IP CONFERENCE UNIT .................................... 64

Access the Conference Controller ........................................................................................ 64

Turn the conference unit on and off...................................................................................... 64

Adjust the conference unit volume ....................................................................................... 64

Place the conference unit in Presentation mode.................................................................... 64

Exit the conference controller ............................................................................................... 64

Mute the conference unit ...................................................................................................... 65

USING THE LINE INTERFACE MODULE .......................................................................... 65

Making and Answering Calls Using the Analog key............................................................ 65

Making and Answering Calls Using the Failover Mode ...................................................... 66

6

ABOUT YOUR PHONE

The Mitel

®

5330 and 5340 IP Phones are full-feature, dual port, dual mode enterprise-class telephones that provide voice communication over an IP network. They both feature a large graphics display (160 x 320) and self-labeling keys. The 5330 IP Phone offers 24 programmable multi-function keys, and the 5340 IP Phone offers 48 programmable multi-function keys for onetouch feature access. Both phones provide ten fixed feature keys for convenient access to features such as Conferencing, Redial, and many customizable user settings as well as navigational keys to access various screens and application layers. The 5330 and 5340 IP Phones also feature a PC Companion application, which is a PC-based desktop programming tool, that allows you to easily configure your phone from your Personal Computer (PC).

The 5330 and 5340 IP Phones support Mitel Call Control (MiNet) protocol and session initiated protocols (SIP). Both phones support the Line Interface Module and 5310 IP Conference Unit.

Additionally, they support Hot Desking and Clustered Hot Desking as well as Resiliency. The

5330/5340 phones are ideal for executives and managers, and can be used as an ACD Agent or

Supervisor Phone, as well as a Teleworker Phone.

The 5330 IP Phone

7

5330/5340 IP Phones – User Guide

The 5340 IP Phone

Elements of Your Phone

Feature

1) Display

Function

Provides a large, high-resolution viewing area that assists you in selecting and using phone features.

2) Ring/Message

Indicator

Flashes to signal an incoming call and to indicate a message waiting in your voice mailbox.

3) Volume, Speaker and Mute Controls

Provide the following audio control capability:

(UP) and (DOWN) provide volume control for the ringer, handset, and handsfree speakers.

(SPEAKER) enables and disables Handsfree mode.

8

5330/5340 IP Phones – User Guide

Elements of Your Phone

Feature

4) Fixed Function

Keys

Function

(MUTE) enables Mute, which allows you to temporarily turn your phone's handset, headset or handsfree microphone off during a call.

Give you access to the following phone functions:

(SETTINGS) : provides access to menus for your phone's additional features.

(CANCEL) : ends a call when pressed during the call, and, when you are programming the phone, eliminates any input and returns to the previous menu level.

(REDIAL) : calls the last number dialed.

(HOLD) : places the current call on hold.

(TRANS/CONF) : initiates a call transfer or establishes a three-party conference call.

(MESSAGE) : provides access to your voice mailbox and flashes to notify you of messages waiting in your voice mailbox.

Note : The Ring/Message indicator also flashes when messages are waiting.

5) Keypad Use to dial.

6)Navigation Page

Keys

Use to display additional pages of information. The 5330 has two page navigation keys: Back and Next. The 5340 has three page navigation keys:

Back, Next, and Home.

7) Programmable

Feature Keys and

Softkeys.

Provides 24 (on the 5330) and 48 (on the 5340) self-labeling keys that can be programmed as speed call keys, fixed function keys, hard keys, applications, or line appearance keys, according to your communication needs On your home page, the bottom right feature key is always your

Prime Line key on a 5340 IP Phone; and the bottom left feature key is always your Prime Line key on the 5330 IP Phone. The top three keys are softkeys.

8) Handsfree

Speaker

Provides sound for Handsfree calls and background music.

9) Handset Use for handset calls. If you are in headset or handsfree mode, you do not need to use the handset.

9

5330/5340 IP Phones – User Guide

Ring/Message indicators

When indicator is it means that

Flashing rapidly

Flashing slowly

On

Off

Your phone is ringing

A message or callback message is waiting at your phone

Your phone is ringing another phone

Your phone is idle, or you are on a call

For Users on Resilient 3300 ICP Systems

If during a call, you hear a beep repeated every 20 seconds it means that your phone is switching to a secondary 3300 ICP system. The call continues and there is a change in the operation of some keys and features on your phone. Normal operation resumes when your phone switches back to the primary system. If your phone is idle and switched to the secondary system, you'll see a flashing rectangle on the display. The rectangle remains until the switch to the primary system is complete.

If the phone fails over to the secondary ICP, you have access to your mailbox on the secondary

ICP only if a mailbox has been programmed for you by your Administrator.

Notes:

• The mailbox on the secondary ICP will not contain the same messages as the mailboxes on the primary ICP. Any preferences that are voice mail related are not carried from the primary ICP to the secondary ICP. These preferences must be set on both ICPs.

• The People and Settings applications do not support resiliency. Your logs, contact information and any Settings on the primary ICP will not be carried from the primary ICP to the secondary ICP.

Mitel Line Interface Module

The Line Interface module is an optional device that adds an analog phone line (POTS) capability to your phone. If Emergency Call Routing is not programmed on your 3300 ICP, you must use the Line Interface Module to dial emergency calls. For more information on emergency number dialing, refer to Emergency Calls. If you have a Line Interface Module connected to your phone, all programming of the Line Interface Module, except the Analog Key, is done by the Installer when your phone is installed. For more information, refer to Programming Features on Your Keys and Using the Line Interface Module .

10

5330/5340 IP Phones – User Guide

TIPS FOR YOUR COMFORT AND SAFETY

Don't cradle the handset!

Prolonged use of the handset can lead to neck, shoulder, or back discomfort, especially if you cradle the handset between your ear and shoulder. If you use your phone a lot, you may find it more comfortable to use a headset. See the section on headset usage elsewhere in this guide for more information.

Protect your hearing

Your phone has a control for adjusting the volume of the handset receiver or headset. Because continuous exposure to loud sounds can contribute to hearing loss, keep the volume at a moderate level.

Adjust the viewing angle

The stand built into your phone tilts to give you a better view of the keys.

To tilt your telephone for better viewing:

1. Turn the phone so that the front faces away from you.

2. Hold the base unit firmly and press the release tabs on the sides of the stand to detach the base unit.

3. Hinge the hooks of the base unit into the notches on the back of the phone and snap into place as follows: a) For a high-angle mount, hinge the two lower hooks into the bottom set of notches and snap the two upper hooks into the middle set of notches. b) For a low-angle mount, hinge the two lower hooks into the middle set of notches and snap the two upper hooks into the top set of notches.

11

5330/5340 IP Phones – User Guide

USING YOUR DEFAULT PHONE WINDOW AND KEYS

The 5340 and 5330 IP Phone default phone windows and keys are shown and described below.

The Phone window provides access to programmable keys and the main phone interface.

Getting Started with Your Phone

When you receive your phone, you need to program features and applications. An Applications key is programmed and appears on the upper left side of the display (see figure below).

Press Applications to program your phone’s settings, your contact list using People (5340 IP

Phone), call forwarding and so forth. See

Using Your Phone Applications

.

5340 and 5330 IP Phone Window

12

5330/5340 IP Phones – User Guide

5340 and 5330 IP Phone Default Window and Keys

Feature Function

1) Softkeys

2) Programmable

Keys

Allow you to access specific call control features, which are context sensitive. Non-programmable feature keys, which are specific to the application or state of the set. The 5330 provides three softkeys and the

5340 provides six softkeys.

Launch specific call control features. Use the Settings application or the PC

Companion application to program these keys. The 5340 provides 16 programmable keys per page (a maximum of 47 programmable keys plus 1 prime line key). The 5330 provides 8 per page (a maximum of 23 programmable keys plus 1 prime line key). For instructions on programming the keys, see Programming Features on Your Keys .

3) Navigation Page

Keys

Display additional pages of information The 5330 has two page navigation keys: Back and Next, while the 5340 has three page navigation keys: Back,

Next, and Home.

4) Status Line Displays time, date, and icons indicating feature states as follows:

Message Waiting (

) - Indicates new voice mail.

Headset (

) - Indicates that the phone is in headset mode.

DND ( ) - Indicates DND (Do not disturb) mode.

Logged in as ( ) - Indicates that a hot desk user is logged in.

Conference Unit ( ) - Indicates that the Conference Unit is connected and turned on.

5) Information Area Provides prompts in most phone applications. Content changes based on the application.

6) Footer Shows context and summary information based on information in the

Programmable Keys area, such as Page Indicators, numbers of items, and so forth.

13

5330/5340 IP Phones – User Guide

USING YOUR PHONE APPLICATIONS

Your 5330 and 5340 IP Phones provide applications that simplify the use of your phone.

Applications provides access to all the phone’s applications.

To open the Applications window, press Applications in the default Phone window. The

Applications home window gives the current status of your phone’s applications.

To open an application, press the key beside the application name:

People (5340 IP Phone only): Use the People application to add, delete and edit contact names and numbers. You can also dial anyone on your contact list from the People application. The People window displays up to eight contacts per page, ordered alphabetically by last name For information on using the People application, refer to

Setting Up Your Contact List and Dial From Your People Application .

Call Forwarding: Use the Call Forwarding application to create Call Forward profiles that identify where to send your incoming calls. The Call Forwarding window shows a list of your Call Forwarding profiles and indicates which one is active. See Call Forward for more information on how to add, edit, delete, and activate Call Forwarding profiles

Conference Unit: Use the Conference Unit application to control the 5310 IP Conference

Unit. Use this application to turn the conference unit off or on, to adjust the volume, or to put the conference unit into Presentation mode. You can only run one Conference

Controller session at a time. The Conference Unit application is available only when your phone is connected to a 5310 Conference Unit. See Using Your Phone with the 5310

Conference Unit for more information.

Settings: Use the Settings application to display and quickly change your phone’s current communications settings. See Using the Settings Application for more information.

Launch PC Application: Provides a launch point to the PC Companion Application. See

Using the PC Companion Application for more information.

Help: Provides access to Launch PC Help and Quick Help and displays a list of the key icons.

Call Info: Use the Call Info application to display caller information on your phone’s prime line. Call Info appears automatically on incoming calls if the Call Notification—

Display Call Info Setting is enabled and Call Info is available

You can press the programmed application key from the default Phone Window. For information on programming keys, see Programming Features On Your Keys .

14

5330/5340 IP Phones – User Guide

Using the Settings Application

The Settings application provides a single location to access all your phone settings. You can also launch the Settings application by pressing the Settings fixed function key .

The Settings window provides access to the Settings application. Select these options to access a window where you can view and configure settings for your phone.

The Settings window provides the following:

User Information: Use to specify your name and phone number.

Languages: Allows you to select the language in which phone prompts and applications appear. Supported languages are English, French, Spanish, German, Dutch, Italian, and

Portuguese. Note: The system can support up to three languages at one time. Language choices appearing in the phone display are controlled by ICP programming.

Text Size: Allows you to specify the font size (large or small) for the 5340 IP Phone.

Programmable Keys: Use to assign features to the Programmable Keys that are available in the Phone application.

Call Notification: Use to specify that the Phone application behaviour when incoming or outgoing calls occur.

Brightness and Contrast: Allows you to adjust the display brightness and contrast of your phone.

Screen Saver: Allows you to specify a specific time of inactivity on your phone that triggers the screen saver to display.

Audio Feedback: This setting allows you to adjust the volume of the audio feedback as well as the error beeps and enable or disable the setting.

External Message: Allows you to program your phone to launch the Phone application when it displays special messages in the Information Display area.

Go To URL: Allows you to enable third party URLs to display in the Web Browser application.

PC Connectivity: Allows you to enter a password that is used by the phone to establish communications with the PC-resident 5330/5340 Companion application.

About 5330/5340 IP Phone: This screen displays the software release.

15

5330/5340 IP Phones – User Guide

Getting Help

To access the 5330/5340 IP Phone help and documentation:

1. Launch the Applications.

2. Press Help. You have the following options:

• Press Launch PC Help to display www.edocs.mitel.com.

• Press Key Icons.

• Press the < and > keys to view Quick Help items.

3. Press Close.

Tips for Setting up your Phone

After you receive your 5330/5340 IP Phone, use the options in the Settings application to customize your phone. After customizing your phone, select Applications to verify the settings are correct. Now, you are ready to begin using your phone.

16

5330/5340 IP Phones – User Guide

CUSTOMIZING YOUR PHONE

Use the Settings application to customize your phone.

Note: The System Administrator can invoke a Lock to Factory default option on a per-phone basis. When this is in effect, the following settings are set by the system administrator and you cannot changed them:

• Programmable Keys

• External Messaging

• Go to URL

Specify User Information

To specify the phone number displayed on your phone:

1. Press Settings or .

2. Press User Information.

3. Press Edit Name.

4. In the on-screen keyboard, press the appropriate letters to spell your name.

5. Press Save.

6. Press Edit Number.

7. In the on-screen keyboard, press the appropriate numbers for your line.

8. Press Save.

9. Press Save again.

Note: Press Cancel at any time to exit this application without making any changes or press

Clear to clear the entered name and number.

17

5330/5340 IP Phones – User Guide

Specify Language

To specify the language in which prompts and applications display:

1. Press Settings or .

2. Press the Language setting.

The phone displays the three language selections that are currently programmed in the

ICP.

3. Select the appropriate language and press Save.

The phone displays your chosen language.

Note: Languages supported on the 5330/5340 may differ from those supported on the ICP. If the phone is configured for an unsupported language, the prompts may appear in your selected language but the Application language for the phone defaults to English. The Language window displays "(name of the selected language)(Unsupported)".

Specify Display Brightness and Contrast

You can adjust the brightness and display contrast either via the phone volume controls (when the phone is idle) or via the Settings application. (On a 5330 IP Phone, you can only adjust the contrast, not the brightness.)

To adjust the display contrast using the volume controls:

• Repeatedly press

(UP) or (DOWN).

Note: You can use this method only when the phone is idle. If the phone is ringing, this action adjusts the ring volume. If the phone is in use, this action adjusts the handset, headset and speakerphone volume.

To adjust the display brightness and contrast using the Settings application:

1. Press Settings or .

2. Press Brightness and Contrast.

3. Press the Brightness and Contrast keys to adjust the brightness and contrast of your screen.

4. Press Save.

Note: Press Cancel at any time to exit this application without making any changes.

18

5330/5340 IP Phones – User Guide

Specify Audio Feedback Options

The error beep volume in the phone is related to the volume of the speaker. You can set the beep volume using this procedure; however, adjusting the speaker volume also affects the beep volume.

To adjust the volume of the audio feedback:

1. Press Settings or .

2. Press Audio Feedback.

3. Set the options using the appropriate actions described below:

Option Action

Turn audio feedback off for Press Turn Off. errors

Adjust audio for error beeps

Press Volume + or Volume –

Turn audio feedback on for Press Play Error Tone errors

4. Click Save.

Note: Press Cancel at any time to exit this application without making any changes.

Specify Text Size

To specify the text size that displays on the phone:

1. Press Settings or .

2. Press Text Size.

3. Select Large Text or Small Text.

4. Press Save.

Note: This setting is available only on the 5340 since the 5330 always uses large text. Large is the default text size on the 5340 IP Phone.

19

5330/5340 IP Phones – User Guide

Specify Call Notification Behavior

To specify that the Phone window automatically displays when you are making or receiving calls:

1. Press Settings or .

2. Press Call Notification.

3. Press the appropriate options to identify when you want the Phone window to display.

For example, if you select the Made option, each time the phone goes off hook to make a call, the Phone window is displayed.

4. Press Save.

Notes:

• When To my prime line is selected, select Display Call Info to display Call Information instead of the Phone window.

• Press Cancel at any time to exit this application without making any changes.

• When the Conference Unit application is displayed, the Phone application is not automatically displayed when making or receiving calls.

Adjust the Ringer

To adjust the Ringer Volume while the phone is idle:

1. Press Superkey (must be programmed to a key).

2. Press the No softkey until "Ringer Adjust?" appears.

3. Press “Ring Adjust”.

4. Press No.

5. Press “Ringer Vol”.

6. Press (UP) or (DOWN) .

7. Press Superkey.

To adjust the Ringer Volume while the phone is ringing:

• Press

(UP) or (DOWN).

20

5330/5340 IP Phones – User Guide

Notes:

• If the phone is in talk state, this action adjusts the volume of the handset, headset or speaker.

• If the phone is idle, this action adjusts the contrast.

To adjust the Ringer Pitch while the phone is idle:

1. Press Superkey (must be programmed to a key).

2. Press the No softkey until "Ringer Adjust?" appears.

3. Press “Ring Adjust”.

4. Press “Ringer Pitch”.

5. Press (UP) or (DOWN).

6. Press Superkey.

Enable a Screen Saver

You can program your screen saver to turn on after a specific time period of inactivity on your phone.

To enable a screen saver:

1. Press Settings or .

2. Press Screen Saver.

3. Select the inactivity time, which will activate the backlight switch to turn off.

4. Press the checkbox opposite Display image if you wish the screen saver to be displayed.

If you do not press this checkbox, only the set backlight is turned on.

5. Use the Brightness options to adjust the Brightness of the screen saver , if necessary.

6. Press Save.

21

5330/5340 IP Phones – User Guide

Program Receipt of External Messaging

You can program your phone to launch the Phone application when it receives messages (other than phone calls).

To program receipt of External message types:

1. Press Settings or .

2. Press External Messages.

3. Press the checkbox Enable.

4. Press Save.

Enable URL Displays on your Phone

To enable third-party URLs to display in the Web Browser application:

1. Press Settings or .

2. Press Go to URL.

3. Press the checkbox Enable.

4. Press Save.

Enable PC Connectivity

To enable a connection to be set up between your phone and the PC Companion Application:

1. Press Settings or .

2. Press PC Connectivity.

3. Press the checkbox Enable.

4. Press Save.

For more information on setting up the PC Companion Application, Configuring the PC

Companion on Your Phone .

22

5330/5340 IP Phones – User Guide

USING THE PC COMPANION APPLICATION

About the PC Companion Application

The PC Companion Application is a PC-based desktop programming tool that allows you to easily program your phone keys and label those keys using your PC. You can also use the PC

Companion Application to program your feature keys to launch phone or PC applications, open

PC documents like a Microsoft Word document, or navigate to a URL directly using your browser.

Configuring the PC Companion Application on Your Phone

Use this procedure to connect your phone to the PC. This procedure is normally required only once. When your PC and phone have successfully associated the first time, your settings are saved and reused for each subsequent connection.

1. Press Settings or , then select PC Connectivity.

The phone's IP Address appears on the display:

IP Address for PC: AAA.BBB.CCC.DDD

2. Record the IP address, if desired, or repeat Step 1 when you need to view the IP address.

3. Still in the PC Connectivity window, select Enable.

4. Select Edit password and enter the password that will be used to set up the association with the PC application. You can also choose to use the default password. Record this password as you will need it to configure the PC application.

5. Proceed to Installing the PC Companion Application below.

Installing the PC Companion Application

Use this procedure to install the PC Companion Application software.

1. Determine the installation directory from which to install the PC Companion Application.

For example, this may be a CD-ROM or a network directory. Contact your System

Administrator if you have any questions.

2. Shut down all other applications before installing the PC Companion Application.

3. From the installation directory, double-click Setup.exe.

4. If there is a previous installation of the PC Companion Application on your PC, the installer indicates that you should remove it first. Use the Add or Remove Programs in

Control Panel, and scroll to Mitel 5330 5340 PC Companion Application, select it, and click on Remove. When this is completed, double click Setup.exe again.

5. Follow the instructions in the installation program.

23

5330/5340 IP Phones – User Guide

6. To launch the PC Companion Application, click the Windows Start menu and navigate to

Mitel -> Mitel 5330 5340 PC Companion Application.

7. In the PC Companion application, do the following: a) Select PC Connectivity from the menu on the left. b) Enter the IP Address field you recorded in Step 2 in Configuring the PC Companion on Your Phone .

c) Enter the password you selected in Step 4 in Configuring the PC Companionon Your

Phone or use the default password.

8. Click Connect.

The PC Companion Application connects with the 5330/5340 IP phone.

Notes:

• The PC Companion application is started every time you log in or your PC is restarted.

• If your PC Companion Application is not connecting to your phone (for example, if your programmed feature Keys are disabled or you receive an error message upon start-up), contact your administrator.

• To ensure that the PC Companion Application displays properly, verify that your screen meets the minimum VGA screen requirements documented in the Installation Guide.

Opening the PC Companion Application

You can open the PC Companion Application in one of the following ways:

• Double-click the Tool tray icon (

) or desktop shortcut icon ( ).

• Select your Windows Start menu, select Programs, then Mitel, then PC Companion

Application.

• From your phone’s default Phone window, press Applications, then press Launch PC

Application.

• Press the PC App programmed feature key (if available) from your phone’s default

Phone window.

24

5330/5340 IP Phones – User Guide

Programming Feature Keys Using the PC Companion Application

1. Select Programmable Keys from the menu, and then click the desired key.

2. Program a phone feature, phone applications, or PC application:

To program a Phone Feature:

• Select Telephone Feature from the Feature list.

• Select the desired feature and then enter the required information in the fields provided.

To program a Phone Application:

• Select the application from the Feature list.

To program a PC Application:

• Select the desired PC application from the Feature list and then enter the required information in the fields provided.

3. Click Save.

Notes:

• To program a Call Forwarding feature key, you must use the Call Forwarding application. See Call Forward for programming instructions.

• In the Programmable Keys dialog, select Clear this Key if you make a mistake or if you wish to start over (that is, clear all entered data) when programming a key.

• If your administrator has programmed the keys using an external program, then you may not be able to modify the key programming. If the Clear option is not available on the pop-up menu when you right-click a key, or if the Save button is disabled in the

Programmable Keys dialog, contact your administrator to see if you have the option to program your keys.

• To ensure that the Open URL feature key launches in a new window (instead of launching in an already open window), you may need to configure your Internet browser settings not to reuse open browser windows. For example, in Microsoft Internet Explorer, you select Tools followed by Internet Options, click the Advanced tab, and then ensure that the Reuse windows for launching shortcuts option is not selected. Refer to your browser help files for detailed procedures.

25

5330/5340 IP Phones – User Guide

Clearing, Editing or Copying Key Programming

1. Select Programmable Keys from the menu.

2. Right-click the key you want to clear, edit, or copy.

3. Do one of the following:

• Select Clear. Re-program the key, if desired.

• Select Edit…, reprogram the key as desired, and then click Save.

• Select Copy, right-click the key you wish to paste programming information to, and then select Paste.

Note: You must enter a new label when changing key programming. If you do not enter a new label, the Label field displays the label that applied to the previous programmed key.

26

5330/5340 IP Phones – User Guide

PROGRAMING FEATURES ON YOUR KEYS

Tips on Programming Features

You can program your phone's programmable keys to enable features. To program your keys, use:

Settings application.

Settings key

.

• PC Companion application.

You can assign the following to a programmable Key:

• Features and Fixed function keys: see

Program Feature Keys Using the Setting

Application .

• Applications: People, Settings, Call Forwarding, Conference Unit (see

Program Phone

Application )

Notes:

• Use the Settings application whenever possible to program keys. Do not use the programmable Superkey to program Programmable Keys that can be programmed through the Settings applications.

• Only the System Administrator can program line select and line appearance keys. The user’s Prime line by default is Key 1.

Features available for programming on programmable keys

Feature

Speed Call

Default Label

Speed Call

Music Music

Night Answer

Account Code Verified

Account Code Non-Verified

Night Ans

Acct Verified

Acct Non-Ver

Hot Desking Hot Desk

Phonebook Phonebook

[email protected][email protected]

ACD ACD

27

5330/5340 IP Phones – User Guide

Feature Default Label

Auto Answer Auto Ans

Paging Paging

Call Pickup Call Pickup

Call Back Call Back

Headset Headset

Make Busy Make Busy

Campon Campon

Override Override

Direct Page

Do Not Disturb

Page

DND

Single Flash

Double Flash

Meet Me Answer

Message Waiting Indicator

Emergency Call

Tag Call

Flash

Dbl Flash

Meet Me

Msg Waiting

Emergency

Tag Call

Privacy Release Privacy Rls

Swap Swap

Release Release

Call History Call Hist

Call Park

Call Park Retrieve

Group Listen

Call Park

Park Retrieve

Grp Listen

Superkey Superkey

Redial Redial

Speaker Speaker

28

5330/5340 IP Phones – User Guide

Feature Default Label

Message Message

Hold Hold

Transfer/Conference Trans/Conf

Cancel Cancel

Analog Line Analog Line

Applications available for programming on programmable keys

Application Default Label

Applications List Applications

People People

Call Forwarding Forwarding

Conference Unit Conf Unit

Launch PC Application PC App

Help Help

Settings Settings

Call Info Call Info

29

5330/5340 IP Phones – User Guide

Program Feature Keys Using the Settings Application

To program a Phone Feature or hard key:

1. Press Settings or .

2. Press Programmable Keys.

3. Press the key you wish to program.

4. Press View Features.

5. Use the Page Navigation keys to move through the features list.

6. Select the desired feature or fixed function key from the list. A default label is automatically assigned to the key.

7. Enter the required information in the fields provided, if necessary.

8. If you are programming any feature other than Message Waiting Indicator and Call Park and Call Park Retrieve, press Save and you are finished with this procedure. If you are programming Message Waiting Indicator and or Call Park, perform the following steps:

• Press the Edit Number field.

• In the on-screen keyboard, enter the appropriate numbers that correspond to the phone whose messages you wish to be notified of. (Message Waiting) or the directory number (Call Park).

• Press Save.

9. Press Close.

To program a Phone Application:

1. Press Settings or .

2. Press Programmable Keys.

3. Press the key you wish to program.

4. Press View Applications.

5. Select the desired application.

6. Press Save.

7. Press Close.

30

5330/5340 IP Phones – User Guide

To program Speed Call:

1. Press Settings or .

2. Press Programmable Keys.

3. Press the key you wish to program. If it’s already programmed, press Clear Key.

4. Press Speed Call.

5. Press Edit Label and enter the label for the Speed Call.

6. Press Save.

7. Press Edit Number and enter the phone number for the Speed Call:

- The maximum length is 26 characters.

- 0-9, # and *. Pause and Flash are not allowed.

- The hard dialpad cannot be used to enter the number.

8. Press Save, and then press Save again.

9. Press Close.

Notes:

• To return to the Feature or Applications list at any time, press Cancel or the

Applications key.

• You can also choose to Edit the Label, Clear Information, and Clear Key.

Clear Programming from a Key

You may wish to clear the programming from a key if you are no longer using it.

To clear the feature or application programming from a key:

1. Press Settings or .

2. Press Programmable Keys.

3. Press the key you wish to clear.

4. Press Clear Key.

Either press Cancel or reprogram the key.

31

5330/5340 IP Phones – User Guide

SETTING UP YOUR CONTACT LIST (5340 ONLY)

Use the People application to set up your contact list.

Adding names to your contact list

You can add a name to your contact list by entering it directly using the People application or by copying a number from the Call Info window. Since a contact’s phone number is mandatory and its name is optional, you are prompted to enter the number first.

To add a name to your contact list using the People application:

1. Open the People application.

2. Press New.

3. Enter the number.

4. Press Save. The First Name window appears.

5. Press the appropriate letters to spell the first name of your contact.

6. Press Save.

7. Press Close.

Editing information in your contact list

1. Open the People application.

2. Press the name you wish to edit.

Note: If you wish to delete the name from your contact list, press Delete.

3. Press Edit Name.

4. In the on-screen keyboard, update the appropriate information.

5. Press Save.

6. Press Edit Number.

7. In the on-screen keyboard, update the appropriate information.

8. Press Save followed by Close.

32

5330/5340 IP Phones – User Guide

MAKING AND ANSWERING CALLS

You can make a call using one of the following methods:

• Dial a number from the People application (for the 5340 IP Phone only).

• Press the programmed key associated with the party you want to call. For more information about programming keys, see Programming Features On Your Keys .

• Dial the number using the dialpad.

• Use Phone Book (see

Phone Book below).

Dial from your People Application (5340 IP Phone only)

To dial a contact from your People list:

1. Open the People application.

2. Use the navigation keys to page through the contact list and select the name.

3. Dial the contact name using one of the following methods:

• Select a contact name and press Dial.

• Press the key to the right of the contact’s dial icon in the main list. (The contact name does not need to be selected.)

4. Continue the call using the speakerphone or lift the handset.

Phone Book

To use Phone Book:

1. Press Phone Book (if available) or the key programmed as Phone Book.

2. Enter the name of the desired party, as follows:

• For each letter in the name, press the appropriate key on the keypad until the letter is shown in the display. For example, if the letter C is required, press the digit 2 three times.

• Use the <— softkey to correct errors.

• If the next letter in the name is on the same digit key as the previous letter, press the —> softkey before proceeding.

• If required, press —> softkey to add a space between the first and last name.

3. Press the Lookup softkey.

4. If no match exists, edit the original entry.

33

5330/5340 IP Phones – User Guide

5. If more than one match is found, press the Next softkey.

6. Do one of the following:

• To make the call, press the Call softkey.

• To edit the entry, press the Backup softkey.

• To exit, press Cancel or Superkey.

Answer a call

Do one of the following:

• Select the programmable line key for the ringing line that is flashing.

• Lift the handset or press (SPEAKER).

End a call

Do one of the following:

• Press Hang Up or Cancel (

).

• Replace the handset.

• Press the key that you have programmed as Cancel.

• If you are in Handsfree mode, press (SPEAKER).

Redial

To redial the last number that you manually dialed:

1. Lift the handset (optional).

2. Press (REDIAL).

Redial - Saved Number

To save the last number that you manually dialed:

1. Lift the handset.

2. Dial the appropriate feature access code.

To Redial a saved number:

1. Lift the handset.

2. Dial the appropriate feature access code.

34

5330/5340 IP Phones – User Guide

Handsfree Operation

To use Handsfree to make a call:

1. If you want to use a Non–Prime Line, press a Line Appearance key.

Note: Your administrator must program Line Appearances to your phone.

2. Dial the number.

3. Begin speaking when the called party answers. Your phone's Handsfree microphone and

Handsfree speaker transmit and receive audio.

To use Handsfree operation to answer calls:

1. Press the flashing line key.

2. Begin speaking. Your phone's Handsfree microphone and Handsfree speaker transmit and receive audio.

To hang up while using Handsfree operation:

• Press

(SPEAKER).

To turn Mute on during Handsfree operation:

• Press (MUTE). The Mute key light turns ON.

To turn Mute off and return to conversation:

• Press (MUTE). The Mute key light turns OFF.

To disable Handsfree operation:

• Lift the handset.

To return to Handsfree operation:

1. Press (SPEAKER).

2. Hang up the handset.

35

5330/5340 IP Phones – User Guide

Auto-Answer

When the Auto-Answer feature is active, incoming calls ring briefly, and then the phone answers the call in Handsfree mode. You can continue the call handsfree or use the handset.

To enable or disable Auto-Answer:

• Press Auto-Answer key. (See

Programming Features on Your Keys for instructions on programming features on your phone.) The key is highlighted and all incoming calls are answered in Handsfree mode.

To switch from Handsfree mode to handset mode:

1. Lift the handset

To end a call, do one of the following:

• Press

(Cancel)

• Press the Hang Up softkey.

• Wait for the caller to hang up.

Using the Analog line

The phone can support the Line Interface Module. See Using the Line Interface Module for more information.

36

5330/5340 IP Phones – User Guide

CALL HANDLING

Hold

To place a call on Hold:

• Press

(HOLD).

• Press the key that you have programmed as Hold. The indicator flashes on the line that has the held call.

Note: You can only retrieve a call from hold when the phone is idle.

To retrieve a call from Hold, do one of the following:

• Lift the handset and press the flashing line.

• Press the flashing indicator.

• Use the Add Held feature to conference into the held call.

To retrieve a call from Hold at another phone, do one of the following:

• Press the flashing line key.

• Dial the appropriate feature access code and the number of the station that placed the call on Hold.

Mute

Mute lets you temporarily turn your phone's handset, headset or handsfree microphone off during a call.

To turn Mute on during a call:

• Press (MUTE). The (MUTE) light turns ON.

To turn Mute off and return to the conversation:

• Press (MUTE). The (MUTE) light turns OFF.

Note: If you are on a Handsfree MUTED call and you lift the handset, the handset microphone is automatically enabled and the MUTE light turns OFF.

NOTE FOR USERS ON RESILIENT 3300 ICP SYSTEMS: If your phone switches to the secondary system while your speaker or handset is muted (that is, while the Mute key is lit) the call remains muted until you hang up.

37

5330/5340 IP Phones – User Guide

Transfer

To Transfer an active call:

1. Press (TRANS/CONF).

2. Dial the number of the third party.

3. Do one of the following:

• To complete the Transfer, hang up.

• To announce the Transfer, wait for an answer, consult, and hang up.

• To cancel the Transfer, press (CANCEL).

To transfer an active call during headset operation:

1. Press (TRANS/CONF).

2. Dial the number of the third party.

3. To complete the Transfer, press the Release feature key.

Conference

To form a Conference when a two–party call is already in place, or to add another party to an existing Conference:

1. Press (TRANS/CONF).

2. Dial the number of the next party.

3. Wait for an answer.

4. Press (TRANS/CONF).

To leave a Conference:

• Hang up or press (CANCEL).

Conference Split

To Split a Conference and speak privately with the original party:

• Press the Split softkey.

38

5330/5340 IP Phones – User Guide

Add Held

To move a call on hold to another line appearance:

1. Press an available line key.

2. Press the AddHeld softkey.

3. Press the flashing line key.

To add a call on Hold to an existing conversation or conference:

1. Press the AddHeld softkey.

2. Press the flashing line key.

Swap

To call another party when you are in an established two–party call:

1. Press (TRANS/CONF).

2. Dial the number.

To alternate between the two parties:

• Press the Trade Calls softkey.

Call Forwarding

Call Forward lets you redirect incoming calls to an alternate number when your phone is busy, when you're not answering, or all the time.

PROGRAM CALL FORWARD

You can create Call Forward profiles that identify where to send your incoming calls. Once you create and save a Call Forward profile, in the Call Forwarding application, you can enable or disable it at any time.

Notes:

• The None Profile is a default profile provided by the system. It has no numbers programmed and is used to turn off Call Forwarding.

• The default profile appears when the Call Forwarding set up does not match any of your profiles.

• Only one call profile can be active at a time.

• The dotted radio button icon next to the profile shows the current active profile.

39

5330/5340 IP Phones – User Guide

To create a Call Forward profile:

1. Launch Applications.

2. Press Call Forwarding.

3. Press New Profile.

4. Press Edit Profile Name. An on-screen keyboard displays.

5. Press the appropriate keys in the on-screen keyboard to enter the profile name and press

Save. This profile name identifies where your phone calls will be forwarded to.

6. Select the check boxes opposite Call Forward categories as follows:

Always: forwards all your phone calls

Busy Internal: forwards internal phone calls after several rings if your line is busy

Busy External: forwards external phone calls after several rings if your line is busy

No Answer Int: forwards internal phone calls redirects your calls after several rings if you don't answer

No Answer Ext: forwards external phone calls redirects your calls after several rings if you don't answer

Note: You can select one or more settings, however, the Always setting takes priority over all other settings.

7. For each of the Call Forward categories:

• Press Edit Number to display the on-screen keyboard.

• In the on-screen keyboard, enter the appropriate number.

• Press Save.

8. Press Save. The edit window closes. This profile is saved but it is not activated. To activate this profile, see Activate Call Forward below.

Note: Press Cancel at any time to exit this application without making any changes.

40

ACTIVATE CALL FORWARD

To turn Call Forward on once it has been programmed:

1. Press Applications.

2. Press Call Forwarding.

3. Press the appropriate Profile setting.

4. Press Activate.

CANCEL CALL FORWARD

To cancel Call Forward:

1. Press Applications.

2. Press Call Forwarding.

3. Press None setting.

4. Press Activate.

5330/5340 IP Phones – User Guide

41

5330/5340 IP Phones – User Guide

USING OTHER FEATURES

Account Codes

An account code is a series of digits that you assign to your calls, usually for accounting purposes. The code identifies the account in the call records that your system generates. A forced account code is usually entered from another extension, enabling you to use features or make calls that the extension otherwise could not. If you want this feature enabled on your phone, ask your System Administrator.

To use Account Codes:

1. Lift the handset.

2. Dial the Account Code digits.

3. Press #.

To enter an Account Code during a call:

1. Press Superkey (must be programmed to a key).

2. Select Account Code.

3. Dial the Account Code digits.

4. Press the Save softkey.

5. Do one of the following:

• For a verified account code, press the Yes key.

• For a non-verified account code, press the No key.

ACD

If your phone is ACD-enabled, you can log in as an agent. When there is no agent logged onto an

ACD-enabled set, LOGGED OUT is displayed.

To log in as an ACD agent:

1. Lift the handset.

2. Press Superkey.

3. Press Yes.

4. Enter your Agent ID, using the key pad.

5. Press Enter.

The text, LOGGED OUT disappears.

42

5330/5340 IP Phones – User Guide

Attendant Call Hold - Remote Retrieve

To retrieve a call placed on Hold by the attendant:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Dial the digits announced by the attendant.

Callback

The Callback feature allows you to be notified when a busy phone becomes free or when a phone has been used after a no-answer condition was encountered.

To request a Callback when you reach a busy or unanswered station:

1. Press Call Me Back.

2. Hang up.

When the party is available, your phone starts ringing, and the display shows the Callback ringing indicator.

To answer a Callback:

• When you see the Callback ringing indicator, lift the handset.

Call Forward - Remote (I'm Here)

To forward calls from a remote station to your current location:

1. Press SuperKey (must be programmed to a key).

2. Press the No softkey until "Call Forwarding?" appears.

3. Press the Forwarding softkey.

4. Press the Next softkey until "I Am Here" appears.

5. Press the To Me softkey.

6. Dial the extension of the remote station.

If you make an error while dialing, use the <— softkey to backspace and correct the number.

7. Press (DOWN) or the Save softkey.

43

5330/5340 IP Phones – User Guide

To cancel Call Forward – Remote from the station that set the remote forwarding:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Dial the extension of the remote station.

4. Hang up.

To cancel Call Forward – Remote from the station that was forwarded:

1. Press SuperKey (must be programmed to a key).

2. Press the No softkey until "Call Forwarding?" appears.

3. Press the Forwarding softkey.

4. Press the Review softkey.

5. Press the Change Key softkey.

6. Press the Turn FWD Off softkey.

7. Press SuperKey (must be programmed to a key).

Call Forward - End Chaining

To ensure that calls do not get forwarded again by the destination number:

1. Lift the handset.

2. Dial 64.

3. Hang up.

To again allow calls to be forwarded by the destination number:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Hang up.

Call Forward - Forced

To force an incoming call to be forwarded:

• Press the Forward softkey.

44

5330/5340 IP Phones – User Guide

Call Forward - Override

To override Call Forward and ring a station:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Dial the extension number.

Call History

Call History keeps track of the names (if available) and telephone numbers of missed calls, answered incoming external calls, and outgoing external calls. Once enabled on your phone by your system administrator, it functions automatically.

To display the call history, and view call detail:

1. Press the Call History feature key. The total number of missed calls is displayed in brackets (), the number of new missed calls is indicated with a *.

2. To browse though the list of missed calls, press the Yes softkey, followed by the

(UP) and (DOWN) keys to scroll through the list.

To view answered or outgoing calls, press the No softkey (once for Answered, twice for

Outgoing), followed by the (UP) and (DOWN) keys to scroll through the list.

3. To view the number of the call, press the Details softkey.

To return a call:

1. Display the call you want to return.

2. Do one of the following:

• If the call is internal, and the caller name is known, press the Call sofkkey. For unknown numbers, the Call option is not displayed.

• If the call is external, and you normally need to precede external calls with a digit such as 9, it is likely that your system administrator has programmed your system to insert the 9 for you. In this case, pressing the Call softkey initiates the call immediately. Sometimes the system will be unable to complete the dialing automatically. When this happens, you can edit the dialed digits manually by pressing the <— (Clear) softkey. Use the <— (Clear) softkey to delete the leftmost digit, and then type the digits to insert them. When you have the dial string edited to suit your needs, press the Call softkey to dial the number.

To delete all missed, answered, or outgoing call logs:

1. After selecting the type of logs you wish to delete, press the Delete All softkey.

2. Confirm that you do want to delete all items by pressing the Yes softkey.

45

5330/5340 IP Phones – User Guide

To delete a particular call from the call log:

• With the call log that you want to delete displayed, press Yes twice or press the Delete softkey.

Call Park

The Call Park feature allows you to place a call in a special hold state. You, or someone else, can then retrieve the call from any extension in the system.

After parking the call, the system can automatically connect you to paging equipment so that you can announce the call to the requested party.

To park an active call:

1. Do one of the following:

• Press the Call Park feature key (must be programmed)

• Press

(TRANS/CONF), and then dial the appropriate feature access code.

The display shows [email protected], followed by the park destination and parking spot index (if applicable). Example: [email protected] 1234 @ 02.

2. Dial the directory number on which to park the call (not required if the number is programmed to the Call Park feature key).

3. To inform a user that a parked call is waiting, do one of the following:

• If automatic paging is enabled, announce the call and the park retrieve digits shown on the display.

• If automatic paging is disabled, press the programmed Page key, or dial the appropriate feature access code, followed by the Paging zone number (if required). Then, announce the call and park retrieve digits shown on the display.

Note: Paging over a loudspeaker is not permitted in handsfree mode; you must use the handset or headset.

To retrieve a parked call:

1. Do one of the following:

• Dial the appropriate feature access code.

• Press the Call Park - Retrieve feature key (must be programmed).

2. Dial the directory number on which the call is parked (not required if the number is programmed to the Call Park feature key).

3. If there are multiple calls parked on the number, dial the two-digit index number to retrieve a specific call, or # to retrieve the longest parked call.

46

5330/5340 IP Phones – User Guide

Call Pickup

To answer a call that is ringing at another extension in your Pickup Group:

1. Lift the handset.

2. Press the key that you programmed as Pickup.

To answer a call that is ringing at another extension not in your Pickup Group:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Dial the number of the ringing station.

Campon

When you get a busy tone, you can use the Campon feature to be notified when the busy party becomes available.

To Campon to a busy station:

• Press the I Will Wait softkey.

To retrieve a call when you hear the Campon tone:

• You can use the Trade Call or Call Swap feature with the hardkey or a programmable line key.

(TRANS/CONF)

Direct Paging

Direct Paging allows you to page a party through the party’s handsfree speaker. If the paged party has Off-Hook Voice Announce enabled, the page will be heard even when the party is on a handset or headset call. If the paged party has Handsfree Answerback enabled and turned on on the phone, your page automatically establishes a handsfree call with the paged party.

To page a party:

1. Lift the handset.

2. Press the Direct Paging feature key or dial the appropriate feature access code.

3. Dial the extension number.

4. Speak to the dialed party after the tone.

How you answer a Direct Page depends on whether Handsfree Answerback is enabled and turned on at your phone. See one of the following procedures in this guide:

• Direct Paging - Handsfree Answerback Enabled

• Direct Paging - Handsfree Answerback Disabled

47

5330/5340 IP Phones – User Guide

Direct Paging - Handsfree Answerback Enabled

When you receive a Direct Page, Handsfree Answerback automatically establishes a Handsfree call on your phone after a single burst of tone.

Your administrator enables or disables Handsfree Answerback on your phone. After your administrator enables Handsfree Answerback, you can choose to turn it on or off directly from your phone.

To turn Handsfree Answerback on:

• When your phone is idle, press (MUTE) once. The MUTE key light flashes to indicate that Handsfree Answerback is ON.

• When a Direct Page arrives, the MUTE key light turns OFF and a Handsfree call is automatically established.

To turn Handsfree Answerback off:

• Press the flashing (MUTE) key once. The MUTE key light turns OFF.

• To respond to a Direct Page when Handsfree Answerback is OFF, see "Direct Page -

Handsfree Answerback Disabled" elsewhere in this guide.

Note: By default, Handsfree Answerback is turned OFF at your phone. If the (MUTE) key is

OFF when your set is idle, Handsfree Answerback is OFF.

48

5330/5340 IP Phones – User Guide

To answer a call using Handsfree Answerback:

Phone state before Page arrives To answer the Direct Page

Phone is idle and MUTE is flashing

1. Check that MUTE is OFF.

2. Listen for the paging party.

You are on a handset or headset call, and MUTE is OFF

3. Begin speaking.

4. Lift the handset if you wish to switch from a Handsfree call to a handset call.

1. Check that MUTE is flashing.

2. Press MUTE. The light turns ON solid, and you are now speaking to the paging party and have muted your handset/headset call.

3. Speak to the paging party. Press MUTE to alternate between handset/headset and handsfree calls.

You are on a MUTED handset/headset call, OR, you are on a Handsfree call

The party paging you receives a busy tone. Handsfree

Answerback does not interrupt your call.

To end a Handsfree Answerback call:

• Press either

(SPEAKER) or (CANCEL).

When the Handsfree Direct Page call ends, the MUTE key light returns to the state it was in before the call was established.

49

5330/5340 IP Phones – User Guide

Direct Paging - Handsfree Answerback Disabled

Your administrator enables or disables Handsfree Answerback and you can also turn it on or off on your phone. To turn Handsfree Answerback off, see "Direct Paging - Handsfree Answerback

Enabled" elsewhere in this guide. When Handsfree Answerback is disabled on your phone and you receive a Direct Page, the Direct Page is indicated by a single burst of tone.

To answer Direct Page calls when Handsfree Answerback is disabled:

Phone state before Page arrives: To answer the Direct Page

(indicated by single burst of tone):

Phone is idle and MUTE is OFF. 1. Check that MUTE is ON solid.

You are on a handset call or headset call, and MUTE is OFF

2. Lift the handset OR press MUTE key to answer in

Handsfree mode. (The light turns OFF.)

3. Begin speaking.

1. Check that MUTE is flashing.

2. Press MUTE. The light turns ON solid and and you are now speaking to the paging party and have MUTED your handset/headset call.

3. Speak to the paging party. Press MUTE to alternate between handset and handsfree calls.

You are on a MUTED handset/headset call, OR, you are on a Handsfree call

The party paging you receives a busy tone. Handsfree

Answerback does not interrupt your call.

To end a Direct Page call, do one of the following:

• Hang up the handset to end a handset call.

• Press

(SPEAKER) to end a Handsfree call.

• Press (CANCEL).

When the Handsfree Direct Page call ends, the (MUTE) key light returns to the state it was in before the call was established.

50

5330/5340 IP Phones – User Guide

Do Not Disturb

When you enable Do Not Disturb, callers will get a busy tone, and an on-screen text message indicating that you do not wish to be disturbed.

To activate or deactivate Do Not Disturb:

• Press the Do Not Disturb key that you programmed. The key is highlighted when Do Not

Disturb is activated and is not highlighted when Do Not Disturb is not activated. The phone status line shows the Do Not Disturb icon

.

To activate Do Not Disturb from a remote extension:

1. Lift handset.

2. Dial the number of the station to which Do Not Disturb is to apply.

3. Hang up.

To deactivate Do Not Disturb from a remote station:

1. Lift handset.

2. Dial the appropriate feature access code.

3. Dial the number of the station with Do Not Disturb activated.

4. Hang up.

Emergency Calls

Warning for emergency number dialing: Consult your local authorities for Emergency

Numbers and 911 or equivalent service availability in your area.

There are two methods of dialing emergency numbers, based on the programming of your 3300

ICP:

• Emergency Call Routing NOT programmed

• Emergency Call Routing programmed

Caution: Verify with your System Administrator which type of emergency number dialing you can use.

51

5330/5340 IP Phones – User Guide

EMERGENCY CALLS WHEN EMERGENCY CALL ROUTING NOT PROGRAMMED

If Emergency Call Routing is NOT programmed, Emergency Number dialing should only be performed by picking up the handset and selecting the Analog Line key you have programmed. If Privacy Mode is enabled and the Analog Line key local line is busy, dialing

will not occur on the Line Interface Module line. Emergency dialing using an IP connection may not be supported due to ICP system configuration and country location. For more information, contact your System Administrator.

To make an Emergency Call using the Line Interface Module line:

1. Lift the handset.

2. Press the Analog Line key that you have programmed.

The set indicates ANALOG CALL

3. Dial your Local Emergency Number.

To make an Emergency Call using the Line Interface Module line, when the IP connection has failed:

1. Lift the handset.

2. Press the Analog Line key that you have programmed.

The set indicates IP FAIL: ANALOG CALL.

3. Dial your Local Emergency Number.

EMERGENCY CALLS WHEN EMERGENCY CALL ROUTING PROGRAMMED

Note: This procedure is in addition to the methods described above.

To make an Emergency Call if Emergency Call Routing is programmed:

1. Lift the handset.

2. Dial your Local Emergency Number (911 or equivalent).

For more information on using the Line Interface Module line, refer to Using the Line Interface

Module.

52

5330/5340 IP Phones – User Guide

Group Listen

With Group Listen, you can carry on a conversation using the handset or headset while allowing others nearby to listen to the person at the far end over the handsfree speaker. The handsfree microphone is disabled in Group Listen mode.

To activate Group Listen while in a handset conversation:

• Press the Group Listen key.

Audio from the far-end party is now heard through both the handset/headset and the speaker.

To make the call a normal two-way speaker call:

• Press

(SPEAKER).

To exit Group Listen mode (and return to a normal handset/headset call):

• Press the Group Listen key.

To activate or deactivate Group Listen while in headset mode:

• Press the Group Listen key.

Group Paging / Meet Me Answer

Group Paging allows you to page a group of telephones through their built-in speakers. You can belong to as many as three paging groups with one group designated as your "prime" group.

When you need to respond to a Group Page but don't know the identity or extension number of the paging party, use the Meet Me Answer feature. You have up to 15 minutes after receiving the page to use Meet Me Answer.

To make a Group Page:

1. Lift the handset.

2. Press Direct Page or dial the appropriate feature access code.

3. Do one of the following:

• To page your prime page group, press #.

• To page a specific page group, dial the page group directory number.

4. Speak to the dialed party after the tone.

53

5330/5340 IP Phones – User Guide

To respond to a Group Page by using Meet Me Answer:

1. Lift handset.

2. Press the key you have programmed to Meet Me Answer or dial the appropriate feature access code.

(See Programming Features on Your Phone for instructions on programming features to your phone.)

3. Do one of the following:

• To respond to a page from your prime page group, press #.

• To respond to a page from a specific page group, dial the page group directory number.

Headset Operation

To enable Headset Operation:

• Press the Headset feature key.

To answer a call (when Auto Answer is disabled):

• Press the flashing line key.

To answer call (when Call Notification is enabled)

• Select Close and then select the prime line.

To hang up:

• Press (CANCEL).

To mute your headset microphone:

• Press the (MUTE) key. The light turns ON.

To turn mute off and return to the conversation:

• Press the (MUTE) key. The light turns OFF.

54

5330/5340 IP Phones – User Guide

Hot Desking

Hot Desking allows you to log into the telephone system from any phone designated as a Hot

Desk phone. When you log in at the phone using your assigned Hot Desk User Extension

Number, the phone assumes all your speed dials, features keys, call forwarding setup, and line appearances - even your language preference for the display. Any changes you make to the phone while you are logged in--for example, adding a speed dial--are saved to your personal profile. Logging in activates your profile on any phone that supports Hot Desking.

When you log in as a hot desk user, Call History data is updated for you. You do not see any call logs for the phones registered DN; you only see your history data. When you log out, the registered DNs history data is displayed. To access your voice mail when you are logged in as a hot desk user, you must log in to your voice mail.

To log into a Hot Desking phone (the phone must be idle):

1. Press the key you have programmed to HotDesking.

2. Press the Login key.

3. Using the phone keys, enter your Hot Desk User Extension Number, and then press OK.

4. Enter your pin number and press OK.

While logged in as a hot desk user, the phone status line shows the Hot Desk icon.

To log out of Hot Desking phone (the phone must be idle):

1. Press the key you have programmed to HotDesking.

2. Press the Logout command key.

3. Press the Confirm command key.

Note: Your profile can only be active on one phone at a time. If you log in from another phone without logging out from the first one, the system will automatically deactivate your profile on the first phone.

Hot Desk Remote Logout

A user who has forgotten to log out of a Hot Desking phone can be logged out from a phone that is configured to allow Hot Desk Remote Logout.

Note: This feature must be allowed by your System Administrator via the Class of Service.

To remotely log out a Hot Desking phone:

1. Dial 111.

2. Dial the Hot Desk User Extension Number that you want to log out.

55

5330/5340 IP Phones – User Guide

3. Press the Logout command key.

4. Press the Confirm command key.

Hot Desk - PIN Change

To change your Hot Desk PIN:

1. Log into a Hot Desking phone.

2. Press Superkey (must be programmed to a key).

3. Press the HotDesk PIN softkey.

4. Press the Yes softkey.

5. Enter the current PIN or skip to step 6 if a PIN has not yet been assigned.

6. Press the Enter softkey.

7. Enter the new PIN.

The PIN can include digits from 0 to 9 only and can be from 0 to 8 characters in length.

8. Press the Enter softkey.

9. Re-enter the new PIN.

10. Press Superkey.

Make Busy

You can use the Make Busy feature to have your phone appear busy to other callers. If callers dial your phone number when Make Busy is enabled a message indicating that your line is busy is displayed on their phones.

To enable Make Busy:

• Press the key you programmed to Make Busy. The key illuminates when Make Busy is activated and MAKE BUSY is displayed.

To disable Make Busy:

• Press the key you programmed to Make Busy.

56

5330/5340 IP Phones – User Guide

Message Waiting Indicator

The Message Waiting Indicator (MWI) feature allows you to be notified when messages have been left on another phone. Once you have programmed a key to MWI, this key is always enabled.

To use MWI to contact the extension that left a message:

• Press the key you have programmed to MWI.

Messaging - Advisory

Advisory Messaging enables you to select a notice that appears on your phone display to inform people visiting your desk of your whereabouts. Select from a variety of advisory messages, including "On vacation", "In a meeting", or "Out to Lunch".

To turn Messaging - Advisory on:

1. Press Superkey (must be programmed to a key).

2. If necessary, press the No softkey until "Advisory Msgs” appears.

3. Press the Advisory softkey.

4. Press the Next softkey until the desired message appears.

5. Press the Turn Msg On softkey.

To turn Messaging - Advisory off:

1. Press Superkey (must be programmed to a key).

2. If necessary, press the No softkey until "Advisory Msgs" appears. .

3. Press the Yes softkey when "Advisory appears.

4. Press the Turn Msg Off softkey .

Messaging - Callback

To leave a Callback Message when you hear busy or ringback tone:

• Press

(MESSAGE) or press the Callback softkey.

To respond to a message waiting condition on your phone:

1. Press (MESSAGE).

2. If a password is required, dial your password (and press the Enter softkey if available).

57

5330/5340 IP Phones – User Guide

3. Press the Read Message softkey, and do one or all of the following:

• To display the time the message was sent, press the More Msg softkey.

• To display the number of the caller, press the More Msg softkey twice.

• To call the message sender, press the Call softkey.

• To delete the message, press the Erase Msg softkey.

• To view the next message, press

(MESSAGE).

You can check for messages from a remote station:

1. Press Superkey (must be programmed to a key).

2. Press the No softkey until "Remote Msging?" appears.

3. Press the Yes softkey.

4. Dial your extension number.

5. Press the Enter softkey.

6. If a password is required, enter your password and press the Enter softkey.

7. Press the Yes softkey.

You can set, change, or clear a password (up to 7 digits, not including 0):

1. Press Superkey (must be programmed to a key).

2. Press the No softkey until "Set Password?" appears.

3. Press the Yes softkey.

4. Do one of the following:

• To enter a new password, enter your password.

• To change or clear your password, enter your current password.

5. Press the Enter softkey.

6. To change or clear your password, do one of the following:

• To change your password, enter your new password and press the Enter softkey.

• To clear your password, enter 0.

7. Enter your new password again.

8. If you are setting up or changing a password, press the Enter softkey.

9. Press Superkey (must be programmed to a key).

58

5330/5340 IP Phones – User Guide

Messaging - Cancel Callback

To cancel a Callback:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Dial the number of the called station.

4. Hang up.

Messaging - Cancel All Callbacks

To cancel all Callbacks:

1. Lift the handset.

2. Dial the appropriate feature access code.

3. Hang up.

Music

To turn Music on and off when the phone is idle, do one of the following:

• To turn the music on, press the key that you programmed to Music or the Music softkey.

• To turn the music off, press the key that you programmed to Music or the Music softkey.

When the Music is activated, the key you have programmed is highlighted.

Night Answer

The Night Answer feature allows you to route calls to an attendant or message at night.

To enable Night Answer:

• Press the key you programmed to Night Answer. When you have enabled Night Answer, this key is highlighted.

To disable Night Answer:

• Press the key you programmed to Night Answer

59

5330/5340 IP Phones – User Guide

Override (Intrude)

When you dial a number whose owner has enabled Make Busy, your phone displays the message indicating that the line is busy. You have the option to override this setting.

To use Override when you encounter a busy tone:

1. Press the key you programmed as Override.

2. Wait for an answer.

Paging

To use Paging:

1. Lift handset.

2. Press the key that you have programmed to Page.

3. Dial the Paging zone number (if required).

4. Make the announcement.

Record a Call

This feature uses your voice mail system to record your telephone conversations.

Note: You may be required by law to inform the other party that you are recording the conversation. For specific instructions, consult your system administrator.

To start recording while on a 2-party call:

• Press the Record Call key. (See Feature Keys elsewhere in this guide for instructions on programming a Record Call key to your phone.)

Note: Your system may be programmed to automatically begin recording external calls when you or the other answers.

To control recording, do one or all of the following:

• To pause recording, press the Pause softkey.

• To resume recording after pausing, press the Resume softkey.

• To stop a recording without saving it, press the Erase softkey or (CANCEL).

• To stop and save a recording, press the Save softkey.

Putting the call on hold saves the recording; taking the call off hold starts a new recording.

Depending on system programming, hanging up, or pressing (TRANS/CONF) or a DSS key, may also save the recording.

60

5330/5340 IP Phones – User Guide

To listen to a recording:

1. Lift the handset.

2. Access your voice mailbox.

3. Follow the prompts to retrieve the recording.

Reminder

To program a Reminder:

1. Press Superkey (must be programmed to a key).

2. Press the No softkey until "Timed Reminder" appears.

3. Press the Reminder softkey.

4. Enter the time in 24-hour format.

5. Press the Save softkey.

To view, change, and/or cancel a pending Reminder:

1. Press Superkey (must be programmed to a key).

2. Press the No softkey until "Timed Reminder" appears.

3. Press the Reminder softkey.

4. Do one of the following:

• To change the Reminder, press the Change Key softkey, enter the new time, and press the Save softkey.

• To cancel the Reminder, press the Cancel No. softkey.

• To exit without canceling the Reminder, press Superkey (must be programmed to a key).

To acknowledge a Reminder when your phone rings once:

• Press the Confirm softkey.

61

5330/5340 IP Phones – User Guide

[email protected]

Users of the [email protected] softkey can place a call by speaking the name of the person they wish to dial. [email protected] enables you to have access to Mitel Speech Server. The Speech Server is a speech recognition application that routes incoming calls to a specific destination based on spoken commands.

To dial a call using [email protected]:

1. Press the key you have programmed to [email protected]

2. Speak the name of the person you wish to call.

Speed Call

Speed Call is an application that allows you to dial a specific number with one key press. You must program Speed Call on a Programmable key. For more information on programming this key, see Program Feature Keys Using the Settings Application .

To make a Speed Call:

• Press the key that you have programmed as your Speed Call key.

Tag Call

Tag Call allows you to signal that you are the victim of a threatening or malicious call. Using the tag, your system administrator or Telephone Company can identify the source of the call and provide this information to appropriate personnel or authorities.

CAUTION: Tagging a non-malicious call may result in fines or other penalties.

To tag a malicious call:

1. Press the programmed Tag Call key while the call is in progress. For information on how to program keys, see to Programming Features On Your Keys

-OR-

1. Press (TRANS/CONF).

2. Dial the appropriate feature access code.

If the call was successfully tagged, Thank You is shown on the display; otherwise, Not

Allowed is displayed.

Note: Tag Call can be used on active two-party calls only. Calls on hold and conference calls cannot be tagged.

62

5330/5340 IP Phones – User Guide

Trunk Flash

The Trunk Flash feature allows you to access Centrex features (if available) while you are talking on an outside call.

To flash a trunk while talking on an outside call:

1. Press the key you have programmed to Flash.

Note: You can program a key to single flash or double flash.

2. Wait for dial tone.

3. Dial the Centrex feature access code.

63

5330/5340 IP Phones – User Guide

USING YOUR PHONE WITH THE 5310 IP

CONFERENCE UNIT

Your phone uses the 5310 IP Conference Unit for conferencing. You use the Conference

Controller to turn the conference unit off or on, to adjust the volume or to put the conference unit into Presentation mode. You can only run one Conference Controller session at a time. If the

5310 Conference Unit is not connected to your phone, the Conference Controller application is not available.

Access the Conference Controller

To access the Conference Controller:

1. Press Applications and press Conference Unit, or

2. Press the key programmed to the Conference Unit application.

Turn the conference unit on and off

1. Verify that the conference unit is connected to your phone.

2. Access the Conference Controller. For more information, see Access Conference

Controller .

3. Press Turn On/Turn Off.

While the Conference Unit is on, the icon shows in the phone status line.

Adjust the conference unit volume

• Press Volume Up or Volume Down.

Place the conference unit in Presentation mode

Presentation Mode is used when only one individual is speaking to a group. If another member in the group wishes to speak, you must disable Presentation Mode. Presentation Mode minimizes extraneous noise.

To place the conference unit in Presentation mode

• Press Presentation Mode.

Exit the conference controller

To exit the conference controller

• Press Close.

64

5330/5340 IP Phones – User Guide

Mute the conference unit

To mute the conference unit so that conversation in the meeting room cannot be heard by individuals being conferenced:

• Press Mute.

USING THE LINE INTERFACE MODULE

Your phone supports the Mitel Line Interface Module. The Line Interface Module allows you to make and receive calls over an analog line (Line Interface Module line) connected to your phone.

The Line Interface Module operates in either of the following two modes, as determined by your

System Administrator:

Line Interface Module Mode: your phone allows you to use the Line Interface Module line at any time

Failover Mode: you can use the Line Interface Module line only when the IP connection has failed

Note: Handsfree and on-hook dialing are not supported on the Line Interface Module line.

For information on emergency number dialing using the Line Interface Module, refer to

Emergency Calls.

Making and Answering Calls Using the Analog key

To make a call using the Analog line:

1. Lift the handset.

2. Press the key you programmed as Analog Line.

ANALOG CALL is displayed.

3. Dial the number.

Note: When you make an external call over the analog line, a prefix dialing number is not required. If your phones Analog Line key has the Privacy option enabled, you cannot access the analog line when another phone is using the analog line (key is solid orange).To access the analog line, the user of the other phone must first hang up. To determine whether the Privacy option is enabled, contact your System Administrator.

To answer a Call using the analog line:

1. Lift the handset.

2. Press the Analog Line key that is highlighted.

65

5330/5340 IP Phones – User Guide

To answer a waiting call on the analog line:

Note: If you have subscribed to an analog call waiting service, you may use the hookswitch or press Cancel ( ) to answer a waiting analog call. When you are on an analog call and a waiting analog call arrives, you hear a beep. This feature may not be supported in all regions.

To answer a waiting analog call or return to the original analog call:

1. Do one of the following:

• Press and release the hookswitch

• Press Cancel (

)

2. Press the key you have programmed as Analog Line.

To put a current call on hold to answer an incoming analog call:

• Press the highlighted Analog Line key.

To switch between the current call and the held call when one of the calls is using the analog line, do one of the following:

• If your current call is using the analog line, press the flashing Line key of the held call.

The analog call is automatically put on hold.

• If your current call is using an IP line, press the highlighted Analog Line key. The IP line is automatically put on hold.

To end a current call when an incoming analog call arrives:

• Press Cancel (

) and then press the highlighted Analog Line key. The current call ends and you are connected to the caller on the analog line.

To end the current analog call when an incoming call arrives:

• Press Cancel (

). The current analog call ends and you are connected to the new caller.

Making and Answering Calls Using the Failover Mode

To make a call using the analog line during an IP connection failure:

1. Lift the handset.

The phone displays IP FAIL: ANALOG CALL.

2. Dial the number.

To answer a call using the analog line during an IP connection failure:

• Lift the handset. The call is answered. The phone displays IP FAIL: ANALOG CALL.

66

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
