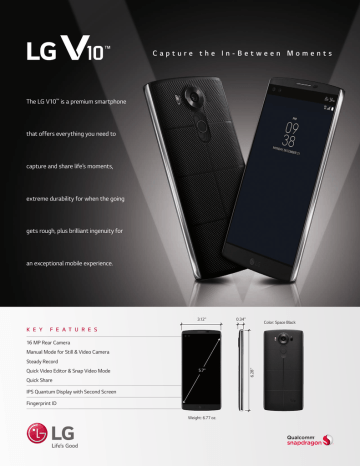

LG V10 Specs
Capture the In-Between Moments
The LG V10™ is a premium smartphone
that offers everything you need to
capture and share life’s moments,
extreme durability for when the going
gets rough, plus brilliant ingenuity for
an exceptional mobile experience.
Color: Space Black
16 MP Rear Camera
Manual Mode for Still & Video Camera
Quick Video Editor & Snap Video Mode
Quick Share
IPS Quantum Display with Second Screen
Fingerprint ID
Weight: 6.77 oz.
Steady Record
Design and Display
Enhanced Convenience
• 5.7" IPS Quantum Display (513 ppi, 550 nit)
• 0.2" Second Screen – provides quick access to notifications,
favorite apps, camera control features, and more
• Stainless Steel Pillars and Thermoplastic Silicone*
• Dura Guard Glass 2.0 – Gorilla Glass 3 inside and
Gorilla Glass 4 outside
• Ambidextrous Rear Key
• Fingerprint ID – hold finger on Power/Lock Key sensor to
unlock files and phone
• Smart Notice 2.0 – interprets a range of contextual inputs
and device usage patterns, and provides recommendations
that change with the user’s intent
• Smart Bulletin 2.0 – view information and launch
applications; includes customizable cards that provide tips,
help users track their health,1 and more
• Smart Settings – turn settings on/off, open apps, or change
settings according to where you are, like having Wi-Fi® turn
on when you get home
• Smart Cleaning™ – free up space by deleting temporary files
and removing infrequently used apps
• LG Health – manage daily activities, record health
•QuickMemo®+ – write or draw on nearly any screen and
schedule memos to appear at certain times using time or
location inputs
• QSlide Function™ – overlay up to two windows with
adjustable sizing and transparency on the primary screen
• Dual Window™ – use two apps simultaneously on a
split screen
• Smart Keyboard – provides efficient operation and adapts
to the user; includes keyboard height control, adaptive area
recognition based on word prediction, user behavior, and
easy cursor control
• Knock Code™ – create a 3-8 point tapping pattern for
security and direct access to the home screen with more
than 86,000 possible combinations
• Knock On™ – double tap the screen to put your phone to
sleep/ wake it without picking it up or pressing the Power/
Lock Key
• Content Lock – protect certain images and videos in Gallery
with a fingerprint, password, or pattern lock; prevent files
from being previewed when linked to a PC2
• Mini View – shrink the screen for use with one hand
*The LG V10 is compliant with a military standards test (MIL-STD-810G Method
516.6, Procedure IV “Transit Drop”). Device may not perform as tested in all
conditions. Test performed in controlled environment. Do not attempt.
Video and Camera
4K Ultra HD Rear Camcorder
• Video Resolutions: up to 3840 x 21601
• Slow Motion Recording1 – 1280 x 720 resolution, 120 FPS
• Video Manual Mode1 – real-time adjustable settings: audio
focus, manual focus, white balance, frame rates, and more
• Steady Record1 – video image stabilization
• Enhanced Audio Recording – 3 mics for better signal
reference and multi-directional audio capture; supports
Bluetooth® mics
• Audio Zoom 2.0 and Wind Noise Filter – controls audio
focus direction and minimizes background and wind noise
• Snap Video – capture and combine a series of 3-second
video clips
• Quick Share – quick access to social platforms after recording
• Quick Video Editor2 – control speed, add filters, select
background music, and other options to customize to
your videos
• 15-Second Auto Edit – creates a 15-second highlight clip
from 30-second or longer video for easy sharing
• Pause & Resume Video Recording – for a continuous file
• Zoom up to 8x1
16 MP Rear Camera
• Camera Resolutions: up to 5312 x 29881
• Laser Detection Auto Focus – for faster focusing speed
• Optical Image Stabilization (OIS 2.0) – a floating lens
compensates for hand movements to capture sharp images
quickly with less blur
• Color Spectrum Sensor – determines optimal white balance
for more accurate, life-like color reproduction
• f/1.8 Low Light Lens – large aperture allows faster shutter
speed in low-light situations
• Camera Modes – Simple, Auto, and Manual1
• Camera Manual Mode1 – manual settings for shutter speed,
ISO, white balance, and more; save as JPEG or RAW files
• Live Shot – take still shots while recording video2
• Shot Mode – Auto, Multi-view, Panorama,1 Slo-mo,1 and
• Zoom up to 8x1
Dual 5 MP Front Cameras
• Take Group (Wide Angle) or Single Person (Standard Angle)
Selfie Shot
• Full HD Front Camcorder
• Multi-view - create a photo or video collage with the dual
front cameras and the rear camera
• Gesture Shot3 – take selfies with a simple hand gesture
• Gesture Interval Shot3 – make a fist twice to take four
selfies on a timer
• Gesture View3 – transitions between camera mode and
preview mode automatically with a hand motion
• Selfie Light3 – screen will illuminate a soft light around the
photo preview for well-lit selfies
Available only on rear-facing camera or camcorder.
Not available with some camcorder settings.
Available only on front-facing camera or camcorder.
• SmartShare Beam – wirelessly transfer multimedia
content from compatible LG devices via Wi-Fi Direct®
• Media Server – allow compatible nearby devices to
access your content via DLNA®
•Miracast® – wirelessly mirror device screen on a
compatible display
• Media Sync (MTP) – transfer files or synchronize with
Windows® Media Player3
• Quick Charge™ 2.0 compatible4
4G LTE Network not available everywhere.
Depends on network availability. Additional carrier charges may apply.
USB cable required (included).
Third-party accessories may void the manufacturer's warranty.
• Display: 5.7" IPS Quantum (2560 x 1440) with 513 ppi
and 550 nit & 0.2" Second Screen
• Battery Capacity: 3,000 mAh Removable
• Platform: Android 5.1.1 (Lollipop)
• Processor: Qualcomm® Snapdragon™ 808 Processor
with (integrated) 1.8 GHz 64-bit Hexa-Core CPU
• Technology: CDMA, GSM, LTE, WCDMA
• Frequencies: CDMA: 1.9 GHz CDMA PCS/800 MHz CDMA,
GSM: 850/900/1800/1900, WCDMA: Band 1/2/5/8,
LTE: Band 2/3/4/5/7/13
• Data Transmission: EVDO, EVDO Rev A, 1xRTT, LTE
• Dimensions: 6.28" (H) x 3.12" (W) x 0.34" (D)
• Weight: 6.77 oz.
• Talk Time: up to 18 hours1
• Standby Time: up to 7 days1
• Internal Memory: 64 GB (50 GB usable)
• Supports microSD™ card up to 2 TB2
• RAM: 4 GB LPDDR3 (3.6 GB available)
Actual battery time may vary depending on network connectivity and application use.
microSD cards sold separately.
This app is not intended to diagnose, treat or prevent any disease or medical
condition. Always seek the advice of a qualified medical professional before making
any changes to your exercise, sleep, or nutrition.
Some owner content may still be accessible to a user who enables Content Lock.
• 32 Bit Hi-Fi DAC1 – up-samples audio to Hi-Fi quality
• Supports 4K SlimPort® Adapter for UHD Video Output to
HDMI®-Enabled TV or Monitor2
• Event Pocket – add events to your calendar by dragging and
dropping items from the Event Pocket into the calendar
• Live Zooming – zoom in/out on videos during playback
• Video Player with Touch Lock and Resume Play Function;
supports DivX,® MP4, WMV, 3GP, MKV, WebM, FLV, TS, AVI,
and 3G2 Formats
• Customizable Video Screen Ratio, Subtitle Settings,
Playback Speed,3 and Video Auto Off Function
• Gallery – organized by albums, timeline, memories,
favorites, and videos; access nearby devices
• Music Player with Auto-Stop Function; supports AAC,
M4A, and Ogg formats
LG Available Accessories
Standard Battery*
Travel Adapter and USB Cable*
LG V10 Quick Cover™
Bluetooth Stereo Headset (LG TONE INFINIM,™
* Included with phone.
LG GATE Enabled
(Guarded Access to Enterprise)
• Platform Security
• Network Security - LG VPN, Enhanced
Certificate Validation
• Application Security - Enhanced EAS
• Mobile Device Management - LG Enhanced MDM
• Certification - FIPS 140-2
Wired headset required (sold separately).
Requires 4K compatible SlimPort adapter (sold separately).
Not available for videos recorded in UHD.
• 4G LTE Network1
• Mobile Hotspot† – share a 4G LTE data connection with up
to 10 compatible wireless devices2
• Bluetooth Wireless Technology Version 4.1 BLE
• Wi-Fi Connectivity – 802.11 a/b/g/n/ac (Dual-Band
2.4 GHz, 5 GHz)
•Android™ Beam – share contacts, web pages, and more via
Near Field Communication (NFC)
Carrier service required. Product features subject to change. Features based on carrier program availability. Additional charges may apply.
LG Electronics MobileComm U.S.A., Inc. | 920 Sylvan Avenue, Englewood Cliffs, NJ 07632 | Customer Service: (800) 793-8896
All materials in this spec sheet including, without limitation, the design and the text are the property of LG Electronics MobileComm U.S.A., Inc. 4G LTE not available everywhere. LTE is a trademark of ETSI. Copyright © 2015 LG Electronics MobileComm U.S.A., Inc. ALL RIGHTS RESERVED. LG, LG Life’s Good, and
the LG logo are registered trademarks of LG Corp. V10 is a trademark of LG Electronics, Inc. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics MobileComm U.S.A., Inc. is under license. Google and Android are trademarks of
Google Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission. Other trademarks and trade names are property of their respective owners. Unless otherwise specified
herein, all accessories referenced are sold separately. All features, functionality, and other product specifications are subject to change without notice. Screen shots are simulated and subject to change.
