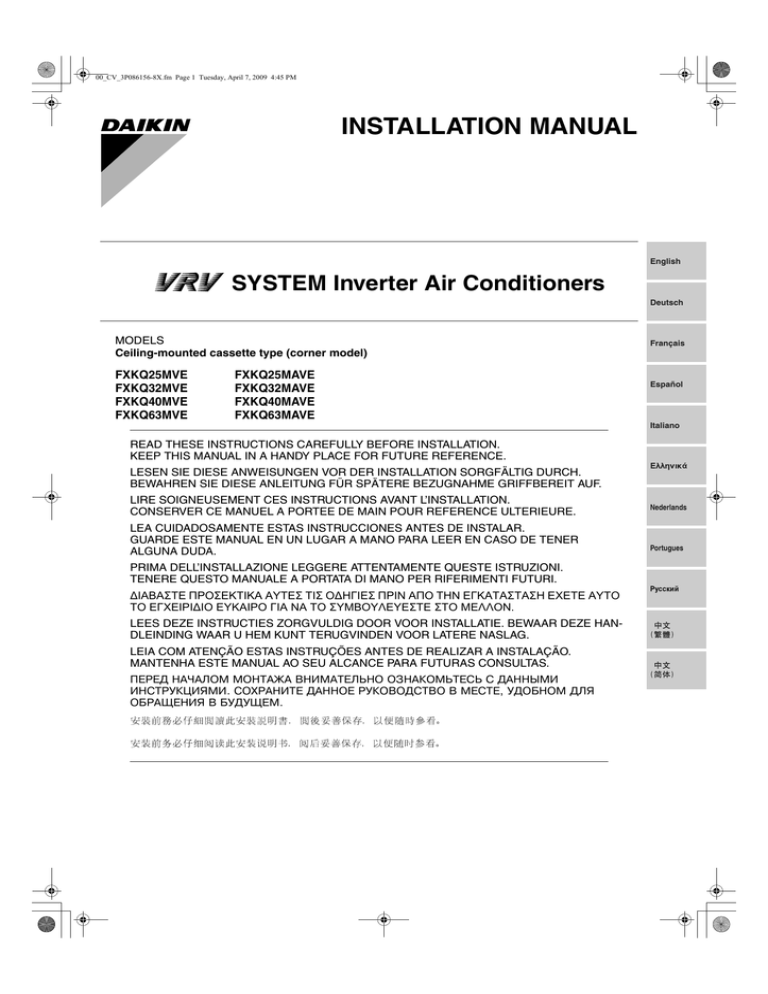

INSTALLATION MANUAL
English
SYSTEM Inverter Air Conditioners
Deutsch
MODELS
Ceiling-mounted cassette type (corner model)
FXKQ25MVE
FXKQ32MVE
FXKQ40MVE
FXKQ63MVE
FXKQ25MAVE
FXKQ32MAVE
FXKQ40MAVE
FXKQ63MAVE
Français
Español
Italiano
READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE.
LESEN SIE DIESE ANWEISUNGEN VOR DER INSTALLATION SORGFÄLTIG DURCH.
BEWAHREN SIE DIESE ANLEITUNG FÜR SPÄTERE BEZUGNAHME GRIFFBEREIT AUF.
LIRE SOIGNEUSEMENT CES INSTRUCTIONS AVANT L’INSTALLATION.
CONSERVER CE MANUEL A PORTEE DE MAIN POUR REFERENCE ULTERIEURE.
LEA CUIDADOSAMENTE ESTAS INSTRUCCIONES ANTES DE INSTALAR.
GUARDE ESTE MANUAL EN UN LUGAR A MANO PARA LEER EN CASO DE TENER
ALGUNA DUDA.
PRIMA DELL’INSTALLAZIONE LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI.
TENERE QUESTO MANUALE A PORTATA DI MANO PER RIFERIMENTI FUTURI.
ÄΙΑΒΑΣΤΕ ΠΡΟΣΕΚΤΙΚΑ ΑΥΤΕΣ ΤΙΣ ΟÄΗΓΙΕΣ ΠΡΙΝ ΑΠΟ ΤΗΝ ΕΓΚΑΤΑΣΤΑΣΗ ΕΧΕΤΕ ΑΥΤΟ
ΤΟ ΕΓΧΕΙΡΙÄΙΟ ΕΥΚΑΙΡΟ ΓΙΑ ΝΑ ΤΟ ΣΥΜΒΟΥΛΕΥΕΣΤΕ ΣΤΟ ΜΕΛΛΟΝ.
LEES DEZE INSTRUCTIES ZORGVULDIG DOOR VOOR INSTALLATIE. BEWAAR DEZE HANDLEINDING WAAR U HEM KUNT TERUGVINDEN VOOR LATERE NASLAG.
LEIA COM ATENÇÃO ESTAS INSTRUÇÕES ANTES DE REALIZAR A INSTALAÇÃO.
MANTENHA ESTE MANUAL AO SEU ALCANCE PARA FUTURAS CONSULTAS.
ПЕРЕД НАЧАЛОМ МОНТАЖА ВНИМАТЕЛЬНО ОЗНАКОМЬТЕСЬ С ДАННЫМИ
ИНСТРУКЦИЯМИ. СОХРАНИТЕ ДАННОЕ РУКОВОДСТВО В МЕСТЕ, УДОБНОМ ДЛЯ
ОБРАЩЕНИЯ В БУДУЩЕМ.
ÅëëçíéêÜ
Nederlands
Portugues
Ðóññêèé
EN60335-2-40,
FXZQ20MVE, FXZQ25MVE, FXZQ32MVE, FXZQ40MVE, FXZQ50MVE
FXCQ20MVE, FXCQ25MVE, FXCQ32MVE, FXCQ40MVE, FXCQ50MVE, FXCQ63MVE, FXCQ80MVE, FXCQ125MVE
FXMQ40MVE, FXMQ50MVE, FXMQ63MVE, FXMQ80MVE, FXMQ100MVE, FXMQ125MVE, FXMQ200MVE, FXMQ250MVE
FXLQ20MVE, FXLQ25MVE, FXLQ32MVE, FXLQ40MVE, FXLQ50MVE, FXLQ63MVE
FXNQ20MVE, FXNQ25MVE, FXNQ32MVE, FXNQ40MVE, FXNQ50MVE, FXNQ63MVE
FXHQ32MVE, FXHQ63MVE, FXHQ100MVE
FXSQ20MVE, FXSQ25MVE, FXSQ32MVE, FXSQ40MVE, FXSQ50MVE, FXSQ63MVE, FXSQ80MVE, FXSQ100MVE, FXSQ125MVE
DAIKIN INDUSTRIES, LTD.
Shinri Sada
Manager Quality Control Department
1st of May 2009
Low Voltage 2006/95/EC
Machinery Safety 98/37/EC
Electromagnetic Compatibility 2004/108/EC
FXKQ25MVE, FXKQ32MVE, FXKQ40MVE, FXKQ63MVE
FXAQ20MVE, FXAQ25MVE, FXAQ32MVE, FXAQ40MVE, FXAQ50MVE, FXAQ63MVE
FXUQ71MV1, FXUQ100MV1, FXUQ125MV1
BEVQ71MVE, BEVQ100MVE, BEVQ125MVE
FXMQ125MFV1, FXMQ200MFV1, FXMQ250MFV1
FXAQ20MHV1, FXAQ25MHV1, FXAQ32MHV1, FXAQ40MHV1, FXAQ50MHV1
BEVQ50MVE
0305020101
TÜV Rheinlard EPS B.V.
DAIKIN.TCF.022E1/10-2007
FXHQ32MAVE, FXHQ63MAVE, FXHQ100MAVE
FXKQ25MAVE, FXKQ32MAVE, FXKQ40MAVE, FXKQ63MAVE
FXAQ20MAVE, FXAQ25MAVE, FXAQ32MAVE, FXAQ40MAVE
FXAQ50MAVE, FXAQ63MAVE
FXUQ71MAV1, FXUQ100MAV1, FXUQ125MAV1
BEVQ71MAVE, BEVQ100MAVE, BEVQ125MAVE
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
FXLQ20MHV1, FXLQ25MHV1, FXLQ32MHV1, FXLQ40MHV1, FXLQ50MHV1,
FXMQ40MAVE, FXMQ50MAVE, FXMQ63MAVE, FXMQ80MAVE
FXMQ100MAVE, FXMQ125MAVE, FXMQ200MAVE, FXMQ250MAVE
FXLQ20MAVE, FXLQ25MAVE, FXLQ32MAVE, FXLQ40MAVE
FXLQ50MAVE, FXLQ63MAVE
FXNQ20MAVE, FXNQ25MAVE, FXNQ32MAVE, FXNQ40MAVE
FXNQ50MAVE, FXNQ63MAVE
3P109591-1E.fm Page 1 Saturday, April 18, 2009 10:25 AM
3P109591-1E
01_EN_3P086156-8X.fm Page 1 Wednesday, April 8, 2009 3:56 PM
VRV SYSTEM Inverter Air Conditioners
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
SAFETY PRECAUTIONS................................................ 1
BEFORE INSTALLATION ................................................ 2
SELECTING INSTALLATION SITE ................................. 3
PREPARATIONS BEFORE INSTALLATION.................... 3
INDOOR UNIT INSTALLATION ....................................... 4
REFRIGERANT PIPING WORK ..................................... 4
DRAIN PIPING WORK .................................................... 6
ELECTRIC WIRING WORK ............................................ 7
WIRING EXAMPLE AND HOW TO SET THE
REMOTE CONTROLLER................................................ 7
10. DECORATION PANEL INSTALLATION ......................... 11
11. FIELD SETTING............................................................ 11
12. TEST OPERATION........................................................ 11
1.
SAFETY PRECAUTIONS
Please read these “SAFETY PRECAUTIONS” carefully before
installing air conditioning unit and be sure to install it correctly.
After completing installation, conduct a trial operation to check
for faults and explain to the customer how to operate the air conditioner and take care of it with the aid of the operation manual.
Ask the customer to store the installation manual along with the
operation manual for future reference.
This air conditioner comes under the term “appliances not
accessible to the general public”.
Safety Precaution
This unit is a class A product. In a domestic environment this
product may cause radio interference in which case the user
may be required to take adequate measures.
Meaning of WARNING and CAUTION notices
WARNING ............. Failure to follow these instructions
properly may result in personal injury
or loss of life.
CAUTION ............... Failure to observe these instructions
properly may result in property damage
or personal injury, which may be serious
depending on the circumstances.
WARNING
• Ask your dealer or qualified personnel to carry out installation work.
Do not attempt to install the air conditioner yourself. Improper installation may result in water leakage, electric shocks or fire.
• Install the air conditioner in accordance with the instructions
in this installation manual.
Improper installation may result in water leakage, electric
shocks or fire.
• Consult your local dealer regarding what to do in case of
refrigerant leakage. When the air conditioner is to be
installed in a small room, it is necessary to take proper measures so that the amount of any leaked refrigerant does not
exceed the concentration limit in the event of a leakage.
Otherwise, this may lead to an accident due to oxygen depletion.
• Be sure to use only the specified accessories and parts for
installation work.
Failure to use the specified parts may result in the unit falling,
water leakage, electric shocks or fire.
• Install the air conditioner on a foundation strong enough to
withstand the weight of the unit.
A foundation of insufficient strength may result in the equipment falling and causing injury.
English
Installation manual
• Carry out the specified installation work after taking into
account strong winds, typhoons or earthquakes.
Failure to do so during installation work may result in the unit
falling and causing accidents.
• Make sure that a separate power supply circuit is provided for
this unit and that all electrical work is carried out by qualified
personnel according to local laws and regulations and this
installation manual.
An insufficient power supply capacity or improper electrical
construction may lead to electric shocks or fire.
• Make sure that all wiring is secured, the specified wires are
used, and that there is no strain on the terminal connections
or wires.
Improper connections or securing of wires may result in
abnormal heat build-up or fire.
• When wiring the power supply and connecting the remote
controller wiring and transmission wiring, position the wires
so that the electric parts box lid can be securely fastened.
Improper positioning of the electric parts box lid may result in
electric shocks, fire or the terminals overheating.
• If refrigerant gas leaks during installation, ventilate the area
immediately.
Toxic gas may be produced if the refrigerant comes into contact with fire.
• After completing installation, check for refrigerant gas leakage.
Toxic gas may be produced if the refrigerant gas leaks into
the room and comes into contact with a source of fire, such
as a fan heater, stove or cooker.
• Be sure to switch off the unit before touching any electrical
parts.
• Be sure to earth the air conditioner.
Do not earth the unit to a utility pipe, lightning conductor or
telephone earth lead. Imperfect earthing may result in electric shocks or fire.
A high surge current from lightning or other sources may
cause damage to the air conditioner.
• Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may result in electric shocks or fire.
CAUTION
• While following the instructions in this installation manual,
install drain piping to ensure proper drainage and insulate
piping to prevent condensation.
Improper drain piping may result in indoor water leakage and
property damage.
• Install the indoor and outdoor units, power cord and connecting wires at least 1 meter away from televisions or radios to
prevent picture interference and noise.
(Depending on the incoming signal strength, a distance of
1 meter may not be sufficient to eliminate noise.)
• Remote controller (wireless kit) transmitting distance can be
shorter than expected in rooms with electronic fluorescent
lamps (inverter or rapid start types).
Install the indoor unit as far away from fluorescent lamps as
possible.
• Do not install the air conditioner in the following locations:
1. Where there is a high concentration of mineral oil spray or
vapour (e.g. a kitchen).
Plastic parts will deteriorate, parts may fall off and water
leakage could result.
2. Where corrosive gas, such as sulphurous acid gas, is produced.
Corroding of copper pipes or soldered parts may result in
refrigerant leakage.
3. Near machinery emitting electromagnetic radiation.
Electromagnetic radiation may disturb the operation of the
control system and result in a malfunction of the unit.
1
01_EN_3P086156-8X.fm Page 2 Wednesday, April 8, 2009 3:56 PM
4. Where flammable gas may leak, where there is carbon
fibre or ignitable dust suspensions in the air, or where volatile flammables such as paint thinner or gasoline are
handled.
Operating the unit in such conditions may result in fire.
• The air conditioner is not intended for use in a potentially
explosive atmosphere.
2.
Name
Insulation for
fitting
Sealing pad
Insulation for
hanger
bracket
Quantity
1 each.
1 each.
4 pcs.
• When moving the unit while removing it from the carton
box, be sure to lift it by holding on to the four lifting lugs
without exerting any pressure on other parts, especially,
the refrigerant piping, drain piping, and other resin parts.
• Be sure to check the type of R410A refrigerant to be used
before installing the unit.(Using an incorrect refrigerant will
prevent normal operation of the unit.)
• The accessories needed for installation must be retained in
your custody until the installation work is completed. Do not
discard them!
• Decide upon a line of transport.
• Leave the unit inside its packaging while moving, until reaching the installation site. Where unpacking is unavoidable, use
a sling of soft material or protective plates together with a
rope when lifting, to avoid damage or scratches to the unit.
• When selecting installation site, refer to the paper pattern.
• For the installation of an outdoor unit, refer to the installation
manual attached to the outdoor unit.
• Do not install or operate the unit in rooms mentioned below.
• Laden with mineral oil, or filled with oil vapor or spray
like in kitchens. (Plastic parts may deteriorate which
could eventually cause the unit to fall out of place, or
could lead to leaks.)
• Where corrosive gas like sulfurous gas exists. (Copper tubing and brazed spots may corrode which could
eventually lead to refrigerant leaks.)
• Where exposed to combustible gases and where volatile flammable gas like thinner or gasoline is used.
(Gas in the vicinity of the unit could ignite.)
• Where machines can generate electromagnetic
waves. (Control system may malfunction.)
• Where the air contains high levels of salt such as that
near the ocean and where voltage fluctuates greatly
such as that in factories. Also in vehicles or vessels.
• This unit, both indoor and outdoor, is suitable for installation
in a commercial and light industrial environment.
If installed as a household appliance it could cause electromagnetic interference.
For liquid pipe
Small
Name
Washer for
hanging
bracket
Clamp
Positioning jig for
installation
Quantity
8 pcs.
8 pcs.
2 each.
Shape
4 screws
Name
Air outlet blocking pad
Quantity
1 pc.
(Other)
• Operation manual
• Installation manual
Shape
• Screws for fixing panels are attached to decoration panel.
2-3
OPTIONAL ACCESSORIES
• The optional decoration panel and remote controller are
required for this indoor unit. (Refer to Table 1, 2)
Table 1
Model
FXKQ25 · 32 ·
40M(A)VE
Min. height
above ceiling
220 mm or more
FXKQ63M(A)VE
Decoration panel
White
BYK45FJW1
BYK71FJW1
• These are two types of remote controllers: wired and wireless. Select a remote controller from the Table 2 according to
customer request and install in an appropriate place.
Table 2
PRECAUTIONS
Remote controller
• Be sure to read this manual before installing the indoor unit.
• Entrust installation to the place of purchase or a qualified serviceman. Improper installation could lead to leaks and, in
worse cases, electric shock of fire.
• Use only parts provided with the unit or parts satisfying
required specifications. Unspecified parts could cause the
unit to fall out of place, or could lead to leaks and, in worse
cases, electric shock or fire.
2-2
Large
Shape
BEFORE INSTALLATION
2-1
For gas pipe
Wired type
Wireless type
Heat pump type
Cooling only type
NOTE
• If you wish to use a remote controller that is not listed in
Table 2 on page 2, select a suitable remote controller after
consulting catalogs and technical materials.
ACCESSORIES
Check the following accessories are included with your unit.
Name
Metal
clamp
Paper pattern for
installation
Drain hose
Quantity
1pc.
1 pc.
1 pc.
Shape
Corrugated cardboard
2
English
01_EN_3P086156-8X.fm Page 3 Wednesday, April 8, 2009 3:56 PM
FOR THE FOLLOWING ITEMS, TAKE SPECIAL CARE
DURING CONSTRUCTION AND CHECK AFTER
INSTALLATION IS FINISHED.
• Where sufficient clearance for installation and maintenance can be ensured.
• Where there is no risk of flammable gas leakage.
• Where piping between indoor and outdoor units is possible within the allowable limit. (Refer to the installation
manual for the outdoor unit.)
a. Items to be checked after completion of work
Are the indoor and outdoor
unit fixed firmly?
The unit may drop, vibrate or
make noise.
Is the gas leak test finished?
It may result in insufficient
cooling.
Is the unit fully insulated?
Condensate water may drip.
Does drainage flow
smoothly?
Condensate water may drip.
Does the power supply voltage correspond to that
shown on the name plate?
The unit may malfunction or
the components burn out.
Are wiring and piping correct?
The unit may malfunction or
the components burn out.
Is the unit safely grounded?
Dangerous at electric leakage.
Is wiring size according to
specifications?
The unit may malfunction or
the components burn out.
• Install the indoor and outdoor units, power supply wiring and
connecting wires at least 1 meter away from televisions or
radios in order to prevent image interference or noise.
(Depending on the radio waves, a distance of 1 meter may
not be sufficient enough to eliminate the noise.)
Is something blocking the air
It may result in insufficient
outlet or inlet of either the
cooling.
indoor or outdoor units?
Are refrigerant piping length
and additional refrigerant
charge noted down?
The refrigerant charge in the
system is not clear.
b. Items to be checked at time of delivery
Also review the “SAFETY PRECAUTIONS”
Items to be checked
CAUTION
Check
Check
Did you explain about operations while showing the instruction manual to your customer?
Did you hand the instruction manual over to your customer?
c. Points for explanation about operations
SELECTING INSTALLATION SITE
Please attach additional thermal insulation material to the unit
body when it is believed that the relative humidity in the ceiling
exceeds 80%. Use glass wool, polyethylene foam, or similar with
a thickness of 10 mm or more as thermal insulation material.
(1) Select an installation site where the following conditions are
satisfied and that meets with your customer’s approval.
• In the upper space (including the back of the ceiling) of the
indoor unit where there is no possible dripping of water
from the refrigerant pipe, drain pipe, water pipe, etc.
• Where optimum air distribution can be ensured.
• Where nothing blocks air passage.
• Where condensate can be properly drained.
• Where the ceiling is strong enough to bear the indoor unit
weight.
• Where the false ceiling is not noticeably on an incline.
English
220
or more
20 or more
(Discharge side)
(Suction side)
(length: mm)
4.
PREPARATIONS BEFORE INSTALLATION
(1) Relation of ceiling opening to suspension bolt position
Decoration
panel
800
760
710
350
3.
200
or more
(length: mm)
1500
or more
NOTE TO THE INSTALLER
Be sure to instruct customers how to properly operate the unit
(especially cleaning filters, operating different functions, and
adjusting the temperature) by having them carry out operations
themselves while looking at the manual.
200
or more
(2) Ceiling height
• Install this unit where the height of bottom panel is more
than 2.5 m so that the user cannot easily touch.
• This unit can be installed in ceilings up to 3.8 meters high.
If the ceiling height exceeds 2.7 meters, however, the
connector of terminal board (A2P) must be replaced and
an air outlet blocking pad must be installed. Refer to
HIGH CEILING INSTALLATION (P.9).
(3) Use suspension bolts for installation. Check whether
the ceiling is strong enough to support the weight of
the unit or not. If there is a risk, reinforce the ceiling
before installing the unit.
(Installation pitch is maked on the paper pattern for installation. Refer to it to check for points requiring reinforcing.)
The items with
WARNING and
CAUTION marks in the
instruction manual are the items pertaining to possibilities for
bodily injury and material damage in addition to the general
usage of the product. Accordingly, it is necessary that you
make a full explanation about the described contents and
also ask your customers to read the instruction manual.
2-4
1000
or more
If not properly done, what is
likely to occur
2500 or more
For installation
in high places
Items to be checked
Ceiling
opening
Indoor unit
Suspension
bolt (×4)
A
B
C
D
(length: mm)
3
01_EN_3P086156-8X.fm Page 4 Wednesday, April 8, 2009 3:56 PM
Model
A
B
C
D
FXKQ25 · 32 · 40M(A)VE
1110
1150
1200
1240
FXKQ63M(A)VE
1310
1350
1400
1440
(2) Open a hole in the ceiling for installation. (Case of existing
ceiling)
• Use the paper pattern for installation which has been
adjusted to the dimensions of the ceiling opening.
• Open a hole in the ceiling for installation at the place the
unit is to be installed, and run refrigerant and drain piping,
remote controller cord, and outdoor/indoor transmission
wiring to the unit’s piping and wiring hole. (For wiring procedure, refer to “WIRING EXAMPLE AND HOW TO SET
THE REMOTE CONTROLLER.” For piping procedure,
refer to the attached installation manual of the outdoor
unit.)
• After opening a hole in the ceiling, reinforcement of the
ceiling frame, etc., may be required to maintain the levelness of the ceiling and to prevent vibration of the ceiling.
For details, consult with your builder and interior contractor.
〈Set-up example〉
Approx.
100
Ceiling slab
Anchor
Positioning jig for installation 1
(accessory)
Positioning
jig for
installation 2
(accessory)
Positioning jig for
installation 2
(accessory)
Positioning jig for installation 1
(accessory)
Screws (×4)
Lower
surface
of ceiling
Positioning jig for installation
fastening screw hole
(4) Check the unit is horizontally level.
CAUTION
The unit is equipped with a built-in drain pump and
float switch. Level the four corners with a level or a
vinyl tube containing water.
(If the unit is tilted against condensate flow, the float switch
may malfunction and cause water to drip.)
Wing nut or turnbuckle
Suspension bolt
Ceiling surface
(length: mm)
Note) All the above parts are field supplied.
(3) Install the suspension bolts.
(Use M8 size suspension bolts.)
Use anchors for existing ceilings and embedded inserts,
embedded anchors, etc., for newly built ceilings so that the
weight of the unit can be supported. Adjust the length of the
bolts to the ceiling before installing the unit.
5.
INDOOR UNIT INSTALLATION
Installing optional accessories (except for the decoration
panel) before installing the indoor unit is easier.
As for the parts to be used for installation work, be sure to use
the provided accessories and specified parts designated by our
company.
(1) Install the unit temporarily.
• Fix the hanger bracket to the suspension bolt. Tighten
both upper and lower nuts firmly using washers.
Part to be procured
in the field
Washer (accessory)
Tighten from above and
below (Double nut)
(2) Using the attached positioning jig for installation, adjust the
height of the unit.
(3) Adjust the unit to the correct position based on “SELECTING INSTALLATION SITE.” (1).
• The positioning jig for installation and paper pattern for
installation have been adjusted to the dimensions of the
ceiling opening. Be sure to establish thorough communication with those who are to do the ceiling work.
4
Level
Vinyl tube
(5) Tighten the upper nut.
(6) Apply the insulation for
hanger bracket to the hanger
bracket installation bolts of the
units.
(4 locations). (See figure on
right.)
Insulation for
hanger bracket
(accessory)
(7) After setting up the unit, be sure to remove the positioning
jig for installation.
NOTE
• For a newly built ceiling, carry out the same procedure and
be sure to establish thorough communication with those who
are to do the ceiling work. The positioning jig for installation
and paper pattern for installation have been adjusted to the
dimensions of the ceiling opening.
6.
REFRIGERANT PIPING WORK
〈For refrigerant piping of outdoor units, see the installation
manual attached to the outdoor unit.〉
〈Execute heat insulation work completely on both sides of
the gas piping and the liquid piping. Otherwise, a water
leakage can result sometimes.〉
English
01_EN_3P086156-8X.fm Page 5 Wednesday, April 8, 2009 3:56 PM
(When using a heat pump, the temperature of the gas piping
can reach up to approximately 120°C, so use insulation which is
sufficiently resistant.)
〈Also, in cases where the temperature and humidity of the
refrigerant piping sections might exceed 30°C or RH80 %,
reinforce the refrigerant insulation. (20 mm or thicker) Condensation may form on the surface of the insulating material.〉
〈Before ringging tubes, check which type of refrigerant is
used. Proper operation is not possible if the types of refrigerant are not the same.〉
• Wrap the sealing pad (accessory) only around the insulation
for the joints on the gas piping side.
Clamp
(× 6 accessory)
Small sealing pad
(accessory)
Insulation
for fitting
(accessory)
Gas pipe
CAUTION
• Use a pipe cutter and flare suitable for the type of refrigerant.
• Apply ester oil or ether oil around the flare portions
before connecting.
• To prevent dust, moisture or other foreign matter from infiltrating the tube, either pinch the end or cover it with tape.
• Do not allow anything other than the designated refrigerant to get mixed into the freezing cycle, such as air,
etc. If any refrigerant gas leaks while working on the
unit, ventilate the room thoroughly right away.
• The outdoor unit is charged with refrigerant.
• Be sure to use both a spanner and torque wrench together,
as shown in the drawing, when connecting or disconnecting
pipes to/from the unit.
• Refer to the Table 3 for the dimensionons of flare not spaces.
• When connecting the flare nut, coat the flare section (both
inside and outside) with ester oil or ether oil, rotate three or
four times first, then screw in.
• Refer to the Table 3 for tightening torque.
Overtightening may damage the flare.
• Check the pipe connector for gas leaks, then insulate it as
shown in the drawing.
• Wrap only the gas line side with the sealing pad. Bend the pad
over the insulation for fitting (union) from above.
Ester oil or ether oil.
Liquid pipe
CAUTION
Be sure to insulate any field piping all the way to the piping
connection inside the unit. Any exposed piping may cause
condensation or burns if touched.
CAUTION
CAUTION TO BE TAKEN WHEN BRAZING REFRIGERANT PIPING
Do not use flux when brazing refrigerant piping. Therefore, use
the phosphor copper brazing filler metal (BCuP-2: JIS Z 3264/
B-Cu93P-710/795: ISO 3677) which does not require flux.
(Flux has extremely harmful infulence on refrigerant piping
sysems. For instance, if the chlorine based flux is used, it will
cause pipe corrosion or, in particular, if the flux contains fluorine, it will damage the refrigerant oil.)
• Before brazing local refrigerant piping, nitrogen gas shall be
blown through the piping to expel air from the piping.
If your brazing is done without nitrogen gas blowing, a large
amount of oxide film develops inside the piping, and could
cause system malfunction.
• When brazing the refrigerant piping, only begin brazing after
having carried out nitrogen substitution or while inserting
nitrogen into the refrigerant piping. Once this is done, connect the indoor unit with a flared or a flanged connection.
• Nitrogen should be set to 0.02 MPa with a pressure-reducing
valve if brazing while inserting nitrogen into the piping.
Refrigerant
piping
Part to be
brazed
Torque wrench
Taping
hands valve
Pressurereducing
valve
Nitrogen
Nitrogen
Spanner
NOTE
Piping union
Flare nut
The flare nuts used must be those included with the
main body.
• Refer to Table 3 for tightening torque.
English
Tightening torque
Flare
dimensions
A (mm)
φ 6.4
(1/4”)
14.2 – 17.2N·m
8.7 – 9.1
φ 9.5
(3/8”)
32.7 – 39.9N·m
12.8 – 13.2
φ 12.7
(1/2”)
49.5 – 60.3N·m
16.2 – 16.6
φ 15.9
(5/8”)
61.8 – 75.4N·m
19.3 – 19.7
Flare
0
Pipe
size
R0.4-0.8
0
0
45 ±
2
A
Use “ Table 4 ” as a reference if a torque wrench is not available.
Once work is complete, make sure there is no gas leaking. As
the flare nut is tightened with the wrench, the torque will suddenly increase. From that position, tighten the nut to the angle
shown on “ Table 4 ”.
• Make absolutely sure to execute heat insulation works on the
pipe-connecting section after checking gas leakage by thoroughly studying the following figure and using the attached
heat insulating materials for fitting. (Fasten both ends with
the clamps (accessory).)
Table 3
0
Over-tightening may damage the flare and cause a refrigerant leakage.
90 ±2
CAUTION
5
01_EN_3P086156-8X.fm Page 6 Wednesday, April 8, 2009 3:56 PM
Not recommendable but in case of emergency
You must use a torque wrench but if you are obliged to install the
unit without a torque wrench, you may follow the installation
method mentioned below.
After the work is finished, make sure to check that there is
no gas leak.
When you keep on tightening the flare nut with a spanner, there
is a point where the tightening torque suddenly increases. From
that position, further tighten the flare nut the angle shown below:
Table 4
Pipe size
Further tightening
angle
Recommended arm length
of tool
φ 6.4 (1/4”)
60 to 90 degrees
Approx. 150mm
φ 9.5 (3/8”)
60 to 90 degrees
Approx. 200mm
φ 12.7 (1/2”)
30 to 60 degrees
Approx. 250mm
φ 15.9 (5/8”)
30 to 60 degrees
Approx. 300mm
• Wrap the sealing pad over the clamp and drain hose to
insulate.
• Insulate the drain hose inside the building.
While referring to the figure on the right, insulate the
clamp and drain hose with the large sealing pad.
• If the drain hose cannot be sufficiently set on a slope,
execute the drain raising piping.
• Secure a downward gradient of 1/100 or more for the
drain pipe. To accomplish this, mount supporting brackets
at an interval of 1 - 1.5 m.
〈Precautions when doing drain-up piping work.〉
• Make sure the drain-up piping is at most 330 mm high.
• Stand the drain-up piping horizontally, and make sure it is
not further than 300 mm from the base of the drain
socket.
Ceiling slab
300
1-1.5 m
Support bracket
Adjustable
( 330)
〈〈Rig the drain pipe as shown below and take measures
against condensation. Improperly rigged piping could lead
to leaks and eventually wet furniture and belongings.〉〉
(1) Carry out the drain piping
• Keep piping as short as possible and slope it downwards
so that air may not remaine trapped inside the pipe.
• The diameter of the drain pipe should be greater than or
equal to the diameter of the connecting pipe (vinyl tube;
pipe size: 25 mm; outer dimension: 32 mm).
• Use the drain hose and metal clamp. Insert the drain
hose into the drain socket, up to the white tape.
Tighten the metal clamp until the screw head is less than
4 mm from the hose.
Metal clamp
(accessory)
170
Riser
DRAIN PIPING WORK
Drain hose (accessory)
(length: mm)
• Use the following outline if laying concentrated drain piping.
• If converging multiple drain pipes, install according to the
procedure shown below.
≥100mm
7.
500
Drain-up piping
T-joint converging drain pipes
Select converging drain pipes whose gauge is suitable for the
operating capacity of the unit.
(2) After piping work is finished, check drainage flows
smoothly.
• Open the inspection opening, add approximately 1liter of
water slowly into the drain pan and check drainage flow.
Metal clamp
Inspection opening
Portable pump
Drain hose
Tape
Metal clamp
(accessory)
Large sealing pad
Bucket
(accessory)
Drain outlet for maintenance
(with rubber plug)
NOTE
• Use the drain outlet for maintenance to drain water from the
drain pan.
≤4mm
CAUTION
Setting the unit at an angle opposite to the drain piping
might cause leaks.
6
WHEN ELECTRIC WIRING WORK IS FINISHED
• Check drainage flow during COOL running, explained under
“TEST OPERATION”.
WHEN ELECTRIC WIRING WORK IS NOT FINISHED
• Remove the electric parts box lid, connect a power supply
and remote controller to the terminals.
(Refer to the HOW TO CONNECT WIRINGS (P.7))
English
01_EN_3P086156-8X.fm Page 7 Wednesday, April 8, 2009 3:56 PM
Be sure attach the electric parts box lid before turning on the
powe.
Next, press the inspection/test operation button “ TEST ” on the
remote controller. The unit will engage the test operation mode.
Press the operation mode selector button “
” until selecting
FAN OPERATION “
”. Then, press the ON/OFF button
“
”. The indoor unit fan and drain pump will start up. Check
that the water has drained from the unit. Press “ TEST ” to go back
to the first mode.
8-2
ELECTRICAL CHARACTERISTICS
Power
supply
Units
Hz
Volts
Voltage
range
MCA
0.3
15
0.015
0.2
50
220240
Max. 264
Min. 198
0.3
15
0.020
0.2
FXKQ63M(A)VE
0.5
15
0.045
0.4
FXKQ25 · 32M(A)VE
0.4
15
0.015
0.3
0.5
15
0.020
0.4
0.6
15
0.045
0.5
Model
FXKQ25 · 32M(A)VE
FXKQ40M(A)VE
FXKQ40M(A)VE
60
Max. 242
Min. 198
220
FXKQ63M(A)VE
8-3
Power supply
1-220-240V
Power supply
terminal board
Model
Field
fuses
FXKQ25 · 32M(A)VE
FXKQ40M(A)VE
15A
FXKQ63M(A)VE
Copper wire
CAUTION
• Drain piping connections
Do not connect the drain piping directly to sewage pipes that
smell of ammonia. The ammonia in the sewage might enter
the indoor unit through the drain pipes and corrode the heat
exchanger.
• Keep in mind that it will become the cause of getting drain
pipe blocked if water collects on drain pipe.
ELECTRIC WIRING WORK
GENERAL INSTRUCTIONS
• All field supplied parts and materials and electric works must
conform to local codes.
• Use copper wire only.
• For electric wiring work, refer to also “Wiring diagram label”
attached to the electric parts box lid.
• For remote controller wiring details, refer to the installation
manual attached to the remote controller.
• All wiring must be performed by an authorized electrician.
• This system consists of multiple indoor units. Mark each indoor
unit as unit A, unit B . . . , and be sure the terminal board wiring
to the outdoor unit and BS unit are properly matched. If wiring
and piping between the outdoor unit and an indoor unit are mismatched, the system may cause a malfunction.
• A circuit breaker capable of shutting down power supply to
the entire system must be installed.
• Refer to the installation manual attached to the outdoor unit
for the size of power supply electric wire connected to the
outdoor unit, the capacity of the circuit breaker and switch,
and wiring instructions.
• Be sure to ground the air conditioner.
• Do not connect the ground wire to gas and water pipes, lightning rods, or telephone ground wires.
• Gas pipes : might cause explosions or fire if gas leaks.
• Water pipes : no grounding effect if hard vinyl piping is used.
• A circuit breaker capable of shutting down the power supply to the entire system must be installed.
English
FLA
Wire
Size
Remote controller wiring
Transmission wiring
Wire
Size
Wire size
H05VV- must com- Sheathed wire
(2 wire)
U3G ply with
local codes.
0.75 1.25
mm2
NOTE
Electric parts box lid.
8-1
kW
SPECIFICATIONS FOR FIELD SUPPLIED
FUSES AND WIRE
Power supply wiring
8.
MFA
MCA: Min. Circuit Amps (A); MFA: Max. Fuse Amps (A)
kW: Fan Motor Rated Output (kW); FLA: Full Load Amps (A)
L N
PC board
Fan motor
1. Allowable length of transmission wiring between indoor/outdoor units and between the indoor unit and the remote controller is as follows.
(1) Outdoor unit – Indoor unit:
Max. 1000 m (Total wiring length: 2000 m)
(2) Indoor unit – Remote controller:
Max. 500 m
9.
9-1
WIRING EXAMPLE AND HOW TO SET
THE REMOTE CONTROLLER
HOW TO CONNECT WIRINGS
• Refer to the figure below when connecting the remote controller wiring with transmission wiring and power supply wiring.
Wire clip
Attached
clamp
Electric parts box
Power supply
terminal block (2P)
(NOTE 1)
Ground terminal
Power
supply
wiring and
ground
wiring (*)
Remote
controller wiring
and Transmission
wiring between units (*)
Plastic
clamp
Rubber bush
Terminal block for
remote controller (6P)
(NOTE 2)
Electric parts
box lid
7
01_EN_3P086156-8X.fm Page 8 Wednesday, April 8, 2009 3:56 PM
[ PRECAUTIONS ]
NOTE 1: Details of terminal block for power supply
LN
Electric parts box
Power supply wiring
and ground wiring (*)
Plastic clamp
(Field wiring)
NOTE 2: Details of terminal block for unit
transmission wirings
Remote controller wiring (*)
(Field wiring)
1. Use round crimp-style terminals for connecting wires to the
power supply terminal board.
If unavailable, observe the following points when wiring.
• Do not connect wires of different gauge to the same
power supply terminal.
(Looseness in the connection may cause overheating.)
• Use the specified electric wire. Connect the wire securely
to the terminal. Lock the wire down without applying
excessive force to the terminal. (Tightening torque:
131N·cm ±10 %)
Attach insulation sleeve
Transmission wiring
between units (*)
(Field wiring)
Round crimp-style terminal
Electric wire
T2 T1 F2 F1 P2 P1
Clamp
(accessory)
Electric parts box
• You can temporarily hang the electric parts box of the unit
from the position shown in the figure below. Use according to
the type of work.
CAUTION
• Be sure to attach the sealing material or putty (field supplied)
to hole of wiring to prevent the infiltration of water as well as
any insects and other small creatures from outside. Otherwise a short-circuit may occur inside the electric parts box.
• When clamping the wires, be sure no pressure is applied to
the wire connections by using the included clamping material
to make appropriate clamps. Also, when wiring, make sure
the lid on the electric parts box lid fits snugly by arranging the
wires neatly and attaching the electric parts box lid firmly.
When attaching the electric parts box lid, make sure no wires
get caught in the edges. Pass wiring through the wiring
through holes to prevent damage to them.
• Make sure the remote controller wiring, the wiring between
the units, and other electrical wiring do not pass through the
same locations outside of the unit, separating them by at
least 50mm, otherwise electrical noise (external static) could
cause mistaken operation or breakage.
8
2. Tightening torque for the terminal screws.
• Use the correct screwdriver for tightening the terminal
screws. If the blade of screwdriver is too small, the head
of the screw might be damaged, and the screw will not be
properly tightened.
• If the terminal screws are tightened too hard, screws
might be damaged.
• Refer to the table below for the tightening torque of the
terminal screws.
Terminal
Size
Tightening torque
Terminal block for remote controller (6P)
M3.5
0.79 – 0.97N·m
Power supply terminal block (2P)
M4
1.18 – 1.44N·m
Ground terminal
M4
1.44 – 1.94N·m
3. Do not connect wires of different gauge to the same grounding terminal. Looseness in the connection may deteriorate
protection.
4. Out side of the unit, keep transmission wiring at least 50 mm
away from power supply wiring. The equipment may malfunction if subjected to electrical (external) noise.
5. For remote controller wiring, refer to the “INSTALLATION
MANUAL OF REMOTE CONTROLLER” attached to the
remote controller.
6. Never connect power supply wiring to the terminal
block for remote controller wiring. A mistake of the sort
could damage the entire system.
7. Use only specified wire and tightly connect wires to terminals. Be careful wires do not place external stress on terminals. Keep wiring in neat order and so as not to obstruct
other equipment such as popping open the electric parts
box lid. Make sure the lid closes tight. Incomplete connections could result in overheating, and in worse case, electric
shock or fire.
English
01_EN_3P086156-8X.fm Page 9 Wednesday, April 8, 2009 3:56 PM
9-2
HIGH CEILING INSTALLATION
9-3
(1) This unit can be installed in ceilings up to 3.8 meters high.
If the ceiling height exceeds 2.7 meters, however, connect
the connector on the terminal board (A2P) of indoor units as
shown in the figure below.
Terminal board (A2P)
WIRING EXAMPLE
• Fit the power supply wiring of each unit with a switch and fuse
as shown in the drawing.
COMPLETE SYSTEM EXAMPLE (3 systems)
Power supply wiring
Power supply
Transmission wiring
Main
switch
PC board
Switch
Fuse
MIF
Indoor unit
X1A
X2A
NORMAL HIGH
X3A
BS unit
(Only for
Heat
recovery system)
Remote controller
(Factory set)
1. When using 1 remote controller for 1 indoor unit. (Normal operation)
50Hz
or
220V L
MIF
Power supply
220-240V
Power supply
220-240V
Power supply
220-240V
50Hz
or
220V
50Hz
or
220V
50Hz
or
220V
Outdoor unit
Control box
IN/D OUT/D
F 1 F 2 F 1 F2
N
L N
No. 1
System
60Hz
X1A
X2A
NORMAL HIGH
X3A
Power supply
220-240V
(2) Match with setting of (1) and apply air outlet blocking pad.
For FXKQ25 · 32 · 40M(A)VE
• Apply to the left side drain pan opening (3 locations) as
shown in the figure.
LN
Indoor
unit A
P1 P2 F1 F2 T1 T2
Indoor
unit B
P1 P2
L N
60Hz
60Hz
LN
P1 P2 F1 F2 T1 T2
L N
LN
P1 P2 F1 F2 T1 T2
Indoor
unit C
P1 P2
60Hz
P1 P2 F1 F2 T1 T2
LN
P1 P2
P 1 P2
Most
downstream
Indoor unit
2. For group control or use with 2 remote controllers
Insert
Power supply
220-240V
50Hz
or L
220V
Outdoor unit
Control box
IN/D OUT/D
F1 F2 F1 F2
N
No. 2
System
Note: It is not necessary to designate
indoor unit address when using
group control.
The address is automatically set
when power is activated.
Most
downstream
indoor unit
60Hz
For FXKQ63M(A)VE
• Apply to the right side drain pan opening (3 locations) as
shown in the figure.
Insert
Indoor unit B
Indoor unit A
LN
P1 P2 F1 F2 T1 T2
LN
Indoor unit C
P1 P2 F1 F2 T1 T2
LN
LN
P1 P2 F1 F2 T1 T2
P1 P2
P1 P2
Fig. 1
English
P1 P2 F1 F2 T1 T2
P1 P2
For use with 2
remote controllers
9
01_EN_3P086156-8X.fm Page 10 Wednesday, April 8, 2009 3:56 PM
3. When including BS unit
Power
supply
220-240V
50Hz
or
220V
Power
supply
220-240V
Outdoor unit
Control box
IN/D OUT/D
F1 F2 F1 F2
L N
No. 3
System
Wiring Method (See “ELECTRIC WIRING WORK”)
(3) Remove the electric parts box lid.
(4) Add remote control 2 (slave) to the terminal block for
remote controller (P1, P2) in the electric parts box.
(There is no polarity.) (Refer to Fig. 1 and 8-3.)
BS unit
L N
Control box
OUT/D IN/D
F1 F2 F1 F2
60Hz
50Hz
or
220V
BS unit
Control box
60Hz
Indoor unit A
L N
L N
P 1 P 2 F 1 F 2 T 1 T2
P 1 P 2 F 1 F 2 T1 T 2
9-5
OUT/D IN/D
F1 F2 F1 F2
COMPUTERISED CONTROL (FORCED OFF
AND ON/OFF OPERATION)
(1) Wire specifications and how to perform wiring
• Connect input from outside to terminals T1 and T2 of the
terminal block for remote controller.
Most
downstream
indoor unit
F2
T1
T2
FORCED
OFF
P1 P2
P1 P2
Input A
[ PRECAUTIONS ]
1. A single switch can be used to supply power to units on the
same system. However, branch switches and branch circuit
breakers must be selected carefully.
2. Do not ground the equipment on gas pipes, water pipes or
lightning rods, or crossground with telephones. Improper
grounding could result in electric shock.
9-4
CONTROL BY 2 REMOTE CONTROLLERS
(Controlling 1 indoor unit by 2 remote controllers)
• When using 2 remote controllers, one must be set to “MAIN”
and the other to “SUB”.
MAIN/SUB CHANGEOVER
(1) Insert a
screw driver into the recess between the upper
and lower part of remote controller and, working from the 2
positions, pry off the upper part.
The remote controller PC board is attached to the upper
part of remote controller.
Upper part of
remote controller
Wire specification
Sheathed vinyl cord or cable (2 wire)
Gauge
0.75 - 1.25 mm
Length
Max. 100 m
External terminal
Contact that can ensure the minimum applicable load of 15 V DC, 1 mA.
2
(2) Actuation
• The following table explains FORCED OFF and ON/OFF
OPERATIONS in response to Input A.
FORCED OFF
ON/OFF OPERATION
Input “ON” stops operation (impossible
by remote controllers).
Input “OFF” → “ON” turns
ON unit.
Input “OFF” enables control by remote
controller.
Input “ON” → “OFF” turns
OFF unit.
(3) How to select FORCED OFF and ON/OFF OPERATION
• Turn the power on and then use the remote controller to
selet operation.
9-6
CENTRALIZED CONTROL
• For centralized control, it is necessary to designate the group
No. For details, refer to the manual of each optional controllers for centralized control.
Lower part of
remote controller
Insert the screwdriver here and gently work
off the upper part of remote controller.
(2) Turn the MAIN/SUB changeover switch on one of the two
remote controller PC boards to “S”.
(Leave the switch of the other remote controller set to “M”.)
(Factory setting)
Only one remote controller
needs to be changed if
factory settings have
remained untouched.
10
S
M
Remote controller
PC board
S
M
English
01_EN_3P086156-8X.fm Page 11 Wednesday, April 8, 2009 3:56 PM
10. DECORATION PANEL INSTALLATION
12. TEST OPERATION
Refer to the installation manual of the panels.
Refer to the installation manual of the outdoor unit.
• The operation lamp of the remote controller will flash when
an malfunction occurs. Check the malfunction code on the
liquid crystal display to identify the point of trouble. An explanation of malfunction codes and the corresponding trouble is
provided in “CAUTION FOR SERVICING” of the indoor unit.
If any of the items in Table 5 are displayed, there may be a
problem with the wiring or power, so check the wiring again.
[ PRECAUTIONS ]
• SWING FLAP MOTOR WIRING METHOD
(1) CONNECT TWO LEAD WIRES OF SWING FLAP MOTOR
MOUNTED ON THE DECORATION PANEL TO THE CONNECTORS OF MAIN BODY.
(2) SLIDE THE INSULATION TUBE ACCORDING TO THE
ARROW AS SHOWN IN FIG. SO THAT THE CONNECTOR CAN BE COMPLETELY COVERED.
(3) BIND THE OPENING OF INSULATION TUBE WITH THE
ATTACHED CLAMP MATERIAL.
CLAMP MATERIAL
(accessory)
11. FIELD SETTING
Make sure the terminal box lids are closed on the indoor
and outdoor units.
Field setting must be made from the remote controller in
accordance with the installation condition.
• Setting can be made by changing the “Mode No.”, “FIRST
CODE NO.”, and “SECOND CODE NO.”.
• For setting and operation, refer to the “FIELD SETTING” in
the installation manual of the remote controller.
Table 5
Remote control display
Content
“Concentrated Management” is lit up
• There is a short circuit at the
FORCED OFF terminals (T1, T2).
“U4” is lit up
“UH” is lit up
• The power on the outdoor unit is off.
• The outdoor unit has not been wired
for power supply.
• Incorrect wiring for the transmission
wiring and / or FORCED OFF wiring.
No display
• The power on the indoor unit is off.
• The indoor unit has not been wired for
power supply.
• Incorrect wiring for the remote controller wiring, the transmission wiring,
and / or the FORCED OFF wiring.
Mode No.
SECOND
CODE NO.
SETTING
FIRST CODE
NO.
FIELD SET
MODE
• Set the remote controller to the field set mode.
For details, refer to the “HOW TO SET IN THE FIELD”, in
the remote controller manual.
• When in the field set mode, select mode No. 12, then set
the first code (switch) No. to “1”. Then set second code
(position) No. to “01” for FORCED OFF and “02” for ON/
OFF OPERATION. (FORCED OFF at factory set)
English
11
00_CV_3P086156-8X.fm Page 2 Tuesday, April 7, 2009 4:45 PM
3P086156-8X EM02A082D (0905)
HT
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
