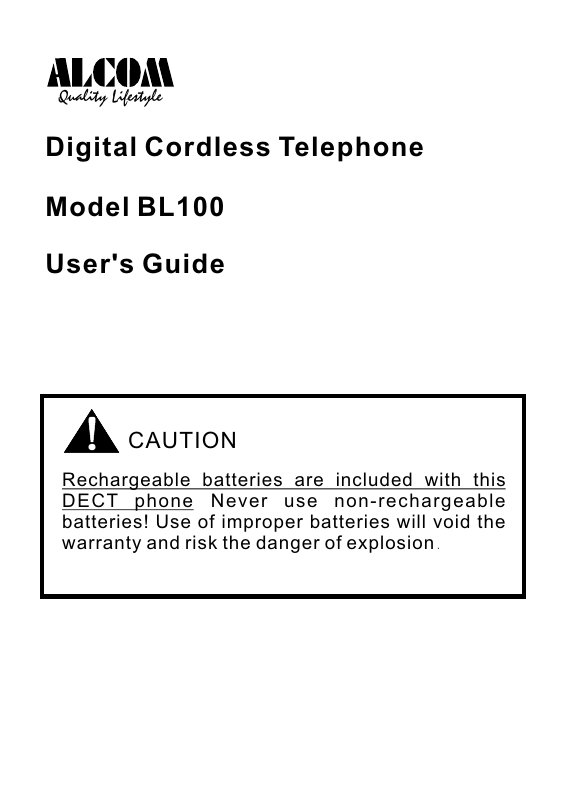

Quality Lifestyle

Digital Cordless Telephone

Model BL100

User's Guide

CAUTION

Rechargeable batteries are included with this

DECT phone Never use non-rechargeable batteries! Use of improper batteries will void the warranty and risk the danger of explosion

Introduction

Important Safety Notes

Please observe the following to ensure reliable operation of the telephone:

 Read this manual thoroughly and observe the operating instructions and information provided.

 Place the base station on a non-slip surface and lay the connection cables so they cannot be the source of an accident.

 Do not expose the equipment to extreme temperatures or high relative humidity and protect it from direct sunlight and dusty conditions.

 Clean the equipment with a soft, damp cloth. Do not use any solvents or aggressive cleaning agents.

 Only connect approved accessories.

 Only use the power plug supplied.

 Never open the unit. Opening the unit annuls claims under the terms of guarantee and exposes the person to the risk of an electric shock.

-

1

-

 R e p a i r s t o d e f e c t i v e u n i t s s h o u l d o n l y b e carried out by service centers recommended by the sales outlet.

 We recommend removing the batteries if the equipment is not to be used for longer periods.



O n l y r e p l a c e t h e b a t t e r i e s w i t h t y p e s r e c o m m e n d e d b y u s . D i s p o s e o f d e f e c t i v e batteries according to the applicable local laws

(not in household waste). We assume no liability for damage caused by using the equipment for unintended purposes.

Exemption from Liability

We cannot guarantee the information which relates to the technical properties or that contained in this document is correct. The product and its accessories described in this document are subject to constant improvement and further development.For this reason, we reserve the right to modify components, accessories, technical specifications and related documentation of the

Product described herein without notification.

Intended Use

This telephone is designed for communicating within a telephone network. Any other use is considered unintended

use. Unauthorized modifications or reconstruction not described in this manual is not permitted.

-

2

-

Battery Safety Precautions

 Do not burn, disassemble, mutilate, or puncture.

Like other batteries of this type, toxic materials

Could be released which can cause injury.

 To reduce the risk of fire or personal injury,

use only the battery listed in User's Guide.

 Keep batteries out of children.

 Remove batteries if storing over 30 days.

Connecting the Base Station and Power Plug

Connecting the plugs to the corresponding sockets in the base station ( they can not be connected incorrectly because the sockets and plugs are designed prevent reverse poling). Lay the cable under the telephone to the rear. Plug the telephone line in the telephone connection socket. Insert the power plug at the other end in the power outlet. The base station is now ready to operate.

Only use the connection cable supplied.

AC power outlet

Phone jack

CAUTION:

Plug the adapter to the socket outlet that is near the equipment and shall be easily accessible. USE

ONLY WITH PROVIDED ADAPTOR. Using other power supplies may damage the unit.

-

3

-

Getting Started

Install and Charge the Batteries

- 5-

Insert two pieces Rechargeable AAA batteries in the compartment, ensuring correct polarity and close the compartment

.

Please wait for 30 seconds after removing the old

batteries when change and install a new pair

battery.



Place the handset in the base station to charge

for 14 hours prior for first use. If you don't

properly charge the phone, battery performance

will be Compromised.



Use only with provided batteries.

Warning:

The handset will not work and damage if wrong batteries are inserted.

Risk of explosion if battery is replaced by an

incorrect type. Dispose of used batteries

according to the instruction for recycling in

your country. If batteries are empty, handset

LCD will not display and the handset will not

respond to any key. Handset is then required

to put back on Base Station / Charger cradle to

charge.

-

4

-

If handset is not charged fully before use, handset may emit battery low alert tone and battery level indicator will show empty.

Feature List

1. Comfortable digital cordless phone with DECT standards

2.

25Names and number phone book

3.

Caller ID* and Caller ID on Call Waiting

4.

Incoming 20 names/numbers call log

5.

Multi-language menu

6.

10 Ringtone melodies

7.

Ringer on/off

8.

10 Last number redial

9.

5 level ring volume

10. Real time clock display

11. Handset can be named

12. Automatic call answering

13. Key input tone on/off

14. Keypad lock

15. Teleconference+

16. Internal free communication between handsets+

17. Battery status icon low battery warning

18. Up to 100 hours standby

19. Up to 10 hours continuous talk time

20. Out of range warning

21. Recall/Pause/Hold

22. Tone and pulse dialling

+ More than one handset require

* Subscription may be required. Please contact your network provider.

D E C T: D i g i t a l l y E n h a n c e d C o r d l e s s Te l e p h o n e

Standard for Cordless telephones.

-

5

-

Handset and Base Layouts

Redial / Up /Increase volume key

Caller ID/Down/ Decrease volume key

Menu / OK key

Cancel /Mute /

Ring off

key

Flash key

Phone book key

Talk/ Off key

-

6

-

Asterisk /INT key

Hash /Keypad lock key

Pause Key

-

7

-

Paging

LCD Display

Icon

Description

Aeria l icon

Phone icon

Key lock icon

No rin g icon

Microphone mute icon

Intercom call indicator

Batte ry level indicator

Phonebook icon

Menu icon

Voice mail waiti ng indicator(VMWI icon)

Caller ID icon

Alarm icon

-

8

-

Basic Operation

Make a Call

1. Press the key, wait for a dial tone, then dial the

desired number.

2.

After finishing the conversation, press key or

place the cordless handset into the charger.

The talk timer will be shown for about 2 seconds before return to idle mode.

Pre-dialling

1. When the handset is in idle mode, dial the desired number.

2. Press C key to cancel the wrong digit, dial the correct one again. If a pause is needed during dialing, press and hold

P

key for a while and character “P” will be shown. A 3 seconds pause will be added while dialing.

3. Press the key, the number will be automatically dialled out.

4. After finishing the conversation, press key or place the cordless handset into the charger.

The talk timer will be shown for about 2 seconds before return to idle mode.

Adjust the Receiver Volume

While the phone is in talk mode, press ▲ or ▼ key on the handset to adjust the receiver volume of the handset. There are possible volume selections handset receiver. The display will show

volume level during adjusting.

-

9

for the current

Answer a Call

When the phone rings, the icon will flash and the

LCD on the handset will show “CALL”. If you have subscribed to Caller ID service from your local telephone company, the incoming call information will be shown.

1. Press the key to answer a call.

2. After finishing the conversation, press key or place the cordless handset into the charger.

Auto Answer

If you set on the “AUTO TALK”, just need to pick up the cordless handset from the charger to answer the call

Directly, needn't press key.

Dialing from the Phone Book

Press button when in standby mode, the first entry in the phone book appears.

Note: If there is no record in phone book, “PB EMPTY” information will display

1. Press ▲ or ▼ key to select the required record

from the phone book.

2. Press key to dial the number.

3. After finishing the conversation, press key or place the cordless handset into the charger to terminate the call.

-

10

-

Intercom

You can make an intercom between any two handsets

(If you have more than one handset).

1.

When the handset is in idle mode, press and hold

INT key, “INT-NUMBER?” will be shown, dial the handset number to call.

2. The called handset will ring and the LCD will show

3. Press key in the called handset to answer.

the calling handset's number.

Call Transfer

The function allows you to transfer an external call from a handset to another handset.

1. When the caller is on line, press and hold INT key on the calling unit and dial the handset number to transfer. The line will be put on hold.

2. After the called unit answers the call, the intercom will begin between the two handsets.

3. If you want to transfer the call to the called unit, end the call at the calling unit. The call will be automatically transferred to the called unit.

Note: If the called unit doesn't answer the intercom

Call within 30 seconds, the calling unit will return to the talk mode with the caller.

Call Waiting

If you have subscribed to the service of CID on Call

waiting, the telephone will show the phone number of

another incoming call while you are talking on the

phone.

-

11

-

1. Press R key to put the current call on hold and talk with the second caller.

2. Subsequent presses of R key will toggle you

between these 2 callers.

Caller information of this second call will be stored in the call log.

Three-way Conversation

You may have a 3-way conversation using the intercom and external line.

1. When the caller on line, press and hold INT key

on the calling unit and dial the handset number.

The line will be put on hold.

2. After the called unit answers the call, the intercom

will begin between the two handsets.

3. Press key on the handset to enter menu, then

press ▲ or ▼ key to select “CONFERENCE”,

press key on the handset to confirm. The

three-way conference will begin between the two handsets and the caller.

Note:Only the calling unit can operate the

“CONFERENCE”.

Muting the Ringer volume

Press and hold key in idle mode to activate or

deactivate the handset Ringer. The

icon turns on or off.

Muting the Microphone

Press key can switch the microphone on or off during a call.The

icon turns on or off.

-

12

-

Paging the Handset

If a handset has been misplaced, it is possible to call all the handsets.

Short press

Page key on the base to station.

To stop the page call:

Short press any key on the handset or press page keybriefly on the base.

Switching the Key Lock On/Off

Press and hold key to activate or deactivate the key lock. The icon turns on or off.

Redial Function

The last 10 numbers you dialed out will be separately stored in handset redial memory.

Review and Dial Redial Record

1. When the handset is in idle mode, press key to display the last redial record. If the redial record is empty, “EMPTY” will be shown.

2. Press ▲ or ▼ key to select the desired redial number.

3. Press key, the telephone number is automatically dialed out.

Save Redial Number

1. When the handset is in idle mode, press key.

2. Press ▲ or ▼ key to select the desired redial

number.

3. Press key to enter menu, press ▲ or ▼ key to

-

13

-

select “SAVE NUMBER”, press key on the handset, the selected number will be shown, press

Key ,“ENTER NAME” will be shown and input

the desired name. You must input the name, otherwise the record can't be saved.

4. Press key to save.

Delete a Single Redial Record

1. When the cordless handset is in idle mode, press

Key.

2. Press ▲ or ▼ key to select the desired redial number.

3. Press key to enter menu, press ▲ or ▼ key to select “DELETE?”, Press key, “CONFIRM?” will be shown.

4. Press key to confirm.

Delete All Redial Records

1. When the handset is in idle mode, press key.

2. Press ▲ or ▼ key to select the desired redial number.

3. Press key to enter menu, press ▲ or ▼ key to select “DELETE ALL?”, press key,

“CONFIRM?” will be shown.

4. Press key to confirm.

Note: In the redial function menu, If you want to return to the redial list, press C key.

Caller ID Service

The caller's information will be displayed and recorded

If you have subscribed to Caller ID service from your local telephone company.

When the telephone rings, the caller's information will

-

14

-

be displayed on the handset LCD display. This information includes the phone number and name (if supported). The handset can store up 20 calls for later review (up to 16 digits and 16 characters for each record). When the memory is full, a new call automatically replaces the oldest call in the memory.

Note: If the caller's information includes Date/Time, the Date/Time will be stored with the record. The

Date/Time displayed on the LCD display will be updated after receiving a call.

If the caller number is same as one of phonebook memory, the matched name stored in the phonebook memory will be displayed. If the incoming call is registered as “PRIVATE NUMBER” and its caller ID i n f o r m a t i o n i s w i t h h e l d , t h e L C D w i l l s h o w

“WITHHELD”. If the incoming call does not have

Caller ID service or its service area is not linked to yours, the LCD will show “UNAVAILABLE”.

The handset will prompt user if there is unanswered call.

When the handset is in idle mode, “ ” will be displayed prior to other display information.

If you reviewed all the missed calls from handset, the display “ ” will be disappeared.

Note: 1. If you reviewed all the missed calls from one handset, the display “ ” will still on other handsets.

2.Press * key to toggle the display between name and number.

Note: Message alert Indicator will only work if supported by you telephone service provider

-

15

-

Review Caller ID Record

1. When the handset is in idle mode, press key to

2. display the information for the last call received.

3.

Press ▲ or ▼ key to review all call records.

When you scroll to the end, “--(GO BACK)--” will be shown.

Note:

1. The “ ” icon will turn on if the call is a missed call.

2. “EMPTY” will be displayed for 2 seconds and return to idle mode if you have not received any call.

Edit and Dial Call Record

You can edit the call record so as to dial back.

1. When the handset is in idle mode, press key.

2. Press ▲ or ▼ key to select the desired record.

3. Press key to enter menu.

4. Press ▲ or ▼ key to select “Select”, press key.

5.

Press ▲ key to select the desired location and enter the number cursor press C

.

.

To delete a digit before the

6.

After editing, press key to dial out the edited number.

Note: you may edit the number and make the call,

but the edited number cannot be saved in this

option.

Save Call Record

1. When the handset is in idle mode, press key.

2. Press ▲ or ▼ key to select the desired record.

-

16

-

3. Press key to enter menu.

4. Press ▲ or ▼ key to select “SAVE NUMBER”, press key. the selected number will be shown, press key ,“ENTER NAME” will be shown and input the desired name. You must input the name, otherwise the record can't be saved.

5. Press key to save.

Delete a Single Call Record

1. When the handset is in idle mode, press key.

2. Press ▲ or ▼ key to select the desired record.

3. Press key to enter menu.

4. Press ▲ or ▼ key to select “DELETE?”, Press

key, “CONFIRM?” will be shown.

5. Press key to confirm.

Delete All Call Record

1. When the handset is in idle mode, press key.

2. Press ▲ or ▼ key to select the desired record.

3. Press key to enter menu. press ▲ or ▼ key to select “DELETE ALL?”, Press key,

“CONFIRM?” will be shown.

4. Press key to confirm.

Phone Book

The telephone can store up to 25 entries in the phone

book with name and call number. When the function is

Supported by the telephone provider, the handset displays the name of the caller (when stored in the phone book).

-

17

-

Store Entries

1. Press key to access phone book memory.

2. Press key to access phone book menu.

3. Press ▲ or ▼ key to select ADD NEW and press

Key.

4. Enter number (max. 16 digits) and press key

5.

when finished.

Enter name (max. 16 characters) and press key when finished.

Note: 1. When the capacity is full, MEMORY FULL will

display.

2. Any incorrect input can be deleted by pressing C

key

.

Select Entries

Press key to access phone book memory.

1. Press ▲ or ▼ key to scroll.

2. Press key to select a desired entry, and then press ▲ or ▼ to select the submenu SELECT.

3. Press key to select the telephone number, you may edit the number and make the call, but the edited number cannot be saved in this option.

Edit Entries

Press key to access phone book memory.

1. Press ▲ or ▼ key to scroll.

2. Press key to select a desired entry, and then

Press ▲ or ▼ to select the submenu “EDIT”.

3. Press to start Number edition and press key

-

18

-

again to start Name edition.

4. Press key to confirm.

Note: Press C key to delete any incorrect input.

Delete Entries

Press key to access phone book memory.

1. Press ▲ or ▼ key to scroll.

2. Press

key to select a desired entry, and then

press ▲ or ▼ to select the submenu “DELETE？”

3. Press key to delete the entry.

4. Press key again to confirm.

Delete All Entries

Press key to access phone book memory.

1. Press ▲ or ▼ key to scroll.

2. Press key to select a desired entry, and then

Press ▲ or ▼ to select the submenu “DELETE

ALL?”

3. Press key to delete the entry.

4. Press key again to confirm.

Menu Operation

Handset Setting

Ring Melody

You may select one of the 10 available ringer tones for your incoming calls alert tone. The default setting is “MELODY 1”.

1. Press key.

2. Press ▲ or ▼ key to select “SETUP HS” and press

Key.

3. Press ▲ or ▼ key to select “RING MELODY” and

-

19

-

press key.

4. Press ▲ or ▼ key to select the desired ring melody, the selected melody will be sounded.

5. Press key to confirm the setting.

Ring Volume

You may select one of the 5 available volumes for your incoming calls alert tone. The default setting is volume

5. Ringer can be disable by pressing C key for 1.5

seconds in idle mode.

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press key.

3. Press ▲ or ▼ key to select “Ring volume” and press key.

4. Press ▲ or ▼ key to select the desired ring volume, the selected volume will be sounded.

5. Press key to confirm the setting.

TONES

Low Battery

You may set the warning beep to “ON” when your cordless handset battery is low, so as to alert you to

Charge the battery. The default setting is “ON”.

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press key.

3. Press ▲ or ▼ key to select “Tones” and press key.

4. Press ▲ or ▼ key to select “Low battery” and press

Key.

-

20

-

5. Press ▲ or ▼ key to select “ON” or “OFF”.

6. Press key to confirm the setting.

No Coverage

You may set the warning beep to “ON” or “OFF” when the cordless handset is out of range.

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press key.

3. Press ▲ or ▼ key to select “Tones” and press

Key.

4. Press ▲ or ▼ key to select “No coverage” and press key.

5. Press ▲ or ▼ key to select “ON” or “OFF”.

6. Press key to confirm the setting.

Key Tone

You may set the key tone to “ON” or “OFF” when you

press the keypad. The default setting is “ON”.

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press key.

3. Press ▲ or ▼ key to select “Tones” and press key.

4. Press ▲ or ▼ key to select “Key Tone” and press key.

5. Press ▲ or ▼ key to select “ON” or “OFF”.

6. Press key to confirm the setting.

Auto Talk

This option allows user to pick up the cordless handset from charger to answer the call directly

-

21

-

when a call is coming, and no need to press key.

The default setting is “ON”.

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press key.

3. Press ▲ or ▼ key to select “Auto talk” and press key.

4. Press ▲ or ▼ key to select “ON” or “OFF”.

5. Press key to confirm the setting.

Alarm

1. Press key.

2. Press ▲ or ▼ key to select SETUP HS and press key.

3. Press ▲ or ▼ key to select ALARM and press

Key.

4. Press ▲ or ▼ key to select ON or OFF.

5. Enter HH:MM in 24 hour format

6. Press key to confirm.

Note: When Alarm time is reached, “ALARM ON” will be blinking and alarm sound will stop after around 1 minute.

Handset Name

You can set the cordless handset name that you like.

The default setting is “DECT”.

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press

Key.

3. Press ▲ or ▼ key to select “NAme” and press

Key.

4. Press C key to delete the current name.

-

22

-

5. Input the desired name using number key.

6. Press key to confirm the setting.

Language

14 different languages are available for selection for each handset(default language is set to English).

1. Press key.

2. Press ▲ or ▼ key to select “Setup HS” and press key.

3. Press ▲ or ▼ key to select “Language” and press key.

4. Press ▲ or ▼ key to select Language.

5. Press key to confirm the setting.

Reset Handset

This option allows user to restore the cordless

Handset to the default setting.

1. Press key.

2. Press ▲ or ▼ key to select “SEtup HS” and press

Key.

3. Press ▲ or ▼ key to select “REset” and press key, the LCD will display “Reset?”.

4. Press key to confirm the setting.

Base Setting

Change PIN

PIN is your base's identification number, the function

is to avoid the setting is changed by others. The

default setting is “0000”. You may change the PIN.

Please take note of the change so as to operate

the unit normally.

1. Press key.

-

23

-

2.

Press ▲ or ▼ key to select “SETUP BS” and press

key.

3. Press ▲ or ▼ key to select “CHange PIN” and press key, the LCD will show “ENter PIN”.

4. Press number key to input the old PIN code and press key, the LCD will show “New PIN”, prompt you to input a new PIN code.

Note: “Wrong PIN” will be shown if the old PIN code

You input is wrong, and then return to step 4.

5. Input the desired new PIN code and press key, the LCD will show “REpeat PIN”, prompt you to input the new PIN code again.

6. Input the new PIN code again and press key to confirm the setting.

Note: 1. The PIN code must be 4 digits.

Dial Mode

You may set the dial mode to “TONE” or “PULSE”

according to your needs. The default setting is “Tone”.

1. Press key.

2. Press ▲ or ▼ key to select “SETUP BS” and press

key.

3. Press ▲ or ▼ key to select “Dial mode” and press

Key.

4. Press ▲ or ▼ key to select “Tone” or “Pulse”.

5. Press key to confirm the setting.

Recall Time

You may select flash time from 100ms to 800ms

according to your needs. The default setting is 600ms.

-

24

-

1. Press key.

2. Press ▲ or ▼ key to select “SETUP BS” and press key.

3. Press ▲ or ▼ key to select “Recall time” and press key.

4. Press ▲ or ▼ key to select the desired flash time.

5. Press key to confirm the setting.

VMWI

(should be supported by your telephone service provider

If you have subscribed to a voice messaging service, the icon will display on the handset to alert

)

you if you have a messages waiting.

To turn Visual Message Waiting Indication

(VMWI) to OFF

1.

2.

3.

4.

Press key.

Press ▲ or ▼ key to select “SETUP BS” and press key.

Press ▲ or ▼ key to select “VMWI” and press key. “VMWI OFF?” will display.

Press key to confirm the setting.

Reset Base

This option allows user to restore the base and

Date/Time to the default setting.

1. Press key.

2. Press ▲ or ▼ key to select “SETUP BS” and press key.

3. Press ▲ or ▼ key to select “Reset” and press

key, the LCD will display “Enter PIN”.

4. Input the correct PIN code using number key, press

-

25

-

Key to confirm, and the LCD will display

“Reset?”.

5. Press key to confirm the setting.

Date / Time

You can set the Date/Time displayed in idle mode. The

default setting is “2008, 01/01 12:00”.

1. Press key.

2. Press ▲ or ▼ key to select “Date/Time” and press key, the LCD will display “YEar 2008”.

3. Input the correct last two digits of year (range: 00-

99) using number key, press key to confirm the setting and enter month and date setting.

4. Input the correct month and date, the format is: date / month (date range: 01-30/31 ，month range:

01-12) using number key, press key to confirm the setting and enter time setting.

5. Input the correct time, the format is: hour/minute

(hour range: 00-23, minute range: 00-59) using number key.

6. Press key to confirm the setting.

Note: If the value you input is over the range during

setting, you can't enter next setting by pressing key, please enter the correct setting again.

Registration

Register

Up to 6 cordless handsets can be registered to one

base.

1. Press key.

2. Press ▲ or ▼ key to select “Registration” and press key.

-

26

-

3.

Press ▲ or ▼ key to select “Register” and press

key, Press ▲ or ▼ key to select a base and

Press key, the LCD will display “Enter PIN”.

4. Input the correct PIN code and press key to begin to register the cordless handset, the LCD will display “Searching”.

5. Press and hold the page key for about 15 seconds.

Note: 1. “Successful” will be shown on handset LCD display if the handset is registered to the base.

cordless handset number will be shown after it

returns to idle mode.

2. “FAIL” will be shown on handset LCD display if the

cordless handset is failed to registered to the base,

register the handset again.

Select Base

This option allows user to select a base.

1. Press key.

2. Press ▲ or ▼ key to select “Registration” and press key.

3. Press ▲ or ▼ key to select “SEL BASE” and press key, Press ▲ or ▼ key to select a specific base or Auto.

4. Press key to comfirm the setting.

Remove Handset

This option allows user to remove the registered

cordless handset from the base.

1. Press key.

2. Press ▲ or ▼ key to select “Registration” and press key.

-

27

-

For Base Unit :

Model No.: KB1B-060-0250D

Input: 230V AC / 50 Hz 30mA

Output: 6 V DC, 250 mA

For Charger :

Model No.: KB1B-060-0150D

Input: 230V AC / 50 Hz 30mA

Output: 6 V DC, 150 mA

Telephone connection A p p l i a n c e d e s i g n e d f o r connection to an analogue telephone line class TNV3

( t e l e c o m m u n i c a t i o n s network voltage) as defined by the EN 60950 standard.

Rechargeable Battery

GP45AAAHC, 1.2V / 450mAh

/ Ni-MH, AAA x 2 or equivalent.

* For guidance only, depends on initial battery charge.

General Product Care

Simply wipe the base station with a damp cloth or an antistatic wipe. Never use a dry cloth as this can cause static discharge.

Periodically clean the charge contacts on the handset, base and charger with a soft cloth.

Note: Due to continuous product development all features and

Specifications are subject to change without prior notice.

For more information on Warranty and Product Support in Singapore

please call

(65) 68412668 or Fax to (65) 68412628.

Email: support@alcom. com. sg

Website: www. alcomonline. com

-

29

-

Troubleshooting Guide

PROBLEMS CAUSES

SOLUTIONS

Handset can not be register

The battery is not sufficiently charged.

Charge the battery for 14 hours (see

Battery Charging).

No display.

No reactions to keystroke.

Handset and base station were not prepared for registration.

Unplug and then plug in the power adapter.

The battery has not been charged.

Charge the battery or replace them (see

Battery Charging)

The keypad is locked.

Press key longer

Than 2 seconds.

No radio connection to the base

The handset is outside the base station range.

Station: blinking!

Move closer to the base station.

The handset is not registered.

The base station does not work.

Register the handset

(see Registering

Handset).

Unplug and then plug the power adapter to the power outlet and the other end into the power jack

On base bottom.

-

30

-
