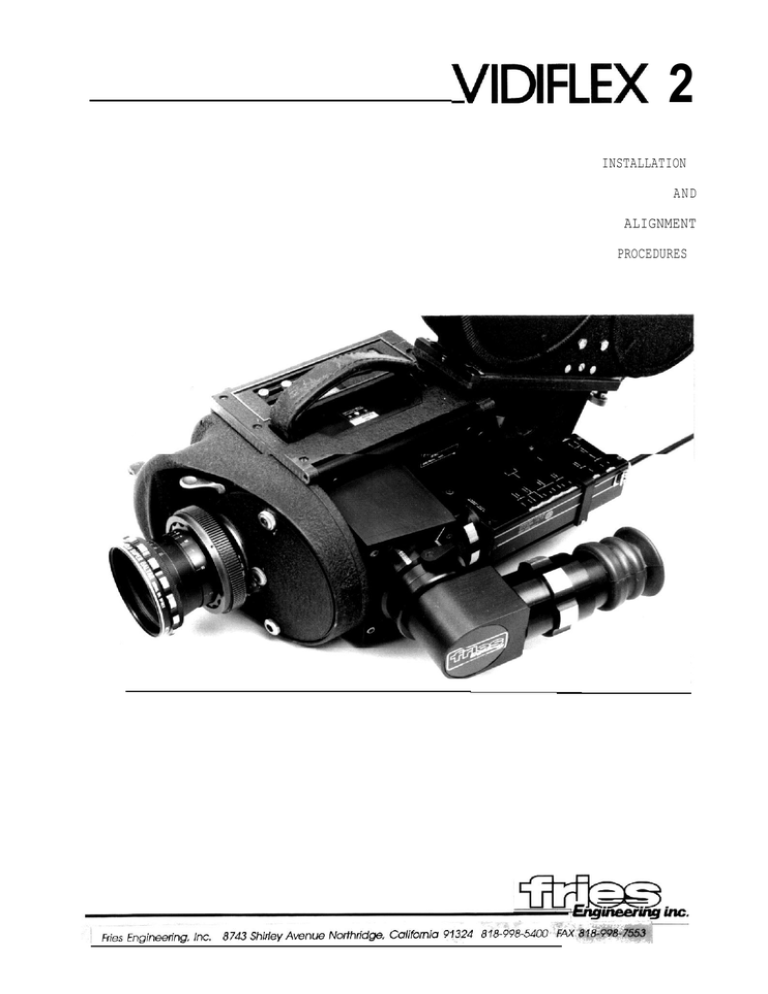

VIDIFLEX 2
INSTALLATION
AND
ALIGNMENT
PROCEDURES
INSTALLATION
/ SAFETY BUSHINGS
REMOVE THE MITCHELL DOOR FROM YOUR CAMERA AND INSTALL THE FILM KEEPER
SAFETY BUSHINGS FROM THE ORIGINAL DOOR ONTO THE VIDIFLEX 2 DOOR.
#6-32
HINGE SCREWS
/-
LOOSEN THE 3 #6-32 SCREWS
CAMERA BODY. INSTALL BOTH
OPEN AND CLOSE THE DOOR TO
THE HINGE SCREWS AGAIN AND
RETIGHTENING.
ON THE HINGE AND
HINGE PINS, THEN
CHECK FOR PROPER
REALIGN THE DOOR
FIT THE VIDIFLEX 2 DOOR ON THE
RETIGHTEN THE 3 HINGE SCREWS.
FIT AND, IF NECESSARY, LOOSEN
TO THE CAMERA BODY BEFORE
3
I
DOOR HOLDING ASSEMBLY
r
ATTACH DOOR HOLDING ASSEMBLY TO NEW VIDIFLEX 2.
IN SOME CAMERAS IT MAY
B E LOCATED AT THIS POSITION
OPTICAL
ALIGNMENT
4
CAUTION: BECAUSE ALL VIDIFLEX 2 DOORS HAVE BEEN OPTICALLY ALIGNED
IN ASSEMBLY ON AN ACTUAL MITCHELL MARK II CAMERA, THE FOLLOWING
PROCEDURE IS SELDOM NEEDED.
CHECK OPTICAL LINE UP VISUALLY THRU VIEWFINDER. IF CORRECTION IS NEEDED,
REMOVE VIDEO ASSEMBLY To ACCESS PRIMARY MIRROR ADJUSTMENT SCREWS. USE THE
4 JACK SCREWS AND THE 2 LOCK SCREWS TO ADJUST THE PRIMARY MIRROR.
LOCK
JACK
SCREWS
SCREWS
7
UP
AND
DOWN
@I!
LOOSEN w
SIDE TO SIDE T1GHT
-$
3 LOOSE
VIDEO
ALIGNMENT
5
ATTACH THE VIDEO CAMERA WITH THE QUICK CONNECT AND POWER UP BOTH THE
VIDEO CAMERA AND MONITOR TO PROPERLY EVALUATE ALIGNMENT. LOOSEN THE
4 #lo-24 VIDEO ASSEMBLY BOLTS, REPOSITION ENTIRE VIDEO ASSEMBLY, INCLUDING
CAMERA, THEN RETIGHTEN BOLTS.
VIDEO
i
ASSEMBLY
BOLTS
OPERATION
VIEWFINDER
L
POSITION
L,K/
/f'EI;;;g"
MANUAL IMAGE
ORIENTATION
CONTROL
---ET
MANUAL IMAGE ORIENTATION
CONTROL CAN BE USED TO CORRECT
BEYOND THE 180' RANGE.
LVIDEO
IRIS CONTROL
fAgi, VIEW, COMBO
VIDEO CAMERA
QUICK-CONNECT
AUTOMATICALLY
CORRECTS THRU 180'
