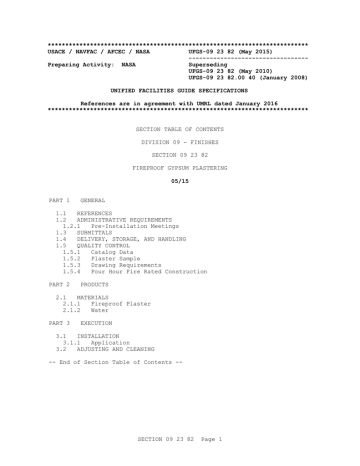

************************************************************************** USACE / NAVFAC / AFCEC / NASA ...

************************************************************************** USACE / NAVFAC / AFCEC / NASA    ...
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-09 23 82 (May 2015)
---------------------------------Preparing Activity: NASA
Superseding
UFGS-09 23 82 (May 2010)
UFGS-09 23 82.00 40 (January 2008)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION TABLE OF CONTENTS
DIVISION 09 - FINISHES
SECTION 09 23 82
FIREPROOF GYPSUM PLASTERING
05/15
PART 1
GENERAL
1.1
REFERENCES
1.2
ADMINISTRATIVE REQUIREMENTS
1.2.1
Pre-Installation Meetings
1.3
SUBMITTALS
1.4
DELIVERY, STORAGE, AND HANDLING
1.5
QUALITY CONTROL
1.5.1
Catalog Data
1.5.2
Plaster Sample
1.5.3
Drawing Requirements
1.5.4
Four Hour Fire Rated Construction
PART 2
PRODUCTS
2.1
MATERIALS
2.1.1
Fireproof Plaster
2.1.2
Water
PART 3
EXECUTION
3.1
INSTALLATION
3.1.1
Application
3.2
ADJUSTING AND CLEANING
-- End of Section Table of Contents --
SECTION 09 23 82
Page 1
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-09 23 82 (May 2015)
---------------------------------Preparing Activity: NASA
Superseding
UFGS-09 23 82 (May 2010)
UFGS-09 23 82.00 40 (January 2008)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION 09 23 82
FIREPROOF GYPSUM PLASTERING
05/15
**************************************************************************
NOTE: This guide specification covers the
requirements for fire protection applications of
specified plaster bases.
Adhere to UFC 1-300-02 Unified Facilities Guide
Specifications (UFGS) Format Standard when editing
this guide specification or preparing new project
specification sections. Edit this guide
specification for project specific requirements by
adding, deleting, or revising text. For bracketed
items, choose applicable items(s) or insert
appropriate information.
Remove information and requirements not required in
respective project, whether or not brackets are
present.
Comments, suggestions and recommended changes for
this guide specification are welcome and should be
submitted as a Criteria Change Request (CCR).
**************************************************************************
PART 1
GENERAL
**************************************************************************
NOTE: Associated work found in other sections
includes metal framing, furring systems, and metal
lath, and standard gypsum plastering applications.
Show areas and location of application and
installation details on drawings.
**************************************************************************
1.1
REFERENCES
**************************************************************************
NOTE: This paragraph is used to list the
publications cited in the text of the guide
specification. The publications are referred to in
the text by basic designation only and listed in
this paragraph by organization, designation, date,
SECTION 09 23 82
Page 2
and title.
Use the Reference Wizard's Check Reference feature
when you add a RID outside of the Section's
Reference Article to automatically place the
reference in the Reference Article. Also use the
Reference Wizard's Check Reference feature to update
the issue dates.
References not used in the text will automatically
be deleted from this section of the project
specification when you choose to reconcile
references in the publish print process.
**************************************************************************
The publications listed below form a part of this specification to the
extent referenced. The publications are referred to within the text by the
basic designation only.
ASTM INTERNATIONAL (ASTM)
ASTM E119
(2014) Standard Test Methods for Fire
Tests of Building Construction and
Materials
ASTM E605
(1993; R 2011) Thickness and Density of
Sprayed Fire-Resistive Material (SFRM)
Applied to Structural Members
ASTM E736
(2000; R 2011) Cohesion/Adhesion of
Sprayed Fire-Resistive Materials Applied
to Structural Members
ASTM E761
(1992; R 2011) Compressive Strength of
Sprayed Fire-Resistive Material Applied to
Structural Members
ASTM E84
(2015b) Standard Test Method for Surface
Burning Characteristics of Building
Materials
INTERNATIONAL CODE COUNCIL (ICC)
ICC IBC
1.2
1.2.1
(2012) International Building Code
ADMINISTRATIVE REQUIREMENTS
Pre-Installation Meetings
Within [30] [_____] days of Contract Award, the Contracting Officer will
schedule [a] Pre-Installation meeting[s]. Submit the following for review
and approval at the Pre-Installation meeting:
a.
Installation Drawings
b.
Manufacturer's Catalog Data
c.
Fireproofing Plaster Sample
SECTION 09 23 82
Page 3
d.
Certificates of Conformance
[ e.
Special Provisions
]1.3
SUBMITTALS
**************************************************************************
NOTE: Review Submittal Description (SD) definitions
in Section 01 33 00 SUBMITTAL PROCEDURES and edit
the following list to reflect only the submittals
required for the project.
The Guide Specification technical editors have
designated those items that require Government
approval, due to their complexity or criticality,
with a "G." Generally, other submittal items can be
reviewed by the Contractor's Quality Control
System. Only add a ā€œGā€ to an item, if the submittal
is sufficiently important or complex in context of
the project.
For submittals requiring Government approval on Army
projects, a code of up to three characters within
the submittal tags may be used following the "G"
designation to indicate the approving authority.
Codes for Army projects using the Resident
Management System (RMS) are: "AE" for
Architect-Engineer; "DO" for District Office
(Engineering Division or other organization in the
District Office); "AO" for Area Office; "RO" for
Resident Office; and "PO" for Project Office. Codes
following the "G" typically are not used for Navy,
Air Force, and NASA projects.
An "S" following a submittal item indicates that the
submittal is required for the Sustainability
Notebook to fulfill federally mandated sustainable
requirements in accordance with Section 01 33 29
SUSTAINABILITY REPORTING.
Choose the first bracketed item for Navy, Air Force
and NASA projects, or choose the second bracketed
item for Army projects.
**************************************************************************
Government approval is required for submittals with a "G" designation;
submittals not having a "G" designation are [for Contractor Quality Control
approval.][for information only. When used, a designation following the
"G" designation identifies the office that will review the submittal for
the Government.] Submittals with an "S" are for inclusion in the
Sustainability Notebook, in conformance to Section 01 33 29 SUSTAINABILITY
REPORTING. Submit the following in accordance with Section 01 33 00
SUBMITTAL PROCEDURES:
SD-02 Shop Drawings
Installation Drawings[; G[, [____]]]
SD-03 Product Data
SECTION 09 23 82
Page 4
Manufacturer's Catalog Data[; G[, [____]]]
SD-04 Samples
Fireproofing Plaster Sample[; G[, [____]]]
SD-07 Certificates
Certificates of Conformance[; G[, [____]]]
SD-08 Manufacturer's Instructions
Manufacturer's Instructions[; G[, [____]]]
Special Provisions[; G[, [____]]]
1.4
DELIVERY, STORAGE, AND HANDLING
Deliver materials in original unopened packages bearing the name of the
product, manufacturer's name, and the Underwriters Laboratories, Inc. label.
Store materials off the ground, under cover, and away from damp surfaces
and keep dry until ready to use. Discard all materials that have been
exposed to water before use.
1.5
1.5.1
QUALITY CONTROL
Catalog Data
Submit manufacturer's catalog data for fireproof plaster showing applicable
flame spread classification, fuel contribution, and smoke developed.
1.5.2
Plaster Sample
Submit no less than 0.2 kilogram 1/2 pound of Fireproofing Plaster Sample
for review and approval.
1.5.3
Drawing Requirements
Submit installation drawings indicating the fireproof plaster, framing and
furring as indicated and specified. Ensure components of the installation
drawings meet the requirements of indicated and specified fireproofing.
1.5.4
Four Hour Fire Rated Construction
Prior to the commencement of work, submit certificates of conformance for
fireproof plaster showing conformance with the ICC IBC, "International
Building Code," "Requirements for Four-Hour Construction." Submit
manufacturer's instructions for Fireproof Plaster[ including special
provisions required to install equipment components and system packages].
Indicate all detail impedances, hazards and safety precautions on drawings.
SECTION 09 23 82
Page 5
PART 2
2.1
2.1.1
PRODUCTS
MATERIALS
Fireproof Plaster
Provide gypsum-vermiculite fireproof plaster mix, consisting of one part
gypsum to two parts vermiculite, conforming to ICC IBC, "Requirements for
4-Hour Construction."
Ensure cohesion of the dry set material is such that the fireproofing coat
will not crack or delaminate when the structural [steel ]element is
subjected to a downward deflection of 1/120 of the span, and the minimum
compressive strength requirement in accordance with ASTM E761 is not less
than 485 kilopascal 70 pounds per square inch.
Provide set and dried material, which when tested in accordance with
ASTM E84, yields the following characteristics:
a.
Flame spread
b.
Fuel contributed
5
c.
Smoke developed
0
2.1.2
10
Water
Use only potable water for mixing.
PART 3
3.1
EXECUTION
INSTALLATION
Apply fireproofing plaster as specified to those areas indicated on
drawings. Install per details as indicated on drawings.
3.1.1
Application
Provide [pneumatic] [or] [and] [trowelled] application of fireproofing
plaster in accordance with material manufacturer's written recommendations
and ASTM E736. Provide thickness of application as indicated and in
compliance with ASTM E605 and the applicable fire and local codes to
provide rated fireproofing when tested in accordance with ASTM E119.
Provide framing and furring that meets the requirements of [09 22 00][
09 22 36], and [as recommended by manufacturer for the installation of the
fireproofing plaster thickness required][as indicated in the drawings].
3.2
ADJUSTING AND CLEANING
After completion of fireproofing work, remove all application equipment.
Clean all areas of ceilings, walls, and floors, adjacent or exposed to the
operations of application of the fireproofing material, and other surfaces
and finishes that may have been soiled by fireproofing materials.
SECTION 09 23 82
Page 6
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-09 23 82 (May 2015)
---------------------------------Preparing Activity: NASA
Superseding
UFGS-09 23 82 (May 2010)
UFGS-09 23 82.00 40 (January 2008)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION TABLE OF CONTENTS
DIVISION 09 - FINISHES
SECTION 09 23 82
FIREPROOF GYPSUM PLASTERING
05/15
PART 1
GENERAL
1.1
REFERENCES
1.2
ADMINISTRATIVE REQUIREMENTS
1.2.1
Pre-Installation Meetings
1.3
SUBMITTALS
1.4
DELIVERY, STORAGE, AND HANDLING
1.5
QUALITY CONTROL
1.5.1
Catalog Data
1.5.2
Plaster Sample
1.5.3
Drawing Requirements
1.5.4
Four Hour Fire Rated Construction
PART 2
PRODUCTS
2.1
MATERIALS
2.1.1
Fireproof Plaster
2.1.2
Water
PART 3
EXECUTION
3.1
INSTALLATION
3.1.1
Application
3.2
ADJUSTING AND CLEANING
-- End of Section Table of Contents --
SECTION 09 23 82
Page 1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
