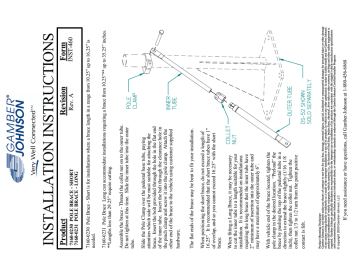

Form
INST-460
Revision
Rev. A
COLLET
NUT
DS-52 SHOWN
SOLD SEPARATELY
OUTER TUBE
INNER
TUBE
POLE
CLAMP
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2009 Gamber-Johnson, LLC
With vehicle end of the brace located, tighten the
pole clamp in the desired location. “Preload” the
brace by pushing the top of the pedestal tube in a
direction to extend the brace slightly (1/16 1/8
inch), then tighten the collet nut. Tighten the
collet nut 1/3 to 1/2 turn from the point positive
contact is felt.
When fitting a Long Brace, it may be necessary
to cut the inner tube to a length suitable for your
installation. It is recommended on installations
requiring the long brace that the inner tube have
2” minimum of insertion into the outer tube and
may have a maximum of approximately 6”.
When positioning the short brace, do not exceed a length of
16.25”. It is recommended that the short brace tubes have 1”
of overlap, and so you cannot exceed 16.25” with the short
brace.
The flat ends of the brace may be bent to fit your installation.
Slide the Pole Clamp over the pedestal base tube, paying
attention which side will be most suitable for attaching the
brace. Insert the bolt provided through the hole in the flat end
of the inner tube. Insert the bolt through the clearance hole in
the pinch clamp and screw it into the pole clamp. Attach the
other end of the brace to the vehicle using customer supplied
hardware.
Assemble the brace - Thread the collet nut on to the outer tube.
Do not tighten at this time. Slide the inner tube into the outer
tube.
7160-0231 Pole Brace Long can accommodate installations requiring a brace from 10.25”** up to 35.25” inches.
**Lengths less than 29.25” require cutting.
7160-0230 Pole Brace - Short is for installations where a brace length in a range from 10.25” up to 16.25” is
needed.
7160-0230 POLE BRACE - SHORT
7160-0231 POLE BRACE - LONG
Product
INSTALLATION INSTRUCTIONS
