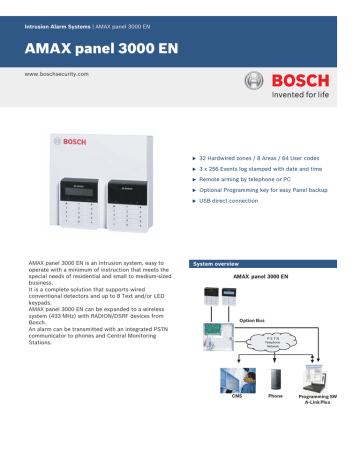

Intrusion Alarm Systems | AMAX panel 3000 EN
AMAX panel 3000 EN
www.boschsecurity.com
AMAX panel 3000 EN is an intrusion system, easy to
operate with a minimum of instruction that meets the
special needs of residential and small to medium-sized
business.
It is a complete solution that supports wired
conventional detectors and up to 8 Text and/or LED
keypads.
AMAX panel 3000 EN can be expanded to a wireless
system (433 MHz) with RADION/DSRF devices from
Bosch.
An alarm can be transmitted with an integrated PSTN
communicator to phones and Central Monitoring
Stations.
u
32 Hardwired zones / 8 Areas / 64 User codes
u
3 x 256 Events log stamped with date and time
u
Remote arming by telephone or PC
u
Optional Programming key for easy Panel backup
u
USB direct connection
System overview
AMAX panel 3000 EN
Option Bus
PSTN
Telephone
Network
CMS
Phone
Programming SW
A-Link Plus
2 | AMAX panel 3000 EN
Functions
Intrusion Detectors (1)
AMAX panel 3000 EN is an 32 zone / 8 area intrusion
panel with enclosure and transformer. The system
includes a PSTN dialer to transmit an alarm via the
common telephone network. An alarm can be
transmitted to a phone and a communication center.
The easy programming can be done by the AMAX TEXT,
LCD and LED keypads or via the programming
software ( A-Link Plus).
All conventional intrusion
detectors, including Blue Line,
seismic, PIR, TriTech,
photoelectric and TriTech PIR
Microwave.
Four-wire Smoke Detectors (1, 2)
Conventional 12V smoke, heat
and photoelectric smoke
detectors.
Basic functions
Zone
DX2010 zone input module
Relays
DX3010 output module
IP-Communicator
B426 Ethernet Network Interface
Module
GPRS/GSM Communicator
ITS-DX4020-G Integrated
Communicator
•
•
•
•
•
•
•
Keypad Code STAY / AWAY Arming
One Button STAY / AWAY Arming
On Board Dialer with CID / SIA Transmission Format
3 Onboard Outputs (two monitored)
All Zones can be used with four Wire Fire Detectors
All Zones can be used for Chime Mode (Door Bell)
All Zones can be used to detect Sensor Tamper
(DEOL)
• Test Mode for Outputs and Zones
Optional functions
• Wireless devices (433 MHz) RADION/DSRF from
BOSCH Group
• Zone inputs on Extension modules (with DX2010)
• Relay outputs on Extension modules (with DX3010)
• Outdoor sirens and IP cameras can be connected to
an optional 8 relay module (DX3010)
• Programming Key
• FW Update with FW Update Key
Optional (1, 2)
1. Assorted literature is available. Refer to the
appropriate datasheet, brochure, installation guide for
additional data.
2. Availability varies according to sales region.
Certifications and approvals
Region
Zertifizierung
Europe
CE
DIN EN 50130-4 (6/2011)
DIN EN 55022 (5/2008)
EN 60950-1:2006 + A11:2009
+ A1:2010
EN
EN 50131-3 Grade 2
VDS
Home
Optional Alarm Transmission
• IP communication (BOSCH Conettix IP Protocol) via
B426 module
• GPRS communication (Bosch Conettix IP Protocol)
via DX4020G module
• GSM communication (Contact ID Protocol) via
DX4020G module
Optional Remote Programming
• IP (B426 module)
• GPRS (DX4020 G module)
Optional Video Alarm verification
Can be realized in combination with DX3010 8 relay
module and IP 200 camera series of Bosch. The live
video verification ensures a location check and false
alarm reduction via Internet from every location
worldwide. This means that you or the monitoring
center can get alarm notification in order to detect
where exactly the alarm got triggered and if there is a
real intruder present.
Compatibility Information
Basic
PSTN Communicator (Integrated)
Formats:
Contact ID, SIA
Magnetic Contacts (1)
All magnetic contacts, including
recessed, terminal connection,
miniature over-head door, and
surface mount.
Germany
Parts included
CTN
Pcs
Description
AMAX panel 3000 EN
1
32 zone / 8 areas intrusion panel
with enclosure and transformer,
tamper, integrated PSTN-Communicator
1
User Guide, multilingual
Technical specifications
Panel
Enclosure:
Dimensions (HxWxD):
• 260 x 280 x 83,5 mm(L x W x H)
Weight:
• 1950g
Environmental Considerations:
Relative Humidity:
• 10%-95%
Operating
Temperature:
• -10°C - +55°C
Supervised Zones:
3 | AMAX panel 3000 EN
• maximum length 200m (Panel to last
KP)
• maximum BUS 1 length 700m ( max
14 devices, max 8 KPs)
Onboard:
Z1 – Z8 COM:
• 8 Single or dual end-of-line (EOL
2,2KΩ) tamper point support
Tamper:
• Enclosure tamper input (does not
reduce point capacity)
Panel PCB:
• Quiescent current maximum 100mA
Battery:
• 12V/7 Ah, lead acid rechargeable
Programmable Outputs (PO):
Ordering information
Onboard:
PO -1:
• supervised output max 500mA
PO -2:
• supervised output max 500mA
Relay:
• -12V output max 100mA
Number of...
Zones:
• 32
Users:
• 64
Key Fobs:
• 128
Events:
• 256 history events, stamped with
time and date
AMAX panel 3000 EN
Language Package 2: French, Portuguese, German,
Dutch
Approval: EN 50131-3 Grade 2
Order number ICP-AMAX3-P2-EN
AMAX panel 3000 EN
Language Package 3: English, Spanish, Swedish, Polish
Approval: EN 50131-3 Grade 2
Order number ICP-AMAX3-P3-EN
AMAX keypad 4000 T
AMAX keypad 4000 T, LCD text keypad, two lines with
each 18 characters.
• 256 EN history events, stamped with
time and date
Order number IUI-AMAX4-TEXT
• 256 dialer history events, stamped
with time and date
AMAX keypad 3000 L16 is a 16 zone LED keypad.
Approval: EN 50131-3 Grade 2
AMAX keypad 3000 L16
Order number IUI-AMAX3-LED16
Pin Code variations:
• 1.000.000
Keypads:
• 8
DX 2010
• 3
DX 3010:
• 2
B 426:
• 2
AMAX keypad 2000 L8
DX4020 G:
• 1
Order number IUI-AMAX-LED8
Wireless Receiver:
• 1
AMAX keypad 2000 D8
• 32
AMAX keypad 2000 D8, 8 zones LCD Icon keypad.
Wireless Devices:
Power:
AMAX keypad 3000 L8
AMAX keypad 3000 L8 is a 8 zone LED keypad.
Approval: EN 50131-3 Grade 2
Order number IUI-AMAX3-LED8
AMAX keypad 2000 L8, 8 zone LED keypad.
Order number IUI-AMAX-LCD8
Accessories
Power Supply Type:
• A
AMAX4 SW Update Key P2
Transformer:
• 230V Input/18VAC 20VA
Fuse=500mA
AMAX panel 4000 EN, French, Dutch, Italian, and
German; 16 zones, 64 users.
AC Input:
• AC Input Voltage: 195 VAC to 253
VAC
• Line Voltage Frequency: 50 Hz
• Panel AC Input Voltage: 18-22V AC
DC Output:
• maximum current for all components
1100mA
• max current for all components
Battery 7Ah standby 12h (recharge
Batt 80% in 72h) = 550mA
Order number ICP-AMAX4SW-P2
AMAX4 SW Update Key P3
SW Language package 3: English, Spanish, Swedish,
Polish
Order number ICP-AMAX4SW-P3
ICP-EZPK
Programming Key
Order number ICP-EZPK
Aux (+12V/GND)
Output:
• 500mA maximum
DX2010
Option Bus :
• 500mA maximum
Zone expansion module. Connects directly to the
control panel data bus. Adds eight input loops.
Cable requirements:
• four wire, AWG18 or AWG22
Order number DX2010
4 | AMAX panel 3000 EN
DX3010
Expansion module with 8 relays.
Order number DX3010
AE20EN
AE20EN plastic enclosure for DX2010/DX3010
Order number AE20EN
B426
Network Interface Module
Order number B426
DX4020G
ITS-DX4020G
Order number DX4020G
