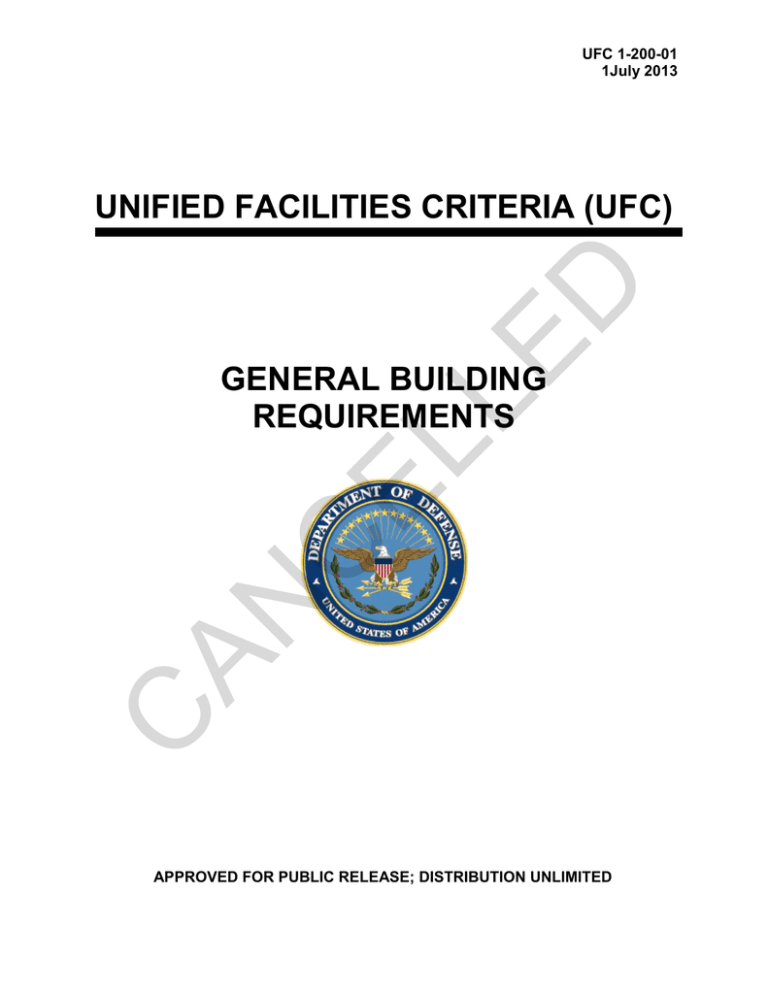

UFC 1-200-01
1July 2013
ED
UNIFIED FACILITIES CRITERIA (UFC)
C
AN
C
EL
L
GENERAL BUILDING
REQUIREMENTS
APPROVED FOR PUBLIC RELEASE; DISTRIBUTION UNLIMITED
UFC 1-200-01
1July 2013
UNIFIED FACILITIES CRITERIA (UFC)
GENERAL BUILDING REQUIREMENTS
U.S. ARMY CORPS OF ENGINEERS
ED
Any copyrighted material included in this UFC is identified at its point of use.
Use of the copyrighted material apart from this UFC must have the permission of the
copyright holder.
NAVAL FACILITIES ENGINEERING COMMAND (Preparing Activity)
EL
L
AIR FORCE CIVIL ENGINEER CENTER
Record of Changes (changes are indicated by \1\ ... /1/)
Date
Location
C
AN
C
Change No.
This UFC supersedes UFC 1-200-01, dated 16 August 2010, including change 2,
implemented 28 November 2011.
UFC 1-200-01
1July 2013
FOREWORD
ED
The Unified Facilities Criteria (UFC) system is prescribed by MIL-STD 3007 and provides
planning, design, construction, sustainment, restoration, and modernization criteria, and applies
to the Military Departments, the Defense Agencies, and the DoD Field Activities in accordance
with USD (AT&L) Memorandum dated 29 May 2002. UFC will be used for all DoD projects and
work for other customers where appropriate. All construction outside of the United States is
also governed by Status of Forces Agreements (SOFA), Host Nation Funded Construction
Agreements (HNFA), and in some instances, Bilateral Infrastructure Agreements (BIA.)
Therefore, the acquisition team must ensure compliance with the most stringent of the UFC, the
SOFA, the HNFA, and the BIA, as applicable.
EL
L
UFC are living documents and will be periodically reviewed, updated, and made available to
users as part of the Services’ responsibility for providing technical criteria for military
construction. Headquarters, U.S. Army Corps of Engineers (HQUSACE), Naval Facilities
Engineering Command (NAVFAC), and Air Force Civil Engineer Center (AFCEC) are
responsible for administration of the UFC system. Defense agencies should contact the
preparing service for document interpretation and improvements. Technical content of UFC is
the responsibility of the cognizant DoD working group. Recommended changes with supporting
rationale should be sent to the respective service proponent office by the following electronic
form: Criteria Change Request. The form is also accessible from the Internet sites listed below.
UFC are effective upon issuance and are distributed only in electronic media from the following
source:
• Whole Building Design Guide web site http://dod.wbdg.org/.
AN
AUTHORIZED BY:
C
Hard copies of UFC printed from electronic media should be checked against the current
electronic version prior to use to ensure that they are current.
JAMES C. DALTON, P.E.
C
Chief, Engineering and Construction
U.S. Army Corps of Engineers
JOSEPH E. GOTT, P.E.
Chief Engineer
Naval Facilities Engineering Command
JOE SCIABICA, SES
MICHAEL McANDREW
Air Force Civil Engineer Center
Office of the Deputy Under Secretary of Defense
(Installations and Environment)
Director
Director, Facilities Investment and Management
UFC 1-200-01
1July 2013
UNIFIED FACILITIES CRITERIA (UFC)
SUMMARY SHEET
Document: UFC 1-200-01, GENERAL BUILDING REQUIREMENTS, dated 1 July
2013.
Superseding: UFC 1-200-01, GENERAL BUILDING REQUIREMENTS, dated 16
August 2010 with Change 2 dated 28 November 2011.
ED
Description: This update to UFC 1-200-01 represents the joint Services effort to bring
uniformity to the military use of non-government model building codes. Technical
representatives of each of the four Services developed in this document to require the
use of the International Building Code (IBC) 2012 consistent with the scope of current
military requirements and procedures. This revision of UFC 1-200-01 contains
modifications in the following areas:
DoD criteria guidance approved as late as 17 June 2013 has been cited.
•
Requirements for compliance with the Randolph-Sheppard Act (vending facilities
for the blind) have been added.
•
Non-unified criteria may be found in Chapter 2, the paragraph entitled, “Explosive
Safety”.
EL
L
•
This document replaces the IBC2009 with the use of the IBC2012 revised and
replaced in 2012 by the International Code Council.
AN
•
C
Reasons for Document: The existing guidance was inadequate for the following
reasons:
The previous version of the UFC 1-200-01 did not properly reference and identify
the most recently updated UFC.
•
DoD requires the use of the National Fire Protection Association (NFPA) Fire
and Life Safety Codes instead of the International Fire Code (IFC). The UFC 3600-01 is the governing document for fire and Life Safety protection.
C
•
Impact: The following direct benefits will result from the update of UFC 1-200-01:
•
Creation of a single source reference for the latest building code.
•
This document reduces interpretation and ambiguity that could lead to design
and construction conflicts.
•
Costs of DoD facilities are not expected to increase as a result of this revision.
Non-Unified Items: This document contains non-unified items as noted above.
UFC 1-200-01
1July 2013
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION ....................................................................................... 1
1-1
PURPOSE AND SCOPE ........................................................................... 1
1-2
APPLICABILITY. ....................................................................................... 1
1-3
LEVELS OF CONSTRUCTION. ................................................................ 1
Permanent construction. ........................................................................ 1
1-3.2
Semi-permanent construction. ............................................................... 1
1-3.3
Temporary construction. ........................................................................ 1
1-4
1-4.1
ED
1-3.1
BUILDING CODE AND MILITARY MODIFICATIONS .............................. 1
Substitutions. ......................................................................................... 2
ADMINISTRATION AND ENFORCEMENT. ............................................. 2
1-6
FACILITIES IN SUPPORT OF MILITARY OPERATIONS ........................ 2
EL
L
1-5
1-6.1
UFC 1-201-01 ........................................................................................ 2
1-6.2
UFC 1-201-02. ....................................................................................... 2
1-6.3
UFC 1-202-01. ....................................................................................... 2
1-7
REFERENCES AND DATES OF PUBLICATION. .................................... 2
C
CHAPTER 2 MODIFICATIONS TO THE INTERNATIONAL BUILDING CODE (IBC) ... 5
CHAPTER 1 – ADMINISTRATION. .......................................................... 5
2-2
CHAPTER 2 – DEFINITIONS. ................................................................... 5
2-3
CHAPTER 3 – USE AND OCCUPANCY CLASSIFICATION. .................. 5
2-4
CHAPTER 4 – SPECIAL DETAILED REQUIREMENTS BASED ON USE
AND OCCUPANCY................................................................................. 5
2-5
CHAPTER 5 – GENERAL BUILDING HEIGHTS AND AREAS. ............... 5
2-6
CHAPTER 6 – TYPES OF CONSTRUCTION. .......................................... 5
2-7
CHAPTER 7 – FIRE-AND SMOKE PROTECTION FEATURES. .............. 5
2-8
CHAPTER 8 – INTERIOR FINISHES. ....................................................... 5
2-9
CHAPTER 9 – FIRE PROTECTION SYSTEMS. ....................................... 5
2-10
CHAPTER 10 – MEANS OF EGRESS. ..................................................... 5
2-11
CHAPTER 11 – ACCESSIBILITY. ............................................................ 6
2-12
CHAPTER 12 – INTERIOR ENVIRONMENT. ........................................... 6
2-13
CHAPTER 13 – ENERGY EFFICIENCY. .................................................. 6
2-14
CHAPTER 14 – EXTERIOR WALLS......................................................... 6
2-15
CHAPTER 15 – ROOF ASSEMBLIES AND ROOFTOP STRUCTURES. 6
C
AN
2-1
i
UFC 1-200-01
1July 2013
2-16
CHAPTER 16 – STRUCTURAL DESIGN. ................................................ 6
2-17
CHAPTER 17 –
2-18
CHAPTER 18 – SOILS AND FOUNDATIONS. ......................................... 7
2-19
CHAPTER 19 – CONCRETE. ................................................................... 7
2-20
CHAPTER 20 – ALUMINUM. .................................................................... 7
2-21
CHAPTER 21 – MASONRY. ..................................................................... 8
2-22
CHAPTER 22 – STEEL. ............................................................................ 8
2-23
CHAPTER 23 – WOOD. ............................................................................ 8
2-24
CHAPTER 24 – GLASS AND GLAZING. ................................................. 8
2-25
CHAPTER 25 – GYPSUM BOARD AND PLASTER. ............................... 8
2-26
CHAPTER 26 – PLASTIC. ........................................................................ 8
2-27
CHAPTER 27 – ELECTRICAL. ................................................................. 9
2-28
CHAPTER 28 – MECHANICAL SYSTEMS. ............................................. 9
2-29
CHAPTER 29 – PLUMBING SYSTEMS. .................................................. 9
2-30
CHAPTER 30 – ELEVATOR AND CONVEYING SYSTEMS. ................... 9
2-31
CHAPTER 31 – SPECIAL CONSTRUCTION. .......................................... 9
2-32
CHAPTER 32 – ENCROACHMENT INTO THE PUBLIC RIGHT-OF-WAY.
.............................................................................................................. 10
2-33
CHAPTER 33 – SAFEGUARDS DURING CONSTRUCTION. ................ 10
2-34
CHAPTER 34 – EXISTING STRUCTURES. ........................................... 10
AN
C
EL
L
ED
SPECIAL INSPECTIONS AND TESTS....................... 7
2-35
CHAPTER 35 – REFERENCED STANDARDS. ..................................... 10
2-36
APPENDICES. ........................................................................................ 10
CHAPTER 3 OTHER CRITERIA .................................................................................. 11
3-1
Vending Facilities for the Blind............................................................. 11
C
3-1.1
HIGHER AUTHORITY MANDATES. ....................................................... 11
3-2
UNIFIED FACILITY CRITERIA (UFC). .................................................... 11
3-2.1
Core UFC............................................................................................. 11
3-2.2
Other UFC. .......................................................................................... 12
3-3
FACILITY CRITIERIA (FC). ..................................................................... 12
3-4
SPECIFICATION REQUIREMENTS. ...................................................... 12
3-5
OTHER MILITARY CRITERIA. ............................................................... 13
3-5.1
Antiterrorism. ....................................................................................... 13
3-5.2
Explosive Safety. ................................................................................. 13
ii
UFC 1-200-01
1July 2013
3-5.3
Physical Security. ................................................................................ 14
C
AN
C
EL
L
ED
APPENDIX A REFERENCES ....................................................................................... 15
iii
ED
UFC 1-200-01
1July 2013
C
AN
C
EL
L
This page intentionally left blank.
i
UFC 1-200-01
1July 2013
CHAPTER 1 INTRODUCTION
1-1
PURPOSE AND SCOPE
This UFC provides general building requirements, establishes the use of consensus
building codes and standards, identifies key core UFC, and identifies unique military
requirements.
1-2
APPLICABILITY.
LEVELS OF CONSTRUCTION.
1-3.1
Permanent construction.
EL
L
1-3
ED
This UFC applies to the design and construction of new and renovated Governmentowned facilities for the Department of Defense. It is applicable to all methods of project
delivery and levels of construction but it is not applicable to public-private ventures
(PPV). For facilities supporting military operations refer to paragraph 1-6.
Buildings and facilities designed and constructed to serve a life expectancy of more
than 25 years.
1-3.2
Semi-permanent construction.
AN
C
Buildings and facilities designed and constructed to serve a life expectancy of more
than 5 years, but less than 25 years. This construction level is typically only used for
support of military operations. Expediency of construction and material availability may
be a factor. Facility intended for a more enduring presence with operational
characteristics and functional performance similar to permanent construction.
Maintainability of finishes and systems must be commensurate with facility life
expectancy and available maintenance capabilities. A moderate level of energy and
water efficiency must be considered.
1-3.3
Temporary construction.
C
Buildings and facilities designed and constructed to serve a life expectancy of five years
or less using low cost construction. Temporary construction typically cannot be
economically converted to a higher level of construction. Temporary facilities have
limited flexibility for conversion and re-use.
1-4
BUILDING CODE AND MILITARY MODIFICATIONS
Use the 2012 International Building Code (IBC2012) as the building code for the
Department of Defense except as modified by this UFC. The IBC2012 has been
modified in Chapters 2 and 3 of this UFC through reference to “core” UFCs, "non-core"
UFCs as identified in Appendix A, References, and other listed military criteria. Core
UFCs provide the unique military building criteria that parallel the building code and
1
UFC 1-200-01
1July 2013
apply to building systems found in most DoD facilities. In conflicts between the
International Building Code 2012 and military criteria, use the military requirements.
1-4.1
•
All references in the IBC2012 to the International Fire Code (IFC) must be
considered to reference to UFC 3-600-01 Fire Protection which cites
NFPA 1.
•
All references in the IBC2012 to the International Fuel Gas code must be
considered to be references to NFPA 54 and NFPA 58.
ED
1-5
Substitutions.
ADMINISTRATION AND ENFORCEMENT.
1-6
EL
L
The terms “Building Official” and “Authority Having Jurisdiction” (AHJ) as used in the
codes and standards referenced in this UFC mean the component office of
responsibility, i.e., U.S. Army, HQ USACE/CECW-CE; U.S. Navy, NAVFACENGCOM
HQ Code CHE; U.S. Marine Corps, HQMC Code LFF-1; and U.S. Air Force, HQ
AFCESA/CEO. The enforcement of the codes and standards as they pertain to facility
projects can be delegated to the local Components Office’s Chief Engineer’s Technical
Representative at the discretion of the components aforementioned office.
FACILITIES IN SUPPORT OF MILITARY OPERATIONS
UFC 1-201-01
AN
1-6.1
C
The following UFC are primarily intended for use outside of the United States
(OCONUS) and its territories and possessions. Also, Joint Publication 3.0, Joint
Operations, provides typical examples of military operations where uses of these UFC
are appropriate.
Use UFC 1-201-01 for design of non-permanent facilities constructed for use by
Department of Defense personnel in support of military operations.
1-6.2
UFC 1-201-02.
C
Use UFC 1-201-02 to assess existing facilities for life safety and habitability for use by
DOD personnel in support of military operations. This document is in production June
2013, with target completion Sept 2013.
1-6.3
UFC 1-202-01.
Use UFC 1-202-01 for design of host nation facilities that support military operations.
This document is in production June 2013, with target completion September 2013.
1-7
REFERENCES AND DATES OF PUBLICATION.
Appendix A contains a list of references used in this document. The publication date of
the code or standard is not included in this document, except for the International family
2
UFC 1-200-01
1July 2013
C
AN
C
EL
L
ED
of codes as referenced within the document and in Appendix A. In general, the latest
available issuance of the reference is used.
3
ED
UFC 1-200-01
1July 2013
C
AN
C
EL
L
This page intentionally left blank.
4
UFC 1-200-01
1July 2013
CHAPTER 2 MODIFICATIONS TO THE INTERNATIONAL BUILDING CODE (IBC)
2-1
CHAPTER 1 – ADMINISTRATION.
Use Sections 101, 102, 110, and 112 of IBC Chapter 1.
2-2
CHAPTER 2 – DEFINITIONS.
2-3
ED
Use IBC Chapter 2. Definitions in this chapter apply to terms used in the model code
and are not intended to replace definitions and terms in military documents. It is
essential that the code defined meaning be known to understand the intent and
correctly interpret the code.
CHAPTER 3 – USE AND OCCUPANCY CLASSIFICATION.
2-4
EL
L
Use IBC Chapter 3 and UFC 3-600-01. If conflict occurs between IBC Chapter 3 and
UFC 3-600-01, the requirements of UFC 3-600-01 take precedence.
CHAPTER 4 – SPECIAL DETAILED REQUIREMENTS BASED ON USE
AND OCCUPANCY.
Use UFC 3-600-01 instead of IBC Chapter 4.
2-5
CHAPTER 5 – GENERAL BUILDING HEIGHTS AND AREAS.
CHAPTER 6 – TYPES OF CONSTRUCTION.
AN
2-6
C
Use IBC Chapter 5. Note that the building area for funding and planning purposes may
be calculated differently than the method defined in IBC Chapter 5.
Use IBC Chapter 6 and UFC 3-600-01. If conflict occurs between IBC Chapter 6 and
UFC 3-600-01, the requirements of UFC 3-600-01 take precedence.
2-7
CHAPTER 7 – FIRE-AND SMOKE PROTECTION FEATURES.
C
Use IBC Chapter 7 and UFC 3-600-01. If conflict occurs between IBC Chapter 7 and
UFC 3-600-01, the requirements of UFC 3-600-01 take precedence.
2-8
CHAPTER 8 – INTERIOR FINISHES.
Do not use IBC Chapter 8. Use UFC 3-600-01 in lieu of IBC Chapter 8 in conjunction
and coordination with UFC 3-120-10 Interior Design.
2-9
CHAPTER 9 – FIRE PROTECTION SYSTEMS.
Do not use IBC Chapter 9. Use UFC 3-600-01 in lieu of IBC Chapter 9.
2-10
CHAPTER 10 – MEANS OF EGRESS.
5
UFC 1-200-01
1July 2013
Do not use IBC Chapter 10. Use UFC 3-600-01 in lieu of IBC Chapter 10.
2-11
CHAPTER 11 – ACCESSIBILITY.
ED
Delete IBC Chapter 11. Use the ABA Accessibility Standard for Department of
Defense Facilities as signed and adopted by the Deputy Secretary of Defense
Memorandum dated October 31, 2008. Where the ABA references the IBC 2003 and
supplements; the latest version of the IBC is acceptable when it meets or exceeds the
latest ABA requirements.
2-12
CHAPTER 12 – INTERIOR ENVIRONMENT.
EL
L
Use IBC Chapter 12 as modified below. IBC Chapter 12 provides the minimum
standards for the interior environment of a building by addressing minimum space sizes,
and temperature, light, and ventilation levels for occupancy. It also addresses minimum
sound transfer, ventilation of attics and under floor spaces, and provides for minimum
moisture resistance standards for toilets and bathrooms. Use IBC Chapter 12, except
as modified below:
Delete IBC paragraph 1204.1, including the exception, and replace with
the following: “1204.1 Equipment and Systems. Use the applicable Unified
Facilities Criteria and individual military service standards for temperature
control criteria.”
•
For Navy and Marine Corps Unaccompanied housing facilities, delete IBC
paragraphs 1207.2, 1207.3, 1208.3 and 1208.4, and use FC 4-721-10N
for air-borne and structure-borne sound transmission criteria, for minimum
room sizes, and for dwelling unit criteria. Also use UFC 3-101-01
Architecture, and UFC 3-120-10, Interior Design.
AN
C
•
2-13
CHAPTER 13 – ENERGY EFFICIENCY.
Delete the use of IBC Chapter 13 and use UFC 1-200-02. The DoD has replaced this
IBC chapter with a new unified criteria for High Performance and Sustainable Buildings.
CHAPTER 14 – EXTERIOR WALLS.
C
2-14
Use IBC Chapter 14. This chapter addresses requirements for exterior walls of
buildings, provides minimum standards for wall covering materials, their installation and
their ability to provide weather protection.
2-15
CHAPTER 15 – ROOF ASSEMBLIES AND ROOFTOP STRUCTURES.
Use IBC Chapter 15, and UFC 3-101-01 Architecture and UFC 3-110-03, Roofing. IBC
Chapter 15 provides standards for roof assemblies as well as rooftop structures. It also
provides some requirements for fire resistance in roofing.
2-16
CHAPTER 16 – STRUCTURAL DESIGN.
6
UFC 1-200-01
1July 2013
Use IBC Chapter 16 as modified by UFC 3-301-01. Use IBC Chapter 16 and UFC 3310-04 for the seismic design of buildings. IBC Chapter 16 describes minimal structural
loading requirements, minimum design loads (live and dead, snow and wind, rain, flood
and earthquake), as well as load combinations, and permitted design methodologies.
2-17
CHAPTER 17 –
SPECIAL INSPECTIONS AND TESTS.
ED
Use IBC Chapter 17 as modified by UFC 3-301-01 and UFC 3-600-01. The Structural
Tests and Special inspections described in IBC Chapter 17 provide a variety of
procedures and criteria for testing materials and assemblies, labeling materials and
assemblies, and for some special inspection of certain structural assemblies. Some
DoD requirements are more stringent and these take precedence as identified in these
UFCs. Replace Paragraph 1704.2 as follows:
EL
L
Modified Paragraph 1704.2 Special Inspections - The contractor must employ
one or more approved agencies to perform inspections during construction on
the types of work listed under Section 1705 Required Verification and Inspection.
These inspections are in addition to the inspections defined in Section 110. The
inspecting agency must provide reports of the special inspections directly to the
government.
2-18
CHAPTER 18 – SOILS AND FOUNDATIONS.
C
Use IBC Chapter 18 and UFC 3-220-01. IBC Chapter 18 is modified by UFC 3-301-01,
and as noted below:
Supplement to IBC 1804.3: Ensure that the grading and associated storm
water runoff do not adversely affect surrounding sites.
•
Supplement to IBC 1808.7.4: Establish finished floor elevations a
minimum of 8 inches (200mm) above finished grade at the perimeter of
the building.
AN
•
2-19
CHAPTER 19 – CONCRETE.
C
Use IBC Chapter 19 as modified by UFC 3-301-01, and UFC 1-200-02. IBC Chapter 19
provides only minimum accepted practices for the use of plain concrete and reinforced
concrete in construction.
2-20
CHAPTER 20 – ALUMINUM.
Use IBC Chapter 20. Chapter 20 contains standards for the use of aluminum, but only
the structural applications of aluminum are addressed. The chapter does not address
the use of aluminum in specialty products such as window framing or architectural
hardware. For aluminum use in Heating, Ventilation, Air Conditioning (HVAC), use the
International Mechanical Code (IMC) adopted by the DoD. Also, consult the Aluminum
Design Manual by the Aluminum Association for use of aluminum in building
construction.
7
UFC 1-200-01
1July 2013
2-21
CHAPTER 21 – MASONRY.
Use IBC Chapter 21 as modified by UFC 3-301-01. Comprehensive and practical
requirements for masonry are found in this chapter by addressing material
specifications, and test methods, types of wall construction, Criteria for empirical and
engineered designs. Masonry foundations are also addressed in Chapter 18 and
modified for DoD use.
2-22
CHAPTER 22 – STEEL.
2-23
EL
L
ED
Use IBC Chapter 22 as modified by UFC 3-301-01. Chapter 22 provides the minimal
commercial requirements for the design and construction of structural steel, including
composite construction), cold-formed steel, steel joists, steel cable structures, and steel
storage racks. Steel for structures is generally classified as Type I and Type II
construction, however steel is permitted in all types of construction. DoD specific
requirements which are specifically mission oriented, are included in UFC 3-301-01.
CHAPTER 23 – WOOD.
Use IBC Chapter 23. This chapter provides minimum requirements for the design of
buildings and structures that use wood and wood based products in framing and
fabrication. In general, only (IBC designated) Types III, IV, or V buildings may be
constructed of wood. Refer to IBC Chapter 3 for Occupancy Types. Refer to UFC 3301-01 Structural Engineering, and 3-600-01 for more detailed requirements.
CHAPTER 24 – GLASS AND GLAZING.
C
2-24
AN
Use IBC Chapter 24. This Chapter establishes regulations for glass and glazing that
when properly installed, are able to meet required resistance to wind, snow, and dead
loads. The engineering and design requirements are included in the chapter.
2-25
CHAPTER 25 – GYPSUM BOARD AND PLASTER.
C
Use IBC Chapter 25. This chapter contains the provisions and referenced standards
that regulate the design, construction and quality of gypsum board and plaster. They
represent the most common interior and exterior finish materials in the commercial
building industry and the DoD. This chapter addresses quality control issues, material
specifications, and installation requirements, under the control of industry requirements.
However, it is the responsibility of the AHJ to inspect and ensure that the appropriate
products are used and properly installed for the intended use and location.
2-26
CHAPTER 26 – PLASTIC.
The use of plastics in building construction and components is addressed in IBC
Chapter 26, addressing flammable materials such as foam plastic insulation, foam
plastics, used as exterior and interior trim, and other plastic veneers such as fiberglass
reinforced polymers which may be quite flammable and create toxic smoke. Therefore,
use IBC Chapter 26, and use UFC 3-600-01. If conflicts occur, use the more restrictive
8
UFC 1-200-01
1July 2013
UFC 3-600-01. These requirements and limitations to the minimal requirements of IBC
Chapter 26 are necessary to control the use of plastic and foam plastic products such
that they do not compromise the increased safety needed in DoD buildings for
occupants and mission.
2-27
CHAPTER 27 – ELECTRICAL.
ED
The IBC2012 references the National Electrical Code, (NEC). In addition, IBC Section
2702 addresses emergency and standby power requirements, which relies on the IFC
(not currently used by the DoD). Therefore, use IBC Chapter 27 as modified by the
following:
Use UFC 3-501-01 for general electrical requirement criteria.
•
Use UFC 3-520-01 for interior electrical systems criteria.
•
Use UFC 3-530-01 for interior and exterior lighting and controls criteria.
•
Use UFC 3-550-01 for exterior power distribution systems criteria.
•
Use UFC 3-560-01 for electrical safety and electrical Operations and
Maintenance (O&M) criteria.
•
Use UFC 3-580-01 for building telecommunications criteria.
•
Use UFC 4-021-01 for mass notification systems criteria.
C
EL
L
•
2-28
CHAPTER 28 – MECHANICAL SYSTEMS.
AN
IBC Chapter 28 provides references to the International Mechanical Code (IMC) which
has been adopted by the DoD. However, the International Fuel Gas Code has not been
adopted. The DoD uses the National Fuel Gas Code (NFPA 54, ANSI Z223.1) for the
design and installation of fuel gas piping systems:
•
CHAPTER 29 – PLUMBING SYSTEMS.
C
2-29
Use IBC Chapter 28 as modified by UFC 3-401-01 for Mechanical criteria.
Use IBC Chapter 29, as modified by UFC 3-420-01 for plumbing criteria. Chapter 29
regulates the number of plumbing fixtures that must be provided by each type of
building, and gender separations except for certain types of small buildings.
2-30
CHAPTER 30 – ELEVATOR AND CONVEYING SYSTEMS.
Use IBC Chapter 30 and UFC 3-600-01. Refer to the local elevator subject matter
expert (SME) for detailed Service specific elevator guidance. If conflict occurs between
the IBC and UFC 3-600-01, the requirements of the UFC take precedence.
2-31
CHAPTER 31 – SPECIAL CONSTRUCTION.
9
UFC 1-200-01
1July 2013
Use IBC Chapter 31 for criteria for special building construction including membrane
structures, temporary structures, pedestrian walkways and tunnels addressed in IBC
Section 3104, automatic vehicular gates, awnings and canopies, marquees, signs, and
towers and antennas.
2-32
CHAPTER 32 – ENCROACHMENT INTO THE PUBLIC RIGHT-OF-WAY.
ED
Use IBC Chapter 32. Buildings and structures from time to time are designed to extend
over a property line or into the public right of way. Local regulations outside the building
usually set limits to such encroachments, and government criteria may perform the
same function in various locations. Such military criteria should always take precedence
over provisions of this chapter.
2-33
CHAPTER 33 – SAFEGUARDS DURING CONSTRUCTION.
EL
L
Use IBC Chapter 33 and UFC 3-600-01. Chapter 33 provides safety requirements
during construction and demolition of buildings and structures. If conflict occurs between
the IBC, and UFC 3-600-01, the requirements of the UFC take precedence.
2-34
CHAPTER 34 – EXISTING STRUCTURES.
C
Use IBC Chapter 34, except as modified below. Provisions in Chapter 34 deal with
alternative methods of compliance requirements when dealing with existing building
constraints. This IBC chapter allows for a controlled departure from full compliance with
the technical codes, without compromising the minimum standards of life safety and fire
prevention of the rehabilitated building as required in the UFC 3-600-01. An example
may be concerning fire escape requirements that differ in the UFC 3-600-01.
Use Section 3410 with UFC 3-600-01. If conflict occurs between Chapter
34 and UFC 3-600-01, the requirements of the UFC take precedence.
•
Use IBC2012 Chapter 34 with UFC 3-310-04 for seismic evaluation and
seismic rehabilitation of existing buildings.
AN
•
2-35
CHAPTER 35 – REFERENCED STANDARDS.
C
Use IBC Chapter 35. Chapter 35 contains numerous references to standards that are
used to regulate materials and methods of construction. It contains a comprehensive list
of all standards that are referenced in the IBC. Also refer to IBC Chapter 1, Section
102.4 for a detailed explanation of applicability of referenced codes and standards.
2-36
APPENDICES.
Delete IBC2012 Appendices A through Appendix M.
10
UFC 1-200-01
1July 2013
CHAPTER 3 OTHER CRITERIA
In addition to the International Building Code as modified in Chapter 2 of this UFC,
comply with the following criteria:
3-1
HIGHER AUTHORITY MANDATES.
3-1.1
Vending Facilities for the Blind.
ED
Design and Construction must be in compliance with Public Laws (P.L.), Executive
Orders (E.O.), Code of Federal Regulations (CFR), Department of Defense Instructions
(DODI), and Department of Defense Directives (DODD) or other higher authority
documents as applicable, as listed in MIL-STD-3007F, Appendix B.
3-2
EL
L
Verify with the using activity the requirement to provide blind-operated vending facilities
in compliance with the Randolph-Sheppard Act and DoD Instruction 1125.3. This
requirement generally applies in buildings that are over 1,400 SM (15,000 SF) that will
contain over 100 employees, but may also apply in other situations at the discretion of
the using activity.
UNIFIED FACILITY CRITERIA (UFC).
Comply with the UFC (Latest Version) , FC, and other related criteria as noted herein
Core UFC.
C
3-2.1
AN
Core UFC are criteria that provide requirements for the majority of traditional building
systems that are prevalent on DoD facility construction projects. Core UFC also identify
additional criteria such as Antiterrorism, High Performance, and Sustainable Building
requirements mandated by law and policy. Comply with the Core UFC listed here, and
other UFC identified in Appendix A as they are applicable.
1-200-02, High Performance and Sustainable Building Requirements
•
3-101-01, Architecture
•
3-110-03, Roofing
•
3-120-10, Interior Design
•
3-201-01, Civil Engineering
•
3-201-01 Landscape Architecture
•
3-210-10, Low Impact Development
•
3-220-01, Geotechnical Engineering
•
3-230-01, Water Storage, Distribution, and Transmission
•
3-230-03, Water Treatment
•
3-240-01, Wastewater Collection
C
•
11
UFC 1-200-01
1July 2013
•
3-310-04, Seismic Design for Buildings
•
3-401-01, Mechanical Engineering
•
3-410-01, Heating, Ventilating and Air Conditioning
•
3-420-01, Plumbing Systems
•
3-501-01, Electrical Engineering
•
3-520-01, Interior Electrical Systems
•
3-530-01, Design: Interior and Exterior Lighting and Controls
•
3-550-01, Exterior Electrical Power Distribution
•
3-560-01, Electrical Safety O&M
•
3-580-01, Telecommunications Building Cabling Systems Planning and
Design
•
3-600-01, Fire Protection Engineering for Facilities
•
4-010-01, DoD Minimum Antiterrorism Standards for Buildings
•
4-010-02, DoD Minimum Antiterrorism Standoff Distances for Buildings
(FOUO)
•
4-021-01, Design and O&M: Mass Notification Systems
EL
L
ED
3-301-01, Structural Engineering
C
3-2.2
•
Other UFC.
AN
In addition to the “Core UFC”, comply with other UFCs as applicable to the system,
structure, or facility type defined in the scope of the construction project.
3-3
FACILITY CRITIERIA (FC).
C
The designation, "Facility Criteria (FC)" has been adopted for criteria that are not
applicable to all DoD Components. This applies to facility-type documents only; for
example: FC 4-721-10N "Navy and Marine Corps Unaccompanied Housing" which has
a final "N" designation because it is used by the Navy, including its Component, the
U.S. Marine Corps. FC provide functional requirements (i.e., defined in more detail by
the users and operational needs of a particular facility type). Differences in functional
requirements between DoD Components may exist due to differences in their policies
and more specific operational needs. FC are applicable only to the DoD Component(s)
indicated in the title, and are intended for use with unified technical requirements
published in UFC. Comply with the FC for the designated facility type and the DoD
Component.
3-4
SPECIFICATION REQUIREMENTS.
Use Unified Facilities Guide Specifications (UFGS) for all projects, including DesignBuild design submittals, and in accordance with UFC 1-300-02. Download, use, and edit
12
UFC 1-200-01
1July 2013
3-5
OTHER MILITARY CRITERIA.
ED
the most current UFGS database available from the Whole Building Design Guide
website at http://www.wbdg.org/ccb/browse_cat.php?c=3. Modify and edit the UFGS
as necessary to suit the work required by the specific project, including editing for metric
or inch-pound and to reflect the latest proven technology, materials, and methods for
the project. Follow Order of Precedence requirements for each Design-Agent on use of
Regional, Agency, Unified, and Other guide specifications. Other guide specifications
are only allowed as a basis for information when not available in the UFGS. These
developed specifications must be provided in UFGS format and modified to meet the
requirements of UFC 1-300-02.
3-5.1
Antiterrorism.
EL
L
Military criteria other than those listed in this UFC may be applicable to specific types of
structures, building systems, or building occupancies. Such structures, systems, or
buildings must meet the additional requirements of applicable military criteria.
Antiterrorism is defined as defensive measures used to reduce the vulnerability of
individuals and property to terrorist acts. UFC 4-010-01 sets the minimum requirements
for DoD buildings, and the Geographic Combatant Commander Antiterrorism
Construction Standards address unique requirements specific to their area of
responsibility. Refer to UFC 4-010-01 and the Geographic Combatant Commander
Antiterrorism Construction Standards for the minimum antiterrorism requirements.
Explosive Safety.
C
3-5.2
C
AN
This document does not contain requirements for explosives safety. Facilities that
involve DoD Ammunition and Explosives (AE) storage, handling, maintenance,
manufacture or disposal, as well as facilities within the explosives safety quantity
distance (ESQD) arcs of AE facilities, must comply with the requirements found in DoD
Manual 6055.09-M, as well as implementing Service criteria found in DA PAM 385-64
(Army), NAVSEA OP 5 (Navy and Marine Corps), and AFMAN 91-201 (Air Force).
DoD facilities exposed to potential explosion effects from AE belonging to other
nations are also required to meet DoD and Service explosives safety criteria.
•
It is essential that the planning and design of new facilities, and occupation and
renovation of existing AE-related facilities, or other facilities within ESQD arcs
be accomplished in close coordination with knowledgeable explosives safety
professionals in theater, or with the Services’ Explosives Safety Centers. This
coordination should occur as early as possible in the planning and design
process to avoid issues or problems and to ensure compliance.
•
Facility construction or use within ESQD arcs requires review for compliance
with explosives safety criteria, and must have either an approved explosives
safety site plan or an approved explosives safety deviation. Refer to the DoD
Service documents mentioned above for further applicable guidance.
13
UFC 1-200-01
1July 2013
3-5.3
Physical Security.
ED
Physical security is defined as that part of security concerned with physical measures
designed and placed to safeguard personnel; to prevent unauthorized access to
installations, equipment, material and documents, to safeguard them against espionage,
sabotage, damage, and theft. Many buildings require some level of physical security.
When required, integrate physical measures into the site, building, room(s), or area(s)
as applicable. The Intelligence Community (IC) and DoD documents requirements for
physical security related to specific assets in IC and DoD publications, in directives, and
in DoD instructions. The Services have related documents that implement the IC and
DoD policy for the Services. Below are the main DoD and IC documents that contain
the physical security requirements for the protection of specific DoD assets. This does
not include the policy documents associated with the protection of nuclear and chemical
assets.
EL
L
Table 3-1 Policy Related to Physical Security
Policy and Documents
Classified
Information
Sensitive
Compartmented
Information (SCI)
DoD 5200.1-R, DoD Information Security Program;
http://www.dtic.mil/whs/directives/corres/pub1.html
UFC 4-010-05, Sensitive Compartmented Information Facilities Planning, Design,
and Construction.
Intelligence Community Directive (ICD) 705, Sensitive Compartment Information
Facilities;
http://www.dni.gov/electronic_reading_room/ICD_705_SCIFs.pdf
Intelligence Community Standard Number 705-1 (ICS-705-1), Physical and
Technical Security Standards for Sensitive Compartmented Information
Facilities; http://www.wbdg.org/pdfs/dod_at/ics_705_1.pdf
Intelligence Community Standard Number 705-2 (ICS 705-2), Standards for the
Accreditation and Reciprocal Use of Sensitive Compartmented
Information; http://www.wbdg.org/pdfs/dod_at/ics_705_2.pdf
IC Tech Spec-for ICD/ICS 705, Technical Specifications for Construction and
Management of Sensitive Compartmented Information Facilities;
http://www.wbdg.org/pdfs/dod_at/ic_techspec_705.pdf
JAFAN 6/9 Manual, Physical Security Standards for Special Access Program
Facilities; http://www.ncms-isp.org/documents/JANAF_6-0.pdf
AN
C
Asset
C
Special Access
Program (SAP)
Information
Arms, Ammunition
and Explosives
DoD Manual 5100.76-M, Physical Security of Sensitive Conventional Arms,
Ammunition and Explosives;
http://www.dtic.mil/whs/directives/corres/pub1.html
Weapons Systems
and Platforms
Bulk Petroleum
DoD 5200.08-R, Physical Security Program;
Products
http://www.dtic.mil/whs/directives/corres/pub1.html
Communications
Systems
Controlled Inventory
Items
14
UFC 1-200-01
1July 2013
APPENDIX A REFERENCES
AMERICAN SOCIETY OF CIVIL ENGINEERS
http://www.asce.org
ASCE/SEI 41-13, Seismic Evaluation and Retrofit of Existing Buildings
International Building Code, 2012
International Existing Building Code, 2012
NFPA 1, Fire Code, 2012
EL
L
NATIONAL FIRE PROTECTION ASSOCIATION
http://www.nfpa.org
ED
INTERNATIONAL CODE COUNCIL
http://www.iccsafe.org
NFPA 54, National Fuel Gas Code, 2012
NFPA 58, Liquefied Petroleum Code, 2012
NATIONAL INSTITUTE OF STANDARDS AND TECHNOLOGY
C
ICSSC RP8/NIST GCR 11-917-12, Standards of Seismic Safety for Existing Federally
Owned and Leased Buildings, http://www.wbdg.org/ccb/NIST/nist_gcr11_917_12.pdf
AN
UNITED STATES AIR FORCE
AFMAN 91-201, Explosives Safety Standards, http://www.e-publishing.af.mil
UNITED STATES ARMY
C
DA PAM 385-64, Ammunition and Explosives Standards,
http://acc.dau.mil/CommunityBrowser.aspx?id=237824
UNITED STATES DEPARTMENT OF DEFENSE
ABA Accessibility Standard for Department of Defense Facilities, http://www.accessboard.gov/ada-aba/aba-standards-dod.cfm
DOD Instruction Number 1125.03, Vending Facility Program for the Blind on DoDControlled Federal Property, http://www.dtic.mil/directives/corres/pdf/112503p.pdf
DoD Manual 5100.76-M, Physical Security of Sensitive Conventional Arms, Ammunition
and Explosives, http://www.dtic.mil/whs/directives/corres/pub1.html
15
UFC 1-200-01
1July 2013
DoD Manual 5200.1, DoD Information Security Program,
http://www.dtic.mil/whs/directives/corres/pub1.html
DoD Manual 5200.08R, Physical Security Program,
http://www.dtic.mil/whs/directives/corres/pub1.html
DoD Manual 6055.09-M, DoD Ammunition and Explosives Safety Standards,
http://www.dtic.mil/whs/directives/corres/html/605509m.html
ED
Intelligence Community Directive (ICD) 705, Sensitive Compartment Information
Facilities (Effective: 26 May 2010), http://www.dni.gov
/files/documents/ICD_705_SCIFs.pdf
EL
L
Intelligence Community Standard Number 705-1 (ICS-705-1), Physical and Technical
Security Standards for Sensitive Compartmented Information Facilities,
http://www.wbdg.org/pdfs/dod_at/ics_705_1.pdf
Intelligence Community Standard Number 705-2 (ICS 705-2), Standards for the
Accreditation and Reciprocal Use of Sensitive Compartmented Information,
http://www.wbdg.org/pdfs/dod_at/ics_705_2.pdf
IC Tech Spec-for ICD/ICS 705, Technical Specifications for Construction and
Management of Sensitive Compartmented Information Facilities (Effective: 5 May
2011), http://www.wbdg.org/pdfs/dod_at/ic_techspec_705.pdf
C
JAFAN 6/9 Manual, Physical Security Standards for Special Access Program Facilities
http://www.ncms-isp.org/documents/JANAF_6-0.pdf
AN
Joint Publication JP 3.0.Joint Operations,
http://www.dtic.mil/doctrine/new_pubs/jp3_0.pdf
MIL-STD-3007F, Standard Practice for Unified Facilities Criteria and Unified Facilities
Guide Specifications, 13 December 2006,
http://www.wbdg.org/ccb/FEDMIL/std3007f.pdf
C
UNITED STATES DEPARTMENT OF DEFENSE, FACILITIES CRITERIA (FC) /
UNIFIED FACILITIES CRITERIA (UFC)
http://dod.wbdg.org/
UFC 1-200-02, High Performance and Sustainable Building Requirements
UFC 1-201-01, Non-Permanent DoD Facilities in Support of Military Operations
UFC 1-201-02, Assessment of Existing Facilities for Use in Military Operations. This
document is in production as of June 2013 with target completion September 2013.
UFC 1-202-01, Host Nation Facilities in Support of Military Operations. This document is
in production as of June 2013 with target completion September 2013.
16
UFC 1-200-01
1July 2013
UFC 3-101-01, Architecture
UFC 3-110-03, Roofing
UFC 3-120-10, Interior Design
UFC 3-201-01, Civil Engineering
UFC 3-201-02, Landscape Architecture
ED
UFC 3-210-10, Low Impact Development
UFC 3-220-01, Geotechnical Engineering
UFC 3-230-01, Water Storage, Distribution, and Transmission
EL
L
UFC 3-230-03, Water Treatment
UFC 3-240-01, Wastewater Collection
UFC 3-301-01, Structural Engineering
UFC 3-310-04, Seismic Design for Buildings
UFC 3-400-02, Design: Engineering Weather Data
C
UFC 3-401-01, Mechanical Engineering
AN
UFC 3-410-01, Heating, Ventilating, and Air Conditioning Systems.
UFC 3-420-01, Plumbing Systems
UFC 3-501-01, Electrical Engineering
UFC 3-520-01, Interior Electrical Systems
C
UFC 3-530-01, Design: Interior and Exterior Lighting and Controls
UFC 3-550-01, Exterior Electrical Power Distribution
UFC 3-560-01, Electrical Safety, O&M
UFC 3-575-01, Lightning and Static Electricity Protection Systems
UFC 3-580-01, Telecommunications Building Cabling Systems Planning and Design
UFC 3-600-01, Fire Protection Engineering for Facilities
UFC 4-010-01, DoD Minimum Antiterrorism Standards for Buildings
17
UFC 1-200-01
1July 2013
UFC 4-010-02, DoD Minimum Antiterrorism Standoff Distances for Buildings (FOUO)
UFC 4-010-05, Sensitive Compartmented Information Facilities Planning, Design, and
Construction
UFC 4-021-01, Design and O&M: Mass Notification Systems
FC 4-721-10N, Navy and Marine Corps Unaccompanied Housing
ED
UNITED STATES DEPARTMENT OF HOMELAND SECURITY
FEMA-310, Handbook for the Seismic Evaluation of Buildings,
http://www.wbdg.org/ccb/DHS/ARCHIVES/fema310.pdf
UNITED STATES NAVY
EL
L
FEMA-356, Prestandard and Commentary for the Seismic Rehabilitation of Buildings,
http://www.wbdg.org/ccb/DHS/ARCHIVES/fema356.pdf
ITG 01-01, Elevator Design, http://www.wbdg.org/ccb/NAVFAC/INTCRIT/fy01_01.pdf
C
AN
C
NAVSEA OP 5, Ammunition and Explosives Safety Ashore,
https://acc.dau.mil/CommunityBrowser.aspx?id=278680
18
