University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual

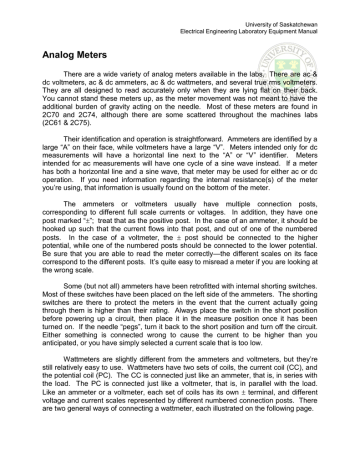

Analog Meters
There are a wide variety of analog meters available in the labs. There are ac &
dc voltmeters, ac & dc ammeters, ac & dc wattmeters, and several true rms voltmeters.
They are all designed to read accurately only when they are lying flat on their back.
You cannot stand these meters up, as the meter movement was not meant to have the
additional burden of gravity acting on the needle. Most of these meters are found in
2C70 and 2C74, although there are some scattered throughout the machines labs
(2C61 & 2C75).
Their identification and operation is straightforward. Ammeters are identified by a
large ―A‖ on their face, while voltmeters have a large ―V‖. Meters intended only for dc
measurements will have a horizontal line next to the ―A‖ or ―V‖ identifier. Meters
intended for ac measurements will have one cycle of a sine wave instead. If a meter
has both a horizontal line and a sine wave, that meter may be used for either ac or dc
operation. If you need information regarding the internal resistance(s) of the meter
you’re using, that information is usually found on the bottom of the meter.
The ammeters or voltmeters usually have multiple connection posts,
corresponding to different full scale currents or voltages. In addition, they have one
post marked ―‖; treat that as the positive post. In the case of an ammeter, it should be
hooked up such that the current flows into that post, and out of one of the numbered
posts. In the case of a voltmeter, the  post should be connected to the higher
potential, while one of the numbered posts should be connected to the lower potential.
Be sure that you are able to read the meter correctly—the different scales on its face
correspond to the different posts. It’s quite easy to misread a meter if you are looking at
the wrong scale.
Some (but not all) ammeters have been retrofitted with internal shorting switches.
Most of these switches have been placed on the left side of the ammeters. The shorting
switches are there to protect the meters in the event that the current actually going
through them is higher than their rating. Always place the switch in the short position
before powering up a circuit, then place it in the measure position once it has been
turned on. If the needle ―pegs‖, turn it back to the short position and turn off the circuit.
Either something is connected wrong to cause the current to be higher than you
anticipated, or you have simply selected a current scale that is too low.
Wattmeters are slightly different from the ammeters and voltmeters, but they’re
still relatively easy to use. Wattmeters have two sets of coils, the current coil (CC), and
the potential coil (PC). The CC is connected just like an ammeter, that is, in series with
the load. The PC is connected just like a voltmeter, that is, in parallel with the load.
Like an ammeter or a voltmeter, each set of coils has its own  terminal, and different
voltage and current scales represented by different numbered connection posts. There
are two general ways of connecting a wattmeter, each illustrated on the following page.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
±
5A
±
±
+
5A
±
+
120 V
Source
-
W
120 V
Source
Load
W
Load
-
If the load consumes little power, then the connection on the right will yield a
more accurate reading. If the load consumes a moderate to high quantity of power,
then the connection on the left will give a more accurate reading.
As with the ammeters, most of the wattmeters have been retrofitted with a
shorting switch. Follow the same procedure as with the ammeters regarding the use of
this switch.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Multimeters
There are a variety of both digital and analog multimeters available in the
laboratories. Their operation is straightforward, so this document will be very short.
The multimeters are very useful in measuring both dc and ac voltages and currents, and
they all are capable of measuring resistance as well.
The analog multimeters are battery powered, so make sure that you turn them off
before returning them to the shelves so that the next person doesn’t find the batteries
dead. You should always check the zero indication and the state of the batteries before
using one. They have abbreviated operating instructions on their bottom face that will
guide you through the zeroing and battery check procedures. Keep in mind that all
analog meters are designed to be read only while they are lying flat on their backs.
When used as an ammeter, a fuse found inside the meter offers protection against
excessive current. This fuse can only be replaced by the technicians in 2C94, as
changing it requires that the meter be taken apart. If you find that the meter indicates
that is no current flowing in your circuit, yet there should be, the fuse is the likely culprit.
The digital multimeters are easy to use and quite accurate. As with the analog
multimeters, their ammeter circuitry is protected by a fuse. However, this fuse is easy to
check yourself. It is found behind the + ammeter socket by pressing and rotating the
socket to the left. Always check this fuse before you use the multimeter as an ammeter,
as it is very common for people to blow that fuse and then put the meter back on the
shelf without replacing it.
You need not worry about accidentally grounding whatever circuit you wish to
measure with the digital ammeters. Neither of their inputs (whether you’re using them
as an ammeter or a voltmeter) are internally grounded.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Power Supplies
The dc power supplies are the most often used pieces of equipment, yet they are
also the most misunderstood and misused. This short document will address these
misconceptions.
There are a wide variety of dc power supplies in the laboratories, yet they are all
very similar. All have three output connections: +, GND, and -. The greatest confusion
arises when people must consider what to connect where to use the supplies.
If you were to have a fresh 9 V battery in front of you, all that you could truthfully
say about that battery would be that there is 9 V between the + and – terminals, with the
+ terminal being at the higher potential. Nothing says that the – terminal is at ground
potential unless you actually connect it to ground—right? The same goes for the dc
power supplies. If you adjust a power supply to 9 V, then that means that the + terminal
is at + 9V with respect to the – terminal. Nothing says that the – terminal is at ground
potential unless you tie it there.
Thus, if you wanted to create a positive voltage with respect to ground, say +15
V, you would connect the – and GND terminals and adjust the supply to 15 V. The
voltage available from the + terminal would then be at +15 V with respect to ground. If
you wanted to create a negative voltage with respect to ground, say –12 V, then you
would connect the + and GND terminals, and adjust the supply to 12 V. The voltage
available at the – terminal would then be at –12 V with respect to ground. Keeping
these concepts in mind, never use a power supply unless you connect one terminal to
ground. Unexpected results will ensue if you don’t.
There are two broad classes of dc supplies – fixed and variable. The fixed
supplies, as their name suggest, have a fixed output voltage that is not variable. There
are two types of fixed supplies in the laboratories: 5 V and 15 V. The 5 V fixed
supplies are ideal for powering digital logic ICs, most of which require a +5 V supply
voltage. The 15 V supplies are ideal for powering op-amps and the various specialty
experimental modules available from the technicians in 2C94 for use in the labs.
The variable supplies have variable output voltages and some have variable
output currents as well. The adjustable output current feature is frequently a source of
great confusion. The current adjust knob controls the maximum current that the supply
will source. If the circuit that is connected to the supply attempts to draw more current
than allowed by this setpoint, the power supply will switch from CV (constant voltage) to
CC (constant current) mode. In other words, the supply will only source as much
current as is currently allowed by the setpoint, and the supply voltage will fall from its
expected value accordingly.
Some variable supplies are single supplies, while others are dual. The dual
supplies can be considered to act as two independent single power supplies. You
should be warned that three models of power supplies (the Instek PC-3030 and PC-
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
3030D as well as the Xantrex LXD30-2/5) are dual tracking supplies. These supplies
may be set to track each other. This tracking feature is not used in any laboratory, and
so these supplies should always be set to their independent mode. Both Instek models
have two pushbuttons on the middle of their front panel—for independent operation,
both pushbuttons should be in the out position.
For the Xantrex, the
independent/tracking toggle switch should be set to independent.
The power supplies mentioned above also have a single fixed 5 V supply built
into them as well. The output from this supply is found on the far right of the front panel.
When setting up a circuit, make sure that your power supply is set to the proper
voltage before you connect it to your circuit. You don’t know what a supply is set to
when you take it off of the shelf: the person that used it before you could have had it set
to +60 V. If you hook it up to your circuit that is supposed to have a power supply of
+10 V, what will happen? One last word of caution: don’t trust the meters on the
supplies themselves—always use a multimeter to confirm the output voltage.
Frequently the built-in meters on the supplies are inaccurate.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Signal Generators
This document is a quick reference guide to the operation of the signal
generators available in the laboratories. Major functions will be covered, but some
features such as their sweep operation will not, as this type of function is not used in the
laboratories. Refer to the operations manual of the signal generator you are using for
detailed information. These manuals are available from the technicians in 2C94.
First, some general notes about signal generators (sig gens). All signal
generators have:
 50 output impedance—you may think of this as the Thevenin equivalent
impedance of the signal generator
 adjustable output frequency
 adjustable output voltage; some have two ranges: high and low, usually
with 20 or 30 dB of separation between the two
 adjustable dc offset; equivalent to adding a dc source in series with the
signal internal to the generator.
Remember that like the digitizing oscilloscopes, all signal generators available in
the lab are equipped with coaxial BNC connectors. As with the scopes, if you connect a
BNC-to-alligator clip cable to the signal generator, then the black lead is ground.
Remember this fact and you will avoid accidentally grounding your circuit at points that
aren’t supposed to be grounded. Always check the output of the generator with a scope
before connecting it to a circuit.
Krohn-Hite 1200 Sweep Generator
STOP
FREQ
VERN
0
-
VC IN
MULT
FREQUENCY Hz
POWER
SWP
X1K
START FREQ
+
LO
HI
TTL
OUT
CV OUT
KH
1
10
DC
OFFSET
10 K
DURATION
AMPLITUDE
1s
MIN
1ms
RAMP
OUT
MAX
MAIN OUT
50 
LO
0
-
+
HI
KROHN - HITE
1200 sweep generator
The Krohn-Hite 1200 is a straightforward signal generator with a frequency range
of 0.2 Hz – 3.5 MHz. The output is taken from either MAIN OUT coaxial connector.
The LO output voltage is 1/10 of the HI output (20 dB difference).
Operation is very straightforward. The type of output waveform is chosen via the
waveform pushbuttons. The output frequency is adjusted by the large dial and MULT
pushbuttons. The VERN knob acts as a fine frequency adjust. Please note that the
X1K button is only used in conjunction with the sweep mode. The amplitude of the
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
output is controlled via the AMPLITUDE adjust knob. If a dc offset is required, press the
DC OFFSET button; the knob directly beneath it will adjust the amount of dc offset
(both positive and negative offsets are possible). If you require a TTL compatible
square wave, then no amplitude or offset adjustments are necessary—just take the
output from the TTL OUT connector.
3310A FUNCTION GENERATOR
hp
RANGE
HEWLETT PACKARD
FUNCTION
1
10
.1
100
.01
1K
.001
10K
.0001
100K
SINE
SQ
35
40
20
25
30
R
A
M
P
OUTPUT LEVEL
0
45
15
DC OFFSET LEVEL
-
+
50
10
TRI
P
U
L
S
E
1
5
LINE
VCO INPUT
LOW
SYNC OUTPUT
HIGH
30 dB
OFF
10K 



HP 3310A Function Generator
The HP 3310A is also a very straightforward sig gen. Its frequency range is
0.0001 Hz – 5.0 MHz. The output is taken from either the LOW or HIGH output
connector. There is a difference of 30 dB in signal level between the two outputs.
The FUNCTION switch selects the type of output waveform and the frequency is
set via the large dial in conjunction with the RANGE switch. The small knob directly
beneath the large dial is a fine frequency adjust. The amplitude of the output waveform
is adjusted with the OUTPUT LEVEL knob. If a dc offset is required, use the outer DC
OFFSET switch to select a positive or negative offset; the inner LEVEL knob then
controls the amount of dc offset.
Instek FG-8016G Function Generator
iNSTEK
FUNCTION GENERATOR
GATE
0.01S
PWR
1M
ON
OFF
OVER
GATE
0.1S
1S
10S
FUNCTION
MODEL : FG-8016G
kHz
100K
PUSH
PULL
10K
1K
DUTY
INV
100
10
1
TTL
CMOS
OFFSET
ADJ
AMPL
-20dB
Hz
CAL
1/10 EXT
1/1 INT
INPUT
COUNTER
-
+
INPUT
VCF
5V
15V
OUTPUT
TTL/CMOS
MIN
MAX
OUTPUT
50 
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The Instek FG-8016G is a low cost, low quality signal generator. For most
laboratories it functions quite well, but it has performed much less than adequately in a
couple of special situations. Its frequency range is 0.2 Hz – 2.1 MHz. The output is
taken from the OUTPUT connector, but as with the other signal generators already
discussed, both a low and a high output mode are possible, with 20 dB difference in
signal level between the two.
The output level is adjusted with the AMPL knob; when it is pulled out, the output
level is decreased by 20 dB. The frequency is adjusted with the large knob beneath the
display in conjunction with the frequency range pushbuttons. If a dc offset is required,
pull the OFFSET knob; rotating it now adjusts the offset (positive and negative offsets
are possible).
If you require a TTL compatible square wave no voltage or offset adjustments are
necessary—just take the output from the OUTPUT TTL/CMOS connector. If some
further adjustment to the output voltage level from this connector is necessary, pull the
TTL knob. It now serves as a voltage level adjust for the output signal on that
connector.
If you are generating sine waves only, the DUTY cycle control knob should be
rotated fully counterclockwise to the CAL position. If it is not set to the CAL position, the
output will be distorted. If you wish to create a square wave with a duty cycle other than
50%, then the DUTY knob, in conjunction with the frequency adjustment controls, will
yield your desired waveform. When pushed in, the DUTY knob will yield waveforms
with duty cycles > 50%. Pull the DUTY knob to enter the INV (invert) mode if duty
cycles < 50% are desired. If you are generating a triangular wave, altering the duty
cycle will create a sawtooth (or ramp) waveform. The duty cycle of the output from the
TTL/CMOS connector is also controlled by the DUTY knob.
The LED display on the front panel will display the frequency of the waveform the
sig gen is creating, but only if the two INPUT COUNTER pushbuttons are out.
Wavetek Model 180 Sweep/Function Generator
WAVETEK
SWEEP/FUNCTION GENERATOR
FREQ MULT (Hz)
X 100
X 10
X1
SWEEP WIDTH
SWEEP RATE
MODEL 180
DC OFFSET
0
X 1K
X 10K
DC
X 100K
X 1M
PWR
OFF
MAX
MAX
OFF
VCG
IN
-
+
AMPLITUDE
OFF
GCV
OUT
SWEEP
OUT
PULSE OUT
(TTL)
LO
HI
50 
OUT
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The Wavetek Model 180 is an easy-to-use sig gen. Its frequency range is 0.2 Hz
– 2.0 MHz. The output is taken from either the LO or HI output connector. There is a
difference of 20 dB in signal level between the two.
The operation of this sig gen is very similar to the others already discussed and
so will not be repeated here. However, in order to be used as a simple signal source,
the SWEEP WIDTH knob must be rotated fully counterclockwise to the OFF position. If
it is not off, the output will be a swept wave.
If a TTL square wave is required, simply connect to the PULSE OUT (TTL)
connector.
There is another Wavetek sig gen available in the labs, the Model 185. It is
similar in appearance to the Model 180, except that it has two large frequency adjust
knobs.
Interstate P25 Pulse Generator
INTERSTATE
ELECTRONICS
CORPORATION
NORMAL
REPETITION RATE
DELAY
20ns 50 MHz
DBL PULSE
P25
PULSE
GENERATOR
PWR
WIDTH
DUTY CYCLE
1 s
TRIGGER
1s
1s
500ms
1 MHz
10ms
10ms
5ms
100  s
100  s
10 kHz
100  s
50  s
TRIGGER
DBL PULSE
10ms
100 Hz
1 s
1 s
500ns
GATE
1s
1 Hz
10ns
10ns
5ns
PULSE
AMPLIFIER
+
INPUT
TRIGGERED
SLOPE
-
100:1
RISE/FALL
TIME
RISE
FALL
POSITIVE OUTPUT
AMPLITUDE
OFFSET
OUTPUT
10 V
5V
1V
MIN
100:1
NEGATIVE OUTPUT
CLOCK
OUTPUT
RISE
SYNC
OUTPUT
FALL
AMPLITUDE
OFFSET
OUTPUT
10 V
LEVEL MANUAL
5V
1V
MAX
MIN
MIN
MIN
INTERSTATE P25 PULSE GENERATOR
The Interstate P25 is used strictly for generating square waves or square pulses.
It has a frequency range of 1 Hz – 50 MHz. Admittedly, this generator is rather
intimidating, but it is really quite simple to use once you get used to it. The reason the
P25 is so intimidating is that every aspect of the output pulses is controllable by the
user. Everything from the amplitude of the output pulses to their rise and fall times is
adjustable.
For normal operation, the function select switch at the top left corner of the front
panel should be set to NORMAL. The output frequency is set by the REPETITION
RATE range and coarse/fine knobs. For normal operation, set the DELAY range and
adjust knobs to their minimum (fully counterclockwise) positions.
The width of the square pulses is controlled by the WIDTH range and adjust
knobs. For most applications, the RISE/FALL TIME range and adjust knobs should be
set to their minimum (fully counterclockwise) positions. The top rise/fall time knobs are
for the positive output, while the bottom set of knobs is for the negative output.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The amplitude of the pulses is set by the AMPLITUDE range/adjust knob. A dc
offset may also be added to the output pulsetrain by pulling the OFFSET knob out. The
output is taken from either the POSITIVE OUTPUT or NEGATIVE OUTPUT connectors.
Advance Instruments PG 58 Pulse Generator
PULSE GENERATOR PG 58
ADVANCE INSTRUMENTS
SUPPLY
ON
FREQUENCY
kHz
10
100
MHz
MANUAL
EXT. TRIG.
INPUT
1
100
1
10
5
1
0.1
Hz
TRIGGER
NORMAL
nS
DELAY
WIDTH
S
50 500
5
5
S
50 500
5
5
500
100
500
nS
500
50
100
500
POS
OUTPUT
LEVEL
NORMAL
mS
INVERT
GATE
INPUT
GATED
mS
50
NEG.
PRE-PULSE
OUTPUT
SINGLE
SQUARE
DOUBLE
NEG.
MAIN PULSE
OUTPUTS
POS
The Advance PG 58 is strictly meant for generating square waves or square
pulses. Its frequency range is 0.1 Hz – 7 MHz.
The output frequency is set by the FREQUENCY range/adjust knob. For normal
operation, the DELAY range/adjust knobs should be adjusted to their minimum (fully
counterclockwise) positions. The switch beneath the FREQUENCY adjust knob should
be set to NORMAL.
If a square wave (50% duty cycle) is desired, the switch beneath the WIDTH
knob should be set to SQUARE. The WIDTH range/adjust knob will have no effect on
the output waveform. If a duty cycle other than 50% is desired, the switch should be set
to SINGLE. The width of the output pulses is now adjustable via the WIDTH
range/adjust knob.
Both positive and negative pulses are available from the MAIN PULSE
OUTPUTS. Their amplitudes are adjusted by their OUTPUT LEVEL knobs. The output
pulses may also be inverted by the NORMAL/INVERT switch. This switch should
usually be left in the NORMAL position.
Agilent 33120A Function Generator / Arbitrary Waveform Generator
The 33120A is a direct digital synthesis generator. This generator has standard
waveforms such as: sine, square, triangle, ramp, and noise. Arbitrary waveforms can
also be created. This generator can do frequency sweeps and different forms of
modulation. The generator can also be programmed over the remote interface. The
standard waveform functions are used in the laboratory classes.
There are two rows of keys on the front panel that are used to select a operation
or function. These keys have a second function printed in blue above them. To access
the functions in blue print, press the Shift key (shift annunciator turns on) and then
press the key with the desired blue print. If you press the Shift key by accident, press it
again to turn it off (shift annunciator turns off).
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
( Hewlett-Packard Company, 2000 )
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
( Hewlett-Packard Company, 2000 )
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
( Hewlett-Packard Company, 2000 )
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Some keys have a number printed in green next to them. To access the
numbers, press the Enter Number key (num annunciator turns on ) and then press the
keys to access the numbers. If you press the Enter Number key by accident, press the
Shift key and then the Cancel key (num annunciator turns off).
This generator will limit the maximum and minimum values. These values will be
limited by the associated values you set or limits of the generator.
The function generator has a fixed output impedance of 50 ohms. You can
specify which load you are terminating the output into, 50 ohm (power-on/reset state) or
High Z. Incorrect impedance matching between the source and the load will result in a
magnitude output which does not match the display value. The generator will output
twice the magnitude displayed on the generator, with the load termination on 50 ohms.
With the load termination setting on 50 ohms and a 50 ohm load on the output,
half the generator’s source voltage is across the generator’s internal output impedance
of 50 ohms and half across the 50 ohm load. The voltage drop across the 50 ohm load
matches the magnitude displayed on the generator.
With the load termination setting on 50 ohms and a high Z load, practically all of
the output voltage is across the load. The voltage across the high Z load is twice the
magnitude displayed on the function generator.
Set the load termination to High Z for a high Z load. The generator’s output
magnitude will match the magnitude displayed on the generator with the load
termination setting on High Z, provided the load is a high Z and not 50 ohms. The
voltage across the load will be half the display value, with a load termination of High Z
and a 50 ohm load. Most devices used in the Lab have a high input impedance.
To select the output termination:
Push the Shift key and then the Menu on/off key to turn on the MAIN MENU.
Move across to D: SYS MENU.
Move down to OUT TERM.
Move down to parameter.
Move across to select 50 OHM or HIGH Z.
Enter to apply and exit menu.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
To output a 10KHz TTL waveform:
Push the Square key to select the waveform.
Push the following keys in order, Freq, Enter Number, 1, 0, kHz, to enter the
frequency.
Push the following keys in order, Ampl, Enter Number, 5, Vpp, to enter the
amplitude.
Push the following keys in order, Offset, Enter Number, 2, . , 5, Vpp, to enter
the 2.5 VDC offset.
To output a DC voltage:
Push the Sine, Square, Triangle, Ramp, Noise, Arb, or Offset key for more
then two seconds.
Adjust VDC or OFFSET.
To disengage push any of the previous waveform keys except for Offset. Enter 0
for Offset.
Note: The generator should not be used as a DC power supply to bias a circuit.
The DC voltage should be used as a test signal.
Frequency Modulation:
Push the Shift key and then the FM key to enable FM.
Select the type of carrier: Sine, Square, Triangle, Ramp, or Arb.
Set the carrier frequency and amplitude using the Freq and Ampl keys.
Push the Shift key and then the Menu on/off key to turn on the MAIN MENU.
Enter the MOD Menu and move down and across to enter the FM Shape.
To select the modulating waveform shape, move down and across to select:
Sine, Square, Triangle, Ramp, Noise, or Arb.
Enter to apply and exit menu.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
To set the modulating frequency ( 10mHz to 10KHz, internal source only ), push
the Shift key and then the Freq key. Adjust the frequency.
The peak frequency deviation is the change in frequency, of the modulating
waveform, from the carrier frequency. Push the Shift and then the Level key.
Adjust the frequency deviation.
To disable the frequency modulation press the Shift key and then the FM key.
Agilent 33220A Function Generator / Arbitrary Waveform Generator
The 33220A is a direct digital synthesis generator. This generator has standard
waveforms such as: sine, square, triangle, ramp, pulse and noise. Arbitrary waveforms
can also be created. This generator can do frequency sweeps and different forms of
modulation. The generator can also be programmed over the remote interface. The
standard waveform functions are used in the laboratory classes.
This generator will limit the maximum and minimum values. These values will be
limited by the associated values you set or limits of the generator.
The function generator has a fixed output impedance of 50 ohms. You can
specify which load you are terminating the output into, 50 ohm or High Z. Incorrect
impedance matching between the source and the load will result in a magnitude output
which does not match the display value. The generator will output twice the magnitude
displayed on the generator, with the load termination on 50 ohms.
With the load termination setting on 50 ohms and a 50 ohm load on the output,
half the generator’s source voltage is across the generator’s internal output impedance
of 50 ohms and half across the 50 ohm load. The voltage drop across the 50 ohm load
matches the magnitude displayed on the generator.
With the load termination setting on 50 ohms and a high Z load, practically all of
the output voltage is across the load. The voltage across the high Z load is twice the
magnitude displayed on the function generator.
Set the load termination to High Z for a high Z load. The generator’s output
magnitude will match the magnitude displayed on the generator with the load
termination setting on High Z, provided the load is a high Z and not 50 ohms. The
voltage across the load will be half the display value, with a load termination of High Z
and a 50 ohm load. Most devices used in the Lab have a high input impedance.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Quick Guide:
Turn Power On.
Push Store/Recall. If Pwr-ON is on Default, the generator was set to factory
default when powered On.
If Pwr-ON is on Last, the generator did not reset to factory defaults. Push the
Pwr-On soft key to set it to Default. Push the Set to Defaults and Yes soft keys to set
to factory defaults. The Generator should always be set to factory defaults before use.
Push Utility and the Output Setup soft key. Use the soft key to set the Load to
High Z.
Push Output to turn output On or Off.
View the Display and use the soft keys, number keys, arrow keys and the knob to
set parameters. The graph display mode ( push Graph ) can also be used, along with
the keys and knob, to set parameters.
Hold down a key until help information is displayed. Use the arrow soft key or
knob to access more information. Press DONE to exit.
Push the Help key to view topics.
To output a DC voltage only:
Push Utility and the DC / ON soft key.
Enter the value as a offset.
Return offset to 0, when done, as the offset will remain when DC is turned Off.
Push Utility and the DC / OFF soft key.
Note: The generator should not be used as a DC power supply to bias a circuit.
The DC voltage should be used as a test signal.
Reference
Hewlett – Packard Company. ( 2000 ). ―Agilent 33120A Function Generator /
Arbitrary Waveform Generator User’s Guide. Edition 6, part # 33120-90005‖.
California, U.S.A. : Author.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Digitizing Oscilloscopes
This document is meant to be a reference to the operation of the digitizing
oscilloscopes available in the laboratories. Major topics will be covered, but not all the
features of the scopes will be outlined here. Refer to the operations manual of the
scope you are using for detailed information. The operations manuals are available
from the technicians in 2C94.
All oscilloscopes, whether analog or digital, have similar operating principles and
similar major controls. Where they mainly differ is in their individual ―bells and whistles‖.
An oscilloscope is used to display voltage waveforms as a function of time.
These waveforms are usually cyclic in nature, and the oscilloscope performs some
processing on the waveform so that a ―stationary‖ display is shown. There are three
major controls that dictate the way the waveform is displayed: volts/div (vertical)
control, time/div (timebase) control, and the triggering circuitry. The volts/div control
dictates how ―big‖ or how much of the screen the waveform occupies vertically. The
time/div control dictates how many cycles (or fraction of a cycle) of the waveform are
displayed horizontally. The triggering circuitry is used to synchronize the display so that
a stationary waveform is displayed. The display may be triggered by a signal present at
any of the oscilloscope’s input channels.
A short note about triggering and time is necessary at this point. Triggering is
actually a simple operation in principle. For instance, suppose you had a signal
generator set to output a 2 Vp-p sine wave hooked to channel 1 of an oscilloscope and
had the oscilloscope set to trigger off of channel 1, at a level of 0 V, with a positive
slope. This means that every time the input sine wave rises through 0 V, the
oscilloscope will register a new trigger event, and uses that data to synchronize the
waveform on the screen. The time at which the trigger actually occurs is deemed to be t
= 0 by the oscilloscope. Data displayed to the left of the trigger event is called
pretrigger data; to the right, post trigger. The time/div setting controls how many cycles
of the sine wave are actually displayed on screen. In this case, the sine wave s(t) =
sin(t) V would be displayed. If the trigger level was increased to 500 mV, then s(t) =
sin(t + /4) V would be displayed. It’s important to remember that it’s still the same
sine wave, but that it is being displayed with a different t = 0 point.
A digitizing oscilloscope is really just a fancy analog to digital converter (A/D) with
a display. The oscilloscopes in the lab all have 8 bit A/Ds, which means that they can
resolve 256 discrete voltage levels. The levels themselves are dictated by the channel
settings (mainly volts/div). Most scopes have one A/D, and each channel shares it. If
you are examining so-called ―fast‖ or ―high speed‖ signals, turn off all but one channel of
the oscilloscope (if possible) to dedicate the A/D within the scope exclusively to that
signal. Doing so will increase the sampling or resolution of that signal. Each scope also
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
has a bandwidth rating – either 60 MHz or 100 MHz.
bandwidth of the analog electronics that precede the A/D.
This number refers to the
There is one last important point to be made about the digitizing oscilloscopes.
They all have coaxial connectors (known as BNC connectors); they consist of an inner
conductor and an outer conductor, which is connected to ground internal to the scope.
When you connect a scope to your circuit with a BNC-to-alligator clip cable, remember
that the red clip is the signal connection, while black clip is ground. Wherever that black
clip is connected will be grounded!
In terms of functionality, that’s really all there is to the operation of an
oscilloscope. What is more difficult to remember is where the controls are on all of the
different oscilloscopes, and where to find the specialized functions such as the ―x vs. y‖
display mode. The specifics of each oscilloscope in the lab now follow.
HP 54600A/54601A 100 MHz Digitizing Oscilloscope





Repetitive Bandwidth – 100 MHz
20 MSample/s 8 bit A/D
2 channel (HP 54600A) / 4 channel (HP 54601A) input and display
Vertical sensitivity range 2 mV/div – 5 V/div
Horizontal sensitivity range 2 ns/div – 5 sec/div
hp
HEWLETT
PACKARD
54600A
OSCILLOSCOPE
100 MHz
2 CHANNEL
STORAGE
Measure
Voltage
Time
Cursors
Setup
Auto scale
Display
Auto store
Erase
TRIGGER
HORIZONTAL
Save / Recall
Trace
Stop
Run
Source
Level
Delay
Print
Utility
Mode
Main
Delayed
VERTICAL
Volts / Div
Time / Div
Volts / Div
Holdoff
Slope
Coupling
2 mV
5V
1
Position
1 X
2 mV
5V

5s
2 ns
2
Position
2 Y
External
Trigger
Z
Line
O I
The HP 54601A, is really just a two channel oscilloscope. The two main
channels are channels 1 and 2, with channels 3 and 4 being auxiliary or reduced
performance inputs. Each input has an input impedance of 1 M in parallel with a
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
capacitance of  13 pF. Each input may tolerate an absolute maximum of 400 V. The
HPIB connector is found on the back left side of the scope.
The display of this scope conveys much information. At the top left side of the
screen you will find the channels that are on, as well as their volts/div setting and
coupling. For instance, 1 2.00V 2 P5.00V means that channel 1 is set to 2 V/div and is
dc coupled. Channel 2 is set to 5 V/div and is ac coupled.
In the top middle of the screen is an arrow and a time. That is the time that
corresponds to the middle of the screen in the current acquisition. Just to the right of it
you will find the current time/div setting. Somewhere along the top display line you will
find an upside down solid triangle. At the bottom of the screen you will find a right-side
up solid triangle immediately beneath it. These triangles denote the t = 0 point of the
acquisition.
In the top right corner of the display you will find information about the trigger
source, mode, and slope. Lastly, either RUN or STOP will be displayed to the right of
the triggering information, indicating whether the scope is actively acquiring data or has
stopped.
Along the right edge of the display you will see a channel number along with a
ground circuit symbol with an arrow pointing to the left. That indicates the ground (0 V)
position for that channel. If the ground position is off screen, then the channel number
and an arrow will be displayed at either the top or bottom of the screen to show where
the ground level is.
Channel Menus and Vertical Controls
Pressing either channel menu (1 or 2) brings up a list of items adjacent to the six softkeys
at the bottom of the display. These menu items are as follows:






VERTICAL
Channel off/on
Coupling dc/ac/ground
Bandwidth limit off/on
Invert off/on
Vernier off/on
Probe 1/10/100
Volts / Div
Volts / Div
2 mV
5V
1
Position
2 mV
5V

2
Position
If you select ground coupling for a channel, that internally connects the input to ground.
If the bandwidth limitation is turned on, the channel is low-pass filtered with a cutoff of 20 MHz.
Invert does as you expect – inverts the waveform. When the Vernier is turned on, the volts/div
for that channel changes in fine steps. When it is off, it changes in coarse steps. Normally the
Vernier is left off.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
VERTICAL
Volts / Div
The volts/div for each channel are adjusted using the large Volts/Div
adjust knobs. Turn them counterclockwise to increase the volts/div; turn
them clockwise to decrease it. The position knobs control the vertical
position of the waveforms on the screen by moving the ground position of
each waveform up or down.
Volts / Div
2 mV
5V

1
2 mV
5V
2
Position
Position
Math () Menu
VERTICAL
Volts / Div
The math menu key brings up only three choices. All three are selfexplanatory:



2 mV
5V
Off
Channel 1 + Channel 2
Channel 1 – Channel 2
Volts / Div

1
2 mV
5V
2
Position
Position
Timebase / Horizontal Controls
The delay knob adjusts the horizontal position of the display left
or right by moving the t = 0 point. If the delay is adjusted, then the pair
of solid triangles at the top and bottom of the display (mentioned
previously) will move accordingly. The display point will retain a pair of
open triangles to mark its position. The display point may be set to either
one graticule in from the left side of the display or to the center of the
display.
TRIGGER
HORIZONTAL
Source
Level
Delay
Main
Delayed
Mode
Time / Div
Holdoff
Slope
Coupling
5s
2 ns
The time/div (or timebase) is adjusted by the large Time/Div knob. Turn it
counterclockwise to increase the timebase, clockwise to decrease it.
Pressing the Main/Delayed menu button will bring up the following items:



Horizontal mode: main / delayed / XY
Vernier off/on
Time reference position left/center
The Main horizontal mode is the standard volts vs. time oscilloscope display mode. The
Delayed mode splits the screen into two; in the top portion are the original waveform(s), and the
bottom holds a time-zoomed version of that waveform(s). The Time/Div and Delay knobs
control the window size and position of the zoomed portion.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The XY mode is very useful and is something with which you will become very familiar
in the labs. Technically, the XY mode should be named YX mode, since the Y signal is plotted
as a function of the X signal. However, the standard among scopes is to name these modes XY,
so we must stick with that same standard. The X (horizontal) signal is connected to channel 1
and the Y (vertical) signal to channel 2. The X and Y are also printed beside the channel 1 and 2
inputs on the front panel should you forget what gets connected where. While still in the Main
display mode, adjust the vertical controls of each signal so that they are as large as possible
without going off screen, and also ensure that they are each centered vertically in the display.
Make sure that each channel’s coupling and probe are also properly set. The time/div should be
adjusted so that at least one complete period is displayed horizontally.
Select the XY mode to obtain a plot of signal Y vs. signal X. This display can be moved
horizontally and vertically on the screen by using the channel 1 (X position) and channel 2 (Y
position) controls. The volts/div settings for each channel found in the upper left corner of the
display tell you the voltage scale readings in the X (channel 1) and Y (channel 2) directions. To
return to the standard volts vs. time display mode, select the Main softkey in the Main/Delayed
menu.
When on, the Vernier control acts like a fine adjust for the time/div knob. Normally this
control is left off. The time reference position control is self-explanatory.
Trigger Controls
TRIGGER
HORIZONTAL
Source
The Source menu button brings up the following items:
Level
Delay
 Channel 1
 Channel 2
 External Trigger (Ext)
 Line
The choices are self explanatory, except perhaps for ―Line‖. Line is the
supply (line) voltage. If Ext is selected, a signal must be connected to the Ext Trigger input on
the front panel of the scope. The trigger source channel does not have to be on.
Main
Delayed
Mode
Time / Div
Holdoff
Slope
Coupling
5s
2 ns
The trigger level control knob sets the trigger threshold voltage level for the selected
trigger source. When it is rotated, a solid horizontal line will briefly appear on the display to
graphically depict what voltage the trigger level is presently set to. The trigger level in volts will
be simultaneously displayed momentarily in the bottom left corner of the screen; it will also
show both the trigger source as well.
The Mode menu button brings up the following items:


Auto Level
Auto
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual



Normal
Single
TV
Auto level is the default triggering mode. It sets the trigger point to the 50% amplitude
point on the selected trigger source waveform. If there is no waveform present, a baseline is
displayed. Auto is a trigger mode that allows you to set the trigger threshold manually, but, like
the auto level mode, it will display a baseline if the trigger conditions are not met.
The normal trigger mode will display a signal only if a valid trigger signal exists that
satisfies all of the trigger conditions. If the trigger conditions are not met, the display will not be
updated.
The single trigger mode (single shot) triggers only once if the trigger conditions are met.
Once triggered, the oscilloscope automatically goes into the stop mode and must be rearmed
before it will reacquire data. The run button must be pressed to rearm the scope.
The holdoff knob is a very important control, as was stated earlier for the HP
54501A. When it is rotated, the trigger holdoff time is momentarily displayed at the
bottom left corner of the screen. Again, a general rule of thumb is to set the holdoff time
to be a little less than one period of the waveform you are examining if the scope is
having difficulty triggering.
The Slope / Coupling menu button brings up the following items:
 Slope rising/falling
 Coupling ac/dc
 Reject off/lf/hf (low frequency/high frequency)
 Noise reject off/on
The slope rise/fall item selects whether the scope should trigger off of a rising or
a falling edge that passes through the selected trigger threshold voltage on the trigger
source channel. The coupling selection allows you to choose whether the selected
input signal should be ac or dc coupled before it is passed to the trigger circuitry.
The reject/noise reject options are present to aid in triggering when examining
noisy waveforms. The LF reject option high pass filters the trigger signal with a cutoff
frequency of 50 kHz. The HF reject option will low pass filter the trigger signal, again
with a cutoff of 50 kHz. The Noise reject option simply decreases the trigger sensitivity
to help reduce the occurrence of false triggers caused by noise.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Display, Measurements and Printing
Measure
The Display menu button brings up the following items:


Display Mode normal / peak detect / average
Grid off/on
Voltage
Time
Cursors
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
These items are self-explanatory, except perhaps for the peak detect mode. This is a
specialized display mode that is useful in identifying glitches in the waveform(s) you are
examining. These signal extremes are identified and saved if the time/div is set longer than 50
s/div. At lower time/div settings, this display mode is disabled.
When the average display mode is selected, a new softkey selection to choose the number
of waveforms to average is displayed. The choices are 8/64/256.
The Print / Utility menu button brings up the following items:





Print Screen
HP-IB Menu
Clear Menu
Self Test Menu
Self Calibration Menu
Measure
Voltage
Time
Cursors
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
The only options you should be concerned with are print screen and the HP-IB menu.
Print screen is self-explanatory. You must connect a printer to the scope via the HPIB connector
on the rear of the scope, and the printer must be on and online. The entire display will be printed
when the print screen button is pressed.
Pressing the HP-IB Menu softkey will bring up another menu with the following items:





Connect to computer / HP print / HP plot
Factors off/on
Resolution low/high
Address
Previous menu
Obviously you would select connect to HP print if the scope was connected to a printer.
If you connect it to a computer, then you would select computer. The instrument’s address is
displayed above the address softkey. Pressing that softkey increments the address by 1. Possible
addresses are 0 – 30.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
When factors are on, the oscilloscope will also print extra information regarding the
waveforms underneath the screen plot. Normally factors is left off. The resolution should be set
low to function properly with the printers available in the labs.
A variety of automatic voltage and time measurements are available through the Voltage
and Time measurement menu buttons. Pressing the Voltage menu button brings up the following
options:
Measure




Time
Voltage
Source for the measurement: channel 1 or 2
Vp-p, Vavg, Vrms, Vmax, Vmin, Vtop, and Vbase; the first three are
available on the first ―page‖ of the menu while the last four are
available by hitting the ―Next Menu‖ softkey
Clear Measurement
Show Measurement off/on
Cursors
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
The Clear Measurement option will erase any selected measurements. The Show
Measurement option displays cursors on the screen when on. For example, if the measurement
Vp-p is selected, two horizontal cursors that are ―locked‖ to the topmost and bottommost parts of
the selected waveform will be displayed on the screen. The location of these cursors varies with
the selected measurement.
Pressing the Time menu button brings up the following options:




Source for the measurement: channel 1 or 2
Frequency, Period, Duty Cycle, + Width, - Width, Risetime and Falltime; as with
the voltage measurements, the first 3 are found on the first page of the menu, with
the rest on the following page
Clear Measurement
Show Measurement off/on
Measure
If you ever need to perform voltage or time measurements other than
the automatic ones listed above, there are a set of voltage and time cursors
available when the Cursors menu button is pressed. It will bring up the
following items:



Voltage
Time
Cursors
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
Source for the cursors: channel 1 or 2
Active cursor: V1, V2, t1, t2
Clear Cursors
When a particular cursor is selected by an active cursor softkey, it may be moved by
using the unmarked knob underneath the Cursors menu button. Cursors should be placed on the
scope trace at the centre of the trace thickness. Its present value (location) in volts or seconds is
displayed underneath the waveform display area of the screen as well as the present value of the
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
other voltage or time cursor. The difference between the two cursors in volts or seconds is also
displayed. In the case of the time cursors, 1/difference is also displayed.
Tektronix TDS210 60 MHz Digital Real-Time Oscilloscope






60 MHz Bandwidth
1 GSample/s 8 bit A/D with 2500 point record length for each channel
2 Channel input and display
Vertical sensitivity range 2 mV/div – 5 V/div
Horizontal sensitivity range 5 ns/div – 5 sec/div
Built-in FFT (Fast Fourier Transform) capability for spectrum analysis
Tektronix
TDS 210
TWO CHANNEL
DIGITAL REAL-TIME OSCILLOSCOPE
60 MHz
1 GS/s
SAVE/RECALL
MEASURE
ACQUIRE
AUTOSET
UTILITY
CURSOR
DISPLAY
HARDCOPY
HORIZONTAL
VERTICAL
POSITION
POSITION
CURSOR 1 MATH
MENU
CURSOR 2
CH 1
CH 2
POSITION
MENU
VOLTS/DIV
VOLTS/DIV
TRIGGER
LEVEL
HOLDOFF
HORIZONTAL
MENU
RUN/STOP
MENU
SEC/DIV
TRIGGER
MENU
SET LEVEL TO 50%
FORCE TRIGGER
5V
2mV
CH 1
5V
2mV
CH 2
5s
5ns
TRIGGER VIEW
EXT TRIG
The TDS210 is the least expensive member of the Tektronix family of oscilloscopes. Its
size is small, but it has very powerful performance. Each input channel has an input impedance
of 1 M in parallel with a capacitance of  20 pF. Each input may tolerate an absolute
maximum of 300 Vrms.
Like the HP 54600A/601A, the TDS210’s display conveys a lot of information. In the
top left corner of the display is the Tek logo. To the right of that you will find a picture of a
square pulse. This gives a graphical cue to the scope’s acquisition mode. Each mode has its own
unique picture of a pulse. Continuing to move to the right you will find a status indicator. If the
scope is in the run mode, a square with an ―R‖ inside of it will be displayed. Beside that is a
status word relating to the trigger status of the scope. Usually ―Ready‖ or ―Auto‖ will be
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
displayed here. If the scope is stopped, a solid octagon (stop sign) along with ―Stop‖ will be
displayed. The next bit of information that you find along the top of the display is the middle
graticule time readout. It displays the time to which the middle graticule corresponds. The t = 0
position is indicated by the upside down solid arrow at the top of the display.
At the bottom left corner of the display is a readout of the status of the input channels. It
indicates what channel(s) are on, and what their volts/div settings are. To the right of this
information you will find the main time/div setting, preceded by an M. Finally, in the bottom
right corner is information regarding the trigger source, trigger slope, and trigger level.
At the left side of the display you will see the channel number (1 or 2) and an arrow
pointing to the right. This indicates the ground (0 V) position for that channel. At the right side
of the display you will see another arrow pointing to the left. This arrow graphically indicates
the current trigger level.
Channel Menus and Vertical Controls
Pressing either channel menu (1 or 2) brings up a list of items adjacent to the five
VERTICAL
softkeys at the right of the display. These menu items are as follows:
POSITION
POSITION





Coupling dc/ac/ground
Bandwidth limit off (60 MHz) / on (20 MHz)
Volts/div coarse/fine
Probe 1X/10X/100X/1000X
Invert off/on
CURSOR 1 MATH
MENU
CURSOR 2
CH 1
CH 2
MENU
MENU
VOLTS/DIV
VOLTS/DIV
5V
2mV
5V
2mV
The volts/div for each channel are adjusted by using the large VOLTS/DIV adjust knobs.
The vertical position of the waveforms on the screen are adjusted with the small position knobs.
To turn a channel on/off, simply repeatedly press its channel menu button.
Timebase / Horizontal Controls
The horizontal position knob adjusts the
horizontal position of the display left or right by
moving the t = 0 point. The upside down arrow at
the top of the display indicates the t = 0 position and
will move left or right as the horizontal position
knob is turned. The large SEC/DIV knob adjusts
the timebase of the scope.
HORIZONTAL
VERTICAL
POSITION
POSITION
CURSOR 1 MATH
MENU
CURSOR 2
CH 1
CH 2
POSITION
HOLDOFF
HORIZONTAL
MENU
MENU
VOLTS/DIV
VOLTS/DIV
TRIGGER
LEVEL
MENU
SEC/DIV
TRIGGER
MENU
SET LEVEL TO 50%
FORCE TRIGGER
5V
2mV
5V
2mV
5s
5ns
TRIGGER VIEW
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The horizontal menu button brings up the following items:


Main / Window Zone / Window
Trigger knob level / holdoff
The ―Main‖ horizontal mode is the standard volts vs. time oscilloscope display mode.
When the ―Window Zone‖ mode is selected, two vertical cursors are displayed on the screen.
They define a window that you can use to zoom in on a feature of the waveform(s) being
examined. You control the position and size of the window with the horizontal position and
time/div knobs. Once you have set the window to your liking, select the ―Window‖ mode to
display only the data within the window on the full screen. Beneath the display, the window’s
time/div is displayed, preceded by a W. To return to the normal display, select the ―Main‖ mode
once again.
HORIZONTAL
VERTICAL
The last menu item switches the
functionality of the trigger level/holdoff knob. It
may be switched to control either the trigger level
or the trigger holdoff. Normally this should be left
set to level.
POSITION
POSITION
CURSOR 1 MATH
MENU
CURSOR 2
CH 1
CH 2
POSITION
HOLDOFF
HORIZONTAL
MENU
MENU
VOLTS/DIV
VOLTS/DIV
TRIGGER
LEVEL
MENU
SEC/DIV
TRIGGER
MENU
SET LEVEL TO 50%
FORCE TRIGGER
5V
5V
2mV
2mV
5s
5ns
TRIGGER VIEW
Trigger Controls
As just explained above, the trigger level/holdoff knob controls either the trigger level
(threshold) or trigger holdoff time, depending on its setting in the horizontal menu. Pressing the
trigger menu button brings up the following items:
HORIZONTAL
VERTICAL





Edge/Video
Slope rising/falling
Source channel 1/2,
external/5, AC line
Mode auto/normal/single
Coupling ac/dc/noise
reject/LF reject
external,
POSITION
POSITION
CURSOR 1 MATH
MENU
CURSOR 2
CH 1
CH 2
POSITION
HOLDOFF
HORIZONTAL
MENU
MENU
VOLTS/DIV
VOLTS/DIV
TRIGGER
LEVEL
MENU
SEC/DIV
TRIGGER
MENU
SET LEVEL TO 50%
FORCE TRIGGER
reject/HF
5V
2mV
5V
2mV
5s
5ns
TRIGGER VIEW
For normal operation, leave the scope in Edge trigger format. Most items are selfexplanatory, or are similar to trigger options of the HP scopes, which have already been
explained.
As with the other scopes, a channel does not have to be on in order to be a valid trigger
source. When the trigger source is set to ―Ext‖, a valid trigger signal must be connected to the
EXT TRIG input on the scope.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The ac/dc coupling option determines whether the trigger signal is ac or dc coupled to the
trigger circuitry. The noise reject option decreases the sensitivity of the trigger circuitry to help
avoid false triggers on noisy waveforms. HF reject low-pass filters the trigger signal with a
cutoff frequency of 80 kHz. LF reject high-pass filters the trigger signal with a cutoff of 300
kHz.
The button marked SET LEVEL TO 50%
sets the trigger level to the vertical midpoint
between the peaks of the trigger signal. FORCE
TRIGGER starts an acquisition even if a valid
trigger signal has not been detected. TRIGGER
VIEW displays the trigger waveform as long as the
button is depressed.
HORIZONTAL
VERTICAL
POSITION
CURSOR 1 MATH
MENU
CURSOR 2
CH 1
CH 2
VOLTS/DIV
HOLDOFF
HORIZONTAL
MENU
MENU
TRIGGER
LEVEL
POSITION
POSITION
TRIGGER
MENU
MENU
VOLTS/DIV
SEC/DIV
SET LEVEL TO 50%
FORCE TRIGGER
5V
5V
2mV
2mV
5s
5ns
TRIGGER VIEW
Acquisition and Display Menus
The Acquire and Display menus control how waveforms are displayed by the scope.
Pressing the Acquire menu button brings up the following items:




Sample
Peak detect
Average
Number to average: 4/16/64/128
SAVE/RECALL
MEASURE
ACQUIRE
AUTOSET
UTILITY
CURSOR
DISPLAY
HARDCOPY
RUN/STOP
The Sample mode is the standard display format, and the scope should normally be left in
this mode. The Peak detect mode is useful for examining waveforms that have glitches present.
These narrow glitches will be captured and displayed in this mode. The average mode averages
a set number of waveforms before updating the display. The number to average is selected via
the softkey directly under the average mode softkey.
The Display menu key will bring up the following items:




Display type: vectors/dots
Persistence off – infinite
Display format: YT / XY
Contrast increase/decrease
SAVE/RECALL
MEASURE
ACQUIRE
AUTOSET
UTILITY
CURSOR
DISPLAY
HARDCOPY
RUN/STOP
The display may be set to either the acquired samples themselves (dots) or to
automatically interpolate/fill the space between the acquired samples (vectors). Normally the
display type is left set to vectors. The screen persistence (how long an acquired point is
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
displayed) may be set anywhere from off (minimum persistence) to infinite. Several times are
selectable in-between these two extremes.
The display format is normally left set to YT; this is the normal volts vs. time display of
the scope. When you wish to display one waveform vs. another, set the format to XY. When in
the XY mode, channel 1 is the X (horizontal) waveform, and channel 2 is the Y (vertical)
waveform. While in this display mode, the channel 1 volts/div and position knobs control the
horizontal scale and position, while the channel 2 volts/div and position knobs control the
vertical scale and position.
The contrast softkeys change the display contrast of the scope.
Measurements and Cursors
A number of automated measurements are possible when the measure menu button is
MEASURE
ACQUIRE
AUTOSET
SAVE/RECALL
pressed:


UTILITY
CURSOR
DISPLAY
HARDCOPY
RUN/STOP
Source/Type
Any four of the following
measurements: frequency, period, mean (average), pk-pk, cyc rms (true rms
computed over one cycle), rise time, fall time, positive width, negative width, or
none
The four measurement readout windows adjacent to the bottom four softkeys list the
channel being measured (CH1 / CH2), the specific measurement (as listed above), and the
measured quantity. The top softkey selects between the source channel selection mode or the
measurement type selection mode. When Source is selected, the source channels in the
measurement windows become highlighted. Pressing one of the bottom four softkeys will toggle
the selected source channel, but will not change the measurement type. When Type is selected,
the measurement type will be changed by the bottom four softkeys, but not the source channel.
A set of voltage or time cursors is available by pressing the Cursor menu button. The
MEASURE
ACQUIRE
AUTOSET
SAVE/RECALL
following items then appear:


Cursor type: off/voltage/time
Source CH1 / CH2 / MATH / Ref A
/ Ref B
UTILITY
CURSOR
DISPLAY
VERTICAL
POSITION
POSITION
CURSOR 1 MATH
CURSOR 2
HARDCOPY
HORIZONTAL
POSITION
RUN/STOP
TRIGGER
LEVEL
HOLDOFF
MENU
CH 1
CH 2
HORIZONTAL
TRIGGER
The only deficiency that this scope has is
MENU
MENU
MENU
MENU
its cursors. Unfortunately, only the voltage or time
cursors can be displayed, but not both at once.
This may be an issue, depending on the lab you are performing. The menu choices available
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
here are self-explanatory. To move the cursors, use the channel 1 & 2 vertical position controls.
When either the voltage or time cursors are active, the position of each cursor as well as the
difference between them (in either volts or seconds) will be displayed at the right side of the
display. In the case of the time cursors, 1/difference will also be displayed.
Printing
Unlike the HP oscilloscopes, the TDS210 is capable of printing to many different types
of printers with its three different hardware interfaces. To print whatever is displayed on the
MEASURE
ACQUIRE
AUTOSET
SAVE/RECALL
screen, you simply press the HARDCOPY
button. However, you must make sure that the
UTILITY
CURSOR
DISPLAY
HARDCOPY
RUN/STOP
scope is set up properly to use the selected
printer.
The necessary information is found under the Options softkey menu displayed after
pressing the UTILITY menu button.
Three options are then available:



Hard Copy Setup
RS232 Setup
GPIB Setup
SAVE/RECALL
MEASURE
ACQUIRE
AUTOSET
UTILITY
CURSOR
DISPLAY
HARDCOPY
RUN/STOP
Under the Hard Copy Setup menu, you may select the orientation of the printout
(portrait/landscape), the printer format, and the port. Normally you would leave the orientation
set to portrait. If you have connected one of the HP ThinkJet printers, then the format should be
set to ThinkJet. If you have connected the printer to the GPIB port, then the port should set to
GPIB. A few of the HP ThinkJet printers have a centronics interface; you should set the port to
centronics if you use one of these printers. There are also a few Epson-style dot matrix printers
available. The format should be set to Epson and the port set to centronics in the event that you
use one of these printers.
You can print to the HP ThinkJet printers with the GPIB interface using the TDS210
scopes, but they take a very long time to print a waveform. If you choose a printer with a
centronics interface, then printing time will decrease dramatically. Stopping the display from
acquiring new wave forms, ( push Run/STOP ), will decrease printing time.
Under the GPIB setup softkey lies another menu where you can choose the GPIB address
of the scope and the bus connection mode. Two choices are available: off-bus and talk-listen.
Leave it set to talk-listen at all times.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The RS232 setup softkey reveals another set of options. Leave all fields set to their
default values (press the ―Set to defaults‖ softkey); these default values are sufficient for your
needs.
Math Menu
Pressing the math menu button will automatically switch the scope to the math function
currently selected. There are three major functions: addition, subtraction, and FFT (fast fourier
VERTICAL
transform or spectrum analysis). Depending upon which function is
POSITION
POSITION
active, a different set of softkey choices will be available. However, the
mathematical operation selection softkey is the first available choice for all
CURSOR 1 MATH CURSOR 2
MENU
CH 1
CH 2
three. In the case of addition, no further choices are available—only CH1
MENU
MENU
+ CH2. For subtraction, there are two choices, CH1 – CH2 or CH2 –
VOLTS/DIV VOLTS/DIV
CH1. To turn the math function off, simply press the math menu button
again.
5V
2mV
5V
2mV
Only the basic instructions regarding the FFT will be presented here. For more
information, consult the TDS200-Series Extension Modules manual.
The fast fourier transform is a mathematical function that takes a set of discrete numbers
as its input. In this case, those numbers are the discrete sampled points of the input waveform.
The FFT requires that the number of samples it receives be a power of 2. The oscilloscope
captures 2500 points per waveform, but only the middle 2048 are used to perform the FFT.
Before you perform an FFT on a waveform, be sure that it is vertically centered in the
display and is as large as possible without clipping (or going off-screen). Also make sure that
several cycles of the waveform are displayed. Now turn on the FFT by pressing the Math menu
button, and selecting the FFT operation. You may select the channel on which to perform the
FFT (CH1 or CH2), the window type to apply to the data, and the FFT zoom level.
There are three window types that you may choose: Rectangular, Hanning, and Flattop.
Without delving into the underlying theory, the following table summarizes the characteristics of
each window type:
Window
Measure
Characteristics
Hanning
Periodic waveforms
Better frequency, poorer magnitude accuracy than
Flattop
Flattop
Periodic waveforms
Better magnitude, poorer frequency accuracy than
Hanning
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Rectangular
Pulses or transients
Special purpose window for waveforms that do not
have discontinuities (same as no window)
The FFT zoom level (X1 / X2 / X5 / X10) changes the horizontal magnification of the
FFT display.
The FFT display is calibrated in dBV (decibels referenced to one volt rms). The level of
a signal in dBV is given by the following formula:
Signal Level (dBV) = 20 log (Vrms/1 V)
Where Vrms is the rms voltage of the signal.
The oscilloscope display changes slightly when the FFT function is active. At the top of
the screen is a readout that displays the frequency corresponding to the middle graticule. The
upside-down arrow at the top of the screen indicates the position of this frequency. The
horizontal position knob moves the display left or right, and the corresponding middle graticule
frequency at the top of the screen will change accordingly. At the bottom of the screen near the
middle is the frequency/div setting of the display. Next to that, in parenthesis, is the current
sampling rate used in computing the FFT.
At the bottom left of the screen is the vertical scale in dB/div. The volts/div knob of the
source channel for the FFT now controls the vertical dB/div setting. The choices are 1, 2, 5, 10
and 20 dB/div. The vertical position knob of the source channel for the FFT controls the vertical
position of the display.
The cursors may be used to determine signal levels and frequencies of the FFT spectrum.
Ensure that the source for the cursors is set to MATH. Two types are then available: magnitude
and frequency. As with the voltage and time cursors, the positions of the two cursors are
displayed (in dB and Hz), as well as the difference between the two. Again, as with the voltage
and time cursors, their positions are controlled by the two vertical position knobs for each
channel. Don’t be fooled by the readout for the magnitude cursors: the scope tells you the
position of each cursor in dB, but it’s really dBV, so keep that in mind. To convert signal levels
in dBV to rms volts,
Signal Level (Vrms) = 10(Signal level (dBV)/20)
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Tektronix TDS 3012B Oscilloscope
FFT Math Function
This function converts an oscilloscope time-domain waveform into its frequency
spectrum. Waveforms with a D.C. component may cause errors in FFT magnitudes.
Push the Save/Recall button, Recall Factory Setup button and the Confirm button.
Connect the source to the scope and display the time-domain waveform. The acquisition mode
should be set to sample and the horizontal resolution should be set to normal. These are found
in the Acquire menu. The Acquire menu also displays the sample rate. Push the CH 1 and
menu buttons. AC coupling is preferred. The bandwidth can be set to 20 MHz. This filters the
source signal, limiting frequencies below the nyquist frequency. Full band width is 150 MHz.
Use the fine scale button so the waveform uses approx. 95% of the vertical scale. The horizontal
scale knob should be set to display a minimum of five periods. This controls the sampling
frequency and the frequency resolution. The more cycles displayed increases the frequency
resolution and decreases the sampling rate. This is the trade off. The nyquist frequency is half the
sampling frequency. Aliasing may occur if the sampling rate is low. Push the math and FFT
buttons for the frequency spectrum. The rectangular window is the only non-windowing
function. Non-windowing is used for transients. Periodic waveforms require windowing. The
magnification button is used along with the horizontal scale and position knobs. This is used to
magnify and position the FFT spectrum. Magnification is about the center of the display. The
entire waveform record is used to calculate the FFT spectrum. Magnification increases display
resolution only. The FFT spectrum is not recalculated. Recall the factory setup before a new FFT
spectrum is calculated.
Examples:
1GS/s = sample rate for display
Nyquist = 1GHz / 2 = 500 MHz BW
500 MHz / 10 div = 50 MHz / div
freq. resolution = 50 MHz / 50 = 1 MHz.
50 MS/s = sample rate for display.
Nyquist = 50 MHz / 2 = 25 MHz BW
25 MHz / 10 div = 2.5 MHz / div
freq. resolution = 2.5 MHz / 50 = 50 kHz
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
If I want a 100 KHz BW which is 10 KHz / div.
100 KHZ (nyquist) X 2 = 200 KHz sample rate
nearest higher sample rate 250 KS/s
Nyquist = 250 KHz / 2 = 125 KHz BW
125 MHz / 10 div = 12.5 KHz / div
freq. resolution = 12.5 kHz / 50 = 250 Hz.
Agilent 54621D Mixed – Signal Oscilloscope
The 54621D is a combination oscilloscope and logic analyzer. The digital section on the
front panel is the logic analyzer part of the unit. The analog section on the front panel is the
oscilloscope part of the unit. The oscilloscope section is labeled analog and refers to the type of
input signal. This is actually a digital oscilloscope with a cathode ray tube display. The
oscilloscope has a band width of 60 MHz and a maximum sampling speed of 200 M Sa/s ( 200
Mega samples/second or a sampling frequency of 200 MHz).
Sampling Speeds: 200 M Sa/s – 1 channel or 1 pod.
100 M Sa/s – 2 channels or 2 pods or 1 channel and 1 pod.
Measurements should be done with unused channels and pods turned off. The pods are used with
the logic analyzer part of the unit.
Deep memory oscilloscopes can capture a long time event at a high sampling rate. This
allows a user to see fast details in a long event.
Memory Depth: 2 MB for each analog channel.
4 MB for a single analog channel in single mode.
4 MB for each digital channel using 2 pods.
8 MB for each digital channel using 1 pod.
The memory is divided in half in the run mode. This allows an acquisition of a record and a
processing of the previous record. This results in a fast display update.
The introduction part of the Digitizing Oscilloscopes and the Logic Analyzers in the
Equipment Manual should be reviewed for basic theory operation. The controls for the 54621D
are similar to the HP 54601 oscilloscope and HP 54620A logic analyzer. Refer to these sections
in the Equipment Manual for an explanation of the controls. An explanation of controls in this
section is a supplement to the previous sections mentioned.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
This unit, along with other scopes and analyzers, should be reset to factory default
settings before using. Press the Save/Recall button and then the Default Setup button to reset.
This unit, along with other scopes and analyzers, has an Auto-Scale button. Auto-Scale
automatically configures the scope to display the signals at its inputs. Students that use this
function will not learn the basic controls and how to display signals. The auto scale function can
be misleading when displaying a signal. In order to learn the operation of equipment, avoid the
Auto-Scale button. These units also do automatic measurements. Manual cursor measurements
are more accurate then automatic measurements. Use the cursor measurements for accurate
measurements and as a learning tool. Measurements should be taken at the center of the trace
width.
Quick Help > Press and hold down the button which help information is required for.
> Hold the button down to read.
> Release the button to return to the previous scope state.
Trigger Mode
Normal Mode > Only Triggers when conditions are met ( transition or/and a logic level).
Auto Mode
> Forces a trigger when conditions are not met.
Auto level
> Works with Edge trigger (analog or external).
> First it tries a normal trigger.
> If no normal trigger is found, then it searches for a transition signal and
sets the trigger level at 50% of the magnitude.
> If there is no signal transition, then it does an auto trigger and forces a
trigger.
In Auto or Normal mode, a trigger will not be recognized until the pre-trigger buffer is full. At
slow sweep speeds (ms/div), the trigger may not be found. Use Normal mode and wait for the
trigger indicator to flash before causing the trigger condition in the circuit.
HF Reject is a 50 kHz input low pass filter to the trigger circuit. Noise Rej increases the
trigger hysteresis band, thus reducing noise triggering. This also reduces trigger sensitivity. The
signal may have to be increased.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Holdoff keeps a trigger from occurring until the amount of time set has passed since the
last trigger. Used, on a repeating pattern of a waveform, to trigger on the same edge of the
pattern.
Edge triggers on a falling or rising transition. Pulse Width triggers after a time set pulse
width has occurred. Pattern trigger is a logical AND of the channels. Channels can be specified
high, low, or don’t care (X). A rising or falling edge can be set for only one channel. A trigger
will occur when the specified conditions for all the channels is true.
Acquire Waveform
In Peak Detection mode signals longer then 5 nS will be displayed at any time/div speed.
This mode can be used at time/div speeds slower then 1 mS/div. It has no effect at higher speeds
as the scope will display 5 nS peaks in normal acquisition mode. Digital channels always have
peak detection on.
In Realtime mode the waveform produced is from samples during one trigger event. A
reconstructive filter is used to fill in, the waveform displayed, when less than 1000 samples are
available in the time span of the display. At sweep speeds of 200 nS/div and faster, less then
1000 samples are available on each trigger. Realtime mode is only necessary at these sweep
speeds. Realtime is used to capture infrequent events or a changing waveform. The waveform
displayed, with Realtime off, is constructed from multiple triggers.
Averaging reduces noise. The scope responds slowly, to changes, with averaging on.
Turn averaging off when adjusting the scope or changing signals. High Resolution mode (
averages = 1) is used when the sampling rate is faster then the rate at which the samples are
being stored. Samples are averaged together for each display point with this mode. The slower
the time/div speed the greater the samples averaged. Bit resolution will be increased at slower
sweep speeds with High Resolution.
Single acquisition stores at least twice the number of samples then the Run mode. Higher
sampling rates occur at slower sweep speeds due to a larger memory available in Single mode.
Horizontal
Measurements and functions are performed on display data. The resolution of
measurements and functions are affected by the resolution of the display. Time/div and volts/div
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
affect the resolution of the display. Always use the max. volts/div and sweep speed (time/div)
that fits on the display.
The Delayed sweep window is used to expand the waveform ( zoom ). The Delayed
window shows a portion of the main sweep. The display is divided in two, showing the main and
expanded portion. Peak Detection acquisition mode provides more detail when expanding the
waveform.
The XY mode changes the scope from voltage versus time to voltage (y, Ch2) versus
voltage (x, Ch1).
Printing the Display
The 54621D mixed signal scope can not print to the Think Jet printers or Scopecam.
The display can be saved to the front 3.5‖ floppy drive. The floppies are available from the
Technicians in 2C94.
Push Utility and then the Print Confg soft key.
Push soft key Print to: Disk.
Push soft key Format BMP image.
Soft key Factors: set to off.
The scope is now set to print to disk.
Push the hard key Quick Print to save to disk. Load the file from the floppy into a
computer. Delete your files from the floppy before returning it to 2C94.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Agilent MSO6014A Mixed Signal Oscilloscope
The 6014A is a combination oscilloscope and logic analyzer. The digital section on the
front panel is the logic analyzer part of the unit. The analog section on the front panel is the
oscilloscope part of the unit. The oscilloscope section is labeled analog and refers to the type of
input signal. The oscilloscope has a band width of 100 MHz and a maximum sampling speed of
2 G Sa/s ( 2 Giga samples/second or a sampling frequency of 2 GHz).
The introduction part of the Digitizing Oscilloscopes and the Logic Analyzers in the
Equipment Manual should be reviewed for basic theory operation. The controls for the 6014A
are similar to the HP 54601 oscilloscope and HP 54620A logic analyzer. Refer to these sections
in the Equipment Manual for an explanation of the operation and the controls. This section is a
supplement to the previous sections mentioned.
This unit, along with other scopes and analyzers, should be reset to factory default settings
before using. Press the Save/Recall button and then the Default Setup button to reset. This unit,
along with other scopes and analyzers, has an Auto-Scale button. Auto-Scale automatically
configures the scope to display the signals at its inputs. Students that use this function will not
learn the basic controls and how to display signals. The auto scale function can be misleading
when displaying a signal. In order to learn the operation of equipment, avoid the Auto-Scale
button. These units also do automatic measurements. Manual cursor measurements are more
accurate then automatic measurements. Use the cursor measurements for accurate measurements
and as a learning tool. Measurements should be taken at the center of the trace width.
This scope will recognize the 10:1 probes and adjust the probe setting.
BW Limit is located in the analog channel menu. This limits the bandwidth of the scope
to 20 MHz. This is used to filter out high frequency noise, provided the signal is composed of
low frequency components. This is a very low bandwidth and will distort waveforms, made up of
frequencies components above 20 MHz. It is best to leave BW Limit off in most situations.
Analog channel menu > probe > skew. Skew is used to remove delays in probe cables
between any two channels. This can occur with time intervals in the nS range. Attach both
probes to the same point and adjust the skew between channels.
Quick Help > Press and hold down the button which help information is required for.
> Hold the button down to read.
> Release the button to return to the previous scope state.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Main / Delayed menu
Main is the normal viewing mode for the display. Delayed mode expands the main view.
In Delayed mode the top half of the display shows the main sweep and the bottom half shows the
delayed sweep. The delayed sweep is a magnified portion of the main sweep. The magnified
portion is adjustable using the Horizontal controls.
Single and Run Control
The continuous Run mode uses half the memory to acquire data and the other half is
used to process the previous acquisition.
Single acquisition mode uses twice the memory as the Run acquisition mode. The
increase in memory allows for a high sampling rate at slower sweep speeds. Single acquisition
will acquire data with the longest record. So use the Single acquisition mode for maximum
sampling rate and memory depth. Set the trigger mode to Normal and the trigger level high
enough so the desired event will trigger the acquisition and not a low level event. The scope will
otherwise immediately trigger.
Acquire Modes
Normal > Best for most waveforms. No averaging. Default setting.
> At slow speeds extra samples are discarded.
Peak Detect > Best for capturing narrow pulses.
> At slow speeds extra samples are kept to capture narrow pulses.
> Displays pulses as narrow as 500 pS.
High Resolution > At slow speeds extra samples are averaged to produce a point.
> Limits the scopes real – time bandwidth (acts as a low – pass filter).
Average > Averages acquisitions to reduces noise.
> Bandwidth and rise time are not reduced.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
At slow sweep speeds, the sampling rate decreases due to an increase in acquisition time.
Sampling is faster then what is required to fill the memory. Push the Main / Delayed key to
display the sampling rate.
Display key > Infinite Persist. The display is updated with new acquisitions and old
acquisitions are displayed in gray. Persistence is limited to the display area and not memory. The
Intensity knob allows a view of old acquisitions. This is useful in viewing glitches. The
Intensity knob has no effect on digital channels.
Acquire key > Realtime. Default setting. The display waveform is from the current
acquisition only. Not available in Average Acquire mode. When less then 1000 samples are
available to display, a reconstruction filter is used to fill in the display.
Trigger
Normal Mode > Only Triggers when conditions are met ( transition or/and a logic level).
Auto Mode
> Triggers when conditions are met or forces a trigger when conditions
are not met.
In Auto or Normal mode, a trigger will not be recognized until the pre-trigger buffer is full. At
slow sweep speeds (ms/div), the trigger may not be found. Use Normal mode and wait for the
trigger indicator to flash before causing the trigger condition in the circuit.
HF Reject is a 50 kHz input low pass filter to the trigger circuit. Noise Rej increases the
trigger hysteresis band, thus reducing noise triggering. This also reduces trigger sensitivity. The
signal may have to be increased.
Holdoff keeps a trigger from occurring until the amount of time set has passed since the
last trigger. Used, on a repeating pattern of a waveform, to trigger on the same edge of the
pattern.
Edge triggers on a falling or rising transition. Pulse Width triggers after a time set pulse
width has occurred. Pattern trigger is a logical AND of the channels. Channels can be specified
high, low, or don’t care (X). A rising or falling edge can be set for only one channel. A trigger
will occur when the specified conditions for all the channels is true. There are many types of
triggers, for specialized waveforms, in the More hard key category. Consult the User’s manual,
available from the technicians, for the many types of triggers.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Logic Analyzer ( Digital Channels )
The Logic Analyzer cable connects to the rear panel. Be Careful not to physically
Stress the cable. Route the cable around the side of the scope leaving plenty of slack at the rear
of the scope. Turn off the analog channels not in use. Push the D15 Thru D0 key. Turn off the
digital channels not used. Controls for the digital channels are the soft keys below the display,
three keys to the right of the display and the Trigger keys. The Thresholds soft key is used to set
the digital channel threshold.
Printing the Display
The display can be printed to a USB printer ( not available ) or to a USB mass storage
device. The USB storage device is available from the technicians in 2C94.
Push the Utility key and then the Print Config soft key.
Push the Print to Bmp (8-bit) soft key.
Push the Options soft key and select Invert Graticule Colors.
The scope is now set to store the display to the USB storage device.
Insert the USB storage device into the front connector.
Push the hard key Quick Print to save to the USB device. Load the file from the USB
device into a computer. Delete your files from the USB device before returning it to 2C94.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Agilent DSO3102A Oscilloscope
The introduction part of the Digitizing Oscilloscopes in the Equipment Manual should be
reviewed for basic theory operation. The controls for the 3102A are similar to the HP 54601
oscilloscope. Refer to this section in the Equipment Manual for an explanation of the operation
and the controls. This section is a supplement to the previous section mentioned.
This unit, along with other scopes and analyzers, should be reset to factory default
settings before using. Press the Save/Recall button and then toggle the Storage button till
setups, then press the Default Setup button to reset. This unit defaults to 10X probe. Probe
setting is located in the analog channel menu (1 and 2 button).
The screen displayed menu appears when a hard key is pressed and will disappear 20
seconds ( default ) after use. Do not change this time because it is hard to set with the display
disappearing fast.
This unit, along with other scopes and analyzers, has an Auto-Scale button. Auto-Scale
automatically configures the scope to display the signals at its inputs. Students that use this
function will not learn the basic controls and how to display signals. The auto scale function can
be misleading when displaying a signal. In order to learn the operation of equipment, avoid the
Auto-Scale button. These units also do automatic measurements ( Measure button). Manual
Cursor measurements are more accurate then automatic measurements. Use the Cursor
measurements for accurate measurements and as a learning tool. Measurements should be taken
at the center of the trace width.
BW Limit is located in the analog channel menu (1 and 2 button). This limits the
bandwidth of the scope to 20 MHz. This is used to filter out high frequency noise, provided the
signal is composed of low frequency components. This is a very low bandwidth and will distort
waveforms, made up of frequencies components above 20 MHz. It is best to leave BW Limit off
in most situations.
Acquisition Modes
The Average acquisition mode will reduce the random noise of the waveform. The
average of 2 to 256 acquisitions is displayed.
The Peak Detect mode will capture the maximum and minimum levels of the
acquisitions.
The Normal acquisition mode will capture a waveform when a trigger occurs.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Sampling Modes
The Real Time sampling mode is used for single shot and pulse waveforms. This mode
can be used for most signals. The Equ-Time mode is used for repetitive high frequency
waveforms.
Trigger
Edge triggers on a falling or rising transition. Pulse Width triggers after a time set pulse
width has occurred. Video trigger is used for video signals.
Printing the Display
The display can be printed to a USB printer ( not available ) or to a USB mass storage
device. The USB storage device is available from the technicians in 2C94. The mass storage
device is connected to the USB host port on the USB module at the rear. The mass storage has to
be connected to appear in the Save/Recall menu.
Display > ½ > Screen > Inverted
Save/Recall
Storage > USB
File Type > Bit map
Bmp Format > 8 or 24 bit
Save
The problem with this method is the black screen is saved and not the inverted
white screen. Use the Scope Connect Software to print the screen.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
3000 Series Scope Connect Software
This software interfaces the scope to a computer. The GUI displays the scope screen and
controls. The scope controls can be adjusted form the GUI. Connect a cable from the USB – B
port on the back of the scope to the USB –A port on the front of the PC.
Start / programs / Electrical Engineering / Lab Equipment / Agilent DSO3000 Scope.
Click on the Connect to Oscilloscope icon in the tool bar. Click on the Show Virtual
Panel button in the DSO Controller window. The scope can be adjusted from the Virtual Panel
or DSO Controller window. Push the Disconnect icon on the tool bar to disconnect the scope
from the PC. Push the Force button on the front of the scope to acquire manual control of the
scope.
Print the Display using Scope Connect
The software must be controlling the scope. Using the Waveform window, push
the Refresh button and uncheck the color box for the display. Using the Waveform window,
push the Print button or the Export button for the output
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Logic Analyzers
Logic analyzers are specialized equipment that are very similar to oscilloscopes,
except that they are tailored to analyze and display digital signals only. They are, in
essence, simply multiple channel oscilloscopes that only determine whether a channel
is logic high or low. Their power comes from the fact that they can be set to trigger off
of multiple events on different channels. This feature is extremely useful. As an
example, say that you are troubleshooting the operation of a microprocessor. If you
know and can verify that the microprocessor works properly up to a certain point or
event (but not after that), then you can set the logic analyzer to trigger from that specific
event. That becomes the t = 0 point for the display (much like an oscilloscope). The
logic analyzer will trigger on this last known ―good‖ point of the microprocessor and then
capture data. That data will assist you in determining what is going wrong so that you
may remedy the situation.
HP 54620A 16 Channel 500 MSa/s Logic Analyzer
hp
HEWLETT
PACKARD
54620A
16 CHANNEL 500 MSa/s
STORAGE
LOGIC ANALYZER
Measure time
Single
channel
Dual
channel
Entry
Save / Recall
Trace
Setup
Auto scale
Display
Run
Stop
Cursors
Single
Auto store
Erase
TRIGGER
HORIZONTAL
Edge
Delay
Print
Utility
Pattern
Main
Delayed
Mode
CHANNEL
Select
Time / Div
Adv
0
15
On
Off
1s
Label
5 ns
INPUTS
Logic
levels
Position
Trigger out
Ext trigger in
Line
O I
The pouch on top of the analyzer contains a ribbon cable that plugs into the front
panel. It has 16 leads to which 16 micro-grabbers may be attached. These micrograbbers do not hold onto things all that well, so care must be taken once they are
attached, as they can pop off easily. They can be directly attached onto the pins of ICs
as they will hold quite well when attached in this manner. The ground lead must be
connected to ground when performing any measurements.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The display of the analyzer conveys a lot of information at-a-glance. At the top
left side of the screen the present sampling interval is displayed. If ―GL‖ is seen just to
the right of the sampling interval, that is an indication that glitch detection is enabled.
Much as with the HP 54600A/601A oscilloscope, in the top middle of the screen
you will find an arrow and a time. This is the time that corresponds to the middle of the
screen in the current acquisition. Just to the right of that you will find the current
time/div setting. Somewhere along the top display line you will find an upside down
solid triangle. At the bottom of the screen you will see a right-side up solid triangle
immediately beneath it. These triangles denote the t = 0 point of the acquisition.
In the top right corner of the display you will find information about the trigger
condition. Lastly, either RUN or STOP will be found to the right of that, indicating
whether the analyzer is actively acquiring data or has stopped.
Along the left edge of the display you will see a channel number adjacent to
every trace displayed on the screen. The channel labels, if turned on, will be found to
the right of the channel numbers. The labels are displayed within the waveform display
area and thus slightly decrease the waveform display area if they are on.
Immediately beneath the waveform display area, on the right side, is the activity
indicator. It graphically depicts which of the 16 channels are presently on, and whether
there is any activity on the channels that are turned on.
Channel Controls
The channel controls dictate which channels to display, their
position on the screen, and their labels. The large select knob may be
used to select any channel, whether it is on or off. The currently selected
channel number, if it is on, is highlighted at the left of the screen. If the
selected channel is not on, its highlighted number will appear in the top left
corner of the screen. The selected channel is also reflected by a highlight
in the channel activity graphical display at the bottom of the screen. To
turn the selected channel on or off, simply press the On/Off button. You
may relocate a selected channel (if on) by rotating the position knob.
CHANNEL
Select
0
15
On
Off
Label
Position
To easily remember what channel corresponds to what signal, you may label
each. Pressing the Label button brings up the label softkey menu. One of the choices
is Labels Off/On, but the labels may also be toggled off/on by pressing the Label button
repeatedly. You may define the labels to add to the channels by pressing the Define
Labels softkey. For example, assume that you have connected the logic analyzer to a
three bit counter. You are monitoring the clock signal and the three outputs, Q0, Q1,
and Q2. If these signals are connected to channels 0 – 3, then you would want to label
channel 0 as ―Clk‖, and channels 1, 2, and 3 as Q0, Q1, and Q2 respectively.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Once the Define Labels softkey is pressed, a label choice box is displayed on the
screen along with the following new softkeys:
 Delete Character
 Insert Space
 Copy
 Position
 Assign Label
 Previous Menu
These softkeys are self-explanatory. To assign ―Clk‖ to channel 0, first make sure that
channel 0 is selected. Then using the Entry knob on the front panel, scroll to ―Clk‖ from
the list of labels on the screen. Press the Copy softkey, then the Assign Label softkey.
―Clk‖ has now been assigned as the label for channel 0. To assign ―Q0‖ to channel 1,
first ensure that channel 1 is selected and delete any characters in the Assign to field
on the screen. Use the Entry knob to scroll to ―Q‖, press the Copy softkey, then scroll to
―0‖ and press the Copy softkey again. Now press the Assign Label softkey. Repeat the
process for Q1 and Q2 to complete the labels.
Pressing the On/Off button on the front panel brings up the following softkey
items:
 Selected channel Off/On
 Chan 0 – 7 Off/On
 Chan 8 – 15 Off/On
 Reorder 15 – 0 / 0 – 15
These items are self-explanatory.
TRIGGER
HORIZONTAL
Edge
Input Logic Levels
Delay
Main
Delayed
The input logic levels may be set to TTL, CMOS, ECL, or a
user-defined threshold by the softkeys that appear after pressing the
Logic levels button. Channels 0 – 7 and 8 – 15 may be independently
set to different levels, as can the external trigger input. If the User
option is selected, the threshold level may be changed via the Entry
knob.
Pattern
Mode
Time / Div
Adv
5 ns
1s
INPUTS
Logic
levels
Timebase / Horizontal Controls
TRIGGER
HORIZONTAL
Edge
The delay knob adjusts the horizontal position of the display left or
right by moving the t = 0 point. If the delay is adjusted, then the pair of
solid triangles at the top and bottom of the display (mentioned previously)
will move accordingly. The display point will retain a pair of open
triangles to mark its position. The display point may be set to either one
graticule in from the left or right side of the display or to the center of the
display.
Delay
Main
Delayed
Pattern
Time / Div
Adv
1s
5 ns
Mode
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The time/div (or timebase) is adjusted by the large Time/Div knob. Turn it
counterclockwise to increase the timebase, clockwise to decrease it.
Pressing the Main/Delayed menu button will bring up the following items:
 Horizontal Mode Main/Delayed
 Time Reference Left / Center / Right
 Vernier Off/On
The Main horizontal mode is the standard signal high/low vs. time logic analyzer display
mode. The Delayed mode splits the screen into two; in the top portion are the original
waveform(s), and the bottom holds a time-zoomed version of that waveform(s). The
Time/Div and Delay knobs control the window size and position of the zoomed portion in
this mode.
When on, the Vernier control acts like a fine adjust for the time/div knob.
Normally this control is left off. The time reference position control is self-explanatory.
Trigger Controls
The Edge menu button brings up a list of softkeys that allow
you to specify only one edge (positive, negative, or either) on only
one channel as the trigger condition. The trigger source may also
be chosen to be the external trigger input on the front panel. These
softkeys are self-explanatory.
TRIGGER
HORIZONTAL
Edge
Delay
Main
Delayed
Pattern
Mode
Time / Div
Adv
1s
5 ns
The Pattern menu button brings up a self-explanatory list of softkeys that allow
you to set a trigger pattern consisting of as many channels as you wish. The pattern
consists of logic highs or lows for each channel, as well as an X (don’t care). In
addition, one and only one channel may be specified as a rising/falling/either edge in
the pattern trigger mode. The external trigger input may also be used as part of the
trigger pattern.
For example, consider the 3 bit counter mentioned previously (channel 0 – Clk, 1
– Q0, 2 – Q1, and channel 3 – Q2). If you wanted to trigger off of the following event:
counter output: 0x5 and a rising edge of the clock, then you would set the trigger
pattern to HLH for channels 3 – 1 (for hexadecimal 5), and a rising edge for channel 0.
The rest of the channels would be set to an X, since you don’t care about their state.
The next time that the analyzer encounters that particular logic pattern on those four
input channels, a trigger will occur.
The trigger mode button brings up only one softkey option: Trigger Mode Auto /
Normal. Much as with the oscilloscopes, when the trigger mode is set to normal, the
analyzer will only acquire data if the specified trigger condition(s) is encountered. When
the trigger mode is set to auto, the analyzer will self-generate triggers even if none are
encountered.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The Adv (advanced) trigger menu button allows you to specify complex triggering
criteria. As the advanced trigger mode will not be necessary to complete the labs, it will
not be explained here. Refer to the operations manual should you need to use this
feature.
Display, Measurements and Printing
Measure time
Single
channel
The Display menu button brings up the following items:
 Auto Glitch Detect Enable / Disable
 Reorder 15  0 / 0  15
 Grid Off / Frame / Full
Dual
channel
Cursors
Entry
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
These controls are self-explanatory, except for auto glitch detect. When this
feature is enabled, fast glitches will be identified and displayed, but only for time/div
settings of 1 s/div and slower. In other words, glitches that are narrower in time than
the sampling rate could be missed if this feature were disabled.
Measurements based on a single channel (single waveform)
are accessed by pressing the Single channel measurement button. It
brings up a series of softkeys that allow you to select the source
channel for the measurement, and the following five measurements:
frequency, period, duty cycle, positive and negative width. These
softkeys, and others not mentioned here, are self-explanatory.
Measurements based on two channels are accessed by
pressing the Dual channel measurement button. Three different
automatic measurements are then possible: channel-to-channel
delay, setup time and hold time. These particular measurements will
not be explained in detail here; instead, refer to the operations
manual should the need for these measurements arise.
Measure time
Single
channel
Dual
channel
Cursors
Entry
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
Measure time
Single
channel
Dual
channel
Cursors
Entry
Save / Recall
Trace
Setup
Auto scale
Display
Print
Utility
A set of time cursors is available via the Cursors menu button. Their operation is
self-explanatory.
The Print/Utility menu options are exactly the same as for the HP 54600A/601A
oscilloscope, and will not be duplicated here. Accordingly, printing is exactly the same
as for the HP 54600A/601A.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Spectrum Analyzer
There is only one type of analog spectrum analyzer available for use in the
laboratories. It is the HP 3580A Spectrum Analyzer. This spectrum analyzer is limited
in its maximum frequency—only 50 kHz. However, it has some nice features and is an
excellent teaching aid in that once you understand how to operate this particular
spectrum analyzer, you will know how to operate any other spectrum analyzer.
A spectrum analyzer, as the name suggests, is simply a tool that allows you to
examine a signal in terms of its frequency components. That is, it displays signal
amplitude as a function of frequency. Exactly how it does this is surprisingly easy to
understand.
The illustration below is a very simplified block diagram of the electronics inside
of a spectrum analyzer. The input signal passes through a bandpass filter (BPF), then
through to a sensitive voltmeter which controls the level of the line displayed on the
screen. The center frequency, f o, of the BPF is continually swept from a low to a high
frequency and the line sweep on the screen is synchronized with the BPF sweep. In
this manner, the spectrum analyzer examines a tiny portion of the total spectrum at any
given time, and thus yields a picture of the total or composite spectrum of the signal you
are examining every time a sweep is performed.
Spectrum Analyzer
DISPLAY
Amplitude
BPF
Amplitude
RBW
Signal In
Frequency
V
fo
Frequency
SYNCHRONIZED
Two more major qualities of the sweep are controllable: the resolution bandwidth
(RBW) and the sweep time. The bandwidth of the BPF within the spectrum analyzer
may be set to a variety of different values. This is referred to as the resolution
bandwidth of the spectrum analyzer, as it dictates the minimum required frequency
separation of two spectral components in order for it to just resolve two those two
components. For argument’s sake, say you set up two different signal generators to
output sine waves with exactly the same peak-to-peak voltage. Assume that one is set
to a frequency of 1.0 kHz and the other is set to 1.3 kHz. The outputs of these two
signal generators are passed through a summing amplifier and then into the spectrum
analyzer. If the resolution bandwidth were set to 300 Hz, you would just be able to
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
resolve two peaks in the display. However, if the frequency of the second signal
generator were reduced to 1.2 kHz, then you would only see one peak on the display—
the spectrum analyzer wouldn’t be able to resolve the two signals into two distinct
peaks.
The sweep time of the HP 3580A may be set by the operator, but newer
spectrum analyzers do not have this adjustment, as the sweep time is automatically set.
As you can well imagine, sweeping a BPF in frequency while keeping its bandwidth
constant is a difficult endeavour. However, the most important aspect is the signal
power (energy) that gets passed by the BPF. If the RBW is set very narrow, then not
much signal energy makes it through the BPF per unit time. Thus the displayed
spectrum may not be a true representation of the actual spectrum if the sweep time is
set too fast. There is, therefore, a tradeoff between the RBW setting and the sweep
time. A narrow RBW is desirable because it reveals the most detail in the spectrum, but
in order to maintain an accurate display, the sweep speed must be reduced to a very
slow value. Thus, in spectrum analysis, we frequently set the RBW only as narrow as is
necessary in order to facilitate a sweep speed that is as fast as possible.
HP 3580A Spectrum Analyzer
hp
FREQUENCY
3580A SPECTRUM ANALYZER
HEWLETT PACKARD
MAN
INTENSITY
STR
CTR
RESOLUTION BANDWIDTH FREQ SPAN/DIV
DISPLAY SMOOTHING
ADAPTIVE SWEEP
OFF
ADJUST
SWEEP TIME/DIV
SWEEP MODE
FOCUS
MANUAL VERNIER
DISPLAY
POWER
AMPLITUDE MODE
AMPLITUDE REF LEVEL
CLEAR WRITE
ON (AC)
OFF
BLANK STORE
ON (BAT)
CHARGE
LIN
INPUT
MAX
INPUT
dBv / LIN
dBm
600 
LINEAR
10 dB
OVERLOAD
CAL
LOG
dB / DIV
STORE
INPUT SENSITIVITY
VERNIER
NORMAL
CAL
UNCAL
1 dB
10 kHz
(REDUCED RESOLUTION)
(CASE GROUND)
The controls on the front panel of the HP 3580A are well laid out and easy to
find.
The sweep controls (highlighted above) govern the frequency sweep
characteristics of the instrument.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The display of the analyzer may be set to start or center modes, as indicated by
the switch with STR and CTR above it. Depending on this switch, the LED display
indicates either the start frequency in Hz, corresponding to the leftmost line on the
display, or the center frequency in Hz, corresponding to the center line on the display.
The adjust knobs (coarse/fine) to the right of the LED display control the start/center
frequency. Not all of the HP 3580As have this LED readout; some have an analog
start/center frequency readout. It doesn’t matter what type you choose, as they both
work equally well.
The SWEEP MODE dial should be set to REP (repetitive). At no point in the labs
will you need to set the mode to anything but repetitive. The remaining three dials,
RESOLUTION BANDWIDTH, FREQ SPAN/DIV, and SWEEP TIME/DIV all work in
conjunction. As was mentioned earlier, selecting a narrow RBW will yield a more
accurate spectrum, but the sweep speed will need to be slowed in order to maintain an
accurate reading. If your selected sweep speed is too fast to maintain an accurate
reading, the ADJUST indicator will light. Adjust the sweep speed to a slower value until
the ADJUST indicator turns off. At that point, the display will be accurate.
The RESOLUTION BANDWIDTH dial has another control, DISPLAY
SMOOTHING built into its knob. This control has three settings, and should be rotated
fully counterclockwise to its minimum position. Display smoothing is also known as the
video bandwidth on modern analyzers, and is, as the name suggests, a control that
adjusts the smoothness of the displayed spectrum. You may think that the display
smoothing should be set to its maximum setting all the time, but like the other frequency
sweep controls, it also is tied into the sweep speed. At its maximum setting, the sweep
speed must be set prohibitively slow to ensure an accurate display.
The amplitude controls are found along the bottom of the instrument. The
analyzer has two vertical display modes: linear and logarithmic. These modes are
POWER AMPLITUDE MODE AMPLITUDE REF LEVEL
INPUT SENSITIVITY
INPUT
selected by the
AMPLITUDE MODE

pushbuttons found
just to the right of
the power switch.
VERNIER
NORMAL
ON (AC)
OFF
ON (BAT)
CHARGE
LIN
MAX
INPUT
dBv / LIN
dBm
600
LINEAR
10 dB
OVERLOAD
CAL
LOG
dB / DIV
CAL
UNCAL
1 dB
10 kHz
(CASE GROUND)
The UNCAL indicator light found to the right of the INPUT SENSITIVITY knob will
light when the CAL adjust knob is not rotated fully clockwise. This means that the
display of the analyzer is uncalibrated, and therefore inaccurate. Always rotate the CAL
knob fully clockwise so that the UNCAL indicator stays off.
Before ever connecting an input signal to the analyzer, always adjust the INPUT
SENSITIVITY control to its least sensitive setting.
This means the fully
counterclockwise position, minus one. The fully counterclockwise position is the CAL
(calibrate) mode. This mode disconnects the front panel inputs from the analyzer, and
internally connects a 10 kHz calibration signal, obviously for calibration purposes. This
mode will be explained in detail later.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Once you have adjusted the INPUT SENSITIVITY control to its least sensitive
setting and connected an input signal, start turning up the sensitivity (clockwise) while
keeping a close watch on the MAX INPUT / OVERLOAD indicator light. The analyzer
contains some very sensitive electronics which can be very easily damaged by large
input signals, and if the MAX INPUT / OVERLOAD indicator lights, the input signals are
too large (and potentially damaging). The INPUT SENSITIVITY control should then be
turned down (counterclockwise) until the overload indicator goes off. Adjusting the
INPUT SENSITIVITY in this manner ensures that the largest components in the
spectrum are as large as possible in the display, without overloading (clipping).
Reading the vertical scale is frequently the source of the greatest confusion
among students. If the LINEAR amplitude mode button is pushed in, the switch marked
dBv/LIN / dBm 600 should be set to the dBv/LIN position. There is a white area
behind the numbers on the INPUT SENSITIVITY knob. There are two sets of numbers,
one in blue, the other black. In the linear mode, the top line of the display corresponds
to an RMS voltage, and this voltage is indicated by the blue number currently
highlighted on the INPUT SENITIVITY knob.
The bottom line of the display
corresponds to 0 V. For example, if the INPUT SENSITIVITY knob has been turned to
its least sensitive scale, the analyzer is in the linear mode, and the AMPLITUDE REF
LEVEL has been set to NORMAL (more on this control below), then 20 is highlighted.
This means that the top line of the display corresponds to 20 V rms. The middle line
would then be 10 Vrms, and the bottom line 0 V. Since there are 10 vertical divisions,
the vertical scale would be 2 Vrms/div.
There are two general logarithmic scales, selectable via the switch marked dBv/LIN /
dBm 600. In the dBv mode, the display is in decibels referenced to one volt rms. The level of
a signal in dBV is given by the following formula:
Signal Level (dBV) = 20 log (Vrms/1 V)
Where Vrms is the rms voltage of the signal. To convert signal levels in dBV to rms volts,
Signal Level (Vrms) = 10(Signal level (dBV)/20)
In the dBm 600 mode, the display is in decibels referenced to a milliwatt for a 600 load.
Note: you will require an external 600 load connected in parallel with the analyzer’s input for
this mode. For this reason the dBm 600 mode is not normally used.
If either logarithmic amplitude mode is selected (10 dB/div or 1 dB/div), then you
refer to the highlighted black number on the INPUT SENSITIVITY knob. For example, if
the INPUT SENSITIVITY knob has been turned to its least sensitive scale, the analyzer
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
is in the 10 dB/div mode (dBv scale), and the AMPLITUDE REF LEVEL has been set to
NORMAL, then +30 is highlighted. This means that the top line of the display
corresponds to +30 dBV; the next line down would be +20 dBV and so on. The bottom
line would correspond to – 70 dBV.
The greatest accuracy in reading the level of a component is achieved when the
component is as large as possible without clipping or running off the top of the display.
When you are examining spectra that have both large and small components, it is
desirable to make the small components as large as possible in order to accurately
measure them, as mentioned above. However, if you were to adjust the INPUT
SENSITIVITY to do so, chances are that you would overload the analyzer. By adjusting
the AMPLITUDE REF LEVEL dial, you can effectively do just that, without the danger of
overloading the analyzer. The AMPLITUDE REF LEVEL dial is connected to the white
area on the INPUT SENSITIVITY knob. Turning the AMPLITUDE REF LEVEL changes
the location of the white area, and thus the scale.
The INTENSITY and FOCUS controls do as you expect. The ADAPTIVE
SWEEP knob should always be set to the OFF position. The three DISPLAY
pushbuttons at the bottom left side of the front panel are quite self-explanatory. When
the STORE button is pushed in, a snapshot of the present display will be stored and
continually redisplayed, even if the input changes or the settings on the analyzer are
changed. If the BLANK STORE button is now pushed in, the stored waveform will not
be displayed; it is, however, still stored. The CLEAR WRITE button acts as a
reset/erase for the display.
The analyzer has a precision frequency reference within it, and this reference is
not accurate/reliable until the analyzer has a chance to warm up. Usually 15 – 30
minutes is sufficient. Once the analyzer is warmed up, you should ALWAYS check its
calibration. This calibration step is necessary to ensure that the analyzer is accurately
measuring both frequency and amplitude.
By selecting CAL on the INPUT SENSITIVITY knob, a 10 kHz internal reference
is internally connected to the analyzer’s input. See the amplitude calibration procedure
for details. Select the RESOLUTION BANDWIDTH to be used and calibrate.
Recalibrate if another resolution bandwidth is selected. You should see a large spike
at 10 kHz, and its amplitude should be such that it just touches the top grid line on the
display.
When you adjust the start/center frequency, the LED readout takes some time to
update, depending on the current sweep time/div setting. The LED is updated only
once per sweep, and trying to set the start/center frequency can be quite frustrating
because of this delay. To adjust the start/center frequency and have the LED readout
update immediately, press and hold the CLEAR WRITE button while you are making the
adjustments.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Amplitude Calibration Procedure
For operation on the 10Hz, 30Hz, 100Hz, or 300Hz resolution bandwidth.
(a) Turn the instrument on and allow 20 minutes for warm up.
(b) Set the 3580A controls as follows:
Display…………………………………………………….Store and Blank Store out
Amplitude Mode…………………………………………………..…Log 10dB/division
Amplitude Ref Level…………………………………………………………….Normal
dBV / Lin – dBm Switch………………………………………….………dBV / Linear
Input Sensitivity……………………………………………………………………...Cal
Vernier………………………………………………………………....Cal ( Fully CW )
Frequency……………………………………………………………….…….…10 kHz
Start CTR…………………………………………………………………centre (CTR)
Bandwidth………………………………....10 Hz – 300 Hz ( resolution to be used )
Display Smoothing…………………………………………………………………..Min
Freq. Span / Div……………………………………see Amplitude Calibration Table
Sweep Time / Div…………………………………..see Amplitude Calibration Table
Sweep Mode………………………………………………………..…repetitive (REP)
(c) Adjust the front panel 10 kHz CAL potentiometer so that the peak of the 10
kHz signal is exactly at the top reference line.
(d) Set the Amplitude Mode to Log 1dB/div. Repeat step (c).
(e) Set the Amplitude Mode to Log 10dB/div. Repeat step (c).
(f) Set the Amplitude Mode to Log 1dB/div. Repeat step (c).
Amplitude Calibration Table
Bandwidth settings
Freq. Span / Div
Sweep Time / Div
10 Hz
-------------20 Hz
-------------0.5 sec
30 Hz
-------------0.1 kHz
-------------0.2 sec
100 Hz
-------------0.5 kHz
-------------0.1 sec
300 Hz
-------------1 kHz
-------------0.02 sec
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Printing the Display
The HP 3580A is an analog spectrum analyzer and cannot directly print to the
printers available in the laboratories. However, you can hook the analyzer up to an
Oscilloscope, and print the spectra from there.
On the back of the analyzer are a number of connectors. The ones marked
RECORDER X-AXIS and Y-AXIS are the ones you will need. These outputs are meant
for printing to an old-fashioned pen plotter.
The oscilloscope should have its two X and Y input channels (channels 1 and 2
respectively) set to dc coupling, and 500mV/div. Position each channel’s ground level
to approximately the middle of the screen. The X-AXIS output on the analyzer goes to
the X channel on the scope, and similarly the Y-AXIS output gets connected to the Y
channel. Once you have made the necessary connections, turn on the X vs. Y display
mode of the oscilloscope.
You should see a dot moving across the Scope screen. Set the Analyzer’s
Sweep Mode knob to MAN for manual. Use the Sweep Mode vernier knob to adjust the
dot on the analyzer’s display to the center vertical graticule. Use the Scope X channel
position knob to move the dot left or right, and use the Scope Y channel position knob to
move it up or down. Your goal is to place the dot on the center vertical graticule of the
scope display to resemble the dot on the analyzer’s display. Once this is done, set the
Sweep Mode knob to SING for single sweep.
Once this has been accomplished, press the Auto-store button (HP Scopes) or
set the display persistence to infinite (some of the other scopes). Press and release the
Display Clear Write button, on the Analyzer, to activate a single display sweep. Once
the spectrum analyzer’s screen has been traced by the scope, press the Scope’s stop
button and print the waveform.
Amplitude Response of Two-Port Networks
There is an output on the back of the spectrum analyzer called the TRACKING
OSC (oscillator) OUT, along with a LEVEL adjust knob. The output is a sine wave with
a variable swept frequency that is synchronized to, or tracks the frequency being
analyzed across the screen at any point in time. This is used to make a measurement of
the frequency response of a two-port network (i.e. a filter, an amplifier, etc.). The output
impedance of the TRACKING OSC OUT is 600  and not the standard 50  found in all
signal generators. For this reason, a buffer amplifier (a voltage follower) should be
employed to isolate the tracking oscillator from the network you are testing to avoid
circuit loading. Connect the TRACKING OSC OUT through a voltage follower to the
input of the spectrum analyzer. The TRACKING OSC LEVEL knob is adjusted for a
reference level of aprox. - 40 dBv on the front display. All measurements are referenced
from this level. Connect the output of the voltage follower to the input of your network.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The output of your network is then connected to the input of the analyzer. In one simple
step, this allows you to measure the amplitude response of the network as a function of
frequency. This is opposed to the long and arduous alternative method whereby you
connect a signal generator to the network and monitor the input and output levels of the
waveforms with an oscilloscope as you select frequencies.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
SR770 FFT Network Analyzer
( Standford Research Systems, 2000 )
A FFT spectrum analyzer takes a time domain input signal, samples it and
digitalizes it ( analog/digital converter ). The digital data samples ( time record ) are
converted to the frequency spectrum using the fast fourier transform. The maximum
frequency span of the SR770 is 0Hz to 100KHz. This FFT processor displays 400
frequency points (bins). It uses a 512 point time record. At full span (0 to 100KHz), the
bins are 250 Hz apart. The bins are at 250Hz, 500Hz and so on. The resolution or
linewidth is 250Hz. At a frequency span of 50KHz the bins are 125Hz apart. The
bandwidth ( frequency span ) is controlled by digitally filtering the data samples. The
digital filter is only capable of base-band measurements ( frequency spans starting at
DC ). Heterodyning allows the span to start at frequencies other than base-band.
Heterodyning multiplies the signal by a sine wave. The frequency span is shifted by the
frequency of the sine wave. This shifts the frequency span so that it starts at DC. This
allows the analyzer to display spans which start at frequencies other than DC. Spectral
components that have a negative magnitude are folded around zero and appear as a
positive magnitude.
The time record, which can be displayed by the measure menu, is not a true
representation of the input signal. It is the input to the FFT processor. The time record
has been digitally filtered and maybe heterodyned before the FFT processor receives it.
Real time bandwidth is the largest frequency span whose time record does not exceed
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
the time it takes the FFT processor to calculate the spectrum. With narrow spans, where
the time record is long then the processing time, the processor would calculate one FFT
per time record and wait till the next time record is completed. The update would be
slow. With overlap processing, data from the previous time record and the current time
record is used to calculate the next FFT. The overlap is a percentage of the time record.
No overlap is 0% and 99.8% reuses 511 out of 512 samples. The SR700 uses the
maximum amount of overlap allowed. This varies with the span. The analyzer uses
overlap processing in the continuous trigger mode only. No overlap is allowed, on spans
of 25KHz and over. The average menu may be used to enter a smaller overlap.
( Standford Research Systems, 2000 )
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
( Standford Reasearch Systems, 2000 )
To reset the analyzer, to the default settings, hold down the < key when the
power is turned on. Continue holding the key down until the power-on tests are
completed. Wait 30 seconds between switching power off and on with any cathode ray
tube. Do not set the brightness higher then necessary.
The Auto Range key is used to set the attenuation on the input signal so that it
does not overload the analyzer input. The Auto Range key toggles the input range
mode between auto and manual. In manual mode, the input range is set in the Input
menu. The auto mode will display the input level indicator, on the display, in inverse
characters.
The frequency span is set in the Frequency menu. Pressing the Start Freq or
Center Freq, before the span is adjusted, locks these frequencies in. The Measure
menu is used to set the type of measurement, display, units and window.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Windowing
The FFT algorithm is based upon the signal repeated throughout time. The time
record, which is formed from the input signal, must be periodic.
( Agilent Technologies, 2000 )
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Energy is smeared throughout the frequency spectrum if the signal is not
periodic. Windowing solves this problem. Windowing functions taper off to zero at the
start and the end.
( Agilent Technologies, 2000 )
The Window submenu is found in the Measure menu. The Uniform window is
basically no windowing. It is used for pulses and transients which are shorter then the
time record. The Flattop window is used for magnitude measurements of continuous
signals. The Hanning window is used for frequency measurements of continuous
signals. The BMH ( Blackman-Harris ) window has the best selectivity because of it’s
narrow mainlobe and a fast roll-off.
Note: A input signal is at 10.1 KHz. The analyzer displays the peak at 10 KHz.
This is because the FFT only results in 400 discrete frequency bins. The signal peak is
always wider than with no windowing. This reduces the selectivity of the spectrum.
Signals that are not at exact bin frequencies will have a reduced amplitude. This is
because window functions attenuate the amplitude between bins.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
The Input menu is used to configurate the input. The Grounding key selects the
shield grounding. In the Float mode, the shields and chassis ground are connected by a
1 meg ohm resister. In the Ground mode, the shields and chassis ground are
connected by a 50 ohm resister. Do not exceed 3V on the shields in the Ground mode.
The impedance between the centre connector and the shield is 1 meg ohm. In general,
use input A and the Ground mode for single ended measurements. When the Input
Source is set to A-B (differential), the Ground mode is set automatically. In A-B
configuration the centre pins of A and B are connected to the circuit under test. The
shields are not connected to the circuit under test and do not carry a signal. They act as
shields.
The Input menu contains the Auto Offset calibration function. The calibration
takes about 10 seconds. The inputs are internally grounded and the DC offsets of the
amplifier are taken into account. The DC frequency bin will be minimized. Turn the Auto
Offset off, when making very narrow span measurements or using the source.
The Input menu also contains the Trigger mode. In the Cont mode the analyzer
takes time records continuously. This is the default mode. The time records are
triggered by the input signal with the Int (internal) mode. With Ext or TTL, the time
record is triggered from the external trigger input on the front panel. Src (source) mode
is used with the sine, two tone, or chirp sources. The source is a built in function
generator. In the Src mode the spectrum is calculated with no overlap and no trigger
circuits. Signals of the Source, that are identical in each time record, will have a stable
phase and appear triggered. The source will have a stable phase if the frequencies are
centered on the bins. The phase of the source will be arbitrary. The SR770’s source
uses the same clock as the input record. A external generator will not be in sync with
the analyzer’s clock and will drift off the bin frequency. The phase of the source will
change with the span, source, or auto offset calibration.
The Scale menu is used to change the x and y parameters of the display.
Activating the Y/Div key will lock this parameter in when the Top Ref or Bottom Ref are
adjusted. Expand X (zoom) allows detail expansion of the spectrum, about the marker
postion, without decreasing the span and thus increasing the acquisition time.
The Average menu selects the number of averages, type of averages, averaging
mode and the amount of overlap. The Average Type function selects RMS, Vector, or
Peak Hold. RMS (power averaging) averages the magnitude of the spectra only but
does not reduce the noise floor. Vector averages the complex spectrum. This will
reduce the noise floor for random signals as they are not phase coherent between time
records. Vector averaging uses a trigger. The input signal must be periodic and in
phase with the trigger. This will add in phase the real and imaginary parts of the signal.
Otherwise, they will cancel randomly. If the signal is not an exact bin frequency, the
signal magnitude will be reduced. The Average Mode key selects Linear or
Exponential averaging. Linear averaging is not continuous. The analyzer will stop
acquisition once the average function is complete. Exponential is continuous (live). A
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
large number of averages, in the exponential mode, will not capture any changes in the
signal.
The SOURCE menu selects the output waveform. The Configure Source
submenu sets the parameters. The 2-Tone waveform is the sum of two pure sine waves
for intermodulation distortion tests.
The Chirp source provides an equal amplitude sine wave at each bin of the
span. The phases of the sine waves are set so that they do not add in phase. This
source is used to measure transfer functions (frequency response). The waveform is
periodic over the time record and does not require windowing. Use the Uniform window
and the Src (source) trigger. Turn the Auto Offset off in the input menu. The source is
digitally synthesized and has an output filter. The ripple of this filter appears at the
output. Source Cal compensates for the output ripple by adjusting the input
calibrations. The signal at the source output is not adjusted. If a device is inserted
between the source and the input, the amplitude frequency response of the device will
be displayed. The Auto Phase key performs the auto phase function. With Src (source)
trigger, the phases of the sine waves of the source are stable but random. A calibrated
source phase curve is required to measure the phase of a device under test. The auto
phase function measure the current phase spectrum of the source and then subtractes
it from the next phase spectrum to remove the phase from the source. With Auto
Phase, the phase spectrum will be 0 degrees across the span. If a device is inserted
between the source and the input, the phase spectrum will be the phase response curve
of the device under test. Auto Phase is turned off whenever the span or source type is
changed.
NOTE: A inherent problem exists when a frequency response is done with a
small linewidth. Errors may occur if the start frequency is not at zero or Center (on the
marker keypad) is used. Detail expansion of the frequency span can be done using
Expand X (zoom) with no errors. Ensure the frequency of interest is at the center of a
bin. It is always best to know the expected output. An analog spectrum analyzer with a
sine source is a more accurate analyzer to use for a frequency response.
Frequency Response Summary
-
Use Chirp source.
Uniform window.
Source Cal.
Trigger Src.
Auto Offset off ( Input menu).
Auto Phase optional.
Start frequency at zero.
Do not use Centre on Marker keypad.
Place Marker on centre frequency and use Expand X.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Printing the Display
Connect a HP Thinkjet Centronics Port Printer to the Print Port on the back of
the analyzer. Enter the System menu on the Menu keypad and then the Print submenu
using the soft keys. Printer Type select HP. Press Print on the System keypad.
Save to 3.5 Disc.
Enter the System menu on the Menu keypad and then the Print submenu using
the soft keys. Printer Type select File. Press Print on the System keypad.
References
Standford Research Systems. (2000). ―SR700 Network Analyzer Operating
Manual and Programming Reference. Revision: 1.4 (10/2000)‖. Sunnyvale CA
U.S.A. :Author.
Agilent Technologies. (2000). ―The Fundamentals of Signal Analysis, Application
Note: 243‖, California, U.S.A. : Author.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Tektronix Curve Tracers
There are two models of Tektronix curve tracers available in 2C80: two Tek 575
Transistor Curve Tracers and one Tek 577 Curve Tracer. These instruments greatly
speed the checking of npn and pnp transistors, as well as diodes.
This document will not supply you with pictures of the front panels of these
instruments, since they are too difficult to reproduce here. Another point to consider is
that these instruments will be used only rarely, so a detailed operating instruction is not
necessary. However, the instructions contained herein will be sufficient for you to set
these instruments up to measure the characteristics of npn and pnp transistors, and
diodes as well.
The curve tracers are really rather simple instruments that are tailored to plot the
IC vs. VCE characteristic of a transistor for different base currents, IB. To do so, circuitry
within the instrument monitors the collector current as the collector-emitter voltage is
increased for a specific value of base current. The I C vs. VCE characteristic is plotted,
then the base current is stepped to the next value and the process is repeated.
Tektronix 575 Transistor Curve Tracer
The 575s are the oldest curve tracers and their controls are just a little easier to
navigate than their newer counterpart, the 577.
At the bottom right corner of the instrument you will find the power switch.
Directly under the display are four knobs that control the focus, intensity, astigmatism
and scale illumination of the display.
To the immediate right of the display is the vertical current or volts/div knob.
Depending upon its position, it can display the base volts or collector current along the
vertical axis. The vertical position control is located underneath this knob.
In the top right corner is the horizontal volts/div knob. Again, as with the vertical
knob, it can display the collector or base volts along the horizontal axis. The horizontal
position control is located underneath this knob.
Under the display are the collector sweep controls. The peak collector voltage
may be set to a 0-20 V range or a 0-200 V range by a knob on the left. Whatever range
is chosen, the collector peak voltage is set by the fine adjust knob beneath the range
knob. To the right of the range knob is a polarity knob where you select either – (pnp)
or + (npn). Under that you will find a knob that selects the dissipation limiting resistor for
the sweep.
To the right of the collector sweep controls are the base step generator controls.
There are four switches/knobs across the top of this area that control the following:
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual




Generator status: repetitive / off / single family
Number of steps/family, adjustable from 4 – 12
Polarity +/Steps/sec: 120/240
Two large knobs are located beneath the four controls mentioned above. The
one on the left selects the series resistor (with the base), while the one on the right
selects the volts or current per step, depending on its setting.
Beneath these two large knobs are a switch and a knob. The switch (on the left)
can defeat the base generator, setting the base either to a zero current (open circuit) or
a zero volts (grounded) configuration. If the switch is left in the middle position, the
base step generator is connected to the base of the transistor under test. This is the
normal configuration.
The knob controls the zero point of the step generator and should be left in the
middle position.
At the bottom of the instrument is the test pod where connections are made to
the transistor or diode under test. Two connection points are available; one on the left,
the other on the right. The toggle switch at the top of the middle of the pod selects
between each connection point. When the switch is in the middle position, each test
point is disconnected from the electronics within the instrument. Beneath the toggle
switch is a knob that grounds either the emitter or the base of the transistor being
tested.
To test a transistor or a diode, turn the instrument on and allow it to warm up for
a couple of minutes if it hasn’t been turned on that day. Make sure that the transistor
select toggle switch on the test pod is in the middle position, as dangerous voltages can
be present at the terminals if they are switched in. Connect your transistor, C to C, B to
B, E to E. For npn transistors, make sure the settings in the table on the next page are
selected. The settings for collector current/div, volts/div and base current/step are only
suggested starting points; you may of course alter them any way you wish.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
npn Transistor:
Vertical
Current/div:
Base Step
Generator:

1 mA/div

Toggle switch to
Repetitive

Steps/Family
set to middle

Polarity: +

Steps/sec: 120
(top position)

Series Resistor:
220

Step Selector:
0.01 mA (10 A) per
step

Step Zero set to
middle

Short/Open
Circuit Toggle Switch
set to middle position
Horiz. Volts/div:
Collector Sweep:
Test Pod:

1 V/div
(collector)

0-20 V Range

Peak Volts set
to middle

Dissipation
Limiting Resistor: 100

Knob set to
Emitter Grounded
Before you flip the toggle switch on the test pod to connect your transistor to the
instrument, you must align the baseline displayed on the screen. The horizontal line
displayed on the screen is the baseline of the plot. Using the horizontal and vertical
position controls, move the baseline so that its start (its leftmost point) is aligned with
the bottom leftmost crosshair on the display. You may now flip the toggle switch on the
pod to switch in your transistor. When you are finished with a transistor, always be sure
to flip the toggle switch to the middle position before you disconnect it from the test pod.
To test a diode, the same settings suggested above may be used, although the
horizontal volts/div may be reduced to 0.2 V/div. The diode is connected to the C and E
terminals of the pod, in the following manner: C
E (C to anode, E to cathode).
The cathode of a diode is identified by a band.
To test a pnp transistor, the same basic settings as for an npn transistor are
suggested, except for the following exceptions:
 Collector sweep polarity: - (pnp)
 Base step polarity:  Baseline must be aligned so that its rightmost point falls under the top
rightmost crosshair on the display.
When a pnp transistor is measured, the IC vs. VCE characteristic will be inverted.
Remember that the origin (IC = 0, VCE = 0 point) is now in the top right hand corner of
the display.
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
Tektronix 577 Curve Tracer
The 577 is the newest curve tracer in our inventory, and it is a little more
intimidating than its older counterparts, the 575s. However, its operation is just as
straightforward as it has the same basic controls as the 575s.
The power switch on this instrument is difficult to spot. It is located to the right of
the bottom corner of the display. The collector controls are found on the left side of the
panel, just underneath the display. To the right of them you will find the base step
controls. Just underneath of these lie the horizontal volts/div knob and the horizontal
and vertical position knobs.
The shelf at the bottom of the machine contains the transistor test pod on the left,
and the vertical current/div knob to the right. Above that is the base termination
selection control.
As with the 575s, the 577 has a toggle switch beneath the transistor test pod
which selects between the left or right connections on the pod. Keep the toggle switch
in the middle position while connecting/disconnecting any transistors/diodes, as
dangerous voltages can appear on those wires while a transistor or diode is being
tested.
To test an npn transistor, start by making sure that only the following buttons on
the front panel are pressed in:
 Step Family: REP
 Step Rate: NORM
 Step/Offset Polarity: NORM
 ZERO (found just to the right of the Step/Offset Polarity button)
 Display: NORM
 Filter: NORM
Make sure the settings below are selected. The settings for collector current/div,
volts/div and base step/offset amplitude are only suggested starting points; you may of
course alter them any way you wish.
Collector Sweep Controls:
 Variable Collector % knob set to ~ 40 – 50%
 Max Peak Volts: 25 V
 Max Peak Power: 0.6 W
 Series Resistor: 500
 Collector Supply Polarity: + (NPN side)
Step Generator Controls:
 Step/Offset Ampl: 10 A
 Number of Steps knob set to middle
 Offset Mult knob fully counterclockwise
Horizontal Controls:
 Horiz Volts/Div: 1 V/div (collector)
Vertical Controls:
University of Saskatchewan
Electrical Engineering Laboratory Equipment Manual
 Vertical Current/Div: 2 mA/div
Termination Knob (on the right side of the shelf):
 Base Term: Step Gen (fully clockwise position)
As with the 575s, before you actually switch in the transistor to the instrument,
you must make sure that the baseline is aligned properly. Using the horizontal and
vertical position controls, align the leftmost point of the baseline so that it is directly
underneath the bottom leftmost crosshair on the display.
To test a diode, the same settings as for an npn transistor are used, except the
horizontal volts/div should be reduced to 0.2 volts/div. Connect the diode to the C and
E terminals of the test pod, just as with the 575s.
To test a pnp transistor, the settings outlined above for an npn transistor are also
used, with the following two exceptions:
 Collector Supply Polarity: - (PNP side)
 Display: NORM pushbutton in out position (invert)
With the display inverted, the baseline is aligned to the bottom left side of the screen, as
with npn transistors. However, now the vertical axis is –IC, and the horizontal axis is –VCE. The
origin is still located at the bottom left corner of the display.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
