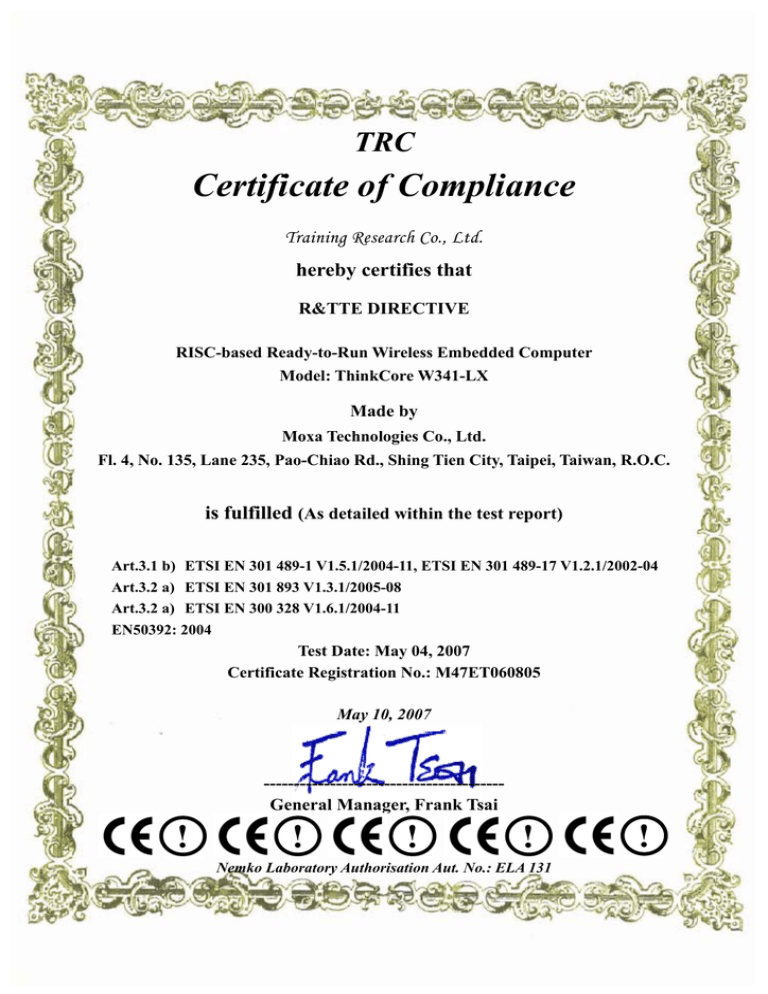

TRC
Certificate of Compliance
Training Research Co., Ltd.
hereby certifies that
R&TTE DIRECTIVE
RISC-based Ready-to-Run Wireless Embedded Computer
Model: ThinkCore W341-LX
Made by
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C.
is fulfilled (As detailed within the test report)
Art.3.1 b) ETSI EN 301 489-1 V1.5.1/2004-11, ETSI EN 301 489-17 V1.2.1/2002-04
Art.3.2 a) ETSI EN 301 893 V1.3.1/2005-08
Art.3.2 a) ETSI EN 300 328 V1.6.1/2004-11
EN50392: 2004
Test Date: May 04, 2007
Certificate Registration No.: M47ET060805
May 10, 2007
---------------------------------------General Manager, Frank Tsai
!
!
!
!
Nemko Laboratory Authorisation Aut. No.: ELA 131
!
R&TTE
Technical Construction File
Product description:
RISC-based Ready-to-Run Wireless Embedded Computer
Applicant:
Moxa Technologies Co., Ltd.
Manufacture:
Moxa Technologies Co., Ltd.
Brand:
Moxa
Type/model number:
ThinkCore W341-LX
Technical Construction file in accordance with R&TTE AnnexIII
Under the provisions if Annex III point 2 of the R&TTE directive 1999/5/EC of the European Parliament
and of the council of 9 March on Radio equipment and Telecommunications Terminal Equipment
(R&TTE directive) and the mutual recognition of their conformity,
We, the undersigned,
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
886-2-8919-1230
886-2-8919-1231
[email protected]
Company
Address, City
Country
Phone number
Fax number
E-mail
Have established a Technical Construction File as specified below to be inspected to any Member
States and to be kept available to the relevant national authorities of any Member State for inspection
purpose:
Item number
01
02
Technical Document description
Technical File in accordance with R&TTE directive Annex II point 4
Declaration of conformity to specific test suites described in R&TTE directive
Annex III
For the following product:
Product Description /
Supplementary Info
Manufacturer
Brand
Type
RISC-based Ready-to-Run Wireless Embedded Computer
Moxa Technologies Co., Ltd.
Moxa
ThinkCore W341-LX
The Technical Construction File as specified above will be kept for a period ending at least 10 years
after the last product has been manufactured at the disposal of the relevant national authorities of any
Member State for inspection purpose,
!
Draw up in
Date
Taiwan
2007/05/24
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd.,
Shing Tien City, Taipei, Taiwan, R.O.C.
Signature & company stamp Jackie Shi / Manager
Technical Construction file in accordance with R&TTE Annex II Point 4
Under the provisions if Annex II point 4 of the R&TTE directive 1999/5/EC of the European Parliament
and of the council of 9 March on Radio equipment and Telecommunications Terminal Equipment
(R&TTE directive) and the mutual recognition of their conformity,
We, the undersigned,
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
886-2-8919-1230
886-2-8919-1231
[email protected]
Company
Address, City
Country
Phone number
Fax number
E-mail
Have established a Technical Construction File as specified below to enable assessment of the product
conformity with the essential requirements of the R&TTE directive:
Item number
01
02a
02b
02c
02d
02e
02f
03a
03b
04
05
06
07
Technical Document description
Block diagram
Circuit diagram
PCB layout
Part list
Exterior photographs
Interior photographs
Label information
Technical description
User manual
R&TTE standard list
RF-EMC-LVD-MPE test report and corresponding annexes
Copy of the R&TTE Declaration of Conformity (DOC)
Product Quality Assurance documents
For the following product:
Product Description /
Supplementary Info
Manufacturer
Brand
Type
RISC-based Ready-to-Run Wireless Embedded Computer
Moxa Technologies Co., Ltd.
Moxa
ThinkCore W341-LX
The Technical File as specified above will be kept for a period ending at least 10 years after the last
product has been manufactured at the disposal of the relevant national authorities of any Member State
for inspection purpose,
!
Draw up in
Date
Taiwan
2007/05/24
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd.,
Shing Tien City, Taipei, Taiwan, R.O.C.
Signature & company stamp Jackie Shi / Manager
External Photos of EUT ----------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
1/16
External Photos of EUT ----------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
2/16
External Photos of EUT ----------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
3/16
External Photos of EUT ----------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
4/16
External Photos of EUT ----------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
5/16
Power Adapter of EUT ----------------------------------------------------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
6/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
7/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
8/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
9/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
10/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
11/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
12/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
13/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
14/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
15/16
Internal Photos of EUT ---------------------
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
16/16
Label Information
LABEL Sample and Location information -------------------------------------------------
LABEL Format:
Trade Name
Model Number
The device complies with
Part 15 of the FCC Rules.
See instruction manual.
LABEL Size: 70 x 50 mm
LABEL Position:
Applicant: Moxa Technologies Co., Ltd.
Model: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
1/1
Technical Description
Operation Principles:
AL7230:
AL7230 is a highly integrated RF transceiver IC for 2.4 GHz and 5 GHz dual-band 802.11a/b/g applications,
and combines all functions of the transceiver in a single chip. AL7230 also integrates on-chip PA and PLL
with embedded loop filter to help you to minimize the use of external components to design an RF
subsystem .The receive path includes two single-ended input Low Noise Amplifiers (LNA) and
down-conversion mixers with DC-offset cancellation for both 2.4GHz and 5GHz band, and a variable gain
amplifier with a baseband low-pass filter without the need of external SAW filters .The transmitter
consists of a up-conversion quadrate modulator with a baseband low pass filter, a variable gain amplifier,
and two power amplifiers with power detector and temperature sensor to complete the whole transmit
path function for both 2.4GHz and 5GHz band. A power-on calibration procedure is established to correct
the TX DC offset, filters mismatch and phase imbalance. These functions are housed in a 56-pin QFPN
package.
ZD1211B:
ZD1211 is a compact, low power, high security and high performance solution for versatile WLAN
applications.ZD1211 integrates WLAN MAC controller, base-band processor and USB 2.0 interface in
single chip. The integrated USB 2.0 controller reduces the cost and design complexity. No extra memory
device is needed. It can fit into small PCB form factor. There is Micro-Controller inside the chip. This
allows the flexibility to software change the operation scenario to adapt in USB or WLAN compatibility
issues. Integrated standard compliant hardware security engine to improve the performance in security
mode. The hardware engine includes the WEP64, WEP128, WEP256, AES-CCM, TKIP that comply Wi-Fi
and IEEE 802.11 defined standards. ZD1211 considers the power management issues in WLAN
applications and USB certification. It provides the lower power consumption for WLAN in power saving
mode and USB suspend mode. ZD1211 can operate in the mode of station and access point. It can fit to
feature demand in different WLAN applications. Optional 16 bit host interface is provided. This interface
can connect to the memory bus of host processor . It will be useful in embedded application.
1. 802.11 supported speed and modulation
2. Clock system
That oscillator is support 40MHz clock to RF/PLL, Analog, and Digital circuit. Among DC
noise must be isolated by LC circuit.
3. Baseband Chipset
ZD1211 integrates WLAN MAC controller, base-band processor and USB 2.0 interface in
single chip. ZD1211 needs a 32K bit or 64K bit serial EEPROM to provide the card identification
on booting stage and RF information on operation. The interface also provides software interface
to read and write EEPROM. USB 2.0 interface is fully compatible to 480M USB high speed
mode and 12M full speed mode. It integrates USB 2.0 physical layer transceiver and
controller in chip. The embedded microcontroller and serial EEPROM provide flexibility
for customization of card identification in USB enumeration. The behavior of LED may be
programmable by software on host system.
4. Transceiver and Front-end
The AL7230 is a 2.4/5GHz dual-band transceiver for 802.11a/b/g applications. There are
five main blocks – power amplifier, transmitter, receiver, synthesizer and three-wire
interface. And external two baluns transfer 2.4/5GHz power to antenna. The receiver
path includes two single-ended input Low Noise Amplifiers, down-conversion mixers
with DC-offset cancellation for both 2.4GHz and 5GHz band, and a variable gain
amplifier with a baseband low-pass filter without the external SAW filter.
User Manual
ThinkCore W311/321/341
Hardware User’s Manual
First Edition, December 2006
www.moxa.com/product
Moxa Systems Co., Ltd.
Tel:
+886-2-8919-1711
Fax: +886-2-8919-1722
Web: www.moxa.com
MOXA Technical Support
[email protected]
Worldwide:
[email protected]
The Americas
ThinkCore W311/321/341
Hardware User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in
accordance with the terms of that agreement.
Copyright Notice
Copyright © 2006 Moxa Systems Co., Ltd.
All rights reserved.
Reproduction without permission is prohibited.
Trademarks
MOXA is a registered trademark of The MOXA Group.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the
part of MOXA.
MOXA provides this document “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, its particular purpose. MOXA reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, MOXA assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the
publication.
Table of Contents
Chapter 1
Introduction ..................................................................................................1-1
Overview.................................................................................................................................. 1-2
Package Checklist .................................................................................................................... 1-2
Product Features ...................................................................................................................... 1-3
Product Hardware Specifications............................................................................................. 1-3
Hardware Block Diagram ........................................................................................................ 1-6
ThinkCore W311 .......................................................................................................... 1-6
ThinkCore W321 .......................................................................................................... 1-6
ThinkCore W341 .......................................................................................................... 1-7
Chapter 2
Hardware Introduction.................................................................................2-1
Appearance .............................................................................................................................. 2-2
ThinkCore W311 .......................................................................................................... 2-2
ThinkCore W321 .......................................................................................................... 2-2
ThinkCore W341 .......................................................................................................... 2-3
Dimensions .............................................................................................................................. 2-4
ThinkCore W311 .......................................................................................................... 2-4
ThinkCore W321 .......................................................................................................... 2-5
ThinkCore W341 .......................................................................................................... 2-6
LED Indicators......................................................................................................................... 2-7
Reset Button............................................................................................................................. 2-7
Real Time Clock ...................................................................................................................... 2-8
Chapter 3
Hardware Connection Description .............................................................3-1
Wiring Requirements ............................................................................................................... 3-2
Connecting the Power................................................................................................... 3-2
Grounding the Unit....................................................................................................... 3-2
Connecting Data Transmission Cables .................................................................................... 3-3
Connecting to the Network........................................................................................... 3-3
Connecting to the WLAN............................................................................................. 3-3
Connecting to a Serial Device ...................................................................................... 3-4
Serial Console Port ....................................................................................................... 3-4
SD Slot (W321 and W341 only) .............................................................................................. 3-4
USB (W341 only) .................................................................................................................... 3-5
Relay Output (W341 only)....................................................................................................... 3-5
Appendix A FCC Warning Statement ............................................................................. A-1
Appendix B Service Information..................................................................................... B-1
MOXA Internet Services..........................................................................................................B-2
Problem Report Form ..............................................................................................................B-3
Product Return Procedure ........................................................................................................B-4
1
Chapter 1
Introduction
The ThinkCore W300 Series is a line of wireless RISC-based embedded computers that feature
802.11a/b/g WLAN, RS-232/422/485 serial ports, and an Ethernet port in a small, rugged chassis.
In addition, the W321 and W341 models feature an SD slot, and the W341 features two USB 2.0
hosts and one relay output channel.
As part of the W300 Series, your embedded computer is ideal for diverse, machine-to-machine
embedded applications. It enables wireless operation of traditionally wired network and serial
devices and not only provides transparent data transfer, but also numeric computing, protocol
conversion, data processing and even data encryption. You will find it easier to build embedded
systems for distributed peer-to-peer communication, turn wired devices into wireless devices, and
introduce higher mobility and more intelligence to your system. In this chapter, learn about the
capabilities of the embedded computer.
This chapter covers the following topics:
‰
‰
‰
‰
‰
Overview
Package Checklist
Product Features
Product Hardware Specifications
Hardware Block Diagram
¾ ThinkCore W311
¾ ThinkCore W321
¾ ThinkCore W341
ThinkCore W311/321/341 Hardware User’s Manual
Introduction
Overview
The ThinkCore W300 Series wireless embedded computer is designed around the MOXA ART
ARM9 32-bit RISC processor. Unlike the X86 CPU, which uses a CISC design, the MOXA ART
ARM9 uses RISC architecture and modern semiconductor technology to provide a powerful
computing engine without generating significant heat. The processor also integrates UART and
LAN functions to provide exceptional communication performance, but without the bus bandwidth
limitations associated with general ARM-based communication products.
On-board NOR Flash ROM and SDRAM provides ample storage capacity, and for select models,
the SD slot gives applications extra room to expand. The built-in WLAN function supports the
802.11a/b/g standard, providing transmission security with WEP, WPA and WPA2. The backup
LAN port not only provides an alternative solution for networking but also supports Ethernet
clients, allowing any network device to plug in and connect to the WLAN. The built-in
RS-232/422/485 serial ports support a wide range of serial devices, making this platform suitable
for data acquisition and protocol conversion applications.
The Linux-based operating system comes pre-installed and ready to run, providing an open
platform for software development. Software written for desktop PCs can easily be ported to
W300 Series embedded computers by using a common complier, so little time is spent modifying
existing software code. In addition, the operating system, device drivers, and user-developed
software can all be stored in the built-in flash memory.
Package Checklist
The ThinkCore W300 Series includes the following models:
ThinkCore W311-LX
A small, RISC-based, ready-to-run, wireless embedded computer with WLAN, one serial ports,
Ethernet, and μClinux OS
ThinkCore W321-LX
A small, RISC-based, ready-to-run, wireless embedded computer with WLAN, two serial ports,
Ethernet, SD slot, and μClinux OS
ThinkCore W341-LX
A RISC-based, ready-to-run, wireless embedded computer with WLAN, four serial ports, Ethernet,
SD slot, USB port, relay output, and Linux OS
Each model is shipped with the following items:
y
y
y
y
y
y
y
ThinkCore W300 Series wireless embedded computer
Quick Installation Guide
Documentation & Software CD
100 cm RJ45-to-RJ45 Ethernet cross-over cable
100 cm console port cable (CBL-4PINDB9F-100)
Universal Power Adaptor
Product Warranty Statement
Optional Accessories
y 35 mm DIN-rail mounting kit (DK-35A)
NOTE: Notify your sales representative if any of the above items are missing or damaged.
1-2
ThinkCore W311/321/341 Hardware User’s Manual
Introduction
Product Features
ThinkCore W300 Series computers have the following features:
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
MOXAART 32-bit ARM9 industrial communication processor
16 MB on-board RAM (64 MB for W341)
8 MB built-in flash memory (16 MB for W341)
802.11a/b/g Wireless LAN
WEP, WPA and WPA2 encryption
Infrastructure mode and Ad-Hoc mode
RS-232/422/485 serial ports with software selectable interface
Baudrates between 50 and 921.6 Kbps, including all nonstandard baudrates
10/100M Ethernet for backup networking
SD card slot for storage expansion (W321 and W341 only)
Withstands 5G continuous vibration and 50G shock
LED indicators for status, serial transmission, and wireless signal strength
Ready-to-run Linux platform
Installation on DIN-rail or wall
Fanless design for increased ruggedness
Product Hardware Specifications
System
CPU
DRAM
Flash
Storage Expansion
USB
Relay Output
Console port
Button
Others
OS
MOXA ART ARM9 32-bit RISC CPU, 192 MHz
W311: 16 MB
W321: 16 MB
W341: 64 MB
W311: 8 MB
W321: 16 MB
W341: 64 MB
W311: None
W321: SD slot ¯ 1
W341: SD slot ¯ 1
W341: USB 2.0 host ¯ 2
Form C, SPDT ¯ 1
Normal switching
2 A @30 VDC
capacity:
60 W max.
Switching power:
220 VDC max.
Switching voltage:
2 A max.
Switch current:
4 ms @20°C
Operation time:
100 Mohm max.
Initial contact resistance:
RS-232 ¯ 1 (TxD, RxD, GND), 4-pin header output, “115200, n, 8, 1”
Reset button ¯ 1, supports “Reset to Factory Default”
RTC, buzzer, Watchdog Timer
W311: μClinux, based on Linux Kernel 2.6
W321: μClinux, based on Linux Kernel 2.6
W341: Built-in Embedded Linux with MMU support
1-3
ThinkCore W311/321/341 Hardware User’s Manual
Introduction
WLAN Communication
Standard Compliance
802.11a/b/g
Radio Frequency Type DSSS, CCK, OFDM
Radio Frequency Band 802.11a: 5.15 to 5.25 GHz (Indoor used only)
802.11b/g: U.S., Europe and Japan product covering 2.4 to 2.484 GHz
Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)
Modulation
802.11a/g: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b: DSSS (DBPSK, DQPSK, CCK)
Transmission Power
5.15 to 5.25 GHz: 15 dBm @6 Mbps; 12 dBm @54 Mbps
(Typical)
2.412 to 2.462 GHz (IEEE802.11g): 17 dBm @6 Mbps; 15 dBm @54Mbps
2.412 to 2.462 GHz (IEEE802.11b): 18 [email protected] 1 to 11 Mbps
Receiver Sensitivity
(Typical)
Transmission Rate
Transmission distance
Security
Antenna Connector
Antenna
WLAN Mode
5.15 to 5.25 GHz: 6 Mbps @ -90 dBm; 54 Mbps @ -72 dBm
2.412 to 2.462 G (IEEE802.11g): 6 Mbps @ -90 dBm;
54 Mbps @ -73 dBm
2.412 to 2.462 G (IEEE802.11b): 11 Mbps @ -87 dBm;
1 Mbps @ -94 dBm
54 Mbps with auto fallback (54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1
Mbps)
802.11b supported rates: 1, 2, 5.5, 11 Mbps
802.11a/g supported rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
100 meters at 11 Mbps (with no obstructions)
WEP 64-bit/128-bit, WPA, WPA2 data encryption
Reverse SMA
External 2 dBi dipole antenna
Infrastructure, Ad-Hoc
Network Communication
LAN
10/100 Mbps RJ45 ¯ 1, auto-sensing
Protection
1.5 KV built-in magnetic isolation protection
Serial Communication
Serial Port
W311: RS-232/422/485 DB9 male ¯ 1
W321: RS-232/422/485 DB9 male ¯ 2
W341: RS-232/422/485 DB9 male ¯ 4
Protection
15 KV built-in ESD protection for all signals
Data bits
5, 6, 7, 8
Stop bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, XON/XOFF, RS-485 ADDC™
Speed
50 bps to 921.6 Kbps, including all nonstandard baudrates
1-4
ThinkCore W311/321/341 Hardware User’s Manual
LEDs
System
WLAN
LAN
Serial
Power Requirements
Power Input
Power Consumption
Mechanical
Dimension
(W ¯ D ¯ H)
Antenna
Construction Material
Mounting
Ready, SD activity (for W321 and W341 only)
Enable, signal strength
10 M/Link, 100 M/Link
TxD, RxD
12 to 48 V
W311: 250 mA @12 VDC, 3 W
W321: 300 mA @12 VDC, 3.6 W
W341: 540 mA @12 VDC, 6.5 W
(without wall mount ear or antenna)
W311: 67 ¯ 100.4 ¯ 22 mm
W321: 77 ¯ 111 ¯ 26 mm
W341: 150 ¯ 100 ¯ 38 mm
110 mm
W311: aluminum, 1 mm
W321: aluminum, 1 mm
W341: aluminum, 1 mm / SECC, 1 mm for rear panel
DIN-rail, wall
Environmental
Operating Temperature -10 to 60°C (14 to 140°F), 5 to 95% RH
Storage Temperature
-20 to 80°C (-4 to 176°F), 5 to 95% RH
Regulatory Approvals
EMC
Safety
Others
Warranty
FCC, CE
TÜV, UL, cUL
RoHS, CRoHS, WEEE
5 years
1-5
Introduction
ThinkCore W311/321/341 Hardware User’s Manual
Introduction
Hardware Block Diagram
ThinkCore W311
Ethernet
LAN
802.11a/b/g
WLAN
PHY
Power
Circuit
RTC
Watchdog
MAC
64MB
RAM
MOXA ART CPU
32-bit ARM9
192 MHz
UART
UART
Serial
Port
Console
Port
RS-232/422/485
RS-232
16MB
Flash
ThinkCore W321
Ethernet
LAN
802.11a/b/g
WLAN
PHY
Power
Circuit
MAC
16MB
RAM
MOXA ART CPU
32-bit ARM9
192 MHz
8MB
Flash
RTC
Watchdog
UART
UART
UART
Serial
Port 1
Serial
Port 2
Console
Port
RS-232/422/485
RS-232
1-6
SD
Function
ThinkCore W311/321/341 Hardware User’s Manual
Introduction
ThinkCore W341
802.11a/b/g Ethernet
USB 2.0
Host x 2
Relay
Output
LAN
WLAN
PHY
MAC
Power
Circuit
16MB
RAM
MOXA ART CPU
32-bit ARM9
192 MHz
RTC
8MB
Flash
SD
Function
Watchdog
UART
UART
UART
UART
UART
Serial
Port 1
Serial
Port 2
Serial
Port 3
Serial Console
Port 4 Port
RS-232/422/485
RS-232
1-7
2
Chapter 2
Hardware Introduction
ThinkCore W300 Series hardware is compact, well-designed, and built rugged for industrial
applications. LED indicators help you monitor the performance and identify trouble spots.
Multiple ports allow the connection of different devices for wireless operation. With the reliable
and stable hardware platform that is provided, you may devote your attention to the development
of your application. In this chapter, learn the basics about the embedded computer hardware and
its different parts.
This chapter covers the following topics:
‰ Appearance
¾ ThinkCore W311
¾ ThinkCore W321
¾ ThinkCore W341
‰ Dimensions
¾ ThinkCore W311
¾ ThinkCore W321
¾ ThinkCore W341
‰ LED Indicators
‰ Reset Button
‰ Real Time Clock
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
Appearance
ThinkCore W311
Wireless LAN
antenna
Ethernet
(10/100BaseTx)
12 to 48 VDC
Serial
console port
Serial Port
(RS-232/422/485)
ThinkCore W321
Wireless LAN
antenna
Ethernet
(10/100BaseTx)
12 to 48 VDC
Serial
console port
Internal SD Slot for
Storage Expansion
(remove cover to access)
Serial Port 1
(RS-232/422/485)
Serial Port 2
(RS-232/422/485)
2-2
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
ThinkCore W341
Top View
USB 2.0 Host
Relay Output
Internal SD Slot for
Storage Expansion
(remove cover to access)
USB
LAN
Reset Button
RELAY
Reset
NO
COM
NC
12-48V
12 to 48 VDC
Ethernet
10/100BaseTX
Wireless LAN
antenna
Front View
Wireless LAN
antenna
Bottom View
Serial Port x 4
(RS-232/422/485)
2-3
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
Dimensions
22 mm
(0.87 in)
67 mm (2.64 in)
78 mm (3.07 in)
90 mm (3.54 in)
2-4
137.5 mm (5.41 in)
43 mm (1.69 in)
25 mm
(0.98 in)
100.4 mm (3.95 in)
ThinkCore W311
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
26 mm
(1.02 in)
77 mm (3.03 in)
88 mm (3.46 in)
100 mm (3.94 in)
2-5
148.1 mm (5.83 in)
43 mm (1.69 in)
25 mm
(0.98 in)
111 mm (4.37 in)
ThinkCore W321
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
ThinkCore W341
USB
LAN
RELAY
Reset
NO
COM
NC
40.5 mm (1.59 in)
150 mm (5.91 in)
161 mm (6.34 in)
173 mm (6.81 in)
2-6
137.1 mm (5.40 in)
35 mm (1.38 in)
25 mm
(0.98 in)
100 mm (3.93 in)
12-48V
38 mm
(1.50 in)
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
LED Indicators
Please note that the W311 does not include an SD slot, so it will not have an SD LED.
LED Name
Ready
SD
WLAN
LED Color
Green
Off
Green
Off
Green
Off
Signal Strength
LAN
TxD
P1-P4
RxD
P1-P4
Green
Off
Orange
Green
Off
Green
Off
Yellow
Off
LED Function
Power is on and functioning normally
Power is off or there is another power error
SD card is detected
No SD card is detected
ON:
WLAN is ready
Blinking: Conflict with WLAN IP or no response from
DHCP server
WLAN is not ready or function error
Number of glowing LEDs indicates signal strength
5: Excellent
4: Very good
3: Good
2: Fair
1: Bad
No signal or WLAN connection failed
10 Mbps Ethernet link
100 Mbps Ethernet link
Disconnected or short circuit
Serial ports P1-P4 transmitting data
Serial ports P1-P4 not transmitting data
Serial ports P1-P4 receiving data
Serial ports P1-P4 not receiving data
Reset Button
Hold the reset button down for 5 seconds to load the factory default configuration. After loading
the factory defaults, the system will reboot automatically. We recommend that you use this
function only if the software is not working properly. To reset the Linux system software, always
use the software reboot command (“reboot”) to protect the integrity of data.
The reset button is NOT designed as a hard reboot for the embedded computer.
ATTENTION
Restoring default settings preserves your data
Resetting the embedded computer to factory defaults will NOT format the user directory and will
NOT erase the user’s data. The reset button only loads a configuration file. All files in the /etc
directory will revert to their factory defaults, but all other user data will remain intact in the Flash
ROM.
Please note that if there is a problem with the /etc directory, the embedded computer may be
unable to restore the factory default settings.
2-7
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Introduction
Real Time Clock
The embedded computer’s real-time clock is powered by a lithium battery. We strongly
recommend that you NOT replace the lithium battery on your own. If the battery needs to be
changed, please contact the MOXA RMA service team.
ATTENTION
There is a risk of explosion if the wrong type of battery is used. To avoid this potential danger,
always be sure to use the correct type of battery. Contact the MOXA RMA service team for battery
replacement.
2-8
3
Chapter 3
Hardware Connection Description
ThinkCore W300 Series wireless embedded computers are equipped for multiple types of
connections. WLAN, Ethernet, and multiple serial interfaces are built into every model, including
a serial console port for monitoring of bootup messages. Select models also include an SD slot for
storage expansion, USB ports for additional device and storage options, and relay output
connections. With the open-source Linux kernel, you are free to develop custom applications for
remote, wireless operation of your device. In this chapter, learn how to connect the embedded
computer to the network and to various devices.
This chapter covers the following topics:
‰ Wiring Requirements
¾ Connecting the Power
¾ Grounding the Unit
‰ Connecting Data Transmission Cables
¾ Connecting to the Network
¾ Connecting to the WLAN
¾ Connecting to a Serial Device
¾ Serial Console Port
‰ SD Slot (W321 and W341 only)
‰ USB (W341 only)
‰ Relay Output (W341 only)
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Connection Description
Wiring Requirements
This section describes how to connect serial devices to the embedded computer.
You should heed the following common safety precautions before proceeding with the installation
of any electronic device:
y
Use separate paths to route wiring for power and devices. If power wiring and device wiring
paths must cross, make sure the wires are perpendicular at the intersection point.
NOTE: Do not run signal or communication wiring and power wiring in the same wire
conduit. To avoid interference, wires with different signal characteristics should be routed
separately.
y
y
y
Use the type of signal transmitted through a wire to determine which wires should be kept
separate. The rule of thumb is that wiring that shares similar electrical characteristics can be
bundled together.
Keep input wiring and output wiring separate.
It is advisable to label the wiring to all devices in the system.
ATTENTION
Safety First!
Be sure to disconnect the power cord before installation and/or wiring.
Watch Electrical Current!
Calculate the maximum possible current in each power wire and common wire. Observe all
electrical codes dictating the maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could overheat, causing serious
damage to your equipment.
Watch Temperature!
Be careful when handling the unit. When the unit is plugged in, the internal components generate
heat, and consequently the outer casing may feel hot to the touch.
Connecting the Power
Connect the “live-wire” end of the 12-48 VDC power adapter to the embedded computer’s
terminal block. When power is properly supplied, the “Ready” LED will glow a solid green after a
25 to 30 second delay.
Grounding the Unit
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Before connecting any devices, run a ground wire from the ground screw to the grounding
surface.
3-2
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Connection Description
ATTENTION
This product should be mounted to a well-grounded mounting surface such as a metal panel.
SG
SG: The Shielded Ground (sometimes called
Protected Ground) contact is the left most contact
of the 3-pin power terminal block connector, as
viewed from the angle shown here. Connect the
SG wire to an appropriate grounded metal surface.
V-
V+
12-48V
Connecting Data Transmission Cables
This section describes how to connect cables for the network, serial devices, and serial COM
terminal.
Connecting to the Network
Plug your network cable into the embedded computer’s Ethernet port. The other end of the cable
should be plugged into your Ethernet network. When the cable is properly connected, the LEDs on
the embedded computer’s Ethernet port will glow to indicate a valid connection.
The 10/100 Mbps Ethernet LAN port uses 8-pin RJ45 connectors. The following diagram shows
the pinouts for these ports.
8
8
1
1
The LED indicator in the lower right corner glows
a solid green color when the cable is properly
connected to a 100 Mbps Ethernet network. The
LED will flash on and off when Ethernet packets
are being transmitted or received.
The LED indicator in the lower left corner glows a
solid orange color when the cable is properly
connected to a 10 Mbps Ethernet network. The
LED will flash on and off when Ethernet packets
are being transmitted or received.
Pin
1
2
3
4
5
6
7
8
Signal
ETx+
ETxERx+
----ERx-----
Connecting to the WLAN
The wireless embedded computer is WLAN ready and includes an 802.11 a/b/g WLAN module. It
supports WEP, WPA and WPA2 data encryption. To verify WLAN operation, first configure your
WLAN settings on the embedded computer using the serial console or a wired network connection.
Please refer to the operating system user’s manual for further detail.
3-3
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Connection Description
Connecting to a Serial Device
Your serial device can plug into the embedded computer’s serial port using a serial cable. Serial
ports P1 to P4 have male DB9 connectors and can be configured for RS-232, RS-422, or RS-485
communication through software. The pin assignments are shown in the following table:
DB9 Male Port
RS-232/422/485 Pinouts
1 2 3 4 5
6 7 8 9
Pin
RS-232
RS-422
1
2
3
4
5
6
7
8
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
TxDA(-)
TxDB(+)
RxDB(+)
RxDA(-)
GND
-------
RS-485
(4-wire)
TxDA(-)
TxDB(+)
RxDB(+)
RxDA(-)
GND
-------
RS-485
(2-wire)
----DataB(+)
DataA(-)
GND
-------
Serial Console Port
The serial console port is a 4-pin pin-header RS-232 port. It is designed for serial console
terminals, which are useful for viewing boot-up messages.
Serial Console Port & Pinouts
4
3
2
1
Pin
1
2
3
4
Serial Console Cable
Signal
TxD
RxD
NC
GND
SD Slot (W321 and W341 only)
Both the ThinkCore W321 and W341 include an SD slot for storage expansion. The SD slot allows
users to add up to 1 GB of additional memory by inserting a Secure Digital (SD) memory card
compliant with the SD 1.0 standard.
To install an SD card, remove the cover in order to access the slot. Insert the SD card into the slot
and push it in until it clicks. To remove the card, push the card in until it clicks to release, then pull
the card out.
3-4
ThinkCore W311/321/341 Hardware User’s Manual
Hardware Connection Description
SD Slot
SD Slot
USB (W341 only)
The ThinkCore W341 includes two USB 2.0 hosts. These hosts can be used for an external flash
disk or hard drive in order to store large amounts of data.
NC
COM
The ThinkCore W341 includes a relay output channel. There is a 3-pin
terminal block for the relay output connection, with pinouts as shown in the
figure.
NO
Relay Output (W341 only)
RELAY
3-5
A
Appendix A
FCC Warning Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1.
2.
this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
y Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Prohibition of co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
Safety Information
To maintain compliance with FCC’s RF exposure guidelines, when installing and/or operating this
equipment, you should maintain a minimum distance of 20 cm between the transmitter and your
body. Use only the supplied antenna. Unauthorized antennae, modifications, or attachments could
damage the transmitter and may violate FCC regulations.
B
Appendix B
Service Information
This appendix shows you how to contact MOXA for information about this and other products,
and how to report problems.
The following topics are covered in this appendix:
‰ MOXA Internet Services
‰ Problem Report Form
‰ Product Return Procedure
ThinkCore W311/321/341 Hardware User’s Manual
Service Information
MOXA Internet Services
Customer satisfaction is our number one concern, and to ensure that customers receive the full
benefit of our products, MOXA Internet Services has been set up to provide technical support,
driver updates, product information, and user’s manual updates.
The following services are provided
E-mail for technical [email protected]
World Wide Web (WWW) Site for product information:
.............................http://www.moxa.com
B-2
ThinkCore W311/321/341 Hardware User’s Manual
Service Information
Problem Report Form
MOXA ThinkCore W311/321/341 Series
Customer name:
Company:
Tel:
Fax:
Email:
Date:
1.
MOXA Product: † ThinkCore W311
2.
Serial Number:
† ThinkCore W321
† ThinkCore W341
_________________
Problem Description: Please describe the problem clearly. Include as many details as you can. This will help us
reproduce the problem, and expedite the repair of your product.
B-3
ThinkCore W311/321/341 Hardware User’s Manual
Service Information
Product Return Procedure
For product repair, exchange, or refund, the customer must:

Provide evidence of original purchase.

Obtain a Product Return Agreement (PRA) from the sales representative or dealer.

Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter
product repair time.

Carefully pack the product in an anti-static package, and send it, pre-paid, to the dealer. The
PRA should be visible on the outside of the package, and include a description of the problem,
along with the return address and telephone number of a technical contact.
B-4
R&TTE Standards List
R&TTE List of Standard
1/2
With referring to the article of the directive of R&TTE 1999/5/EC, the following equipment:
Product Description /
Supplementary Info
Manufacturer
Brand
Type
RISC-based Ready-to-Run Wireless Embedded Computer
Moxa Technologies Co., Ltd.
Moxa
ThinkCore W341-LX
has been tested to and conforms with the following List of R&TTE Harmonized standards:
Standard
ETSI EN 300 328
ETSI RF specification
ETSI EN 301 893
ETSI RF specification
Issue date
V1.6.1 Nov. 2004
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4GHz
ISM band and using spread spectrum modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive.
Meets R&TTE directive art. 3.2.a on effective use of radio frequency spectrum
so as to avoid harmful interference.
V1.3.1 Aug. 2005
Broadband Radio Access Networks (BRAN); 5GHz high performance RLAN;
Harmonized EN covering essential requirements of article 3.2 of the
R&TTE Directive.
Meets R&TTE directive art. 3.2.a on effective use of radio frequency spectrum
so as to avoid harmful interference.
ETSI EN 301 489-1
V1.5.1 Nov. 2004
ETSI EN 301 489-17
V1.2.1 Apr. 2002
ETSI EMC Specification Electromagnetic compatibility and Radio spectrum Matters(ERM);
Electro Magnetic Compatibility (EMC) standard for radio equipment and
services;
Part 1 : Common Technical requirements
Part 17 : Specific conditions for Wideband data and HIPERLAN equipment.
Meets R&TTE directive art. 3.1.b of essential requirements on protection with
respect to Electro Magnetic Compatibility.
!
Draw up in
Date
Taiwan
2007/05/24
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd.,
Shing Tien City, Taipei, Taiwan, R.O.C.
Signature & company stamp Jackie Shi / Manager
R&TTE List of Standard
2/2
With referring to the article of the directive of R&TTE 1999/5/EC, the following equipment:
Product Description /
Supplementary Info
Manufacturer
Brand
Type
RISC-based Ready-to-Run Wireless Embedded Computer
Moxa Technologies Co., Ltd.
Moxa
ThinkCore W341-LX
As such standards referred to tin Article 5 of the directive have not been applied or do not exist, the
following Adopted solutions with descriptions and explanations as listed below, have been applied
in full or in part, to meet the essential requirements of the directive:
Standard
EN 50392
Health specification
Issue date
2004
Generic standard to demonstrate the compliance of electronic and electrical
apparatus with the basic restrictions related to human exposure to
electromagnetic fields (0 Hz-300 GHz)
As such standards referred to tin Article 5 of the directive have not been applied or do not exist, the
following Adopted solutions with descriptions and explanations as listed below, have been applied
in full or in part, to meet the essential requirements of the directive:
Standard
EN 60950-1
LVD specification
Issue date
2001+A11:2004
Safety of information technology equipment, including electrical business
equipment.
Meets R&TTE directive art. 3.1.a of essential requirements on protection of
the health and safety of the user.
!
Draw up in
Date
Taiwan
2007/05/24
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd.,
Shing Tien City, Taipei, Taiwan, R.O.C.
Signature & company stamp Jackie Shi / Manager
RF-EMC-LVD-MPE Test Reports
and Corresponding Annexes
Test Report ------------------------------------------------------------------------------1/30
Report No.
M47ET060805
Specifications
ETSI EN 300 328 V.1.6.1 (2004-11)
Applicant
Moxa Technologies Co., Ltd.
Applicant
address
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
Items tested
Model No.
EUT Condition
RISC-based Ready-to-Run Wireless Embedded Computer
ThinkCore W341-LX
Results
Date
Compliance (As detailed within this report)
11/29/2006 (month / day / year) (Sample received)
03/29/2007 ~ 05/04/2007
(Test)
Engineering sample;
(Sample # M470805)
Pre-production;
Final production
Prepared by
Project Engineer
(Jack Tsai)
Authorized by
General Manager
(Frank Tsai)
(month / day / year)
Issue date
May 09, 2007
Modifications
Tested by
None
Training Research Co., Ltd.
Office at
No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Laboratory at
1F, No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Open site at
No. 15, Lane 530, Balian Rd., Sec. 1, Shijr City, Taipei Hsien 221, Taiwan
Conditions of issue:
This test report shall not be reproduced except in full, without written approval of
TRC. And the test result contained within this report only relate to the sample
submitted for testing.
★ Aut. No. ELA 131
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------2/30
We here by verify that:
The test data, data evaluation, test procedures and equipment configurations shown in this report
were made mainly in accordance with the procedures given in ETSI EN 300 328 (V.1.6.1) as a reference.
All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien
221, Taiwan, R.O.C. Also, we attest to the accuracy of each.
We further submit that the energy emitted by the sample EUT tested as described in the report is
in compliance with the technical requirements set second edition in the European Telecommunication
Standard ETSI EN 300 328 (V.1.6.1).
Reservation:
The test results herein refer only to the tested sample. Training Research Co., Ltd. is not
responsible for any generalizations or conclusions draw from these test results and concerning further
samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test
report.
Test by :
Training Research Co., Ltd.
TEL: 886-2-26935155
FAX: 886-2-26934440
No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C.
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------3/30
Tables of Contents
I.
GENERAL ................................................................................................. 4
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
II.
INTRODUCTION ......................................................................................................... 4
DESCRIPTION OF EUT .............................................................................................. 4
TEST METHOD .......................................................................................................... 5
CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 5
VERIFY THE FREQUENCY AND CHANNEL .................................................................. 6
TEST PROCEDURE ..................................................................................................... 6
LOCATION OF THE TEST SITE .................................................................................... 6
GENERAL TEST CONDITION ...................................................................................... 7
SECTION 4.3.1: EFFECTIVE RADIATED POWER .......................... 9
2.1 Test Result of Effective Radiated Power for IEEE 802.11b ................................... 9
2.2 Test Result of Effective Radiated Power for IEEE 802.11g ................................. 10
III.
SECTION 5.7.3: PEAK POWER DENSITY ....................................... 11
3.1 Test Result of Peak Power Density for IEEE 802.11b.......................................... 11
3.2 Test Result of Peak Power Density for IEEE 802.11g.......................................... 11
IV.
SECTION 5.7.4 : FREQUENCY RANGE............................................ 14
4.1 Test Result of Frequency Range for IEEE 802.11b .............................................. 14
4.2 Test Result of Frequency Range for IEEE 802.11g .............................................. 16
V.
SECTION 5.7.5: TRANSMITTER SPURIOUS EMISSIONS ........... 18
5.1 Test Result for IEEE 802.11b................................................................................ 18
5.2 Test Result for IEEE 802.11g................................................................................ 21
VI.
SECTION 5.7.6: RECEIVER SPURIOUS EMISSIONS.................... 23
6.1 Test Result for IEEE 802.11b................................................................................ 23
6.2 Test Result for IEEE 802.11g................................................................................ 26
6.3 Test Result for Standby mode ............................................................................... 28
VII. INSTRUMENT AND ANCILLARIES EQUIPMENT OF LIST....... 29
Appendix A: Antenna Specification ................................................................ 30
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------4/30
I. GENERAL
1.1
Introduction
The following measurement report is submitted on behalf of Applicant in support of a wireless
LAN measurement in accordance with ETSI EN 300 328 V1.6.1 (November, 2004) of the European
Telecommunication Standard.
1.2
Description of EUT
Product Name
:
RISC-based Ready-to-Run Wireless Embedded Computer
Model No.
:
ThinkCore W341-LX
Frequency Range
:
2.400GHz ~ 2.4835GHz
Operating Frequency
:
2.412GHz ~ 2.472GHz
Support Channel
:
13 Channels
Channel Spacing
:
5MHz
Modulation Skill
:
DBPSK, DQPSK, CCK, OFDM
Power Type
:
Powered by the switching adapter,
Manufacture: BALANCE ELECTRONICS CO., LTD.
Model: GPSA-1200125
I/P: 100 ~ 240VAC ~ 50/60Hz 0.5A
O/P: 12VDC 1.2A.
Primary: 182cm length, non-shielded, without ferrite core
Secondary: 186cm length, non-shielded, without ferrite core
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------5/30
1.3
1.
Test Method
Using software provided by the manufacturer to control the EUT. The test is performed under
the specific conditions.
2.
Set different channel and data rate being tested, and then making EUT to the following modes:
a) The mode of continuous transmission.
b) The receive mode.
c) The standby mode.
1.4
Configuration of System Under Test
Power
Source
USB
Drive*2
EUT
Test-table
The tests below are carried with the EUT transmitter set at high power in TDD mode. The EUT is forced
to select of output power level and channel number by computer.
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------6/30
1.5
Verify the Frequency and Channel
CH
1
2
3
4
5
6
7
8
9
10
0
2412
2417
2422
2427
2432
2437
2442
2447
2452
2457
1
2462
2467
2472
---
---
---
---
---
---
---
Note:
(1) This is for sure that all frequencies are in 2.4GHz – 2.4835 GHz.
(2) After test, the EUT (IEEE 802.11b/g) operating frequencies are in 2.412GHz to 2.472GHz. So
all the item as followed in testing report are need to test these three frequencies:
channel 1, channel 7, and channel 13.
(3) E.T.S.I (2400MHz ~ 2483.5MHz),
FRANCE outdoor use limited to 10mW e.i.r.p. within the band (2454MHz ~ 2483.5MHz)
1.6
Test Procedure
All measurements performed in this report were performed mainly according to the techniques
described in ETSI EN 300328 (November, 2004) and the pre-setup was written on 1.4 test method,
the detail setup was written on each test item.
1.7
Location of the Test Site
The radiated emissions measurements required by the rules were performed on the
three-meter, Anechoic Chamber (Registration Number: 93906) maintained by Training Research
Co., Ltd. 1F., No. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Complete
description and measurement data have been placed on file with the commission. The conducted
power line emissions tests and other test items were performed in a anechoic chamber also located at
Training Research Co., Ltd.
No. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Training Research Co., Ltd.
is listed by the FCC as a facility available to do measurement work for others on a contract basis.
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------7/30
1.8
General Test Condition
The test condition shall be as follows: (See Clause 5.3)
The NORMAL temperature and humidity conditions for tests shall be any convenient
combination of temperature and humidity within the following ranges:
-temperature: +15℃ to +35℃;
-relative humidity: 20% to 75%.
The normal test voltage for equipment to be connected to the main shall be the nominal mains
voltage.
For purpose of this ETS, the normal voltage shall be the declared voltage or any of the
declared voltages for which the equipment was designed.
The frequency of the test power source corresponding to the AC mains shall be between 49Hz
and 51Hz. When radio equipment is intended for operation from the usual, alternator fed lead-acid
battery power source used on vehicles, then the normal test voltage shall be 1.1 times the nominal
voltage of the battery (6V, 12V, etc.)
For operation from other power sources or types of battery (primary or secondary), the
nominal test voltage shall be as declared by the equipment manufacturer. This shall be recorded in
the test report.
For tests at EXTREME temperatures, measurements shall be made in accordance with the
procedures specified in subclause 5.3.4, at the upper and lower temperatures of the range as follows:
temperature: -20℃ to +55℃;
Where the manufacturer’s declared operating range does not include the range of -20℃ to
+55℃, the equipment shall be tested over the following temperature ranges:
a)0℃ to +35℃for equipment intended for INDOOR use only, or intended for use in areas
where the temperature is controlled within this range;
b)Over the extremes of the operating temperature range(s) of the declared host equipment(s) in
case of plug-in radio devices.
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------8/30
The frequency range as in subclause 5.7.4 and the e.i.r.p. Limit in subclause 4.3.3.2 shall not
be exceeded.
Tests at extreme power source voltages specified below are not required when the equipment
under test is designed for operation as part of and powered by another system or piece of equipment.
Where this is the case, the limit values of the host system or host equipment shall apply. The
appropriate limit values shall be declared by the manufacturer and recorded in the test report.
The EXTREME TEST VOLTAGE for equipment to be connected to an AC mains source
shall be the nominal mains voltage ±10%.
When radio equipment is intended for operation from the usual type of alternator fed lead-acid
battery power source used on vehicles, then extreme test voltage shall be 1.3 and 0.9 times the
nominal voltage of the battery (6V, 12V,etc.).
The lower extreme test voltage for equipment with power source using the following type of
battery, shall be:
-for the Leclanche’ or lithium type battery: 0.85 times the nominal voltage of the battery;
-for the mercury or nickel-cadmium type of battery: 0.9 times the nominal voltage of the
battery.
In both cases, the upper extreme test voltage shall be 1.15 times the nominal voltage of the
battery.
For equipment using other power sources, or capable of being operated from a variety of
power sources (primary or secondary), the extreme test voltages shall be those declared by the
manufacturer; these shall be recorded in the test report. Before measurements are made the
equipment shall have reached thermal balance in the test chamber.
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------9/30
II. Section 4.3.1: Effective Radiated Power
2.1
Test Result of Effective Radiated Power for IEEE 802.11b
Power level at which the measurement has been performed 67.98 mW
TRANSMITTER
TEST CONDITION
Channel 1
Channel 7
Channel 13
POWER
Tx Ave.
Cable Loss
(dBm)
(dB)
25 {C
9.214
0 {C
10.109
35 {C
8.788
25 {C
9.136
0 {C
10.124
35 {C
8.606
25 {C
6.721
0 {C
7.983
35 {C
6.124
Limit
Tx Ave.: 20dBm / -10dBW
Uncertainty
± 0.56dB
6.25
6.20
6.30
NOTE:
(1) The E.U.T is a stand-alone radio device (see the clause 5.3.2.2). The powered by the adaptor. So,
the AC power is used as the extreme voltage source. (See clause 5.3.4.2)
(2) The value of table is worst case during test condition, includes different combinations of
transmitter rate antenna polarity and temperature
(3) Duty cycle (X): 100%.
Average power = Tx Ave. + Cable Loss + Antenna Gain (2.00dBi) = 18.324 dBm,
E.I.R.P. = Average power +10 log (1/X)
= 18.324 dBm + 0 dB
= 18.324
(4) ETSI (2400MHz ~ 2483.5MHz),
FRANCE outdoor use limited to 10mW e.i.r.p. within the band (2454MHz ~ 2483.5MHz)
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------10/30
2.2
Test Result of Effective Radiated Power for IEEE 802.11g
Power level at which the measurement has been performed 34.71
TRANSMITTER
TEST CONDITION
Cable Loss
(dBm)
(dB)
5.960
0 {C
6.896
35 {C
5.677
25 {C
5.986
0 {C
7.205
35 {C
5.721
25 {C
5.487
0 {C
6.859
35 {C
5.211
Channel 7
Channel 13
POWER
Tx Ave.
25 {C
Channel 1
mW
Limit
Tx Ave.: 20dBm / -10dBW
Uncertainty
± 0.56dB
NOTE:
Duty cycle (X): 100%.
Average power = Tx Ave. + Cable Loss + Antenna Gain (2.00dBi) = 15.405 dBm,
E.I.R.P. = Average power +10 log (1/X)
= 15.405 dBm + 0 dB
= 15.405 dBm
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
6.25
6.20
6.30
Test Report ------------------------------------------------------------------------------11/30
III. Section 5.7.3: Peak Power Density
3.1
Test Result of Peak Power Density for IEEE 802.11b
Frequency
Ppr
CF
Ant. Gain
Ppq
Limit
Margin
(MHz)
(dBm)
(dB)
(dB)
(dBm)
(dBm)
(dB)
CH 01
2412
-1.03
6.57
2.00
7.54
10.00
-2.46
CH 07
2442
-0.74
6.53
2.00
7.79
10.00
-2.21
CH 13
2472
-4.39
6.74
2.00
4.35
10.00
-5.65
Channel
± 1.50dB
Uncertainty
3.2
Test Result of Peak Power Density for IEEE 802.11g
Frequency
Ppr
CF
Ant. Gain
Ppq
Limit
Margin
(MHz)
(dBm)
(dB)
(dB)
(dBm)
(dBm)
(dB)
CH 01
2412
-2.02
6.57
2.00
6.55
10.00
-3.45
CH 07
2442
-1.73
6.53
2.00
6.80
10.00
-3.20
CH 13
2472
-1.87
6.74
2.00
6.87
10.00
-3.13
Channel
Uncertainty
± 1.50dB
NOTE:
(1) For equipment using FHSS modulation, the peak power density shall be limit to
–10dBW(100mW) per 100kHz E.I.R.P.
(2) For equipment using other types modulation, the peak power density shall be limit
–20dBW(10mW) per MHz E.I.R.P.
(3) Ppr: spectrum read power density (using peak search mode), CF: correct factor,
CF: Correct Factor, AG: Antenna Gain
Ppq: actual peak power density in the spread spectrum band. Ppq = Ppr + CF + AG
(4) The value of table is worst case during test condition, includes different combination s of
transmitter rate, antenna polarity and temperature
(5) The data in the above table are summarizing the following attachment spectrum analyzer
hard copy.
(6) ETSI (2400MHz ~ 2483.5MHz),
FRANCE outdoor use limited to 10mW e.i.r.p. within the band (2454MHz ~ 2483.5MHz)
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------12/30
IEEE 802.11b
CH01
CH07
CH13
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------13/30
IEEE 802.11g
CH01
CH07
CH13
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------14/30
IV. Section 5.7.4 : Frequency Range
4.1
Test Result of Frequency Range for IEEE 802.11b
Transmitter Frequency Range – DSSS Equipment
FREQUENCY(MHz)
Lowest Channel
TEST CONDITION
25℃
0℃
35℃
Channel
Highest Channel
1
Channel
13
Frequency
Rate (Mbps)
Frequency
Rate (Mbps)
230 V
2402.00
11
2483.00
11
207 V
2402.00
11
2483.00
11
253 V
2402.00
11
2483.00
11
207 V
2402.30
11
2483.10
11
253 V
2402.30
11
2483.10
11
Measured frequencies
(lowest and highest)
Limit
Uncertainty
FL = 2402.00 MHz
FH = 2483.10 MHz
FL > 2400MHz
± 1837Hz
FH < 2483.5MHz
Note:
(1) The E.U.T is a stand-alone radio device (see the clause 5.3.2.2). This is powered by the
main. So, the AC power is used as the extreme voltage source. (see clause 5.3.4.2).
(2) B: Battery, AC: AC Source, Rate: Transmitter Rate.
(3) The value of table is worst case during test condition, includes different combinations of
transmitter rate, antenna polarity and temperature.
(4) The data in the above table are summarizing the following attachment spectrum analyzer
hard copy.
(5) ETSI (2400MHz ~ 2483.5MHz),
FRANCE outdoor use limited to 10mW e.i.r.p. within the band (2454MHz ~ 2483.5MHz)
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------15/30
Channel 01 (The lowest one in the frequency range)
Channel 13 (The greatest one in the frequency range)
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------16/30
4.2
Test Result of Frequency Range for IEEE 802.11g
Transmitter Frequency Range – DSSS Equipment
FREQUENCY(MHz)
Lowest Channel
TEST CONDITION
25℃
0℃
35℃
Channel
Highest Channel
1
Channel
13
Frequency
Rate (Mbps)
Frequency
Rate (Mbps)
230 V
2401.30
54
2482.80
54
207 V
2400.30
54
2483.20
54
253 V
2400.30
54
2483.20
54
207 V
2401.90
54
2482.60
54
253 V
2401.90
54
2482.60
54
1
Measured frequencies
(lowest and highest)
Limit
Uncertainty
FL = 2400.30 MHz
FH = 2483.20 MHz
FL > 2400MHz
± 1837Hz
FH < 2483.5MHz
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------17/30
Channel 01 (The lowest one in the frequency range)
Channel 13 (The greatest one in the frequency range)
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------18/30
V.
Section 5.7.5: Transmitter Spurious Emissions
5.1
Test Result for IEEE 802.11b
Channel 1
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
193.69
H
-62.71
-36.00
-26.71
11
251.89
H
-62.78
-36.00
-26.78
11
291.90
H
-58.46
-36.00
-22.46
11
672.62
H
-60.76
-36.00
-24.76
11
768.41
H
-59.95
-36.00
-23.95
11
865.41
H
-60.45
-36.00
-24.45
11
154.89
V
-58.48
-36.00
-22.48
11
194.90
V
-61.69
-36.00
-25.69
11
290.69
V
-54.76
-36.00
-18.76
11
386.47
V
-61.12
-36.00
-25.12
11
768.41
V
-61.86
-36.00
-25.86
11
865.41
V
-59.25
-36.00
-23.25
11
Note:
(1) A. P. means antenna polarization, horizontal and vertical.
Amplitude means the fundamental emission measured
C F. means Correct Factor, Rate means transmitter rate
Corrected Factor (C. F.) = Cable Loss + Antenna Factor – Amplified Gain
LEVEL = Amplitude + Corrected Factor
(2) The margin is minus that means under limit.
(3) The value of table is the worst case during test condition. This is including different
combinations of transmitter rate antenna polarity and temperature.
(4) ETSI (2400MHz ~ 2483.5MHz),
FRANCE outdoor use limited to 10mW e.i.r.p. within the band (2454MHz ~ 2483.5MHz)
(5) The level of confidence of 95% , the uncertainty of measurement of radiated emission is
+2.85dB / -2.77dB
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------19/30
Channel 13
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
145.19
H
-64.64
-36.00
-28.64
11
193.69
H
-61.25
-36.00
-25.25
11
289.47
H
-58.09
-36.00
-22.09
11
483.47
H
-64.00
-36.00
-28.00
11
672.62
H
-59.93
-36.00
-23.93
11
768.41
H
-58.88
-36.00
-22.88
11
156.10
V
-59.93
-36.00
-23.93
11
194.90
V
-60.02
-36.00
-24.02
11
289.47
V
-55.46
-36.00
-19.46
11
387.69
V
-61.18
-36.00
-25.18
11
624.12
V
-62.66
-36.00
-26.66
11
864.20
V
-58.61
-36.00
-22.61
11
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------20/30
Channel 1
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
2583.33
H
-66.35
-30.00
-36.35
11
4825.83
H
-62.52
-30.00
-32.52
11
7234.69
H
-60.04
-30.00
-30.04
11
9647.40
H
-59.17
-30.00
-29.17
11
12060.10
H
-56.31
-30.00
-26.31
11
2531.25
V
-61.98
-30.00
-31.98
11
4825.83
V
-62.02
-30.00
-32.02
11
7234.69
V
-58.21
-30.00
-28.21
11
9647.40
V
-59.67
-30.00
-29.67
11
12060.10
V
-56.98
-30.00
-26.98
11
Channel 13
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
2729.17
H
-65.29
-30.00
-35.29
11
4945.31
H
-63.09
-30.00
-33.09
11
7415.83
H
-59.09
-30.00
-29.09
11
9886.35
H
-57.75
-30.00
-27.75
11
12360.73
H
-58.89
-30.00
-28.89
11
2589.58
V
-64.66
-30.00
-34.66
11
4945.31
V
-59.43
-30.00
-29.43
11
7415.83
V
-59.92
-30.00
-29.92
11
9886.35
V
-57.58
-30.00
-27.58
11
12360.73
V
-58.73
-30.00
-28.73
11
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------21/30
5.2
Test Result for IEEE 802.11g
Channel 1
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
251.89
H
-61.57
-36.00
-25.57
54
290.69
H
-58.09
-36.00
-22.09
54
672.62
H
-61.03
-36.00
-25.03
54
768.41
H
-60.00
-36.00
-24.00
54
865.41
H
-60.34
-36.00
-24.34
54
145.19
V
-57.23
-36.00
-21.23
54
194.90
V
-61.07
-36.00
-25.07
54
290.69
V
-55.06
-36.00
-19.06
54
768.41
V
-60.51
-36.00
-24.51
54
865.41
V
-59.09
-36.00
-23.09
54
Channel 13
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
193.69
H
-62.01
-36.00
-26.01
54
290.69
H
-58.14
-36.00
-22.14
54
672.62
H
-61.35
-36.00
-25.35
54
768.41
V
-60.00
-36.00
-24.00
54
864.20
H
-59.12
-36.00
-23.12
54
146.40
V
-57.82
-36.00
-21.82
54
153.68
V
-58.18
-36.00
-22.18
54
289.47
V
-55.15
-36.00
-19.15
54
387.69
V
-60.04
-36.00
-24.04
54
865.41
V
-58.27
-36.00
-22.27
54
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------22/30
Channel 1
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
2522.92
H
-65.67
-30.00
-35.67
54
4825.83
H
-63.36
-30.00
-33.36
54
7234.69
H
-60.21
-30.00
-30.21
54
9647.40
H
-58.67
-30.00
-28.67
54
12060.10
H
-56.65
-30.00
-26.65
54
2531.25
V
-60.98
-30.00
-30.98
54
4825.83
V
-62.69
-30.00
-32.69
54
7234.69
V
-61.04
-30.00
-31.04
54
9647.40
V
-58.83
-30.00
-28.83
54
12060.10
V
-57.15
-30.00
-27.15
54
Channel 13
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
2910.42
H
-64.47
-30.00
-34.47
54
4945.31
H
-61.93
-30.00
-31.93
54
7415.83
H
-59.25
-30.00
-29.25
54
9886.35
H
-58.25
-30.00
-28.25
54
12360.73
H
-57.73
-30.00
-27.73
54
2589.58
V
-62.33
-30.00
-32.33
54
4945.31
V
-61.43
-30.00
-31.43
54
7415.83
V
-58.75
-30.00
-28.75
54
9886.35
V
-57.75
-30.00
-27.75
54
12360.73
V
-58.23
-30.00
-28.23
54
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------23/30
VI. Section 5.7.6: Receiver Spurious Emissions
6.1
Test Result for IEEE 802.11b
Channel 1
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
193.69
H
-60.33
-57.00
-3.33
11
250.67
H
-59.40
-57.00
-2.40
11
289.47
H
-61.08
-57.00
-4.08
11
481.05
H
-66.91
-57.00
-9.91
11
672.62
H
-60.55
-57.00
-3.55
11
768.41
H
-60.28
-57.00
-3.28
11
156.10
V
-57.55
-57.00
-0.55
11
243.40
V
-61.93
-57.00
-4.93
11
289.47
V
-58.55
-57.00
-1.55
11
483.47
V
-61.90
-57.00
-4.90
11
768.41
V
-61.38
-57.00
-4.38
11
865.41
V
-58.29
-57.00
-1.29
11
Note:
(1) A. P. means antenna polarization, horizontal and vertical.
Amplitude means the fundamental emission measured.
C F. means Correct Factor, Rate means transmitter rate
Corrected Factor (C. F.) = Cable Loss + Antenna Factor – Amplified Gain
LEVEL = Amplitude + Corrected Factor
(2) The value of table is worst case during test condition, includes different combinations of
transmitter rate antenna polarity and temperature
(3) ETSI (2400MHz ~ 2483.5MHz),
FRANCE outdoor use limited to 10mW e.i.r.p. within the band (2454MHz ~ 2483.5MHz)
(4) The level of confidence of 95% , the uncertainty of measurement of radiated emission is
+2.85dB / -2.77dB
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------24/30
Channel 13
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
147.61
H
-65.50
-57.00
-8.50
11
194.90
H
-60.26
-57.00
-3.26
11
254.31
H
-58.93
-57.00
-1.93
11
290.69
H
-60.59
-57.00
-3.59
11
672.62
H
-60.30
-57.00
-3.30
11
768.41
H
-61.52
-57.00
-4.52
11
153.68
V
-57.39
-57.00
-0.39
11
193.69
V
-61.30
-57.00
-4.30
11
243.40
V
-61.23
-57.00
-4.23
11
290.69
V
-58.79
-57.00
-1.79
11
768.41
V
-61.91
-57.00
-4.91
11
865.41
V
-57.48
-57.00
-0.48
11
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------25/30
Channel 1
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
1817.60
H
-65.04
-47.00
-18.04
11
2973.02
H
-64.52
-47.00
-17.52
11
4995.00
H
-61.41
-47.00
-14.41
11
7095.31
H
-62.29
-47.00
-15.29
11
1793.12
V
-68.27
-47.00
-21.27
11
3609.48
V
-63.32
-47.00
-16.32
11
5465.00
V
-60.81
-47.00
-13.81
11
7873.75
V
-61.79
-47.00
-14.79
11
Channel 13
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
1631.56
H
-66.74
-47.00
-19.74
11
2791.87
H
-65.59
-47.00
-18.59
11
4706.15
H
-61.93
-47.00
-14.93
11
7824.79
H
-61.83
-47.00
-14.83
11
2184.79
V
-66.75
-47.00
-19.75
11
3937.50
V
-62.79
-47.00
-15.79
11
6028.02
V
-63.82
-47.00
-16.82
11
8451.46
V
-61.17
-47.00
-14.17
11
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------26/30
6.2
Test Result for IEEE 802.11g
Channel 1
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
194.90
H
-59.78
-57.00
-2.78
54
251.89
H
-59.55
-57.00
-2.55
54
289.47
H
-60.84
-57.00
-3.84
54
672.62
H
-61.01
-57.00
-4.01
54
865.41
H
-61.12
-57.00
-4.12
54
156.10
V
-58.08
-57.00
-1.08
54
243.40
V
-62.37
-57.00
-5.37
54
291.90
V
-58.56
-57.00
-1.56
54
768.41
V
-61.59
-57.00
-4.59
54
865.41
V
-57.39
-57.00
-0.39
54
Channel 13
(30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
194.90
H
-60.02
-57.00
-3.02
54
253.10
H
-58.57
-57.00
-1.57
54
289.47
H
-60.31
-57.00
-3.31
54
672.62
H
-60.76
-57.00
-3.76
54
768.41
H
-61.08
-57.00
-4.08
54
154.89
V
-57.75
-57.00
-0.75
54
193.69
V
-62.53
-57.00
-5.53
54
243.40
V
-62.51
-57.00
-5.51
54
291.90
V
-58.63
-57.00
-1.63
54
865.41
V
-58.24
-57.00
-1.24
54
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------27/30
Channel 1
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
1822.50
H
-65.96
-47.00
-18.96
54
2855.52
H
-65.33
-47.00
-18.33
54
5538.44
H
-60.13
-47.00
-13.13
54
8426.98
H
-61.61
-47.00
-14.61
54
1440.62
V
-67.59
-47.00
-20.59
54
2855.52
V
-65.33
-47.00
-18.33
54
4931.35
V
-61.39
-47.00
-14.39
54
7780.73
V
-61.53
-47.00
-14.53
54
Channel 13
(1GHz to 12.75GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
1631.56
H
-64.24
-47.00
-17.24
54
2855.52
H
-65.33
-47.00
-18.33
54
5039.06
H
-61.33
-47.00
-14.33
54
7893.33
H
-62.09
-47.00
-15.09
54
1861.67
V
-67.50
-47.00
-20.50
54
2855.52
V
-65.33
-47.00
-18.33
54
5357.29
V
-61.19
-47.00
-14.19
54
8456.35
V
-62.02
-47.00
-15.02
54
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------28/30
6.3
Test Result for Standby mode
(30MHz to 12.5GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
193.08
H
-61.56
-57.00
-4.56
---
251.28
H
-58.31
-57.00
-1.31
---
288.26
H
-58.35
-57.00
-1.35
---
672.62
H
-58.57
-57.00
-1.57
---
768.41
H
-58.81
-57.00
-1.81
---
864.81
H
-59.56
-57.00
-2.56
---
1631.56
H
-66.24
-47.00
-19.24
---
3159.06
H
-63.94
-47.00
-16.94
---
5362.19
H
-63.67
-47.00
-16.67
---
7859.06
H
-61.64
-47.00
-14.64
---
153.68
V
-63.45
-57.00
-6.45
---
192.47
V
-63.59
-57.00
-6.59
---
219.76
V
-62.63
-57.00
-5.63
---
481.05
V
-63.73
-57.00
-6.73
---
672.62
V
-60.57
-57.00
-3.57
---
864.20
V
-58.61
-57.00
-1.61
---
1817.60
V
-67.04
-47.00
-20.04
---
3173.75
V
-63.91
-47.00
-16.91
---
4955.83
V
-61.60
-47.00
-14.60
---
7658.33
V
-61.12
-47.00
-14.12
---
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------29/30
VII. Instrument and Ancillaries Equipment of List
Calibration Date
Instrument Name
Model
Brand
Serial No.
Next time
EMI Receiver
8546A
HP
3520A00242
09/06/07
RF Filter Section
85460A
HP
3448A00217
09/06/07
Small Biconical
UBAA9114 &
SCHWARZECK
127
12/07/07
Antenna
BBVU9135
Pre-amplifier
PA1F
TRC
1FAC
05/20/07
Auto Switch Box
ASB-01
TRC
9904-01
05/20/07
A30A30-0058-50FS-15M
JYEBAO
SMA-01
05/20/07
A30A30-0058-50FS-1M
JYEBAO
SMA-02
05/20/07
Spectrum Analyzer
8564E
HP
3720A00840
12/11/07
Microwave
84125C
HP
US36433002
11/18/07
Horn Antenna
3115
EMCO
9104-3668
02/05/08
Standard Guide
84125-80008
HP
18-26.5GHz
12/12/07
84125-80001
HP
26.5-40GHz
12/12/07
Horn Antenna
1196E (3115)
HP (EMCO)
9704-5178
02/12/08
Pre-amplifier
PA2F
TRC
2F1GZ
06/20/07
Coaxial Cable
A30A30-0058-50FST118
JYEBAO
MSA-05
06/20/07
A30A30-0058-50FST118
JYEBAO
MSA-04
06/20/07
(>30MHz)
Coaxial Cable
(Double shielded,
15 meter)
Coaxial Cable
(1.1 meter)
Preamplifier
Horn Antenna
Standard Guide
Horn Antenna
(3 miter)
Coaxial Cable
(1 meter)
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------30/30
Appendix A
Antenna Specification
Report No.: M47ET060805 (ETSI EN 300 328)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
料件承認書
文件編號:
版本:1.0
品號: 1602020019400
製造商: 寰波
品名: Dual-Band Omni-Directional Antenna
規格:
適用產品: 2.4/ 5.0/ 5.2/ 5.6/ 5.8GHz
F 1.系列承認清單
F 2.Moxa 內部測試報告
9 3.廠商承認書
F 4.UL 認證報告
F 5 CSA 認證報告
F 6.TUV 認證報告
附件: 9 7.RoHS 認證報告/RepNo. CE/2004/A1528
CE/2006/10629 KA/2005/40650 CE/2006/63956
CE/2004/C1498 CE/2006/63959 CE/2005/83039
CE/2004/53035 CE/2006/41802 CE/2006/47581
KE/2005/41696 CE/2004/B4117A CE/2005/92596A
CE/2005/92597A CE/2006/14801A KE/2006/20995
F 8. SONY 認證報告/RepNo. /自我
核准:洪誠
審核:洪誠
撰寫:明松
相 關 單 位 會 簽
發 行 章
品保
家齊
料件承認書
品號
版本
修訂內容
1602020019400
1.0
新料件承認
文件編號:PD.01
版本:1.4
修訂原因
日期
修訂者
09-12-06
明松
頁次:2/3
料件承認書
料件檢驗標準
品號
1.
2.
3.
4.
5.
1602020019400
品名
Dual-Band Omni-Directional
Antenna
規格
2.4/ 5.0/ 5.2/ 5.6/ 5.8GHz
料件承認作業確認
電氣功能之驗証
D 已完成
F未執行,原因:
實體組裝之測試
D 已完成
F未執行,原因:
執行生產可行性評估
F 已完成
D未執行,原因:
檢查供應商所附文件是否完整 D 已完成
F未執行,原因:
檢驗綠色料件標準
D 符合 RoHS F符合 SONY
F非綠色料件
尺寸(含公差)部份
F說明如下(單位標示公制)
D如附之尺寸圖
Mechanism size Check/Compare (單位 : mm)
項
次
1
2
3
4
5
6
7
8
9
檢驗項目
檢驗方法
規格
公差 圖面位置
實測 1
實測 2
實測 3
實測 4
顏色部份
顏色:
可參考:Dsample
F附件之色板
檢
外觀印刷規格說明
驗
項
F如下說明 D參考所附文件
目 圖案之大小、顏色、位置-
文字之大小、顏色、位置、字型- F如下說明 D參考所附文件
原物料封裝及包裝說明
IC 封裝方式:
料件包裝方式:25 支裝一包,20 包裝一紙箱
特殊檢驗要求
IC 版本:
IC 外觀標示圖與標註檢驗項目:
其它注意事項
操作溫度 : -10~55℃
文件編號:PD.01
版本:1.4
頁次:3/3
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Electrical Specification
Frequency range
2400 MHz - 2500 MHz
4900 MHz - 5875 MHz
Peak Gain
2 dBi
2 dBi
Average Gain
1 dBi
1 dBi
VSWR
2.0 : 1 Max.
2.0 : 1 Max.
0
0
HPBW / horizontal
360
360
HPBW / vertical
80
80
Polarization
Linear, vertical
Linear, vertical
Power handling
2 W (cw)
2 W (cw)
Impedance
50 Ohms
50 Ohms
Connector
RP SMA Plug
0
0
Environmental & Mechanical Characteristics
o
Temperature
- 10 o C to +55 C
Humidity
95% @ 55 C
Radome color
Black
Weight
9g
Dimensions
79 x 35.3 x 10 mm
o
H-plane Co-polarization Pattern
2.4 GHz
2.45 GHz
2.5 GHz
90
5
120
60
0
120
30
150
30
150
-10
-15
-15
-20
-20
180
-25
0
180
0
-20
-20
-15
-15
-10
-10
330
210
-5
-5
0
0
240
5
300
330
210
240
5
79
102
V-plane Co-polarization Pattem
14.8
2.4 GHz
2.45 GHz
2.5 GHz
90
5
120
60
0
30
150
0
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
-25
0
-15
330
210
-10
-5
-5
0
0
240
300
270
FAX: +886 (0)3 583-7000 E-mail: [email protected]
P1
180
-20
-15
5
30
150
-20
180
-20
35.3
60
-15
-20
-10
120
0
-10
-15
-25
4.9 GHz
5.1 GHz
5.3 GHz
5.5 GHz
5.7 GHz
5.9 GHz
90
5
-5
-5
-10
http:// www.smartant.com
300
270
270
10
60
0
-5
-5
-10
-25
4.9 GHz
5.1 GHz
5.3 GHz
5.5 GHz
5.7 GHz
5.9 GHz
90
5
5
330
210
240
300
270
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Radiation Pattern (1/2)
H-plane Co-polarization Pattern
2.4 GHz
2.45 GHz
2.5 GHz
90
5
120
60
0
-5
30
150
-10
-15
-20
-25
0
180
-20
-15
-10
330
210
-5
0
240
5
300
270
4.9 GHz
5.1 GHz
5.3 GHz
5.5 GHz
5.7 GHz
5.9 GHz
90
5
120
60
0
-5
30
150
-10
-15
-20
-25
180
0
-20
-15
-10
330
210
-5
0
5
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
240
300
270
FAX: +886 (0)3 583-7000 E-mail: [email protected]
P2
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Radiation Pattern (2/2)
V-plane Co-polarization Pattem
2.4 GHz
2.45 GHz
2.5 GHz
90
5
120
60
0
-5
30
150
-10
-15
-20
-25
180
0
-20
-15
-10
330
210
-5
0
240
5
300
270
4.9 GHz
5.1 GHz
5.3 GHz
5.5 GHz
5.7 GHz
5.9 GHz
90
5
120
60
0
-5
30
150
-10
-15
-20
-25
180
0
-20
-15
-10
330
210
-5
0
5
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
240
300
270
FAX: +886 (0)3 583-7000 E-mail: [email protected]
P3
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
VSWR
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
P4
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
_
102+1
_
79+1
Product Drawing
_
14.8+1
10
_
35.3+1
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
P5
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Reliability Test Report (1/2)
Ꮳ‫ިמࣽݢ‬ҽԖज़Ϧљ!
ʳ
PageǺ1 / 12
SmartAnt Telecom Co.,Ltd.
Ꮳ‫ިמࣽݢ‬ҽԖज़Ϧљ
SmartAnt Telecom Co.,Ltd.
Reliability Test Report
ModelΚ SAA05-220420
Product NameΚDual-Band Omni-Directional
Antenna
NicknameΚλλЦη
FrequencyΚ2.4GHz~2.5GHz
4.9GHz~5.875GHz
VSWRΚ2.0Κ1 Max
Test ResultsΚ‫ ع‬PASS
Approved By
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
Review By
ϭ NG
Prepared By
FAX: +886 (0)3 583-7000 E-mail: [email protected]
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Reliability Test Report (2/2)
Ꮳ‫ިמࣽݢ‬ҽԖज़Ϧљ!
PageǺ2 / 12
SmartAnt Telecom Co.,Ltd.
Reliability Test Result :
Test Group
Test
A
Judgment
Test Sample No.
01
02
03
04
05
Composite
1 Temperature/Humidity
Cycling Test
Ϥ
Ϥ
Ϥ
Ϥ
Ϥ
PASS
Ϥ
Ϥ
Ϥ
Ϥ
Ϥ
PASS
3 High Temperature Test Ϥ
Ϥ
Ϥ
Ϥ
Ϥ
PASS
4 Pull Force
Ϥ
Ϥ
Ϥ
Ϥ
Ϥ
NA
5 Angel Measurement
Ϥ
Ϥ
Ϥ
Ϥ
Ϥ
PASS
Flow 2 Cold Test
Conclusion: All visual inspection is normal and function is ok.
Reliability Test Specification:
No
1
Test
Item
Duration Temperature
Composite
Temperature/Humidity
Cycling Test
65hr
-10~55ʚ
Refer to standard
Note
IEC 68-2-30
NA
95%RH
2 Cold Test
50hr
-10ʚ
IEC 68-2-1
NA
3 High Temperature Test
50hr
55ʚ
IEC 68-2-2
NA
4 Pull Force
EA/Time
23²5ʚ
Smartant Standard
NA
5 Angel Measurement
EA/Time
23²5ʚ
Smartant Standard
NA
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (1/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (2/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (3/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (4/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (5/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (6/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
Version 2
SAA05-220420
Material Approval - Connector (7/7)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All right reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
SA2-05005S-A5
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Material Approval - Radome
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Material Approval - Cable (1/2)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Material Approval - Cable (2/2)
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
Version 2
Dual-Band Omni-Directional Antenna
for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
SAA05-220420
Material Approval - PCB
http:// www.smartant.com
TEL: +886 (0)3 583-6000
All rights reserved by SmartAnt Telecom Co., Ltd.
FAX: +886 (0)3 583-7000 E-mail: [email protected]
Version 2
寰波科技股份有限公司
SmartAnt Telecom Co.,Ltd
Environment-Related Substances Report
Product Description:
Antenna
SmartAnt P/N :
SAA05-220420
Customer P/N:
2006/9/4
寰波科技股份有限公司
2006/9/4
SmartAnt Telecom Co.,Ltd
ENVIRONMENT-RELATED SUBSTANCES TO BE CONTROLLED-SAA05-220420
Test Item(Cr6+,Hg,Pb,PBBs,PBBEs<1000ppm,Cd<100ppm)
Components
Item
Cr6+
Cd
Hg
Pb
PBBs
PBBEs Report No.
Pass/
Fail
PCB
N.D
N.D
N.D
N.D
N.D
N.D
CE/2004/A1528
Pass
2
RG178 CABLE
N.D
N.D
N.D
N.D
N.D
N.D
CE/2006/10629
Pass
3
Joint
N.D
N.D
N.D
N.D
N.D
N.D
KA/2005/40050
Pass
Brass
N.D
34.9
N.D
27001.4
X
X
CE/2006/63956
Pass
Phos.Bronze
N.D
N.D
N.D
N.D
X
X
CE/2004/C1498
Pass
Au Plating
N.D
N.D
N.D
N.D
X
X
CE/2006/63959
Pass
HD.PE
N.D
N.D
N.D
N.D
N.D
N.D
CE/2005/83039
Pass
NBR
N.D
N.D
N.D
N.D
N.D
N.D
CE/2004/53035
Pass
Delrin
N.D
N.D
N.D
N.D
N.D
N.D
CE/2006/41802,CE/2006/47581
Pass
4
Antenna Components
1
Connector
Radome
N.D
N.D
N.D
N.D
N.D
N.D
KE/2005/41696
Pass
6
PE Bag
N.D
N.D
N.D
N.D
N.D
N.D
CE/2004/B4117A
Pass
表面紙板
N.D
N.D
N.D
11.3
X
X
CE/2005/92596A
Pass
瓦稜芯紙
N.D
N.D
N.D
21.3
X
X
CE/2005/92597A
Pass
INK
N.D
N.D
N.D
N.D
N.D
N.D
CE/2006/14801A
Pass
RESIN
N.D
N.D
N.D
N.D
N.D
N.D
KE/2006/20995
Pass
7
Packing
5
Carton
Test Report ------------------------------------------------------------------------------1/25
Report No.
M47ET060805
Specifications
ETSI EN 301 893 V.1.3.1 (2005-08)
Applicant
Moxa Technologies Co., Ltd.
Applicant
address
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
Items tested
Model No.
EUT Condition
RISC-based Ready-to-Run Wireless Embedded Computer
ThinkCore W341-LX
Results
Date
Compliance (As detailed within this report)
11/29/2006 (month / day / year) (Sample received)
04/02/2007 ~ 04/26/2007
(Test)
Engineering sample;
(Sample # M470805)
Pre-production;
Final production
Prepared by
Project Engineer
(Jack Tsai)
Authorized by
General Manager
(Frank Tsai)
(month / day / year)
Issue date
May 24, 2007
Modifications
Tested by
None
Training Research Co., Ltd.
Office at
No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Laboratory at
1F, No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Open site at
No. 15, Lane 530, Balian Rd., Sec. 1, Shijr City, Taipei Hsien 221, Taiwan
Conditions of issue:
This test report shall not be reproduced except in full, without written approval of
TRC. And the test result contained within this report only relate to the sample
submitted for testing.
★ Aut. No. ELA 131
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------2/25
We here by verify that:
The test data, data evaluation, test procedures and equipment configurations shown in this report
were made mainly in accordance with the procedures given in ETSI EN 301 893 (V.1.3.1) as a reference.
All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien
221, Taiwan, R.O.C. Also, we attest to the accuracy of each.
We further submit that the energy emitted by the sample EUT tested as described in the report is
in compliance with the technical requirements set second edition in the European Telecommunication
Standard ETSI EN 301 893 (V.1.3.1).
Reservation:
The test results herein refer only to the tested sample. Training Research Co., Ltd. is not
responsible for any generalizations or conclusions draw from these test results and concerning further
samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test
report.
Test by :
Training Research Co., Ltd.
TEL: 886-2-26935155
FAX: 886-2-26934440
No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------3/25
Tables of Contents
I.
GENERAL ................................................................................................. 4
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
II.
SECTION 4.2: CARRIER FREQUENCIES.......................................... 9
2.1
2.2
2.3
2.4
2.5
III.
INTRODUCTION ......................................................................................................... 4
DESCRIPTION OF EUT .............................................................................................. 4
TEST METHOD .......................................................................................................... 5
CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 5
LIST OF MEASUREMENTS.......................................................................................... 6
VERIFY THE FREQUENCY AND CHANNEL .................................................................. 7
TEST PROCEDURE ..................................................................................................... 7
LOCATION OF THE TEST SITE .................................................................................... 7
GENERAL TEST CONDITION ...................................................................................... 8
Limit ........................................................................................................................ 9
Test Condition ......................................................................................................... 9
Test Procedures ....................................................................................................... 9
Deviation form test standard ................................................................................... 9
Test Results ........................................................................................................... 10
SECTION 4.3: RF OUTPUT, TRANSMIT POWER CONTROL (TPC)
AND POWER DENSITY ....................................................................... 11
3.1 RF output power at the highest power level.......................................................... 11
3.2 RF output power at the lowest power level of the TPC range .............................. 13
Test Result:................................................................................................................... 13
3.3 Power density ........................................................................................................ 14
Test Result:................................................................................................................... 14
IV.
SECTION4.4: TRANSMITTER UNWANTED EMISSIONS ........... 16
4.1 Test Result of Transmitter unwanted emission outside the 5 GHz RLAN bands. 16
4.2 Test Result for Standby mode ............................................................................... 19
4.3 Test Result of Transmitter unwanted emission within 5 GHz RLAN bands ........ 20
V.
SECTION 4.6: DYNAMIC FREQUENCY SELECTION (DFS)....... 21
5.1 Test Result of Frequency Range for DFS ............................................................. 21
Test Result:................................................................................................................... 21
VI.
SECTION 4.5: SPURIOUS EMISSIONS OF RECEIVER ................ 22
VII. INSTRUMENT AND ANCILLARIES EQUIPMENT OF LIST....... 25
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------4/25
I. GENERAL
1.1
Introduction
The following measurement report is submitted on behalf of Applicant in support of a wireless
LAN measurement in accordance with ETSI EN 301 893 V1.3.1 (August, 2005) of the European
Telecommunication Standard.
1.2
Description of EUT
Product Name
:
RISC-based Ready-to-Run Wireless Embedded Computer
Model No.
:
ThinkCore W341-LX
Frequency Range
:
5.150GHz ~ 5.250GHz
Operating Frequency
:
5.180GHz ~ 5.240GHz
RF output power
15.104 dBm
Channel Spacing
:
20MHz
Support Channel
:
4 Channels
Modulation Skill
:
DBPSK, DQPSK, CCK, OFDM
Power Type
:
Powered by the switching adapter,
Manufacture: BALANCE ELECTRONICS CO., LTD.
Model: GPSA-1200125
I/P: 100 ~ 240VAC ~ 50/60Hz 0.5A
O/P: 12VDC 1.2A.
Primary: 182cm length, non-shielded, without ferrite core
Secondary: 186cm length, non-shielded, without ferrite core
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------5/25
1.3
1.
Test Method
Using software provided by the manufacturer to control the EUT. The test is performed under
the specific conditions.
2.
Set different channel and data rate being tested, and then making EUT to the following modes:
a) The mode of continuous transmission.
b) The receive mode.
c) The standby mode.
1.4
Configuration of System Under Test
Power
Source
USB
Drive*2
EUT
Test-table
The tests below are carried with the EUT transmitter set at high power in TDD mode. The EUT is forced
to select of output power level and channel number by computer.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------6/25
1.5
List of Measurements
Clause
Parameter To Be Measured
Pass
Fail
N. A.
Transmitter Parameter
4.2
Carrier frequencies
X
4.3.1
RF output power
X
4.3.2
Transmit Power Control (TPC)
4.3.3
power density
X
4.4.1
Transmitter unwanted emission outside
X
X
the 5 GHz RLAN bands
4.4.2
Transmitter unwanted emission within
X
5 GHz RLAN bands
4.6
X
Dynamic Frequency Selection (DFS)
Receiver Parameter
4. 5
Spurious Emissions
X
Note:
Clause 4.3.2 TPC – TPC is not required in the band 5150 MHz to 5250 MHz.
Clause 4.6 DFS – Radar detection is not required in the frequency range 5150 MHz to 5250 MHz.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------7/25
1.6
Verify the Frequency and Channel
CH
1
2
3
4
frequency
5180
5200
5220
5240
Note:
(1) This is for sure that all frequencies are in 5.150GHz ~ 5.250GHz.
(2) After test, the EUT (IEEE 802.11a) operating frequencies are in 5.180GHz ~ 5.240GHz. So all
the item as followed in testing report are need to test these three frequencies:
channel lowest and channel highest except carrier frequencies apply to each channel.
(3) Restricted to indoor use.
1.7
Test Procedure
All measurements performed in this report were performed mainly according to the techniques
described in ETSI EN 301893 (August, 2005) and the pre-setup was written on 5 test method, the
detail setup was written on each test item.
1.8
Location of the Test Site
The radiated emissions measurements required by the rules were performed on the
three-meter, Anechoic Chamber (Registration Number: 93906) maintained by Training Research
Co., Ltd. 1F., No. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Complete
description and measurement data have been placed on file with the commission. The conducted
power line emissions tests and other test items were performed in a anechoic chamber also located at
Training Research Co., Ltd.
No. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Training Research Co., Ltd.
is listed by the FCC as a facility available to do measurement work for others on a contract basis.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------8/25
1.9
General Test Condition
The test condition shall be as follows: (See Clause 5.1)
The NORMAL temperature and humidity conditions for tests shall be any convenient
combination of temperature and humidity within the following ranges:
-temperature: 0℃ to +40℃;
-relative humidity: 20% to 85%.
The normal test voltage for equipment to be connected to the main shall be the nominal mains
voltage.
For purpose of this ETS, the normal voltage shall be the declared voltage or any of the
declared voltages for which the equipment was designed.
The frequency of the test power source corresponding to the AC mains shall be between 49Hz
and 51Hz.
The nominal test voltage shall be as declared by the equipment manufacturer for operation
from other power sources or types of battery (primary or secondary). This shall be recorded in the
test report.
For tests at EXTREME temperatures, measurements shall be as declared by the equipment
manufacturer in accordance with the procedures specified in clause 5.1.1, at the upper and lower
temperatures of the range as follows:
temperature: -10℃ to +60℃;
The carrier frequencies as in clause 4.2.2 and the e.i.r.p. Limit in clause 4.3.2 shall not be
exceeded.
Tests at extreme power source voltages specified below are not required when the equipment
under test is designed for operation as part of and powered by another system or piece of equipment.
Where this is the case, the limit values of the host system or host equipment shall apply. The
appropriate limit values shall be declared by the manufacturer and recorded in the test report.
The EXTREME TEST VOLTAGE for equipment to be connected to an AC mains source
shall be the nominal mains voltage ±10%.
For equipment using other power sources, or capable of being operated from a variety of
power sources (primary or secondary), the extreme test voltages shall be those declared by the
manufacturer; these shall be recorded in the test report. Before measurements are made the
equipment shall have reached thermal balance in the test chamber.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------9/25
II. Section 4.2: Carrier frequencies
2.1 Limit
ETSI EN 301 893 clause 4.2.2
The actual carrier center frequency for any given channel shall be maintained within the
range of fc ± 20 ppm. of the designated center frequency for that channel.
2.2 Test Condition
These measurements shall be performed under both normal and extreme test conditions (see
clause 5.1.1).
2.3 Test Procedures
Please refer to item 5.3.2.2 of the standard.
2.4 Deviation form test standard
No deviation.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------10/25
2.5
Test Results
TEST CONDITION
Max.
Voltage
Frequency Tempera
ture
5180 MHz
5200 MHz
5220 MHz
5240 MHz
Frequency
207Vac
(Min)
230Vac
(Norm)
-10 {C
5179.9564
5179.9572
5179.9578
25 {C
5179.9902
5179.9916
5179.9924
60 {C
5180.0962
5180.0981
5180.0988
-10 {C
5199.9560
5199.9568
5199.9570
25 {C
5199.9788
5199.9876
5199.9880
60 {C
5200.0990
5200.0996
5200.0998
-10 {C
5219.9524
5219.9528
5219.9532
25 {C
5219.9864
5219.9888
5219.9890
60 {C
5220.0998
5220.1004
5220.1010
-10 {C
5239.9542
5239.9548
5239.9554
25 {C
5239.9856
5239.9868
5239.9874
60 {C
5240.1012
5240.1016
5240.1018
Limit
±20 ppm.
Uncertainty
± 2141.21 Hz
253Vac
(Max)
Deviation
(ppm.)
+19.07 / -8.42
+19.19 / -8.46
+19.35 / -9.12
+19.43 / -8.74
NOTE: This test method requires that the UUT can be operated in an unmodulated mode.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------11/25
III.Section 4.3: RF output, Transmit Power Control (TPC) and power density
3.1 RF output power at the highest power level
(1) Limit: ETSI EN 301 893 clause 4.3.2.1
Frequency range
Mean EIRP limit
5150 MHz to 5350 MHz
23 dBm
5470 MHz to 5725 MHz
30 dBm
Note: For devices without TPC, the limits shall be reduced by 3 dB, except when
operating in the band 5150MHz to 5250MHz.
(2) Test Condition:
Please refer to item 5.3.3.1 of the standard.
(3) Test Procedures
Please refer to item 5.3.3.2.1.1 of the standard.
(4)Deviation form test standard
No deviation.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------12/25
(5) Test Result:
Power level at which the measurement has been performed 32.39 mW
TRANSMITTER
Frequency
Temperat
ure
Voltage
(V)
25
5180 MHz
-10
60
25
5240 MHz
-10
60
Tx Peak
(dBm)
Tx Ave.
(dBm)
230
9.823
1.748
207
11.529
4.101
253
11.534
4.104
207
7.252
-1.374
253
7.259
-1.370
230
9.686
1.581
207
11.560
4.049
253
11.566
4.057
207
7.187
-1.524
253
7.190
-1.519
Limit
Pk: 23 dBm, Av: 20dBm
Uncertainty
± 0.56dB
POWER
Cable Loss
(dB)
9
9
NOTE:
(1) The E.U.T is a stand-alone radio device (see the clause 5.3.2.2). The powered by the adaptor. So,
the AC power is used as the extreme voltage source. (See clause 5.3.4.2)
(2) The value of table is worst case during test condition, includes different combinations of
transmitter rate antenna polarity and temperature
(3) Duty cycle (X): 100%.
Average power = Tx Ave. + Cable Loss + Antenna Gain (2.00dBi) = 15.104 dBm,
E.I.R.P. = Average power +10 log (1/X)
= 15.104 dBm + 0 dB
= 15.104 dBm
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------13/25
3.2 RF output power at the lowest power level of the TPC range
(1) Limit: ETSI EN 301 893 clause 4.3.2.2
uency range
Mean EIRP limit
5150 MHz to 5350 MHz
17 dBm
5470 MHz to 5725 MHz
24 dBm
Note:
a. For devices using TPC, the RF output power during a transmission burst when
configured to operate at the lowest stated power level of TPC range shall not exceed the
levels given table.
b. The limits do not apply for devices without TPC or when operating in the band 5 150
MHz to 5250 MHz..
(2) Test Condition:
Please refer to item 5.3.3.1 of the standard.
(3) Test Procedures
Please refer to item 5.3.3.2.1.2 of the standard.
(4)Deviation form test standard
No deviation.
Test Result:
Not applied. It is operating in the band 5 150 MHz to 5250 MHz.
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------14/25
3.3 Power density
(1) Limit: ETSI EN 301 893 clause 4.3.2.1
Frequency range
Mean EIRP density limit
5150 MHz to 5350 MHz
10 dBm
5470 MHz to 5725 MHz
17 dBm
Note: For devices without TPC, the limits shall be reduced by 3 dB, except when
operating in the band 5150MHz to 5250MHz.
(2) Test Condition:
Please refer to item 5.3.3.1 of the standard.
(3) Test Procedures
Please refer to item 5.3.3.2.1.3 and 5.3.3.2.2 of the standard.
(4)Deviation form test standard
No deviation.
Test Result:
Channel
Frequency
(MHz)
Reading
valuer
(dBm)
CF
(dB)
Ant.
Duty
Gain(dB) cycle(dB)
Actually
Value
(dBm)
Limit
Margin
(dBm)
(dB)
CH 01
5180
-2.85
10.3
2.00
0
9.45
10.00
-0.55
CH 04
5140
-3.41
10.3
2.00
0
8.89
10.00
-1.11
± 1.50dB
Uncertainty
Note:
Duty cycle (X): 100%.
Power density (eirp)= Reading value. + Cable Loss + Antenna Gain (2.00dBi) +10 log (1/X),
= 9.45 dBm +10 log (1/X)
= 9.45 dBm + 0 dB
= 9.45 dBm
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------15/25
5180MHz
5240MHz
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------16/25
IV. Section4.4: Transmitter unwanted emissions
4.1
Test Result of Transmitter unwanted emission outside the 5 GHz RLAN bands
5180MHz (30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
192.47
H
-62.84
-54.00
-8.84
54
250.07
H
-60.73
-36.00
-24.73
54
481.05
H
-67.62
-54.00
-13.62
54
672.02
H
-61.66
-54.00
-7.66
54
767.81
H
-61.07
-54.00
-7.07
54
864.20
H
-58.75
-36.00
-22.75
54
153.68
V
-57.20
-36.00
-21.20
54
192.47
V
-64.37
-54.00
-10.37
54
260.37
V
-61.30
-36.00
-25.30
54
481.05
V
-64.99
-54.00
-10.99
54
767.81
V
-62.17
-54.00
-8.17
54
864.20
V
-58.04
-36.00
-22.04
54
Note:
(1) A. P. means antenna polarization, horizontal and vertical.
Amplitude means the fundamental emission measured
C F. means Correct Factor, Rate means transmitter rate
Corrected Factor (C. F.) = Cable Loss + Antenna Factor – Amplified Gain
LEVEL = Amplitude + Corrected Factor
(2) The margin is minus that means under limit.
(3) The value of table is the worst case during test condition. This is including different
combinations of transmitter rate antenna polarity and temperature.
(4) The level of confidence of 95% , the uncertainty of measurement of radiated emission is
+2.85dB / -2.77dB
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------17/25
5240MHz (30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
192.47
H
-61.91
-54.00
-7.91
54
250.67
H
-61.05
-36.00
-25.05
54
480.44
H
-67.59
-54.00
-13.59
54
672.02
H
-62.20
-54.00
-8.20
54
767.81
H
-60.15
-54.00
-6.15
54
864.20
H
-57.78
-36.00
-21.78
54
154.28
V
-57.52
-36.00
-21.52
54
192.47
V
-63.42
-54.00
-9.42
54
390.72
V
-58.50
-36.00
-22.50
54
480.44
V
-65.67
-54.00
-11.67
54
672.02
V
-63.96
-54.00
-9.96
54
864.20
V
-58.09
-36.00
-22.09
54
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------18/25
5180MHz (1GHz to 26.50GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
5616.67
H
-49.12
-30.00
-19.12
54
7241.17
H
-46.84
-30.00
-16.84
54
7950.67
H
-47.11
-30.00
-17.11
54
10360.08
H
-45.12
-30.00
-15.12
54
15541.83
H
-47.98
-30.00
-17.98
54
5304.17
V
-45.08
-30.00
-15.08
54
7034.00
V
-48.54
-30.00
-18.54
54
7646.33
V
-47.94
-30.00
-17.94
54
10360.08
V
-45.45
-30.00
-15.45
54
15541.83
V
-48.31
-30.00
-18.31
54
5240MHz (1GHz to 26.50GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
5637.50
H
-47.77
-30.00
-17.77
54
6425.33
H
-49.09
-30.00
-19.09
54
6876.33
H
-48.53
-30.00
-18.53
54
7609.67
H
-48.64
-30.00
-18.64
54
10482.58
H
-46.00
-30.00
-16.00
54
5579.17
V
-47.82
-30.00
-17.82
54
6511.50
V
-48.73
-30.00
-18.73
54
7288.83
V
-47.88
-30.00
-17.88
54
10482.58
V
-46.83
-30.00
-16.83
54
15721.50
V
-48.07
-30.00
-18.07
54
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------19/25
4.2
Test Result for Standby mode
(30MHz to 26.50GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
240.97
H
-58.20
-57.00
-1.20
---
259.77
H
-58.76
-57.00
-1.76
---
288.26
H
-59.71
-57.00
-2.71
---
672.62
H
-59.28
-57.00
-2.28
---
767.81
H
-59.00
-57.00
-2.00
---
864.20
H
-59.93
-57.00
-2.93
---
2473.33
H
-56.81
-47.00
-9.81
---
3897.08
H
-53.27
-47.00
-6.27
---
5724.58
H
-50.60
-47.00
-3.60
---
8451.67
H
-52.06
-47.00
-5.06
---
192.47
V
-63.33
-57.00
-6.33
---
221.57
V
-61.86
-57.00
-4.86
---
288.26
V
-63.48
-57.00
-6.48
---
385.26
V
-63.60
-57.00
-6.60
---
672.62
V
-60.41
-57.00
-3.41
---
864.81
V
-58.43
-57.00
-1.43
---
2728.33
V
-57.46
-47.00
-10.46
---
4045.83
V
-52.68
-47.00
-5.68
---
6418.75
V
-52.87
-47.00
-5.87
---
10109.17
V
-50.91
-47.00
-3.91
---
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------20/25
4.3 Test Result of Transmitter unwanted emission within 5 GHz RLAN bands
5180MHz
5240MHz
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------21/25
V. Section 4.6: Dynamic Frequency Selection (DFS)
5.1 Test Result of Frequency Range for DFS
(1)Limit:
Please refer to item Annex D of the standard
(2) Test Condition:
Please refer to item 5.3.7.1 of the standard.
(3) Test Procedures
Please refer to item 5.3.7.2 of the standard.
(4) Deviation form test standard
No deviation.
Test Result:
Not applied. Radar detection is not required in the frequency range 5150 MHz to 5250 MHz
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------22/25
VI. Section 4.5: Spurious Emissions of Receiver
5180MHz (30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
164.59
H
-63.67
-57.00
-6.67
54
192.47
H
-62.89
-57.00
-5.89
54
251.28
H
-60.29
-57.00
-3.29
54
672.62
H
-62.63
-57.00
-5.63
54
767.81
H
-59.69
-57.00
-2.69
54
864.20
H
-59.86
-57.00
-2.86
54
153.68
V
-57.95
-57.00
-0.95
54
193.08
V
-64.27
-57.00
-7.27
54
250.67
V
-60.57
-57.00
-3.57
54
384.66
V
-63.20
-57.00
-6.20
54
672.62
V
-63.30
-57.00
-6.30
54
864.20
V
-57.27
-57.00
-0.27
54
Note:
(1) A. P. means antenna polarization, horizontal and vertical.
Amplitude means the fundamental emission measured.
C F. means Correct Factor, Rate means transmitter rate
Corrected Factor (C. F.) = Cable Loss + Antenna Factor – Amplified Gain
LEVEL = Amplitude + Corrected Factor
(2) The value of table is worst case during test condition, includes different combinations of
transmitter rate antenna polarity and temperature
(3) The level of confidence of 95% , the uncertainty of measurement of radiated emission is
+2.85dB / -2.77dB
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------23/25
5240MHz (30MHz to 1GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
192.47
H
-62.47
-57.00
-5.47
54
249.46
H
-61.32
-57.00
-4.32
54
287.66
H
-64.25
-57.00
-7.25
54
672.62
H
-61.93
-57.00
-4.93
54
767.81
H
-59.49
-57.00
-2.49
54
864.20
H
-59.83
-57.00
-2.83
54
150.64
V
-58.19
-57.00
-1.19
54
259.77
V
-62.38
-57.00
-5.38
54
288.26
V
-63.50
-57.00
-6.50
54
481.05
V
-63.41
-57.00
-6.41
54
767.81
V
-62.17
-57.00
-5.17
54
864.20
V
-58.16
-57.00
-1.16
54
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------24/25
Channel 1
(1GHz to 26.50GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
2643.33
H
-56.10
-47.00
-9.10
54
3861.67
H
-52.14
-47.00
-5.14
54
6425.83
H
-51.71
-47.00
-4.71
54
10116.25
H
-50.44
-47.00
-3.44
54
2388.33
V
-55.88
-47.00
-8.88
54
3996.25
V
-52.01
-47.00
-5.01
54
6185.00
V
-50.32
-47.00
-3.32
54
9131.67
V
-51.38
-47.00
-4.38
54
Channel 13
(1GHz to 26.50GHz)
Frequency
A. P.
LEVEL
Limit
Margin
Rate
(MHz)
(H/V)
(dBm)
(dBm)
(dB)
(Mbps)
2140.42
H
-57.10
-47.00
-10.10
54
3337.50
H
-53.01
-47.00
-6.01
54
5908.75
H
-50.38
-47.00
-3.38
54
9585.00
H
-51.53
-47.00
-4.53
54
2388.33
V
-55.38
-47.00
-8.38
54
3996.25
V
-51.84
-47.00
-4.84
54
6645.42
V
-52.69
-47.00
-5.69
54
10116.25
V
-50.94
-47.00
-3.94
54
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------25/25
VII. Instrument and Ancillaries Equipment of List
Calibration Date
Instrument Name
Model
Brand
Serial No.
Next time
EMI Receiver
8546A
HP
3520A00242
09/06/07
RF Filter Section
85460A
HP
3448A00217
09/06/07
Small Biconical
UBAA9114 &
SCHWARZECK
127
12/07/07
Antenna
BBVU9135
Pre-amplifier
PA1F
TRC
1FAC
05/20/07
Auto Switch Box
ASB-01
TRC
9904-01
05/20/07
A30A30-0058-50FS-15M
JYEBAO
SMA-01
05/20/07
A30A30-0058-50FS-1M
JYEBAO
SMA-02
05/20/07
Spectrum Analyzer
8564E
HP
3720A00840
12/11/07
Microwave
84125C
HP
US36433002
11/18/07
Horn Antenna
3115
EMCO
9104-3668
02/05/08
Standard Guide
84125-80008
HP
18-26.5GHz
12/12/07
84125-80001
HP
26.5-40GHz
12/12/07
Horn Antenna
1196E (3115)
HP (EMCO)
9704-5178
02/12/08
Pre-amplifier
PA2F
TRC
2F1GZ
06/20/07
Coaxial Cable
A30A30-0058-50FST118
JYEBAO
MSA-05
06/20/07
A30A30-0058-50FST118
JYEBAO
MSA-04
06/20/07
(>30MHz)
Coaxial Cable
(Double shielded,
15 meter)
Coaxial Cable
(1.1 meter)
Preamplifier
Horn Antenna
Standard Guide
Horn Antenna
(3 miter)
Coaxial Cable
(1 meter)
Report No.: M47ET060805 (ETSI EN 301 893)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 1/48
Report No.
M47ET060805
Specifications
ETSI EN 301 489-1 V1.5.1 (November, 2004)
ETSI EN 301 489-17 V1.2.1 (April, 2002)
Applicant
Moxa Technologies Co., Ltd.
Applicant
address
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
Items tested
Model No.
EUT Condition
RISC-based Ready-to-Run Wireless Embedded Computer
ThinkCore W341-LX
Results
Date
Compliance (As detailed within this report)
11/29/2006 (month / day / year) (Sample received)
03/29/2007 ~ 05/04/2007
(Test)
Engineering sample;
(Sample # M470805)
Pre-production;
Final production
Prepared by
Project Engineer
(Jack Tsai)
Authorized by
General Manager
(Frank Tsai)
(month / day / year)
Issue date
May 10, 2007
Modifications
Tested by
None
Training Research Co., Ltd.
Office at
No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Laboratory at
1F, No. 255, Nan Yang Street, Shijr City, Taipei Hsien 221, Taiwan
Open site at
No. 2, Lane 530, Balian Rd., Sec. 1, Shijr City, Taipei Hsien 221, Taiwan
Conditions of issue:
This test report shall not be reproduced except in full, without written approval of
TRC. And the test result contained within this report only relate to the sample
submitted for testing.
★ Aut. No. ELA 131
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 2/48
Generally Statement:
The results appear in the following order:
Electromagnetic compatibility and radio spectrum matters (ERM); Electro Magnetic
Compatibility (EMC) standard for radio equipment and services;
Part 1: Common Technical requirements
Part 17: Specific conditions for Wideband data and HIPERLAN equipment.
The results exhibits below only apply to particular samples tested and to the specific tests
carried out, as detailed in this Test Report. The issue of this Test Report does not indicate any
measure of Approval, Certification, Supervision, Control or Surveillance by Training Research
Co., Ltd. of any product. No extract, abridgement or abstraction from a Test Report may be
published or used to advertise a product without the written consent of the Director, Training
Research Co., Ltd. who reserves the absolute right to agree or reject all or any of the details of
any item of publicity for which consent may be sought.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 3/48
Contents
CHAPTER 0
EMISSION AND SUSCEPTIBILITY STANDARDS ........ 5
EMISSION STANDARDS .............................................................................. 5
SUSCEPTIBILITY STANDARDS .................................................................... 5
CHAPTER 1
INTRODUCTION .................................................................. 6
DESCRIPTION OF EUT............................................................................... 6
TEST METHOD .......................................................................................... 7
LIST OF SUPPORT EQUIPMENT................................................................... 9
CHAPTER 2
EMISSION AND IMMUNITY REQUIREMENTS
OVERVIEW ........................................................................ 11
EMISSION (ETSI EN 301 489-1) ............................................................. 11
IMMUNITY (ETSI EN 301 489-1)............................................................ 12
CHAPTER 3
PERFORMANCE CRITERIA............................................ 13
ETSI EN 301 489-17, SUBCLAUSE 6.2 ................................................... 13
CHAPTER 4
ELECTROSTATIC DISCHARGES IMMUNITY TEST 19
ESD TEST INFORMATION:....................................................................... 19
EN 61000-4-2 PHOTO OF TEST SET-UP............................................ 22
CHAPTER 5
RADIO FREQUENCY IMMUNITY TEST (RS) ............. 23
RS TEST INFORMATION:.......................................................................... 23
EN 61000-4-3 PHOTO OF TEST SET-UP............................................ 25
CHAPTER 6
ELECTRIC FAST TRANSIENT/BURST REQUIREMENTS
TEST..................................................................................... 26
EFT TEST INFORMATION: ....................................................................... 26
EN 61000-4-4 PHOTO OF TEST SET-UP............................................ 29
CHAPTER 7
SURGE IMMUNITY TEST ................................................ 30
SURGE TEST INFORMATION:.................................................................... 30
EN 61000-4-5 PHOTO OF TEST SET-UP............................................ 32
CHAPTER 8
CONTINUOUS WAVE VOLTAGE IMMUNITY TEST 33
CS TEST INFORMATION:.......................................................................... 33
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 4/48
TEST INSTRUMENTS: ............................................................................... 35
EN 61000-4-6 PHOTO OF TEST SET-UP............................................ 36
CHAPTER 9
VOLTAGE DIP / INTERRUPTION TEST....................... 37
DIP TEST INFORMATION: ........................................................................ 37
EN 61000-4-11 PHOTO OF TEST SET-UP.......................................... 38
CHAPTER 10
HARMONICS TEST............................................................ 39
CHAPTER 11
VOLTAGE FLUCTUATION AND FLICKER TEST ..... 40
CHAPTER 12
CONDUCTED EMISSION TEST ...................................... 41
TEST CONDITION AND SETUP ................................................................... 41
LIST OF TEST INSTRUMENT...................................................................... 42
CONDUCTED TEST PLACEMENT (FRONT VIEW AND SIDE VIEW).............. 43
TEST RESULT OF CONDUCTED EMISSIONS FOR MAINS POWER ............... 44
CHAPTER 13
RADIATED EMISSION TEST........................................... 45
TEST CONDITION AND SETUP ................................................................... 45
LIST OF TEST INSTRUMENT...................................................................... 46
RADIATED TEST PLACEMENT (FRONT VIEW AND REAR VIEW)................ 47
TEST RESULT OF SPURIOUS RADIATED EMISSIONS ................................. 48
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 5/48
Chapter 0
Emission and Susceptibility Standards
Emission Standards
Emission Standard
European Standard
International Standard
(
)
EN 61000-6-3/2001
IEC 61000-6-3/1996
(
)
EN 61000-6-4/2001
IEC 61000-6-4/1997
(
)
EN 50081-1/1992
(
)
EN 50081-1/8.93
(
)
EN 55014/4.93
CISPR 14: 1993
(
)
EN 55015/12.93
CISPR 15: 1992
(
)
EN 55013/2001
CISPR 13: 2001
(X)
EN 55022/98 +A1/2000 +A2/2003
CISPR 22: 2002
(X)
EN 61000-3-2/2000
IEC 61000-3-2: 2000
(X)
EN 61000-3-3/1995 +A1/2001
IEC 61000-3-3: 1994 +A1/2001
European Standard
International Standard
Susceptibility Standards
Susceptibility Standard
(
)
EN 61000-6-1/2001
IEC 61000-6-1/1997
(
)
EN 61000-6-2/2001
IEC 61000-6-2/1999
(
)
EN 50082-1/1997
(
)
EN 50082-2/1994
(
)
EN 55024/1998
CISPR 24/1997
+A1/2001+A2/2003
(
)
EN 55020/2002
CISPR 20/2002
(X)
EN 61000-4-2:2001
IEC 61000-4-2:2001
(X)
EN 61000-4-3:2002 +A1/2002
IEC 61000-4-3:2002 +A1/2002
(X)
EN 61000-4-4:1995
IEC 61000-4-4:1995
+A1/2000 +A2/2001
+A1/2000+A2/2001
(X)
EN 61000-4-5:2001
IEC 61000-4-5:2001
(X)
EN 61000-4-6:2003
IEC 61000-4-6:2003
(
EN 61000-4-8:2001
IEC 61000-4-8:2001
EN 61000-4-11:2001
IEC 61000-4-11:2001
)
(X)
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 6/48
Chapter 1
Introduction
Description of EUT
Product Name
: RISC-based Ready-to-Run Wireless Embedded Computer
Model No.
: ThinkCore W341-LX
Frequency Range
: 2.400GHz ~ 2.4835GHz/5.150GHz ~ 5.250GHz
Operating Frequency : 2.412GHz ~ 2.472GHz/5.180GHz ~ 5.240GHz
Support Channel
: 13 Channels/4 Channels
Channel Spacing
: 5MHz/20MHz
Modulation Skill
: DBPSK, DQPSK, CCK, OFDM
Power Type
: Powered by the switching adapter,
Manufacture: BALANCE ELECTRONICS CO., LTD.
Model: GPSA-1200125
I/P: 100 ~ 240VAC ~ 50/60Hz 0.5A
O/P: 12VDC 1.2A.
Primary: 182cm length, non-shielded, without ferrite core
Secondary: 186cm length, non-shielded, without ferrite core
Data Cable
: Eithernet Cable x 1, 10m length, non-shielded, without ferrite core
Remark: Restricted to telecommunication centres use.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 7/48
Test Method
1. The DC-In connected to AC mains supply by switching adapter.
2. The two USB ports connected with USB flash drive.
3. The Relay Output port connected with terminator.
4. The LAN port of EUT connected to far LAN card.
5. The four RS-232/422/485 ports connected with terminators.
6. The notebook PC and test fixture is connected by USB transfer to RS-232 cable, and
then test fixture connected with EUT setting test mode.
7. Using the PC and software provided by the manufacturer to control EUT, the test is
performed under the specific conditions.
8. Then making EUT to the following mode.
(a) EMI testing: making EUT to linking mode with support equipments
(b) EMS testing: same as above
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 8/48
Configuration of System for Conducted and Radiated
Power
Source
USB
Drive*2
EUT
Test-table
Power
Source
Far
Fiber
LAN
Monitor
PS/2
Keyboard
PC
PS/2
Mouse
Connections of equipment
PC:
* VGA Port …...................
a monitor
* PS/2-key Port ………….
a PS/2 keyboard
* PS/2-mouse Port ………
a PS/2 mouse
* Fiber Port ……………...
EUT
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 9/48
List of Support Equipment
In order to construct the minimum testing, following equipment were used as the support units.
PC
: HP
Model No.
:
Pavilion t1000
Serial No.
:
TWL3320051
FCC ID
:
N/A, DoC (Declaration of Confirmation) Approved
BSMI
:
R33001
Power type
:
100 ~ 127VAC/200 ~ 240VAC, 6A/3A, 50 ~ 60Hz, Switching
Power cord
:
Non-shielded, 1.80m length, Plastic hood, No ferrite core
Monitor
: HP Flat Panel Monitor
Model No.
:
PE1234
Serial No.
:
CNN4120K7T
FCC ID
:
DoC Approved
BSMI
:
T3A002
Power type
:
100 ~ 240 VAC / 50 ~ 60 Hz, Switching
Power cord
:
Shielded, 1.83m length, No ferrite core
Data cable
:
Shielded, 1.80m length, with two ferrite cores
Mouse
: HP
Model No.
:
M-UR89
Serial No.
:
LZS21750238
FCC ID
:
DoC Approved
BSMI
:
3892D767
Power type
:
By PC
Power cord
:
Non-shielded, 1.88m length, No ferrite core
Keyboard
: HP
Model No.
:
5187-0343
Serial No.
:
BE21700404
FCC ID
:
DoC Approved
BSMI
:
3892C981
Power type
:
By PC
Data cable
:
Shielded, 1.73m length, Plastic hood, No ferrite core
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 10/48
LAN Card
: D-Link
Model No.
:
DFE-530TX
Serial No.
:
0050BAE32FF3, 0050BAE3158B
FCC ID
:
N/A, DoC Approved
Power type
:
Powered by PC
WLAN AP
: Planex Communication Inc.
Model No.
:
BLW-045AG
Serial No.
:
40DDA0093
DGT ID
:
DGT093LP0296
Power type
:
Powered by AC adaptor
USB 2.0
Flash Disk
: Transcend Information, Inc.
Model No.
:
Serial No.
:
BSMI
:
Power type
:
TS128MJF2A
85047; 85133
D33193
By EUT
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 11/48
Chapter 2
Emission and Immunity Requirements Overview
Emission (ETSI EN 301 489-1)
Phenomenon
Application
Equipment test requirement
Reference
Radio and Subclause in
the present
ancillary
equipment for document
portable use
(portable
equipment)
Radio and
ancillary
equipment for
fixed use (base
station
equipment)
Radio and
ancillary
equipment for
vehicular use
(mobile
equipment)
Applicable for Applicable for
stand alone
stand alone
testing
testing
Radiated
emission
Enclosure of
ancillary
equipment
Applicable for
stand alone
testing
Conducted
emission
DC power
input/output
port
Applicable
Conducted
emission
AC mains
input/output
port
Harmonic
current
emissions
Voltage
fluctuations
and flicker
Applicable
8.2
Not applicable
8.3
Applicable
Not applicable Not applicable
8.4
AC mains
input port
Applicable
Not applicable Not applicable
8.5
AC mains
input port
Applicable
Not applicable Not applicable
8.6
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 12/48
Immunity (ETSI EN 301 489-1)
Phenomenon
Application
RF
electromagnetic
field ( 80MHz to
1GHz)
Enclosure
Applicable
Applicable
Applicable
9.2
Electrostatic
discharge
Enclosure
Applicable
Applicable
Applicable
9.3
Fast transients
Signal,
common mode telecommunication
and control ports,
DC and AC power
ports
Applicable
Not
applicable
Not
applicable
9.4
RF common
Signal,
mode 0.15 MHz telecommunication
to 80MHz
and control ports,
DC and AC power
ports
Applicable
Applicable
Not
applicable
9.5
Not applicable
Applicable
Not
applicable
9.6
Applicable
Not
applicable
Not
applicable
9.7
Applicable
Not
applicable
Not
applicable
9.8
Transients and
surges
DC power input
ports
Voltage dips and AC mains power
interruptions
input ports
Surges, line to AC mains power
line and line
input ports,
ground
telecommunication
ports
Equipment test requirement
Reference
Radio and
Radio and
Radio and Subclause in
the present
ancillary
ancillary
ancillary
equipment for equipment for equipment for document
fixed use (base vehicular use portable use
station
(mobile
(portable
equipment)
equipment) equipment)
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 13/48
Chapter 3
Performance Criteria
ETSI EN 301 489-17, Subclause 6.2
Table 1 Performance criteria
Criteria
During test
After test
A
Shall operate as intended
Shall operate as intended
B
C
May show degradation of
performance (NOTE 1)
Shall be no loss of function
Shall be no unintentional
transmissions
Shall be no degradation of performance
May show loss of function (one or
more)
May show degradation of
performance (NOTE 1)
No unintentional transmissions
Function shall be self-recoverable
Shall operate as intended after recovering
Shall be no degradation of performance
May be loss of function (one or
more)
Functions shall be recoverable by the
operator
(NOTE 2)
Shall be no loss of function
Shall be no loss of stored data or user
programmable functions
(NOTE 2)
Shall be no loss of stored data or user
programmable functions
Shall operate as intended after recovering
Shall be no degradation of performance
(NOTE 2)
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 14/48
NOTE 1:
Degradation of performance during the test is understood as a degradation to a level not
below a minimum performance level specified by the manufacturer for the use of the apparatus
as intended. In some cases the specified minimum performance level may be replaced by a
permissible degradation of performance.
If the minimum performance level or the permissible performance degradation in not
specified by the manufacturer then either of these may be derived from the product description
and documentation (including leaflets and advertising) and what the user may reasonably expect
form the apparatus if used as intended.
NOTE 2:
No degradation of performance after the test is understood as no degradation below a
minimum performance level specified by the manufacturer for the use of the apparatus as
intended. In some cases the specified minimum performance level may be replaced by a
permissible degradation of performance. After the test no change of actual operating data or user
retrievable data is allowed.
If the minimum performance level or the permissible performance degradation in not
specified by the manufacturer then either of these may be derived from the product description
and documentation (including leaflets and advertising) and what the user may reasonably expect
form the apparatus if used as intended.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 15/48
ETSI EN 301 489-1
Performance criteria for Continuous phenomena applied Transmitters (CT)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for continuous
phenomena shall apply.
During and after the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EUT shall not unintentionally transmit or change its actual operating state and stored
data. If the minimum performance level or the permissible loss is not specified by the
manufacturer, then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Performance criteria for Transient phenomena applied Transmitters (TT)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for transient
phenomena shall apply.
After the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EMC exposure to an electromagnetic phenomenon, a degradation of performance is,
however, allowed. No change of the actual mode of operation (e.g. unintended transmission)
or stored data is allowed.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 16/48
If the minimum performance level or the permissible loss is not specified by the
manufacturer, Then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Performance criteria for Continuous phenomena applied Receivers (CR)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for continuous
phenomena shall apply.
During and after the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EUT shall not unintentionally transmit or change its actual operating state and stored
data. If the minimum performance level or the permissible loss is not specified by the
manufacturer, then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 17/48
Performance criteria for Transient phenomena applied Receivers (TR)
If no further details are given in the relevant part of the present document dealing with the
particular type of radio equipment, the following general performance criteria for transient
phenomena shall apply.
After the test:
The apparatus shall continue to operate as intended. No degradation of performance or loss
of function is allowed below a permissible performance level specified by the manufacturer
when the apparatus is used as intends. In some cases this permissible performance level may
be replaced by a permissible loss of performance.
During the test:
The EMC exposure to an electromagnetic phenomenon, a degradation of performance is,
however, allowed. No change of the actual mode of operation (e.g. unintended transmission)
or stored data is allowed.
If the minimum performance level or the permissible loss is not specified by the
manufacturer, then either of these may be deduced from the product description and
documentation and what the user may reasonably expect form the apparatus if used as
intended.
For ancillary equipment the pass/failure criteria supplied by the manufacturer (see subclause
6.4) shall apply, unless the ancillary equipment is tested in connection with a receiver or
transmitter in which case the corresponding performance criteria above shall apply.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 18/48
ETSI EN 301 489-17
Performance criteria for Continuous phenomena applied Transmitters (CT)
The performance criteria A shall apply.
Tests shall be repeated with the EUT in standby mode (if applicable) to ensure that
unintentional transmission does not occur. In systems using acknowledgement signals, it is
recognized that an ACKnowledgement (ACK) or Not ACKnowledgement (NACK) transmission
may occur, and steps should be taken to ensure that any transmission resulting from the
application of the test is correctly interpreted.
Performance criteria for Transient phenomena applied Transmitters (TT)
The performance criteria B shall apply, except for voltage dips of 100ms and voltage
interruptions of 5000 ms duration, for which performance criteria C shall apply.
Tests shall be repeated with the EUT in standby mode (if applicable) to ensure that unintentional
transmission does not occur. In system using acknowledgement signals, it is recognized that an
acknowledgement (ACK) or not-acknowledgement (NACK) transmission may occur, and steps
should be taken to ensure that any transmission resulting from the application of the test is
correctly interpreted.
Performance criteria for Continuous phenomena applied Receivers (CR)
The performance criteria A shall apply.
Where the EUT is a transceiver, under no circumstances, shall the transmitter operate
unintentionally during the test. In systems using acknowledgement signals, it is recognized that
an ACK or NACK transmission may occur, and steps should be taken to ensure that any
transmission resulting from the application of test is correctly interpreted.
Performance criteria for Transient phenomena applied Receivers (TR)
The performance criteria B shall apply, except for voltage dips of 100ms and voltage
interruptions of 5000 ms duration, for which performance criteria C shall apply.
Where the EUT is a transceiver, under no circumstances, shall the transmitter operate
unintentionally during the test. In systems using acknowledgement signals, it is recognized that
an ACK or NACK transmission may occur, and steps should be taken to ensure that any
transmission resulting from the application of test is correctly interpreted.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 19/48
Chapter 4
Electrostatic Discharges Immunity Test
ESD Test information:
Test setup: Shielded room, According to EN 61000-4-2
Test setup for table-top equipment at laboratory tests:
Typical position for
indirect discharge to VCP
Typical position for
indirect discharge
Typical position for
indirect discharge to HCP
EUT
VPC
0.5m X 0.5m
0.1 m
Insulation
Horizontal coupling place
1.6m X 0.8m
Power Supply
0.1 m
Wooden table H=0.8m
470kohm
Resistor
Ground Reference Plane
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 20/48
Test levels: (Apply Level 2 and Level 3)
1a — Contact discharge
1b — Air discharge
Level
Test voltage
(kV)
Level
Test voltage
(kV)
1
2
1
2
2
4
2
4
3
6
3
8
4
8
4
15
X
Special
X
Special
NOTE: “X” is an open level. The level has to be specified in the dedicated equipment specification. If
higher voltages than those shown are specified, special test equipment may be needed.
Test Voltage:
4KV contact discharge
8KV air discharge
Indirect Discharges:
HCP
VCP
Polarity:
Positive
Negative
Test mode: Ref. Test method of Chapter 1
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 21/48
Test points: Enclosure and Connectors of EUT.
Test instruments:
Name
Model Number
Serial Number
Selected
Best Plus BURST ESD
SURGE TRANSIENTS
Best Plus V6.2
199749-019SC
SCHAFFNER
EMV AG
NSG 438
INA 4380
253
KeyTek Instrument
ESD Test system
Series 2000
9204303/9204310
9209226/9301395
NoiseKen Electrostatic
Discharge Simulator
ESS-100L(A)
2100C03605
NoiseKen Electrostatic
Discharge Gun
TC-815P
2100C03566
X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) Enclosure
(
)CT
( X )TT
(
) CR
( X )TR
( X ) Signal and control ports
(
)CT
( X )TT
(
) CR
( X )TR
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 22/48
EN 61000-4-2 PHOTO OF TEST SET-UP
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 23/48
Chapter 5
Radio Frequency Immunity Test (RS)
RS Test information:
Test setup: Fully anechoic chamber
Radiated Immunity Test Setup
Test levels: (Apply Level 2)
Level
Test Field Strength
(V/m)
1
1
2
3
3
10
X
Special
NOTE: the “X” is an open test level. This level may be given in the product specification.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 24/48
Field strength:
( X ) 3V/m at 80 ~ 1000 MHz
( X ) 3V/m at 1400 ~ 2000 MHz
( ) FM %
( X ) 80% AM Modulation with 1KHz
( ) 80% AM Modulation with 400Hz when signal is modulated at 1kHz
( ) 900 KHz±5 KHz with PM 200 Hz and 100% depth
Modulation:
Step size:
Sweep time:
Test mode:
( X ) 1% step size
( X ) 2.5 Second
Ref. Test method of Chapter 1
Test instruments:
Name
Model Number
Serial Number
Selected
Amplifier Research
RF Amplifier (0.8 – 3GHz)
15S1G3
305899
X
Amplifier Research
40dB Attenuator
DC7144
305930
X
Mini-Circuits
LZT-1
RF Amplifier (20 – 500MHz)
N/A
X
Mini-Circuits
RF Amplifier (500 – 1GHz)
LZT-2
N/A
X
EMCO Bi-log Antenna
3141
9711-1075
X
TRC Horn Antenna
HA0501-05
RS-01
X
HP Signal Generator
8648D
3613A00117
X
HP Power Meter
E4418B
GB39291240
X
WG radiation meters
EMC-20
BN2244129
X
WG E-filed
2244 / 90.20
Z-0001
X
GW DC Power Supply
GPR-3520HD
A150114
X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) Enclosure
( X )CT
(
)TT
( X ) CR
(
)TR
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 25/48
EN 61000-4-3 PHOTO OF TEST SET-UP
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 26/48
Chapter 6
Electric Fast Transient/Burst Requirements Test
EFT Test information:
General test set-up for laboratory type tests:
> 0.25 m
> 0.25 m
> 0.25 m
> 0.25 m
EUT
(L)
(L)
EUT
AC mains
supply
Capacitive
coupling clamp
AC mains
supply
EUT
EUT
0.1 m
0.1 m
Reference
plane
EFT/Bgenerator (B)
Insulating
support
Grounding connection
according to the
manufacturer’s
specification.
Length to be specified
in the test plan.
Non-metallic
table
EFT/Bgenerator
(L) = length between clamp and EUT to be tested, should
not be more than 1-meter
(A) = location for supply line coupling
(B) = location for signal lines coupling
Coupling / decoupling
network (A)
Reference
plane
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 27/48
Test levels: (Apply Level 2)
Open-circuit output test voltage (±10%) and repetition rate of the impulses (±20%)
On power supply port, PE
Level
Voltage peak
kV
Repetition rate
kHz
On input/output signal, data and
control ports
Voltage peak
kV
Repetition rate
kHz
1
0.5
5
0.25
5
2
1
5
0.5
5
3
2
5
1
5
4
4
2.5
2
5
X
Special
Special
Special
Special
NOTE: the “X” is an open level. The level has to be specified in the dedicated equipment specification
Test setup: According to EN 61000-4-4
Test Voltage:
DC Power line
AC Power line
Signal & Control line
0.5 KV, 5 KH
1 KV, 5 KHz
0.5 KV, 5 KHz;
1 KV, 5 KHz
Polarity:
Positive
Negative
Test Duration:
1 minute
3 minutes
Connected lines:
Power line shielded
Power line non-shielded
Signal & Control line non-shielded (RJ45)
Signal & Control line shielded
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 28/48
Test mode: Ref. Test method of Chapter 1.
Test instrument:
Name
Model Number
Serial Number
Selected
Best Plus BURST ESD Best Plus V6.2
SURGE TRANSIENTS
199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
KeyTek Instrument
EFT Test system
E412
9505206/505207
X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) Signal and control ports
(
)CT
( X )TT
(
) CR
( X )TR
(
) DC power input ports
(
)CT
(
)TT
(
) CR
(
( X ) AC mains input ports
(
)CT
( X )TT
(
) CR
( X )TR
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
)TR
Test Report ------------------------------------------------------------------------------- 29/48
EN 61000-4-4 PHOTO OF TEST SET-UP
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 30/48
Chapter 7
Surge Immunity Test
Surge Test information:
Test setup: According to EN 61000-4-5
Test levels: (Apply Level 2 and Level 3)
Level
Test Field Strength
(kV)
1
0.5
2
1.0
3
2.0
4
4.0
X
Special
NOTE: the “X” is an open class. This level may be specified in the product specification.
Test Voltage:
DC Power line
AC Power line
Control line
Signal
0.5 KV
Line – Line: 1KV
Line – Ground: 2KV
Line – Line: 0.5KV
Line – Ground: 1KV
0.5 KV
1 KV,
0.5KV
Time:
1.2/50µs [Voltage waveform]
8/20µs [Current waveform]
Polarity:
Positive
Negative
Connected lines:
Power line shielded
Power line non-shielded
Signal & Control line non-shielded
Signal & Control line shielded
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 31/48
Test mode: Ref. Test method of Chapter 1.
Test instrument:
Name
Model Number
Serial Number
Selected
Best Plus BURST ESD Best Plus V6.2
SURGE TRANSIENTS
199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
KeyTek Pulsed-EMI
Test System
E103, E501B,
E502B, E503,
E505A, E4552A
0008260 ~0008264,
0008254
X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
( X ) AC mains input ports
(
)CT
( X )TT
(
) CR
( X )TR
( X ) Signal and control ports
(
)CT
( X )TT
(
) CR
( X )TR
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 32/48
EN 61000-4-5 PHOTO OF TEST SET-UP
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 33/48
Chapter 8
Continuous Wave Voltage Immunity Test
CS Test information:
Test setup: According to EN 61000-4-6
Immunity test to RF conducted disturbances:
Auxiliary
equipment 1
CDN
CDN: Coupling and
decoupling network
Equipment
under test
Auxiliary
equipment 1
CDN
0.1 m
support
Ground reference plane
T
T2: Power attenuator
(6dB)
T: Termination 50ohm
T2
RF — generator
Test generator
Test levels: (Apply Level 2)
Frequency range 150kHz to 80MHz
Level
Voltage level (e.m.f.)
Uo [dB(µv)]
Uo [V]
1
120
1
2
130
3
3
140
10
X
Special
NOTE: the “X” is an open test level.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 34/48
Test Frequency:
0.15 ~ 80MHz
Modulation:
FM %
80% AM Modulation with 1kHz
80% AM Modulation with 400Hz when signal is modulated at 1kHz
900 MHz±5 MHz with PM 200 Hz and 50% duty cycle
Step size:
Performed over the frequency range 150kHz to 80MHz with the
exception of an exclusion band for transmitters, and for receivers and
duplex transceivers
For receivers and transmitters the stepped frequency increments shall
be 1% frequency increment of the momentary frequency in the
frequency range 150kHz to 80MHz, unless specified otherwise in the
part of EN 301 489 dealing with the particular type of radio equipment
Field strength:
1Vrms
3Vrms
10Vrms
Connected lines:
Power line shielded
Power line non-shielded
Signal & Control line non-shielded
Signal & Control line shielded
Test mode: Ref. Test method of Chapter 1
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 35/48
Test instruments:
Name
Model Number
Serial Number
Selected
FRANKONIA EMV–Mess–
System
CIT-10
103A3113
X
FRANKONIA CDN
M2+M3
A3011015
X
FRANKONIA CDN
T2-801
A3010002
FRANKONIA CDN
T4-801
A3015004
FRANKONIA CDN
S1-801
A3005002
SCHAFFNER FM-Koppelzange
KEMZ 801
17045
SCHAFFNER RF-SYNTHE
SIZERIAMP21FIER
NSG 2070-1
1020
SCHAFFNER CDN
M325
13773
SCHAFFNER CDN
M216
15604
SCHAFFNER CDN
T004
15230
SCHAFFNER CDN
S501
15167
SCHAFFNER FM-Koppelzange
KEMZ 801
14301
HP Transmission Test Set
4935A
3115A24046
B & K Precision Sound Level Meter Type 2232
X
1810564
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
(
) Antenna port
)CT
(
)TT
(
) CR
(
)TR
( X ) Signal and control ports
( X )CT
(
)TT
( X ) CR
(
)TR
(
(
)CT
(
)TT
(
) CR
(
)TR
( X )CT
(
)TT
( X ) CR
(
)TR
) DC power input ports
( X ) AC mains input ports
(
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 36/48
EN 61000-4-6 PHOTO OF TEST SET-UP
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 37/48
Chapter 9
Voltage DIP / Interruption Test
DIP Test information:
Test setup: According to EN 61000-4-11
Voltage dips:
30%, 0.01 Second
60%, 0.1 Second
Voltage interruptions:
> 95%, 5 Seconds
Test mode: Ref. Test method of Chapter 1
Test instruments:
Name
Model Number
Serial Number
Best Plus BURST ESD Best Plus V6.2
SURGE TRANSIENTS
199749-019SC
BEST EMC Test
Instrument
BEST EMC V2.3
(-8, -9)
199918-006SC
Partner EMS Tester
Transienter-1000
PIO
Selected
X
Comment:
Performance Criteria: (According to ETSI EN 301 489-1)
Dips 30%:
( X ) CT
( ) TT
( X ) CR
Dips 60%:
( ) CT
( ) TT
( ) CR
Interruptions >95%: ( ) CT
( ) TT
( ) CR
No unintentional responses shall occur at the end of the test;
( )Event of loss of function(s)
( )Event of loss of user stored data
Performance Criteria: (According to ETSI EN 301 489-17)
Dips 60%, 100 ms :
( )A
( )B
Interruptions >95%, 5 000 ms:
( )A
( )B
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
( ) TR
( ) TR
( ) TR
(X)C
(X)C
Test Report ------------------------------------------------------------------------------- 38/48
EN 61000-4-11 PHOTO OF TEST SET-UP
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 39/48
Chapter 10
Harmonics Test
Test information:
Test setup:
Test item:
Test mode:
According to EN 61000-3-2
Quasi – stationary & Fluctuating Current Harmonics Test.
Ref. Test method of Chapter 1
Test instrument:
Name
Model Number
Serial Number
Harmonic/
Flicker Test System
HP 6842A
3531A-00102
Test Equipment Settings:
Quasi-stationary Current
Harmonics Test
Fluctuating Current
Harmonics Test
Line Voltage
230VAC
230VAC
Line Frequency
50Hz
50Hz
Device Class
D
D
Test Limit Overrides
None
None
Total Number of Failures:
None
None
Total Number of Errors:
None
None
Test Result: Pass
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 40/48
Chapter 11 Voltage Fluctuation and Flicker Test
Test information:
Test setup:
Test mode:
According to EN 61000-3-3
Ref. Test method of Chapter 1
Test instrument:
Name
Model Number
Harmonic/Flicker Test HP 6842A
System
Serial Number
Selected
3531A-00102
X
Test Equipment Settings:
Line Voltage
230VAC
Line Frequency
50Hz
Test Limit Overrides
None
Total Number of Failures:
Pst: (0), Plt: (0)
Dc: (0), Dmax (0), Dt (0)
Total Number of Errors:
None
Test Result: Pass
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 41/48
Chapter 12
Conducted Emission Test
Test condition and setup
All the equipment is placed and setup according to EN 55022.
(1) Mains power:
The EUT is assembled on a wooden table, which is 80 cm high and placed 40 cm from the
back-wall, which is a vertical conducting plane. One LISN is for EUT, the other LISN is for
support equipment. They are all placed on the conductive ground. The EUT’s LISN connect a
line switch box for selecting L1 or L2, then connect to a preamplifier and spectrum.
(2) Telecommunication port:
The EUT is place as mains disturbance test. The communication line connected to ISN and
then the measuring receiver connected to the ISN to measured the level of voltage disturbance.
The spectrum scans from 150KHz to 30MHz. Conducted emission levels are detected at
maximum peak mode. But if the maximum peak mode failed or over average limit, it will be
measured by average detection mode.
While testing the worst-emission plot printed in the peak detection mode, and there are up
to 6 highest emissions to be recorded. The plot is kept as the original data and not included in the
test report.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 42/48
List of test Instrument
alibration Date
Instrument Name
Model
Brand
Serial No.
Next time
Receiver
SCR3102
SCHAFFNER
012
12/08/07
LISN
3825/2
EMCO
9411-2284
08/18/07
3825/2
EMCO
9210-2007
08/18/07
Pre-amplifier
CB-001
TRC
98-02
05/28/07
Line Switch Box
CB-01
TRC
98-04
05/28/07
FTB-1-6
15542
Mini –
9620 03
05/28/07
9620 13
05/28/07
(EUT)
LISN
(Support E.)
Attenuator
20dB
Circuits
CAT-20
Attenuator
Mini –
Circuits
Coaxial Cable
BNC3200B-0058
JYEBAO
CL-05
05/28/07
Coaxial Cable
BNC31VB-0316
JYEBAO
IF-01CA006
05/28/07
9-036
50 Ohm Terminator
370BNM
NARDA
PWR5W
07/20/07
50 Ohm Terminator
370BNM
NARDA
PWR5W
07/20/07
50 Ohm Terminator
370BNM
NARDA
PWR5W
12/02/07
50 Ohm Terminator
370BNM
NARDA
PWR5W
12/02/07
ISN
ISN T400
Schaffner
19104
07/07/07
Current Probe
9208-1
Solar
0411601
07/12/07
Electronics Co.
The level of confidence of 95%, the uncertainty of measurement of conducted emission is +3.10dB / -4.84dB.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 43/48
Conducted Test Placement (Front view and Side view)
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 44/48
Test Result of Conducted Emissions for Mains Power
Testing room :
Temperature : 25 ° C
Humidity : 73 % RH
Line 1
READING AMPLITUDE
Frequency
(kHz)
LIMIT
Peak
Quasi-Peak
Average
Quasi-Peak
Average
(dBµV)
(dBµV)
(dBµV)
(dBµV)
(dBµV)
Margin
(dB)
172.000
58.19
---
---
79.00
66.00
-7.81
279.000
55.07
---
---
79.00
66.00
-10.93
472.000
51.92
---
---
79.00
66.00
-14.08
724.000
45.30
---
---
73.00
60.00
-14.70
1186.000
38.38
---
---
73.00
60.00
-21.62
7392.000
41.30
---
---
73.00
60.00
-18.70
10600.000
40.25
---
---
73.00
60.00
-19.75
17700.000
36.24
---
---
73.00
60.00
-23.76
25300.000
20.66
---
---
73.00
60.00
-39.34
Line 2
READING AMPLITUDE
Frequency
(kHz)
LIMIT
Peak
Quasi-Peak
Average
Quasi-Peak
Average
(dBµV)
(dBµV)
(dBµV)
(dBµV)
(dBµV)
Margin
(dB)
150.000
57.58
---
---
79.00
66.00
-8.42
198.000
55.41
---
---
79.00
66.00
-10.59
331.000
51.68
---
---
79.00
66.00
-14.32
605.000
43.65
---
---
73.00
60.00
-16.35
1567.000
26.94
---
---
73.00
60.00
-33.06
4896.000
25.57
---
---
73.00
60.00
-34.43
7392.000
41.53
---
---
73.00
60.00
-18.47
10760.000
40.77
---
---
73.00
60.00
-19.23
17700.000
36.05
---
---
73.00
60.00
-23.95
25300.000
24.69
---
---
73.00
60.00
-35.31
Note:
1. The reading amplitudes are all under limit.
2. Testing result = Amplitude reading + Correction factor (Insertion loss of LISN, Cable loss,
Attenuator, Amplifier and so on)
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 45/48
Chapter 13
Radiated Emission Test
Test condition and setup
Pretest:
Prior to the final test (OATS test), the EUT is placed in a shielded enclosure, and scan from
30MHz to 1GHz. This is done to ensure the radiation is exactly emitted from the EUT.
Final test:
Final radiation measurements are made on a 10 – meter, open-field test site. The EUT is
placed on a nonconductive table, which is 0.8m height, the top surface is 1.0 x 1.5 meter. The
entire placement is according to EN 55022.
The whole range antenna is used to measure frequency from 30 MHz to 1GHz. The final
test is used the spectrum analyzer (EMI Receiver). Measure more than six top marked
frequencies generated form pretest by computer step by step at each frequency.
The EUT is rotated 360 degrees, and antenna is raised and lowered from 1 to 4 meters to
find the maximum emission levels. The antenna is used with both horizontal and vertical
polarization.
Appropriated preamplifier which is made by TRC is used for improving sensitivity and
precautions is taken to avoid overloading .The spectrum analyzer’s 6dB bandwidth is set to 120
kHz, and the EUT is measured at quasi-peak (below 1GHz) mode.
If the emission is close to the frequency band of ambient, the tester will recheck the data
and the corrected data will be written in the test data sheet. If the emission is just within the
ambient, the data from shielded room will be taken as the final data.
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 46/48
List of test Instrument
Calibration Date
Instrument Name
Model
Brand
Serial No.
Next time
EMI Receiver
8546A
HP
3520A00242
09/06/07
RF Filter Section
85460A
HP
3448A00217
09/06/07
Small Biconical
UBAA9114 &
SCHWARZECK
127
12/07/07
Antenna
BBVU9135
Pre-amplifier
PA1F
TRC
1FAC
05/20/07
Auto Switch Box
ASB-01
TRC
9904-01
05/20/07
A30A30-0058-50FS-15M
JYEBAO
SMA-08
05/20/07
A30A30-0058-50FS-1M
JYEBAO
SMA-02
05/20/07
Receiver
SCR3102
SCHAFFNER
012
05/20/07
Control Box
TWR95-4
TRC
C9001-2
11/28/07
Antenna
VULB 9160
SCHWARZECK
3063
05/31/07
Pre-amplifier
TRC-CB-2
TRC
CB-002
N/A
Coaxial cable
RG-214/U
JYEBAO
Cl-002
05/31/07
BNC31VB-0316
JYEBAO
SMA-02
05/28/07
BNC31VB-0318
JYEBAO
SMA-02
05/28/07
BNC31VB-0316
JYEBAO
SMA-02
05/28/07
BNC31VB-0316
JYEBAO
SMA-02
05/28/07
(>30MHz)
Coaxial Cable
(Double shielded,
15 meter)
Coaxial Cable
(1.1 meter)
(20 meter)
Coaxial Cable
(50 cm)
Coaxial Cable
(1.1 meter)
Coaxial Cable
(1.1 meter)
Coaxial Cable
(1.1 meter)
The level of confidence of 95% , the uncertainty of measurement of radiated emission is +2.85dB / -2.77dB .
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 47/48
Radiated Test Placement (Front view and Rear view)
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Test Report ------------------------------------------------------------------------------- 48/48
Test Result of Spurious Radiated Emissions
Test Conditions:
Testing room :
Testing site :
Temperature : 25 ° C
Temperature : 33 ° C
Humidity : 73 % RH
Humidity : 62 % RH
Radiated Emissions of 30MHz to 1GHz
Radiated
Emission
Frequency Amplitude
(dBµV)
(MHz)
Correction
Factors
Ant. H.
(m)
Table
( °)
(dB)
[Horizontal]
Corrected
Amplitude
Class B
( 10 m )
Limit
(dBµV/m) (dBµV/m)
Margin
(dB)
146.3200
35.47
1.00
328
-4.68
30.79
40.00
-9.21
250.0070
46.53
3.97
79
-4.95
41.58
47.00
-5.42
288.0180
45.31
3.98
39
-3.38
41.93
47.00
-5.07
669.2460
33.98
3.01
159
6.67
40.65
47.00
-6.35
Radiated Emissions of 30MHz to 1GHz
Radiated
Emission
Frequency Amplitude
(dBµV)
(MHz)
Correction
Factors
Ant. H.
(m)
Table
( °)
(dB)
[Vertical]]
Corrected
Amplitude
Class B
( 10 m )
Limit
(dBµV/m) (dBµV/m)
Margin
(dB)
146.3240
41.03
3.83
258
-4.68
36.35
40.00
-3.65
250.0070
44.73
1.15
0
-4.95
39.78
47.00
-7.22
288.0180
44.41
1.00
73
-3.38
41.03
47.00
-5.97
500.0040
35.63
1.00
89
2.91
38.54
47.00
-8.46
669.2440
35.74
2.55
0
6.67
42.41
47.00
-4.59
Note:
1. Margin = Amplitude – limit, if margin is minus means under limit.
2. Corrected Amplitude = Reading Amplitude + Correction Factors
3. Correction factor = Antenna factor + ( Cable Loss – Amplitude gain) + Switching Box Loss
Report No.: M47ET060805 (ETSI EN 301 489)
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
EN 50392:2004-Measurement of Maximum Permissible Exposure------------------
1/3
EN 50392:2004-Measurement of Maximum Permissible Exposure
1.
Foreword
This standard is limited to apparatus which is intended for use by the general public as
defined in the Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of
exposure of the general public to electromagnetic fields (0 Hz to 300 GHz) (Official
Journal L 199 of 30 July 1999).
This generic standard applies to electronic and electrical apparatus for which no
dedicated product- or product family standard regarding human exposure to
electromagnetic fields applies.
This generic standard does not cover equipment, which fulfils the requirements given in
EN 50371 or is medical equipment as defined in the Council directive 93/42/EEC of 14
June 1993 concerning medical devices.
The frequency range covered is 0 Hz to 300 GHz.
The object of this standard is to demonstrate the compliance of such apparatus with the
basic restrictions or reference levels on exposure of the general public related to electric,
magnetic, electromagnetic fields and induced and contact current.
Report No.: M47ET060805 (EN 50392)
Model No.: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
EN 50392:2004-Measurement of Maximum Permissible Exposure------------------
2/3
The test record, data evaluation & Equipment Under Test (EUT) configurations
represented herein are true and accurate accounts of the measurements of the sample’s
EMC characteristics under the conditions specified in this report.
2. Description of EUT
Applicant
: Moxa Technologies Co., Ltd.
Product name
: RISC-based Ready-to-Run Wireless Embedded Computer
Model
: ThinkCore W341-LX
Classification
: Mobile Device
(i) Under normal use condition, the antenna is at least 20cm
away from the user;
(ii) Warning statement for keeping 20cm separation distance
and the prohibition of operating next to the person has been
printed in the user’s manual
Frequency Range
: 2.400GHz ~ 2.4835GHz/5.150GHz ~ 5.250GHz
Operating Frequency : 2.412GHz ~ 2.472GHz/5.180GHz ~ 5.240GHz
Supported Channel : 13 Channels/4 Channels
Modulation Skill
: DBPSK, DQPSK, CCK, OFDM
Power Type
: Powered by the switching adapter,
Manufacture: BALANCE ELECTRONICS CO., LTD.
Model: GPSA-1200125
I/P: 100 ~ 240VAC ~ 50/60Hz 0.5A
O/P: 12VDC 1.2A.
Primary: 182cm length, non-shielded, without ferrite core
Secondary: 186cm length, non-shielded, without ferrite core
Prepared by:
Approved by:
Frank Tsai
Jack Tsai
Report No.: M47ET060805 (EN 50392)
Model No.: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
EN 50392:2004-Measurement of Maximum Permissible Exposure------------------
3.
3/3
Limits
According to EN 50392:2004, the criteria listed in the following table shall be used to evaluate
the environmental impact of human exposure to radio-frequency (RF) radiation as specified
1999/519/EC.
Reference levels for electric, magnetic and electromagnetic fields
(0 Hz to 300 GHz, unperturbed rms values)
E-field
strength
(V/m)
Frequency
range
H-field
strength
(A/m)
B-field
(µT)
Equivalent plane
wave power
density
According to EN 50392:2004, Equation for Predicting RF Fields:
4.
Calculated Results:
Channel
Test Mode
Frequency
(MHz)
Output Power
Output Power
(dBm)
(mW)
E-Field
E-Field
Strength
Strength Limit
(V/m)
(V/m)
IEEE 802.11b
2442
18.324
67.98
7.14
61
IEEE 802.11g
2442
15.405
34.71
5.10
61
IEEE 802.11a
5180
15.104
32.39
4.92
61
Report No.: M47ET060805 (EN 50392)
Model No.: ThinkCore W341-LX
Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440
Copy of the R&TTE Declaration of
Conformity (DoC)
Declaration of Conformity
We, the under signed,
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
886-2-8919-1230
886-2-8919-1231
[email protected]
Company
Address, City
Country
Phone number
Fax number
E-mail
certify and declare under our sole responsibility that the following equipment:
Product Description /
Supplementary Info
Manufacturer
Brand
Type
RISC-based Ready-to-Run Wireless Embedded Computer
Moxa Technologies Co., Ltd.
Moxa
ThinkCore W341-LX
is tested to and conforms with the essential radio test suites included in the following standards:
Standard
ETSI EN 300 328
ETSI EN 301 893
ETSI EN 301 489-1
ETSI EN 301 489-17
EN 60950-1
EN 50392
Issue date
V1.6.1 Nov. 2004
V1.3.1 Aug. 2005
V1.5.1 Nov. 2004
V1.2.1 Apr. 2002
2001+A11: 2004
2004
and therefore complies with the essential requirements and provisions of the R&TTE directive
1999/5/EC of the European Parliament and of the council of 9March 1999 on radio equipment and
Telecommunications Terminal Equipment and the mutual recognition of their conformity and the
requirements of Annex III (conformity Assessment procedure referred to in article 10(4)).
The technical documentation as required by the Conformity Assessment procedure is kept at the
following address:
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
886-2-8919-1230
886-2-8919-1231
[email protected]
Company
Address, City
Country
Phone number
Fax number
E-mail
!
Draw up in
Date
Taiwan
2007/05/24
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd.,
Shing Tien City, Taipei, Taiwan, R.O.C.
Signature & company stamp Jackie Shi / Manager
Product Quality
Assurance Documents
Declaration of Product Quality Assurance
In accordance with the Conformity Assessment procedure referred to in article 10(3) of R&TTE
Directive 1999/5/EC of the European Parliament and the council of 9 march 1999 on the Radio
equipment and Telecommunication Terminal Equipment and their mutual recognition of their conformity
(R&TTE directive) the following manufacture:
Moxa Technologies Co., Ltd.
Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City,
Taipei, Taiwan, R.O.C.
886-2-8919-1230
886-2-8919-1231
[email protected]
Company
Address, City
Country
Phone number
Fax number
E-mail
declares under its sole responsibility that it had taken the following measures in order to achieve that
the manufacturing process ensures compliance of the manufactured products with the technical
documentation as established by Moxa Technologies Co., Ltd.. under the requirements of the R&TTE
directive and with the requirements of R&TTE directive that apply to them:
