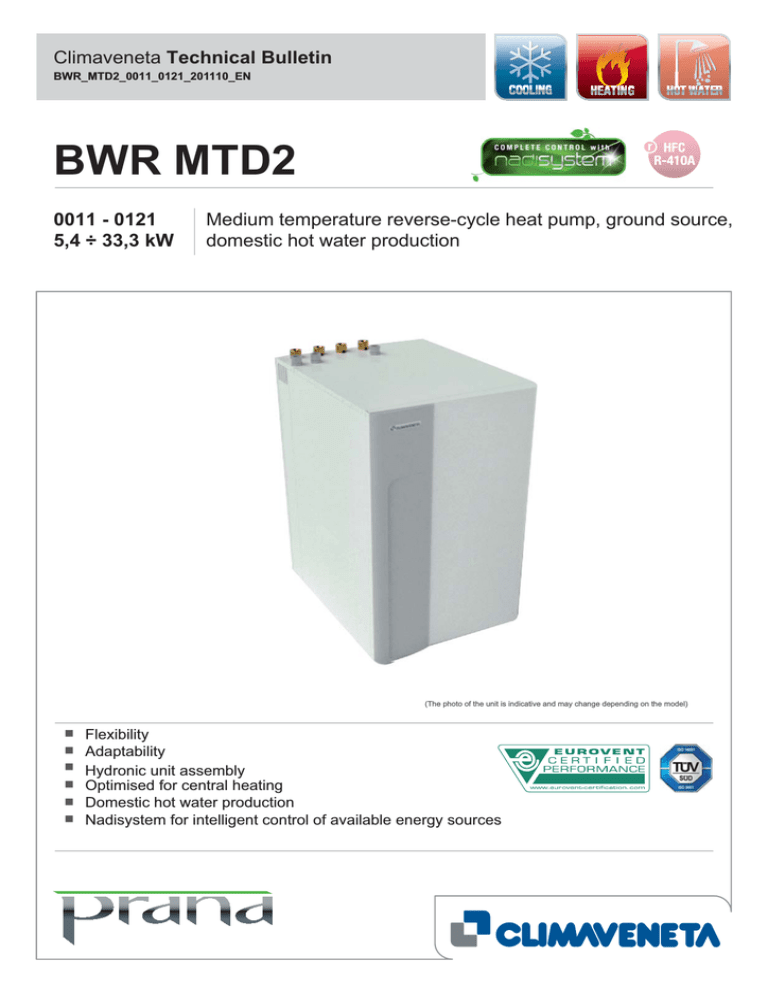

BWR MTD2
0011 - 0121
5,4 ÷ 33,3 kW
Medium temperature reverse-cycle heat pump, ground source,
domestic hot water production
(The photo of the unit is indicative and may change depending on the model)
Flexibility
Adaptability
Hydronic unit assembly
Optimised for central heating
Domestic hot water production
Nadisystem for intelligent control of available energy sources
BWR MTD2
INDEX
1.
DESCRIPTION OF THE UNIT
3
2.
ELECTRONIC CONTROLLER
5
3.
OPERATING CHARACTERISTICS
6
4.
ACCESSORIES
11
5.
GENERAL TECHNICAL DATA
22
6.
OPERATING LIMITS
34
7.
ETHYLENE GLYCOL MIXTURE
35
8.
FOULING FACTORS
35
9.
HYDRAULIC DATA
35
10. MINIMUM AND MAXIMUM SYSTEM WATER CONTENT 36
11. HYDRONIC UNIT
37
12. PUMP CURVES
38
13. UTILITY WATER CIRCUIT CONNECTION DIAGRAM
CIRCUITO UTENZE
42
14. WATER CIRCUIT CONNECTION DIAGRAM TO THE
GROUND SOURCE CIRCUIT
42
13. ELECTRICAL DATA AT MAXIMUM CONDITIONS
ALLOWED (FULL LOAD)
43
16. FULL LOAD SOUND LEVEL
44
17. DIMENSIONAL DRAWINGS
45
18. CLEARANCES - HOISTING - SYMBOLS
46
19. OPERATING DIAGRAMS
47
This company participates in the Eurovent Certifi cation Programme.
The products are listed in the Directory of certifi ed products.
Eurovent certifi cation applied to units with cooling capacity up to 1500 kW
for air cooled water chillers and water cooled liquid chillers.
Company quality system
certified to UNI EN ISO 9001
and environmental certification
UNI EN ISO 14001
Waiver of liability
This document cannot be considered comprehensive for the purposes of: installation, operation, precautions against risks, handling
and transport. See the “General installation manual” for further information.
This document refers to standard configurations, in particular regarding dimensions, weights, electrical, refrigerant, water and air duct
connections (where applicable). For further information, drawings and diagrams contact the Climaveneta Sales Office.
Climaveneta accepts no liability deriving from the incorrect use of this document.
This publication is the sole property of Climaveneta, all reproduction, even partial, is prohibited.
The data contained in this publication may be changed without prior notice.
2
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
1. DESCRIPTION OF THE UNIT
Horizontal systems can be made by excavating a field where
the plastic pipes will be laid to a depth of around 1-1.5 metres.
Excavation is however costly due to the considerable amount of
soil handled. To reduce costs, rather than excavating the loop
field, trenches can be dug for laying the heat exchange pipes.
In this case, the geothermal loop will be long and narrow.
Currently the most widespread trench systems are slinky loops,
either 2-pipe or 4-pipe circuits, laid at a depth of around 2.5-3
metres. In this case, as the loop is laid near the surface, PE 80
pipes can be used, diameter DN25 or DN32.
The amount of heat that can be drawn using these types of
solutions ranges from 10 to 15 W/m2, and even higher if there
is surface water.
These values are however also affected by variations in air temperature. On average, the geothermal field should be two to
three times larger than the surface area being heated.
Brine-to-Water heat pump
The MTD heat pumps, optimised for geothermal systems, are
reverse-cycle units that operate in heating, cooling and domestic hot water production modes, using a three way valve (accessory) installed outside of the unit.
The MTD heat pumps can be combined with traditional or radiant systems.
The latter, by working at lower water temperatures, ensure higher overall efficiency and are a very popular solution for new low
energy consumption constructions and systems that exploit
renewable energy sources.
Installation is very simple: integration of the hydronic unit on the
system and source circuits means the unit only needs to be
connected to hydronic system and power supply before starting
operation.
Ground source solutions
Ground source heat pumps exploit the energy accumulated by
the ground, a vast source of heat.
The temperature just a few metres underneath the surface
remains constant throughout the year, without the same fluctuations as air temperature.
This means heat can be drawn from the ground in winter so as
to supply a heating system at an efficiency of around 400% or
higher, or give heat back in summer for cooling, maintaining
high efficiency that remains constant all year round.
The same principle can be exploited for domestic hot water production.
Heat is exchanged with the ground via polyethylene pipes that
are either laid horizontally in the ground a few metres under the
surface, or vertically if there is limited space around the building.
This is a closed loop with heat carrier fluid made up of water
and glycol, to prevent the liquid from freezing.
COMPOSITION OF STANDARD UNIT
Structure
Load-bearing base and structure made from suitably thick hot
galvanised steel plate. All parts painted with polyester power
coat.
Panelling
External casing made from suitably thick hot galvanised steel
plate, painted with polyester power coat, designed to allow total
access to inside components. All the panels are covered with
high density soundproofing material. Soundproof panelling made
from special open-cell cone-shaped sandwich panels on the outside with filler material on the inside, total thickness 35 mm.
Compressors
Hermetic rotary scroll compressors, complete with sump heater,
electronic thermal overload protection with centralised manual
reset, and two-pole electric motor.
High density rubber soundproof covering.
Vertical loop
A vertical geothermal loop allows the heat pump to draw energy
from a source at a virtually constant temperature all year round,
with considerable benefits in terms of reducing running costs.
This solution requires a small piece of land.
The yield per linear metre of loop in the ground is 50 W/m; this
value is used as the reference for standard ground, as
described in standard VDI4640. A geologist should always be
contacted to verify ground conditions.
Drilling depth is usually around 100 metres (this keeps pumping
power down, increasing system efficiency, while deeper bore
holes depend on the equipment available locally).
The loops used are double U-bend pipes, PE 100, diameter
DN25, DN32 (most common) and DN40.
Depending on heating or cooling capacity required and capacity
of the ground, a series of geothermal loops may be used,
always leaving a space of 8-10 metres between loops to avoid
thermal interference.
The heat yield of the loop and good operation significantly
depend on the type of grout used.
Once the PE pipe has been placed in the bore hole, the hole
must be filled from the bottom up using a product that guarantees high thermal conductivity and low hydraulic conductivity.
Grout generally consists of mixes of cement and bentonite,
where necessary added with silica or quartz sand to increase
thermal conductivity, or commercially-available premixed products. This also prevents any interference with underground
aquifers that the loop/loops may cross.
Utility-side and Source-side heat exchanger
Braze welded AISI 316 steel plate heat exchanger. The heat
exchangers are lined on the outside with a layer of closed-cell
neoprene to prevent condensation. When the unit is not operating, the heat exchangers are protected against no flow conditions by a water differential pressure switch. The unit is also
ready to operate using non-freezing mixes and with an electric
heater for frost protection.
Refrigerant circuit
Main components in the refrigerant circuit:
- refrigerant R410A
- dewatering filter,
- liquid flow indicator with moisture signal,
- thermostatic valve with external equaliser,
- high and low safety pressure switches,
- liquid receiver,
- 4-way reversing valve.
System water circuit
Main components in the system water circuit:
- circulating pump
- water differential pressure switch
- expansion vessel
- system vent
- drain valves
- safety valve
- threaded male fittings
Horizontal loop
This solution requires a relatively large piece of land, however
costs significantly less than a vertical loop.
3
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
- Domestic hot water cylinder, 300 or 500 litres.
- Domestic hot water storage tank, 300 litres, to be combined
with the DOMH2O instant domestic hot water production kit.
- Domestic hot water storage tank, 300, 500 and 1000 litres
with solar heating coil, to be combined with the DOMH2O
instant domestic hot water production kit.
- DOMH2O15 and DOMH2O24 instant domestic hot water production kit.
Source water circuit
Main components in the source water circuit:
- source pump
- water differential pressure switch
- system vent
- drain valves
- threaded male fittings
Power and control electrical panel
Electrical control panel built in compliance with EN 60204-1/IEC
204-1, complete with:
- main door lock disconnect switch,
- thermal cut-out switches and contactors for the compressors,
- remote ON/OFF terminals,
- remote keypad connection terminals,
- manual summer-winter changeover terminals,
- terminals for connecting system and ground source flow switches,
- alarm signal terminals, / secondary pump / dehumidifier,
- compressor start-up signal terminals,
- outside air temperature sensor terminals,
- outlet electric heater or boiler terminals
- DHW storage electric heater terminals
- electronic controller,
- phase control boards for managing modulating pumps,
- safety fuses,
- compressor start capacitor (single-phase units only),
- IP54 index of protection,
- electrical panel for outdoor installation, with two doors and
gaskets
- numbered control circuit cables,
- phase sequence control relay
- pump enabling relay,
- terminals for three-way valve and DHW storage temperature
sensor
- remote COOL/HEAT terminals,
- peak limiter for single-phase units only
VERSIONS AVAILABLE
BWR MTD2
Reverse-cycle ground source heat pump with
domestic hot water production. Built-in water
circuit assembly and peak limiter for singlephase units.
SUPPLIED AS STANDARD
- N-THC remote control complete with backlit display, temperature probe, humidity probe, knob and 4 buttons (must be
installed)
- Outside air temperature probe for climate compensation (must
be installed)
- Domestic hot water probe
- Storage tank probe
- Rubber vibration dampers
ACCESSORIES
- N-THC wired room timer thermostat with backlit display, complete with temperature and humidity probe for system configuration.
- N-EM1 expansion module for system configuration.
- 3-way selector valve for domestic hot water production.
- Supplementary electric heater for the heating system.
- DHW storage electric heater, as supplementary heat source
and for Legionella prevention.
- N-CM kit for managing heat pumps in cascade.
- N-RS RS485 serial card for ModBus protocol.
- Low-loss header, 35, 100 or 200 litres.
4
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
2. ELECTRONIC CONTROLLER
The NADISYSTEM electronic controller is based on an innovative and efficient approach to building air-conditioning.
Energy is only consumed when necessary and the energy
sources are used based on availability, efficiency and cost, giving priority to renewable sources, where available.
The first significant advantage of introducing a single integrated
control system is optimisation of energy savings through coordination between the different system components, eliminating
inefficiencies in communication, simplifying installation and
reducing the number of controllers.
NADISYSTEM ensures dynamic control of water outlet temperature according to real needs in the building and the outside air
temperature, optimising comfort and reducing wasted energy.
The remote keypad supplied with the unit can be used to freely
set the room temperature, humidity, operating mode, domestic
hot water production and operating times for each zone.
The NADISYSTEM control system for residential applications
gives high operating flexibility by controlling the secondary circuits, that is, activating zone pumps and valves depending on
the room temperature set on the remote keypad, and by controlling mixing valves to ensure the correct water temperature in
radiant systems according to the climate conditions set for each
circuit.
There are 15 different types of pre-configured system for quick
and easy installation, with the possibility to manage up to 5
remote keypads for controlling thermal load in likewise zones.
The advanced PRANA controller also allows integration of solar
panels for the domestic hot water production, giving priority to
direct solar energy, if available, and increasing the use of
renewable sources while also managing traditional sources,
such as electric heaters or boilers.
The controller can manage up to four 4 heat pumps connected
in cascade to increase capacity in applications with multiple
occupied areas, such as hotels, schools, apartment blocks,
offices and shopping centres.
The units are managed in master-slave mode, with the master
unit responsible for processing the information and sending it to
the slave units.
This ensures fine control over the capacity delivered, without
decreasing performance, and more precise system sizing.
NADISYSTEM can determine how many cascaded units are
needed to guarantee domestic hot water production, all or just
one, according to requirements.
The controller also balances compressor operating hours based
on time logic, activating the units in rotation, and where necessary excluding any units that are momentarily out of service,
without interrupting operation of the cascade as a whole.
NADISYSTEM also allows easy service, being interfaceable to
supervision systems for remote maintenance by specialist technicians, as well as remote control of certain functions, such as:
la remotazione di alcuni comandi come:
- on/off
- cooling/heating operation
- heating system/domestic hot water priority
- shutdown due to electricity rate
AUXILIARY
SOURCE
HOT WATER
FLOOR
HEATING
FAN COIL
SOLAR
INTEGRATION
RADIATORS
Main functions
- Wired remote keypad with backlit display, complete with temperature and humidity probe
- Calculation of dew point and increase in water outlet temperature for underfloor systems, possibility to enable a dehumidifier
- Operating parameters with dedicated user and installer
menus to configure the type of system
- Weekly timer for setting 6 daily time bands
- Outside air temperature probe to control the system water
temperature set point based on heating and cooling compensation curves. Fixed point operation also available.
- Cooling, heating operating modes, automatic mode changeover
- Domestic hot water production
- Supplementary electric heater management for domestic hot
water storage and Legionella prevention cycle
- Domestic hot water recirculation by timer or flow switch
- Auxiliary resources management
- Cascaded management of up to 4 heat pumps
- Different systems solutions by configuring the controller and
using dedicated expansion modules (accessories), up to 5
zones with the possibility to control different temperature
according to the selected compensation curves.
- Alarm signals
- Frost protection management based on inside or outside air
temperature or water temperature, to protect the system pipes
and heat exchangers inside the unit.
5
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
3. OPERATING CHARACTERISTICS
TEMPERATURE CONTROL
The water temperature delivered to the heating and cooling circuit is calculated by the controller and depends on the selected
cooling and heating compensation curve.
A building’s thermal requirements do not remain constant
throughout the day or the year, but rather increase or decrease
based on the outside air temperature.
It’s therefore a waste of energy to keep the water at a constant
temperature. Delivering water at different temperatures to the
terminals based on the outside air temperature achieves high
seasonal efficiency ratios and brings considerable savings in
running costs.
The compensation curve in heating and cooling mode can be
adjusted to allow correct heat pump operation according to the
system (radiant panels, radiators, fan coils).
Example: Selecting heating curve 1.4 with an outside air temperature of -5°C gives a water temperature of +55°C.
Dedicated compensation curves can be set for each zone,
depending on the type of terminal unit, or alternatively a fixed
point temperature can be selected.
A function called “room temperature influence” is available to
quickly adapt the water temperature by modifying the compensation curve when the indoor conditions change, for example
when there are more occupants in the room.
This function is only available in heating mode.
In cooling operation during summer, the controller calculates
the dew point using temperature and humidity probe on the
remote terminal, which determines an increase in the water
temperature to deliver to the radiant system and activation of
the dehumidifier (one dehumidifier contact only for all zones).
Heating compensation curve
2,2
2
1,8
1,6
1,4
Water set point °C
1,2
1
0,8
0,6
0,4
0,2
-5
-25
Outside air temperature °C
Cooling compensation curve
Water
set point
Tm1
Tm2
Te1
Te2
Outside temp.
PROGRAMMING THE TIME BANDS
A timer is available to customise differentiated activation and
deactivation for each individual zone of the system, creating an
operating profile with up to 6 daily time bands.
Time band 1
Time band 2
Time band 3
Time band 4
Time band 5
Time band 6
SYSTEM PUMP OPERATION
When reaching the system water temperature set point, the
compressor stops and the system pump is activated periodically, so as to minimise energy consumption and ensure correct
measurement of the water temperature.
The pump on and off times can be set using a parameter,
according to the type of system.
In systems with fan coils, the time between one sniffing cycle
and the next should be reduced in order to avoid excessive
cooling of the water, in heating operation, and if and if the system water content is equal to the minimum value shown in the
paragraph on “Minimum and maximum system water content”.
6
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
SOURCE PUMP OPERATION
The BWR unit’s electronics can manage condenser or evaporator operation precisely and reliably, controlling the flow of water
through the heat exchanger by modulating operation of the
ground source pump.
The condensing/evaporating pressure is read by a dedicated
sensor installed on the unit; the electrical signal is then sent to
the electronic controller that, based on the configuration parameters, modulates operation of the ground source pump by
adjusting power supply voltage.
DOMESTIC HOT WATER PRODUCTION
The controller manages domestic hot water production using a
3-way valve installed outside of the unit, deviating the flow of
hot water to the DHW storage tank, which must be suitably
sized according to the type of usage.
Production is enabled when the water temperature inside the
DHW storage tank (probe BT8) is less than the DHW set point.
The production of domestic hot water is guaranteed in both
summer and winter, according to the operating limits shown in
this manual.
If heat pump operation is expected outside of the limits, consider using a supplementary source of heat, managed directly by
the controller.
An electric heater should be installed inside the DHW storage
tank to ensure the temperature does not fall below 10°C in the
event of extended periods of heat pump inactivity (standby).
LEGIONELLA PREVENTION FUNCTION
The Legionella prevention function ensures the elimination of
the Legionella bacteria that reside in domestic water storage
tanks.
The temperature and duration of the Legionella prevention
cycles to eliminate bacteria are typically:
• 2 minutes > 70°C
• 4 minutes > 65°C
• 60 minutes > 60°C
The Legionella prevention cycles are managed directly by the
controller, enabling the heater in the domestic hot water storage
tank domestic, with the possibility to set the duration, temperature, day and time.
AUXILIARY RESOURCES
The controller can manage devices outside of the heat pump,
such as electric heaters or boilers.
The auxiliary device can be used to replace or supplement heat
pump operation, as selected by parameter.
In the first case, the external device is activated to replace the
heat pump during operation outside of the limits shown in paragraph 6, “Operating limits”, or alternatively if the compressor
shuts down due to a fault.
In supplementary operation, the external device is activated at
the same time as the compressor so as to satisfy the building’s
thermal demand, based on the trend in water temperature, as
shown in the graph.
Auxiliary device activation delay time
Integral term calculation
System water control
set point
Actual water
temperature
System HP control
hysteresis
Auxiliary
device
ON
OFF
ON
Compressor
OFF
7
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
SYSTEM MANAGEMENT
N.
System
Configuration
The NADISYSTEM control system for residential applications
gives high operating flexibility by controlling the secondary circuits, that is, activating zone pumps and valves depending on
the room temperature set on the remote keypad, and by controlling mixing valves to ensure the correct water temperature in
radiant systems according to the climate conditions set for each
circuit.
There are 15 different types of pre-configured system for quick
and easy installation, with the possibility to manage up to 5
remote keypads for controlling thermal load in likewise zones.
0
Remote
Keypad
N-THC
Expansion
Module
If the radiant system also needs to meet cooling demand,
humidity control is guaranteed by activating the dehumidifier
contact, while calculation of the dew point, measured by the NTHC controller, ensures the correct water outlet temperature
defined by the cooling compensation curve, thus avoiding formation of condensate on the floor.
Remember to suitably insulate the pipes in contact with the air,
if air-conditioning in used inn summer.
The following table indicates the different type of systems that
can be controlled directly by the NadiSystem.
High Temp.
Zone
High Temp.
Zone
High Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Floor
Heating)
(ex. Floor
Heating)
(ex. Floor
Heating)
N-EM1
x1
standard
x1
1
DHW
Recircu
lation
5
x1
standard
x1
2
x1
standard
x1
3
standard
M
x1
M
x1
optional
x1
4
x2
standard
M
x1
optional
x1
5
x2
standard
M
x3
optional
x1
6
x2
5
standard
M
x3
optional
x1
7
x2
standard
2
2
1
2
M
x3
optional
8
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
N.
System
Configuration
The controller can manage the valves in each individual zone or
alternatively pumps, depending on the set temperature.
The system decides whether to activate the unit or the most
energy efficient resources to meet demand.
NadiSystem manages different temperature levels based on the
terminal units used.
The heat pump directly produces water at the right temperature
for the system terminals connected to the high temperature circuits (e.g. fan coils, radiators, towel rails in bathrooms), while
low temperature radiant panels are controlled by the mixing
valves according to the specific compensation curves.
Remote
Keypad
N-THC
x1
8
Expansion
Module
This means a compensation curve can be applied to the high
temperature zones and different compensation curves for each
low temperature zone (maximum three).
Depending on the type and complexity of the system, expansion modules are required for connection of the components
managed by the system (pumps, valves, probes etc.), as indicated in the table.
Simple installation by serial connection of the components making up the NadiSystem.
High Temp.
Zone
High Temp.
Zone
High Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Floor
Heating)
(ex. Floor
Heating)
(ex. Floor
Heating)
DHW
Recircu
lation
N-EM1
x2
5
standard
2
M
x3
optional
x1
9
x2
standard
2
1
M
x1
M
optional
x1
10
x2
standard
2
1
M
x1
M
optional
x1
11
x2
standard
2
1
M
x2
M
optional
x1
12
x3
standard
2
1
M
x3
M
optional
x1
13
x3
standard
5
2
1
2
M
x4
M
optional
x1
14
x3
standard
2
2
1
1
M
x2
5
2
1
M
M
optional
Key
M
Mixing valve floor heating
DHW pump circulation
Circulation Zone pump or motorized valve
Ambiente thermostat
Water probe
* N.1 ambiente thermostat available with the heat pump
** Configurations from 4 to 14 are required additional N-THC as accessories
9
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
FROST PROTECTION
The frost protection function is active even when the heat pump
is OFF.
DOMESTIC HOT WATER FROST PROTECTION STORAGE
The domestic hot water frost protection function is only active if
an auxiliary resource is installed for the domestic hot water storage tank.
The additional heater is activated if the water temperature,
measured by sensor BT8, is less than +5°C, and is deactivated
at +8°C.
PRIMARY CIRCUIT FROST PROTECTION SYSTEM
The frost protection function is guaranteed by activating the
electric heater on the heat exchanger and the system pump.
The pump and the electric heater are activated if the water temperature (measured by the probe at the heat exchanger outlet)
is less than 4.5°C and deactivated when the water temperature
reaches +7°C.
Frost protection active for the system and source heat exchanger. Frost protection on the source circuit is activated when the
water temperature is less than -4.5°C.
SECONDARY CIRCUIT FROST PROTECTION SYSTEM
The pumps on the system’s secondary circuit are activated
together with the primary pump, according to the criterion
described in the previous paragraph.
FROST PROTECTION BASED ON OUTSIDE AIR TEMPERATURE
The system pump is activated according to the outside air temperature to prevent ice forming in the pipes.
The pump is activated if the outside air temperature is less than
4°C and deactivated when it rises back over 5°C.
FROST PROTECTION BASED ON INSIDE AIR TEMPERATURE
The heat pump and/or supplementary heat sources (outlet
heater or boiler) are activated if the inside temperature falls
below 14°C, to prevent the pipes inside the home from freezing.
ALARM SIGNALS
Correct unit operation and any alarms are displayed on the
room thermostat, the latter by the
symbol.
The diagnostics functions include complete alarm management,
with an alarm log (via service keypad) for more detailed analysis of unit behaviour.
10
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
4. ACCESSORIES
The accessories listed below are supplied separately.
METAL MESH WATER FILTER
This filter MUST be installed on the heat pump return pipe to
trap any impurities in the water circuit that may damage the
unit’s heat exchanger.
Characteristics
Body
Finish
Body gasket
Thread
Brass
Sanded
Betaflex 71
ISO 228/1
Filter
AISI 304 stainless steel micro-perforated
sheet metal
Hole pitch
Inscribed hole diameter
Number of holes per cm2
2 mm
500 micron
80
Dimensions
DN
R
L
H
inch
mm
mm
32
1 1/4
96
68
40
1 1/2
106
75
Pressure drop
R
Kv
50
2
126
90
inch
1 1/4
17
1 1/2
24,5
2
36
BT AND PT STORAGE TANKS
Storage tanks to be used in heating and cooling systems, to
ensure minimum heat pump operating time in all operating conditions and avoid excessive starts and stops. It can also be
used to isolate the water circuit from the heat pump and to partially meet energy demand during periods in which the unit is
shutdown due to the electricity rate. For indoor installation.
Models available
BT35
BT100
BT200
TP300
Volume
35 litres
100 litres
200 litres
300 litres
The diagram illustrates the use of the BT/TP storage tank as a
low-loss header to separate the heat pump primary circuit from
the secondary circuit to the terminal units.
This allows different flow-rates and temperatures to be managed
depending on the type of terminal used.
Correctly sized, it guarantees the minimum water volume
required by the heat pump.
The diagram shown is purely indicative.
11
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
The diagram illustrates the use of the BT/TP storage tank as a
storage tank on the heat pump return pipe so as to increase the
volume of water available in the system, avoiding excessive
starts and stops.
In this case, make sure the available pressure head of the
pump on the unit is sufficient to guarantee correct system operation.
The diagram shown is purely indicative.
Dimensions - Model BT35
Technical specifications
The storage tanks are made from carbon steel plate welded
using the best technology and undergo strict water pressure
tests (9 bars, allowing an operating pressure of 6 bars).
Being a container of water for heating and cooling, this product
does not require internal treatment, while the outside is coated
with rustproof paint.
The tanks are protected on the outside with a closed cell elastomeric foam lining, 50 mm thick, with soft blue PVC exterior finish, for models BT 100/200 and TP300; polyethylene foam insulation, 10 mm thick, with metallic exterior finish for models
BT35.
613
520
66
174
288
Ø308
80
65
210
80
1”
15
Ø7x20
85
1”
80
Wall
fastening
bracket
360
278
Fill/drain
15
Air vent
1” 1/4 1” 1/4
300
100
Volume
Storage tank dimensions
A
B
C
D
E
F
G
K
I
mm
500 400 970 100 130 160 280 250 264 264 868 140
550 450 1410 100 130 160 280 430 374 386 1298 170
700 600 1235 100 130 160 280 320 321 332 1133 200
Di
litres
100
200
300
d
120
Dimensions - Model BT100, BT200, TP300
Htot
5
Di
d
TOP VIEW
1C
1E-1G
also on
opposite side
I
1A
°
3/8"
3/8"
3/8"
5
45
1/2"
1/2"
1/2"
G
5
H tot.
2"
2"
2"
3
socket
4
3
socket
F
1"1/4
1"1/4
1"1/4
Fittings
3
inch
1/2"
1/2"
1/2"
°
2
45
litres
100
200
300
1
K
Volume
2
3
socket
Description
Heat pump outlet
Heat pump return
System outlet
System return
Supplementary source outlet
Supplementary source return
Electric heater attachment
Probe socket
Drain/load
Vent
1F-1H
also on opposite
side
2
1D
D
1B
4
12
A
C
B
E
Pos.
1A
1B
1C
1D
1E- G
1F-1H
2
3
4
5
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
OUTLET ELECTRIC HEATER
The outlet electric heaters are available with power ratings of 3
kW single-phase and 3, 6 and 9 kW three-phase.
Used on the system outlet, these guarantee the heating
demand of the building at low outside temperatures by supplementing the heating capacity of the heat pump.
The electric heaters are deactivated as soon as the heat pump
alone can meet heating demand.
Considering that normally the heat pump operates only a short
time at low outside temperatures, operation of the supplementary heater is also reduced and consequently power consumption is negligible.
Therefore, the system’s seasonal efficiency ratio remains
unchanged.
Wall-mounted installation using the fastening brackets.
30
70
The diagram shown is purely indicative.
7
5...90°C
4
11 (G 1 1/4 B )
30
120
1
2
3
4
5
6
7
13
10 (G 1 1/4 B)
3
2
100
70
1
260
348
53
Terminal block cover
Safety thermostat manual reset
Control thermostat knob
Reference for knob full scale
Cable gland for control cable
Cable gland for power cable
Red light, on when the heater is
operating
8
9
10
11
30
9,5
90 +/- 5°C
30...70°C
Incoloy 800
1" 1/4 M GAS
IP 55
Red; on when heater operating
8
9
22
8
9,5
23
6
5
60
Safety thermostat
Adjustable thermostat
Heating element material
Threaded attachment
Index of protection
Indicator light
400V/50Hz
3000-6000-9000 W
6 Bar
30
Min/max operating
temperature
Dimensions
230V/50Hz
3000 W
158
Technical specifications
Power supply
Power
Maximum pressure
Wall fastening brackets
Heater body
Water inlet
Water outlet
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
IMMERSION ELECTRIC HEATER
The single-phase immersion electric heater can deliver 1 kW, 2k
W or 3 kW depending on the electrical connections, and must
only be used in immersion, via the water connections provided
on the HWC storage cylinders or the BT, TP and TPS storage
tanks.
The electric heater guarantees Legionella prevention or works
to supplement domestic hot water production at low outside
temperatures.
If used inside the TP storage tanks it can help meet building
heating demand in the event of operation outside of the heat
pump operating limits.
1
1
1 Immersion electric heater
The diagram shown is purely indicative.
L1 L2
L3
KM1
72
141
6 Bar
300°C
120°C
9….75°C
Incoloy 800
PVC
1” ½ M GAS
ASBERIT 60*48*3
IP 44
Green; on when heater operating
118
T1 T2 T3
"2"
N
U
PE
"1"
112
158
181,5
Dimensions - Immersion electric heater
105 x 85
M 1” 1/2 GAS
85
Maximum pressure
Max temperature, heating area
Max temperature, seal area
Adjustable safety thermostat
Heating element material
Terminal block protection material
Threaded attachment
Gasket
Index of protection
Indicator light
1000, 2000, 3000 W (+5%/ -10%); power
in relation to the electrical connection.
FU1
Power
Dimensions - Electrical panel
230V/50Hz
FU2
Technical specifications
Power supply
310
330
14
140
BWR_MTD2_0011_0121_201110_EN
16 16
GREEN LIGHT
HFC 410A
BWR MTD2
1”¼ 3-WAY VALVE FOR DOMESTIC HOT WATER
PRODUCTION:
Dimensions - Valve body
S
B
H
The 3-way valve deviates the flow of water to the domestic hot
water storage tank when the temperature read by probe BT8
falls below the set point.
The servomotor is also fitted with an auxiliary contact.
Contact closed when the valve is open and contact open when
the valve is closed. The 3-way selector valve for domestic hot
water production must have the following characteristics for correct heat pump operation:
- Voltage 230V AC, 50/60 Hz
- If valve rotation takes more than 10 s, the time can be set by
parameter.
- Delta P 500 kPa
- Fluid temperature 0°C to 90°C
- Pressure drop below 20 kPa.
L
In the total height of the valve (body + servo control) also take
into account 40 mm for the extension supplied with the kit,
required for correct insulation of the pipes.
Fittings
L
B
H
S
Technical specifications - Valve body
Operating pressure
PN16 for water at 90°C.
PN20 for chilled water
Leaks
Fluid temperature
Angle of rotation
Thread
Valve body and fitting
Stem
Gasket
Ball
Weight
None
Water 0°C to 90°C
90°
Gas UNI ISO 228
Brass OT58, UNI575/65
Brass
PTFE seat, EPDM O-ring
Chrome-plated brass
1,28 Kg
inch
mm
mm
mm
mm
1”1/4 G
102,6
76,8
51,3
39,8
Dimensions - Servo control
230V - 1A (resistive)
Allowable operating
temperature
0 ... + 50 °C
Allowable transport and
storage temperature
- 10 ... + 80 °C
Allowable humidity
Index of protection
Connection cable
Manual control
Weight
Class G, DIN 40040
IP 54
6 x1 mm2, 0.8 m long
manual open/close control
0,45 Kg
L
P
L1
L
L1
H
P
mm
mm
mm
mm
131
156
75
70
Graph of valve pressure drop
Kvs 3-way valve DN 1-1/4"
100
Pressure drop (KPa)
Free auxiliary contact
(end travel)
H
Technical specifications - Servomotor
Power supply
230VAC, +10% - 15%
Frequency
50Hz
Power consumption
4 VA
Travel time (open/close)
10s
10
1
0,1
1
10
100
Water flow-rate (l/sec)
15
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
HWC DOMESTIC HOT WATER CYLINDER
Models available
HWC300
HWC500
The HWC storage cylinders are made especially for domestic
hot water production in combination with heat pumps, thanks to
the inside coil with large heat exchange area.
The heat pump is connected to the inside coil that heats the
domestic hot water contained in the storage tank.
Legionella prevention cycles are managed by an electric heater
that can be installed in the fitting provided on the flange.
The Legionella prevention cycles are managed by the NadiSystem controller on the heat pump.
Technical specifications
The cylinders are made from
S275JR steel plate in accordance
with DIN 4753 and undergo strict
water pressure tests (9 bars,
allowing an operating pressure of
6 bars). Lined on the inside with
double layer of enamel in accordance with DIN 4753.
Protection against corrosion guaranteed by the magnesium anode,
provided with the accessories
supplied as standard with the
storage cylinder. The cylinders
are protected on the outside by
50 mm rigid CFC-free PUR lining
with white skai casing.
Volume
300 litres
500 litres
Storage cylinder and heat pump combinations
Storage
cylinder
Coil water
content
Coil surface area
Combined heat pumps
HWC 300
HWC 500
(l)
22,3
38,5
(m2)
3,5
5,9
11 25 31 41 51 61 91
x x x
N.A N.A
x x x x x N.A N.A
The combinations proposed exclude the 0061 and 0091 heat pumps, which
require the TPS series storage tanks.
Water circuit diagram
SELF-CLEANING
FILTER
Source
SELF-CLEANING
FILTER
N.C.
AUTOMATIC
FILL ASSEMBLY
LOW-LOSS
HEADER
System
The diagram shown is purely indicative.
Use
A
Height
B
C
Diameter
D
Dimensions
300
500
with insulation - mm
1570
1800
without insulation - mm
with insulation - mm
650
750
without insulation - mm
550
650
height - mm
140
155
E Cold water
fitting - R”
1 ¼”
1 ¼”
height - mm
1570
1800
Hot water
F
fitting - R”
1 ¼”
1 ¼”
height - mm
1200
1400
G Recirculation
fitting - R”
½”
½”
height - mm
295
310
Flange with 2" bushing
H
Ø - mm
180/120 180/120
for electric heater
fitting - R”
2”
2”
height - mm
920
1185
Heat pump
J
outlet
fitting - R”
1 ¼”
1 ¼”
height - mm
240
255
Heat pump
K
return
fitting - R”
1 ¼”
1 ¼”
height - mm
1350
1550
N Thermometer
fitting - R”
½”
½”
height - mm
1570
1800
Probe socket
O
fitting - R”
½”
½”
height - mm
600
P Probe socket
fitting - R”
½”
height - mm
1570
1800
Q Magnesium anode
fitting - R”
1 ¼”
1 ¼”
height - mm
1400
R Magnesium anode
fitting - R”
1 ¼”
Dimensions - Model HWC300
F
Dimensions - Model HWC500
F
Weight with insulation
Water content heat exchange
Surface area heat exchanger
16
kg
l
m2
BWR_MTD2_0011_0121_201110_EN
145
22,3
3,5
220
38,5
5,9
HFC 410A
BWR MTD2
TPS STORAGE TANKS AND DOMH2O INSTANT
DOMESTIC HOT WATER PRODUCTION KIT
Storage tank model available
TPS300
TPS500
TPS1000
The TPS storage tank is used to store water heated by a heat
pump, and allow further supplementary heat from the solar
heating coils fitted inside. In addition, tank connections are also
available for other sources of heating, for example gas- or
wood-fired appliances. Two electric heaters can be installed
using the 2” fittings provided.
Domestic hot water production is guaranteed by the
DOMH2O15 and DOMOH2O24 instant kits combined with the
storage tanks.
The instant domestic hot water production kit draws energy
from the storage tank and via heat exchange with the plate heat
exchanger ensures the correct domestic hot water temperature,
controlled by modulation of the primary circuit pump.
The control unit with graphic display allows the user to monitor
operation, as well as set the set point and operating parameters.
Water circuit diagram
4
Instant domestic hot water production kit model available
DOMH20 15
DOMH20 24
1
Heat pump (Air/water, water/water, ground
source)
2 Expansion vessel
3 Pump
4 Vent valve
5 Fill assembly
6 Safety valve
7 Solar panel
8 TPS hot water storage tank
9 DOMH2O instant hot water kit
10 Drain
7
Volume
300 Litres
500 Litres
1000 Litres
9
11
12
13
14
15
16
17
18
19
20
Temperature probe
Control unit
Plate heat exchanger
Recirculation temperature probe (accessory)
Solar heating system drain
Domestic hot water delivery
Flow meter and temperature probe
Mains water
Usage
Thermostatic valve (only if supplementary
solar panels are installed)
12
20
8
3
F
3
19
17
11
16
3
13
1
14
11
18
2
2
G
6
18
10
5
10
15
The diagram shown is purely indicative.
Technical specifications
TPS storage tanks
The storage tanks are made from carbon steel plate welded
using the best technology and undergo strict water pressure
tests (9 bars, allowing an operating pressure of 6 bars).
Being a container of hot and cold water, this product does not
require internal treatment, while the outside is coated with rustproof paint.
The tanks are protected on the outside with a closed cell elastomeric foam lining, 70 mm thick, with soft blue PVC exterior finish.
DOMH2O instant domestic hot water production kit
The instant domestic hot water production kit features the following components:
- AISI 316 stainless steel plate heat exchanger, insulated
- Circulating pump with low power consumption and electronic
speed control
- Control unit with graphic display indicating the temperature
and heat delivered
- Insulated copper pipes and connectors
- Sheet metal structure and thermoformed RAL panels, wallmounted installation.
17
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
The control unit adjusts the speed of the primary circuit pump to
maintain the set domestic hot water temperature, adjustable
from 30°C to 65°C. If the domestic hot water temperature leaving the heat exchanger reaches Tmax (between 60°C and
75°C) the primary circuit pump is switched off.
When the temperature falls below the threshold (Tmax) the
pump is started again.
For systems with supplementary solar heating, the primary
circuit temperature may exceed the maximum limit of 65°C
and pump speed modulation may not guarantee the DHW
set point.
In this case, a thermostatic valve should be used at the
instant domestic hot water production kit outlet to avoid
excessive domestic hot water temperatures.
The DHW recirculating pump can be managed (maximum power 185 W) by setting the water temperature in the recirculation
circuit.
When the temperature falls below the set point the recirculating
pump is activated, and vice-versa.
In addition, on and off times can be set for the recirculation circuit and a custom program created for each day of the week.
Selection guide
To choose the best system made up of storage tank and external instant hot water production unit, the following three parameters need to be verified:
1. Tank volume is sufficient to produce the DHW required by
the system.
2. Instant flow-rate of the external unit is higher than peak delivery flow-rate.
3. Storage tank volume is higher than the minimum recommended volume for correct heat pump operation (based on
heat output).
This condition is normally verified as the volume is quite low.
2. Instant DHW production
The amount of domestic hot water required at the points of
delivery must be less than the amount produced by the unit.
The graphs on the previous pages illustrate the amount of water
produced by the units as the primary circuit temperature changes.
3. Thermal inertia
The storage tank, as well as accumulating energy to be used
when necessary, also acts as a buffer for the primary source of
energy, reducing the number of starts and stops.
The volume of the storage tank must therefore be greater than
the value recommended by the manufacturer of the primary
source (heat pump or other appliance).
1. Storage tank volume
Tank volume and the characteristics of the primary source (heat
output and outlet temperature) are the parameters that determine the amount of water that can be delivered in a certain unit
of time. The following equation can be used to size the tank in
terms of volume.
V= [Wf*(Tout-Tin)/(T0-Tf)] - [(P*tm*1000)/(Cp*(T0-Tf)]
Typical combinations
Below are some combinations for typical residential applications
with heat pumps.
Type of home
Where:
V:
Required storage tank volume in litres
Wf: Amount of domestic hot water required in the peak period, in litres
Tm: Duration of the peak period in minutes
T0: Temperature inside the storage tank [°C]
Tf:
Minimum usable storage tank temperature [°C]
Tin: Mains water inlet temperature [°C]
Tout: DHW delivery temperature [°C]
Cp: Specific heat of water 4.186 kJ/kg °K
P:
Primary source heat output [kW]
Heat pump
heat output
Storage tank DOMH20
model
volume
Single home
Single home
Single home
Single home
<3
4-5
5-6
6-7
1
2
2
3
4 - 6 kW
6 - 8 kW
10 - 13 kW
15 - 18 kW
300
500
1000
1000
15
15
24
24
2 apartments
2 apartments
4-5
7-8
2
5
6 - 8 kW
15 - 18 kW
500
1000
15
24
3 apartments
3 apartments
7-8
9 - 12
3
6
15 - 18 kW
20 - 22 kW
1000
1000
24
24
The combinations are calculated based on the following peak consumption:
- 60 l per person in single homes,
- 250 l per apartment with one bathroom,
- 350 l per apartment with two bathrooms,
- Simultaneous use factor
DOMH20 15 heating performance
DOMH20 24 heating performance
* Domestic hot water flow-rate (l/min)
Tin = cold water from mains
Tout = domestic hot water
no. of
no. of
people bathrooms
* Domestic hot water flow-rate (l/min)
Primary inlet temperature [°C]
Tin = cold water from mains
Tout = domestic hot water
Primary inlet temperature [°C]
* The domestic hot water flow-rate shown on the performance curves remains constant for a variable time, depending on the volume of the storage
tank. Also see the instructions in the "Selection guide”.
18
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
Storage tank dimensions
C D E F G K I
litres
mm
300 690 550 1470 130 325 425 575 735 1060 1035 1185 635
500 790 650 1755 135 375 685 630 880 1336 1295 1445 780
1000 1050 850 2100 120 410 950 765 1105 1476 1560 1710 950
Volume
Di
d Htot A
Fittings
Volume
litres
300
500
1000
1
2
1"1/4
1"1/4
1"1/4
2"
2"
2"
Dimensions - TPS storage tank
B
3
4
inch
1/2" 1”1/4
1/2" 1”1/4
1/2" 1”1/4
5
6
1”
1”
1”
1”
1”
1”
L
M SR SM
Di
d
835 325 370 785
980 330 375 870
1150 380 425 1105
5
Fixed coil
Surface
Internal
area
volume
m2
l
1,5
9
2,1
13
4
25
1A
1E
1C
3
1
Description
Heat pump outlet
Heat pump return
Supplementary source outlet
Supplementary source return
Instant DHW kit outlet
Instant DHW kit return
Electric heater attachment
Probe socket
Drain/fill
Vent
Solar collector circuit outlet
Solar collector circuit return
6M
3
H tot
1
3
1D
F
K
G
1B
SM
L
1F
I
E
6R
2
SR
C
2
A
B
M
Pos.
1A
1B
1C
1D
1E
1F
2
3
4
5
6M
6R
4
[m.c.a./m2]
Solar heating coil pressure drop in TPS storage tanks
Press. drop per unit of area
2,5
Top view
2
1,5
5
1
0,5
0
0
1000
2000
3000
4000
5000
[l/h]
Dimensions - DOMH2O instant domestic hot water production kit
E
87
281
87
113
D
B
C
620
A
HOLES FOR WALL MOUNTING
32
L
F
77
G
92
H
117
455
I
92
77
90
248
19
Pos.
A
B
C
D
E
F
G
H
I
L
Description
Primary circuit pump
Primary circuit temperature probe
Control unit
Manual vent valve
Plate heat exchanger
Primary circuit outlet
Primary circuit return
Mains water inlet
Domestic hot water outlet
Flow meter and temperature probe
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
N-EM1 EXPANSION MODULE FOR SYSTEM CONFIGURATION
Dimensions - N-EM1 expansion module
300
The NADISYSTEM control system for residential applications
gives high operating flexibility, activating zone pumps and
valves depending on the set room temperature, and controlling
mixing valves to ensure the correct water temperature in radiant
systems according to the climate conditions set for each circuit.
With NADISYSTEM there up to 15 different types of system
pre-configurations for quick and easy installation, and up to 5
remote keypads for controlling thermal load in likewise zones.
FU11
FU10
TC10
A10
220
The N-EM1 expansion module is used to connect the secondary circuit components and corresponding zone thermostats
depending on the selected configuration.
Up to 3 expansion modules can be used to create more complex systems.
The meaning of the terminals may change based on the selected configuration, the connections are shown on the instruction
sheet provided with the expansion module.
120
PE
U
N
1
A10
FU10
FU11
TC10
Expansion module
10A fuse
1.25A fuse
230V/24V transformer
N-THC ROOM TIMER THERMOSTAT
The temperature and humidity settings are simple and intuitive
using the knob on the front, while the operating mode and time
bands can be selected using the 4 buttons.
The N-THC thermostat is fitted as standard with temperature
and humidity probe for correct control of the temperaturehumidity conditions inside the room.
By using the N-THC thermostat in the system, NadiSystem can
control 5 different zones, managing temperature, humidity and
time bands independently.
The simple and functional backlit display allows rapid viewing of
the settings and environmental conditions.
The main settings are:
- Room temperature and humidity setting (temperature and
humidity probe supplied as standard)
- Operating mode setting: heating, cooling, automatic mode
changeover
- Enable domestic hot water production
- Served zone on/off
- Program time bands
- Wall-mounted installation (maximum distance 500 metres)
Dimensions
28
86
143
8
20
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
N-CM CASCADE MANAGEMENT KEYPAD
The N-CM keypad allows cascaded connection of up to 4 heat
pumps to increase capacity delivered in applications with multiple occupied areas, such as hotels, schools, apartment blocks,
offices and shopping centres.
The units are managed in master-slave mode, with the master
unit responsible for processing the information and sending it to
the slave units.
This ensures fine control over the capacity delivered, without
decreasing performance, and more precise system sizing.
NADISYSTEM can determine how many cascaded units are
needed to guarantee domestic hot water production, all or just
one, according to requirements.
The controller also balances compressor operating hours based
on time logic, activating the units in rotation, and where necessary excluding any units that are momentarily out of service,
without interrupting operation of the cascade as a whole.
If the malfunctioning unit is the master, the operating parameters are transferred to another unit in the cascade, thus restoring partial operation.
The N-CM keypad can also display the operation of each heat
pump connected to the cascade and the N-THC room terminals
assigned to the zone in question, up to a maximum of 5 zones.
System architecture
N-THC
Zone 1
N-THC
Zone 2
N-EM1
N-CM
master
N-THC
Zone 3
N-THC
Zone 4
N-EM1
slave
N-THC
Zone 5
N-EM1
slave
slave
82
Dimensions
31
156
N-RS RS485 SERIAL CARD
The N-RS is an optional card for directly interfacing the heat
pumps to an RS485 network.
The card guarantees opto-isolation of the controller from the
RS485 serial network.
The maximum baud rate available is 19200 baud.
The optional card is fitted in the comb connector on the unit’s
board.
21
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
5. GENERAL TECHNICAL DATA
BWR MTD2 230V HYDRONIC TERMINAL APPLICATION
SIZE
BWR MTD2/230 /B
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
BWR MTD2/230 /B
HEATING
Heating capacity
Total power input (unit)
COP
Heat exchanger water flow
Heat exchanger pressure drop
COMPRESSORS
Number
Number of capacity
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
m /h
kPa
m /h
kPa
N°.
N°.
N°.
%
kg.
kg.
mm.
mm.
mm.
kg.
4
-
0041
5,17
1,55
3,47
0,891
7,44
7,16
1,99
3,60
1,23
11,2
8,84
2,58
3,38
1,52
16,8
11,3
3,20
3,53
1,94
18,8
5,23
1,69
3,06
0,909
7,75
7,21
2,33
3,13
1,25
11,6
9,11
2,97
3,03
1,58
18,2
11,5
3,55
3,19
2,00
20,0
1
1
1
1
1
1
1
1
1
1
1
1
ON-OFF
ON-OFF
ON-OFF
ON-OFF
100%
R410A
1,1
1,1
100%
R410A
1,15
1,25
100%
R410A
1,24
1,25
100%
R410A
1,55
1,24
52
37
53
38
53
38
58
43
845
680
1105
188
845
680
1105
190
845
680
1105
195
845
680
1105
210
(3)
DIMENSIONS AND WEIGHTS
Length
Width
Height
Weight
3
0031
(2)
kW
kW
dB(A)
dB(A)
2
0025
(1)
kW
kW
NOISE LEVELS
Total sound power
Total sound pressure
1
0011
(4)
Plant (side) cooling exchanger water (in/out) 12/7 °C
Source (side) heat exchanger water (in/out) 30/35 °C
Source (side) heat exchanger water (in/out) 0/-3 °C
Plant (side) heating exchanger water (in/out) 40/45 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
22
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V HYDRONIC TERMINAL APPLICATION
SIZE
BWR MTD2 /B
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
BWR MTD2 /B
HEATING
Heating capacity
Total power input (unit)
COP
Heat exchanger water flow
Heat exchanger pressure drop
m /h
kPa
m /h
kPa
NOISE LEVELS
Total sound power
Total sound pressure
dB(A)
dB(A)
DIMENSIONS AND WEIGHTS
Length
Width
Height
Weight
mm.
mm.
mm.
kg.
3
4
-
0041
0061
0071
0091
0101
0121
7,34
1,89
3,84
1,26
11,8
8,88
2,43
3,71
1,53
16,9
11,8
3,23
3,69
2,03
20,6
15,7
4,02
3,93
2,71
21,6
19,8
5,06
3,88
3,42
23,8
22,9
5,76
3,95
3,94
20,5
26,0
6,75
3,82
4,48
27,6
33,4
8,44
3,98
5,75
28,4
7,13
2,21
3,23
1,24
11,4
8,84
2,66
3,26
1,54
17,1
12,0
3,65
3,24
2,08
21,7
15,5
4,41
3,52
2,69
21,4
19,1
5,64
3,41
3,31
22,4
22,2
6,22
3,58
3,86
19,6
25,5
7,35
3,45
4,43
26,9
32,5
9,02
3,61
5,64
27,4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
100%
R410A
1,15
1,25
100%
R410A
1,24
1,25
100%
R410A
1,55
1,24
100%
R410A
1,7
1,89
100%
R410A
2,65
2,51
100%
R410A
3,1
3,25
100%
R410A
3,5
3,25
100%
R410A
3,7
3,25
53
38
53
38
58
43
59
44
66
51
66
51
70
55
70
55
845
680
1105
190
845
680
1105
195
845
680
1105
210
845
680
1105
225
845
680
1105
230
845
680
1105
245
845
680
1105
250
845
680
1105
270
(2)
kW
kW
kg.
kg.
2
0031
(1)
kW
kW
COMPRESSORS
Number
Number of capacity
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
1
0025
N°.
N°.
N°.
%
(3)
(4)
Plant (side) cooling exchanger water (in/out) 12/7 °C
Source (side) heat exchanger water (in/out) 30/35 °C
Source (side) heat exchanger water (in/out) 0/-3 °C
Plant (side) heating exchanger water (in/out) 40/45 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
23
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 230V RADIANT PANEL APPLICATION
SIZE
S
IZ E
BWR MTD2/230
BWR
MTD2/230 /B
/B
COOLING
C
O O L IN G
Cooling
C
ooling capacity
c a p a c it y
Total
T
otal power
power input
input (unit)
( u n it)
EER
E
ER
ESEER
E
SEER
Heat
H
eat exchanger
exchanger water
water flow
flo w
Heat
H
eat exchanger
exchanger pressure
pressure drop
d ro p
BWR MTD2/230
BWR
MTD2/230 /B
/B
HEATING
H
E A T IN G
Heating
H
eating capacity
c a p a c ity
Total
T
otal power
power input
input (unit)
( u n it)
COP
C
OP
Heat
H
eat exchanger
exchanger water
water flow
flo w
Heat
H
eat exchanger
exchanger pressure
pressure drop
d ro p
COMPRESSORS
C
OM PRESSORS
Number
N
um ber
Number
N
umber of
of capacity
c a p a c ity
Number
N
umber of
of circuits
c ir c u its
Type
T
ype of
of regulation
r e g u la tio n
Minimum
M
inimum capacity
capacity steps
s te p s
Type
T
ype of
of refrigerant
r e fr ig e r a n t
Refrigerant
R
efrigerant ccharge
h a rg e
Oilil ccharge
O
h a rg e
m //h
h
kPa
k
Pa
m //h
h
kPa
k
Pa
N°.
N°.
N°.
%
kg.
kg.
kg.
k
g.
mm.
mm.
mm.
m
m.
mm.
m
m.
kg.
k
g.
4
-
0041
0
041
7 ,1 4
7,14
1,55
1
,5 5
4,44
4
,4 4
1,23
1
,2 3
14,2
1
4 ,2
9 ,8 3
9,83
1,95
1
,9 5
4,90
4
,9 0
1,70
1
,7 0
21,3
2
1 ,3
1 2 ,0
12,0
2,55
2
,5 5
4,80
4
,8 0
2,07
2
,0 7
31,0
3
1 ,0
1 5 ,1
15,1
3,28
3
,2 8
4,58
4
,5 8
2,60
2
,6 0
33,9
3
3 ,9
5 ,4 6
5,46
1,31
1
,3 1
4,23
4
,2 3
0,946
0
,9 4 6
8,39
8
,3 9
7 ,4 2
7,42
1,77
1
,7 7
4,11
4
,1 1
1,29
1
,2 9
12,2
1
2 ,2
9 ,3 7
9,37
2,27
2
,2 7
4,09
4
,0 9
1,62
1
,6 2
19,1
1
9 ,1
1 1 ,9
11,9
2,77
2
,7 7
4,25
4
,2 5
2,06
2
,0 6
21,3
2
1 ,3
1
1
1
1
1
1
1
1
1
1
1
1
ON-OFF
O
N -O F F
ON-OFF
O
N -O F F
ON-OFF
O
N -O F F
ON-OFF
O
N -O F F
100%
100%
R410A
R
410A
1,1
1
,1
1,1
1
,1
100%
100%
R410A
R
410A
1,15
1
,1 5
1,25
1
,2 5
100%
100%
R410A
R
410A
1,24
1
,2 4
1,25
1
,2 5
100%
1
00%
R410A
R410A
1,55
1
,5 5
1,24
1
,2 4
52
5
2
37
37
53
5
3
38
38
53
5
3
38
38
58
5
8
43
43
845
845
680
6
80
1105
1
105
188
1
88
845
845
680
6
80
1105
1
105
190
1
90
845
845
680
6
80
1105
1
105
195
1
95
845
845
680
6
80
1105
1
105
210
2
10
((3)
3)
DIMENSIONS AND
DIMENSIONS
AND WEIGHTS
W E IG H T S
Length
L
e n g th
Width
W
id th
Height
H
e ig h t
Weight
W
e ig h t
3
0031
0
031
((2)
2)
kW
kW
kW
k
W
d B (A )
dB(A)
dB(A)
d
B (A )
2
0025
0
025
((1)
1)
kW
kW
kW
k
W
N O IS E L
NOISE
LEVELS
EVELS
Total
T
otal ssound
ound power
power
Total
T
otal ssound
ound pressure
p re s s u re
1
0011
0
011
((4)
4)
Plant (side) cooling exchanger water (in/out) 23/18 °C
Source (side) heat exchanger water (in/out) 30/35 °C
Source (side) heat exchanger water (in/out) 0/-3 °C
Plant (side) heating exchanger water (in/out) 30/35 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
24
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
ìBWR MTD2 400V RADIANT PANEL APPLICATION
0025
0031
0041
0061
0071
0091
0101
0121
9,47
1,84
5,28
1,64
19,8
12,0
2,45
4,80
2,07
31,2
15,7
3,31
4,76
2,71
36,9
21,3
4,13
5,20
3,67
39,8
26,9
5,23
5,17
4,63
43,8
30,7
6,00
5,12
5,29
36,9
34,8
6,97
4,97
6,01
49,6
44,8
8,80
5,09
7,73
51,4
m /h
kPa
7,61
1,69
4,47
1,32
12,9
9,26
2,09
4,43
1,60
18,6
12,4
2,79
4,43
2,15
23,0
16,2
3,50
4,63
2,81
23,2
20,1
4,43
4,57
3,48
24,6
23,3
4,93
4,76
4,04
21,5
26,9
5,78
4,64
4,66
29,8
33,8
7,28
4,63
5,86
29,6
N°.
N°.
N°.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
ON-OFF
100%
R410A
1,15
1,25
100%
R410A
1,24
1,25
100%
R410A
1,55
1,24
100%
R410A
1,7
1,89
100%
R410A
2,65
2,51
100%
R410A
3,1
3,25
100%
R410A
3,5
3,25
100%
R410A
3,7
3,25
53
38
53
38
58
43
59
44
66
51
66
51
70
55
70
55
845
680
1105
190
845
680
1105
195
845
680
1105
210
845
680
1105
225
845
680
1105
230
845
680
1105
245
845
680
1105
250
845
680
1105
270
SIZE
BWR MTD2 /B
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
BWR MTD2 /B
HEATING
Heating capacity
Total power input (unit)
COP
Heat exchanger water flow
Heat exchanger pressure drop
(1)
kW
kW
m /h
kPa
(2)
kW
kW
COMPRESSORS
Number
Number of capacity
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
kg.
kg.
NOISE LEVELS
Total sound power
Total sound pressure
dB(A)
dB(A)
DIMENSIONS AND WEIGHTS
Length
Width
Height
Weight
mm.
mm.
mm.
kg.
1
2
3
4
-
%
(3)
(4)
Plant (side) cooling exchanger water (in/out) 23/18 °C
Source (side) heat exchanger water (in/out) 30/35 °C
Source (side) heat exchanger water (in/out) 0/-3 °C
Plant (side) heating exchanger water (in/out) 30/35 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
25
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 230V COOLING PERFORMANCE
0011
Tcd
25
30
32
Tev
35
40
42
25
30
32
35
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
5,73
1,20
0,987
9,13
6,93
1,18
13,2
5,47
1,36
0,941
8,30
6,83
1,17
12,8
5,35
1,43
0,921
7,96
6,79
1,16
12,6
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
6,89
1,21
1,19
13,2
8,10
1,39
18,0
6,57
1,38
1,13
12,0
7,95
1,36
17,4
Tcd
25
30
40
42
25
30
32
9
5,17
1,55
0,891
7,44
6,72
1,15
12,4
4,86
1,75
0,836
6,55
6,60
1,13
11,9
4,72
1,84
0,813
6,19
6,56
1,12
11,7
6,11
1,20
1,05
10,4
7,32
1,25
14,7
5,83
1,37
1,00
9,46
7,20
1,23
14,2
5,71
1,44
0,984
9,07
7,15
1,22
14,0
6,44
1,45
1,11
11,6
7,89
1,35
17,1
6,23
1,56
1,07
10,8
7,79
1,33
16,7
5,87
1,76
1,01
9,59
7,63
1,30
16,0
5,71
1,84
0,985
9,10
7,56
1,29
15,7
7,28
1,21
1,26
14,8
8,49
1,45
19,8
6,95
1,38
1,20
13,5
8,32
1,43
19,0
6,81
1,45
1,17
12,9
8,26
1,41
18,7
32
35
40
42
25
30
13
35
40
42
6,05
1,56
1,04
10,2
7,61
1,30
15,9
5,70
1,76
0,982
9,04
7,46
1,28
15,2
5,55
1,84
0,956
8,57
7,39
1,26
15,0
7,14
1,55
1,23
14,2
8,69
1,49
20,8
6,73
1,75
1,16
12,7
8,48
1,45
19,8
6,57
1,83
1,13
12,0
8,40
1,44
19,4
35
40
42
8,35
1,98
1,44
15,3
10,3
1,77
23,2
7,89
2,26
1,36
13,7
10,2
1,74
22,4
7,71
2,39
1,33
13,1
10,1
1,73
22,1
9,83
1,95
1,70
21,3
11,8
2,02
30,2
9,32
2,23
1,61
19,2
11,5
1,98
29,0
9,11
2,35
1,57
18,3
11,5
1,96
28,6
35
40
42
10,3
2,58
1,77
22,6
12,8
2,20
34,9
9,69
2,94
1,67
20,2
12,6
2,16
33,8
9,45
3,09
1,63
19,2
12,5
2,15
33,4
12,0
2,55
2,07
31,0
14,5
2,49
44,9
11,3
2,90
1,96
27,8
14,2
2,44
43,2
11,1
3,05
1,91
26,6
14,1
2,42
42,6
35
40
42
13,0
3,24
2,24
25,1
16,2
2,78
38,6
12,3
3,62
2,12
22,6
15,9
2,73
37,2
12,0
3,79
2,08
21,6
15,8
2,71
36,7
15,1
3,28
2,60
33,9
18,3
3,14
49,4
14,3
3,64
2,47
30,6
18,0
3,08
47,4
14,0
3,79
2,42
29,3
17,8
3,05
46,6
12
5,52
1,55
0,951
8,49
7,08
1,21
13,7
5,19
1,76
0,894
7,49
6,95
1,19
13,2
5,05
1,84
0,870
7,09
6,89
1,18
13,0
6,69
1,21
1,15
12,5
7,90
1,35
17,1
6,39
1,37
1,10
11,4
7,76
1,33
16,5
6,26
1,45
1,08
10,9
7,70
1,32
16,3
6,59
1,56
1,14
12,1
8,15
1,40
18,3
6,21
1,76
1,07
10,8
7,97
1,36
17,4
6,05
1,84
1,04
10,2
7,89
1,35
17,1
7,88
1,21
1,36
17,3
9,08
1,56
22,7
7,52
1,37
1,30
15,8
8,89
1,52
21,8
7,37
1,44
1,27
15,2
8,81
1,51
21,4
35
40
42
25
30
32
15
18
0025
Tev
32
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
7,93
1,52
1,37
13,8
9,46
1,62
19,4
7,55
1,74
1,30
12,5
9,29
1,59
18,7
7,40
1,83
1,27
12,0
9,23
1,58
18,4
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
9,48
1,52
1,63
19,8
11,0
1,88
26,2
9,04
1,73
1,56
18,0
10,8
1,85
25,2
Tcd
25
30
9
7,16
1,99
1,23
11,2
9,14
1,56
18,1
6,74
2,27
1,16
9,98
9,02
1,54
17,6
6,58
2,40
1,13
9,49
8,97
1,53
17,4
8,44
1,52
1,45
15,7
9,97
1,71
21,5
8,05
1,74
1,39
14,2
9,78
1,67
20,7
7,88
1,83
1,36
13,6
9,71
1,66
20,4
8,87
1,82
1,53
17,3
10,7
1,83
24,8
8,59
1,98
1,48
16,2
10,6
1,81
24,3
8,13
2,26
1,40
14,5
10,4
1,78
23,4
7,94
2,38
1,37
13,9
10,3
1,77
23,1
10,0
1,51
1,73
22,0
11,5
1,97
28,8
9,55
1,72
1,65
20,1
11,3
1,93
27,6
9,37
1,82
1,62
19,3
11,2
1,92
27,2
32
35
40
42
25
30
13
12
7,63
1,99
1,31
12,8
9,62
1,64
20,0
7,20
2,27
1,24
11,4
9,47
1,62
19,4
7,02
2,39
1,21
10,8
9,42
1,61
19,2
9,22
1,52
1,59
18,7
10,7
1,84
25,0
8,79
1,73
1,52
17,0
10,5
1,80
24,0
8,62
1,83
1,49
16,3
10,4
1,79
23,7
9,08
1,97
1,57
18,2
11,1
1,89
26,6
8,60
2,25
1,48
16,3
10,8
1,86
25,6
8,40
2,37
1,45
15,5
10,8
1,85
25,2
10,8
1,49
1,86
25,7
12,3
2,11
32,9
10,3
1,71
1,78
23,5
12,0
2,06
31,5
10,1
1,80
1,75
22,6
11,9
2,05
31,0
35
40
42
25
30
32
15
18
0031
Tev
32
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
9,75
1,99
1,68
20,4
11,7
2,01
29,2
9,31
2,26
1,60
18,6
11,6
1,98
28,4
9,13
2,38
1,57
17,9
11,5
1,97
28,0
11,6
1,99
2,00
29,0
13,6
2,33
39,2
11,1
2,26
1,91
26,5
13,3
2,28
37,8
Tcd
25
30
9
8,84
2,58
1,52
16,8
11,4
1,95
27,6
8,33
2,94
1,43
14,9
11,3
1,93
26,9
8,12
3,10
1,40
14,2
11,2
1,92
26,6
10,4
1,99
1,78
23,1
12,3
2,11
32,3
9,90
2,26
1,70
21,1
12,2
2,08
31,4
9,70
2,38
1,67
20,3
12,1
2,07
31,0
10,9
2,38
1,87
25,5
13,2
2,27
37,3
10,5
2,57
1,82
23,9
13,1
2,24
36,5
9,96
2,93
1,72
21,4
12,9
2,21
35,3
9,72
3,09
1,68
20,4
12,8
2,19
34,8
12,2
1,98
2,11
32,2
14,2
2,43
42,9
11,7
2,25
2,01
29,4
13,9
2,39
41,3
11,5
2,37
1,98
28,3
13,8
2,37
40,7
32
35
40
42
25
30
13
12
9,40
2,58
1,62
19,0
12,0
2,05
30,4
8,87
2,94
1,53
16,9
11,8
2,02
29,5
8,65
3,10
1,49
16,1
11,7
2,01
29,2
11,3
1,99
1,95
27,4
13,3
2,27
37,4
10,8
2,26
1,86
25,1
13,0
2,23
36,2
10,6
2,38
1,82
24,1
13,0
2,22
35,7
11,1
2,56
1,92
26,6
13,7
2,34
39,8
10,5
2,92
1,81
23,8
13,4
2,30
38,4
10,3
3,08
1,77
22,7
13,3
2,28
37,8
13,2
1,97
2,27
37,5
15,1
2,59
48,8
12,6
2,24
2,17
34,2
14,8
2,54
46,8
12,3
2,36
2,13
32,9
14,7
2,52
46,0
35
40
42
25
30
32
15
18
0041
Tev
32
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
12,4
2,53
2,13
22,8
14,9
2,55
32,6
11,8
2,84
2,04
20,8
14,7
2,51
31,5
11,6
2,98
2,00
20,0
14,6
2,49
31,1
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
14,6
2,56
2,52
31,9
17,2
2,94
43,4
14,0
2,89
2,41
29,1
16,9
2,89
41,8
13,7
3,03
2,37
28,0
16,8
2,87
41,2
9
11,3
3,20
1,94
18,8
14,5
2,47
30,6
10,7
3,59
1,83
16,9
14,2
2,43
29,7
10,4
3,76
1,79
16,1
14,2
2,42
29,3
13,1
2,54
2,26
25,7
15,7
2,68
36,0
12,6
2,86
2,16
23,4
15,4
2,64
34,8
12,3
3,00
2,12
22,5
15,3
2,62
34,3
13,3
3,25
2,30
26,4
16,6
2,84
40,3
12,6
3,63
2,18
23,8
16,3
2,79
38,9
12,4
3,79
2,13
22,8
16,2
2,77
38,3
15,4
2,57
2,65
35,3
18,0
3,08
47,4
14,7
2,91
2,54
32,2
17,6
3,02
45,6
14,4
3,05
2,49
31,0
17,5
2,99
44,9
13
12
11,9
3,22
2,06
21,2
15,2
2,59
33,7
11,3
3,61
1,95
19,0
14,9
2,55
32,6
11,1
3,77
1,91
18,2
14,8
2,54
32,2
14,3
2,56
2,46
30,3
16,8
2,88
41,5
13,6
2,89
2,35
27,6
16,5
2,83
40,0
13,4
3,03
2,30
26,6
16,4
2,81
39,4
14,0
3,26
2,42
29,3
17,3
2,96
43,8
13,3
3,64
2,30
26,4
16,9
2,90
42,2
13,0
3,79
2,25
25,3
16,8
2,88
41,5
16,5
2,58
2,85
40,7
19,1
3,27
53,6
15,8
2,92
2,73
37,2
18,7
3,21
51,5
15,5
3,06
2,68
35,9
18,6
3,18
50,7
15
Tcd [°C] - Plant (side) heating exchanger output water temperature
Tev [°C] - Source (side) heat exchanger output water temperature
Pf [kW] - Cooling capacity
Pat [kW] - Total power input
Qev [m³/h] - Plant (side) heat exchanger water flow
Dpev [kPa] - Plant (side) cooling exchanger pressure drop
18
Pt [kW] - Heating capacity
Qcd [m³/h] - Source (side) heating exchanger water flow
Dpcd [kPa] - Source (side) heat exchanger pressure drop
'-' Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
26
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V COOLING PERFORMANCE
0025
Tcd
25
30
32
Tev
35
40
42
25
30
32
35
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
8,27
1,44
1,42
15,0
9,71
1,66
20,5
7,82
1,65
1,35
13,4
9,47
1,62
19,4
7,63
1,74
1,31
12,8
9,37
1,60
19,0
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
9,57
1,43
1,65
20,1
11,0
1,89
26,3
9,07
1,64
1,56
18,1
10,7
1,84
24,9
Tcd
25
30
40
42
25
30
32
9
7,34
1,89
1,26
11,8
9,23
1,58
18,4
6,84
2,15
1,18
10,3
8,99
1,54
17,5
6,63
2,27
1,14
9,66
8,90
1,52
17,1
8,72
1,44
1,50
16,7
10,2
1,74
22,4
8,25
1,65
1,42
14,9
9,90
1,69
21,3
8,06
1,74
1,39
14,3
9,80
1,68
20,8
8,87
1,73
1,53
17,3
10,6
1,82
24,4
8,55
1,87
1,47
16,1
10,4
1,79
23,6
8,01
2,13
1,38
14,1
10,1
1,74
22,3
7,78
2,24
1,34
13,3
10,0
1,72
21,8
9,97
1,43
1,72
21,9
11,4
1,95
28,2
9,46
1,63
1,63
19,7
11,1
1,90
26,8
9,25
1,72
1,60
18,9
11,0
1,88
26,2
32
35
40
42
25
30
13
35
40
42
8,36
1,87
1,44
15,4
10,2
1,75
22,8
7,82
2,13
1,35
13,5
9,96
1,71
21,5
7,60
2,25
1,31
12,7
9,85
1,69
21,0
9,47
1,84
1,64
19,8
11,3
1,94
27,9
8,90
2,09
1,54
17,5
11,0
1,88
26,3
8,66
2,20
1,49
16,5
10,9
1,86
25,7
35
40
42
10,3
2,45
1,77
22,8
12,7
2,18
34,5
9,73
2,76
1,68
20,4
12,5
2,14
33,1
9,50
2,89
1,64
19,4
12,4
2,12
32,6
12,0
2,45
2,07
31,2
14,5
2,48
44,6
11,4
2,76
1,97
28,0
14,2
2,43
42,7
11,1
2,89
1,92
26,8
14,0
2,40
41,9
35
40
42
13,6
3,28
2,34
27,4
16,8
2,88
41,6
12,9
3,71
2,22
24,6
16,6
2,84
40,3
12,6
3,89
2,17
23,5
16,5
2,82
39,8
15,7
3,31
2,71
36,9
19,0
3,26
53,3
14,9
3,73
2,58
33,3
18,7
3,20
51,3
14,6
3,89
2,53
32,0
18,5
3,18
50,5
12
7,76
1,88
1,34
13,2
9,64
1,65
20,2
7,24
2,15
1,25
11,5
9,39
1,61
19,1
7,03
2,26
1,21
10,9
9,29
1,59
18,7
9,36
1,44
1,61
19,3
10,8
1,85
25,3
8,87
1,64
1,53
17,3
10,5
1,80
24,0
8,67
1,73
1,49
16,5
10,4
1,78
23,5
8,93
1,86
1,54
17,6
10,8
1,85
25,3
8,37
2,12
1,44
15,4
10,5
1,80
23,9
8,14
2,23
1,40
14,6
10,4
1,78
23,4
10,5
1,41
1,82
24,5
12,0
2,05
31,1
10,0
1,61
1,73
22,2
11,6
2,00
29,5
9,81
1,70
1,69
21,2
11,5
1,97
28,8
35
40
42
25
30
32
15
18
0031
Tev
32
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
9,84
1,90
1,69
20,8
11,7
2,01
29,2
9,37
2,15
1,61
18,9
11,5
1,97
28,1
9,17
2,26
1,58
18,1
11,4
1,96
27,7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
11,7
1,91
2,01
29,3
13,6
2,33
39,2
11,1
2,17
1,92
26,7
13,3
2,28
37,6
Tcd
25
30
9
8,88
2,43
1,53
16,9
11,3
1,93
27,1
8,37
2,74
1,44
15,0
11,1
1,90
26,1
8,16
2,86
1,40
14,3
11,0
1,88
25,7
10,4
1,91
1,80
23,5
12,4
2,11
32,4
9,95
2,16
1,71
21,3
12,1
2,07
31,2
9,75
2,27
1,68
20,5
12,0
2,06
30,7
10,9
2,28
1,88
25,7
13,2
2,26
37,0
10,6
2,46
1,82
24,1
13,0
2,23
36,1
10,0
2,76
1,72
21,6
12,8
2,19
34,7
9,77
2,89
1,68
20,6
12,7
2,17
34,1
12,3
1,91
2,12
32,5
14,2
2,43
42,9
11,7
2,17
2,02
29,7
13,9
2,38
41,1
11,5
2,28
1,98
28,5
13,8
2,36
40,4
32
35
40
42
25
30
13
12
9,44
2,44
1,63
19,2
11,9
2,03
30,0
8,91
2,75
1,53
17,1
11,7
1,99
28,8
8,69
2,88
1,50
16,3
11,6
1,98
28,4
11,4
1,91
1,96
27,8
13,3
2,27
37,5
10,8
2,17
1,87
25,3
13,0
2,23
36,0
10,6
2,28
1,83
24,3
12,9
2,21
35,4
11,2
2,46
1,92
26,8
13,6
2,33
39,4
10,6
2,77
1,82
24,0
13,3
2,28
37,8
10,3
2,90
1,78
22,9
13,2
2,26
37,1
13,2
1,91
2,28
37,7
15,1
2,59
48,6
12,6
2,17
2,18
34,4
14,8
2,54
46,6
12,4
2,28
2,14
33,1
14,7
2,51
45,8
35
40
42
25
30
32
15
18
0041
Tev
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
32
7
13,0
2,49
2,24
25,0
15,5
2,65
35,1
12,4
2,84
2,13
22,8
15,2
2,60
34,0
12,1
2,99
2,09
21,9
15,1
2,59
33,6
15,3
2,53
2,64
34,8
17,8
3,05
46,7
14,6
2,89
2,52
31,8
17,5
3,00
45,0
14,3
3,05
2,47
30,6
17,4
2,98
44,4
9
11,8
3,23
2,03
20,6
15,0
2,57
33,0
11,1
3,67
1,92
18,4
14,8
2,53
32,1
10,9
3,86
1,87
17,6
14,7
2,52
31,8
13,8
2,50
2,37
28,1
16,3
2,78
38,8
13,1
2,86
2,26
25,6
16,0
2,74
37,5
12,9
3,01
2,22
24,6
15,9
2,72
37,0
13,9
3,29
2,40
28,8
17,2
2,95
43,5
13,2
3,71
2,28
26,0
16,9
2,90
42,0
12,9
3,89
2,23
24,9
16,8
2,88
41,5
16,1
2,53
2,77
38,5
18,6
3,19
50,9
15,4
2,90
2,65
35,2
18,3
3,13
49,0
15,1
3,06
2,60
33,9
18,1
3,11
48,3
13
12
12,5
3,25
2,15
23,2
15,7
2,69
36,3
11,8
3,69
2,04
20,8
15,5
2,65
35,3
11,6
3,87
1,99
19,9
15,4
2,64
34,9
14,9
2,52
2,57
33,1
17,4
2,98
44,6
14,2
2,88
2,46
30,2
17,1
2,93
43,1
14,0
3,04
2,41
29,0
17,0
2,91
42,5
14,6
3,30
2,53
31,9
17,9
3,07
47,3
13,9
3,72
2,40
28,8
17,6
3,02
45,6
13,6
3,89
2,35
27,6
17,5
3,00
45,0
17,2
2,54
2,97
44,3
19,8
3,39
57,5
16,5
2,92
2,84
40,5
19,4
3,32
55,4
16,2
3,07
2,79
39,1
19,3
3,30
54,5
15
Tcd [°C] - Plant (side) heating exchanger output water temperature
Tev [°C] - Source (side) heat exchanger output water temperature
Pf [kW] - Cooling capacity
Pat [kW] - Total power input
Qev [m³/h] - Plant (side) heat exchanger water flow
Dpev [kPa] - Plant (side) cooling exchanger pressure drop
18
Pt [kW] - Heating capacity
Qcd [m³/h] - Source (side) heating exchanger water flow
Dpcd [kPa] - Source (side) heat exchanger pressure drop
'-' Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
27
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V COOLING PERFORMANCE
0061
Tcd
25
30
32
Tev
35
40
42
25
30
32
35
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
17,2
3,23
2,97
26,0
20,5
3,50
36,2
16,5
3,60
2,84
23,8
20,1
3,44
34,9
16,2
3,76
2,79
22,9
20,0
3,41
34,4
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
20,4
3,31
3,52
36,6
23,8
4,07
48,8
19,6
3,68
3,38
33,7
23,3
3,99
47,0
Tcd
25
30
40
42
25
30
32
9
15,7
4,02
2,71
21,6
19,7
3,38
33,6
14,9
4,50
2,56
19,3
19,4
3,31
32,4
14,5
4,71
2,50
18,4
19,2
3,29
31,9
18,3
3,26
3,15
29,3
21,6
3,69
40,2
17,5
3,63
3,02
26,9
21,2
3,62
38,7
17,2
3,79
2,96
25,9
21,0
3,60
38,1
19,3
3,84
3,32
32,5
23,1
3,96
46,2
18,7
4,10
3,23
30,7
22,8
3,91
45,1
17,8
4,58
3,06
27,6
22,3
3,83
43,2
17,4
4,78
2,99
26,4
22,1
3,79
42,4
21,5
3,33
3,71
40,6
24,8
4,26
53,4
20,7
3,70
3,56
37,5
24,4
4,18
51,4
20,3
3,86
3,50
36,2
24,2
4,14
50,6
32
35
40
42
25
30
13
35
40
42
18,2
4,09
3,14
29,1
22,3
3,82
43,1
17,3
4,57
2,98
26,1
21,8
3,74
41,3
16,9
4,77
2,91
24,9
21,7
3,71
40,6
21,3
4,13
3,67
39,8
25,4
4,36
56,0
20,2
4,60
3,49
35,9
24,8
4,26
53,4
19,8
4,80
3,41
34,3
24,6
4,21
52,4
35
40
42
23,0
5,16
3,97
32,1
28,2
4,83
47,4
21,8
5,77
3,76
28,8
27,6
4,72
45,5
21,3
6,04
3,67
27,4
27,3
4,68
44,6
26,9
5,23
4,63
43,8
32,1
5,50
61,7
25,5
5,82
4,41
39,6
31,4
5,38
58,9
24,9
6,07
4,31
37,8
31,0
5,32
57,7
35
40
42
26,4
5,89
4,56
27,3
32,3
5,54
40,4
25,1
6,54
4,33
24,6
31,6
5,42
38,7
24,6
6,82
4,23
23,6
31,4
5,38
38,1
30,7
6,00
5,29
36,9
36,7
6,29
52,1
29,2
6,66
5,04
33,4
35,9
6,15
49,8
28,6
6,94
4,94
32,1
35,6
6,10
49,0
12
16,7
4,06
2,88
24,4
20,8
3,55
37,3
15,8
4,53
2,73
21,9
20,4
3,48
35,8
15,5
4,74
2,66
20,9
20,2
3,46
35,2
19,9
3,30
3,43
34,7
23,2
3,97
46,6
19,1
3,67
3,29
31,9
22,8
3,90
44,8
18,7
3,83
3,23
30,8
22,6
3,87
44,1
19,7
4,12
3,40
34,2
23,9
4,09
49,3
18,7
4,59
3,23
30,8
23,3
4,00
47,1
18,3
4,80
3,16
29,4
23,1
3,96
46,3
23,1
3,36
3,99
47,0
26,5
4,54
60,8
22,3
3,72
3,84
43,5
26,0
4,45
58,5
21,9
3,88
3,78
42,1
25,8
4,42
57,5
35
40
42
25
30
32
15
18
0071
Tev
32
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
21,7
4,03
3,74
28,5
25,8
4,41
39,6
20,8
4,51
3,59
26,2
25,4
4,34
38,4
20,5
4,72
3,52
25,3
25,2
4,31
37,8
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
25,6
4,15
4,41
39,7
29,8
5,10
52,9
24,7
4,63
4,26
37,0
29,3
5,03
51,5
Tcd
25
30
9
19,8
5,06
3,42
23,8
24,9
4,26
37,0
18,7
5,69
3,22
21,2
24,4
4,18
35,5
18,3
5,96
3,14
20,1
24,2
4,14
34,9
23,0
4,08
3,97
32,0
27,1
4,64
43,8
22,1
4,55
3,81
29,6
26,7
4,57
42,5
21,7
4,76
3,74
28,6
26,5
4,54
41,9
24,3
4,84
4,19
35,8
29,1
4,99
50,8
23,7
5,17
4,08
33,9
28,8
4,94
49,7
22,4
5,78
3,87
30,4
28,2
4,83
47,6
21,9
6,05
3,77
29,0
27,9
4,79
46,6
26,9
4,19
4,64
43,8
31,1
5,32
57,7
26,0
4,66
4,48
41,0
30,7
5,25
56,2
25,6
4,87
4,41
39,7
30,5
5,22
55,5
32
35
40
42
25
30
13
12
21,1
5,10
3,64
26,9
26,2
4,49
41,0
20,0
5,73
3,44
24,1
25,7
4,40
39,4
19,5
6,00
3,35
22,9
25,5
4,36
38,7
25,0
4,13
4,30
37,7
29,1
4,98
50,6
24,1
4,61
4,15
35,1
28,7
4,91
49,1
23,7
4,82
4,08
33,9
28,5
4,88
48,5
24,9
5,20
4,30
37,7
30,1
5,16
54,3
23,7
5,80
4,08
33,9
29,5
5,05
52,0
23,1
6,06
3,98
32,3
29,2
5,00
50,9
28,8
4,23
4,97
50,3
33,0
5,66
65,2
27,9
4,70
4,82
47,4
32,6
5,60
63,8
27,5
4,91
4,75
46,0
32,4
5,56
63,0
35
40
42
25
30
32
15
18
0091
Tev
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
32
7
25,2
4,61
4,34
24,8
29,8
5,11
34,3
24,1
5,16
4,15
22,6
29,3
5,01
33,0
23,6
5,39
4,07
21,8
29,0
4,97
32,4
29,9
4,78
5,16
35,1
34,7
5,95
46,5
28,5
5,31
4,92
31,9
33,9
5,80
44,3
28,0
5,55
4,82
30,6
33,5
5,74
43,4
9
22,9
5,76
3,94
20,5
28,7
4,91
31,7
21,7
6,42
3,73
18,3
28,1
4,81
30,4
21,2
6,69
3,65
17,5
27,9
4,77
29,9
26,8
4,67
4,62
28,0
31,5
5,39
38,2
25,6
5,21
4,41
25,5
30,8
5,27
36,6
25,1
5,45
4,32
24,6
30,5
5,23
35,9
27,2
5,91
4,68
28,8
33,1
5,67
42,2
25,8
6,56
4,45
26,0
32,3
5,54
40,4
25,2
6,84
4,35
24,9
32,1
5,50
39,8
31,5
4,83
5,44
38,9
36,3
6,23
51,0
30,0
5,36
5,18
35,3
35,4
6,06
48,4
29,4
5,59
5,08
33,9
35,0
6,00
47,4
13
12
24,3
5,81
4,19
23,1
30,1
5,16
35,0
23,1
6,47
3,97
20,7
29,5
5,05
33,6
22,5
6,75
3,88
19,8
29,3
5,01
33,1
29,2
4,75
5,03
33,2
33,9
5,81
44,4
27,8
5,29
4,79
30,2
33,1
5,67
42,3
27,3
5,52
4,70
29,0
32,8
5,62
41,5
28,6
5,95
4,93
31,9
34,5
5,92
46,1
27,2
6,60
4,68
28,9
33,8
5,79
44,1
26,6
6,88
4,59
27,7
33,5
5,74
43,4
33,9
4,91
5,85
45,0
38,8
6,65
58,2
32,2
5,42
5,56
40,7
37,7
6,46
54,8
31,6
5,64
5,45
39,2
37,2
6,39
53,7
15
Tcd [°C] - Plant (side) heating exchanger output water temperature
Tev [°C] - Source (side) heat exchanger output water temperature
Pf [kW] - Cooling capacity
Pat [kW] - Total power input
Qev [m³/h] - Plant (side) heat exchanger water flow
Dpev [kPa] - Plant (side) cooling exchanger pressure drop
18
Pt [kW] - Heating capacity
Qcd [m³/h] - Source (side) heating exchanger water flow
Dpcd [kPa] - Source (side) heat exchanger pressure drop
'-' Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
28
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V COOLING PERFORMANCE
0101
Tcd
25
30
32
Tev
35
40
42
25
30
32
35
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
28,5
5,38
4,90
33,0
33,8
5,79
46,0
27,3
6,02
4,70
30,4
33,3
5,71
44,7
26,8
6,30
4,62
29,3
33,1
5,67
44,1
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
33,4
5,54
5,76
45,6
39,0
6,67
61,2
32,2
6,17
5,56
42,4
38,4
6,58
59,4
Tcd
25
30
40
42
25
30
32
9
26,0
6,75
4,48
27,6
32,8
5,61
43,2
24,6
7,58
4,23
24,5
32,1
5,50
41,5
23,9
7,93
4,12
23,3
31,9
5,45
40,7
30,1
5,44
5,19
37,0
35,6
6,09
50,8
29,0
6,08
4,99
34,2
35,0
6,00
49,4
28,5
6,36
4,90
33,0
34,8
5,96
48,7
31,7
6,45
5,46
41,0
38,1
6,53
58,6
30,8
6,90
5,31
38,8
37,7
6,46
57,3
29,2
7,71
5,04
34,9
36,9
6,33
55,0
28,5
8,06
4,92
33,2
36,6
6,27
54,0
35,1
5,59
6,05
50,3
40,7
6,96
66,6
33,8
6,21
5,84
46,8
40,1
6,86
64,7
33,3
6,49
5,74
45,3
39,8
6,82
63,8
32
35
40
42
25
30
13
35
40
42
30,0
6,88
5,18
36,8
36,9
6,32
54,8
28,5
7,69
4,90
33,0
36,1
6,19
52,6
27,8
8,04
4,79
31,5
35,8
6,13
51,7
34,8
6,97
6,01
49,6
41,8
7,16
70,5
33,1
7,76
5,72
44,9
40,9
7,02
67,6
32,4
8,11
5,60
43,0
40,5
6,95
66,3
35
40
42
38,5
8,63
6,64
38,0
47,2
8,08
56,1
36,7
9,56
6,32
34,3
46,2
7,92
53,9
35,9
9,98
6,18
32,8
45,8
7,85
53,0
44,8
8,80
7,73
51,4
53,6
9,19
72,6
42,7
9,66
7,36
46,6
52,3
8,98
69,3
41,7
10,0
7,21
44,6
51,8
8,88
67,9
12
27,6
6,81
4,76
31,1
34,4
5,89
47,7
26,1
7,63
4,50
27,8
33,7
5,77
45,8
25,5
7,98
4,38
26,4
33,4
5,72
45,0
32,6
5,52
5,62
43,4
38,1
6,53
58,5
31,4
6,15
5,41
40,2
37,6
6,43
56,8
30,9
6,43
5,32
38,9
37,3
6,39
56,1
32,4
6,93
5,59
42,9
39,4
6,74
62,4
30,8
7,74
5,31
38,7
38,5
6,60
59,9
30,1
8,09
5,19
37,0
38,2
6,54
58,8
37,5
5,65
6,48
57,6
43,2
7,40
75,2
36,3
6,26
6,26
53,8
42,5
7,29
73,0
35,7
6,53
6,16
52,2
42,2
7,24
72,0
35
40
42
25
30
32
15
18
0121
Tev
32
7
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
Tev
36,2
6,94
6,24
33,5
43,2
7,38
46,9
34,9
7,62
6,01
31,0
42,5
7,27
45,5
34,3
7,93
5,91
30,0
42,2
7,23
44,9
Pf
Pat
Qev
Dpev
Pt
Qcd
Dpcd
42,8
7,21
7,38
46,8
50,0
8,56
63,0
41,3
7,87
7,12
43,6
49,2
8,42
61,0
40,6
8,17
7,00
42,2
48,8
8,36
60,1
9
33,4
8,44
5,75
28,4
41,8
7,16
44,0
31,7
9,40
5,46
25,6
41,1
7,03
42,6
31,0
9,82
5,34
24,5
40,8
6,98
41,9
38,4
7,03
6,62
37,6
45,4
7,78
52,0
37,0
7,70
6,38
35,0
44,7
7,65
50,4
36,4
8,01
6,27
33,8
44,4
7,60
49,7
39,6
8,66
6,82
40,0
48,2
8,27
58,7
37,7
9,59
6,49
36,3
47,2
8,10
56,4
36,8
10,00
6,35
34,7
46,8
8,03
55,4
45,0
7,30
7,76
51,8
52,3
8,95
68,9
43,4
7,94
7,49
48,3
51,4
8,80
66,6
42,8
8,24
7,37
46,8
51,0
8,74
65,7
13
12
35,4
8,52
6,10
32,0
44,0
7,53
48,7
33,7
9,47
5,80
29,0
43,2
7,39
47,0
32,9
9,89
5,67
27,7
42,8
7,33
46,2
41,7
7,17
7,19
44,4
48,9
8,36
60,1
40,2
7,83
6,93
41,3
48,0
8,23
58,2
39,6
8,13
6,82
40,0
47,7
8,17
57,4
41,7
8,72
7,19
44,4
50,4
8,64
64,1
39,7
9,63
6,84
40,2
49,3
8,45
61,4
38,8
10,0
6,69
38,5
48,8
8,37
60,2
48,3
7,42
8,34
59,8
55,7
9,55
78,4
46,7
8,05
8,06
55,8
54,7
9,38
75,7
45,9
8,34
7,93
54,1
54,3
9,31
74,5
15
Tcd [°C] - Plant (side) heating exchanger output water temperature
Tev [°C] - Source (side) heat exchanger output water temperature
Pf [kW] - Cooling capacity
Pat [kW] - Total power input
Qev [m³/h] - Plant (side) heat exchanger water flow
Dpev [kPa] - Plant (side) cooling exchanger pressure drop
18
Pt [kW] - Heating capacity
Qcd [m³/h] - Source (side) heating exchanger water flow
Dpcd [kPa] - Source (side) heat exchanger pressure drop
'-' Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
29
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 230V HEATING PERFORMANCE
0011
Tev
-5
0
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
Tcd
5,13
0,887
7,38
1,15
5,17
0,891
7,44
-5
6,25
1,08
11,0
1,17
5,17
0,891
7,44
0
7,41
1,28
15,4
1,19
5,17
0,891
7,44
5
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
4,84
0,841
6,64
1,67
5,17
0,891
7,44
5,83
1,01
9,61
1,71
5,17
0,891
7,44
-5
0
7
10
15
-5
0
5
7
30
10
15
-5
0
5
35
7,88
1,36
17,4
1,19
5,17
0,891
7,44
7
8,60
1,49
20,7
1,19
5,17
0,891
7,44
10
9,82
1,70
27,0
1,19
5,17
0,891
7,44
15
5,03
0,871
7,12
1,30
5,17
0,891
7,44
-5
6,12
1,06
10,5
1,33
5,17
0,891
7,44
0
7,23
1,25
14,7
1,35
5,17
0,891
7,44
5
6,83
1,19
13,2
1,73
5,17
0,891
7,44
7,24
1,26
14,8
1,74
5,17
0,891
7,44
7,86
1,37
17,5
1,74
5,17
0,891
7,44
8,91
1,55
22,5
1,72
5,17
0,891
7,44
-
5,67
0,988
9,15
1,94
5,17
0,891
7,44
6,62
1,15
12,5
1,95
5,17
0,891
7,44
5
7
10
15
-5
0
45
7
10
15
7,47
1,30
15,7
1,54
5,17
0,891
7,44
7
8,12
1,41
18,6
1,54
5,17
0,891
7,44
10
9,23
1,60
24,0
1,53
5,17
0,891
7,44
15
6,76
1,18
13,0
2,19
5,17
0,891
7,44
7,30
1,27
15,2
2,18
5,17
0,891
7,44
8,24
1,44
19,4
2,15
5,17
0,891
7,44
7
10
15
9,98
1,73
22,2
2,04
7,16
1,23
11,2
7
10,8
1,88
26,1
2,03
7,16
1,23
11,2
10
12,2
2,12
33,4
2,01
7,16
1,23
11,2
15
9,34
1,63
19,6
3,02
7,16
1,23
11,2
10,0
1,75
22,7
3,00
7,16
1,23
11,2
11,3
1,96
28,6
2,94
7,16
1,23
11,2
7
10
15
12,5
2,17
34,3
2,62
8,84
1,52
16,8
7
13,5
2,35
40,0
2,61
8,84
1,52
16,8
10
15,2
2,64
50,6
2,58
8,84
1,52
16,8
15
11,6
2,03
29,9
3,86
8,84
1,52
16,8
12,5
2,18
34,5
3,84
8,84
1,52
16,8
14,0
2,44
43,3
3,79
8,84
1,52
16,8
7
10
15
15,8
2,74
37,5
3,23
11,3
1,94
18,8
7
17,0
2,95
43,7
3,25
11,3
1,94
18,8
10
19,1
3,31
54,9
3,27
11,3
1,94
18,8
15
14,7
2,57
33,0
4,51
11,3
1,94
18,8
15,8
2,75
37,9
4,48
11,3
1,94
18,8
17,5
3,05
46,7
4,40
11,3
1,94
18,8
40
7,68
1,33
16,6
1,36
5,17
0,891
7,44
7
8,37
1,45
19,7
1,36
5,17
0,891
7,44
10
9,53
1,65
25,5
1,35
5,17
0,891
7,44
15
4,94
0,856
6,87
1,47
5,17
0,891
7,44
-5
5,97
1,04
10,1
1,51
5,17
0,891
7,44
0
7,04
1,22
14,0
1,53
5,17
0,891
7,44
5
7,01
1,22
13,9
1,96
5,17
0,891
7,44
7,59
1,32
16,4
1,95
5,17
0,891
7,44
8,58
1,49
20,9
1,92
5,17
0,891
7,44
-
-
6,40
1,12
11,7
2,19
5,17
0,891
7,44
7
10
15
-5
0
5
50
55
0025
Tev
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
6,98
1,21
10,8
1,53
7,16
1,23
11,2
-5
8,42
1,46
15,7
1,55
7,16
1,23
11,2
0
9,89
1,71
21,7
1,56
7,16
1,23
11,2
5
6,72
1,17
10,1
2,32
7,16
1,23
11,2
7,96
1,38
14,1
2,34
7,16
1,23
11,2
-5
0
35
10,5
1,81
24,4
1,56
7,16
1,23
11,2
7
11,4
1,97
28,8
1,55
7,16
1,23
11,2
10
12,9
2,24
37,1
1,53
7,16
1,23
11,2
15
6,87
1,19
10,5
1,76
7,16
1,23
11,2
-5
8,25
1,43
15,1
1,78
7,16
1,23
11,2
0
9,66
1,67
20,7
1,78
7,16
1,23
11,2
5
9,23
1,60
19,1
2,34
7,16
1,23
11,2
9,75
1,69
21,3
2,33
7,16
1,23
11,2
10,5
1,83
24,9
2,32
7,16
1,23
11,2
11,9
2,07
31,7
2,29
7,16
1,23
11,2
-
7,84
1,36
13,8
2,67
7,16
1,23
11,2
9,04
1,57
18,3
2,67
7,16
1,23
11,2
5
7
10
15
-5
0
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
5
30
45
40
10,2
1,77
23,2
1,78
7,16
1,23
11,2
7
11,1
1,92
27,4
1,78
7,16
1,23
11,2
10
12,6
2,18
35,2
1,76
7,16
1,23
11,2
15
6,79
1,18
10,3
2,02
7,16
1,23
11,2
-5
8,09
1,40
14,6
2,04
7,16
1,23
11,2
0
9,44
1,64
19,8
2,04
7,16
1,23
11,2
5
9,54
1,66
20,4
2,66
7,16
1,23
11,2
10,3
1,79
23,8
2,64
7,16
1,23
11,2
11,6
2,02
30,1
2,60
7,16
1,23
11,2
-
-
8,87
1,55
17,7
3,03
7,16
1,23
11,2
7
10
15
-5
0
5
50
55
0031
Tev
Tcd
5
30
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
8,80
1,52
16,8
1,97
8,84
1,52
16,8
-5
10,6
1,83
24,3
2,00
8,84
1,52
16,8
0
12,4
2,14
33,3
2,01
8,84
1,52
16,8
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
8,49
1,48
15,8
2,96
8,84
1,52
16,8
10,0
1,74
22,0
2,99
8,84
1,52
16,8
-5
0
35
13,1
2,27
37,3
2,01
8,84
1,52
16,8
7
14,2
2,46
43,9
2,01
8,84
1,52
16,8
10
16,1
2,78
56,1
1,98
8,84
1,52
16,8
15
8,69
1,50
16,4
2,26
8,84
1,52
16,8
-5
10,4
1,80
23,5
2,29
8,84
1,52
16,8
0
12,1
2,10
32,0
2,30
8,84
1,52
16,8
5
11,6
2,02
29,4
2,99
8,84
1,52
16,8
12,2
2,13
32,8
2,99
8,84
1,52
16,8
13,2
2,29
38,1
2,98
8,84
1,52
16,8
14,8
2,57
48,0
2,94
8,84
1,52
16,8
-
9,85
1,72
21,3
3,41
8,84
1,52
16,8
11,3
1,97
28,2
3,41
8,84
1,52
16,8
5
7
10
15
-5
0
45
40
12,8
2,22
35,8
2,29
8,84
1,52
16,8
7
13,9
2,40
41,9
2,29
8,84
1,52
16,8
10
15,6
2,71
53,3
2,26
8,84
1,52
16,8
15
8,58
1,49
16,1
2,59
8,84
1,52
16,8
-5
10,2
1,77
22,8
2,61
8,84
1,52
16,8
0
11,9
2,06
30,7
2,62
8,84
1,52
16,8
5
11,9
2,08
31,3
3,40
8,84
1,52
16,8
12,8
2,24
36,3
3,39
8,84
1,52
16,8
14,4
2,51
45,6
3,34
8,84
1,52
16,8
-
-
11,1
1,93
27,0
3,87
8,84
1,52
16,8
7
10
15
-5
0
5
50
55
0041
Tev
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
Tcd
11,2
1,94
18,9
2,44
11,3
1,94
18,8
-5
13,4
2,32
27,1
2,50
11,3
1,94
18,8
0
15,7
2,71
36,7
2,55
11,3
1,94
18,8
5
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
10,7
1,86
17,3
3,53
11,3
1,94
18,8
12,7
2,20
24,3
3,58
11,3
1,94
18,8
14,6
2,54
32,4
3,62
11,3
1,94
18,8
5
30
35
16,6
2,86
41,0
2,56
11,3
1,94
18,8
7
17,9
3,10
48,0
2,58
11,3
1,94
18,8
10
20,2
3,49
60,9
2,60
11,3
1,94
18,8
15
11,1
1,92
18,4
2,74
11,3
1,94
18,8
-5
13,2
2,28
26,1
2,81
11,3
1,94
18,8
0
15,3
2,65
35,2
2,86
11,3
1,94
18,8
5
15,4
2,68
36,0
3,63
11,3
1,94
18,8
16,6
2,88
41,7
3,63
11,3
1,94
18,8
18,6
3,22
52,1
3,63
11,3
1,94
18,8
-
12,4
2,16
23,5
4,04
11,3
1,94
18,8
14,3
2,49
31,1
4,05
11,3
1,94
18,8
45
40
16,2
2,80
39,2
2,88
11,3
1,94
18,8
7
17,5
3,02
45,8
2,90
11,3
1,94
18,8
10
19,6
3,40
57,9
2,92
11,3
1,94
18,8
15
10,9
1,89
17,8
3,11
11,3
1,94
18,8
-5
12,9
2,24
25,1
3,17
11,3
1,94
18,8
0
15,0
2,60
33,7
3,22
11,3
1,94
18,8
5
15,1
2,62
34,5
4,05
11,3
1,94
18,8
16,2
2,82
39,8
4,04
11,3
1,94
18,8
18,0
3,14
49,3
4,01
11,3
1,94
18,8
-
-
14,0
2,44
29,9
4,53
11,3
1,94
18,8
50
Tev [°C] - Source (side) heat exchanger output water temperature
Tcd (°C) - Plant (side) heating exchanger output water temperature
Pt (kW) - Heating capacity
Qcd (m³/h) - Plant (side) heating exchanger water flow
Dpcd (kPa) - Plant (side) heating exchanger pressure drop
Pat (kW) - Total power input
55
Pf (kW) - Cooling capacity
Qev (m³/h) - Source (side) heat exchanger water flow
Dpev (kPa) - Source (side) cooling exchanger pressure drop
'-' - Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
30
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V HEATING PERFORMANCE
0025
Tev
-5
0
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
Tcd
7,23
1,25
11,6
1,47
7,34
1,26
11,8
-5
8,77
1,52
17,0
1,48
7,34
1,26
11,8
0
10,2
1,76
23,0
1,48
7,34
1,26
11,8
5
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
6,58
1,14
9,68
2,20
7,34
1,26
11,8
7,93
1,38
14,0
2,22
7,34
1,26
11,8
-5
0
7
10
15
-5
0
5
30
7
10
15
-5
0
5
35
10,7
1,85
25,5
1,48
7,34
1,26
11,8
7
11,5
1,99
29,2
1,47
7,34
1,26
11,8
10
12,7
2,19
35,6
1,45
7,34
1,26
11,8
15
7,01
1,21
10,9
1,68
7,34
1,26
11,8
-5
8,48
1,47
16,0
1,69
7,34
1,26
11,8
0
9,85
1,71
21,5
1,70
7,34
1,26
11,8
5
9,17
1,59
18,8
2,21
7,34
1,26
11,8
9,64
1,68
20,8
2,20
7,34
1,26
11,8
10,3
1,79
23,8
2,19
7,34
1,26
11,8
11,4
1,97
28,9
2,15
7,34
1,26
11,8
-
7,65
1,33
13,1
2,53
7,34
1,26
11,8
8,84
1,54
17,5
2,51
7,34
1,26
11,8
5
7
10
15
-5
0
45
7
10
15
10,0
1,74
22,3
1,93
7,34
1,26
11,8
7
10,7
1,86
25,6
1,92
7,34
1,26
11,8
10
11,8
2,05
31,1
1,89
7,34
1,26
11,8
15
8,92
1,56
17,9
2,83
7,34
1,26
11,8
9,52
1,66
20,4
2,80
7,34
1,26
11,8
10,4
1,82
24,6
2,75
7,34
1,26
11,8
7
10
15
12,4
2,15
33,6
2,46
8,88
1,53
16,9
7
13,4
2,33
39,4
2,47
8,88
1,53
16,9
10
15,2
2,63
50,2
2,46
8,88
1,53
16,9
15
11,4
1,99
28,6
3,45
8,88
1,53
16,9
12,3
2,14
33,3
3,45
8,88
1,53
16,9
13,8
2,40
41,9
3,45
8,88
1,53
16,9
7
10
15
16,4
2,85
40,7
3,29
11,8
2,03
20,6
7
17,7
3,08
47,4
3,30
11,8
2,03
20,6
10
19,9
3,45
59,6
3,32
11,8
2,03
20,6
15
15,4
2,69
36,1
4,72
11,8
2,03
20,6
16,5
2,88
41,5
4,68
11,8
2,03
20,6
18,3
3,20
51,3
4,61
11,8
2,03
20,6
40
10,4
1,79
23,8
1,69
7,34
1,26
11,8
7
11,1
1,92
27,4
1,68
7,34
1,26
11,8
10
12,2
2,12
33,3
1,66
7,34
1,26
11,8
15
6,79
1,18
10,3
1,92
7,34
1,26
11,8
-5
8,20
1,42
15,0
1,94
7,34
1,26
11,8
0
9,51
1,65
20,1
1,94
7,34
1,26
11,8
5
9,28
1,62
19,3
2,50
7,34
1,26
11,8
9,92
1,73
22,1
2,48
7,34
1,26
11,8
10,9
1,90
26,7
2,44
7,34
1,26
11,8
-
-
8,50
1,48
16,3
2,84
7,34
1,26
11,8
7
10
15
-5
0
5
50
55
0031
Tev
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
8,76
1,52
16,6
1,83
8,88
1,53
16,9
-5
10,6
1,83
24,2
1,88
8,88
1,53
16,9
0
12,4
2,14
33,3
1,92
8,88
1,53
16,9
5
8,20
1,43
14,7
2,63
8,88
1,53
16,9
9,80
1,70
21,0
2,70
8,88
1,53
16,9
-5
0
35
13,1
2,27
37,3
1,92
8,88
1,53
16,9
7
14,2
2,46
43,9
1,93
8,88
1,53
16,9
10
16,1
2,78
56,1
1,92
8,88
1,53
16,9
15
8,56
1,48
15,9
2,07
8,88
1,53
16,9
-5
10,3
1,78
23,1
2,13
8,88
1,53
16,9
0
12,1
2,09
31,6
2,17
8,88
1,53
16,9
5
11,4
1,98
28,6
2,75
8,88
1,53
16,9
12,1
2,10
31,9
2,76
8,88
1,53
16,9
13,1
2,27
37,3
2,77
8,88
1,53
16,9
14,7
2,56
47,3
2,77
8,88
1,53
16,9
-
9,57
1,67
20,1
3,03
8,88
1,53
16,9
11,1
1,93
27,1
3,08
8,88
1,53
16,9
5
7
10
15
-5
0
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
5
30
45
40
12,8
2,21
35,5
2,18
8,88
1,53
16,9
7
13,8
2,40
41,6
2,19
8,88
1,53
16,9
10
15,6
2,71
53,1
2,18
8,88
1,53
16,9
15
8,37
1,45
15,3
2,33
8,88
1,53
16,9
-5
10,0
1,74
22,0
2,40
8,88
1,53
16,9
0
11,7
2,04
30,1
2,45
8,88
1,53
16,9
5
11,7
2,04
30,2
3,09
8,88
1,53
16,9
12,7
2,21
35,3
3,10
8,88
1,53
16,9
14,2
2,48
44,6
3,10
8,88
1,53
16,9
-
-
10,8
1,88
25,7
3,43
8,88
1,53
16,9
7
10
15
-5
0
5
50
55
0041
Tev
Tcd
5
30
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
11,7
2,02
20,4
2,41
11,8
2,03
20,6
-5
14,0
2,42
29,3
2,48
11,8
2,03
20,6
0
16,3
2,82
39,8
2,52
11,8
2,03
20,6
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
11,2
1,94
18,9
3,63
11,8
2,03
20,6
13,2
2,30
26,4
3,68
11,8
2,03
20,6
15,3
2,65
35,2
3,71
11,8
2,03
20,6
35
17,2
2,98
44,4
2,54
11,8
2,03
20,6
7
18,6
3,22
51,9
2,56
11,8
2,03
20,6
10
21,0
3,62
65,8
2,57
11,8
2,03
20,6
15
11,5
1,99
19,9
2,76
11,8
2,03
20,6
-5
13,7
2,37
28,2
2,82
11,8
2,03
20,6
0
15,9
2,76
38,1
2,88
11,8
2,03
20,6
5
16,1
2,79
39,1
3,72
11,8
2,03
20,6
17,3
3,01
45,3
3,73
11,8
2,03
20,6
19,4
3,37
56,7
3,73
11,8
2,03
20,6
-
13,0
2,26
25,6
4,19
11,8
2,03
20,6
14,9
2,60
33,9
4,20
11,8
2,03
20,6
45
40
16,8
2,91
42,5
2,89
11,8
2,03
20,6
7
18,2
3,15
49,6
2,91
11,8
2,03
20,6
10
20,4
3,54
62,6
2,94
11,8
2,03
20,6
15
11,3
1,97
19,4
3,16
11,8
2,03
20,6
-5
13,5
2,33
27,3
3,23
11,8
2,03
20,6
0
15,6
2,70
36,6
3,27
11,8
2,03
20,6
5
15,7
2,74
37,6
4,20
11,8
2,03
20,6
16,9
2,94
43,4
4,19
11,8
2,03
20,6
18,9
3,28
54,0
4,15
11,8
2,03
20,6
-
-
14,7
2,56
32,7
4,73
11,8
2,03
20,6
50
Tev [°C] - Source (side) heat exchanger output water temperature
Tcd (°C) - Plant (side) heating exchanger output water temperature
Pt (kW) - Heating capacity
Qcd (m³/h) - Plant (side) heating exchanger water flow
Dpcd (kPa) - Plant (side) heating exchanger pressure drop
Pat (kW) - Total power input
55
Pf (kW) - Cooling capacity
Qev (m³/h) - Source (side) heat exchanger water flow
Dpev (kPa) - Source (side) cooling exchanger pressure drop
'-' - Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
31
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V HEATING PERFORMANCE
0061
Tev
-5
0
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
Tcd
15,3
2,65
20,7
3,07
15,7
2,71
21,6
-5
18,5
3,19
30,1
3,20
15,7
2,71
21,6
0
21,7
3,75
41,5
3,29
15,7
2,71
21,6
5
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
14,4
2,50
18,4
4,34
15,7
2,71
21,6
17,2
2,98
26,3
4,50
15,7
2,71
21,6
-5
0
7
10
15
-5
0
5
30
7
10
15
-5
0
5
35
23,0
3,98
46,6
3,33
15,7
2,71
21,6
7
25,0
4,32
54,9
3,37
15,7
2,71
21,6
10
28,3
4,89
70,6
3,41
15,7
2,71
21,6
15
15,0
2,60
19,9
3,45
15,7
2,71
21,6
-5
18,0
3,12
28,8
3,58
15,7
2,71
21,6
0
21,1
3,66
39,5
3,68
15,7
2,71
21,6
5
20,0
3,48
35,7
4,61
15,7
2,71
21,6
21,2
3,68
39,8
4,64
15,7
2,71
21,6
22,9
3,98
46,6
4,68
15,7
2,71
21,6
25,8
4,48
59,2
4,71
15,7
2,71
21,6
-
16,8
2,92
25,1
5,03
15,7
2,71
21,6
19,4
3,38
33,8
5,15
15,7
2,71
21,6
5
7
10
15
-5
0
45
7
10
15
21,8
3,78
42,1
4,15
15,7
2,71
21,6
7
23,6
4,09
49,4
4,19
15,7
2,71
21,6
10
26,7
4,63
63,1
4,23
15,7
2,71
21,6
15
19,9
3,47
35,4
5,77
15,7
2,71
21,6
21,4
3,73
41,0
5,81
15,7
2,71
21,6
23,9
4,16
51,1
5,83
15,7
2,71
21,6
7
10
15
27,0
4,69
44,7
5,23
19,8
3,42
23,8
7
29,3
5,08
52,5
5,28
19,8
3,42
23,8
10
33,0
5,73
66,9
5,33
19,8
3,42
23,8
15
24,3
4,24
36,7
7,39
19,8
3,42
23,8
26,2
4,56
42,4
7,40
19,8
3,42
23,8
29,1
5,08
52,6
7,34
19,8
3,42
23,8
7
10
15
31,4
5,44
39,0
5,83
22,9
3,94
20,5
7
34,0
5,89
45,7
5,89
22,9
3,94
20,5
10
38,2
6,63
57,9
5,98
22,9
3,94
20,5
15
28,7
5,01
33,0
7,94
22,9
3,94
20,5
31,2
5,44
39,0
8,01
22,9
3,94
20,5
35,4
6,18
50,3
8,13
22,9
3,94
20,5
40
22,4
3,88
44,3
3,71
15,7
2,71
21,6
7
24,3
4,21
52,2
3,75
15,7
2,71
21,6
10
27,5
4,76
66,9
3,80
15,7
2,71
21,6
15
14,7
2,55
19,1
3,87
15,7
2,71
21,6
-5
17,6
3,05
27,5
4,01
15,7
2,71
21,6
0
20,6
3,57
37,6
4,12
15,7
2,71
21,6
5
20,5
3,57
37,6
5,18
15,7
2,71
21,6
22,1
3,85
43,8
5,22
15,7
2,71
21,6
24,8
4,33
55,2
5,24
15,7
2,71
21,6
-
-
18,9
3,29
31,9
5,74
15,7
2,71
21,6
7
10
15
-5
0
5
50
55
0071
Tev
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
19,0
3,29
22,0
3,87
19,8
3,42
23,8
-5
22,9
3,97
32,1
4,00
19,8
3,42
23,8
0
26,9
4,65
44,0
4,11
19,8
3,42
23,8
5
17,7
3,07
19,2
5,57
19,8
3,42
23,8
21,2
3,68
27,6
5,73
19,8
3,42
23,8
-5
0
35
28,5
4,92
49,3
4,15
19,8
3,42
23,8
7
30,8
5,33
57,8
4,21
19,8
3,42
23,8
10
34,7
6,01
73,6
4,29
19,8
3,42
23,8
15
18,6
3,21
21,0
4,37
19,8
3,42
23,8
-5
22,4
3,88
30,6
4,51
19,8
3,42
23,8
0
26,2
4,54
42,0
4,62
19,8
3,42
23,8
5
24,8
4,30
37,7
5,85
19,8
3,42
23,8
26,2
4,55
42,2
5,88
19,8
3,42
23,8
28,3
4,92
49,4
5,92
19,8
3,42
23,8
31,9
5,54
62,6
5,94
19,8
3,42
23,8
-
20,6
3,58
26,2
6,46
19,8
3,42
23,8
24,0
4,17
35,4
6,57
19,8
3,42
23,8
5
7
10
15
-5
0
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
5
30
45
40
27,8
4,81
47,1
4,66
19,8
3,42
23,8
7
30,1
5,21
55,3
4,71
19,8
3,42
23,8
10
34,0
5,88
70,5
4,78
19,8
3,42
23,8
15
18,1
3,14
20,1
4,94
19,8
3,42
23,8
-5
21,8
3,78
29,1
5,08
19,8
3,42
23,8
0
25,5
4,43
39,9
5,20
19,8
3,42
23,8
5
25,3
4,40
39,5
6,60
19,8
3,42
23,8
27,3
4,75
46,0
6,62
19,8
3,42
23,8
30,6
5,33
57,9
6,61
19,8
3,42
23,8
-
-
23,1
4,03
33,0
7,37
19,8
3,42
23,8
7
10
15
-5
0
5
50
55
0091
Tev
Tcd
5
30
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
22,0
3,80
19,0
4,33
22,9
3,94
20,5
-5
26,6
4,61
27,9
4,49
22,9
3,94
20,5
0
31,3
5,41
38,6
4,63
22,9
3,94
20,5
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
20,5
3,57
16,8
6,15
22,9
3,94
20,5
24,7
4,29
24,2
6,30
22,9
3,94
20,5
28,8
5,01
33,0
6,43
22,9
3,94
20,5
35
33,2
5,74
43,3
4,68
22,9
3,94
20,5
7
36,0
6,22
51,0
4,75
22,9
3,94
20,5
10
40,7
7,04
65,2
4,85
22,9
3,94
20,5
15
21,5
3,73
18,3
4,86
22,9
3,94
20,5
-5
26,0
4,51
26,7
5,03
22,9
3,94
20,5
0
30,5
5,28
36,7
5,18
22,9
3,94
20,5
5
30,5
5,30
36,9
6,48
22,9
3,94
20,5
33,0
5,73
43,3
6,54
22,9
3,94
20,5
37,2
6,46
54,9
6,63
22,9
3,94
20,5
-
23,9
4,17
22,9
7,03
22,9
3,94
20,5
28,0
4,87
31,2
7,14
22,9
3,94
20,5
45
40
32,3
5,59
41,1
5,23
22,9
3,94
20,5
7
34,9
6,05
48,2
5,29
22,9
3,94
20,5
10
39,4
6,82
61,3
5,38
22,9
3,94
20,5
15
21,1
3,65
17,6
5,47
22,9
3,94
20,5
-5
25,4
4,40
25,5
5,64
22,9
3,94
20,5
0
29,7
5,15
34,9
5,78
22,9
3,94
20,5
5
29,6
5,15
35,0
7,18
22,9
3,94
20,5
32,1
5,58
41,0
7,25
22,9
3,94
20,5
36,2
6,31
52,4
7,35
22,9
3,94
20,5
-
-
27,1
4,73
29,4
7,90
22,9
3,94
20,5
50
Tev [°C] - Source (side) heat exchanger output water temperature
Tcd (°C) - Plant (side) heating exchanger output water temperature
Pt (kW) - Heating capacity
Qcd (m³/h) - Plant (side) heating exchanger water flow
Dpcd (kPa) - Plant (side) heating exchanger pressure drop
Pat (kW) - Total power input
55
Pf (kW) - Cooling capacity
Qev (m³/h) - Source (side) heat exchanger water flow
Dpev (kPa) - Source (side) cooling exchanger pressure drop
'-' - Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
32
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 400V HEATING PERFORMANCE
0101
Tev
-5
0
5
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
Tcd
25,4
4,40
26,6
5,06
26,0
4,48
27,6
-5
30,6
5,30
38,6
5,23
26,0
4,48
27,6
0
35,8
6,19
52,7
5,38
26,0
4,48
27,6
5
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
23,6
4,11
23,1
7,27
26,0
4,48
27,6
28,3
4,92
33,2
7,47
26,0
4,48
27,6
-5
0
7
10
15
-5
0
5
30
7
10
15
-5
0
5
35
37,9
6,55
58,9
5,43
26,0
4,48
27,6
7
41,0
7,08
68,9
5,49
26,0
4,48
27,6
10
46,0
7,96
87,1
5,58
26,0
4,48
27,6
15
24,9
4,30
25,4
5,71
26,0
4,48
27,6
-5
29,9
5,18
36,9
5,89
26,0
4,48
27,6
0
35,0
6,06
50,4
6,04
26,0
4,48
27,6
5
33,0
5,73
45,1
7,61
26,0
4,48
27,6
34,9
6,06
50,5
7,66
26,0
4,48
27,6
37,7
6,56
59,0
7,71
26,0
4,48
27,6
42,5
7,38
74,8
7,75
26,0
4,48
27,6
-
27,4
4,77
31,2
8,39
26,0
4,48
27,6
31,8
5,54
42,2
8,54
26,0
4,48
27,6
5
7
10
15
-5
0
45
7
10
15
36,0
6,24
53,5
6,83
26,0
4,48
27,6
7
38,9
6,75
62,6
6,88
26,0
4,48
27,6
10
43,8
7,60
79,3
6,94
26,0
4,48
27,6
15
32,3
5,63
43,6
9,58
26,0
4,48
27,6
34,9
6,09
50,9
9,62
26,0
4,48
27,6
39,3
6,86
64,6
9,64
26,0
4,48
27,6
7
10
15
45,2
7,83
52,8
8,57
33,4
5,75
28,4
7
48,8
8,46
61,6
8,66
33,4
5,75
28,4
10
54,8
9,51
77,8
8,76
33,4
5,75
28,4
15
41,5
7,24
45,1
12,0
33,4
5,75
28,4
44,5
7,77
51,9
12,0
33,4
5,75
28,4
49,4
8,62
63,9
11,9
33,4
5,75
28,4
40
37,0
6,41
56,4
6,08
26,0
4,48
27,6
7
40,0
6,93
65,9
6,14
26,0
4,48
27,6
10
45,0
7,80
83,4
6,22
26,0
4,48
27,6
15
24,2
4,21
24,3
6,44
26,0
4,48
27,6
-5
29,1
5,06
35,1
6,63
26,0
4,48
27,6
0
34,0
5,91
47,9
6,78
26,0
4,48
27,6
5
33,7
5,86
47,1
8,58
26,0
4,48
27,6
36,4
6,33
55,1
8,62
26,0
4,48
27,6
41,0
7,14
69,9
8,65
26,0
4,48
27,6
-
-
30,6
5,34
39,1
9,54
26,0
4,48
27,6
7
10
15
-5
0
5
50
55
0121
Tev
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
Tev
32,0
5,53
26,3
6,46
33,4
5,75
28,4
-5
38,3
6,63
37,7
6,68
33,4
5,75
28,4
0
44,7
7,73
51,4
6,89
33,4
5,75
28,4
5
30,2
5,24
23,6
8,86
33,4
5,75
28,4
35,9
6,25
33,6
9,23
33,4
5,75
28,4
41,7
7,25
45,2
9,50
33,4
5,75
28,4
Tcd
Pt
Qcd
Pcd
Pat
Pf
Qev
Dpev
5
30
35
47,3
8,18
57,5
6,97
33,4
5,75
28,4
7
51,2
8,85
67,3
7,08
33,4
5,75
28,4
10
57,7
9,98
85,6
7,27
33,4
5,75
28,4
15
31,4
5,44
25,4
7,18
33,4
5,75
28,4
-5
37,5
6,50
36,4
7,42
33,4
5,75
28,4
0
43,8
7,58
49,4
7,63
33,4
5,75
28,4
5
44,0
7,65
50,3
9,57
33,4
5,75
28,4
47,4
8,24
58,5
9,65
33,4
5,75
28,4
53,2
9,24
73,4
9,69
33,4
5,75
28,4
-
35,1
6,11
32,1
10,3
33,4
5,75
28,4
40,6
7,07
43,0
10,6
33,4
5,75
28,4
45
40
46,2
8,01
55,2
7,70
33,4
5,75
28,4
7
50,0
8,66
64,5
7,81
33,4
5,75
28,4
10
56,3
9,76
81,9
7,95
33,4
5,75
28,4
15
30,8
5,34
24,5
7,98
33,4
5,75
28,4
-5
36,8
6,38
35,0
8,27
33,4
5,75
28,4
0
42,8
7,42
47,3
8,50
33,4
5,75
28,4
5
42,8
7,45
47,7
10,7
33,4
5,75
28,4
46,0
8,01
55,2
10,8
33,4
5,75
28,4
51,4
8,94
68,7
10,7
33,4
5,75
28,4
-
-
39,5
6,88
40,8
11,9
33,4
5,75
28,4
50
Tev [°C] - Source (side) heat exchanger output water temperature
Tcd (°C) - Plant (side) heating exchanger output water temperature
Pt (kW) - Heating capacity
Qcd (m³/h) - Plant (side) heating exchanger water flow
Dpcd (kPa) - Plant (side) heating exchanger pressure drop
Pat (kW) - Total power input
55
Pf (kW) - Cooling capacity
Qev (m³/h) - Source (side) heat exchanger water flow
Dpev (kPa) - Source (side) cooling exchanger pressure drop
'-' - Conditions outside the operating range
Waterflow and pressure drop on heat exchangers calculated with 5°C of delta T
33
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
6. OPERATING LIMITS
BWR MTD2 230V
BWR MTD2 400V
- System circuit temperature difference (min/max) = 4/8°C
- Ground source circuit temperature difference in heating mode (min/max) = 3/5°C
- Ground source circuit temperature difference in cooling mode (min/max) = 5/8°C
- Maximum glycol content 40%
34
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
7. ETHYLENE GLYCOL MIXTURE
Ethylene glycol and water mixture, used as a heat-conveying fluid, cause a variation in unit performance. For correct data, use the factors indicated in the following tabel.
cPf
cQ
cdp
0
-5
0
1
1
1
12%
0,985
1,02
1,07
Freezing point (°C)
-10
-15
-20
-25
Ethylene glycol percentage by weight
20%
30%
35%
40%
0,98
0,974
0,97
0,965
1,04
1,075
1,11
1,14
1,11
1,18
1,22
1,24
cPf: cooling power correction factor
cQ: flow correction factor
cdp: pressure drop correction factor
-30
-35
45%
0,964
1,17
1,27
50%
0,96
1,2
1,3
For data concerning other kind of anti-freeze solutions (e,g, propylene glycol)
please contact our Sale Department.
8. FOULING FACTORS
Performances are based on clean condition of tubes (fouling factor = 1). For different fouling values, performance should be adjusted
using the correction factors shown in the following table.
FOULING FACTORS
ff (m2 °CW)
0
1,80 x 10 -5
4,40 x 10 -5
8,80 x 10 -5
13,20 x 10 -5
17,20 x 10 -5
F1
1,000
1,000
1,000
0,960
0,944
0,930
EVAPORATOR
FK1
KE [°C]
1,000
0,0
1,000
0,0
1,000
0,0
0,990
0,7
0,985
1,0
0,980
1,5
CONDENSER/RECOVERY
F2
FK2
KC [°C]
1,000
1,000
0,0
1,000
1,000
0,0
0,990
1,030
1,0
0,980
1,040
1,5
0,964
1,050
2,3
0,950
1,060
3,0
ff: fouling factors
f1 - f2: potential correction factors
fk1 - fk2: compressor power input correction factors
r3: capacity correction factors
DESUPERHEATER
R3
1,000
1,000
0,990
0,980
0,964
0,950
KE: minimum condenser outlet temperature increase
KC: maximum condenser outlet temperature decrease
9. HYDRAULIC DATA
Water flow and pressure drop
Water flow in the heat exchangers is given by: Q=Px0,86/Dt
Q: water flow (m3/h)
Dt: difference between inlet and outlet water temp. (°C)
P: heat exchanger capacity (kW)
SIZE
BWR MTD2
0011 230V
0025 230V
0031 230V
0041 230V
0025 400V
0031 400V
0041 400V
0061 400V
0071 400V
0091 400V
0101 400V
0121 400V
Q min:
Q max:
C.a. min:
C.A.S.:
---
PLANT SIDE COLD HEAT EXCHANGER
Q min Q max C.A.S.
C.a.
K
m³/h
m³/h
dm³ min m³
9375
0,56
2,04
0,027
7402
0,77
2,81
0,037
7250
0,95
3,44
0,044
5008
1,21
4,33
0,056
7402
0,78
2,72
0,037
7250
0,96
3,44
0,044
5008
1,27
4,5
0,056
2949
1,69
6,11
0,08
2037
2,13
7,71
0,1
1316
2,46
8,8
0,115
1373
2,8
9,98
0,13
860
3,59
12,84
0,17
Pressure drop is given by: Dp= K x Q2/1000
Q: water flow (m3/h)
Dp: pressure drop (kPa)
K: unit size ratio
SOURCE SIDE HEAT EXCHANGER AUXILIARY SIDE HEAT EXCHANGER
Q min C.A.S. Q max
K
Q min C.A.S. Q max
K
m³/h
dm³
m³/h
m³/h
dm³
m³/h
9375
0,2
1,74
7402
0,27
2,35
7250
0,34
2,97
5008
0,43
3,77
7402
0,26
2,42
7250
0,33
2,93
5008
0,44
3,93
2949
0,57
5,16
2037
0,71
6,39
1316
0,82
7,42
1373
0,94
8,55
860
1,2
10,74
-
minimum water flow admitted to the heat exchanger
maximum water flow admitted to the heat exchanger
minimum water content admitted in the plant, using traditional control logic
heat exchanger water content
35
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
10. MINIMUM AND MAXIMUM SYSTEM WATER CONTENT
Minimum system water content
The minimum water content for the system shown in table 1 allows the number of compressor starts and stops to be limited.
Tab. 1
Size
Minimum water content
0011
27
l
0025
37
0031
44
0041
56
0061
80
0071
100
0091
115
0101
130
0121
170
Maximum system water content
The heat pumps are fitted as standard with an expansion vessel and safety valve. The maximum system water content depends on the
capacity of the expansion vessel (see table 2) and the calibration of the safety valve (see table 3).
Tab. 2
Size
Expansion vessel
Tab. 3
Size
Safety valve
l
0011
2
0025
2
0031
2
0041
2
0061
5
0071
5
0091
5
0101
8
0121
8
bar
0011
6
0025
6
0031
6
0041
6
0061
6
0071
6
0091
6
0101
6
0121
6
Table 4 shows an example of the maximum water content in the specified normal operating conditions.
If the volume of water in the system is higher, an additional, correctly sized expansion vessel is required.
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
435
25
2,8
515
20
20
2,3
595
15
1,8
670
>12,25
1,5
715
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
135
25
2,8
160
35
20
2,3
180
15
1,8
205
>12,25
1,5
220
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
80
25
2,8
95
45
20
2,3
110
15
1,8
120
>12,25
1,5
130
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
55
25
2,8
65
55
20
2,3
75
15
1,8
85
>12,25
1,5
90
Tab. 4
The data shown in the table refer to heat pumps with a 2-litre expansion vessel and a minimum water temperature of 4°C
Expansion vessel calibration
The expansion vessels are pre-charged to a standard pressure
of 1 bar.
The pre-charge pressure is chosen depending on the maximum
difference in height between the system terminal and the heat
pump, as shown in the figure.
H
The maximum height must not exceed 55 metres due to the
maximum vessel pre-charge pressure of 6 bars.
Make sure that the system terminal at the lowest point H1 can
withstand the pressure of the water column at that point.
H1
36
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
11. HYDRONIC UNIT
Standard system pump
Size
BWR MTD2 0011ms
BWR MTD2 0025ms
BWR MTD2 0031ms
BWR MTD2 0041ms
BWR MTD2 0025t
BWR MTD2 0031t
BWR MTD2 0041t
BWR MTD2 0061t
BWR MTD2 0071t
BWR MTD2 0091t
BWR MTD2 0101t
BWR MTD2 0121t
Pump
power supply
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
Pf (1)
kW
7,10
9,80
12
15,1
9,5
12
15,7
21,3
26,9
30,7
34,8
44,8
Q (1)
m3/h
1,22
1,69
2,06
2,60
1,63
2,06
2,70
3,66
4,63
5,28
5,99
7,71
H (1)
kPa
54
57
81
75
54
81
71
61
116
109
141
121
Pt (2)
kW
5,4
7,3
9,2
11,7
7,5
9,1
12,2
16
19,8
23
26,5
33,3
Q (2)
m3/h
0,93
1,26
1,58
2,01
1,29
1,57
2,10
2,75
3,41
3,96
4,56
5,73
H (2)
kPa
62
69
96
92
62
96
89
85
158
151
173
164
F.L.I.
kW
0,2
0,21
0,41
0,41
0,21
0,41
0,41
0,41
0,84
0,84
1,09
1,09
Pump
SXM 32-50
SXM 32-60
SXM 32-80
SXM 32-80
SXM 32-60
SXM 32-80
SXM 32-80
SXM 32-80
MULTI-H 402
MULTI-H 402
MULTI-H 802
MULTI-H 802
Values refer to rated conditions:
Pf (1)
Cooling capacity: Source heat exchanger water temperature (in/out) 30/35 °C System heat exchanger water temperature (in/out) 23/18 °C
Pt (2)
Heating capacity: Source heat exchanger water temperature (in/out) 0/-3 °C System heat exchanger water temperature (in/out) 30/35 °C
Q (1)(2) System flow-rate
H (1) (2) Available pressure head in system circuit
F.L.I
Maximum pump power consumption
Standard source pump
Size
BWR MTD2 0011ms
BWR MTD2 0025ms
BWR MTD2 0031ms
BWR MTD2 0041ms
BWR MTD2 0025t
BWR MTD2 0031t
BWR MTD2 0041t
BWR MTD2 0061t
BWR MTD2 0071t
BWR MTD2 0091t
BWR MTD2 0101t
BWR MTD2 0121t
Pump
power supply
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
230v-50Hz-1Ph
Pf (1)
kW
7,10
9,80
12
15,1
9,5
12
15,7
21,3
26,9
30,7
34,8
44,8
Q (1)
m3/h
1,60
2,10
2,60
3,30
2,00
2,60
3,40
4,50
5,70
6,60
7,50
9,60
H (1)
kPa
55
79
59
87
82
59
79
102
126
126
205
166
Pt (2)
kW
5,4
7,3
9,2
11,7
7,5
9,1
12,2
16
19,8
23
26,5
33,3
Q (2)
m3/h
1,30
1,70
2,20
2,80
1,80
2,20
3,00
3,90
4,80
5,70
6,50
8,20
H (2)
kPa
65
92
76
122
89
76
109
128
157
149
239
213
F.L.I.
kW
0,21
0,41
0,41
0,84
0,41
0,41
0,84
0,84
1,09
1,09
1,51
1,51
Pump
SXM 32-60
SXM 32-80
SXM 32-80
MULTI-H 202
SXM 32-80
SXM 32-80
MULTI-H 202
MULTI-H 402
MULTI-H 802
MULTI-H 802
MULTI-H 803
MULTI-H 803
Values refer to rated conditions:
Pf (1)
Cooling capacity: Source heat exchanger water temperature (in/out) 30/35 °C System heat exchanger water temperature (in/out) 23/18 °C
Pt (2)
Heating capacity: Source heat exchanger water temperature (in/out) 0/-3 °C System heat exchanger water temperature (in/out) 30/35 °C
Q (1)(2) Source flow-rate
H (1) (2) Available pressure head in source circuit
F.L.I
Maximum pump power consumption
37
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
12. PUMP CURVES
SYSTEM PUMP CURVE
BWR MTD2 XE 0011 230-400V
80
Useful pressure head [kPa]
70
3
60
50
2
40
30
1
20
10
0
0
1
2
Water flow-rate [m3/h]
BWR MTD2 XE 0025 230-400V
90
3
Useful pressure head [kPa]
80
70
2
60
50
1
40
30
20
10
0
0
1
2
3
Water flow-rate [m3/h]
BWR MTD2 XE 0031 230-400V
Useful pressure head [kPa]
120
100
80
60
3
40
2
20
1
0
0
1
2
3
4
3
Water flow-rate [m /h]
The pressure head refers to the values at the fittings.
38
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
SYSTEM PUMP CURVE
BWR MTD2 XE 0041 230-400V
120
Useful pressure head [kPa]
100
80
60
3
40
2
20
1
0
0
1
2
3
4
3
Water flow-rate [m /h]
BWR MTD2 XE 0061 400V
Useful pressure head [kPa]
120
100
80
60
3
40
2
20
1
0
0
1
2
3
4
5
Water flow-rate [m3/h]
BWR MTD2 XE 0071-0091-0101-0121 400V
250
Useful pressure head [kPa]
200
150
100
0091
0071
50
0121
0101
0
0
1
2
3
4
5
6
7
8
9
10
11
12
Water flow-rate [m3/h]
The pressure head refers to the values at the fittings.
39
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
SOURCE PUMP CURVE
BWR MTD2 XE 0011 230-400V
Useful pressure head [kPa]
90
3
80
70
2
60
1
50
40
30
20
10
0
0
1
2
3
3
Water flow-rate [m /h]
BWR MTD2 XE 0025 230-400V
Useful pressure head [kPa]
120
100
80
60
3
40
2
20
1
0
0
1
2
3
4
Water flow-rate [m3/h]
BWR MTD2 XE 0031 230-400V
Useful pressure head [kPa]
120
100
80
60
3
40
2
20
1
0
0
1
2
3
4
Water flow-rate [m3/h]
The pressure head refers to the values at the fittings.
40
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
BWR MTD2 XE 0041-0061-0071-0091-0101-0121 400V
400
Useful pressure head [kPa]
350
300
250
200
150
0091
100
0121
50
0041
0061
0071
0101
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Water flow-rate [m3/h]
The pressure head refers to the values at the fittings.
41
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
13. UTILITY WATER CIRCUIT CONNECTION DIAGRAM
Factory connections
Installer connections
UTILITY RETURN
UTILITY OUTLET
1
2
3
4
Pressure gauge
Vibration damper joint
Shut off valve
Calibrating valve
5
6
7
8
Flow switch
Thermometer
Pump
Safety valve
9
10
11
12
Expansion vessel
Mesh filter
Fill / top-up
Temperature sensor
13
14
15ì
16
Differential pressure switch
Drain / cleaning washing valve
Unit drain valve
System vent
14. WATER CIRCUIT CONNECTION DIAGRAM TO THE GROUND SOURCE CIRCUIT
Factory connections
Installer connections
GROUND SOURCE
LOOP RETURN
GROUND SOURCE
LOOP OUTLET
1
2
3
4
Pressure gauge
Vibration damper joint
Shut off valve
Calibrating valve
5
6
7
8
Flow switch
Thermometer
Pump
Safety valve
9
10
11
12
Expansion vessel
Mesh filter
Fill / top-up
Temperature sensor
42
13
14
15
16
Differential pressure switch
Drain / cleaning washing valve
Unit drain valve
System vent
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
15. ELECTRICAL DATA AT MAXIMUM CONDITIONS ALLOWED (FULL LOAD)
Maximum values
SIZE
n°
BWR MTD2 0011ms
BWR MTD2 0025ms
BWR MTD2 0031ms
BWR MTD2 0041ms
BWR MTD2 0025t
BWR MTD2 0031t
BWR MTD2 0041t
BWR MTD2 0061t
BWR MTD2 0071t
BWR MTD2 0091t
BWR MTD2 0101t
BWR MTD2 0121t
F.L.I.:
F.L.A.:
L.R.A.:
S.A.:
1
1
1
1
1
1
1
1
1
1
1
1
F.L.I.
(kW)
2,73
3,74
4,65
5,65
3,49
4,32
5,94
7,33
8,92
10,1
11,7
14,7
Compressors
F.L.A.
(A)
12,8
16,4
21,7
29,2
7,0
7,5
9,90
12,2
16,0
21,0
22,0
27,0
L.R.A.
(A)
26
37
44
45
35
48
64
75
95
111
118
140
F.L.I.
(kW)
2,73
3,74
4,65
5,65
3,49
4,32
5,94
7,33
8,92
10,1
11,7
14,7
Total (1)
F.L.A.
(A)
12,8
16,4
21,7
29,2
7
4,5
9,9
12,2
16
21
22
27
L.R.A.
(A)
26
37
44
45
35
48
64
75
95
111
118
140
Full load power
Full load current
Locked rotor amperes for single compressor
Inrush current
(1) Safety values to be considered when cabling the unit for power supply and line-protections
Power supply: 230/1/50 400/3/50
Voltage tolerance: 10%
Maximum voltage unbalance: 3%
Give the typical operating conditions of units designed for outdoor installation, which can be associated (according to reference document IEC 60721) to the following classes:
- climatic conditions class 4K4H: air temperature range from -20 up to 55°C (*), relative humidity range from 4 up to 100%, with possible
precipitations, at air pressure from 70 and 106 kPa and a maximum solar radiation of 1120 W/m2
- special climatic conditions negligible
- biological conditions class 4B1 and 4C2: locations in a generic urban area
- mechanically active substances class 4S2: locations in areas with sand or dust representative of urban areas
- mechanical conditions class 4M1: locations protected from significant vibrations or shocks
The required protection level for safe operation, according to reference document IEC 60529, is IP43XW (protection against access, to
the most critical unit's parts, of external devices with diameter larger than 1 mm and rain).
The unit can be considered IP44XW protected, i.e. protected against access of external devices (with diameter larger than 1 mm) and
water in general.
(*) for the unit’s operating limits, see “selection limits” section
43
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
16. FULL LOAD SOUND LEVEL
SIZE
BWR MTD2 0011ms
BWR MTD2 0025ms
BWR MTD2 0031ms
BWR MTD2 0041ms
BWR MTD2 0025t
BWR MTD2 0031t
BWR MTD2 0041t
BWR MTD2 0061t
BWR MTD2 0071t
BWR MTD2 0091t
BWR MTD2 0101t
BWR MTD2 0121t
63
125
60
61
61
62
61
61
62
63
64
64
68
68
61
62
62
63
62
62
63
64
65
65
69
69
SOUND POWER
Octave band [Hz]
250
500
1000
2000
Sound power level dB(A)
56
48
47
37
57
49
48
38
57
49
48
38
60
55
54
48
57
49
48
38
57
49
48
38
60
55
54
48
61
56
55
49
68
63
62
56
68
63
62
56
72
67
66
60
72
67
66
60
4000
8000
Total sound
level
29
30
30
41
30
30
41
42
49
49
53
53
34
35
35
36
35
35
36
37
42
42
46
46
52
53
53
58
53
53
58
59
66
66
70
70
Working conditions
Plant (side) cooling exchanger water (in/out) 12/7 °C
Source (side) heat exchanger water (in/out) 30/35 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Such certification refers specifically to the sound Power Level in dB(A). This is therefore the only acoustic data to be considered as
binding.
SIZE
BWR MTD2 0011ms
BWR MTD2 0025ms
BWR MTD2 0031ms
BWR MTD2 0041ms
BWR MTD2 0025t
BWR MTD2 0031t
BWR MTD2 0041t
BWR MTD2 0061t
BWR MTD2 0071t
BWR MTD2 0091t
BWR MTD2 0101t
BWR MTD2 0121t
63
125
45
46
46
47
46
46
47
48
49
49
53
53
46
47
47
48
47
47
48
49
50
50
54
54
SOUND PRESSURE LEVEL
Octave band [Hz] at 1 m
250
500
1000
2000
Sound pressure level dB(A)
41
33
32
22
42
34
33
23
42
34
33
23
45
40
39
33
42
34
33
23
42
34
33
23
45
40
39
33
46
41
40
34
53
48
47
41
53
48
47
41
57
52
51
45
57
52
51
45
4000
8000
Total sound
level
14
15
15
26
15
15
26
27
34
34
38
38
19
20
20
21
20
20
21
22
27
27
31
31
37
38
38
43
38
38
43
44
51
51
55
55
Working conditions
Plant (side) cooling exchanger water (in/out) 12/7 °C
Source (side) heat exchanger water (in/out) 30/35 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
44
BWR_MTD2_0011_0121_201110_EN
HFC 410A
BWR MTD2
17. DIMENSIONAL DRAWINGS
310
90
A
B
C
500
90
104
42
70 100 100 100
D
E
80 50 50
160
F
700
A
30
H
41
B
A Source return IN
B Source outlet OUT
C System outlet OUT
D System return IN
E Electrical connections
F Safety valve discharge
SIZE
DIMENSIONS AND
WEIGHTS
PLANT SIDE HEAT
EXCHANGER
CLEARANCE
A
B
H WEIGHT R1 R2 R3 R4
[mm] [mm] [mm] [kg] [mm] [mm] [mm] [mm]
BWR MTD2 0011ms
BWR MTD2 0025ms
BWR MTD2 0031ms
BWR MTD2 0041ms
SIZE
845
845
845
845
680
680
680
680
1105
1105
1105
1105
188
190
195
210
0
0
0
0
DIMENSIONS AND
WEIGHTS
600
600
600
600
600
600
600
600
600
600
600
600
GAS
GAS
GAS
GAS
845
845
845
845
845
845
845
845
680
680
680
680
680
680
680
680
1105
1105
1105
1105
1105
1105
1105
1105
190
195
210
225
230
245
250
270
0
0
0
0
0
0
0
0
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
Ø
1" G M
1" G M
1" G M
1" G M
PLANT SIDE HEAT
EXCHANGER
CLEARANCE
A
B
H WEIGHT R1 R2 R3 R4
[mm] [mm] [mm] [kg] [mm] [mm] [mm] [mm]
BWR MTD2 0025t
BWR MTD2 0031t
BWR MTD2 0041t
BWR MTD2 0061t
BWR MTD2 0071t
BWR MTD2 0091t
BWR MTD2 0101t
BWR MTD2 0121t
IN/OUT
TYPE
600
600
600
600
600
600
600
600
IN/OUT
TYPE
GAS
GAS
GAS
GAS
GAS
GAS
GAS
GAS
45
Ø
1" G M
1" G M
1" G M
1"1/4 G M
1"1/4 G M
1"1/4 G M
1"1/4 G M
1"1/4 G M
SOURCE SIDE HEAT
EXCHANGER
IN/OUT
TYPE
-
Ø
-
SOURCE SIDE HEAT
EXCHANGER
IN/OUT
TYPE
-
Ø
-
BWR_MTD2_0011_0121_201110_EN
AUXILIARY SIDE HEAT
EXCHANGER
IN/OUT
TYPE
Ø
-
-
AUXILIARY SIDE HEAT
EXCHANGER
IN/OUT
TYPE
-
Ø
-
HFC 410A
BWR MTD2
18. CLEARANCES - HOISTING - SYMBOLS
WARNING
Electrical current!
CLEARANCES
600
WARNING
Sharp surface!
WARNING
Fans!
600
60 0
HOISTING INSTRUCTIONS
-
Make sure all the panels are securely fastened before handling the unit.
Before hoisting, check the weight of the unit on the CE rating label.
Use all of the hoisting points indicated, and no others,
Use equal length cables or slings.
Use a spreader bar (not included)
Handle the unit with care and without sudden or jerky movements.
46
BWR_MTD2_0011_0121_201110_EN
HFC 410A
47
BWR_MTD2_0011_0121_201110_EN
T
N.C.
INSIDE
F
T
T
1
N.B.: Typical water circuit diagram.
FROM/TO THE GEOTERMAL PROBES
2
OUTSIDE
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
T
T
F
MEMBRANE EXPANSION
VESSEL
DRAIN VALVE
“Y” FILTER
VENT VALVE
THERMOSTATIC MIXER
CALIBRATING VALVE
SHUT-OFF VALVE
FLOW SWITCH
MT
VIBRATION DAMPER JOINT
THERMOMETER
T
F
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
6
3
N.C.
4
D
5
(*) INSTALL A STORAGE TANK ON THE HEAT PUMP RETURN
IF THE SYSTEM WATER CONTENT IS LESS THAN THE VALUE DESCRIBED
IN THE TECHNICAL BULLETIN.
ROOM UNIT (SUPPLIED AS STANDARD WITH THE HEAT PUMP)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
ELECTRIC HEATER KIT, 1-2-3 kW
5
STORAGE TANK FOR HEATED AND CHILLED WATER,
MODEL BT35, BT100 OR BT200 (*)
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
4
8
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2")
3
7
OUTSIDE AIR TEMPERATURE PROBE
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
CLIMAVENETA APPLIANCES
MEDIUM TEMPERATURE REVERSE-CYCLE UNIT, MODEL BWR MTD2
1
T
MT
6
ACS
7
AUTOMATIC FILL
ASSEMBLY
T
T
ZONE "1"
BWR_MTD2_0000.0
CONFIGURATION "0"
SELF-CLEANING
FILTER
FROM WATER
MAINS
REV_00 27/01/2011
LOW-LOSS
HEADER
8
BWR MTD2
19. OPERATING DIAGRAMS
Heat pump connection to the system without low-loss header. Make sure the useful pressure head of the circulating
pump on the unit is sufficient for the pressure drop in the system. If the minimum system content does not reach values shown in this manual, install an additional storage tank on the heat pump return pipe. No system configurations
are required.
Water circuit diagram
HFC 410A
48
BWR_MTD2_0011_0121_201110_EN
T
N.C.
INSIDE
F
T
T
N.B.: Typical water circuit diagram.
1
INDICATES CLIMAVENETA ACCESSORIES
FROM/TO THE GEOTERMAL PROBES
2
OUTSIDE
T
T
F
MEMBRANE EXPANSION
VESSEL
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
“Y” FILTER
DRAIN VALVE
THERMOSTATIC MIXER
SHUT-OFF VALVE
MT
VENT VALVE
FLOW SWITCH
F
CALIBRATING VALVE
VIBRATION DAMPER JOINT
THERMOMETER
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
3
4
D
ROOM UNIT (SUPPLIED AS STANDARD WITH THE HEAT PUMP)
N.C.
STORAGE TANK FOR HEATED AND CHILLED WATER,
MODEL BT35, BT100 OR BT200 (*)
8
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
ELECTRIC HEATER KIT, 1-2-3 kW
5
6
7
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2")
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
5
OUTSIDE AIR TEMPERATURE PROBE
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
CLIMAVENETA APPLIANCES
MEDIUM TEMPERATURE REVERSE-CYCLE UNIT, MODEL BWR MTD2
1
T
MT
6
ACS
7
AUTOMATIC FILL
ASSEMBLY
T
T
ZONA "1"
BWR_MTD2_0000.1
CONFIGURATION "0"
SELF-CLEANING
FILTER
FROM WATER
MAINS
REV_00 27/01/2011
LOW-LOSS
HEADER
8
BWR MTD2
System number 0
Water circuit diagram
HFC 410A
“Y” FILTER
49
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
NOTE
N-EM1 SYSTEM EXPANSION MODULE
3
D
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
ELECTRIC HEATER KIT, 1-2-3 kW
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
MT
5
ACS
8
6
AUTOMATIC
FILL ASSEMBLY
T
T
ZONE "1"
MTD2_0001.1
CONFIGURATION "1"
SELF-CLEANING
FILTER
REV_01 26/01/2011
LOW-LOSS
HEADER
FROM THE
WATER MAINS
7
BWR MTD2
Water circuit diagram
Configuration number 1 (parameter 0101= 1)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
50
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
2
N.C.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
MT
5
ACS
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "1"
MTD2_0002.0
CONFIGURATION "2"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
7
BWR MTD2
Water circuit diagram
Configuration number 2 (parameter 0101= 2)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
51
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
2
N.C.
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
9
MT
5
ACS
ZONE "2"
T
T
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "1"
MTD_0003.0
CONFIGURATION "3"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
7
BWR MTD2
Water circuit diagram
Configuration number 3 (parameter 0101= 3)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
52
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
THERMOSTATIC MIXER
CALIBRATING VALVE
VENT VALVE
MT
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
9
MT
5
ACS
ZONE "2"
8
T
T
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
ZONE "1"
MTD2_0004.0
CONFIGURATION "4"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
7
BWR MTD2
Water circuit diagram
Configuration number 4 (parameter 0101= 4)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
53
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
MTD2_0005.0
CONFIGURATION "5"
SELF-CLEANING
FILTER
ZONE "2"
REV_01 26/01/2011
LOW-LOSS
HEADER
FROM THE
WATER MAINS
ZONE "3"
BWR MTD2
Water circuit diagram
Configuration number 5 (parameter 0101= 5)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
54
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
2
N.C.
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
MTD2_0006.0
CONFIGURATION "6"
SELF-CLEANING
FILTER
ZONE "2"
REV_01 26/01/2011
LOW-LOSS
HEADER
FROM THE
WATER MAINS
ZONE "3"
BWR MTD2
Water circuit diagram
Configuration number 6 (parameter 0101= 6)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
55
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
VENT VALVE
DRAIN VALVE
2
N.C.
THERMOSTATIC MIXER
SHUT-OFF VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
5
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
4
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
8
DEHUMIDIFIER (***)
ZONE "1"
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
ZONE "3"
MTD2_0007.0
CONFIGURATION "7"
SELF-CLEANING
FILTER
ZONE "2"
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
ZONE "4"
BWR MTD2
Water circuit diagram
Configuration number 7 (parameter 0101= 7)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
56
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
5
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
4
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
8
DEHUMIDIFIER (***)
ZONE "1"
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
ZONE "3"
MTD2_XE_0008.0
CONFIGURATION "8"
SELF-CLEANING
FILTER
ZONE "2"
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
ZONE "4"
BWR MTD2
Water circuit diagram
Configuration number 8 (parameter 0101= 8)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
57
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
THERMOSTATIC MIXER
CALIBRATING VALVE
VENT VALVE
MT
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0009.0
CONFIGURATION "9"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
BWR MTD2
Water circuit diagram
Configuration number 9 (parameter 0101= 9)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
58
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0010.0
CONFIGURATION "10"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
BWR MTD2
Water circuit diagram
Configuration number 10 (parameter 0101= 10)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
59
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
M
AUTOMATIC
FILL ASSEMBLY
T
T
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0011.0
CONFIGURATION "11"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
ZONA "3"
9
BWR MTD2
Water circuit diagram
Configuration number 11 (parameter 0101= 11)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
60
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
2
N.C.
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
8
6
M
M
9
T
T
ZONE "4"
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0012.0
CONFIGURATION "12"
SELF-CLEANING
FILTER
ZONE "3"
FROM THE
WATER MAINS
REV_01 27/01/2011
LOW-LOSS
HEADER
9
9
BWR MTD2
Water circuit diagram
Configuration number 12 (parameter 0101= 12)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
61
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
8
M
M
ZONE "5"
AUTOMATIC
FILL ASSEMBLY
T
T
9
DEHUMIDIFIER (***)
ZONE "2"
T
T
SELF-CLEANING
FILTER
9
ZONE "3"
MTD2_0013.0
CONFIGURATION "13"
ZONE "4"
9
FROM THE
WATER MAINS
REV_01 27/01/2011
LOW-LOSS
HEADER
9
BWR MTD2
Water circuit diagram
Configuration number 13 (parameter 0101= 13)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
62
BWR_MTD2_0011_0121_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO THE MTD2 SERIES
HEAT PUMP (*)
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
8
6
M
M
M
AUTOMATIC
FILL ASSEMBLY
DEHUMIDIFIER (***)
ZONE "3"
DEHUMIDIFIER (***)
ZONE "2"
T
T
T
T
MTD2_0014.0
CONFIGURATION "14"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_00 27/01/2011
LOW-LOSS
HEADER
9
9
BWR MTD2
Water circuit diagram
Configuration number 14 (parameter 0101= 14)
HFC 410A
Climaveneta S.p.A.
Via Sarson 57/c
36061 Bassano del Grappa (VI)
Italy
Tel +39 0424 509500
Fax +39 0424 509509
[email protected]
www.climaveneta.com
Climaveneta France
3, Village d’Entreprises
ZA de la Couronne des Prés
Avenue de la Mauldre
78680 Epone
France
Tel +33 (0)1 30 95 19 19
Fax +33 (0)1 30 95 18 18
[email protected]
www.climaveneta.fr
Climaveneta Deutschland
Rhenus Platz, 2
59439 Holzwickede
Germany
Tel +49 2301 91222-0
Fax +49 2301 91222-99
[email protected]
www.climaveneta.de
Climaveneta
Espana - Top Clima
Londres 67, 1° 4°
08036 Barcelona
Spain
Tel +34 963 195 600
Fax +34 963 615 167
[email protected]
www.climaveneta.com
Climaveneta Chat Union
Refrig. Equipment Co Ltd
88 Bai Yun Rd, Pudong Xinghuo
New dev. zone 201419 Shanghai
China
Tel 008 621 575 055 66
Fax 008 621 575 057 97
Climaveneta Polska Sp. z o.o.
Ul. Sienkiewicza 13A
05-120 Legionowo
Poland
Tel +48 22 766 34 55-57
Fax +48 22 784 39 09
[email protected]
www.climaveneta.pl
Climaveneta India
Climate Technologies (P) LTD
#3487, 14th Main, HAL 2nd stage
Indiranagar, Bangalore 560008
India
Tel +91-80-42466900 - 949
Fax +91-80-25203540
[email protected]
Climaveneta UK LTD
Highlands Road,
Shirley Solihull
West Midlands B90 4NL
Tel: +44 (0)871 663 0664
Fax: +44 (0)871 663 1664
Freephone: 0800 801 819
[email protected]
www.climaveneta.co.uk
www.climaveneta.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
