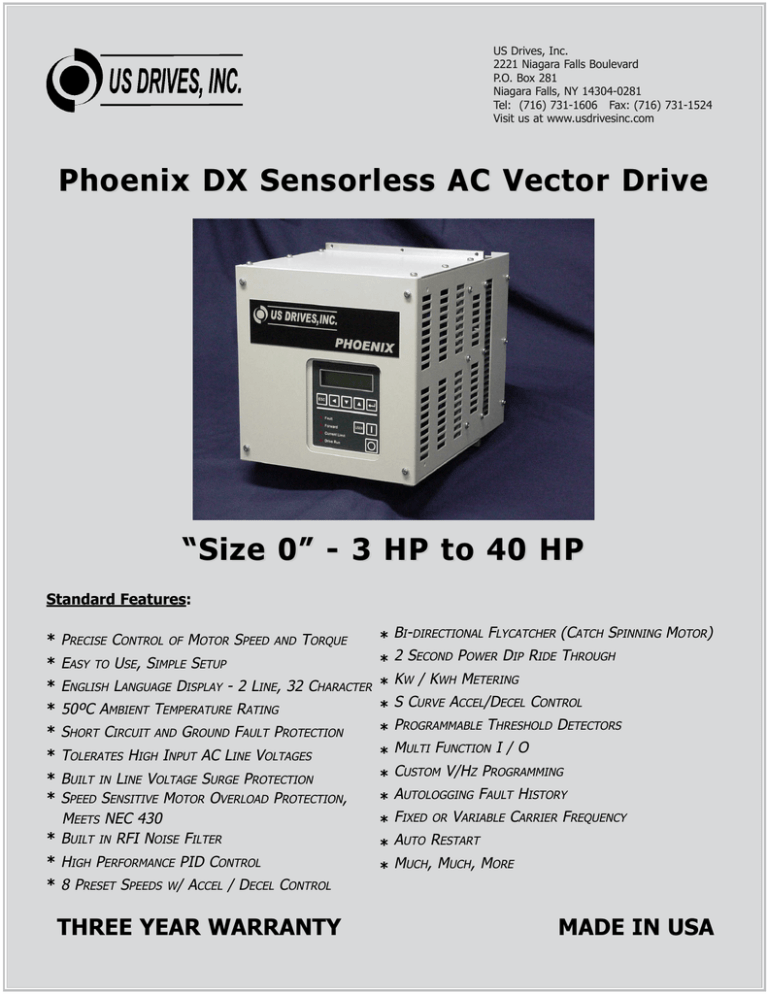

Phoenix DX Sensorless AC Vector Drive 3-40HP
US Drives, Inc.
2221 Niagara Falls Boulevard
P.O. Box 281
Niagara Falls, NY 14304-0281
Tel: (716) 731-1606 Fax: (716) 731-1524
Visit us at www.usdrivesinc.com
Phoenix DX Sensorless AC Vector Drive
“Size 0” - 3 HP to 40 HP
Standard Features:
* PRECISE CONTROL
*
*
*
*
*
MOTOR SPEED AND TORQUE
EASY TO USE, SIMPLE SETUP
ENGLISH LANGUAGE DISPLAY - 2 LINE, 32 CHARACTER
50ºC AMBIENT TEMPERATURE RATING
SHORT CIRCUIT AND GROUND FAULT PROTECTION
TOLERATES HIGH INPUT AC LINE VOLTAGES
OF
* BUILT IN LINE VOLTAGE SURGE PROTECTION
* SPEED SENSITIVE MOTOR OVERLOAD PROTECTION,
MEETS NEC 430
* BUILT IN RFI NOISE FILTER
* HIGH PERFORMANCE PID CONTROL
* 8 PRESET SPEEDS
W/
ACCEL / DECEL CONTROL
THREE YEAR WARRANTY
* BI-DIRECTIONAL FLYCATCHER (CATCH SPINNING MOTOR)
* 2 SECOND POWER DIP RIDE THROUGH
* KW / KWH METERING
* S CURVE ACCEL/DECEL CONTROL
* PROGRAMMABLE THRESHOLD DETECTORS
* MULTI FUNCTION I / O
* CUSTOM V/HZ PROGRAMMING
* AUTOLOGGING FAULT HISTORY
* FIXED OR VARIABLE CARRIER FREQUENCY
* AUTO RESTART
* MUCH, MUCH, MORE
MADE IN USA
ENGINEERING SPECIFICATIONS
ELECTRICAL
ENVIRONMENTAL
Rated Input Voltage:
Ambient Temperature:
200-250Vac, 380-500Vac, 500-600Vac
-10% of minimum, +10% of maximum.
Rated Input Frequency:
48 to 63HZ.
Number of Phases:
3
Displacement Power Factor: .95 or greater.
Efficiency:
97% or greater at rated current.
Storage Temperature:
Altitude:
Humidity:
Vibration:
Surge Protection:
CONTROL
Control Method:
Output Voltage:
Output Frequency Range:
Frequency accuracy:
Frequency resolution:
Accel / Decel:
Drive Overload:
Inverse Time Overload:
Current limit:
Braking torque:
V/Hz curves:
Control power ride-thru:
-10°C to 50°C (14°F to 122°F)
Without derating.
-40°C to 70°C (-40°F to 158°F)
Sea level to 3300 Feet [1000m]
Without derating.
95% relative humidity
non-condensing.
9.8m/sec2 (1.0G) peak.
Line Transients to 6000V
IEEE C62.41-1991 Category B
Showering Arc - 2000V Peak
EN50082 - 1, 2
Standard on all models.
Noise Immunity:
Sine coded PWM with programmable carrier.
Space Vector control.
Input R.F.I Filter:
0 to rated voltage.
0 to 600 Hz.
Analog reference: 0.1% of max frequency.
PHYSICAL ATTRIBUTES
Digital reference: 0.01% of max frequency.
Mounting:
Wall Mount: Through hole or panel mount.
Analog reference: 0.06Hz at 60Hz.
Nema Rating: Type 1 (IP20) as Standard.
Digital reference: 0.0005Hz at 60Hz.
Type 12 (IP54) Optional.
Adjustable 0.1 to 3600 sec.
Type 4 Optional.
High Overload Capacity Drives:
Construction: Steel Enclosure (Reduces E.M.I.).
150% of drive rated output for two (2) minutes.
Normal Overload Capacity Drives:
120% of drive rated output for two (2) minutes.
Programmable for class 10, 20 and 30 protection with speed sensitive
protection to comply with N.E.C. Article 430.
Proactive current limit programmable in % of motor rated current.
Approximately 20%.
Custom curve programming plus nine (9) preprogrammed standard patterns.
Two (2) seconds or greater, depending on load.
(1) All Dimensions in Inches (HxWxD)
(2) High Overload Capacity Drives produce 150% of Rated Drive Output Current for 2 minutes.
(3) Normal Overload Capacity Drives produce 120% of Rated Drive Output Current for 2 minutes.
PDX001(11/00)
