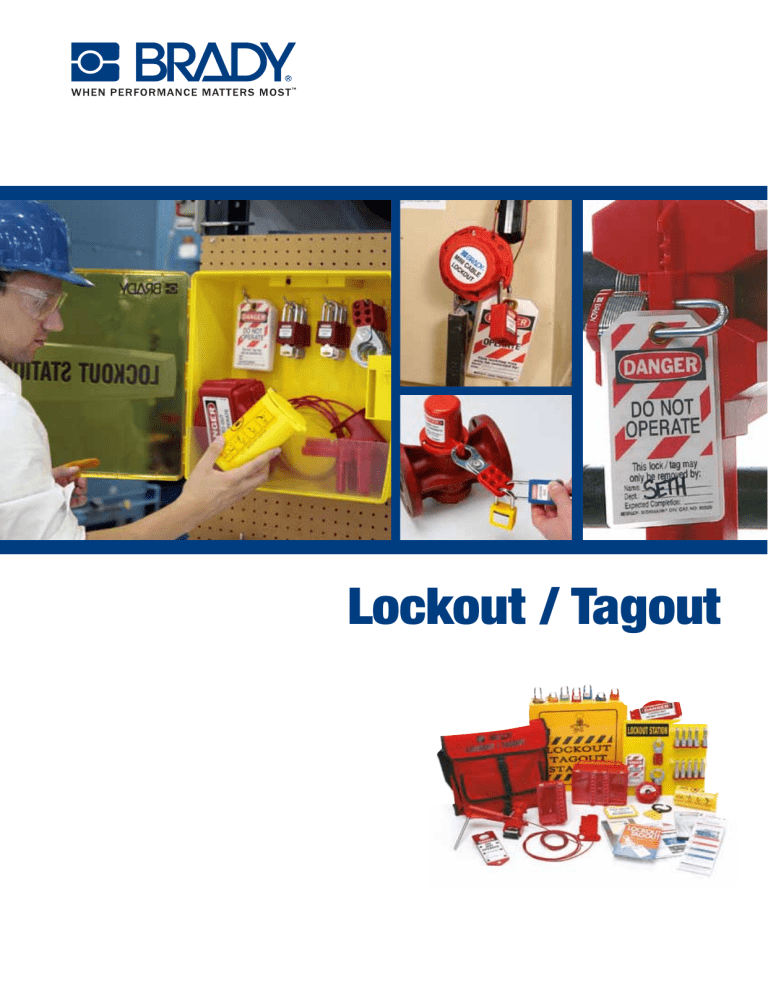

Lockout / Tagout

At Brady Corporation, we identify and protect your premises, products and people with complete solutions to meet all your safety and compliance needs

1

Brady – When Performance Matters The Most

With a comprehensive product range consisting of high-performance labels and signs, safety devices, printing systems and software, sorbents, and precision die-cut materials, Brady is your trusted adviser for safety, facility and identification requirements. Since 1914, we helped customers in electronics, telecommunications, manufacturing, electrical, construction, education, marine, oil & gas, medical and a variety of other industries globally to increase safety, security, productivity and performance. Brady is a company that you can rely on when performance matters the most.

Brady is headquartered in Milwaukee and employs more than 6,500 people at operations in the Americas, Europe and Asia Pacific.

Within the Asia Pacific, Brady has local presence in Australia, China, Hong Kong, India, Indonesia, Japan, Korea, Malaysia, New

Zealand, Philippines, Singapore, Taiwan, Thailand and Vietnam.

Brady is right where you need us

.

To contact us, please refer to the back cover of this publication or visit our website at

www.bradyid.com/ap

.

Alternatively, please email in your enquiries to

[email protected]

.

EXIT

TABLE OF CONTENTS

Lockout/Tagout Overview

Why Use Lockout/Tagout (LOTO)

OSHA Standards

Selecting the right tools and devices

Keys & Padlocks

Keying & Charting Options

Safety Padlocks

Aluminum Padlocks

Key Retaining Steel Padlocks

Steel Padlocks

Padlock Accessories

Tags

Tags Requirements

Tags

Perforated Tags

Tags Holder & Fastener

Group LOTO Hasps

Circuit Breaker Lockout

EZ Panel Loc

System

Circuit Breaker Lockout

Minature Circuit Breaker Lockout

Electrical Lockout

Gas and Air Line Lockout

Air Line Lockout

Gas Lockout

Cable & Chain Lockout

Valve Lockout

Lockout Boards

Padlock Centers

Padlock Centers

Padlock Management System

Group Lockout Boxes

Lockout Kits

Personal Lockout Kits

Standard Lockout Kits

Combination Lockout Kits

Customizable Lockout Kits

Lockout Stations

Lockout Stations

Prinzing Kits & Stations

Ready Access Storage Stations

Training & Awareness Aids

Training & Awareness Aids

OSHA Training Requirements

Energy Control Procedures

Workplace Safety And Compliance Solutions

6

7

8

9

10

11

3

4

5

26

27

28

30

32

33

34

35

12

13

15

16

17

19

21

23

24

38

40

43

45

47

50

52

54

56

57

58

www.bradyid.com/ap

2

3

Contact

Contact your local Brady staff at

www.bradyid.com/ap

or mail us at

[email protected]

5-Steps Effective Lockout/Tagout Program

Effective Lockout procedures can dramatically increase your company’s productivity by making

Lockout activities more efficient. Your procedures serve as a checklist that allows workers to quickly move through the steps without confusion or mistakes, reducing downtime and damage to machinery.

(LOTO)?

• OSHA Focus #1 most cited violation for general

industry

• Best Practice - Being adopted across

industries & geographies

• Saves Lives - Prevents an estimated 120

fatalities & 50,000 injuries annually

• Significantly Cuts Costs - Both lost time and

insurance costs

• Improves Productivity - Minimizes equipment

downtime

1. Hazard analysis

Develop and document your energy control policy/program

2. Identification of steps

Create and post written, equipment-specific lockout procedures

3. Documentation

Identify and mark all energy control points

4. Train Employees

Train your employees, communicate and conduct periodic inspections

5. Equip Employees

Equip your employees with the proper lockout tools and warning devices

OSHA STANDARDS

Singapore Standard 571:2011, the Code of Practice for Energy Lockout and Tagout deals with the control of hazardous energy in workplace situations and provides detailed guidance on procedures, techniques and methods for energy lockout and tagout. The

SS571:2011 takes reference from OSHA

Regulations (Standards-29 CFR-1910.147, ANSI

Z244.1:2003 (2008) and CSA Z460:2005. Brady is part of the working group appointed by the

Technical Committee of Singapore’s Workplace

Safety and Health to assist in the preparation of SS 571 : 2011. For more information, please visit www.standards.org.sg

OSHA 29 CFR §1910.147 The control of hazardous energy

(Lockout/Tagout).

Scope, application and purpose

(1) Scope. (i) This standard covers the servicing and maintenance of machines and equipment

in which the unexpected energization, start up of the machines/equipment, or release

of stored energy could cause injury to employees. This standard establishes minimum

performance requirements for the control of such hazardous energy.

(2) Application. (i) This standard applies to the control of energy during servicing and / or

maintenance of machines and equipment.

(3) Purpose. (i) This section requires employers to establish a program and utilize procedures

for affixing appropriate lockout devices or tagout devices to energy isolating devices, and to

otherwise disable machines or equipment to prevent unexpected energization, start-up or

release of stored energy in order to prevent injury to employees.

1910.147(c) OSHA Energy Control Policy;

Synopsis of Requirements

An energy control policy must be documented and at a minimum, should cover the following aspects of the program:

• Purpose and scope of the program

• Personnel authorized to perform LOTO

• Enforcement policy

• Training methods

• Group lockout procedures

•Shift transfer procedures

•Lock removal procedures

•Method for auditing & updating procedures

•Coordination with outside contractors

1910.147(c)(4) Energy Control Procedures;

Synopsis of Requirements

• Procedures must be documented and must identify the equipment covered

• A separate procedure must be created for each piece of equipment to be locked out. There are

exceptions where multiple machines may be grouped under a single procedure

• The procedure must include specific steps for shutting down, isolating, blocking and securing

equipment to control hazardous energy

• Specific steps for the placement, removal and transfer of lockout/tagout devices should also be

included

• The employer shall conduct and certify periodic inspections at least annually

1910.147(c)(4) Energy Control Procedures;

LOCKOUT DEVICES MUST:

• Be provided by the employer

• Be standardized by size, shape or color

• Be distinguishable from locks used for other purposes. Lockout locks should only be used for lockout

• Identify the individual who applied the lock (both tags and lock labels are acceptable for

this purpose)

• Be durable

• Be strong enough to prevent removal except by using excessive force

• Remain under the exclusive control of the individual who attached them

1910.147(c)(5)(ii)(B) Standardized

Lockout and Tagout devices shall be standardized within the facility in at least one of the following criteria:

Color; shape; or size; and additionally, in the case of Tagout devices, print and format shall be standardized.

1910.147(c)(5)(ii)(A) Durable

Lockout and tagout devices shall be capable of withstanding the environment to which they are exposed for the maximum period of time that exposure is expected.

www.bradyid.com/ap

4

5

should be asked:

• How many employees are involved in the

procedure?

• What is the Energy source (Electrical, Valve,

etc)?

Effective Energy Isolation Programs

Using appropriate Lockout/Tagout tools and devices is critical to the success of your program implementation.

Brady’s selection of Lockout/Tagout products helps to facilitate an effective Energy Isolation

Program that can prevent potentially fatal injuries in your workplace.

Valve & Cable Lockout devices

enable you to isolate various energy sources, when used in conjunction with padlocks. Brady’s extensive range of devices enables you to select and use the most appropriate tools for your procedure, in accordance with your specific application.

See pages 30-31

For Lockout situations

where up to 6 employees are involved in the process, a Hasp is an effective device where all personnel can be involved in maintenance activities simultaneously. Non-conductive, stainless steel and vinyl coated hasps are widely used in mining applications.

See pages 17-18

In all Lockout procedures,

an employee or maintenance team doing the servicing must have exclusive control of the lockout devices and padlocks.

Studies have shown that an effective

Lockout/Tagout program

can reduce accidents by up to 50%, and some insurance companies even offer lower premiums to companies with demonstrated, effective

Lockout programs.

KEYS AND PADLOCKS

KEYING AND

CHARTING OPTIONS

KEYING & CHARTING OPTIONS

Keyed Alike

• When keyed alike, all locks in a set can be opened with the same key. This option is beneficial

when multiple locks are assigned to a single employee. Remember, however, that under OSHA

regulations no employee should be able to open a lock applied by someone else. Therefore,

keyed alike locks from the same set should never be distributed to multiple employees

Keyed Different

• Brady padlocks come “keyed different” when purchased from stock. This means that the key

for one lock should not open another. Brady padlocks use 5- or 6-pin cylinders. Moreover,

both cylinders and keys are precision-machined to exacting standards. This enables us to offer

a greater number of unique keys than other locks with the same number of pins, making it highly

unlikely that you will ever receive a duplicate lock

• To guarantee that each lock is different, we can chart your locks, ensuring that each Brady

padlock you receive is different from the others (see below)

Master Keyed

• A master key can be used to open multiple locks that are keyed differently. This allows

supervisors to easily remove a lock in the event of an emergency. In order for employees to

retain exclusive control, master keys should be kept in a secure location that is accessible only

to management

Keyed Charting

• Brady can track or “chart” your key codes upon request, in order to simplify ordering of

replacement locks and to avoid duplicates when ordering additional locks

There is no extra charge for charting. Please contact Brady for details.

Choose the lock that’s best suited for the job!

Feature

Compact, lightweight

Non-conductive body & keyway

Most corrosion resistant

Most spark resistant

Most tamperproof

Most rugged

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3 www.bradyid.com/ap

6

KEYS AND PADLOCKS

7

PADLOCKS

The Ultimate Lockout Lock!

Brady Safety Padlock complies with all OSHA requirements and is a safer alternative to metal locks for lockout applications. The body is nonconductive, while the unique key cylinder prevents electricity from traveling from the shackle to the key, protecting workers when key is inserted. Safety Padlocks also deliver superior corrosion resistance. Third-party tests confirm that Brady outperforms the leading competitor when subjected to repeated salt water sprays.

Features & Benefits

• Superior temperature, chemical and corrosion

resistance

• “Danger” and “Property of” labels provided in

English, Spanish, and French and are printed

on 100% recycled paper

• Reserved paracentric keyway provides

optimal security (prevents someone from

getting a copy made at a local key shop)

• Key-retaining safety feature prevents key from

being removed until shackle is securely closed

• Locks come keyed-differently or in keyed-alike

sets. Custom keying and charting also

available (see page 6)

• Lock bodies can be custom laser-engraved

upon request

• Ribbed sides promote secure gripping – even

when wearing gloves

• One key is supplied with each padlock for

safer key management

Compact Safety Padlocks

• Extremely compact and lightweight - the smallest safety lock on the market

• Fits in small spaces easily (e.g. circuit breaker panels) and the ideal lock for electrical

mcontractors/maintenance personnels/electricians

• 5-pin cylinder - able to support the same keying system as our current Safety Padlocks

• Fiberglass reinforced nylon body for extra impact resistance

• Aluminum shackle gives superior spark and corrosion resistance

• Service temperature: 0°F - 250°F (-20°C - 120°C)

• Lock body dimensions: 1

2/ 5

”, 1

1/ 5

”,

5/ 8

• Shackle clearance: 1”; shackle diameter:

1/ 5

Color

Red

Green

Orange

Blue

Yellow

Brown

White

Purple

Black

Keyed Different

1 Padlock/Pack

143150

143152

143154

143156

143158

143160

143162

143164

143166

Keyed Different

6 Padlock/Pack

118926

118927

118928

118929

118930

118931

118932

118933

118934

Keyed Aliked

3 Padlock/Pack

118953

118955

118957

118959

118961

118963

118965

118967

118969

Keyed Aliked

6 Padlock/Pack

118954

118956

118958

118960

118962

118964

118966

118968

118970

When keyed alike, all locks in a set can be opened with the same key. This option is benefical when multiple locks are assigned to a single employee.

Safety Padlocks

• Lightweight, nonconductive and non-sparking body

• Special 6-pin cylinder resists tampering

• Fiberglass reinforced nylon body and triple-coated hardened steel shackle

• Service temperature: 0°F - 250°F (-20°C - 120°C)

• Lock body dimensions: 1

3/ 4

”, x 1

1/ 2

”, x

4/ 5

• Shackle clearance: 1

1/ 2

”; shackle diameter:

1/ 4

Color

Red

Blue

Green

Yellow

Orange

Black

Brown

Purple

White

Keyed Different

1 Padlock/Pack

99552

99556

99564

99570

99576

99580

103033

104919

143123

Keyed Different

6 Padlock/Pack

51339

51344

51345

51346

51347

51353

101956

104916

118925

-

-

Keyed Aliked

3 Padlock/Pack

105886

105887

105889

105888

118947

118951

118949

-

-

Keyed Aliked

6 Padlock/Pack

105890

105891

105893

105892

118948

118952

118950

When keyed alike, all locks in a set can be opened with the same key. This option is benefical when multiple locks are assigned to a single employee.

Safety Padlocks

Compact Safety Padlocks

KEYS AND PADLOCKS

Features & Benefits

• Lightweight yet rugged with solid aluminum

body and shackle - lightest-weight aluminum

lock in the market and made from recycled

material

• 6-pin cylinder offers more unique key

changes - better tamper resistance

• Reserved paracentric keyway provides

optimal security (prevents someone from

getting a copy made at a local key shop)

• FDA approved lubricant in cylinder

• Anodized aluminum finish gives better fade

resistance when used outdoors

• Key retaining safety feature prevents key from

being removed until closed

• Aluminum shackle gives better corrosion

resistance (four times better than the hardened

chrome-plated steel shackle) and is spark resistant

• Two shackle sizes: 1” and 1

1/ 2

”, shackle

diameter: 1/ 4

• Lock body: 1

3/ 5

” x 1

1/ 2

” x

3/ 4

• Two keys supplied with each lock. Custom

keying and charting also available

• Lock labels sold separately

(made from 100% recycled paper)

Aluminum Padlocks - 1” Shackle

Color

Red

Blue

Green

Yellow

Orange

Black

Brown

Purple

1 Padlock/Pack

99608

99609

99610

99611

99612

99613

104574

104572

6 Padlock/Pack

51360

51361

51362

51363

51368

51369

104575

104573

Aluminum Padlocks - 1

1

/ 2

” Shackle

Color

Red

Blue

Green

Yellow

Orange

Black

Brown

Purple

Keyed Different

1 Padlock/Pack

99615

99616

99617

99618

99619

99620

104578

104576

Keyed Different

6 Padlock/Pack

51370

51371

51376

51377

51378

50274

104579

104577 -

-

Keyed Aliked

3 Padlock/Pack

105902

105903

-

-

105881

105904

-

-

Keyed Aliked

6 Padlock/Pack

105882

105883

-

-

105885

105884 www.bradyid.com/ap

8

9

KEYS AND PADLOCKS

Features & Benefits

• Reinforced laminated steel withstands severe

physical abuse

• Hardened steel shackle resists tampering,

cutting, prying, and rusting

• Body plates individually coated for superior

rust protection, offering 13 times better

corrosion resistance than normal steel locks

• 5 - pin cylinder offers more unique key cuts

and increased tamper resistance

• Two shackle sizes:

3/ 4

” or 2”, shackle

diameter: 17/ 64

• Lock body: 1

1/ 5

” x 1

5/ 16

” x 1”

• Colored bumpers supplied for identification

and protection (custom stamping available)

• Custom keying and charting also available

• One key supplied with each padlock for safer

key management

• Lock labels sold separately and made from

100% recycled paper

• Made from recycled material

• Key retaining safety feature prevents key from

being removed until closed

• Lighter weight than standard Laminated Steel

Padlocks

Key Retaining Steel Padlocks -

3

/ 4

” Shackle

Color

Red

Green

Blue

Yellow

White

Black

1 Padlock/Pack

143126

143128

143130

143132

143134

143136

118935

118936

118937

118938

118939

118940

Key Retaining Steel Padlocks - 2” Shackle

Color

Red

Green

Blue

Yellow

White

Black

1 Padlock/Pack

143144

143142

143140

143148

143146

143138

118944

118943

118942

118946

118945

118941

118977

118975

118973

118981

118979

118971

118978

118976

118974

118982

118980

118972

When keyed alike, all locks in a set can be opened with the same key. This option is benefical when multiple locks are assigned to a single employee.

KEYS AND PADLOCKS

Features & Benefits

• Reinforced laminated steel withstands severe

physical abuse

• Hardened steel shackle resists tampering

• Body plates individually coated for superior

rust protection

• 5 - pin cylinder offers more unique key cuts,

better tamper resistance than conventional

4 - pin locks

• One key supplied with each padlock for safer

key management

• Two shackle sizes:

3/ 4

” or 2”, shackle

diameter:

17/ 64

• Lock body: 1

1/ 3

” x 1

9/ 16

” x

7/ 8

• Colored bumpers supplied for identification

and protection (custom stamping available)

• Locks come keyed-different. Custom keying

and charting also available

• Lock labels sold separately

Steel Padlocks -

3

/ 4

” Shackle

Color

Red

Blue

Green

Yellow

Orange

Black

Brown

Purple

1 Padlock/Pack

99500

99504

99508

99512

99516

99520

101957

104920

51279

51280

51281

51282

51283

51284

102696

104917

Steel Padlocks - 2” Shackle

Color

Red

Blue

Green

Yellow

Orange

Black

Brown

Purple

1 Padlock/Pack

99524

99528

99533

99539

99543

99548

101958

104921

51290

51291

51292

51297

51298

51299

102698

104918

-

-

-

-

105894

105895

105897

105896

-

-

-

-

105898

105899

105901

105900

When keyed alike, all locks in a set can be opened with the same key. This option is benefical when multiple locks are assigned to a single employee.

www.bradyid.com/ap

10

11

KEYS AND PADLOCKS

Combination Padlocks

• Compact, Lightweight

• 4-digit resettable code

• Steel shackle

Catalog #

101963

Description

Combination Padlock

Safety Padlock Labels

Safety padlock labels help send a clear message to workers when a machine is down for service or maintance. Labels are designed to fit Brady Safety Padlocks and are available in English.

Catalog #

51379

Description

English

Qty

6/pack

Aluminum Padlock Labels

• Made of durable B-826 vinyl

• Writable using pencil, pen or marker

Catalog #

50289

50292

50293

Dimensions

0.8” x 1.1”,

6/pack

0.8” x 1.1”,

6/pack

0.8” x 1.1”, 6/pack

Description

English

Spanish

English

Steel Padlock Labels

• Made of durable B-826 vinyl and includes overlaminate strips for enhanced durability

• Writable using pencil, pen or marker

Catalog #

50280

50281

50283

Dimensions

3/ 4 ” x

4

1/ 2 ”,

6/pack

3/ 4

” x 4

1/ 2

”, 6/pack

3/ 4 ” x

4

1/ 2 ”,

6/pack

Description

English

Spanish

French

TAGS

Communicate safety and lockout information at the point of need with Brady’s wide selection of

OSHA-compliant Lockout/Tagout tags. Brady’s

Lockout Tags come in a variety of materials to suit your application needs.

OSHA Tags Requirements

The following requirements apply only to tags used as tagout devices (i.e., tags used alone without locks). Tags used in combination with locks are not required to meet the same restrictions as tagout devices.

• Be provided by the employer

• Be standardized by size, shape or color

• Be distinguishable from tags used for other purposes

• Be understandable to all employees

• Identify the individual who applied the tag

• Withstand the usage environment to which they are exposed for the maximum period of time that

exposure is intended. Tag should not deteriorate or the message become illegible when exposed

to weather, wet or damp conditions, chemical or corrosive environments

• Employ a means of attachment that is substantial enough to prevent accidental removal. The

means of attachment must be of a non-reusable type, attachable by hand, self-locking, and

non-releasable with a minimum unlocking strength of no less than 50 pounds

• Warn against hazardous conditions if the machine or equipment is energized

• Tag shall also include a legend such as the following: Do Not Operate, Do Not Start,

Do Not Open, Do Not Close, etc

How to Order Tags

• Determine the best tag material below for your application

• Choose the tag legend for your tag

• Order by part number for desired reverse side legend

Description

Heavy Duty Polyester (B-837)

Economy Polyester (B-851)

Cardstock (B-853)

Dimensions

5

5

1/ 2

3/ 4

” x 3”, 25/pack

” x 3”, 25/pack

5 3/ 4 ” x 3”, 25/pack

Tag Materials

Heavy Duty Polyester (B-837)

• Durable polyester laminate completely encapsulates and protects graphics

• Withstands moisture, grease, chemicals, and extreme temperature

• Accepts pencil, pen and marker. Pen and marker can be completely erased using isopropyl

alcohol, allowing for repeated use

• Heavy duty construction withstands up to 80 lbs of pull force, preventing accidental removal

3/ 8

” diameter heavy-duty brass grommet accepts most padlock shackles

• Tags come with OSHA-compliant nylon fasteners

Economy Polyester (B-851)

• Rigid polyester surface is easy to write on and stays legible longer than cardstock

• Exceeds OSHA 50 lb. pull requirement for tagout devices

3/ 8

” diameter rolled brass eyelet accepts most padlock shackles

• Tags come with OSHA-compliant nylon fasteners

Cardstock (B-853)

• Cost-effective tags designed for one-time use

• Does NOT meet OSHA 50 lb. pull test for tagout devices, but can be used in conjunction with

locks (see OSHA Tag Requirements above)

3/ 8

” diameter rolled brass eyelet accepts most padlock shackles

• Tags come with attachment strings www.bradyid.com/ap

12

13

TAGS

TAGS

Reverse Side B Front Side A Front Side B

Font Side A Font Side B

Heavy Duty Polyester (B-837)

Rev. Side B - 65502

Rev. Side F - 65535

Rev. Side B - 65520

Rev. Side F - 65525

Rev. Side G - 65671

Rev. Side G - 65670

Economy Polyester (B-851)

Rev. Side B - 66050

Rev. Side F - 66051

Rev. Side G - 66052

Cardstock (B-853)

Rev. Side B - 65407

Rev. Side F - 65408

Rev. Side G - 65440

Rev. Side B - 66063

Rev. Side F - 66064

Rev. Side G - 66065

Rev. Side B - 65451

Rev. Side F - 65452

Rev. Side G - 65453

Front Side C

Font Side C

-

Rev. Side B - 65515

Rev. Side F - 65524

Rev. Side B - 66061

Rev. Side F - 66062

-

-

Rev. Side F - 65450

Front Side D

Font Side D

-

Rev. Side B - 65526

Rev. Side F - 65527

Rev. Side B - 66066

Rev. Side F - 66067

-

Rev. Side B - 65454

Rev. Side F - 65455

Reverse Side F

Reverse Side G

Front Side E Front Side F

Font Side E Font Side F

Heavy Duty Polyester (B-837)

Rev. Side B - 65503

Rev. Side F - 65521

Rev. Side B - 66053

Rev. Side B - 65504

Rev. Side F - 65522

Economy Polyester (B-851)

Rev. Side B - 66055

Rev. Side F - 66056

Rev. Side F - 66054

Cardstock (B-853)

Rev. Side B - 65441

Rev. Side F - 65442

Rev. Side B - 65443

Rev. Side F - 65444

Front Side G

Font Side G

-

-

Rev. Side B - 50198

Rev. Side F - 50199

-

Rev. Side F - 50250

Front Side H

Font Side H

Rev. Side B - 65506

Rev. Side F - 65534

-

Rev. Side F - 66060

Rev. Side B - 65447

Rev. Side F - 65448

Front Side I

Font Side I

-

-

Rev. Side B - 65505

Rev. Side F - 65523

Rev. Side B - 65445

Rev. Side F - 65446

TAGS

TAGS

Padlock Tags

• Calendered vinyl accepts pencil, pen or marker

• Employs

3/ 8

” metal grommet that fits over most padlock shackles

Catalog #

105722

105723

105724

Dimensions

3” x 2”

3” x 2”

3” x 2”

Grommet adds another 1” to height

Description

Equipment Locked Out

Do Not Operate

Do Not Operate - English/Spanish

Front Back

Self-Laminating Photo Tags

• Include employee photos for easy identification and greater impact

• Constructed using durable B-851 polyester with 1 mil polyester overlay on front

• 10 tags and nylon fasteners per package

Catalog #

65501

96222

Dimensions

5 3/ 4 ” x 3”, 10/pack

7” x 4”, 10/pack

Peel away liner www.bradyid.com/ap

14

TAGS

15

Two-part tags provide enhanced operational control and record-keeping. Stub is removed when tag is attached to a lockout point. Only the employee in possession of the stub has the authority to remove the tag. After the job is done, stub is returned to management for verification and monitoring of lockout/tagout activity in the plant. Matching identification numbers are printed on each part.

Heavy Cardstock Tags

• Economical cardstock tags are easy to write on using pen, pencil or permanent marker

• Employs

3/ 8

” rolled brass eyelet that resists tearing

• Tie strings included for quick, easy attachment

Catalog #

105372

105373

Dimensions

7.5” x 4”

,

25/pack

7.5” x 4”

,

25/pack

Description

Equipment Locked Out

Do Not Operate

Plastic Tags

• 10 mil-thick polyester enhances durability and makes it easy to remove chemicals, grease and grime

• Write-on surface accepts marker, pen or pencil

• Weatherproof for indoor or outdoor use.

• Employs

3/ 8

” rolled brass eyelet that fits over most padlock shackles

• Nylon cable ties included for easy, secure attachment

Catalog #

105370

105371

Dimensions

7.5” x 4”

,

25/pack

7.5” x 4”

,

25/pack

Description

Equipment Locked Out

Do Not Operate

Tags with Detachable Key Stub

Perforated cardstock tag comes with detachable key stub, making it easy to match up tags attached to padlocks with the right key. Matching identification numbers are printed on each part.

• Heavy cardstock accepts pencil, pen or marker

• Tie strings provided for easy tag attachment

• 1” diameter metal ring provided for attaching stub to key

Catalog #

105368

105269

Dimensions

5

3/ 8

” x 3”

,

25/pack

5

3/ 8

” x 3” , 25/pack

Description

Equipment Locked Out

Do Not Operate

TAGS

1-Pocket Economy Tag Holder

• Compact, clear plastic holder is designed to hold 50 tags, ties and a marking pen

• Comes with adhesive strips, magnetic strips, and screws for mounting in a variety of ways

• Tags and pen not included

Catalog #

TH2

Dimensions

7

1/ 2

” x 4

1/ 2

” x 1

1/ 2

Description

1-Pocket Economy Tag Holder

Pocket Premium Tag Center

• Acrylic center features 8 pockets for displaying and dispensing tags

• Each polystyrene pocket holds up to 30 tags

• Four pre-drilled holes for wall mounting

• Tags not included

Catalog #

TC8

Dimensions

15

3/ 4

” x 23

1/ 2

” x 2”

Description

8-Pocket Premium Tag Center

10-Pocket Tag Safety Station

• Made of rugged polycarbonate

• Four pre-drilled holes for wall mounting

• Tags not included

Catalog #

81773

Dimensions

22” x 16

1/ 2

” x 2

1/ 4

Description

10-Pocket Tag Safety Station

Tag Fasteners

• Three fastener styles available to meet every application

• Nylon fasteners meet OSHA requirements for attaching tagout devices

Catalog #

81760

81761

81762

Dimensions

12”, 100/pack

8”, 100/pack

8”, 100/pack

Description

26 Gauge Wire

Reusable Beaded Ties

Nylon Fasteners www.bradyid.com/ap

16

17

GROUP LOCKOUT HASPS

Steel Group Lockout Hasps

• Constructed of vinyl-coated high tensile steel with rest resistant plating

• Lock holes:

3/ 8

” diameter

Catalog #

65375

65376

Dimensions

1” Diameter Jaws, 12/pack

1

1/ 2

” Diameter Jaws, 12/pack

Aluminum Economy Group Lockout Hasps

• Non-sparking, aluminum small hasps are a great addition to your tool box

• Lightweight - only 1

1/ 2

ounces

• Maximum

3/ 8

” shackle diameter

Catalog #

105720

105721

Dimensions

1” Diameter Jaws, 1/pack

1 1/ 2 ” Diameter Jaws, 1/pack

Non-conductive Group Lockout Hasps

• Made of strong, rigid yellow plastic resin

• Has excellent electrical insulating characteristics

• Performs at low temperatures, excellent heat resistance

• Patent #7, 124,606

Catalog #

LH220A-YW

LH220A

Description

Yellow Lockout Hasp

Red Lockout Hasp

Corrosion-Resistant Group Lockout Hasps

• Manufactured from 12 gauge steel that is epoxy coated to give superior resistance to rust and

added dielectric strength

• Yellow plastic coating is added to the lock area for visibility

• Lock holes:

5/ 16

” diameter

Catalog #

T218

T220

Dimensions

1” Diameter Jaws, 1/pack

1

1/ 2

” Diameter Jaws, 1/pack

Steel Group Lockout Hasps with Tabs

• Tamperproof interlocking tabs prevent unauthorized opening

• Constructed of case-hardened steel with rust proof plating and bright red vinyl insulation.

• Maximum

3/ 8

” shackle diameter

Catalog #

105718

105719

Dimensions

1” Diameter Jaws, 1/pack

1

1/ 2

” Diameter Jaws, 1/pack

GROUP LOCKOUT HASPS

Reverse Side #1 Reverse Side #2

SHOCK-STOP

Group Lockout Hasps

• Highly visible hasp uses stop sign design to draw attention

• Includes 6 lock holes and a slot for daisy-chaining hasps together

• Also sold with companion storage board and lock box

• Lock holes:

5/ 16

” diameter

Catalog #

87693

Dimensions

5

1/ 2

” x 3

3/ 8

” x

3/ 16

”, 5/pack

Description

Shock-Stop

TM

Hasps

Non-Conductive Nylon Group Lockout Hasp

• Nonconductive nylon hasps accommodates up to 6 locks

• Withstands up to 1,000 lbs, yet weighs only 1 oz

• Lock holes:

3/ 8

” diameter

Catalog #

99668

Dimensions

7” x 1

3/ 4

Description

Nylon Lockout Hasp

Labeled Group Lockout Hasps

• Constructed from tough 5052 anodized aluminum alloy

• Includes tamperproof locking tabs

• Write-on label surface accepts pencil, pen or marker

• Pen and pencil markings can be easily erased, allowing repeated use

• For permanent marking, use the marker sold below

• Lock holes:

5/ 16

” diameter

• Dimensions: 7

7/ 14

” x 3” x

3/ 16

• Standard package: 5 hasps/pack

Labeled Lockout Hasps – Aluminum

Color

Red

Silver

Blue

Green

Gold

Combination

Reverse Side #1

65960

65961

65962

65963

65964

65967

Also available in Spanish - contact your local distributor for details

Reverse Side #2

65970

65971

65972

65973

65974

65975 www.bradyid.com/ap

18

19

EZ PANEL LOC

EZ Panel Loc

System

Features & Benefits

• Works on a wide range of breakers, including

single and multi-pole configurations

• Makes use of unique lock rail system

• Allows panel door to be closed even when

lockouts are in place

• Accommodates multiple locks - facilitating

group lockout activity without hasps

• Keeps weight off the breakers, protecting

delicate electrical components from damage

• Positions locks and tags outside the panel,

making sure lockout activity is clearly visible to

anyone in the area

• Patent No. 6,727,441

(Not recommended for use with multilock hasps)

Step 1:

Peel liner off bottom of lock rail,

Step 2:

Attach the lockout device to the

Step 3:

Pass plastic key through lock rail

Step 4:

For group lockouts, run key apply the locks. No hasps required!

(Not recommended for use with multilock hasps)

Step 5:

Low-profile lockouts allow panel panels.

Covers Most 120V – 277V Breakers

The EZ Panel Loc

System includes two types of lockout devices, accommodating an exceptionally wide range of breaker models.

SNAP-ON

For use on Square D NQO and other breakers that have a hole in the switch tongue. Just align pins with hole and snap closed. Pins prevent switch from being thrown.

CLAMP-ON

For use on breakers that do not have a hole in the switch tongue, including multipole breakers with tie-bars. Turn thumbscrew to clamp lockout securely onto switch, then snap the cover closed to prevent thumbwheel from being loosened.

Snap-On

Clamp-On

EZ PANEL LOC

Snap-On

“No Shackle” EZ Panel Locks

The EZ Panel Loc

system can be used with most padlocks. A shackle-less padlock designed specifically for use with the EZ Panel Loc

key is also available. This is especially useful when lockout devices will be kept at the panel in accordance with NEC regulations (see below).

Everything you need to lockout breakers is kept conveniently right at the point of need!

Do You Know?

“The provisions for locking or adding a lock to the disconnecting means shall be permanently installed on or at the switch or circuit breaker used as the disconnecting means.”

- NEC 2002, Article 430.102(B) Motor

Spacing Gasket

For low profile panels, a spacing gasket can be installed, pushing out the panel frame and adding an additional

3/ 8

” of clearance between the panel surface and the door. Self-adhesive backing makes installation quick and easy.

Catalog #

89256

Dimensions

3/ 8

” x 1” x 15’

Description

EZ Panel Loc

Spacing Gasket

Technical Information

• Lockout devices constructed of high-impact Isoplast Polymers

• Cables are 2’ in length

• Lock rails made of durable Isoplast Polymers with acrylic adhesive backing

• Lock rails available in 4” or 8” lengths (containing 7 or 15 lock loops)

• Patent No. 6,727,441

Snap-On Style

Clamp-On Style

A

0.90”

0.95”

Outer Dimensions (in.)

B

1.88”

2.56”

C

0.74”

0.74”

Switch Clearance (in.)

D

0.40”

0.35”

E

0.35”

0.42”

Description

Snap-On Lockout Device

Clamp-On Lockout Device

4” Lock Rail

8” Lock Rail

No-Shackle Lock

Spacing Gasket

1 Per Pack

51252

51254

51256

51258

59505

89256

6 Per Pack

65815

65810

65814

-

51260

51263

Clamp-On www.bradyid.com/ap

20

120V Snap-On Breaker Lockout

• Designed for 120V breakers that have holes in the switch tongue

• Quick and easy – just snap in place and apply lock

• Dual cavities accommodate different size switch tongues

• Accepts locks shackles up to

9/ 32

” in diameter

Catalog #

65387

65688

Dimensions

0.83” x 0.35” x 2.15”, 1/pack

0.83” x 0.35” x 2.15”, 6/pack

Description

120V Snap-On Breaker Lockout

120V Snap-On Breaker Lockouts

21

The Brady Clamp-On Circuit Breaker Lockout works on an extremely wide range of breakers

Clamp-On Breaker Lockouts

• Extremely versatile – works on wide range of single-pole and internal-trip multi-pole breakers

• Two sizes, one for 120/277V breakers and one for 480/600V breakers

• Made of rugged polypropylene and impact modified nylon

• Use thumbscrew to clamp lockout securely onto switch tongue, then pull cover over thumbscrew

and lock in place to prevent clamp from being loosened

• New blade design provides tighter grip with less torque on thumb screw

• Detachable cleats (included) expand the range of applicable breakers

• Accepts locks shackles up to

9/ 32

” in diameter

Catalog #

65396

65965

65397

65966

Description

120/277V Clamp-On Breaker Lockout

120/277V Clamp-On Breaker Lockout

480/600V Clamp-On Breaker Lockout

480/600V Clamp-On Breaker Lockout

Quantity

1/pack

6/pack

1/pack

6/pack

Extra Cleats for Clamp-On Breaker Lockouts

• Use in conjunction with clamp-on breaker lockouts (sold above)

• Easily clips onto the bottom of the lockout body

• Assures positive restraint for breakers with long, sliding switch throws

Catalog #

65404

65406

Description

Cleats For 120/277V Lockout

Cleats For 480/600V Lockout

Quantity

6/pack

6/pack

Step 1 Step 2 Step 3

Universal Multi-Pole Breaker Lockout

• Single device works with most major multi-pole breakers that employ a tie-bar

• Made of durable impact-modified nylon

• Compatible with GE, ITE, Sylvania, Challenger, Bryant, Westinghouse, General Switch Co

• Use thumbscrew to clamp lockout securely over tie bar, then insert lock to prevent clamp from

being loosened

• Patent No. 5,300,740

Catalog #

66321

66320

Description

Universal Multi-Pole Breaker Lockout

Universal Multi-Pole Breaker Lockout

Quantity

1/pack

6/pack

Universal Multi-Pole Lockout works with most two or three pole breakers utilizing a tie-bar

Oversized Clamp On Breaker Lockout

• Oversized 480/600V frame lockout fits breaker switches up to 2

1/ 4

” wide and

7/ 8

” thick

• Made of durable polypropylene and glass filled-impact-modified nylon

• New blade design gets better grip, works on even more breaker models

• Patent No. 5,500,495

Catalog #

65329

65321

Description

Oversized Breaker Lockout

Oversized Breaker Lockout

Quantity

1/pack

6/pack

480-600V Breaker Blocker

• Perfect for locking out oversized and irregularly shaped switches

• Self-adhesive backed rails are permanently installed into an electrical panel

– simply clean panel surface and adhere, no drilling required

• Red blocking bar indicates locked off, green bar indicates locked on

Breaker Blocker Kit

Catalog #

90891

Description

Breaker Block Kit

* Kit includes 2 yellow mounting rails, 1 red blocking bar, 1 green blocking bar and 3 alcohol wipes

Breaker Blocker Components

Catalog #

90892

90893

51264

51265

Dimensions

7.6”, 5/pack

7.6”, 5/pack

4”, 2/pack

5/pack

Description

Red Blocking Bar

Green Blocking Bar

Yellow Mounting Rails

Blocking Bar Holder

Not Sure Which Circuit Breaker Lockout To Use?

Check out Brady’s Circuit Breaker Lockout Reference Guide. We’ve tested over 750 makes and models of breakers, including popular brands such as Allen Bradley, ABB, Cutler Hammer, General Electric,

Siemens, Square D and more! The Reference Guide makes it easy to find the right lockout device for the breakers you use. Download the reference guide from www.bradyid.com/LockoutTagout, or email in your enquiries to

[email protected]

.

www.bradyid.com/ap

22

23

Features & Benefits

• A safe and effective method for locking out

miniature circuit breakers, commonly used in

European and Asian equipment

• Miniature Breaker Lockouts require NO TOOLS

to install! The lockout easily installs with the aid

of a push button (tie-bar lockout has a

convenient thumb wheel for quick application)

• Available for single and multi-pole breakers

• Recommended to lock with lightweight Brady

Safety padlocks or other padlocks, the

lockouts can take padlocks with a shackle

diameter up to

9/ 32

• Material: Glass-filled nylon

• Available in 1 or 6 packs

Tie-Bar Lockout (TBLO) Pin-Out Standard (POS)

Pin-In Standard (PIS) Pin-Out Wide (POW)

4 Different types:

POS

Pin Out Standard

PIS

Pin In Standard

POW

Pin Out Wide

TBLO

Tie Bar Lockout

Miniature Circuit Breaker Lockout

Catalog #

90844

90845

90847

90848

90850

90851

90853

90854

Description

POS

POS

PIS

PIS

POW

POW

TBLO

TBLO

6

1

6

1

6

6

1

Qty

1

Breaker Compatibility Chart

Merlin Gerin

Merlin Gerin

Merlin Gerin

Merlin Gerin

Merlin Gerin

Merlin Gerin

Merlin Gerin

Proteus

Proteus

Proteus

Siemens 17U

Siemens 17U

Siemens 17U

Siemens 17U

Siemens C10

Siemens C32

Siemens C70

Siemens L20A

Sursum

Wylex

Brand

ABB

ABB

ABB

ABB

ABB

AEG

Allen-Bradley

Buschmat

Clipsal

Clipsal

E-T-A

E-T-A

FAZ

FAZ

GE Vynckier

GE Vynckier

GE Vynckier

GE Vynckier

GE Vynckier 16A

GE Vynckier C16, 16A

Hager

Hager

Hager

Kapp

Legrand

Legrand

Legrand

Legrand

Legrand

Legrand

Merlin Gerin

1

3

2

3

3

4

1

2

2

4

1

3

1

2

3

4

1

3

2

4

3

1

1

1

1

1

Poles

1

1

2

3

1,2,3

1

2

4

1

2

3

1

3

3

2

3

2

3

1

4

3

1

2

2

1

B100A

C60N

C32N

C60N

C60N

C32N

C45AD

C16

C6

C6

5SQ12

5SQ13

5SQ16

5SQ11

5SX1

5SX1-2

5SX13

5SN2-2

EA53

WRS40/2

LS68

01935

01980

01980

04302

06469

01908

C80A

Series G

Series E

Series G

Series E

Series E

453717

MW216A

MW620A

Model No.

S222

F374

S251, S261, S263

S272, S253

S253

E82S

1492-CB1, 2, 3

S46

4CB116

4CB320

911225

911220G

C16

C16

Series E

View the full compatibility chart at www.BradyID.com/LockoutTagout

90844

90844

90853

90853

90853

90850

90850

90853

90850/90853

90844

90844

90844

90844

90844

90844

90844

90853

90853

90847

90844

90847

90847

90847

90847

90847

90844

90844

90844

90844

90844

90844

90844

90847

90847

90844

90850/90853

90844

90844

90844

90847

90844

90844

90844

90847

Catalog # 1/pkg

90844

90844

90844

90844

90844

90847

90844

PIS

PIS

PIS

PIS

PIS

POS

POS

POS

PIS

TBLO

TBLO

TBLO

PIS

PIS

POS

TBLO/POW

POS

POS

POS

PIS

POS

POS

POS

PIS

Type

POS

POS

POS

POS

POS

PIS

POS

POS

POS

TBLO

TBLO

TBLO

POW

POW

TBLO

TBLO/POW

POS

POS

POS

POS

POS

POS

POS

TBLO

TBLO

PIS

POS

ELECTRICAL LOCKOUT

3-In-1 Electrical Plug Lockout

• Accommodates high and low-voltage plugs up to 3” in diameter and 5

1/ 2

” in length

• 2 sliding top lids can be used individually or together to accommodate small, medium and

large-diameter cords up to 1 1/ 4

• Made of bright yellow thermoplastic

• Available with English or English/Spanish instruction labels

Catalog #

PLO23

PLO23-BI

Description

3-in-1 Plug Lockout - English

3-in-1 Plug Lockout - English/Spanish

Brady Electrical Plug Lockouts

• Plug lockouts prevent electrical plugs from being inserted into a wall outlet. Use when plug will

not remain under the exclusive control of the person performing service or maintenance

• Made of rugged polypropylene

Catalog #

65674

65675

Dimensions

2” x 2” x 3

1/ 2

”,

1/ 2

” diameter hole for cable

3

1/ 4

” x 3

1/ 4

” x 7”, 1” diameter hole for cable

Description

Small 110V Plugout

Large 220/500V Plugout

Electrical/Pneumatic Plug Lockout

• Accommodates a large variety of electrical plugs up to 3

1/ 2

” in diameter and 5” in length as well

as male air hose connectors

• Holes accommodate electrical cord or “necked down” pneumatic male fittings commonly

attached to compressed air hose

• Works on 110V, 220V & 550V plugs

• Made of Polystyrene material

Catalog #

PL027E

Description

Electrical/Pneumatic Plug LO

Push Button Lockouts

• Guard against unauthorized operation or accidental activation.

• Two sizes to accommodate standard NEMA 30.5 mm and IEC 22.5 mm buttons

• Emergency Stop Safety Covers:

- Permanently install over push/pull or twist-release emergency stops

- Durable metal bar locks button in the depressed (off) position when lock shackle is inserted

• Push Button Safety Covers:

- 104602: Clear Lexan hinged cover completely covers button, preventing access

(white legend plate included)

- 104603: Clear Lexan & metal hinged cover completely covers button preventing access

Catalog #

104600

104601

104602

104603

Description

Emergency Stop Safety Covers - NEMA 30.5 mm

Emergency Stop Safety Covers - IEC 22.5 mm

Push Button Safety Covers - NEMA 30.5 mm

Push Button Safety Covers - IEC 22.5 mm www.bradyid.com/ap

24

ELECTRICAL LOCKOUT

Stopower

Plug Lockouts

• Ideal for office equipment and other frequently locked out cords

• For use on 2 or 3 pronged polarized plugs

• Cord cannot be plugged in with Stopower

• Device cannot be removed without a key

• Standard pack: 1 device/ package

in place

Catalog #

65673

Description

Red

To order multiple Stopower Plug Lockouts that are keyed alike, use catalog #98209

Hubbell Plugout

• Two sizes available to fit most heavy industrial plug applications

• Small version accepts plugs with maximum 2

3/ 4

” diameter and 4

3/ 4

” length with 1” cord

• Large version accepts plugs with maximum 4

1/ 2

” diameter and 10

3/ 20

” length with

19/ 20

” cord

• Standard pack: 1 device/ package

Catalog #

65695

65968

Description

Small Plugout

Large Plugout

25

Clear Wall Switch Lockout Opaque Wall Switch Lockout

Opaque Wall Switch Lockout

• Clear plastic lockout uses existing wall plate screws

to mount

• Patented non-hinge design

Catalog #

WSLO

Description

Wall Switch Lockout

Clear Wall Switch Lockout

• Device may be used with most wall-mounted switches

• Easy to install using existing screws

• High visibility red color

Catalog #

65392

65696

Quantity

1/pack

6/pack

• Made of strong, clear polycarbonate

• Lock not included

• Locks switch in “on” or “off” position

• Lock not included

Fuse Lockout Devices

• Unique locking mechanism prevents device from being accidentally removed from fuse block

• Available in two sizes for most commonly used fuses

Catalog #

65750

65751

Dimensions

13/ 32

9/ 16

”, 6/pack

”, 6/pack

Fuse Blockout Devices

• Block out

1/ 4

” to

11/ 16

” and blade type fuses

• Use these highly visible devices in conjunction with Brady Lockout Tags to comply with OSHA’s

Lockout/Tagout Standard

Catalog #

65690

65691

Dimensions

1/ 4 ”,

13/ 16

9/ 32

”, 1

”, 13/ 32

1/ 16

” & 9/ 16

”, 6/pack

”, 6/pack

Description

Fuses

Blade Type Fuses

AIR LINE LOCKOUT

Air Line Lockout and Pneumatic Lockout are critical for de-energizing and isolating compressed air sources of power. Brady developed pneumatic quick-disconnect lockouts that easily attach to the male fitting, effectively prohibiting any pneumatic connection without the inconvenience of installing in-line lockout valves. The pneumatic lockouts are also convenient for storage and holding the air hose while it’s not in use, keeping your facility orderly and air hoses from getting tangled. Air Line lockouts will snap on over the regulator knob to deny access to the air line regulator.

Pneumatic Quick-Disconnect Lockout

• Isolates pneumatic energy without the expense and inconvenience of installing in-line lockout

valves

• Device is applied to the male fitting, isolating equipment from all compressed air sources

• Accommodates the majority of

1/ 4

”,

1/ 8

”,

1/ 2

” male fittings

• Hole in center of device allows for permanent storage on an air hose and a loop on the side can

be used to hang the hose and lockout device

• Lockout using a padlock with

1/ 4

” or

9/ 32

” shackle

Catalog #

64221

65645

Quantity

1/pack

6/pack

SMC Air Line Regulator Lockout

• Enables regulator to be locked in the on, off or throttled position

• Easy installation: remove snap cap, install lockout on regulator rod, snap replacement cap

on regulator

• Comes with lockout, cap and allen wrench

Catalog #

64539

64540

Description

Lockout for Miniature SMC Models AR2000/NAR2000

Lockout for Intermediate SMC Models AR3000/NAR3000 www.bradyid.com/ap

26

27

GAS LOCKOUT

Snap Cap

Gas Cylinder Lockout

• Designed to fit most North American high and low pressure gas cylinders

• SNAP CAP cylinder safety device meets DOT standards

• The SNAP CAP denies access to the main cylinder control and regulator attachment

• Welded steel construction and powder coated for many years of use

Catalog #

90496

95137

95138

95139

Qty

6.5” x 3 1/ 8 ” x 11 UN, High Pressure Fine Thread

6.5” x 3

1/ 2

” x 11 UN, Low Pressure Fine Thread

6.5” x 3 1/ 8 ” x 11 UN, High Pressure Coarse Thread

6.5” x 3 1/ 2 ” x 11 UN, Low Pressure Coarse Thread

PRINZING Gas Cylinder Lockout

• Prevents access to the main cylinder valve

• No need to match your lockout device to varying diameters and threads of cylinder caps

• Accommodates neck rings up to 3

1/ 2

” diameter

• Installs in seconds to save time

Catalog #

LM023E

Description

Gas Cylinder Lockout

• Greater versatility - used in variety of

applications

• Able to lockout multiple items with one device

• Great for isolating unconventional devices

• Portable and ease of usage compared to

Chain lockout

All Purpose Cable Lockout

• Compact, lightweight body made of rugged Isoplast Polymer

• Ergonomic design makes it a “cinch” to tighten cable – hold device in one hand and cinch tight

with the other

• Superior chemical, corrosion and temperature resistance properties

• Two types of interchangeable cables:

• Nonconductive nylon cable (

1/ 8

” diameter)

• Sheathed metal cable (

3/ 16

” diameter, vinyl coating)

• Built-in cable loop keeps cable neatly coiled when stored, also keeps extra cable from dangling

loose and posing a hazard when in use

• 4 lock holes in handle accommodate most lock shackles and hasps

• Max. Service temperature of cables:

- Sheathed Metal: -30

°F

to 180

- Non-Conductive Nylon: -40

°F

°F

to 200

°F

Catalog #

50943

50941

50944

Dimensions

8’

8’

Description

APCLO with sheathed metal cable

APCLO with non-conductive nylon cable

APCLO without cable

Sheathed Metal Cables

(Sold Separately)

Catalog #

50947

50950

50953

50956

Dimensions

8’

12’

16’

20’

Description

Sheathed metal cable

Sheathed metal cable

Sheathed metal cable

Sheathed metal cable

Non-conductive Nylon Cables

(Sold Separately)

Catalog #

50945

50948

50951

50954

Dimensions

8’

12’

16’

20’

Description

Non-conductive Nylon cable

Non-conductive Nylon cable

Non-conductive Nylon cable

Non-conductive Nylon cable

Mini Cable Lockout

• Perfect for use on disconnect switches, small gate valves, etc

• Extremely compact and portable. Cable stored internally

• Push-button self-winding mechanism automatically cinches cable tight

• Body made of impact modified nylon

• Superior chemical, corrosion and temperature resistant properties.

• Comes with vinyl-coated steel cable or nonconductive nylon cable

• 6 lock holes accommodate most padlock shackles and hasps

• Cable dimensions:

1/ 16

” outside diameter x 8’ length

Catalog #

50940

51442

Dimensions

4” diameter x 1

3/ 4

” deep

4” diameter x 1

3/ 4

” deep

Description

Mini Cable Lockout w/ Steel Cable

Mini Cable Lockout w/ Nylon Cable www.bradyid.com/ap

28

29

Original Cable Lockout

• Brady’s original cable lockout

• Body made of impact modified nylon, available in red, blue or yellow

• Comes with 6’ galvanized steel cable (

1/ 8

” outside diameter)

Cable Lockout Device with 6 ft. cable

Catalog #

65318

45191

45192

Description

Red

Blue

Yellow

Additional Cables

Catalog #

65319

65320

Description

8 ft. cable

10 ft. cable

Other cable lengths available upon request

PRINZING Economy Cable Lockout

• Unique lockout device accepts up to six

9/ 32

” diameter padlocks

• Cable Diameter

3/ 16

”outside diameter

• Plastic-coated steel cable comes in two lengths: 6’ and 10’

Catalog #

CABLO

CABLO-10

Description

Cable Lockout Device with 6’ cable

Cable Lockout Device with 10’ cable

PRINZING Chain Lockout Kit

• An inexpensive way to lockout assorted applications

Components:

• 3 x 1

1/ 2

” Steel Lockout Hasp (T220)

• 3 x Padlocks (LCO44-RD)

• 3 x Lockout Tags with Ties

• 1 x 48” Chain

• 1 x Durable Carrying Case (7” x 12” x 5”)

Catalog #

LK041R

LK042R

Description

Single Lockout Kit

Double Lockout Kit*

*Same as LK041R plus an extra chain

PRINZING Cable Lockout Kit

• Cable lockout kit with handy carrying case

Components:

• 2 x Cable Lockout Devices (CABLO)

• 2 x Blue Prinzing Padlocks (LC041-BU)

• 1 x 1” Steel Lockout Hasp (T218)

• 2 x English-labelled Lockout Tags with Ties

• 1 x Rugged Polyethylene Carrying Case (7” x 12” x 5”)

Catalog #

LK520B

Description

Cable Lockout Kit

VALVE LOCKOUT

VALVE LOCKOUT

Plug Valve Lockout

• Four Sizes to Fit Most 1” to 8” Diameter Manually-Actuated Plug Valves

• Effective Fit for Difficult-to-Secure Plug Valves

• Durable and Tamper-Resistant

• Service Temperatures from -25°F to 200°F

• Compact in Size and Easy to Use

Catalog #

113231

113232

113233

113234

Description

Plug Valve Lockout for up to

7/ 8

” Stem Diameter

Plug Valve Lockout for 15/ 16 ”- 1 3/ 8 ” Stem Diameter

Plug Valve Lockout for 1 3/ 4 ”- 2 1/ 8 ” Stem Diameter

Plug Valve Lockout for 2

3/ 16

”- 2

1/ 2

” Stem Diameter

Universal Valve Lockout

• Versatile, rugged, easy to use, lightweight

• Made of industrial-grade steel and nylon for extra impact and chemical resistance

• New open-ended clamp fits over closed rings, wide handles

• Can also be used to lock out large levers, T-handles and other hard-to-secure mechanical devices

• Cable attachment offers choice of

1/ 8

” nonconductive nylon or rustproof sheathed metal cable

• Small UVLO: for use on handle widths up to 1” (max handle thickness of 0.6”)

• Large UVLO: for use on handle widths up to 1.6” (max handle thickness of 1.1”)

• Patent No. 5,415,017 and 7,207,198

Universal Valve Lockout - Complete Sets

Catalog #

51394

51390

51392

51388

Description

Small UVLO with 8’ Sheathed Cable Attachment & Blocking Arm

Small UVLO with 8’ Nylon Cable Attachment & Blocking Arm

Large UVLO with 8’ Sheathed Cable Attachment & Blocking Arm

Large UVLO with 8’ Nylon Cable Attachment & Blocking Arm

Universal Valve Lockout - Individual Components

Catalog #

50924

50899

65402

65403

51395

50932

Description

Small UVLO Base Clamping Unit

Large UVLO Base Clamping Unit

Small Blocking Arm

Large Blocking Arm

Cable Attachment with 8’ Sheathed Cable

Cable Attachment with 8’ Nylon Cable

Other cable lengths also available www.bradyid.com/ap

30

VALVE LOCKOUT

31

VALVE LOCKOUT

Adjustable Gate Valve Lockout

• Versatile lockout adjusts to fit 1” to 6

1/ 2

” valve handles, replacing 3 conventional gate valve lockouts

• Durable polypropylene is resistant to temperature changes from -13°F to 194°F

• Compact for easy carrying and storage

• Comes with danger labels in English, Spanish and French

Catalog #

64057

Description

Adjustable Gate Valve Lockout

Gate Valve Lockouts

• Made of rugged injection-molded polypropylene

• Service temperatures from –25°F to 200°F

• Unique knockout center accommodates OS&Y or “rising stem” valves

• Available in 5 sizes and 4 colors

• Accepts locks with shackles up to

3/ 8

” in diameter

• Supplied with danger labels in English, Spanish and French

Valves handle

Diameter

1” – 2

1/ 2

2

1/ 2

” – 5”

5” – 6

1/ 2

6

1/ 2

” – 10”

10” – 13”

Red

65560

65561

65562

65563

65564

Yellow

65590

65591

65592

65593

65594

Catalog #

Green

65595

65596

65597

65598

65599

Blue

65585

65586

65587

65588

65589

Standard Ball Valve Lockout

• Easy to use, single-piece design locks quarter-turn ball valves in OFF position

• Two sizes fit most valves up to 3”

• 65692, 65669 and 65693 are made of powder-coated steel

• 65666 is made of super-tough nylon (service temp -40° to 248° F)

Catalog #

65666

65692

65669

65693

Diameter

9/ 32

3/ 8

9/ 32

3/ 8 ”

1/ 4

1/ 4

” – 1”

” – 1”

1 1/ 4 ” – 3”

1 1/ 4 ” – 3”

1

1/ 2

1 1/ 2 ”

2 1/ 10 ”

1 9/ 10 ”

3/ 4

3/ 4 ”

1 1/ 4 ”

1 1/ 4 ”

PRINZING Ball Valve Lockout

• Made from ultra-tough polypropylene

• Small lockout (BS07A) locks out pipes

1/ 2

” to 2

1/ 2

” in diameter

• Small lockout can also be used to lock valves OPEN on pipes from

1/ 2

” to 1

1/ 4

” in diameter

• Large lockout (BS08A) locks out pipes 2” to 8” in diameter

• Available in 4 colors

• Patent No: 6,622,536

Description

Small Ball Valve Lockout

Large Ball Valve Lockout

Red

BS07A

BS08A

Blue

BS07A-BU

BS08A-BU

Green

BS07A-GN

BS08A-GN

Yellow

BS07A-YW

BS08A-YW

LOCKOUT BOARDS

LOCKOUT BOARDS

5-Lock Board

• Includes 5 padlocks (99552 or 99500), one 1” metal hasp (65375),

one 1

1/ 2

” metal hasp (65376) and 12 heavy duty tags (65520)

Catalog #

51181

51186

50989

Dimensions

11

1/ 2

” x 15

1/ 2

11

1/ 2

” x 15

1/ 2

11

1/ 2

” x 15

1/ 2

Description

5-Lock Board (Includes Brady Safety Padlocks)

5-Lock Board (Includes Brady

3/ 4

5-Lock Board (Board Only)

” Steel Padlocks)

10-Lock Board

• Includes 10 padlocks (99552 or 99500), two 1” hasps (65375),

two 1 1

/ 2

” hasps (65376) and 12 heavy duty tags (65520)

Catalog #

51187

51188

50990

Dimensions

13

1/ 2

” x 13

1/ 2

13

1/ 2

” x 13

1/ 2

13

1/ 2

” x 13

1/ 2

Description

10-Lock Board (Includes Brady Safety Padlocks)

10-Lock Board (Includes Brady 3/ 4 ” Steel Padlocks)

10-Lock Board (Board Only)

20-Lock Board

• Includes 20 padlocks (99552 or 99500), two 1” hasps (65375),

two 1 1

/ 2

” hasps (65376) and 24 heavy duty tags (65520)

Catalog #

51189

51194

50991

Dimensions

23

1/ 2

” x 11

1/ 2

23

1/ 2

” x 11

1/ 2

23

1/ 2

” x 11

1/ 2

Description

20-Lock Board (Includes Brady Safety Padlocks)

20-Lock Board (Includes Brady 3/ 4 ” Steel Padlocks)

20-Lock Board (Board Only)

36-Lock Board

• Includes 36 padlocks (99552 or 99500), three 1” hasps (65375),

three 1 1/ 2

” hasps (65376) and 36 heavy duty tags (65520)

Catalog #

51195

51196

50992

Dimensions

21

1/ 2

” x 23

1/ 2

21

1/ 2

” x 23

1/ 2

21

1/ 2

” x 23

1/ 2

Description

36-Lock Board (Includes Brady Safety Padlocks)

36-Lock Board (Includes Brady 3/ 4 ” Steel Padlocks)

36-Lock Board (Board Only) www.bradyid.com/ap

32

PADLOCK CENTERS

33

Did you know?

Brady uses a space-saving design to hold more locks. Board is made of 7.7mm thick yellow acrylic with acrylic lock rails. Tag pockets, made of clear polycarbonate, hold tags up to 76.2mm wide.

Padlock Stations

• Constructed of 14 gauge steel with red plastic coating

• Padlocks not included

Catalog #

LR060E

LR360E

Dimensions

2

1/ 4

” x 3” x 1

1/ 4

3” x 16” x 1

1/ 4

Description

Small Padlock Station

Large Padlock Station

Steel Padlock Control Centers

• Red powder-coated 22 gauge steel with white silk-screened graphics

• Each nickel coated metal hook can hold 2 locks

• Two sizes available for holding 16 or 32 locks

• Two keys supplied for cabinet lock

• Padlocks sold separately

Catalog #

LR008E

LR018E

Dimensions

10” x 12” x 2”

15 1/ 2 ” x 18” x 2”

Description

Small Padlock Control Center

Large Padlock Control Center

Enclosed Padlock Storage Modules

• Provides safe storage and controls access to padlocks

• Constructed of sintra with lockable, transparent acrylic doors

• Each metal hook can hold 2 locks

• Two sizes available for holding 16 or 40 locks

• Padlocks sold separately

Catalog #

65240

65241

Description

15” x 15” x 3 1/ 2 ”

30” x 15” x 3 1/ 2 ”

Description

Small Padlock Storage Module

Large Padlock Storage Module

PADLOCK CENTERS

Padlock Management System

• Reduces theft by controlling access to locks

• 7 different sizes hold from 1 to 75 locks (10 lock station shown)

• Each lock individually secured into a numbered port on the lock board

• Locks can only be removed by personnel with assigned access keys. Access key is retained in

lock board until lock is returned

• Employees photos can be applied to locks. See below for file requirements*

Catalog #

CST1154

CST1154

CST1154

CST1154

CST1154

CST1154

Dimensions

5

3/ 8

17

32

47

” x 21

7” x 21

10” x 21

1/ 2

1/ 2

3/ 8

3/ 8

3/ 8

” x 4”

3/ 8

” x 21

” x 21

” x 21

” x 4”

” x 4”

3/ 8

3/ 8

3/ 8

” x 4”

” x 4”

” x 4”

25

50

75

Locks Per Unit

5

10

15

For Keyed Alike or Master Keyed Padlocks, call your local Brady Distributor for pricing

SPECIFY THE FOLLOWING TO ORDER YOUR MANAGEMENT SYSTEM

1. LOCKS PER UNIT (Choose one)

5 locks (board size – 5 3/ 8 ” x 21 3/ 8 ” x 4”)

10 locks (board size – 7” x 21 3/ 8 ” x 4”)

15 locks (board size – 10” x 21 3/ 8 ” x 4”)

25 locks (board size – 17

50 locks (board size – 32

75 locks (board size – 47

1/ 2

1/ 2

3/ 8

”, x 21

”, x 21

”, x 21

3/ 8

3/ 8

3/ 8

”, x 4”)

”, x 4”)

”, x 4”)

2. COLOR OF LOCKS (Total must equal choice above)

Yellow _____Qty

Green _____Qty

Red _____Qty

3. KEYING

Keyed ALIKE

Keyed DIFFERENT

Master Key w/ Keyed Alike ____Qty of Master Keys

Master Key w/ Keyed Different____Qty of Master Keys

4. COLOR OF ACCESS KEYS (Total must equal no. of locks)

Yellow _____Qty

Green_____Qty

White _____Qty

Red _____Qty

Blue _____Qty

Silver _____Qty

(Other colors also available)

SPECIFY THE FOLLOWING TO ORDER ADDITIONAL LOCKS OR ACCESS KEYS

1. ADDITIONAL LOCKS

Yellow______ Qty

White ______ Qty

Red ______ Qty

Green______ Qty

Blue ______ Qty

Silver ______ Qty

3. KEYING

Keyed DIFFERENT

Keyed ALIKE

Master Key w/ Keyed Alike ____Qty of Master Keys

Master Key w/ Keyed Different____Qty of Master Keys

4. ADDITIONAL ACCESS KEYS

Yellow _____Qty

White _____Qty

Red _____Qty

(Other colors also available)

Green_____Qty

Blue _____Qty

Silver _____Qty www.bradyid.com/ap

34

35

GROUP LOCKOUT BOXES

BOXES

A great idea for group lockout involving a large number of workers and equipment, offering more advantages than using hasps

Brady group lockout products are ideal for situations where a large number of workers have a high volume of energy control points that need to be locked out. With lock boxes, single job locks, multiple padlock management systems and lockout tool storage, Brady has several options for group lockout that can save time, track lockout workers, store padlocks and keep group lockout procedures efficient and organized.

HOW GROUP LOCKOUT BOXES WORK:

• Supervisor uses a single job lock on each energy control point to lock out equipment

• Keys for job locks are put in a lockout box

• Each worker applies his own lock to the lock box. As long as any one worker’s lock remains on

the lockout box, the keys to the job locks cannot be accessed, and the energy isolating devices

cannot be operated. Each employee retains exclusive control, as required by OSHA

HOW GROUP LOCKOUT BOXES CAN SAVE YOU LOTS OF MONEY:

• Example: Assume 5 workers need to lock out 10 energy control points

• Using hasps, 50 locks are required (all 5 workers must apply individual locks to each control point)

• Using a lockout box, only 15 locks are required (10 job locks applied to control points and 5

employee locks applied to lockout box). That is 70% fewer locks!

• Less weight hanging from the energy point – 1 lock instead of 5!

• Finally, checking the locks on the lock box allows you track who is still working. With hasps, you

need to walk around to each energy control point to see whose lock is still in place.

Portable Metal Group Lockout Boxes

• Made of heavy duty steel, powder-coated for extra rust resistance

• 13 lock holes on lid, plus lockable clasp on front (locks not included)

• Standard lock box

When used for storage, holds up to 40 padlocks

• Extra-large lock box

When used for storage, holds up to 75 padlocks

Catalog #

65699

51171

Dimensions

6” x 9” x 3

1/ 2

6” x 7

3/ 8

” x 9

1/ 2

Description

Red - Standard

Red - Extra-Large

Combined Lock Storage / Group Lockout Box

• Handy box features a lockable storage compartment and a group lockout compartment.

• Made of heavy duty steel, powder coated for extra rust resistance

• Group lockout compartment has clear Lexan window with keyhole slot

• Standard box

• Extra –large lock box

Storage compartment holds approx. 50 padlocks

17 padlock holes in group lock box lid

Storage compartment holds approx. 125 padlocks

34 padlock holes in group lock box lid

Catalog #

105716

105717

Dimensions

8

1/ 2

” x 6” x 6”

10

1/ 2

” x 9” x 9”

Description

Standard

Large

GROUP LOCKOUT BOXES

Portable Plastic Group Lockout Box

• Injection molded using Isoplast Polymers for rugged durability

• Won’t corrode! Excellent chemical and heat resistance properties

• Lock rails hold up to 16 padlocks (locks not included)

• Slot in front allows keys to be inserted when box is locked

• Transparent polycarbonate windows let you view contents

• Pre-drilled holes in back allow for easy wall-mounting

• Comes with 12 hooks for hanging keys, locks, etc., inside box

• Patent Applied For

Catalog #

50937

Dimensions

7

1/ 2

” x 8

1/ 2

” x 4

1/ 4

Description

Portable Plastic Lock Box

Acrylic Wall-Mounted Group Lockout Boxes

• Made of acrylic plastic

• Pre-drilled holes in back for easy wall mounting

• Transparent front cover allows easy viewing of contents

• Pre-attached plastic hooks for hanging keys, tag stubs, etc

• Available in 3 sizes

Catalog #

LG003E

LG008E

GLOBOX

Description

Small: 6” x 6” x 2 1/ 2 ”

Medium: 7 1/ 2 ” x 12” x 2 1/ 2 ”

Large: 7 1/ 2 ” x 15 3/ 4 ” x 2 1/ 2 ”

padlocks

6

10

14

3

8

18

Miniature Wall Lock Box

• Injection molded for extra durability

• Won’t corrode! Excellent chemical and heat resistance properties

• Lock rails hold up to 8 padlocks

• Transparent window lets you view contents from outside

• Slot-in front allows keys to be inserted when locked

• Pre-drilled holes in back allow for easy wall-mounting

• Comes with 6 hooks for hanging keys, locks, etc, inside

Catalog #

50938

50939

Dimensions

6

1/ 5

” x 4” x 5

1/ 2

12/pack

Description

Miniature Wall lock Box

Extra Key Hooks Only www.bradyid.com/ap

36

37

GROUP LOCKOUT BOXES

Metal Wall-Mounted Group Lockout Boxes

• Made of durable, powder-coated steel with key slot on top

• Includes clear Lexan window that slides out when locks are removed

• Comes with key pegs and ID labels to simplify key management

• Predrilled holes and hardware included for quick mounting

• Small lock box:

7 key pegs that hold 5 keys each

7 lock holes along bottom

• Large lock box:

15 key pegs that hold 5 keys each

12 lock holes along bottom

Catalog #

105714

105715

Dimensions

7” x 8” x 2

1/ 4

7” x 16” x 2

1/ 4

Description

Small Metal Lock Box

Large Metal Lock Box

Portable / Wall Group Lockout Box

• Made of yellow powder-coated metal

• Accommodates 8-10 locks (depending on lock size)

• Can be used alone or in combination with Metal Lockout Cabinet

Catalog #

LG252M

Dimensions

6” x 15” x 3”

Description

PRINZING Metal Wall Lock Box

SHOCK-STOP

TM

Group Lockout Box

• Combines lock box with storage board for hasps

• Lock box accepts up to 6 locks and provides rail for storing locks when not in use

• Comes standard with two SHOCK-STOP

hasps

• Mounting hardware and instructions included

Catalog #

87692

87693

Dimensions

16

1/ 2

” x 10

1/ 2

” x 2

1/ 2

5/pack

Description

Group Lock Box

Hasp Only

LOCKOUT KITS

Personal lockout kits come equipped with keyed-alike padlocks, allowing all the locks in a kit to be opened with a single key. This simplifies key management and ensures that employees can quickly and easily find the right key. For kits containing padlocks that are keyed different (each padlock has its own unique key), see the standard lockout kits on the following pages. Or select a personal lockout kit without padlocks, and purchase the padlocks separately.

Personal Padlock Pouch

• Compact kit that contains padlocks, tags and hasps

Components:

• 2 x 1” Group Lockout Hasps (65375)

• 2 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

Catalog #

105969

105970

• 2 x Keyed-alike Safety Padlocks (99552) or

Steel Padlocks (99500)

• 1 x Lockout Belt Pouch (51172)

Description

Padlock kit with Keyed-Alike Safety Padlocks

Padlock kit with Keyed-Alike Steel Padlocks

Personal Breaker Lockout Pouch

• Pouch contains 1 each of our most popular circuit breaker lockouts

• Covers 120v/277v and 480/600v breakers in single and multi-pole configurations

Components:

• 1 x 120/277V Clamp-On Breaker Lockout

with cleats (65396)

• 1 x 480/600V Clamp-On Breaker Lockout

with cleats (65397)

• 1 x Universal Multi-pole Breaker Lockout (66321)

Catalog #

105966

105967

105968

Description

Personal Breaker Lockout Pouch (Kit)

Kit with 2 Keyed-Alike Safety Padlocks

Kit with 2 Keyed-Alike Steel Padlocks

• 2 x 1” Group Lockout Hasps (65375)

• 2 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

• 1 x Lockout Belt Pouch (51172)

Personal Breaker Lockout Kit

• Tool box contains 2 each of our most popular breaker lockouts

• Covers 120v/277v and 480/600v breakers in single and multi-pole configurations

Components:

• 2 x 120/277V Clamp-On Breaker Lockouts

with cleats (65396)

• 2 x 480/600V Clamp-On Breaker Lockouts

with cleats (65397)

• 2 x Universal Multi-pole Breaker Lockouts (66321)

Catalog #

105963

105964

105965

Description

Personal Breaker Lockout Kit

Kit with 3 Keyed-Alike Safety Padlocks

Kit with 3 Keyed-Alike Steel Padlocks

• 3 x 1” Red Lockout Hasps (65375)

• 3 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

• 1 x Small Lockout Toolbox (105905) www.bradyid.com/ap

38

LOCKOUT KITS

39

Includes Mini Cable Lockout, featured on page 28-29

Includes Plug Valve Lockouts, featured on page 30-31

Includes Plug Valve Lockouts, featured on page 30-31

Personal Basic Lockout Kit

• Contains the basic devices needed to lockout common breakers, valves and plugs

Components:

• 1 x

1/ 2

” - 2

1/ 2

” Small Ball Valve Lockout (BS07A)

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x 120/277V Clamp-On Breaker Lockout

with cleat (65396)

• 1 x Universal Multi-pole Breaker Lockout (66321)

Catalog #

104794

104795

104796

Description

Personal Basic Lockout Kit

Kit with 2 Keyed-alike Safety Padlocks

Kit with 2 Keyed-alike Steel Padlocks

• 1 x Small 110V Electrical Plug Lockout (65674)

• 2 x 1” Lockout Hasps (65375)

• 2 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

• 1 x Small Lockout Toolbox (105905)

Personal Electrical Lockout Kit

• Provides lockouts for use on most circuit breakers, electrical plugs and disconnect switches

Components:

• 1 x Mini Cable Lockout (50940)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 2 x 120/277V Clamp-On Breaker Lockouts

with cleats (65396)

• 1 x 480/600V Clamp-On Breaker Lockout

with cleat (65397)

Catalog #

105960

105961

105962

Description

Personal Electrical Lockout Kit

Kit with 3 Keyed-alike Safety Padlocks

Kit with 3 Keyed-alike Steel Padlocks

• 2 x Universal Multi-pole Breaker Lockout (66321)

• 1 x Oversized Breaker Lockout (65329)

• 3 x 1” Group Lockout Hasps (65375)

• 3 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

• 1 x Medium Lockout Toolbox (105906)

Personal Valve Lockout Kit

• Contains devices for locking out a wide range of gate and ball valves

Components:

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout

(64057)

• 1 x 1” - 2

• 1 x

1/ 2

” - 2

Catalog #

105957

105958

105959

1/ 2

” Gate Valve Lockout (65560)

1/ 2

” Small Ball Valve Lockouts (BS07A)

• 1 x All Purpose Cable Lockout (50943)

Description

Personal Valve Lockout Kit

Kit w/ 3 Keyed-Alike Safety Padlocks

Kit w/ 3 Keyed-Alike Steel Padlocks

• 3 x 1” Group Lockout Hasps (65375)

• 3 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

• 1 x Medium Lockout Toolbox (105906)

Personal Valve & Electrical Lockout Kit

• Provides everything you need to lockout breakers, plugs and valves of various types and sizes

Components:

• 1 x All Purpose Cable Lockout (50943)

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout

(64057)

• 1 x Plug Valve Lockout for stem dia up to

7/ 8

(113231)

• 1 x Plug Valve Lockout for stem dia

9/ 32

” - 1

3/ 8

(113232)

• 1 x

1/ 2

” - 2

1/ 2

” Small Ball Valve Lockout (BS07A)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

Catalog #

105954

105955

105956

Description

Personal Valve & Electrical Kit

Kit with 3 Keyed-Alike Safety Padlocks

Kit with 3 Keyed-Alike Steel Padlocks

• 2 x 120/277V Clamp-On Breaker Lockouts

with cleats (65396)

• 1 x 480/600V Clamp-On Breaker Lockout

with cleat (65397)

• 2 x Universal Multi-pole Breaker Lockouts (66321)

• 3 x 1” Group Lockout Hasps (65375)

• 3 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

• 1 x Medium Lockout Toolbox (105906)

LOCKOUT KITS

The Standard Lockout Kits shown can be purchased with or without padlocks and tags.

The padlocks included in these kits are keyed differently (each lock has its own unique key).

For kits with keyed-alike padlocks (all locks can be opened with the same key) , see Personal

Lockout Kits.

Portable Padlock Pouch

• Portable kit with padlocks, tags and hasps

Components:

• 2 x Choose between keyed-different safety

padlocks (99552) or steel padlocks (99500)

• 2 x Heavy Duty Lockout Tags (65520) with

Nylon Cable Ties

Catalog #

99290

99292

Description

Kit with 2 Safety Padlocks

Kit with 2 Steel Padlocks

• 1 x 1” Group Lockout Hasp (65375)

• 1 x 1.5” Group Lockout Hasp (65376)

• 1 x Lockout Belt Pouch (51172)

Breaker Lockout Sampler Pouch

• Contains one each of out most popular breaker lockout

Components:

• 1 x 120V Snap-On Breaker Lockout (65387)

• 1 x 120/277V Clamp-On Breaker Lockout

with cleat (65396)

• 1 x 480/600V Clamp-On Breaker Lockout

with cleat (65397)

• 1 x Universal Multi-Pole Breaker Lockout (66321)

• 1 x Oversized Breaker Lockout (65329)

• 1 x Lockout Belt Pouch (51172)

Catalog #

99293

99296

99297

Description

Breaker Lockout Sampler Toolbox (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

120/277V Breaker Lockout Pouch

• Contains all the devices you need to lockout most 120/277V breakers

Components:

• 2 x 120V Snap-On Breaker Lockouts (65387)

• 2 x 120/277V Clamp-On Breaker Lockout

with cleats (65396)

• 2 x Universal Multi-Pole Breaker Lockout

with cleats (66321)

• 1 x Lockout Belt Pouch (51172)

Catalog #

99300

99302

99303

Description

120/277V Breaker Lockout Pouch (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties www.bradyid.com/ap

40

41

LOCKOUT KITS

Includes Mini Cable Lockout

Includes Mini Cable Lockout

Breaker Lockout Toolbox

• Everything you need to lockout most circuit breakers

Components:

• 1 x Mini Cable Lockout (50940)

• 2 x 120V Snap-On Breaker Lockout (65387)

• 2 x 120/277V Clamp-On Breaker Lockouts

with cleats (65396)

• 2 x 480/600V Clamp-On Breaker Lockouts

with cleats (65397)

• 1 x Universal Multi-Pole Breaker Lockout

(66321)

Catalog #

99305

99307

99308

Description

Breaker Lockout Toolbox (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

• 1 x Oversized Breaker Lockout (65329)

• 1 x Lockout Toolbox (65290)

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

Electrical Lockout Toolbox

• All the basics for locking out breakers, electrical plugs, wall switches and fuses

Components:

• 1 x Mini Cable Lockout (50940)

• 2 x 120V Snap-On Breaker Lockouts (65387)

• 2 x 120/277V Clamp-On Breaker Lockouts

with cleats (65396)

• 2 x 480/600V Clamp-On Breaker Lockouts

with cleats (65397)

• 2 x Universal Multi-Pole Breaker Lockouts (66321)

• 2 x Cleats for 120/277V Clamp-On Lockouts

(65404)

• 2 x Cleats for 480/600V Clamp-On Lockouts

(65406)

• 1 x Oversized Breaker Lockout (65329)

Catalog #

99310

99312

99313

Description

Breaker Lockout Sampler Toolbox (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x Wall Switch Lockout (65392)

• 1 x Small Fuse Blockout (65690)

• 1 x Large Fuse Blockout (65691)

• 1 x Extra-Large Lockout Toolbox (LKP-TKLBOX)

• 1 x Red Belt Pouch (51172)

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

LOCKOUT KITS

Gate Valve Lockout Pouch

• Lockout virtually any type and size of gate valve with just two versatile lockouts

Components:

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout

(64057)

• 1 x All Purpose Cable Lockout with 8’ sheathed

cable (50943)

Catalog #

101416

102692

102693

Description

Gate Valve Lockout Satchel (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

Valve Lockout Pouch

• Economical kit for locking out gate, ball and plug valves

Components:

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout

(64057)

• 2 x

1/ 2

” - 2

1/ 2

” Small Ball Valve Lockout (BS07A)

• 1 x Large Lockout Pouch (50979)

• 1 x Plug Valve Lockout for stem diameter up to

7/ 8

” (113231)

• 1 x Plug Valve Lockout for stem diameter

29/ 32 ” - 1 3/ 8 ” (113232)

Catalog #

99679

99680

99681

Description

Valve Lockout Pouch (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

Gate Valve Lockout Satchel

• Contains devices for locking out a wide range of gate and ball valves

Components:

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x 2

1/ 2

” - 5” Gate Valve Lockout (65561)

• 1 x 5” - 6

1/ 2

” Gate Valve Lockout (65562)

• 1 x 6

1/ 2

” - 10” Gate Valve Lockout (65563)

• 1 x 10” - 13” Gate Valve Lockout (65564)

• 1 x Lockout Satchel (51173)

Catalog #

99676

99677

99678

Description

Gate Valve Lockout Satchel (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties www.bradyid.com/ap

42

43

LOCKOUT KITS

Combination Lockout Satchel

• Everything you need to lock out the most common mechanical and electrical control points, with

extra valve lockout devices

Components:

• 1 x Large Univ. Valve Lockout with Blocking Arm

(50899 and 65403)

• 1 x All Purpose Cable Lockout with 8’ Sheathed

Cable (50943)

• 1 x

1/ 4

” - 1” Ball Valve Lockout (65666)

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x 2

1/ 2

” - 5” Gate Valve Lockout (65561)

• 1 x 5” - 6

1/ 2

” Gate Valve Lockout (65562)

• 1 x 120V Snap-On Breaker Lockout (65387)

• 1 x 120/277V Clamp-On Breaker Lockout

with cleat (65396)

Catalog #

99686

99687

99688

Description

Combination Lockout Satchel (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

Combination Lockout Duffel

• Everything you need to lock out the most common mechanical and electrical control points, with

extra electrical lockout devices

Components:

• 1 x Mini Cable Lockout (50940)

• 1 x 120V Snap-On Breaker Lockout (65387)

• 1 x 120/277V Clamp-On Breaker Lockout

(65396)

• 1 x 480/600V Clamp-On Breaker Lockout

(65397)

• 1 x Universal Multi-Pole Breaker Lockout (66321)

• 1 x Oversized Breaker Lockout (65329)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x Wall Switch Lockout (65392)

• 1 x Plug Valve Lockout for stem diameter

up to 7/ 8

” (113231)

• 1 x Plug Valve Lockout for stem diameter

29/ 32

”-

13/ 8

” (113232)

• 1 x 1” - 6

1/ 2

”Adjustable Gate Valve Lockout

(64057)

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x

1/ 4

” - 1” Ball Valve Lockout (65666)

• 1 x Large Univ. Valve Lockout with Blocking Arm

(50899 and 65403)

• 1 x Lockout Belt Pouch (51172)

• 1 x Lockout Duffel Bag (99162)

Catalog #

99689

99690

99691

Description

Combination Lockout Duffel (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

LOCKOUT KITS

Valve Lockout Toolbox

• Everything you need to lock out gate, ball, butterfly and other valves

Components:

• 1 x Small Univ. Valve Lockout w/ Blocking Arm

(50924 and 65402)

• 1 x All Purpose Cable Lockout w/ 8’ Sheathed

Cable (50943)

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout

(64057)

• 1 x

1/ 4

” - 1” Ball Valve Lockout (65666)

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x Extra-Large Lockout Toolbox (LKP-TKLBOX)

Catalog #

105969

105970

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties

Description

Padlock kit with Keyed-Alike Safety Padlocks

Padlock kit with Keyed-Alike Steel Padlocks

Combination Lockout Toolbox

• All the basics for lockout out gate and ball valves, breakers, switches and plugs

Components:

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout

(64057)

• 1 x

1/ 4

” - 1” Ball Valve Lockout (65666)

• 1 x 1

1/ 4

” - 3” Ball Valve Lockout (65669)

• 1 x 120V Snap-On Breaker Lockout (65387)

• 1 x 120/277V Clamp-On Breaker Lockout

with cleat (65396)

• 1 x 480/600V Clamp-On Breaker Lockout

with cleat (65397)

• 1 x Universal Multi-Pole Breaker Lockout (66321)

• 1 x 110V Electrical Plug Lockout (65674)

• 1 x Wall Switch Lockouts (65392)

• 1 x Lockout Belt Pouch (51172)

• 1 x Extra-Large Lockout Toolbox (LKP-TKLBOX)

Catalog #

99682

99684

99685

Description

Combination Lockout Toolbox (Kit)

Kit with 2 Safety Padlocks & 2 Tags

Kit with 2 Steel Padlocks & 2 Tags

Padlock Options:

• Choose between two keyed-different safety

padlocks (99552) or steel padlocks (99500)

• Padlocks come with two heavy duty, re-usable

lockout tags (65520) and nylon cable ties www.bradyid.com/ap

44

45

LOCKOUT KITS

KITS

Create your own custom lockout kits by picking one of the storage/ carrying cases below and filling it with the lockout devices you need

Lockout Belt Pouch

• Made of heavy duty nylon with loops for hanging on a belt

Catalog #

51172

Dimensions

4

3/ 4

” x 7

1/ 2

” x 2”

Description

Lockout Belt Pouch

Large Lockout Pouch

• Made of nylon with attachment loop on back

Catalog #

50979

Dimensions

8” x 7” x 3”

Description

Large Lockout Pouch

Lockout Bag

• Made of rugged canvas with drawstring

• Capable of being locked closed

Catalog #

65780

Dimensions

18” x 9

3/ 4

Description

Lockout Security Bag

Lockout Satchel

• Made of 1000 Denier Red Cordura Nylon with 39” shoulder strap

• Includes latchable front pocket and two side mesh holders

Catalog #

51173

Dimensions

14” x 4” x 15”

Description

Lockout Satchel

LOCKOUT KITS

Extra-Large Lockout Toolbox

Catalog #

LKX-TKLBO

Description

Lockout Toolbox

Lockout Duffel Bag

• Made of 600 denier polyester with 39” removable shoulder strap and 8 inside pockets

Catalog #

99162

Dimensions

10” x 16

1/ 2

” x 8

1/ 2

Description

Lockout Duffel Bag

Lockout Toolboxes

• Made of rugged polypropylene with nickel-plated steel clasps

• Two handy storage pockets built into lid

• Comes with removable tray for organizing contents

Catalog #

105905

105906

Dimensions

7.1” x 14” x 5.5”

7.8” x 16.2” x 7.3”

Description

Small Toolbox

Medium Toolbox

PRINZING Metal Lockout Cabinet

• All metal, yellow powder-coated cabinet comes with one adjustable shelf (extra shelves available)

• Capable of being locked closed

• Can also be easily wall mounted using predrilled holes in back

• Lockout safety tips printed on inside door

Catalog #

LC252M

LC254M

Dimensions

16” x 14” x 6”

Description

Metal Lockout Cabinet

Extra Shelf www.bradyid.com/ap

46

LOCKOUT STATIONS

47

Open Style Without Doors

Extra-Large Lockout Station

• Provides everything you need to lock out both mechanical and electrical control points

• Includes Universal Valve Lockout and All Purpose Cable Lockout

• Constructed of sturdy polystyrene with pre-drilled holes for easy wall mounting

• Pegboard-style holes for hooks drilled into back and sides (8 hooks supplied standard)

• Built-in lock rail holds 20 - 25 locks depending on lock size

• Available with or without lockable acrylic doors

Components:

• 1 x All Purpose Cable Lockout with 8’ Sheathed Cable (50943)

• 1 x Large Univ. Valve Lockout with Blocking Arm (50899 and 65403)

• 2 x 120V Snap-On Breaker Lockouts (65387)

• 2 x 120/277V Clamp-On Breaker Lockouts (65396)

• 2 x 480/600V Clamp-On Breaker Lockouts (65397)

• 2 x Universal Multi-Pole Breaker Lockouts (66321)

• 1 x Oversized Breaker Lockout (65329)

• 2 x Cleats for 120/277V Clamp-On Lockouts (65404)

• 2 x Cleats for 480/600V Clamp-On Lockouts (65406)

• 1 x Wall Switch Lockout (65392)

• 1 x 110V Electrical Plug Lockout (65674)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x

1/ 4

” - 1” Ball Valve Lockout (65666)

• 1 x 1

1/ 4

” - 3” Ball Valve Lockout (65669)

• 2 x 1” - 2

1/ 2

” Gate Valve Lockouts (65560)

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout (64057)

• 2 x Labeled Lockout Hasps (65960)

Padlock Options:

• Choose between 18 keyed-different safety padlocks (99552) or 18 steel padlocks (99500)

• Padlocks come with 25 heavy duty, re-usable lockout tags (65520) and nylon cable ties

Open Style Without Doors

Catalog #

99693

99694

50993

Dimensions

30” x 25” x 5

1/ 4

30” x 25” x 5

1/ 4

30” x 25” x 5

1/ 4

Description

Station with Components and 18 Brady Safety Padlocks, 25 Tags

Station with Components and 18 Brady Steel Padlocks, 25 Tags

Extra-Large Lockout Station (unfilled)

Enclosed Style With Lockable Acrylic Doors

Catalog #

99696

99700

50995

Dimensions

30” x 25” x 5

1/ 4

30” x 25” x 5

1/ 4

30” x 25” x 5

1/ 4

Description

Station with Components and 18 Brady Safety Padlocks, 25 Tags

Station with Components and 18 Brady Steel Padlocks, 25 Tags

Extra-Large Lockout Station (unfilled)

Enclosed Style With Lockable Acrylic Doors

LOCKOUT STATIONS

Open style without doors

Enclosed Style With Lockable Acrylic Doors

Large Lockout Station

• Provides everything you need for locking out all types of valves and plugs

• Includes Universal Valve Lockout and All Purpose Cable Lockout

• Constructed of sturdy white polystyrene with predrilled holes for easy wall mounting

• Pegboard-style holes for hooks drilled into back (6 hooks supplied standard)

• Built-in lock rail holds 15 - 20 locks depending on lock size

• Availabe with or without lockable acrylic doors

Components:

• 1 x All Purpose Cable Lockout with 8’ Sheathed Cable (50943)

• 1 x Large Universal Valve Lockout with Blocking Arm (50899 and 65403)

• 1 x 110V Electrical Plug Lockout (65674)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x

1/ 4

” - 1” Ball Valve Lockout (65666)

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout (64057)

• 2 x Labeled Lockout Hasps (65960)

Padlock Options:

• Choose between 12 keyed-different safety padlocks (99552) or 12 steel padlocks (99500)

• Padlocks come with 25 heavy duty, re-usable lockout tags (65520) and nylon cable ties

Open Style Without Doors

Catalog #

99699

99697

50994

Dimensions

26” x 19

1/ 2

” x 5”

26” x 19

1/ 2

” x 5”

26” x 19

1/ 2

” x 5”

Description

Station with Components and 12 Brady Safety Padlocks, 25 Tags

Station with Components and 12 Brady Steel Padlocks, 25 Tags

Large Lockout Station (unfilled)

Enclosed Style With Lockable Acrylic Doors

Catalog #

99703

99704

50996

Dimensions

26” x 19

1/ 2

” x 5”

26” x 19

1/ 2

” x 5”

26” x 19

1/ 2

” x 5”

Description

Enclosed Station with Components and 12 Brady Safety Padlocks, 25 Tags

Enclosed Station with Components and 12 Brady Steel Padlocks, 25 Tags

Large Enclosed Lockout Station (unfilled)

Lockout Station V-Sign

• Enhance the visibility of your Lockout Station with this V-shaped polyethylene sign

• Sign size: 8” x 9” x 1” flange (overall width is 14”)

Catalog #

66328

Description

Lockout Stations V-Sign www.bradyid.com/ap

48

49

LOCKOUT STATIONS

Small Lockout Station

• Provides everything you need for locking out all types of electrical control points

• Includes Mini Cable Lockout

• Station constructed of sturdy white polystyrene with predrilled holes for easy wall mounting

• Built-in lock rail holds 10 - 15 locks depending on lock size

• Pegboard-style holes for hooks drilled into back (4 hooks supplied standard)

Components:

• 1 x Mini Cable Lockout (50940)

• 2 x 120V Snap-On Breaker Lockouts (65387)

• 2 x 120/277V Clamp-On Breaker Lockouts with cleats (65396)

• 2 x 480/600V Clamp-On Breaker Lockouts with cleats (65397)

• 2 x Universal Multi-Pole Breaker Lockouts (66321)

• 1 x Oversized Breaker Lockout (65329)

• 1 x Wall Switch Lockout (65392)

• 1 x 110V Electrical Plug Lockout (65674)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x Small fuse blockout (65690)

• 1 x Large fuse blockout (65691)

• 2 x Labeled Lockout Hasps (65960)

Padlock Options:

• Choose between 6 keyed

different safety padlocks (99552)

or 6 steel padlocks (99500)

• Padlocks come with 12 heavy

duty, re-usable lockout tags

(65520) and nylon cable ties

Small Lockout Station with Brady Safety Padlocks

Catalog #

99706

99707

50997

Dimensions

18” x 12” x 4”

18” x 12” x 4”

18” x 12” x 4”

Description

Station with Components & 6 Brady Safety Padlocks, 12 Tags

Station with Components & 6 Brady Steel Padlocks, 12 Tags

Small Lockout Station (unfilled)

Combined Lockout /Group Lockout Box Station

• All metal, yellow powder-coated cabinet comes with one adjustable shelf (extra shelves available)

• Capable of being locked closed

• Lockout safety tips printed on inside door

• Lock box attaches to bottom of cabinet, accommodates 8 - 10 locks depending on lock size

Components:

• 1 x 120V Snap-On Breaker Lockouts (65387)

• 1 x 120/277V Clamp-On Breaker Lockout with cleats (65396)

• 1 x 480/600V Clamp-On Breaker Lockout with cleats (65397)

• 1 x Universal Multi-Pole Breaker Lockout (66321)

• 1 x Oversized Breaker Lockout (65329)

• 1 x Wall Switch Lockout (65392)

• 1 x 110V Electrical Plug Lockout (65674)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x 1” - 2

1/ 2

” Gate Valve Lockout (65560)

• 1 x 1” - 6

1/ 2

” Adjustable Gate Valve Lockout (64057)

Catalog #

99709

99710

LG252M

Dimensions

16” x 14” x 6”

16” x 14” x 6”

6” x 15” x 3”

Padlock Options:

• Choose between 6 keyed-

different safety padlocks (99552)

or 6 steel padlocks (99500)

• Padlocks come with 12 heavy

duty, re-usable lockout tags

(65520) and nylon cable ties

Description

Station with Components & 6 Brady Safety Padlocks, 12 Tags

Station with Components & 6 Brady Steel Padlocks, 12 Tags

Metal Wall Lock Box (Lock Box Only)

LOCKOUT STATIONS

Economy Lockout Kit (LKX)

• Our economy kit provides 9 components to ensure equipment is either de-energized or locked

out in accordance with OSHA regulation 1910.47

• Includes all components of the Economy Lockout Kit (LKX), plus the Sign & Rack (LKX-Rack)

which conveniently holds the kit’s carrying case

Economy Lockout Kit Components:

• 3 x 1

1/ 2

” Steel Lockout Hasps (T220)

• 3 x Blue Prinzing Padlocks (LC041-BU)

• 14 x 2 Padlock Identifier Stickers (LID-2)

• 1 x pack (10) - Lockout Tags with Ties (LT10)

• 3 x Single Pole Breaker Lockouts (BLO1)

• 2 x Multi Pole Breaker Lockouts (BLO3)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 1 x Lockout Training Booklet (2112X)

• 1 x Rugged Polyethylene Carrying Case (7” x 12” x 5”)

* Lockout Kit - Complete Set Includes all of the above, plus the Sign & Rack (LKX-Rack)

Lockout Kit - Complete Set (LKXSET)

Catalog #

LKXSET

LKX

LKX-Rack

LKX-TKLBOX

Description

Lockout Kit - Complete Set

Economy Lockout Kit with Toolbox

Sign & Rack only

Toolbox only

Ultimate Lockout Kit

• The ultimate portable solution for a very wide range of lockout applications

Components:

• 1 x Safetee

Donut 1” - 2

1/ 2

” (SD02)

• 1 x Safetee

Donut 5” - 6

1/ 2

” (SD06)

• 1 x Ball Valve Lockout (BS07A)

• 1 x Ball Valve Lockout (BS08A)

• 1 x Electrical Plug / Pneumatic Lockout (PL027E)

• 10 x “Danger Do Not Operate” Lockout Tags (LT10)

• 1 x Cable Lockout Device (CABLO)

• 2 x No-hole Breaker Lockout (BL04)

• 2 x Breaker Lockout, Triple-pole (BL03)

• 1 x Breaker Lockout, Multi-pole (BL07)

• 2 x 1

1/ 2

” Steel Lockout Hasp (T220)

• 1 x Wall Switch Lockout (WSLO)

• 1 x Lockout Safety Training Booklet (2112X)

• 1 x 120-600 AC Voltage Sensor (ESAC600)

• 3 x Prinzing Padlocks

3/ 4

” Blue (LC041-BU)

• 1 x Lockout Bag “Duffel Style” (LX980E)

Catalog #

LK981E

LK980E

Description

Ultimate Lockout Kit

Lockout Bag Only www.bradyid.com/ap

50

LOCKOUT STATIONS

51

Safety Lockout Center

Industrial Strength Lockout Station

• Lockable all metal, yellow powder coated cabinet comes with one adjustable shelf

(extra shelves available)

• Lockout safety tips are conveniently located inside of door for frequent reminders of proper

lockout procedures

• Can be wall mounted or easily transported

Components:

• 3 x Red Safety padlocks (99552)

• 3 x Yellow Safety padlocks (99570)

• 1 x Safetee

Donut - 2

1/ 2

” - 5” (SDO4)

• 1 x Safetee

Donut - 1”- 2

1/ 2

” (SD02)

• 1 x Single pole breaker lockout (BLO1)

• 10 x Lockout tags with ties (LT10)

• 2 x Multi pole breaker lockout (BLO3)

• 1 x 1” Multiple lockout device (T218)

• 1 x Single pole breaker lockout (BLO4)

• 1 x 1

1/ 2

” Multiple lockout device (T220)

• 1 x 3-in-1 Electrical plug lockout (PLO23)

• 1 x Small plug lockout (PLO21)

Catalog #

LC251M

LC252M

Dimensions

16” x 14” x 6”

16” x 14” x 6”

Description

Industrial Strength Lockout Station

Cabinet Only

Bilingual Safety Lockout

Center

Safety Lockout Center

• Provides ready access to locks, tags, lockout devices and information

• Made of tough acrylic plastic

(3002) Components:

• 6 - Multi-color padlocks

• 2 x pack (10) Bilingual lockout tags with ties (TG400B-10)

• 5 x 1

1/ 2

” multiple lockout devices (T220)

• 15 x English Lockout Safety booklets (2112X)

• 10 x Spanish Lockout Safety booklets (2112SPX)

(3001) Components:

• 6 x Multi-color steel padlocks

• 2 x pack (10)lockout tags with ties (LT10)

• 5 x 1

1/ 2

” multiple lockout devices (T220)

• 1 x pack (25)Lockout Safety booklets (2112X)

Catalog #

3001

3012

3002

3013

Dimensions

30” x 24” x 4

1/ 2

30” x 24” x 4

1/ 2

30” x 24” x 4

1/ 2

30” x 24” x 4

1/ 2

Description

Safety Lockout Center

Board Only (3001 model)

Bilingual Safety Lockout Center

Board Only (3002 model)

LOCKOUT STATIONS

Brady’s new Ready Access storage stations ensure that lockout devices remain easily accessible and ready for use whenever needed. These compact stations are made of rugged, rustproof polyproplylene and come with an attachable handle for easy portability.

The stations can also be permanently wall mounted out near the point of need, allowing employees to grab the tools they need without wasted search and retrieval time. The lockable cover guards against theft and unauthorized usage, and protects the contents from exposure to harsh industrial environments.

Your lockout devices stay clean and secure, ready for use whenever and wherever needed.

Ready Access Padlock Station

• Holds up to 10 padlocks, 6 hasps and 10 tags

• Made of thermformed polyproylene for rugged durability

• Semi-transparent hinged cover with locking mechanism protects contents from harsh

environments and prevents unauthorized access

• Slots in back for wall mounting

• Attachable carrying handle facilitates easy portability

• Space-saving design delivers footprint half the size of competitors

Catalog #

105928

105929

105930

105931

105932

Dimensions

17” x 13.25” x 2.5”

17” x 13.25” x 2.5”

17” x 13.25” x 2.5”

17” x 13.25” x 2.5”

17” x 13.25” x 2.5”

Description

Padlock Station with 5 Safety Padlocks

Padlock Station with 5 Steel Padlocks

Padlock Station with10 Safety Padlocks

Padlock Station with 10 Steel Padlocks

Ready Access Padlock Station (Unfilled)

Ready Access Padlock Station - with 5 Padlocks

Components:

• 1 x Ready Access Padlock Station (105932)

• 5 x Keyed-different safety padlocks (99552) or steel padlocks (99500)

• 5 x Heavy Duty, re-usable lockout tags (65520) with nylon cable tie

• 2 x 1” Group Lockout Hasps (65375)

• 2 x 1.5” Group Lockout Hasps (65376)

Ready Access Padlock Station - with 10 Padlocks

Components:

• 1 x ReadyAccess Padlock Station (105932)

• 10 x Keyed-different safety padlocks (99552) or steel padlocks (99500)

• 10 x Heavy duty, re-usable lockout tags (65520) with nylon cable ties

• 3 x 1” Group Lockout Hasps (65375)

• 3 x 1.5” Group Lockout Hasps (65376)

Ready Access Lockout Station

• Made of thermformed polyproylene for rugged durability

• Semi-transparent hinged cover with locking mechanism protects contents from harsh

environments and prevents unauthorized access

• Slots in back for wall mounting

• Attachable carrying handle facilitates easy portability

• 4 detachable hanging hooks

• Storage Compartment dimensions: 4.25” x 16” x 5.12”

Catalog #

105942

Dimensions

17” x 17” x 6.75”

Description

Ready Access Lockout Station Only (unfilled) www.bradyid.com/ap

52

LOCKOUT STATIONS

53

Ready Access Valve Lockout Station

Components:

• 1 x Ready Access Lockout Station (105942)

• 2 x Adjustable Gate Valve Lockouts (64057)

• 1 x All Purpose Cable Lockout (50943)

• 2 x Ball Valve Lockouts (BSO7A)

• 2 x 1” Group Lockout Hasps (65375)

• 1 x 1.5” Group Lockout Hasp (65376)

• 6 x Keyed different safety padlocks (99552) or steel padlocks (99500)

• 6 x Heavy duty, re-usable lockout tags (65520) with nylon cable ties

Catalog #

105936

105937

105938

Description

Valve Lockout Station (No Padlocks)

Station with 6 Safety Padlocks

Station with 6 Steel Padlocks

Ready Access Electrical Lockout Station

Components:

• 1 x Ready Access Lockout Station (105942)

• 2 x 3-in-1 Electrical Plug Lockouts (PLO23)

• 1 x Mini Cable Lockout (50940)

• 2 x 120/277V Clamp-On Breaker Lockouts with cleats (65396)

• 2 x 480/600V Clamp-On Breaker Lockouts with cleats (65397)

• 2 x Universal Multipole Breaker Lockouts (66321)

• 1 x Oversized Breaker Lockout (65329)

• 2 x 1” Group Lockout Hasps (65375)

• 1 x 1.5” Group Lockout Hasps (65376)

• 6 x Keyed different safety padlocks (99552) or steel padlocks (99500)

• 6 x Heavy duty, re-usable lockout tags (65520) with nylon cable ties

Catalog #

105939

105940

105941

Description

Electrical Lockout Station (No Padlocks)

Station with 6 Safety Padlocks

Station with 6 Steel Padlocks

Ready Access Valve & Electrical Lockout Station

Components:

• 1 x Ready Access Lockout Station (105942)

• 1 x Adjustable Gate Valve Lockout (64057)

• 1 x All Purpose Cable Lockout (50943)

• 1 x Ball Valve Lockout (BSO7A)

• 1 x 3-in-1 Electrical Plug Lockout (PLO23)

• 2 x 120/277V Clamp-On Breaker Lockouts with cleats (65396)

• 1 x 480/600V Clamp-On Breaker Lockout with cleat (65397)

• 2 x Universal Multipole Breaker Lockouts (66321)

• 2 x 1” Group Lockout Hasps (65375)

• 1 x 1.5” Group Lockout Hasp (65376)

• 6 x Keyed-different safety padlocks (99552) or steel padlocks (99500)

• 6 x Heavy duty, re-usable lockout tags (65520) with nylon cable ties

Catalog #

105933

105934

105935

Description

Valve & Electrical Station (No Padlocks)

Station with 6 Safety Padlocks

Station with 6 Steel Padlocks

Lockout/Tagout Handbook

• 16-page training booklet with quiz instructs workers how to protect themselves from hazardous

energy

Catalog #

66219

63004

Description

Lockout/Tagout Handbook

Spanish-language Handbook

Quantity

10/pack

10/pack

PRINZING Lockout Safety Poster

• Training poster reinforces your energy control program

Catalog #

LOSP8

LOSP8SP

Dimensions

18” x 24”

18” x 24”

Description

Lockout Safety Poster

Spanish-language version www.bradyid.com/ap

54

55

Lockout/Tagout e-Learning Courses

Train your employees on lockout compliance with Brady’s new online training courses. The courses feature interactive features, real-life application scenarios and quizzes to facilitate learning and remembering. Employees can access the courses online from your facility, which eliminates the costs of off-site training. Certificate available upon completion.

Catalog #

142253

142254

142255

Description

LOTO For Authorized Workers (approx. length 1hr 30min)

LOTO For Corporate Safety Leader (approx. length 1hr) e-Learning Bundle: (1) LOTO For Auth Worker and (1) LOTO for Corp Safety Leader

Only Available at www.BradyID.com

LOTO for Authorized & Affected Personnel

• Provides a comprehensive introduction to the key components of an effective LOTO program

• Run time: 17 minutes (DVD format)

• Comes with reproducible quiz and certificate

• Spanish language video also available (quiz and certificate in English only)

Catalog #

51454

51455

Description

LOTO For Authorized & Affected Personnel DVD (English)

LOTO For Authorized & Affected Personnel DVD (Spanish)

Lockout/Tagout Training: A Program for Employees

Train employees to protect themselves and others during machine servicing and maintenance.

This program shows how to recognize all potential hazards and handle them safely. Includes:

• Live action 13 minute, DVD video

• Instructors guidebook with quizzes, 24 pages

• 10 employee handbooks

• 10 certificate of completion wallet cards

• Training log book

• Full-color poster

• Sample tag & warning decal

• Carrying case

Catalog #

104275

104216

Description

Complete Kit - DVD version - English

Complete Kit - DVD version - Spanish

Qty

1

1

Lockout For Life

• Learn from other workers’ tragic mistakes. This motivational video presents six real-life

dramatizations of actual lockout accidents and analyzes how they could have been prevented

• Suitable for new and experienced employees

• Run time: 19 minutes (VHS or DVD formats)

Catalog #

66255

51793

51544

65555

Description

Lockout For Life VHS video (includes 10 booklets)

Lockout For Life DVD English/Spanish (includes 10 English booklets)

Lockout For Life VHS video (Spanish)

Additional booklets (10/pack)

Singapore Standard 571:2011, the Code of Practice for Energy Lockout and Tagout deals with the control of hazardous energy in workplace situations and provides detailed guidance on procedures, techniques and methods for energy lockout and tagout. The

SS571:2011 takes reference from OSHA

Regulations (Standards-29 CFR-1910.147, ANSI

Z244.1:2003 (2008) and CSA Z460:2005. Brady is part of the working group appointed by the

Technical Committee of Singapore’s Workplace

Safety and Health to assist in the preparation of SS 571 : 2011. For more information, please visit www.standards.org.sg

OSHA Training Requirements

• Those who will perform servicing or maintenance (authorized employees) must be

trained to:

- Recognize hazardous energy sources and understand the energy type and

magnitude

- Identify and properly operate the applicable energy-isolating devices

- Safely apply and remove lockout/tagout devices

• Those who operate the machinery or work in the area where LOTO is performed

(affected employees) must be trained to:

- Recognize when lockout/tagout activities are in progress

- Understand the purpose of the energy control program and the importance of not

tampering with lockout/tagout devices when encountered in the workplace

• Additional training is required when using tagout instead of lockout.

See Section (C)(7)(ii) in the 1910.147 standard

• Employers must document when training took place, who attended, and the

topics covered

• Employees must be retrained under the following situations:

- Employee assigned to new job

- Change made to energy control policies or procedures

- Machinery installed or modified, presenting a new hazard

- Whenever the employer has reason to believe that there are problems with the

employee’s understanding or use of the procedures

• Authorized employees must undergo an annual review to ensure they fully understand

their responsibilities under the program www.bradyid.com/ap

56

57

Lockout Pro

Graphical Procedure Writing Software

Create Machine-specific procedures in minutes

• Start immediately with easy-to-use templates and built-in defaults

• Access a database of standard graphics, terms, and information

• Insert images to create clear, machine-specific procedures that identify the location of control points

• Print to a standard inkjet or laser printer, or to Brady’s GlobalMark

®

HandiMark

®

2 Industrial Label Maker or

Portable Label Maker

• Provide viewing and printing access to users in multiple locations with the FREE viewer and

HTML viewer applications

• Export to CMMS or ERP

Create, maintain, train, update – with one program

• Use Lockout PRO software’s built-in sample energy control policy to develop your own

comprehensive energy control program

• Create machine-specific lockout procedures for different locations; ensure that location-specific

safety needs are addressed

• Manage and update your procedures with automatic time- and date-stamping

• Train your employees with online tutorials and built-in video training clips in Enterprise versions

• Access current OSHA lockout/tagout standard with a few clicks

• Call to learn about a separate optional annual audit service for your Lockout Pro procedures

Catalog #

LOPDESK1001

LOPCORP2001

LOPBASIC3001

LOPADDUSER1

99004

99009

Description

Lockout Pro Desktop Software

Lockout Pro Enterprise Corporate with web viewer

Lockout Pro Basic (Only 3 Administrators)

Additional Administrator (adds 1 admin)

GlobalMark2 Multicolor printer + LockoutPro

GlobalMark2 ColorCut printer + LockoutPro

Create Custom Graphical

Lockout/Tagout Procedures Online

Create Graphical Lockout/Tagout Procedures for your facility in minutes. Procedures comply with

OSHA’s lockout standards for controlling hazardous energy sources.

• Upload your own digital photos

• Download and print from your own printer

• Save for up to 30 days

Try the Custom Design Tool at www.BradyID.com!

Components:

1) Select your category

2) Customize your product

3) Add to your shopping cart

Not Sure Which Circuit Breaker Lockout To Use?

OTHER WAYS OF PROVIDING ACCESS TO PROCEDURES

• Print procedures to adhesive or magnetic labels and adhere to directly to machine.

• Attach procedures to work orders manually or by linking the digital procedure file to work orders

generated in a computer maintenance management system

• Provide access to procedures online, allowing workers to view and print procedures from their

own computer

Brady’s Lockout PRO software allows you to implement any of the methods above.

EXIT

As a global leader in identification and workplace safety, Brady is a resource you can trust for

Safety, Facility and Regulatory Compliance Solutions to protect your premises, products and people. Brady has been providing remedies for global ecological disasters with our range of sorbent and spill containment products. Our regulatory compliance solutions include lockout/tagout devices for hazardous energy control, industrial printers for creation of safety signs and labels, sorbent and spill containment for cleaning up spills, customized pipe markers and glow-in-the-dark emergency egress markings for your facilities.

Brady is your trusted safety solutions advisor. Because like you, we want our workers to be safe

Safety Sign & Label Printers

Brady’s industrial printers and label makers offer reliable, on-demand labeling solutions for any industry. Designed with thermal transfer printing capabilities, Brady’s printers create clear, professional-looking labels, signs and tags - with the durability to withstand even the harshest environments. Whether it’s a small handheld printer or a large, multi-color industrial printer, Brady has an easy-to-use label printing solution to fit your needs.

Safety Signage & Regulatory Markings

As a global leader in facility signage, there’s no other company that can help you communicate critical information better than Brady. We offer more than 8,000 different signs for safety, maintenance and facility identification. Brady signs feature bright colors, bold text and intuitive pictographs to ensure that the communication is highly visible and easily understood. The signs are compliant with the latest standards and regulations, and designed to withstand even the harshest industrial environments. Brady also offers a comprehensive collection of pipe and valve marking supplies, tools and identification systems to help workers trace process problems and find solutions faster. Together with a full line of electricity free photoluminescent signs ideal for areas with possible electrical power failure.

Anti-skid Tape & ToughStripe

®

Floor Marking

Brady offers thousands of high performance labels, markers and tapes that can help your company communicate important safety and facility identification messages. Protect your employees from accidental slips, trips and falls with Brady’s sure traction and high visibility warning Anti-Skid Tape.

ToughStripe

®

Floor Marking Tape is perfect for high and heavy traffic areas in your facility. It is testproven to withstand forklift traffic better than other tape-based floor marking products.

SPC Sorbents & Spill Containment

Brady’s SPC sorbents & spill control products help you keep your employees and work environment safe from unexpected spills, leaks, drips or other accidents. SPC sorbents are available for cleaning up oil, water and chemical based spills. Select from traditional polypropylene or ecofriendly Re-Form regulations.

sorbents and spill kits to help comply with the latest OSHA and EPA safety

Lockout / Tagout (LOTO)

The world leader in lockout/tagout products and services, Brady offers a broad range of durable, easy-to-use lockout devices that cover most mechanical and electrical applications. In addition,

Brady covers other critical aspects of a compliant, effective energy control program by providing innovative solutions for training employees, creating documented procedures, and identifying energy sources. Brady’s services help companies with limited resources quickly get their program up to speed, ensuring that lockout activities are implemented in a way that promotes optimum safety while maximizing efficiency and reducing downtime.

To find out more about Brady and our products, please visit www.bradyid.com/ap

58

CONTACT US

Brady’s global presence makes it easy for you to do business with us wherever you are. To find out more about Brady and our products, please visit us at

www.bradyid.com/ap

or email us at

[email protected]

.

APAC Offices

AUSTRALIA

Telephone: (612) 8717 6300

PHILIPPINES

Telephone: (65) 6477 7261

CHINA

Telephone: (86) 21 6100 6588

SINGAPORE

Telephone: (65) 6477 7261

HONG KONG

Telephone: (852) 2216 9283

SOUTH KOREA

Telephone: (02) 2192 0700

INDIA

Telephone: (91) 80 66582 900

TAIWAN

Telephone: (86) 2 2657 6108

INDONESIA

Telephone: (60) 4 646 2700

THAILAND

Telephone: (66) 2 793 9211

JAPAN

Telephone: (81) 042 655 2535

VIETNAM

Telephone: (66) 2 793 9211

MALAYSIA

Telephone: (60) 4 646 2700

International Offices

EUROPE

Website: www.bradyeurope.com

NORTH AMERICA

Website: www.bradyid.com

© 2012 BRADY WORLDWIDE, INC. ALL RIGHTS RESERVED

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
