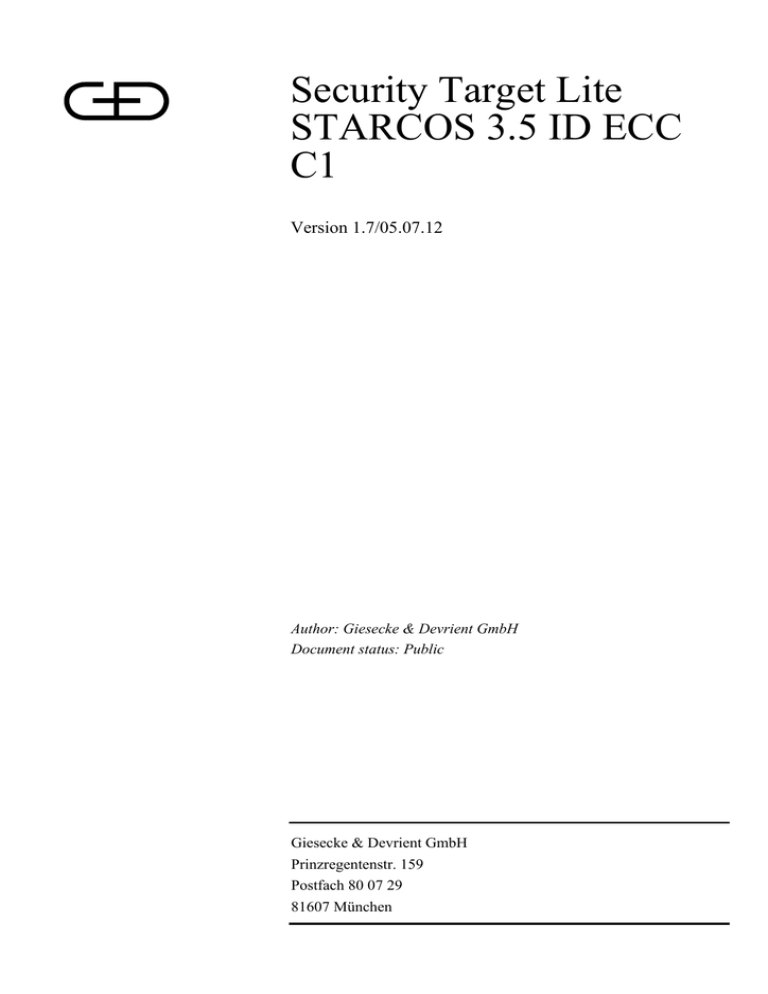

Security Target Lite
STARCOS 3.5 ID ECC
C1
Version 1.7/05.07.12
Author: Giesecke & Devrient GmbH
Document status: Public
Giesecke & Devrient GmbH
Prinzregentenstr. 159
Postfach 80 07 29
81607 München
© Copyright 2012
Giesecke & Devrient GmbH
Prinzregentenstr. 159
Postfach 80 07 29
D-81607 München
This document as well as the information or material contained is copyrighted. Any use not explicitly
permitted by copyright law requires prior consent of Giesecke & Devrient GmbH. This applies to any
reproduction, revision, translation, storage on microfilm as well as its import and processing in electronical
systems, in particular.
The information or material contained in this document is property of Giesecke & Devrient GmbH and any
recipient of this document shall not disclose or divulge, directly or indirectly, this document or the
information or material contained herein without the prior written consent of Giesecke & Devrient GmbH.
All copyrights, trademarks, patents and other rights in connection herewith are expressly reserved to the
Giesecke & Devrient group of companies and no license is created hereby.
Subject to technical changes.
All brand or product names mentioned are trademarks or registered trademarks of their respective holders.
Inhalt
Content
1
1.1
1.2
1.3
1.4
1.5
Introduction .......................................................................................................................................5
TOE Reference..................................................................................................................................5
ST Reference and ST Identification..................................................................................................5
TOE Overview ..................................................................................................................................5
CC Conformance...............................................................................................................................7
Sections Overview ............................................................................................................................8
2.1
2.2
2.3
TOE Description ...............................................................................................................................9
Operation of the TOE........................................................................................................................9
Target of Evaluation (TOE) ............................................................................................................10
TOE life cycle .................................................................................................................................12
2
2.3.1
2.3.2
2.3.3
3
General ........................................................................................................................................................... 12
Preparation stage ............................................................................................................................................ 13
Operational use stage...................................................................................................................................... 16
3.1
3.2
3.3
3.4
Conformance Claims.......................................................................................................................18
CC Conformance Claim ..................................................................................................................18
PP Conformance Claim...................................................................................................................18
Package Conformance Claim..........................................................................................................18
Conformance Claim Rationale........................................................................................................18
4.1
4.2
4.3
Security Problem Definition ...........................................................................................................19
Threats.............................................................................................................................................19
Organisational Security Policies .....................................................................................................20
Assumptions....................................................................................................................................21
5.1
Security Objectives .........................................................................................................................22
Security Objectives for the TOE .....................................................................................................22
4
5
5.1.1
5.1.2
5.1.3
5.2
Security Objectives for the Operational Environment ....................................................................24
5.2.1
5.2.2
5.2.3
5.3
Security Objectives regarding the SSCD with key generation ....................................................................... 24
Security Objectives regarding the trusted communication with CGA............................................................ 25
Security Objectives for the trusted communication with SCA ....................................................................... 26
Security Objectives Rationale .........................................................................................................26
5.3.1
5.3.2
5.3.3
5.3.4
6
Security Objectives for the SSCD with key generation [5] ............................................................................ 22
Security Objectives for the trusted communication with CGA [15]............................................................... 23
Security Objectives for the trusted communication with SCA ....................................................................... 24
Security Objectives Coverage......................................................................................................................... 26
Security Objectives Sufficiency ..................................................................................................................... 27
Sufficiency regarding the trusted communication with CGA [15] ................................................................. 29
Sufficiency for the trusted communication with SCA .................................................................................... 30
6.1
6.2
Extended Component Definition.....................................................................................................33
FPT_EMSEC TOE Emanation .......................................................................................................33
Definition of the Family FIA_API ..................................................................................................34
7.1
IT Security Requirements ...............................................................................................................36
General ............................................................................................................................................36
7

Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 3 of 86
Inhalt
7.2
TOE Security Functional Requirements .........................................................................................36
7.2.1
7.2.2
7.2.3
7.2.4
7.2.5
7.2.6
7.2.7
Use of requirement specifications .................................................................................................................. 36
Cryptographic support (FCS) ......................................................................................................................... 37
User data protection (FDP)............................................................................................................................. 41
Identification and authentication (FIA) .......................................................................................................... 47
Security management (FMT).......................................................................................................................... 50
Protection of the TSF (FPT) ........................................................................................................................... 55
Trusted Path/Channels (FTP) ......................................................................................................................... 58
7.3
TOE Security Assurance Requirements..........................................................................................60
8.1
8.2
8.3
8.4
8.5
8.6
8.7
TOE Summary Specification ..........................................................................................................62
SF_AccessControl...........................................................................................................................62
SF_AssetProtection .........................................................................................................................63
SF_TSFProtection ...........................................................................................................................63
SF_KeyManagement.......................................................................................................................63
SF_SignatureGeneration .................................................................................................................64
SF_TrustedCommunication ............................................................................................................64
Assurance Measures........................................................................................................................64
9.1
Rationale .........................................................................................................................................66
Security Requirements Rationale....................................................................................................66
8
9
9.1.1
9.1.2
9.2
9.3
9.4
Security Requirement Coverage ..................................................................................................................... 66
TOE Security Requirements Sufficiency........................................................................................................ 67
Dependency Rationale for Security functional Requirements ........................................................70
Rationale for EAL 4 Augmented ....................................................................................................73
Statement of Compatibility .............................................................................................................73
9.4.1
9.4.2
9.4.3
Classification of Platform TSFs...................................................................................................................... 73
Matching statement ........................................................................................................................................ 74
Overall no contracdictions found.................................................................................................................... 79
10
Acronyms ........................................................................................................................................80
11
Conventions and Terminology ........................................................................................................81
11.1 Conventions.....................................................................................................................................81
11.2 Terminology ....................................................................................................................................81
12
References .......................................................................................................................................85
Page 4 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
1 Introduction
1
Introduction
1.1
TOE Reference
This document refers to the following TOE(s):
1) STARCOS 3.5 ID ECC C1
1.2
ST Reference and ST Identification
Title: Security Target Lite STARCOS 3.5 ID ECC C1
Version Number/Date: Version 1.7/05.07.12
Origin: Giesecke & Devrient GmbH
TOE: STARCOS 3.5 ID ECC C1
1.3
TOE Overview
The aim of this document is to describe the Security Target for STARCOS 3.5 ID ECC
C1. In the following chapters STARCOS 3.5 ID ECC C1 stands for the Target of
Evaluation (TOE).
STARCOS 3.5 ID ECC C1 is a smart card and is intended to be used as Secure
Signature Creation Device (SSCD) in accordance with the European Directive
1999/93/EC1 [1], so the TOE consists of the part of the implemented software related to
the generation of qualified electronic signatures in combination with the underlying
hardware ('Composite Evaluation'). The functional and assurance requirements for
SSCDs defined in Annex III of The Directive have been mapped into a Protection
Profile (PP) for Secure Signature Creation Devices of Type 32. The 'Security Target
STARCOS 3.5 ID ECC C1' is strictly conformant to the “Protection profiles for Secure
signature creation device with generation of the signature key on the device” [5]. When
operated in a secure environment for signature creation a signer may use an SSCD that
fulfils only these core security requirements to create an advanced electronic signature3.
As the TOE can be operated in other environments the security requirements of the non
certified protection profile “Protection profiles for secure signature creation device -
1
This European directive is referred to in this PP as “The Directive”.
An SSCD that can create its own SCD/SVD is known as an SSCD Type 3 to be distinguished from type 1 and type
2 as defined in the Protection Profile Secure Signature-Creation Device Type 3 [16].
3
An advanced electronic signature is defined as a digital signature created by an SSCD using a public key with a
public key certificate created as specified in The Directive
2
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 5 of 86
1 Introduction
Public
Part 5: Device with key generation and trusted communication with signature-creation
application” [16] are included in this Security Target. Furthermore the TOE provides
trusted communication with the certificate generation application, therefore also the
security requirements of the non certified protection profile “Protection profiles for
secure signature creation device - Part 4: Extension for device with key generation and
trusted communication with certificate generation application” [15] were included in
this Security Target. These Protection Profiles claim conformance to the “Protection
profiles for Secure signature creation device – Part 2: Device with key generation” [5].4
STARCOS 3.5 ID ECC C1 comprises:

the STARCOS 3.5 ID operating system,

the hardware platform Infineon M7820 (Certificate: BSI-DSZ-CC-0813-2012) with
the following configurations according [9]:
o NVM: 36 kByte up to 128 kByte
o ROM: 280 kByte
o XRAM: 8 kByte
o SCP: Accessible
o Crypto2304T: Accessible
o Interfaces: ISO/IEC 7816 and/or ISO/IEC 14443
The sales names of the TOE hardware platform [9] and the corresponding TOE
names of STARCOS 3.5 ID ECC C1 are listed below:

sales name of M7820 [9]
TOE name of STARCOS 3.5 ID ECC C1
SLE78CLX360P
STARCOS 3.5 ID ECC C1/360
SLE78CLX800P
STARCOS 3.5 ID ECC C1/800
SLE78CLX1280P
STARCOS 3.5 ID ECC C1/1280
the TOE documentation
o Guidance Documentation STARCOS 3.5 ID ECC C1 – Main Document
o Guidance Documentation for the Initialisation Phase STARCOS 3.5 ID ECC
C1
o Guidance Documentation for the Personalisation Phase STARCOS 3.5 ID
ECC C1
o Guidance Documentation for the Usage Phase STARCOS 3.5 ID ECC C1
o Generic Application of STARCOS 3.5 ID ECC C1, which specifies the file
system
4
See CC part 1 chapter 8.5
Page 6 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
1 Introduction

the Smart Card Application Verifier5, which verifies the conformance of the installed
file system with the Generic Application,

the signature application, which is a file system configured according the Generic
Application.
STARCOS 3.5 ID is a fully interoperable ISO 7816 compliant multiapplication Smart
Card OS, including a cryptographic library enabling the user to generate high security
electronic signatures based on ECDSA GF(p) with a key length of upto 521 bit and
based on RSA with a key length of upto 4096 bit. The EU compliant Electronic
Signature Application is designed for the creation of legally binding Qualified
Electronic Signatures as defined in The Directive. The signature application is
compliant to EN 14890 “Application Interface for smart cards used as Secure Signature
Creation Devices”. The various features of STARCOS 3.5 allow for additional
applications like ID applications compliant to CEN/TS 15480 “Identification card
systems – European Citizen Card”.
Beside contact based communication according Part 3 of ISO/IEC 7816
STARCOS 3.5 ID supports contactless communication according ISO/IEC 14443.
STARCOS 3.5 ID ECC C1 can be configured for sole contact based communication,
sole contactless communication and for dual interface supporting contact based and
contactless communication.
The software part of the TOE is implemented on the certified M7820 A11 from Infineon
[9]. So the TOE consists of the software part and the underlying hardware. The crypto
library for [email protected] provided with the underlying hardware is not used in this
composite TOE. The software part of the calculations based on elliptic curves and RSA
is implemented in the operating system. The Security Target (Lite) of the hardware
platform [9] is compliant to the BSI-CC-PP-0035 [10].
1.4
CC Conformance
This ST is in accordance with Common Criteria V3.1 (see [2], [3], [4]).
This ST is compliant with CC V3.1 Part 2 [3], extended by an additional functional
component as stated in [5] and another additional functional component FIA_API.1
(Authentication Proof of Identity).
This ST is compliant with CC V3.1 Part 3 [4], level EAL4 augmented by
•
AVA_VAN.5
as stated in [5].
5
The Smart Card Application Verifier is not part of the TOE delivery. It is solely used by the OS Developer for the
correct installation of the TOE and therefore of no use for the Card Initialising and Personalisation facility.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 7 of 86
1 Introduction
1.5
Public
Sections Overview
Section 1 provides the introductory material for the Security Target.
Section 2 provides the TOE description.
Section 3 contains the conformance claims.
Section 4 contains the Security Problem Definition
Section 5 defines the security objectives for both the TOE and the TOE environment. In
addition, a rationale is provided to explicitly demonstrate that the information
technology security objectives satisfy the policies and threats. Arguments are provided
for the coverage of each policy and threat.
Section 6 contains the Extended component definition.
Section 7 contains the functional requirements and assurance requirements derived from
the Common Criteria (CC), Part 2 [3] and Part 3 [4], that must be satisfied.
Section 8 contains the TOE Summary Specification.
Section 9 provides an explanation how the set of security requirements are complete
relative to the objectives, and that each security objective is addressed by one or more
component requirements. Arguments are provided for the coverage of each objective.
Next section 9 provides a set of arguments that address dependency analysis.
Section 10 provides definitions of frequently used acronyms.
Section 11 provides information on applied conventions and used terminology.
Section 12 provides a list of references used throughout the document.
Page 8 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
2
2 TOE Description
TOE Description
In the following the TOE is described according the Protection profiles for Secure
signature creation devices [5], [5a], [15], [16] and the corresponding overview document
[14].
2.1
Operation of the TOE
This section presents a functional overview of the TOE in its distinct operational
environments:

The signing environment where it interacts with a signer through a signature-creation
application (SCA) to sign data after authenticating the signer as its signatory. The
signature-creation application provides the data to be signed (DTBS), or a unique
representation thereof (DTBS/R) as input to the TOE signature-creation function and
obtains the resulting digital signature6. The TOE provides the functionality to
communicate with the SCA through a trusted channel to ensure the integrity of the
DTBS respective DTBS/R.

The preparation environment, where it interacts with a certification service provider
through a certificate-generation application (CGA) to obtain a certificate for the
signature validation data (SVD) corresponding with signature creation data (SCD)
the TOE has generated. The TOE offers the CGA the possibility to export the SVD
through a trusted channel. The CGA has to choose the trusted channel for the export
to be able to check the authenticity of the SVD. The initialization environment
interacts further with the TOE to personalize it with the initial value of the referenceauthentication data (RAD).

The management environments where it interacts with the user or an SSCDProvisioning service provider to perform management operations, e.g. for the
signatory to reset a blocked RAD. A single device, e.g. a smart card terminal, may
provide the required secure environment for management and signing.
The signing environment, the management environment and the preparation
environment are secure and protect data exchanged with the TOE. Figure 4 and Figure 5
in prEN14169-1 "Protection Profile for Secure Signature Creation Device - Part 1:
Overview” [14] illustrates the operational environments.
6
At a pure functional level the SSCD creates a digital signature; for an implementation of the SSCD, in that meeting
the requirements of this ST and with the key certificate created as specified in The Directive, Annex I, the result
of the signing process can be used as to create a qualified electronic signature.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 9 of 86
2 TOE Description
Public
The TOE stores signature creation data and reference authentication data. The TOE may
store multiple instances of SCD. In this case the TOE will provide a function to identify
each SCD and the signature creation application (SCA) can provide an interface to the
signer to select an SCD for use in the signature creation function of the SSCD. The TOE
protects the confidentiality of the SCD and restricts its use in signature creation to its
signatory. The digital signature created with the TOE is a qualified electronic signature
as defined in The Directive if the certificate for the SVD is a qualified certificate
(Annex I).
The SCA is assumed to protect the integrity of the input it provides to the TOE
signature-creation function as being consistent with the user data authorized for signing
by the signatory. Unless implicitly known to the TOE, the SCA indicates the kind of the
signing input (as DTBS/R) it provides and computes any hash values required. The TOE
may augment the DTBS/R with signature parameters it stores and then computes a hashvalue over the input as needed by the kind of input and the used cryptographic
algorithm. The TOE and the SCA can optionally communicate through a trusted channel
in order to protect the integrity of the DTBS/R.
The TOE stores signatory reference authentication data to authenticate a user as its
signatory. The RAD is a password e.g. PIN. The TOE protects the confidentiality and
integrity of the RAD. The TOE receives the verification authentication data (VAD) from
the signature-creation application. If the signature-creation application handles
requesting obtaining a VAD from the user, it is assumed to protect the confidentiality
and integrity of this data.
A certification service provider and a SSCD-provisioning service provider interact with
the TOE in the secure preparation environment to perform any preparation function of
the TOE required before control of the TOE is given to the legitimate user. These
functions may include:
 initialising the RAD,
 generating a key pair,
 storing personal information of the legitimate user.
The TOE is a smart card. Smart-card terminal may be deployed that provide the required
secure environment to handle a request for signatory authorization. A signature can be
obtained on a document prepared by a signature-creation application component running
on personal computer connected to the card terminal. The signature creation application,
after presenting the document to the user and after obtaining the authorization PIN
initiates the digital signature creation function of the smart card through the terminal.
2.2
Target of Evaluation (TOE)
The TOE is realised by a smartcard, comprising the certified chip, the operating system
and the QES-application.
Page 10 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
2 TOE Description
The operating system is implemented in the ROM area of the IC, whereas some parts
may also reside in the EEPROM. The file system containing the application data is
installed in the EEPROM of the IC. Beside the files for the digital signature application
there may be additional files for other applications, e.g. for an ID application, which do
not belong to the TOE. The file system part of the TOE is represented by the Guidance
Documentation and the Generic Application Specification that define the security
relevant parts of the file system. The Smart Card Application Verifier verifies the
correctness of the file system after installation of the TOE.
TOE
Digital Signature
Application
RAD
Keys
Access Conditions
Additional Data
Optionally other
Applications
PINs
Keys
Access Conditions
Additional Data
EEPROM
Operating System
STARCOS
ROM
certified Chip
IC
Figure 1: TOE description (after installation)
Each application, in particular the Signature Application, can define access rules to
protect itself against misuse and unauthorised access. Usually the data structures for
applications are loaded onto the card during initialisation and personalisation.
Nevertheless it is still possible to add some data structures in the usage phase to the
Signature Application like loading the qualified certificate for the SCD. Furthermore the
complete data structures of additional applications may be loaded during the usage
phase. These data structures does not include any executable code, therefore application
functionality is always limited to the functionality of the operating system.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 11 of 86
2 TOE Description
Public
The TOE is configured to securely create, use and manage signature-creation data
(SCD). The SSCD protects the SCD during its whole life cycle as to be used in a
signature-creation process solely by its signatory.
The TOE provides the following functions:
(1)
(2)
(3)
(4)
(5)
(6)
to generate signature-creation data (SCD) and the correspondent signatureverification data (SVD),
to export the SVD, for certification the CGA has to choose the trusted channel for
the export,
to prove the identity as SSCD to external entities,
to, optionally, receive and store certificate info,
to switch the TOE from a non-operational state to an operational state, and
if in an operational state, to create digital signatures for data with the following
steps:
(a) select an SCD if multiple are present in the SSCD,
(b) authenticate the signatory and determine its intent to sign,
(c) receive data to be signed or a unique representation thereof (DTBS/R),
(d) apply an appropriate cryptographic signature-creation function using the
selected SCD to the DTBS/R.
The TOE comprises all IT security functionality necessary to ensure the secrecy of the
SCD and the security of the digital signature.
The TOE is prepared for the signatory's use by
(1) generating at least one SCD/SVD pair, and
(2) personalising for the signatory by storing in the TOE:
(a)
(b)
the signatory’s reference authentication data (RAD)
optionally, certificate info for at least one SCD in the TOE.
After preparation the SCD shall be in a non-operational state. Upon receiving a TOE the
signatory shall verify its non-operational state and change the SCD state to operational.
After preparation the intended, legitimate user should be informed of the signatory’s
verification authentication data (VAD) required for use of the TOE in signing. If the
VAD is a password or PIN, the means of providing this information is expected to
protect the confidentiality and the integrity of the corresponding RAD.
If continued use of an SCD is no longer required the TOE will disable an SCD it holds
by erasing it from memory.
2.3
TOE life cycle
2.3.1
General
The TOE life cycle distinguishes stages for development production, preparation and
operational use. The development stage and production stage of the TOE together
constitute the development phase of the TOE. The development phase is subject of CC
evaluation according to the assurance life cycle (ALC) class. The development phase
ends with the delivery of the TOE to an SSCD-provisioning service provider. The
functional integrity of the TOE shall be protected in delivering it to an SSCDprovisioning service provider.
Page 12 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
2 TOE Description
SSCD development
Development
Phase
SSCD production
Delivery to SCCD
provision service
SSCD preparation
CSP
CGA
• Certificate generation
• Directory service
Installation of SCD
• SCD/SVD generation
• SVD export
• import of certificate*
Personalisation for
the signatory
• SRAD installation
• SVAD definition
Delivery to Signatory
SSCD operational use
Usage
Phase
Operational usage
of SCD
• Signature creation
Destruction of SCD
• destruction of SCD
• deletion of certificate*
Figure 2: Typical TOE life cycle7
The operational usage of the TOE comprises the preparation stage and the operational
use stage. The TOE operational use stage begins when the signatory performs the TOE
operation to enable it for use in signing operations. Enabling the TOE for signing
requires at least one key stored in its memory. The TOE life cycle ends when all keys
stored in it have been rendered permanently unusable. Rendering a key in the SSCD
unusable may include deletion of the any stored corresponding certificate info.
2.3.2
Preparation stage
An SSCD-provisioning service provider having accepted it from a manufacturer
prepares the TOE for use and delivers it to its legitimate user. The preparation phase
ends when the legitimate user of the TOE, having received it from an SSCD
provisioning service, and enables it for signing. During preparation of the TOE, as
specified above, an SSCD-provisioning service provider performs the following tasks:
(1)
Obtain information on the intended recipient of the device as required for the
preparation process and for identification as a legitimate user of the TOE.
7
The stars * mark the optional import of the certificate info and the deletion of the certificate info (which may
include the certificate).
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 13 of 86
2 TOE Description
Public
(2)
Perform the initialisation, i.e. load secured data structures representing the file
system of the signature application onto the card.
(3)
Generate a PIN, store this data as RAD in the TOE and prepare information
about the VAD for delivery to the legitimate user.
(4)
Initialization of the security functions in the TOE for the identification as
SSCD, the proof of this SSCD identity to external entities, and the protected
export of the SVD.
(5)
The generation of the (qualified) certificate containing among others (cf. [1],
Annex II):
a. the TOE generating an SCD/SVD pair and obtaining a certificate for the
SVD exported from the TOE,
b. an indication of the beginning and end of the period of validity of the
certificate.
(6)
Optionally, present certificate info to the SSCD.
(7)
Link the identity of the TOE as SSCD and the identity of the legitimate user as
potential applicant for certificates for SVD generated by the TOE.
(8)
Deliver the TOE and the accompanying VAD info to the legitimate user.
The SVD certification task of an SSCD-provisioning service provider as specified in this
ST may support a centralised, pre-issuing key generation process, with at least one key
generated and certified, before delivery to the legitimate user. Alternatively, or
additionally, that task may support key generation by the signatory after delivery and
outside the secure preparation environment. The TOE may support both key generation
processes, for example with a first key generated centrally and additional keys generated
by the signatory in the operational use stage. The TOE provides a trusted channel to the
CGA protecting the integrity of the SVD.
Data required for inclusion in the SVD certificate at least includes (Annex II):
—
The SVD;
—
The name of the signatory either
(a) A legal name, or
(b) A pseudonym together with an indication of this fact.
The data included in the certificate may have been stored in the SSCD during
personalization.
Prior to generating the certificate the certification service provider shall assert the
identity of the signatory specified in the certification request as the legitimate user of the
TOE.
Before generating the certificate signature the CGA verifies the sender and the received
SVD by:
—
Page 14 of 86
establishing the sender as genuine SSCD and the identity of the TOE as SSCD;
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
2 TOE Description
—
establishing the integrity of the SVD to be certified as sent by the originating
SSCD;
—
establishing that the originating SSCD has been personalized for the applicant
for the certificate as legitimate user;
—
establishing the correspondence between SCD implemented in the SSCD and the
received SVD, and
an assertion that the signing algorithm and key size for the SVD are approved and
appropriate for the type of certificate.
The proof of correspondence between an SCD stored in the TOE and an SVD may be
implicit in the security mechanisms applied by the CGA. Security requirements to
protect the SVD export function and the certification data if the SVD is generated by the
signatory and then exported from the SSCD to the CGA are specified in this ST.
2.3.2.1
Delivery of ROM-Mask and initialisation data
As shown in the following figure, the Software part of the TOE consists of the operating
system located in the ROM of the IC and the File System located in the EEPROM. Parts
of the operating system may also reside in the EEPROM. The operating system
developer (i.e. G&D) sends a representation of the operating system together with secret
data allowing secure loading of initialisation data to the Chip Manufacturer. The Chip
manufacturer manufactures the chips including the operating system and stores the
secret data in a special area of the EEPROM of the Chip and delivers the chips packaged
in modules to the Initialiser. The secret data is used by the OS developer to secure the
initialisation data which is sent afterwards to the card initialising facility.
The point of delivery may be before or after initialisation of the TOE. The development
phase may therefore end before or after the initialisation of the TOE. In case the
initialisation is performed by G&D it is part of the development phase. In case the
initialisation is not performed by G&D the point of delivery of the TOE is before the
initialisation that will take place at another site in the form of modules.
The Card Initialising Facility performs the initialisation, optionally the inlay embedding
and production of the cards possibly at different sites. Afterwards the cards are delivered
to the personalising facility. The delivery of the TOE to the SSCD provision service
happens either at the delivery to the initialisation site, or the inlay embedding site, or the
card production site or the personalisation site. The TOE can therefore be delivered
either as Module, inlay or card to SSCD provision service.
With the secured initialisation data secret data is imported into the TOE allowing secure
loading of personalisation data. This secret data is sent by the OS developer to the card
issuer who uses it to secure the personalisation data and then send the secured
personalisation data to the personalising facility which performs the personalisation
before issuance of the TOE.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 15 of 86
2 TOE Description
Public
The Initialisation can be done completely by G&D. The Personalisation Process can be
done partly or completely by G&D. The generation of the Personalisation data can also
be done partly or completely at G&D.
During the personalisation before issuance, trust anchors can be imported into the TOE
to allow a completion of the personalisation after issuance.
Data for securing
personalisation data
Smartcard
Embedded SW
Developer
Smartcard Issuer
Se
r
cu
ed
l
itia
In
isa
ROM mask
and secret data to
allow secure loading
of Initialisation data
tio
Secured Personalisation Data
n
Da
ta
Chip
Manufacturer
Modules
Card
Initialising
Facility
Cards
Card
Personalising
Facility
Figure 3: ROM Mask and initialisation data delivery
2.3.3
Operational use stage
In this lifecycle stage the signatory can use the TOE to create advanced electronic
signatures.
The signatory can also interact with the SSCD to perform management tasks, e.g. reset a
RAD value or use counter if the password/PIN in the reference data has been lost or
blocked. Such management tasks require a secure environment.
The signatory can render an SCD in the TOE permanently unusable. Rendering the last
SCD in the TOE permanently unusable ends the life of the TOE as SSCD.
The TOE supports functions to generate additional signing keys and supports functions
to securely obtain certificates for the new keys. For an additional key the signatory may
be allowed to choose the kind of certificate (qualified, or not) to obtain for the SVD of
the new key. The signatory may also be allowed to choose some of the data in the
certificate request for instance to use a pseudonym instead of the legal name in the
Page 16 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
2 TOE Description
certificate8. If the conditions to obtain a qualified certificate are met the new key can
also be used to create advanced electronic signatures.
8
The certificate request in this case will contain the name of the signatory as the requester, as for instance it may be
signed by the signatory’s existing SCD.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 17 of 86
3 Conformance Claims
Public
3
Conformance Claims
3.1
CC Conformance Claim
This Security Target is Common Criteria version 3.1 Revision 3 [2] [3] [4] conformant.
This Security Target is Common Criteria Part 2 [3] extended and Common Criteria Part
3 [4] conformant.
3.2
PP Conformance Claim
This ST claims strict conformance to the Common Criteria Protection Profile –
Protection profiles for Secure signature creation device – Part 2: Device with key
generation [5].
3.3
Package Conformance Claim
This ST is conforming to assurance package EAL4 augmented with AVA_VAN.5
defined in CC part 3 [4].
3.4
Conformance Claim Rationale
Since this ST is not claiming conformance to any other protection profile, no rationale is
necessary here.
Page 18 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
4
4 Security Problem Definition
Security Problem Definition
The CC defines assets as entities that the owner of the TOE presumably places value
upon. The term “asset” is used to describe the threats in the TOE security environment.
Assets and objects:
1. SCD: private key used to perform a digital signature operation. The
confidentiality, integrity and signatory’s sole control over the use of the SCD
must be maintained.
2. SVD: public key linked to the SCD and used to perform digital signature
verification. The integrity of the SVD when it is exported must be maintained.
3. DTBS and DTBS-representation: set of data, or its representation, which the
signatory intends to sign. Their integrity and the unforgeability of the link to the
signatory provided by the digital signature must be maintained.
4. Signature-creation function of the TOE to create digital signature for the
DTBS/R with the SCD.
User and Subjects acting for users:
1. User: End user of the TOE who can be identified as Administrator or Signatory.
In the TOE the subject S.User may act as S.Admin in the role R.Admin or as
S.Sigy in the role R.Sigy.
2. Admin. User who is in charge to perform the TOE initialisation, TOE
personalisation or other TOE administrative functions. In the TOE the subject
S.Admin is acting in the role R.Admin for this user after successful
authentication as Administrator.
3. Signatory: User who holds the TOE and uses it on his own behalf or on behalf of
the natural or legal person or entity he represents. In the TOE the subject S.Sigy
is acting in the role R.Sigy for this user after successful authentication as
Signatory.
Threat agents
1. Attacker as being a human or process acting on his behalf located outside the
TOE. The main goal of the attacker is to access the SCD or to falsify the digital
signature. The attacker has a high attack potential and knows no secret.
4.1
Threats
T.SCD_Divulg
Storing, copying, and releasing of the signature-creation data
An attacker stores or copies the SCD outside the TOE. An attacker can obtain the SCD
during generation, storage and use for signature-creation in the TOE.
T.SCD_Derive
Derive the signature-creation data
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 19 of 86
4 Security Problem Definition
Public
An attacker derives the SCD from publicly known data, such as SVD corresponding to
the SCD or signatures created by means of the SCD or any other data exported outside
the TOE, which is a threat against the secrecy of the SCD.
T.Hack_Phys
Physical attacks through the TOE interfaces
An attacker interacts physically with the TOE to exploit vulnerabilities, resulting in
arbitrary security compromises. This threat is directed against SCD, SVD and DTBS.
T.SVD_Forgery
Forgery of the signature-verification data
An attacker presents a forged SVD to the CGA. This results in loss of SVD integrity in
the certificate of the signatory.
T.SigF_Misuse
Misuse of the signature-creation function of the TOE
An attacker misuses the signature-creation function of the TOE to create a digital
signature for data the signatory has not decided to sign. The TOE is subject to deliberate
attacks by experts possessing a high attack potential with advanced knowledge of
security principles and concepts employed by the TOE.
T.DTBS_Forgery
Forgery of the DTBS/R
An attacker modifies the DTBS/R sent by the SCA. Thus the DTBS/R used by the TOE
for signing does not match the DTBS the signatory intended to sign.
T.Sig_Forgery
Forgery of the digital signature
Without use of the SCD an attacker forges data with associated digital signature and the
verification of the digital signature by the SVD does not detect the forgery. The
signature generated by the TOE is subject to deliberate attacks by experts possessing a
high attack potential with advanced knowledge of security principles and concepts
employed by the TOE.
4.2
Organisational Security Policies
P.CSP_QCert
Qualified certificate
The CSP uses a trustworthy CGA to generate a qualified certificate or non-qualified
certificate (The Directive: 2:9, Annex I) for the SVD generated by the SSCD. The
certificates contain at least the name of the signatory and the SVD matching the SCD
implemented in the TOE under sole control of the signatory. The CSP ensures that the
use of the TOE as SSCD is evident with signatures through the certificate or other
publicly available information.
P.QSign
Qualified electronic signatures
The signatory uses a signature-creation system to sign data with an advanced electronic
signature (The Directive: 1, 2), which is a qualified electronic signature if it is based on
a valid qualified certificate (Annex I)9. The DTBS are presented to the signatory and
sent by the SCA as DTBS/R to the SSCD. The SSCD creates the digital signature
9
It is a non-qualified advanced electronic signature if it is based on a non-qualified certificate for the SVD.
Page 20 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
4 Security Problem Definition
created with a SCD implemented in the SSCD that the signatory maintain under his sole
control and is linked to the DTBS/R in such a manner that any subsequent change of the
data is detectable.
P.Sigy_SSCD
TOE as secure signature-creation device
The TOE meets the requirements for an SSCD laid down in Annex III. This implies the
SCD is used for digital signature creation under sole control of the signatory and the
SCD can practically occur only once.
P.Sig_Non-Repud
Non-repudiation of signatures
The life cycle of the SSCD, the SCD and the SVD shall be implemented in a way that
the signatory is not able to deny having signed data if the signature is successfully
verified with the SVD contained in his un-revoked certificate.
4.3
Assumptions
A.CGA
Trustworthy certification-generation application
The CGA protects the authenticity of the signatory’s name or pseudonym and the SVD
in the (qualified) certificate by an advanced signature of the CSP.
A.SCA
Trustworthy signature-creation application
The signatory uses only a trustworthy SCA. The SCA generates and sends the DTBS/R
of data the signatory wishes to sign in a form appropriate for signing by the TOE.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 21 of 86
5 Security Objectives
5
Public
Security Objectives
This section identifies and defines the security objectives for the TOE and its
environment. Security objectives reflect the stated intent and counter the identified
threats, as well as comply with the identified organisational security policies and
assumptions.
5.1
Security Objectives for the TOE
5.1.1
Security Objectives for the SSCD with key generation [5]
All security objectives for the TOE from “Protection profiles for Secure signature
creation device – Part 2: Device with key generation” (see [5]) are included in this
security target without modification.
OT.Lifecycle_Security
Lifecycle security
The TOE shall detect flaws during the initialisation, personalisation and operational
usage. The TOE shall provide functionality to securely destroy the SCD.
Application note 1: The TOE may contain more than one SCD. In case of re-generation
the SCD is destroyed. The signatory shall be able to destroy the SCD stored in the
SSCD e.g. after expiration of the (qualified) certificate for the corresponding SVD.
OT.SCD/SVD_Gen
SCD/SVD generation
The TOE provides security features to ensure that authorised users only invoke the
generation of the SCD and the SVD.
OT.SCD_Unique
Uniqueness of the signature-creation data
The TOE shall ensure the cryptographic quality of an SCD/SVD pair it creates as
suitable for the advanced or qualified electronic signature. The SCD used for signature
creation can practically occur only once and cannot be reconstructed from the SVD. In
that context ‘practically occur once’ means that the probability of equal SCDs is
negligible.
OT.SCD_SVD_Corresp
Correspondence between SVD and SCD
The TOE shall ensure the correspondence between the SVD and the SCD generated by
the TOE. This includes unambiguous reference of a created SVD/SCD pair for export of
the SVD and signature creation with the SCD.
OT.SCD_Secrecy
Secrecy of the signature-creation data
The secrecy of a SCD (used for signature creation) is reasonably assured against attacks
with a high attack potential.
Application note 2: The TOE shall keep the confidentiality of the SCD at all time in
particular during SCD/SVD generation, SCD signing operation, storage and by
destruction.
Page 22 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
5 Security Objectives
OT.Sig_Secure
Cryptographic security of the digital signature
The TOE generates digital signatures that cannot be forged without knowledge of the
SCD through robust encryption techniques. The SCD cannot be reconstructed using the
digital signatures or any other data exported from the TOE. The digital signatures shall
be resistant against these attacks, even when executed with a high attack potential.
OT.Sigy_SigF
Signature creation function for the legitimate signatory only
The TOE provides the digital signature creation function for the legitimate signatory
only and protects the SCD against the use of others to create a digital signature. The
TOE shall resist attacks with high attack potential.
OT.DTBS_Integrity_TOE
DTBS/R integrity inside the TOE
The TOE must not alter the DTBS/R. This objective does not conflict with a signaturecreation process where the TOE applies a cryptographic hash function on the DTBS/R
to prepare for signature creation algorithm.
OT.EMSEC_Design
Provide physical-emanation security
Design and build the TOE in such a way as to control the production of intelligible
emanations within specified limits.
OT.Tamper_ID
Tamper detection
The TOE provides system features that detect physical tampering of its components, and
uses those features to limit security breaches.
OT.Tamper_Resistance
Tamper resistance
The TOE prevents or resists physical tampering with specified system devices and
components.
5.1.2
Security Objectives for the trusted communication with CGA [15]
All security objectives for the TOE from “Protection profiles for secure signature
creation device - Part 4: Extension for device with key generation and trusted
communication with certificate generation application” (see [15]) are included in this
security target without modification.
OT.TOE_SSCD_Auth
Authentication proof as SSCD
The TOE shall hold unique identity and authentication data as SSCD and provide
security mechanisms to identify and to authenticate themselves as SSCD.
OT.TOE_TC_SVD_Exp
TOE trusted channel for SVD export
The TOE shall provide a trusted channel to the CGA to protect the integrity of the SVD
exported to the CGA. The TOE shall enable the CGA to detect alteration of the SVD
exported by the TOE.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 23 of 86
5 Security Objectives
5.1.3
Public
Security Objectives for the trusted communication with SCA
The following objectives are based on the corresponding ones of “Protection profiles for
secure signature creation device - Part 5: Device with key generation and trusted
communication with signature-creation application” (see [16]), but were modified to
allow the card issuer to configure the existence of these trusted channels.
OT.TOE_confTC_VAD_Imp Optional trusted channel of TOE for VAD import
During intialisation the TOE shall be configurable to provide a trusted channel for the
protection of the confidentiality and integrity of the VAD received from the HID as
needed by the authentication method employed.
OT.TOE_confTC_DTBS_Imp Optional trusted channel of TOE for DTBS import
During intialisation the TOE shall be configurable to provide a trusted channel to the
SCA to detect alteration of the DTBS-representation received from the SCA. The TOE
must not generate digital signatures with the SCD for altered DTBS.
5.2
Security Objectives for the Operational Environment
5.2.1
Security Objectives regarding the SSCD with key generation
All security objectives for the operational environment from “Protection profiles for
Secure signature creation device – Part 2: Device with key generation” (see [5]) are
included in this security target, except the following three:
1) OE.SSCD_Prov_Service was replaced by the security objective
OE.Dev_Prov_Service (see chapter 5.2.2).
2) OE.HID_VAD was replaced by the security objective
OE.HID_confTC_VAD_Exp (see chapter 5.2.3).
3) OE.DTBS_Protect was replaced by the security objective
OE.SCA_confTC_DTBS_Exp (see chapter 5.2.3).
The following objectives are taken from “Protection profiles for Secure signature
creation device – Part 2: Device with key generation” (see [5]) without modification.
OE.SVD_Auth
Authenticity of the SVD
The operational environment ensures the integrity of the SVD exported by the TOE to
the CGA. The CGA verifies the correspondence between the SCD in the SSCD of the
signatory and the SVD in the input it provides to the certificate generation function of
the CSP.
OE.CGA_QCert
Generation of qualified certificates
The CGA generates a qualified certificate, that includes inter alias
- the name of the signatory controlling the TOE,
Page 24 of 86
-
the SVD matching the SCD stored in the TOE and controlled by the signatory,
-
the advanced signature of the CSP.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
5 Security Objectives
The CGA confirms with the generated certificate that the SCD corresponding to the
SVD is stored in a SSCD.
OE.DTBS_Intend
SCA sends data intended to be signed
The Signatory uses trustworthy SCA that
-
generates the DTBS/R of the data that has been presented as DTBS and which
the signatory intends to sign in a form which is appropriate for signing by the
TOE,
-
sends the DTBS/R to the TOE and enables verification of the integrity of the
DTBS/R by the TOE,
-
attaches the signature produced by the TOE to the data or provides it separately.
OE.Signatory
Security obligation of the Signatory
The Signatory checks that the SCD stored in the SSCD received from SSCD
provisioning service is in non-operational state. The Signatory keeps his or her SVAD
confidential.
5.2.2
Security Objectives regarding the trusted communication with CGA
All security objectives for the operational environment from “Protection profiles for
secure signature creation device - Part 4: Extension for device with key generation and
trusted communication with certificate generation application” (see [15]) were included
in this security target without modification.
OE.Dev_Prov_Service Authentic SSCD provided by SSCD Provisioning Service
The SSCD Provisioning Service handles authentic devices that implement the TOE,
prepares the TOE for proof as SSCD to external entities, personalises the TOE for the
legitimate user as signatory, links the identity of the TOE as SSCD with the identity of
the legitimate user, and delivers the TOE to the signatory.
OE.CGA_SSCD_Auth
Pre-initialisation of the TOE as SSCD
The CSP shall check by means of the CGA whether the device presented for application
of a (qualified) certificate holds unique identification as SSCD, successfully proved this
identity as SSCD to the CGA, and this identity is linked to the legitimate holder of the
device as applicant for the certificate.
OE.CGA_TC_SVD_Imp
CGA trusted channel for SVD import
The CGA shall detect alteration of the SVD imported from the TOE with the claimed
identity of the SSCD.
The developer prepares the TOE by pre-initialisation for the delivery to the customer
(i.e. the SSCD provisioning service) in the development phase not addressed by a
security objective for the operational environment. The SSCD Provisioning Service
performs initialisation and personalisation as TOE for the legitimate user (i.e the Device
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 25 of 86
5 Security Objectives
Public
holder). If the TOE is delivered to the Device holder with SCD the TOE is a SSCD. This
situation is addressed by OE.SSCD_Prov_Service [5] except the additional intialisation
of the TOE for proof as SSCD and trusted channel to the CGA. If the TOE is delivered
to the Device holder without a SCD the TOE will be a SSCD only after generation of
the first SCD/SVD pair. Because this SCD/SVD pair generation is performed by the
signatory in the operational use stage the TOE provides additional security functionality
addressed by OT.TOE_SSCD_Auth and OT.TOE_TC_SVD_Exp. But this security
functionality must be initialised by the SSCD Provisioning Service service as described
in OE.Dev_Prov_Service. Therefore this ST substitutes OE.SSCD_Prov_Service of [5]
by OE.Dev_Prov_Service of [15] allowing generation of the first SCD/SVD pair after
delivery of the TOE to the Device holder and requiring initialisation of security
functionality of the TOE. Nevertheless the additional security functionality must be used
by the operational envirnment as described in OE.CGA_SSCD_Auth and
OE.CGA_TC_SVD_Imp. This approach does not weaken the security objectives of and
requirements to the TOE but enforce more security functionality of the TOE for
additional method of use. Therefore it does not conflict with the CC conformance claim
to the core PP SSCD KG [5].
5.2.3
Security Objectives for the trusted communication with SCA
The following objectives are based on the corresponding ones of “Protection profiles for
secure signature creation device - Part 5: Device with key generation and trusted
communication with signature-creation application” (see [16]), but were modified to
allow the card issuer to configure the existence of these trusted channels.
OE.HID_confTC_VAD_Exp
Optional trusted channel of HID for VAD export
The HID provides the human interface for user authentication. The HID will ensure
confidentiality and integrity of the VAD as needed by the authentication method
employed including export to the TOE by means of a trusted channel if available.
OE.SCA_confTC_DTBS_Exp Optional trusted channel of SCA for DTBS export
The operational environment ensures that the DTBS/R cannot be altered in transit
between the SCA and the TOE. If available the SCA uses the trusted channel to the TOE
for the protection of the integrity of the DTBS to ensure that the DTBS-representation
cannot be altered undetected in transit between the SCA and the TOE.
5.3
Security Objectives Rationale
5.3.1
Security Objectives Coverage
Page 26 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
5 Security Objectives
OE.HID_confTC_VAD_Exp
OE.DTBS_Intend
OE.SCA_confTC_DTBS_Exp
OE.Dev_Prov_Service
OE.SVD_Auth
OE.CGA_QCert
OE.CGA_TC_SVD_Imp
OE.CGA_SSCD_Auth
OT.TOE_TC_SVD_Exp
OT.TOE_SSCD_Auth
OT.Tamper_Resistance
X
OT.TOE_confTC_DTBS_Imp
OT.Tamper_ID
X
OT.TOE_confTC_VAD_Imp
OT.EMSEC_Design
OT.DTBS_Integrity_TOE
OT.Sigy_SigF
OT.Sig_Secure
X
X
X
X
X
X
X
T.SCD_Divulg
X
T.SCD_Derive
X
X
T.Hack_Phys
X
T.SVD_Forgery
T.SigF_Misuse
OT.SCD_Secrecy
OT.SCD_SVD_Corresp
OT.SCD_Unique
OT.SCD/SVD_Gen
OT.Lifecycle_Security
The following table shows how the security objectives for the TOE and the security
objectives for the environment cover the threats, organizational security policies and
assumptions.
X
X
X
X
X
X
T.Sig_Forgery
X
X
P.QSign
X
X
P.Sigy_SSCD
X
P.Sig_Non-Repud
X
X
X
X
X
X
P.CSP_QCert
X
X
X
X
T.DTBS_Forgery
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
A.CGA
X
X
X
X
X
X
X
X
X
X
A.SCA
Table 1: Security problem definition to security objectives mapping
5.3.2
Security Objectives Sufficiency
5.3.2.1
Sufficiency regarding the SSCD with key generation [5]
5.3.2.1.1
Policies and Security Objective Sufficiency
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 27 of 86
X
5 Security Objectives
Public
P.QSign (Qualified electronic signatures) provides that the TOE and the SCA may be
employed to sign data with an advanced electronic signature, which is a qualified
electronic signature if based on a valid qualified certificate. OT.Sigy_SigF ensures
signatory’s sole control of the SCD by requiring the TOE to provide the signature
generation function for the legitimate signatory only and to protect the SCD against the
use of others. OT.Sig_Secure ensures that the TOE generates digital signatures that
cannot be forged without knowledge of the SCD through robust encryption techniques.
OE.CGA_QCert addresses the requirement of qualified (or advanced) electronic
signatures as being based on qualified or non-qualified electronic certificates building a
base for the electronic signature. OE.DTBS_Intend ensures that the SCA provides only
those DTBS to the TOE, which the signatory intends to sign.
5.3.2.1.2
Threats and Security Objective Sufficiency
T.SCD_Divulg (Storing,copying, and releasing of the signature-creation data)
addresses the threat against the legal validity of electronic signature due to storage and
copying of SCD outside the TOE, as expressed in recital (18) of The Directive. This
threat is countered by OT.SCD_Secrecy, which assures the secrecy of the SCD used for
signature creation.
T.SCD_Derive (Derive the signature-creation data) deals with attacks on the SCD via
public known data produced by the TOE, which are the SVD and the signatures created
with the SCD. OT.SCD/SVD_Gen counters this threat by implementing cryptographic
secure generation of the SCD/SVD-pair. OT.Sig_Secure ensures cryptographic secure
digital signatures.
T.Hack_Phys (Exploitation of physical vulnerabilities) deals with physical attacks
exploiting physical vulnerabilities of the TOE. OT.SCD_Secrecy preserves the secrecy
of the SCD. OT.EMSEC_Design counters physical attacks through the TOE interfaces
and observation of TOE emanations. OT.Tamper_ID and OT.Tamper_Resistance
counter the threat T.Hack_Phys by detecting and by resisting tampering attacks.
T.Sig_Forgery (Forgery of the digital signature) deals with non-detectable forgery of
the digital signature. OT.Sig_Secure, OT.SCD_Unique and OE.CGA_Qcert address
this threat in general. The OT.Sig_Secure (Cryptographic security of the digital
signature) ensures by means of robust cryptographic techniques that the signed data and
the digital signature are securely linked together. OT.SCD_Unique ensures that the
same SCD cannot be generated more than once and the corresponding SVD cannot be
included in another certificate by chance. OE.CGA_Qcert prevents forgery of the
Page 28 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
5 Security Objectives
certificate for the corresponding SVD, which would result in false verification decision
on a forged signature.
5.3.2.1.3
Assumptions and Security Objective Sufficiency
A.SCA (Trustworthy signature-creation application) establishes the trustworthiness of
the SCA with respect to generation of DTBS/R. This is addressed by OE.DTBS_Intend
(Data intended to be signed) which ensures that the SCA generates the DTBS/R for the
data that has been presented to the signatory as DTBS and which the signatory intends
to sign in a form which is appropriate for being signed by the TOE
A.CGA (Trustworthy certification-generation application) establishes the protection of
the authenticity of the signatory's name and the SVD in the qualified certificate by the
advanced signature of the CSP by means of the CGA. This is addressed by
OE.CGA_QCert (Generation of qualified certificates), which ensures the generation of
qualified certificates and by OE.SVD_Auth (Authenticity of the SVD) which ensures the
protection of the integrity and the verification of the correspondence between the SVD
and SCD that is implemented by the SSCD of the signatory.
5.3.3
Sufficiency regarding the trusted communication with CGA [15]
T.SVD_Forgery (Forgery of the signature-verification data) deals with the forgery of
the SVD exported by the TOE to the CGA for the generation of the certificate.
T.SVD_Forgery is addressed by OT.SCD_SVD_Corresp, which ensures correspondence
between SVD and SCD and unambiguous reference of the SVD/SCD pair for the SVD
export and signature creation with the SCD, and OE.SVD_Auth that ensures the
integrity of the SVD exported by the TOE to the CGA and verification of the
correspondence between the SCD in the SSCD of the signatory and the SVD in the input
it provides to the certificate generation function of the CSP. Additionally
T.SVD_Forgery is addressed by OT.TOE_TC_SVD_Exp, which ensures that the TOE
sends the SVD in a verifiable form through a trusted channel to the CGA, as well as by
OE.CGA_TC_SVD_Imp, which provides verification of SVD authenticity by the CGA.
P.CSP_QCert (CSP generates qualified certificates) provides that the TOE and the
SCA may be employed to sign data with (qualified) electronic signatures, as defined by
the Directive [1], article 5, paragraph 1. Directive [1], recital (15) refers to SSCDs to
ensure the functionality of advanced signatures. The OE.CGA_QCert addresses the
requirement of qualified (or advanced) electronic signatures as being based on qualified
(or non-qualified) certificates. According OT.TOE_SSCD_Auth the TOE examples will
hold unique identity and authentication data as SSCD and provide security mechanisms
enabling the CGA to identify and to authenticate the TOE as SSCD based on theses pre-
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 29 of 86
5 Security Objectives
Public
initialisation to prove this identity as SSCD to the CGA. The OE.CGA_SSCD_Auth
ensures that the SP checks the proof of the device presented of the applicant that it is a
SSCD. The OT.SCD_SVD_Corresp ensures that the SVD exported by the TOE to the
CGA corresponds to the SCD stored in the TOE and used by the signatory. The
OT.Lifecycle_Security ensures that the TOE detects flaws during the initialisation,
personalisation and operational usage.
P.Sigy_SSCD (TOE as secure signature-creation device) requires the TOE to meet
Annex III of the Directive. The paragraph 1(a) of Annex III is ensured by
OT.SCD_Unique requireing that the SCD used for signature generation can practically
occurs only once. The OT.SCD_Secrecy OT.Sig_Secure and OT.EMSEC_Design and
OT.Tamper_Resistance adress the secrecy of the SCD (cf. paragraph 1(a) of Annex III).
OT.SCD_Secrecy and OT.Sig_Secure meet the requirement in paragraph 1(b) of Annex
III by the requirements to ensure that the SCD cannot be derived from SVD, the digital
signatures or any other data exported outside the TOE. OT.Sigy_SigF meets the
requirement in paragraph 1(c) of Annex III by the requirements to ensure that the TOE
provides the signature generation function for the legitimate signatory only and protects
the SCD against the use of others. OT.DTBS_Integrity_TOE meets the requirements in
paragraph 2 of Annex III as the TOE must not alter the DTBS/R. The usage of SCD
under sole control of the signatory is ensured by OT.Lifecycle_Security,
OT.SCD/SVD_Gen and OT.Sigy_SigF.
OE.Dev_Prov_Service ensures that the legitimate user obtains a TOE sample as an
authentic, initialised and personalised TOE from an SSCD Provisioning Service through
the TOE delivery procedure. If the TOE implements SCD generated under control of the
SSCD Provisioning Service the legitimate user receives the TOE as SSCD. If the TOE is
delivered to the legitimate user without SCD In the operational phase he or she applies
for the (qualified) certificate as the Device holder and legimate user of the TOE. The
CSP will use the TOE security feature (addressed by the security objectives
OT.TOE_SSCD_Auth and OT.TOE_TC_SVD_Exp) to check whether the device
presented is a SSCD linked to the applicant as required by OE.CGA_SSCD_Auth and
the received SVD is sent by this SSCD as required by OE.CGA_TC_SVD_Imp. Thus
the obligation of the SSCD provision service for the first SCD/SVD pair is
complemented in an appropriate way by the CSP for the SCD/SVD pair generated
outside the secure preparation environment.
5.3.4
Sufficiency for the trusted communication with SCA
T.SigF_Misuse (Misuse of the signature-creation function of the TOE) addresses the
threat of misuse of the TOE signature-creation function to create SDO by others than the
signatory to create a digital signature on data for which the signatory has not expressed
Page 30 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
5 Security Objectives
the intent to sign, as required by paragraph 1(c) of Annex III. OT.Lifecycle_Security
(Lifecycle security) requires the TOE to detect flaws during the initialisation,
personalisation and operational usage including secure destruction of the SCD, which
may be initiated by the signatory. OT.Sigy_SigF (Signature creation function for the
legitimate signatory only) ensures that the TOE provides the signature-generation
function for the legitimate signatory only. OE.DTBS_Intend (Data intended to be
signed) ensures that the SCA sends the DTBS/R only for data the signatory intends to
sign. The combination of OT.TOE_confTC_DTBS_Imp (Optional trusted channel of
TOE for DTBS) and OE.SCA_confTC_DTBS_Exp (Optional trusted channel of SCA
for DTBS) counters the undetected manipulation of the DTBS during the transmission
form the SCA to the TOE. OT.DTBS_Integrity_TOE (DTBS/R integrity inside the
TOE) prevents the DTBS/R from alteration inside the TOE. As the SCA provides a
human interface for user authentication, OE.HID_confTC_VAD_Exp (Optional trusted
channel of HID for VAD) requires the HID to protect the confidentiality and the
integrity of the VAD as needed by the authentication method employed. If available the
HID and the TOE will protect the VAD by a trusted channel between HID and TOE
according to OE.HID_confTC_VAD_Exp (Optional trusted channel of HID for VAD)
and OT.TOE_confTC_VAD_Imp (Optional trusted channel of TOE for VAD).
OE.Signatory ensures that the Signatory checks that an SCD stored in the SSCD when
received from an SSCD-provisioning service provider is in non-operational state, i.e. the
SCD cannot be used before the Signatory becomes control over the SSCD.
OE.Signatory ensures also that the Signatory keeps his or her VAD confidential.
T.DTBS_Forgery (Forgery of the DTBS-representation) addresses the threat arising
from modifications of the DTBS-representation sent to the TOE for signing which than
does not correspond to the DTBS-representation corresponding to the DTBS the
signatory intends to sign. The threat T.DTBS_Forgery is addressed by the security
objectives OT.TOE_confTC_DTBS_Imp (Optional trusted channel of TOE for DTBS)
and OE.SCA_confTC_DTBS_Exp (Optional trusted channel of SCA for DTBS), which
ensure that the DTBS-representation cannot be altered undetected in transit between the
SCA and the TOE and if available using the corresponding trusted channel. The TOE
counters internally this threat by the means of OT.DTBS_Integrity_TOE ensuring the
integrity of the DTBS-representation inside the TOE.
P.Sig_Non-Repud (Non-repudiation of signatures) deals with the repudiation of signed
data by the signatory, although the electronic signature is successfully verified with the
SVD contained in his certificate valid at the time of signature creation. This policy is
implemented by the combination of the security objectives for the TOE and its
operational environment, that ensure the aspects of signatory’s sole control over and
responsibility for the digital signatures generated with the TOE. OE.Dev_Prov_Service
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 31 of 86
5 Security Objectives
Public
ensures that the signatory uses an authentic TOE, initialised and personalised for the
signatory. OE.CGA_QCert ensures that the certificate allows to identify the signatory
and thus to link the SVD to the signatory. OE.SVD_Auth and OE.CGA_QCert require
the environment to ensure authenticity of the SVD as being exported by the TOE and
used under sole control of the signatory. OT.SCD_SVD_Corresp ensures that the SVD
exported by the TOE corresponds to the SCD that is implemented in the TOE.
OT.SCD_Unique provides that the signatory’s SCD can practically occur just once.
OE.Signatory ensures that the Signatory checks that the SCD, stored in the SSCD
received from an SSCD provisioning service is in non-operational state (i.e. the SCD
cannot be used before the Signatory becomes into sole control over the SSCD). The
TOE security feature addressed by the security objectives OT.TOE_SSCD_Auth and
OT.TOE_TC_SVD_Exp supported by OE.Dev_Prov_Service enables the verification
whether the device presented by the applicant is a SSCD as required by
OE.CGA_SSCD_Auth and the received SVD is sent by the device holding the
corresponding SCD as required by OE.CGA_TC_SVD_Imp. OT.Sigy_SigF provides
that only the signatory may use the TOE for signature creation. As prerequisite
OE.Signatory ensures that the Signatory keeps his or her SVAD confidential. The
confidentiality of VAD is protected during the transmission between the HI device and
TOE according to OE.HID_confTC_VAD_Exp and OT.TOE_confTC_VAD_Imp.
OE.DTBS_Intend, OT.DTBS_Integrity_TOE, OE.SCA_confTC_DTBS_Exp and
OT.TOE_confTC_DTBS_Imp ensure that the TOE generates digital signatures only for
a DTBS/R that the signatory has decided to sign as DTBS. The robust cryptographic
techniques required by OT.Sig_Secure ensure that only this SCD may generate a valid
digital signature that can be successfully verified with the corresponding SVD used for
signature verification. The security objective for the TOE OT.Lifecycle_Security
(Lifecycle security), OT.SCD_Secrecy (Secrecy of the signature-creation data),
OT.EMSEC_Design (Provide physical emanations security), OT.Tamper_ID (Tamper
detection) and OT.Tamper_Resistance (Tamper resistance) protect the SCD against any
compromise.
Page 32 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
6
6 Extended Component Definition
Extended Component Definition
The additional family FPT_EMSEC (TOE Emanation) of the Class FPT (Protection of
the TSF) is defined here to describe the IT security functional requirements of the TOE.
The TOE shall prevent attacks against the SCD and other secret data where the attack is
based on external observable physical phenomena of the TOE. Examples of such attacks
are evaluation of TOE’s electromagnetic radiation, simple power analysis (SPA),
differential power analysis (DPA), timing attacks, radio emanation etc. This family
describes the functional requirements for the limitation of intelligible emanations.
The family FPT_EMSEC belongs to the Class FPT because it is the class for TSF
protection. Other families within the Class FPT do not cover the TOE emanation. The
definition of the family FPT_EMSEC is taken from the Protection Profile Secure
Signature Creation Device – Part 2: Device with key generation [5], chapter 9. The
section 6.1 describes the extended component FPT_EMSEC.1, section 6.2 describes the
extended component FIA_API.1.
6.1
FPT_EMSEC TOE Emanation
Family behaviour
This family defines requirements to mitigate intelligible emanations.
Component levelling:
FPT_EMSEC.1 TOE Emanation has two constituents:
 FPT_EMSEC.1.1 Limit of Emissions requires to not emit intelligible emissions
enabling access to TSF data or user data.
 FPT_EMSEC.1.2 Interface Emanation requires not emit interface emanation
enabling access to TSF data or user data.
Management: FPT_EMSEC.1
There are no management activities foreseen.
Audit: FPT_EMSEC.1
There are no actions identified that must be auditable if FAU_GEN (Security audit data
generation) is included in a protection profile or security target.
FPT_EMSEC.1 TOE Emanation
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 33 of 86
6 Extended Component Definition
Public
Hierarchical to: No other components.
Dependencies: No dependencies.
6.2
FPT_EMSEC.1.1
The TOE shall not emit [assignment: types of
emissions] in excess of [assignment: specified limits]
enabling access to [assignment: list of types of TSF
data] and [assignment: list of types of user data].
FPT_EMSEC.1.2
The TSF shall ensure [assignment: type of users] are
unable to use the following interface [assignment:
type of connection] to gain access to [assignment: list
of types of TSF data] and [assignment: list of types of
user data].
Definition of the Family FIA_API
To describe the IT security functional requirements of the TOE a sensitive family
(FIA_API) of the Class FIA (Identification and authentication) is defined here. This
family describes the functional requirements for the proof of the claimed identity for the
authentication verification by an external entity where the other families of the class FIA
address the verification of the identity of an external entity.
FIA_API Authentication Proof of Identity
Family behaviour
This family defines functions provided by the TOE to prove their identity and to be
verified by an external entity in the TOE IT environment.
Component levelling:
FIA_API.1
Authentication Proof of Identity.
Management:
FIA_API.1
The following actions could be considered for the management
functions in FMT: Management of authentication information used to
prove the claimed identity.
Page 34 of 86
Audit:
There are no actions defined to be auditable.
FIA_API.1
Authentication Proof of Identity
Hierarchical to:
No other components.
Dependencies:
No dependencies.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
6 Extended Component Definition
FIA_API.1.1
The TSF shall provide a [assignment: authentication mechanism] to
prove the identity of the [assignment: authorized user or role].
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 35 of 86
7 IT Security Requirements
Public
7
IT Security Requirements
7.1
General
This chapter gives the security functional requirements and the security assurance
requirements for the TOE.
Section 6 describes the extended components FPT_EMSEC.1 and FIA_API.1. The
Section 7.2 provides the security functional requirements. All security functional
requirements of “Protection profiles for Secure signature creation device – Part 2:
Device with key generation” (see [5]) were taken without modifications beside
operations for assignment, selection and refinement. All additional security functional
requirements (FIA_API.1, FDP_DAU/SVD, FTP_ITC.1/SVD) from “Protection profiles
for secure signature creation device - Part 4: Extension for device with key generation
and trusted communication with certificate generation application” (see [15]) were
included in this security target without modifications. The additional security functional
requirements FTP_ITC.1/Conf_VAD and FTP_ITC.1/Conf_DTBS are based on the
corresponding ones of “Protection profiles for secure signature creation device - Part 5:
Device with key generation and trusted communication with signature-creation
application” (see [16]), but were modified to allow the card issuer to configure the
existence of these trusted channels. The remaining additional security functional
requirement from [16], FDP_UIT.1/DTBS, was not included into this security target
also to enable the card issuer to configure the existence of these trusted channels.
The TOE security assurance requirements statement is given in section 7.3.
7.2
TOE Security Functional Requirements
7.2.1
Use of requirement specifications
Common Criteria allows several operations to be performed on functional requirements;
refinement, selection, assignment, and iteration are defined in paragraph 2.1.4 of part 2
of the CC. Each of these operations is used in this ST. The following convention has
been used for the generation of this ST:
A refinement operation is used to add detail to a requirement, and thus further restricts
a requirement. Refinement of security requirements is either (i) denoted by the word
“refinement” in bold text and the added or changed words are in bold text, or (ii)
included in text as bold text and marked by an application note. In cases where words
from a CC requirement were deleted, a separate attachment indicates the words that
were removed.
A selection operation is used to select one or more options provided by the CC in stating
a requirement. A selection that has been made by the PP authors are denoted as
underlined text and the original text of the component is given by an application note.
Page 36 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
Selections filled in by the ST author appear in square brackets with an indication that a
selection is made, [selection:], and are italicized.
An assignment operation is used to assign a specific value to an unspecified parameter,
such as the length of a password. An assignment that has been made by the PP authors is
indicated as underlined text and the original text of the component is given by an
application note. Assignments filled in by the ST author appear in square brackets with
an indication that an assignment is to be made [assignment:], and are italicized.
An iteration operation is used when a component is repeated with varying operations.
Iteration is denoted by showing a slash “/”, and the iteration indicator after the
component identifier.
For generation of the ST every operation performed in the ST is marked by segmented
unterline. The application notes from the PP are kept in this ST. All required operations
have been performed. Therefore the text from the original application note that contains
just the request for performing the desired operations is omitted. The operations
themselves are placed in the SFRs as well as in the application notes. All other text from
the application notes from the PP are kept. All selections and assignments performed in
the PP are kept in this ST. Assignments and selections performed in the PP or ST are
marked by PP or ST: assignment or selection: operation to be performed: chosen
assignment or selection (e.g. PP: assignment: list of cryptographic operations: digital
signature-generation or ST: assignment: cryptographic key sizes: 256 bit) . Descriptions
of iterations and refinements in application notes of the PP are kept in this ST.
Additional Application Notes added for this ST are marked as 'Application Note ST'
without numbering.
7.2.2
Cryptographic support (FCS)
FCS_CKM.1/ECC
Cryptographic key generation - ECC
Hierarchical to: No other components.
Dependencies:
[FCS_CKM.2 Cryptographic key distribution, or
FCS_COP.1 Cryptographic operation]
FCS_CKM.4 Cryptographic key destruction
FCS_CKM.1.1/ECC
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
The TSF shall generate an SCD/SVD pair in
accordance with a specified cryptographic key
generation algorithm G&D_ECDSAKeyGen and
specified cryptographic key sizes 256 bit. 320 bit,
384 bit, 512 bit, 521 bit that meet the following:
curves brainpoolP256r1, brainpoolP320r1,
Page 37 of 86
7 IT Security Requirements
Public
brainpoolP384r1, brainpoolP512r1 according
chapter 6 of [17] and the curves secp256r1,
secp384r1 and secp521r1 according chapter 2 of
[18].
Application note 1: The following operations have been performed:
PP: refinement: The refinement in the element FCS_CKM.1.1 substitutes
“cryptographic keys” by “SCD/SVD pairs” because it clearly addresses the SCD/SVD
key generation.
ST: assignment: cryptographic key generation algorithm: G&D_ECDSAKeyGen
ST: assignment: cryptographic key sizes: 256 bit. 320 bit, 384 bit, 512 bit, 521 bit
ST: assignment: list of standards: curves brainpoolP256r1, brainpoolP320r1,
brainpoolP384r1, brainpoolP512r1 according chapter 6 of [17] and the curves
secp256r1, secp384r1 and secp521r1 according chapter 2 of [18]
FCS_CKM.4/ECC
Cryptographic key destruction
Hierarchical to: No other components.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4.1/ECC
The TSF shall destroy cryptographic keys in
accordance with a specified cryptographic key
destruction method G&D_ECDSAKeyDestr that
meets the following: none.
Application note 2: The following operations have been performed:
ST: assignment: cryptographic key destruction method: G&D_ECDSAKeyDestr
ST: assignment: list of standards: none
Page 38 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
FCS_COP.1/ECC
Cryptographic operation
Hierarchical to: No other components.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction
FCS_COP.1.1
The TSF shall perform digital signature-generation
in accordance with a specified cryptographic
algorithm EC-DSA and cryptographic key sizes
256 bit. 320 bit, 384 bit, 512 bit, 521 bit that meet
the following: curves brainpoolP256r1,
brainpoolP320r1, brainpoolP384r1,
brainpoolP512r1 according chapter 6 of [17] and
the curves secp256r1, secp384r1 and secp521r1
according chapter 2 of [18].
Application note 3: The following operations have been performed:
PP: assignment: list of cryptographic operations: digital signature-generation
ST: assignment: cryptographic algorithm: EC-DSA
ST: assignment: cryptographic key sizes: 256 bit. 320 bit, 384 bit, 512 bit, 521 bit
ST: assignment: list of standards: curves brainpoolP256r1, brainpoolP320r1,
brainpoolP384r1, brainpoolP512r1 according chapter 6 of [17] and the curves
secp256r1, secp384r1 and secp521r1 according chapter 2 of [18]
FCS_CKM.1/RSA
Cryptographic key generation - RSA
Hierarchical to: No other components.
Dependencies:
[FCS_CKM.2 Cryptographic key distribution, or
FCS_COP.1 Cryptographic operation]
FCS_CKM.4 Cryptographic key destruction
FCS_CKM.1.1/RSA
The TSF shall generate an SCD/SVD pair in
accordance with a specified cryptographic key
generation algorithm G&D_RSAKeyGen and
specified cryptographic key sizes 2048 bit - 4096
bit that meet the following: [6].
Application note 4: The following operations have been performed:
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 39 of 86
7 IT Security Requirements
Public
PP: refinement: The refinement in the element FCS_CKM.1.1 substitutes
“cryptographic keys” by “SCD/SVD pairs” because it clearly addresses the SCD/SVD
key generation.
ST: assignment: cryptographic key generation algorithm: G&D_RSAKeyGen
ST: assignment: cryptographic key sizes: 2048 bit - 4096
ST: assignment: list of standards: [6]
Application note 5a: The TOE uses a propriety generation algorithm that fulfils the
requirements of reference [6], for example selection of prime factors e.g.
FCS_CKM.4/RSA
Cryptographic key destruction
Hierarchical to: No other components.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4.1/RSA
The TSF shall destroy cryptographic keys in
accordance with a specified cryptographic key
destruction method G&D_RSAKeyDestr that
meets the following: none.
Application note 6: The following operations have been performed:
ST: assignment: cryptographic key destruction method: G&D_RSAKeyDestr
ST: assignment: list of standards: none
FCS_COP.1/RSA
Cryptographic operation
Hierarchical to: No other components.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction
FCS_COP.1.1
Page 40 of 86
The TSF shall perform digital signature-generation
in accordance with a specified cryptographic
algorithm RSA and cryptographic key sizes 2048
bit - 4096 bit that meet the following: PSS and
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
PKCS1-v1_5 according chapter 8 and 9 of [8].
Application note 7: The following operations have been performed:
PP: assignment: list of cryptographic operations: digital signature-generation
ST: assignment: cryptographic algorithm: RSA
ST: assignment: cryptographic key sizes: 2048 bit - 4096 bit
ST: assignment: list of standards: PSS and PKCS1-v1_5 according chapter 8 and 9 of
[8]
7.2.3
User data protection (FDP)
The security attributes and related status for the subjects and objects are:
Subject or object the
security attribute is
associated with
Security attribute type
Value of the security attribute
S.User
Role
R.Admin, R.Sigy
S.User
SCD / SVD Management
Authorised, not authorised
SCD
SCD Operational
No, yes
SCD
SCD identifier
Arbitrary value
SVD
(This ST does not define
security attributes for SVD)
(This ST does not define
security attributes for SVD)
Application note 8: No additional objects or security attributes have been defined
compared to the PP.
FDP_ACC.1/SCD/SVD_Generation_SFP
Subset access control
Hierarchical to: No other components.
Dependencies:
FDP_ACF.1 Security attribute based access control
FDP_ACC.1.1/
SCD/SVD_Generation_SFP
The TSF shall enforce the
SCD/SVD_Generation_SFP on
(1) subjects: S.User,
(2) objects: SCD, SVD,
(3) operations: generation of SCD/SVD pair.
Application note 9: The following operations have been performed:
PP: assignment: access control SFP: SCD/SVD Generation SFP
PP: assignment: list of subjects, objects, and operations among subjects and objects
covered by the SFP: (1) subjects: S.User, (2) objects: SCD, SVD, (3) operations:
generation of SCD/SVD pair.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 41 of 86
7 IT Security Requirements
Public
FDP_ACF.1/SCD/SVD_Generation_SFP
control
Security attribute based access
Hierarchical to: No other components.
Dependencies:
FDP_ACC.1 Subset access control
FMT_MSA.3 Static attribute initialisation
FDP_ACF.1.1/
SCD/SVD_Generation_SFP
FDP_ACF.1.2/
SCD/SVD_Generation_SFP
FDP_ACF.1.3/
SCD/SVD_Generation_SFP
FDP_ACF.1.4/
SCD/SVD_Generation_SFP
The TSF shall enforce the
SCD/SVD_Generation_SFP to objects based on the
following: the user S.User is associated with the
security attribute "SCD / SVD Management".
The TSF shall enforce the following rules to
determine if an operation among controlled
subjects and controlled objects is allowed:
S.User with the security attribute “SCD / SVD
Management” set to “authorised” is allowed to
generate SCD/SVD pair.
The TSF shall explicitly authorise access of
subjects to objects based on the following
additional rules: none.
The TSF shall explicitly deny access of subjects to
objects based on the following additional rules:
S.User with the security attribute “SCD / SVD
management” set to “not authorised” is not allowed
to generate SCD/SVD pair.
Application note 10: The following operations have been performed:
PP: assignment: access control SFP: SCD/SVD_Generation_SFP
PP: assignment: list of subjects and objects controlled under the indicated SFP, and for
each, the SFP-relevant security attributes, or named groups of SFP-relevant security
attributes: the user S.User is associated with the security attribute "SCD / SVD
Management".
PP: assignment: rules governing access among controlled subjects and controlled
objects using controlled operations on controlled objects: S.User with the security
attribute “SCD / SVD Management” set to “authorised” is allowed to generate
SCD/SVD pair.
PP: assignment: rules, based on security attributes, that explicitly authorise access of
subjects to objects: none
Page 42 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
PP: assignment: rules, based on security attributes, that explicitly deny access of
subjects to objects: S.User with the security attribute “SCD / SVD management” set to
“not authorised” is not allowed to generate SCD/SVD pair.
FDP_ACC.1/SVD_Transfer_SFP
Subset access control
Hierarchical to: No other components.
Dependencies:
FDP_ACF.1 Security attribute based access control
The TSF shall enforce the SVD_Transfer_SFP on
(1) subjects: S.User,
(2) objects: SVD
(3) operations: export
Application note 11: The following operations have been performed:
FDP_ACC.1.1/
SVD_Transfer_SFP
PP: assignment: access control SFP: SVD_Transfer_SFP
PP: assignment: list of subjects, objects, and operations among subjects and objects
covered by the SFP: (1) subjects: S.User, (2) objects: SVD, (3) operations: export.
FDP_ACF.1/SVD_Transfer_SFP
Security attribute based access control
Hierarchical to: No other components.
Dependencies:
FDP_ACC.1 Subset access control
FMT_MSA.3 Static attribute initialisation
FDP_ACF.1.1/
SVD_Transfer_SFP
FDP_ACF.1.2/
SVD_Transfer_SFP
FDP_ACF.1.3/
SVD_Transfer_SFP
FDP_ACF.1.4/
SVD_Transfer_SFP
The TSF shall enforce the SVD_Transfer_SFP to
objects based on the following:
(1) the S.User is associated with the security
attribute Role
(2) the SVD .
The TSF shall enforce the following rules to
determine if an operation among controlled
subjects and controlled objects is allowed:
(1) R.Admin is allowed to export SVD,
The TSF shall explicitly authorise access of
subjects to objects based on the following
additional rules: none.
The TSF shall explicitly deny access of subjects to
objects based on the following additional rules:
none.
Application note 12: The following operations have been performed:
PP: assignment: access control SFP: SVD_Transfer_SFP
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 43 of 86
7 IT Security Requirements
Public
PP: assignment: list of subjects and objects controlled under the indicated SFP, and for
each, the SFP-relevant security attributes, or named groups of SFP-relevant security
attributes: (1) the S.User is associated with the security attribute Role (2) the SVD.
PP: assignment: rules governing access among controlled subjects and controlled
objects using controlled operations on controlled objects: [selection: R.Admin, R.Sigy ]
is allowed to export SVD.
PP: assignment: rules, based on security attributes, that explicitly authorise access of
subjects to objects: none
PP: assignment: rules, based on security attributes, that explicitly deny access of
subjects to objects: none.
ST: selection: R.Admin, R.Sigy: R.Admin;
FDP_ACC.1/Signature-creation_SFP Subset access control
Hierarchical to: No other components.
Dependencies:
FDP_ACF.1 Security attribute based access control
FDP_ACC.1.1/ Signaturecreation_SFP
The TSF shall enforce the Signature-creation_SFP on
(1) subjects: S.User,
(2) objects: DTBS/R, SCD,
(3) operations: signature-creation.
Application note 13: The following operations have been performed:
PP: assignment: access control SFP: Signature-creation_SFP
PP: assignment: list of subjects, objects, and operations among subjects and objects
covered by the SFP: (1) subjects: S.User, (2) objects: DTBS/R, SCD, (3) operations:
signature-creation.
FDP_ACF.1/Signature-creation_SFP Security attribute based access control
Hierarchical to: No other components.
Dependencies:
FDP_ACC.1 Subset access control
FMT_MSA.3 Static attribute initialisation
FDP_ACF.1.1/ Signaturecreation_SFP
FDP_ACF.1.2/ Signaturecreation_SFP
Page 44 of 86
The TSF shall enforce the Signature-creation_SFP to
objects based on the following:
(1) the user S.User is associated with the security
attribute "Role" and
(2) the SCD with the security attribute "SCD
Operational".
The TSF shall enforce the following rules to
determine if an operation among controlled subjects
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
and controlled objects is allowed:
FDP_ACF.1.3/ Signaturecreation_SFP
FDP_ACF.1.4/ Signaturecreation_SFP
R.Sigy is allowed to create digital signatures for
DTBS/R with SCD which security attribute “SCD
operational” is set to “yes”.
The TSF shall explicitly authorise access of subjects
to objects based on the following additional rules:
none.
The TSF shall explicitly deny access of subjects to
objects based on the following additional rules:
S.User is not allowed to create digital signatures for
DTBS/R with SCD which security attribute “SCD
operational” is set to “no”.
Application note 14: The following operations have been performed:
PP: assignment: access control SFP: Signature-creation_SFP
PP: assignment: list of subjects and objects controlled under the indicated SFP, and for
each, the SFP-relevant security attributes, or named groups of SFP-relevant security
attributes: (1) the user S.User is associated with the security attribute "Role" and (2) the
SCD with the security attribute "SCD Operational".
PP: assignment: rules governing access among controlled subjects and controlled
objects using controlled operations on controlled objects: R.Sigy is allowed to create
digital signatures for DTBS/R with SCD which security attribute “SCD operational” is
set to “yes”.
PP: assignment: rules, based on security attributes, that explicitly authorise access of
subjects to objects: none
PP: assignment: rules, based on security attributes, that explicitly deny access of
subjects to objects: S.User is not allowed to create digital signatures for DTBS/R with
SCD which security attribute “SCD operational” is set to “no”.
FDP_DAU.2/SVD
Data Authentication with Identity of Guarantor
Hierarchical to: FDP_DAU.1 Basic Data Authentication
Dependencies: FIA_UID.1 Timing of identification
FDP_DAU.2.1/SVD
FDP_DAU.2.2/SVD
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
The TSF shall provide a capability to generate
evidence that can be used as a guarantee of the
validity of SVD.
The TSF shall provide CGA with the ability to verify
evidence of the validity of the indicated information
and the identity of the user that generated the
evidence.
Page 45 of 86
7 IT Security Requirements
Public
Application note ST: The following operations have been performed:
ST: assignment: list of objects or information types: SVD
ST: assignment: list of subjects: CGA
FDP_RIP.1
Subset residual information protection
Hierarchical to: No other components.
Dependencies:
No dependencies.
FDP_RIP.1.1
The TSF shall ensure that any previous information
content of a resource is made unavailable upon the
de-allocation of the resource from the following
objects: SCD.
Application note 15: The following operations have been performed:
PP: selection: allocation of the resource to, deallocation of the resource from: deallocation of the resource from
PP: assignment: list of objects: SCD
The following data persistently stored by the TOE shall have the user data attribute
"integrity checked persistent stored data":
(1.) SCD
(2.) SVD (if persistently stored by the TOE).
The DTBS/R temporarily stored by the TOE has the user data attribute "integrity
checked stored data":
FDP_SDI.2/Persistent
Stored data integrity monitoring and action
Hierarchical to: FDP_SDI.1 Stored data integrity monitoring.
Dependencies:
No dependencies.
FDP_SDI.2.1/ Persistent
The TSF shall monitor user data stored in containers
controlled by the TSF for integrity error on all
objects, based on the following attributes: integrity
checked persistent stored data.
FDP_SDI.2.2/ Persistent
Upon detection of a data integrity error, the TSF shall
(1) prohibit the use of the altered data
(2) inform the S.Sigy about integrity error.
Application note 16: The following operations have been performed:
PP: assignment: integrity errors: integrity error
PP: assignment: user data attributes: integrity checked persistent stored data
Page 46 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
PP: assignment: action to be taken: (1) prohibit the use of the altered data (2) inform the
S.Sigy about integrity error.
FDP_SDI.2/DTBS
Stored data integrity monitoring and action
Hierarchical to: FDP_SDI.1 Stored data integrity monitoring.
Dependencies:
No dependencies.
FDP_SDI.2.1/DTBS
FDP_SDI.2.2/DTBS
The TSF shall monitor user data stored in containers
controlled by the TSF for integrity error on all
objects, based on the following attributes: integrity
checked stored DTBS.
Upon detection of a data integrity error, the TSF shall
(1) prohibit the use of the altered data
(2) inform the S.Sigy about integrity error.
Application note 17: The integrity of TSF data like RAD shall be protected to ensure
the effectiveness of the user authentication. This protection is a specific aspect of the
security architecture (cf. ADV_ARC.1).
The following operations have been performed:
PP: assignment: integrity errors: integrity error
PP: assignment: user data attributes: integrity checked stored DTBS
PP: assignment: action to be taken: (1) prohibit the use of the altered data (2) inform the
S.Sigy about integrity error.
7.2.4
Identification and authentication (FIA)
FIA_API.1
Authentication Proof of Identity
Hierarchical to: No other components.
Dependencies:No dependencies.
FIA_API.1.1
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
The TSF shall provide a Chip and Terminal
Authentication Protocol according to chapter 4 of
[19], symmetric authentication scheme according
chapter 8.8 [20], PACE according chapter 4 of [19]
with AES encryption of the nonce, digital signaturegeneration PSS and PKCS1-v1_5 according chapter 8
and 9 of [8] and ECDSA digital signature-generation
with the curves brainpoolP224r1, brainpoolP256r1,
brainpoolP320r1, brainpoolP384r1, brainpoolP512r1
according chapter 6 of [17] and the curves secp256r1,
secp384r1 and secp521r1 according chapter 2 of [18]
Page 47 of 86
7 IT Security Requirements
Public
to prove the identity of the SSCD.
Application note ST: The following operations have been performed:
ST: assignment: authentication mechanism: Chip and Terminal Authentication Protocol
according to chapter 4 of [19], symmetric authentication scheme according chapter 8.8
[20], PACE according chapter 4 of [19] with AES encryption of the nonce, digital
signature-generation PSS and PKCS1-v1_5 according chapter 8 and 9 of [8] and
ECDSA digital signature-generation with the curves brainpoolP224r1, brainpoolP256r1,
brainpoolP320r1, brainpoolP384r1, brainpoolP512r1 according chapter 6 of [17] and the
curves secp256r1, secp384r1 and secp521r1 according chapter 2 of [18]
ST: assignment: authorized user or rule: SSCD
The TOE will authenticate itself as SSCD to the CGA.
FIA_UID.1
Timing of identification
Hierarchical to: No other components.
Dependencies:
No dependencies.
FIA_UID.1.1
FIA_UID.1.2
The TSF shall allow
(1) Self test according to FPT_TST.1,
(2) establishing a trusted channel between the CGA
and the TOE by means of TSF required by
FTP_ITC.1/SVD,
(3) establishing a trusted channel between the HID
and the TOE by means of TSF required by
FTP_ITC.1/Conf_VAD,
(4) Receiving DTBS
on behalf of the user to be performed before the user
is identified.
The TSF shall require each user to be successfully
identified before allowing any other TSF-mediated
actions on behalf of that user.
Application note 18: The following operations have been performed:
PP: assignment: list of TSF-mediated actions: (1) Self test according to FPT_TST.1, (2)
[assignment: list of additional TSF-mediated actions]
ST: assignment: list of additional TSF-mediated actions: (2)establishing a trusted
channel between the CGA and the TOE by means of TSF required by FTP_ITC.1/SVD,
(3) establishing a trusted channel between the HID and the TOE by means of TSF
required by FTP_ITC.1/Conf_VAD, (4) Receiving DTBS.
Page 48 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
FIA_UAU.1
Timing of authentication
Hierarchical to: No other components.
Dependencies:
FIA_UID.1 Timing of identification.
FIA_UAU.1.1
The TSF shall allow
(1) Self test according to FPT_TST.1,
(2) Identification of the user by means of TSF
required by FIA_UID.1.
(3) establishing a trusted channel between the CGA
and the TOE by means of TSF required by
FTP_ITC.1/SVD,
(4) establishing a trusted channel between the HID
and the TOE by means of TSF required by
FTP_ITC.1/Conf_VAD,
(5) Receiving DTBS.
on behalf of the user to be performed before the user
is authenticated.
The TSF shall require each user to be successfully
authenticated before allowing any other TSFmediated actions on behalf of that user.
FIA_UAU.1.2
Application note 19: The following operations have been performed:
PP: assignment: list of TSF-mediated actions: (1) Self test according to FPT_TST.1, (2)
Identification of the user by means of TSF required by FIA_UID.1, (3) [assignment: list
of additional TSF-mediated actions]
ST: assignment: list of additional TSF-mediated actions: (3) establishing a trusted
channel between the CGA and the TOE by means of TSF required by FTP_ITC.1/SVD,
(4) establishing a trusted channel between the HID and the TOE by means of TSF
required by FTP_ITC.1/Conf_VAD, (5) Receiving DTBS.
FIA_AFL.1
Authentication failure handling
Hierarchical to: No other components.
Dependencies:
FIA_UAU.1 Timing of authentication
FIA_AFL.1.1
FIA_AFL.1.2
The TSF shall detect when an administrator
configurable positive integer within 1 and 10
unsuccessful authentication attempts occur related to
consecutive failed authentication attempts.
When the defined number of unsuccessful
authentication attempts has been met, the TSF shall
block RAD.
Application note 20: The following operations have been performed:
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 49 of 86
7 IT Security Requirements
Public
PP: assignment: list of authentication events: consecutive failed authentication attempts
PP: selection: met, surpassed: met
PP: assignment: list of actions: block RAD.
ST: selection: [assignment: positive integer number], an administrator configurable
positive integer within [assignment: range of acceptable values]: an administrator
configurable positive integer within 1 and 10
7.2.5
Security management (FMT)
FMT_SMR.1
Security roles
Hierarchical to: No other components.
Dependencies:
FIA_UID.1 Timing of identification.
FMT_SMR.1.1
The TSF shall maintain the roles R.Admin and
R.Sigy.
FMT_SMR.1.2
The TSF shall be able to associate users with roles.
Application note 21: The following operations have been performed:
PP: assignment: the authorised identified roles: R.Admin and R.Sigy
FMT_SMF.1
Security management functions
Hierarchical to: No other components.
Dependencies:
No dependencies.
FMT_SMF.1.1
The TSF shall be capable of performing the following
management functions:
(1) Creation and modification of RAD,
(2) Enabling the signature-creation function,
(3) Modification of the security attribute SCD/SVD
management, SCD operational,
(4) Change the default value of the security attribute
SCD Identifier
(5) none.
Application note 22: The following operations have been performed:
PP: assignment: list of security management functions to be provided by the TSF: (1)
Creation and modification of RAD, (2) Enabling the signature-creation function, (3)
Modification of the security attribute SCD/SVD management, SCD operational (4)
Change the default value of the security attribute SCD Identifier (5) [assignment: list of
other security management functions to be provided by the TSF].
ST: assignment: list of other security management functions to be provided by the TSF:
none
Page 50 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
FMT_MOF.1
Management of security functions behaviour
Hierarchical to: No other components.
Dependencies:
FMT_SMR.1 Security roles
FMT_SMF.1 Specification of Management Functions.
The TSF shall restrict the ability to enable the
signature-creation function to R.Sigy.
Application note 23: The following operations have been performed:
PP: selection: determine the behaviour of, disable, enable, modify the behaviour of:
enable
FMT_MOF.1.1
PP: assignment: list of functions: signature-creation function
PP: assignment: the authorised identified roles: R.Sigy
FMT_MSA.1/Admin
Management of security attributes
Hierarchical to: No other components.
Dependencies:
[FDP_ACC.1 Subset access control, or
FDP_IFC.1 Subset information flow control]
FMT_SMR.1 Security roles
FMT_SMF.1 Specification of Management Functions
FMT_MSA.1.1/
Admin
The TSF shall enforce the
SCD/SVD_Generation_SFP to restrict the ability to
modify the security attributes SCD / SVD
management to R.Admin.
Application note 24: The following operations have been performed:
PP: assignment: access control SFP(s), information flow control SFP(s):
SCD/SVD_Generation_SFP
PP: selection: change_default, query, modify, delete, [assignment: other operations]:
modify [assignment: other operations]
PP: assignment: list of security attributes: SCD / SVD management
PP: assignment: the authorised identified roles: R.Admin
Application Note ST: Instead of assigning 'none' to 'other operations' the assignment
has been deleted from the SFR for clarity.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 51 of 86
7 IT Security Requirements
Public
FMT_MSA.1/Signatory
Management of security attributes
Hierarchical to: No other components.
Dependencies:
[FDP_ACC.1 Subset access control, or
FDP_IFC.1 Subset information flow control]
FMT_SMR.1 Security roles
FMT_SMF.1 Specification of Management Functions
The TSF shall enforce the Signature-creation_SFP to
restrict the ability to modify the security attributes
SCD operational to R.Sigy.
Application note 25: The following operations have been performed:
PP: assignment: access control SFP(s), information flow control SFP(s): Signaturecreation_SFP
FMT_MSA.1.1/
Signatory
PP: selection: change_default, query, modify, delete, [assignment: other operations]:
modify
PP: assignment: list of security attributes: SCD operational
PP: assignment: the authorised identified roles: R.Sigy
FMT_MSA.2
Secure security attributes
Hierarchical to: No other components.
Dependencies:
[FDP_ACC.1 Subset access control, or
FDP_IFC.1 Subset information flow control]
FMT_SMR.1 Security roles
FMT_SMF.1 Specification of Management Functions
FMT_MSA.2.1
The TSF shall ensure that only secure values are
accepted for SCD / SVD Management and SCD
operational.
Application note 26: For 'SCD / SVD Management' only the secure values 'authorised'
and 'not authorised' are accepted by the TOE. Both values are possible prior to
conclusion of the personalisation phase and after conclusion of the personalisation
phase. The default value is 'not authorised'. This value is secure, because with 'SCD /
SVD Management' set to 'not authorised' no management of SCD and/or SVD can be
performed. Especially, generation of a SCD/SVD pair is not possible in this state.
Page 52 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
Only R.Admin can set 'SCD / SVD Management' to 'authorised' and since authentication
as Administrator is required for that, also the value 'authorised' is secure.
For 'SCD operational' only the secure values 'yes' and 'no' are accepted. SCD operational
is set to 'no' as long as the RAD is still in its transport state. With SCD operational set to
'no' no signature can be generated so this value is secure. SCD operational can only be
set to 'yes' after conclusion of the personalisation phase and only by R.Sigy. Since an
authentication by RAD is required to set SCD operational to 'yes', also this value is
secure.
The following operations have been performed:
PP: assignment: list of security attributes: SCD / SVD Management and SCD
operational.
FMT_MSA.3
Static attribute initialisation
Hierarchical to: No other components.
Dependencies:
FMT_MSA.1 Management of security attributes
FMT_SMR.1 Security roles
FMT_MSA.3.1
The TSF shall enforce the
SCD/SVD_Generation_SFP, SVD_Transfer_SFP and
Signature-creation_SFP to provide restrictive default
values for security attributes that are used to enforce
the SFP.
FMT_MSA.3.2
The TSF shall allow the R.Admin to specify
alternative initial values to override the default values
when an object or information is created.
Application note 27: The following operations have been performed:
PP: assignment: access control SFP, information flow control SFP:
SCD/SVD_Generation_SFP, SVD_Transfer_SFP and Signature-creation_SFP
PP: selection, chose one of: restrictive, permissive, [assignment: other property]:
restrictive
PP: assignment: the authorised identified roles: R.Admin
FMT_MSA.4
Security attribute value inheritance
Hierarchical to: No other components.
Dependencies:
[FDP_ACC.1 Subset access control, or
FDP_IFC.1 Subset information flow control]
FMT_MSA.4.1
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
The TSF shall use the following rules to set the value
Page 53 of 86
7 IT Security Requirements
Public
of security attributes:
(1) If S.Admin successfully generates an
SCD/SVD pair without the S.Sigy being
authenticated the security attribute “SCD
operational of the SCD" shall be set to “no”as a
single operation.
(2) If S.Sigy successfully generates an SCD/SVD
pair the security attribute “SCD operational of the
SCD” shall be set to “yes” as a single operation.
Application note 28: The following operations have been performed:
PP: assignment: rules for setting the values of security attributes: (1) If S.Admin
successfully generates an SCD/SVD pair without the S.Sigy being authenticated the
security attribute “SCD operational of the SCD" shall be set to “no”as a single
operation. (2) If S.Sigy successfully generates an SCD/SVD pair the security attribute
“SCD operational of the SCD” shall be set to “yes” as a single operation.
As the TOE in the usage phase does not support generating an SVD/SCD pair by the
Administrator alone, the rule (1) is not relevant in the usage phase.
FMT_MTD.1/Admin
Management of TSF data
Hierarchical to: No other components.
Dependencies:
FMT_SMR.1 Security roles
FMT_SMF.1 Specification of Management Functions
The TSF shall restrict the ability to create the RAD to
R.Admin.
Application note 29: The following operations have been performed:
PP: selection: change_default, query, modify, delete, clear, [assignment: other
operations]: create (Remark: i.e. assignment for other operations)
FMT_MTD.1.1/Admin
PP: assignment: list of TSF data: RAD
PP: assignment: the authorised identified roles: R.Admin
FMT_MTD.1/Signatory
Management of TSF data
Hierarchical to: No other components.
Dependencies:
FMT_SMR.1 Security roles
FMT_SMF.1 Specification of Management Functions
FMT_MTD.1.1/
The TSF shall restrict the ability to modify the RAD
Signatory
to S.Sigy.
Application note 30: The following operations have been performed:
Page 54 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
PP: selection: change_default, query, modify, delete, clear, [assignment: other
operations]: modify [assignment: other operations]
PP: assignment: list of TSF data: RAD
PP: assignment: the authorised identified roles: S.Sigy
Application note 31: Instead of assigning 'none' to 'other operations' the assignment has
been deleted from the SFR for clarity.
7.2.6
Protection of the TSF (FPT)
FPT_EMSEC.1 TOE Emanation
Hierarchical to: No other components.
Dependencies:
No dependencies.
FPT_EMSEC.1.1
FPT_EMSEC.1.2
The TOE shall not emit information about IC power
consumption, electromagnetic radiation and
command execution time in excess of non useful
information enabling access to RAD and SCD.
The TSF shall ensure attacker are unable to use the
following interface contacts VCC, GND, IO and
electromagnetic radiation to gain access to RAD and
SCD.
Application note 32: The following operations have been performed:
PP: assignment: list of types of TSF data: RAD
PP: assignment: list of types of user data: SCD
PP: assignment: list of types of TSF data: RAD
PP: assignment: list of types of user data: SCD
ST: assignment: types of emissions: information about IC power consumption,
electromagnetic radiation and command execution time
ST: assignment: specified limits: non useful information
ST: assignment: type of users: attacker
ST: assignment: type of connection: contacts VCC, GND, IO and electromagnetic
radiation
The TOE shall prevent attacks against the SCD and other secret data where the attack is
based on external observable physical phenomena of the TOE. Such attacks may be
observable at the interfaces of the TOE or may origin from internal operation of the
TOE or may origin by an attacker that varies the physical environment under which the
TOE operates. The set of measurable physical phenomena is influenced by the
technology employed to implement the TOE. Examples of measurable phenomena are
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 55 of 86
7 IT Security Requirements
Public
variations in the power consumption, the timing of transitions of internal states,
electromagnetic radiation due to internal operation, radio emission.
Due to the heterogeneous nature of the technologies that may cause such emanations,
evaluation against state-of-the-art attacks applicable to the technologies employed by the
TOE is assumed. Examples of such attacks are, but are not limited to, evaluation of
TOE’s electromagnetic radiation, simple power analysis (SPA), differential power
analysis (DPA), timing attacks, etc.
FPT_FLS.1
Failure with preservation of secure state
Hierarchical to: No other components.
Dependencies:
No dependencies.
FPT_FLS.1.1
The TSF shall preserve a secure state when the
following types of failures occur:
(1) self-test according to FPT_TST fails,
(2) inconsistencies in the calculation of the
signature.
Application note 33: The following operations have been performed:
PP: assignment: list of types of failures in the TSF: (1) self-test according to FPT_TST
fails, (2) [assignment: list of other types of failures in the TSF].
ST: assignment: list of other types of failures in the TSF: inconsistencies in the
calculation of the signature
FPT_PHP.1
Passive detection of physical attack
Hierarchical to: No other components.
Dependencies:
No dependencies.
FPT_PHP.1.1
The TSF shall provide unambiguous detection of
physical tampering that might compromise the TSF.
The TSF shall provide the capability to determine
whether physical tampering with the TSF’s devices or
TSF’s elements has occurred.
FPT_PHP.1.2
FPT_PHP.3
Resistance to physical attack
Hierarchical to: No other components.
Dependencies:
No dependencies.
FPT_PHP.3.1
Page 56 of 86
The TSF shall resist tampering of the physical
operating conditions voltage supply, clock frequency
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
and temperature beyond the valid limits to the IC by
responding automatically such that the SFRs are
always enforced.
Application note 34: The following operations have been performed:
ST: assignment: physical tampering scenarios: tampering of the physical operating
conditions voltage supply, clock frequency and temperature beyond the valid limits
ST: assignment: list of TSF devices/elements: IC
The TOE will implement appropriate measures to continuously counter physical
tampering which may compromise the SCD. The “automatic response” in the element
FPT_PHP.3.1 means (i) assuming that there might be an attack at any time and (ii)
countermeasures are provided at any time. Due to the nature of these attacks the TOE
can by no means detect attacks on all of its elements (e.g. the TOE is destroyed). But
physical tampering must not reveal information of the SCD. E.g. the TOE may be
physically tampered in power-off state of the TOE (e.g. a smart card), which does not
allow TSF for overwriting the SCD but leads to physical destruction of the memory and
all information therein about the SCD. In case of physical tampering the TSF may not
provide the intended functions for SCD/SVD pair generation or signature-creation but
ensures the confidentiality of the SCD by blocking these functions. The SFR
FPT_PHP.1 requires the TSF to react on physical tampering in a way that the signatory
is able to determine whether the TOE was physical tampered or not. E.g. the TSF may
provide an appropriate message during start-up or the guidance documentation may
describe a failure of TOE start-up as indication of physical tampering.
FPT_TST.1
TSF testing
Hierarchical to: No other components.
Dependencies:
No dependencies.
FPT_TST.1.1
FPT_TST.1.2
FPT_TST.1.3
The TSF shall run a suite of self tests during initial
start-up, periodically during normal operation, at the
condition Reset of the TOE to demonstrate the
correct operation of the TSF.
The TSF shall provide authorised users with the
capability to verify the integrity of TSF data.
The TSF shall provide authorised users with the
capability to verify the integrity of stored TSF
executable code.
Application note 35: The following operations have been performed:
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 57 of 86
7 IT Security Requirements
Public
PP: selection: [assignment: parts of TSF], the TSF: the TSF
PP: selection: [assignment: parts of TSF data], TSF data: TSF data
PP: selection: [assignment: parts of TSF], TSF: stored TSF executable code (Remark:
i.e. assignment to parts of TSF)
ST: selection: during initial start-up, periodically during normal operation, at the
request of the authorised user, at the conditions: during initial start-up, periodically
during normal operation, at the condition
ST: assignment: conditions under which self test should occur: Reset of the TOE
7.2.7
Trusted Path/Channels (FTP)
FTP_ITC.1/SVD Inter-TSF trusted channel
Hierarchical to: No other components.
Dependencies:No dependencies.
FTP_ITC.1.1/SVD
FTP_ITC.1.2/SVD
FTP_ITC.1.3/SVD
The TSF shall provide a communication channel
between itself and another trusted IT product CGA
that is logically distinct from other communication
channels and provides assured identification of its
end points and protection of the channel data from
modification or disclosure.
The TSF shall permit another trusted IT product to
initiate communication via the trusted channel.
The TSF or the CGA shall initiate communication
via the trusted channel for Data Authentication with
Identity of Guarantor according to FIA_API.1 and
FDP_DAU.2/SVD.
Application note ST: The following operations have been performed:
ST: Refinement: The trusted IT product in FTP_ITC.1.1 has been refined as CGA.
ST: selection: the TSF, another trusted IT product: another trusted IT product
ST: assignment: list of functions for which a trusted channel is required: Data
Authentication with Identity of Guarantor according to FDP_DAU.2/SVD
Application note 36a: The TOE supports the establishment of a trusted path/channel
based on mutual authentication with negotiation of symmetric cryptographic keys used
for the protection of the communication data with respect to confidentiality and
integrity. AES 128, AES 192 and AES 256 [21] are provided by the TOE to secure the
communication data according chapter 9 of [20]. Communication data can also be
secured by a signature, for the supported signature mechanism and the mutual
Page 58 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
Authentication protocols see FIA_API.1.1. As hash functions the TOE supports SHA-2
(224 bit, 256 bit, 384 bit and 512 bit) according [22].
FTP_ITC.1/Conf_VAD
Device
Inter-TSF trusted channel – TC Human Interface
Hierarchical to: No other components.
Dependencies: No dependencies.
FTP_ITC.1.1/ Conf_VAD
FTP_ITC.1.2/ Conf_VAD
FTP_ITC.1.3/ Conf_VAD
The TSF shall provide a communication channel
between itself and another trusted IT product HID
that is logically distinct from other communication
channels and provides assured identification of its
end points and protection of the channel data from
modification or disclosure.
The TSF shall permit the remote trusted IT product to
initiate communication via the trusted channel.
The TSF or the HID shall initiate communication
via the trusted channel for
(1) None.
Application note ST: The following operations have been performed:
ST: Refinement: The trusted IT product in FTP_ITC.1.1 has been refined as HID.
ST: selection: the TSF, another trusted IT product: the remote trusted IT product
ST: assignment: list of functions for which a trusted channel is required: None
FTP_ITC.1/Conf_DTBS
Application
Inter-TSF trusted channel – Signature-creation
Hierarchical to: No other components.
Dependencies: No dependencies.
FTP_ITC.1.1/Conf_DTBS
FTP_ITC.1.2/Conf_DTBS
FTP_ITC.1.3/Conf_DTBS
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
The TSF shall provide a communication channel
between itself and another trusted IT product SCA
that is logically distinct from other communication
channels and provides assured identification of its
end points and protection of the channel data from
modification or disclosure.
The TSF shall permit the remote trusted IT product to
initiate communication via the trusted channel.
The TSF or the SCA shall initiate communication
via the trusted channel for
Page 59 of 86
7 IT Security Requirements
Public
(1) None.
Application note ST: The following operations have been performed:
ST: Refinement: The trusted IT product in FTP_ITC.1.1 has been refined as SCA.
ST: selection: the TSF, another trusted IT product: the remote trusted IT product
ST: assignment: list of functions for which a trusted channel is required: None
7.3
TOE Security Assurance Requirements
Assurance Class
Assurance components
ADV: Development
ADV_ARC.1 Architectural Design with domain
separation and non-bypassability
ADV_FSP.4 Complete functional specification
ADV_IMP.1 Implementation representation of the TSF
ADV_TDS.3 Basic modular design
AGD: Guidance documents
AGD_OPE.1 Operational user guidance
AGD_PRE.1 Preparative procedures
ALC: Life-cycle support
ALC_CMC.4 Production support, acceptance
procedures and automation
ALC_CMS.4 Problem tracking CM coverage
ALC_DEL.1 Delivery procedures
ALC_DVS.1 Identification of security measures
ALC_LCD.1 Developer defined life-cycle model
ALC_TAT.1 Well-defined development tools
ASE: Security Target
evaluation
ASE_CCL.1 Conformance claims
ASE_ECD.1 Extended components definition
ASE_INT.1 ST introduction
ASE_OBJ.2 Security objectives
ASE_REQ.2 Derived security requirements
ASE_SPD.1 Security problem definition
ASE_TSS.1 TOE summary specification
ATE: Tests
Page 60 of 86
ATE_COV.2 Analysis of coverage
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
7 IT Security Requirements
Assurance Class
Assurance components
ATE_DPT.1 Testing: basic design
ATE_FUN.1 Functional testing
ATE_IND.2 Independent testing – sample
AVA: Vulnerability
assessment
AVA_VAN.5 Advanced methodical vulnerability
analysis
Table 2: Assurance Requirements: EAL4 augmented with AVA_VAN.5
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 61 of 86
8 TOE Summary Specification
8
Public
TOE Summary Specification
This chapter gives the overview description of the different TOE Security Functions
composing the TSF.
8.1
SF_AccessControl
The TOE provides access control mechanisms that allow among others the maintenance
of different users (Administrator, Signatory). After activation or reset no user is
authenticated. (FMT_SMR.1)
The Administrator can authenticate himself using Terminal Authentication Protocol
according to [19], symmetric authentication scheme according [20], PACE according
[19] with AES encryption of the nonce. Furthermore contactless communication
requires the execution of the PACE Protocol according to [19]. The Signatory can
authenticate himself using the signature PIN. After up to 10 unsuccessful consecutive
authentication attempts the signature PIN is permanently blocked. The administrator
defines the maximum number of attempts. (FIA_AFL.1)
The access control mechanisms ensure that only the Administrator can generate the
signature key pair or export the public signature key in an authentic way for certification
or store a transport value for the signature PIN. The access control mechanisms also
ensure that only the Signatory can set and change the signature PIN or generate
electronic signatures using the private signature key.
(FDP_ACC.1/SCD/SVD_Generation_SFP, FDP_ACF.1/SCD/SVD_Generation_SFP,
FDP_ACC.1/SVD_Transfer_SFP, FDP_ACF.1/SVD_Transfer_SFP,
FDP_ACC.1/Signature-creation_SFP, FDP_ACF.1/Signature-creation_SFP,
FMT_SMF.1, FMT_MOF.1, FMT_MSA.1/Admin, FMT_MSA.1/Signatory,
FMT_MTD.1/Signatory)
If the TOE is issued with a generated SCD, the signatory has to first set the RAD before
the SCD is operational; in the operational usage phase the RAD need to be set by the
signatory before the SCD can be generated. (FMT_MSA.4)
The creation of the RAD can only be performed by the administrator during the
initialisation and personalisation phase. (FMT_MTD.1/Admin)
The access control mechanisms allow the execution of certain security relevant actions
(e.g. self-tests) without successful user authentication. (FIA_UID.1, FIA_UAU.1)
All security attributes under access control have secure default values and are modified
in a secure way so that no unauthorised modifications are possible. (FMT_MSA.2,
FMT_MSA.3)
Page 62 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
8.2
8 TOE Summary Specification
SF_AssetProtection
When the private signature key or the signature PIN are no longer needed in the internal
memory of the TOE for calculations these parts of the memory are overwritten.
(FDP_RIP.1)
The TOE supports the calculation of block check values for data integrity checking.
These block check values are stored with persistently stored assets residing on the TOE
as well as temporarily stored hash values for data that is intended to be signed.
(FDP_SDI.2/Persistent, FDP_SDI.2/DTBS)
The TOE hides information about IC power consumptions and command execution
time, to ensure that no confidential information can be derived. (FPT_EMSEC.1)
8.3
SF_TSFProtection
The TOE detects physical tampering of the TSF with sensors for operating voltage,
clock frequency, temperature and electromagnetic radiation. The TOE is resistant to
physical tampering of the TSF. If the TOE detects with the above mentioned sensors,
that it is not supplied within the specified limits, a security reset is initiated and the TOE
is not operable until the supply is back in the specified limits. The design of the
hardware protects it against analysing and physical tampering. (FPT_PHP.1,
FPT_PHP.3)
The TOE demonstrates the correct operation of the TSF by among others verifying the
integrity of the TSF and TSF data and verifying the absence of fault injections. In the
case of inconsistencies in the calculation of the signature and fault injections during the
operation of the TSF the TOE preserves a secure state. (FPT_TST.1, FPT_FLS.1)
8.4
SF_KeyManagement
The TOE contains a deterministic random number generator rated K4 (high) according
to AIS20 [12]. The seed for the deterministic random number generator is provided by
the P2 (high) true random number generator of the underlying IC. The TOE supports
onboard generation of RSA keypairs with key length 2048 bit - 4096 bit (in 8 bit steps)
and generation of ECC keypairs with key length 224 bit, 256 bit. 320 bit, 384 bit, 512
bit, 521 bit for the following curves brainpoolP224r1, brainpoolP256r1,
brainpoolP320r1, brainpoolP384r1, brainpoolP512r1 according [17] and the curves
secp256r1, secp384r1 and secp521r1 according [18]. (FCS_CKM.1/ECC,
FCS_CKM.1/RSA)
In the case that a signature key pair is terminated on request of the signatory, the
signature key pair will be deleted by the TOE. (FCS_CKM.4/ECC, FCS_CKM.4/RSA)
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 63 of 86
8 TOE Summary Specification
8.5
Public
SF_SignatureGeneration
The TOE supports calculations with elliptic curves defined over a field F(p) with lengths
of the parameters p and q of 256 bit. 320 bit, 384 bit, 512 bit, 521 bit for the following
curves brainpoolP256r1, brainpoolP320r1, brainpoolP384r1, brainpoolP512r1 according
[17] and the curves secp256r1, secp384r1 and secp521r1 according [18]. In addition, the
TOE supports calculations of hash values according to SHA-2 (224 bit, 256 bit, 384 bit
and 512 bit) according [22]. Based on these calculations the TOE supports generation of
EC-DSA signatures according to chapter 6.4 of [7]. (FCS_COP.1/ECC, FIA_API.1)
Furthermore RSA calculations with key length from 2048 bit up to 4096 bit (in 8 bit
steps) are supported; the signatures can be generated according PSS and PKCS1-v1_5 of
chapter 8 and 9 of [8]. (FCS_COP.1/RSA, FIA_API.1)
8.6
SF_TrustedCommunication
The TOE supports the establishment of a trusted channel/path based on mutual
authentication with negotiation of symmetric cryptographic keys used for the protection
of the communication data with respect to confidentiality and integrity. AES 128, AES
192 and AES 256 [21] are provided by the TOE to secure the communication data
according chapter 9 of [20]. (FIA_API.1, FTP_ITC.1/SVD, FTP_ITC.1/Conf_VAD,
FTP_ITC.1/Conf_DTBS)
Via this trusted channel/path the Administrator can authentically export the public
signature key for certification and import the certificate or certificate information for the
public signature key. (FDP_DAU.2/SVD)
8.7
Assurance Measures
This chapter describes the Assurance Measures fulfilling the requirements listed in
chapter 7.3.
The following table lists the Assurance measures and references the corresponding
documents describing the measures.
Table 6.2: References of Assurance Measures
Assurance
Measures
Description
AM_ADV
The representing of the TSF is described in the documentation for
functional specification, in the documentation for TOE design, in the
security architecture description and in the documentation for
implementation representation.
The guidance documentation is described in the operational user
guidance documentation and in the documentation for preparative
procedures.
AM_AGD
Page 64 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
8 TOE Summary Specification
AM_ALC
AM_ATE
AM_AVA
The life cycle support of the TOE during its development and
maintenance is described in the life cycle documentation including
configuration management, delivery procedures, development
security as well as development tools.
The testing of the TOE is described in the test documentation.
The vulnerability assessment for the TOE is described in the
vulnerability analysis documentation.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 65 of 86
FCS_CKM.1/ECC
X
FCS_CKM.4/ECC
X
FCS_COP.1/ECC
X
FCS_CKM.1/RSA
X
FCS_CKM.4/RSA
X
FCS_COP.1/RSA
X
FDP_ACC.1/
SCD/SVD_Generation_SFP
X
FDP_ACC.1/
SVD_Transfer_SFP
X
FDP_ACC.1/Signaturecreation_SFP
X
FDP_ACF.1/
SCD/SVD_Generation_SFP
X
FDP_ACF.1/
SVD_Transfer_SFP
X
FDP_ACF.1/Signaturecreation_SFP
X
FDP_SDI.2/DTBS
Page 66 of 86
OT.TOE_confTC_DTBS_Imp
OT.TOE_confTC_VAD_Imp
OT.TOE_TC_SVD_Exp
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
FDP_DAU.2/SVD
FIA_AFL.1.
OT.TOE_SSCD_Auth
X
FDP_RIP.1
FDP_SDI.2/Persistent
OT.Tamper_Resistance
X
OT.DTBS_Integrity_TOE
X
OT.Sigy_SigF
X
OT.Sig_Secure
Security Requirement Coverage
OT.SCD_Secrecy
9.1.1
OT.SCD_SVD_Corresp
Security Requirements Rationale
OT.SCD_Unique
9.1
OT.SCD/SVD_Gen
Rationale
OT.Lifecycle_Security
9
OT.Tamper_ID
Public
OT.EMSEC_Design
9 Rationale
X
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
X
FIA_UAU.1
X
OT.TOE_confTC_DTBS_Imp
OT.TOE_confTC_VAD_Imp
OT.TOE_TC_SVD_Exp
OT.TOE_SSCD_Auth
OT.Tamper_Resistance
OT.Tamper_ID
OT.EMSEC_Design
OT.DTBS_Integrity_TOE
OT.Sigy_SigF
OT.Sig_Secure
OT.SCD_Secrecy
OT.SCD_SVD_Corresp
OT.SCD_Unique
OT.SCD/SVD_Gen
9 Rationale
OT.Lifecycle_Security
Public
X
X
FIA_API.1
X
FIA_UID.1
X
FMT_MOF.1
X
X
FMT_MSA.1/Admin
X
FMT_MSA.1/Signatory
X
FMT_MSA.2
X
X
X
FMT_MSA.3
X
X
X
FMT_MSA.4
X
X
X
FMT_MTD.1/Admin
X
X
FMT_MTD.1/Signatory
X
X
FMT_SMR.1
X
X
FMT_SMF.1
X
X
X
X
FPT_EMSEC.1
X
FPT_FLS.1
X
X
X
FPT_PHP.1
X
FPT_PHP.3
X
FPT_TST.1
X
X
X
X
FTP_ITC.1/SVD
X
FTP_ITC.1/Conf_VAD
X
FTP_ITC.1/Conf_DTBS
Table 3: Functional Requirement to TOE security objective mapping
9.1.2
TOE Security Requirements Sufficiency
OT.Lifecycle_Security (Lifecycle security) is provided by the SFR for SCD/SVD
generation FCS_CKM.1, SCD usage FCS_COP.1 and SCD destruction FCS_CKM.4
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 67 of 86
9 Rationale
Public
ensure cryptographically secure lifecycle of the SCD. The SCD/SVD generation is
controlled by TSF according to FDP_ACC.1/SCD/SVD_Generation_SFP and
FDP_ACF.1/SCD/SVD_Generation_SFP. The SVD transfer for certificate generation is
controlled by TSF according to FDP_ACC.1/SVD_Transfer_SFP and
FDP_ACF.1/SVD_Transfer_SFP. The SCD usage is ensured by access control
FDP_ACC.1/Signature-creation_SFP, FDP_ACF.1/Signature-creation_SFP which is
based on the security attribute secure TSF management according to FMT_MOF.1,
FMT_MSA.1/Admin, FMT_MSA.1/ Signatory, FMT_MSA.2, FMT_MSA.3,
FMT_MSA.4, FMT_MTD.1/Admin, FMT_MTD.1/Signatory, FMT_SMF.1 and
FMT_SMR.1. The test functions FPT_TST.1 provides failure detection throughout the
lifecycle.
OT.SCD/SVD_Gen (SCD/SVD generation) addresses that generation of a SCD/SVD
pair requires proper user authentication. The TSF specified by FIA_UID.1 and
FIA_UAU.1 provide user identification and user authentication prior to enabling access
to authorised functions. The SFR FDP_ACC.1/SCD/SVD_Generation_SFP and
FDP_ACF.1/SCD/SVD_Generation_SFP provide access control for the SCD/SVD
generation. The security attributes of the authenticated user are provided by
FMT_MSA.1/Admin, FMT_MSA.2, and FMT_MSA.3 for static attribute initialisation.
The SFR FMT_MSA.4 defines rules for inheritance of the security attribute “SCD
operational” of the SCD.
OT.SCD_Unique (Uniqueness of the signature-creation data) implements the
requirement of practically unique SCD as laid down in the Directive [1], Annex III,
article 1(a), which is provided by the cryptographic algorithms specified by
FCS_CKM.1.
OT.SCD_SVD_Corresp (Correspondence between SVD and SCD) addresses that the
SVD corresponds to the SCD implemented by the TOE. This is provided by the
algorithms specified by FCS_CKM.1 to generate corresponding SVD/SCD pairs. The
security functions specified by FDP_SDI.2/Persistent ensure that the keys are not
modified, so to retain the correspondence. Moreover, the SCD Identifier allows the
environment to identify the SCD and to link it with the appropriate SVD. The
management functions identified by FMT_SMF.1 and by FMT_MSA.4 allow R.Admin
to modify the default value of the security attribute SCD Identifier.
OT.SCD_Secrecy (Secrecy of signature-creation data) is provided by the security
functions specified by the following SFR. FCS_CKM.1 ensures the use of secure
cryptographic algorithms for SCD/SVD generation. Cryptographic quality of SCD/SVD
pair shall prevent disclosure of SCD by cryptographic attacks using the publicly known
SVD. The security functions specified by FDP_RIP.1 and FCS_CKM.4 ensure that
residual information on SCD is destroyed after the SCD has been use for signature
creation and that destruction of SCD leaves no residual information.
Page 68 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
9 Rationale
The security functions specified by FDP_SDI.2/Persistent ensure that no critical data is
modified which could alter the efficiency of the security functions or leak information of
the SCD. FPT_TST.1 tests the working conditions of the TOE and FPT_FLS.1
guarantees a secure state when integrity is violated and thus assures that the specified
security functions are operational. An example where compromising error conditions are
countered by FPT_FLS.1 is fault injection for differential fault analysis (DFA).
The SFR FPT_EMSEC.1 and FPT_PHP.3 require additional security features of the
TOE to ensure the confidentiality of the SCD.
OT.Sig_Secure (Cryptographic security of the digital signature) is provided by the
cryptographic algorithms specified by FCS_COP.1, which ensures the cryptographic
robustness of the signature algorithms. FDP_SDI.2/Persistent corresponds to the
integrity of the SCD implemented by the TOE and FPT_TST.1 ensures self-tests
ensuring correct signature-creation.
OT.Sigy_SigF (Signature creation function for the legitimate signatory only) is
provided by an SFR for identification authentication and access control.
FIA_UAU.1 and FIA_UID.1 ensure that no signature generation function can be
invoked before the signatory is identified and authenticated. The security functions
specified by FMT_MTD.1/Admin and FMT_MTD.1/Signatory manage the
authentication function. The SFR FIA_AFL.1 provides protection against a number of
attacks, such as cryptographic extraction of residual information, or brute force attacks
against authentication. The security function specified by FDP_SDI.2/DTBS ensures the
integrity of stored DTBS and FDP_RIP.1 prevents misuse of any resources containing
the SCD after de-allocation (e.g. after the signature-creation process).
The security functions specified by FDP_ACC.1/Signature-creation_SFP and
FDP_ACF.1/Signature-creation_SFP provide access control based on the security
attributes managed according to the SFR FMT_MTD.1/Signatory, FMT_MSA.2,
FMT_MSA.3 and FMT_MSA.4. The SFR FMT_SMF.1 and FMT_SMR.1 list these
management functions and the roles. These ensure that the signature process is restricted
to the signatory. FMT_MOF.1 restricts the ability to enable the signature-creation
function to the signatory. FMT_MSA.1/Signatory restricts the ability to modify the
security attributes SCD operational to the signatory.
OT.DTBS_Integrity_TOE (DTBS/R integrity inside the TOE) ensures that the
DTBS/R is not altered by the TOE. The integrity functions specified by
FDP_SDI.2/DTBS requires that the DTBS/R has not been altered by the TOE.
OT.EMSEC_Design (Provide physical emanations security) covers that no
intelligible information is emanated. This is provided by FPT_EMSEC.1.1.
OT.Tamper_ID (Tamper detection) is provided by FPT_PHP.1 by the means of
passive detection of physical attacks.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 69 of 86
9 Rationale
Public
OT.Tamper_Resistance (Tamper resistance) is provided by FPT_PHP.3 to resist
physical attacks.
OT.TOE_SSCD_Auth (Protection of VAD provided by SCA) requires the TOE to
provide security mechanisms to identify and to authenticate themselves as SSCD, which
is directly provided by FIA_API.1 (Authentication Proof of Identity).
OT.TOE_TC_SVD_EXP (TOE trusted channel for SVD) requires the TOE to provide
a trusted channel to the CGA to protect the integrity of the SVD exported to the CGA,
which is directly provided by
 The SVD transfer for certificate generation is controlled by TSF according to
FDP_ACC.1/SVD_Transfer_SFP and FDP_ACF.1/SVD_Transfer_SFP.
 FDP_DAU.2/SVD (Data Authentication with Identity of Guarantor), which
requires the TOE to provide CGA with the ability to verify evidence of the
validity of the SVD and the identity of the user that generated the evidence.
 FTP_ITC.1/SVD Inter-TSF trusted channel), which requires the TOE to provide
a trusted channel to the CGA.
OT.TOE_confTC_VAD_Imp (Trusted channel of TOE for VAD import) is
provided by FTP_ITC.1/Conf_VAD by allowing the administrator to configure the
availability of a trusted channel to protect the VAD provided by the HID to the TOE.
OT.TOE_confTC_DTBS_Imp (Trusted channel for DTBS) is provided by
FTP_ITC.1/Conf_DTBS by allowing the administrator to configure the availability of a
trusted channel to protect the DTBS provided by the SCA to the TOE.
9.2
Dependency Rationale for Security functional
Requirements
The following table provides an overview how the dependencies of the security
functional requirements are solved and a justification why some dependencies are not
being satisfied.
Requirement
FCS_CKM.1/ECC
FCS_CKM.4/ECC
Page 70 of 86
Dependencies
[FCS_CKM.2 or
FCS_COP.1],
FCS_CKM.4
[FDP_ITC.1 or
FDP_ITC.2 or
FCS_CKM.1]
Fulfilled
FCS_COP.1, FCS_CKM.4
FCS_CKM.1
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
9 Rationale
Requirement
FCS_COP.1/ECC
FCS_CKM.1/RSA
FCS_CKM.4/RSA
FCS_COP.1/RSA
FDP_ACC.1/
SCD/SVD_Generation_S
FP
FDP_ACC.1/
Signature-creation_SFP
FDP_ACC.1/
SVD_Transfer_SFP
FDP_ACF.1/
SCD/SVD_Generation_S
FP
FDP_ACF.1/
Signature-creation_SFP
FDP_ACF.1/
SVD_Transfer_SFP
FDP_DAU.2/SVD
FDP_RIP.1
FDP_SDI.2/Persistent
FDP_SDI.2/DTBS
FIA_AFL.1
FIA_UID.1
FIA_UAU.1
FIA_API.1
FMT_MOF.1
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Dependencies
[FDP_ITC.1 or
FDP_ITC.2 or
FCS_CKM.1],
FCS_CKM.4
[FCS_CKM.2 or
FCS_COP.1],
FCS_CKM.4
[FDP_ITC.1 or
FDP_ITC.2 or
FCS_CKM.1]
[FDP_ITC.1 or
FDP_ITC.2 or
FCS_CKM.1],
FCS_CKM.4
FDP_ACF.1
FDP_ACF.1
Fulfilled
FCS_CKM.1, FCS_CKM.4
FCS_COP.1, FCS_CKM.4
FCS_CKM.1
FCS_CKM.1, FCS_CKM.4
FDP_ACF.1/SCD/SVD_Generat
ion_SFP
FDP_ACF.1
FDP_ACF.1/Signature-Creation
SFP
FDP_ACF.1/SVD_Transfer_SFP
FDP_ACC.1,
FMT_MSA.3
FDP_ACC.1/SCD/SVD_Generat
ion_SFP, FMT_MSA.3
FDP_ACC.1,
FMT_MSA.3
FDP_ACC.1,
FMT_MSA.3
FIA_UID.1
No dependencies
No dependencies
No dependencies
FIA_UAU.1
No dependencies
FIA_UID.1
No dependencies
FMT_SMR.1,
FMT_SMF.1
FDP_ACC.1/Signaturecreation_SFP, FMT_MSA.3
FDP_ACC.1/SVD_Transfer_SF
P, FMT_MSA.3
FIA_UID.1
n. a.
n. a.
n. a.
FIA_UAU.1
n.a.
FIA_UID.1
n. a.
FMT_SMR.1, FMT_SMF.1
Page 71 of 86
9 Rationale
Public
Requirement
FMT_MSA.1/
Admin
FMT_MSA.1/
Signatory
FMT_MSA.2
Dependencies
[FDP_ACC.1 or
FDP_IFC.1],
FMT_SMR.1,
FMT_SMF.1
[FDP_ACC.1 or
FDP_IFC.1],
FMT_SMR.1,
FMT_SMF.1
[FDP_ACC.1 or
FDP_IFC.1],
FMT_MSA.1,
FMT_SMR.1
FMT_MSA.3
FMT_MSA.1,
FMT_SMR.1
FMT_MSA.4
[FDP_ACC.1 or
FDP_IFC.1]
FMT_MTD.1/
Admin
FMT_MTD.1/
Signatory
FMT_SMF.1
FMT_SMR.1
FPT_EMSEC.1
FPT_FLS.1
FPT_PHP.1
FPT_PHP.3
FPT_TST.1
FTP_ITC.1/SVD
FTP_ITC.1/Conf_VAD
FTP_ITC.1/Conf_DTBS
FMT_SMR.1,
FMT_SMF.1
FMT_SMR.1,
FMT_SMF.1
No dependencies
FIA_UID.1
No dependencies
No dependencies
No dependencies
No dependencies
No dependencies
No dependencies
No dependencies
No dependencies
Fulfilled
FDP_ACC.1/SCD/SVD_Generat
ion_SFP, FMT_SMR.1,
FMT_SMF.1
FDP_ACC.1/Signature_Creation
SFP, FMT_SMR.1,
FMT_SMF.1
FDP_ACC.1/SCD/SVD_Generat
ion SFP,
FDP_ACC.1/Signature_Creation
SFP, FMT_SMR.1,
FMT_MSA.1/Admin,
FMT_MSA.1/Signatory
FMT_MSA.1/Admin,
FMT_MSA.1/Signatory,
FMT_SMR.1
FDP_ACC.1/SCD/SVD_Generat
ion_SFP, FDP_ACC.1/
Signature-creation_SFP
FMT_SMR.1, FMT_SMF.1
FMT_SMR.1, FMT_SMF.1
n. a.
FIA_UID.1
n. a.
n. a.
n. a.
n. a.
n. a.
n. a.
n. a.
n. a.
Table 4: Functional Requirements Dependencies
Page 72 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
9.3
9 Rationale
Rationale for EAL 4 Augmented
The assurance level for this protection profile is EAL4 augmented. EAL4 allows a
developer to attain a reasonably high assurance level without the need for highly
specialized processes and practices. It is considered to be the highest level that could be
applied to an existing product line without undue expense and complexity. As such,
EAL4 is appropriate for commercial products that can be applied to moderate to high
security functions. The TOE described in this protection profile is just such a product.
Augmentation results from the selection of:
AVA_VAN.5 Advanced methodical vulnerability analysis
The TOE shall be shown to be highly resistant to penetration attacks to meet the security
objectives OT.SCD_Secrecy, OT.Sigy_SigF and OT.Sig_Secure. The component
AVA_VAN.5 has the following dependencies:
ADV_ARC.1 Architectural Design with domain separation and non-bypassability
ADV_FSP.4 Complete functional specification
ADV_TDS.3 Basic modular design
ADV_IMP.1 Implementation representation of the TSF
AGD_OPE.1 Operational user guidance
AGD_PRE.1 Preparative procedures
ATE_DPT.1 Testing: basic design
All of these dependencies are met or exceeded in the EAL4 assurance package.
9.4
Statement of Compatibility
This is a statement of compatibility between this Composite Security Target
(Composite-ST) and the Platform Security Target (Platform-ST) of the Infineon Chip
M7820 [9]. This statement is compliant to the requirements of [13].
9.4.1
Classification of Platform TSFs
A classification of TSFs of the Platform-ST has been made. Each TSF has been
classified as ‘relevant’ or ‘not relevant’ for the Composite-ST.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Not relevant
Relevant
TOE Security Functions
Page 73 of 86
9 Rationale
Public
SF_DPM: Device Phase Management
x
SF_PS: Protection against Snooping
x
SF_PMA: Protection against Modifying Attacks
x
SF_PLA: Protection against Logical Attacks
x
SF_CS: Cryptographic Support
x
Table 5: Classification of Platform-TSFs
All listed TSFs of the Platform-ST are relevant for the Composite-ST.
9.4.2
Matching statement
The TOE relies on fulfillment of the following implicit assumptions on the IC:
o Certified Infineon Microcontroller M7820
o True Random Number Generator (TRNG) with P2 SOF-high classification
according to AIS 31 [11]
o Cryptographic support for AES, RSA and elliptic curve calculations. For AES
calculations it is assumed that they are resistant against attacks like DPA, EMA
and DFA.
The rationale of the Platform-ST has been used to identify the relevant SFRs, TOE
objectives, threats and OSPs. All SFRs, objectives for the TOEs, but also all objectives
for the TOE-environment, all threats and OSPs of the Platform-ST have been used for
the following analysis.
9.4.2.1
TOE Security Environment
Threats and OSPs
(see chapters 4.1 and 4.2)
None of the OSPs are applicable to the IC.
The following threats of this Composite-ST are directly related to IC functionality:

T.Hack_Phys
This threat will be mapped to the following Platform-ST threats:
Page 74 of 86

T.Leak-Inherent

T.Phys_Probing

T.Malfunction

T.Phys_Manipulation
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
9 Rationale

T.Leak-Forced
X
T.Leak-Forced
X
T.Malfunction
X
T.Phys_Manipulat
ion
T.Phys_Probing
T.Hack_Phys
T.Leak-Inherent
Composie
-ST
Platform-ST
The following table shows the mapping of the threats.
X
X
Table 6: Mapping of threats
T. Hack_Phys matches to T.Leak-Inherent, T.Phys_Probing, T.Malfunction, T.PhysManipulation and T.Leak-Forced as physical TOE interfaces like emanations, probing,
environmental stress and tampering are used to exploit vulnerabilities.
Assumptions, see chapter 4.3:
The assumptions from this ST (A.CGA, A.SCA) make no assumption on the Platform,
but to the environment of the TOE.
The assumptions from the Platform-ST are as follows:
Assumption [9]
Classification Mapping to Security Objectives of this Composite-ST
of assumptions
A.Process-Sec-IC
not relevant
n/a
A.Plat-Appl
not relevant
n/a
A.Resp-Appl
relevant
All Security Objectives of this Composite TOE aim to protect the
user data, especially SCD, SVD, DTBS and RAD.
A.Key-Function
relevant
OT.EMSEC_Design requires that Key-dependent functions are
implemented in a way that they are not susceptible to leakage
attacks.
Table 7: Mapping of assumptions
There is no conflict between security environments of this Composite-ST and the
Platform-ST [9].
9.4.2.2
Security objctives
This Composite-ST has security objectives which are related to the Platform-ST.
These are:

OT.SCD_Secrecy
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 75 of 86
9 Rationale
Public

OT.Tamper_ID

OT.Tamper_Resistance

OT.EMSEC_Design
The following Platform-objectives could be mapped to Composite-objectives:

O.RND

O.Leak-Inherent

O.Phys-Probing

O.Malfunction

O.Phys-Manipulation
CompositeST
OT.SCD_Secrecy
X
O.Phys-Manipulation
O.Malfunction
O.Phys-Probing
O.Leak-Inherent
O.RND
Platform-ST
These could be mapped to the Composite-objectives as seen in the following table.
X
OT.Tamper_ID
X
X
X
OT.Tamper_Resistance
X
X
X
OT.EMSEC_Design
X
Table 8: Mapping of objectives
OT.SCD_Secrecy requires sufficient quality of random numbers for the generation of
SCD/SVD, which matches to O.RND. Furthermore it requires correct working
conditions which match to O.Malfunction.
OT.EMSEC_Design requires AES calculations without intelligible emanations within
specified limits which matches to O.Leak-Inherent.
OT.Tamper_ID and OT.Tamper_Resistance require detection of and resistance to
physical tampering which matches to O.Phys-Probing, O.Phys-Manipulation and
O.Malfunction.
All Security Objectives for the Environment (see chapter 5.2) are not linked to the
platform and are therefore not applicable to this mapping. These objectives are:
OE.SVD_Auth
OE.CGA_QCert
OE.Dev_Prov_Service
OE.DTBS_Intend
Page 76 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
9 Rationale
OE.Signatory
OE.CGA_SSCD_Auth
OE.CGA_TC_SVD_Imp
OE.HID_confTC_VAD_Exp
OE.SCA_confTC_DTBS_Exp
There is no conflict between security objectives of this Composite-ST and the
Platform-ST [9].
9.4.2.3
Security requirements
Security Functional Requirements
This Composite-ST has the following platform related SFRs:

FCS_CKM.1

FIA_API.1

FPT_EMSEC.1

FPT_PHP.1

FPT_PHP.3

FTP_ITC.1/SVD

FTP_ITC.1/Conf_VAD

FTP_ITC.1/Conf_DTBS

FPT_TST.1
The following Platform-SFRs could be mapped to Composite-SFRs:

FCS_RNG.1

FCS_COP.1/AES

FDP_ITT.1

FPT_ITT.1

FDP_IFC.1

FRU_FLT.2

FPT_FLS.1

FPT_PHP.3

FPT_TST.3
They will be mapped as seen in the following table.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 77 of 86
FPT_PHP.3
FPT_PHP.3
X
X
X
FPT_TST.2
FPT_FLS.1
X
FDP_IFC.1
X
FPT_ITT.1
X
FDP_ITT.1
FRU_FLT.2
FCS_RND.1
FPT_PHP.1
FCS_CKM.1
X
FIA_API.1
X
FPT_EMSEC.1
Composite-ST
FCS_COP.1/AES
Public
Platform-ST
9 Rationale
X
X
X
FPT_TST.1
X
FTP_ITC.1/SVD
X
FTP_ITC.1/Conf_V
AD
X
FTP_ITC.1/Conf_D
TBS
X
Table 9: Mapping of SFRs
FCS_CKM.1 requires sufficient quality of random numbers for the generation of
SCD/SVD, which matches to FCS_RND.1.
FPT_EMSEC.1 require the prevention of disclosure of secret data while being processed
which is provided by FPT_ITT.1, FDP_ITT.1 and FDP_IFC.1.
FTP_ITC.1/SVD, FTP_ITC.1/Conf_VAD, FTP_ITC.1/Conf_DTBS and FIA_API.1
require cryptographic calculations which match to FCS_COP.1/AES.
FPT_PHP.1 and FPT_PHP.3 of the composite ST matches the robustness requirements
of FRU_FLT.2, FPT_FLS.1 and FPT_PHP.3 of the platform ST.
FPT_TST.1 run a suite of self tests to demonstrate the correct operation of the TSF
which matches to FPT.TST.2.
Assurance requirements
The Composite-ST requires EAL 4 according to Common Criteria V3.1R3 augmented
by AVA_VAN.5
The Platform-ST requires EAL 5 according to Common Criteria V3.1 R3 augmented by:
ALC_DVS.2, AVA_VAN5
Page 78 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
9 Rationale
As EAL 5 covers all assurance requirements of EAL 4 all non augmented parts of the
Composite-ST will match to the Platform-ST assurance requirements. But also the
augmented parts of the Composite-ST match to the Platform-ST.
9.4.3
Overall no contracdictions found
Overall there is no conflict between security requirements of this Composite-ST and
the Platform-ST.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 79 of 86
10 Acronyms
10
Page 80 of 86
Public
Acronyms
CC
Common Criteria
CGA
Certification generation application
DTBS
Data to be signed
DTBS/R
Data to be signed or its unique representation
EAL
Evaluation Assurance Level
IT
Information Technology
PP
Protection Profile
(S)RAD
(Signatory's) Reference authentication data
SCA
Signature-creation application
SCD
Signature-creation data
SCS
Signature-creation system
SDO
Signed data object
SFP
Security Function Policy
SSCD
Secure signature-creation device
ST
Security Target
SVD
Signature-verification data
TOE
Target of Evaluation
TSF
TOE Security Functionality
(S)VAD
(Signatory's) Verification authentication data
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
11 Conventions and Terminology
11
Conventions and Terminology
11.1
Conventions
The document follows the rules and conventions laid out in Common Criteria 3.1.
11.2
Terminology
Administrator means an user that performs TOE initialisation, TOE
personalisation, or other TOE administrative functions.
Advanced electronic signature (defined in The Directive: 2.2) means an
digital signature which meets the following requirements:
(a) it is uniquely linked to the signatory;
(b) it is capable of identifying the signatory;
(c) it is created using means that the signatory can maintain under his sole
control, and
(d) it is linked to the data to which it relates in such a manner that any
subsequent change of the data is detectable.
Annex references one of the annexes, Annex I, Annex II or Annex III of The
Directive
Authentication data is information used to verify the claimed identity of a
user.
Certificate means an electronic attestation, which links the SVD to a person
and confirms the identity of that person (The Directive: 2. 9).
Certificate info means information associated with a SCD/SVD pair that
consists either:

a signer's public key certificate, or

one or more hash values of a signer's public key certificate together
with an identifier of the hash function used to compute the hash values.
Certificate info may contain information to allow the user to distinguish
between several certificates.
Certification generation application (CGA) means a collection of
application elements which receive the SVD from the SSCD to generate a
certificate obtaining data to be included in the certificate and to create a digital
signature of the certificate.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 81 of 86
11 Conventions and Terminology
Public
Certification-service-provider (CSP) means an entity that issues certificates
or provides other services related to electronic signatures (The Directive:
2.11).
Common Criteria (CC) is set of rules and procedures for evaluating the
security properties of a product
Data to be signed (DTBS) means the complete electronic data to be signed
(including both user message and signature attributes).
Data to be signed or its unique representation (DTBS/R) means the data
received by a secure signature creation device as input in a single signaturecreation operation
Note: DTBS/R is either
-
a hash-value of the data to be signed (DTBS), or
-
an intermediate hash-value of a first part of the DTBS complemented with
a remaining part of the DTBS, or
-
the DTBS.
Directive: The Directive 1999/93/EC of the European parliament and of the
council of 13 December 1999 on a Community framework for electronic
signatures [1] is also referred to as the ‘Directive’ in the remainder of the PP.
Evaluation Assurance Level (EAL) is a set of assurance requirements for a
product, its manufacturing process and its security evaluation specified by
Common Criteria.
Legitimate user is user of a secure signature creation device who gains
possession of it from an SSCD-provisioning service provider and who can be
authenticated by the SSCD as its signatory.
Protection Profile (PP) is document specifying security requirements for a
class of products that conforms in structure and content to rules specified by
common criteria.
Qualified certificate means a public key certificate, which meets the
requirements laid down in Annex I and that is provided by a CSP that fulfils
the requirements laid down in Annex II (The Directive: 2.10).
Qualified electronic signature means an advanced signature that has been
created with an SSCD with a key with a qualified certificate (c.f. The
Directive: 5.1).
Reference authentication data (RAD) means data persistently stored by the
TOE to authenticate a user as authorised for a particular role.
SSCD-provisioning service is a service to prepare and provide an SSCD to a
subscriber and to support the signatory with certification of generated keys and
administrative functions of the SSCD
Page 82 of 86
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Public
11 Conventions and Terminology
Secure signature-creation device (SSCD) means configured software or
hardware which is used to implement the SCD and which meets the
requirements laid down in Annex III of the Directive [1]. (The Directive: 2.5
and 2.6).
Security Target (ST) is document specifying security requirements for a
particular products that conforms in structure and content to rules specified by
common criteria, which may be based on one or more Protection Profiles.
Signatory is the legitimate user of an SSCD associated with it in the
certificate of the signature-verification data and who is authorized by the
SSCD to operate the signature-creation function (The Directive: 2.3).
Signature attributes means additional information that is signed together
with the user message.
Signature-creation application (SCA) means the application complementing
an SSCD with a user interface with the purpose to create an electronic
signature.
Note: A signature creation application is software consisting of a collection of
application components configured to:
• present the data to be signed (DTBS) for review by the signatory,
• obtain prior to the signature process a decision by the signatory,
• if the signatory indicates by specific unambiguous input or action its intent to
sign send a DTBS/R to the TOE
• process the electronic signature generated by the SSCD as appropriate, e.g.
as attachment to the DTBS.
Signature-creation-data (SCD) is the private cryptographic key stored in the
SSCD under exclusive control by the signatory to create an electronic
signature (The Directive: 2.4).
Signature-creation system (SCS) means the overall system that creates an
electronic signature. The signature-creation system consists of the SCA and
the SSCD.
Signature-verification data (SVD) is the public cryptographic key that can
be used to verify an electronic signature (The Directive: 2.7).
Signed data object (SDO) means the electronic data to which the electronic
signature has been attached to or logically associated with as a method of
authentication.
Target of Evaluation (TOE) is abstract reference in a document, such as a
Protection Profile, for a particular product that meets specific security
requirements.
Security Target Lite STARCOS 3.5 ID ECC C1, Version 1.7/05.07.12
Page 83 of 86
11 Conventions and Terminology
Public
The Directive references Directive 1999/93/ec of the European parliament
and of the council of 13 December 1999 on “a Community framework for
electronic signatures”10
TOE Security Functions (TSF) are functions implemented by the TOE to
meet the requirements specified for it in a Protection Profile or Security
Target.
User means any entity (human user or external IT entity) outside the TOE that
interacts with the TOE.
User Message is data determined by the signatory as the correct input for
signing.
Verification authentication data (VAD) means authentication data provided
as input to a secure signature creation device for authentication by cognition.
10
References in this document to a specific article and paragraph of Directive 1999/93/ec are of the form „(The
Directive: n.m)“.
