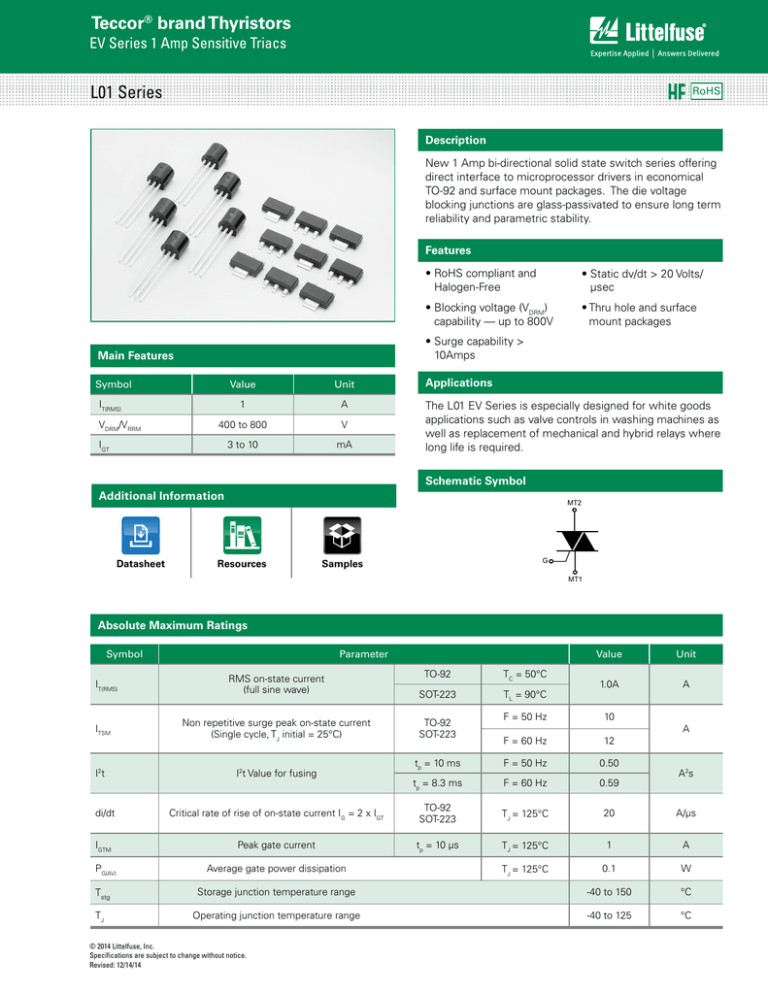

Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
L01 Series
RoHS
Description
New 1 Amp bi-directional solid state switch series offering
direct interface to microprocessor drivers in economical
TO-92 and surface mount packages. The die voltage
blocking junctions are glass-passivated to ensure long term
reliability and parametric stability.
Features
• Static dv/dt > 20 Volts/
μsec
• Blocking voltage (VDRM)
capability — up to 800V
• Thru hole and surface
mount packages
• Surge capability >
10Amps
Main Features
Symbol
Value
Unit
1
A
400 to 800
V
3 to 10
mA
IT(RMS)
VDRM/VRRM
• RoHS compliant and
Halogen-Free
IGT
Applications
The L01 EV Series is especially designed for white goods
applications such as valve controls in washing machines as
well as replacement of mechanical and hybrid relays where
long life is required.
Schematic Symbol
Additional Information
Datasheet
MT2
Resources
G
Samples
MT1
Absolute Maximum Ratings
Symbol
Parameter
RMS on-state current
(full sine wave)
TO-92
TC = 50°C
SOT-223
TL = 90°C
ITSM
Non repetitive surge peak on-state current
(Single cycle, TJ initial = 25°C)
TO-92
SOT-223
I 2t
I2t Value for fusing
IT(RMS)
Value
Unit
1.0A
A
F = 50 Hz
10
F = 60 Hz
12
tp = 10 ms
F = 50 Hz
0.50
tp = 8.3 ms
F = 60 Hz
0.59
A
A2s
di/dt
Critical rate of rise of on-state current IG = 2 x IGT
TO-92
SOT-223
TJ = 125°C
20
A/μs
IGTM
Peak gate current
tp = 10 μs
TJ = 125°C
1
A
PG(AV)
Average gate power dissipation
TJ = 125°C
0.1
W
Storage junction temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 125
°C
Tstg
TJ
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
Electrical Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Description
IGT
DC Gate Trigger Current
VGT
DC Gate Trigger Voltage
IH
Test
Conditions
VD = 12V
RL = 60 Ω
Quadrant
Limit
I – II – III
IV
ALL
Value
Unit
L0103xy
L0107xy
L0109xy
MAX.
3
5
5
7
10
10
mA
MAX.
—
1.3
—
V
Holding Current
Gate Open
MAX.
7
10
10
mA
dv/dt
Critical Rate-of-Rise of
Off-State Voltage
TJ = 110°C
VD = VDRM
Exponential Waveform
Gate Open
MIN.
10
20
50
V/μs
(dv/dt)c
Critical
Rate-of-Rise of
Commutating Voltage
(di/dt)c = 0.54A/ms
TJ = 110°C
MIN.
0.5
1.0
2.0
V/μs
Turn-On Time
IG = 25mA
PW = 15μs
IT = 1.2A (pk)
MAX.
2.0
2.0
2.0
μs
Tgt
Note: x = voltage, y = package
Static Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Description
Test Conditions
Limit
Value
Unit
VTM
Peak On-State Voltage
ITM = 1.4A (pk)
MAX
1.60
V
IDRM
Off-State Current, Peak Repetitive
5
μA
500
μA
VD= VDRM TJ = 25°C
VD= VDRM TJ = 125°C
MAX
Thermal Resistances
Symbol
1
Description
Test Conditions
Rth(j-c)
Junction to case (AC)
IT = 1.0A (RMS)1
Rth(j-a)
Junction to ambient
IT = 1.0A (RMS)1
Value
TO-92
50
SOT-223
23
TO-92
100
SOT-223
55
Unit
°C/W
°C/W
60Hz AC resistive load condition, 100% conduction.
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
Figure 2: Normalized DC Gate Trigger Current for
All Quadrants vs. Junction Temperature
Figure 1: Definition of Quadrants
ALL POLARITIES ARE REFERENCED TO MT1
MT2 POSITIVE
(Positive Half Cycle)
(+)
IGT
GATE
IGT
IGT
GATE
MT2
MT1
IGT
REF
-
QII QI
QIII QIV
MT2
(-)
MT1
REF
IGT
GATE
(+)
MT1
REF
+
IGT (TJ = 25°C)
(-)
+
2.0
Ratio of
MT2
3.0
IGT
MT2
1.0
IGT
GATE
0.0
MT1
-
2.00
INITIAL ON-STATE CURRENT = 100mA (DC)
1.75
2.5
VGT
1.5
1.0
0.5
1.50
VGT (TJ = 25°C)
2.0
1.25
1.00
0.75
Ratio of
IH
+125
Figure 4: Normalized DC Gate Trigger Voltage for
All Quadrants vs. Junction Temperature
3.0
IH (TJ = 25°C)
+105
+65
Junction Temperature (TJ)- ºC
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Ratio of
+25
-15
-40
REF
MT2 NEGATIVE
(Negative Half Cycle)
0.50
0.25
0.0
0.0
-55
-40
+5
-15
+25
+65
+45
+105
+85
-55
+125
-40
1.50
1.25
1.00
0.75
0.50
0.25
0.0
0.2
0.3
0.4
0.5
0.6
0.7
0.8
RMS On-state Current [IT(RMS)] - Amps
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
0.9
1.0
1.1
Maximum Allowable Case Temperature (TC) - ºC
Average On-state Power Dissipation
[PD(DAV)] - Watts
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
0.1
+85
+65
+105
+125
Figure 6: M
aximum Allowable Case Temperature
vs. On-State Current
2.00
0.0
+45
Junction Temperature (TJ)- °C
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
1.75
+25
+5
-15
Junction Temperature (TJ)- ºC
130
125
120
SOT-223
110
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
CASE TEMPERATURE: Measured as
shown on dimensional drawings
100
90
TO-92
80
70
60
50
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
RMS On-state Current [IT(RMS)] - Amps
1.0
1.1
1.2
Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
Figure 7: Surge Peak On-State Current vs. Number of Cycles
Peak Surge (Non-repetitive) On-State Current
(ITSM) – Amps.
20
Supply Frequency: 60Hz Sinusoidal
Load: Resistive
RMS On-State Current [IT(RMS)]: Max Rated Value at Specific
Case Temperature
15
12
10
9
8
7
6
Notes:
1. Gate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state rated value.
5
4
1A
3
Dev
ices
2
1
1
2
3
4
5
6 7 8 9 10
20
30
40
60 80 100
200
300 400 60 0
1 00 0
Surge Current Duration – Full Cycle
Soldering Parameters
Pre Heat
Pb – Free assembly
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Time (min to max) (ts)
60 – 150 seconds
Peak Temperature (TP)
260+0/-5 °C
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
tP
TP
Temperature
Reflow Condition
Ramp-up
TL
tL
TS(max)
Preheat
TS(min)
25
Ramp-do
Ramp-down
tS
time to peak temperature
Time
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
Physical Specifications
Environmental Specifications
Terminal Finish
100% Matte Tin-plated.
Body Material
UL recognized epoxy meeting flammability
classification 94V-0.
Test
Specifications and Conditions
AC Blocking
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
Temperature Cycling
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell-time
Temperature/
Humidity
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C; 85%
rel humidity
High Temp Storage
MIL-STD-750, M-1031,
1008 hours; 150°C
Low-Temp Storage
1008 hours; -40°C
Thermal Shock
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwelltime at each temperature; 10 sec (max)
transfer time between temperature
Autoclave
EIA / JEDEC, JESD22-A102
168 hours (121°C at 2 ATMs) and
100% R/H
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
MIL-STD-750, M-2036 Cond E
Copper Alloy
Lead Material
Design Considerations
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Dimensions — TO-92 (E Package)
A
TC MEASURING POINT
B
SEATING
PLANE
C
GATE
MT2
G
MT1
H
I
D
F
J
F
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
E
Dimensions
Inches
Millimeters
Min
Max
Min
Max
A
0.175
0.205
4.450
5.200
B
0.170
0.210
4.320
5.330
C
0.500
D
0.135
E
0.125
0.165
3.180
4.190
F
0.080
0.105
2.040
2.660
G
0.016
0.021
0.407
0.533
H
0.045
0.055
1.150
1.390
I
0.095
0.105
2.420
2.660
J
0.015
0.020
0.380
0.500
12.70
3.430
Teccor® brand Thyristors
MT2
EV Series 1 Amp Sensitive Triacs
MT2
Gate
Dimensions – SOT-223
MT1
MT2
MT2
Gate
MT2
MT1
MT2
Gate
MT1
MT2Gate
MT1
Dimensions
MT2
Pad Layout for SOT-223
3.3
(0.130”)
1.5
(0.059”)
1.2
(0.047”)
2.3
(0.091”)
6.4
(0.252”)
(3x)
1.5
(0.059”)
4.6
(0.181”)
Dimensions in Millimeters (Inches)
Recommended Soldering Footprint
for SOT223
Inches
Millimeters
Min
Typ
Max
Min
Typ
Max
A
0.248
0.256
0.264
6.30
6.50
6.70
B
0.130
0.138
0.146
3.30
3.50
3.70
C
—
—
0.071
—
—
1.80
D
0.001
—
0.004
0.02
—
0.10
E
0.114
0.118
0.124
2.90
3.00
3.15
F
0.024
0.027
0.034
0.60
0.70
0.85
G
—
0.090
—
—
2.30
—
H
—
0.181
—
—
4.60
—
I
0.264
0.276
0.287
6.70
7.00
7.30
J
0.009
0.010
0.014
0.24
0.26
0.35
K
10° MAX
Product Selector
Part Number
Voltage
Gate Sensitivity Quadrants
I II III
IV
Package
L0103DE
400 V
3 mA
5 mA
TO-92
L0103ME
600 V
3 mA
5 mA
TO-92
L0103NE
800 V
3 mA
5 mA
TO-92
L0103DT
400 V
3 mA
5 mA
SOT-223
L0103MT
600 V
3 mA
5 mA
SOT-223
L0103NT
800 V
3 mA
5 mA
SOT-223
L0107DE
400 V
5 mA
7 mA
TO-92
L0107ME
600 V
5 mA
7 mA
TO-92
L0107NE
800 V
5 mA
7 mA
TO-92
L0107DT
400 V
5 mA
7 mA
SOT-223
L0107MT
600 V
5 mA
7 mA
SOT-233
L0107NT
800 V
5 mA
7 mA
SOT-233
L0109DE
400 V
10 mA
10 mA
TO-92
L0109ME
600 V
10 mA
10 mA
TO-92
L0109NE
800 V
10 mA
10 mA
TO-92
L0109DT
400 V
10 mA
10 mA
SOT-223
L0109MT
600 V
10 mA
10 mA
SOT-223
L0109NT
800 V
10 mA
10 mA
SOT-223
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
Packing Options
Part Number
Marking
Weight
Packing Mode
Base Quantity
L01xxyE
0.170 g
Bulk
2500
L01xxyE
L01xxyEAP
L01xxyE
0.170 g
Ammo Pack
2000
L01xxyERP
L01xxyE
0.170 g
Tape & Reel
2000
L01xxyTRP
L01xxyT
0.120 g
Tape & Reel
1000
Note: xx = gate sensitivity, y = voltage
TO-92 (3-lead) Reel Pack (RP) Radial Leaded Specifications
Meets all EIA-468-C Standards
1.6
(41.0)
0.02 (0.5)
0.236
(6.0)
0.708
(18.0)
0.098 (2.5) MAX
1.26
(32.0)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT2
MT1
0.2 (5.08) Gate
0.157 DIA
(4.0)
14.17(360.0)
Flat up
1.97
(50.0)
Dimensions
are in inches
(and millimeters).
Direction of Feed
TO-92 (3-lead) Ammo Pack (AP) Radial Leaded Specifications
Meets all EIA-468-C Standards
0.236
(6.0)
1.62
(41.2)
0.708
(18.0)
0.02 (0.5)
0.098 (2.5) MAX
1.27
(32.2)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT2
0.2 (5.08)
0.157
(4.0) DIA
MT1
Gate
Flat down
n of Feed
Directio
25 Devices per fold
1.85
(47.0)
12.2
(310.0)
1.85
(47.0)
13.3
(338.0)
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Dimensions
are in inches
(and millimeters).
Teccor® brand Thyristors
EV Series 1 Amp Sensitive Triacs
SOT-223 Reel Pack (RP) Specifications
∅1.5 mm
8 mm
4 mm
2 mm
MT2
1.75 mm
12 mm
5.5 mm
MT1
MT2
GATE
180 mm
13 mm Abor
Hole Diameter
13.4 mm
Part Marking System
Part Numbering System
L 01 xx x xx xx
TRIAC SERIES
PACKING TYPE
Blank: Bulk Pack
RP : Reel Pack (TO-92)
: Embossed Carrier Pack
(SOT-223)
AP : Ammo Pack (TO-92)
CURRENT
01: 1A
SENSITIVITY & TYPE
03: 3, 3, 3, 5mA Triac
07: 5, 5, 5, 7mA Triac
09: 10, 10, 10, 10mA Triac
SOT223
PACKAGE TYPE
E: TO-92
T: SOT-223
VOLTAGE
D: 400V
M: 600V
N: 800V
TO92
Line1 = Littelfuse Part Number
Line2 = continuation…Littelfuse Part Number
Y = Last Digit of Calendar Year
M = Letter Month Code (A-L for Jan-Dec)
L = Location Code
DD = Calendar Date
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
