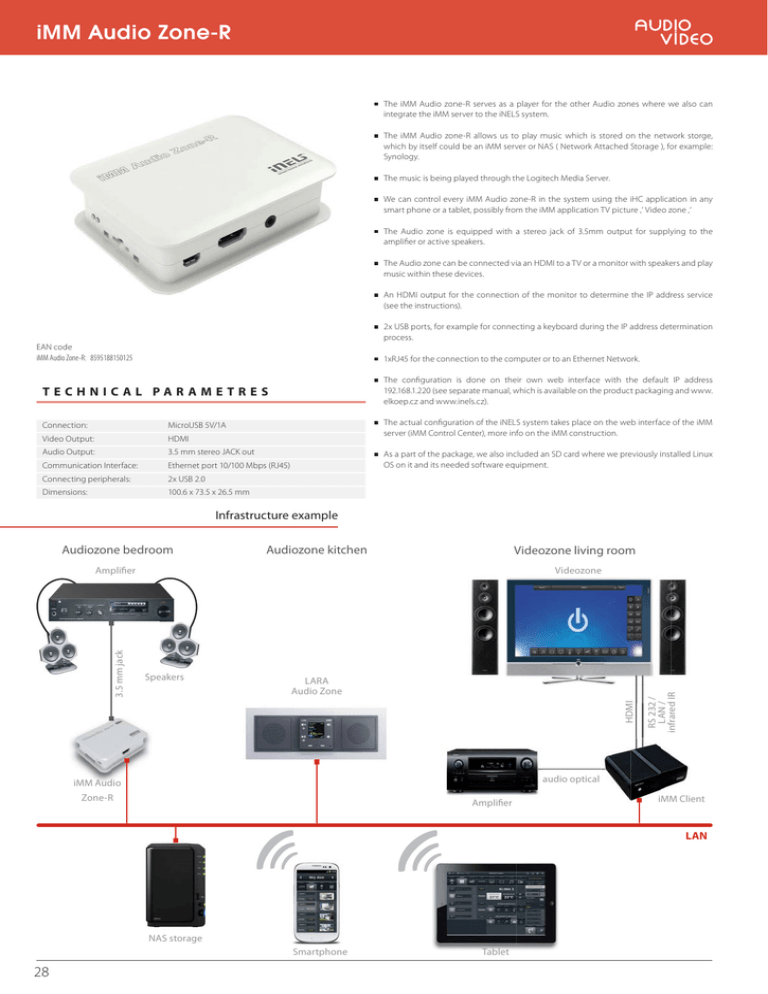

iMM Audio Zone-R
The iMM Audio zone-R serves as a player for the other Audio zones where we also can
integrate the iMM server to the iNELS system.
The iMM Audio zone-R allows us to play music which is stored on the network storge,
which by itself could be an iMM server or NAS ( Network Attached Storage ), for example:
Synology.
The music is being played through the Logitech Media Server.
We can control every iMM Audio zone-R in the system using the iHC application in any
smart phone or a tablet, possibly from the iMM application TV picture ‚‘ Video zone ‚‘
The Audio zone is equipped with a stereo jack of 3.5mm output for supplying to the
amplifier or active speakers.
The Audio zone can be connected via an HDMI to a TV or a monitor with speakers and play
music within these devices.
An HDMI output for the connection of the monitor to determine the IP address service
(see the instructions).
2x USB ports, for example for connecting a keyboard during the IP address determination
process.
EAN code
iMM Audio Zone-R: 8595188150125
1xRJ45 for the connection to the computer or to an Ethernet Network.
TECHNICAL PARAMETRES
The configuration is done on their own web interface with the default IP address
192.168.1.220 (see separate manual, which is available on the product packaging and www.
elkoep.cz and www.inels.cz).
Connection:
MicroUSB 5V/1A
Video Output:
HDMI
The actual configuration of the iNELS system takes place on the web interface of the iMM
server (iMM Control Center), more info on the iMM construction.
Audio Output:
3.5 mm stereo JACK out
Communication Interface:
Ethernet port 10/100 Mbps (RJ45)
Connecting peripherals:
2x USB 2.0
Dimensions:
100.6 x 73.5 x 26.5 mm
As a part of the package, we also included an SD card where we previously installed Linux
OS on it and its needed software equipment.
Infrastructure example
Audiozone bedroom
Audiozone kitchen
Videozone living room
LARA
Audio Zone
HDMI
3.5 mm jack
Speakers
RS 232 /
LAN /
infrared IR
Videozone
Amplifier
audio optical
iMM Audio
Zone-R
Amplifier
iMM Client
Cli
LAN
NAS storage
Smartphone
28
Tablet
