HP Compaq t5735 Thin Client
Overview
1.
2.
3.
4.
5.
6.
7.
8.
9.

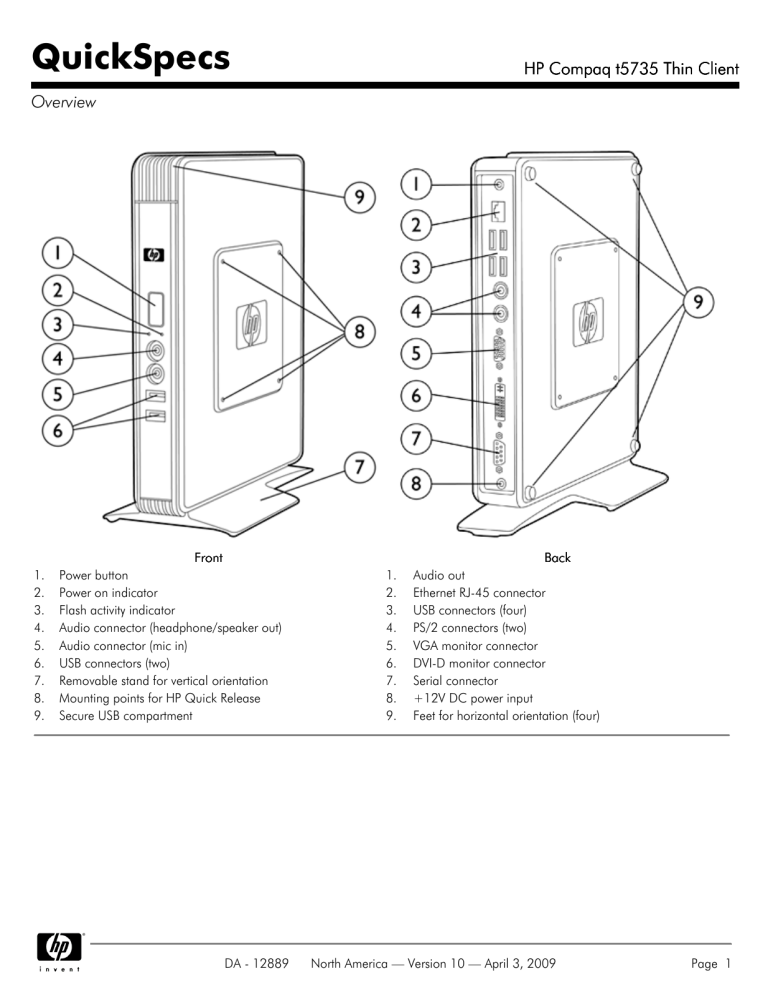

Front
Power button
Power on indicator
Flash activity indicator
Audio connector (headphone/speaker out)
Audio connector (mic in)
USB connectors (two)
Removable stand for vertical orientation
Mounting points for HP Quick Release
Secure USB compartment
DA - 12889
1.
2.
3.
4.
5.
6.
7.
8.
9.
Back
Audio out
Ethernet RJ-45 connector
USB connectors (four)
PS/2 connectors (two)
VGA monitor connector
DVI-D monitor connector
Serial connector
+12V DC power input
Feet for horizontal orientation (four)
North America — Version 10 — April 3, 2009
Page 1
QuickSpecs
HP Compaq t5735 Thin Client
Overview
with optional t5730/t5735 Expansion Module Kit
1.
2.
3.
4.
5.
6.
7.
8.
9.
Power button
Power on indicator
Flash activity indicator
Audio connector (headphone/speaker out)
Audio connector (mic in)
USB connectors (two)
Removable stand for vertical orientation
Mounting points for HP Quick Release
Secure USB compartment
DA - 12889
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Audio out
Ethernet RJ-45 connector
USB connectors (four)
PS/2 connectors (two)
VGA monitor connector
DVI-D monitor connector
Serial connector
+12V DC power input
Feet for horizontal orientation (four)
Parallel connector
PCI/PCIe slot access
Second serial connector
North America — Version 10 — April 3, 2009
Page 2
QuickSpecs
HP Compaq t5735 Thin Client
Overview
At A Glance
AMD Sempron 2100+ 1GHz processor for leading performance
1 GB flash memory provides ample storage for drivers and applications
Up to 1 GB system memory (32 MB reserved for graphics memory)
Debian Linux OS with support for local applications including custom and open source applications
Flexibility in choice of options and peripherals
Includes GNOME desktop, Debian Iceweasel (Firefox) browser, Citrix ICA, rdesktop RDP client, HP ThinState, and full license
for Altiris Deployment Solution
Powerful ATI Radeon X1250 graphics supporting a broad range of HP monitors including widescreens and touch screens
Built in dual monitor support (VGA and DVI-D native)
Optional Expansion Module with PCI and PCI Express x1, for installing a wide range of devices (includes a parallel and
second serial port)
Secure USB compartment is ideal for protecting USB devices
Legacy support includes parallel (via Expansion Module), serial, and PS/2 connections, along with eight USB 2.0 ports.
Protected by Hewlett-Packard Services, including a limited three-year mail-in warranty (certain restrictions and exclusions
apply)
DA - 12889
North America — Version 10 — April 3, 2009
Page 3
QuickSpecs
HP Compaq t5735 Thin Client
Standard Features - Models
Worldwide:
NB794AA#ABA
Top Value/Smart Buy:
NB794AT#ABA
TAA compliant1.:
NH122UA#ABA
Processor
Operating System
Flash Memory
Memory
Graphics
Browser
Client Management
Software
Terminal Personalities
AMD Sempron 2100+, 1 GHz
Debian Linux (2.6 kernel))
1 GB
1 GB DDR-2 SODIMM
NOTE: 32 MB reserved for graphics memory
ATI Radeon X1250 graphics
Debian Iceweasel (Firefox)
Altiris Deployment Solution (full license) and HP ThinState included with each
thin client.
Standard
Keyboard
USB or PS/2
Type of included keyboard (USB or PS/2) varies by region.
Mouse
USB or PS/2
Type of included mouse (USB or PS/2) varies by region.
1Product complies with U.S. Trade Agreement (TAA). Available in U.S only.
DA - 12889
North America — Version 10 — April 3, 2009
Page 4
QuickSpecs
HP Compaq t5735 Thin Client
Options
Accessories
HP t5730/t5735 Expansion Module
HP Quick Release Kit
HP/Kensington Cable Lock
50 Watt External Power Supply
Communications
Modem Serial – Zoom 3049 56K v.92 Ext.2
Input Devices
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Smartcard Keyboard
HP PS/2 2-Button Optical Mouse
HP USB 2-Button Optical Scroll Mouse
Monitors3
ELO Touch 1529L Flat Panel – USB /serial combo2,4
HP L5006tm LCD Touchscreen – USB/serial combo4
Graphics
Matrox EpicA TC4
Part Number1
GZ286AA
EM870AA
PC766A
FJ851AA
3049-00-00
DT527A#ABA
DT528A#ABA
ED707AA#ABA
EY703AA
DC172B
E926109
RB146AA
EPITC4P128LPAF
EPI-TC2P64LPAF
Matrox EpicA TC2
Memory
Apacer 1 GB Flash Module
AH430AA
Security
HP USB Smartcard Keyboard
SCM USB Smart Card Reader SCR3315
HP/Kensington Cable Lock
ED707AA
904054
PC766A
Storage
External USB 2.0 Multibay II Cradle
Multibay II DVD Drive (Does not support DVD play back)
DA - 12889
North America — Version 10 — April 3, 2009
PA509A
PA849A
Page 5
QuickSpecs
HP Compaq t5735 Thin Client
Options
Care Packs6,7
9x5 Next-Business-Day Advanced Exchange – 3 Years
331653-001;
U4847E
9x5 Next-Business-Day On-Site Coverage – 3 Years
331655-001;
U4849E
Hardware Installation
331686-001;
U4865E
1The warranties for HP or Compaq branded products are set forth in the express limited warranty statements accompanying such
products. Although third-party products may work effectively on HP or Compaq thin clients, these non-HP or non-Compaq products
are provided "AS IS." HP does not support or warrant third-party products, including the interoperability of such products with HP or
Compaq thin clients. However, third-party manufacturers and vendors may provide their own warranties and support directly to you.
Please contact the manufacturers or vendors for hardware or software support on their products.
2Option and support available directly from third party.
3For a complete list of monitors compatible with HP Compaq thin clients, it is important to cross-reference the supported video
resolutions of the HP Compaq thin client to the supported resolutions of the monitor. Most HP monitors have one or more supported
resolutions that match HP Compaq thin client products.
4Only serial is supported.
5Option and support is available directly from third party.
6Service levels and response times for HP Care Packs may vary depending on your geographic location. Restrictions and limitations
apply. For details, visit www.hp.com/go/carepack.
74U4847E is available in all regions; U4849E is available in Americas and Asia-Pacific/Japan.
DA - 12889
North America — Version 10 — April 3, 2009
Page 6
QuickSpecs
HP Compaq t5735 Thin Client
Technical Specifications
Processor
Memory
Graphics
AMD Sempron 2100+, 1 GHz
1 GB
Flash Memory
512 MB or 1 GB DDR-2 SODIMM
System Memory
NOTE: 32 MB reserved for graphics memory
ATI Radeon X1250 graphics with support for high-resolution monitors up to 2048 x 1536, or up to 32
bit color depth
800 x 600; 960 x 600
Mode
1024 x 768
1152 x 864
1280 x 720 ; 1280 x 768; 1280 x 800;1280 x 1024
1360 x 768; 1366 x 768; 1368 x 768
1400 x 1050
Input/Output/
Keyboard
USB or PS/2
Peripheral Support
Type of included keyboard (USB or PS/2) varies by region.
Mouse
USB or PS/2 (both supported)
Mouse included with every thin client. Type of included mouse (USB or PS/2)
varies by region.
Printer
Local and/or network printers (RDP, ICA, LPD) as per the printer support
statement.
Video
ATI Radeon X1250 graphics
Audio
Output
Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample
rate.
Input
1/8-inch mini microphone
Security
One security lock slot (cable lock sold separately)
Support for Smart Card options
Terminal Server Protocols Integrated Citrix ICA 10.x and rdesktop RDP 1.5 for remote terminal services
and Session Brokers
Terminal personalities standard
Networking
10/100/1000 Gigabit Ethernet, twisted pair (RJ-45)
TCP/IP with DNS and DHCP
Point-to-Point Protocol (PPP), Direct Connection through RS-232, Wake on LAN (WOL), PXE
I/O ports and connectors Eight USB 2.0 ports (two in front, four in rear, two in secure USB compartment), 1 VGA, 1 DVI-D, 2
PS/2, 1 serial, 1 RJ-45, and 1 optional Expansion Module with PCI or PCIe x1, including 1 parallel and
second serial port
Resident Operating
Debian Linux (Linux Kernel 2.6)
System
Server OS Compatibility/ Citrix Presentation Server (up to 4.5)
Support
Citrix Metaframe Presentation Server 3.0, Citrix Metaframe XP Presentation Server
Citrix Metaframe 1.x
Windows 2000/2003 Server families, Windows 2000/2003 Server Terminal Services
Windows 2000 Advanced Server, Windows 2000 Advance Server Terminal Services
Microsoft® Windows® NT 4.0 Server, Windows NT 4.0 Terminal Server Edition
VMware Virtual Desktop Infrastructure using RDP
Debian Linux 4.0 with Kernel 2.6
Pre-Installed Software
Citrix ICA, rdesktop RDP client, and terminal emulation software
Debian Iceweasel (Firefox) browser
DA - 12889
North America — Version 10 — April 3, 2009
Page 7
QuickSpecs
HP Compaq t5735 Thin Client
Technical Specifications
HP ThinState for rapid deployment
Altiris Deployment Solution (full client license). Altiris Deployment Solution (management console)
available as free download from Altiris at: www.altiris.com/hptc
Other software available as add-ons (see www.hp.com/support for latest list of available add-ons)
OS Languages
English
Dimensions H x W x D
10.0 x 1.8 x 8.47 in (254.5 x 45.7 x 215.14 mm)
Without stand
(approximate)
10.5 x 1.8 x 8.47 in (266.7 x 45.7 x 215.14 mm)
With stand
With Expansion Module 10.0 x 3.0 x 8.47 in (254.5 x 76.2 x 215.14 mm)
Weight (approximate)
3.5 lb (1.6 kg)
With stand
With Expansion Module 4.8 lb (2.2 kg)
Environmental
50° to 104° F (10 to 40° C)
Temperature range on
- with optional Expansion 50° to 95° F (10° to 40° C)
Module or mounted with
HP Quick Release
-22° to 140° F (-30 to 60° C)
Temperature range off
20% to 80% condensing
Humidity
10% to 90% non-condensing
Worldwide auto-sensing 100-240 VAC, 50-60 Hz, energy-saving automatic
Power
power-down, surge-tolerant, Energy Star compliant 50-watt power supply.
1
Average power consumption in idle mode is from 17.7 to 18.8 W.
Power consumption
1The actual power consumption at your location could vary and is dependent on many factors including but not limited to software
load on the thin client, attached peripherals, and environmental factors.
German ZH1/618; EN29241-3, approved
Regulatory Compliance Ergonomics
UL 1950, CSA 950; TÜV-GS (EN60 950) approved
Safety
FCC Class B; CE Mark; EN55022B; VCCI
RF Interference
Three-year limited hardware warranty.
Warranty
NOTE: Certain restrictions apply. Consult the HP Customer Support Center for details.
Emulations
Emulation
ADDS A2
AIXTerm
ANSI BBS
AT 386
DG 410
HP 70092
HZ1500
IBM3151
IBM3270
IBM5250
Terminal ID
70092
Mod11, Mod31
3278-2 (24x80), 3278-3 (32x80), 3278-4 (43x80), 3278-5 (27x132),
3278-2-E (24x80), 3278-E (32x80), 3278-4-E (43x80), 3278-5-E (27x132),
3279-2 (24x80), 3279-3 (32x80), 3279-4 (43x80), 3279-5 (27x132),
3287-1
5291-1, 5292-2, 5251-11, 3179-2, 3196-A1, 3180-2, 3477-FC
(27x132), 3477-FG (24x80), 3486-BA, 3487-HA, 3487-HC, 3812-1
SCO Console
TA6530
DA - 12889
North America — Version 10 — April 3, 2009
Page 8
QuickSpecs
HP Compaq t5735 Thin Client
Technical Specifications
TVI910
TVI920
TVI925
TVI950
TVI955
VT52, VT100
Environment-friendly
Products and Approach
VT HP220
WY50
WY50+
WY60
RoHS Compliance
Material Usage
Packaging
DA - 12889
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420
VT-HP220
Hewlett-Packard is committed to compliance with all applicable
environmental laws and regulations, including the European Union
Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed
compliance obligations by meeting the requirements of the RoHS Directive on
a worldwide basis. From July 1, 2006, RoHS substances will be virtually
eliminated (virtually = to levels below legal limits) for all HP electronic
products subject to the RoHS Directive, except where it is widely recognized
that there is no technically feasible alternative (as indicated by an exemption
under the EU RoHS Directive).
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product
North America — Version 10 — April 3, 2009
Page 9
QuickSpecs
HP Compaq t5735 Thin Client
Technical Specifications
packaging:
End-of-life Management
and Recycling
Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas.
To recycle your product, please go to: http://www.hp.com/recycle
or contact your nearest HP sales office. Products returned to HP will be
recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/recyclers.
These instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental [link to new HP white paper now in progress]
Information
Global Citizenship Report:
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications:
http://www.hp.com/hpinfo/globalcitizenship/environment
/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html
© 2009 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows NT are trademarks or registered trademarks of Microsoft Corporation in the United States and
other countries. AMD and Geode are trademarks of Advanced Micro Devices, Inc.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 12889
North America — Version 10 — April 3, 2009
Page 10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
