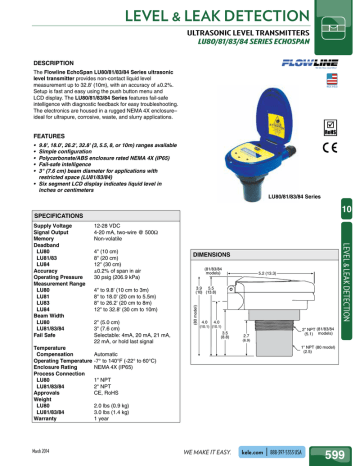

LU8 Series Catalog Page
NEW!
LEVEL & leak detection
Ultrasonic Level Transmitters
LU80/81/83/84 Series EchoSpan
DESCRIPTION
The Flowline EchoSpan LU80/81/83/84 Series ultrasonic
level transmitter provides non-contact liquid level
measurement up to 32.8' (10m), with an accuracy of ±0.2%.
Setup is fast and easy using the push button menu and
LCD display. The LU80/81/83/84 Series features fail-safe
intelligence with diagnostic feedback for easy troubleshooting.
The electronics are housed in a rugged NEMA 4X enclosure–
ideal for ultrapure, corrosive, waste, and slurry applications.
FEATURES
•
•
•
•
•
9.8', 18.0', 26.2', 32.8' (3, 5.5, 8, or 10m) ranges available
Simple configuration
Polycarbonate/ABS enclosure rated NEMA 4X (IP65)
Fail-safe intelligence
3" (7.6 cm) beam diameter for applications with
restricted space (LU81/83/84)
• Six segment LCD display indicates liquid level in
inches or centimeters
LU80/81/83/84 Series
10
SPECIFICATIONS
March 2014
LEVEL & LEAK DETECTION
DIMENSIONS
(81/83/84
models)
5.2 (13.3)
3.9
5.5
(10) (13.8)
(80 model)
Supply Voltage
12-28 VDC
Signal Output
4-20 mA, two-wire @ 500Ω
Memory
Non-volatile
Deadband
LU80
4" (10 cm)
LU81/83
8" (20 cm)
LU84
12" (30 cm)
Accuracy
±0.2% of span in air
Operating Pressure
30 psig (206.9 kPa)
Measurement Range
LU80
4" to 9.8' (10 cm to 3m)
LU81
8" to 18.0' (20 cm to 5.5m)
LU83
8" to 26.2' (20 cm to 8m)
LU84
12" to 32.8' (30 cm to 10m)
Beam Width
LU80
2" (5.0 cm)
LU81/83/84
3" (7.6 cm)
Fail Safe
Selectable: 4mA, 20 mA, 21 mA,
22 mA, or hold last signal
Temperature
Compensation
Automatic
Operating Temperature-7° to 140°F (-22° to 60°C)
Enclosure Rating
NEMA 4X (IP65)
Process Connection
LU80
1" NPT
LU81/83/84
2" NPT
Approvals
CE, RoHS
Weight
LU80
2.0 lbs (0.9 kg)
LU81/83/84
3.0 lbs (1.4 kg)
Warranty
1 year
4.0
4.0
(10.1) (10.1)
3.5
(8.8)
2" NPT (81/83/84
(5.1) models)
2.7
(6.9)
1" NPT (80 model)
(2.5)
WE MAKE IT EASY.
kele.com
888-397-5353 USA
599
NEW!
LEVEL & leak detection
Ultrasonic Level Transmitters
LU80/81/83/84 Series EchoSpan
WIRING
Wiring to a Flowline LC52-1001 Controller
Wiring to a Typical Two-Wire Loop Powered Indicator
JWA mode
Wiring to a Typical Programmable Logic Controller
10
Wiring to a Flowline LI1_-1001 Universal Panel Meter
LEVEL & LEAK DETECTION
Wiring to a Flowline LI42-1001 MicroPoint Indicator
Transmitter #1
Black
Red
Gray
White
Brown
Orange
Transmitter #2
Yellow
Purple
Blue
Green
ORDERING INFORMATION
MODEL
LU80-5101
LU80-5101
LU81-5101
LU81-5101-B
LU83-5101
LU83-5101-B
LU84-5101
LU84-5101-B
DESCRIPTION
Ultrasonic level transmitter, 9.8 ft (3m)
Ultrasonic level transmitter, 9.8 ft (3m) with bracket
Ultrasonic level transmitter, 18.0 ft (5.5m)
Ultrasonic level transmitter, 18.0 ft (5.5m) with bracket
Ultrasonic level transmitter, 26.2 ft (8m)
Ultrasonic level transmitter, 26.2 ft (8m) with bracket
Ultrasonic level transmitter, 32.8 ft (10m)
Ultrasonic level transmitter, 32.8 ft (10m) with bracket
RELATED PRODUCTS
LM50-1001
2" Mounting bracket (included with "B" option)
LI99-1001
Fob calibration key
LM50-1001-1
1" Mounting bracket (included with "B" option)
LM52-1400
2"NPT x 1" NPT (Sch. 40) fitting
LM52-2400
3" NPT x 2" NPT (Sch. 40) fitting
LM52-2800
3" NPT x 2" NPT (Sch. 80) fitting
LM52-3800
4" NPT x 2" NPT (Sch. 80) fitting
600
888-397-5353 USA
kele.com
When you need it right, right now, call Kele.
March 2014
