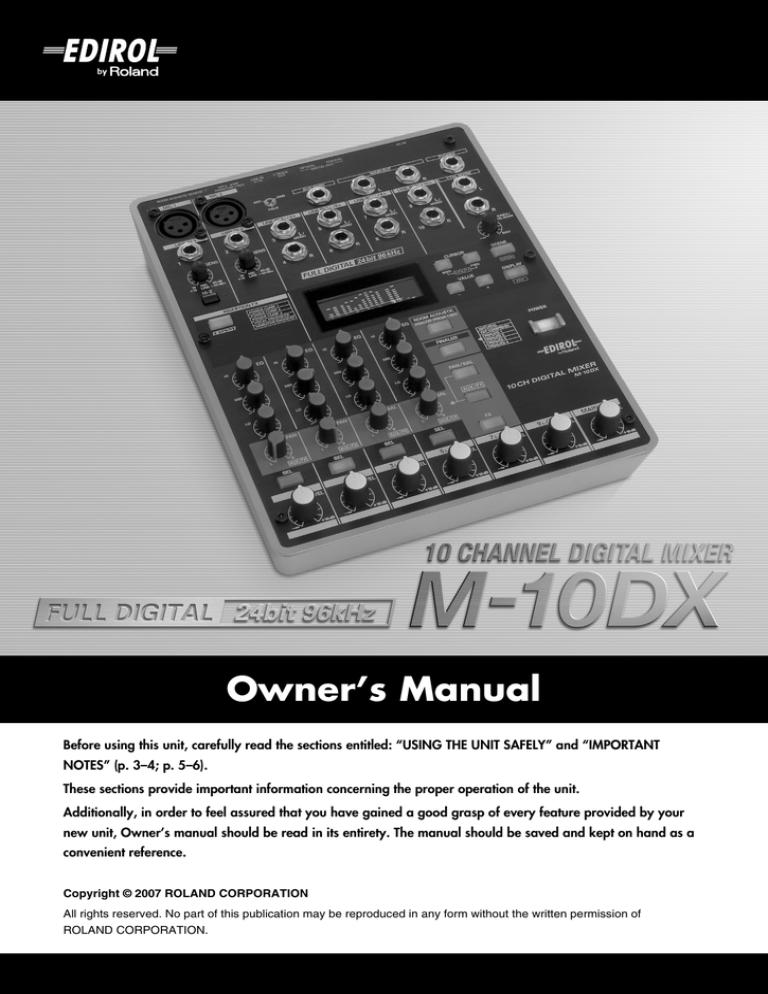

Owner’s Manual
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT
NOTES” (p. 3–4; p. 5–6).
These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your
new unit, Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a
convenient reference.
Copyright © 2007 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of
ROLAND CORPORATION.
For the U.K.
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
BLUE:
NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.
For EU Countries
This product complies with the requirements of European Directive 89/336/EEC.
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For Canada
NOTICE
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
AVIS
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
USING THE UNIT SAFELY
The
symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers
other adverse effects
respect to the home
furnishings, as well
animals or pets.
002c
•
The
symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
to damage or
caused with
and all its
to domestic
Do not open (or modify in any way) the unit or its
AC adaptor.
The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.
009
•
................................................................................................
003
•
Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
................................................................................................
010
•
................................................................................................
004
•
Never use or store the unit in places that are:
• Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment); or
are
• Damp (e.g., baths, washrooms, on wet floors); or
are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
................................................................................................
007
•
Make sure you always have the unit placed so it is
level and sure to remain stable. Never place it on
stands that could wobble, or on inclined surfaces.
................................................................................................
008c
•
Be sure to use only the AC adaptor supplied with
the unit. Also, make sure the line voltage at the
installation matches the input voltage specified on
the AC adaptor’s body. Other AC adaptors may
use a different polarity, or be designed for a
different voltage, so their use could result in
damage, malfunction, or electric shock.
................................................................................................
008e
•
Use only the attached power-supply cord. Also,
the supplied power cord must not be used with
any other device.
Do not excessively twist or bend the power cord,
nor place heavy objects on it. Doing so can damage
the cord, producing severed elements and short
circuits. Damaged cords are fire and shock
hazards!
This unit, either alone or in combination with an
amplifier and headphones or speakers, may be
capable of producing sound levels that could cause
permanent hearing loss. Do not operate for a long
period of time at a high volume level, or at a level
that is uncomfortable. If you experience any
hearing loss or ringing in the ears, you should
immediately stop using the unit, and consult an
audiologist.
................................................................................................
011
•
Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.
................................................................................................
012b
•
Immediately turn the power off, remove the AC
adaptor from the outlet, and request servicing by
your retailer, the nearest Roland Service Center, or
an authorized Roland distributor, as listed on the
“Information” page when:
• The AC adaptor, the power-supply cord, or the
plug has been damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
• The unit has been exposed to rain (or otherwise
has become wet); or
• The unit does not appear to operate normally or
exhibits a marked change in performance.
................................................................................................
................................................................................................
3
013
•
In households with small children, an adult should
provide supervision until the child is capable of
following all the rules essential for the safe
operation of the unit.
................................................................................................
014
•
Protect the unit from strong impact.
(Do not drop it!)
................................................................................................
015
•
Do not force the unit’s power-supply cord to share
an outlet with an unreasonable number of other
devices. Be especially careful when using extension
cords—the total power used by all devices you
have connected to the extension cord’s outlet must
never exceed the power rating (watts/amperes) for
the extension cord. Excessive loads can cause the
insulation on the cord to heat up and eventually
melt through.
108b
•
................................................................................................
109b
•
•
Before using the unit in a foreign country, consult
with your retailer, the nearest Roland Service
Center, or an authorized Roland distributor, as
listed on the “Information” page.
................................................................................................
019
•
Batteries must never be recharged, heated, taken
apart, or thrown into fire or water.
•
•
The unit and the AC adaptor should be located so
their location or position does not interfere with
their proper ventilation.
................................................................................................
102c
•
Always grasp only the plug on the AC adaptor
cord when plugging into, or unplugging from, an
outlet or this unit.
................................................................................................
103b
•
At regular intervals, you should unplug the AC
adaptor and clean it by using a dry cloth to wipe
all dust and other accumulations away from its
prongs. Also, disconnect the power plug from the
power outlet whenever the unit is to remain
unused for an extended period of time. Any
accumulation of dust between the power plug and
the power outlet can result in poor insulation and
lead to fire.
................................................................................................
104
•
Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
................................................................................................
106
•
Never climb on top of, nor place heavy objects on
the unit.
................................................................................................
107c
•
Never handle the AC adaptor or its plugs with wet
hands when plugging into, or unplugging from, an
outlet or this unit.
................................................................................................
4
Whenever you suspect the possibility of lightning
in your area, disconnect the AC adaptor from the
outlet.
................................................................................................
111: Selection
•
If used improperly, batteries may explode or leak
and cause damage or injury. In the interest of
safety, please read and observe the following
precautions (p. 16).
1
• Carefully follow the installation instructions for
batteries, and make sure you observe the correct
polarity.
2
• Avoid using new batteries together with used
ones. In addition, avoid mixing different types
of batteries.
3
• Remove the batteries whenever the unit is to
remain unused for an extended period of time.
5
• If a battery has leaked, use a soft piece of cloth
or paper towel to wipe all remnants of the
discharge from the battery compartment. Then
install new batteries. To avoid inflammation of
the skin, make sure that none of the battery
discharge gets onto your hands or skin. Exercise
the utmost caution so that none of the discharge
gets near your eyes. Immediately rinse the
affected area with running water if any of the
discharge has entered the eyes.
................................................................................................
101b
Before cleaning the unit, turn off the power and
unplug the AC adaptor from the outlet.
................................................................................................
110b
................................................................................................
016
Before moving the unit, disconnect the AC adaptor
and all cords coming from external devices.
6
• Never keep batteries together with metallic
objects such as ballpoint pens, necklaces,
hairpins, etc.
................................................................................................
112
•
Used batteries must be disposed of in compliance
with whatever regulations for their safe disposal
that may be observed in the region in which you
live.
................................................................................................
118c
•
Keep a screw (ground terminal) you may remove
in a safe place out of children’s reach, so there is no
chance of them being swallowed accidentally.
................................................................................................
120
•
Always turn the phantom power off when
connecting any device other than condenser microphones that require phantom power. You risk
causing damage if you mistakenly supply
phantom power to dynamic microphones, audio
playback devices, or other devices that don’t
require such power. Be sure to check the specifications of any microphone you intend to use by
referring to the manual that came with it.
This instrument’s phantom power:
(per channel) 48 V DC, 5 mA Max
................................................................................................
IMPORTANT NOTES
291a
In addition to the items listed under “USING THE UNIT SAFELY” on page 3–4, please read and observe the following:
Power Supply: Use of Batteries
301
• Do not connect this unit to same electrical outlet that is
being used by an electrical appliance that is controlled by
an inverter (such as a refrigerator, washing machine,
microwave oven, or air conditioner), or that contains a
motor. Depending on the way in which the electrical
appliance is used, power supply noise may cause this unit
to malfunction or may produce audible noise. If it is not
practical to use a separate electrical outlet, connect a power
supply noise filter between this unit and the electrical
outlet.
302
• The AC adaptor will begin to generate heat after long
hours of consecutive use. This is normal, and is not a cause
for concern.
303a
• The use of an AC adaptor is recommended as the unit’s
power consumption is relatively high. Should you prefer to
use batteries, please use the alkaline type.
304a
• When installing or replacing batteries, always turn off the
power on this unit and disconnect any other devices you
may have connected. This way, you can prevent
malfunction and/or damage to speakers or other devices.
307
• Before connecting this unit to other devices, turn off the
power to all units. This will help prevent malfunctions
and/or damage to speakers or other devices.
Placement
351
• Using the unit near power amplifiers (or other equipment
containing large power transformers) may induce hum. To
alleviate the problem, change the orientation of this unit; or
move it farther away from the source of interference.
352a
• This device may interfere with radio and television
reception. Do not use this device in the vicinity of such
receivers.
352b
• Noise may be produced if wireless communications
devices, such as cell phones, are operated in the vicinity of
this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience
such problems, you should relocate such wireless devices
so they are at a greater distance from this unit, or switch
them off.
354a
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.
355b
• When moved from one location to another where the
temperature and/or humidity is very different, water
droplets (condensation) may form inside the unit. Damage
or malfunction may result if you attempt to use the unit in
this condition. Therefore, before using the unit, you must
allow it to stand for several hours, until the condensation
has completely evaporated.
360
• Depending on the material and temperature of the surface
on which you place the unit, its rubber feet may discolor or
mar the surface.
You can place a piece of felt or cloth under the rubber feet
to prevent this from happening. If you do so, please make
sure that the unit will not slip or move accidentally.
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a mild,
non-abrasive detergent. Afterwards, be sure to wipe the
unit thoroughly with a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or deformation.
Repairs and Data
452
• Please be aware that all data contained in the unit’s
memory may be lost when the unit is sent for repairs.
Important data should always be written down on paper
(when possible). During repairs, due care is taken to avoid
the loss of data. However, in certain cases (such as when
circuitry related to memory itself is out of order), we regret
that it may not be possible to restore the data, and Roland
assumes no liability concerning such loss of data.
Additional Precautions
551
• Please be aware that the contents of memory can be
irretrievably lost as a result of a malfunction, or the
improper operation of the unit. To protect yourself against
the risk of loosing important data, we recommend that you
periodically save a backup copy of important data you
have stored in the unit’s memory written down on paper.
552
• Unfortunately, it may be impossible to restore the contents
of data that was stored in the unit’s memory once it has
been lost. Roland Corporation assumes no liability
concerning such loss of data.
5
IMPORTANT NOTES
553
985
• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its jacks
and connectors. Rough handling can lead to malfunctions.
• The explanations in this manual include illustrations that
depict what should typically be shown by the display.
Note, however, that your unit may incorporate a newer,
enhanced version of the system (e.g., includes newer
sounds), so what you actually see in the display may not
always match what appears in the manual.
554
• Never strike or apply strong pressure to the display.
556
• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you will
avoid causing shorts, or damage to the cable’s internal
elements.
558a
• To avoid disturbing your neighbors, try to keep the unit’s
volume at reasonable levels. You may prefer to use
headphones, so you do not need to be concerned about
those around you (especially when it is late at night).
559a
• When you need to transport the unit, package it in the box
(including padding) that it came in, if possible. Otherwise,
you will need to use equivalent packaging materials.
562
• Some connection cables contain resistors. Do not use cables
that incorporate resistors for connecting to this unit. The
use of such cables can cause the sound level to be
extremely low, or impossible to hear. For information on
cable specifications, contact the manufacturer of the cable.
927
• Depending on the circumstances of a particular setup, you
may experience a discomforting sensation, or perceive that
the surface feels gritty to the touch when you touch this
device, microphones connected to it, or the metal portions
of other objects, such as guitars. This is due to an infinitesimal electrical charge, which is absolutely harmless.
However, if you are concerned about this, connect the
ground terminal (see figure) with an external ground.
When the unit is grounded, a slight hum may occur,
depending on the particulars of your installation. If you are
unsure of the connection method, contact the nearest
Roland Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fire or explosion)
• Telephone-line ground or lightning rod (may be
dangerous in the event of lightning)
Battery handling
• Incorrect handling of batteries, rechargeable batteries, or a
battery charger can cause leakage, overheating, fire, or
explosion. Before use, you must read and strictly observe
all of the precautions that accompany the batteries,
rechargeable batteries, or battery charger.
• When using rechargeable batteries and a charger, use
only the combination of rechargeable batteries and
charger specified by the battery manufacturer.
6
Contents
USING THE UNIT SAFELY ............................................ 3
IMPORTANT NOTES ................................................... 5
Main features............................................................ 9
Block diagram......................................................... 10
Names of things and what they do ......................... 12
Front panel .................................................................................................................12
Rear panel...................................................................................................................15
Installing batteries .....................................................................................................16
Basic use ................................................................. 17
Main connections.......................................................................................................17
Example 1) Simple PA....................................................................................................... 17
Example 2) Computer music............................................................................................ 18
Example 3) Editing sound for video ............................................................................... 19
Turning the power on ................................................................................................20
Turning the power off ................................................................................................20
Basic operation ..........................................................................................................21
[SEL] buttons ...................................................................................................................... 21
Advanced use ......................................................... 22
Making detailed equalizer settings...........................................................................22
Using the dedicated vocal/narration effect (Insert Effect) .....................................23
Turning the insert effect on/off independently ............................................................ 23
Editing the effect settings.................................................................................................. 24
List of effects ....................................................................................................................... 25
Applying echo/reverb (FX) ........................................................................................27
Editing the effect settings.................................................................................................. 27
List of effects ....................................................................................................................... 28
7
Contents
Adjusting the output signal
appropriately for your environment (Room Acoustic Control) .............................29
Automatic adjustment (Room Acoustic Auto Control)................................................ 29
Manual adjustment ............................................................................................................ 33
Calling up adjustment settings ........................................................................................ 33
Creating a well-balanced sound (Finalize) ..............................................................34
Editing the effect settings.................................................................................................. 34
List of effects ....................................................................................................................... 35
Saving and calling up mixer settings (Scenes).......................................................36
Saving a scene..................................................................................................................... 36
Calling up a scene .............................................................................................................. 36
Clearing the settings of a scene ........................................................................................ 36
Other functions........................................................ 37
Changing the system settings (UTILITY).................................................................37
Basic procedure .................................................................................................................. 37
Adjusting the brightness of the screen (LCD Contrast) ............................................... 37
Adjusting the brightness of the backlight (LCD Backlight)......................................... 37
Reducing the battery consumption (LCD Power Save) ............................................... 37
Specifying the M-10DX’s sampling frequency (Sample Freq)..................................... 38
Selecting the Room Acoustic Sensor (RAC Source) ...................................................... 38
Specifying the frequency range
analyzed by Room Acoustic Auto Control (RAC Freq >= / RAC Freq <=) ............. 38
Selecting the type of batteries (Battery) .......................................................................... 38
Digitally outputting the pre-fader signal of channels 1 and 2 (REC to D.OUT)....... 38
Initializing the settings (Initialize)................................................................................... 39
Restoring the factory settings (Factory Reset).......................................................39
Troubleshooting ...................................................... 40
Main specifications .................................................. 43
Index ...................................................................... 45
8
Main features
The M-10DX is a 24-bit, 96 kHz full-digital 10-channel mixer.
It delivers high audio quality and sophisticated functionality at an amazing cost/benefit ratio, giving you the
sound and operability of a full-digital mixer for an ideal mixing environment.
A rich array of input/output jacks
A full complement of input/output jacks are provided, including phone jacks and RCA pin type input/
output jacks.
For mic input, the unit offers two XLR type connectors. Phantom power is also provided.
For digital output, both optical and coaxial jacks/connectors are provided.
Use dedicated effects to create the perfect sound
Also included are special “insert effects,” designed to be used on vocal sources input via microphone, such as
narrations and announcements; a “finalize” effect, which improves the overall volume and loudness balance
to create your final sound; and “FX,” which provides spatial-type effects, such as echo and reverb to simulate
the acoustics of a club or hall.
Automatic compensation for room acoustics
The M-10DX’s “Room Acoustic Auto Control” function analyzes the acoustical characteristics of the room and
automatically adjusts the output signal so that it will be appropriate for that room.
Graphic display
A backlit graphic LCD display is provided, letting you adjust the channel levels while viewing the settings in
the display. The display also shows information about each channel and about the effect settings, giving you
visual confirmation of the current status while you operate the mixer.
Two-way power for operation anywhere
The M-10DX can be powered using the included AC adaptor, or using batteries (eight AA batteries).
If you use batteries, you’ll be able to set up your system anywhere, including outdoors.
9
Block diagram
AUX SEND
MAIN R
MAIN L
PHANTOM POWER
MIC IN
AD
INSERT
FX
PAN
EQ
AUX
LO
LINE IN
MID
MONO CHANNEL 1 – 2 (1 OF 2)
Q
HI
To REC OUT 1
REC OUT 2
FREQ
STEREO CHANNEL 3/4 – 5/6 (1 OF 2)
LINE IN L
AD
EQ
BAL
LINE IN R
AD
EQ
AUX
LO
MID
Q
STEREO CHANNEL 7/8
LINE IN L
HI
FREQ
AD
LEVEL
LINE IN R
AD
LINE IN L
AD
LEVEL
LINE IN R
AD
RCA
L IN
R IN
STEREO CHANNEL 9/10
10
FX
FX
LEVEL METER
2 TRACK OUT L
MAIN MIX
FINALIZE
G-EQ
ROOM
ACOUSTIC
CONTROL
DA
MAIN OUT L
MAIN
LEVEL
2 TRACK OUT R
DA
MAIN OUT R
COAX OUT
REC OUT 1
From
OPTICAL OUT
REC OUT 2
REC OUT to D-OUT
(UTIL)
CONTROL
ROOM L
C-ROOM &
PHONES LEVEL
CONTROL
ROOM R
PHONES
DA
AUX SEND
11
Names of things and what they do
Front panel
4. EQ Knobs (HI, MID, LOW)
M-10DX_Front.eps
22
23
25
26
27
Provide for three-band equalization, with high, mid, and low
frequency controls for each channel.
The corresponding frequency range will be boosted when you
turn a knob toward the right, be cut when you turn it toward
the left, and made flat when the knob is in the center (U)
position.
24
1
2
16
17
3
20
21
12
4
13
18
19
When you turn a knob, the equalizer screen will appear in the
display, showing the current settings both numerically and
graphically.
15
5
7
8
6
9
14
10
11
You can change the center frequency of the high, mid, and low
frequency ranges, and the width of the mid-frequency range
(MID Q).
➝ “Making detailed equalizer settings” (p. 22)
1. SENS Knobs (channels 1–2)
When you turn an EQ knob, the [SEL] button of that channel
will light.
Allow you to adjust the sensitivity as appropriate for the level
of the input signal.
5. PAN/BAL Butons
Connector
MIC connector (XLR)
LINE IN jack (TRS)
Range of adjustment
+10– +60 dB
+10– -40 dBu
2. Hi-Z Switch (channel 1)
When switched on (
), the corresponding LINE IN 1 jack
becomes a high-impedance jack, allowing an electric guitar to
be connected directly.
When you press this button so it’s lit, the PAN knobs/BAL
knobs will operate as knobs that adjust the pan or volume
balance, respectively.
The pan screen will appear in the display, showing the pan for
channels 1–2 and the volume balance of channels 3/4–5/6.
This is a convenient way to check the current pan and volume
balance setting of each channel.
fig.02-PAN-BAL
3. INSERTION FX Button
Press this when you want to edit the Insert Effect settings.
When you press the button it will light, and the Insert Effect
screen will appear.
➝ “Using the dedicated vocal/narration effect (Insert
Effect)” (p. 23)
For channels 1 and 2, you can independently select whether or
not the insert effect is to be used.
➝ “Turning the insert effect on/off independently” (p. 23)
* Press the DISPLAY button to return to the level meter screen.
6. AUX/FX Button
If you press this button so it’s lit, the PAN/BAL knobs will
function in adjusting AUX levels.
* When the effect (FX) is on, turning an AUX/FX knob will
simultaneously adjust the AUX level as well as the effect depth of
the channel.
The display will show the AUX screen, indicating the AUX
level of each channel.
12
Names of things and what they do
This is convenient when you want to check the current AUX
level of each channel.
10. Channel LEVEL Knobs
Adjust the levels of the signals input to the channels.
fig.02-AUX2
* In order to reduce the amount of noise in your mix, channels
you’re not using should be set to the minimum level.
11. MAIN MIX LEVEL Knob
* Press the DISPLAY button to return to the level meter screen.
Adjusts the level of the signal that is output from MAIN OUT
jacks.
7. PAN Knobs
12. ROOM ACOUSTIC Button
Allow you to localize a mono input signal between L and R.
The signal will be located in the center when a knob is in the
The output from the M-10DX’s MAIN OUT jacks or
CONTROL ROOM jacks can be automatically adjusted to
optimize the frequency response for your acoustical
environment.
(
) position.
* If the AUX/FX button is lit, this knob operates as the AUX/FX
knob to adjust the level of the signal sent from each channel to the
AUX SEND bus.
➝ “Adjusting the output signal appropriately for your
environment (Room Acoustic Control)” (p. 29)
8. BAL Knobs
13. FINALIZE Button
Adjust the volume balance of a stereo input signal (channels
3–6). The left and right channels will be at the same volume
Press this when you want to edit the Finalize settings. When
you press the button it will light, and the Finalize screen will
appear.
when a knob is in the (
) position.
* If the AUX/FX button is lit, this knob operates as the AUX/FX
knob to adjust the level of the signal sent from each channel to the
AUX SEND bus.
9. SEL Buttons
If you press one of these buttons (the button will light), the
parameters of the selected channel will appear in the display
as the “parameter screen.”
When calling up a scene (p. 36), this is a convenient way to
check the settings of each channel.
This button can be pressed at any time to toggle between the
“parameter screen” and “equalizer screen.”
➝ “Creating a well-balanced sound (Finalize)” (p. 34)
14. FX Button
If you press this button so it’s lit, FX (echo, reverb) will be
turned on, and the signal processed by the effect will be sent
to the MAIN bus.
➝ “Applying echo/reverb (FX)” (p. 27)
15. POWER Switch
Turns the power on/off. When the power is on, this button
will light.
Hold down this switch for at least one second.
fig.02-SEL
Parameter screen
16. PHONES/CTRL ROOM Knob
Adjusts the volume of the signal that is output to the PHONES
jack and the CONTROL ROOM jacks.
17. Display
Equalizer screen
This graphically shows the input level of all channels and
output level of MAIN OUT jacks, or displays parameters and
their values.
BUS
* Press the DISPLAY button to return to the level meter screen.
A “bus” is a signal route to which multiple signals within
the mixer are combined.
There are two buses—MAIN (L, R) and AUX SEND—and
the signals combined to each bus are sent to the
corresponding output route.
13
Names of things and what they do
The DISPLAY button’s light will go out when you press
another button to switch to something other than the level
meter screen.
From any screen, you can press the DISPLAY button to access
the level meter screen.
M-10DX-Front-2.eps
22
23
25
26
27
* In order to mix with the least possible noise and distortion,
24
adjust the SENS knob so that the top “
16
20
21
” of the level meter
in the display does not light when the input signal is loudest.
18
19
18. CURSOR Buttons (BWD/FWD)
Use these buttons to move the cursor when you’re editing
parameters shown in the screen. Pressing the FWD button will
move the cursor forward, and pressing the BWD button will
move the cursor backward.
The parameter or value at the cursor location is highlighted.
You can access the Utility screen by pressing the BWD button
and FWD button simultaneously.
19. VALUE Buttons (-/+)
When editing parameters shown in the screen, use these
buttons to modify the value.
If you press the [+] button while holding down the [-] button,
or press the [-] button while holding down the [+] button, the
numerical value will change more quickly, allowing you to
edit the value efficiently.
22. MIC Connectors (channels 1–2)
These are balanced (XLR) mic input jacks. 48V phantom
power can be supplied via these jacks, allowing you to connect
phantom powered condenser mics.
* You may connect either balanced or unbalanced sources.
* The MIC connectors are wired as follows. Check how your audio
equipment is wired before you connect it.
fig.02-XLR
23. LINE IN Jacks (channels 1–10)
These are 1/4” TRS balanced line input jacks.
GND (SLEEVE)
HOT
(TIP)
COLD (RING)
* You can also connect standard (unbalanced) 1/4” plugs to these
jacks.
20. SCENE Button
Press this when you want to register the current settings as a
“scene” or call up a previously registered scene.
You can’t use the MIC connector and LINE IN jack of the same
channel simultaneously. Connect only one or the other.
➝ “Saving and calling up mixer settings (Scenes)” (p. 36)
24. CONTROL ROOM Jacks (L, R)
21. DISPLAY Button
These are 1/4” phone jacks that output the same sound as the
PHONES jack.
When you press this button, a level meter screen will appear,
showing the input levels (pre-fader) of all input channels and
the output level of the MAIN OUT jacks.
Connect to these if you're using nearfield powered monitors
instead of headphones.
25. AUX SEND Jack
fig.02-Meter
This is a balanced TRS 1/4” output jack that you can connect
to an external effects processor or other device.
* You can also connect standard 1/4” (unbalanced) plugs.
An icon indicating the power supply currently in use is shown
in the lower right of the screen.
AC adaptor in use.
Batteries in use. The remaining battery power is
shown.
14
26. MAIN OUT Jacks (L, R)
These are balanced TRS 1/4” output jacks that output the final
signal produced by mixing.
Connect these jacks to your power amp or other device.
* You can also connect standard 1/4” (unbalanced) plugs.
Names of things and what they do
27. PHONES Jack
This is a stereo 1/4” phone jack for connecting stereo
headphones.
Rear panel
M-10DX-Rear.eps
29
30
31
31. 2 TRACK OUT Jacks (L, R)
33
32
34
28
You can connect these RCA pin-type output jacks to a cassette
deck or other recording device.
35
Ground terminal
28. Cord Hook
Wrap the AC adaptor cord around this hook.
* To prevent the inadvertent disruption of power to your unit
(should the plug be pulled out accidentally), and to avoid applying
undue stress to the AC adaptor jack, anchor the power cord using
the cord hook, as shown in the illustration.
32. LINE IN Jacks (9L, 10R)
These are RCA pin-type line input jacks.
They can be used simultaneously with the front panel LINE
IN 9L/10R jacks.
If they are used simultaneously, the input signal will be
mixed.
33. PHANTOM Switch
If you turn this switch on (
), phantom power will be
supplied to the MIC connectors (1–2).
fig.CordHook
You must leave phantom power turned off unless you’ve
connected a condenser mic that requires a phantom power
supply. Supplying phantom power to a dynamic mic or an
audio playback device will cause malfunctions.
For details on the specifications for your mic, refer to the
instruction manual that came with the mic you’re using.
* The M-10DX’s phantom power:
(per channel) DC 48 V, 5 mA Max
29. DC IN (AC adaptor) Jack
34. ROOM ACOUSTIC SENSOR
Connect the included AC adaptor to this jack.
This sensor detects the frequency response of the room
acoustic auto control.
* If the AC adaptor plug is inserted in this jack, you won’t be able to
use the batteries even if batteries are installed.
30. DIGITAL OUT Connector/Jack
These digitally output the same signal as the MAIN OUT
jacks.
Both optical and coaxial-type connectors are provided, and
both can be used simultaneously.
* You can output the pre-fader signals (from before passing through
the channel LEVEL knob) of channels 1 and 2.
➝ “Automatic adjustment (Room Acoustic Auto Control)”
(p. 29)
* A mic connected to channel 1 can also be used as the sensor.
➝ “Selecting the Room Acoustic Sensor (RAC Source)” (p.
38)
35. Security Slot (
)
http://www.kensington.com/
➝ “Digitally outputting the pre-fader signal of channels 1
and 2 (REC to D.OUT)” (p. 38)
15
Names of things and what they do
Installing batteries
Types of batteries you can use
• AA alkaline batteries (LR6)
• AA nickel metal-hydride (HR15/51)
(The M-10DX cannot recharge nickel metal-hydride batteries. You must use a separate charger.)
You’ll need to set the system setting “Battery” (p. 38) to specify the type of batteries you’re using. If you don’t
make this setting, the remaining battery power will not be shown correctly, and battery life may be affected.
fig.Battery.eps
1.
Make sure that the M-10DX’s power is
OFF, then disconnect the AC adaptor
plug from the DC IN jack.
* If the AC adaptor plug is inserted in the DC IN jack,
you can’t use batteries even if they are installed.
2.
Detach the battery cover from the bottom
panel of the M-10DX.
* When turning the unit upside-down, get a bunch of
newspapers or magazines, and place them under the
four corners or at both ends to prevent damage to the
buttons and controls. Also, you should try to orient
the unit so no buttons or controls get damaged.
+
+
-
+
+
* When turning the unit upside-down, handle with care
to avoid dropping it, or allowing it to fall or tip over.
3.
Insert eight AA batteries into the battery
compartment, making sure to observe
the correct polarity (+ and - symbols).
4.
Replace the battery cover.
Caution when using battery power on the M-10DX
• If you operate on battery power for an extended time, the batteries will become hot. Be careful not to burn
yourself.
• Do not mix new batteries with used batteries nor mix batteries of differing types.
• If you will not be using the M-10DX for an extended time, we recommend that you remove the batteries to
prevent leakage or other accidents.
• If you insert the AC adaptor plug while the M-10DX is operating on batteries, the power will turn off. This
can cause malfunctions, so be sure to press the [POWER] switch to turn off the power before connecting
the AC adaptor.
• If the battery indication in the level meter screen shows
batteries as soon as possible.
(little capacity remaining), replace the
• If the batteries have run low, the power may fail to turn on when you press the [POWER] switch
immediately after turning the power off.
Please wait several tens of seconds before you press the [POWER] switch.
16
Basic use
Main connections
To prevent malfunction and/or speaker damage, you must turn down the volume on all equipment and
switch off their power before making connections.
Example 1) Simple PA
fig.Connection-1
Monitor speaker
Monitor speaker
CD player
or other audio device
Included
AC adaptor
*2
Power amp
Power amp
Condenser mic
Stereo
headphones
Bass
guitar
*1
Guitar with
Multiple effects
Keyboard
Rhythm machine
*1
If you’re connecting a bass guitar directly, turn the [Hi-Z] switch on. If you’ve connected an effects
processor between the bass guitar and the LINE IN jack, turn the [Hi-Z] switch off.
*2
If you’re connecting a condenser mic that requires phantom power, turn the [PHANTOM] switch on.
17
Basic use
Example 2) Computer music
fig.Connection-3
Portable recorder
Sound module
USB
Included
AC adaptor
*3
*2
Computer
DIGITAL IN
Audio Interface
(UA-101, etc.)
USB
OUTPUT
1–6
Condenser mic
Stereo
headphones
Electric
guitar
*1
Powered monitor
18
*1
If you’re connecting a electric guitar directly, turn the [Hi-Z] switch on. If you’ve connected an effects
processor between the electric guitar and the LINE IN jack, turn the [Hi-Z] switch off.
*2
If you’re connecting a condenser mic that requires phantom power, turn the [PHANTOM] switch on.
*3
Change the system settings so that the channel 1 and 2 pre-fader signals (i.e., from before passing
through the channel LEVEL knob) will be output from the M-10DX’s DIGITAL OUT (p. 38).
Basic use
Example 3) Editing sound for video
fig.Connection-2
LINE OUT
Video recorder
(master)
Portable recorder
(R-4 Pro)
*1
Stereo
headphones
Condenser mic
(narration)
Powered monitor
Video recorder 1
*1
Video recorder 2
Video recorder 3
If you connect a condenser mic that does not require phantom power, turn the [PHANTOM] switch
off.
19
Basic use
Turning the power on
Once the connections have been completed (p. 17–p. 18), turn
on power to your various devices in the order specified. By
turning on devices in the wrong order, you risk causing
malfunction and/or damage to speakers and other devices.
1.
5.
Hold down the [POWER] switch until the
display indicates “DIGITAL MIXER.”
When the power turns on, the [POWER] switch will light.
The setup screen will appear, and then after a brief time,
the level meter screen will appear.
fig.03-Setup
Set the channel LEVEL knobs to the “U”
position.
fig.Adj-Ch-LEVEL
6.
Switch on the power to your amp and powered
monitors.
Turning the power off
2.
Set the MAIN MIX LEVEL knob and PHONES/
CTRL ROOM knob to the “-∞” position.
* Minimize the MAIN MIX LEVEL and PHONES/CTRL
ROOM volume controls before you turn the power on. Even if
the volume is minimized, you may hear some noise when you
turn on the power, but this is not a malfunction.
fig.Adj-MAIN MIX
1.
Make sure you’ve done the following before you
turn off the power.
• The M-10DX’s MAIN MIX LEVEL knob has been set to
the “-∞” position.
• The volume of the connected equipment has been
minimized.
2.
Switch off the power to your amp and powered
monitors.
3.
Hold down the [POWER] switch until the
display indicates “Power OFF.”
After a while, the power will turn off and the [POWER]
switch’s light will go out.
3.
Switch on the power to your digitally connected
equipment.
4.
Switch on the power to your analog-connected
equipment (musical instruments, sound
modules, effects processors, mics, CD players,
etc.).
20
4.
Switch off the power to your analog-connected
equipment (musical instruments, sound
modules, effects processors, mics, CD players,
etc.).
5.
Switch off the power to your digitally connected
equipment.
Basic use
Basic operation
fig.Basic-Operation
2
6.
When you’ve finished adjusting the level of all
connected devices, raise the MAIN MIX LEVEL
knob until the overall volume is at an
appropriate level.
7.
If you want to listen to the sound through
headphones or monitors connected to the
CONTROL ROOM jacks, use the PHONES/CTRL
ROOM knob to adjust the volume.
7
5
[SEL] buttons
4
3
1, 6
1.
Slowly turn the MAIN MIX LEVEL knob toward
the right to an appropriate position.
2.
Use the SENS knobs to adjust the input
sensitivity of channels 1–2.
* In order to mix with the least possible noise and distortion,
adjust the SENS knob so that the top “
If you press this button (lit), the “parameter screen” of the
selected channel will appear in the display.
This button can be pressed at any time to toggle between the
“parameter” screen and the “equalizer” screen.
The screen will show the current settings of the selected
channel.
In this screen you can edit the settings while watching the
numerical values.
* You can return to the level meter screen by pressing the
[DISPLAY] button.
fig.03-SEL
Parameter screen
” of the level meter
(1)
in the LCD does not light when the input signal is loudest.
3.
Use the channel LEVEL knobs to adjust the
volume of each channel.
4.
For channels 1–2, use the PAN knobs to adjust
the pan. For channels 3–6, use the BAL knobs
to adjust the L/R volume balance.
5.
(2) (3)
(4)
(5)
Equalizer screen
Use the EQ knobs to adjust the high, mid, and
low-frequency ranges.
When you turn these knobs, the equalizer screen will
appear in the display, showing the current settings
numerically and graphically.
fig.03-EQ
Center frequency
(1)
(2)
(3)
(4)
(5)
Equalizer settings
AUX setting
Channels 1–2: Pan setting
Channels 3–6: Volume balance setting
Insert Effect on/off (channels 1 and 2 only)
Channel LEVEL knob setting
Width of the mid-range band
You can change the center frequency of the high, mid,
and low ranges, and also change the width of the midrange band (MID Q).
➝
This is a convenient way to check the settings of each
channel when you call up a scene (p. 36).
“Making detailed equalizer settings” (p. 22)
21
Advanced use
Making detailed equalizer settings
In addition to adjusting the equalizer’s high, mid, and low-frequency levels, you can also change its Mid Q
and the frequency of each band.
fig.EQ-01
1.
Press the [SEL] button several times for the
channel whose equalizer settings you want to edit,
until the equalizer screen appears.
fig.EQ-02
2.
Use the CURSOR [BWD] [FWD] buttons to select
the parameter you want to edit.
The selected parameter is highlighted.
3.
Use the VALUE [-] [+] buttons to edit the value.
Parameter
H
M
L
MIDQ
22
Description
Center frequency of the high range
Center frequency of the mid range
Center frequency of the low range
Width of the mid-frequency range
Advanced use
Using the dedicated vocal/narration effect (Insert Effect)
The M-10DX provides five types of dedicated vocal/narration insert effects based on COSM technology.
These effects can be applied directly to channels 1 and 2.
You can edit the settings of the insert effect to obtain the result that’s appropriate for your input source or
situation.
The edited settings are remembered even when the power is off.
What is COSM (Composite Object Sound Modeling)?
This is Roland’s proprietary modeling technology, which analyzes the various elements that affect
sound—such as electrical circuits, structures, and materials—and assembles them to reconstruct the
desired sound.
Turning the insert effect on/off independently
For channels 1 and 2, you can independently specify whether the insert effect will be on (used) or off (not
used).
fig.EFX-ON-OFF
In the case of channels 1 and 2, the parameter screen that
appears when you press the [SEL] button will show the insert
effect setting (IFX).
Use the CURSOR [FWD] button to move the cursor there,
and use the VALUE [-] [+] buttons to turn the insert effect on/off.
23
Advanced use
Editing the effect settings
fig.INSFX-01
1.
Press the [INSERTION FX] button so it’s lit, turning
the insert effect on.
The insert effect screen will appear.
* If a different screen is shown even though the [INSERTION FX]
button is lit, pressing the [INSERTION FX] button will display the
insert effect screen.
fig.INSFX-02
If the insert effect screen is already shown, pressing the
[INSERTION FX] button will turn off the insert effect and
turn off the button’s illumination.
Selecting an effect type
fig.INSFX-01
2.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the effect type.
3.
Use the VALUE [-] [+] buttons to select an effect
type.
Editing the parameters
fig.INSFX-03
4.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the parameter you want to edit.
5.
Use the VALUE [-] [+] buttons to edit the value.
If you press the [+] button while holding down the [-] button, or press the [-] button while holding down the
[+] button, the value will change more rapidly, allowing you to edit more efficiently.
If the [INSERTION FX] button is lit, you can hold down the [DISPLAY] button and press the [INSERTION
FX] button to turn the insert effect off at any time.
24
Advanced use
List of effects
■ Power Cmp1
This controls a COSM effect that simulates a vacuum tube amp, and a compressor. It boosts thin sounds that
are lacking in low range, giving them greater weight and power.
■ Power Cmp2
This controls a COSM effect that simulates a vacuum tube amp, and a compressor. It boosts the mid-range,
creating a fat-sounding vocal.
■ Power Cmp3
This controls a COSM effect that simulates a vacuum tube amp, and a compressor. It boosts the high range.
This is ideal for delicate acoustic guitar sounds.
This is also a way to obtain greater clarity for sounds that tend to be buried by other loud sounds around
them.
Parameter
NS
Range
Explanation
-90.0– -40 dB
Cuts the noise that occurs at low volumes in the background of the
voice.
With higher values for this setting, louder noises will be cut.
* If you apply this too strongly, the beginning (attack) and end (decay) of the
voice may be cut off unnaturally, or the voice may be less intelligible.
(Power Cmp1)
BASS
0–100
Mainly adjusts the loudness of the low-frequency range.
Raising this setting will boost the low-frequency range.
(Power Cmp2)
TONE
0–100
Mainly adjusts the loudness of the mid-frequency range.
Raising this setting will boost the mid-frequency range.
(Power Cmp3)
BRIGHT
0–100
Mainly adjusts the loudness of the high-frequency range.
Raising this setting will boost the high-frequency range.
TUBE
0–100
This is a COSM effect that simulates a vacuum tube amp.
It produces the natural-sounding distortion typical of a vacuum tube.
Raising this setting will increase the distortion.
* Since this models the subtle characteristics of a vacuum tube amp, it may
be difficult to notice the result in some cases.
COMP
0–100
Lowers the threshold of the compressor (i.e., the volume level at which
the compressor begins to operate), and simultaneously raises the volume.
The result is to even out the volume levels of the loud and soft sounds,
raising the overall loudness. Raising this setting will increase the level.
Unlike simply raising the volume, this produces a thicker and heavier
sound.
The compressor threshold is common to channels 1 and 2. This means
that you can use COMP either in stereo for channels 1 and 2, or for just
one or the other channel.
* You should be careful not to over-apply effects. Doing so may increase noise, or cause the sound to be muffled when loud
sounds are excessively suppressed.
25
Advanced use
■ Vocal Enh. (Vocal Enhancer)
This effect controls a four-band equalizer to give the voice brightness and clarity.
It works on the basic components of a voice as well as the components that define its character, boosting or
reducing these components. This can be used to emphasize or modify the character of spoken lines in a stage
play, or when recording a vocal.
Parameter
Range
NS
-90.0– -40 dB
TONE
0–100
BRIGHT
0–100
Explanation
Cuts any low-volume noises that occur in the background of the vocal.
Raising this setting will cut progressively louder noises.
* If you apply this too strongly, the beginning (attack) and end (decay) of the
voice may be cut off unnaturally, or the voice may be less intelligible.
Boosts the frequency range that is the basic component of the voice.
Raise this value to make the vocal more rich-sounding, or lower it to reduce unwanted resonance or loudness.
Increases the brightness.
The higher the value, the brighter the sound.
■ Narration
This effect controls a de-esser and enhancer to give the voice greater clarity and intelligibility.
It will minimize the sibilants (*1) that are heard when vocalizing into a mic, making the voice more listenable.
When editing video, it’s convenient to use this while recording a voice-over, narration, or reading.
(*1) Sibilants are the “s” sounds within words.
26
Parameter
Range
NS
-90.0– -40 dB
ATTACK
0–100
CLARITY
0–100
DEESSER
0–100
Explanation
Cuts the low-volume noises that occur in the background of the voices.
Raising this setting will cut progressively louder noises.
* If you apply this too strongly, the beginning (attack) and end (decay) of the
voice may be cut off unnaturally, or the voice may be less intelligible.
Emphasize the sense of attack for the voice.
Raising this setting will produce a stronger sense of attack.
Specifies the strength of the effect that clarifies the voice. Raising this
setting will apply the effect more strongly.
* If this effect is applied excessively to a voice that is already clear, the sound
may become unpleasant or distorted.
Cuts the sibilance.
Raising this setting will apply the effect more strongly.
Advanced use
Applying echo/reverb (FX)
As effects that process the output signal, the M-10DX provides two types of echo and five types of reverb.
You can edit the parameters of the echo/reverb effect to your needs and taste.
Use the AUX/FX knobs to adjust the depth of echo/reverb for each input (p. 12).
The edited settings are remembered even when the power is off.
Editing the effect settings
fig.FX-01
1.
Press the [FX] button so it’s lit, turning the effect
on.
The FX screen will appear.
* If a different screen is displayed even though the [FX] button is lit,
you can press the [FX] button to access the echo/reverb screen.
fig.FX-02
If you press the [FX] button when the FX screen is already
displayed, the effect will be turned off and the button’s light
will go out.
Selecting the effect type
fig.FX-01
2.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the effect type.
3.
Use the VALUE [-] [+] buttons to select the effect
type.
Editing the parameters
fig.FX-03
4.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the parameter you want to edit.
5.
Use the VALUE [-] [+] buttons to edit the value.
If you press the [+] button while holding down the [-] button, or press the [-] button while holding down the
[+] button, the value will change more rapidly, allowing you to edit the value more efficiently.
If the [FX] button is lit, you can hold down the [DISPLAY] button and press the [FX] button to turn the effect
off at any time.
27
Advanced use
List of effects
■ SHORT ECHO
This is an echo effect that repeats the sound at short intervals.
Parameter
DELY
REPT
Range
10–200 (ms)
0.0–6.0 (s)
Explanation
Adjusts the spacing of the repetitions.
Adjusts the length (time) of the repetitions.
■ ECHO
This is an echo effect that repeats the sound at longer intervals.
Parameter
TIME
Range
0.0–6.0 (s)
DAMP
315–8k (Hz), BYP
Explanation
Adjusts the length (time) of the repetitions.
Specifies the frequency at which the repeated sound will begin to
be attenuated. With the “BYP” setting, the repeated sound will
not be attenuated.
■ ROOM
This simulates the reverberation of a room such as a live house or club.
■ SMALL HALL
This simulates the reverberation of a small concert hall.
Parameter
P.DLY
TIME
Range
0.0–160 (ms)
0.0–6.0 (s)
DAMP
315–8k (Hz), BYP
Explanation
Adjusts the time at which the reverberation starts being heard.
Adjusts the length (time) of reverberation.
Specifies the frequency at which the reverberation will begin to be
attenuated. With the “BYP” setting, the reverberation will not be
attenuated.
■ LARGE HALL
This simulates the reverberation of a large space such as a concert hall or gymnasium.
28
Parameter
P.DLY
TIME
Range
0.0–160 (ms)
0.0–6.0 (s)
DAMP
315–8k (Hz), BYP
Explanation
Adjusts the time at which the reverberation starts being heard.
Adjusts the length (time) of reverberation.
Specifies the frequency at which the reverberation will begin to be
attenuated. With the “BYP” setting, the reverberation will not be
attenuated.
Advanced use
Adjusting the output signal appropriately for your
environment (Room Acoustic Control)
“Room acoustics” refers to the overall acoustical characteristics of the environment in which you’re
reproducing sound, including the response of the speakers you’re using.
The M-10DX provides a “Room Acoustic Auto Control” function, which automatically compensates for the
acoustics of a room. At the touch of a single button, this function performs the following operations:
(1) Outputs a test signal from the M-10DX, and plays this signal through the connected monitors.
(2) Detects the sound played by the monitors with the Room Acoustic Sensor, and analyzes its
frequency response.
(3) Based on the results of the analysis, automatically adjusts the response of the output signal.
The results of this automatic adjustment can be further edited manually if you wish.
Depending on the environment in which you are located, the automatic adjustment may not be enough to
provide the optimal response. In this case, you can perform manual adjustments in conjunction with the
automatic adjustment.
You can use a mic connected to channel 1 as the room acoustics sensor.
➝ “Selecting the Room Acoustic Sensor (RAC Source)” (p. 38)
You can specify the upper and lower limits of the frequencies that will be automatically adjusted.
➝ “Specifying the frequency range analyzed by Room Acoustic Auto Control (RAC Freq >= / RAC Freq <=)” (p. 38)
Automatic adjustment (Room Acoustic Auto Control)
In order to obtain the best possible results from this function, please observe the following points.
fig.RAC_Caution-e
• Place your equipment so that the room acoustic
sensor or mic (if the RAC Source (p. 38) is set to
CH1) is at the listening point.
• Place your equipment so that the left and right
monitors (speakers) are the same distance to the
sensor/mic.
Same
distance
• To the extent possible, place the sensor/mic at
the height of your ears at the listening point.
• Do not place obstructions near the sensor/mic.
• While the adjustments are being performed, do
not place the M-10DX or mic on an object that
could resonate easily (such as a hollow box or
stand).
* Such an object could resonate with the test signal, causing slight vibrations that might interfere with accurate
measurement.
With monitors (speakers) that have a low output level, the test signal may not be detected, and the analysis
may fail to start. In this case we recommend that you perform the analysis manually (p. 33).
29
Advanced use
1.
Using the MAIN MIX LEVEL knob and the volume controls of your amp or speakers, adjust
the volume of the sound from the speakers so it’s at a suitable level.
Adjust the volume as you would for normal playback when listening to the music.
If the speaker volume is too high the test signal will be produced at a loud volume, and if the volume is too
low the sensor will be unable to detect the test signal. Either situation will prevent the automatic adjustment
from occurring correctly.
fig.RAC-01_Left-e
2.
Press the [ROOM ACOUSTIC] button.
The [ROOM ACOUSTIC] button will light, and the Room
Acoustic Control screen will appear.
Displayed
channel
Range of frequencies
being analyzed
* In the system settings (p. 38) you can change the range of
frequencies that will be analyzed.
Amplitude
Frequency response curve
fig.RAC-02
If you press the [ROOM ACOUSTIC] button while this screen
is displayed, the Room Acoustic Control function will turn
off and the button’s light will go out.
3.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the response curve.
4.
Use the VALUE [-] [+] buttons to select the
response curve that will be the index for the
adjustment.
FLAT 1–4
BUMPY 1–4
WARMY 1–4
Flat response.
Response curves that boost the low and high-frequency regions, producing the so-called
“scooped” sound.
Response curves that boost the mid-range, producing a rich and warm sound.
* You can create four variations for each frequency response curve. With the factory settings, 1–4 all have the same
settings. You can adjust the amplitude of the curves as suitable for different uses.
The room acoustic control function uses four screens to display a variety of information.
To switch screens, use the
CURSOR [BWD] [FWD] buttons
to move the cursor to the
display channel, and use the
VALUE [-] [+] buttons to select
the desired screen.
* You can’t modify the amplitude of the
response curve while “FREQ” is
selected.
* The next time you access the Room
Acoustic Control screen, the lastselected display will appear.
30
LEFT
RIGHT
View the L channel’s frequency
response and graphic equalizer
settings
View the R channel’s frequency
response and graphic equalizer
settings
L&R
FREQ
View the graphic equalizer
settings of both L and R
View the frequency response of
both L and R channels
Advanced use
fig.RAC-04
5.
Press the CURSOR [BWD] [FWD] buttons to move
the cursor to the amplitude of the response curve.
6.
Use the VALUE [-] [+] buttons to adjust the
amplitude of the response curve.
* If you’ve selected FLAT as the response curve, you won’t be able to adjust the amplitude.
Range
70–100–130%
If the [ROOM ACOUSTIC] button is lit, you can hold down the [DISPLAY] button and press the [ROOM
ACOUSTIC] button to turn off room acoustic control at any time.
Analysis and automatic adjustment
fig.RAC-Lstart
7.
Hold down the [ROOM ACOUSTIC] button for at
least one second to start the analysis.
The [ROOM ACOUSTIC] button will blink, and all input
channels of the mixer will be muted.
A test signal will be output. Raise the output level if the
screen indicates “Turn Up Level,” or lower the output level if
it indicates “Turn Down Level.”
When the sensor/mic detects the test signal, the screen will
indicate “Measuring,” and analysis of the L channel will start
automatically.
* If you decide to cancel the operation, press the [DISPLAY] (EXIT) button.
If the screen does not indicate “Measuring” (i.e., if the test signal cannot be detected), check or adjust the
following settings.
•
Could the MAIN MIX LEVEL knob be set too low?
Ideally, the knob should be set near the “U” position.
•
Could the amp or speaker volume be set too low?
Adjust the playback volume to the level you would normally use when listening to music.
* Raising the volume too high may cause your speakers to malfunction. Keep the volume setting within the
range of normal playback volume.
•
Could the sensor/mic be positioned too far away from the speakers?
•
Is the sensor/mic pointing toward the speakers?
If analysis still fails to start automatically, the test signal cannot be detected in your setup.
Press the [DISPLAY] button to end the analysis. We suggest that you perform the analysis manually.
Press the [ROOM ACOUSTIC] button so it’s lit, and then perform the procedure described in “Graphic
equalizer settings” (p. 33).
31
Advanced use
fig.RAC-Rstart
When the L channel analysis and adjustment have been
completed, the analysis will proceed to the R channel.
Raise the output level if the screen indicates “Turn Up
Level,” or lower the output level if it indicates “Turn Down
Level.”
When the sensor/mic detects the test signal, the screen will
indicate “Measuring,” and analysis of the R channel will
start.
Finishing the adjustment
fig.RAC-14
When analysis and adjustment have been completed for both
channels, the [ROOM ACOUSTIC] button will change from
blinking to lit, and the screen will show the result of the
adjustment.
When the adjustment has been completed, the input channels
will be unmuted, and the M-10DX will return to normal
operation.
8.
Listen to the adjusted sound.
The frequency response curve and its amplitude is stored together with the adjustment results (graphic
equalizer settings) as a set. (This is remembered even when the power is turned off.)
* If you want to return to the default settings, execute the Initialize operation.
➝ “Initializing the settings (Initialize)” (p. 39)
32
Advanced use
Manual adjustment
Depth of the adjustment results
9.
Use the CURSOR [BWD] [FWD] buttons to move the cursor to the percentage indication,
and use the VALUE [-] [+] buttons to change the percentage by which the results of the
automatic adjustment will be applied.
Range
70–100–130%
Explanation
With a setting of 100%, the adjustment results will be applied without further change.
Settings below 100% will reduce the effect of the adjustment results, and settings above
100% will apply the results more strongly.
fig.RAC-13
The graphic equalizer settings will also change according to
the percentage you specify.
Graphic equalizer settings
While you actually listen to the sound, make corrections to the frequency response by (for example) lowering
levels that had been raised excessively.
fig.RAC-15
1.
Use the CURSOR [BWD] [FWD] buttons to select a
frequency.
2.
Use the VALUE [-] [+] buttons to adjust the level.
The selected frequency and its level are shown in the left of the screen.
Calling up adjustment settings
fig.RAC-16
When you press the [ROOM ACOUSTIC] button so it’s lit
and turn the Room Acoustic Control function on the most
recently selected settings will be called up.
At this point, use the CURSOR [BWD] [FWD] buttons to
move the cursor to the frequency response curve, and use the
VALUE [-] [+] buttons to switch curves; the amplitude and
adjustment result (graphic equalizer settings) stored as a set
with the response curve will be called up.
You can use this as a sixteen-memory preset equalizer.
33
Advanced use
Creating a well-balanced sound (Finalize)
After you’ve mixed the sounds from each channel, you can create a well-balanced sound by making the
overall volume and loudness more consistent.
This process is called “finalizing,” and is done using a multi-band compressor and an enhancer.
The M-10DX provides six types of Finalize effects.
You can adjust the Finalize settings to create the result that’s suitable for your needs.
The edited settings are remembered even when the power is off.
Editing the effect settings
fig.FINAL-01
1.
Press the [FINALIZE] button so it’s lit, turning the
effect on.
The Finalize screen will appear.
* If a different screen is displayed even though the [FINALIZE]
button is lit, you can press the [FINALIZE] button to access the
Finalize screen.
fig.FINAL-02
If you press the [FINALIZE] button when the Finalize screen
is already displayed, the effect will turn off and the button’s
light will go out.
Selecting an effect type
fig.FINAL-01
2.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the effect type.
3.
Use the VALUE [-] [+] buttons to select an effect
type.
Editing the parameters
fig.FINAL03
4.
Use the CURSOR [BWD] [FWD] buttons to move
the cursor to the parameter you want to edit.
5.
Use the VALUE [-] [+] buttons to edit the value.
The value will change more rapidly if you press the [+] button while holding down the [-] button, or press the
[-] button while holding down the [+] button, allowing you to edit more efficiently.
If the [FINALIZE] button is lit, you can hold down the [DISPLAY] button and press the [FINALIZE] button to
turn off the effect at any time.
34
Advanced use
List of effects
■ Natural
This effect adds a natural finish that does not impair the original character of the sound.
Parameter
CROSS
Range
10.0–14k (Hz)
COMPRESS
0–100
CLARITY
0–100
Explanation
Specifies the frequency at which the low and high ranges will be divided.
Lowers the threshold of the multi-band compressor (the volume at which
the compressor begins to apply), and simultaneously raises the volume.
The result is that the level differences between high volume and low
volume will be smoothed out, making the overall volume more consistent and raising the overall loudness. Increasing this value will intensify the result. Unlike simply raising the volume, this produces a thicker
and denser sound.
Controls the enhancer to specify the degree to which the sound is clarified. Higher settings will produce a stronger effect.
* If you excessively apply this to a sound that is already clear, it will make
the sound unpleasant or distorted.
■ FAT Comp
This effect produces a thick, robust sound.
Parameter
Range
L COMPRESS
0–100
H COMPRESS
0–100
Explanation
Lowers the low-frequency threshold for the multi-band compressor,
and simultaneously increases the volume. This will thicken the sound
of the low-frequency range. Increasing this value will set this to a higher level. Unlike simply raising the volume, this produces a thicker and
denser low-frequency range.
Lowers the high-frequency threshold for the multi-band compressor,
and simultaneously increases the volume. This will thicken the sound
of the high-frequency range. Increasing this value will set this to a higher level. Unlike simply raising the volume, this produces a thicker and
denser high-frequency range.
■ Final 1/2/3/4
These effects let you make more detailed settings as necessary. With the factory settings, these effects are set
as follows.
Final 1
Final 2
Final 3
Final 4
Improves the overall balance.
Boosts the low-frequency range.
Clarifies muddy sound.
Smoothes out inconsistencies in the sound.
Parameter
Range
Cross
10.0–14k (Hz)
ThrsL
-50–0
GainL
-50–24
ThrsH
-50–0
GainH
-50–24
Clarity
0–100
Explanation
Specifies the frequency at which the multi-band compressor’s low and
high frequency ranges will be divided.
Specifies the volume at which the low-frequency range compressor begins to apply.
Specifies the amount of boost or cut for the low-frequency range.
Specifies the volume at which the high-frequency range compressor begins to apply.
Specifies the amount of boost or cut for the high-frequency range.
Controls the enhancer to adjust the strength of the effect that clarifies
the sound. Increasing this value will produce a stronger effect.
* If you excessively apply this to a sound that is already clear, it will make
the sound unpleasant or distorted.
35
Advanced use
Saving and calling up mixer settings (Scenes)
The M-10DX lets you save eight different sets of mixer settings including the effects. Each set of mixer settings is called a “scene,”
and can be called up instantly whenever needed.
A scene saves the settings of the enclosed area shown in
the illustration below.
2.
fig.SCENE-memorized
If you want to change scenes, use the CURSOR
[BWD] [FWD] buttons to select the scene you
want to call up.
The settings of the selected scene will be called up
immediately.
Depending on the settings of the scene you call up, the
volume may be higher than the current setting. Use this
function with caution, and be aware of the volume of
your speakers or headphones.
Room acoustic control stores only the response curve and
the amplitude.
If the [SCENE] button is lit, only the settings of the called
up scene are valid. Panel operations won’t be reflected in
the sound. If you operate the panel knobs or other
controls, a message will appear in the screen.
fig.SCENE-04
Saving a scene
1.
Hold down the [SCENE] button for at least one
second.
The button will blink, and the Scene Save screen will appear.
fig.SCENE-01
By holding down the [DISPLAY] button and turning the
LEVEL knob of a channel, you can adjust the volume of
that channel.
By pressing the following buttons you can check the
settings you’ve called up.
2.
Use the CURSOR [BWD] [FWD] buttons to
select the scene number that you want to save.
[SEL], [INSERTION FX], [FINALIZE], [PAN/BAL],
[AUX/FX], [FX]
fig.SCENE-02
Clearing the settings of a scene
3.
Press the [SCENE] button to write the settings
into memory.
The settings will be saved, the screen will indicate “Save
Complete,” and you’ll be returned to the level meter screen.
Calling up a scene
1.
36
If the [SCENE] button is lit, you can hold down the
[DISPLAY] button and press the [SCENE] button to turn
the scene off at any time.
Press the [SCENE] button so it’s lit.
The settings of scene 1 will be called up.
fig.SCENE-03
If you press the [SCENE] button so its light is turned off, all
settings of the currently selected scene will be cleared, and
you’ll be returned to the normal operating state (the position
of the panel knobs and the state of the switches will be
reflected in the sound).
Depending on the settings of the front panel, the volume
may be higher than the current setting. Use this function
with caution, and be aware of the volume of your
speakers or headphones.
Other functions
Changing the system settings
(UTILITY)
Adjusting the brightness of the
screen (LCD Contrast)
You can adjust the contrast (brightness) of the LCD display.
You can change various system settings in order to perform
mixing operations more conveniently and efficiently.
You can also restore the settings of the M-10DX to their
original state.
Range
0–19
Adjusting the brightness of the
backlight (LCD Backlight)
Basic procedure
You can adjust the brightness of the display backlight.
1.
Press the CURSOR [BWD] and [FWD] buttons
simultaneously.
The Utility screen will appear.
fig.UTIL-01
2.
Particularly when operating the M-10DX on batteries, you can
reduce battery consumption by turning down the brightness
of the backlight.
Range
0–10
Reducing the battery consumption
(LCD Power Save)
Use the CURSOR [BWD] [FWD] buttons to
select the setting you want to change.
The value of the selected parameter will be highlighted.
fig.UTIL-02
The M-10DX provides a “Power Save” function, which
reduces the current consumption when operating on batteries.
If the Power Save function is on, the backlight will darken
when you have not operated the panel knobs or buttons for a
certain interval of time. By reducing the brightness of the
backlight, you can reduce the battery consumption.
The mixer exits the Power Save state as soon as you operate a
panel knob or button.
3.
Use the VALUE [-] [+] buttons to change the
setting.
Setting
ON, OFF
* The Power Save function is not active if you’re using the AC
adaptor.
37
Other functions
Specifying the M-10DX’s sampling
frequency (Sample Freq)
You can specify the M-10DX’s sampling frequency.
If you’re outputting a digital signal from the M-10DX’s
DIGITAL OUT jack, the M-10DX’s sampling frequency and
the sampling frequency of the device receiving that digital
signal must be set to the same setting.
Setting
44.1, 48, 96 (kHz)
Selecting the Room Acoustic Sensor
(RAC Source)
You can select the sensor used by the Room Acoustic Control
function.
Before you switch from CH1 to Built-in, you must disconnect
the mic that‘s connected to channel 1. If you fail to disconnect
the mic, a feedback loop may occur, possibly damaging your
speakers.
Setting
Built-in
CH1
Explanation
Use the sensor built into the M-10DX.
Use the mic connected to channel 1 as the
sensor.
If you select CH1, channel 1 will not function as a mixer
channel.
In this case, the indication “RAC” is shown in the channel 1
position of the level meter screen.
fig.Func-CH1
If you turn the channel 1 EQ knobs or press the [SEL] button,
the following message will appear.
fig.Func-CH1-Caution
Specifying the frequency range
analyzed by Room Acoustic Auto
Control (RAC Freq >= / RAC Freq <=)
You can specify the lower and upper limits of the frequency
range that is automatically analyzed by Room Acoustic
Control.
If you’re using a mic connected to channel 1 as the sensor for
Room Acoustic Control, adjusting this setting as appropriate
for the frequency response of your mic will allow the
adjustment to occur more optimally.
Parameter
RAC Freq >= (lower limit)
RAC Freq <= (upper limit)
* If the function switch is set to “INT,” use the following settings:
RAC Freq >= 40 Hz
RAC Freq <= 16 kHz
Selecting the type of batteries
(Battery)
If you’re operating the M-10DX on batteries, you must specify
the type of batteries you’re using.
If you’ve specified a type of battery that's different than the
batteries actually installed in the M-10DX, the remaining
battery power will not be shown correctly, and battery life
may be affected.
Setting
Alkaline
Ni-MH
Explanation
Alkaline battery
Nickel metal-hydride
Digitally outputting the pre-fader signal
of channels 1 and 2 (REC to D.OUT)
The pre-fader signals (from before the channel LEVEL knob)
of channels 1 and 2 can be output to DIGITAL OUT.
Setting
OFF
ON
38
Range
25, 40, 63, 100 Hz
10, 16, 20 kHz
Explanation
The same signal as the output of MAIN OUT
jacks will be sent from the digital output.
The pre-fader signal of channels 1 and 2 will be
sent from the digital output.
Other functions
Initializing the settings (Initialize)
Here’s how you can return various settings to their initial
state.
1.
Use the CURSOR [BWD] [FWD] buttons to
select “Initialize.”
The [SCENE] (ENTER) button will blink.
2.
Press the [SCENE] (ENTER) button.
Restoring the factory settings
(Factory Reset)
This operation will restore all settings, including the UTILITY
settings, to their factory-set state.
This is called “Factory Reset.”
1.
Turn the power off.
2.
While holding down the [FINALIZE] button and
The Initialize screen will appear.
fig.INIT-01
[ROOM ACOUSTIC] button, press the [POWER]
switch to turn the power on.
3.
Use the CURSOR [BWD] [FWD] buttons to
select the settings you want to initialize.
Setting
ALL
Ins
FX
GEQ/RAC
Finalize
Scene
(*)
4.
The screen will indicate “Factory Reset” and the factory
reset will be executed.
After the factory reset is completed, the level meter
screen will appear.
Explanation
All settings of the M-10DX
* Except for UTILITY settings
Insert effect (*)
Echo/reverb (*)
Graphic equalizer/
Room Acoustic Control
Finalize (*)
Scene
The effect type is not initialized; only the parameters
are initialized.
Press [SCENE] (ENTER) button.
A confirmation message will appear in the screen.
fig.INIT-02
5.
To execute the initialization, press [SCENE]
(ENTER) button.
* If you decide to cancel, press the [DISPLAY] (EXIT) button.
When initialization is finished, the display will indicate
“COMPLETE.”
39
Troubleshooting
If you experience problems, read this chapter first/ It contains tips for solving most problems.
Power does not turn on (when using the AC adaptor)
❏ Is the AC adaptor connected correctly?
Check the connections, and make sure that the AC adaptor plug is inserted firmly into the DC IN jack.
Power does not turn on (when using batteries)
❏ Are the batteries installed correctly?
Make sure that the batteries are installed correctly. Check that they are oriented correctly, and that they have
not popped up out of their place.
❏ Could the batteries be exhausted?
Install fresh batteries.
If the battery indication in the level meter screen shows
as soon as possible.
(little capacity remaining), replace the batteries
❏ Is the AC adaptor connected to the DC IN jack?
If the AC adaptor’s plug is connected to the DC IN jack, the M-10DX cannot operate on batteries even if
batteries are installed. Unplug the AC adaptor if you want use batteries.
Sound is crackly or distorted
❏ Could the input volume be too high?
The sound may be crackly or distorted if the input volume (level) is too high. If you’re inputting audio from
an input jack, adjust the M-10DX’s input volume (level).
➝ “Basic use” (p. 17)
❏ Are you mixing multiple channels?
Even if the input volume (level) of a single channel is appropriate, the sound may be louder when you mix
several channels, possibly causing crackling or distortion. Please re-adjust the input level of each channel.
❏ Are the equalizer levels appropriate?
If you turn an EQ knob (HI/MID/LO) too far toward the right, the sound may be crackly or distorted. Use the
EQ knobs (HI/MID/LO) of each channel to re-adjust the equalizer levels.
❏ Are the insert effect, finalize, room acoustic control, and FX
settings appropriate?
Depending on the settings of each effect, the level may increase, causing the sound to be crackly or distorted.
Check these settings and re-adjust them if necessary.
40
Troubleshooting
Noise can be heard
❏ Could you have raised the level of unused channels?
For the channels you‘re not using, minimize the input level by turning the SENS knob or the channel LEVEL
knob all the way to the left.
❏ Could numerous audio devices be connected?
Noise may occur if a large number of audio devices are connected. Don’t connect audio devices that you're
not using.
Loud noises such as “howls,” “whines,” or “buzzes” occur
❏ Is a mic connected?
Depending on the position of the mic and speakers, acoustic feedback (a whine or howl) may occur. In this
case, take the following steps.
1. Change the direction of the mic
2. Move the mic away from the speakers
3. Lower the volume
❏ Is an audio device connected to the M-10DX?
If the input and output of the audio device are both connected to the M-10DX, the signal may be creating a
feedback loop. Please check the connections.
A low-volume buzz or hum is heard
❏ Is other equipment connected?
This noise is called “hum.” The M-10DX and the connected equipment may pick up electromagnetic
interference and emit this noise as a result. This noise can be caused by the power supply frequency (50/60
Hz) or by high-output motors. Try moving your equipment away from the device that contains a motor, or
connecting the M-10DX to a different AC outlet. You can also try connecting your equipment to a different
input jack on the M-10DX.
Insert effect is not applied
❏ Could the insert effect setting for channels 1 and 2 be turned off?
Even if the [INSERTION FX] button is on (lit), the insert effect will not be applied unless the channel 1 and 2
“IFX” setting (p. 23) is on.
FX (echo/reverb) is not applied
❏ Could the send level be too low?
The effect may not be applied if the send level is too low. Turn the AUX/FX button (lit), and then turn the
PAN/BAL knob toward the right to gradually increase the level.
41
Troubleshooting
Volume of a device connected to the LINE IN jacks is too low
❏ Could you be using a connection cable that contains a resistor?
Use a connection cable that does not contain a resistor.
Can’t hear the sound from a mic connected to a MIC connector (1–2)
❏ Could you have connected a condenser mic that requires
phantom power?
If you’re connecting a condenser mic that requires phantom power, turn the [PHANTOM] switch on.
An input sound is heard only from the left or right
❏ Could the PAN knob or BAL knob be set all the way to the left or right?
Set the PAN knob or BAL knob to the center position.
42
Main specifications
M-10DX
Number of Input Channels
AD/DA Conversion
10 channels
Sample Rate: 44.1/48.0/96.0 kHz
Signal Processing: 24 bits
96.0 kHz: 20 Hz to 40 kHz (+3/-3 dB)
Frequency Response
48.0 kHz: 20 Hz to 22 kHz (+3/-3 dB)
44.1 kHz: 20 Hz to 20 kHz (+3/-3 dB)
MAIN MIX LEVEL knob = -∞, Channel LEVEL knobs = -∞
MAIN MIX LEVEL knob = U, Channel LEVEL knobs = -∞
Residual Noise Level
(IHF-A, typ.)
-88 dBu
MAIN MIX LEVEL knob = U, Channel LEVEL knobs = U
-82 dBu
MIC connectors 1–2: -60 to -10 dBu
LINE IN jacks 1–2: -40 to +10 dBu
* Maximum input level: Nominal input level + 22 dB
Nominal Input Level
LINE IN jacks 3–10: +0 dBu
LINE IN jacks 9–10 (RCA pin type): -10 dBu
* Maximum input level: Nominal input level + 18 dB
MIC connectors 1–2: 2.7 kΩ
Input Impedance
LINE IN jacks 1–2: 28 kΩ
LINE IN jacks 3–8: 20 kΩ
LINE IN jacks 9–10 (RCA pin type): 20 kΩ
Nominal Output Level
Output Impedance
+0 dBu
* Maximum output level: Nominal Output Level + 22 dB
MAIN OUT jacks/AUX SEND jack/CTRL ROOM jacks: 120 Ω
2 TRACK OUT jacks L–R: 1 kΩ
Recommended
Load Impedance
10 kΩ or greater
Display
Graphic LCD 122 x 32 dot (with back-light)
MIC connectors 1–2: XLR type (balanced / phantom power +48 V)
LINE IN jacks 1–10: 1/4 inch TRS phone type (balanced)
* LINE IN jack 1: supports use of hi-impedance
LINE IN jacks 9–10: RCA pin type
Connectors
MAIN OUT jacks L–R: 1/4 inch TRS phone type (impedance balanced)
AUX SEND jack: 1/4 inch TRS phone type (impedance balanced)
2 TRACK OUT jacks L–R: RCA pin type
DIGITAL OUTPUT jack/connector: Optical type, Coaxial type
PHONES jack: Stereo 1/4 inch phone type
CTRL ROOM jacks L–R: 1/4 inch phone type (impedance balanced)
43
Main specifications
Room Acoustic Control (built-in microphone)
DSP processing
Finalize: Enhancer/Multi-band Compressor-Limiter
Insertion effects: Power compressor/Vocal enhancer/Narration enhancer
Echo/Reverb: Short echo/Echo/Room reverb/Small hall reverb/Large hall reverb
Power Supply
DC 9 V (AC adaptor),
Alkaline dry battery LR6 (AA) type x 8 or Nickel metal-hydride battery (HR15/51) x 8
950 mA
Current Draw
Phantom Power
Dimensions
Weight
Accessories
* Expected battery life under continuous use:
Nickel metal-hydride: 3 hours
Alkaline: 1.5–2 hours
These figures will vary depending on the actual conditions of use.
+48 V/5 mA (each input)
198.6 (W) x 262.2 (D) x 60.9 (H) mm
7-7/8 (W) x 10-3/8 (D) x 2-7/16 (H) inches
1.3 kg / 2 lbs 14 oz (only this unit)
Owner’s manual
AC adaptor
* 0 dBu = 0.775 V rms
In the interest of product improvement, the specifications and/or appearance of this unit are subject to
change without prior notice.
44
Index
Numerics
F
2 TRACK OUT ............................................................................. 15
Factory Reset ................................................................................ 39
FAT Comp .................................................................................... 35
Final ............................................................................................... 35
FINALIZE .............................................................................. 13, 34
Finalize ................................................................................... 34, 39
FLAT ............................................................................................. 30
FWD .............................................................................................. 14
FX ....................................................................................... 13, 27, 39
A
Alkaline ........................................................................................
ALL ...............................................................................................
ATTACK ......................................................................................
AUX SEND ..................................................................................
AUX/FX .......................................................................................
38
39
26
14
12
B
G
BAL ......................................................................................... 13, 21
BASS .............................................................................................. 25
Battery ......................................................................... 14, 16, 37–38
BRIGHT .................................................................................. 25–26
Built-in .......................................................................................... 38
BUMPY ......................................................................................... 30
BUS ................................................................................................ 13
BWD .............................................................................................. 14
BYP ................................................................................................ 28
GainH ............................................................................................ 35
GainL ............................................................................................ 35
GEQ/RAC .................................................................................... 39
C
I
CH1 ............................................................................................... 38
Channel LEVEL ............................................................... 13, 20–21
CLARITY ................................................................................ 26, 35
Clarity ........................................................................................... 35
COMP ........................................................................................... 25
COMPRESS .................................................................................. 35
CONTROL ROOM ...................................................................... 14
Cord Hook ................................................................................... 15
COSM ........................................................................................... 23
CROSS .......................................................................................... 35
Cross ............................................................................................. 35
CURSOR ....................................................................................... 14
IFX ........................................................................................... 21, 23
Initialize ........................................................................................ 39
Ins .................................................................................................. 39
Insert Effect .................................................................................. 23
INSERTION FX ..................................................................... 12, 24
D
DAMP ...........................................................................................
DC IN ............................................................................................
DEESSER ......................................................................................
DELY .............................................................................................
DIGITAL OUT .............................................................................
DISPLAY ......................................................................................
Display ..........................................................................................
28
15
26
28
15
14
13
E
ECHO ............................................................................................ 28
Echo ............................................................................................... 27
ENTER .......................................................................................... 39
EQ ............................................................................................ 12, 21
EXIT .............................................................................................. 39
H
H ....................................................................................................
H COMPRESS ..............................................................................
HI ...................................................................................................
Hi-Z ...............................................................................................
22
35
12
12
L
L ..................................................................................................... 22
L COMPRESS .............................................................................. 35
LARGE HALL ............................................................................. 28
LCD Backlight ............................................................................. 37
LCD Contrast ............................................................................... 37
LCD Power Save ......................................................................... 37
LEVEL ........................................................................................... 13
LINE IN .................................................................................. 14–15
LOW .............................................................................................. 12
M
M .................................................................................................... 22
MAIN MIX ................................................................................... 13
MAIN MIX LEVEL ......................................................... 13, 20–21
MAIN OUT .................................................................................. 14
Measuring .............................................................................. 31–32
MIC ............................................................................................... 14
MID ............................................................................................... 12
MIDQ ............................................................................................ 22
45
Index
N
U
Narration ...................................................................................... 26
Natural .......................................................................................... 35
Nickel Metal-Hydride .......................................................... 16, 38
Ni-MH .......................................................................................... 38
NS ............................................................................................ 25–26
UTILITY ........................................................................................ 37
P
P.DLY ............................................................................................ 28
PAN ........................................................................................ 13, 21
PAN/BAL .................................................................................... 12
PHANTOM .................................................................................. 15
PHONES ....................................................................................... 15
PHONES/CTRL ROOM ...................................................... 13, 20
POWER ................................................................................... 13, 20
Power Cmp1 ................................................................................ 25
Power Cmp2 ................................................................................ 25
Power Cmp3 ................................................................................ 25
Power OFF ................................................................................... 20
R
RAC ............................................................................................... 38
RAC Freq ...................................................................................... 38
RAC Freq >= ................................................................................ 38
RAC Source .................................................................................. 38
REC to D.OUT ............................................................................. 38
REPT ............................................................................................. 28
Reverb ........................................................................................... 27
ROOM ........................................................................................... 28
ROOM ACOUSTIC ......................................................... 13, 30, 33
Room Acoustic Auto Control .................................................... 29
Room Acoustic Control ........................................................ 29, 38
ROOM ACOUSTIC SENSOR .................................................... 15
Room Acoustic Sensor ................................................................ 38
Room acoustics ............................................................................ 29
S
Sample Freq ................................................................................. 38
Sampling Frequency ................................................................... 38
SCENE .................................................................................... 14, 36
Scene ....................................................................................... 36, 39
SEL .......................................................................................... 13, 21
SENS ....................................................................................... 12, 21
SHORT ECHO ............................................................................. 28
SMALL HALL ............................................................................. 28
T
ThrsH ............................................................................................ 35
ThrsL ............................................................................................. 35
TIME ............................................................................................. 28
TONE ...................................................................................... 25–26
TUBE ............................................................................................. 25
Turn Down Level .................................................................. 31–32
Turn Up Level ....................................................................... 31–32
46
V
VALUE ......................................................................................... 14
Vocal Enh. .................................................................................... 26
Vocal Enhancer ............................................................................ 26
W
WARMY ....................................................................................... 30
For EU Countries
UK
DE
FR
IT
ES
PT
NL
DK
NO
SE
FI
HU
PL
CZ
SK
EE
LT
LV
SI
GR
47
Information
EUROPE
EDIROL (Europe) Ltd.
Studio 3.4 114 Power Road
London W4 5PY
U. K.
TEL: +44 (0)20 8747 5949
FAX:+44 (0)20 8747 5948
http://www.edirol.com/europe
Deutschland
TEL: 0700 33 47 65 20
Italia
TEL: 02 93778329
NORTH AMERICA
CANADA
Roland Canada Ltd.
(Head Office)
5480 Parkwood Way Richmond
B. C., V6V 2M4 CANADA
TEL: (604) 270 6626
Roland Canada Ltd.
(Toronto Office)
170 Admiral Boulevard
Mississauga On L5T 2N6
CANADA
TEL: (905) 362 9707
U. S. A.
Roland Corporation U.S.
5100 S. Eastern Avenue
Los Angeles, CA 90040-2938,
U. S. A.
TEL: (323) 890 3700
AFRICA
EGYPT
Al Fanny Trading Office
9, EBN Hagar A1 Askalany
Street,
ARD E1 Golf, Heliopolis,
Cairo 11341, EGYPT
TEL: 20-2-417-1828
REUNION
Maison FO - YAM Marcel
25 Rue Jules Hermann,
Chaudron - BP79 97 491
Ste Clotilde Cedex,
REUNION ISLAND
TEL: (0262) 218-429
SOUTH AFRICA
Paul Bothner(PTY)Ltd.
Royal Cape Park, Unit 24
Londonderry Road, Ottery 7800
Cape Town, SOUTH AFRICA
TEL: (021) 799 4900
ASIA
CHINA
Roland Shanghai Electronics
Co.,Ltd.
5F. No.1500 Pingliang Road
Shanghai 200090, CHINA
TEL: (021) 5580-0800
Roland Shanghai Electronics
Co.,Ltd.
(BEIJING OFFICE)
10F. No.18 3 Section Anhuaxili
Chaoyang District Beijing
100011 CHINA
TEL: (010) 6426-5050
When you need repair service, call your nearest EDIROL/Roland Service Center or authorized
EDIROL/Roland distributor in your country as shown below.
HONG KONG
BRAZIL
TRINIDAD
IRELAND
Parsons Music Ltd.
8th Floor, Railway Plaza, 39
Chatham Road South, T.S.T,
Kowloon, HONG KONG
TEL: 2333 1863
Roland Brasil Ltda.
Rua San Jose, 780 Sala B
Parque Industrial San Jose
Cotia - Sao Paulo - SP, BRAZIL
TEL: (011) 4615 5666
AMR Ltd
Ground Floor
Maritime Plaza
Barataria Trinidad W.I.
TEL: (868)638 6385
Roland Ireland
G2 Calmount Park, Calmount
Avenue, Dublin 12
Republic of IRELAND
TEL: (01) 4294444
ITALY
INDIA
CHILE
URUGUAY
Rivera Digitec (India) Pvt. Ltd.
409, Nirman Kendra
Mahalaxmi Flats Compound
Off. Dr. Edwin Moses Road,
Mumbai-400011, INDIA
TEL: (022) 2493 9051
Comercial Fancy II S.A.
Rut.: 96.919.420-1
Nataniel Cox #739, 4th Floor
Santiago - Centro, CHILE
TEL: (02) 688-9540
Todo Musica S.A.
Francisco Acuna de Figueroa 1771
C.P.: 11.800
Montevideo, URUGUAY
TEL: (02) 924-2335
INDONESIA
PT Citra IntiRama
J1. Cideng Timur No. 15J-150
Jakarta Pusat
INDONESIA
TEL: (021) 6324170
KOREA
Cosmos Corporation
1461-9, Seocho-Dong,
Seocho Ku, Seoul, KOREA
TEL: (02) 3486-8855
MALAYSIA/
SINGAPORE
Roland Asia Pacific Sdn. Bhd.
45-1, Block C2, Jalan PJU 1/39,
Dataran Prima, 47301 Petaling
Jaya, Selangor, MALAYSIA
TEL: (03) 7805-3263
PHILIPPINES
G.A. Yupangco & Co. Inc.
339 Gil J. Puyat Avenue
Makati, Metro Manila 1200,
PHILIPPINES
TEL: (02) 899 9801
TAIWAN
ROLAND TAIWAN
ENTERPRISE CO., LTD.
Room 5, 9fl. No. 112 Chung
Shan N.Road Sec.2, Taipei,
TAIWAN, R.O.C.
TEL: (02) 2561 3339
THAILAND
Theera Music Co. , Ltd.
330 Soi Verng NakornKasem,
New Road, Sumpantawongse,
Bangkok 10100, THAILAND
TEL: (02) 224-8821
AUSTRALIA/
NEW ZEALAND
AUSTRALIA/
NEW ZEALAND
Roland Corporation
Australia Pty.,Ltd.
38 Campbell Avenue
Dee Why West. NSW 2099
AUSTRALIA
For Australia
Tel: (02) 9982 8266
For New Zealand
Tel: (09) 3098 715
CENTRAL/LATIN
AMERICA
COLOMBIA
VENEZUELA
Centro Musical Ltda.
Cra 43 B No 25 A 41 Bododega 9
Medellin, Colombia
TEL: (574)3812529
Instrumentos Musicales
Allegro,C.A.
Av.las industrias edf.Guitar
import
#7 zona Industrial de Turumo
Caracas, Venezuela
TEL: (212) 244-1122
CURACAO
Zeelandia Music Center Inc.
Orionweg 30
Curacao, Netherland Antilles
TEL:(305)5926866
DOMINICAN REPUBLIC
Instrumentos Fernando Giraldez
Calle Proyecto Central No.3
Ens.La Esperilla
Santo Domingo,
Dominican Republic
TEL:(809) 683 0305
ECUADOR
Mas Musika
Rumichaca 822 y Zaruma
Guayaquil - Ecuador
TEL:(593-4)2302364
GUATEMALA
Casa Instrumental
Calzada Roosevelt 34-01,zona 11
Ciudad de Guatemala
Guatemala
TEL:(502) 599-2888
HONDURAS
Almacen Pajaro Azul S.A. de C.V.
BO.Paz Barahona
3 Ave.11 Calle S.O
San Pedro Sula, Honduras
TEL: (504) 553-2029
MARTINIQUE
Musique & Son
Z.I.Les Mangle
97232 Le Lamantin
Martinique F.W.I.
TEL: 596 596 426860
Gigamusic SARL
10 Rte De La Folie
97200 Fort De France
Martinique F.W.I.
TEL: 596 596 715222
MEXICO
Casa Veerkamp, s.a. de c.v.
Av. Toluca No. 323, Col. Olivar
de los Padres 01780 Mexico
D.F. MEXICO
TEL: (55) 5668-6699
NICARAGUA
Bansbach Instrumentos
Musicales Nicaragua
Altamira D'Este Calle Principal
de la Farmacia 5ta.Avenida
1 Cuadra al Lago.#503
Managua, Nicaragua
TEL: (505)277-2557
ARGENTINA
PERU
Instrumentos Musicales S.A.
Av.Santa Fe 2055
(1123) Buenos Aires
ARGENTINA
TEL: (011) 4508-2700
Audionet
Distribuciones Musicales SAC
Juan Fanning 530
Miraflores
Lima - Peru
TEL: (511) 4461388
BARBADOS
A&B Music Supplies LTD
12 Webster Industrial Park
Wildey, St.Michael, Barbados
TEL: (246)430-1100
EUROPE
Roland Italy S. p. A.
Viale delle Industrie 8,
20020 Arese, Milano, ITALY
TEL: (02) 937-78300
NORWAY
Roland Scandinavia Avd.
Kontor Norge
Lilleakerveien 2 Postboks 95
Lilleaker N-0216 Oslo
NORWAY
TEL: 2273 0074
POLAND
ROLAND POLSKA SP. Z O.O.
UL. Gibraltarska 4.
PL-03664 Warszawa POLAND
TEL: (022) 679 44 19
PORTUGAL
AUSTRIA
Roland Elektronische
Musikinstrumente HmbH.
Austrian Office
Eduard-Bodem-Gasse 8,
A-6020 Innsbruck, AUSTRIA
TEL: (0512) 26 44 260
BELGIUM/FRANCE/
HOLLAND/
LUXEMBOURG
Roland Central Europe N.V.
Houtstraat 3, B-2260, Oevel
(Westerlo) BELGIUM
TEL: (014) 575811
CROATIA
ART-CENTAR
Degenova 3.
HR - 10000 Zagreb
TEL: (1) 466 8493
CZECH REP.
CZECH REPUBLIC
DISTRIBUTOR s.r.o
Voctárova 247/16
CZ - 180 00 PRAHA 8,
CZECH REP.
TEL: (2) 830 20270
Roland Iberia, S.L.
Portugal Office
Cais das Pedras, 8/9-1 Dto
4050-465, Porto, PORTUGAL
TEL: 22 608 00 60
ROMANIA
FBS LINES
Piata Libertatii 1,
535500 Gheorgheni,
ROMANIA
TEL: (266) 364 609
MOCO INC.
No.41 Nike St., Dr.Shariyati Ave.,
Roberoye Cerahe Mirdamad
Tehran, IRAN
TEL: (021) 285-4169
ISRAEL
Halilit P. Greenspoon & Sons
Ltd.
8 Retzif Ha’aliya Hashnya St.
Tel-Aviv-Yafo ISRAEL
TEL: (03) 6823666
JORDAN
MUSIC HOUSE CO. LTD.
FREDDY FOR MUSIC
P. O. Box 922846
Amman 11192 JORDAN
TEL: (06) 5692696
KUWAIT
EASA HUSAIN AL-YOUSIFI
& SONS CO.
Abdullah Salem Street,
Safat, KUWAIT
TEL: 243-6399
SLOVAKIA
OMAN
DAN Acoustic s.r.o.
Povazská 18.
SK - 940 01 Nové Zámky
TEL: (035) 6424 330
TALENTZ CENTRE L.L.C.
Malatan House No.1
Al Noor Street, Ruwi
SULTANATE OF OMAN
TEL: 2478 3443
SPAIN
Roland Iberia, S.L.
Paseo García Faria, 33-35
08005 Barcelona SPAIN
TEL: 93 493 91 00
Roland Scandinavia A/S
SWEDISH SALES OFFICE
Danvik Center 28, 2 tr.
S-131 30 Nacka SWEDEN
TEL: (0)8 702 00 20
FINLAND
SWITZERLAND
Roland Scandinavia As, Filial
Finland
Elannontie 5
FIN-01510 Vantaa, FINLAND
TEL: (0)9 68 24 020
Roland (Switzerland) AG
Landstrasse 5, Postfach,
CH-4452 Itingen,
SWITZERLAND
TEL: (061) 927-8383
GERMANY
UKRAINE
Roland Elektronische
Musikinstrumente HmbH.
Oststrasse 96, 22844
Norderstedt, GERMANY
TEL: (040) 52 60090
EURHYTHMICS Ltd.
P.O.Box: 37-a.
Nedecey Str. 30
UA - 89600 Mukachevo,
UKRAINE
TEL: (03131) 414-40
Roland East Europe Ltd.
Warehouse Area ‘DEPO’ Pf.83
H-2046 Torokbalint,
HUNGARY
IRAN
Chahine S.A.L.
Gerge Zeidan St., Chahine
Bldg., Achrafieh, P.O.Box: 165857
Beirut, LEBANON
TEL: (01) 20-1441
SWEDEN
HUNGARY
Moon Stores
No.16, Bab Al Bahrain Avenue,
P.O.Box 247, Manama 304,
State of BAHRAIN
TEL: 17 211 005
MuTek
Dorozhnaya ul.3,korp.6
117 545 Moscow, RUSSIA
TEL: (095) 981-4967
Roland Scandinavia A/S
Nordhavnsvej 7, Postbox 880,
DK-2100 Copenhagen
DENMARK
TEL: 3916 6200
STOLLAS S.A.
Music Sound Light
155, New National Road
Patras 26442, GREECE
TEL: 2610 435400
BAHRAIN
LEBANON
RUSSIA
DENMARK
GREECE/CYPRUS
MIDDLE EAST
UNITED KINGDOM
Roland (U.K.) Ltd.
Atlantic Close, Swansea
Enterprise Park, SWANSEA
SA7 9FJ,
UNITED KINGDOM
TEL: (01792) 702701
QATAR
Badie Studio & Stores
P.O. Box 62,
Doha, QATAR
TEL: 423554
SAUDI ARABIA
aDawliah Universal
Electronics APL
Corniche Road, Aldossary
Bldg., 1st Floor, Alkhobar,
SAUDI ARABIA
P.O.Box 2154, Alkhobar 31952
SAUDI ARABIA
TEL: (03) 898 2081
SYRIA
Technical Light & Sound
Center
Rawda, Abdul Qader Jazairi St.
Bldg. No. 21, P.O.BOX 13520,
Damascus, SYRIA
TEL: (011) 223-5384
TURKEY
ZUHAL DIS TICARET A.S.
Galip Dede Cad. No.37
Beyoglu - Istanbul / TURKEY
TEL: (0212) 249 85 10
U.A.E.
Zak Electronics & Musical
Instruments Co. L.L.C.
Zabeel Road, Al Sherooq Bldg.,
No. 14, Grand Floor, Dubai,
U.A.E.
TEL: (04) 3360715
TEL: (23) 511011
As of November 1, 2006 (EDIROL-1)
04459590
2MP
