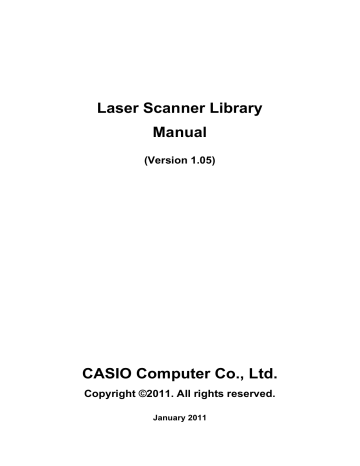

Laser Scanner Library
Manual
(Version 1.05)
CASIO Computer Co., Ltd.
Copyright ©2011. All rights reserved.
January 2011
Table of the Contents
Chapter 1.
Chapter 2.
Chapter 3.
3.1
Chapter 4.
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.10
4.11
4.12
4.13
4.14
4.15
4.16
4.17
4.18
4.19
4.20
4.21
4.22
4.23
4.24
4.25
4.26
4.27
4.28
4.29
4.30
4.31
4.32
4.33
4.34
4.35
4.36
4.37
4.38
4.39
4.40
4.41
Editorial Record
Overview
Operation Environment
Structure
M_TBL
Functions List
OBROpen
OBRClose
OBRSetLED
OBRGetLED
OBRSetBuzzer
OBRGetBuzzer
OBRSetVibrator
OBRGetVibrator
OBRSetSwingAngle
OBRGetSwingAngle
OBRSetFocus
OBRGetFocus
OBRSetScanningNotification
OBRGetScanningNotification
OBRGetLastEventStatus
OBRSetScanningKey
OBRGetScanningKey
OBRSetAllOptions
OBRGetAllOptions
OBRSetDefaultSymbology
OBRSetDefaultSymbologyEx
OBRSaveLogFile
OBRGetc
OBRGets
OBRGetStatus
OBRClearBuff
OBRSetBuffType
OBRGetBuffType
OBRSetCheckCounter
OBRGetCheckCounter
OBRSetScanningTimeout
OBRGetScanningTimeout
OBRSetSuffixChar
OBRGetSuffixChar
OBRSetScanningType
OBRGetScanningType
OBRSetScanningCounter
OBRGetScanningCounter
OBRSetMultiStepReading
OBRGetMultiStepReading
OBRStartScanning
2
5
7
8
10
11
14
20
23
24
25
26
27
28
29
30
32
33
34
35
37
38
39
40
41
42
43
44
45
46
48
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
66
67
4.42
4.43
4.44
4.45
4.46
4.47
4.48
4.49
4.50
4.51
4.52
4.53
4.54
4.55
4.56
4.57
4.58
4.59
4.60
4.61
4.62
4.63
4.64
4.65
4.66
4.67
4.68
4.69
4.70
4.71
4.72
4.73
4.74
4.75
4.76
4.77
4.78
4.79
4.80
4.81
4.82
4.83
4.84
4.85
4.86
4.87
4.88
4.89
4.90
4.91
OBRStopScanning
OBRSetDecodeLevel
OBRGetDecodeLevel
OBRSetScanningCode
OBRGetScanningCode
OBRSetCode39Option
OBRGetCode39Option
OBRSetNW7Option
OBRSetNW7OptionEx
OBRGetNW7Option
OBRSetWPCAddonOption
OBRSetWPCAddonOptionEx
OBRGetWPCAddonOption
OBRSetWPCOption
OBRSetWPCOptionEx
OBRGetWPCOption
OBRSetUPCEAddonOption
OBRSetUPCEAddonOptionEx
OBRGetUPCEAddonOption
OBRSetUPCEOption
OBRSetUPCEOptionEx
OBRGetUPCEOption
OBRSetIDFOption
OBRGetIDFOption
OBRSetITFOption
OBRGetITFOption
OBRSetCode93Option
OBRGetCode93Option
OBRSetCode128Option
OBRGetCode128Option
OBRSetMSIOption
OBRGetMSIOption
OBRSetIATAOption
OBRGetIATAOption
OBRSetRSS14Option
OBRGetRSS14Option
OBRSetRSSLimitedOption
OBRGetRSSLimitedOption
OBRSetRSSExpandedOption
OBRGetRSSExpandedOption
OBRSetRSS14StackedOption
OBRGetRSS14StackedOption
OBRSetRSSExpandedStackedOption
OBRGetRSSExpandedStackedOption
OBRSaveConfigFile
OBRLoadConfigFile
OBRSetFilter
OBRGetFilter
OBRSetFilterOnTimer
OBRGetFilterOnTimer
3
68
69
71
72
75
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
156
157
158
159
160
4.92
4.93
4.94
4.95
4.96
4.97
4.98
4.99
Chapter 5.
5.1
5.2
OBRSetGainControl
OBRGetGainControl
OBRSetBarWidthAdjustment
OBRGetBarWidthAdjustment
OBRSetMarginCheckRatio
OBRGetMarginCheckRatio
OBRSetDecodeLearningMode
OBRGetDecodeLearningMode
Notes to Programming
Scanning Completion Notification
Configuration File Format
161
162
163
164
165
167
168
169
170
170
173
No part of this document may be produced or transmitted in any form or by any means, electronic or
mechanical, for any purpose, without the express written permission of CASIO Computer Co., Ltd.
in Tokyo Japan. Information in this document is subject to change without advance notice. CASIO
Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this
manual and specifically disclaims any express or implied warranties of merchantability or fitness for
any particular purpose.
© 2011 CASIO Computer Co., Ltd. All rights reserved.
4
Editorial Record
Manual
Version
no.
1.00
1.01
Date edited
October 2008
January 2009
Page
Content
Original
In Chapter 3.1, a note is added.
In Chapter 4.52, the description about the parameters is
corrected.
In Chapter 4.53, the description about the parameters is
corrected.
In Chapter 4.55, the description about the parameters is
corrected.
In Chapter 4.56, the description about the parameters is
corrected.
In Chapter 4.58, the description about the parameters is
corrected.
In Chapter 4.59, the description about the parameters is
corrected.
In Chapter 4.61, the description about the parameters is
corrected.
In Chapter 4.62, the description about the parameters is
corrected.
In Chapter 4.1, the description about the parameters is
corrected.
In Chapter 4.31, the description about the Device
Emulator is corrected.
In Chapter 4.35, the description about the Device
Emulator is corrected.
In Chapter 4.41, the description about the return values is
corrected.
In Chapter 4.50, the description about the parameters is
corrected.
In Chapter 4.51, the description about the parameters is
corrected.
In Chapter 4.53, the description about the parameters is
corrected.
In Chapter 4.56, the description about the parameters is
corrected.
In Chapter 4.62, the description about the parameters is
corrected.
In Chapter 4.67, the description about the parameters is
corrected.
In Chapter 4.69, the description about the parameters is
corrected.
11
82
85
88
91
94
97
100
103
1.02
March 2009
20
56
60
67
82
84
88
94
106
116
120
Continue.
5
125
129
133
8
1.03
1.04
August 2009
November 2009
1.05
January 2011
30
161
178
180, 181
122
6
In Chapter 4.71, the description about the parameters is
corrected.
In Chapter 4.73, the description about the parameters is
corrected.
In Chapter 4.75, the description about the parameters is
corrected.
In Chapter 2, "Microsoft® Windows Mobile 6.1" is
added to "OS".
IT-800 is added.
In Chapter 4.9, the note is added.
In Chapter 4.92, the parameter and note is added.
In Table 5.20, the parameter is added.
In Table 5.31, the note is added
IT-300 and DT-X8 are added.
In Chapter 4.70, the note is added.
1. Overview
The Laser Scanner Library provides functions for scanning and decoding scanned bar codes
using the integrated laser scanner in the terminal.
The Laser Scanner Class Library is a wrapper library layer. The library can be directly
manipulated by .NET Compact Framework application.
The use of Laser Scanner Library enables the enhancement of source code compatibility for
mobile applications regardless of handheld terminal model.
With regard to the function for either the "unsupported error" or "parameter error", at time of
process execution, the user is notified that the function is unsupported or that the process itself
should be disabled. In this way it is possible to describe a source code that is aware of the
"functions" rather than a source code that is aware of the handheld terminal "models" (and the
devices integrated in those handheld terminal models), which enables the development of a business
application style that attaches "importance to functions".
Note:
The aim of this library is to enhance the source code compatibility for mobile business application, it
is not intended to guarantee the compatibility of functions of integrated devices. In actuality it
decides whether the "unsupported error" or "parameter error" is required to notify the user that
functions are not supported or that the actual process should be disabled.
Also, for the business application to actually run in multiple handheld terminal models, it must be
rebuilt to agree with the CPU types (ARMV4T, ARMV4 …).
7
2. Operation Environment
Applicable Handheld Terminals
•
•
•
•
•
•
•
IT-600 series
DT-X11 series
DT-X7 series
DT-X30 series
IT-800 series
IT-300 series
DT-X8 series
OS
•
•
•
•
•
Microsoft® WindowsCE 5.0
Microsoft® WindowsCE 6.0
Microsoft® Windows Mobile 6.1
Microsoft® Windows Mobile 6.5
Microsoft® Windows Mobile 6.5.3
Development Environment
• Microsoft® eMbedded C++ Version 4.0 + Service Pack 4
• Microsoft® Visual Studio 2005 + Service Pack 1
• Microsoft® Visual Studio 2008 + Service Pack 1
Supplied Files
•
•
•
•
OBReadLib.h
OBReadLib.lib
OBReadLib.dll
OBReadLibNet.dll (Class Library)
Steps to Start Up
For Visual C++:
1. Include the header file, OBReadLib.h, in the source program and define it as the library that
uses the OBReadLib.lib file.
2. OBReadLib.dll is already integrated by default in the terminal.
For Visual Basic and Visual C#:
1. Add OBReadLibNet.dll to the Project Reference.
2. OBReadLib.dll is already integrated by default in the terminal.
3. Copy OBReadLibNet.dll into the same folder where the execution module is stored.
Name Space and Class
For OBReadLibNet.dll (Class Library), the following classes are available as function and
constant references.
8
Table 2.1
Name Space
CaLib
Class Name
OBReadLibNet.Api
OBReadLibNet.Def
Description
Class for function reference
Class for constant reference
For detail of the class definition, set up OBReadLibNet.dll into reference of Microsoft Visual
Studio and check the detail with the object browser.
9
3. Structure
The following shows the structure provided by the Laser Scanner Library.
Table 3.1 Library structure
Structure
Description
M_TBL
Structure that stores all the setting information for the
scanner driver.
10
Functions used
OBRGetAllOptions
OBRSetAllOptions
3.1 M_TBL
This structure stores all the setting information for the scanner driver.
typedef
DWORD
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
BYTE
int
int
int
DWORD
DWORD
DWORD
DWORD
DWORD
DWORD
DWORD
DWORD
DWORD
}M_TBL;
struct m_tbl{
Code;
Cd39[6];
Nw7[6];
Wpcea[6];
Wpce[6];
Upcea[6];
Upce[6];
Idsf[6];
Itrf[6];
Cd93[6];
Cd128[6];
Msi[6];
Iata[6];
RSS-14[6];
RssLtd[6];
RssExp[6];
Rss14S[6];
RssExpS[6];
Resv[14][6];
Itrfs[2];
Nw7s[2];
Cd39s[2];
Type;
Gain;
Buzc;
Ledc;
Bufc;
Endc;
Mode;
Dumy;
cmp_ct;
rd_ct;
scn_tm;
dwFilterMode;
dwFilterCnt;
dwLearning
dwVibc;
dwScanningKey;
dwSwing;
dwFocus;
dwNotification;
dwDecodeLevel;
11
Table 3.2 M_TBL structure member variables
Member
Description
Code
Sets up "Enable" or "Disable" for
reading bar code symbologies.
Cd39[6]
Sets up scanning with Code39
symbology. (Note 1)
Nw7[6]
Sets up scanning with NW-7
symbology. (Note 1)
Wpcea[6]
Sets up scanning with WPC Addon
read symbology. (Notes 1, 3)
Wpce[6]
Sets up scanning with WPC
symbology. (Notes 1, 3)
Upcea[6]
Sets up scanning with UPC-E Addon
symbology. (Notes 1, 4)
Upce[6]
Sets up scanning with UPC-E
symbology. (Notes 1, 4)
Idsf[6]
Sets up scanning with IDF symbology.
(Note 1)
Itrf[6]
Sets up scanning with ITF symbology.
(Note 1)
Cd93[6]
Sets up scanning with Code93
symbology. (Note 1)
Cd128[6]
Sets up scanning with Code128
symbology. (Note 1)
Msi[6]
Sets up scanning with MSI symbology.
(Note 1)
Iata[6]
Sets up scanning with IATA
symbology. (Note 1)
Rss14[6]
Sets up scanning with RSS-14
symbology. (Notes 1, 2)
RssLtd[6]
Sets up scanning with RSS Limited
symbology. (Notes 1, 2)
RssExp[6]
Sets up scanning with RSS Expanded
symbology. (Notes 1, 2)
Rss14S[6]
Sets up scanning with RSS-14 Stacked
symbology. (Notes 1, 2)
RssExpS[6]
Sets up scanning with RSS Expanded
Stacked symbology. (Notes 1, 2)
Resv[14][6]
Reserved
Itrfs[2]
Reserved
Nw7s[2]
Reserved
Cd39s[2]
Reserved
Continue.
12
Functions that use identical setting
OBRSetScanningCode
OBRSetCode39Option
OBRSetNW7Option
OBRSetNW7OptionEx
OBRSetWPCAddonOption
OBRSetWPCAddonOptionEx
OBRSetWPCOption
OBRSetWPCOptionEx
OBRSetUPCEAddonOption
OBRSetUPCEAddonOptionEx
OBRSetUPCEOption
OBRSetUPCEOptionEx
OBRSetIDFOption
OBRSetITFOption
OBRSetCode93Option
OBRSetCode128Option
OBRSetMSIOption
OBRSetIATAOption
OBRSetRSS14Option
OBRSetRSSLimitedOption
OBRSetRSSExpandedOption
OBRSetRSS14StackedOption
OBRSetRSSExpandedStackedOption
-
Member
Type
Gain
Buzc
Ledc
Bufc
Endc
Mode
Dumy
cmp_ct
rd_ct
scn_tm
dwFilterMode
dwFilterCnt
dwLearning
dwVibc
dwScanningKey
dwSwing
dwFocus
dwNotification
dwDecodeLevel
Description
Sets up read mode.
Sets up gain.
Sets up the buzzer.
Sets up the LED.
Sets up output mode.
Sets up termination code.
Sets up step read.
Reserved
Sets up the no. of validations.
Sets up the no. of readings.
Sets up timeout.
Sets up noise filter mode.
Sets up a time period between when
starting scanning and when starting
noise filter operation.
Sets up the decoder learning mode.
Sets up the vibrator.
Sets up scanning trigger key.
Sets up laser beam swing angle mode.
Sets up laser focus.
Sets up notification of scanning
complete event.
Sets up decoding level.
Functions that use identical setting
OBRSetScanningType
OBRSetGainControl
OBRSetBuzzer
OBRSetLED
OBRSetBuffType
OBRSetSuffixChar
OBRSetMultiStepReading
OBRSetCheckCounter
OBRSetScanningCounter
OBRSetScanningTimeout
OBRSetFilter
OBRSetFilterOnTimer
OBRSetDecodeLearningMode
OBRSetVibrator
OBRSetScanningKey
OBRSetSwingAngle
OBRSetFocus
OBRSetScanningNotification
OBRSetDecodeLevel
Notes:
1. The parameters are as follows.
[0] Reserved
[1] Minimum no. of digits.
[2] Maximum no. of digits.
[3] Specify output format.
[4] Specify check digit calculation.
[5] Specify check character output.
2. The RSS symbologies change its name to "GS1 DataBar".
RSS-14 → GS1 DataBar Omnidirectional
RSS Limited → GS1 DataBar Limited
RSS Expanded → GS1 DataBar Expanded
RSS-14 Stacked → GS1 DataBar Stacked
RSS Expanded Stacked → GS1 DataBar Expanded Stacked
3. To set the Check Digit Calculation to "Disable" for WPC Addon symbology or WPC symbology,
be sure to set the Check Digit Calculation to "Disable" for both WPC Addon and WPC
symbologies.
4. To set the Check Digit Calculation to "Disable" for UPC-E Addon symbology or UPC-E
symbology, be sure to set the Check Digit Calculation to "Disable" for both UPC-E Addon and
UPC-E symbologies.
13
4. Functions List
DT-X30
IT-3100
IT-800
IT-300
DT-X8
Description
DT-X7
Function
IT-600
Basic functions
DT-X11
Table 4.1
Y
Y
Y
Y
Y
Y
-
Y
Y
Y
Y
Y
Y
Y
Y
Y
S1
Y
S1
Y
S1
Y
S1
Y
Y
Y
Y
Y
Y
Y
Y
Y
-
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
-
Y Y Y
Y
-
Y Y Y
Y
-
Y Y Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
S1
Y
S1
Y
S1
Y
S1
Y
Y
Y Y -
Y Y Y
Y Y Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
OBROpen
OBRClose
OBRSetLED
OBRGetLED
OBRSetBuzzer
OBRGetBuzzer
OBRSetVibrator
OBRGetVibrator
OBRSetSwingAngle
Sets up scanning enable status.
Sets up scanning disable status.
Sets up LED notification.
Retrieves status of LED notification.
Sets up buzzer notification.
Retrieves status of buzzer notification.
Sets up vibrator notification.
Retrieves status of vibrator notification.
Sets up swing angle control mode.
OBRGetSwingAngle
-
OBRSetFocus
Retrieves status of swing angle control
mode.
Sets up laser focus.
OBRGetFocus
Retrieves status of laser focus.
-
OBRSetScanningNotification
OBRGetScanningNotification
Sets up scanning complete notification.
Retrieves scanning complete
notification.
Retrieves last event status.
Sets up Trigger keys.
Retrieves status of Trigger keys.
Sets up laser scanner driver.
Retrieves status of laser scanner driver.
Sets up default status of laser scanner
driver.
Resumes all the settings to the
factory-defaults.
Outputs driver log information.
OBRGetLastEventStatus
OBRSetScanningKey
OBRGetScanningKey
OBRSetAllOptions
OBRGetAllOptions
OBRSetDefaultSymbology
OBRSetDefaultSymbologyEx
OBRSaveLogFile
14
-
-
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
OBRGetc
OBRGets
OBRGetStatus
OBRClearBuff
OBRSetBuffType
OBRGetBuffType
OBRSetCheckCounter
OBRGetCheckCounter
OBRSetScanningTimeout
OBRGetScanningTimeout
OBRSetSuffixChar
OBRGetSuffixChar
OBRSetScanningType
OBRGetScanningType
OBRSetScanningCounter
OBRGetScanningCounter
OBRSetMultiStepReading
OBRGetMultiStepReading
OBRStartScanning
OBRStopScanning
OBRSetDecodeLevel
OBRGetDecodeLevel
Retrieves one character from OBR
buffer.
Reads character string for one bar code
from decoding data storage buffer.
Retrieves OBR buffer status.
Clears OBR buffer.
Sets up decoding data output mode.
Retrieves decoding data output mode.
Sets up the no. of validation for decoding
data.
Retrieves the no. of validations for
decoding data.
Sets up a time period of timeout for
scanning complete.
Retrieves timeout of scanning complete.
Sets up suffix control code appended to
decoding data.
Retrieves suffix control code appended
to decoding data.
Sets up scanning mode.
Retrieves scanning mode.
Sets up the no. of times for continuous
scanning.
Retrieves the no. of times for continuous
scanning.
Sets up the no. of bar codes to scan in
multi-step scanning mode.
Retrieves the no. of bar codes to scan in
multi-step scanning mode.
Emits laser beam and start scanning a
bar code.
Stops emitting laser beam and scanning a
bar code.
Sets up decoding level.
Retrieves decoding level.
15
DT-X8
IT-300
IT-800
IT-3100
DT-X30
Description
DT-X7
Function
IT-600
Decoding functions
DT-X11
Table 4.2
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
-
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
OBRSetScanningCode
OBRGetScanningCode
OBRSetCode39Option
OBRGetCode39Option
OBRSetNW7Option
OBRSetNW7OptionEx
OBRGetNW7Option
OBRSetWPCAddonOption
OBRSetWPCAddonOptionE
x
OBRGetWPCAddonOption
OBRSetWPCOption
OBRSetWPCOptionEx
OBRGetWPCOption
OBRSetUPCEAddonOption
OBRSetUPCEAddonOptionE
x
OBRGetUPCEAddonOption
OBRSetUPCEOption
OBRSetUPCEOptionEx
OBRGetUPCEOption
OBRSetIDFOption
OBRGetIDFOption
Sets up scanning with each bar code
symbology.
Retrieves scanning status with each bar
code symbology.
Sets up scanning with Code39
symbology.
Retrieves decode options of Code39
symbology.
Sets up scanning with NW-7 code
symbology.
Sets up scanning with NW-7 code
symbology.
Retrieves decode options of NW-7 code
symbology.
Sets up scanning with WPC Addon
symbology.
Sets up scanning with WPC Addon
symbology.
Retrieves decode options of WPC Addon
symbology.
Sets up scanning with WPC symbology.
Sets up scanning with WPC symbology.
Retrieves decode options of WPC
symbology.
Sets up scanning with UPC-E Addon
symbology.
Sets up scanning with UPC-E Addon
symbology.
Retrieves decode options of UPC-E
Addon symbology.
Sets up scanning with UPC-E
symbology.
Sets up scanning with UPC-E
symbology.
Retrieves decode options of UPC-E
symbology.
Sets up scanning with Industrial 2of5
symbology.
Retrieves decode options of Industrial
2of5 symbology.
Continue.
16
DT-X8
IT-300
IT-800
IT-3100
DT-X30
Description
DT-X7
Function
IT-600
Symbology functions
DT-X11
Table 4.3
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
-
Y Y Y S2
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y
OBRSetITFOption
OBRGetITFOption
OBRSetCode93Option
OBRGetCode93Option
OBRSetCode128Option
OBRGetCode128Option
OBRSetMSIOption
OBRGetMSIOption
OBRSetIATAOption
OBRGetIATAOption
OBRSetRSS14Option
OBRGetRSS14Option
OBRSetRSSLimitedOption
OBRGetRSSLimitedOption
OBRSetRSSExpandedOption
OBRGetRSSExpandedOption
OBRSetRSS14StackedOption
OBRGetRSS14StackedOptio
n
OBRSetRSSExpandedStacke
dOption
OBRGetRSSExpandedStacke
dOption
Sets up scanning with ITF (Interleaved
2of5 ) symbology.
Retrieves decode options of ITF
(Interleaved 2of5 ) symbology.
Sets up scanning with Code93symbology.
Retrieves decode options of Code93
symbology.
Sets up scanning with Code128
symbology.
Retrieves decode options of Code128
symbology.
Sets up scanning with MSI symbology.
Retrieves decode options of MSI
symbology.
Sets up scanning with IATA symbology.
Retrieves decode options of IATA
symbology.
Sets up scanning with RSS-14
symbology.
Retrieves decode options of RSS-14
Stacked symbology.
Sets up scanning with RSS Limited
symbology.
Retrieves decode options of RSS Limited
symbology.
Sets up scanning with RSS Expanded
symbology.
Retrieves decode options of RSS
Expanded symbology.
Sets up scanning with RSS-14 Stacked
symbology.
Retrieves decode options of RSS-14
Stacked symbology.
Sets up scanning with RSS Expanded
Stacked symbology.
Retrieves decode options of RSS
Expanded Stacked symbology.
17
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
Y Y Y Y Y Y Y Y -
Y Y Y
Y Y Y
-
Y Y Y -
Y Y Y
-
Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
-
C Y Y -
Y Y Y
-
C Y Y -
Y Y Y
-
C Y Y -
Y Y Y
-
C Y Y -
Y Y Y
OBRSaveConfigFile
OBRLoadConfigFile
Saves all settings for the scanner driver
into configuration file.
Reads and then loads scanner
configuration file into the scanner driver.
DT-X8
IT-300
IT-800
IT-3100
DT-X30
DT-X7
Description
IT-600
Function
DT-X11
Table 4.4 Save and Load functions
Y Y Y Y -
Y Y Y
Y Y Y Y -
Y Y Y
OBRGetFilter
Retrieves noise filter mode.
OBRSetFilterOnTimer
Sets up start time for noise filter.
OBRGetFilterOnTimer
Retrieves start time for noise filter.
OBRSetGainControl
Sets up gain control.
OBRGetGainControl
Retrieves gain control.
18
Y
-
DT-X8
Y
S1
Y
S1
Y
S1
Y
S1
Y
S1
Y
S1
IT-300
Y Y
S1
Y Y
S1
Y Y
S1
Y Y
S1
- Y
S1
- Y
S1
IT-800
IT-3100
Sets up noise filter mode.
DT-X30
OBRSetFilter
DT-X7
Description
DT-X11
Function
IT-600
Table 4.5 Filter functions
Y Y Y
Y
-
Y Y Y
Y
-
Y Y Y
Y
- Y Y Y
Y
-
Y Y Y
Y -
Y Y Y
OBRGetMarginCheckRatio
OBRSetDecodeLearningMod
e
OBRGetDecodeLearningMod
e
Retrieves the decoder learning mode.
Y
-
DT-X8
Y
S1
Y
S1
Y
S1
Y
S1
Y
S1
Y
S1
IT-300
Y Y
S1
Y Y
S1
Y Y
S1
Y Y
S1
Y Y
S1
Y Y
S1
IT-800
IT-3100
OBRSetMarginCheckRatio
DT-X30
OBRGetBarWidthAdjustment
Sets up the adjustment of thickness of
bars.
Retrieves the adjustment set for the
thickness of bars.
Sets up a threshold value for right and
left side space margin.
Retrieves the threshold value for right
and left side space margin.
Sets up the decoder learning mode.
DT-X7
OBRSetBarWidthAdjustment
Description
DT-X11
Function
IT-600
Table 4.6 Learning functions
Y Y Y
Y
-
Y Y Y
Y
-
Y Y Y
Y
-
Y Y Y
Y
-
Y Y Y
Y
-
Y Y Y
Denotations:
Y : The models supports the function.
- : Unsupported error responses when the function is called.
C : IT-600 with either its OS ver. 5044 and Service Pack 1.02,or its OS ver. 5069, or a later version
preinstalled supports the function.
S1: IT-600M30U, IT-600M30UC and DT-X7M10U do not support the function. Other models of
the respective series support the function.
S2: IT-600M30 does not support the function. Other models of the series support the function.
19
4.1 OBROpen
This function sets up the scanner driver effect. The enabled state of the scanner driver will be kept
effect until when OBRClose function is carried out. While the Laser Scanner Library is being
opened, scanning will start when Trigger key is pressed. During this period, various settings for
scanning cannot be changed. To make any change on the settings, first call OBRClose function to
close the Laser Scanner Library, and then change settings. Because the Trigger key is occupied by
the library during this period, the user cannot access it.
Calling Sequences
[C++]
int OBROpen(
HWND hWnd,
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBROpen( _
ByVal hWnd As IntPtr, _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBROpen(
IntPtr hWnd,
Int32 dwMode
);
Parameters
hWnd
This parameter is for specifying an application window handle. In case where the decoded
data output mode is set to "Key Buffer Output", the data will be output to a specified
window handle. With application that does not have a window handle, set the decoded data
output mode to other mode not "Key Buffer Output", and specify "NULL" for this
parameter. The output mode can be set with OBRSetBuffType function.
20
dwMode
This parameter is for setting "Enable" or "Disable" for each bar code symbology which is
specified with a sum of the values in logical OR operation selected in the list below. These
are designated using the following OR (logical add) values. If zero "0" is specified,
scanning condition is set enabled with the current settings. Or, if any value other than 0 is
set, first all the settings will be changed to the default settings, and then settings with the
specified values will become reflected. See note 5.
OBR_CD39
OBR_NW_7
OBR_WPCA
OBR_WPC
OBR_UPEA
OBR_UPE
OBR_IDF
OBR_ITF
OBR_CD93
OBR_CD128
OBR_MSI
OBR_IATA
OBR_RSS14
OBR_RSSLTD
OBR_RSSEXP
OBR_RSS14S
OBR_RSSEXPS
OBR_ALL
OBR_CHK_ON
OBR_OUT_ON
: Code39 symbology enabled
: NW-7 symbology enabled
: WPC Addon symbology enabled
: WPC symbology enabled
: UPC-E Addon symbology enabled
: UPC-E symbology enabled
: Industrial 2of5 symbology enabled
: Interleaved 2of5 symbology enabled
: Code93 symbology enabled
: Code128 symbology enabled (note 7)
: MSI symbology enabled
: IATA symbology enabled
: RSS-14 symbology enabled (notes 1 and 6)
: RSS Limited symbology enabled (notes 1 and 6)
: RSS Expanded symbology enabled (notes 1 and 6)
: RSS-14 stacked symbology enabled (notes 4 and 6)
: RSS Expanded stacked symbology enabled (notes 4 and 6)
: All the symbologies enabled
: Check digit calculation enabled for all the symbologies (note 2)
: Check character output enabled for all the symbologies (note 3)
Notes:
1. Available only with symbologies that support check digit calculation.
2. Available only with symbologies that support check character output.
3. IT-600 and DT-X11 support the check character output.
4. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that the
settings for reading Industrial 2of5 and IATA symbologies are to be concurrently made
enabled. If it is done wrongly, all other settings for reading other symbologies are
disabled and a parameter error is returned.
5. Individual settings for reading RSS-14, RSS-14 Stacked, RSS Expanded, and RSS
Expanded Stacked symbologies are not supported. If setting for reading a standard RSS
symbology is set enabled, all the corresponded RSS Stacked symbologies are
automatically set enabled for reading the symbologies.
6. The RSS symbologies change its name to "GS1 DataBar".
RSS-14 → GS1 DataBar Omnidirectional
RSS Limited → GS1 DataBar Limited
RSS Expanded → GS1 DataBar Expanded
RSS-14 Stacked → GS1 DataBar Stacked
RSS Expanded Stacked → GS1 DataBar Expanded Stacked
21
7. The setting for reading Code128 symbology effect will also make reading the GS1-128
symbology (previously named as EAN-128 symbology) possible.
Return Values
OBR_OK
OBR_PON
OBR_NOT_DEVICE
OBR_ERROR_HOTKEY
: Normal end
: Open already
: Scanner driver error
: Scan key registration error. In the Device Emulator, this value
is not returned.
OBR_ERROR_INVALID_ACCESS : Concurrent use error with digital camera,. In the Device
Emulator, this value is not returned.
OBR_PRM
: Parameter error. In the Device Emulator, this value is not
returned.
FUNCTION_UNSUPPORT
: Unsupported error
22
4.2 OBRClose
This function disables the scanning operations and the laser scanner driver.
Calling Sequences
[C++]
int OBRClose( )
[Visual Basic]
Public Shared Function OBRClose() As Int32
[C#]
public static Int32 OBRClose()
Parameter
None
Return Values
OBR_OK
FUNCTION_UNSUPPORT
: Normal end
: Unsupported error
23
4.3 OBRSetLED
This function sets up notification mode for the completion of scanning bar code using the integrated
LED (Indicator #1 or #2, model dependant).
Calling Sequences
[C++]
int OBRSetLED(
BYTE byMode
)
[Visual Basic]
Public Shared Function OBRSetLED( _
ByVal byMode As Byte _
) As Int32
[C#]
public static Int32 OBRSetLED(
Byte byMode
);
Parameters
byMode
This parameter is for specifying an LED notification mode selecting one of the values listed
below.
OBR_LEDOFF
: No LED control
OBR_LEDON
: LED control
OBR_LEDEROF
: LED control (no control if error in scanning.)
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
24
4.4 OBRGetLED
This function retrieves the status of notification mode with the integrated LED.
Calling Sequences
[C++]
int OBRGetLED(
BYTE *pMode
)
[Visual Basic]
Public Shared Function OBRGetLED( _
ByRef pMode As Byte _
) As Int32
[C#]
public static Int32 OBRGetLED(
ref Byte pMode
);
Parameters
pMode
This is for retrieving the value of the LED notification mode. See OBRSetLED function
for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator this value is not returned.
: Unsupported error
25
4.5 OBRSetBuzzer
This function sets up the notification mode for scanning complete with the integrated buzzer.
Calling Sequences
[C++]
int OBRSetBuzzer(
BYTE byMode
)
[Visual Basic]
Public Shared Function OBRSetBuzzer( _
ByVal byMode As Byte _
) As Int32
[C#]
public static Int32 OBRSetBuzzer(
Byte byMode
);
Parameters
byMode
This parameter is for specifying buzzer notification mode selecting either of the values
listed below.
OBR_BUZOFF
: Disable the buzzer notification
OBR_BUZON
: Enable the buzzer notification
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
26
4.6 OBRGetBuzzer
This function retrieves the buzzer notification mode.
Calling Sequences
[C++]
int OBRGetBuzzer(
BYTE *pMode
)
[Visual Basic]
Public Shared Function OBRGetBuzzer( _
ByRef pMode As Byte _
) As Int32
[C#]
public static Int32 OBRGetBuzzer(
ref Byte pMode
);
Parameters
pMode
This parameter is for retrieving the value of the buzzer notification mode. See
OBRSetBuzzer function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
27
4.7 OBRSetVibrator
This function sets up the notification mode for scanning complete with the integrated vibrator.
Calling Sequences
[C++]
int OBRSetVibrator(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetVibrator( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetVibrator(
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying vibrator notification mode selecting either of the values
listed below.
OBR_VIBOFF
: Disable the vibration notification mode
OBR_VIBON
: Enable the vibration notification mode
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
28
4.8 OBRGetVibrator
This function retrieves the notification mode for scanning complete with the integrated vibrator.
Calling Sequences
[C++]
int OBRGetVibrator(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetVibrator( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetVibrator(
ref Int32 pMode
);
Parameters
pMode
This parameter is for specifying the value for the vibration notification mode. See
OBRSetVibrator function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
29
4.9 OBRSetSwingAngle
This function sets up the Scan Width Control. The laser beam irradiation width for each angle can be
set in the OBR calibration. If the setting is not performed, the irradiation width will be automatically
set with the factory default setting.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetSwingAngle function.
Calling Sequences
[C++]
int OBRSetSwingAngle(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetSwingAngle( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetSwingAngle(
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying laser beam swing angle selecting one of the values listed
below.
OBR_SWING_OFF
: No swing angle control
OBR_SWING_WIDE
: Wide swing angle
OBR_SWING_MIDDLE
: Middle swing angle
OBR_SWING_NARROW
: Narrow swing angle
Return Values
OBR_OK
OBR_PON
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
The OBR calibration can be performed using the dedicated bar image. Navigate to Control
Panel → Laser Setting icon and then Others tab.
Setting up the scan width control function (OBRSetSwingAngle function) in one of four
modes while the setting gain (OBRSetGainControl function) is set up in Auto mode may
30
cause a deterioration of scanning bar codes that are printed in a poor quality. If you need to
set up the scan width control function, select the setting gain in Mode 0 to Mode 3. Or, if
you select the setting gain in Auto mode, select the scan width control function in "No
control on laser beam emission width" mode only.
31
4.10 OBRGetSwingAngle
This function retrieves the Scan Width Control mode.
Calling Sequences
[C++]
int OBRGetSwingAngle(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetSwingAngle( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetSwingAngle(
ref Int32 pMode
);
Parameters
pMode
This parameter is for retrieving the Scan Width Control mode. See OBRGetSwingAngle
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
32
4.11 OBRSetFocus
This function sets up the Scan Verification Beam mode. The Scan Verification Beam is a function
that focuses a scanned bar code after its scanning is succeeded so that the bar code can be
distinguished from others in the same vicinity to avoid confusion by the user.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetFocus function.
Calling Sequences
[C++]
int OBRSetFocus(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetFocus( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetFocus(
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying Scan Verification Beam mode selecting either of the values
listed below.
OBR_FOCUSOFF
: Disable the Scan Verification Beam mode.
OBR_FOCUSON
: Enable the Scan Verification Beam mode.
Return Values
OBR_OK
OBR_PON
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
33
4.12 OBRGetFocus
This function retrieves the current Scan Verification Beam mode.
Calling Sequences
[C++]
int OBRGetFocus(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetFocus( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetFocus(
ref Int32 pMode
);
Parameters
pMode
This parameter is for retrieving the Scan Verification Beam mode. See OBRSetFocus for
values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
34
4.13 OBRSetScanningNotification
This function sets up the notification method for scanning complete via either "Event" or "Window
message".
•
•
Notification via Window Message
Window message of WM_OBR_SCANNING(WM_USER+0x530 ) is issued to the specified
window handle.
Notification via Event
Event generated when scanning is complete is "OBRScanningEvent". Since the name is
expressed in Unicode in WindowsCE, it must be specified as TEXT("OBRScanningEvent") in
application program.
See Chapter 5.1 "Scanning Completion Notification for detail.
Calling Sequences
[C++]
int OBRSetScanningNotification(
DWORD dwMode,
HWND hWnd
)
[Visual Basic]
Public Shared Function OBRSetScanningNotification( _
ByVal dwMode As Int32, _
ByVal hWnd As IntPtr _
) As Int32
[C#]
public static Int32 OBRSetScanningNotification(
Int32 dwMode,
IntPtr hWnd
);
Parameters
dwMode
This parameter is for specifying notification mode selecting either of the values listed
below.
OBR_MESSAGE
: Notification via window message
OBR_EVENT
: Notification via Event
hWnd
This parameter is for specifying handle to which the window message is sent in case where
OBR_MESSAGE is specified in dwMode parameter.
35
Return Values
OBR_OK
OBR_PON
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
36
4.14 OBRGetScanningNotification
This function retrieves the scanning completion notification. The setting status for scanning
complete notification via either "Event" or "Window message" is retrieved.
Calling Sequences
[C++]
int OBRGetScanningNotification(
DWORD *pMode,
HWND *hWnd
)
[Visual Basic]
Public Shared Function OBRGetScanningNotification( _
ByRef pMode As Int32, _
ByRef hWnd As IntPtr _
) As Int32
[C#]
public static Int32 OBRGetScanningNotification(
ref Int32 pMode,
ref IntPtr hWnd
);
Parameters
pMode
This parameter is for retrieving the notification mode. See
OBRSetScanningNotification function for the values to retrieve.
hWnd
This parameter is for retrieving the handle of window message when OBR_MESSAGE has
been set in *pMode parameter.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
37
4.15 OBRGetLastEventStatus
If the scanning completion notification has been set to "via Event", this function retrieves the factor
that forced scanning a bar code to end. See Chapter 5.1 "Scanning Completion Notification" for
detail.
Calling Sequences
[C++]
int OBRGetLastEventStatus(
DWORD *pStatus
)
[Visual Basic]
Public Shared Function OBRGetLastEventStatus( _
ByRef pStatus As Int32 _
) As Int32
[C#]
public static Int32 OBRGetLastEventStatus(
ref Int32 pStatus
);
Parameters
pStatus
This parameter is for retrieving a factor that forces the scanning to end.
OBR_NONE
: No event factor
OBR_SUCCESS
: Scanning succeeded
OBR_TIMEOUT
: Timeout
OBR_BUFFOVER
: OBR buffer in full error
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
38
4.16 OBRSetScanningKey
This function sets up scanning Trigger keys. While the scanner driver is being set opened with
OBROpen function, scanning starts when one of the Trigger keys specified with
OBRSetScanningKey function is pressed.
Calling Sequences
[C++]
int OBRSetScanningKey(
DWORD dwKey
)
[Visual Basic]
Public Shared Function OBRSetScanningKey( _
ByVal dwKey As Int32 _
) As Int32
[C#]
public static Int32 OBRSetScanningKey(
Int32 dwKey
);
Parameters
dwKey
This parameter is for specifying a sum of the values in logical OR for the Trigger keys
selected in the list below.
OBR_TRIGGERKEY_L
: L Trigger key
OBR_TRIGGERKEY_R
: R Trigger key
OBR_CURSORKEY_L
: Cursor left key
OBR_CURSORKEY_R
: Cursor right key
OBR_CURSORKEY_U
: Cursor-up key
OBR_CURSORKEY_D
: Cursor-down key
OBR_GUNTRIGGER
: Grip trigger key
OBR_GUNGRIP
: Grip trigger key
OBR_CENTERTRIGGER
: Center key
Return Values
OBR_OK
OBR_PON
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
39
4.17 OBRGetScanningKey
This function retrieves the current scanning Trigger keys. While the scanner driver is being set
opened with OBROpen function, scanning starts when one of the Trigger keys specified with
OBRSetScanningKey function is pressed. During this period, all the scanning Trigger keys set
are occupied by the scanner driver, the user cannot access unless OBRClose function is carried out
to make the keys free from the scanner driver.
Calling Sequences
[C++]
int OBRGetScanningKey(
DWORD *pKey
)
[Visual Basic]
Public Shared Function OBRGetScanningKey( _
ByRef pKey As Int32 _
) As Int32
[C#]
public static Int32 OBRGetScanningKey(
ref Int32 pKey
);
Parameters
pKey
This parameter is for retrieving the scanning Trigger keys. See OBRSetScanningKey
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
40
4.18 OBRSetAllOptions
This function sets up all the settings for the scanner driver at a time.
Calling Sequences
[C++]
int OBRSetAllOptions(
M_TBL *pModeTable
)
[Visual Basic]
Public Shared Function OBRSetAllOptions( _
ByVal pModeTable As M_TBL _
) As Int32
[C#]
public static Int32 OBRSetAllOptions(
M_TBL pModeTable
);
Parameters
pModeTable
This parameter is for specifying the scanner driver setting structure.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
See the M_TBL structure for detail.
41
4.19 OBRGetAllOptions
This function retrieves all the settings at a time for the scanner driver.
Calling Sequences
[C++]
int OBRGetAllOptions(
M_TBL *pModeTable
)
[Visual Basic]
Public Shared Function OBRGetAllOptions( _
ByVal pModeTable As M_TBL _
) As Int32
[C#]
public static Int32 OBRGetAllOptions(
M_TBL pModeTable
);
Parameters
pModeTable
This parameter is for specifying pointer to the structure that saves the retrieved scanner
driver settings.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
See the M_TBL structure for detail.
42
4.20 OBRSetDefaultSymbology
This function sets up all the settings of the scanner driver to the defaults. Under the condition that
the configuration file exists and OBRLoadConfigFile function has been called, the settings in the
configuration file will be set to the respective defaults with this function.
Calling Sequences
[C++]
int OBRSetDefaultSymbology( )
[Visual Basic]
Public Shared Function OBRSetDefaultSymbology() As Int32
[C#]
public static Int32 OBRSetDefaultSymbology()
Parameter
None
Return Values
OBR_OK
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
43
4.21 OBRSetDefaultSymbologyEx
This function resumes all the settings of the scanner driver to the factory-defaults.
In the Device Emulator, the function returns always FUNCTION_UNSUPPORT.
Calling Sequences
[C++]
int OBRSetDefaultSymbologyEx( )
[Visual Basic]
Public Shared Function OBRSetDefaultSymbologyEx() As Int32
[C#]
public static Int32 OBRSetDefaultSymbologyEx()
Parameter
None
Return Values
OBR_OK
FUNCTION_UNSUPPORT
: Normal end
: Unsupported error
44
4.22 OBRSaveLogFile
This function outputs log information about the scanner driver saved in the memory by the scanner
driver to the specified log file.
Calling Sequences
[C++]
int OBRSaveLogFile( )
[Visual Basic]
Public Shared Function OBRSaveLogFile() As Int32
[C#]
public static Int32 OBRSaveLogFile()
Parameter
None
Return Values
OBR_OK
FUNCTION_UNSUPPORT
: Normal end
: Unsupported error
Notes:
• With the following file names log information is output to the driver log and route directory.
Information about the scanner control
: OBRLog.dat
Information about the decoder
: DecodeLog.dat
• Before calling OBRSaveLogFile function, be sure to open the scanner driver with
OBROpen function.
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that the
decoder related log is output.
45
4.23 OBRGetc
This function retrieves data for one character from the decoding data storage buffer in the scanner
driver.
In the Device Emulator, the function retrieves the code specified by the I/O Simulator.
Calling Sequences
[C++]
int OBRGetc(
DWORD *dwRcd
)
[Visual Basic]
Public Shared Function OBRGetc( _
ByRef dwRcd As Int32 _
) As Int32
[C#]
public static Int32 OBRGetc(
ref Int32 dwRcd
);
Parameters
dwRcd
This parameter is for retrieving a symbology of retrieved decoding data.
OBR_NONDT
: No data
OBR_CD39
: Code39 symbology
OBR_NW_7
: NW-7 symbology
OBR_WPCA
: WPC (except UPC-E) Addon symbology
OBR_WPC
: WPC (except UPC-E) symbology
OBR_UPEA
: UPC-E Addon symbology
OBR_UPE
: UPC-E symbology
OBR_IDF
: Industrial 2of5 symbology
OBR_ITF
: Interleaved 2of5 symbology
OBR_CD93
: Code93 symbology
OBR_CD128
: Code128 symbology (note 4)
OBR_MSI
: MSI symbology
OBR_IATA
: IATA symbology
OBR_RSS14
: RSS-14 symbology or RSS-14 Stacked symbology. (notes 2 and 3)
OBR_RSSLTD
: RSS Limited symbology. (notes 2 and 3)
OBR_RSSEXP
: RSS Expanded symbology or RSS Expanded Stacked symbology. (notes 2 and 3)
46
Return Values
OBR data (for one character)
otherwise
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: OBR (the scanner unit) in abnormal state. In the Device Emulator, this
value is not returned.
: Unsupported error
Notes:
1. Carrying out OBRGetc function without opening the scanner driver first may result in
abnormal state.
2. IT-600, DT-X7, DT-X11, DT-X30, IT-800, IT-300, and DT-X8 support the symbology.
3. The RSS symbologies change its name to "GS1 DataBar".
RSS-14 → GS1 DataBar Omnidirectional
RSS Limited → GS1 DataBar Limited
RSS Expanded → GS1 DataBar Expanded
RSS-14 Stacked → GS1 DataBar Stacked
RSS Expanded Stacked → GS1 DataBar Expanded Stacked
4. The function retrieves "OBR_CD128" even if reading the GS1-128 symbology
(previously named as EAN128 symbology).
47
4.24 OBRGets
This function retrieves decoded data for one character from the decoding data storage buffer in the
scanner driver.
In the Device Emulator, the function retrieves the code specifies by the I/O Simulator.
Calling Sequences
[C++]
int OBRGets(
BYTE *pDecodeData,
DWORD *pCode,
BYTE *pLength
)
[Visual Basic]
Public Shared Function OBRGets( _
ByVal pDecodeData As Byte(), _
ByRef pCode As Int32, _
ByRef pLength As Byte _
) As Int32
[C#]
public static Int32 OBRGets(
Byte[] pDecodeData,
ref Int32 pCode,
ref Byte pLength
);
Parameters
pDecodeData
This parameter is for retrieving the decoded data.
48
pCode
This parameter is for retrieving the symbology of decoded data.
OBR_NONDT
: No data
OBR_CD39
: Code39 symbology
OBR_NW_7
: NW-7 symbology
OBR_WPCA
: WPC Addon symbology
OBR_WPC
: WPC symbology
OBR_UPEA
: UPC-E Addon symbology
OBR_UPE
: UPC-E symbology
OBR_IDF
: Industrial 2of5 symbology
OBR_ITF
: Interleaved 2of5 symbology
OBR_CD93
: Code93 symbology
OBR_CD128
: Code128 symbology (note 5)
OBR_MSI
: MSI symbology
OBR_IATA
: IATA symbology
OBR_RSS14
: RSS-14 symbology or RSS-14 Stacked symbology. (notes 3 and 4)
OBR_RSSLTD
: RSS Limited symbology. (notes 3 and 4)
OBR_RSSEXP
: RSS Expanded symbology or RSS Expanded Stacked symbology. (notes 3 and 4)
pLength
This parameter is for retrieving the length of the decoded data.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Notes:
1. To display decoded data retrieved with OBRGetc function, they must be converted into
Unicode to display in WindowsCE.
2. OBR_NONDT is set in the pCode parameter if there is no data in the OBR buffer.
3. IT-600, DT-X7, DT-X11 DT-X30, IT-800, IT-300, and DT-X8 support the symbology.
4. The RSS symbologies change its name to "GS1 DataBar".
RSS-14 → GS1 DataBar Omnidirectional
RSS Limited → GS1 DataBar Limited
RSS Expanded → GS1 DataBar Expanded
RSS-14 Stacked → GS1 DataBar Stacked
RSS Expanded Stacked → GS1 DataBar Expanded Stacked
5. The function retrieves "OBR_CD128" even if reading the GS1-128 symbology
(previously named as EAN128 symbology).
49
4.25 OBRGetStatus
This function retrieves the status of the decoding data storage buffer in the scanner driver.
Calling Sequences
[C++]
int OBRGetStatus(
DWORD *pSize,
BYTE *pNumber
)
[Visual Basic]
Public Shared Function OBRGetStatus( _
ByRef pSize As Int32, _
ByRef pNumber As Byte _
) As Int32
[C#]
public static Int32 OBRGetStatus(
ref Int32 pSize,
ref Byte pNumber
);
Parameters
pSize
This parameter is for retrieving the number of bytes remained in the buffer (no. of steps
remained x maximum length of one data).
pNumber
This parameter is for retrieving the number of steps remained in the buffer.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
50
4.26 OBRClearBuff
This function clears the decoding data storage buffer in the scanner driver.
Calling Sequences
[C++]
int OBRClearBuff( )
[Visual Basic]
Public Shared Function OBRClearBuff() As Int32
[C#]
public static Int32 OBRClearBuff()
Parameter
None
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
51
4.27 OBRSetBuffType
This function sets up the output mode for decoded data.
Calling Sequences
[C++]
int OBRSetBuffType(
BYTE byType
)
[Visual Basic]
Public Shared Function OBRSetBuffType( _
ByVal byType As Byte _
) As Int32
[C#]
public static Int32 OBRSetBuffType(
Byte byType
);
Parameters
byType
This parameter is for specifying output mode selecting one of the values listed below.
OBR_BUFOBR
: Output to OBR buffer
OBR_STOFF
: Output as key message to specified window handle
OBR_ASTOFF
: Output to focused location via Clipboard
Return Values
OBR_OK
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
The destination window handle for key message is specified with OBROpen function.
52
4.28 OBRGetBuffType
This function retrieves the decoded data output mode.
Calling Sequences
[C++]
int OBRGetBuffType(
BYTE *pType
)
[Visual Basic]
Public Shared Function OBRGetBuffType( _
ByRef pType As Byte _
) As Int32
[C#]
public static Int32 OBRGetBuffType(
ref Byte pType
);
Parameters
pType
This is for retrieving the output mode. See OBRSetBuffType function for the values to
retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
53
4.29 OBRSetCheckCounter
This function sets up the number of validations to carry out for decoded data.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetCheckCounter function.
Calling Sequences
[C++]
int OBRSetCheckCounter(
int nCounter
)
[Visual Basic]
Public Shared Function OBRSetCheckCounter( _
ByVal nCounter As Int32 _
) As Int32
[C#]
public static Int32 OBRSetCheckCounter(
Int32 nCounter
);
Parameters
nCounter
For Laser Scanner;
This parameter is for specifying the number of times in the range of 1 to 9 to carry out
validation. The default is 3.
For Linear Imager;
This parameter is for specifying the number of times in the range of 1 to 9 to carry out
validation on decoded data. The default setting which is "0" will set the validation to
automatic.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
54
4.30 OBRGetCheckCounter
This function retrieves the number of times set to carry out validation for decoded data.
Calling Sequences
[C++]
int OBRGetCheckCounter(
int *pCounter
)
[Visual Basic]
Public Shared Function OBRGetCheckCounter( _
ByRef pCounter As Int32 _
) As Int32
[C#]
public static Int32 OBRGetCheckCounter(
ref Int32 pCounter
);
Parameters
pCounter
This parameter is for retrieving the number of times for validation. See
OBRSetCheckCounter function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
55
4.31 OBRSetScanningTimeout
This function sets up a time period for timeout used for scanning bar code.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetScanningTimeout function.
Calling Sequences
[C++]
int OBRSetScanningTimeout(
int nTimeout
)
[Visual Basic]
Public Shared Function OBRSetScanningTimeout( _
ByVal nTimeout As Int32 _
) As Int32
[C#]
public static Int32 OBRSetScanningTimeout(
Int32 nTimeout
);
Parameters
nTimeout
This parameter is for specifying a time period in the range of 1 to 9 seconds for timeout.
The default is 3 seconds.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
56
4.32 OBRGetScanningTimeout
This function retrieves the time period set for timeout used for scanning bar code.
Calling Sequences
[C++]
int OBRGetScanningTimeout(
int *pTimeout
)
[Visual Basic]
Public Shared Function OBRGetScanningTimeout( _
ByRef pTimeout As Int32 _
) As Int32
[C#]
public static Int32 OBRGetScanningTimeout(
ref Int32 pTimeout
);
Parameters
pTimeout
This parameter is for retrieving the time period. See OBRSetScanningTimeout function
for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
57
4.33 OBRSetSuffixChar
This function sets up termination control code that is appended to the end of decoded data before
output.
Calling Sequences
[C++]
int OBRSetSuffixChar(
BYTE bySuffix
)
[Visual Basic]
Public Shared Function OBRSetSuffixChar( _
ByVal bySuffix As Byte _
) As Int32
[C#]
public static Int32 OBRSetSuffixChar(
Byte bySuffix
);
Parameters
bySuffix
This parameter is for specifying termination control code selecting one of the values listed
below.
OBR_ENDCR
: CR code (0Dh)
OBR_ENDLF
: LF code (0Ah)
OBR_ENDCL
: CR code+LF code (0D0Ah)
OBR_ENDTAB
: HT code (09h)
OBR_ENDNULL
: No termination code.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
58
4.34 OBRGetSuffixChar
This function retrieves the termination code at the end of decoded data.
Calling Sequences
[C++]
int OBRGetSuffixChar(
BYTE *pSuffix
)
[Visual Basic]
Public Shared Function OBRGetSuffixChar( _
ByRef pSuffix As Byte _
) As Int32
[C#]
public static Int32 OBRGetSuffixChar(
ref Byte pSuffix
);
Parameters
pSuffix
This parameter is for retrieving termination control code. See OBRSetSuffixChar
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
59
4.35 OBRSetScanningType
This function sets up scanning mode.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetScanningType function.
Calling Sequences
[C++]
int OBRSetScanningType(
BYTE byType
)
[Visual Basic]
Public Shared Function OBRSetScanningType( _
ByVal byType As Byte _
) As Int32
[C#]
public static Int32 OBRSetScanningType(
Byte byType
);
Parameters
byType
This parameter is for specifying scanning mode selecting either of the values listed below.
OBR_TYPE0
: Single-shot scanning/No key release check
OBR_TYPE1
: Continuous scanning/With key release check
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
60
4.36 OBRGetScanningType
This function retrieves the scanning mode.
Calling Sequences
[C++]
int OBRGetScanningType(
BYTE *pType
)
[Visual Basic]
Public Shared Function OBRGetScanningType( _
ByRef pType As Byte _
) As Int32
[C#]
public static Int32 OBRGetScanningType(
ref Byte pType
);
Parameters
pType
This parameter is for retrieving the scanning mode. See OBRSetScanningType function
for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
61
4.37 OBRSetScanningCounter
This function sets up the number of times to carry out continuous scanning.
Calling Sequences
[C++]
int OBRSetScanningCounter(
int nCounter
)
[Visual Basic]
Public Shared Function OBRSetScanningCounter( _
ByVal nCounter As Int32 _
) As Int32
[C#]
public static Int32 OBRSetScanningCounter(
Int32 nCounter
);
Parameters
nCounter
This parameter is for specifying the number of times in the range of 1 to 9 to carry out
continuous scanning. The default is 1 time.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
62
4.38 OBRGetScanningCounter
This function retrieves the number of times set for continuous scanning.
Calling Sequences
[C++]
int OBRGetScanningCounter(
int *pCounter
)
[Visual Basic]
Public Shared Function OBRGetScanningCounter( _
ByRef pCounter As Int32 _
) As Int32
[C#]
public static Int32 OBRGetScanningCounter(
ref Int32 pCounter
);
Parameters
pCounter
This parameter is for retrieving the number of times for continuous scanning. See
OBRSetScanningCounter function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
63
4.39 OBRSetMultiStepReading
This function sets up step reading which is described below.
In the Device Emulator, it is not possible to retrieve multiple codes from the I/O Simulator.
Normal Read mode
There is no limit to the number of bar codes that can be scanned once OBROpen function has been
carried out to open and until OBRClose function is carried out to close. When continuous scanning
is in operation, a repeated scanning on the same bar code will be avoided if the decoding result is the
same with that of the previous decoding result one scanning before.
Multi-step Read mode
Only the specified number of bar codes will be scanned once OBROpen function has been carried
out to open the scanning driver and until OBRClose function is carried out to close. The number of
bar codes to be scanned is specified with OBRSetScanningCounter function. When continuous
scanning is in operation, a repeated scanning on the same bar code will be avoided if the decoding
result is the same with that of the previous decoding result one scanning before.
Calling Sequences
[C++]
int OBRSetMultiStepReading(
BYTE byMode
)
[Visual Basic]
Public Shared Function OBRSetMultiStepReading( _
ByVal byMode As Byte _
) As Int32
[C#]
public static Int32 OBRSetMultiStepReading(
Byte byMode
);
Parameters
byMode
This parameter is for specifying the step reading mode selecting either of the values listed
below.
OBR_NORM
: Normal read mode
OBR_DANN
: Multi-step read mode
64
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
65
4.40 OBRGetMultiStepReading
This function retrieves the Multi-step read mode.
Calling Sequences
[C++]
int OBRGetMultiStepReading(
BYTE *pMode
)
[Visual Basic]
Public Shared Function OBRGetMultiStepReading( _
ByRef pMode As Byte _
) As Int32
[C#]
public static Int32 OBRGetMultiStepReading(
ref Byte pMode
);
Parameters
pMode
This parameter is for retrieving the Multi-step read mode. See
OBRSetMultiStepReading function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
66
4.41 OBRStartScanning
This function turns on the laser and initiates continuous scanning. Scanning in the mode can be
stopped in mid-course by carrying out OBRStopScanning function. Before calling
OBRStartScanning function, OBROpen function must be called first to open the scanner diver.
There is no limit to the number of times for scanning. However, care must be taken, because if the
power is turned off in the continuous scanning mode, the scanner will automatically resume in
operation when the power is turned on.
Calling Sequences
[C++]
int OBRStartScanning(
DWORD dwTimeout
)
[Visual Basic]
Public Shared Function OBRStartScanning( _
ByVal dwTimeout As Int32 _
) As Int32
[C#]
public static Int32 OBRStartScanning(
Int32 dwTimeout
);
Parameters
dwTimeout
This parameter is for specifying a time period for timeout in the range of 1 to 300 seconds
or OBR_INFINITE (no timeout).
Return Values
OBR_OK
OBR_NOT_DEVICE
OBR_ERROR_SCANNING
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Mid scan error
: Unsupported error
Note:
After scanning one bar code and then no subsequent action is taken within the time period
set in the dwTimeout parameter, scanning will stop.
67
4.42 OBRStopScanning
This function stops continuous scanning. If this function is called in mid-course while scanning
continues initiated with OBRStartScanning function, the scanning will stop. Before calling
OBRStopScanning function, OBROpen function must be called first to open the scanner driver.
Calling Sequences
[C++]
int OBRStopScanning( )
[Visual Basic]
Public Shared Function OBRStopScanning() As Int32
[C#]
public static Int32 OBRStopScanning()
Parameter
None
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
68
4.43 OBRSetDecodeLevel
This function sets up the decoding level in standard level or high level.
In the Device Emulator, the function does not perform, but stores the setting value as internal
variable. The value stored can be checked with OBRGetDecodeLevel function.
Switching decoding level means that if a bar code in poor quality caused by irregular bar ratio is
scanned, and its result is in error. The decoding level can be switched to the other to successfully
scan such the poor bar code.
Standard level
This level allows scanning with the standard decode logic.
High level
Initially employs the standard decode logic to scan, but its result is in error. In this case, the other
decoding level ("High level") implemented in the terminal is used to scan the same bar code. This
improves the error rate specifically with EAN, UPC-A, Code39, and Code128 symbologies.
However, with other bar code symbologies, neither it does improve the error rate, nor may reduce
miss-reading. It is recommended that the high level only be used if scanning is not possible using the
standard level.
Calling Sequences
[C++]
int OBRSetDecodeLevel(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetDecodeLevel( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetDecodeLevel(
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying decode level selecting either of the values listed below.
OBR_DECODELEVEL_NORMAL
: Standard level
OBR_DECODELEVEL_HIGH
: High level
69
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
70
4.44 OBRGetDecodeLevel
This function retrieves decoding level.
Calling Sequences
[C++]
int OBRGetDecodeLevel(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetDecodeLevel( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetDecodeLevel(
ref Int32 pMode
);
Parameters
pMode
This parameter is for retrieving decoding level. See OBRSetDecodeLevel function for
the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
71
4.45 OBRSetScanningCode
This function sets up "Enable" or "Disable" for scanning each bar code symbology.
Calling Sequences
[C++]
int OBRSetScanningCode(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetScanningCode( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetScanningCode(
Int32 dwMode
);
72
Parameters
dwMode
This parameter is for specifying "Enable" or "Disable" for scanning each symbology using
a bit field below. To set multiple symbologies enabled, a sum of the values in logical OR
for specified symbologies is set in this parameter.
Code39
NW-7
WPC Addon
WPC
UPC -E Addon
UPC -E
IDF
ITF
Code93
Code128
MSI
IATA
RSS-14 (notes 2, 4, 5)
RSS Limited (notes 2, 4, 5)
RSS Expanded (notes 2, 4,5)
RSS-14 Stacked (notes 2, 4, 5)
RSS Expanded Stacked (notes 2, 4, 5)
OBR_CD39
OBR_NW_7
OBR_WPCA
OBR_WPC
OBR_UPEA
OBR_UPE
OBR_IDF
OBR_ITF
OBR_CD93
OBR_CD128
OBR_MSI
OBR_IATA
OBR_RSS14
OBR_RSSLTD
OBR_RSSEXP
OBR_RSS14S
OBR_RSSEXPS
OBR_ALL
: Enable Code39 symbology.
: Enable NW-7 symbology.
: Enable WPC Addon symbology.
: Enable WPC symbology.
: Enable UPC-E Addon symbology.
: Enable UPC-E symbology.
: Enable Industrial 2of5 symbology. (note 3)
: Enable Interleaved 2of5 symbology.
: Enable Code93 symbology.
: Enable Code128 symbology. (note 6)
: Enable MSI symbology.
: Enable IATA symbology. (note 3)
: Enable RSS-14 symbology. (notes 2, 4, 5)
: Enable RSS Limited symbology. (notes 2, 4, 5)
: Enable RSS Expanded symbology. (notes 2, 4, 5)
: Enable RSS-14 Stacked symbology enabled. (notes 2, 4, 5)
: Enable RSS Expanded stacked symbology enabled. (notes 2, 4, 5)
: Enable all the symbologies.
Return Value
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
73
Notes:
1. OBROpen function also can be used to specify each "Enable" or "Disable" status for
scanning individual symbology. The settings with OBROpen function have the
priority over the settings with OBRSetScanningCode function. This means that the
settings on individual symbology performed with OBRSetScanningCode function
are reset to the settings with OBROpen function when OBROpen function is called.
2. IT-600, DT-X7, DT-X11, DT-X30, IT-800, IT-300, and DT-X8 support the symbology.
3. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that the
settings for reading Industrial 2of5 and IATA symbologies are to be concurrently made
enabled. If it is done wrongly, all other settings for reading other symbologies are
disabled and a parameter error is returned.
4. Individual settings for reading RSS-14, RSS-14 Stacked, and RSS Expanded, and RSS
Expanded Stacked symbologies are not supported. If setting for reading a standard RSS
symbology is set enabled, all the corresponded RSS Stacked symbologies are
automatically set enabled for reading.
5. The RSS symbologies change its name to "GS1 DataBar".
RSS-14 → GS1 DataBar Omnidirectional
RSS Limited → GS1 DataBar Limited
RSS Expanded → GS1 DataBar Expanded
RSS-14 Stacked → GS1 DataBar Stacked
RSS Expanded Stacked → GS1 DataBar Expanded Stacked
6. The setting for reading Code128 symbology will make also reading the GS1-128
symbology (previously named as EAN128 symbology) possible.
74
4.46 OBRGetScanningCode
This function retrieves each "Enable" or "Disable" status for scanning the symbologies.
Calling Sequences
[C++]
int OBRGetScanningCode(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetScanningCode( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetScanningCode(
ref Int32 pMode
);
Parameters
pMode
This parameter is for retrieving each "Enable" or "Disable" status for the symbologies. See
OBRSetScanningCode function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
75
4.47 OBRSetCode39Option
This function sets up the decode options for Code39 symbology.
Calling Sequences
[C++]
int OBRSetCode39Option(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetCode39Option( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetCode39Option(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with Code39 symbology selecting one of
the values listed below.
OBR_CODE_ENABLE
: Enable Code39 symbology.
OBR_CODE_DISABLE
: Disable Code39 symbology.
OBR_CODE_IGNORE
: Continue with the current setting.
76
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of Code39
symbology with its length shorter than the value set in this parameter will not be decoded.
The default is 2.
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of Code39
symbology with its length greater than the value set in this parameter will not be decoded.
Each default of the respective models is as follows.
• DT-X7
52 digits
• DT-X11
47 digits
• IT-600
52 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
48 digits
byOutFormat
This parameter is for specifying output format selecting one of the values listed below.
OBR_39SON
: Output Code39 symbology with start and stop codes.
OBR_39SOFF
: Output Code39 symbology without start and stop codes.
OBR_39ASON
: Output Code39 symbology in Full ASCII and with start and stop codes.
OBR_39ASOFF
: Output Code39 symbology in Full ASCII and without start and stop codes.
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character output selecting either of the values listed
below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
77
4.48 OBRGetCode39Option
This function retrieves the decode options for Code39 symbology.
Calling Sequences
[C++]
int OBRGetCode39Option(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetCode39Option( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetCode39Option(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with Code39 symbology. See
OBRSetCode39Option function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetCode39Option function for the values to capture.
78
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetCode39Option function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetCode39Option function
for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit setting. See OBRSetCode39Option
function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character output. See OBRSetCode39Option
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
79
4.49 OBRSetNW7Option
This function sets up the decode options for NW-7 symbology.
Calling Sequences
[C++]
int OBRSetNW7Option(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat
)
[Visual Basic]
Public Shared Function OBRSetNW7Option( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte _
) As Int32
[C#]
public static Int32 OBRSetNW7Option(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat
);
Parameters
byEnable
This parameter is for specifying scanning status with NW-7 symbology selecting one of the
values listed below.
OBR_CODE_ENABLE
: Enable NW-7 symbology.
OBR_CODE_DISABLE
: Disable NW-7 symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of NW-7
symbology with its length less than the value set in this parameter will not be decoded. The
default is 2.
80
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of NW-7
symbology with its length greater than the value set in this parameter will not be decoded.
Each default of the respective models is as follows.
• DT-X11
62 digits
• IT-600
63 digits
• DT-X7
63 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
48 digits
byOutFormat
This parameter is for specifying output format selecting either of the values listed below.
OBR_NWSON
: Output NW-7 symbology with start and stop codes.
OBR_NWSOFF
: Output NW-7 symbology without start and stop codes.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
81
4.50 OBRSetNW7OptionEx
This function sets up the decode options for NW-7 symbology.
In the Device Emulator, the function returns always FUNCTION_UNSUPPORT.
Calling Sequences
[C++]
int OBRSetNW7OptionEx(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetNW7OptionEx( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetNW7OptionEx(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with NW-7 symbology selecting one of the
values listed below.
OBR_CODE_ENABLE
: Enable NW-7 symbology.
OBR_CODE_DISABLE
: Disable NW-7 symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
82
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of NW-7
symbology with its length shorter than the value set in this parameter will not be decoded.
The default is 2.
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of NW-7
symbology with its length longer than the value set in this parameter will not be decoded.
The default value for IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E is as
follows.
• 48 digits
byOutFormat
This parameter is for specifying output format selecting either of the values listed below.
OBR_NWSON
: Output NW-7 symbology with start and stop codes.
OBR_NWSOFF
: Output NW-7 symbology without start and stop codes.
byCheckDigit
This is parameter for specifying check digit selecting either of the values listed below.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character. Since the check digit calculation with
NW-7 symbology is always disabled, specify OBR_CHKKOFF in this parameter.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error
: Unsupported error
83
4.51 OBRGetNW7Option
This function retrieves the decode options for NW-7 symbology.
Calling Sequences
[C++]
int OBRGetNW7Option(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetNW7Option( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetNW7Option(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with NW-7 symbology. See
OBRSetNW7OptionEx function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetNW7OptionEx function for the values to retrieve.
84
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetNW7OptionEx function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetNW7OptionEx function
for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetNW7OptionEx function for
the values to retrieve.
pCheckChar
This function is for retrieving the check character output. See OBRSetNW7OptionEx
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
85
4.52 OBRSetWPCAddonOption
This function sets up the decode options for WPC Addon symbology.
Calling Sequences
[C++]
int OBRSetWPCAddonOption(
BYTE byEnable,
BYTE byCheckDigit
)
[Visual Basic]
Public Shared Function OBRSetWPCAddonOption( _
ByVal byEnable As Byte, _
ByVal byCheckDigit As Byte _
) As Int32
[C#]
public static Int32 OBRSetWPCAddonOption(
Byte byEnable,
Byte byCheckDigit
);
Parameters
byEnable
This parameter is for specifying scanning status with WPC Addon symbology selecting one
of the values listed below. See note 1.
OBR_CODE_ENABLE
: Enable WPC Addon symbology.
OBR_CODE_DISABLE
: Disable WPC Addon symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the WPC
symbology. See note 2.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
86
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support reading
UPC-B Addon symbology.
2. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
87
4.53 OBRSetWPCAddonOptionEx
This function sets up the decode options for WPC Addon symbology.
Calling Sequences
[C++]
int OBRSetWPCAddonOptionEx(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetWPCAddonOptionEx( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetWPCAddonOptionEx(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with WPC Addon symbology selecting one
of the values listed below. See note 1.
OBR_CODE_ENABLE
: Enable WPC Addon symbology.
OBR_CODE_DISABLE
: Disable WPC Addon symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
88
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed to 10 digits and
cannot be changed. Always specify 10.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 18 digits and
cannot be changed. Always specify 18.
byOutFormat
This parameter is for specifying output format selecting either of the values listed below.
OBR_NUMSYSON
: Output UPC-A symbology with "0" at the forefront.
OBR_NUMSYSOFF
: Output UPC-A symbology without "0" at the forefront.
OBR_WPCGTIN
: Output UPC-A, EAN8, and EAN13 symbologies in GTIN format (14 digits).
byCheckDigit
This is parameter for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the WPC
symbology. See note 2.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character. Since the check digit calculation with
WPC Addon symbology is always enabled, specify OBR_CHKKON in this parameter.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support reading
UPC-B Addon symbology.
2. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
89
4.54 OBRGetWPCAddonOption
This function retrieves the decode options for WPC Addon symbology.
Calling Sequences
[C++]
int OBRGetWPCAddonOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetWPCAddonOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetWPCAddonOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with WPC Addon symbology. See
OBRSetWPCAddonOptionEx function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetWPCAddonOptionEx function for the values to retrieve.
90
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetWPCAddonOptionEx function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetWPCAddonOptionEx
function for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetWPCAddonOptionEx
function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetWPCAddonOptionEx
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
91
4.55 OBRSetWPCOption
This function sets up the decode options for WPC symbology.
Calling Sequences
[C++]
int OBRSetWPCOption(
BYTE byEnable,
BYTE byCheckDigit
)
[Visual Basic]
Public Shared Function OBRSetWPCOption( _
ByVal byEnable As Byte, _
ByVal byCheckDigit As Byte _
) As Int32
[C#]
public static Int32 OBRSetWPCOption(
Byte byEnable,
Byte byCheckDigit
);
Parameters
byEnable
This parameter is for specifying scanning status with WPC symbology selecting one of the
values listed below. See note 1.
OBR_CODE_ENABLE
: Enable WPC symbology.
OBR_CODE_DISABLE
: Disable WPC symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the WPC
symbology. See note 2.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
92
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support reading
UPC-B Addon symbology.
2. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
93
4.56 OBRSetWPCOptionEx
This function sets up the decode options for WPC symbology.
Calling Sequences
[C++]
int OBRSetWPCOptionEx(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetWPCOptionEx( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetWPCOptionEx(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with WPC symbology selecting one of the
values listed below. See note 1.
OBR_CODE_ENABLE
: Enable WPC symbology.
OBR_CODE_DISABLE
: Disable WPC symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
94
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed to 8 digits and
cannot be changed. Always specify 8.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 13 digits and
cannot be changed. Always specify 13.
byOutFormat
This parameter is for specifying output format selecting one of the values listed below.
OBR_NUMSYSON
: Output UPC-A symbology with "0" at the forefront.
OBR_NUMSYSOFF
: Output UPC-A symbology without "0" at the forefront.
OBR_WPCGTIN
: Output UPC-A, EAN8, and EAN13 symbologies in GTIN format (14 digits).
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the WPC
Addon symbology. See note 2.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character. Since the check digit calculation with
WPC symbology is always enabled, OBR_CHKKON must be specified in this parameter.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support reading
UPC-B Addon symbology.
2. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
95
4.57 OBRGetWPCOption
This function retrieves the decode options for WPC symbology.
Calling Sequences
[C++]
int OBRGetWPCOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetWPCOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetWPCOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with WPC symbology. See
OBRSetWPCOptionEx function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetWPCOptionEx function for the values to retrieve.
96
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetWPCOptionEx function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetWPCOptionEx function
for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetWPCOptionEx function for
the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetWPCOptionEx function
for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
97
4.58 OBRSetUPCEAddonOption
This function sets up the decode options for UPC-E Addon symbology.
Calling Sequences
[C++]
int OBRSetUPCEAddonOption(
BYTE byEnable,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetUPCEAddonOption( _
ByVal byEnable As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetUPCEAddonOption(
Byte byEnable,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with UPC-E Addon symbology selecting
one of the values listed below.
OBR_CODE_ENABLE
: Enable UPC-E Addon symbology.
OBR_CODE_DISABLE
: Disable UPC-E Addon symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the UPC-E
symbology. See note.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
98
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
99
4.59 OBRSetUPCEAddonOptionEx
This function sets up the decode options for UPC-E Addon symbology.
Calling Sequences
[C++]
int OBRSetUPCEAddonOptionEx(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetUPCEAddonOptionEx( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetUPCEAddonOptionEx(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with UPC-E Addon symbology selecting
one of the values below.
OBR_CODE_ENABLE
: Enable UPC-E Addon symbology.
OBR_CODE_DISABLE
: Disable UPC-E Addon symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
100
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed to 9 digits and
cannot be changed. Always specify 9.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 12 digits and
cannot be changed. Always specify 12.
byOutFormat
This parameter is for specifying output format selecting either of the values listed below.
OBR_NUMSYSON
: Output UPC-E Addon symbology with "0" at the forefront.
OBR_NUMSYSOFF
: Output UPC-E Addon symbology without "0" at the forefront.
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the UPC-E
symbology. See note.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
101
4.60 OBRGetUPCEAddonOption
This function retrieves the decode options for UPC-E Addon symbology.
Calling Sequences
[C++]
int OBRGetUPCEAddonOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetUPCEAddonOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetUPCEAddonOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with UPC-E Addon symbology. See
OBRSetUPCEAddonOptionEx function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetUPCEAddonOptionEx function for the values to retrieve.
102
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetUPCEAddonOptionEx function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetUPCEAddonOptionEx
function for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetUPCEAddonOptionEx
function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetUPCEAddonOptionEx
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error
: Unsupported error
103
4.61 OBRSetUPCEOption
This function sets up the decode options for UPC-E symbology.
Calling Sequences
[C++]
int OBRSetUPCEOption(
BYTE byEnable,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetUPCEOption( _
ByVal byEnable As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetUPCEOption(
Byte byEnable,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with UPC-E symbology selecting one of
the values listed below.
OBR_CODE_ENABLE
: Enable UPC-E symbology.
OBR_CODE_DISABLE
: Disable UPC-E symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. To
set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the UPC-E
Addon symbology. See note.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
104
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
105
4.62 OBRSetUPCEOptionEx
This function sets up the decode options for UPC-E symbology.
Calling Sequences
[C++]
int OBRSetUPCEOptionEx(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetUPCEOptionEx( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetUPCEOptionEx(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with UPC-E symbology selecting one of
the values listed below.
OBR_CODE_ENABLE
: Enable UPC-E symbology.
OBR_CODE_DISABLE
: Disable UPC-E symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
106
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed 7 digits and
cannot be changed. Always specify 7.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 7 digits and
cannot be changed. Always specify 7.
byOutFormat
This parameter is for specify output format selecting one of the values listed below.
OBR_NUMSYSON
: Output UPC-E symbology with "0" at the forefront.
OBR_NUMSYSOFF
: Output UPC-E symbology without "0" at the forefront.
OBR_UPCEGTIN
: Output UPC-E symbology in GTIN format (14 digits).
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below. See
note. To set "OBR_CHKDOFF" in the parameter, be sure also to set the same value for the
UPC-E Addon. See note.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
107
4.63 OBRGetUPCEOption
This retrieves the decode options for UPC-E symbology.
Calling Sequences
[C++]
int OBRGetUPCEOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetUPCEOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetUPCEOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with UPC-E symbology. See
OBRSetUPCEOptionEx function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetUPCEOptionEx function for the values to retrieve.
108
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetUPCEOptionEx function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetUPCEOptionEx function
for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetUPCEOptionEx function for
the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetUPCEOptionEx
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
109
4.64 OBRSetIDFOption
This function sets up the decode options for Industrial 2of5 symbology.
Calling Sequences
[C++]
int OBRSetIDFOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetIDFOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetIDFOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with Industrial 2of5 symbology selecting
one of the values listed below. See note.
OBR_CODE_ENABLE
: Enable Industrial 2of5 symbology.
OBR_CODE_DISABLE
: Disable Industrial 2of5 symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of Industrial
2of5 symbology with its length less than the value set in this parameter will not be decoded.
The default is 2.
110
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of Industrial
2of5 symbology with its length longer than the value set in this parameter will not be
decoded. Each default of the respective models is as follows.
• DT-X11
55 digits
• IT-600
67 digits
• DT-X7
67 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
50 digits
byCheckDigit
This parameter is for specifying designating the check digit selecting either of the values
listed below.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that the
settings for reading Industrial 2of5 and IATA symbologies are to be concurrently made
enabled. If it is done wrongly, all other settings for reading other symbologies are disabled
and a parameter error is returned.
111
4.65 OBRGetIDFOption
This function retrieves the decode options for Industrial 2of5 symbology.
Calling Sequences
[C++]
int OBRGetIDFOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetIDFOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetIDFOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with IDF symbology. See
OBRSetIDFOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See OBRSetIDFOption
function for values to retrieve.
112
pMaxLength
This parameter is for retrieving the maximum number of digits. See OBRSetIDFOption
function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetIDFOption function for
the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetIDFOption function for the
values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetIDFOption function for
the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
113
4.66 OBRSetITFOption
This function sets up the decode options for Interleaved 2of5 symbology.
Calling Sequences
[C++]
int OBRSetITFOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetITFOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetITFOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with Interleaved 2of5 symbology selecting
one of the values listed below.
OBR_CODE_ENABLE
: Enable Interleaved 2of5 symbology.
OBR_CODE_DISABLE
: Disable Interleaved 2of5 symbology.
OBR_CODE_IGNORE
: Continue with current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of
Interleaved 2of5 symbology with its length less than the value set in this parameter will not
be decoded. The default is 4.
114
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of
Interleaved 2of5 symbology with its length longer than the value set in this parameter will
not be decoded. Each default of the respective models is as follows.
• DT-X11
92 digits
• IT-600
94 digits
• DT-X7
94 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
50 digits
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Value
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
115
4.67 OBRGetITFOption
This function retrieves the decode options for Interleaved 2of5 symbology.
Calling Sequences
[C++]
int OBRGetITFOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetITFOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetITFOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with ITF symbology. See
OBRSetITFOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See OBRSetITFOption
function for the values to retrieve.
116
pMaxLength
This parameter is for retrieving the maximum number of digits. See OBRSetITFOption
function for the values to retrieve.
pOutFormat
This parameter returns always NULL.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetITFOption function for the
values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetITFOption function for
the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
117
4.68 OBRSetCode93Option
This function sets up the decode options for Code93 symbology.
Calling Sequences
[C++]
int OBRSetCode93Option(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byCheckDigit
)
[Visual Basic]
Public Shared Function OBRSetCode93Option( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byCheckDigit As Byte _
) As Int32
[C#]
public static Int32 OBRSetCode93Option(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byCheckDigit
);
Parameters
byEnable
This parameter is for specifying scanning status with Code93 symbology selecting one of
the values listed below.
OBR_CODE_ENABLE
: Enable Code93 symbology.
OBR_CODE_DISABLE
: Disable Code93 symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of Code93
symbology with its length less than the value set in this parameter will not be decoded. The
default is 3.
118
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of Code93
symbology with its length longer than the value set in this parameter will not be decoded.
Each default of the respective models is as follows.
• DT-X11
77 digits
• IT-600
70 digits
• DT-X7
70 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
50 digits
byCheckDigit
This parameter is for specifying check digit selecting either of the values listed below.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
119
4.69 OBRGetCode93Option
This function retrieves the decode options for Code93 symbology.
Calling Sequences
[C++]
int OBRGetCode93Option(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetCode93Option( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetCode93Option(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with Code93 symbology. See
OBRSetCode93Option function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetCode93Option function for the values to retrieve.
120
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetCode93Option function for the values to retrieve.
pOutFormat
This parameter returns always NULL.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetCode93Option function for
the values to retrieve.
pCheckChar
This parameter returns always NULL.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
121
4.70 OBRSetCode128Option
This function sets up the decode options for Code128 symbology.
Calling Sequences
[C++]
int OBRSetCode128Option(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit
)
[Visual Basic]
Public Shared Function OBRSetCode128Option( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte _
) As Int32
[C#]
public static Int32 OBRSetCode128Option(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit
);
Parameters
byEnable
This parameter is for specifying scanning status with Code128 symbology selecting one of
the values listed below.
OBR_CODE_ENABLE
: Enable Code128 symbology.
OBR_CODE_DISABLE
: Disable Code128 symbology.
OBR_CODE_IGNORE
: Continue the current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of Code128
symbology with its length less than the value set in this parameter will not be decoded. The
default is 2.
122
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of Code128
symbology with its length longer than the value set in this parameter will not be decoded.
Each default of the respective models is as follows.
• DT-X11 and IT-600
98 digits
• DT-X7
98 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
50 digits
byOutFormat
This parameter is for specifying output format selecting one of the values listed below.
OBR_128AON
: Output EAN-128 after ASCII conversion
OBR_128AOFF
: Output EAN-128 without ASCII conversion. See note 1.
OBR_128EAN
: Output EAN-128 only.
OBR_128AIM
: Output EAN-128 only with ID code.
OBR_128FNC
: Convert EAN-128 only from Fnc to GS and then output.
Besides the output formats above, the following values can be selected in the OR
calculation for the output format.
OBR_128AIML
: Output EAN-128 with ID code attached.
OBR_128FNCL
: Convert EAN-128 from Fnc to GS and then output.
OBR_128CAOF
: Output Code128 without ASCII conversion. See note 1.
OBR_128EAOF
: Output EAN-128 without ASCII conversion. See note 1.
IT-600 with either its OS Ver. 5044 and Service Pack 1.02, or its OS Ver. 5069, or a later
version being preinstalled can support the following output formats.
OBR_128FNC2
: Output Code128 or EAN-128 with FNC2 combined. See notes 2 and 5.
OBR_128FNC4
: Output Code128 or EAN-128 with expanded FNC4 and ASCII conversion.
byCheckDigit
This is for specifying check digit selecting either of the values listed below. See note 3.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: With check digit calculation
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
123
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
Code128 and EAN-128 symbologies without ASCII conversion are output. If one of the
values with "Without ASCII conversion" is specified in byOutputFormat parameter,
Specify always set as with ASCII conversion.
2. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
"Output Code128 or EAN-128 with FNC2 combined" is disabled in byOutFormat
parameter. It is always set enabled.
3. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)". Specify always "OBR_CHKDON
(With check digit calculation)" in byCheckDigit parameter.
4. The maximum number of digits for both CodeA and CodeB symbologies are 64 and 98
respectively for CodeC symbology.
5. EAN128 changes its symbology name to GS1-128.
6. Code128 should be set as with check digit. If you set this setting without check digit by
special reason, please check scanning operation carefully because there is possibility to
mis-reading by printed quality or some condition.
124
4.71 OBRGetCode128Option
This function retrieves the decode options for Code128 symbology.
Calling Sequences
[C++]
int OBRGetCode128Option(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetCode128Option( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetCode128Option(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with Code128 symbology. See
OBRSetCode128Option function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetCode128Option function for the values to retrieve.
125
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetCode128Option function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetCode128Option function
for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetCode128Option function
for the values to retrieve.
pCheckChar
This parameter returns always NULL.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
126
4.72 OBRSetMSIOption
This function sets up the decode options for MSI symbology.
Calling Sequences
[C++]
int OBRSetMSIOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetMSIOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetMSIOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with MSI symbology selecting one of the
values listed below.
OBR_CODE_ENABLE
: Enable MSI symbology.
OBR_CODE_DISABLE
: Disable MSI symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of MSI
symbology with its length less than the value set in this parameter will not be decoded. The
default is 1.
127
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of MSI
symbology with its length longer than the value set in this parameter will not be decoded.
Each default of the respective models is as follows.
• DT-X11
67 digits
• IT-600
57 digits
• DT-X7
57 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
50 digits
byCheckDigit
This parameter is for specifying check digit selecting one of the values listed below. See
note.
OBR_CHKDOFF
: Without check digit calculation
OBR_CHKDON
: Check digit 1 digit mod10
OBR_CDMSEV
: Check digit 2 digits 1st: mod11 2nd: mod10
OBR_CDMSTN
: Check digit 2 digits 1st: mod10 2nd: mod10
byCheckChar
This parameter is for specifying check character selecting either of the values listed below.
OBR_CHKKOFF
: Without check character output
OBR_CHKKON
: With check character output
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
"OBR_CHKDOFF" and "OBR_CDMSEV" values are set in byCheckDigit parameter. If
one of the values is set wrongly, other settings become invalid and an error is returned.
128
4.73 OBRGetMSIOption
This function retrieves the decode options for MSI symbology.
Calling Sequences
[C++]
int OBRGetMSIOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetMSIOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetMSIOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with MSI symbology. See
OBRSetMSIOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See OBRSetMSIOption
function for the values to retrieve.
129
pMaxLength
This parameter is for retrieving the maximum number of digits. See OBRSetMSIOption
function for the values to retrieve.
pOutFormat
This parameter returns always NULL.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetMSIOption function for the
values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetMSIOption function for
the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
130
4.74 OBRSetIATAOption
This function sets up the decode options for IATA symbology.
Calling Sequences
[C++]
int OBRSetIATAOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byCheckDigit
)
[Visual Basic]
Public Shared Function OBRSetIATAOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byCheckDigit As Byte _
) As Int32
[C#]
public static Int32 OBRSetIATAOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byCheckDigit
);
Parameters
byEnable
This parameter is for specifying scanning status with IATA symbology selecting one of the
values below. See note 1.
OBR_CODE_ENABLE
: Enable IATA symbology.
OBR_CODE_DISABLE
: Disable IATA symbology.
OBR_CODE_IGNORE
: Continue with current settings.
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of IATA
symbology with its length less than the value set in this parameter will not be decoded. The
default is 4.
131
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of IATA
symbology with its length longer than the value set in this parameter will not be decoded.
Each default of the respective models is as follows.
• DT-X11
44 digits
• IT-600
65 digits
• DT-X7
65 digits
• IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E
50 digits
• DT-X30, IT-800, IT-300, and DT-X8
65 digits
byCheckDigit
This parameter is for specifying check digit selecting one of the values listed below.
OBR_CHKDOFF : Without check digit calculation (no. of readable digits; 1 to 40)
OBR_CHKDON
: With check digit calculation excepting the last character (no. of readable digits; 2 to
40)
OBR_CDMSEV
: With check digit calculation for coupon number and numeric section (no. of
readable digits; 15 to 17)
OBR_CDMSTN
: With check digit calculation for numeric section (no. of readable digits; 15 to 17)
OBR_CHKDON4 : With check digit calculation using mod10.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
settings for reading both Industrial 2of5 and IATA symbologies are set enabled
concurrently. If the settings are tried, nothing will be set and an error is returned.
2. If "OBR_CDMSEV" or "OBR_CDMSTN" is set in byCheckDigit parameter for reading
IATA symbology, the maximum number of digits is 17.
132
4.75 OBRGetIATAOption
This function retrieves the decode options for IATA symbology.
Calling Sequences
[C++]
int OBRGetIATAOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetIATAOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetIATAOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with IATA symbology. See
OBRSetIATAOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See OBRSetIATAOption
function for the values to retrieve.
133
pMaxLength
This parameter is for retrieving the maximum number of digits. See OBRSetIATAOption
function for the values to retrieve.
pOutFormat
This parameter returns always NULL.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetIATAOption function for the
values to retrieve.
pCheckChar
This parameter returns always NULL.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
134
4.76 OBRSetRSS14Option
This function sets up the decode options for RSS-14 symbology.
Calling Sequences
[C++]
int OBRSetRSS14Option(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetRSS14Option( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetRSS14Option(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with RSS-14 symbology selecting one of
the values listed below. See note 1.
OBR_CODE_ENABLE
: Enable RSS-14 symbology.
OBR_CODE_DISABLE
: Disable RSS-14 symbology.
OBR_CODE_IGNORE
: Continue with current settings.
135
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed to 14 digits and
cannot be changed. Always specify 14.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 14 digits and
cannot be changed. Always specify 14.
byOutFormat
This parameter is for specify output format selecting either of the values listed below.
OBR_RS14NORM
: Output RSS-14 symbology in standard format.
OBR_RS14AIOF
: Output RSS-14 symbology without application identifier and "01" at
the forefront.
byCheckDigit
This parameter is for specifying check digit. Since the check digit with RSS-14 symbology
is kept enabled at all times, always specify OBR_CHKDON in this parameter.
byCheckChar
This parameter is for specifying check character output. Since the check character output
with RSS-14 symbology is kept enabled at all times, always specify OBR_CHKKON in
this parameter.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
setting for reading RSS-14 symbology only is individually set enabled. If it is set enabled,
setting for reading RSS-14 Stacked symbology is also set enabled automatically.
2. RSS-14 symbology changes its symbology name to "GS1 DataBar Omnidirectional".
136
4.77 OBRGetRSS14Option
This function retrieves the decode options for RSS-14 symbology.
Calling Sequences
[C++]
int OBRGetRSS14Option(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetRSS14Option( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetRSS14Option(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with RSS-14 symbology. See
OBRSetRSS14Option function for the values to retrieve.
137
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetRSS14Option function for the values to retrieve.
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetRSS14Option function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetRSS14Option function
for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetRSS14Option function for
the values to retrieve.
pCheckChar
This parameter is for retrieving the check character output. See OBRSetRSS14Option
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
RSS-14 symbology changes its name to "GS1 DataBar Omnidirectional".
138
4.78 OBRSetRSSLimitedOption
This function sets up the decode options for RSS Limited symbology.
Calling Sequences
[C++]
int OBRSetRSSLimitedOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetRSSLimitedOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetRSSLimitedOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with RSS Limited symbology selecting one
of the values listed below.
OBR_CODE_ENABLE
: Enable RSS Limited symbology.
OBR_CODE_DISABLE
: Disable RSS Limited symbology.
OBR_CODE_IGNORE
: Continue with the current settings.
139
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed to 14 digits and
cannot be changed. Always specify 14.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 14 digits and
cannot be changed. Always specify NULL.
byOutFormat
This parameter is for specify output format selecting either of the values listed below.
OBR_RSLMNORM
: Output RSS Limited symbology in standard format.
OBR_RSLMAIOF
: Output RSS Limited symbology without application identifier and "01" at
the forefront.
byCheckDigit
This parameter is for specifying check digit. Since the check digit calculation with RSS
Limited symbology is kept enabled at all times, always specify OBR_CHKDON.
byCheckChar
This parameter is for specifying check character. Since the check character output with RSS
Limited symbology is kept enabled at all times, always specify OBR_CHKKON.
Return Value
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
RSS Limited symbology changes its symbology name to "GS1 DataBar Limited".
140
4.79 OBRGetRSSLimitedOption
This function retrieves the decode options for RSS Limited symbology.
Calling Sequences
[C++]
int OBRGetRSSLimitedOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetRSSLimitedOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetRSSLimitedOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with RSS Limited symbology. See
OBRSetRSSLimitedOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetRSSLimitedOption function for the values to retrieve.
141
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetRSSLimitedOption function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetRSSLimitedOption
function for the values to retrieve.
pCheckDigit
This parameter is for capturing the check digit. See OBRSetRSSLimitedOption
function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetRSSLimitedOption
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
RSS Limited symbology changes its symbology name to "GS1 DataBar Limited".
142
4.80 OBRSetRSSExpandedOption
This function sets up the decode options for RSS Expanded symbology.
Calling Sequences
[C++]
int OBRSetRSSExpandedOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetRSSExpandedOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetRSSExpandedOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with RSS Expanded symbology selecting
one of the values listed below. See note 1.
OBR_CODE_ENABLE
: Enable RSS Expanded symbology.
OBR_CODE_DISABLE
: Disable RSS Expanded symbology.
OBR_CODE_IGNORE
: Continue with current settings.
143
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of RSS
Expanded symbology with its length less than the value set in this parameter will not be
decoded. The default is 1.
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of RSS
Expanded symbology with its length greater than the value set in this parameter will not be
decoded. The default is 74.
byOutFormat
This parameter is for specifying output format. Since no output format setting with RSS
Expanded symbology is required, always specify "NULL".
byCheckDigit
This parameter is for specifying check digit. Since the check digit calculation with RSS
Expanded symbology is kept enabled at all times, always specify OBR_CHKDON.
byCheckChar
This parameter is for specifying check character. Since the check character output with RSS
Expanded symbology is kept enabled at all times, always specify OBR_CHKKON.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Notes:
1. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
setting for reading RSS Expanded symbology only is individually set enabled. If it is set
enabled, setting for reading RSS Expanded Stacked symbology is also set enabled
automatically.
2. RSS Expanded symbology changes its symbology name to "GS1 DataBar Expanded".
144
4.81 OBRGetRSSExpandedOption
This function retrieves the decode options for RSS Expanded symbology.
Calling Sequences
[C++]
int OBRGetRSSExpandedOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetRSSExpandedOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetRSSExpandedOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with RSS Expanded symbology. See
OBRSetRSSExpandedOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetRSSExpandedOption function for the values to retrieve.
145
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetRSSExpandedOption function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetRSSExpandedOption
function for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetRSSExpandedOption
function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See OBRSetRSSExpandedOption
function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
RSS Expanded symbology changes its symbology name to "GS1 DataBar Expanded".
146
4.82 OBRSetRSS14StackedOption
This function sets up the decode options for RSS-14 Stacked symbology.
In the Device Emulator, the function returns always FUNCTION_UNSUPORT.
Calling Sequences
[C++]
int OBRSetRSS14StackedOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetRSS14StackedOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetRSS14StackedOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with RSS-14 Stacked symbology selecting
one of the values listed below. See note 1.
OBR_CODE_ENABLE
: Enable RSS-14 Stacked symbology.
OBR_CODE_DISABLE
: Disable RSS-14 Stacked symbology.
OBR_CODE_IGNORE
: Continue with current settings.
147
byMinLength
This parameter is for specifying the minimum number of digits. It is fixed to 14 digits and
cannot be changed. Always specify 14.
byMaxLength
This parameter is for specifying the maximum number of digits. It is fixed to 14 digits and
cannot be changed. Always specify 14.
byOutFormat
This parameter is for specify output format selecting either of the values listed below.
OBR_RS14NORM
: Output RSS14 Stacked symbology in standard format.
OBR_RS14AIOF
: Output RSS14 Stacked symbology without application identifier and "01"
at the forefront.
byCheckDigit
This parameter is for specifying check digit. Since the check digit with RSS-14 Stacked
symbology is kept enabled at all times, always specify OBR_CHKDON in this parameter.
byCheckChar
This parameter is for specifying check character output. Since the check character output
with RSS-14 Stacked symbology is kept enabled at all times, always specify
OBR_CHKKON in this parameter.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error
: Unsupported error
Notes:
1.
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
setting for reading RSS-14 Stacked symbology only is individually set enabled. If it is set
enabled, setting for reading RSS-14 symbology is also set enabled automatically.
2.
RSS-14 Stacked symbology changes its symbology name to "GS1 DataBar Stacked".
148
4.83 OBRGetRSS14StackedOption
This function retrieves the decode options for RSS-14 Stacked symbology.
In the Device Emulator, the function returns always FUNCTION_UNSUPPORT.
Calling Sequences
[C++]
int OBRGetRSS14StackedOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetRSS14StackedOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetRSS14StackedOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving scanning status with RSS-14 Stacked symbology. See
OBRSetRSS14StackedOption function for the values to retrieve.
149
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetRSS14StackedOption function for the values to retrieve.
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetRSS14StackedOption function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See OBRSetRSS14StackedOption
function for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See OBRSetRSS14StackedOption
function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character output. See
OBRSetRSS14StackedOption function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error
: Unsupported error
Note:
RSS-14 Stacked symbology changes its symbology name to "GS1 DataBar Stacked".
150
4.84 OBRSetRSSExpandedStackedOption
This function sets up the decode options for RSS Expanded Stacked symbology.
In the Device Emulator, the function returns always FUNCTION_UNSUPPORT.
Calling Sequences
[C++]
int OBRSetRSSExpandedStackedOption(
BYTE byEnable,
BYTE byMinLength,
BYTE byMaxLength,
BYTE byOutFormat,
BYTE byCheckDigit,
BYTE byCheckChar
)
[Visual Basic]
Public Shared Function OBRSetRSSExpandedStackedOption( _
ByVal byEnable As Byte, _
ByVal byMinLength As Byte, _
ByVal byMaxLength As Byte, _
ByVal byOutFormat As Byte, _
ByVal byCheckDigit As Byte, _
ByVal byCheckChar As Byte _
) As Int32
[C#]
public static Int32 OBRSetRSSExpandedStackedOption(
Byte byEnable,
Byte byMinLength,
Byte byMaxLength,
Byte byOutFormat,
Byte byCheckDigit,
Byte byCheckChar
);
Parameters
byEnable
This parameter is for specifying scanning status with RSS Expanded Stacked symbology
selecting one of the values listed below. See note 1.
OBR_CODE_ENABLE
: Enable RSS Expanded Stacked symbology.
OBR_CODE_DISABLE
: Disable RSS Expanded Stacked symbology.
OBR_CODE_IGNORE
: Continue with current settings.
151
byMinLength
This parameter is for specifying the minimum number of digits. Any bar code of RSS
Expanded Stacked symbology with its length less than the value set in this parameter will
not be decoded. The default is 1.
byMaxLength
This parameter is for specifying the maximum number of digits. Any bar code of RSS
Expanded Stacked symbology with its length greater than the value set in this parameter
will not be decoded. The default is 74.
byOutFormat
This parameter is for specifying output format. Since no output format setting with RSS
Expanded Stacked symbology is required, always specify "NULL".
byCheckDigit
This parameter is for specifying check digit. Since the check digit calculation with RSS
Expanded Stacked symbology is kept enabled at all times, always specify OBR_CHKDON.
byCheckChar
This parameter is for specifying check character. Since the check character output with RSS
Expanded Stacked symbology is kept enabled at all times, always specify OBR_CHKKON.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error
: Unsupported error
Notes:
1.
IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support that
setting for reading RSS Expanded Stacked symbology only is individually set enabled. If
it is set enabled, setting for reading RSS Expanded symbology is also set enabled
automatically.
2.
RSS Expanded Stacked symbology changes its symbology name to "GS1 DataBar
Expanded Stacked".
152
4.85 OBRGetRSSExpandedStackedOption
This function retrieves the decode options for RSS Expanded Stacked symbology.
In the Device Emulator, the function returns always FUNCTION_UNSUPPORT.
Calling Sequences
[C++]
int OBRGetRSSExpandedStackedOption(
BOOL *pEnable,
BYTE *pMinLength,
BYTE *pMaxLength,
BYTE *pOutFormat,
BYTE *pCheckDigit,
BYTE *pCheckChar
)
[Visual Basic]
Public Shared Function OBRGetRSSExpandedStackedOption( _
ByRef pEnable As Boolean, _
ByRef pMinLength As Byte, _
ByRef pMaxLength As Byte, _
ByRef pOutFormat As Byte, _
ByRef pCheckDigit As Byte, _
ByRef pCheckChar As Byte _
) As Int32
[C#]
public
ref
ref
ref
ref
ref
ref
);
static Int32 OBRGetRSSExpandedStackedOption(
Boolean pEnable,
Byte pMinLength,
Byte pMaxLength,
Byte pOutFormat,
Byte pCheckDigit,
Byte pCheckChar
Parameters
pEnable
This parameter is for retrieving the scanning status with RSS Expanded Stacked symbology.
See OBRSetRSSExpandedStackedOption function for the values to retrieve.
pMinLength
This parameter is for retrieving the minimum number of digits. See
OBRSetRSSExpandedStackedOption function for the values to retrieve.
153
pMaxLength
This parameter is for retrieving the maximum number of digits. See
OBRSetRSSExpandedStackedOption function for the values to retrieve.
pOutFormat
This parameter is for retrieving the output format. See
OBRSetRSSExpandedStackedOption function for the values to retrieve.
pCheckDigit
This parameter is for retrieving the check digit. See
OBRSetRSSExpandedStackedOption function for the values to retrieve.
pCheckChar
This parameter is for retrieving the check character. See
OBRSetRSSExpandedStackedOption function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error
: Unsupported error
Note:
RSS Expanded Stacked symbology changes its name to "GS1 DataBar Expanded Stacked".
154
4.86 OBRSaveConfigFile
This function saves all the settings for the laser scanner driver in the configuration file.
In the Device Emulator, the function saves all the settings for the laser scanner driver in
\FlashDisk\System Settings\OBRDRV.ini.
Calling Sequences
[C++]
int OBRSaveConfigFile( )
[Visual Basic]
Public Shared Function OBRSaveConfigFile() As Int32
[C#]
public static Int32 OBRSaveConfigFile()
Parameter
None
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
The name of configuration file is "OBRDRV.ini", and the file is saved at the respective paths
below.
• For DT-X30
\Documents and Settings\System Settings\OBRDRV.ini
See "Configuration File Format" for the configuration file.
155
4.87 OBRLoadConfigFile
This function changes all the default settings in the configuration file and then loads them to the
laser scanner driver. The default settings can be changed with OBRLoadConfigFile function.
However, to reflect the new settings in the file to the scanner driver, be sure to call
OBRSetDefaultSymbology function after OBRLoadConfigFile function has been called.
Calling Sequences
[C++]
int OBRLoadConfigFile( )
[Visual Basic]
Public Shared Function OBRLoadConfigFile() As Int32
[C#]
public static Int32 OBRLoadConfigFile()
Parameter
None
Return Values
OBR_OK
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Scanner driver error
: Unsupported error
Note:
See "Configuration File Format" for the configuration file.
156
4.88 OBRSetFilter
This function sets up the noise filter mode.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetFilter function.
Calling Sequences
[C++]
int OBRSetFilter(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetFilter( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetFilter(
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying noise filter mode selecting one of the values listed below.
OBR_NOFILTER
: Disable noise filter.
OBR_SOFTFILTER
: Enable software filter.
OBR_HARDFILTER
: Enable hardware filter.
OBR_SOFTHARDFILTER
: Enable software and hardware filters.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
157
4.89 OBRGetFilter
This function retrieves the noise filter mode.
Calling Sequences
[C++]
int OBRGetFilter(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetFilter( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetFilter(
ref Int32 pMode
);
Parameters
pMode
This parameter is for retrieving the noise filter mode. See OBRSetFilter function for the
values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
OBR_PRM
OBR_PON
OBR_NOT_DEVICE_DECODE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error
: Argument data error
: Open already
: Decode (the decoder section) failed to reside. In the Device Emulator,
this value is not returned.
: Unsupported error
158
4.90 OBRSetFilterOnTimer
This function sets up a time span between when decoding bar code data starts and until when the
noise filter begins to activate.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetFilterOnTimer function.
Calling Sequences
[C++]
int OBRSetFilterOnTimer(
int nTime
)
[Visual Basic]
Public Shared Function OBRSetFilterOnTimer( _
ByVal nTime As Int32 _
) As Int32
[C#]
public static Int32 OBRSetFilterOnTimer(
Int32 nTime
);
Parameters
nTime
This parameter is for specifying a time span in the range of 1 to 8 seconds.
Return Values
OBR_OK
OBR_PON
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
159
4.91 OBRGetFilterOnTimer
This function retrieves the time span between when decoding bar code data starts and until when the
noise filter begins to activate.
Calling Sequences
[C++]
int OBRGetFilterOnTimer(
int *pTime
)
[Visual Basic]
Public Shared Function OBRGetFilterOnTimer( _
ByRef pTime As Int32 _
) As Int32
[C#]
public static Int32 OBRGetFilterOnTimer(
ref Int32 pTime
);
Parameters
pTime
This parameter is for retrieving the time span set for the noise filter. See
OBRSetFilterOnTimer function for the values to retrieve.
Return Values
OBR_OK
OBR_PON
OBR_PRM
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Open already
: Parameter error
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
160
4.92 OBRSetGainControl
This function sets up gain control.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetGainControl function.
Calling Sequences
[C++]
int OBRSetGainControl(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetGainControl ( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetGainControl (
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying gain control selecting one of the values listed below.
OBR_GAIN_MODE0
: Gain mode 0
OBR_GAIN_MODE1
: Gain mode 1
OBR_GAIN_MODE2
: Gain mode 2
OBR_GAIN_MODE3
: Gain mode 3
OBR_GAIN_AUTO
: Gain auto (For DT-X7, IT-800, IT-300, and DT-X8)
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
Note:
Setting up the scan width control function (OBRSetSwingAngle function) in one of four
modes while the setting gain (OBRSetGainControl function) is set up in Auto mode may
cause a deterioration of scanning bar codes that are printed in a poor quality. If you need to
set up the scan width control function, select the setting gain in Mode 0 to Mode 3. Or, if
you select the setting gain in Auto mode, select the scan width control function in "No
control on laser beam emission width" mode only.
161
4.93 OBRGetGainControl
This function retrieves gain control.
Calling Sequences
[C++]
int OBRGetGainControl(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetGainControl ( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetGainControl (
ref Int32 pMode
);
Parameters
pMode
This parameter is for retrieving the gain control. See OBRSetGainControl function for
the values to retrieve.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
162
4.94 OBRSetBarWidthAdjustment
This function sets up correction value for adjusting the width of bars of scanned bar code.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetBarWidthAdjustment function.
Calling Sequences
[C++]
int OBRSetBarWidthAdjustment (
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetBarWidthAdjustment ( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetBarWidthAdjustment (
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying correction value selecting one of the values listed below for
adjusting the width of bars of scanned bar code. The default is "OBR_BAR_NORMAL".
OBR_BAR_NORMAL
: No correction.
OBR_BAR_BLACK0
: Thin black bars.
OBR_BAR_BLACK1
: Significantly thin black bars.
OBR_BAR_WHITE0
: Thin white bars.
OBR_BAR_WHITE1
: Significantly thin white bars.
OBR_BAR_BLACK2
: Thicken black bars.
OBR_BAR_BLACK3
: Significantly thicken black bars.
OBR_BAR_WHITE2
: Thicken white bars.
OBR_BAR_WHITE3
: Significantly thicken white bars.
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
163
4.95 OBRGetBarWidthAdjustment
This function retrieves the correction value for adjusting the width of bars of scanned bar code.
Calling Sequences
[C++]
int OBRGetBarWidthAdjustment (
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetBarWidthAdjustment ( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetBarWidthAdjustment (
ref Int32 pMode
);
Parameters
pMode
This parameter is pointer to DWORD-type variable that stores the setting of correction
value for adjusting the width of bars of scanned bar code. See
OBRSetBarWidthAdjustment function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
164
4.96 OBRSetMarginCheckRatio
This function sets up threshold values for right and left side space margins for bar code symbol
printed inside quadrangle.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetMarginCheckRatio function.
Calling Sequences
[C++]
int OBRSetMarginCheckRatio(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetMarginCheckRatio ( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetMarginCheckRatio (
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying a threshold value for right and left side space margin
selecting one of the values listed below.
OBR_MARGIN_WIDE
: Maximum (Default)
OBR_MARGIN_MIDDLE
: Middle
OBR_MARGIN_NARROW
: Narrow
OBR_MARGIN_MINIMUM
: Minimum
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
165
Note:
When a bar code is printed inside of quadrangle, scanning may not be possible because
there is not enough left and/or right marginal space. By making change on the right and left
marginal threshold values, scanning a bar code becomes possible. See the table below.
Table 4.7
When the left marginal space is narrow.
When the right marginal space is narrow.
When both right and left marginal spaces are
narrow.
166
4.97 OBRGetMarginCheckRatio
This function retrieves the threshold value of the right and left side space margin for a bar code
symbol printed inside quadrangle.
Calling Sequences
[C++]
int OBRGetMarginCheckRatio(
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetMarginCheckRatio ( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetMarginCheckRatio (
ref Int32 pMode
);
Parameters
pMode
This parameter is pointer to DWORD-type variable that stores the setting for the threshold
value. See OBRSetMarginCheckRatio function for the values to retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
167
4.98 OBRSetDecodeLearningMode
This function sets up the scanner learning function.
In the Device Emulator, the function does not perform, but stores the preset value as internal
variable. The value stored can be checked with OBRGetDecodeLearningMode function.
Calling Sequences
[C++]
int OBRSetDecodeLearningMode(
DWORD dwMode
)
[Visual Basic]
Public Shared Function OBRSetDecodeLearningMode ( _
ByVal dwMode As Int32 _
) As Int32
[C#]
public static Int32 OBRSetDecodeLearningMode (
Int32 dwMode
);
Parameters
dwMode
This parameter is for specifying the scanner learning function selecting either of the values
listed below. The default is "OBR_LEARNING_OFF".
OBR_LEARNING_OFF
: Scanner learning function to be set disabled
OBR_LEARNING_ON
: Scanner learning function to be set enabled
Return Values
OBR_OK
OBR_PRM
OBR_PON
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Parameter error
: Open already
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
168
4.99 OBRGetDecodeLearningMode
This function retrieves the setting for the Decoder Learning function.
Calling Sequences
[C++]
int OBRGetDecodeLearningMode (
DWORD *pMode
)
[Visual Basic]
Public Shared Function OBRGetDecodeLearningMode ( _
ByRef pMode As Int32 _
) As Int32
[C#]
public static Int32 OBRGetDecodeLearningMode (
ref Int32 pMode
);
Parameters
pMode
This parameter is pointer to DWORD-type variable that stores the setting for the Decoder
Learning function. See OBRSetDecodeLearningMode function for the values to
retrieve.
Return Values
OBR_OK
OBR_NOT_DEVICE
FUNCTION_UNSUPPORT
: Normal end
: Scanner driver error. In the Device Emulator, this value is not returned.
: Unsupported error
169
5. Notes to Programming
5.1 Scanning Completion Notification
A message or an event will be issued by the scanner driver integrated in the terminal when it has
retrieved data (notification only by message has been set as default).
Message issued for the message notification uses WM_OBR_SCANNING(WM_USER +0x530),
and one of the following values indicating a condition of scanning end will be saved in the wParam
parameter of the message.
OBR_SUCCESS
: Normal end
OBR_TIMEOUT
: Timeout occurred
OBR_BUFFOVER
: OBR buffer output error
If event notification mode is set enabled with OBRSetScanningNotification function,
notification will be made with a named event. The named event is called "OBRScanningEvent".
Also, by calling OBRGetLastEventStatus function after the event is issued, a factor that made
the event to be issued can be retrieved. Factors of scanning end that are retrieved with
OBRGetLastEventStatus function are those saved in the wParam parameter for the message
notification.
170
Setting message notification
WndProc()
WM_CREATE
No
Yes
OBRSetScanningNotification
( OBR_MESSAGE, hWnd );
WM_CLOSE
No
Yes
WM_OBR_SCANNING
No
Yes
OBROpen( NULL, 0 );
OBRClose();
WM_CLOSE
Value other than
OBR_SUCCESS
OBR_SUCCESS
Data captured by OBRGets
End
Figure 5.1
Process of other message
Flowchart
1. Notification mode for scanning completion is set to the message output with
OBRSetScanningNotification function. At the same time, window handle of the destination
which the message is sent to is specified.
2. After opening the scanner with OBROpen function, the flow waits until a scanning completion
notification message is issued.
3. After receiving the message, the wParam parameter of the message is checked for its value. If
scanning is succeeded, data output to each output destination will be processed.
4. Carry out OBRClose function to close the scanner.
171
Setting event notification
hEvent = CreateEvent( NULL, FALSE, FALSE, TEXT( “OBRScanningEvent” ) );
OBRSetScanningNotification( OBR_EVENT, NULL );
OBROpen( NULL, 0 );
WaitForSingleObject( hEvent, INFINITE );
Use OBRGetLastEventStatus to confirm parameter (scan success / failure)
Scan success ?
No
Yes
Data capture using OBRGets
No
Scan end ?
Yes
OBRClose();
CloseHandle( hEvent );
Figure 5.2
Flowchart
1. Named event is initialized.
2. Notification for scanning completion is set to event output with
OBRSetScanningNotification function.
3. After opening the scanner with OBROpen function, the flow waits until named event is issued
with WaitForSingleObject, etc.
4. After receiving the named event, conditions why the event is issued are checked with
OBRGetLastEventStatus function.
5. If scanning is succeeded, data output to each output destination will be processed.
6. Carry out OBRClose function to close the scanner.
172
5.2 Configuration File Format
The setting parameters are saved in text format to the configuration file. The parameters saved are
described in the table below. If any of the content in the file is changed using editor, it can be
reflected to the scanner driver by calling OBRLoadConfigFile function and then
OBRSetDefaultSymbology function. For the precedence between parameter for symbology in
the configuration file and parameter for the same symbology set up with the relevant library function,
either one of the parameters that has been set right before running the parameter will have the
precedence over the other parameter.
Table 5.1 Setting readable symbology parameters
Parameter
Description
READCODE
"Enable" or "Disable" for
scanning with each symbology.
For enabling multiple
symbologies, specify a sum of the
values in logical OR for each
symbology.
(Note 1)
Table 5.2 Code39 option parameters
CODE39_MIN
Minimum no. of digits for
scanning.
CODE39_MAX
Maximum no. of digits.
CODE39_OUTFORM
AT
Specify output format.
CODE39_CHKD
Specify check digit calculation
173
1
2
4
8
16
32
64
128
256
512
1024
2048
4096
8192
16384
32768
65536
Value/Meaning
Enable Code39.
Enable NW-7.
Enable WPC Addon.
Enable WPC.
Enable UPC-E Addon.
Enable UPC-E.
Enable IDF.
Enable ITF.
Enable Code93.
Enable Code128.
Enable MSI.
Enable IATA.
Enable RSS-14
Enable RSS Limited
Enable RSS Expanded
Enable RSS-14 Stacked
Enable RSS Expanded Stacked
1 to 47 (DT-X11)
1 to 52 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
1 to 47 (DT-X11)
1 to 52 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
0 With start and stop codes
1 Without start and stop codes
2 With Full ASCII conversion and
start and stop codes
3 With Full ASCII conversion, but
without start and stop codes
0 Disable
1 Enable
CODE39_CHKCH
Specify check character output
Table 5.3 NW-7 option parameters
NW7_MIN
Specify minimum no. of digits.
NW7_MAX
Specify maximum no. of digits.
NW7_OUTFORMAT
Specify output format.
NW7_CHKD
Specify check digit calculation.
NW7_CHKCH
Specify check character output.
Table 5.4 WPC Addon option parameters
WPCADDON_MIN
Specify minimum no. of
digits.
WPCADDON_MAX
Specify maximum no. of
digits.
WPCADDON_OUTFORMA Specify output format.
T
0
1
1 to 62 (DT-X11)
1 to 63 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8) (Note 7)
1 to 62 (DT-X11)
1 to 63 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8) (Note 7)
0 With start and stop codes
1 Without start and stop codes
0 Disable
1 Enable(DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
0 Disable
1 Enable
10 (Fixed)
18 (Fixed)
0
1
WPCADDON_CHKD
(Note 5)
WPCADDON_CHKCH
Specify check digit
calculation.
Specify check character
output.
Table 5.5 WPC option parameters
WPC_MIN
Specify minimum no. of digits.
WPC_MAX
Specify maximum no. of digits.
WPC_OUTFORMAT
Specify output format.
WPC_CHKD
(Note 5)
WPC_CHKCH
Specify check digit calculation.
Specify check character output.
174
Disable
Enable
0
1
0
Output WPC Addon symbology
with "0" at the forefront.
Output WPC-Addon symbology
without "0" at the forefront.
Disable
Enable
Disable (Fixed)
8 (Fixed)
13 (Fixed)
0 Output WPC with "0" at the
forefront.
1 Output WPC without "0" at
the forefront.
14 Output WPC in GTIN
format.
0 Disable
1 Enable
0 Disable (Fixed)
Table 5.6 UPCE Addon option parameters
UPCEADDON_MIN
Specify minimum no. of digits.
UPCEADDON_MAX
Specify maximum no. of digits.
UPCEADDON_OUTFORM Specify output format.
AT
UPCEADDON_CHKD
(Note 5)
UPCEADDON_CHKCH
Specify check digit calculation.
Specify check character output.
Table 5.7 UPCE option parameters
UPCE_MIN
Specify minimum no. of digits.
UPCE_MAX
Specify maximum no. of
digits.
UPCE_OUTFORMAT
Specify output format.
9 (Fixed)
12 (Fixed)
0 "0" at the forefront is output.
1 "0" at the forefront is not
output.
0 Disable
1 Enable
0 Disable
1 Enable
7 (Fixed)
7 (Fixed)
0
1
2
UPCE_CHKD
(Note 5)
UPCE_CHKCH
Specify check digit
calculation.
Specify check character
output.
Table 5.8 IDF option parameters
IDF_MIN
Specify minimum no. of digits.
IDF_MAX
Specify maximum no. of
digits.
IDF_OUTFORMAT
IDF_CHKD
Specify output format.
Specify check digit
calculation.
Specify check character
output.
IDF_CHKCH
175
0
1
0
1
Output UPC-E with "0" at the
forefront.
Output UPC-E without "0" at
the forefront.
Output UPC-E in GTIN
format.
Disable
Enable
Disable
Enable
2 to 55 (DT-X11)
2 to 67 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
2 to 55 (DT-X11)
2 to 67 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8) (Note 7)
0 No output format (Fixed)
0 Disable
1 Enable
0 Disable
1 Enable
Table 5.9 ITF option parameters
ITF_MIN
Specify minimum no. of digits.
ITF_MAX
Specify maximum no. of
digits.
ITF_OUTFORMAT
ITF_CHKD
Specify output format.
Specify check digit
calculation.
Specify check character
output.
ITF_CHKCH
Table 5.10 CODE93 option parameters
CODE93_MIN
Specify minimum no. of digits.
CODE93_MAX
Specify maximum no. of
digits.
CODE93_OUTFORMAT
CODE93_CHKD
Specify output format.
Specify check digit
calculation.
Specify check character
output.
CODE93_CHKCH
176
2 to 94 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
2 to 92 (DT-X11)
2 to 94 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
2 to 92 (DT-X11)
0 No output format (Fixed)
0 Disable
1 Enable
0 Disable
1 Enable
1 to 77 (DT-X11)
1 to 70 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
1 to 77 (DT-X11)
1 to 70 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
0 No output format (Fixed)
0 Disable
1 Enable
0 Disable (Fixed)
Table 5.11 CODE128 option parameters
CODE128_MIN
Specify minimum
digits.
no.
CODE128_MAX
Specify maximum no. of
digits.
CODE128_OUTFORMAT
(Note 3)
Specify output format.
Specify output format.
(Note 6)
CODE128_CHKD
(Note 5)
CODE128_CHKCH
Specify check digit
calculation.
Specify check character
output.
177
of
1 to 98
(DT-X11, IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
1 to 98
(DT-X11, IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
0 With Full ASCII conversion
1 Without Full ASCII
conversion
2 EAN-128 only.
6 EAN-128 only with ID code.
10 Convert Fnc to GS and output
EAN-128 only.
2 EAN-128 only.
4 EAN-128 with ID code.
8 Convert Fnc to GS and output
EAN-128 only.
16 Code128 without Full ASCII
conversion.
32 EAN-128 without Full ASCII
conversion.
64 Code128 and EAN-128 FNC2
combined.
128 Code128 and EAN-128 FNC4
expansion ASCII conversion.
0 Disable
1 Enable
0 Disable (Fixed)
Table 5.12 MSI option parameters
MSI_MIN
Specify minimum no. of digits.
MSI_MAX
Specify maximum no. of
digits.
MSI_OUTFORMAT
MSI_CHKD
(Note 4)
Specify output format.
Specify check digit
calculation.
MSI_CHKCH
Specify check character
output.
Table 5.13 IATA option parameters
IATA_MIN
Specify minimum no. of digits.
IATA_MAX
Specify maximum no. of
digits.
IATA_OUTFORMAT
IATA_CHKD
Specify output format.
Specify check digit
calculation.
IATA_CHKCH
Specify check character
output.
178
1 to 67 (DT-X11)
1 to 57 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
1 to 67 (DT-X11)
1 to 57 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
0 Without output format
0 Without check digit
calculation
1 1 digit : mod 10
2 2 digits
1st: mod 11, 2nd: mod 10
3 2 digits
1st: mod 10, 2nd: mod 10
0 Disable
1 Enable
1 to 44 (DT-X11)
1 to 65 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
1 to 44 (DT-X11)
1 to 65 (IT-600, DT-X7, DT-X30,
IT-800, IT-300, DT-X8)
(Note 7)
0 Disable (Fixed)
0 Disable
1 Calculate all digits except the
last digit.
2 Calculate coupon no. and
data.
3 Calculate data section only.
4 Modulus10
0 Disable (Fixed)
Table 5.14 RSS-14 option parameters
RSS14_MIN
Specify minimum no. of digits.
RSS14_MAX
Specify maximum no. of
digits.
RSS14_OUTFORMAT
Specify output format.
14 (Fixed)
14 (Fixed)
0
1
Output RSS-14 symbology in
standard format.
Output RSS-14 symbology
without "01" at the forefront.
Enable (Fixed)
1
Enable (Fixed)
1
RSS14_CHKD
RSS14_CHKCH
Specify check digit
calculation.
Specify check character
output.
Table 5.15 RSS Limited option parameters
RSSLTD_MIN
Specify minimum no. of digits.
RSSLTD_MAX
Specify maximum no. of
digits.
RSSLTD_OUTFORMAT
Specify output format.
14 (Fixed)
14 (Fixed)
0
1
Output RSS Limited
symbology in standard
format.
Output RSS Limited
symbology without "01" at
the forefront.
Enable (Fixed)
1
Enable (Fixed)
1
RSSLTD_CHKD
RSSLTD_CHKCH
Specify check digit
calculation.
Specify check character
output.
Table 5.16 RSS Expanded option parameters
RSSEXP_MIN
Specify minimum no. of digits.
RSSEXP_MAX
Specify maximum no. of
digits.
RSSEXP_OUTFORMAT
Specify output format.
RSSEXP_CHKD
Specify check digit
calculation.
RSSEXP_CHKCH
Specify check character
output.
179
1 to 74
1 to 74
0
1
No output (Fixed)
Enable (Fixed)
1
Enable (Fixed)
Table 5.17 RSS-14 Stacked option parameters (IT-600, DT-X7, DT-X30, IT-800, IT-300, DT-X8)
RSS14S_MIN
Specify minimum no. of digits. 14 (Fixed)
RSS14S_MAX
Specify maximum no. of
14 (Fixed)
digits.
RSS14S_OUTFORMAT
Specify output format.
0 Output RSS-14 Stacked
symbology in standard format.
1 Output RSS-14 Stacked
symbology without "01" at the
forefront.
RSS14S_CHKD
Specify check digit
1 Enable (Fixed)
calculation.
RSS14S_CHKCH
Specify check character
1 Enable (Fixed)
output.
Table 5.18 RSS Expanded Stacked option parameters (IT-600, DT-X7, DT-X30, IT-800, IT-300,
DT-X8)
RSSEXPS_MIN
Specify minimum no. of digits. 1 to 74
RSSEXPS_MAX
Specify maximum no. of
1 to 74
digits.
RSSEXPS_OUTFORMAT
Specify output format.
0 No output (Fixed)
RSSEXPS_CHKD
Specify check digit
1 Enable (Fixed)
calculation.
RSSEXPS_CHKCH
Specify check character
1 Enable (Fixed)
output.
Table 5.19 Read mode option parameters
READMODE
Specify scanning mode.
0
1
Single scan
Continuous scan
Table 5.20 Gain option parameters (IT-600, DT-X7, DT-X30 IT-800, IT-300, DT-X8) (Note 7)
GAIN
Specify a gain mode.
0 Mode 0
1 Mode 1
2 Mode 2
3 Mode 3
Gain Auto (Note 8)
128 (DT-X7, IT-800, IT-300, and
DT-X8)
Table 5.21 Buzzer control option parameters
BUZZER
Set buzzer setting.
180
0
1
Disable
Enable
Table 5.22 LED control option parameters
LEDCTRL
Set LED setting.
Table 5.23 OutBuff control option parameters
OUTBUFF
Specify output mode.
Table 5.24 Suff Char option parameters
ENDCODE
Specify termination code.
Table 5.25 Multi-step read option parameters
MULTISTEP
Specify multi-step read mode.
Table 5.26 Comp Counter option parameters
CMPCNT
Specify no. of verifications.
Table 5.27 Read counter option parameters
READCNT
Specify no. of times to scan in
continuous read mode.
Table 5.28 Scan time option parameters
SCANTIME
Specify a time period (in
second) of timeout.
FILTERMODE
Specify noise filter mode.
FILTERCNT
Specify a time span between
when decoding starts and until
when noise filter begins to
activate.
181
0
1
2
Disable
Enable
Enable
Disable when scan fails
0
2
3
4
Output to OBR buffer.
Output to Key.
Output to Clipboard.
Output to Keyboard event.
0
1
2
3
4
CR
LF
CR+LF
TAB
No termination code
0
1
Normal read
Multi-step read
In the range of 1 to 9(Laser)
In the range of 0 to 9(Linear
Imager)
In the range of 1 to 9
In the range of 1 to 9
0
1
2
3
Disable noise filter.
Enable software filter.
Enable hardware filter
Enable software/hardware
filters.
In the range of 1 to 8
Table 5.29 Vibrator control option parameters (IT-600 and DT-X7)
VIBRATOR
Set vibration.
0 Disable
1 Enable
Table 5.30
KEY
Scanning key option parameters
Specify scanning trigger keys.
For specifying multiple keys,
specify a sum of the values in
logical OR for specified keys.
1
2
4
8
16
32
64
128
256
L Trigger key
R Trigger key
Multi key
L Cursor key
R Cursor key
Up Cursor key
Down Cursor key
Trigger Grip key (IT-600)
Center Trigger key
Table 5.31 Laser beam swing angle option parameters (IT-600, DT-X7, DT-X30, IT-800, IT-300,
DT-X8) (Note 7)
SWING
Specify laser beam swing angle.
0 No control
1 Wide
2 Medium
3 Narrow
(Note 8)
Table 5.32 Laser focus option parameters (IT-600, DT-X7, DT-X30, IT-800) (Note 7)
FOCUS
Set laser focus.
0 Disable
1 Enable
Table 5.33 Notification option parameters
NOTIFICATION
Specify notification mode for
scanning completion.
1
2
Window message notification
Event notification
Table 5.34 Decode level option parameters (DT-X11, IT-600, DT-X7, DT-X30, IT-800, IT-300,
DT-X8)
LEVEL
Set decode level.
0 Standard (normal)
1 High
182
Table 5.35 Decode Customize parameters (DT-X11, IT-600, DT-X7, DT-X30, IT-800, IT-300,
DT-X8) (Note 7)
BARWIDTH
Specify a correctness of bar’s
0 No correction.
thickness or thinness.
1 Correct black bar thin.
2 Correct black bar thin noticeably.
3 Correct white bar thin.
4 Correct white bar thin noticeably.
5 Correct black bar thick.
6 Correct black bar thick noticeably.
7 Correct white bar thick.
8 Correct white bar thick noticeably.
MARGINCHECK
Specify a threshold for right
0 Large
and left margins.
1 Medium
2 Small
3 Minimum
Table 5.36 Learning Decode option parameters (DT-X11, IT-600, DT-X7, DT-X30, IT-800,
IT-300, DT-X8) (Note 7)
LEARNING
Specify "Enable" or "Disable" for
0 Disable
the learning decode function.
1 Enable
Notes:
1. To set multiple symbologies effect for reading, specify a sum of the values in logical OR for each
symbology you wish to scan.
2. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support the following.
2-1. Reading UPC-B and UPC-B Addon symbologies.
2-2. Setting concurrently for reading both Industrial 2of5 and IATA symbologies. If it is done
mistakenly, setting for reading Industrial 2of5 becomes enabled, but, setting for the other
symbology becomes disabled.
2-3. Individual settings for reading RSS-14, RSS Expanded, RSS-14 Stacked, and RSS Expanded
Stacked symbologies. If the standard RSS symbology is set enabled, all the corresponded
Stacked symbologies are automatically set enabled.
3. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support the outputs of
Code128 and EAN-128 symbologies without ASCII conversion, and the FNC2 joint output to be
disabled.
4. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)" and "OBR_CDMSEV (With 2-digit check
digit calculation)" to be set in the respective parameters.
5. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support
"OBR_CHKDOFF (Without check digit calculation)" to be set in byCheckDigit parameter.
6. To concurrently specify multiple output conditions effect, specify a sum of the values for each
condition you wish to set effect. However, the concurrent setting of "EAN-128 without Full
ASCII conversion" with any one of "EAN-128 with ID code", "Convert Fnc to GS and output
EAN-128", "Code128 and EAN-128 FNC2 combined", or "Code128 and EAN-128 FNC4
expansion ASCII conversion" effect is not supported. If it is done wrongly, the setting on
"EAN-128 without Full ASCII conversion" is preferentially set enabled.
7. IT-600M30U, IT-600M30UC, DT-X7M10U, and IT-300E-35E do not support the parameter.
8. Setting up the scan width control function (OBRSetSwingAngle function) in one of four modes
while the setting gain (OBRSetGainControl function) is set up in Auto mode may cause a
183
deterioration of scanning bar codes that are printed in a poor quality. If you need to set up the
scan width control function, select the setting gain in Mode 0 to Mode 3. Or, if you select the
setting gain in Auto mode, select the scan width control function in "No control on laser beam
emission width" mode only.
