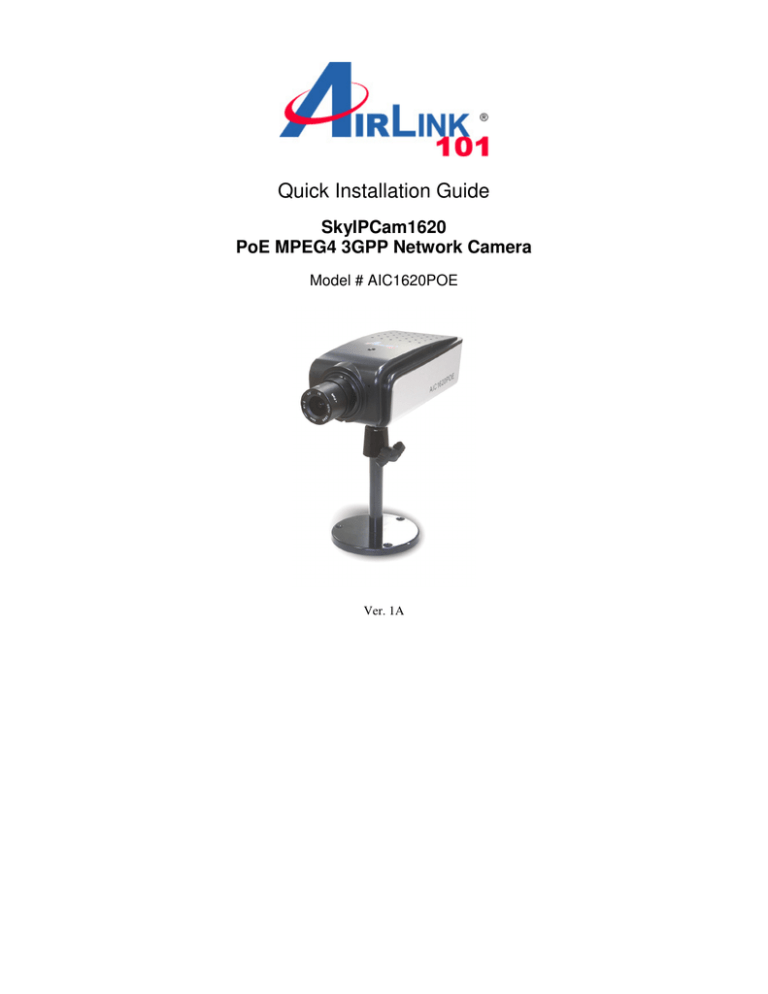

Quick Installation Guide
PoE MPEG4 3GPP Network Camera
Model # AIC1620POE
Ver. 1A
Package Contents
PoE MPEG4 3GPP Network Camera
AC Power Adapter
Wall Mount Kit
GPIO & RS485 Adapter
Ethernet Cable (RJ-45 type)
Setup CD
Quick Installation Guide
System Requirement
Accessing the Camera using Web Browser
- Supported Browsers: Microsoft® Internet Explorer 6.0 or above;
Apple Safari and Mozilla Firefox with JAVA plug-in
for MJPEG and QuickTime plug-in for MPEG4
­ CPU:
Intel Pentium III 800MHz or above
­ RAM:
­ Resolution:
800x600 or above
Accessing the Camera using Software SkyIPCam UltraView
­ Platform: Microsoft® Windows® XP, Vista, and Windows 7
­ Hard Disk:
80GB or above
­ Resolution:
1024x768 or above
­ Suggested Hardware Requirement
● 1~8 cameras connected: Intel Core 2 Duo; 2GB RAM
● 9~32 cameras connected: Intel Core 2 Quad; 4GB RAM
NOTE If you connect multiple cameras and monitor them simultaneously, it
is recommended that you use a computer with higher performance.
This Quick Installation Guide only provides basic instructions. For detailed
information, including the instructions of the complimentary software, please
refer to the User’s Manual on the supplied CD.
Section 1
Getting to Know Your Camera
Front and Top View
Screw Hole* is used to attach
the camera stand onto the
camera by screwing the screw
head of the camera stand into
the screw hole of the camera.
LED Indicators:
Power (left, steady amber light)
indicates the camera is powered
Link (right, flashing green light)
indicates the camera’s network
Removable Lens
Internal Microphone
allows the camera to
receive sound and voice.
* The camera provides two screw holes that are located on its top and bottom panels, so that
you can install the camera according to your application.
Rear View
Reset Button will restart the
camera when it is pressed quickly;
when it is pressed and held for five
seconds, the camera will restore
the factory default settings.
GPIO and RS485
is used to connect the
external devices.
Ethernet Cable Connector*
connects the network cable,
which supports the NWay
protocol so that the camera
can detect the network speed
DC Power Connector
connects the AC power
adapter, in order to supply
power to the camera.
Audio I/O Connectors:
Audio Out connects an
external active speaker.
Mic In connects an external
* The camera’s Ethernet port supports IEEE 802.3af Power-over-Ethernet (PoE) standard that
enables DC power to be supplied to the camera using wires in the connecting twisted-pair
cable. Any 802.3af compliant device attached to the port can directly supply power to the
camera over the twisted-pair cable without requiring its own separate power source. This
capability gives the network administrator centralized power control, which translates into
greater network availability.
Section 2
Hardware Installation
Step 2.1 Assemble and attach the provided wall mount kit to the camera.
Step 2.2 Connect one end of a network cable to the IP Camera and connect
the other end to one of the LAN ports on your router or switch.
Step 2.3 If your router or switch does not support Power over Ethernet
function, you will need to provide power to the camera by connecting the
supplied power adapter. If you are connecting the camera to a PoE
switch/router, you do NOT need to connect the power adapter.
Section 3
Installing SkyIPCam Utility
Step 3.1 Insert the provided CD into your computer’s CD ROM drive.
Step 3.2 Click on Install Utility and Software when the autorun menu pops
up on the screen.
Note: If you do not see the autorun menu pops up on the screen, please go
to your CD-ROM drive > UltraView folder > run “Setup.exe”.
Step 3.3 Click Install to install the utility.
Step 3.4 Click Finish when installation finishes.
Section 4
Configuring the Camera
Step 4.1 Open SkyIPCam Utility by double clicking on its icon on your
Step 4.2 Click on Search to find the camera on your network. Select the
Camera you wish to configure and click on Change IP.
Note If the Camera you wish to configure does not show up in the utility,
make sure the camera is properly connected to the same local network as
your computer is, and the Green LED should be on. Click on Search to try
Step 4.3 Please configure a unique static IP address for your camera; if you
are not sure how to do it, you can select DHCP to let your router
dynamically assign an IP to your camera.
Enter “admin” for both ID and password, and click Change.
Step 4.4 Select the Camera you wish to configure and click on Link. You
can click on Search button if the camera does not show up in the list.
Step 4.5 When you are prompted for the username and password, enter
“admin” for both User name and Password, and click OK.
Step 4.6 The camera viewing window will appear. Click on Setup, then
click on Smart Wizard.
Step 4.7 Enter a name for your camera and a location (i.e. RoomA01).
Create a password and enter to Admin Password and Confirm Password.
This will change the admin password of the camera. It is recommended to
modify the admin’s password to protect your privacy. Click Next.
Step 4.8 If you have assigned a Static IP to the camera at Step 4.3, please
enter the Primary/Secondary DNS addresses here provided by your ISP.
If you are not sure how to configure IP Setting, please select DHCP. Click
Note Be sure to enter Primary/Secondary DNS addresses assigned by
your ISP if you set up Static IP for the camera so that the Email alert /
FTP uploading can function properly.
Step 4.9 If you would like to set up email alerts that you can receive in the
future, enter your email information here. You can get this information from
your Internet Service Provider. You can also set this up at a later time. Click
Step 4.10 Confirm your settings at this page. If everything is correct, click
Apply to save the settings, then the camera will restart in 50 seconds.
Section 5
Viewing Image
Method A > Access Camera from SkyIPCam Utility
Step 5.1A Open Airlink101 SkyIPCam Utility, select the camera you wish to
connect to and click on Link button. Go to Step 5.3.
Method B > Access Camera from Web Browser
Step 5.1B If you assigned a static IP address for your camera (at Step 4.3),
you may open the Web Browser on your computer.
Step 5.2B Type the IP address of your camera in the Address bar, and
press Enter.
Step 5.3 Enter username and password, then click OK. The default
username and password are both “admin” if you did not make any change
to it at Step 4.7.
Step 5.4 Internet Explorer User: If this is the first time for your computer to
view image from the web configuration page, you will be prompted to install
the ActiveX Control. Click on the bar on top of the screen and click on Run
Add-on or Install ActiveX Control (depends on different IE versions).
Step 5.5 Click on Run, then you will be able to view the image.
Note If you are using Mozilla Firefox or Safari and you are not able to view
any image, please make sure you have Java and Quick Time add-ons
Step 5.6 To get a clear view of images, you can simply rotate the camera’s
lens clockwise or counter-clockwise to adjust the focus.
Section 6
Technical Support
E-mail: [email protected]
Toll Free: 1-888-746-3238
Website: www.airlink101.com
* Actual data throughput will vary. Network conditions and environmental factors, including
volume of network traffic as well as network overhead lower actual data throughput rate.
Specifications are subject to change without notice. Photo of product may not reflect actual
content. All products and trademarks are the property of their respective owners. Copyright
©2011 Airlink101®
** Monitoring multiple cameras simultaneously demands high performance computer system.
*** AIC1620POE supports most of the 3G devices, but compatibility with every 3G device is not
