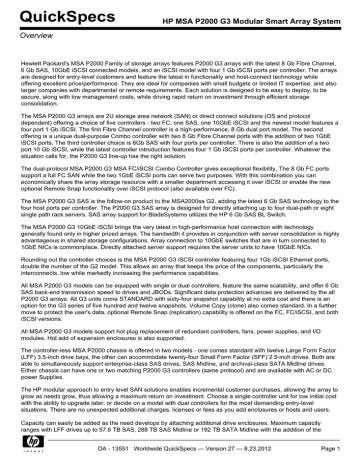

HP MSA P2000 G3 Modular Smart Array System
Overview
Hewlett Packard's MSA P2000 Family of storage arrays features P2000 G3 arrays with the latest 8 Gb Fibre Channel,
6 Gb SAS, 10GbE iSCSI connected models, and an iSCSI model with four 1 Gb iSCSI ports per controller. The arrays
are designed for entry-level customers and feature the latest in functionality and host-connect technology while
offering excellent price/performance. They are ideal for companies with small budgets or limited IT expertise, and also
larger companies with departmental or remote requirements. Each solution is designed to be easy to deploy, to be
secure, along with low management costs, while driving rapid return on investment through efficient storage
consolidation.
The MSA P2000 G3 arrays are 2U storage area network (SAN) or direct connect solutions (OS and protocol
dependent) offering a choice of five controllers - two FC, one SAS, one 10GbE iSCSI and the newest model features a
four port 1 Gb iSCSI. The first Fibre Channel controller is a high-performance, 8 Gb dual port model. The second
offering is a unique dual-purpose Combo controller with two 8 Gb Fibre Channel ports with the addition of two 1GbE
iSCSI ports. The third controller choice is 6Gb SAS with four ports per controller. There is also the addition of a two
port 10 Gb iSCSI, while the latest controller introduction features four 1 Gb iSCSI ports per controller. Whatever the
situation calls for, the P2000 G3 line-up has the right solution.
The dual-protocol MSA P2000 G3 MSA FC/iSCSI Combo Controller gives exceptional flexibility. The 8 Gb FC ports
support a full FC SAN while the two 1GbE iSCSI ports can serve two purposes. With this combination you can
economically share the array storage resource with a smaller department accessing it over iSCSI or enable the new
optional Remote Snap functionality over iSCSI protocol (also available over FC).
The MSA P2000 G3 SAS is the follow-on product to the MSA2000sa G2, adding the latest 6 Gb SAS technology to the
four host ports per controller. The P2000 G3 SAS array is designed for directly attaching up to four dual-path or eight
single path rack servers. SAS array support for BladeSystems utilizes the HP 6 Gb SAS BL Switch.
The MSA P2000 G3 10GbE iSCSI brings the very latest in high-performance host connection with technology
generally found only in higher priced arrays. The bandwidth it provides in conjunction with server consolidation is highly
advantageous in shared storage configurations. Array connection to 10GbE switches that are in turn connected to
1GbE NICs is commonplace. Directly attached server support requires the server units to have 10GbE NICs.
Rounding out the controller choices is the MSA P2000 G3 iSCSI controller featuring four 1Gb iSCSI Ethernet ports,
double the number of the G2 model. This allows an array that keeps the price of the components, particularly the
interconnects, low while markedly increasing the performance capabilities.
All MSA P2000 G3 models can be equipped with single or dual controllers, feature the same scalability, and offer 6 Gb
SAS back-end transmission speed to drives and JBODs. Significant data protection advances are delivered by the all
P2000 G3 arrays. All G3 units come STANDARD with sixty-four snapshot capability at no extra cost and there is an
option for the G3 series of five hundred and twelve snapshots. Volume Copy (clone) also comes standard. In a further
move to protect the user's data, optional Remote Snap (replication) capability is offered on the FC, FC/iSCSI, and both
iSCSI versions.
All MSA P2000 G3 models support hot plug replacement of redundant controllers, fans, power supplies, and I/O
modules. Hot add of expansion enclosures is also supported.
The controller-less MSA P2000 chassis is offered in two models - one comes standard with twelve Large Form Factor
(LFF) 3.5-inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF) 2.5-inch drives. Both are
able to simultaneously support enterprise-class SAS drives, SAS Midline, and archival-class SATA Midline drives.
Either chassis can have one or two matching P2000 G3 controllers (same protocol) and are available with AC or DC
power Supplies.
The HP modular approach to entry level SAN solutions enables incremental customer purchases, allowing the array to
grow as needs grow, thus allowing a maximum return on investment. Choose a single controller unit for low initial cost
with the ability to upgrade later; or decide on a model with dual controllers for the most demanding entry-level
situations. There are no unexpected additional charges, licenses or fees as you add enclosures or hosts and users.
Capacity can easily be added as the need develops by attaching additional drive enclosures. Maximum capacity
ranges with LFF drives up to 57.6 TB SAS, 288 TB SAS Midline or 192 TB SATA Midline with the addition of the
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 1
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Overview
maximum number of drive enclosures. Configurations utilizing the SFF drive chassis and the maximum number of
drive enclosures can grow to 134 TB of SAS, 149 TB of SAS Midline or 74.5 TB SATA Midline with a total of 96 LFF or
149 SFF drives. The P2000 G3 Arrays do not support SSDs.
What's New in the P2000 G3 array family
Compliance to 2013 ROHS requirements
Part numbers listed as changing below are functionally identical. The change from an "A" version to a "B"
version was implemented to make an obvious distinction between newer parts that were produced in full
compliance with European Union RoHS 2.04 requirements and older non-compliant parts that may still be
in HP's spare parts inventory. This change ensures without question products shipped worldwide after
January 1, 2013 are in compliance with the RoHS 2.04 requirements.
HP P2000 G3 SFF Modular Smart Array
HP P2000 G3 LFF Modular Smart Array
P2000 G3 FC Controllers, 2 installed
1. Power supplies
4. Reserved for future use
2. 8 Gb Fibre Channel ports 5. Management Ethernet port
3. CLI port (mini-USB)
6. Expansion port
P2000 G3 FC/iSCSI Combo Controllers, 2 installed
1. Power supplies
5. Reserved for future use
2. 8 Gb Fibre Channel ports 6. Management Ethernet port
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 2
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Overview
3. 1GbE iSCSI ports
4. CLI port (mini-USB)
7. Expansion port
P2000 G3 SAS controllers, 2 installed
1. Power supplies
4. Management Ethernet port
2. 6Gb SAS ports (four per 5. Expansion port
controller)
3. CLI port (mini-USB)
P2000 G3 10GbE iSCSI controllers, 2 installed
1. Power supplies
4. Management Ethernet port
2. 10GbE iSCSI ports
5. Expansion port
3. CLI port (mini-USB)
P2000 G3 iSCSI dual controller
1. Power supplies
4. CLI port (mini-USB)
2. 1 GbE iSCSI ports (4)
5. Management Ethernet port
3. 1 GbE iSCSI ports (4)
6. Expansion port
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 3
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Models
P2000 G3
Modular Smart Array
Part numbers listed as changing below are functionally
identical. The change from an "A" version to a "B" version was
implemented to make an obvious distinction between newer
parts that were produced in full compliance with European
Union RoHS 2.04 requirements and older non-compliant parts
that may still be in HP's spare parts inventory. This change
ensures without question products shipped worldwide after
January 1, 2013 are in compliance with the RoHS 2.04
requirements.
P2000 G3 Controllers
P2000 G3 Fibre Channel Controllers
Retiring SKU
HP P2000 G3 MSA Fibre Channel Controller
NOTE: two 8Gb FC ports per controller
HP P2000 G3 MSA FC/iSCSI Combo Modular Smart Array
Controller
NOTE: two 8Gb FC ports and two 1GbE iSCSI ports per
controller
P2000 G3 SAS Controller
HP P2000 G3 SAS MSA Array System Controller
NOTE: four 6Gb SAS ports per controller
P2000 G3 10GbE iSCSI controller
HP P2000 G3 10GbE iSCSI MSA Array System Controller
NOTE: two 10GbE iSCSI ports per controller
P2000 G3 iSCSI controller (1Gb Ethernet)
HP P2000 G3 iSCSI MSA Array System Controller
NOTE: four 1Gb iSCSI ports per controller
P2000 Chassis
P2000 Controller-less Chassis (AC-powered)
HP P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
NOTE: Will accept one or two controllers or Disk Enclosure I/O
modules
HP P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
NOTE: Will accept one or two controllers, not I/O modules
P2000 G3 Configured Array Systems
Configured Units, 8 Gb Fibre Channel Systems
HP P2000 G3 MSA FC Dual Controller LFF Modular Smart
Array System
HP P2000 G3 MSA FC Dual Controller SFF Modular Smart
Array System
HP P2000 G3 MSA FC/iSCSI Dual Combo Controller LFF
Modular Smart Array System
HP P2000 G3 MSA FC/iSCSI Dual Combo Controller SFF
Modular Smart Array System
Configured Units, 6 Gb SAS Systems
HP P2000 G3 SAS MSA Dual Controller LFF Array System
HP P2000 G3 SAS MSA Dual Controller SFF Array System
Configured Units, 10GbE iSCSI Systems
HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array
System
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
AP836A
RoHS Compliant
SKUs
AP836B
AP837A
AP837B
AW592A
AW592B
AW595A
AW595B
BK829A
BK829B
AP838A
AP838B
AP839A
AP839B
AP845A
AP845B
AP846A
AP846B
AW567A
AW567B
AW568A
AW568B
AW593A
AW594A
AW593B
AW594B
AW596B
Page 4
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Models
HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array
System
Configured Units, 1Gb iSCSI Systems
HP P2000 G3 iSCSI MSA Dual Controller LFF Array System
HP P2000 G3 SCSI MSA Dual Controller SFF Array System
P2000 G3 FC SAN Starter Kits
HP P2000 G3 FC MSA Dual Controller Small Business SAN
Starter Kit
(includes dual 8 Gb FC controllers, 12-drive bay LFF chassis,
two 8-port 8 Gb switches, four 8 Gb single-port HBAs, SFPs
and cables)
HP P2000 G3 FC MSA Dual Controller Virtualization SAN
Starter Kit
(includes dual 8 Gb controllers, 24-drive bay SFF chassis, two
16-port 8 Gb switches, six 8 Gb single-port HBAs, SFPs and
cables)
Disk Enclosures
HP P2000 Dual I/O LFF Drive Enclosure, twelve 3.5" drive bays
(w/ two .5m mini-SAS to mini-SAS cables. Used with single or
dual controller LFF or SFF array head)
HP P2000 LFF Drive Enclosure I/O Module
HP D2700 SFF Disk Enclosure, twenty-five 2.5" drive bays
(w/ two .5m mini-SAS to mini-SAS cables. Used with single or
dual controller LFF or SFF array head)
Controller-less Chassis (DC-powered)
HP P2000 DC-power LFF Chassis
(can add one or two P2000 G3 controllers or P2000 JBOD I/O
modules)
HP P2000 DC-power SFF Chassis NEBS certified
(can add one or two P2000 G3 FC or SAS controllers. No
P2000 JBOD I/O module support)
AW597B
BK830A
BK831A
BK830B
BK831B
AP847A
AP847B
AP848A
AP848B
AP843A
AP843B
AP844A
AP844B
AJ941A
AP840A
AP840B
AP841A
AP841B
P2000 G3 Array Bundles
In some areas HP is offering P2000 G3 Array bundles with ProLiant SFF SAS drives. These bundles can simplify the
process of ordering. HP offers these bundles with different type of P2000 G3 Array controllers for different storage capacity
needs.
NOTE: These bundles are not offered worldwide so please check the availability for your region
Protocol
Raw
Capacity
Fully Populated Bundles:
FC Bundles
3.5 TB
Regions
Availability
Bundle Description
Retiring
SKUs
RoHS
Compliant
SKUs
AMS
APJ
HP P2000 G3 FC DC w/24
146GB SAS 15K SFF HDD
3.5TB Bundle
HP P2000 G3 FC DC w/24
300GB SAS 10K SFF HDD
7.2TB Bundle
HP P2000 G3 FC DC w/24
600GB SAS 10K SFF HDD
14.4TB Bundle
BV901A
BV901B
BV902A
BV902B
BV903A
BV903B
7.2 TB
AMS
APJ
14.4 TB
AMS
APJ
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 5
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Models
21.6 TB
AMS
APJ
AMS
APJ
AMS
APJ
HP P2000 G3 FC 24x900GB
SAS SFF Bundle
HP P2000 G3 FC 24x1TB SAS
SFF Bundle
HP P2000 G3 FC DC w/24
300GB SAS 15K SFF HDD
7.2TB Bundle
QR517A
QR517B
QR521A
QR521B
QW945A
QW945B
21.6 TB
AMS
APJ
HP P2000 G3 FC/iSCSI MSA
DC w/24 900GB SAS 10K SFF
HDD 21.6TB Bundle
QR518A
QR518B
24 TB
AMS
APJ
HP P2000 G3 FC/iSCSI MSA
DC w/24 1TB SAS 7.2K SFF
MDL HDD 24TB Bundle
QR522A
QR522B
7.2 TB
AMS
APJ
HP P2000 SAS DC w/24
300GB SAS 10K SFF HDD
7.2TB Bundle
BV908A
BV908B
14.4 TB
AMS
APJ
BV909A
BV909B
21.6 TB
AMS
APJ
QR519A
QR519B
24 TB
AMS
APJ
HP P2000 SAS DC w/24
600GB SAS 10K SFF HDD
14.4TB Bundle
HP P2000 G3 SAS MSA DC
w/24 900GB SAS 10K SFF
HDD 21.6TB Bundle
HP P2000 G3 SAS MSA DC
w/24 1TB SAS 7.2K SFF MDL
HDD 24TB Bundle
QR523A
QR523A
7.2 TB
AMS
APJ
BV911A
BV911B
21.6 TB
AMS
APJ
QR520A
QR520B
24 TB
AMS
APJ
QR524A
QR524B
BV913A
BV913B
BV914A
BV914B
QR525A
QR525B
QR529A
QR529B
24 TB
7.2 TB AMS
FC/iSCSI
Combo
Bundles
SAS
Bundles
1G iSCSI
Bundles
Half Populated Bundles:
FC Bundles
3.6 TB
7.2 TB
10.8 TB
12 TB
AMS
APJ
AMS
APJ
EMEA
AMS
APJ
AMS
APJ
HP P2000 G3 iSCSI DC w/24
300GB SAS 10K SFF HDD
7.2TB Bundle
HP P2000 G3 iSCSI MSA DC
w/24 900GB SAS 10K SFF
HDD 21.6TB Bundle
HP P2000 G3 iSCSI MSA DC
w/24 1TB SAS 7.2K SFF MDL
HDD 24TB Bundle
HP P2000 G3 FC DC w/12
300GB SAS 10K SFF HDD
3.6TB Bundle
HP P2000 G3 FC DC w/12
600GB SAS 10K SFF HDD
7.2TB Bundle
HP P2000 G3 FC MSA DC
w/12 900GB SAS 10K SFF
HDD 10.8TB Bundle
HP P2000 G3 FC MSA DC
w/12 1TB SAS 7.2K SFF MDL
HDD 12TB Bundle
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 6
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Models
FC/iSCSI
Combo
Bundles
SAS
Bundles
1G iSCSI
G3 Bundles
3.6 TB
AMS
APJ
HP P2000 G3 FC DC w/12
300GB SAS 15K SFF HDD
3.6TB Bundle
QW949A
QW949B
10.8 TB
AMS
APJ
QR526A
QR526B
12 TB
AMS
APJ
HP P2000 G3 FC/iSCSI MSA
DC w/12 900GB SAS 10K SFF
HDD 10.8TB Bundle
HP P2000 G3 FC/iSCSI MSA
DC w/12 1TB SAS 7.2K SFF
MDL HDD 12TB Bundle
QR530A
QR530B
3.6 TB
AMS
APJ
BV917A
BV917B
7.2 TB
AMS
APJ
BV918A
BV918B
10.8 TB
AMS
APJ
QR527A
QR527B
12 TB
AMS
APJ
QR531A
QR531B
3.6 TB
AMS
APJ
HP P2000 G3 SAS DC w/12
300GB SAS 10K SFF HDD
3.6TB Bundle
HP P2000 G3 SAS DC w/12
600GB SAS 10K SFF HDD
7.2TB Bundle
HP P2000 G3 SAS MSA DC
w/12 900GB SAS 10K SFF
HDD 10.8TB Bundle
HP P2000 G3 SAS MSA DC
w/12 1TB SAS 7.2K SFF MDL
HDD 12TB Bundle
HP P2000 G3 SAS DC w/12
300GB SAS 15K SFF HDD
3.6TB Bundle
QW951A
QW951B
3.6 TB
AMS
APJ
BV919A
BV919B
7.2 TB
AMS
APJ
BV920A
BV920B
10.8 TB
AMS
APJ
QR528A
QR528B
12 TB
AMS
APJ
QR532A
QR532B
3.6 TB
AMS
APJ
EMEA
QW952A
QW952B
HP P2000 G3 iSCSI DC w/12
300GB SAS 10K SFF HDD
3.6TB Bundle
HP P2000 G3 iSCSI DC w/12
600GB SAS 10K SFF HDD
7.2TB Bundle
HP P2000 G3 iSCSI MSA DC
w/12 900GB SAS 10K SFF
HDD 10.8TB Bundle
HP P2000 G3 iSCSI MSA DC
w/12 1TB SAS 7.2K SFF MDL
HDD 12TB Bundle
HP P2000 G3 iSCSI DC w/12
300GB SAS 15K SFF HDD
3.6TB Bundle
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 7
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Features
Key Features
The HP P2000 G3 Modular Smart Array family encompasses five controllers, each featuring different protocols or
combination of protocols to match the exact needs of the user.
P2000 G3 FC/iSCSI Combo MSA controller: this unique controller offers both 8 Gb Fibre Channel and 1 GbE iSCSI
functionalities built into a single array controller. This allows customers to enable storage needing high performance
thru the FC ports while leveraging their SAN investment by sharing the array resources with smaller departments
through low-cost iSCSI. It also enables optional Remote Snap (replication) for data protection.
P2000 G3 FC MSA controller: Dual 8 Gb Fibre Channel host ports per controller give high performance with a mature
topology and is compatible with the largest installed base of SAN users.
P2000 G3 10GbE iSCSI MSA controller: HP was the first of the major modular array manufacturers that brought a
high performance dual-ported 10GbE iSCSI solution to the entry level segment. Ideal for those who want to utilize
cost-effective Ethernet as their infrastructure without sacrificing access time to their data. Now supports Remote Snap
(replication).
P2000 G3 SAS MSA controller: the P2000 G3 SAS model gives fast 6 Gb transmission rates with low cost SAS
connections. Four host ports per controller support a highly efficient direct connect configuration.
P2000 G3 iSCSI MSA controller offers four 1 Gb iSCSI ports utilizes the popular Ethernet infrastructure with its low
cost and ease of management, while the additional ports assure increased performance over the previous generation.
Now supports Remote Snap (replication).
All P2000 G3 models offer a common set of valuable features:
Ease of management featuring browser-based out-of-band access. This allows a department or small company to
effectively handle growing storage requirements, with the aid of an intuitive GUI to administer the unit with a minimum
of complexity. Ideal for local or remote installations.
All G3 models come standard with 64 controller-based snapshots and clone capability. The G3 arrays also support an
optional 512 snaps.
Choose either a low-cost single controller array or start with a configured dual controller array model to fit the budget,
high availability, and performance needs.
All models feature a wide variety of drives: enterprise-class SAS, SAS Midline, and archival-class SATA Midline in
either P2000 LFF 3.5-inch or HP ProLiant SFF 2.5-inch drives.
P2000 G3 models can have a maximum number of P2000 LFF drive enclosures (7), a maximum number of D2700
SFF enclosures (5), or mix both sizes. The array can grow incrementally from a few drives to 134 TB SAS, 288 TB of
SAS MDL or 192 TB SATA MDL.
2 GB transportable read/write cache per controller. Battery-free cache backup with super capacitors and compact
flash
Vdisks can be spanned across multiple enclosures
RAID levels 0, 1, 3, 5, 6, 10, 50
Maximums vary by RAID levels: 2 drive max for RAID level 1; max of 16 drives for RAID levels 0, 3, 5, 6, and 10; max
of 32 drives for RAID level 50
512 LUNs with LUN sizes greater than 40TB depending on the RAID configuration chosen. The maximum LUN size is
64TB
Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)
Upgradable by design. Owners of an original MSA2000 G1 or G2 array are able to do data-in-place controller
upgrades to the P2000 G3 FC, Combo FC/iSCSI, 1 Gb or 10GbE iSCSI, or P2000 G3 SAS. Cross protocol upgrades
are also supported between the protocols. This unique ability protects the earlier investments in chassis, drives, and
JBODs
Follow us on twitter and be a part of the conversation, and get the latest P2000 G3/MSA related news and information at:
http://www.twitter.com/MSAstorage
HP P2000 G3 FC MSA SAN Starter Kits
The new P2000 G3 FC MSA SAN Starter kits are offered to simplify ordering and implementation of your SAN. HP includes
all the necessary hardware components to build your own SAN solution in one package, just add the drives of your choice.
These kits are offered at very affordable prices which reflects a savings over purchasing each SAN component separately.
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 8
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Features
Virtualization SAN
Starter Kit
HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter
KitThe HP P2000 G3 FC MSA Dual Controller Virtualization SAN
Starter Kit addresses the growing need for server and storage
administrators to deliver end-to-end storage, virtualization, and
management capabilities across their network infrastructure. The
hardware bundle consists of six Host Bus Adapters (HBAs), two FC
switches, a P2000 G3 FC MSA Dual Controller Array (SFF Chassis) as
well as two licenses per switch enabling Server Application
Optimization (SAO) and Adaptive Networking (AN). SAO is an adapter
technology that offers Quality of Service (QoS) capabilities that can be
used in conjunction with fabric wide QoS and AN to enable a high
performing, virtualized infrastructure. With SAO deployed,
administrators can protect a VM and its application by assigning its IO
flow to a specific priority level. The QoS priorities are enforced at the
hardware level, thereby providing adequate bandwidth during periods
of high congestion. Applications such as email and databases achieve
better performance when deployed in specific SAO and MSA
configurations.
Small Business SAN HP P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit
Starter Kit
The HP P2000 G3 FC MSA Dual Controller Small Business SAN
Starter Kit is a unique end-to-end 8 Gbps SAN Solution, just add disks
and power. This kit includes one 8 Gbps P2000 G3 FC MSA Dual
Controller Array (LFF Chassis), four 8 Gbps FC HBAs, two HP SN6000
Stackable 8 Gbps 8-port FC switches and HP unique Simple SAN
Connection Manager (SSCM) SAN management software, cables, rails
and optics. SSCM is the only SAN management software that can
manage the FC switch, HBA and provision HP storage from a single
pane of glass.
Application
Solutions
Learn more
Retiring SKU
RoHS
Compliant
SKU
AP848A
RoHS
Compliant
SKU
AP847A
AP847B
AP848B
The HP P2000 SAN is the ideal solution for customers running Oracle, Microsoft, SAP environments
and those customers who are deploying virtual server technologies like VMware, Hyper-V, and Oracle
Virtual Machine. The HP P2000 SAN delivers enterprise functionality that enhances virtual
environments, simplifies management, and reduces costs. Easy to deploy, scale and maintain, HP
P2000 SANs ensure that crucial business data remains available.
HP has developed best-in-class expertise in Oracle, Microsoft, SAP, and Virtualization Hypervisor
technology through extensive testing with the HP P2000 SAN, HP servers, and management
software; high availability and disaster recovery solutions; and backup and recovery on the Oracle,
Microsoft, and SAP application platforms. As a result, our customers can expect a wide range of
operational and business benefits where they can:
Deploy IT assets across multiple locations.
Incrementally grow storage without interruption.
Enable high availability and disaster recovery capabilities for critical applications.
Deploy a remote disaster recovery site.
To learn more about specific HP Storage Solutions that are built with Oracle, Microsoft, SAP and
Virtualization environments in mind, visit the solution sites supporting each of these applications.
HP Storage for Oracle hyperlink to: http://www.hp.com/storage/oracle
HP Storage for Microsoft hyperlink to: http://www.hp.com/storage/microsoft
HP Storage for SAP hyperlink to: http://www.hp.com/storage/sap
HP Storage for VMware hyperlink to: http://www.hp.com/go/vmware/storage
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 9
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Family Information
P2000 G3 FC
Capacity
Minimum / with
maximum additional
drive enclosures
P2000 G3 SAS
P2000 G3 10GbE
iSCSI
P2000 G3 iSCSI
(1GbE)
LFF: 7.2 TB SAS
LFF: 7.2 TB SAS
LFF: 7.2 TB SAS
LFF: 7.2 TB SAS
or 36 TB SAS MDL or or 36 TB SAS MDL or or 36 TB SAS MDL or or 36 TB SAS MDL or
24 TB SATA MDL
24 TB SATA MDL
24 TB SATA MDL
24 TBSATA MDL
w/ 7 LFF enclosures:
w/ 7 LFF enclosures:
w/ 7 LFF enclosures:
w/ 7 LFF enclosures:
57.6 TB SAS,
57.6 TB SAS,
57.6 TB SAS,
57.6 TB SAS,
288 TB SAS MDL or
288 TB SAS MDL or
288 TB SAS MDL or
288 TB SAS MDL or
192 TB SATA
192 SATA
192 TB SATA
192 TB SATA
SFF: 21.6 TB SAS
SFF: 21.6 TB SAS
SFF: 21.6 TB SAS
SFF: 21.6 TB SAS
or 24 TB SS MDL or 12 or 24 TB SAS MDL or or 24 TB SAS MDL or or 24 TB SAS MDL or
TB SATA MDL
12 TB SATA MDL
12 TB SATA MDL
12 TB SATA MDL
w/ 5 D2700 JBODs:
w/ 5 D2700 JBODs:
w/ 5 D2700 JBODs:
w/ 5 D2700 JBODs:
134 TB SAS
134 TB SAS
134 TB SAS
134 TB SAS
or 149 TB SAS MDL or or 149 TB SAS MDL or or 149 TB SAS MDL or or 149 TB SAS MDL or
74.5 TB SATA MDL
74.5 TB SATA MDL
74.5 TB SATA MDL
74.5 TB SATA MDL
2 GB per controller
2 GB per controller
2 GB per controller
2 GB per controller
512
512
512
512
maximum LUN size:
maximum LUN size:
maximum LUN size:
maximum LUN size:
64TB
64TB
64TB
64TB
Controller Cache
Total LUNs
LUN sizes greater than
40TB depending on the
RAID configuration
chosen
Host connect
Two 8 Gb
Four 6 Gb (x4)
Two 10 GbE iSCSI
Four 1 Gb
P2000 & MSA2000 have Fibre Channel ports or
SAS ports
ports per controller
iSCSI ports
1 or 2 controllers, EVA
Two 8Gb FC and two
per controller
per controller
has 2 controllers
1GbE iSCSI ports
standard
per controller
Maximum Drives
96 LFF/149 SFF
96 LFF/149 SFF
96 LFF/149 SFF
96 LFF/149 SFF
w/ expansion
Maximum host
64
64
64
64
supported
w/ SAS switch: 32
(dual controller)
single blade servers (2x
c7000), or 16 dual
density blade servers
Optional software:
Snapshot, 64 standard Snapshot, 64 standard Snapshot, 64 standard Snapshot, 64 standard
Snapshot, clone,
(max 512)
(max 512)
(max 512)
(max 512)
Remote Snap
Clone (standard)
Clone (standard)
Clone (standard)
Clone (standard)
Remote Snap (optional)
Remote Snap (optional) Remote Snap (optional)
Use for Storage
Primary Storage
Primary Storage
Primary Storage
Primary Storage
with SAS drives.
with SAS drives.
with SAS drives.
with SAS drives.
Secondary with SATA Secondary with SATA Secondary with SATA Secondary with SATA
NOTE: maximum available storage capacity depends on the RAID level being implemented
Product Technology
8Gb Fibre
Channel
controller
Two host ports per FC controller shipped with SFPs. The P2000 G3 FC controller can run in either
point-to-point or FCAL (loop). The default is FCAL which is used in Direct Connect, particularly with two
controllers. The PtP (fabric) mode is used with almost all switches.
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 10
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Family Information
Combo controller This ingenious dual-protocol "combo" controller supports a full FC SAN through the 8Gb FC ports, while
with FC and iSCSI designating the two 1 GbE iSCSI ports to enable remote replication over iSCSI protocol and perform as
ports
an iSCSI target. This allows economical sharing of the storage resource (the P2000 G3 array) with one
department needing the performance afforded by the 8 Gb FC ports while simultaneously supporting
another department with lesser performance needs and a budget only allowing a 1GbE iSCSI network.
6Gb SAS
Four 4x host ports per 6Gb SAS controller.
controller
10GbE iSCSI
Two 10GbE ports per G3 10GbE iSCSI controller. Ports are ready for the choice of SFP (none included)
controller
Supports the ProCurve and ISS versions of the following 10GbE parts for use in the controllers:
HP 10Gb Cables
HP SFP+ 10GbE Copper Cable
HP ProCurve 10-GbE SFP+-SFP+ Direct Attach Cable
HP SFP+ Transceivers
HP BladeSystem 10Gb SR SFP+ and HP BladeSystem 10Gb LRM SFP+
HP ProCurve 10-GbE SFP+ SR Transceiver and HP ProCurve 10-GbE SFP+ LRM Transceiver
No SFP+ LR Transceiver support
1 Gb iSCSI
controller
Modular Chassis
Drives available
Four 1 Gb Ethernet iSCSI ports per G3 iSCSI controller
2U rack height. 12 Large Form Factor or 24 Small Form Factor drive bays, accommodating SAS and
SATA. Comes with space for one or two controllers, or P2000 3.5-inch disk Enclosure I/O modules (LFF
chassis only)
The P2000 G3 controllers support both the P2000 3.5-inch Large Form Factor (LFF) drives, and the HP
ProLiant 2.5-inch Small Form Factor (SFF) drives.
Serial Attached SCSI (SAS) enterprise-class drives are designed for high demand, 24x7 usage.
SAS Midline and SATA Midline are usually reserved for archival of data as they are both relatively
inexpensive and are available in very large capacities.
The HP entry-level family of arrays can accommodate both SAS and SATA drives within the same
enclosure making it ideal to have both business-critical, high activity files on SAS drives while using
Snapshot, clone, or Remote Snap capability to keep back-up or archival data on the less expensive
drives.
For investment protection, the controllers will support single and dual port SAS & SATA drives in a
legacy single - or dual - domain MSA70. This support allows current owners of MSA70s to migrate their
single port drives (in their MSA70 only, not into the array head) to be attached to a P2000 G3 FC or
SAS. They can only cascade to another single I/O MSA70. This is not a data-in-place transition, and
overall performance could be impacted.
SAS drive performance can be approximately 30% greater than SATA performance on sequential host
I/O. SAS performance excels in sequential lower latency response time and random I/O per second
transaction performance due to higher rpm disk speeds yielding lower seek times. SAS drive random
performance is generally twice that of SATA drives.
Optional Disk
enclosures
NOTE: P2000 and MSA2 3.5-inch Large Form Factor (LFF) drives are for use only in the P2000 G3 or
MSA2000 models. The 2.5-inch Small Form Factor (SFF) drives are supported only with the P2000 G3
or the MSA2300 G2 controllers and are common with and are the same part numbers as the ProLiant
hot-plug 2.5-inch drives.
Just as the user has a choice of chassis for the array head (LFF and SFF drive bays, AC or DC
powered), so also do they have a choice of expansion disk enclosures accommodating either drive size.
Both the P2000 and the D2700 disk enclosures can be hot-added to an operating array.
(NOTE: these are not supported as part of a NEBS-certified configuration with the MSA Carrier Grade
Chassis. There is a certified JBOD listed in the Carrier-grade section)
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 11
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Family Information
P2000 3.5-inch drive enclosure. This 2U unit has twelve LFF (3.5-inch) drive bays and accepts for
P2000 dual-ported SAS and SATA drives. The pre-configured HP P2000 Dual I/O LFF Drive Enclosure
(AP843B) has two I/O modules and supports both single and dual controller arrays. If a single I/O disk
enclosure model is desired, the appropriate chassis should be purchased along with a single I/O
module (AP844B).
This 3.5-inch drive enclosure can be attached to either the P2000 G3 FC or SAS LFF or SFF
array head.
Each configured model ships standard with two .5m mini-SAS to mini-SAS cables for cascading
to other P2000 drive enclosures
Up to seven P2000 3.5-inch enclosures can be attached to a P2000 G3 FC, FC/iSCSI Combo, or
SAS controller in the array head.
D2700 2.5-inch drive enclosure. This 2U storage enclosure (AJ941A) is designed to support twenty
five ProLiant 2.5-inch Universal form factor (SFF) 6Gb SAS or SATA hard drives. It ships standard with
dual I/O modules installed.
This 2.5-inch drive enclosure can be attached to a P2000 G3 controller (SFF or LFF) array head
The D2700 enclosure ships with a two .5m miniSAS to miniSAS cable.
Up to five D2700 may be attached to the P2000 G3 array head, given total support for 149 SFF
drives.
Scalability
The P2000 G3 FC, Combo FC/iSCSI, SAS, 1 Gb or 10GbE iSCSI controllers are designed to allow an
installation to begin with smaller capacity and be able to grow gradually as needed. The flexibility of
SAS or SATA drive technology, form factors, sizes, speeds, and costs per GB allows a system to easily
fit in almost any budget.
Large Form Factor configurations can scale up to 7.2 TB SAS, 36TB SAS MDL or 24 TB SATA,
expandable to 57.6 TB SAS, 288TB SAS MDL or 192 TB SATA with the addition of a maximum of
seven P2000 3.5-inch Drive Enclosures.
Small Form Factor configurations can scale from 21.6 TB SAS, 24 TB SAS MDL or 12 TB SATA
MDL. With the addition of five D2700 JBODs, the P2000 G3 can support 134 TB SAS, 149 TB
SAS MDL or 74.5 TB SATA MDL.
Users may configure a 24-drive P2000 G3 SFF array head with 12-drive LFF P2000 3.5-inch disk
enclosures. This is an excellent method for a configuration that supports fast SFF enterpriseclass SAS drives in the array head, combined with economical LFF drives staged for archival
purposes, all in the same array.
Qualification of larger capacity drives is ongoing.
Vdisks
Vdisks can span across multiple enclosures, where drives used in the Vdisk can be contained in
different enclosures. The maximum number of drives that can be used in RAID 1 Vdisk is 2; RAID 0, 3,
5, 6, and 10 is 16; and for RAID 50 Vdisk is 32.
LUNs
The HP 2000 family of arrays supports 512 LUNs (total volumes in a dual controller system) and LUN
sizes up to 64 TB depending on the RAID configuration chosen. The array supports expansion and
deletion of any LUN.
RAID 0, 1, 3, 5, 6, In addition to the usual RAID levels, the P2000 G3 features several important additional levels. RAID 6
10, 50
is the highest level of RAID protection. It allocates two sets of parity data across drives and allows
simultaneous write operations. It can withstand two simultaneous drive failures without downtime or
data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID
levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50
combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding
higher performance than RAID 5 through the addition of RAID 0, particularly during writes.
Performance
Performance numbers are a guideline as established by tests using RAW I/O in an Operating System
Agnostic test lab environment. 144 GB 15K SAS drives were used in a dual controller configuration of
12 vdisks consisting of twelve disks per vdisk, 1.6 TB volumes, and 3 volumes per host. 4 hosts directly
attached to the P2000 G3 array were used in this test configuration (results cannot be expected with a
single host). Results were achieved in Sequential Writes with 256K blocks; all random tests were based
on 8K block sizes.
NOTE: Number and type of applications, drive type and number of drives, operating system used, and
the number of hosts will affect overall performance. This table is provided strictly as a test-lab
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 12
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Family Information
comparison. Note: These numbers reflect a full array configuration with the maximum number of frontend ports, disks, and controllers. The test results shown for the P2000 G3 are designed to give a
conservative reference point for comparisons.
2000 Array
Performance
P2000 G3 FC
P2000 G3
SAS
P2000 G3 10GbE
iSCSI
P2000 G3 1GbE
iSCSI
Protocol (host
8 Gb
6 Gb
10Gb
1 Gb
connect)
Fibre Channel
SAS
Ethernet
Ethernet
2000 RAID 10 Performance Results
Sequential Reads
1,650
1,650
1,600
550
MB/s
Sequential Writes
850
850
800
525
MB/s
Random Mix IOPs
20,500
23,500
18,500
17,200
60/40 read/write
2000 RAID 5 Performance Results
Sequential Reads
1,650
1,650
1,600
550
MB/s
Sequential Writes
1,300
1,350
1,000
525
MB/s
Random Mix IOPs
14,000
16,000
12,500
9,400
60/40 read/write
2000 RAID 6 Performance Results
Sequential Reads
1,650
1,650
1,600
550
MB/s
Sequential Writes
1,300
1,100
1,000
525
MB/s
Random Mix IOPs
8,300
9,800
7,500
5,600
60/40 read/write
Refer to the paper titled "Upgrading the HP MSA2000 (G1 or G2) to the P2000 G3 MSA ", available in
the Resource Library at: www.hp.com/go/p2000.
DC-power chassis HP is making the two models of controller-less chassis available with direct current (DC) power
supplies. They each have the two empty bays where users can insert one or two P2000 G3
controller(s). In addition, the P2000 chassis with LFF drive bay can have P2000 3.5-inch I/O modules
inserted to create a LFF DC-power JBOD.
The 500 watt power supply is designed to operate over the input range of -40VDC to -75VDC.
Retiring SKU
RoHS Compliant
SKU
HP P2000 DC-power LFF twelve 3.5-in Drive Bays
AP840A
AP840B
(supports up to 2 controllers or I/O modules)
HP P2000 DC-power SFF twenty-four 2.5-in Drive Bays
AP841A
AP841B
(supports up to 2 controllers, not I/O modules)
Configuration and HP Storage Management Utility (SMU). Management access, out-of-band: WEB GUI, CLI. Interface
Management
Types: USB, 10/100 Ethernet. Protocols Supported SNMP, SMI-S, SSL, SSH, SMTP, FTP, HTTP,
Tools
Telnet
P2000 Software
All product documentation (CD can be used on ALL supported server Operating Systems.)
and Documents
MSA Device Discovery Tool (Win and Linux) - reports P2000/MSA HW devices, and supported
Support CD
storage software
Host Software Bundles (Win and Linux for both ProLiant x86, ProLiant x64 and Integrity
IA64servers)
CD updated quarterly on HP.com with sustaining firmware updates
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 13
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Family Information
Hot Plug
Expansion and
Replacement
Support
Snapshot and
Clone
All P2000 G3 models support hot plug expansion and replacement of redundant controllers, enclosures,
fans, power supplies, and I/O modules for simple, fast installation and maintenance. Hot add expansion
of disk enclosures is also supported.
All G3 arrays come standard with 64 snaps, 512 snaps available. Controller based functionality. Offers
higher levels of data protection, enabling an almost instant recovery from data failure or corruption.
Offers alternative development testing of 'offline' production data and the ability to backup
snapped/cloned data.
Overview
The P2000 G3 arrays come integrated with web browser and CLI based software for storage
and RAID management, setup, configuration, and troubleshooting. This reduces the cost of
ownership by reducing the training and technical expertise necessary to install and maintain
your HP storage solution.
The SPOCK database provides interoperability information for thousands of components and
millions of component combinations. It is available to all users at
http://www.hp.com/storage/spock.
Server Compatibility Supports most HP ProLiant, BladeSystems and Integrity servers including
NOTE: depends on
HP ProLiant DL, ML
protocol
HP c-Class Blade Servers
Integrity servers, IA64 (FC and FC/iSCSI support only)
Compatibility must be confirmed at: http://www.hp.com/storage/spock
Industry Standard
Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86)
servers support
servers. HP requires the Third-Party Server to be logo'd and listed on the Microsoft
Windows Server Catalog.
Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/
HP Division recommends that the Third-Party Server Vendor is an active member of
TSANet. Refer to the TSANet website for details: www.tsanet.com
Non-HP servers will generally be supported if the HP storage stack is used. This
includes supported HP branded HBAs and drivers, and supported FC switches.
OS Support
Refer to the HP support statements for complete current OS version support:
Fibre Channel ports http://www.hp.com/storage/spock
OS Support
Fibre Channel Ports
(Integrity)
OS Support
1GbE iSCSI ports
on the G3 Combo
FC/iSCSI Controller
OS Support
G3 SAS Controller
Microsoft Windows Server 2008 IA32, x64, IA64 (Standard, Enterprise, Datacenter)
Microsoft Windows Server 2008 R2 x64
Microsoft Windows 2003 SP1, SP2, and R2 and 2003 R2 IA32, x64
HP-UX
Red Hat Linux (32/64)
SuSE SLES (32/64)
Microsoft Windows Server 2008 x64 Hyper-V
VMware
OpenVMS
Apple Mac OS X (requires ATTO Celerity 8Gb FC HBA)
Solaris 10 (x86)
HP-UX
Windows
OpenVMS
Linux
Microsoft Windows Server 2008 and 2008 R2 (x64, IA64)
Microsoft Windows Server 2008 x64 Hyper-V
Microsoft Windows 2003 (SP1, SP2, and R2) and 2003 R2 (IA32, x64)
Red Hat Enterprise Linux (32/64)
SuSE Linux IA32, x64
VMware ESX
Refer to the HP support statements for complete current OS version support:
http://www.hp.com/storage/spock
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 14
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Family Information
OS Support
G3 1Gb iSCSI
Controller
OS Support
G3 10GbE iSCSI
Controller
Microsoft Windows Server 2008 IA32, x64
Microsoft Windows Server 2008 R2
Microsoft Windows 2003 and 2003 R2 IA32, x64
Red Hat Linux (32/64)
SuSE SLES (32/64)
Microsoft Windows Server 2008 x64 Hyper-V
VMware
Solaris 10 (x86)
Microsoft Windows Server 2008 SP1, SP2, R2
Microsoft Hyper-V (x64 only)
Microsoft Windows Server 2003 and 2003 R2, SP2
VMware
Red Hat Linux (32/64)
SuSE SLES (32/64)
Microsoft Windows Server 2008 SP1, SP2, R2
Microsoft Hyper-V (x64 only)
Microsoft Windows Server 2003 and 2003 R2, SP2
Red Hat Linux (32/64)
SuSE SLES (32/64)
VMware
NOTE: the G3 10GbE array must connect to a 10GbE switch; direct connect to the G3
10GbE array must be to a 10GbE NIC and supported by the OS.
Web Browser support
The P2000 G3 and the older MSA2000 support target based management, and include
a Web interface and a telnet interface, and require a web browser for management.
The P2000 G3 FC requires Microsoft Internet Explorer V7.x or V8.x
The original MSA2000 and the MSA2000 G2 arrays require Microsoft Internet Explorer
V6.X and V7.X (strongly encouraged)
Mozilla Firefox 1.0.7 or later is supported
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 15
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
VMware Site RecoveryVMware Site Recovery Manager (SRM)
Manager (SRM)
VMware vCenter Site Recovery Manager (SRM) is an extension to VMware vCenter that delivers
business-continuity and disaster-recovery solution that helps you plan, test, and execute the
recovery of vCenter virtual machines. SRM can discover and manage replicated datastores, and
automate migration of inventory from one vCenter to another. Site Recovery Manager integrates
with the underlying replication product through a Storage Replication Adapter (SRA).
HP P2000 Site Recovery Adapter (SRA)
The HP P2000 SRA, a free-to-use plugin, is the program that integrates the VMware cCenter SRM
with HP P2000 G3 arrays. It enables full-featured use of the VMware SRM. It is a host-software
component installed on a Microsoft Windows Server that enables disaster recovery management
(DRM) software on the host to communicate and control certain aspects of the replication feature
in storage systems connected to the server. It allows the VMware SRM software to automatically
coordinate virtual machine failover and failback between a protected data center and a disaster
recovery site by employing a disaster recovery solution called Remote Snap. A perfect combination
of the Remote Snap replication and VMware SRM provides an unfailing automated solution for
implementing and testing the disaster recovery between sites located across geographies. It
enables communication between the HP P2000 Remote Snap replication functionality that is
embedded in HP P2000 Fibre Channel, iSCSI, and Combo Fibre Channel systems. Users are
required to acquire Remote Snap license for their local and remote HP P2000 G3 arrays to use the
HP P2000 SRA.
Site Recovery Manager Requirements/Dependencies:
Requires vSphere 5.0/SRM 5.0
Not compatible with SRM 4.x
Requires HP's P2000 SRA 2.0 Plug-in (downloadable from Hp.com)
SRM works with Remote Snap functionality
Requires purchase of P2000 G3 Remote Snap licenses (one for each site)
Customers must upgrade to T240 or the latest firmware
SRM works with FC, iSCSI or Combo controllers only
HP Insight Control
Storage Module for
vCenter
HP Insight Control Storage Module for vCenter
HP Insight Control Storage Module for vCenter is a component within the HP Insight Control plugin for vCenter. It provides VMware administrators that are using VMware's vSphere management
console (vCenter) with the ability to see how virtual machines are mapped to datastores and
individual P2000 volumes. By providing these clear relationships between VM's, datastores and
storage, the VMware administrator's productivity increases, as does the ability to ensure quality of
service. Roles for administrators can be defined on an individual basis, providing the ability to apply
specific permissions for both view and control functions.
The HP Insight Control Storage Module for vCenter supports mixed array environments including
EVA, P4000, P2000 (MSA), and the XP array series including the P9500.
When deployed with the P2000 array, provides the following:
Active Management functionality for the P2000 array:
Create/Expand/Delete a Datastore
Create a Virtual Machine from a template
Monitors the health and status of the P2000
Displays LUN / volume connections from VMs and ESX servers to the arrays and provides
the location and attributes of the P2000 within the SAN
Identifies what storage features are available to allow administrators to match the features
available on the P2000 to their requirements
Provide a cluster-level view of the storage
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 16
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
HP Insight Control Storage Module for vCenter is downloadable from Software Depot:
https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=HPVPR
For more information on HP Insight Control Storage Module for vCenter visit:
www.hp.com/go/vmware
vStorage API for Array The vStorage API for Array Integration (VAAI) is one of the storage application programming
Integration (VAAI)
interface (API) sets in vSphere 4.1. VAAI is an API storage partners can leverage to enhance
performance of virtual machine (VM) management operations by delegating these operations to the
storage array. With hardware offload, ESX/ESXi hosts perform certain operations faster and
consume less server CPU and memory resources, and also storage port and storage fabric
bandwidth. VAAI includes high performance and scalable VM data path primitives. HP introduced
VAAI support for HP MSA P2000 Storage array products starting with the T230 firmware release.
Storage Hardware Primitives for VAAI
In the VMware vSphere 4.1 release, the HP StorageWorks P2000 G3 MSA Array Systems offload
capabilities support the following three primitives:
Full Copy or Hardware Assisted Move
Block Zeroing or Hardware Assisted Zeroing
Hardware Assisted Locking or Atomic Test and Set (ATS)
HP Storage
Management Pack for
Microsoft System
Center
The HP Management Pack for Systems Center Operations Manager provides seamless integration
with Microsoft Systems Center Operations Manager and now System Center Essentials by
integrating predefined discovery and state monitoring policies, event processing rules and tasks,
and diagram and topology views for the storage system.
For more information:
http://h18000.www1.hp.com/products/quickspecs/14249_div/14249_div.html
HP Storage Management Pack can be downloaded free from the following website:
https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=SCOM
Snapshot and Volume Product Features
Copy Software for the Data Protection
P2000 G3
Snapshots create up to 512 point-in-time pictures of data (512 snaps are exclusive to the
P2000 G3)
Volume Copies create up to 128 point-in-time copies of data
Recovery is instant - revert data from any previous Snapshot or Volume Copy
Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window
A 64 snapshot license and Volume Copy are included with all P2000 G3 models.
Support and updates are desired for bundled software functionalities (such as 64 LTU Snap
and/or Volume Copy etc in the P2000 G3 products) a combination HW + SW support care
pack must be purchased.
HP does not provide warranty assistance for software products included with our base
hardware products. This would either be SupportPlus or SupportPlus24. The hardware
warranty component of these services is accounted for in the pricing of the SP and SP24
care packs.
Data Testing
Snap or clone data to test the performance of a software application on 'offline' production
data
Snap or clone data to test how a software patch or enhancement will function on 'offline;
production dat0061
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 17
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
P2000 G3 Snapshot and Clone:
G3 controllers/models come STANDARD with 64 snapshots and Volume Copy software
512 Snapshot option is ONLY available and supported with the G3, not the prior generation
MSA2000 models
HP P2000 Snapshot 512 Software LTU
TA806A
HP P2000 Snapshot 512 Software E-LTU
TA806AAE
MSA2000 and MSA2000 G2 Snapshot and Volume Copy (clone) software:
Snapshot and Volume Copy software is optional on models other than the P2000 G3.
The following skus are designated for use by the MSA2000 G2 models. They are neither necessary
nor available for the P2000 G3 FC.
HP 2000 Modular Smart Array Snapshot 255 Software LTU1
T5539A
HP 2000 Modular Smart Array Snapshot 64 Software LTU
T5512A
HP 2000 Modular Smart Array Snapshot 8 Software LTU
T5513A
1
HP 2000 Modular Smart Array Snapshot 8/255 Upgrade Software LTU
T5540A
1
HP 2000 Modular Smart Array Snapshot 64/255 Upgrade Software LTU
T5541A
HP 2000 Modular Smart Array Snapshot 8 to 64 Upgrade Software LTU
T5515A
HP 2000 Modular Smart Array Volume Copy Software LTU
T5514A
1
The snapshot software is supported on G2 and G3 models only. 512 snaps
only applies to G3 controllers.
HP MSA Recovery Manager Software
Overview
What's New
Models
Licensing
MSA Recovery Manager (RM) intelligently creates and manages application specific
snapshots that can be used to quickly restore application instances or databases. This
optional software delivers a standalone solution to augment your existing backup software
strategy. It provides seamless integration with HP P2000 G3 storage hardware.
Recovery Manager currently supports Microsoft Exchange and Microsoft SQL. Integrated
with HP and 3rd party back up applications, RM provides reliable data recovery. Recovery
Manager is integrated with Microsoft Volume Shadow Copy Service (VSS) to make nondisruptive point-in-time copies of Microsoft Exchange and Microsoft SQL databases for
constant data protection. RM eases costs and administration by providing rapid,
affordable online recovery of Microsoft® SQL Server databases from multiple, highly
granular point-in-time snapshots. Quickly recover a database to a known point in time,
speeding up a variety of operations including rapid recovery of the production SQL server.
For more information please visit www.hp.com/go/recoverymanager
Support for Microsoft Exchange and Microsoft SQL.
Integration with HP and 3rd party backup tool allowing backup to tape and/or disk.
Instant Recovery designed to respond to your needs for 24x7 application availability.
Support on multiple Windows platforms.
HP MSA Recovery Manager Software LTU
TC399A
HP MSA Recovery Manager Software E-LTU
TC399AAE
HP Recovery Manager Software is licensed per single array. One
license is required for each array that contains data, specific to
applications being supported by RM, intended for backup and
recovery scenarios.
The above license is applicable for all the applications currently
supported.
License bought for a specific array may not work on another similar
array.
NOTE: Electronic software is available in all countries except China and Japan.
For China and Japan should order the physical equivalent
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 18
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
Product Highlights
Features
Creates VSS based Point-In-Time snapshots.
Supports mount, deletion of snapshots.
Schedules snapshot creation.
Single GUI & CLI for managing SQL and Exchange and for
performing all management.
Auto-discovers applications - SQL and Exchange.
Group level (Instance/Storage group) or single database level
snapshot creation.
Recovery of database based on point-in-time snapshots or media
backup.
Exchange Database Integrity check using Microsoft utilities.
Integrates with HP Data Protector & Symantec Netbackup for Media
Backup & recovery.
Supports 2 types of recovery:
Volume Recovery
File Copy Recovery
Supports recovery from tape backup.
Supports snapshot policy management (snapshot rotation).
Supports Microsoft Cluster Server (MSCS), Cluster Continuous
Replication (CCR) and Data Availability Group (DAG) environments.
Applications and Platform
Supports SQL 2005, 2008 & R2, Exchange 2007, 2010.
Supports Windows platforms as supported by the above
applications.
Supports P2000 G3 (FC/ISCSI/SA).
HP P2000 Remote
Snap Software
(G3 FC and FC/iSCSI,
1GbE and 10GbE
iSCSI controllers only)
HP P2000 Remote Snap Software is array based software that provides remote replication
on the HP P2000 G3 MSA Array products (except SAS model). HP Remote Snap is a form
of asynchronous replication which consists of replication of block-level data from a volume
on a local system to a volume that may be on the same system or on a second independent
system. This second system may be collocated with the first system or may be located at a
remote site. It requires T230Rxx controller firmware or higher.
HP Remote Snap functionality is based on existing Snapshot technology offered by HP
P2000 SAN Array products. Snapshots are used to track the data to be replicated as well as
to determine the differences in data updated on the master volume, minimizing the amount
of data to be transferred.
HP Remote Snap replication technology provides the ability to accomplish key data
management and protection capabilities. First, because Remote Snap uses snapshots as
the underlying technology it creates multiple local recovery points which can be used for
such tasks as to complement daily backups; second, replication provides the ability to
access data in a remote site which could be used for dispersed operations; and third but
definitely not least important replication allows for business continuance in the event of a
failure on the primary site.
In order to perform a replication, a snapshot of the volume to be replicated is taken, creating
a point-in-time image of the data. This point-in-time image is then replicated to the
destination volume by copying the data represented by the snapshot via a transport medium
such as TCP/IP (iSCSI) or Fibre Channel. The amount of data transferred is minimized
though the use of snapshots whenever possible.
HP P2000 Array System Remote Snap Software LTU
TA808A
HP P2000 Array System Remote Snap Software E-LTU
TA808AAE
(NOTE: One license per array is required for replication. For
example, if you have two P2000 arrays performing replication
(from Primary system to Remote System), you will need 2
licenses).
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 19
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
Product Features
Customer Benefits
Storage based asynchronous snapshot replication
Initial copy of data can be performed locally, reducing burden on wide area networks
Support of both Ethernet and Fiber Channel interconnects provides flexible options to the
application environments.
Snapshot based replication technology means only changed data will be replicated to
alternate site
Many to 1 replication (up to 4 nodes) - primary use case is to replicate from "many" branch
offices to the home office for the purpose of backing up data from the branches
Single controller to single controller replication
Mixed controller replication - replication between P2000 G3 Fibre Channel and P2000 G3
FC/iSCSI Combo arrays
Advanced scheduler provides several options to IT administrators for business continuance
Flexible architecture allows remote replication between P2000 G3 Fibre Channel and/or
P2000 G3 FC/iSCSI Combo arrays. You can also join dissimilar controllers; for instance a
Combo controller can snap remotely to a 1 or 10 GbE iSCSI array. Protects existing
investments and enhances business continuity planning objectives.
Replication Wizard simplifies the task of setting up and establishing replication pairs from
one unified, easy to use GUI.
Snapshot based replication enables both local and remote recovery depending on the need.
Snapshot replication isolates problems to a specific point in time which can be selected by
the administrator. Additionally snapshot replication supports longer distance replication.
Multiple relationships provide greater storage flexibility and utilization.
Bundled 64 Snapshots and Volume Copy integration provides better efficiencies by
combining the management and array technologies to create local copies.
Fast application recovery with minimal or no transaction loss
Creation of disaster tolerant copies of your critical business data
No-single-point-of-failure solution to increase the availability of your customers data
Disaster Recovery
Replication technology has typically been used to address disaster recovery issues. Disaster
recovery is still the driving business case behind replication. Remote replication can be
implemented from the production site to one or more remote sites across a campus, across town,
across a state or across the country. When a disaster strikes the primary location, the applications
can be brought up at the remote site and continue processing against the replicated copies. When
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 20
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
the primary site is back online, the replication can be reversed and when the data is
resynchronized, processing can be switched back to the primary site and business can continue.
In the past, if an e-mail system experienced a disaster it was an "oh well" moment. The loss of a
day or more of e-mail was not considered important. Today, e-mail is a critical component of many
companies' business plans and recovering e-mail after a disaster quickly and completely is
required.
Maintenance
HP Remote Snap software can also be used to solve other business needs. For instance, E-mail
servers may need periodic maintenance that can take hours to complete. With remote replication
in place, the downtime can be minimal (as long as it takes to bring the remote peer of the primary
e-mail server online). The primary server can be worked on (patches, hardware upgrades, etc.)
and then brought back online and into production. A whole datacenter can be failed over to a
remote site on purpose to perform maintenance on generators, air conditioning, etc. Replication
can also be used to perform a datacenter move with minimal downtime (fail everything to the DR
site, move the production datacenter to its new location then fail the DR site back to the new
datacenter).
Storage Based
Data replication is performed at the storage subsystem controller level and is totally transparent to
the host, alleviating unnecessary host cycles to perform the data mirroring functions. Unlike a
fabric based or host based solution, the storage based solution dedicates its resources to
managing the replication process between arrays, with minimal impact to applications, other data
or devices on the SAN.
Bi-Directional
The bidirectional HP P2000 Array solution addresses the growing need among businesses to
ensure continuous availability of applications that are critical to daily business operations. HP
P2000 enables two sites in a remote replication connection to use each other as a destination to
maintain replicated copies of online data. This maximizes resource utilization while enabling
business continuance, even in the event of disaster.
Disaster Tolerance
The P2000 G3 FC products utilize snapshot data online and in real time to a remote P2000 G3
through a local or extended storage area network (SAN). Additionally, data replication can be
bidirectional, meaning that a storage array can be both a source and a destination. A particular
LUN can be replicated in only one direction between the two storage arrays. Write I/O data sent to
the source is replicated by HP P2000 Array to the destination. A pair of properly configured HP
P2000 G3 FC arrays is a replication solution that guarantees data integrity in the event of a
storage system or site failure.
Normalization (first initial copy)
When a DR site is initially created a normalization or initial copy of the data from the source
volume to the target volume must occur. The P2000 G3 array allows this first copy to take place
locally. After completion the disks can me manually moved to the remote location. Subsequent
changes will only remotely copy the changed blocks.
SAN Extensions
HP P2000 G3 Array provides the capability to replicate data over direct Fibre Channel. The
distances supported over dark fiber are determined by the speed of the dark fiber connection and
the technology used to communicate over the dark fiber.
Path failover (MPIO)
MPIO for Windows provides a single multi-path solution for HP P2000 G3 Modular Smart Array on
HP servers.
Support for Windows 2003 and Windows 2003 R2 operating systems is provided by HP MPIO Full
Featured DSM. For the P2000 G3 this version is 2.6.1.7 or greater.
Support for Microsoft Windows 2008 is bundled within the operating system
Support for Linux distributions is with Device Mapper 4.4.0 or greater.
Support for HPUX is native multipathing in HP-UX v3 and PV-Links in HP-UX v2.
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 21
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
HP X3000 G2 Network Add more value to your P2000 array
Storage Gateways
Stretch your P2000 array investment by adding file services, iSCSI connectivity, print, and
management hosting with an X3000 G2 Series Network Storage Gateway platform. X Series
Network Storage Gateways are optimized NAS gateways, that are built on industry-standard HP
ProLiant servers and Microsoft's Windows Storage Server 2008 R2 operating system pre-installed.
Since they're Windows-based, network integration is easy, your Windows tools and data protection
applications run right on the box, and management has a familiar look and feel. The X3000 G2
gateways support a wide range of file serving protocols including SMB, NFS, iSCSI, FTP, HTTP
and WebDAV for heterogeneous IT environments.
HP X3400 G2 Network Storage Gateway BV870A
HP X3800 G2 Network Storage Gateway BV871A
NOTE: For more information visit: www.hp.com/go/X3000
HP P2000 G3
Carrier-Grade
Components
The P2000 G3 is an 8 Gb Fibre Channel connected 2U storage area network (SAN) or direct
connect solution designed for network equipment providers (NEPs) and communication service
providers. Suited for those who need a robust telecom infrastructure--- they need storage devices
to catch videos, photos, text, new services --- and need a place to have the data stored and
cached.
The HP P2000 Carrier-Grade Chassis (AP841A (Retiring SKU) or AP841B (RoHS Compliant
SKU)) is a controller-less 6Gb chassis capable of supporting one or two P2000 G3 8Gb Fibre
Channel controllers (AP836A (Retiring SKU) or AP836B (RoHS Compliant SKU)) and has twentyfour Small Form Factor (SFF) drive bays. It comes equipped with two DC-power power supplies.
The HP P2000 2.5-in Dual I/O JBOD is a special model disk enclosure designed only for use with
the carrier-grade array heads. It has 24 drive bays (unlike the D2700 with 25 drive bays) and has
dual DC-power supplies. It is only sold with a carrier grade array. Five of these JBODs may be
cascaded from the array head.
When used in conjunction with specific ProLiant SFF SAS drives, the solution is NEBS certified.
NEBS level-3 certification provides the assurance that the equipment is safe to operate and sturdy
enough to withstand certain physical and environmental (for example, fire, earthquakes)
conditions. For Seismic Zone 4 rating, the P2000 must be mounted in an HP Seismic Rack
(AH335A)
P2000 DC-power Carrier-grade SFF Chassis
Retiring SKU
RoHS
Compliant SKU
HP P2000 Modular Smart Array 2.5-in Drive Bay Carrier-Grade
AP841A
AP841B
Chassis.
NOTE: NEBS certified
G3 Controller 8Gb FC
HP P2000 G3 MSA Fibre Channel Controller
AP836A
AP836B
NOTE: (1 or 2) With two 8Gb FC ports per controller. NEBS
certified.
G3 Controller 10GbE iSCSI
HP P2000 G3 10GbE iSCSI MSA Array System Controller
AW595A
AW595B
NOTE: two 10GbE iSCSI ports per controller NEBS certified.
G3 Controller 6Gb SAS
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 22
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
HP P2000 G3 SAS MSA Array System Controller
NOTE: (1 or 2) with four 6Gb SAS ports per controller. NEBS
certified.
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host
Bus Adapter
SFF Carrier-grade (only) DC-power JBOD
HP P2000 2.5-in Dual I/O DC-power Drive Enclosure.
NOTE: NEBS certified.
24-drive SFF bays, NEBS certified, NOTE: only sold with carriergrade arrays
Drives, carrier-grade (all NEBS certified)
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise
3yr Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise
3yr Warranty Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise
3yr Warranty Hard Drive
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise
3yr Warranty Hard Drive
Carrier-grade HBA
HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus
Adapter
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
NOTE: Emulex 82E
For more information on HP Carrier Grade Platforms go to
http://www.hp.com/products1/servers/carrier_grade/
index.html?jumpid=reg_R1002_USEN
HP P2000 Remote Snap
Software
(G3 FC and FC/iSCSI,
1GbE and 10GbE iSCSI
controllers only)
AW592A
AW592B
614988-B21
BV921A
BV921B
512547-B21
507127-B21
581284-B21
581286-B21
A8003A
A8003B
AJ763A
AJ763B
HP P2000 Remote Snap Software is array based software that provides remote
replication on the HP P2000 G3 MSA Array products (except SAS model). HP Remote
Snap is a form of asynchronous replication which consists of replication of block-level
data from a volume on a local system to a volume that may be on the same system or on
a second independent system. This second system may be collocated with the first
system or may be located at a remote site. It requires T230Rxx controller firmware or
higher.
HP Remote Snap functionality is based on existing Snapshot technology offered by HP
P2000 SAN Array products. Snapshots are used to track the data to be replicated as well
as to determine the differences in data updated on the master volume, minimizing the
amount of data to be transferred.
HP Remote Snap replication technology provides the ability to accomplish key data
management and protection capabilities. First, because Remote Snap uses snapshots as
the underlying technology it creates multiple local recovery points which can be used for
such tasks as to complement daily backups; second, replication provides the ability to
access data in a remote site which could be used for dispersed operations; and third but
definitely not least important replication allows for business continuance in the event of a
failure on the primary site.
In order to perform a replication, a snapshot of the volume to be replicated is taken,
creating a point-in-time image of the data. This point-in-time image is then replicated to
the destination volume by copying the data represented by the snapshot via a transport
medium such as TCP/IP (iSCSI) or Fibre Channel. The amount of data transferred is
minimized though the use of snapshots whenever possible.
HP P2000 Array System Remote Snap Software LTU
TA808A
HP P2000 Array System Remote Snap Software E-LTU
TA808AAE
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 23
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
(NOTE: One license per array is required for replication. For example, if
you have two P2000 arrays performing replication (from Primary system
to Remote System), you will need 2 licenses).
Product Features
Storage based asynchronous snapshot replication
Initial copy of data can be performed locally, reducing burden on wide area networks
Support of both Ethernet and Fiber Channel interconnects provides flexible options to the
application environments.
Snapshot based replication technology means only changed data will be replicated to
alternate site
Many to 1 replication (up to 4 nodes) - primary use case is to replicate from "many"
branch offices to the home office for the purpose of backing up data from the branches
Single controller to single controller replication
Mixed controller replication - replication between P2000 G3 Fibre Channel and P2000 G3
FC/iSCSI Combo arrays
Advanced scheduler provides several options to IT administrators for business
continuance
Flexible architecture allows remote replication between P2000 G3 Fibre Channel and/or
P2000 G3 FC/iSCSI Combo arrays. You can also join dissimilar controllers; for instance a
Combo controller can snap remotely to a 1 or 10 GbE iSCSI array. Protects existing
investments and enhances business continuity planning objectives.
Replication Wizard simplifies the task of setting up and establishing replication pairs from
one unified, easy to use GUI.
Snapshot based replication enables both local and remote recovery depending on the
need. Snapshot replication isolates problems to a specific point in time which can be
selected by the administrator. Additionally snapshot replication supports longer distance
replication.
Multiple relationships provide greater storage flexibility and utilization.
Bundled 64 Snapshots and Volume Copy integration provides better efficiencies by
combining the management and array technologies to create local copies.
Fast application recovery with minimal or no transaction loss
Creation of disaster tolerant copies of your critical business data
No-single-point-of-failure solution to increase the availability of your customers data
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 24
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
Customer Benefits
Disaster Recovery
Replication technology has typically been used to address disaster recovery issues. Disaster
recovery is still the driving business case behind replication. Remote replication can be
implemented from the production site to one or more remote sites across a campus, across
town, across a state or across the country. When a disaster strikes the primary location, the
applications can be brought up at the remote site and continue processing against the replicated
copies. When the primary site is back online, the replication can be reversed and when the data
is resynchronized, processing can be switched back to the primary site and business can
continue. In the past, if an e-mail system experienced a disaster it was an "oh well" moment.
The loss of a day or more of e-mail was not considered important. Today, e-mail is a critical
component of many companies' business plans and recovering e-mail after a disaster quickly
and completely is required.
Maintenance
HP Remote Snap software can also be used to solve other business needs. For instance, Email servers may need periodic maintenance that can take hours to complete. With remote
replication in place, the downtime can be minimal (as long as it takes to bring the remote peer of
the primary e-mail server online). The primary server can be worked on (patches, hardware
upgrades, etc.) and then brought back online and into production. A whole datacenter can be
failed over to a remote site on purpose to perform maintenance on generators, air conditioning,
etc. Replication can also be used to perform a datacenter move with minimal downtime (fail
everything to the DR site, move the production datacenter to its new location then fail the DR
site back to the new datacenter).
Storage Based
Data replication is performed at the storage subsystem controller level and is totally transparent
to the host, alleviating unnecessary host cycles to perform the data mirroring functions. Unlike a
fabric based or host based solution, the storage based solution dedicates its resources to
managing the replication process between arrays, with minimal impact to applications, other
data or devices on the SAN.
Bi-Directional
The bidirectional HP P2000 Array solution addresses the growing need among businesses to
ensure continuous availability of applications that are critical to daily business operations. HP
P2000 enables two sites in a remote replication connection to use each other as a destination to
maintain replicated copies of online data. This maximizes resource utilization while enabling
business continuance, even in the event of disaster.
Disaster Tolerance
The P2000 G3 FC products utilize snapshot data online and in real time to a remote P2000 G3
through a local or extended storage area network (SAN). Additionally, data replication can be
bidirectional, meaning that a storage array can be both a source and a destination. A particular
LUN can be replicated in only one direction between the two storage arrays. Write I/O data sent
to the source is replicated by HP P2000 Array to the destination. A pair of properly configured
HP P2000 G3 FC arrays is a replication solution that guarantees data integrity in the event of a
storage system or site failure.
Normalization (first initial copy)
When a DR site is initially created a normalization or initial copy of the data from the source
volume to the target volume must occur. The P2000 G3 array allows this first copy to take place
locally. After completion the disks can me manually moved to the remote location. Subsequent
changes will only remotely copy the changed blocks.
SAN Extensions
HP P2000 G3 Array provides the capability to replicate data over direct Fibre Channel. The
distances supported over dark fiber are determined by the speed of the dark fiber connection
and the technology used to communicate over the dark fiber.
Path failover (MPIO)
MPIO for Windows provides a single multi-path solution for HP P2000 G3 Modular Smart Array
on HP servers.
Support for Windows 2003 and Windows 2003 R2 operating systems is provided by HP MPIO
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 25
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
Full Featured DSM. For the P2000 G3 this version is 2.6.1.7 or greater.
Support for Microsoft Windows 2008 is bundled within the operating system
Support for Linux distributions is with Device Mapper 4.4.0 or greater.
Support for HPUX is native multipathing in HP-UX v3 and PV-Links in HP-UX v2.
HP X3000 G2 Network
Storage Gateways
Add more value to your P2000 array
Stretch your P2000 array investment by adding file services, iSCSI connectivity, print, and
management hosting with an X3000 G2 Series Network Storage Gateway platform. X Series
Network Storage Gateways are optimized NAS gateways, that are built on industry-standard HP
ProLiant servers and Microsoft's Windows Storage Server 2008 R2 operating system preinstalled. Since they're Windows-based, network integration is easy, your Windows tools and
data protection applications run right on the box, and management has a familiar look and feel.
The X3000 G2 gateways support a wide range of file serving protocols including SMB, NFS,
iSCSI, FTP, HTTP and WebDAV for heterogeneous IT environments.
HP X3400 G2 Network Storage Gateway
HP X3800 G2 Network Storage Gateway
NOTE: For more information visit: www.hp.com/go/X3000
HP P2000 G3
Carrier-Grade
Components
The P2000 G3 is an 8 Gb Fibre Channel connected 2U storage area network (SAN) or direct connect
solution designed for network equipment providers (NEPs) and communication service providers.
Suited for those who need a robust telecom infrastructure--- they need storage devices to catch
videos, photos, text, new services --- and need a place to have the data stored and cached.
The HP P2000 Carrier-Grade Chassis (AP841A (Retiring SKU) or AP841B (RoHS Compliant SKU)) is
a controller-less 6Gb chassis capable of supporting one or two P2000 G3 8Gb Fibre Channel
controllers (AP836A (Retiring SKU) or AP836B (RoHS Compliant SKU)) and has twenty-four Small
Form Factor (SFF) drive bays. It comes equipped with two DC-power power supplies.
The HP P2000 2.5-in Dual I/O JBOD is a special model disk enclosure designed only for use with the
carrier-grade array heads. It has 24 drive bays (unlike the D2700 with 25 drive bays) and has dual
DC-power supplies. It is only sold with a carrier grade array. Five of these JBODs may be cascaded
from the array head.
When used in conjunction with specific ProLiant SFF SAS drives, the solution is NEBS certified.
NEBS level-3 certification provides the assurance that the equipment is safe to operate and sturdy
enough to withstand certain physical and environmental (for example, fire, earthquakes) conditions.
For Seismic Zone 4 rating, the P2000 must be mounted in an HP Seismic Rack (AH335A)
P2000 DC-power Carrier-grade SFF Chassis
For more information on HP Carrier Grade Platforms go to
http://www.hp.com/products1/servers/carrier_grade/index.html?jumpid=reg_R1002_USEN
Retiring SKU
RoHS
Compliant
SKU
HP P2000 Modular Smart Array 2.5-in Drive Bay Carrier-Grade
AP841A
AP841B
Chassis.
NOTE: NEBS certified
G3 Controller 8Gb FC
HP P2000 G3 MSA Fibre Channel Controller
AP836A
AP836B
NOTE: (1 or 2) With two 8Gb FC ports per controller. NEBS certified.
G3 Controller 10GbE iSCSI
HP P2000 G3 10GbE iSCSI MSA Array System Controller
AW595A
AW595B
NOTE: two 10GbE iSCSI ports per controller NEBS certified.
G3 Controller 6Gb SAS
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 26
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Optional Software
HP P2000 G3 SAS MSA Array System Controller
NOTE: (1 or 2) with four 6Gb SAS ports per controller. NEBS certified.
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus
Adapter
SFF Carrier-grade (only) DC-power JBOD
HP P2000 2.5-in Dual I/O DC-power Drive Enclosure.
NOTE: NEBS certified.
24-drive SFF bays, NEBS certified, NOTE: only sold with carrier-grade
arrays
Drives, carrier-grade (all NEBS certified)
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr
Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr
Warranty Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr
Warranty Hard Drive
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr
Warranty Hard Drive
Carrier-grade HBA
HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
NOTE: Emulex 82E
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
AW592A
AW592B
614988-B21
BV921A
BV921B
512547-B21
507127-B21
581284-B21
581286-B21
A8003A
AJ763A
A8003B
AJ763B
Page 27
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three-year limited warranty, parts exchange Next Business day delivery
Enclosures, Hard drives, and Options for the P2000 G3 FC carry their own warranty. Refer to HP's
Limited Warranty Statement for more information.
The P2000 G3 FC has been designed with customer self repairable parts to minimize repair time
and provide greater flexibility in performing defective parts replacement. Please refer to HP's
limited warranty Statement and parts replacement instructions for further details.
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various kits carry their own individual warranties.
NOTE: The warranty of the hard drive options purchased with the P2000 G3 FC, SAS, and 10GbE
iSCSI products is different for SAS hard drives versus SAS MDL and SATA hard drives. SAS hard
drive options have a three year warranty and SAS MDL and SATA hard drives options have a one
year warranty.
Technology Services
Technology Services for increased uptime, productivity and ROI
TRUST HP storage technology experts for every level of service and support. Our integrated
portfolio of Services for storage help customers reduce costs, optimize data, streamline storage
management, and improve backup and recovery. Capitalizing on HP Storage Systems' capabilities
requires a service partner who understands your increasingly complex environment. Team with
the people who know HP infrastructure hardware and software best-the experienced professionals
at HP Services.
Protect your business beyond warranty
Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack
Services protect the business-by reducing downtime risks and providing operational consistency
for mission-critical and standard business computing.
Support:
What HP Storage Technology Services can do for you
HP Storage Technology Services can help you design, deploy, test, integrate, support, and
manage IT and infrastructure solutions. HP storage lifecycle support services offers a full
spectrum of customer care-from technology support to complex migrations to complete managed
services.
Choose from three levels of care for your HP MSA Storage environment. HP Technology
Services are personalized. You decide how, when, and where you receive support for your HP
MSA Array Systems. Our approach is proactive, leveraging products, tools, and technology to
avoid problems and optimize performance. And our portfolio is simplified-with straightforward
choices to reduce complexity and risk, plus a single point of contact you can count on throughout
the support lifecycle.
Optimized care -Maintain optimum levels of storage performance and availability: HP
Proactive Care 24x7 with 40 HP Proactive Select service credits per year -Specifically designed
for complex environments, this end-to-end environment support solution covers servers, operating
systems, hypervisors, storage, and storage area networks (SANs). We provide rapid response to
incidents, addressed 24x7x365 through HP advanced solution center support plus proactive
reports for problem prevention. Choose from an extensive menu of HP Proactive Select event and
technical services, such as onsite firmware upgrades, health checks, assessments, and
education.
Standard care -Maintain high levels of storage availability: HP Proactive Care 24x7 with 30
Proactive Select service credits per year - Specifically designed for complex environments, this
end-to-end environment support solution covers servers, operating systems, hypervisors, storage,
and SANs. We provide rapid response to incidents, addressed 24x7x365 through HP's advanced
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 28
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Service and Support, HP Care Pack, and Warranty Information
solution center support plus proactive reports for problem prevention. Choose from an extensive
menu of HP Proactive Select event and technical services, such as onsite firmware upgrades,
health checks, assessments, and education.
Basic care-Maintain storage with basic recommended support levels: HP Support Plus 24
with 10 Proactive Select service credits per year - This support service is designed for
environments where proactive help from HP is not required. HP provides 24x7 hardware and
software support onsite, including third-party support with a maximum 4-hour onsite response. We
also provide cost-saving software updates and monitor ongoing operations through the latest
remote tools. Choose from an extensive menu of HP Proactive Select event and technical
services, such as onsite firmware upgrades, health checks, assessments, and education.
Installation
Implement right from the start: Support that's included whatever levels of care you selectHP MSA Storage Installation and Startup Service - HP installs, tests, and configures your tape
hardware and software onsite. We deliver a tailored storage deployment, properly integrated into
your environment.
Additional services to HP Data Migration Services -HP expertise and tools help you migrate data across your data
meet your needs
center or around the globe. Take the burden of migration off your shoulders and put it in the
capable hands of expert HP storage migration consultants. Our proven approach helps
orchestrate the complete data migration and consolidation process while maintaining consistent
data availability during the transfer process.
HP Proactive Select -HP Proactive Select is a flexible way to purchase services to fit your
particular environment or situation. Working with an HP Account Support Manager, you select a
package of services in the form of services credits that include proactive services spanning many
technologies and processes, such as onsite firmware upgrades, health checks, assessments, and
education. You tailor the service delivery to improve time to production, optimize performance, or
build in continuous improvements.
For more information
Only HP brings together deep expertise, proactive and business critical support and a strong
partner network-plus, a full set of infrastructure services designed to power a Converged
Infrastructure.
www.hp.com/services/storage
To learn more on HP Storage Services, please contact your HP sales representative or HP
Authorized Channel Partner
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using
HP order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
www.hp.com/go/lookuptool
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 29
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
Configure to Order Program Information
HP has a very successful Configure to Order program for the P2000 G3 family The P2000 G3 models and options may or
may not be factory installed in a rack with add-on controllers, switches, P2000 disk enclosures and hard drives. The P2000
G3 arrays may be integrated with ProLiant servers or as standalone storage.
Orders to be shipped through the CTO process must have a minimum of two drives of the same type (SAS, SAS MDL, or
SATA) ordered per controller. SAN Starter Kits are not eligible for CTO.
Description
P2000 G3 Controllers & Controller-less Chassis
Product #
Retiring SKU
HP P2000 G3 FC Modular Smart Array Controller
NOTE: two 8Gb FC ports
HP P2000 G3 FC/iSCSI Combo Modular Smart Array Controller
NOTE: two 8Gb FC ports and two 1GbE iSCSI ports
HP P2000 G3 SAS Modular Smart Array Controller
NOTE: four 6Gb 4x SAS ports
HP P2000 G3 10GbE iSCSI Modular Smart Array Controller
NOTE: two 10GbE iSCSI ports
HP P2000 G3 iSCSI MSA Array System Controller
NOTE: four 1Gb Ethernet iSCSI ports
HP P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
NOTE: Will accept one or two controllers or Disk Enclosure I/O modules
HP P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
NOTE: Will accept one or two controllers, not I/O modules
Disk Enclosures
HP P2000 Dual I/O LFF Drive Enclosure,
NOTE: twelve 3.5" drive bays
Used with single or dual controller LFF or SFF array head
HP P2000 LFF Drive Enclosure I/O Module
NOTE: no cable included. Designed for use with blank LFF chassis AP838A
Configured Units
HP P2000 G3 FC MSA Dual Controller LFF Modular Smart Array System
HP P2000 G3 FC MSA Dual Controller SFF Modular Smart Array System
HP P2000 G3 FC/iSCSI MSA Dual Combo Controller LFF Array
HP P2000 G3 FC/iSCSI MSA Dual Combo Controller SFF Array
HP P2000 G3 SAS MSA Dual Controller LFF Modular Smart Array System
HP P2000 G3 SAS MSA Dual Controller SFF Modular Smart Array System
HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array System
HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System
HP P2000 G3 iSCSI MSA Dual Controller LFF Array System
HP P2000 G3 iSCSI MSA Dual Controller SFF Array System
AP836A#0D1
RoHS
Compliant SKU
AP836B#0D1
AP837A#0D1
AP837B#0D1
AW592A#0D1
AW592B#0D1
AW595A#0D1
AW595B#0D1
BK829A#0D1
BK829B#0D1
AP838A#0D1
AP838B#0D1
AP839A#0D1
AP839B#0D1
AP843A#0D1
AP843B#0D1
AP844A#0D1
AP844B#0D1
AP845A#0D1
AP846A#0D1
AW567A#0D1
AW568A#0D1
AW593A#0D1
AW594A#0D1
AW596A#0D1
AW597A#0D1
BK830A#0D1
BK831A#0D1
AP845B#0D1
AP846B#0D1
AW567B#0D1
AW568B#0D1
AW593B#0D1
AW594B#0D1
AW596B#0D1
AW597B#0D1
BK830B#0D1
BK831B#0D1
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 30
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
1. Power Supply 1
2. Power Supply 2
3. Fan 1
HP D2700 Disk Enclosure
Rear Panel components
4. I/O Module A
5. I/O Module B
6. Fan 2
7. Rear UID push button
8. Enclosure LEDs
9. Power on/standby button
D2700
HP D2700 Disk Enclosure
NOTE: 25 Small Form Factor (SFF) drive bays
SAS & SATA Drives
(SFF 2.5-inch)
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP P2000 300GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty
Hard Drive
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
NOTE: Go to the HP Hard Drive Compatibility table for complete drive
compatibility information (http://www.hp.com/products/harddiskdrives). Using
hard drives in unsupported configurations will result in voiding the warranty and
could result in damage to the drive and/or loss of data.
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
AJ941A#0D1
507125-B21
507127-B21
581284-B21
581286-B21
619291-B21
512545-B21
512547-B21
AP858A
605835-B21
507610-B21
507750-B21
Page 31
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
Step 1 - P2000 G3 - Base Configuration
Select one:
Model Name
Retiring
SKUr
RoHS
Compliant
SKU
HP P2000 Modular Smart Array 3.5-inch Drive Bay Chassis
AP838A
AP838B
Controller-less chassis with twelve Large Form Factor (LFF) drive bays. Space
for two controllers.
HP P2000 Modular Smart Array 2.5-inch Drive Bay Chassis
AP839A
AP839B
Controller-less chassis with twenty-four Small Form Factor (SFF) ProLiant
drives bays. Space for two controllers.
There are two array-head chassis - one with twelve 3.5-inch large form factor bays, the other with twenty-four 2.5-inch small
form factor drive bays. For an additional twelve drive bays purchase a P2000 3.5-inch Disk Enclosure. You may attach a
total of seven P2000 Drive Enclosures for a total of ninety-six LFF drive bays. For 25 additional SFF drive bays purchase
D2700 JBOD. You may attach a total of five D2700 JBODs for a total of one hundred and forty nine SFF drive bays. Dual
I/O modules JBODS support both single and dual controller arrays.
Step 2 - Options
Select each option with quantities specified.
Step 2a - Options
Quantity Description with Parts Shipped:
1 or 2
1 or 2
1 or 2
1 or 2
1 or 2
Retiring SKU
RoHS
Compliant SKU
AP836A
AP836B
AP837A
AP837B
AW592A
AW592B
AW595A
AW595B
BK829A
BK829B
HP P2000 G3 MSA Fibre Channel Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis
HP P2000 G3 MSA FC/iSCSI Combo Modular Smart Array Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis
HP P2000 G3 SAS MSA Array System Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis
HP P2000 G3 10GbE iSCSI MSA Array System Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis
HP P2000 G3 iSCSI MSA Array System Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 32
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
Step 2b - SAS and SATA Drive Options
NOTE: SATA drives are designed for archival or reference data. They should not be used in a heavy or intense I/O
environment. Those situations require the use of enterprise-class SAS drives. P2000 3.5-inch drives are for use only with
P2000 products.
P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure
HP P2000 300GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive
AP858A
HP P2000 450GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive
AP859A
HP P2000 600GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive
AP860A
P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure
HP P2000 1TB 6G SAS 7.2K LFF (3.5-inch) Dual Port MDL Hard Drive
AP861A
HP P2000 2TB 6G SAS 7.2K LFF (3.5-inch) Dual Port MDL Hard Drive
AW555A
HP P2000 3TB 6G SAS 7.2K 3.5 in MDL HDD
QK703A
NOTE: Before installing 3TB HDDs in an P2000 G3 Array please update P2000 array controller firmware to
version TS230Rxxx or later
MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk enclosure
HP MSA2 1TB 7.2K rpm 3.5 inch Dual-port SATA Hard Disk Drive
HP P2000 2TB 3G SATA 7.2K LFF MDL Hard Drive
AJ740A
AW556A
AJ740B
AW556B
ProLiant Small Form Factor (SFF) SAS drives for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507125-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507127-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581284-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581286-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
619291-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
512545-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
512547-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive
627117-B21
ProLiant Small Form Factor (SFF) SAS MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25
drive bay)
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507610-B21
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
605835-B21
ProLiant Small Form Factor (SFF) SATA MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25
drive bay)
(NOTE: SFF SATA drives are single ported and therefore do not have a fail-over path intrinsic to their design)
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
507750-B21
Step 2c - Drive Enclosure Options
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 33
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
P2000 Dual I/O 3.5-inch 12 Drive Enclosure
Rear Panel components
3. Unit Locator
5. SAS Out Port
4. SAS In Port
1. Power Indicator
2. Fault Indicator
Use either disk enclosure with Large or Small Form Factor, single or dual controller array heads. Each ship with two .5m
mini-SAS to mini-SAS cables.
Retiring Part New Part
Number
Number
HP P2000 Dual I/O 3.5-inch 12 Drive Disk Enclosure
HP D2700 Dual I/O 2.5-inch 25 Drive Disk Enclosure
HP P2000 LFF Drive Enclosure I/O Module
NOTE: Only used in conjunction with the P2000 blank chassis (AP838A) if a single I/O disk
enclosure is desired. No cable included)
AP843A
AJ941A
AP843B
AJ941A
AP844A
AP844B
Step 2c - SAS Cable Options
miniSAS to miniSAS Cables:
Connecting P2000 G3 FC or SAS controller to a JBOD if a longer cable is desired. Also used
for attaching the P2000 G3 SAS host ports to servers
HP Ext miniSAS to miniSAS 2m Cable
407339-B21
Step 3 - Other P2000 G3 Options
Choose optional AC Power Cords (2 required)
NOTE: Two PDU cables: one 142263-008 (Black) and one 1422633-013 (Grey), ship standard with all ACpowered enclosures.
Power Cord, 220/240 VAC, (US/Canada/Mexico)
Power Cord, (Australia/China/New Zealand)
Power Cord, (Central Europe)
Power Cord, (United Kingdom/Hong Kong)
Power Cord, (Switzerland)
Power Cord, (Italy)
Power Cord, (Denmark)
Power Cord, (Japan)
Power Cord, (South East Asia/India)
227099-001
227098-001
157215-001
157216-001
157219-001
157217-001
157218-001
139867-001
157220-001
Step 4a - Choose Supported Options For Fibre Channel Infrastructure
Fibre Channel
Model
Host Bus Adapters X86 servers
Description
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Retiring SKU
RoHS
Compliant
SKU
Page 34
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
BladeSystem c-Class Fibre Channel Mezzanine HBAs
QLogic QMH2562 8Gb FC HBA for HP c-Class BladeSystem
HP BLc Emulex LPe1205- 8Gb FC HBA for HP c-Class BladeSystem
Lpe1105-HP 4Gb FC HBA for HP c-Class BladeSystem
QMH2462 4Gb FC HBA for HP c-Class BladeSystem Windows and
Linux
Brocade 804 8Gb FC HBA for HP BladeSystem c-Class, Windows,
VMware, Linux
Fibre Channel HBAs
NOTE: Please visit www.hp.com/go/fchba for product details and
www.hp.com/storage/spock for compatibility details.
Brocade Fibre Channel HBAs
HP 81B PCI-e FC HBA Single Port
HP 82B PCI-e FC HBA Dual Port
HP 41B 4Gb PCI-e FC HBA
HP 42B 4Gb Dual-Port PCI-e FC HBA
Emulex Fibre Channel HBAs
HP 81E PCI-e FC HBA Single Port
HP 82E PCI-e FC HBA Dual Port
HP FC2142 4Gb PCI-e HBA
HP FC2242 Dual Channel 4Gb PCI-e HBA
QLogic Fibre Channel HBAs
HP 81Q PCI-e FC HBA Single Port
HP 82Q PCI-e FC HBA Dual Port
HP FC1142 4Gb PCI-e HBA
HP FC1242 Dual Channel 4Gb PCI-e HBA
Fibre Channel
Integrity
Host Bus Adapters Integrity servers
Integrity server
blades
HP PCI-X 2.0 1-port 4Gb Fibre Channel HBA
HP PCI-X 2.0 2-port 4Gb Fibre Channel HBA
HP PCIe 2-port 4Gb Fibre Channel HBA
HP PCIe 1-port 4Gb Fibre Channel HBA
HP PCI Express 2-port 4Gb Fibre Channel HBA
HP PCIe 1-port 4Gb and 1-port 1000BT Adapter
HP PCIe 2-port 4Gb and 2-port 1000BT Adapter
HP PCIe 2-port 4Gb and 2-port 1000BSX
Adapter
HP PCI-X 1-port 4Gb FC and 1-port 1000BT
Adapter
HP PCI-X 2-port 4Gb FC and 2-port 1000BT
Adapter
HP PCI Express 1-port 8Gb Fibre Channel SR
(QLogic) Adapter
HP PCI Express 2-port 8Gb Fibre Channel SR
(QLogic) Adapter
HP PCIe 1-port 8Gb Fibre Channel HBA
HP PCIe 2-port 8Gb Fibre Channel HBA
Emulex LPe1105 4Gb Fibre Channel Host Bus
Adapter for c-Class BladeSystem
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
451871-B21
456972-B21
403621-B21
403619-B21
590647-B21
AP769A
AP770A
AP767A
AP768A
AP769B
AP770B
AP767B
AP768B
AJ762A
AJ763A
A8002A
A8003A
AJ762B
AJ763B
A8002B
A8003B
AK344A
AJ764A
AE311A
AE312A
AB378B
AB379B
AD300A
AD299A
AD355A
AD221A
AD222A
AD393A
AD193A
AD194A
AH400A
AH401A
AH402A
AH403A
403621-B21
Page 35
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
QLogic QMH2462 4Gb Fibre Channel Host Bus
Adapter for c-Class BladeSystem
QLogic QMH2562 8Gb Fibre Channel Host Bus
Adapter for c-Class BladeSystem
Emulex LPe1205 8Gb Fibre Channel Host Bus
Adapter for c-Class BladeSystem
Fibre Channel
Switches
403619-B21
451871-B21
456972-B21
HP 8/8 Base SAN Switch
HP 8/8 SAN Switch
HP 8/24 Base SAN Switch
HP 8/40 Base SAN Switch
HP 8/40 Power Pack+ SAN Switch
HP 8/80 Power Pack+ SAN Switch
HP 8/80 Base SAN Switch
HP 1606 Power Pack+ Extension SAN Switch
HP 1606 Full Extension SAN Switch
HP 1606 Base Extension SAN Switch
AM866A
AM867A
AM868A
AM869A
AM870A
AM872A
AM871A
AP864A
AP863A
AP862A
AM866B
AM867B
AM868B
AM869B
AM870B
AM872B
AM871B
AP864B
AP863B
AP862B
HP 2408 FCoE Base Converged Network Switch
HP 2408 FCoE Power Pack+ Converged Network Switch
Brocade 8/12c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+
AP801A
AP802A
AJ820A
AJ821A
AJ822A
AP801B
AP802B
AJ820B
AJ821B
AJ822B
Retiring SKU
RoHS
Compliant
SKU
HP 8/20q Fibre Channel Switch
NOTE: 8 device ports active, upgradeable to 20 device ports active
HP 8Gb Simple SAN Connection Kit
NOTE: 8 device ports active, upgradeable to 20 device ports active
HP 8/20q Fibre Channel Switch
NOTE: 16 switch ports active
HP SN6000 Stackable 8Gb 24-port single power supply FC Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
HP SN6000 Stackable 8Gb 24-port dual power supply FC Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
HP SN6000 Stackable 8 Gb 12-port Single Power Fibre Channel
Switch
NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20
device ports active
Cisco MDS 9124 8-ports Active Fabric Switch
Cisco MDS 9124 16-ports Active Fabric Switch
Cisco MDS 9124 24-ports Active Fabric Switch
Cisco MDS 8Gb 12-port Fabric Switch for HP BladeSystem c-Class
Cisco MDS 8Gb 24-port Fabric Switch for HP BladeSystem c-Class
Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9134 24-ports Active Fabric Switch
Cisco MDS 9134 32-ports Active Fabric Switch
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
AQ233A
AK241A
AK242A
AW575A
AW575B
AW576A
AW576B
BK780A
BK780B
AG646A
AG647A
AG648A
AW563A
AW564A
AG641A
AG642A
AG874A
AG875A
Page 36
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
Cisco MDS 9222i Fabric Switch
HP SN6000C 16-ports Active Fabric Switch
HP SN6000C 32-ports Active Fabric Switch
HP Nexus 5010 Converged Network Switch
HP Nexus 5020 Converged Network Switch
PremierFlexOM4+ 1m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable
type cable
2m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable
P2000 G2
5m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable
15m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable
30m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable
50m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable
PremierFlex OM3+ 0.5m PremierFlex LC/LC Multi-Mode Optical Cable
type cables
1m PremierFlex LC/LC Multi-Mode Optical Cable
P2000 G3
2m PremierFlex LC/LC Multi-Mode Optical Cable
5m PremierFlex LC/LC Multi-Mode Optical Cable
15m PremierFlex LC/LC Multi-Mode Optical Cable
OM3 FC LC-LC
cables options for
the P2000 G3
30m PremierFlex LC/LC Multi-Mode Optical Cable
50m PremierFlex LC/LC Multi-Mode Optical Cable
LC-LC Multi-Mode OM3 Fibre Channel Cable 0.5m
LC-LC Multi-Mode OM3 Fibre Channel Cable 1m
LC-LC Multi-Mode OM3 Fibre Channel Cable 2m
LC-LC Multi-Mode OM3 Fibre Channel Cable 5m
LC-LC Multi-Mode OM3 Fibre Channel Cable 15m
LC-LC Multi-Mode OM3 Fibre Channel Cable 30m
LC-LC Multi-Mode OM3 Fibre Channel Cable 50m
AG851B
AW585A
AW586A
AP775A
AP776A
QK732A
QK733A
QK734A
QK735A
QK736A
QK737A
BK837A
BK838A
BK839A
BK840A
BK841A
BK842A
BK843A
AJ833A
AJ834A
AJ835A
AJ836A
AJ837A
AJ838A
AJ839A
Step 4b - Choose Supported Options For 10GbE Infrastructure
- verify that the cable/transceiver is supported with the connecting device (i.e. switch or NIC/iSCSI HBA)
Copper Cable
HP 0.5m SFP+ 10GbE Copper Cable
487649-B21
HP 1m SFP+ 10GbE Copper Cable
487652-B21
HP 3m SFP+ 10GbE Copper Cable
487655-B21
HP 5m SFP+ 10GbE Copper Cable
537963-B21
HP 7m SFP+ 10GbE Copper Cable
487658-B21
SFP
HP BladeSystem 10Gb SR SFP+
455883-B21
HP BladeSystem 10Gb LRM SFP+
455889-B21
HP ProCurve 10-GbE SFP+ 1m Direct Attach Cable
J9281B
HP ProCurve 10-GbE SFP+ 3m Direct Attach Cable
J9283B
HP ProCurve 10-GbE SFP+ 7m Direct Attach Cable
J9285B
HP ProCurve 10-GbE SFP+ SR Transceiver
J9150A
HP ProCurve 10-GbE SFP+ LRM Transceiver
J9152A
NIC
HP NC522SFP Dual Port 10GbE Server Adapter
468332-B21
HP NC524SFP Dual Port 10GbE Module
489892-B21
HP NC550SFP Dual Port 10GbE Server Adapter
581201-B21
HP NC522m Dual Port Flex -10 10GbE Multifunction BL-c Adapter
467801-B21
HP NC532m 10GbE Dual Port Flex-10 10GbE Multifunction BL-c
467799-B21
Adapter
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 37
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Configuration Information
iSCSI HBA standup
iSCSI HBA - mezz
NIC - mezz
HP NC550m 10Gb 2-port PCIe x8 Flex-10 Ethernet Adapter
Qlogic QLe4062c
HP BLc QLogic iSCSI Dual Port Adapter with Virtual Connect Kit
HP NC522m Dual Port 10GbE Multifunction BL-c Adapter
581204-B21
Reference sell
488074-B22
467801-B21
Step 4c - Choose Supported Options For SAS connection
HP SC08e 6Gb SAS HBA for G6 and G7 rack servers
614988-B21
HP H221 Host Bus Adapter for Gen8 servers
HP Smart Array P712m Controller/256 for Server Blades
HP Smart Array P711m Controller/1 for Server Blades
HP 6Gb/s SAS BL Switch - Single Pack for BladeSystems
HP 6Gb/s SAS BL Switch - Dual Pack for BladeSystems
HP Ext Mini SAS 2M cable
HP Ext Mini SAS 4m cable - (only be used when connecting a SAS
HBA or 6Gb SAS switch to a SAS controller. Connecting it to disk
enclosures is not supported.)
650931-B21
488348-B21
513778-B21
BK763A
BK764A
407339-B21
432238-B21
Step 5 - Choose Rack Options
Please refer to the HP Infrastructure products page for more information on HP racks and rack options or the HP 10000 G2
Series Rack QuickSpec.
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 38
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Technical Specifications
P2000 G3 FC
P2000 G3 FC/iSCSI
P2000 G3 SAS
P2000 G3 10GbE iSCSI
P2000 G3 iSCSI (1Gb)
POWER REQUIREMENTS
Input Power
Requirements
(typical-running I/O)
SFF/LFF arrays
8G FC (2 Port - 8G FC) 110VAC 3.32A, 344-390 W; 220VAC
1.61A,374-432W
FC/iSCSI Combo (2 Port - 8G FC + 2 Port -1G iSCSI)
110VAC; 3.64A,357-418W, 220VAC 1.77 A, 365-424W
6G SAS (4 Port - 6G SAS) 110VAC 3.49A,344-390W, 220VAC
1.7A 374-432W
10GbE iSCSI (2 Port - 10 GbE iSCSI) 110VAC 3.67A, 395W,
220VAC,1.95A 388.2W
1G iSCSI (4 Port - 1GbE iSCSI) 110VAC 3.3A 363W, 220VAC,
1.63A 360W
Max Input Power
100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A
Heat Dissipation
1622 BTU/hr
TEMPERATURE AND HUMIDITY RANGES
Operating Temperature 41°F to 104°F (5°C to 40°C)
Shipping Temperature
-40°F to 158°F (-40°C to 70°C)
Operating Humidity
10% to 90% RH @ 104°F (40°C) non-condensing
Non-Operating Humidity Up to 93% RH @ 104°F (40°C)
DECLARED ACOUSTIC NOISE LEVELS
Sound Power
A weighted sound power LWAd=6,75 B
Sound Pressure
A weighted sound pressure LpAm - 55dB
SHOCK AND VIBRATION
Shock, Operational
10G's for 10 milliseconds
Shock, Non-Operational 15G 11ms half sine
Vibration, Operational
5-500Hz, 0.21Grms flat
Vibration, Non3-365-3Hz, 1.22 Grms,z-axis,0.85 Grms, X&Y axis shaped spectrum
Operational
PHYSICAL
Height
3.5 in/ 8.9 cm
Depth (excluding cables) P2000 G3 SFF 24-bay array: 20.28 in / 51.510 cm
(back of ear to back of
P2000 G3 LFF 12-bay array: 21.3 in. / 55.1 cm
controller handle)
Width (body only)
17.6 in / 44.7 cm (w/ ears 19 in / 48.26 cm)
Chassis Weight
P2000 LFF chassis: 34.1 lbs. (DC-pwr model: 37.9 lbs)
(no controllers)
P2000 SFF chassis: 32.3 lbs (DC-pwr model: 36.1 lbs)
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 39
QuickSpecs
HP MSA P2000 G3 Modular Smart Array System
Technical Specifications
P2000 G3 FC Controller User Interface
Status and activity provided via management interfaces. Status
Indicators on front of Controller
FC/iSCSI Combo
RAID Support
0, 1, 3, 5, 6, 10, 50
Controller
Cache
Memory
2GB Read/Write. ECC protection with backup to Flash memory
P2000 G3 SAS
(indefinite backup)
Controller
Cache Backup
ECC protection with back up to flash memory (indefinite backup)
P2000 G3 10GbE iSCSI Upgradeable Firmware yes
Controller
Disk Drive and
6 Gb SAS - Serial Attached SCSI
Enclosure Protocol
P2000 G3 iSCSI
Support
Controller (1Gb)
Host Ports
FC: 2 x 8Gb Fibre Channel SFP+
SAS: 4 -4x lane 6 Gb SAS Host Connections
10GbE iSCSI: 2 x 10GbE SFP+
1GbE iSCSI: 4 x 1GbE RJ45
Expansion Port
SAS (SFF8088) 4x lane 6 Gb SAS
Weight, controller
P2000 G3 Fibre Channel, FC/iSCSI, SAS, and 10GbE iSCSI MSA
Controllers 4.5lbs. 1GbE iSCSI is 4.89 lbs
P2000 G3
Regulatory Info
Safety
Electromagnetic
Compatibility
RoHS and WEEE
Country Approvals
UL 60950-1 (USA)
CAN/CSA-C22.2 No.60950-1-03 (Canada)
EN 60950-1 (European Union)
GS mark (Germany)
IEC 60950-1 (International)
CCC Mark (power supply only, China PRC)
VCCI:2008-04 Class A (Japan)
FCC 15:109(g) Class A (USA)
ICES-003:2004 Class A (Canada)
EN55022 : (European Union Class A); CISPR 22 (International Class A)
EN61000-3-2 : (Harmonics) (European Union)
EN61000-3-3 : (Flicker) (European Union)
EN 55024 (European Union, Immunity, Class A);CISPR 24
(International Immunity, Class A)
AS/NZS CISPR 22, Class A (Australia, New Zealand)
CNS 13438 Taiwan, Class A (Taiwan)
KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea)
RoHS-6/6 Compliance, China RoHS, WEEE
United States ,Australia/New Zealand, Canada, China (PRC), European
Union, Germany (GS Mark), Japan, South Korea, Taiwan
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark
of Intel Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be
liable for technical or editorial errors or omissions contained herein.
DA - 13551 Worldwide QuickSpecs — Version 27 — 8.23.2012
Page 40
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
