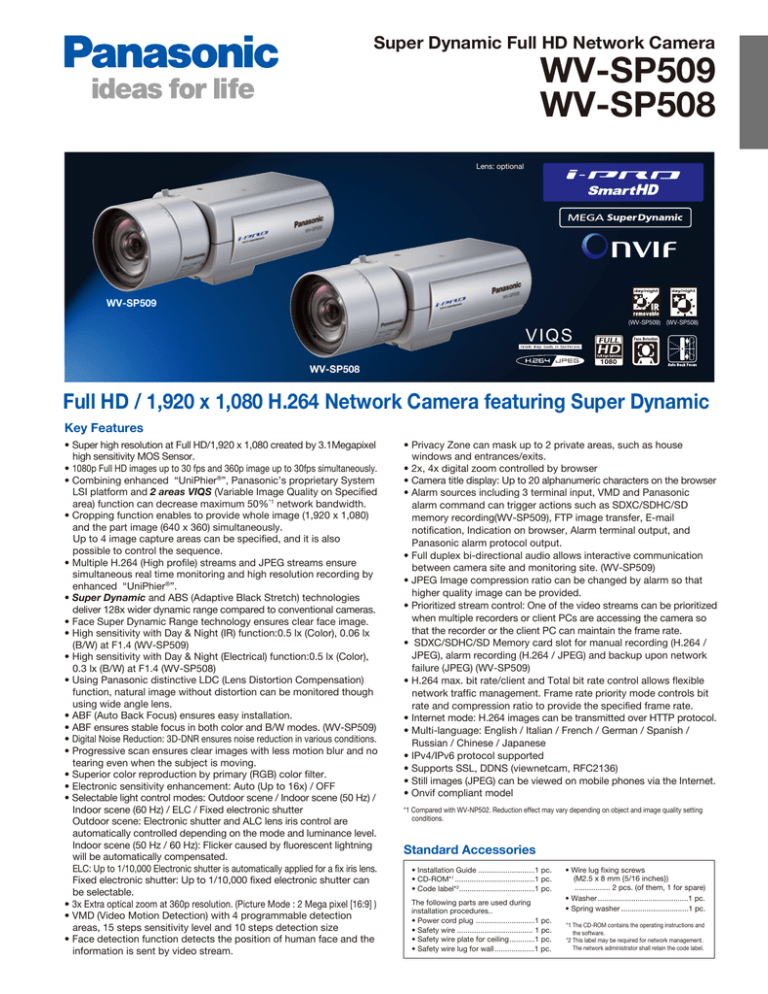

Super Dynamic Full HD Network Camera
WV-SP509
WV-SP508
Lens: optional
WV-SP509
VIQS
(WV-SP509) (WV-SP508)
WV-SP508
Full HD / 1,920 x 1,080 H.264 Network Camera featuring Super Dynamic
Key Features
• Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel
high sensitivity MOS Sensor.
• 1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously.
• Combining enhanced “UniPhier®”, Panasonic’s proprietary System
LSI platform and 2 areas VIQS (Variable Image Quality on Specified
area) function can decrease maximum 50%*1 network bandwidth.
• Cropping function enables to provide whole image (1,920 x 1,080)
and the part image (640 x 360) simultaneously.
Up to 4 image capture areas can be specified, and it is also
possible to control the sequence.
• Multiple H.264 (High profile) streams and JPEG streams ensure
simultaneous real time monitoring and high resolution recording by
enhanced “UniPhier®”.
• Super Dynamic and ABS (Adaptive Black Stretch) technologies
deliver 128x wider dynamic range compared to conventional cameras.
• Face Super Dynamic Range technology ensures clear face image.
• High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx
(B/W) at F1.4 (WV-SP509)
• High sensitivity with Day & Night (Electrical) function:0.5 lx (Color),
0.3 lx (B/W) at F1.4 (WV-SP508)
• Using Panasonic distinctive LDC (Lens Distortion Compensation)
function, natural image without distortion can be monitored though
using wide angle lens.
• ABF (Auto Back Focus) ensures easy installation.
• ABF ensures stable focus in both color and B/W modes. (WV-SP509)
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no
tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter.
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) /
Indoor scene (60 Hz) / ELC / Fixed electronic shutter
Outdoor scene: Electronic shutter and ALC lens iris control are
automatically controlled depending on the mode and luminance level.
Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning
will be automatically compensated.
ELC: Up to 1/10,000 Electronic shutter is automatically applied for a fix iris lens.
Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can
be selectable.
• 3x Extra optical zoom at 360p resolution. (Picture Mode : 2 Mega pixel [16:9] )
• VMD (Video Motion Detection) with 4 programmable detection
areas, 15 steps sensitivity level and 10 steps detection size
• Face detection function detects the position of human face and the
information is sent by video stream.
• Privacy Zone can mask up to 2 private areas, such as house
windows and entrances/exits.
• 2x, 4x digital zoom controlled by browser
• Camera title display: Up to 20 alphanumeric characters on the browser
• Alarm sources including 3 terminal input, VMD and Panasonic
alarm command can trigger actions such as SDXC/SDHC/SD
memory recording(WV-SP509), FTP image transfer, E-mail
notification, Indication on browser, Alarm terminal output, and
Panasonic alarm protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site. (WV-SP509)
• JPEG Image compression ratio can be changed by alarm so that
higher quality image can be provided.
• Prioritized stream control: One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.
• SDXC/SDHC/SD Memory card slot for manual recording (H.264 /
JPEG), alarm recording (H.264 / JPEG) and backup upon network
failure (JPEG) (WV-SP509)
• H.264 max. bit rate/client and Total bit rate control allows flexible
network traffic management. Frame rate priority mode controls bit
rate and compression ratio to provide the specified frame rate.
• Internet mode: H.264 images can be transmitted over HTTP protocol.
• Multi-language: English / Italian / French / German / Spanish /
Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via the Internet.
• Onvif compliant model
*1 Compared with WV-NP502. Reduction effect may vary depending on object and image quality setting
conditions.
Standard Accessories
• Installation Guide ...........................1 pc.
• CD-ROM*1 ......................................1 pc.
• Code label*2....................................1 pc.
The following parts are used during
installation procedures..
• Power cord plug ............................1 pc.
• Safety wire .................................... 1 pc.
• Safety wire plate for ceiling ............1 pc.
• Safety wire lug for wall ...................1 pc.
• Wire lug fixing screws
(M2.5 x 8 mm {5/16 inches})
................. 2 pcs. (of them, 1 for spare)
• Washer ...........................................1 pc.
• Spring washer ................................1 pc.
*1 The CD-ROM contains the operating instructions and
the software.
*2 This label may be required for network management.
The network administrator shall retain the code label.
Specifications
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
TV System
NTSC
PAL
NTSC
PAL
Network Cellular Phone Compatibility JPEG image
1/3 type MOS Sensor
Mobile Terminal Compatibility*5 iPad, iPhone, iPod touch (iOS 4.2.1 or later) , AndroidTM mobile terminals
Approx. 3.1 megapixel
Face Detection
ON / OFF (with XML notification)
Progressive scan
Alarm
Alarm Source
WV-SP509 : 3 terminals input, VMD, Command alarm
4.51 mm (H) x 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}
WV-SP508 : 1 terminal input, VMD, Command alarm
WV-SP509 : Color: 0.5 lx, BW: 0.06 lx (F1.4, Auto slow shutter: Off (1/30s), Gain:On(High))
SDXC/SDHC/SD memory recording*, E-mail notification, Indication on browser,
Alarm Actions
Color: 0.03 lx, BW 0.004 lx (F1.4, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1
FTP image transfer, Panasonic protocol output *Only at WV-SP509
WV-SP508 : Color: 0.5 lx, BW: 0.3 lx (F1.4, Auto slow shutter: Off (1/30s), Gain:On(High))
1
Alarm
Log
With
SDXC/SDHC/SD memory card*: 5000 logs,
Color: 0.03 lx, BW 0.02 lx (F1.4, Auto slow shutter: Max. 16/30s, Gain:On(High)) *
without SDXC/SDHC/SD memory card: 1000 logs *Only at WV-SP509
White Balance
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Schedule
Alarm
/ VMD / Access permission / H.264 recording
Light Control Mode
Outdoor scene: Automatic integration of ALC and ELC
Input/
Monitor Output
VBS: 1.0 V [p-p]/75 Ω,
VBS: 1.0 V [p-p]/75 Ω,
Indoor scene [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)
Output
(for adjustment)
NTSC composite, RCA Jack
PAL composite, RCA Jack
Indoor scene [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)
Microphone/Line Input MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable
ELC: (up to 1/10,000 sec.)
microphone : Plug-in power type) Supply voltage: 2.5 V ±0.5 V Input impedance: approx. 2 kΩ
*Only at WV-SP509
Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500,
Shutter Speed
Audio Output *Only at WV-SP509 ø3.5 mm stereo mini jack (monaural output) Line level
1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
External I/O Terminals WV-SP509 : ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT
Super Dynamic
ON / OFF
WV-SP508 : ALARM IN 1 / DAY/NIGHT IN, ALARM OUT, AUX OUT
Dynamic Range
52 dB typ. (Super Dynamic: ON, Light Control Mode: indoor)
General
Safety/EMC Standard
UL (UL60950-1), FCC (Part15 ClassA), CE, IEC60950-1
Face Super Dynamic
ON / OFF (Only at Super Dynamic: ON)
C-UL (CAN/CSA C22.2 No.60950-1), (EN55022 ClassB, EN55024)
Adaptive Black Stretch ON / OFF (Only at Super Dynamic: OFF)
DOC (ICES003 ClassA)
AGC
ON (LOW, MID, HIGH) / OFF
WV-SP509 : 12V DC: 570 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 125 mA (Class 2 device)
Power Source and
Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Power Consumption
WV-SP508 : 12V DC: 550 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 120 mA (Class 2 device)
Day & Night
WV-SP509: IR Mode: AUTO1 / AUTO2 / ON / OFF,
* FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.
Level: High / Low, with external control
Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F)
WV-SP508: Electrical Mode: OFF / AUTO
Ambient Operating Humidity Less than 90 % (no condensation)
Digital Noise Reduction High / Low
75 mm (W) x 65 mm (H) x 132.5 mm (D)
Dimensions
Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps
{2-31/32"(W) x 2-9/16"(H) x 5-1/4"(D)} excluding connectors/terminals
Privacy Zone
Up to 2 zones, Gray
Mass (approx.)
420 g (0.93 lbs)
Upside Down
ON / OFF
Finish
Fine Silver (501)
VIQS
Up to 2 zones
*1 Converted value *2 Refer to "Notes on Windows Vista® / Windows® 7" on the provided CD-ROM for
Camera Title (OSD)
Up to 20 characters (alphanumeric characters, marks)
further information about system requirements for a PC and precautions when using Microsoft®
Back Focus Adjustment ABF/MANUAL, ABF mode upon CL/BW switching: AUTO / PRESET / FIX
Windows® 7 or Microsoft® Windows Vista®.
Lens Distortion Compensation 256 steps
*3 When using IPv6 for communication, use Microsoft® Windows® 7 or Microsoft® Windows Vista®.
Browser Cropping
H.264(2) / JPEG(VGA or 640 x 360) / JPEG(QVGA or 320 x 180)
*4 Transmission for 2 streams can be individually set in the same compression method.
GUI
Up to 4 image capture areas can be specified
*5 For further information about compatible devices, refer to our website
Camera Control
Brightness, AUX ON / OFF, Zoom (1x, 2x 4x)
(http://panasonic.net/pss/security/support/info.html).
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
Display Mode
screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom
1x, 2x, 4x controlled by browser GUI
* When the slide cover is opened.
Camera Title
Up to 20 alphanumeric characters
Side View
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Clock Display
Alarm Control
Reset
One Shot Capture
A still picture will be displayed on a newly opened window.
Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio
Audio Output: ON / OFF Volume adjustment: Low / Middle / High (Only at WV-SP509)
SD Memory Data Download Still or motion Images recorded in the SDXC/SDHC/SD memory
card can be downloaded. (Only at WV-SP509)
GUI/Setup Menu Language English, Japanese, Italian, French, German, Spanish, Chinese, Russian
System Log
Up to 100 (Internal)
Rear View
Up to 4,000 (SDXC/SDHC/SD memory when the recording
format is set to JPEG.) error logs (Only at WV-SP509)
Microsoft® Windows® 7, Microsoft® Windows Vista®,Microsoft® Windows® XP SP3
Supported OS *2 *3
Supported Browser
Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit),
Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3
Network Network IF
10Base-T / 100Base-TX, RJ-45 connector
Image Capture Mode: H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
Resolution 2 mega pixel [16:9] JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
* This illustration represents WV-SP509.
Image Capture Mode: H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
1.3 mega pixel [16:9] JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
Slide
Cover
External
I/O Terminals
Image Capture Mode: H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
Auto Back Focus Button (ABF)
Audio Output Connector (SP509 only)
1.3 mega pixel [4:3] JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
SD Memory Card Slot (SP509 only)
SD Memory Card Error Indicator
Image Capture Mode: H.264: 1,280 x 960, up to 15 fps
Clamp for SD Memory Card (SP509 only)
(SP509 only)/ ABF Indicator
3 mega pixel [4:3] JPEG (MJPEG): 2,048 x1,536, up to 15 fps
4
Transmission Mode Constant bitrate / Framerate priority / Best effort
H.264 *
ALC Lens Connector
Microphone/Line Input Connector
Frame Rate 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Network Connector (RJ-45)
(SP509 only)
Bit Rate/Client 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
Access Indicator
INITIAL SET Button
4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps
Link Indicator
Power Indicator
Image Quality LOW / NORMAL / FINE
Monitor Out Connector for Adjustment
12 V DC Power Supply Terminals
Refresh Interval 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
Rear Panel
Transmission Type UNICAST / MULTICAST
Image Quality 10 steps
JPEG
Refresh Interval 0.1 fps ~ 30 fps
Transmission Type PULL / PUSH
2-1/4-20UNC for Tripods (Depth 10 mm)
75(2-15/16")
Audio Compression *Only at WV-SP509 G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps
132.5(5-3/16")
Audio Mode *Only at WV-SP509 OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
3(1/8")
71(2-13/16")
1(1/16")
Authentication for Audio *Only at WV-SP509 Level 1 only / Level 2 higher / All users
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Total Bit Rate
Supported Protocol
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS,
NTP, SNMP, UPnP,IGMP,ICMP,ARP
FTP Client
Alarm image transmission, FTP periodic transmission (When the FTP transmission
is failed, backup on an optional SDXC/SDHC/SD memory card is available. *) *Only at WV-SP509
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
SDXC/SDHC/SD
36(1-7/16")
18(11/16")
Memory Card (Option) JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure Compatible
Unit: mm (inches)
*Only at WV-SP509
SD (SDHC/SDXC) card: Panasonic 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.
– UniPhier is a registered trademark of Panasonic Corporation.
– "Super Dynamic", "SDII", "SDIII", "SD5", "SD5Link", "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered trademarks
• All TV pictures are simulated.
of Panasonic Corporation.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
• Masses and dimensions are approximate.
– All other trademarks identified herein are the property of their respective owners.
• Specifications are subject to change without notice.
Important
• These products may be subject to export control regulations.
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All product pictures are NTSC models.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
Part Names and Functions
55(2-3/16")
10(3/8")
65(2-9/16")
Appearance
DISTRIBUTED BY:
http://panasonic.net/security/
http://www.facebook.com/PanasonicNetworkCamera
Printed in Japan (2A-085BL)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
