Acer Ferrari F-17 Technical information

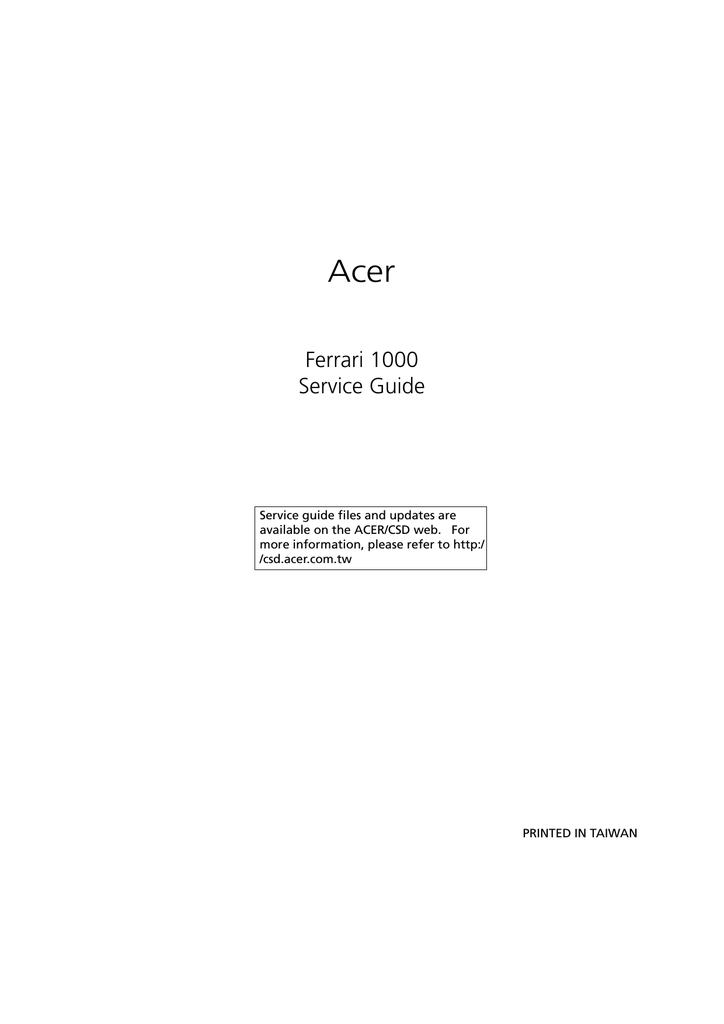

Acer
Ferrari 1000
Service Guide
Service guide files and updates are
available on the ACER/CSD web. For
more information, please refer to http:/
/csd.acer.com.tw
PRINTED IN TAIWAN
Revision History
Please refer to the table below for the updates of notebook Ferrari 1000 service guide.
Date
II
Chapter
Updates
Copyright
Copyright© 2006 by Acer Incorporated. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of Acer
Incorporated.
III
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties of merchantability or
fitness for any particular purpose. Any Acer Incorporated software described in this manual is
sold or licensed “as is”. Should the programs prove defective following their purchase, the buyer
(and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages resulting from any defect in the
software.
Acer is a registered trademark of Acer Incorporated.
Other brand and product names are trademarks and/or registered trademarks of their respective
holders.
IV
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES
Denotes actual messages that appear on screen.
NOTE
Gives bits and pieces of additional information
related to the current topic.
WARNING
Alerts you to any damage that might result from
doing or not doing specific actions.
CAUTION
Gives precautionary measures to avoid possible
hardware or software problems.
IMPORTANT
Reminds you to do specific actions relevant to the
accomplishment of procedures.
V
Preface
Before using this information and the product it supports, please read the following general
information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's “global” product offering. To better fit local market requirements and enhance
product competitiveness, your regional office MAY have decided to extend the functionality of a
machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT
be covered in this generic service guide. In such cases, please contact your regional offices or the
responsible personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, you should check the most up-to-date information available
on your regional web or channel. For whatever reason, if a part number change is made, it will not be
noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may
have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You
MUST use the list provided by your regional Acer office to order FRU parts for repair and service of
customer machines.
VI
Table of Contents
Chapter One System Specification 1
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Operating System . . . . . . . . . . . . . . . . . . . . . .
Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Memory . . . . . . . . . . . . . . . . . . . . . . .
Display and Graphics . . . . . . . . . . . . . . . . . . .
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage Subsystem . . . . . . . . . . . . . . . . . . . . .
Communication . . . . . . . . . . . . . . . . . . . . . . .
Input Devices . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Interface . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Subsystem . . . . . . . . . . . . . . . . . . . . . .
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions and Weight . . . . . . . . . . . . . . . . .
Environment . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1
1
1
2
2
2
2
3
3
3
3
4
4
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 5
Outlook Tour . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Closed Front View . . . . . . . . . . . . . . . . . . . . . .
Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
7
8
8
9
9
Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Upper View . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . 10
External Optical Disk Drive . . . . . . . . . . . . . . 11
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the Optical Drive . . . . . . . . . . . 11
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Easy-launch Buttons . . . . . . . . . . . . . . . . . . . 13
Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . 14
Using the Keyboard . . . . . . . . . . . . . . . . . . . 15
Lock keys and Embedded Numeric Keypad 15
Windows keys . . . . . . . . . . . . . . . . . . . . . . . . 16
TOC
VII
Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Special keys . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the Bluetooth Optical Mouse . . . . . . . 19
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Acer Bluetooth® VoIP Phone . . . . . . . . . . . . 20
Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . 21
Charging the Phone . . . . . . . . . . . . . . . . . . . 21
Using Acer Voice Connection Manager (VCM)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connecting the Phone to Your Notebook . 23
Using the Phone . . . . . . . . . . . . . . . . . . . . . . 24
Acer OrbiCam . . . . . . . . . . . . . . . . . . . . . . . . 25
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating the Acer OrbiCam . . . . . . . . . . . . .
Launching the Acer OrbiCam . . . . . . . . . . . .
Changing the Acer OrbiCam Settings . . . . .
Capturing Photos or Videos . . . . . . . . . . . . .
Using the Acer OrbiCam as Webcam . . . . . .
25
25
26
26
28
29
Acer Empowering Technology . . . . . . . . . . . 32
Empowering Technology Password . . . . . . . 32
Acer ePower Management . . . . . . . . . . . . . 33
Acer ePresentation Management . . . . . . . . 35
Acer eDataSecurity Management (for selected models)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Acer eRecovery Management . . . . . . . . . . . 38
Acer eSettings Management . . . . . . . . . . . . 39
Acer ePerformance Management . . . . . . . . 40
Using the System Utilities . . . . . . . . . . . . . . . 41
Acer GridVista (dual-display compatible) . . 41
Launch Manager . . . . . . . . . . . . . . . . . . . . . . 42
Norton AntiVirus . . . . . . . . . . . . . . . . . . . . . . 43
How do I check for viruses? . . . . . . . . . . . . . 43
Hardware Specification and Configuration . 44
Chapter Two System Utilities 53
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . 53
Information . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
VIII
TOC
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
BIOS Password Removal SOP . . . . . . . . . . . . 62
HDD Password Removal SOP . . . . . . . . . . . . 64
Chapter Three Machine Disassembly and Replacement 66
General Information . . . . . . . . . . . . . . . . . . . 66
Before You Begin . . . . . . . . . . . . . . . . . . . . . 66
Disassembly Procedure Flowchart . . . . . . . . 67
Disassembly Procedure . . . . . . . . . . . . . . . . . 68
Removing the Battery Pack . . . . . . . . . . . . . 68
Removing the HDD Module . . . . . . . . . . . . . 68
Removing the RAM Module/Mini PCI Card . 69
Removing the Keyboard . . . . . . . . . . . . . . . 70
Removing the LCD Module from the Main Unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Disassembling the Main Unit . . . . . . . . . . . . 72
Disassembling the LCD Module . . . . . . . . . . 76
Chapter Four Troubleshooting 79
System Check Procedures . . . . . . . . . . . . . . . 80
External Diskette Drive Check . . . . . . . . . . .
External CD-ROM Drive Check . . . . . . . . . . .
Keyboard or Auxiliary Input Device Check .
Memory Check . . . . . . . . . . . . . . . . . . . . . . .
Power System Check . . . . . . . . . . . . . . . . . . .
Check the Power Adaptor . . . . . . . . . . . . . .
Check the Battery Pack . . . . . . . . . . . . . . . . .
Touchpad Check . . . . . . . . . . . . . . . . . . . . . .
80
80
80
81
81
81
82
82
Power-On Self-Test (POST) Error Message . . 84
Index of Error Messages . . . . . . . . . . . . . . . . 84
Phoenix BIOS Beep Codes . . . . . . . . . . . . . . . 87
Index of Symptom-to-FRU Error Message . . 93
Intermittent Problems . . . . . . . . . . . . . . . . . . 97
Undetermined Problems . . . . . . . . . . . . . . . . 98
TOC
IX
Chapter Five Jumper and Connector Location 99
Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Bottom Side . . . . . . . . . . . . . . . . . . . . . . . . . 99
Upper Side . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Chapter Six FRU (Field Replaceable Unit) 102
Parts and Exploded Diagram . . . . . . . . . . . 103
X
TOC
Chapter 1
System Specification
Specification
Operating System
•
Windows VistaTM Capable
•
Windows VistaTM Premium Ready
•
Genuine Windows® XP Professional x 64 Edition
•
Genuine Windows® XP Professional (Service Pack 2)
•
Genuine Windows® XP Home Edition (Service Pack 2)
•
Genuine Windows® XP Media Center Edition 2005
Platform
•
AMD TurionTM 64 X2 dual-core TL-52/TL-56/TL-60 (1.6/1.8/2.0GHz, 2 x 512KB L2 cache) or TL-50
(1.6GHz, 2 x 256KB L2 cache) processor, supporting AMD PowerNow!TM Technology, AMD
HyperTransportTM Technology and Enhanced Virus Protection technology
•
Simultaneous 32-bit and 64-bit Windows® compatible support
•
ATI Radeon® Xpress 1150 chipset
System Memory
•
Up to 2GB of DDR2 667MHz memory, upgradeable to 4GB using two soDIMM modules (dual-channel
support)
Display and Graphics
•
12.1” WXGA 200-nit Acer CrystalBriteTM high-brightness TFT LCD, 1280 x 800 pixel resolution, 16/10
viewing ratio, supporting simultaneous multi-window viewing on dual displays via Acer GridVistaTM
•
12.1” WXGA 200-nit high-brightness TFT LCD, 1200 x 800 pixel resolution, 16/10 viewing ratio,
supporting simultaneous multi-window viewing on dual displays via Acer GridVistaTM
•
ATI Radeon® Xpress 1150 integrated 3D graphics, with up to 512MB HyperMemoryTM (up to 256MB of
dedicated system memory, or up to 256MB of shared system memory), supporting ATI PowerPlayTM
5.0, Microsoft® DirectX® 9.0, PCI Express®
•
MPEG-2/DVD hardware-assisted capability
•
16.7 million colors
•
Simultaneous LCD and CRT display, with LCD panel resolution at 70Hz refresh rate up to 2048 x 1536
resolution on non-interlaced CRT display
•
External resolution/refresh rate:
•
2048 x 1536: 70/60Hz
•
1920 x 1440: 75/60Hz
•
1600 x 1200: 100/85/75/60Hz
•
1400 x 1050: 60Hz
Chapter 1
1
•
1280 x 1024: 120/100/85/75/60Hz
•
1280 x 768: 60Hz
•
1024 x 768: 200/160/120/100/85/75/70/60Hz
•
800 x 600: 200/160/120/100/85/75/72/70/60Hz
Audio
•
High-Definition audio support
•
S/PDIF (Sony/Philips Digital Interface) support for digital speakers
•
Audio system with two built-in speakers
•
MS Sound compatible
•
Built-in microphone
Storage Subsystem
•
100/120/160GB serial ATA hard disk driver
•
External IEEE 1394 bus-powered 8X Slot-load DVD Super Multi double layer:
- Read: 24X CD-RW, 24X CD-ROM, 24X CD-R, 8X DVD+R, 8X DVD-R, 8X DVD-ROM, 4X
DVD+RW, 4X DVD-RW, 3X DVD-RAM, 2.4X DVD+R (double layer)
- Write: 24X CD-R, 8X DVD+R, 8X DVD-R, 4X DVD+RW, 4X DVD-RW, 4X CD-RW, 2.4X DVD+R
(double layer), 2X DVD-RAM
•
5-in-1 card reader, supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick® (MS),
Memory Stick PROTM (MS PRO), xD-Picture CardTM (xD)
Communication
•
Acer Video Conference featuring Voice and Video over Internet Protocol (VVoIP) support via Acer
OrbiCamTM and optional Acer Ferrari Bluetooth® VoIP phone
•
Acer OrbiCamTM 1.3 megapixel CMOS camera (LCD panel-mounted), featuring (for selected model):
•
225 degree ergonomic rotation
•
Acer VisageON technology
•
Acer PrimaLite technology
•
Modem: 56K ITU V.92 with PTT approval; Wake-on-Ring ready
•
LAN: Gigabit Ethernet; Wake-on-LAN ready
•
WPAN: Bluetooth® 2.0 + EDR (Enhanced Data Rate)
•
WLAN: Acer InviLinkTM NplifyTM 802.11b/g or 802.11a/b/g Wi-Fi CERTIFIEDTM solution, supporting Acer
SignalUpTM wireless technology
Input Devices
•
84/85-key Acer TouchFineTM keyboard
•
Touch pad pointing device
•
12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad,
international language support
•
Four easy-launch buttons: Empowering Key, email, Internet and user-programmable button
•
Two front-access communication switches: WLAN and Bluetooth® (two-way spring switch)
2
Chapter 1
I/O Interface
•
124-pin Acer ezDock
•
PC Card slot (Type II)
•
5-in-1 card reader (SD/MMC/MS/MS PRO/xD)
•
Three USB 2.0 ports
•
6-pin IEEE 1394 port
•
Fast Infrared (FIR) port
•
External display (VGA) port
•
S-video/TV-out (NTSC/PAL) port
•
Headphones/speaker/line-out jack with S/PDIF support
•
Microphone-in jack
•
Line-in jack
•
Ethernet (RJ-45) port
•
Modem (RJ-11) port
•
DC-in jack for AC adapter
Power Subsystem
•
ACPI 2.0 CPU power management standards: Stand-by and Hibernation power-saving modes support
•
57W 5200mAh 6-cell Li-ion battery pack and 22W 2000mAh 3-cell Li-Ion battery pack
•
Five-hour battery life with two battery packs
•
Acer QuicChargeTM technology:
•
•
80% charge in 1 hour
•
2-hour rapid charge system-off
•
2.5-hour charge-in-use
65W AC adapter
Security
•
Acer DASP (Disk Anti-Shock Protection)
•
Acer GraviSense and Acer Anti-Theft HDD protection technologies
•
Kensington lock slot
•
BIOS user and supervisor passwords
Software
•
•
Acer Empowering Technology
•
Acer ePower Management
•
Acer ePresentation Management
•
Acer eDataSecurity Management
•
Acer eRecovery Management
•
Acer eSettings Management
•
Acer ePerformance Management
Acer GridVistaTM
Chapter 1
3
•
Acer Launch Manager
•
Norton AntiVirusTM
•
CA eTrust® Antivirus 64-bit Edition
•
Adobe® Reader®
•
CyberLink® PowerDVDTM
•
NTI CD-MakerTM
•
Acer Voice Connection Manager
•
Acer OrbiCam
Dimensions and Weight
•
302.3 (W) x 221.28 (D) x 20.8/34.5 (H) mm (11.90 x 8.72 x 0.82/1.36 inches)
•
1.70 kg (3.63 lbs.) with 6-cell Li-Ion battery pack
•
1.55 kg (3.3 lbs.) with 3-cell Li-Ion battery pack
Environment
•
•
Temperature:
•
Operating: 5 oC to 35 oC
•
Non-operating: -20 oC to 65 oC
Humidity (non-condensing):
•
Operating: 20% to 80%
•
Non-operating: 20% to 80%
Note: This specifications listed above are for reference only. The exact configuration depends on the
model purchased.
Warning!For safety reasons, do not use non-compliant parts when you add or change components.
4
Chapter 1
Block Diagram
DDRII-SODIMM1
PG 7,8
PG 19
PCIE3 & USB4
PG 7,8
DDRII-SODIMM2
Mini Card (WLAN)
PCI Express Mini Card
533/ 667 MHZ DDR II
PCI-E, 1X
PCI-E, 1X
MODEM
RJ 11
PG 18
PG 24
Azalia MDC
USB 2.0 * 1(USB5)
SATA0
PATA 100
Azalia
PG 25
INT.
S.P.
PG 25
Amplifier
MAX9755A
PG 24
PG 31
PCIE2 & USB5
Amplifier
MAX4411
PG 25
H.P/SPDIF
PG 25
Azalia Audio
PG 23
PATA - HDD
PG 23
SATA - HDD
NEW CARD
Express Card
PG 25
MIC.
ZH3
AMD S1
Turion 64 Rev.F Dual-Core/
Sempron Rev.F Single-Core
Dual-Core 35W / Single-Core 25W
(638 S1g1 socket)
PG 3,4,5,6
HT_LINK
RS485
Page 5
CPU THERMAL
SENSOR
Page : 29
REQ# / GNT#
INT G#
INT E/F/G#
Interrupts
DVI
EXT_CRT
INT_CRT
PG 20
PG 16
AD25
REQ0# / GNT0#
INT E/F/G#
Docking
Page : 30
CRT
Page : 16
LVDS
Page : 16
5 IN 1
VCC_CORE
+1.2V
+VCCP
+1.8VSUS
+1.8V
PG 31
PG 30
CPU VR
+1.2V
+VCCP
PG 32
+1.8VSUS
SMDDR
VTERM
3V/5V
PG 33
PG 34
CHARGER
ICS951462
RJ45
PG 18
5788M PG 17
BROADCOM
10/100/1G LAN
PG 2
CLOCK GENERATOR
VIN
+3VPCU
+3V_S5
+3VSUS
+5VSUS
+5V
+12V
SMDDR_VTERM
Page: 22
PG 18
TRANSFORMER
BOTHHAND
HOST 133/166MHz
PCIE 100MHz
VGA 96MHz
USB 48MHz
Page: 22
PCMCIA
REF 14MHz
TI
PCI7412
1394
Page :21~22
Page: 21
OSC
48MHZ
PCMCIA+1394
+6 IN 1
ZH3 ASSY P/N :31ZH3MB0008
ZH3 MB C/S ASSY P/N: 41ZH3CS0001
ZH3 MB S/S ASSY P/N: 51ZH3SS0003
ZH3 PCB P/N: DA0ZH3MB8A3
CRT Switch
Page : 16
SN74CBTLV3257PWR
DVI
TI TFP513PAP
SDVO
TVOUT
RGB
LVDS
USB2.0 (P0~P7)
Bluetooth
USB7
REQ0# / GNT0#
PG 20
USB2.0 I/O Port X3
USB0 & USB1& USB2
DSC USB I/F
IDSEL#
REQ2# / GNT2#
USB6
AD25
PCI Bus 33MHz
PCI DEVICE
AD20
Page : 26
FIR
Page : 26
SIO (87383)
NS
PCI7412
Flash
ROM
PG 27
X-Bus
PG 27
5788M
KBC
Touch
Pad
PG 28
NS97551
PG 9,10,11,12
465 FCBGA
A_LINK
SB460
549 BGA
LPC
PG 14,15,16,17
G-SENSOR
KXP84-0200
Page : 23
K/B
CONN.
PG 28
5
Chapter 1
Outlook Tour
Front View
6
#
Item
1
Built-in camera
1.3 megapixel web camera for video communication.
Description
2
Display screen
Also called Liquid-Crystal Display (LCD), displays computer
output.
3
Power button
Turns the computer on and off.
4
Keyboard
Serves for entering data into your computer.
5
Palmrest
Comfortable support area for your hands when you use the
computer.
6
Touchpad
Touch-sensitive pointing device which functions like a computer
mouse
7
Click buttons
(left and right)
The left and right buttons function like the left and right mouse
buttons; the center button serves as a four-way scroll button.
8
Status indicators
Light-Emitting Diodes (LEDs) that light up to show the status of
the computer’s functions and components.
9
Easy-launch buttons
Buttons for launching frequently used programs.
10
Microphone
Internal microphone for sound recording.
Chapter 1
"Easy-launch buttons" on page 10
"Launch keys" on page 10
#
Icon
Item
Description
Closed Front View
#
Item
Description
"Launch keys" on page 10
#
#
Icon
#
Icon
1
Icon
#
2#
Icon
N/A
Icon
Item
Description
Item
Description
5-in-1
card reader
Item
Accepts Memory
Stick (MS), Memory Stick Pro (MS PRO),
Description
Multi Media Card (MMC), Secure Digital (SD) and xDPicture Card (xD) (manufacturing option).
Item
Description
Speakers
Item
Left and right speakers deliver stereo audio output.
Description
3
Line-in jack
Accepts audio line-in devices (e.g., audio CD player,
stereo walkman).
4
Microphone-in jack
Accepts input from external microphones.
#
Icon
5
Item
Headphones/speaker/
line-out jack with S/
PDIF support
Description
Connects to audio line-out devices (e.g., speakers,
headphones).
6
Bluetooth
communication
button/indicator
Enables/disables the Bluetooth communication.
Indicates the status of Bluetooth communication’
7
Wireless
communication
button/indicator
Enables/disables the wireless function.
Indicates the status of wireless LAN communication.
Note:
Infrared port
Interfaces with the infrared devices (e.g., infrared printer
and IR-aware computer).
8
N/A
Chapter
1
#
Icon
Item
Description
7
#
Icon
Item
Description
Left View
#
Icon
Item
1
#2
3
#
4
#
#
#
5
N/A
Icon
Icon
Kensington lock slot
Connects to a Kensington-compatible computers security
lock.
VentilationItem
slots
EnableDescription
the computer to stay cool, even after prolonged
use.
6-pin IEEE 1394 port
Connects to IEEE 1394 devices.
Item
Note:
Icon
Icon
Icon
Description
USB 2.0 ports
Item
Item
Item
PC Card slot
Description
Connect to USB 2.0 devices (e.g., USB mouse, USB
Description
camera).
Description
Description
Accepts one Type II PC Card.
6
N/A
PC Card slot eject
button
Ejects the PC Card from the slot.
4
N/A
Optical disk access
indicator
5
N/A
Slot-load optical drive Ejects the optical disk from the drive.
Note:
eject button
6
N/A
Slot-load optical drive Internal optical drive; accepts CDs or DVDs.
Note:
Lights up when the optical drive is active.
Note:
Right View
#
Icon
Item
Description
Note:
#
##
Icon Item
Icon Item
Icon
1
##
2
#
8
Item
Description
Description
Description
USB 2.0 ports
Icon
Icon
Icon
Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
Item
Description
Item
Description
Ethernet (RJ-45) port Connects to an Ethernet 10/100-based or 10/100/1000Item
Description
based
networks.
3
Modem (RJ-11) port
Connects to a phone line.
4
External display (VGA) Connects to an external display device (e.g., external
port
monitor, LCD projector).
Chapter 1
Rear View
#
Icon
#
Item
Icon
#
Icon
1
2
Description
Item
N/A
3
Description
Item
Description
124-pin Acer ezDock
connector
Connects to Acer ezDock.
Battery
Powers the computer.
DC-in jack
Connects to an AC adapter.
Base View
Note:
#
Item
Description
1
Battery bay
2
Battery release latch
Releases the battery for removal.
3
Memory compartment
Houses the computer’s main memory.
4
Hard disk bay
Houses the computer’s hard disk (secured with screws).
5
Battery lock
Locks the battery in position.
Chapter 1
Houses the computer’s battery pack.
9
Mouse
Upper View
#
Item
Description
1
Left click button
#
Item
3
Right click button
4
Status indicator "Launch keys"
Light-Emitting
on page 10 Diodes (LEDs) that light up to show the status of
the computer’s functions and components.
2
Scroll wheel
Press the left button to perform selection and execution
functions.
Description
Scrolls up or down a page. The scroll wheel mimics your cursor
pressing on the right scroll bar of Windows applications.
Press the right button to perform selection and execution
functions.
Bottom View
#
#
Icon
Icon
1
2
10
N/A
Item
Description
Item
Description
Bluetooth button
Press the button to turn on Bluetooth communication.
Power button
Turns the mouse on and off.
Chapter 1
External Optical Disk Drive
Front View
#
1
Item
Eject button
Description
Ejects the optical disk when the computer is on.
Connecting the Optical Drive
Please connect the 1394 cable to the 1394 port. Press the drive eject button to eject the optical
disk when the computer is on.
Chapter 1
11
#
Item
#
Description
Item
Description
Indicators
"Launch keys" on page 10
The computer has several easy-to-read status indicators.
#
#
"Launch keys" on page 10
Item
Description
Item
Description
"Launch keys" on page 10
"Launch keys" on page 10
#
Icon
Item
Description
Icon
Item
Description
Caps Lock
##
#
Icon
Icon
Icon
Item
Lights up when Caps Lock is activated.
Description
Item
Description
Num Lock
Lights up when Num Lock is activated.
HDD
Indicates when the hard disk drive is active.
Item Power
Lights when
the computer is on.
Description
Bluetooth
Indicates the status of Bluetooth communication
Wireless LAN
Indicates the status of wireless LAN communication
Battery
Lights when the battery is being charged.
Note: The light shows amber when the battery is charging. The light shows green when the system is
under AC mode.
12
Chapter 1
Easy-launch Buttons
There are several conveniently located easy-launch buttons. They are one user-programmable
button, web browser button, mail button, and Acer Empowering Key . Press
to run the Acer
Empowering Technology. Although the mail and web browser buttons are pre-set to E-mail and
Internet programs, they can be redefined by users. To set the web browser, mail and
programmable buttons, run the Acer Launch Manager.
Easy-launch button
Default application
"Easy-launch
buttons"
"Easy-launch buttons"
on page
10 on page 10
Acer Empowering Technology (user-programmable)
Mail
E-mail application (user-programmable)
Web browser
Internet browser (user-programmable)
P
User-programmable
"Easy-launch buttons" on page 10
Chapter 1
13
Touchpad
The built-in touchpad is a pointing device that senses movement on its surface. This means the
cursor responds as you move your finger across the surface of the touchpad. The central location
on the palmrest provides optimum comfort and support.
Touchpad Basics
The following items will show you how to use the touchpad.
•
Move your finger across the touchpad (2) to move the cursor.
•
Press the left (1) and right buttons located beneath the touchpad to perform selection and execution
functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the
touchpad is the same as clicking the left button.
Function
Right
button
Left button (1)
X
Main touchpad (2)
Execute
Quickly click twice.
Tap twice (at the same speed
as double-clicking a mouse
button).
Select
Click once
X
Tap once
Drag
Click and hold. Then slide
your finger across the
touchpad to drag the cursor
over the selection.
X
Tap twice (at the same speed
as double-clicking a mouse
button); rest your finger on
the touchpad on the second
tap and drag the cursor.
Access
context
menu
X
Click once
X
Scroll
X
X
Tap the arrows to move up/
down.
Note: Keep your fingers, as well as the surface of the touchpad dry and clean. The touchpad is
sensitive to your finger movements: the lighter the touch, the better the response. Tapping hard will
not increase the touchpad’s responsiveness.
14
Chapter 1
Using the Keyboard
The full-sized keyboard includes an embedded numeric keypad, separate cursor, lock, Windows,
function and special keys.
Lock keys and Embedded Numeric Keypad
The keyboard has three lock keys which you can toggle on and off.
Lock key
Description
Lock Key
Description
Caps Lock
When Caps Lock is on, all alphabetic characters are typed in uppercase.
Num Lock
<Fn> + <F11>
<Fn> + <F11>
When Num Lock is on, the right hand side numeric keypad is in
numeric mode. The keys function as a calculator (complete with the
arithmetic operators +, -, *, and /). When Num Lock is off, the keys
assume cursor and other shortcut functions.
Scroll Lock
<Fn> + <F12>
<Fn> + <F12>
When Scroll Lock is on, the screen moves one line up or down when
you press the up or down arrow keys respectively. scroll Lock does not
work with some applications.
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small
characters located on the upper right corner of the keycaps. To simplify the keyboard legend,
cursor-control key symbols are not printed on the keys.
Desired
access
Desired
access
Number keys on
embedded keypad
Num
on
Num
Lock Lock
on
Type numbers in a normal manner. N/A
<Shift>
Chapter 1
Num Lock off
Num Lock off
<Fn>
<Fn>
15
Desired access
Num Lock on
Num Lock off
Cursor-control keys on
embedded keypad
Hold <Shift> while using cursorcontrol keys.
Hold <Fn> while using cursorcontrol keys.
Main keyboard keys
Hold <Fn> while typing letters on
embedded keypad.
Type the letters in a normal
manner.
Windows keys
Key has two keys that
Description
The keyboard
perform Windows-specific functions.
Key
Windows key
Key
Description
Icon
Description
Press alone. This key has the same effect as clicking on the Windows
< button.
> + <Tab>:
Start
It launches the Start menu. It can also be used with other
keys
provide
< to >
+ <E>: a variety of functions:
< + <Tab>:
> + <F1>:
Activates the next Taskbar button.
<
> + <F>:
+ <E>: Opens the My Computer window.
+ <R>:
<
+ <F1>: Opens Help and Support.
> + <M>:
<
> + <Tab>:
<
> + <E>:
+ <F>:
Opens
Find (All Files dialog box).
<Shift>
+<
> +the
<M>:
+ <R>: Opens the Run dialog box.
+ <M>: Minimizes all windows.
<Shift> +
Application
key
<
> + <F1>:
<
> + <F>:
+ <M>: Undoes the minimize all windows action.
This key has the same effect as clicking the right mouse button. It
opens the application’s context menu.
+ <R>:
<
> + <M>:
<Shift> + <
16
> + <M>:
Chapter 1
Hotkeys
The computer employs hotkeys or key combinations to access most of the computer's controls
like screen brightness, volume output and the BIOS utility. To activate hotkeys, press and hold the
<Fn> key before pressing the other key in the<Fn>
hotkey combination.
Hotkey
Icon
Function
Hotkey
<Fn>
+ <F1> Icon
Hotkey
Hotkey
Function
Description
Icon Function
Function
Description
Icon
Description
<Fn> + <F1>
<Fn>
+ <F1>
Hotkey
<Fn>
+ <F1>
Icon
Function
<Fn> + <F2>
<Fn>
++ <F1>
Hotkey
<Fn>
<F2> Icon
Hotkey
Description
Function
Icon
Function
Description
Description
"Acer eManager" on
"Acer eManager" on
page
20eManager" on
page
20
"Acer
Function
Description
Function
Description
"Acer eManager" on
Function Description
page 20 Description
Function
Hotkey
<Fn>
<F2> Icon
<Fn>
++ <F1>
<Fn>
+ <F2>
Function
<Fn>
+ <F1> Icon
Hotkey
Hotkey
Icon
Hotkey
<Fn>
<Fn>
<F1> Icon
<Fn>
+ +<F2>
<F3>
<Fn>
+ +<F3>
<Fn> + <F1> Icon
Hotkey
Description
Hot Key
Icon
Function
<Fn>
<Fn>+ +<F1>
<F2>
<Fn>
<F3>
+
<F1>
Hotkey
Icon
<Fn><Fn>
+ <F1>
<Fn>
++<F1>
Hot Function
key help
<F2>
<Fn>
+<F4>
<F2>
<Fn>
++<F2>
<Fn>
<Fn>
+
<F2>
<Fn>
+ +<F4>
<F2>
<Fn>
++<F3>
<F3>
<Fn>
<F4>
<Fn>
pageDescription
20
"Acer eManager" on
"Acer eManager" on
page"Acer
20 eManager" on
page 20
DisplaysDescription
help on hotkeys.
<Fn> <Fn>
+ <F3>
+ <F2> <Fn> + <F1>
+ <F3>
<Fn><Fn>
+ <F2>
Description
page 20
<Fn> + <F2>
<Fn>
+++<F4>
<Fn>
<F3>
<Fn>
<F3>
<Fn>
<F5>
<Fn>
++
<F3>
<Fn> + <F3>
<Fn>
<Fn> ++ <F4>
<F5> <Fn> + <F3>
<Fn>
+ <F4>
<Fn>
<F3>
<Fn>
+ +<F5>
<Fn>
<F4>
<Fn> + <F4>
+++<F4>
<Fn>
<F4>
<Fn>
<F4>
<Fn>
+
<Fn><Fn>
+<F3>
<F5>
"Acer eManager" on
Launches the
Acer
eSettings
Acer Empowering
"AcerineManager"
on
"Acer
eManager"
on
page 20
Technology.
page 20
Acer eSettings
page 20
page 20
"Acer eManager" on
"
Acer ePower
Management
"Acer eManager"
Launches the Acer ePower Management
in Acer
Empowering
Technology.
page 20
Sleep
Leads the computer to Sleep mode.
Display toggle
Switches the display output between the display
screen, external monitor (if connected) and both.
Screen blank
Turns off the display screen backlight to save
power. Press any key to return.
Touchpad
toggle
Turns the internal touchpad on and off.
"
<Fn> + <F5>
<Fn>
<F5>
<Fn>++
+<F6>
<F4> <Fn> + <F4>
<Fn>
<Fn>
+
<F6>
<Fn> +
<Fn>
+ <F5>
<F5>
<Fn>
<Fn>++<F5>
<F5>
<Fn> + <F5> <Fn> + <F5>
<Fn><Fn>
<F6>
<Fn>
++<F4>
+ <F5>
<Fn>
+<F7>
<F6>
<Fn>
<Fn>
<F6>
<Fn>
+++<F6>
<Fn>
++
<F6>
<Fn>
<F7>
<Fn>
<F6>
<Fn> + <F6>
<Fn> + <F6>
+<F7>
<F6>
<Fn>
++++<F6>
<Fn>
+<Fn>
<F5>
<Fn>
<Fn>
<F6>
<Fn>
<F7>
<Fn>
<F7>
<Fn>
+ +<F7>
<Fn>
++<F7>
<F8>
<Fn>
<Fn>
<F8> <Fn> + <F7>
<Fn><Fn>
+ <F7>
+ <F7>
<Fn>
<Fn>++<F8>
<F7> <Fn> + <F8>
<Fn>
<F7>
<Fn>
++
<Fn>
<F8>
<Fn>
<F8>
<Fn>
+++++<F8>
<F7>
<Fn>
<< >>
<Fn>
<Fn>+
+<F6>
<F8>
<Fn>
+ <F8> <Fn> + <
<Fn><Fn>
+ <F8>
<Fn>
++
>
<Fn>
+<+<<
<
>>
<Fn>
<F8>
<Fn>
<F8>
<Fn>
+
>
<Fn>
+ +<F8>
<Fn>
< >
<Fn>
<Fn>
++<+<+<<>>>
<Fn>
<Fn>
<Fn>++<< >>
<Fn>
<Fn>
++<F7>
<Fn><Fn>
<++ <<>>>
Speaker toggle Turns the speakers on and off.
>
Volume up
Increases the sound volume.
Volume down
Decreases the sound volume.
Brightness up
Increases the screen brightness.
Brightness
down
Decreases the screen brightness.
<Fn> + < >
<Fn>
<Fn>
+ +<< >>
<Fn>
+<<<< >
<Fn>
>>
<Fn>
+ <F8>
<Fn>
<Fn>
++++
<Fn>
< >>
<Fn> + <
>
<Fn>
<>>>
<Fn>
++<>
<Fn>
+
<Fn>
+<
<
<Fn> + < >>
<Fn> + <
<Fn>
< >
<Fn>+++<<>
<Fn>
<Fn>
+<
<Fn>
<Fn>
<Fn>
+ +<>< >>>
<Fn>
<Fn>++<< >
>
<Fn> + < >
<Fn> +
+< >
<Fn>
<Fn><+ < >>
<Fn>
+<
>
<Fn>
+<
<Fn>
+< >
>
Chapter 1
<Fn>
+<
<Fn> + <
>
>
<Fn>
+<
<Fn>
+ <> >
17
on
<Fn> + < >
<Fn> + <
>
<Fn> + <
>
Special keys
You can locate the Euro symbol and the US dollar sign on the upper-center and/or bottom-right
side of the keyboard.
The Euro Symbol
1. Open a text editor or word processor.
2. Hold <Alt Gr> key then press the number <5> key on the upper-center side of the keyboard.
Alt Gr>
<5>
Note: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/
typography/faq/faq12.htm
for more information.
Note
www.microsoft.com/typography/faq/faq12.htm
The US Dollar Sign
1. Open a text editor or word processor.
2. Hold <Shift> and then press the US dollar sign on the <4> key on the upper-center side of the
keyboard.
<Shift>
<4>
Note: This function varies according to the language settings.
18
Chapter 1
Using the Bluetooth Optical Mouse
The Ferrari notebook comes with a Bluetooth optical mouse.
Installation
Installation of the Bluetooth mouse is simple. Enable Bluetooth functionality by pressing the
Bluetooth communication button on the front panel.
1. Turn the mouse upside down. Make sure the power switch is ON. Press and hold the Connect button
for three seconds. The mouse is now in pairing mode and is ready to connect to the computer.
2. On the notebook, open My Bluetooth Places by double-clicking on the Bluetooth icon.
3. From the menu bar, select Bluetooth and then Bluetooth Setup Wizard.
4. Select I want to find a specific Bluetooth device and configure how this computer will use its
devices. Then click Next.
5. From the drop-down menu, select Show mice, keyboards and joysticks, and then click on the
Search Again button.
6. The Acer mouse will be discovered. Click on the Acer mouse icon, and then click Next.
7. The services that are available from the device will be listed. Select Bluetooth Mouse and click Finish.
8. Wait while the mouse is installed. This may take several seconds.
9. The mouse is now connected. Move the mouse to verify the connection.
Usage
Use the Bluetooth mouse as you would a traditional mouse. For optimal performance, use a
mouse pad. Using the Bluetooth mouse on a transparent or reflective surface will inhibit the
ability of the optical sensor to track the cursor.
Chapter 1
19
Acer Bluetooth® VoIP Phone
Layout
#
Item
Description
"Launch keys" on page 10
#
#
20
Icon
Item
Icon
Description
Item
Description
1
N/A
PC Card (PCMCIA)
interface connector
Connects the computer’s PCMCIA card interface.
2
N/A
Speaker
Speaker delivers audio output.
3
N/A
Volume up/down
button
Increases/decreases the sound volume.
4
Power button
Turns the phone on and off.
5
Bluetooth connection/ Enables/disables the Bluetooth function.
pairing button
6
Speakerphone button Enables/disables the speakerphone function.
7
N/A
Microphone
Internal microphone for sound recording.
8
N/A
Flip
Flips out internal microphone.
9
N/A
Bluetooth connection/ Indicates the Bluetooth connection/pairing status.
pairing indicator
10
N/A
Charge/Power
indicator
Indicates the computer’s charge/power status.
Chapter 1
LED Indicators
LED
Color
Bluetooth
connection/
pairing
indicator
Blue
Charge/Power
indicator
Amber
Status
Description
Blinking fast
The phone is in pairing mode.
Blinking slow
The phone is linking with the notebook.
Off
The phone is not paired or linked with the
notebook.
On
The phone is charging.
Off
The phone is fully-charged.
Blinking
The phone needs to be recharged.
Charging the Phone
You need to charge the phone before initial use. It takes approximately four hours for a full
charge. To charge the phone:
1. Turn the notebook on.
2. Locate the PC Card (PCMCIA) slot.
3. Insert the phone to the slot label up. Make sure that the phone is completely pushed on the slot.
Note:
Wizard
New Device
Note: The notebook detects the device and displays a New Device Wizard window. Click No, not
this time, then close the window.
No, not this time,
4. The power/charge indicator lights up during charge and turns off when the battery is full. Eject the
phone from the PC Card slot when charging is finished.
Chapter 1
21
Using Acer Voice Connection Manager (VCM)
Installing Acer VCM
Note: Quit all applications before installing Acer VCM. The Acer VCM AcerVCM
requires system restart after
installation.
Setup.exe
Please follow the steps below to install the Acer VCM application in the notebook.
1. Place the Acer VCM installation CD to the optical drive.
2. Explore the installation CD, then locate and double-click on the AcerVCM Setup.exe file to start
installation.
3. Follow screen instructions to proceed.
Info Bar
After restart, the Acer VCM displays an info bar that provides information on the current audio
device and IM (Instant Messaging) service status. Press (X) to close this bar.
Acer VCM Menu
Right-click the Acer VCM icon
on the system tray to display a pop-up menu. You can use this
menu to manage the VCM functions.
Item
Function
Close/Open Acer VCM Info Bar
Hides or displays the info bar.
Acer VCM
Enables or disables the Acer VCM.
External Audio Device
Allows you to select the external audio device.
Bluetooth Headset Connection
center
Allows you to scan and connect a Bluetooth headset device
to the notebook.
Preferences
IM Control tab allows you to arrange your IM priority.
General tab allows you to set the hotkeys for audio and IM
functions.
Help
Opens the online help file.
Exit
Closes the Acer VCM menu.
22
Chapter 1
Connecting the Phone to Your Notebook
The Acer VCM Bluetooth Headset Connection Center is a convenient tool to connect the phone
to your notebook.
To connect the phone to your notebook:
1. Eject the phone from the PC Card slot, if necessary, then press the phone power button for three
seconds. The phone beeps twice and the charge/power LED flashes to indicate that the phone is on.
2. Press the Bluetooth connection/pairing button for three seconds to put the phone in pair-link mode.
The phone beeps twice, and the connection/pairing and charge/power LEDs flash alternately.
3. Right-click the Acer VCM icon on the task bar, then select Bluetooth Headset Connection Center
from the pop-up menu. If you have not paired any Bluetooth headset devices with the notebook
previously, Acer VCM automatically scans all Bluetooth headset devices within range, then displays
them in the Bluetooth Headset List with a New status. Otherwise, any previously paired Bluetooth
headset device shows Read to Use.
4. Click the Acer Bluetooth VoIP Phone from the list, then click Connect. Acer VCM automatically pairs
the phone to the notebook, then changes the phone status to Default Use.
Note: Click Rescan if the Acer Bluetooth VoIP Phone does not appear on the list. After pairing, Acer
VCM automatically connects the phone to the notebook each time you turn the phone on. There is no
need to connect the phone again.
Chapter 1
23
Using the Phone
You can use the phone in handheld or hands-free (speaker phone) mode. When you receive an
internet call from your instant messaging service (i.e. MSN® Messenger, Skype), press the
Bluetooth connection/pairing button. The incoming call voice automatically diverts to the phone
Note:
speaker so you can receive the call.
Note: You can only receive/answer internet calls through the phone when it is linked to the notebook.
Every time you turn the phone on, Acer VCM automatically links it to the notebook. When linked, the
Bluetooth connection/pairing indicator on the phone blinks slowly.
To switch to hands-free mode, rotate the phone flip counterclockwise, then press the speaker
phone button. Refer to the illustration on the right.
24
Chapter 1
Acer OrbiCam
The Acer OrbiCam is a 1.3 megapixel CMOS camera appropriately mounted on top of the LCD
panel. The camera’s 225-degree ergonomic rotation allows you to capture high-resolution photos
or videos up front or at the back of the LCD panel. The Acer OrbiCam fully supports the Acer
Video Conference technology so you transmit the best video conference quality over an instant
messenger service.
Front View
1
#
23
Item
#
#
Item
Item
1
Lens
2
Power indicator
3
Rubber grip
Rotating the Acer OrbiCam
The Acer OrbiCam rotates 225 degrees counterclockwise to achieve the desired angle. Refer to
the illustrations below:
Note: Do NOT rotate the camera clockwise to prevent damage to the device.
For your convenience, the camera snaps 45 degrees to match the position of your face in front or
at the back of the LCD panel.
Chapter 1
25
Launching the Acer OrbiCam
To launch the Acer OrbiCam, double-click on the Acer OrbiCam icon on the screen, or Click Start >
All Programs > Acer > Acer OrbiCam. The Acer OrbiCam capture window will appear as below.
Changing the Acer OrbiCam Settings
Resolution
To change the capture resolution, click the displayed resolution at the bottom right corner of the
capture window, then select the desired resolution.
Note: Setting the camera resolution to 640 x 480 or larger does not change the capture window size.
26
Chapter 1
Options
Click Options to display the Window, Preview, and Folder tabs. Use the options to change the
capture window size, preview settings, and the folder for captured photos or videos.
Camera Settings
Basic Settings
Click the Camera Settings icon on the bottom right corner of the capture display, then select
Camera Settings from the pop-up menu. You can adjust the Video, Audio, and Zoom/Face
tracking options from this window.
Chapter 1
27
Capture Settings
From the Camera Settings window, click the Driver Settings button. The Properties window
will appear.
Device Settings allows you to change the camera brightness, contrast, hue, saturation,
sharpness, etc.
Advanced Settings allows you to achieve gain control, implement image mirror, select image
enhancements and anti-flicker settings, and turn on/off the camera indicator.
Zoom/Face Track Settings allows you to adjust the zoom level and turn the face tracking
feature on or off.
Capturing Photos or Videos
To capture a photo or a video clip, rotate the Acer OrbiCam to get the desired angle, then click
the Take a Picture or Record a Video button. The Windows Picture and Fax Viewer or the
Windows Media Player automatically launches to display or play a preview of the photo or
video clip.
Note: By default, all photos and videos are saved in the My Pictures and My Videos folder.
28
Chapter 1
Using the Acer OrbiCam as Webcam
The Acer OrbiCam is automatically selected as the capture device of any instant messenger (IM)
application. To use the Acer OrbiCam as a webcam, open the IM service, then select the video/
webcam feature. You can now broadcast from your location to an IM partner anywhere in the
world.
Enabling the Acer VisageON
The Acer VisageON technology comes with two features: Face tracking and Video effects. The
Face Tracking feature tracks your head movement and automatically centers your face in the
capture window. The video effects feature allows you to select and apply an effect to your video
transmissions.
Note: The face tracking feature is not capable of centering your face beyond the capture window
frame. Minimal head movements are tracked more efficiently.
Please follow the steps below to enable the Acer VisageON.
1. Right click on this icon, then select VisageON from the pop-up menu.
The VisageON window will appear as below:
2. Select and apply a video effect in the left section of the VisageON window. Change the face tracking
settings and options in the right section.
Chapter 1
29
Using the Face Tracking Feature
To use the face tracking feature:
1. Click the left icon down arrow button, then select Single User or Multiple Users from the pop-up menu.
For multiple users, the face tracking feature automatically centers all the users’ face in the capture
window, otherwise the utility centers the face of the user closest to the camera.
2. Click the right icon to zoom in/out or reset the current view.
3. Click VisageON to display a menu that allows to change the configuration of the camera, face tracking
and video effects settings.
Using Video Effects (selected models only)
The Video Settings section allows you to select an avatar or accessory video effect from the list.
To select an effect:
1. Click the encircled icon to display the available video effects. The Video Effect Selection window will
appear as below.
30
Chapter 1
2. Click on a video effect to use. The selected effect appears in the video effects section of the VisageON
window.
Note: 1. When using avatars, you may have to calibrate the face points to achieve better tracking.
Follow screen instructions in the VisageON window to continue. 2. You may use video effects when
using the camera for IM chat/video sessions or call conferences.
Chapter 1
31
Acer Empowering Technology
Acer’s innovative Empowering Technology toolbar makes it easy to have access to the frequently
used functions and manage the notebook. Displayed by default in the upper-right corner of the
screen, it features the following handy utilities:
•
Acer ePower Management extends battery power via versatile usage profiles.
•
Acer ePresentation Management connects to a projector and adjusts dispaly settings conveniently.
•
Acer eDataSecurity Management protects data with passwords and advanced encryption
algorithms (for selected models).
•
Acer eRecovery Management backs up and recovers data flexibly, reliably and completely.
•
Acer eSettings Management accesses system information and adjusts settings easily.
•
Acer ePerformance Management improves system performance by optimizing disk space, memory
and registry setting.
For more information, right click on the Empowering Technology toolbar, then select the Help or
Tutorial function.
Empowering Technology Password
Before using Acer eLock Management and Acer eRecovery Management, You must initialize the
Empowering Technology password. Right click on the Empowering Technology toolbar and select
Password Setup to do so. If you do not initialize the Empowering Technology password, you
will be prompted to do so when running Acer eLock Management or Acer eRecovery
Management for the first time.
Note: If you lose your password, there is no method to reset it except by reformatting your notebook
or taking your notebook to an Acer Customer Service Center. Be sure to remember or write down your
password.
32
Chapter 1
Acer ePower Management
Acer ePower Management features a straightforward user interface. To launch it, select Acer
ePower Management from the Empowering Technology interface.
AC Mode (Adapter Mode)
The default setting is Maximum Performance. You can adjust CPU speed, LCD brightness and
other settings, or click on buttons to turn the following functions on/off: wireless LAN, Bluetooth,
CardBus, fireware (1394), wired LAN and optical device if supported.
DC Mode (Battery Mode)
There are four pre-defined profiles: Entertainment, Presentation, Word Processing, and Battery
Life. You can also define up to three of your own.
To Create a New Power Profile
1. Change power settings as desired.
2. Click Save as... to save to a new power profile.
3. Name the newly created profile.
4. Select whether this profile is for Adapter or Battery mode, then click OK.
5. The new profile will appear in the profile list.
Battery Status
For real-time battery life estimates based on current usage, refer to the panel on the upper half
side of the window.
Chapter 1
33
For additional options, click Settings to:
•
Set alarms.
•
Reload factory defaults.
•
Select what actions to be taken when the cover is closed or the power button is pressed.
•
Set passwords for accessing the system after Hibernation or Stand-by.
•
View information about Acer ePower Management.
34
Chapter 1
Acer ePresentation Management
Acer ePresentation Management lets you project your computer’s display to an external device or
projector using the hotkey: <Fn> + <F5>. If auto-detection hardware is implemented in the
system and the external display supports it, your system display will be automatically switched
out when an external display is connected to the system. For projectors and external devices that
are not auto-detected, launch Acer ePresentation Management to choose an appropriate display
setting.
Note: If the restored resolution is not correct after disconnecting a projector, or you need to use an
external resolution that is not supported by Acer ePresentation Management, adjust your display
settings using Display Properties or the utility provided by the graphics vendor.
Chapter 1
35
Acer eDataSecurity Management (for selected models)
Acer eDataSecurity Management is a handy file encryption utility that protects the files from
being accessed by unauthorized persons. It is conveniently integrated with Windows Explorer as
a shell extension for quick and easy data encryption/decryption and also supports on-the-fly file
encryption for MSN Messenger and Microsoft Outlook.
The Acer eDataSecurity Management setup wizard will prompt you for a supervisor password
and default encryption. This encryption will be used to encrypt files by default, or you can choose
to enter your own file-specific password when encrypting a file.
Note: The password used to encrypt a file is the unique key that the system needs to decrypt it. If you
lose the password, the supervisor password is the only other key capable of decrypting the file. If you
lose both passwords, there will be no way to decrypt your encrypted file! Be sure to safeguard all
related passwords!
36
Chapter 1
Chapter 1
37
Acer eRecovery Management
Acer eRecovery Management is a powerful utility with the need for recovery disks provided by
the manufacturer. The Acer eRecovery Management utility occupies space in a hidden partition
on the system’s HDD. Be default, user-created backups are stored on D:\ drive. Acer eRecovery
Management provides:
•
Password protection
•
Recovery of applications and drives
•
Image or data backup:
•
•
Backup to HDD (set recovery point)
•
Backup to CD or DVD
Image/data recovery tools:
•
Recovery from a hidden partition (factory defaults)
•
Recovery from the HDD (most recent user-defined recovery point)
•
Recovery from CD or DVD
Note: If the computer did not come with a Recovery CD or System CD, please use Acer eRecovery
Management’s System backup to optical disk feature to burn a backup image to CD or DVD. To
ensure the best results when recovering the system using a CD or Acer eRecovery Management,
detach all peripherals (except external Acer ODD, if equipped), including the Acer ezDock.
38
Chapter 1
Acer eSettings Management
Acer eSettings Management allows you to inspect hardware specification, change BIOS
passwords or other Windows settings, and to monitor the system health status.
Acer eSettings Management also:
•
Provides a simple graphical user interface for navigation.
•
Displays general system status and advanced monitoring for power users on Acer computer.
Chapter 1
39
Acer ePerformance Management
Acer ePerformance Management is a system optimization tool that boosts the performance of
the Acer notebook. It provides an express optimization method to release unused memory and
disk space quickly. The user can also enable advanced options for full control over the following
options:
•
Disk optimization: removes unneeded items and files.
•
Speed optimization: improves the usability and performance of the Windows XP system.
•
Memory optimization: releases unused memory and check usage.
40
Chapter 1
Using the System Utilities
Note:
Note: The system utilities work under Microsoft Windows XP only.
Acer GridVista (dual-display compatible)
Note: This feature is only available on certain models.
To enable the dual monitor feature of the notebook, first ensure that the second monitor is
connected, then select Start, Control Panel, Display and click on Settings. Select the
Startclick
Control
Panel
secondary monitor (2) icon in the display box and then
the check
boxDisplay
Extend my windows
Settings
(2)
Note:
desktop onto this monitor. Finally, click Apply to confirm the new settings and click OK to
Extend my windows desktop onto this monitor
complete the process.
Apply
OK
Settings
Apply
Start Control Panel Display
(2)
Extend my windows desktop onto this monitor
OK
Acer GridVista is a handy utility that offers four pre-defined display settings so you can view
multiple windows on
the same
screen. To access this function,
please go to Start > All Programs
Start
All Programs
Acer GridVista
and click on Acer GridVista.Start
YouAllmay
choose any oneAcer
of the
four display settings indicated below:
Programs
GridVista
Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
Acer GridVista is simple to set up:
1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.
2. Drag and drop each window into the appropriate grid.
3. Enjoy the convenience of a well-organized desktop.
Chapter 1
41
Note: Please ensure that the resolution setting of the second monitor is set to the manufacturer's
recommended value.
Note:
Note:
Launch Manager
buttons"
on page 24
Launch Manager allows"Easy-launch
you to set the
four easy-launch
buttons located above the keyboard. You
can access the Launch Manager by clicking on Start > All Programs > Launch Manager to start the
Start All Programs
application.
Launch Manager
"Easy-launch buttons" on page 24
Start All Programs
Chapter 1
42
Launch Manager
Start All Programs
Launch Manager
Norton AntiVirus
Norton AntiVirus is an anti-virus software that finds and repairs infected files, and protects
against viruses to keep you computer data safe and secure.
How do I check for viruses?
A Full System Scan scans all files on your computer. To perform a system scan:
Norton
1. Start Norton Antivirus: Double click
on theAntiVirus
Norton AntiVirus Icon on the desktop or click on the Start
Start
menu in the
Windows task bar, highlight Programs, and selectPrograms
Norton Antivirus.
Norton
AntiVirus
2. In the Norton
Antivirus
main window, click Scans.
Scans
Scans
Run Full System Scan
3. In the Scans panel, click Run Full System Scan.
4. When the scan is complete, a scan summary appears. Click Finished.
Finished
You can schedule customized virus scans that tun unattended on specific dates and times or at
periodic intervals. If you are using the computer when the scheduled scan begins, it runs in the
background so that you do not have to stop working.
For more information, please refer to the Norton AntiVirus Help menu.
Chapter 1
43
Hardware Specification and Configuration
Processor
Item
Specification
Type
AMD Turion
Feature
•
•
•
•
Power
• Multiple low power states
• System Management Mode (SMM)
• ACPI compliant, including support for processor performance states
TM
64 X2 dual-core TL-50/TL-52/TL-56/TL-60 processor
AMD 638-pin Lidless Micro PGA package
64-bit integer registers, 48-bit virtual addresses, 40-bit physical addresses
Eight new 64-bit integer registers (16 total)
Eight new 64-bit SSE registers (16 total)
• AMD PowerNow!TM technology is designed to dynamically switch
between multiple low power states based on application performance
requirements
System Main Chipset
Item
Specification
Core logic
ATi RS485M + ATi SB460
System clock
ICS ICS951462
BIOS ROM
SST 39VF080
KBC
NSPC97551
PCMCIA & IEEE 1394 &
Memory card reader
PCI7412ZHK
Super I/O
NSPC87383
IR
Vishay TFU6102F
Audio Codec & Amplifier
Realtek ALC883D Azalia Codec and Amplifier Maxim
MAX4411
LAN
Broadcom 5788M
North Bridge
Item
44
Specification
Chipset
ATi RS485M
Package
465-pin FCBGA package, 21mm x 21mm
Feature
• 200/400/800/1000MHz HyperTransport interface support
• One x 16 graphics interface used by another device
• Highly-optimized 128-bit engine, capable of processing multiple pixels
per clock
• Integrated dual 24-bit LVDS interface
• 595Mbps/channel with 85MHz pixel clock rate
• External displays (e.g., flat panel, CRT or TV) via a DVO port support
• ACPI states S1, S3, S4 and S5 fully supported
Power
1.8V core, 3.3V, 5V CMOS I/O
Chapter 1
South Bridge
Item
Specification
Chipset
ATi SB460
Package
549-pin BGA package
Feature
•
•
•
•
•
•
•
•
•
•
Power
1.8V core, 3.3V, 5V CMOS I/O
PCI2.3 interface (6 PCI Request/Grant pairs)
Bus master IDE controller (Ultra 100/66/33 support)
Serial ATA controller
USB1.1 & 2.0 host controllers
Compliant with AC’97 2.3 interface
Low pin count (LPC) interface
RAID Striping (RAID 0) support
IRQ controller
Enhanced DMA controller, interrupt controller, times, RTC
ACPI Power management
System Clock
Item
Specification
Chip
ICS ICS951462 or pin compatible device
Package
64-pin TSSOP
Feature
• Spread spectrum function support for reducing EMI
• SM bus interface support
Clock
synthesizer
• 133/166MHz for CPU
• 100MHz clock buffer for RS485M, SB460 and PCI-E device, SATA, Docking
station
• 96MHz RS485M
• 48MHz for USB clock inside SB460
• 33MHz PCI clock for PC device, SIO, LPC
• 14.31818MHz for SB460 and Audio
Power
3.3V
System Memory
Item
Feature
Specification
•
•
•
•
DDRII 533/667MHz SDRAM memory interface design
0MB DDR RAM on board
Two SODIMMS slots
Maximum memory up to 4GB (with two 2GB SODIMMs)
Hard Disk Drive
SEAGATE
Model
ST9160821AS
ST9120821AS
ST9100824AS
Formatted Gbytes (512 bytes/sector): 160 / 120 / 100
Physical read/write head: 4 / 4 / 4
Discs: 2 / 2 / 2
Spindle Speed (RPM): 5400 / 5400 / 5400
Chapter 1
45
SEAGATE
I/O data transfer rate (Mbytes/sec. max.): 150 / 150 / 150
Internal transfer rate (Mbytes/sec. max.): 57.6 / 57.6 / 57.6
ATA data transfer mode supported:
SATA 1.0, SATA II, PIO modes 0-4, Multiword DMA modes 0-2, Ultra DMA modes
0-6
Cache buffer: 8MB
Bytes per sector: 512 / 512 / 512
Voltage tolerance: +5.0V +/- 5%
TOSHIBA
HGST
Model
MK1234GSX
46
MK1032GSX
HTS541616J9SA00
Formatted Gbytes (512 bytes/sector): 120 / 100
160
Physical read/write head: 4 / 4
4
Discs: 2 / 2
2
Spindle Speed (RPM): 5400 / 5400
5400
Internal transfer rate (Mbits/sec. max.): 244.7~474.4
/ 236.1~456.0
N/A
I/O data transfer rate (Mbytes/sec. max.): 150 / 150
150
ATA data transfer mode supported: ATA7, SATA
1.0a, SATA II 1.2, Multi word DMA, Ultra DMA
modes, Advanced PIO mode settings and
commands
N/A
Cache buffer (MB): 8 / 16
8
Bytes per sector: 512 / 512
512
Voltage tolerance: +5.0V +/- 5%
+5.0V +/- 5%
Chapter 1
Optical Disk Drive
Item
Description
Vendor and model
name
PANASONIC NSM8XSL1393
8X SUPER MULTI (DL) EXTERNAL UJ-85J SLOT IN LF
Buffer memory
2MB
Interface
ANSI ATA/ATAPI-5
Applicable disc format
• DVD (read): DVD-ROM single layer, DVD-ROM dual layer, DVD-R
4.7GB, DVD-R 3.95GB, DVD-R dual layer, DVD-RW 4.7GB, DVDRAM, 4.7GB, DVD+R single layer, DVD+R dual layer, DVD+RW,
DVD-Video
• DVD (write): DVD-R 4.7GB, DVD-R dual layer, DVD-RW 4.7GB,
DVD-RAM 4.7GB, DVD+R single layer, DVD+R dual layer,
DVD+RW
• CD (read): CD-ROM, CD-R, CD-RW, CD-DA (audio play), Video-CD
• CD (write): CD-R, CD-RW
Loading mechanism
Manual load
Power requirement
max. 2100mA
Input voltage
5V +/- 5% (Operating)
BIOS ROM
Item
Type
Description
SST 39VF080
Package
40-pin TSOP
Block Size
64KB per block
Supply current
Active current: 15mA (typical)
Standby current: 4uA (typical)
Remark
The 32-pin PLCC package 1MB Flash ROM SST 39VF080 is used for BIOS,
keyboard encoder and power controller codes. It occupies system memory
area E0000-FFFFF. After posting system, the shadow RAM function will be
enabled.
BIOS
Item
Vendor
Description
Phoenix
Version
Phoenix BIOS V0.3104
Feature
•
•
•
•
•
•
•
•
•
•
•
•
Chapter 1
1MB flash RIOM for system BIOS
Suspend to RAM (S3) / Disk (S4)
Various hot keys for system control
Support boot option: HDD / Removable device (media bay device) / all
USB ports
Support protocols: SMBIOS 2.3, PCI 2.2, WFM 2.0
ACPI 1.0b compliance with AMD PowerNow!
DMI utility for BIOS serial number configurable/asset tag
Y2K solution support
BIOS virus protection
WinFlash support
Wake on LAN from S3
Wake on LAN from S4 in AC mode
47
KBC
Item
Description
Chip
NSPC97551
Package
LQFP 176-pin package
Features
•
•
•
•
•
•
•
•
Host interface, based on Intel’s LPC interface specification Revision 1.0
PC01 REV 0.3 and ACPI 1.0b compliant
16-bit RISC core with 2MB address space, speed up to 20MHz
Share BIOS flash memory (internal and/or external)
84 GPIO ports with variety of wake-up events
Extremely low current consumption in idle mode
JTAG-based debugger interface
Software and hardware controlled clock throttling
PCMCIA Express Card
Item
Description
Chip
PCI7412ZHK
Feature
• PC card 95 supported with 1x Type II PCI card bus
• Express card/34 slot support (co-existence with one PCMCIA)
IEEE 1394
Item
Description
Chip
PCI 7412ZHK
Feature
• PCI single chip solution with PCI 2.2 compliant
• OHCI V1.1
• IEEE 1394.A 6-pin
IR Interface
Item
Description
Chip
Vishay TFU6102F
Feature
• Compliant to the IrDA standard up to 4 Mbit/sec. transfer rate
• Low power consumption (< 3mA supply current)
• Power shutdown mode (< 5uA shutdown current in full temperature
range)
• Tri-state-receiver output floating when in shutdown mode
LAN Interface
Item
48
Description
LAN controller
Broadcom 5788MG
Feature
• File deployment support
• WOL from S5 support
• LDCM support
Chapter 1
Audio Codec & Amplifier
Item
Description
Chip
Realtek ALC883D Azalia Codec and Amplifier Maxim MAX9710
Feature
• HD audio
• SNR > 85, high-performance DACs with 95dB SNR (A-weighting), ADCs
with 85dB SNR (A-weighting)
• Internal microphone
• Two speakers, at least 1.5W/30cc for each
• 2* digital microphone array
• VoIP function support
• Universal jack function support
Wireless LAN
Item
Description
Card type
Mini-PCI
Features
• 802.11a/b/g or 802.11b/g or 802.11n/EWC
• Built-in two or three antennae
• Placed on the top of LCD or on the sides of LCD latches
MDC Card
Item
Description
Controller
ATi SB460
Features
•
•
•
•
Connector type
RJ-11
56K, V.90/V.92, WWDAA
Wake-on-Ring support
Apply CISPR22
MDC 1.5 card
Super I/O
Item
Description
Chip
NS PC87383
Package
64-pin TQFP package
Feature
• Parallel interface support:
1. An Enhanced Parallel Port (EPP) compatible with EPP 1.9, EPP1.7 of the Xircom
specification support too
2. An Extended Capabilities port that is IEEE 1284 compliant including level 2
• UART serial port interface:
1. MIDI baud rate support
2. Infrared support on UART2 (IrDA 1.1 support)
• PnP support:
1. Flexible IRQs, DMAs and base addresses
2. IRQs multiplexed to the ten supported IRQs
Power
consumption
Chapter 1
5V, 25 ~ 55mA
49
Battery
Item
Specification
Vendor & model name
Panasonic Hummingbird
3 cell 2.0H
Panasonic Hummingbird
6 cell
Rating voltage (within one hour
after quick charging)
10.8V
11.1V
Typical capacity (in standard
charging)
2250mAh
4700mAh
Minimum capacity (in standard
charging)
2150mAh
4500mAh
Standard charging (constant
voltage, constant current)
12.6V max., 430mA max.
x eight hours
12.6V max., 900mA max.
x eight hours
Quick charging (constant voltage,
constant current)
12.6V max. 1500mA max.
100mA end
12.6V max., 3150mA max.
60mA cut
Standard discharging (constant
current)
430mA (9V end)
900mA (9V end)
Surroundings temperature range
for shipped battery
less than one month:
-20 oC ~ 45oC
Assumed percentage of
recoverable capacity:
80%
less than six months:
-20oC ~ 30oC
less than one year:
-20oC ~ 20oC
Item
Specification
Vendor & model name
Sanyo Hummingbird
3 cell 2.0
Sanyo Hummingbird
6 cell
Nominal capacity
1900mAh
4600mAh
Typical capacity
2000mAh
4800mAh
Nominal voltage
11.1V
11.1V
End voltage
9V
9V
Charging current max.
1500mAh
3000mAh
Discharging Wattage max.
35W
60W
Charging voltage
12.6V +/- 0.09V
12.6V +/- 0.09V
Surroundings temperature range
for shipped battery
less than one month:
-20 oC ~ 60oC
Assumed percentage of
recoverable capacity:
80%
less than three months:
-20oC ~ 45oC
less than one year:
-20oC ~ 25oC
50
Chapter 1
LCD 12.1”
Item
Vendor & Model
name
Specification
AUO 12.1 WXGA
B121EW03-V3
GLARE
AUO 12.1 WXGA
B121EW03-V1
NON-GLARE
TOSHIBA 12.1
WXGA
LTD121EXQQ (G)
TOSHIBA 12.1
WXGA
LTD121EXUQ
(AG)
Screen Diagonal
12.1” WXGA
12.1” WXGA
12.1” WXGA
12.1” WXGA
Active area
261.12 (W) x
163.2
261.12 (W) x
163.2 (H)
261.12 (W) x
163.2 (H)
261.12 (W) x
163.2 (H)
Display
resolution
1280 x 3 (RGB) x
800
1280 x 3 (RGB) x
800
1280 x 3 (RGB) x
800
1280 x 3 (RGB) x
800
Display mode
normally white
normally white
normally white
normally white
Surface
treatment
Glare, Hardness
3H, Reflectance
4.3%
Anti-Glare,
Hardness 3H,
Haze 25%
Glare, Hard Coat
3H
Anti-Glare, Hard
Coat 3H
Pixel
arrangement
RGB vertical
stripe
RGB vertical
stripe
RGB vertical
stripe
RGB vertical
stripe
Pixel pitch (mm)
0.204 (H) x 0.204
(V)
0.204 (H) x 0.204
(V)
0.204 (H) x 0.204
(V)
0.204 (H) x 0.204
(V)
Typical white
luminance (cd/
m2) also called
brightness
180 (typical)
180 (typical)
200 (typical)
210 (typical)
Contrast ratio
400 (typical)
400 (typical)
600 (typical)
300 (typical)
Respond time
(msec.)
Rise: 10
decay: 15
Rise: 10
Decay: 15
Rise + Decay: 50
max.
Rise + Decay: 50
max.
Normal input
voltage of
power supply
+3.3V (typical)
+3.3V (typical)
+3.3V (typical)
+3.3V (typical)
Power
consumption
4.5Watt max.
4.5Watt max.
400mA max.
400mA max.
Weight
250 g
250 g
235 g
230 g
Physical size
(mm)
275.82 (W) x 178
(V) x 5.2 (T)
275.82 (H) x 178
(V) x 5.2 (T)
275.8 (W) x 178
(H) x 5.5 (D)
275.8 (W) x 178
(H) x 5.5 (D)
Electrical
interface
1 channel LVDS
1 channel LVDS
LVDS
CLK+, CLKIN0+, IN0IN1+, IN0IN2+, IN2-
LVDS
CLK+, CLKIN0+, IN0IN1+, IN0IN2+, IN2-
Color support
262,144 colors
262,144 colors
262,144 colors
262,144 colors
AC Adaptor
Item
Vendor & Model name
Specification
LiteOn 65W, PA01650-02 QY
YELLOW 1.7X5.5X11 LF
DELTA 65W SADP-65KB DBRF
YELLOW 1.7X5.5X11LF
100V / 240V
100V / 240V
Input feature
Rated voltage
Input voltage range
from 90Vac to 265Vac
from 90Vac to 264Vac
Frequency range
from 47Hz to 63Hz
from 47Hz to 63Hz
Chapter 1
51
Item
Specification
Steady AC current
less than 1.6A rms
less than 1.5A rms (100Vac,
240Vac / 3.42A load)
Output feature
Rated voltage
19V
19V
Voltage range
18.05V to 19.95V
from 18.05V to 19.95V (0A to
3.42A output at DC cable end)
Rated power
65W
65W
Output ripple and noise
less than 380mVp-p
less than 350mVp-p
Turn on delay time
within five seconds (measured
from AC on point to the 90%
point of the output voltage)
within two seconds at 115 Vac
input voltage
Environment
• Operating
• Temperature
Temperature: 0 to 40oC
Relative Humidity: 8 to 90%,
non-condensing
Relative humidity: -31 to 60oC
• Shipping and Storage
Operating: 0 to 40oC
Storage: -31oC to 60oC
• Humidity
Operating: 20% to 80%
Storage: 10% to 90%
Temperature: -30oC to 85oC
Relative Humidity: 5 to 95%,
non-condensing
System Fan True Value Table
Item
Description
Level 0
Fan on = 50 C, Fan off = 45 C, Fan RPM = 2850, 29 dBA
Level 1
Fan on = 60oC, Fan off = 55oC, Fan RPM = 3300, 33 dBA
Level 2
Fan on = 73oC, Fan off = 68oC, Fan RPM = 3800, 38 dBA
Level 3
Fan on = 83oC, Fan off = 78oC, Fan RPM = 4200, 40 dBA
Throttling 50%
On = 92oC, Off = 86oC
o
o
Port Replicator
Item
Features
Description
•
•
•
•
•
•
•
•
•
52
120 pins for signals and four pins for power
Power supplied from Acer ezDock
Max. six USB ports support
Two 1394 ports support, one cable-powered and the other buspowered
One new card socket and one PCMCIA card socket support
GigaLAN and modem support
Line-in, HP-out, Mic-in and SPDIF-out support
Analog VGA, TV out and DVI-D support
One parallel port, one serial and two PS2 port for legacy devices
Chapter 1
Chapter 2
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic
Input/Output System). Your computer is already properly configured and optimized, and you do
not need to run this utility. However, if you encounter configuration problems, you may need to
run Setup. Please also refer to Chapter 4 Troubleshooting when problem arises.
To activate the BIOS Utility, press m during POST (when “Press <F2> to enter Setup” message is
prompted on the bottom of screen). The setup screen displays BIOS as follows:
Function
Item
Information
Display the system informations
Main
Allows the user to specify standard IBM PC AT system
parameters
Advanced
Provides advanced settings of the system
Security
Provides security settings of the system
Boot
Allows the user to specify the boot options
Exit
Allows the user to save CMOS setting and exit Setup
During setup, all Fn function keys and power saving functions are disabled. There are five menu
options: Main, Advanced, Security, Boot and Exit. Follow these instructions below
•
To choose a menu, use the cursor left/right keys (zx).
•
To choose a parameter, use the cursor up/down keys (wy).
•
To change the value of a parameter, press p or q.
•
Press ^ while you are in any of the menu options to go to the Exit menu.
•
In any menu, you can load default settings by pressing t. You can also press u to save any changes
made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for
a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values.
Chapter 2
53
Information
Parameter
54
Description
CPU Type
This item will show the CPU information of the system.
CPU Speed
This item will show the CPU clock speed.
IDE1 Model Name
This item will show the Model name of HDD installed on Primary IDE
master. The hard disk model name is automatically detected by the system.
If there is no hard disk present or unknown type, “None” should be shown
on this field
IDE1 Serial Number
This item will show the Serial number of HDD installed on Primary IDE
master. If no Hard disk or other devices are installed on Primary IDE master,
then it will display a blank line
System BIOS Version
This field reports the BIOS version of system
VGA BIOS Version
This field reports the VGA version of the system
KBC Version
This field reports the keyboard controller version of the system
Serial Number
This item will show the Serial number of system.
Asset Tag Number
This item will show the Asset Tag number of the system.
Product Name
This field will show product name.
Manufacturer Name
This field will show manufacturer name.
UUID
This will be visible only when there is an internal LAN device present.
Chapter 2
Main
Parameter
Description
System Time / System
Date
The hours are displayed with 24 hours format. The values set in these two
fields take effect immediately.
System Memory
This field reports the memory size of system base memory. The size is fixed
to 640KB.
Extended Memory
This field reports the memory size of the extended memory in the system.
Extended Memory size = Total memory size - 1 MB
Video Memory
VGA Memory size = 128MB
Quiet Boot
Customer Logo display will be shown during POST when it is selected.
Power on display
Auto: During power on process, the system will detect if any display device
is connected on external video port. If any external display device is
connected, the power on display will be in CRT (or projector) only mode.
Otherwise it will be in LCD only mode.
Both: Simultaneously enable both the integrated LCD screen and the
system’s external video port (for an external CRT or projector).
Network boot
When this is selected, Boot from LAN feature is enabled. When this is not
selected, Boot from LAN feature is then disabled.
F12 Boot Menu
When this is selected, users can modify device boot priority by pressing F12
key during POST. When this is not selected, device boot priority will not be
adjustable during POST.
D2D Recovery
Allow user to enable/disable the Disk-to-Disk recovery
Chapter 2
55
Advanced
The Advanced menu screen contains parameters involving your hardware devices. It also provides
advanced settings of the system.
Parameter
56
Description
Option
Serial Port
Configure serial port A using options:
[Disabled]: No configuration
[Enabled]: User configuration
[Auto]: BIOS or OS chooses configuration
(OS Controlled) Displayed when controlled by OS
Disabled
Enabled
Auto
Infrared Port
Configure serial port B using options:
[Disabled]: No configuration
[Enabled]: User configuration
[Auto]: BIOS or OS chooses configuration
(OS Controlled) Displayed when controlled by OS
Disabled
Enabled
Auto
Parallel Port
Configure serial port B using options:
[Disabled]: No configuration
[Enabled]: User configuration
[Auto]: BIOS or OS chooses configuration
(OS Controlled) Displayed when controlled by OS
Disabled
Enabled
Auto
Chapter 2
Parameter
Mode
Chapter 2
Description
Set the mode for the parallel port
Option
Output only
Bi-directional
EPP
ECP
57
Security
The system supports three levels of password protection. The password support consists of a
Supervisor Password, User Password, and Hard Disk Password. All the passwords are stored in a
non-volatile storage device (EEPROM).
All the passwords obeys the following rules:
•
Password Policy
•
All the passwords can be set or cleared in BIOS Setup Security screen.
•
The password entry consists of eight alphanumeric characters. At least one character must be
assigned.
•
The valid keys are listed in the table below:
Symbol Character
58
Symbol Name
A-Z
letters A to Z (not case sensitive)
0-9
numerical characters
-
dash
=
equal sign
[
left bracket
]
right bracket
Chapter 2
Symbol Character
•
•
•
Symbol Name
.
period
,
comma
;
semi-colon
/
slash
\
back slash
•
The users can not change or remove password during resuming from S4.
•
The max. number of times to retry the password is limited to three.
Supervisor Password:
•
Supervisor Password controls the access of the whole BIOS Setup Utility. If the Supervisor Password
is set, the system will pop up the password dialog box to ask for the password when the users press
<F2> for entering BIOS Setup Utility.
•
If the Supervisor Password is set and Password on boot is enabled, the system will pop up the
password dialog box to ask for the password when the system is powered on or resumes for S4
state.
•
If the users fail three times consecutively in password verification, the system will be hung up and
the users need to manually power off the system.
User Password:
•
If the User Password is set, the system will pop up the password dialog box to ask for the password
when the users press <F2> for entering BIOS Setup Utility.
•
If the Supervisor Password is not set at first, the User Password can not be set. If the Supervisor
Password is cleared, the User Password will be cleared, too.
•
If the User Password is set and Password on boot is enabled, the system will pop up the password
dialog box to ask for the password when the system is powered on or resumes for S4 state.
•
If the users fail three times consecutively in password verification, the system will be hung up and
the users need to manually power off the system.
Set Supervisor Password / User Password:
•
Highlight the item and press “Enter”, a dialog box will be shown to ask the users to enter new
password and confirm new password.
•
If the users want to reset password, a current password will be required to be tapped in at first. If
the current password is correct, the users are permitted to enter new password and confirm new
password for verification. If the verification is OK, the password setting will be complete after the
users press “Enter”.
•
If the password entered does not match the current password, a dialog box will be shown to ask to
re-enter the password.
•
Set HDD Password: When shown as “Locked”, the hard drive password currently can not be changed
or disabled. To change or disable it, turn off the system and enter Setup immediately after turning it
back on. Press “Enter” to input change, or disable hard drive password.
•
Password on Boot: It allows the user to specify whether or not a password is required to boot.
Chapter 2
59
Boot
This menu allows the users to decide the order of bootable devices to load the operating system.
It identifies all the bootable devices in the system and attempts to boot them in the order
specified. Bootable devices include the diskette drive in module bay, the hard disk and the CDROM/DVD drive in module bay and onboard LAN device.
Parameter
Boot priority order
60
Description
Keys used to view or configure devices: Up and Down arrows select a device.
<+> and <-> move the device up or down. <f> and <r> specifies the device
fixed or removable. <x> exclude or include the device to boot. <Shift +1>
enables or disables a device. <1-4> Loads default boot sequence.
Chapter 2
Exit
Parameter
Description
Exit Saving Changes
Exit System Setup and save your changes to CMOS
Exit Discarding
Changes
Exit utility without saving Setup data to CMOS
Load Setup Default
Load default values for all SETUP items
Discard Changes
Load previous values from CMOS for all SETUP items
Save Changes
Save Setup Data to CMOS
Chapter 2
61
BIOS Password Removal SOP
Please follow the steps below to remove the BIOS password.
Step One Machine 1
Key in wrong Supervisor Password three times and System Disabled will show.
Step Two Machine 2: Run BIOS_PW.EXE
1. Key in bios_pw 14452 0
2. Then choose one string.
62
Chapter 2
Step Three Machine 1
1. Reboot system and key in qjjg9vy or 07yqmjd in the BIOS user password column.
Chapter 2
63
HDD Password Removal SOP
Please follow the steps below to remove the HDD password.
Step One Machine 1
1. Key in wrong HDD password three times and HDD password error code will come out.
Step Two Machine 2: Run HDD_PW.EXE
1. Key in hdd_pw 15494 0
2. Select 2 (upper case ASCII Code).
3. Then choose one string.
64
Chapter 2
Step Three Machine 1
Reboot system and key in 0KJFN42 or UVEIQ96 in the HDD user password column.
Chapter 2
65
Chapter 3
Machine Disassembly and Replacement
General Information
This chapter contains step-by-step procedures on how to disassemble the Ferrari 1000 for
maintenance and troubleshooting.
To disassemble the notebook, you need the tools below:
•
Wrist ground strap and conductive mat for preventing electrostatic discharge
•
Small Philips screw driver
•
Flat head screw driver
•
Hexagonal driver
•
Tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
When you remove the stripe cover, please be careful not to scrape the cover.
Before You Begin
Before proceeding with the disassembly procedure, you have to make sure that:
•
The system and all peripherals are powered off.
•
The AC adaptor and all power and signal cables from the system are unplugged.
•
The battery pack is removed.
NOTE: There are several types of screws used to secure the main unit. The screws vary in length. Please
refer to the screws table after the flowchart. Group the same type of screws together during service
disassembling. Please also remember the screw location for each screw type. If you fasten the screws
on the wrong location, the long screws may cause irrecoverable damage to the main board.
Chapter 3
66
Disassembly Procedure Flowchart
The flowchart gives you a graphic representation on the entire disassembly and reassembly and
instructs you how to remove the components.
#
67
Description
Acer Part No.
a
SCREW M2*5-I(BZN)(NYLOK)
86.FR6V7.001
b
SCREW M1.6*4.0-I (NI)(NYLOK)
86.FR6V7.002
c
SCREW M2.0*3.0-I(BZN)(NYLOK)
86.FR6V7.003
d
SCREW M2*2.5-I(NI)(NYLOK)
86.FR6V7.004
e
SCREW M2.5*6-I(BNI)(NYLOK)
86.A08V7.004
f
SCREW M3*0.5+3.5I
86.A03V7.011
g
SCREW M2.5*4.0-I(NYLOK)EU
86.A03V7.009
h
I2.5*4T-BKAGH(4,0.8)
86.FR6V7.005
i
SCREW M2.5*4-I(BNI)
86.T23V7.009
Chapter 3
Disassembly Procedure
Removing the Battery Pack
1. Unlock the battery lock to the end as the arrow indicates.
2. Slide the battery latch to the end and hold it. Then remove the battery pack.
Removing the HDD Module
1. Release the two screws fastening the HDD module cover.
2. Detach the HDD module cover.
3. Release the screw securing the HDD module.
4. Pull the HDD module then lift the HDD module as the arrow indicates.
Chapter 3
68
Removing the RAM Module/Mini PCI Card
1. Release the three screws holding the RAM and Mini PCI card cover.
2. Then remove the cover.
3. Press the RAM module locks at the same time as the arrows indicate. The RAM module will pop up
then detach it. Repeat this step to detach another RAM module.
4. Disconnect the main and the auxiliary antennae. The main antenna is black and the auxiliary antenna is
white. The gray cable is protected by a plastic cover and serves for nothing in this model.
5. Release the two screws holding the Mini PCI card.
6. The Mini PCI card will pop up then detach it.
69
Chapter 3
Removing the Keyboard
1. Release the left latch securing the keyboard plate.
2. Release the right latch securing the keyboard plate.
3. Carefully detach the keyboard plate and place the keyboard plate as shown.
4. Release the keyboard FFC lock carefully because it is fragile. Then detach the keyboard plate.
Chapter 3
70
Removing the LCD Module from the Main Unit
After removing the keyboard plate, please follow the steps below to remove the LCD module.
1. Slightly pull out the main and the auxiliary antennae and the gray cable.
2. Disconnect the microphone cable.
3. Release the four screws holding the LCD module.
4. Slightly pull out the four cables then remove the LCD module.
71
Chapter 3
Disassembling the Main Unit
Separating the Upper Case and the Lower Case
1. Carefully release the button board FFC lock then disconnect the button board FFC.
2. Slightly release the click button board FFC lock then disconnect the click button board FFC.
3. Release the power button board lock then disconnect the power button board FFC.
4. Release the five screws securing the upper case and the lower case on the upper side.
5. Release the 18 screws securing the upper case and the lower case on the bottom side. The screw
indicated by arrow is under the rubber cushion so you have to remove the rubber cushion at first.
6. Then detach the upper case from the main unit.
Chapter 3
72
Removing the Bluetooth Module
1. Disconnect the Bluetooth module cable.
2. Release the screw holding the Bluetooth module then detach the Bluetooth module.
Removing the Main Board
1. Disconnect the speaker cable.
2. Slightly pull the edge of the lower case as the arrow indicates because the DC board is stuck by the
edge of the lower case. Then detach the DC board from the lower case.
3. Release the three screws securing the main board.
4. Slightly pull the edge of the lower case as the arrow indicates because the main board is stuck by the
edge of the lower case. Then detach the main board.
73
Chapter 3
Removing the Modem Board
1. Release the screw holding the modem board.
2. Detach the modem board from the main board and disconnect it.
Chapter 3
74
Removing the Thermal Module
1. Slightly disconnect the system fan cable.
2. Release the four screws holding the thermal module then detach the thermal module.
3. Disconnect the DC board cable.
Removing the CPU
1. Release the screw securing the CPU by turning the flat-headed screw driver counter clockwise.
2. Then carefully detach the CPU from the socket.
75
Chapter 3
Disassembling the LCD Module
Removing the LCD Bezel
1. Detach the mylars covered on screws then release the six screws securing the LCD bezel.
2. Carefully detach the LCD bezel from the LCD module as shown till the LCD bezel is total removed.
Removing the Inverter Board
1. Carefully disconnect the LVDS cable.
2. Carefully disconnect the LCD cable then remove the inverter board.
Chapter 3
76
Detaching the LCD Panel and the CCD Module
1. Release the seven screws securing the LCD panel and the CCD module.
2. Then remove the LCD panel and the CCD module together.
3. Put the LCD panel and the CCD module on a flat and stable surface.
4. Carefully disconnect the CCD module.
5. Tear off the tape holding the LCD cable.
6. Carefully pull and disconnect the LCD cable.
NOTE: When you remove the CCD module and the LCD cable, please do not press the LCD panel.
77
Chapter 3
Removing the LCD Brackets
1. Release the four screws securing the left and the right LCD brackets.
2. Then remove the left and the right LCD brackets.
Chapter 3
78
Chapter 4
Troubleshooting
Please use the following procedures as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype
cards, or modified options may occur errors or invalid responses.
1. Obtain the detailed fail symptoms as many as possible.
2. Verify the symptoms by attempting to recreate, running the diagnostic tests or repeating the same
operation.
Chapter 4
79
System Check Procedures
External Diskette Drive Check
Do the following procedures to isolate the possible effects from a controller, driver, or diskette. A
writable, diagnostic diskette is required.
NOTE: Make sure that the diskette does not have more than one label attached. Multiple labels may
cause damage to the drive or make the drive fail.
1. Boot from the diagnostic diskette and start the diagnostic programs.
2. See if FDD test is passed as the programs run the FDD test.
3. Follow the instructions in the message window.
If errors occur with the internal diskette driver, reconnect the diskette connector on the system
board. If the errors still remain:
1. Reconnect the external diskette drive.
2. Replace the external diskette driver.
3. Replace the main board.
External CD-ROM Drive Check
Do the following procedures to isolate the possible effects from a controller, driver, or CD-ROM.
NOTE: Make sure that the CD-ROM does not have any label attached. The label may cause damage to
the drive or make the drive fail.
1. Boot from the diagnostic diskette and start the diagnostic programs.
2. See if CD-ROM test is passed when the programs run the CD-ROM test.
3. Follow the instructions in the message window.
If errors occur, reconnect the connector on the system board. If the errors still remain:
1. Reconnect the external CD-ROM drive.
2. Replace the external CD-ROM drive.
3. Replace the main board.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is under test. If the internal keyboard
does not work or an unexpected error appears, make sure that the flexible cable extending from
the internal keyboard is correctly connected on the system board. If the keyboard is correctly
connected, run the Keyboard test.
If errors occur, do the following procedures in sequence to correct the problems. Do not replace a
non-defective FRU.
1. Reconnect the keyboard cable.
2. Replace the keyboard.
3. Replace the main board.
The following auxiliary input devices are supported by this computer.
•
80
Numeric keypad
Chapter 4
•
External keyboard
If any of these devices do not function, reconnect the cable and repeat the anterior procedures.
Memory Check
Follow the procedures below to correct the memory errors.
1. Boot from the diagnostic diskette and start the diagnostic programs.
2. Go to the diagnostic memory in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
NOTE: Make sure that the DIMM is correctly inserted into the connector. A wrong connection will
cause errors.
Power System Check
To verify the symptoms, power on the computer by using the following power sources separately.
1. Remove the battery pack.
2. Connect the power adaptor and check the power supply.
3. Disconnect the power adaptor and install the battery pack, then check the power supply.
If you think there is a power supply problem, please go to Check the Power Adaptor and
Check the Battery Pack in this chapter.
Check the Power Adaptor
Unplug the power adaptor cable from the computer and measure the output voltage at the plug
of the power adaptor cable. See the illustration and follow the procedures below.
pin 1: +19V to +20.5V
pin 2: 0V, ground
1. If the voltage is not correct, replace the power adaptor.
2. If the voltage is within the range:
(1) Replace the system board.
(2) If the problem is still not resolved, see Undetermined Problems.
(3) If the voltage is not correct, go to the next step.
NOTE: An audible noise from the power adaptor does not always indicate a defect.
3. If the power-on indicator does not light up, check the power cord of the power adaptor for continuity
and correct installation.
4. If the operational charge does not work, see Check the Battery Pack.
Chapter 4
81
Check the Battery Pack
Follow the procedures below to check the battery pack.
From software, this helps to identify the problem is on recharging or discharging.
1. Check the Power Management in Control Panel.
2. Then confirm that the parameters shown in the screen for Current Power Source and Total Battery
Power Remaining are correct.
3. Repeat the step 1 and step 2 for both battery and adaptor.
From hardware, this helps to identify whether you should replace the battery pack or not.
1. Power off the system.
2. Remove the battery pack and measure the voltage between terminals one (+) and seven (-). There are
seven terminals totally. See the illustration below.
3. If the voltage is still less than 7.5V after recharging, replace the battery.
If the battery status indicator does not light up, remove the battery pack. After the battery pack
returns to room temperature, reinstall it to the system.
If the charge indicator does not light up, replace the battery pack. If the charge indicator still
does not light up, replace the AC / DC charger board.
Touchpad Check
If the touchpad does not work, follow the procedures one at a time to correct the problem. Do
not replace a non-defective FRU.
1. Reconnect the touchpad cables.
2. Replace the touchpad.
3. Replace the system board.
82
Chapter 4
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting
pointer movement will occur when a slight, steady pressure is applied to the touchpad pointer.
This symptom is not a hardware problem.
Chapter 4
83
Power-On Self-Test (POST) Error Message
The POST error message index lists the error message and their possible causes.
NOTE: Perform the FRU replacement or actions in the sequence shown in Error Message List, if the FRU
replacement does not solve the problem, put the original part back in the computer. Do not replace a
non-defective FRU.
The error messages are listed in the coming pages to indicate the BIOS signals on the screen and
the error symptoms classified by functions. If the symptom is not included on the list, please refer
to Undetermined Problems.
NOTE: Most of the error messages occur during POST. Some of them show information about a
hardware device, for example, the size of memory installed. Others may indicate problems with a
device, such as the way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, please reset the
computer. Enter Setup and install Setup defaults to correct the errors.
Index of Error Messages
Error Code List
Error Code
006
Error Message
Equipment Configuration Error Causes:
• CPU BIOS Update Code Mismatch
• IDE Primary Channel Master Drive Error
The causes will be shown before Equipment Configuration Error.
010
Memory Error at xxxx:xxxx:xxxxh (R: xxxxh, W: xxxxh)
070
Real Time Clock Error
071
CMOS Battery Bad
072
CMOS Checksum Error
110
System disabled.
Incorrect password is specified.
No error code
Battery critical low: In this situation BIOS will issue four short beeps
then shut down system, no message will be shown.
No error code
Thermal critical high: In this situation BIOS will shut down the
system, no message will be shown.
Error Message List
Error Message
84
FRU/Action in Sequence
Failure Fixed Disk
Reconnect hard disk drive connector.
Run Load Default Settings in BIOS Setup Utility.
Hard disk drive
System board
Stuck Key
see Keyboard or Auxiliary Input Device Check.
Keyboard error
see Keyboard or Auxiliary Input Device Check.
Keyboard Controller Failed
see Keyboard or Auxiliary Input Device Check.
Keyboard locked - Unlock key
switch
Unlock external keyboard
Monitor type does not match
CMOS - Run Setup
Run Load Default Settings in BIOS Setup Utility.
Chapter 4
Error Message
FRU/Action in Sequence
Shadow RAM Failed at offset:
nnnn
BIOS ROM
System board
System RAM Failed at offset:
nnnn
DIMM
System board
Extended RAM Failed at
offset: nnnn
DIMM
System board
System battery is dead Replace and run Setup
Replace RTC battery and Run BIOS Setup Utility to
reconfigure system time, then reboot system.
System CMOS checksum bad Default configuration used
RTC battery
Run BIOS Setup Utility to reconfigure system time,
then reboot system.
System timer error
RTC battery
Run BIOS Setup Utility to reconfigure system time,
then reboot system.
System board
Real time clock error
RTC battery
Run BIOS Setup Utility to reconfigure system time,
then reboot system.
System board
Previous boot incomplete Default configuration used
Run Load Default Settings in BIOS Setup Utility.
RTC battery
System board
Memory size found by POST
differed from CMOS
Run Load Default Settings in BIOS Setup Utility.
DIMM
System board
Diskette drive A error
Check the drive is defined with the proper diskette
type in BIOS Setup Utility.
See External Diskette Drive Check.
Incorrect Drive A type - run
Setup
Check the drive is defined with the proper diskette
type in BIOS Setup Utility.
System cache error - Cache
disabled
System board
CPU ID:
System board
DMA Test Failed
DIMM
System board
Software NMI Failed
DIMM
System board
Fail-Safe Timer NMI Failed
DIMM
System board
Device Address Conflict
Run Load Default Settings in BIOS Setup Utility.
RTC battery
System board
Allocation Error for device
Run Load Default Settings in BIOS Setup Utility.
RTC battery
System board
Failing Bits: nnnn
DIMM
BIOS ROM
System board
Fixed Disk n
None
Chapter 4
85
Error Message
86
FRU/Action in Sequence
Invalid System Configuration
Data
BIOS ROM
System board
I/O device IRQ conflict
Run Load Default Settings in BIOS Setup Utility.
RTC battery
System board
Operating system not found
Enter Setup and see if fixed disk and drive A: are
properly identified.
Diskette drive
Hard disk drive
System board
No beep, power-on indicator
turns off and LCD is blank.
Power source (battery pack and power adapter). See
Power System Check.
Ensure every connector is connected correctly.
Reconnect the DIMM.
LED board
System board
No beep, power-on indicator
turns on and LCD is blank.
Power source (battery pack and power adapter). See
Power System Check.
Reconnect the LCD connector.
Hard disk drive
LCD inverter ID
LCD cable
LCD Inverter
LCD
System board
No beep, power-on indicator
turns on and LCD is blank. But
you can see POST on an
external CRT.
Reconnect the LCD connectors.
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
No beep, power-on indicator
turns on and a blinking cursor
shown on LCD during POST.
Ensure every connector is connected tightly and
correctly.
System board
No beep during POST but
system runs correctly.
Speaker
System board
Chapter 4
Phoenix BIOS Beep Codes
Beep Code
1-1-1-3
Post Code
02h
Description
Verify Real Mode.
What to Check (Recommended)
• Check the processor.
• Check the main board.
1-1-2-1
04h
Get CPU type.
• Check the processor.
• Check the main board.
1-1-2-3
06h
Initialize system
hardware.
• Check the main board.
1-1-3-1
08h
Initialize cache to initial
POST values.
• Check the main board.
1-1-3-2
09h
Set in POST flag.
• Check the main board.
1-1-3-3
0Ah
Initialize CPU registers.
• Check the processor.
• Check the main board.
1-1-4-1
0Ch
Initialize cache to initial
POST values.
• Check the secondary cache.
• Check the processor.
• Check the main board.
1-1-4-3
0Eh
Initialize I/O.
• Make sure all the cards are securely
inserted into the system.
• Make sure that there are no physical
problems with the main board or
internal connections.
• Disable all shadowing of expansion
adapter ROMs and see if that fixes
the problem.
• Remove all unnecessary expansion
cards (basically, everything but the
video card) and see if the problem
goes away. If it does, the problem is
probably one of the expansion cards
you removed. If not, your problem
lies elsewhere. Try to isolate the
problem by inserting one expansion
card at a time back into the system
and seeing which on e triggers the
problem.
1-2-1-1
10h
Initialize Power
Management.
• Check the main board.
1-2-1-2
11h
Load alternate registers
with initial POST values.
• Check the main board.
1-2-1-3
12h
Jump to UserPatch0.
• Check the main board.
1-2-2-1
14h
Initialize keyboard
controller.
• Check the keyboard.
• Check the keyboard controller.
• Check the main board.
1-2-2-3
16h
BIOS ROM checksum.
• Check the main board.
1-2-3-1
18h
8254 timer initialization.
• Check the main board.
1-2-3-3
1Ah
8237 DMA controller
initialization
• Treat as an expansion card problem.
Chapter 4
• Check the main board.
87
Beep Code
1-2-4-1
1-3-1-1
Post Code
1Ch
20h
Description
What to Check (Recommended)
Reset Programmable
Interrupt Controller
• Treat as an expansion card problem.
Test DRAM refresh.
• Check the system memory.
• Check the main board.
• Check the main board.
1-3-1-3
22h
Test 8742 keyboard
controller.
• Check the keyboard.
• Check the keyboard controller.
• Check the main board.
1-3-2-1
24h
Set ES segment register
to 4GB.
• Check the main board.
1-3-3-1
28h
Autosize DRAM.
• Check the system memory.
1-3-3-3
2Ah
Clear 512K base RAM.
• Check the main board.
• Check the system memory.
• Check the main board.
1-3-4-1
1-3-4-3
2Ch
2Eh
RAM failure on address
line xxxx.
• Check the system memory.
RAM failure on data bits
xxxx of low byte of
memory bus.
• Check the system memory.
• Check the main board.
• Check the main board.
1-4-1-3
32h
Test CPU bus-clock
frequency.
• Check the processor.
1-4-2-1
34h
COMS RAM read/write
failure.
• Check the main board.
1-4-2-4
37h
Reinitialize the chipset.
• Check the main board.
1-4-3-1
38h
Shadow system BIOS
ROM.
• Check the expansion cards.
• Check the main board.
• Check the system memory.
• Check the main board.
1-4-3-2
39h
Reinitialize the cache.
• Check the secondary cache.
• Check the processor.
• Check the main board.
1-4-3-3
3Ah
Autosize cache.
• Check the secondary cache.
• Check the processor.
• Check main board.
1-4-4-1
3Ch
Configure advanced
chipset registers.
• Check the main board.
1-4-4-2
3Dh
Load alternate registers
with CMOS values.
• Check the main board.
2-1-1-1
40h
Set Initial CPU speed.
• Check the main board.
2-1-1-3
42h
Initialize interrupt vector.
• Treat as an expansion card problem.
• Check the main board.
2-1-2-1
44h
Initialize BIOS interrupt.
• Treat as an expansion card problem.
• Check the main board.
2-1-2-3
88
46h
Check ROM copyright
notice.
• Check the main board.
Chapter 4
Beep Code
2-1-2-4
Post Code
47h
Description
What to Check (Recommended)
Initialize manager for PCI
Options ROMs.
• Treat as an expansion card problem.
• Check the serial port(s).
• Check the parallel port(s).
• Check the main board.
2-1-3-1
48h
Check video
configuration against
CMOS.
• Check the video card.
• Make sure the system memory is
working properly.
• Check the main board.
2-1-3-2
49h
Initialize PCI bus and
devices.
• Treat as an expansion card problem.
• Check the serial port(s).
• Check the parallel port(s).
• Check the main board.
2-1-3-3
2-1-4-1
4Ah
4Ch
Initialize all video
adapters in system.
• Check the video card.
Shadow video BIOS ROM.
• Check the expansion cards.
• Make sure the system memory is
working properly.
• Check the system memory.
• Check the main board.
2-1-4-3
4Eh
Display copyright notice.
• Check the video card.
2-2-1-1
50h
Display CPU type and
speed.
• Check the video card.
2-2-1-3
52h
Test keyboard.
• Check the keyboard.
• Check the main board.
• Check the keyboard controller.
• Check the main board.
2-2-2-1
54h
Set key click if enabled.
• Check the keyboard.
• Check the keyboard controller.
• Check the main board.
2-2-2-3
56h
Enable keyboard.
• Check the keyboard.
• Check the keyboard controller.
• Check the main board.
2-2-3-1
58h
Test for unexpected
interrupts.
• Treat as an expansion card problem.
2-2-3-3
5Ah
Display prompt “Press F2
to enter SETUP”.
• Check the video card.
Test RAM between 512
and 640K.
• Check the system memory.
Test expanded memory.
• Check the system memory.
2-2-4-1
2-3-1-1
5Ch
60h
• Check the main board.
• Check the main board.
• Check the main board.
• Check the main board.
2-3-1-3
62h
Test extended memory
address lines.
• Check the system memory.
2-3-2-1
64h
Jump to UserPatch1.
• Check the main board.
2-3-2-3
66h
Configure advanced
cache registers.
• Check the secondary cache.
• Check the main board.
• Check the processor.
• Check the main board.
Chapter 4
89
Beep Code
2-3-3-1
Post Code
68h
Description
Enable external and CPU
caches.
What to Check (Recommended)
• Check the secondary cache.
• Check the processor.
• Check the main board.
2-3-3-2
69h
Initialize SMI handler.
• Check the main board.
2-3-3-3
6Ah
Display external cache
size.
• Check the video card.
• Check the video card.
• Check the main board.
2-3-4-1
6Ch
Display shadow message.
2-3-4-3
6Eh
Display non-disposable
segments.
• Check the video card.
Display error messages.
• Check the video card.
• Check the main board.
2-4-1-1
70h
• Check the main board.
• Check the main board.
2-4-1-3
72h
Check for configuration
errors.
• Check the main board.
2-4-2-1
74h
Test real-time clock.
• Check the main board.
2-4-2-3
76h
Check for keyboard
errors.
• Check the keyboard.
• Check the keyboard controller.
• Check the main board.
2-4-4-1
7Ch
Set up hardware
interrupts vectors.
• Treat as an expansion card problem.
• Check the main board.
2-4-4-3
7Eh
Test coprocessor if
present.
• Check the processor.
3-1-1-1
80h
Disable onboard I/O
ports.
• Treat as an expansion card problem.
• Check the main board.
• Check the serial port(s).
• Check the parallel port(s).
• Check the main board.
3-1-1-3
82h
Detect and install
external RS232 ports.
• Treat as an expansion card problem.
• Check the serial port(s).
• Check the parallel port(s).
• Check the main board.
3-1-2-1
84h
Detect and install
external parallel ports.
• Treat as an expansion card problem.
• Check the serial port(s).
• Check the parallel port(s).
• Check the main board.
3-1-2-3
86h
Reinitialize onboard I/O
ports.
• Treat as an expansion card problem.
• Check the serial port(s).
• Check the parallel port(s).
• Check the main board.
3-1-3-1
88h
Initialize BIOS data area.
• Check the main board.
3-1-3-3
8Ah
Initialize extended BIOS
data area.
• Check the main board.
3-1-4-1
8Ch
Initialize floppy
controller.
• Check the HDD.
• Check the floppy disk drive(s).
• Check the main board.
90
Chapter 4
Beep Code
3-2-1-1
Post Code
90h
Description
Initialize hard disk
controller.
What to Check (Recommended)
• Check the HDD.
• Check the floppy disk drive(s).
• Check the main board.
3-2-1-2
91h
Initialize local bus hard
disk controller.
• Check the HDD.
• Check the floppy disk drive(s).
• Check the main board.
3-2-1-3
92h
Jump to UserPatch2.
• Check the main board.
3-2-2-1
94h
Disable A20 address line.
• Check the keyboard.
• Check keyboard controller.
• Check the main board.
3-2-2-3
96h
Clear huge ES segment
register.
• Check the main board.
3-2-3-1
98h
Search for option ROMs.
• Check the main board.
3-2-3-3
9Ah
Shadow for option
ROMs.
• Check the expansion cards.
• Check the system memory.
• Check the main board.
3-2-4-1
9Ch
Set up Power
Management.
• Check the main board.
3-2-4-3
9Eh
Enable hardware
interrupts.
• Treat as an expansion card problem.
• Check the main board.
3-3-1-1
A0h
Set time of day.
• Check the main board.
3-3-1-3
A2h
Check key lock.
• Unlock the key lock if it is locked.
• Investigate possible problem with
the key lock switch. If it is either
unlocked already or not present on
the system case.
• Check the main board.
3-3-3-1
A8h
Erase F2 prompt.
• Check the video card.
• Check the main board.
3-3-3-3
AAh
Scan for F2 key stroke.
• Check the main board.
3-3-4-1
ACh
Enter SETUP.
• Check the main board.
3-3-4-3
AEh
Clear in-POST flag.
• Check the main board.
3-4-1-1
B0h
Check for errors.
• Check the main board.
3-4-1-3
B2h
POST done - prepare to
boot operating system.
• Check the main board.
3-4-2-1
B4h
One beep.
• Check the main board.
3-4-2-3
B6h
Check password
(optional).
• Check the main board.
3-4-3-1
B8h
Clear global descriptor
table.
• Check the main board.
3-4-4-1
BCh
Clear parity checkers.
• Check the main board.
3-4-4-3
BEh
Clear screen (optional).
• Check the video card.
3-4-4-4
BFh
Check virus and backup
reminders.
• Check the main board.
Chapter 4
• Check the main board.
91
Beep Code
4-1-1-1
Post Code
C0H
Description
Try to boot with INT 19.
What to Check (Recommended)
• Check the HDD.
• Check the floppy disk drive(s).
• Check the main board.
4-2-1-1
D0H
Interrupt handler error.
4-2-1-3
D2h
Unknown interrupt.
• Treat as an expansion card problem.
• Check the main board.
• Treat as an expansion card problem.
• Check the main board.
4-2-2-1
D4h
Pending interrupt error.
• Treat as an expansion card problem.
• Check the main board.
4-2-2-3
D6h
Initialize option ROM
error.
• Check the main board.
4-2-3-1
D8h
Shutdown error.
• Check the main board.
4-2-3-3
DAh
Extended Block Move.
• Check the main board.
4-2-4-1
DCh
Shutdown error.
• Check the main board.
4-2-4-3
DEh
Keyboard controller
failure.
• Check the keyboard.
• Check the keyboard controller.
• Check the main board.
4-3-1-3
E2h
Initialize the chipset.
• Check the main board.
4-3-1-4
E3h
Initialized refresh
counter.
• Check the main board.
4-3-2-1
E4h
Check for Forced Flash.
• Check the main board.
4-3-2-2
E5h
Check HW status of ROM.
• Check the main board.
4-3-2-3
E6h
BIOS ROM is OK.
• Check the main board.
4-3-2-4
E7h
Do a complete RAM test.
• Check the system memory.
• Check the main board.
4-3-3-1
E8h
Do OEM initialization.
• Check the main board.
4-3-3-2
E9h
Initialize interrupt
controller.
• Treat as an expansion card problem.
Read in bootstrap code.
• Check the HDD.
4-3-3-3
EAh
• Check the main board.
• Check the floppy disk drive.
• Check the main board.
4-3-3-4
EBh
Initialize all vectors.
• Treat as an expansion card problem.
• Check the main board.
4-3-4-1
ECh
Boot the Flash program.
• Check the main board.
4-3-4-2
EDh
Initialize the boot device.
• Check the HDD.
• Check the floppy disk drive(s).
• Check the main board.
4-3-4-3
EEh
Boot code was read OK.
• Check the HDD.
• Check the floppy disk drive(s).
• Check the main board.
92
Chapter 4
Index of Symptom-to-FRU Error Message
LCD-Related Symptoms
Symptom/Error
Action in Sequence
LCD backlight doesn't work.
LCD is too dark.
LCD brightness cannot be
adjusted.
LCD contrast cannot be
adjusted.
Enter BIOS Utility to execute Load Setup Default
Settings, then reboot system.
Reconnect the LCD connectors.
Keyboard (if contrast and brightness function key do
not work).
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
Unreadable LCD screen
Missing pels in characters
Abnormal screen
Wrong color displayed
Reconnect the LCD connector.
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
LCD has extra horizontal or
vertical lines displayed.
LCD inverter ID
LCD inverter
LCD cable
LCD
System board
Indicator-Related Symptoms
Symptom/Error
Indicator incorrectly remains
off or on, but system runs
correctly.
Action in Sequence
Reconnect the inverter board
Inverter board
System board
Power-Related Symptoms
Symptom/Error
Action in Sequence
Power shuts down during
operation.
Power source (battery pack and power adapter). See
Power System Check.
Battery pack
Power adapter
Hard drive & battery connection board
System board
The system doesn’t power on.
Power source (battery pack and power adapter). See
Power System Check.
Battery pack
Power adapter
Hard drive & battery connection board
System board
The system doesn’t power-off.
Power source (battery pack and power adapter). See
Power System Check.
Hold and press the power switch for more than 4
seconds.
System board
Chapter 4
93
Symptom/Error
Battery can’t be charged.
94
Action in Sequence
See Check the Battery Pack.
Battery pack
System board
Chapter 4
PCMCIA-Related Symptoms
Symptom/Error
Action in Sequence
System cannot detect the PC
Card (PCMCIA).
PCMCIA slot assembly
System board
PCMCIA slot pin is damaged.
PCMCIA slot assembly
Memory-Related Symptoms
Symptom / Error
Memory count (size) appears
different from actual size.
Action in Sequence
Enter BIOS Setup Utility to execute Load Default
Settings, then reboot system.
DIMM
System board
Speaker-Related Symptoms
Symptom/Error
Action in Sequence
In Windows, multimedia
programs, no sound comes
from the computer.
Audio driver
Speaker
System board
Internal speakers make noise
or emit no sound.
Speaker
System board
Power Management-Related Symptoms
Symptom/Error
Action in Sequence
The system will not enter
hibernation.
Keyboard (if control is from the keyboard)
Hard disk drive
System board
The system does not enter
hibernation mode and four
short beeps every minute.
Press Fn + F4 and see if the computer enters
hibernation mode.
Touchpad
Keyboard
Hard disk connection board
Hard disk drive
System board
The system does not enter
standby mode after closing
the LCD.
LCD cover switch
System board
The system does not resume
from hibernation mode.
Hard disk connection board
Hard disk drive
System board
The system does not resume
from standby mode after
opening the LCD.
LCD cover switch
System board
Battery fuel gauge in
Windows does not go higher
than 90%.
Remove battery pack and let it cool for two hours.
Refresh battery (continue to use battery until power
off, then charge battery).
Battery pack
System board
System hangs intermittently.
Reconnect hard disk/CD-ROM drives.
Hard disk connection board
System board
Chapter 4
95
Peripheral-Related Symptoms
Symptom/Error
Action in Sequence
System configuration does not
match the installed devices.
Enter BIOS Setup Utility to execute Load Default
Settings, then reboot system.
Reconnect hard disk/CD-ROM/diskette drives.
External display does not work
correctly.
Press Fn + F5, LCD/CRT/Both display switching
System board
USB does not work correctly.
System board
Print problems
Ensure the Parallel Port in the “Onboard Devices
Configuration” of BIOS Setup Utility is set to Enabled.
Onboard Devices Configuration
Run printer self-test.
Printer driver
Printer cable
Printer
System Board
Serial or parallel port device
problems.
Ensure the Serial Port in the Devices Configuration”
of BIOS Setup Utility is set to Enabled.
Device driver
Device cable
Device
System board
Keyboard/Touchpad-Related Symptoms
Symptom/Error
Action in Sequence
Keyboard (one or more keys)
does not work.
Reconnect the keyboard cable.
Keyboard
System board
Touchpad does not work.
Reconnect touchpad cable.
Touchpad board
System board
Modem-Related Symptoms
Symptom/Error
Internal modem does not
work correctly.
Action in Sequence
Modem phone port
Modem combo board
System board
NOTE: If you can not correct the problems according to the anterior tables, see Undetermined
Problems.
96
Chapter 4
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do
with a hardware defect, such as cosmic radiation, electrostatic discharge, or software errors. FRU
replacement should be considered only when a recurring problem exists.
When analyzing an intermittent problems, follow the procedures below:
1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
Chapter 4
97
Undetermined Problems
The diagnostic problems does not identify which devices fail, which devices are incorrectly
installed, whether a short circuit happens, or whether the system is inoperative.
NOTE: Verify if all devices attached are supported by the computer.
NOTE: Verify if the power supply used at the time of failure is operating correctly. You can refer to
Power System Check.
Follow the procedures below to isolate the failing FRU. Do not isolate non-defective FRU.
1. Power off the computer.
2. Visually check the devices. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
•
Non-Acer devices
•
Printer, mouse, and other external devices
•
Battery Pack
•
Hard disk drive
•
DIMM
•
CD-ROM / Diskette drive module
•
PC cards
4. Power on the computer.
5. Determine if the problem has been resolved.
6. If the problem does not recur, reconnect the removed devices one at a time until you find the failed
FRU.
7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU.
98
•
System board
•
LCD assembly
Chapter 4
Chapter 5
Jumper and Connector Location
Main Board
Bottom Side
#
#
Description
1
Processor
2
North bridge chipset
3
South bridge chipset
4
RTC battery
5
FIR
6
Wireless switch
7
Bluetooth switch
8
SPDIF / Line-out CONN.
9
Mic CONN.
10
Line-in CONN.
11
5-in-1 card reader
12
RTC battery CONN.
13
USB CONN.
14
1394 CONN.
Chapter 5
Description
99
#
100
#
Description
15
DC board CONN.
Description
16
System battery pack CONN.
17
DDR2 SODIMM
18
DDR2 SODIMM
19
Wireless LAN card CONN.
20
USB CONN.
21
USB CONN.
22
RJ11 & RJ45 CONN.
23
CRT CONN.
24
Docking CONN.
25
Modem card CONN.
Chapter 5
Upper Side
#
Description
Processor
#
26
Description
PCMCIA CONN.
27
LVDS CONN.
28
Power board CONN.
29
Microphone CONN.
30
Button board CONN.
31
Keyboard FFC CONN.
32
Bluetooth module CONN.
33
Speaker CONN.
34
Touch pad FFC CONN.
Chapter 5
101
Chapter 6
FRU (Field Replaceable Unit)
This chapter offers the FRU (Field Replaceable Unit) listing in global configuration of Ferrari 1000.
Please refer to this chapter whenever you order the parts to repair or for RMA (Return
Merchandise Authorization).
Please note that when ordering FRU part, you should check the most-up-to-date information
available on your regional web or channel. For whatever reasons, a part number is changed, it
will NOT be noted on the printed service guide. For Acer authorized service providers, your Acer
office may have a different part number code from those given in the FRU list of this printed
service guide. You MUST use the local FRU list provided by your regional Acer office to order FRU
parts for service.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or
regulations on how to dispose them properly, or follow the rules set by your regional Acer office on
how to return it.
Chapter 6
102
Parts and Exploded Diagram
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
ADAPTER
N/A
ADAPTER 65W 3 PIN
Delta SADP-65KB DBRF
LF
ZH2 ADPTER Delta S/P
AP.06501.010
N/A
ADAPTER 65W 3 PIN
LITE-ON PA1650-02 QY
LF ZL6C ADP 19V
LITEON S/P
ZL6C ADP 19V LITEON
S/P
AP.06503.013
N/A
BATTERY SANYO LI-ION
3S1P 3CELL 2000mAH
HR
ZH3 BATT SANYO 3S1P
3CELL S/P
BT.00303.005
N/A
BATTERY PANASONIC
LI-ION 3S1P 3CELL
2000mAH HR
ZH3 BATT PANA 3S1P
3CELL S/P
BT.00305.002
BATTERY SANYO LI-ION
3S2P 6CELL 2600mAH
ZH3 BATT SANYO 3S2P
6CELL S/P
BT.00603.022
BATTERY PANASONIC
LI-ION 3S2P 6CELL
2600mAH
ZH3 BATT PANA 6CELL
S/P
BT.00605.010
MODEM 56K
(MDC)T60M845.02 EU
MODEM 56K
(MDC)T60M845.02 EU
54.AA7V7.001
BLUETOOTH MODULE
FOXCONN T60H928.01
W/ANTENNA
BLUETOOTH MODULE
(T60H928.01)
54.TAXV7.001
MINI PCI WIRELESS
BOARD FOXCONN
802.11b/g GOLAN
T60H938.03
FOXCONN WL BG
Atheros XB62 S/P
54.FR5V7.002
BATTERY
N/A
BOARD
103
Chapter 6
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
LCD INVERTER BOARD
ZH3 LCD INVERTER S/P
19.FR6V7.001
N/A
MINI PCI WIRELESS
BOARD FOXCONN
802.11ABG T60H921.10
Foxconn
'Minicard_ABG(Atheros
XB62)
54.FR5V7.003
N/A
MINI PCI WIRELESS
BOARD FOXCONN
ATHEROS 802.11N
T60H971.00
ZH3 FOX WL ATHEROS
T60H971.00 S/P
54.FR6V7.001
N/A
MINI PCI WIRELESS
BOARD FOXCONN
BROADCOM 802.11N
T60H971.01
ZH3 FOX WL 11N
BROADCOM
T60H971.01 S/P
54.FR6V7.002
N/A
TOUCHPAD BOARD
ZH3 TP/B ASSY S/P
55.FR6V7.001
N/A
POWER BOARD
ZH3 DC/B ASSY S/P
55.FR6V7.002
N/A
POWER CORD JAPAN
ZB1 POWER CORD
(JAPANESE) ROHS S/P
27.TAXV7.003
N/A
POWER CORD PRC (3
PIN)
ET2S POWER CORD S/PPRC
27.A03V7.003
N/A
POWER CORD (UK)
ET2S POWER CORD
SPARE PART-UK
27.A03V7.004
N/A
POWER CORD DANISH
(3 PIN)
ET2S POWER CORD S/PDANISH
27.A03V7.006
N/A
POWER CORD AF-S
(INDIA)
ZL6A POWER CORD S/P
INDIA S.P.
27.A50V7.001
N/A
POWER CORD ISRAEL (3
PIN)
ZL6A POWER CORD S/PISR S.P
27.A50V7.002
N/A
POWER CORD AU W/
LABEL (3 PIN)
ZL6A POWER CORD S/PAU S.P.
27.A50V7.003
N/A
POWER CORD US-110V
(BSMI)
ZL3E POWER CORD S/PTWN
27.A99V7.002
N/A
POWER CORD AF (3
PIN)
ZI5 POWER CORD S/PAF
27.T48V7.001
N/A
POWER CORD THAI
ZL3E POWER CORD S/PTHAI
27.A99V7.003
N/A
POWER CORD SWISS 3
PIN
ZE1 POWER CORD 3P
SWISS S.P.
27.A99V7.004
N/A
POWER CORD ITALIAN
3PIN
EI2 POWER CORD 3P
ITALY S.P.
27.A99V7.005
N/A
POWER CORD
(CONTINENTAL)
EI2 POWER CORD 3P
CONTINENTAL S.P.
27.FR5V7.001
CABLE
Chapter 6
104
PART PHOTO
N/A
PARTNAME
DESCRIPTION
ACER PART NO.
MODEM CABLE
CABLE ASSY ZH3
MDDEM S/P
50.FR6V7.001
BLUETOOTH CABLE
CABLE ASSY ZH3
BLUETOOTH S/P
50.FR6V7.002
POWER BOARD CABLE
CABLE ASSY ZH3 DC S/P
50.FR6V7.003
LCD CABLE ASSY 12.1
IN. FOR CCD
ZH3 LCD CABLE 12.1
FOR CCD S/P
50.FR6V7.003
MIDDLE COVER
ZH3 KB COVER ASSY S/P
42.FR6V7.001
"UPPER CASE W/TP,
CABLE"
ZH3 TOP CASE SUB
ASSY S/P
60.FR6V7.001
"LOWER CASE W/
SPEAKER, RUBBER
FOOT"
ZH3 BASE CASE ASSY S/
P
60.FR6V7.002
RAM DOOR
ZH3 RAM DOOR ASSY
S/P
42.FR6V7.002
DUMMY SD CARD
ZH3 SD DUMMY CARD
ASSY S/P
42.FR6V7.003
CASE/COVER/BRACKET ASSEMBLY
105
Chapter 6
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
DUMMY PCMCIA CARD
PCMCIA-DUMMYCARD-ZC1 S/P
42.FR6V7.004
LCD COVER CARBON W/
3G ANTENNA FOR CCD
ZH3 LCD COVER N-G
CARBON S/P
TBD
LCD BRACKET W/HINGE
-L
ZH3 HINGE-BKT-L-SZSZH3 S/P
33.FR6V7.002
LCD BRACKET W/HINGE
-R
ZH3 HINGE-BKT-R-SZSZH3 S/P
33.FR6V7.003
LCD COVER CARBON W/
ANTENNA FOR CCD
ZH3 LCD COVER
CARBON ASSY S/P
60.FR6V7.003
"LCD BEZEL ASSY W/
MIC, RUBBER FOR CCD"
ZH3 LCD BEZEL ASSY S/
P
60.FR6V7.004
AMD MOBILE TURION
64 X2 TL50 (ATTL50)
1.6G (Cache 128K/256K)
ZC3 AMD CPU Turion
TL50 1.6G S/P
KC.TTL02.500
N/A
AMD MOBILE TURION
64 X2 TL52 (ATTL52)
1.6G (Cache 128k/512k)
ZC3 AMD CPU Turion
TL52 1.6G S/P
KC.TTL02.520
N/A
AMD MOBILE TURION
64 X2 TL56 (ATTL56)
1.8G (Cache 128k/512k)
ZC3 AMD CPU Turion
TL56 1.8G S/P
KC.TTL02.560
N/A
AMD MOBILE TURION
64 X2 TL60 (ATTL60)
2.0G (Cache 128k/512k)
ZC3 AMD CPU Turion
TL60 2.0G S/P
KC.TTL02.600
EXTERNAL PANASONIC
SUPER MULTI UJ-85J
SLOT IN LF
ZH3 ODD PANA SUPER
MULTI UJ-85J S/P
KU.00807.043
N/A
CPU / PROCESSOR
DVD RW DRIVE
N/A
Chapter 6
106
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
HDD
100G SEAGATE 2.5
5400RPM SATA 8M
ST9100824AS (-189)
MERCURY 2 LF FW:3.06
TBD
KH.10001.009
N/A
"100G TOSHIBA
2.5""5400RPM
SATAMK1032GSX
ARIES-B FREE-FALL LF
FW:AS021J"
TBD
KH.10004.004
N/A
120G TOSHIBA
MK1234GSX(Rohs)
(Free-fall)
TBD
KH.12004.004
N/A
120G SEAGATE
ST9120821AS(-189)
TBD
KH.12001.026
N/A
120G WD
WD1200BEVS-22LAT0
ZH3 120G WD
WD1200BEVS S/P
KH.12008.016
N/A
160G SEAGATE 2.5 IN.
5400RPM ST9160821AS
VENUS SATA LF FW:
3.ALA
TBD
KH.16001.021
N/A
160G SEAGATE 2.5 IN.
5400RPM ST9160821A
VENUS LE FW:3.ALA
ZH3 160G SEAGATE
ST9160821A S/P
KH.16001.020
N/A
"HDD DOOR W/
CUSION, RUBBER
FOOT"
ZH3 HDD DOOR ASSY S/
P
42.FR6V7.005
HDD BRACKET
ZH3 HDD BRACKET S/P
33.FR6V7.001
FR1000 KEYBOARD
DARFON US
International
ZH3 K/B (UI) S/P
KB.FR607.001
N/A
FR1000 KEYBOARD
DARFON Chinese
ZH3 K/B (TAIWAN) S/P
KB.FR607.002
N/A
FR1000 KEYBOARD
DARFON Spanish
ZH3 K/B (SPANISH) S/P
KB.FR607.003
N/A
FR1000 KEYBOARD
DARFON Thai
ZH3 K/B (THAI) S/P
KB.FR607.004
N/A
FR1000 KEYBOARD
DARFON Brazilian
Portuguese
ZH3 K/B (BRAZIL) S/P
KB.FR607.005
N/A
FR1000 KEYBOARD
DARFON Korea
ZH3 K/B (KOREAN) S/P
KB.FR607.006
KEYBOARD
107
Chapter 6
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
N/A
FR1000 KEYBOARD
DARFON UK
ZH3 K/B (UK) S/P
KB.FR607.007
N/A
FR1000 KEYBOARD
DARFON German
ZH3 K/B (GERMAN) S/P
KB.FR607.008
N/A
FR1000 KEYBOARD
DARFON Italian
ZH3 K/B (ITALIAN) S/P
KB.FR607.009
N/A
FR1000 KEYBOARD
DARFON French
ZH3 K/B (FRENCH) S/P
KB.FR607.010
N/A
FR1000 KEYBOARD
DARFON Swiss/G
ZH3 K/B (SWISS) S/P
KB.FR607.011
N/A
FR1000 KEYBOARD
DARFON Portuguese
ZH3 K/B (PORTUGUESE)
S/P
KB.FR607.012
N/A
FR1000 KEYBOARD
DARFON Belgium
ZH3 K/B (BELGIUM) S/P
KB.FR607.014
N/A
FR1000 KEYBOARD
DARFON Sweden
ZH3 K/B (SWEDISH) S/P
KB.FR607.015
N/A
FR1000 KEYBOARD
DARFON Czech
ZH3 K/B (CZECH) S/P
KB.FR607.016
N/A
FR1000 KEYBOARD
DARFON Hungarian
ZH3 K/B (HUNGARIAN)
S/P
KB.FR607.017
N/A
FR1000 KEYBOARD
DARFON Norway
ZH3 K/B (NORWEGIAN)
S/P
KB.FR607.018
N/A
FR1000 KEYBOARD
DARFON Danish
ZH3 K/B (DANISH) S/P
KB.FR607.019
N/A
FR1000 KEYBOARD
DARFON Turkish
ZH3 K/B (TURKISH) S/P
KB.FR607.020
N/A
FR1000 KEYBOARD
DARFON Canadian
French
ZH3 K/B (FRA-CAN) S/P
KB.FR607.021
N/A
FR1000 KEYBOARD
DARFON Japanese
ZH3 K/B (JAPAN) S/P
KB.FR607.022
N/A
FR1000 KEYBOARD
DARFON Greek
ZH3 K/B (GREEK) S/P
KB.FR607.023
N/A
FR1000 KEYBOARD
DARFON Hebrew
ZH3 K/B (HEBREW) S/P
KB.FR607.024
N/A
FR1000 KEYBOARD
DARFON Russian
ZH3 K/B (RUSSIAN) S/P
KB.FR607.025
N/A
FR1000 KEYBOARD
DARFON Croatia (CR)
ZH3 K/B (CROATIA) S/P
KB.FR607.027
N/A
FR1000 KEYBOARD
DARFON Arabic
TBD
KB.FR607.013
N/A
FR1000 KEYBOARD
DARFON Slovenia (SLO)
TBD
KB.FR607.026
N/A
ZH3 K/B (CHINA)
ZH3 K/B (CHINA) S/P
TBD
N/A
ZH3 K/B (DUTCH)
ZH3 K/B (DUTCH) S/P
TBD
N/A
ZH3 K/B (LA)
ZH3 K/B (LA) S/P
TBD
N/A
ZH3 K/B (USA)
ZH3 K/B (USA) S/P
TBD
N/A
ZH3 K/B (ICELAND)
ZH3 K/B (ICELAND) S/P
TBD
N/A
ZH3 K/B (POLAND)
ZH3 K/B (POLAND) S/P
TBD
Chapter 6
108
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
LCD
LCD 12.1 IN. LCD
MODULE NON GLARE
W/ CCD ASSY
ZH3 AU 12.1 LCD W/
OWWAN ASSY S/P
6M.FR6V7.001
N/A
LCD 12.1 IN. LCD
MODULE GLARE W/CCD
ASSY
ZH3 TOS 12.1 LCD W/
OWWAN GL S/P
6M.FR6V7.002
N/A
LCD 12.1 IN. TFT WXGA
AU B121EW03-V1 NONGLARE
ZH3 LCD 12.1 WXGA
AU N-G S/P
LK.12105.005
N/A
LCD 12.1 IN. TFT WXGA
AU B121EW03-V3
GLARE
ZH3 LCD 12.1 WXGA
AU V3 S/P
LK.12105.006
N/A
LCD 12.1 IN. TFT WXGA
TOSHIBA LTD121EXUQ
NON-GLARE
ZH3 LCD 12.1 WXGA
TOSHIBA N-G S/P
LK.1210F.012
N/A
LCD 12.1 IN. TFT WXGA
TOSHIBA LTD121EXQQ
GLARE
ZH3 LCD 12.1
LTD121EXQQ S/P
LK.1210F.013
N/A
LCD 12.1 IN. TFT WXGA
QDI QD12TL02-01
GLARE
ZH3 LCD 12.1 WXGA
QDI QD12TL02 S/P
LK.12109.002
CCD MODULE
ZH3 CCD ASSY S/P
57.FR6V7.001
SDIMM 1GB DDRII667
NANYA
NT1GT64U8HA0BN-3C
ZH3 1GB DDRII667
NANYA S/P
KN.1GB03.009
N/A
SO-DIMM DDRII667
1GB SAMSUNG
M470T2953CZ3-CE6
TBD
KN.1GB0B.005
N/A
SODIMM DDRII533 1GB
NANYA
NT1GT64UH8A0BN-37B
(PB-FREE)
TBD
KN.1GB03.006
N/A
MEMORY 1G DDR II 533
INFINEON
HYS64T128021HDL-3.7B (.09u)
ZH3 1G DDRII533
INFINEON S/P
KN.1GB02.030
N/A
MEMORY SAMSUNG
DDRII 533 1GB
M470T2953CZ3-CD5 LF
ZH2A RAM(1G)DDR2
M470T2953CZ3-CD5 S/P
KN.1GB0B.004
CCD MODULE
MEMORY
109
Chapter 6
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
N/A
MEMORY 512MB DDRII
667 NANYA
NT512T64UH8A1FN-3C
ZC1 NANYA DDRII667
512MB RAM S/P
KN.51203.025
N/A
SO-DIMM DDRII667
512MB SAMSUNG
M470T6554CZ3-CE6 LF
TBD
KN.5120B.018
N/A
Hynix SO512MBII6
HYMP564S64BP6-Y5 LF
(.09UM)
TBD
KN.5120G.014
N/A
"MEMORY NANYA,
DDRII533 512MB
NT512T64UH8A1FN37B (PB-FREE)"
ZB1 RAM(512M)DDR2
NANYA S/P
KN.51203.023
N/A
SDIMM 512M DDRII533
HYNIX
HYMP564S64BP6-C4
ZB2 RAM(512M)DDR2
S/P
KN.5120G.013
N/A
INFINEON 'SO-DIMM
DDRII667 1GB
HYS64T128021HDL-3SB (.09U/G)
TBD
KN.1GB02.029
"MAINBOARD
ATIRS485M SATA W/
CARD READER,PCMCIA
W/O CPU MOMERY"
ZH3 SATA BASE UNIT
MB.FR606.001
THERMAL MODULE
ZH3 THERMAL
MODULE ASSY S/P
60.FR6V7.005
N/A
SPEAKER ASSY
ZH3 SPEAKER ASSY S/P
23.FR6V7.001
N/A
MICROPHONE
ZH3 MICROPHONE
CABLE S/P
23.FR6V7.002
N/A
RUBBER FOOT
"BASE-FOOT-M-ZH3
(GAZH3011, REV3A)"
47.FR6V7.001
N/A
"LCD-RUBBER-TOP-LZH3 (GAZH3007,
REV3A)"
ZH3 LCD-RUBBER-TOPL-ZH3 S/P
47.FR6V7.002
N/A
"LCD-RUBBER-TOP-RZH3 (GAZH3008,
REV3A)"
ZH3 LCD-RUBBER-TOPR-ZH3 S/P
47.FR6V7.003
N/A
"LCD-RUBBER-SIDE-ZH3
(GAZH3009, REV3A)"
ZH3 LCD-RUBBER-SIDEZH3 S/P
47.FR6V7.004
N/A
"BASE-FOOT-HD-ZH3
(GAZH3001, REV3A)"
ZH3 BASE-FOOT-HDZH3 S/P
47.FR6V7.005
MAIN BOARD
HEATSINK
SPEAKER
MISCELLANEOUS
Chapter 6
110
PART PHOTO
PARTNAME
DESCRIPTION
ACER PART NO.
N/A
HDD-IN-RUBBER-ZH3
ZH3 HDD-IN-RUBBERZH3 S/P
47.FR6V7.006
N/A
"BASE-FOOT-R-ZH3
(GAZH3002, REV3A)"
ZH3 BASE-FOOT-R-ZH3
S/P
47.FR6V7.007
N/A
"BASE-FOOT-L-ZH3
(GAZH3003, REV3A) "
ZH3 BASE-FOOT-L-ZH3
S/P
47.FR6V7.008
N/A
"BASE-FOOT-ZH3
(GAZH3004, REV3A)"
ZH3 BASE-FOOT-ZH3 S/P
47.FR6V7.009
N/A
"KB-COVER-SCREWCAP-ZH3 (FCZH3029,
REV3A)"
ZH3 KB-COVER-SCREWCAP-ZH3 S/P
47.FR6V7.010
N/A
SCREW M2*5I(BZN)(NYLOK)
SCREW M2*5I(BZN)(NYLOK)
86.FR6V7.001
N/A
SCREW M1.6*4.0-I
(NI)(NYLOK)
SCREW M1.6*4.0-I
(NI)(NYLOK)
86.FR6V7.002
N/A
SCREW M1.6*4.0-I
(NI)(NYLOK)
SCREW M1.6*4.0-I
(NI)(NYLOK)
86.FR6V7.003
N/A
SCREW M2*2.5I(NI)(NYLOK)
SCREW M2*2.5I(NI)(NYLOK)
86.FR6V7.004
N/A
"I2.5*4T-BKAGH(4,0.8)"
"I2.5*4T-BKAGH(4,0.8)"
86.FR6V7.005
N/A
SCREW M2.5*4-I(BNI)
SCREW M2.5*4-I(BNI)
86.T23V7.019
N/A
SCREW M2.5*6I(BNI)(NYLOK)
SCREW M2.5*6I(BNI)(NYLOK)
86.A08V7.004
N/A
SCREW M3*0.5+3.5I
SCREW M3*0.5+3.5I
86.A03V7.011
N/A
SCREW M2.5*4.0I(NYLOK)EU
SCREW M2.5*4.0I(NYLOK)EU
86.T23V7.009
SCREW
111
Chapter 6
