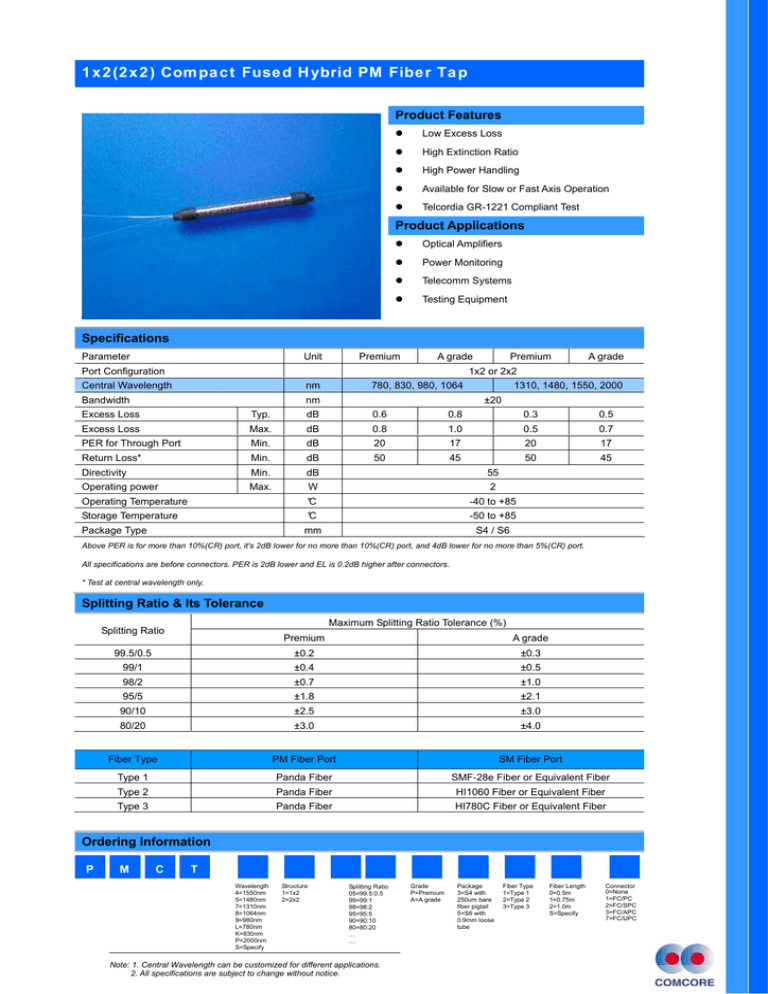

1 x 2 (2 x 2 ) Com pa c t Fuse d H ybrid PM Fibe r Ta p
Product Features
Low Excess Loss
High Extinction Ratio
High Power Handling
Available for Slow or Fast Axis Operation
Telcordia GR-1221 Compliant Test
Product Applications
Optical Amplifiers
Power Monitoring
Telecomm Systems
Testing Equipment
Specifications
Parameter
Unit
Premium
A grade
Port Configuration
Premium
A grade
1x2 or 2x2
Central Wavelength
nm
Bandwidth
nm
780, 830, 980, 1064
1310, 1480, 1550, 2000
±20
Excess Loss
Typ.
dB
0.6
0.8
0.3
0.5
Excess Loss
Max.
dB
0.8
1.0
0.5
0.7
PER for Through Port
Min.
dB
20
17
20
17
Return Loss*
Min.
dB
50
45
50
45
Directivity
Min.
dB
Operating power
Max.
55
W
2
Operating Temperature
°C
-40 to +85
Storage Temperature
°C
-50 to +85
Package Type
mm
S4 / S6
Above PER is for more than 10%(CR) port, it's 2dB lower for no more than 10%(CR) port, and 4dB lower for no more than 5%(CR) port.
All specifications are before connectors. PER is 2dB lower and EL is 0.2dB higher after connectors.
* Test at central wavelength only.
Splitting Ratio & Its Tolerance
Maximum Splitting Ratio Tolerance (%)
Splitting Ratio
Premium
A grade
99.5/0.5
±0.2
±0.3
99/1
±0.4
±0.5
98/2
±0.7
±1.0
95/5
±1.8
±2.1
90/10
±2.5
±3.0
80/20
±3.0
±4.0
Fiber Type
PM Fiber Port
SM Fiber Port
Type 1
Panda Fiber
SMF-28e Fiber or Equivalent Fiber
Type 2
Panda Fiber
HI1060 Fiber or Equivalent Fiber
Type 3
Panda Fiber
HI780C Fiber or Equivalent Fiber
Ordering Information
P
M
C
T
Wavelength
4=1550nm
5=1480nm
7=1310nm
8=1064nm
9=980nm
L=780nm
K=830nm
P=2000nm
S=Specify
Structure
1=1x2
2=2x2
Splitting Ratio
05=99.5:0.5
99=99:1
98=98:2
95=95:5
90=90:10
80=80:20
…
…
Note: 1. Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
Grade
P=Premium
A=A grade
Package
3=S4 with
250um bare
fiber pigtail
5=S6 with
0.9mm loose
tube
Fiber Type
1=Type 1
2=Type 2
3=Type 3
Fiber Length
0=0.5m
1=0.75m
2=1.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
7=FC/UPC
