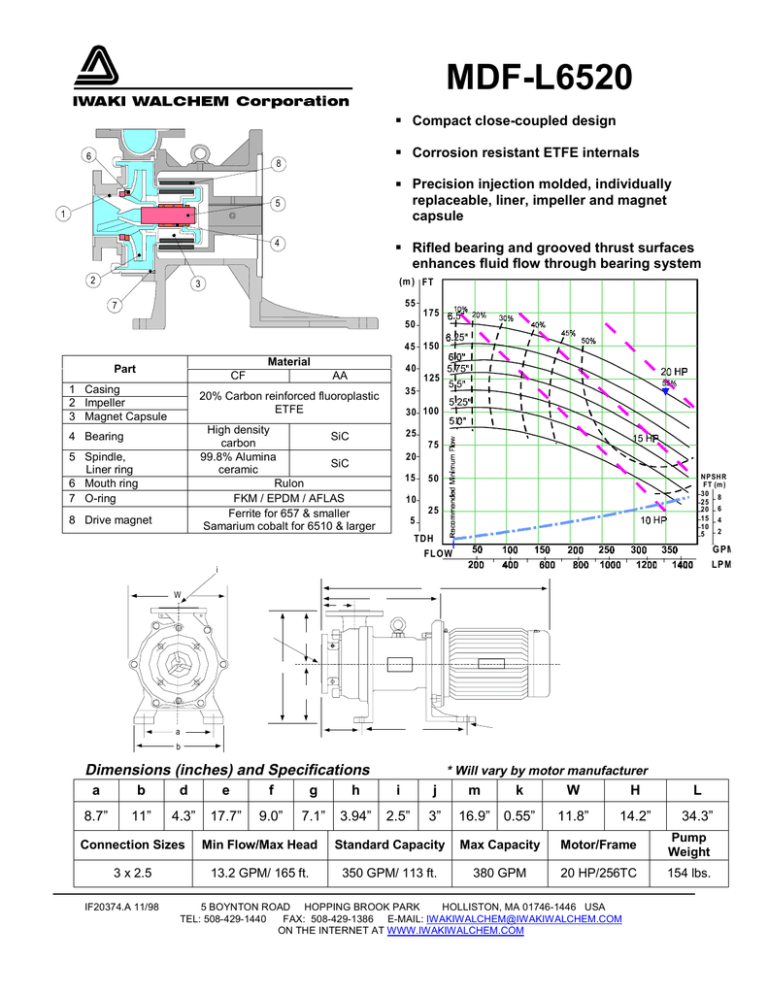

MDF-L6520
Compact close-coupled design
6
Corrosion resistant ETFE internals
8
Precision injection molded, individually
replaceable, liner, impeller and magnet
capsule
5
1
4
Rifled bearing and grooved thrust surfaces
enhances fluid flow through bearing system
2
(m ) FT
3
55
7
175
50
45 150
Material
Part
CF
1 Casing
2 Impeller
3 Magnet Capsule
4 Bearing
5 Spindle,
Liner ring
6 Mouth ring
7 O-ring
8 Drive magnet
40
AA
125
20% Carbon reinforced fluoroplastic
ETFE
35
High density
SiC
carbon
99.8% Alumina
SiC
ceramic
Rulon
FKM / EPDM / AFLAS
Ferrite for 657 & smaller
Samarium cobalt for 6510 & larger
25
30 100
75
20
15
NP SHR
FT (m )
30 8
25
20 6
15 4
10
2
5
50
10
25
5
TD H
FL O W
G PM
LP M
i
W
a
b
Dimensions (inches) and Specifications
* Will vary by motor manufacturer
a
b
d
e
f
g
h
i
j
8.7”
11”
4.3”
17.7”
9.0”
7.1”
3.94”
2.5”
3”
m
k
W
H
L
16.9” 0.55”
11.8”
14.2”
34.3”
Connection Sizes
Min Flow/Max Head
Standard Capacity
Max Capacity
Motor/Frame
Pump
Weight
3 x 2.5
13.2 GPM/ 165 ft.
350 GPM/ 113 ft.
380 GPM
20 HP/256TC
154 lbs.
IF20374.A 11/98
5 BOYNTON ROAD HOPPING BROOK PARK
HOLLISTON, MA 01746-1446 USA
TEL: 508-429-1440
FAX: 508-429-1386 E-MAIL: [email protected]
ON THE INTERNET AT WWW.IWAKIWALCHEM.COM
