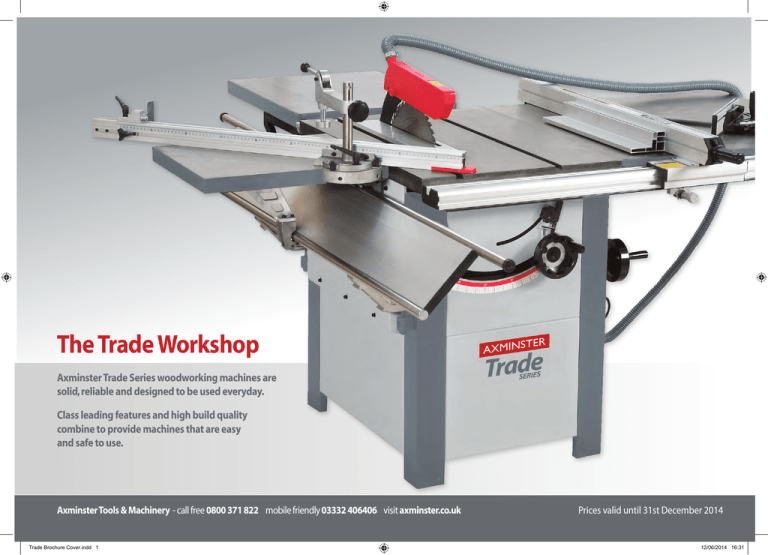

The Trade Workshop

Axminster Trade Series woodworking machines are solid, reliable and designed to be used everyday.

Class leading features and high build quality combine to provide machines that are easy and safe to use.

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

Trade Brochure Cover.indd 1

Prices valid until 31st December 2014

12/06/2014 16:31

Axminster Trade Series

Axminster has worked closely with the woodworking trades for over forty years and with this experience has a sound understanding of what’s good and what’s bad when it comes to the machinery needed in a workshop environment.

The choice of machines in the Axminster Trade Series is very much geared towards those users who rely on woodworking machinery to earn their living; those who need dependable machines which do the job required, as and when required. Over the last two years, in particular, we have worked hard to ensure all the machines in our range are worthy of the

‘Axminster’ badge and will not disappoint when used appropriately and for the purpose intended.

When you buy an Axminster machine you can be assured of:

• Quality build and finish using the finest materials

• Innovative features and unique design

• Guaranteed accuracy and precision

• Superb motor and power efficiency

• Supplied, where applicable, with high quality Axminster blades and accessories

When we use the definition ‘Trade’ by way of machine rating, we are referring to machines that are capable of being used for approximately a couple of days a week in the workshop and then lie idle whilst you are on site for the rest of the week.

They are of a duty which means that they can easily cope with the workload in terms of hours used and are also easy to operate in a busy environment.

If you are looking for continuous five days per week use you may be better served by one of our ‘Industrial’ rated machines. If you have any doubts concerning the right machine for you, either call us or drop into into one of our stores and we will be happy to discuss your requirements. Whatever your workshop set up we can offer bespoke solutions and advice to ensure that you buy the right machine for the job.

Contact our Specialist Sales Team on the number below or email

[email protected]

One point to remember – a machine is only as good as the cutting tools you put in it or on it, so always use the best (and use them at the correct cutting speed too!) – and, needless to say, we have a great range available for all our machines. If they are not listed on these pages, visit www.axminster.co.uk for full details.

Call free 0800 371 822

Mobile friendly 03332 406406

Visit axminster.co.uk Visit one of our stores

Also available upon request - Axminster Hobby Series Buyer’s Guide

2_3_IntroScrollSaw.indd 1

Buy with confidence from Axminster….

All Axminster machines come with a FREE 3 Year guarantee

It’s probably the most comprehensive free guarantee ever!

So sure are we of the quality of our machines, we cover all parts and labour free of charge for three years.

No registration necessary – just keep your proof of purchase

Full terms and conditions can be found at axminster.co.uk/terms or in the main Axminster Tools & Machinery Catalogue 2014

Axminster Woodworking Machinery Classification

The Guarantee covers all machines in the Axminster Hobby, Trade and Industrial Series* and all we ask is that you choose the right machine for the job in accordance with our guidelines:

Axminster Hobby Series

• Ideal for home use - workshop, shed, garage

• Used by one person for light work

• Lighter build specification and lower capacities

• Very few (if any) continuous work periods

• Expected maximum use of 100 hours annually

Axminster Trade Series

• Ideal for use in carpentry workshops, small production facilities, education

• Used by 1-6 people and essential for income generation

• Continuously rated, heavy duty construction capable of rough handling

• Some large and continuous work periods

• Expected maximum use of 1000 hours annually

Axminster Industrial Series

• Ideal in construction companies, small to medium production facilities, general contractors

• Used by 6+ people either in workshop or on site and essential for income generation

• Continuously rated, highest power with heavy duty, robust construction

• Capable of extended periods of heavy, continuous work

• Expected maximum used of 1500 hours annually

For full details of our ratings see axminster.co.uk/machine-classification or the main Axminster Tools & Machinery Catalogue 2014

*Guarantee covers machines only; accessories and consumables are not included.

Most of our machines are displayed throughout our stores.

(Please call us prior to visiting to check the machine you want to view is in store)

The Trafalgar Way,

Axminster

, Devon EX13 5SN Tel: 01297 35058

Winchester Road,

Basingstoke

, Hampshire RG22 6HN Tel: 01256 637477

Lincoln Road, Cressex Business Park,

High Wycombe

, Buckinghamshire HP12 3FF Tel: 01494 885480

Hamilton Way, Bermuda Trade Park,

Nuneaton

, Warwickshire CV10 7RA Tel: 02476 011402

Sheppey Way, Bobbing,

Sittingbourne

, Kent ME9 8QP Tel: 01795 437143

Gateway 49 Trade Park, Kerfoot Street,

Warrington

, Cheshire WA2 8NT Tel: 01925 595888

12/06/2014 17:22

Trade Scroll Saw

Conveinent, easy to reach NVR switch

Twin arm pivots to create a near perfect parallel blade action

Takes pinned or pinless blades

Maximum depth of cut is 65mm, larger than most other machines

Eye shield, work hold down clamp & dust blower nozzle for safe use

AWFS18

This quality scroll saw is made almost entirely in cast iron which has excellent vibration damping qualities.

The twin pivot arm mechanism provides minimum blade oscillation, giving a very clean cut. A choice of stroke depth of 10 and 20mm also gives further options for different cutting tasks, as does the electronically variable stroke rate of between 400-1,400 per minute. Able to take both pinned and pinless blades, a handy blade clamp setting jig is built into the table, making accurate blade changes easy to do. The very large cast iron table has a smooth surface and gives great support to the work, also it can easily be tilted to 45° for bevel work. The table insert can be replaced with a blank unit which can be drilled to suit the blade, giving almost zero clearance for fine work. A 120W induction motor gives ample power and is silent running to avoid distractions. An articulated hose provides air from a bellows to keep the blade area free of dust, whilst a vacuum extractor can be connected to an outlet for dust control. An eye shield and work hold down foot are provided for added safety during use.

A separate, large, emergency stop control is fitted, in line with requirements for schools and colleges, offering a quality scroll saw at a realistic price.

Supplied with a blank table insert, spare pinless blade clamps and a selection of blades.

Dust extraction outlet

Heavy cast iron construction to minimise vibration & give stability

Variable blade speeds in the range of

400-1,400 cuts per minute

Model Specification

AWFS18

Power

120W 230V

Throat 460mm(18”)

Stroke

10 & 20mm

Cuts per Minute 400-1,400

Max Depth of Cut 65mm

Table Size

460 x 235mm

Table Tilt 0-45°

Overall L x W x H

620 x 285 x 310mm

Weight 29kg

Scroll Saw

AWFS18 230V

Inc.vat Code

£399.95

501201

10 or 20mm stroke length to suit different tasks

AxMInSTer reCOMMenDS

The NVD750 Vacuum

Extractor is ideal for use this scroll saw

3

See page 24 for more details

Articulated hose provides air from a bellows

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

2_3_IntroScrollSaw.indd 2

Axminster Trade Series Scroll Saw

13/06/2014 08:59

4

Trade Bandsaws

Welded steel body

Quick release blade tensioning lever mounted on rear

Micro adjustable precision guides provided above and below the table

SBW3501B

The SBW3501B with its high specification and modest price, is a very popular machine for the trade or home workshop. The combination of rigidly built steel body, large, finely ground cast iron table, deep section rip fence and micro adjustable ball bearing blade guides produces the high level of performance demanded by both trade and amateur craftsmen. The rip fence runs on a calibrated aluminium extrusion and is locked firmly in place with a lever, giving a solid and accurate location. The adjustable precision mitre fence is T-slotted into the table for added safety and accuracy. The table tilt quadrants are set very widely apart to give the maximum support to the table and to make the tilt action very smooth. Cutting depth is controlled by a well engineered rack and pinion system, with a lock to set the guides into position. At the rear of the machine are the blade tracking control, the blade tension indicator and a quick action blade tension lever, useful for both blade changing and for releasing the tension on the blade when the machine is not in use. The powerful induction motor transmits its power via a multi-groove flat belt, ensuring smooth running and zero slip. Safety features include a motor brake, interlocked and micro-switched doors and an emergency stop switch. Beautifully made and sure to please.

Supplied complete with floor stand, rip fence, mitre fence and an Axcaliber Premium blade.

Deep section rip fence supported front and back

Extra large cast iron table, precision ground surface

Adjustable, precision

T-slotted mitre fence

Trade rated machine with excellent cutting capacities and accuracy

Vibration-free balanced aluminium blade wheels

Model Specification

SBW3501B

Power

550W 230V

Blade Speed 800m/min

Blade Length 2,552mm(100.1/2”)

Blade Width Min/Max 3mm(1/8”)/19mm(3/4”)

Max Width of Cut 340mm

Max Depth of Cut 200mm

Max Width of Cut with Fence 300mm

Table Size

500 x 356mm

Table Height on Stand 1,060mm

Table Tilt

-5° to +45°

Table Height 490mm

Wheel Diameter 350mm

Dust Extraction Outlet 100mm

Overall L x W x H

690 x 720 x 1,770mm

Weight 84kg

Supplied complete with floor stand

45º Table Tilt

Bandsaw

SBW3501B 230V

Inc.vat Code

£859.94

501199

Axcaliber Blades

Inc.vat Code

2,552mm(100.1/2”) x 1/2” x 6-10tpi £29.95

212025

2,552mm(100.1/2”) x 1/2” x 10-14tpi £29.95

212034

2,552mm(100.1/2”) x 3/4” x 4-6tpi £31.96

211501

Pack of 5 Blades 2,552mm(100.1/2”) £68.95

719580

Universal Mobile Base £53.95

100253

Micro adjustable ball bearing blade guides, easy to set

4_5_Bandsaws.indd 1

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

12/06/2014 16:40

Quick release blade tensioning lever mounted on rear

Clever three-way fence with cast iron body and tall alloy extrusion rail, also magnified scale lens

Braked induction motor and electrically interlocked doors for safety

Cast iron table, ground surface finish with a 19mm

T slot

Accurate mitre fence

SBW4300B

A bandsaw is probably the most versatile machine in any workshop and often

the first machine used when preparing timber. With a powerful motor, large capacities and made to the exacting standards we expect of our Trade range of machines, this bandsaw has become firmly established. It offers excellent safety features including braked motor and interlocked doors and twin extraction ports. A rigid welded steel chassis, cast iron table and heavy duty bearing blade guides are standard, along with a rigid rip fence and precision mitre fence. One often overlooked feature is the ease of changing the blade; it has a quick release blade tensioning lever which substantially speeds up the process of blade changing. Two belt speeds offer the right speed for the job, big or small. A wide range of blades is available, all made here in Axminster. First class build quality, ease of use and versatility mark this bandsaw out as a top machine for trade use.

Supplied with rip fence, mitre fence and Axcaliber Premium blade.

N.B. 16A supply required.

First class build quality, ease of use and versatility mark this bandsaw as a top machine for trade use.

Model Specification

SBW4300B

Power

Blade Speed

1,500W 230V 16A

390 & 840m/min

Blade Length 3,327mm(131”)

Blade Width Min/Max

3mm(1/8”) 25mm(1”)

Max Width of Cut 410mm

Max Depth of Cut 300mm

Max Width of Cut with Fence 370mm

Table Size

600 x 445mm

Table Tilt

-5° to +45°

Table Height 950mm

Wheel Diameter 430mm

Dust Extraction Outlet 100mm

Overall L x W x H

813 x 660 x 1,880mm

Weight 146kg

Bandsaw

SBW4300B 230V

Inc.vat Code

£1,179.95

501200

Axcaliber Blades

Inc.vat Code

3,327mm(131”) x 1/2” x 6-10tpi £37.96

951664

3,327mm(131”) x 1/2” x 10-14tpi £37.96

951665

GET THE rIGHT

BLADE FOr

THE jOB!

Twin dust ports for efficient extraction,

1,000m³/hr airflow required

Bandsaw Blades

Visit axminster.co.uk for the full range

5

AxMInSTEr rECOMMEnDS

The NVD750 Vacuum

Extractor is ideal for use these bandsaws

See page 24 for more details

Heavy duty bearing guides hold the blade securely for accuracy

Micro adjustable ball bearing blade guides, easy to set

Quick release blade tensioning lever eases blade changing

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

Axminster Trade Series Bandsaws

4_5_Bandsaws.indd 2 12/06/2014 16:40

Compact sized medium duty saw bench for trade use

Trade Saw Benches

254mm diameter TCT blade gives up to 75mm depth of cut

Cast iron table with ground surface

Optional cast iron table extensions give up to

840mm cutting width against fence included in package

Available as the standard saw bench (with options available) or as a complete package with options included as shown

6

Fully functioning sliding table kit included in package

Sheet steel body

2.2kW 1ph induction motor, requires 16 amp supply, plug fitted

Complete kit package

Sheet steel side support and rear feed off tables included

Saw blade tilts up to 45º

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

6_7_SawBenches.indd 1

Basic saw bench

12/06/2014 16:40

AW10BSB2 & AW12BSB2

These two machines, the AW10BSB2 and AW12BSB2, are solidly made saw benches with large

cast iron tables mounted on a heavy gauge steel chassis. Recent upgrades include a right hand side extension table with longer fence rails to give at least 610mm cut between fence and blade. This allows a typical “8 x 4ft” sheet to be cut down the middle without needing any extension tables.

Both machines are now fitted with larger control wheels for the blade height and tilt; this sounds unimportant, but actually has a surprising effect on the feel and controllability of the machine.

There is now a side door on the chassis to give easy access for maintenance or cleaning. All of the old great features remain, so you get a very solid fence, clamped at both ends and with a micro adjustment facility. This fence also has a separate rip fence plate to give your work support up to the centre point of the blade, which is much safer and prevents burning marks on the timber. High torque induction motors provide plenty of power for all jobs. A decent mitre fence is provided, running in standard 19mm T-slots, one each side of the blade. Dust extraction is well provided for, with a separate port on the crown guard.

A quality Axcaliber TCT blade is fitted and many other blades are available to suit any job. So, out of the box these two saws are ready for work and may be all you need, but we do offer a couple of useful options to further extend their versatility. (see below)

Model Specification

Power

Blade Dia/Bore

AW10BSB2

2.2kW 230V 1ph

254 x 30mm

A tough, simple saw bench is the core machine in many workshops, something able to size up large rough sawn timbers before final sizing in the planer thicknesser.

AW12BSB2

3kW 230V 1ph

315 x 30mm

Max Width of Cut with Fence 840mm

(with optional table extensions)

1,160mm

(with optional table extensions)

Table Size

(with optional table extensions)

800 x 830mm incl side table

Table Size With Extensions

800 x 1,170mm

(with optional table extensions)

800 x 870mm incl side table

800 x 1,480mm

Min Extraction Airflow Required

Overall L x W x H

1,170 x 800 x 865mm 2,030 x 840 x 865mm

AW10BSB2

Saw Bench

Inc.vat Code

AW10BSB2 Complete Kit 230V

£1,279.96

717202

AW10BSB2 Saw Bench 230V

£799.94

501196

AW10BSB2 Table Extensions

Sliding Table

£149.94

£399.95

951538

951539

Axcaliber Premium Blades

Rip

254 x 3.2 x 30mm 24T

Fine

254 x 3.2 x 30mm x 60T

Extra Fine

254 x 3.2 x 30mm x 80T

Inc.vat Code

£39.95

951520

£69.95

951522

£86.94

951523

AW12BSB2

Saw Bench

Inc.vat Code

AW12BSB2 Complete Kit 230V

£1,549.96

717203

AW12BSB2 Saw Bench 230V

£999.95

501197

AW12BSB2 Table Extensions

£234.95

951541

Sliding Table £399.95

951539

Axcaliber Premium Blades

Rip

315 x 3.2 x 30mm x 28T

General Purpose

315 x 3.2 x 30mm x 48T

Extra FIne

315 x 3.2 x 30mm x 96T

Inc.vat Code

£67.94

501023

£89.94

501024

£114.95

501026

7

1. A pair of cast iron extension tables.

These can either be mounted one to each side of the blade or both on one side. The choice is yours.

Supplied with long fence rails and scales, these would give you an 800 x 1,170mm (800 x 1,480mm

AW12BSB2) all cast iron working surface

2. A simple sliding table, more of a cross cut table in design, fitted with a mitre fence with a long support rail and work clamp.

This gives 1,200mm travel through the blade, great for board or panel work. An added bonus is that this assembly can easily be removed without requiring tools, creating more space around the machine.

AxMInSTER

RECOMMEnDS

The UB-802

Extractor is ideal for use with these saw benches

See page 27 for more details

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

6_7_SawBenches.indd 2

Axminster Trade Series Table Saws

13/06/2014 10:04

8

Trade Panel Saw

MJ12-1600 MKII

Constructed in cast iron with welded heavy gauge steel and fitted with a 1,600mm alloy extrusion sliding

table, it is robust and stable for everyday use. The good sized, deep section cast iron main table is fitted with a cast iron extension table giving a combined surface of

825 x 800mm, plus a further steel plate extension giving a total working surface of 1,265 x 800mm. A heavy gauge cast iron rip fence holder and deep section alloy fence rail is included. The sliding table is smooth running, fully adjustable and gives a travel of 1,300mm through the blade.

A crosscut support table, with a telescopic support arm, can be positioned anywhere on the sliding table and has a telescopic fence 1,200-2,200mm long, enough for full size boards. This can easliy be removed without tools for storage if required.

A powerful 2.2kW output 1ph high torque motor drives both the main blade and a scoring blade. The size of the main blade can be a choice of 254, 305 or 315mm, without removing the scoring blade. The scoring blade is easy to adjust through the table top and can be retracted below the surface when not required. Smooth acting blade controls, efficient dust extraction and a micro adjustable rip fence contribute to easy use.

Included as standard are a 315mm Axcaliber main blade, scoring blade, a rear feed-off table, small mitre fence (of a clever design for use on the sliding table with a work clamp), an edge shoe and table support legs.

N.B. 16A supply required.

Smooth running 1600mm extruded alloy sliding table

Crosscut support table with telescopic support arm

315mm Axcaliber crosscut blade included

Powerful 2.2kW output 230V 1ph induction motor. Requires 16 amp supply

model Specification

MJ12-1600 MKII

Power

2.6kW (max input)

2.2kw (output) 230V 1ph

Blade dia/Bore 254, 305 or 315mm x 30mm x 3mm

Blade Tilt 0-45°

Scoring Blade diameter 90mm max depth of Cut @ 45˚ max depth of Cut @ 90˚

80mm (315)

100mm (315)

max Width of Cut with Fence 1,220mm

Table Size

385 x 800mm

Table Height 865mm

Sliding Table Size

1,600mm x 270mm

dust extraction outlet 100mm min extraction Airflow required 1,000m³/hr overall L x W x H

1,600mm x 1,540mm

(+740mm crosscut table) x 865mm

Weight 255kg

Panel Saw

MJ12-1600 MKII 230V

Axcaliber Blades

Rip

315 x 3.0 x 30mm T28

General Purpose

315 x 3.0 x 30mm T48

Fine

315 x 3.2 x 30mm T60

Cross Cut

315 x 3.2 x 30mm T72

Inc.vat Code

£1,749.95

505150

Inc.vat Code

£26.45

800123

£31.94

800125

£38.94

800126

£44.94

501029

90mm scoring blade system included

Substantial cast iron main table, with steel side and rear tables

Telescopic crosscut fence with length stop

Substantial cast iron rip fence body with tall alloy extrusion rail complete with camlock controls

AxmInSTer reCommendS

The UB-802

Extractor is ideal for use with this panel saw

See page 26 for more details

Smooth running 1600mm extruded alloy sliding table

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

8_9_PannelSaw_Planer.indd 1 13/06/2014 10:41

Trade Planer

Planer block fully protected by a strong aluminium alloy guard

Three-knife cutter block, gives a super smooth finish

Heavy cast iron fence with ground a surface, adjustable from 45° to 90°

Constructed largely of cast iron with long tables

This is one of the most unique machines in the whole of the Axminster range

Independently adjustable infeed and outfeed tables, allows small rebates

1.1kW 230V 1ph induction motor

Substantial steel stand houses the motor and switch assembly plus integral wheels

CT1502

Its rugged construction, independently and fully adjustable tables, threeknife cutter block and powerful motor make it a popular choice with keen

hobbyists and trade professionals alike. The planer is constructed largely of cast iron and is mounted on a substantial steel stand which also houses the motor and the switchgear. The planer block is equipped with three resharpenable high speed steel blades which give a truly excellent finish to the timber and there is a setting device included which eases the job of blade changing.

The planer block is fully protected across its whole width by a strong aluminium alloy guard. The infeed and outfeed tables are independently adjustable for height, which not only makes for quick adjustment of the blade height relative to the table but allows for cutting of stopped chamfers up to 12mm deep. The side fence, which is a heavy cast iron unit with a ground surface, is clamped in two places and is fully adjustable for angles between 45° and 90°.

Waste extraction is from the rear of the machine via a 100mm(4”) flanged spigot fixed to the body and connected to a chippings extractor. Wheels are fitted to the stand to allow mobility around the workshop. model Specification

CT1502

Power

1,120W 230V

Cutterblock Speed 4,200rpm

Cutterblock diameter 60mm max Planing Width 150mm max depth of Cut 4mm

Knives

HSS(Resharpenable) x 3

Fence Size

Fence Tilting

100 x 705mm

0 - 45°

Length of Table 1,160mm

Table Size

1,160 x 150mm

min extraction Airflow required 1,000m³/hr dust extraction outlet 100mm overall L x W x H

1,160 x 560 x 940mm

Weight 80kg

9

Waste extraction from rear of machine via a

100mm port

AxmInSTer reCommendS

The UB-801F

Extractor is ideal for use with this planer

See page 26 for more details

Planer

CT1502 230V

Resharpenable Knives

HSS Knives (3) (54A)

Inc.vat Code

£699.95

501205

Inc.vat Code

£11.45

400386

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

8_9_PannelSaw_Planer.indd 2

Axminster Trade Series Planer

12/06/2014 16:41

10

Trade Thicknessers

CT330

Planing block height adjusted by precision control handle on top of the machine. handle can be mounted either side of machine

Planing head unit equipped with lock for precise, even finish

Planing block equipped with a pair of superb quality double-sided HSS disposable blades giving an almost perfect finish

Dust collection via shroud fitted with a 100mm diameter outlet

Gauge indicates thickness of material

Extra long tables with support rollers

1,800W brush motor, gives ample power

The CT330 is a robust machine with a slightly greater width capacity, a more powerful motor and longer tables than most of the similar models on the market.

The planing block, which is powered by an 1,800W brush motor, is equipped with a pair of double-sided disposable blades which are simplicity itself to replace, just requiring the removal of the blade carrier with the spanner provided, the fitting of a new blade and the replacement of the carrier. No fiddly height setting is required. The planer block height is adjusted by a very precise control positioned conveniently on top of the machine and there is a scale on the front face for easy reference to the timber thickness. There are two other aids to controlling the timber thickness, one is a gauge on the front of the motor housing which indicates the depth of cut being taken. The other being a depth stop with presets (1/8”, 3/8”, 1/2”, 3/4”,

1” & 1 1/4”) for finished board thickness. In addition, the planing block unit is equipped with a lock which removes any chance of the height setting altering during the planing operation.

Although the CT330 is fitted with increased length infeed and outfeed tables, it is recommended that a suitable roller stand is used for long planks for both safety and accuracy of the work. Roller stands are detailed within the

Machinery section. Dust collection is via a shroud on the top of the block which is fitted with a 100mm diameter outlet for direct connection to a suitable chip collector.

TH410

This is a stand-alone thicknesser with a very useful capacity but of compact design. Quite substantially manufactured and amply powered by a 2.75kW industrial quality motor, this is a very useful machine to have in any workshop. Able to produce a very high quality finish due to the speed of the knife block and the variable speed feed rate giving 5-7m/min feed speeds. The large cast iron thicknessing table features a central column with a locking mechanism to prevent any movement. With a maximum capacity of 410 x 225mm but able to take workpieces down to

6mm thick and only 200mm long, a wide variety of work can be undertaken. A great machine for floorboard and frame manufacturing.

An optional digital height read-out allows accurate timber sizing.

Integrated dust hood/cutter block guard with safety interlock switch

NB Requires 16A supply.

Three-knife cutter block runs at

5300rpm, variable speed feed rate

Large cast iron thicknesser table, heavy gauge sheet steel base

2.75kW 230V 1ph induction motor

Optional digital thickness display

Thicknesser

CT330 230V

Floor Stand

Disposable Planer Knives

HSS Knives (2)

Inc.vat Code

£639.95

501207

£59.94

400391

Inc.vat Code

£40.44

400392

Model Specification

Power

CT330 TH410

Thicknessing table column lock

Knives

Thicknesser

TH410 230V

Planer Knives

410mm Knives (Pkt 3)

Accessories

Digital Thickness Display

Inc.vat Code

£1,049.95

501206

Inc.vat Code

£48.95

210204

Inc.vat Code

£22.99

950686

Overall L x W x H

HSS(Disposable) x 2 HSS (Resharpenable) x 3

950 x 590 x 460mm 720 x 690 x 1,120mm

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

10_11_PlanerThicknessers.indd 1 12/06/2014 16:41

Trade Planer/Thicknesser

AW106PT2

Fence & cutter block guard can be configured for LH or RH operation

Cast iron tables & tilting fence offer exceptional accuracy & stability

Pivoting dust extraction hood operates on thicknessing & surfacing modes

A trade rated planer thicknesser with ground cast iron planing and thicknessing tables and a cast iron tilting fence.

Being made of cast iron, this is a very heavy machine and is an excellent choice for either the trade professional or the discerning home user. The combination of a three-knife cutter block and the vibration-reducing mass of the machine results in a very clean finish to the work. The dust extraction hood is positioned underneath the table for surfacing and on top of the table, with both of the tables tilted out of the way, for thicknessing. The three-knife cutter block is set using the gauge supplied, ensuring that each knife is set exactly to the block. For optimum setting both tables are fully adjustable and electrically interlocked to avoid accidental starting without the cutter guard in place.

Two other features of note:

1. There are on/off switches on both ends of the machine, one for planing and one for thicknessing.

2. The cast iron fence can be positioned on either side of the table for left hand or right hand operation.

Both tables are adjustable & electrically interlocked for safety

Separate control switches for each function of machine for convenience

Model Specification

AW106PT2

Power

1,5kW 230V 1ph

Feed Speed 8m/min

Cutterblock Speed 4,000rpm

Cutterblock Diameter 80mm

Max Thicknesser Capacity 180mm

Max Planing Width 250mm

Max Depth of Cut 2.5mm

Max Depth of Cut Thicknesser 2.0mm

Max Depth of Cut Planer 2.5mm

Knives

Length of Table

HSS(Resharpenable) x 3

260 x 1,090mm

Min Extraction Airflow Required 1,000m³/hr

Dust Extraction Outlet 100mm

Overall L x W x H

1,090 x 750 x 1,000mm

Weight 150kg

Planer/Thicknesser

AW106PT2

Inc.vat Code

£849.95

501202

Planer Knives

HSS 250mm Knives (3)

TCT 250mm Knives (3)

Inc.vat Code

£23.45

340367

£69.95

210333

Welded steel stand for stability and strength

11

Trade rated planer thicknesser produces great results every time

Extended support rollers on thicknessing table

Thicknessing mode

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

AxMINSTER

RECOMMENDS

The UB-802

Extractor is ideal for use with this thicknesser

See page 27 for more details

Three-knife cutter block gives a very clean finish to the work

Axminster Trade Series Planer/Thicknessers

10_11_PlanerThicknessers.indd 2 12/06/2014 16:41

Trade Planer/Thicknessers

Long alloy extrusion surfacing fence

Both tables are adjustable

& electrically interlocked for safety

Extension rollers for thickenssing table

2.2kW motor

Finely ground cast iron tables

Separate control switches for each function of machine for convenience

8m/min thicknessing feed drive

AW128PT

A larger than usual trade rated planer thicknesser with ground cast iron tables that are heavily webbed underneath and somewhat longer than usual, giving great support on long

workpieces. Being a larger version of our very successful AW106PT, it shares the same features to create an easy to use and accurate machine. A 2.2kW 1ph 230V motor drives a four-knife cutter block giving an excellent finish, aided by the 8m per minute feed speed on the thicknessing mode. Conversion from surface planing to thicknessing is an easy and tool free operation, with the tables simply swinging out of the way and the safety interlocked dust chute hinging around to above the cutter block. Although some room has to be allowed for the tables, the ability to see exactly what is happening whilst thicknessing is invaluable. Switch control gear is placed at each end of the machine for convenient operation. The fourknife cutter block has resharpenable HSS blades and is easily reset with the included jig. The combination of the vibration damping mass of the machine plus the four knife-cutter block results in a very clean finish. This machine will give great results in a busy trade workshop.

N.B. Requires 16 Amp supply.

Model Specification

AW128PT

Power

2.2kW 230V 1ph

Feed Speed 8m/min

Cutterblock Speed 4,000rpm

Cutterblock Diameter 95mm

Max Thicknesser Capacity 220mm

Max Planing Width 310mm

Max Depth of Cut

5mm in surfacing mode

Max Depth of Cut Thicknesser 2.5mm

Max Depth of Cut Planer 5mm

Knives

Length of Table

HSS(Resharpenable) x 4

310 x 1,520mm

Min Extraction Airflow Required 1,500m³/hr

Dust Extraction Outlet 125mm

Overall L x W x H

1,520 x 600 x 1,070mm

Weight 325kg

Planer/Thicknesser

AW128PT 230V

Planer Knives

HSS 310mm Knives (4)

TCT Knives 310mm (4)

Inc.vat Code

£1,399.94

501203

Inc.vat Code

£43.94

211971

£124.94

210334

This machine will give great results in a busy trade workshop

Efficient dust extraction

Roller extensions to the thicknessing table

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

12_13_PlanerThicknessers.indd 1

Four HSS resharpenable knives

AxMInSTER

RECOMMEnDS

The UB-802

Extractor is ideal for use with this thicknesser

See page 27 for more details

12/06/2014 16:46

Finely ground cast iron tables 5mm maximum cut in surfacing mode Long alloy extrusion surfacing fence with cam clamp locking

Efficient dust extraction

Both tables are adjustable & electrically interlocked for safety

Extension rollers for thickenssing table

3.0kW 230Vmotor

Perfect for wide boards, this machine will give great results

Tables unfolded for thicknessing work

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

12_13_PlanerThicknessers.indd 2

Separate control switches for each function of machine for convenience

AW168PT

This is a big planer thicknesser with ground cast iron tables that are heavily webbed underneath and long enough to

give great support on long workpieces. The chassis is made from welded steel, is very stiff and stands on four feet that can be through bolted for extra security. Being a larger version of our very successful AW128PT, it shares most of the same features to create an easy to use and accurate machine. The 3.0kW 1ph 230V motor drives a four-knife cutter block giving an excellent finish, aided by the 8m per minute feed speed on the thicknessing mode. The alloy fence is nice and long, with a finely machined surface. Conversion from surface planing to thicknessing is an easy and tool free operation, with the tables simply swinging out of the way and the safety interlocked dust chute hinging around to above the cutter block. The thicknessing table has support rollers on the ends which support longer boards. Although some room has to be allowed for the tables, the ability to see exactly what is happening whilst thicknessing is invaluable. Switch control gear is placed at each end of the machine for convenient operation. The four-knife cutter block has re-sharpenable HSS blades and is easily re-set with the included jig. The combination of the vibration damping mass of the machine plus the four-knife cutter block results in a very clean finish. Perfect for wide boards, this machine will give great results in a busy trade workshop.

N.B. Requires 16 Amp supply.

Model Specification

AW168PT

Power

3.0kW 230V 1ph

Feed Speed 8m/min

Cutterblock Speed 4,000rpm

Cutterblock Diameter 95mm

Max Thicknesser Capacity 220mm

Max Planing Width 410mm

Max Depth of Cut

5mm in surfacing mode

Max Depth of Cut Thicknesser 2.5mm

Max Depth of Cut Planer 5mm

Knives

HSS (Resharpenable) x 4

Length of Table 1,600mm

Min Extraction Airflow Required 1,500m³/hr

Dust Extraction Outlet 125mm

Overall L x W x H

1,700 x 600 x 1,000mm

Weight 343kg

Planer/Thicknesser

AW168PT 230V

Inc.vat Code

£1,999.94

501204

Planer Knives

HSS 410mm Knives (4)

TCT Knives 410mm (4)

Inc.vat Code

£55.94

951578

£149.94

951577

13

AxMInSTER

RECOMMEnDS

The UB-803

Extractor is ideal for use with this thicknesser

See page 26 for more details

Quickly adjustable cutter crown guard

Axminster Trade Series Planer/Thicknessers

12/06/2014 16:46

14

Trade Spindle Moulder

WS1000TA

Offering a comprehensive range of facilities for the

Trade customer, the WS1000TA spindle moulder is

deservedly popular. Built around a 4mm plate steel welded chassis with a solid, cast iron table, it is certainly robust. Also, having a 30mm spindle with a tilt range of +5° to - 45° with a travel of 100mm means that you can make use of a huge range of standard Euro cutters, (mounted in a suitable cutter block) or moulding blocks up to 200mm in diameter.

The 2.8kW 230V 1ph braked induction motor drives through four belt speeds, ensuring the correct speed for the job in hand. Unusually, a small sliding table is included, which also has a mitre fence and work clamp. This is perfect for end grain work, panel moulding and tenon production. The spindle hood is made from cast aluminium and is fitted with micro adjustable fences, a full set of work guides and a 100mm dust port. This is all fully adjustable, quickly and accurately, without the use of tools.

The safest method of working is to use a power feed unit.

To this end we have pre-drilled the table to match the Co-

Matic AF32 Power Feed machine. This unit has three spring loaded rubber drive wheels with a choice of four speeds, and can be angled and positioned exactly where you need it. This transforms spindle moulding into a virtually hands free operation, perfect for multiples of the same operation.

Other options for the moulder include a tenoning plate, to allow top and bottom tenons in one pass, a ring fence for curvature work and a square table plus telescopic leg for extra work support. Did I say “Comprehensive” at the beginning?

Optional support table, tenoning plate, power feed and mobility base

Comprehensive hold-down/guard clamp system

2.8kW 230V 1ph braked induction motor, 16A supply required

Model Specification

WS1000TA

Power

2.8kW 230V 1ph

Spindle Travel 100mm

Spindle Diameter 30mm

Spindle Height 100mm

Max Spindle Projection above Table 100mm

Max Tooling Diameter Above Table 200mm

Max Tooling Diameter Below Table 180mm

Table Height 900mm

Table Size

1,000 x 360mm

Min Extraction Airflow Required 1,000m³/hr

Dust Extraction Outlet

Overall L x W x H

100mm x 2

1,010 x 690 x 900mm

Weight 218kg

Four spindle speeds with digital read-out of speed

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

14_15_SpindleMoulder.indd 1

Independently adjustable long fence wings give extra support to the work

Cast iron table gives stability, vibration absorption and a stable surface

Sliding table fitted with mitre fence and work clamp for precision work

45° backwards tilting spindle gives increased safety with larger cutters

Rigid welded steel stand

12/06/2014 16:46

Spring-loaded power feed to provide a constant feed rate on either a planer, saw bench or spindle moulder

Square Table

This accessory is a support table complete with a telescopic support arm. It clamps to the sliding table to provide extra support when machining panels or the ends of long boards. Supplied with a long fence arm c/w length stop and a mitre angle scale. The telescopic arm requires mounting to the machines chassis using the mounting holes provided. Some care should be taken when mounting the arm to ensure that the table stays level throughout its travel. Overall length 1,050mm x

450mm width.

Integral

Fence Set

Fitting either machine, these finger fence plates replace the standard fence

plates. They offer close protection from the cutter block by being able to enclose it with individual fingers. This is especially useful when carrying out repeat tasks.

Tenon Plate

This accessory is a simple alloy plate that lifts the workpiece above the table.

This means that you can machine the top and bottom surface of the work, such as when creating a tenon. It can be mounted next to the mitre fence and clamp so as to make the machining of end grain material as safe as possible. Overall length

650mm x 120mm width.

Ring Fence

This ring fence (or profile guard) will allow curved panels and other curved

workpieces to have a moulding applied to an edge. Will fit both the WS100/30 and WS1000TA spindle moulders. Replaces the standard hood/fence arrangement.

Spindle Moulder

WS1000TA 230V

Square Table

Tenon Plate

Integral Fence set

Ring Fence

Inc.vat Code

£1,649.94

501209

£107.50

950505

£18.46

950506

£61.50

951688

£52.96

951689

A great trade machine with a good range of facilities and offers great stability and vibration dampening properties

AF32

A medium weight power feed unit with a choice of four feed speeds - easily

selectable by removing the side plate and re-positioning the drive gears. The horizontal and vertical position of the drive head can be precisely adjusted with the aid of the two adjusting screws and then securely locked in place with the two handles. An additional feature is the ability to rotate the head through 90° so that pressure can be applied to the work in either the vertical or horizontal planes. The unit is secured to the table of the machine, either by bolting through or by screwing into holes tapped into the cast iron bed. If drilling the holes into the table of your machine is too disheartening then the purchase of the universal quick fix support plate (800430) is an excellent solution. The plate bolts onto the corner of a table and is clamped in place with the bolts provided. The top of the plate is drilled and tapped to accept all of the power feed units we offer, allowing the unit to be bolted onto whichever machine it is required.

15

Model Specification

Power

Max Capacity

Reach

Feed Speed

Roller Size

Weight

Power Feed

AF32 230V

AF32

240W

150mm

260mm

5,8,9 & 11m/min

80 x 30mm (x3)

32kg

Inc.vat Code

£539.94

340195

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

14_15_SpindleMoulder.indd 2

Axminster Trade Series Spindle Moulder

12/06/2014 16:47

Trade Pillar Drills

375W alloy bodied motor for powerful performance and quiet running

12 speed belt drive, for a great choice of speeds

Precision, high grip,

3 - 13mm keyless chuck

Cast iron down feed handles for high leverage and control

AT2001DP

This is a ruggedly built, highly accurate bench mounted

pillar drill suitable for all round Trade workshop use. Fitted with a powerful cool running alloy bodied 375W motor to provide an adequate level of power. It also has an exceptionally accurate quill with the spindle running in SKF bearings to give a highly consistent drilling performance. Amongst the features which make it particularly suitable for many uses are the 3-13mm keyless chuck, the tiltable work table with 16mm

T-slots and coolant gutter, cast iron down feed operating handles, a decent depth stop system and a T slotted base for firmly securing large workpieces. Safety is catered for by the inclusion of an electrically interlocked chuck guard and belt cover, plus a front mounted NVR switch with an “E” stop cover.

The choice of 12 speeds and a quality keyless chuck with an

80mm travel means that there is plenty of potential for some really heavy duty drilling. This is an excellent choice for the small or medium sized Trade workshop.

Pillar Drill

Inc.vat Code

AT2001DP Bench Drill Press £269.94

505203

Rugged cast iron construction for high durability and long life

16

Square, tiltable, cast iron table with T-slots and a coolant gutter

16 speed belt drive for a great choice of speeds

Precision, high grip,

3 - 16mm keyless chuck

Square, tiltable, cast iron table with T-slots and a coolant gutter

Excellent machine for the small to medium

Trade workshop

Model Specification

AT2001DP

Power

375W (230V 1ph)

Speed Range

(12) 180-2,740rpm

Throat 195mm

Chuck Cap/Type

13mm Keyless

Chuck Travel 80mm

Max Chuck to Table 320mm

Max Chuck to Base 560mm

Diameter of Column 70mm

Table Size

300 x 300mm

Table Tilt

Base Size

-45° to +45°

420 x 250mm

Overall L x W x H

630 x 330 x 1,050mm

Weight 58kg

Compact machine for larger Trade workshops

550W alloy bodied motor for powerful performance and quiet running

Cast iron down feed handles for high leverage and control

Rugged cast iron construction for high durability and long life

AT2801DP

This is a large, very strong, highly accurate bench mounted pillar drill suitable for all round Trade

workshop use. It is fitted with a powerful cool running alloy bodied 550W motor to provide plenty of power. It also has an exceptionally accurate quill with the spindle running in SKF bearings to give a highly consistent drilling performance. Amongst the features which make it particularly suitable for many uses are the 3-16mm keyless chuck, the tiltable work table with 16mm T-slots and coolant gutter, cast iron down feed operating handles, a decent depth stop system and a T-slotted base for firmly securing large workpieces. Safety is catered for by the inclusion of an electrically interlocked chuck guard and belt cover, plus a front mounted NVR switch with an “E” stop cover. The choice of 16 speeds and a quality keyless chuck with an 80mm travel means that there is plenty of potential for some really heavy duty drilling. This is an excellent choice for the medium or larger sized Trade workshop. For those looking for a floor standing version, please look at 505205.

Pillar Drill

Inc.vat Code

AT2801DP Bench Drill Press £359.94

505204

Model Specification

AT2801DP

Power

Speed Range

550W (230V 1ph)

(16) 160-3,000rpm

Throat 215mm

Chuck Cap/Type

16mm Keyless

Chuck Travel 80mm

Max Chuck to Table 315mm

Max Chuck to Base 555mm

Diameter of Column 80mm

Table Size

355 x 355mm

Table Tilt

Base Size

Overall L x W x H

-45° to +45°

480 x 280mm

720 x 320 x 1,100mm

Weight 66kg

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

16_17_Pillar Drills.indd 16 12/06/2014 16:47

Precision, high grip,

3 - 16mm keyless chuck

Square, tiltable, cast iron table with T-slots and a coolant gutter

Rugged cast iron construction for high durability and long life

Exceptionally accurate and robust floor standing pillar drills

16 speed belt drive, for a great choice of speeds

550W alloy bodied motor for powerful performance and quiet running

Cast iron down feed handles for high leverage and control

AT2801FDP

This is a large, very strong, highly accurate floor standing pillar drill suitable for all round Trade

workshop use. It is fitted with a powerful cool running alloy bodied 550W motor which provides plenty of power. It also has an exceptionally accurate quill with the spindle running in SKF bearings to give a highly consistent drilling performance. Among the features which make it particularly suitable for many uses are the

3-16mm keyless chuck, the tiltable work table with 16mm

T-slots and coolant gutter, cast iron down feed operating handles, a decent depth stop system and a T-slotted base for firmly securing large workpieces. Safety is catered for by the inclusion of an electrically interlocked chuck guard and belt cover, plus a front mounted NVR switch with an “E” stop cover. The choice of 16 speeds and a quality keyless chuck with an 80mm travel means that there is plenty of potential for some really heavy duty drilling. This is an excellent choice for the medium or larger sized Trade workshop. For those looking for bench mounted version, please look at 505204.

Pillar Drill

Inc.vat Code

AT2801FDP Floor Drill Press £389.94

505205

12 speed belt drive for a great choice of speeds

Precision, high grip, 3-20mm keyless chuck

Square, tiltable, cast iron table with T-slots and a coolant gutter

750W alloy bodied motor for powerful performance and quiet running

Cast iron down feed handles for high leverage and control

AT3202FDP

The AT3202FDP is a rugged drill press suited to the small engineering workshop or large woodworking

facility. Ample power is provided by the 750W induction motor and the drive to the spindle is by two large section

V belts. 12 speeds provide plenty of choice for just about any task. The quill housing has been machined to a high degree of accuracy, whilst the spindle runs in SKF ball bearings to ensure consistent and accurate drilling. A very good depth stop system is included, plus there is 120mm of chuck travel. There is a 3MT taper in the spindle fitted with a 3-20mm precision keyless chuck.

The table can also be tilted up to 45° L or R. A fluid drain channel is moulded around the table edges. A one piece cast iron handle controls the spindle downfeed, allowing high leverage and control. Safety is catered for by the inclusion of an electrically interlocked chuck guard and belt cover, plus a front mounted NVR switch with an

“E” stop cover. At 146kg this is no lightweight machine and it can comfortably handle everyday tasks in a busy workshop. A Morse taper drift and service tools are provided.

Pillar Drill

Inc.vat Code

AT3202FDP Floor Drill Press £549.95

505206

17

Model Specification

AT2801FDP

Power

Speed Range

550W (230V 1ph)

(16) 160-3,000rpm

Throat 215mm

Chuck Cap/Type

16mm Keyless

Chuck Travel 80mm

Max Chuck to Table 610mm

Max Chuck to Base 1,100mm

Diameter of Column 80mm

Table Size

Table Tilt

Base Size

Overall L x W x H

355 x 355mm

-45° to +45°

480 x 280mm

720 x 370 x 1,625mm

Weight 73kg

Rugged cast iron construction for high durability and long life

Model Specification

AT3202FDP

Power

Speed Range

750W (230V 1ph)

(12) 200-1,990rpm

Throat 257.5mm

Chuck Cap/Type

20mm Keyless

Chuck Travel 120mm

Max Chuck to Table 565mm

Max Chuck to Base 1,045mm

Diameter of Column 92mm

Table Size

Table Tilt

Base Size

Overall L x W x H

475 x 425mm

-45° to +45°

570 x 380mm

850 x 475 x 1,685mm

Weight 146kg

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

Axminster Trade Series Pillar Drills

16_17_Pillar Drills.indd 17 12/06/2014 16:47

18

Trade Morticer

Gas strut to

MT25

provide smooth downward travel of the headstock

A heavy duty chisel morticer of 25mm capacity, cast iron frame construction with

a welded steel stand. A single handwheel controls both longitudinal and lateral table movement. This system prevents the table from “skewing”, a problem common with other morticers. A multiple position material clamp accommodates different workpiece widths, whilst a multi-position downfeed hand lever provides the correct leverage for comfortable use. A gas strut provides smooth downward travel of the headstock, which also allows headstock “parking” in any position. A large cast iron table with a tall back fence, plus an easily set depth stop for repeat accuracy is fitted. This machine is well suited to the busy workshop and will provide years of accurate and trouble-free use.

Accepts 1.3/16” and 13/16” shanked chisels. N.B. A chisel morticer will only work as

well as the chisel cuts, please do not stint on the quality of the chisels you purchase.

Easily set depth stop for repeat accuracy

Drill/Morticer

MT25 Morticer 230V inc.vat code

£849.95

501208

Maximum chisel size

25mm (softwood),

19mm (hardwood)

Japanese Pattern Mortice Chisels & Bits

A B C

inc.vat code

1/4” 1.7/8” 13/16”

£55.50

510286

5/16” 2” 13/16”

£55.50

510293

3/8” 2.3/4” 13/16”

£58.96

510292

1/2” 3” 13/16”

£68.95

510285

5/8” 4” 13/16”

£78.95

510294

3/4” 4.3/4”

1.3/16” £97.96

510291

1” 5” 1.3/16”

£123.50

510284

6mm 45mm 13/16”

£55.50

510295

8mm 56mm 13/16”

£55.50

510296

10mm 73mm 13/16”

£58.96

510287

12mm 79mm 13/16”

£68.99

510288

16mm 98mm 13/16”

£78.95

510289

20mm 127mm 1.3/16”

£97.50

510290

A = Size

B = maximum depth c = mounting diameter

Single handwheel controls both directions of table travel

Supplied with welded steel base with integral cupboard

model Specification

MT25

Power

0.75kW 230V, 1ph

chisel Stroke 125mm max Height of Timber with 12.7mm chisel and Bit 225mm max chisel Size Softwood 25mm max chisel Size Hardwood 19mm overall L x W x H

660x 515 x 1,538mm

Weight 160kg

Large cast iron table with tall back fence

Trade Disc Sanders

560W, 230V 1ph smooth running induction motor

Bench mounted

305mm disc sander with mechanical brake

Euro-style dust shrouded no-voltrelease switch

Cast iron table with simple and positive table adjustments

Fabricated steel plate construction throughout

DS12DLMB2

AxminSTer recommendS

The NVD750 Vacuum

Extractor is ideal for use with these sanders

See page 24 for more details

63mm diameter dust extraction outlet

Table tilts 45º on both models

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

18_19_Morticers & Sanders.indd 18 13/06/2014 10:04

Steel quadrant guard fitted for increased safety

DS12DL & DS12DLMB2

These bench mounted disc sanders have an aluminium (DS112DL) or cast iron (DS12DLMB2) table, steel quadrant guard

and fabricated steel plate construction throughout. Table adjustments are simple and positive, and there is an accurate mitre fence provided for end-grain sanding, either straight or angled. dust is extracted via a well positioned 63mm diameter outlet.

Power comes from a 560W induction motor with a euro-style dust shrouded no-volt-release switch. This machine is supplied with

300mm self-adhesive disc and mitre fence. The dS12dLmB2 is fitted with a fail-safe electro-mechanical brake to stop the disc rotating within 10 seconds. it is aimed at customers and organisations such as schools, colleges, training facilities and others who need a braked machine. There is no power needed to activate the brake, so it will stop even in the event of a power failure in the workshop.

500mm self adhesive abrasive disc

Industrial quality

NVR switch

700 x 265mm precision ground cast iron table

Aluminium table with simple tilt system

DS12DL

model Specification

Power

Table Size overall L x W x H

Sander

inc.vat code

DS12DL Disc Sander 230V

£299.95

501210

DS12DLMB2 Disc Sander 230V

£449.95

505092

Self Adhesive Abrasive Discs

inc.vat code

40 Grit (ea)

60 Grit (ea)

80 Grit (ea)

100 Grit (ea)

£3.35

810259

£2.94

810260

£2.64

810261

£2.54

810254

120 Grit (ea)

180 Grit (ea)

£2.54

£2.15

810256

810258

Mixed Pack of 12 Discs (60-180G) £27.95

410190

DS12DL

560W 230V 1ph

DS12DLMB2

560W 230V 1ph

400 x 225mm 400 x 225mm

530 x 410 x 410mm 530 x 410 x 410mm

WD-20

This is a heavy duty 500mm (20”) disc sander suitable

for everyday use in a trade workshop. constructed almost entirely of welded steel for great strength and stability, it is powered by a 1.5kW 230V 1ph motor. A steel quadrant guard is fitted for increased safety. The precision cast iron table can be tilted via trunnions through 0 to 45° and maintains an even gap to the disc.

A 100mm dust port allows efficient extraction, a vacuum extractor is recommended. An electro-mechanical motor brake stops the machine quickly. it is supplied on a steel cabinet stand with a very useful storage cupboard.

This machine is a really useful addition in any trade workshop.N.B. 16 Amp supply required

Sander

inc.vat code

WD-20

500mm Disc Sander 230V

£1,499.95

951686

Self Adhesive Abrasive Discs

inc.vat code

80 Grit (ea)

100 Grit (ea)

120 Grit (ea)

150 Grit (ea)

180 Grit (ea)

£5.45

508231

£5.45

508232

£5.45

508233

£5.45

508234

£5.45

508235

Welded steel construction for stability and strength with integral storage cupboard

Adjustable tilt work table mounted on strong trunnions

model Specification

WD-20

Power

1.5kW 230V 1ph

Speed 1,450rpm diameter of disc 500mm

Table Size

Table Tilt

700 x 265mm

0°to -45°

dust extraction outlet 100mm overall L x W x H

700 x 635 x 1,220mm

Weight 178kg

AxminSTer recommendS

The UB-802

Extractor is ideal for use with this disc sander

See page 26 for more details

19

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

18_19_Morticers & Sanders.indd 19

Axminster Trade Series Morticers & Sanding Machines

12/06/2014 16:47

20

Trade Disc Sanders

Accurately sands to square, angle or any compound angle you want

12” velcro backed abrasives, easy to change for any job

Quadrant guard for improved safety

Variable speed motor allows the sanding of most materials

Rack and pinion tilt system with preset, angle stops for common settings

Robust, cast iron construction with a large table surface

Table angle adjustment for precision setting

SS-12VS

The SS-12VS disc sander is heavily built in cast iron and has several features that improve the function of the

machine. Firstly, rather than having a standard tilting work table, the table on this sander remains level whilst the whole motor and disc arrangement tilts. This allows your work to stay level, improving accuracy and safety. The disc can be tilted from -5° to + 45°, enabling many tasks to be undertaken. The disc angles are adjusted by a rack and pinion arrangement, plus a quick action index system selects -5, 0, 15, 22.5, 30 and 45°. The other major feature is variable disc speed. The motor on this machine is a 750W DC brush type unit, electronically controlled to give a disc speed of between 1,000-3,000rpm. This means that you can choose the disc speed that is right for the job, whatever the material.

Disc speed is maintained electronically to compensate for work loads. A manual disc brake is fitted to enable the disc to be stopped quickly if required. The table mounting arms have adjustable stops to make sure that the table is set exactly at 90° to the disc, whilst also allowing the table to be hinged forward for easy abrasive changing. The abrasive is Velcro backed for easy changing at any time, allowing the right abrasive to be quickly fitted. Other safety features include adjustable table/disc clearance and a disc quadrant guard. A 63-100mm dust extraction outlet is fitted below the disc, a vacuum type extractor is recommended for this sander. A rear carrying handle is included for bench use or the machine can be mounted onto an optional floor stand.

Sander

Inc.vat Code

SS-12VS Disc Sander 230V

£449.94

501188

Floor Stand £59.94

501189

Velcro Backed Abrasive Discs

Inc.vat Code

60 Grit (ea)

80 Grit (ea)

100 Grit (ea)

120 Grit (ea)

180 Grit (ea)

£4.44

910264

£4.14

910265

£3.95

910266

£3.95

910267

£3.95

910269

Model Specification

SS-12VS

Power

Speed

750W 230V 1ph

1,000 - 3,000rpm

Diameter of Disc 12”

Table Size

300 x 225mm

Table Tilt

-5° to +45°

Dust Extraction Outlet 63mm

Overall L x W x H

650 x 400 x 430mm

Weight 32kg

AxMInSTEr rECOMMEnDS

The NVD750 Vacuum

Extractor is ideal for use with this sander

See page 24 for more details

Disc tilts rather than the table, keeping the work level for easier control

Quick angle index system for most common tilt angles

Quadrant guard and manual disc brake fitted, optional floor stand

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

20_21_Belt & Disc Sanders.indd 20 12/06/2014 16:48

Trade Belt & Disc Sanders

Belt sander operates between 90° and 0°, lockable at any angle

Quick-release sanding belt lever for easy belt changing

BDS-612

This belt and disc sander is compact in size but sturdy and powerful in use. The belt sander can be used either horizontally or can be clamped at any angle up to vertical. Fitted with a graphite pad for low friction and a quick release lever to allow belts to be changed quickly with no tools.

The cast iron table can also be angled up to 45°. The disc has a quadrant guard for safety and an extra large table with a centre pin to enable curves to be accurately made. This table also tilts to 45°. Twin 65mm dust ports allow efficient extraction, a vacuum type extractor works best with this machine. The machine is amply powered by an alloy bodied 0.93kW induction motor, the whole machine being very quiet in use. Provided with a steel floor stand or suitable for bench mounting, this is a great all round sander for a small workshop.

Belt sander table tilts to 45º

0.93kW alloy bodied induction motor, cool running and efficient

Disc sander has a quadrant guard and an extra large cast iron table

Model Specification

BDS-612

Power

0.93kW 230V 1ph

Belt Speed 730m/min

Belt Size

152 x 1220mm

Diameter of Disc 305mm

Table Size Belt

305mm x 150mm

Table Size Disc

Dust Extraction Outlet

400 x 225mm

65mm x 2

Overall L x W x H

780 x 420 x 740mm

Weight 61kg

Sander

Inc.vat Code

BDS-612 Belt and Disc Sander £599.95

505091

Self Adhesive Abrasive Discs

Inc.vat Code

40 Grit (ea)

60 Grit (ea)

80 Grit (ea)

100 Grit (ea)

120 Grit (ea)

180 Grit (ea)

Mixed Pack of 12 Discs (60-180G)

£3.35

810259

£2.94

810260

£2.64

810261

£2.54

810254

£2.54

810256

£2.15

810258

£27.95

410190

Graphite anti-friction slip plate

Compact dual function machine, sturdy steel construction

Extra large cast iron table

Sanding Belts 150 x 1,220mm

Inc.vat Code

40 Grit (ea)

60 Grit (ea)

80 Grit (ea)

100 Grit (ea)

120 Grit (ea)

150 Grit (ea)

Pack of 5 Belts 60-150G

£9.95

110220

£12.44

110222

£11.94

110224

£11.45

110226

£11.45

110228

£11.45

110230

£16.85

610006

21

Steel floor stand included or machine can be bench mounted

AxMInSTEr rECOMMEnDS

The NVD750 Vacuum

Extractor is ideal for use with this sander

See page 24 for more details

Disc sander table tilts to 45º

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

20_21_Belt & Disc Sanders.indd 21

Axminster Trade Series Sanding Machines

12/06/2014 16:48

Trade Belt Sanders

Trade rated belt sander, uses common 100 x 1,220mm belts

Easy to change sanding belts, tracking also easy to adjust

Powerful

0.75kW 230V

1ph motor, protected to

IP54 standards

Can be used for sanding items flat or for curved work

Twin dust extraction ports for efficient waste removal

22

BS100

This 100mm wide belt sander is as simple as they come. Very well made in sheet steel, it can be used either on the horizontal platen or on the end roller for curved work. Both functions have a work stop, plus an eye shield on the roller end. There is a graphite plate on the platen to reduce friction which can be an issue. A simple door closes off the platen when it is not being used. Belt changing is very simple, as is belt tracking via a hand knob. The direct drive 0.75kW motor is fully dust proofed to iP54 standards and has an automatic brake fitted for quick stopping. This sander would prove to be a very useful addition in most trade workshops, and it is built to work every day.

Strongly made from welded steel plate, made to work every day

Belt Sander

BS100 Belt Sander 230V inc.vat code

£279.95

508210

Sanding Belts 100 x 1,220mm

inc.vat code

60 Grit (ea)

80 Grit (ea)

150 Grit (ea)

£5.45

100418

£7.14

100419

£4.94

100422

Two 62mm dust outlets will give exceptional extraction

model Specification

Power

Belt Size

Table Size dust extraction outlet overall L x W x H

BS100

0.75kW 230V 1ph

100 x 1,220mm

100 x 280mm

75mm x 2

630 x 410 x 355mm

BS648

750W 230V 1ph

150 x 1,220mm

310 x 160mm

2 x 62mm

500 x 550 x 790mm

Can be used in any position from horizontal to vertical

Takes standard 150 x 1,220mm abrasive belts

Fitted with comprehensive guarding system

Large cast iron sanding table, tiltable from -15° to +45°

Sturdy and robust, fabricated from heavy gauge steel plate and cast iron

BS648

A sturdy and robust machine, fabricated from heavy

gauge steel plate and cast iron components. Versatile, because the belt arm can be used in any position from horizontal to vertical. The whole belt arm pivots around a very large flange with a graduated scale and the outer end of the belt drive roller is supported in its own ball bearing assembly. Fitted with a very comprehensive guarding system that allows the operator to expose only the amount of sanding belt required, but still allowing very easy changes of the belts. This machine has a large cast iron sanding table, which tilts from minus 15° to plus

45° and gives great support. When used as a linisher in the horizontal mode, the guarding can be removed to expose the maximum amount of belt and a fixed work stop is provided. The close fitting guarding coupled with two 62mm dust outlets will give exceptional extraction when attached to a suitable fine dust collector. Uses standard 150 x 1,220mm abrasive belts.

Belt Sander

BS648 Belt Sander 230V inc.vat code

£499.96

501212

Sanding Belts 150 x 1,220mm

inc.vat code

40 Grit (ea)

60 Grit (ea)

80 Grit (ea)

100 Grit (ea)

120 Grit (ea)

150 Grit (ea)

Pack of 5 Belts 60-150G

£9.95

110220

£12.44

110222

£11.94

110224

£11.45

110226

£11.45

110228

£11.45

110230

£16.85

610006

AxminSTer recommendS

The NVD750 Vacuum

Extractor is ideal for use with these sanders

See page 24 for more details

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

22_23_Belt & Drum Sanders.indd 22 12/06/2014 17:09

Trade Drum Sanders

Inverter driven drum motor giving variable rpm with load compensation

Optional “Fladder” style sanding head for sanding mouldings

Optional silicon carbide sanding brushes or wire brush can be fitted

Sanding height control fitted with fine thread lead screw for fine control

Supplied as a single drum sander for finishing boards and panels up to 960mm wide

Fully adjustable conveyor table for accurate sanding

ST-480 BDSDM

The ST-480 is a compact, single drum sander that can also be easily converted to a brush sander. it is supplied as a single drum sander that can handle boards and flat panels up to 980mm wide in two passes. Features include a variable speed conveyor controlled by a load sensing electronic system to prevent overheating of the sanding abrasive.

A polyurethane conveyor belt is fitted, which has good grip but is non-marking. The sanding drum is balanced to prevent vibration and the abrasive loadings are spirally wound and secured by spring-loaded clips. A simple tool is provided to ease the abrasive changing task. The sanding drum is powered by an inverter driven induction motor. The variable drum speed provides a further control of the finish and also allows the use of the optional sanding brushes. The silicon carbide sanding brushes are supplied as a complete exchange kit. Available in a wide variety of grits, they are simple to fit in place of the sanding drum. Brush heads are very effective for profile sanding, denibbing and preparing mouldings for finishing.

You can sand sealer coats and primers with the most uniform control of the finish. Another option is a “Fladder” style sanding head. These heads use brush bristle supported abrasive strips. The head is supplied with a set of 180G abrasives, these are easily changed as the abrasives are supplied on strips which are simply slid into the sanding head. Perfect for sanding mouldings such as architrave, skirtings etc, or for use on metals. There is also a wire brush attachment, used to distress new wood to look weathered or create a grained look. This can also be used for brushing metals.

Variable speed conveyor belt drive with loadsensing technology

model Specification

ST-480 BDSDM

Power

1.1kW 230V 1ph

Feed Speed 0-3m/min

Sanding Width Single Pass 480mm

Large shelved storage space for abrasives

Optional floor stand with wheels for mobility

(varies with application)

Sanding drum diameter 125mm

Table Size

595 x 580mm

dust extraction outlet 100mm overall L x W x H

1,000 x 680 x 580mm

Weight 155kg

Drum Sander

ST-480 Drum Sander

Accessories

Floor Stand

Wire Brush Attachement

Sanding Brushes

40 Grit Sanding Brush

80 Grit Sanding Brush

120 Grit Sanding Brush

240 Grit Sanding Brush

inc.vat code

£1,299.95

501107 inc.vat code

£299.94

501108

£349.94

501114

£549.95

501113 inc.vat code

£549.95

501109

£549.95

501110

£549.95

501111

£549.95

501112

23

This drum sander will bring processes only previously available in larger machines to the small, growing workshop.

AxminSTer recommendS

The UB-802

Extractor is ideal for use with this drum sander

See page 26 for more details

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

22_23_Belt & Drum Sanders.indd 23

Axminster Trade Series Sanding Machines

12/06/2014 17:09

24

Trade Vacuum Extractors

All steel epoxy coated power head

Fitted with a red “Filtrex” primary filter and a secondary “Permatex” filter giving filtration down to 0.5 microns @

99.95% (L Class)

NVD750

4m high quality smooth bore hose with rubber end cuffs and clips

Can be upgraded to M

Class filtration using a

HEPA module (210657)

Cyclonic inlet, prevents filter blinding

2 x 1,200W

“TwinFlo” low noise vacuum motors

As standard, this machine meets the L Class filtration standards but can be upgraded to M Class filtration

standards with the addition of the optional HEPA module (210657). Many operational features are included within the package which will enable the user to link the extractor to a machine or hand operated power tool as required.

The head assembly incorporates two 1,200W “TwinFlo” vacuum motors providing ample power for all but the most demanding of tasks. A visual flow indicator is also fitted for monitoring performance. The extractor is fitted with a red

“Filtrex” primary filter and a secondary “Permatex” filter as standard, with the option of fitting a “HepaFlo” disposable filter bag if required, a must when machining MDF. The “Filtrex” filter also protects the filter system from impact damage from fast moving larger chips. There is an exhaust blower socket to enable the exhaust air to be ducted away from the workshop if required. The 10 metre cable set provides all round the workshop use from one power point. The drum assembly incorporates a 100mm cyclonic inlet connector, this is the best method of connection for most tasks. A 100-

51mm reducer is provided to enable the 2.9 metre 32mm power tool hose to be fitted. The 51mm front entry is used when you need to use the Hepa Flo collection bags, perfect for the safe disposal fine or MDF dusts. The accessory kit provided with this extractor includes a 4 metre x 100mm diameter flexible extraction hose for linking to most small workshop machines, and a 2.9 metre 32mm hose and step down adaptor for connecting to hand operated power tools or small, bench top machines. The wide range of accessories available enable this machine to be tailored to your own specific use, including a mobility chassis and a floor cleaning kit. This machine is the best solution for those requiring something portable and also to handle a large range of extraction tasks. It is ruggedly made in epoxy painted steel, and is designed and made in England!

35L capacity epoxy coated all steel drum

Model Specification

NVD750

Power

2 x 1,200W (230V)

Air Flow 300m³/hr

Noise Level 79dB

Filtration

Permatrex filter + HEPAFLO bag

Particle Size

Hose Diameter

0.5 micron @ 99.97%

100mm + 51mm

Overall L x W x H 450mm diameter x 650mm height

Weight 12.8kg

Vacuum Extractor

NVD750 Workshop

Vacuum Extractor 230V

Accessories

Hepaflo Filter Bags

NVM-4BH (Pkt 10)

HEPA Module

Floor Cleaning Kit

Clip-on Mobility Chassis

Inc.vat Code

£369.95

702412

Inc.vat Code

£16.99

211015

£208.50

210657

£82.00

600071

£79.96

210656

THE SMALLER SISTER

The NV750 Vacuum Extractor with a single

1,200W “TwinFlo” motor specifically aimed at user’s of small bench top machines and power tools

£254.95

Search 702413 at axminster.co.uk

Supplied with 4m x 100mm flexible extraction hose, 2.9m x 32mm hose and step down adaptor for power tool use

When it comes to workshop applications coupled with unrivalled performance, the NVD 750 workshop vacuum extractor is in a class of its own

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

24_25_Vacuum Extractors.indd 24 13/06/2014 08:06

All steel epoxy coated power head

2 x 1,200W “TwinFlo” vacuum motors, gives ample performance

Fitted with a red

“Filtrex” primary filter and a secondary

“Permatex” filter giving filtration down to 0.5 microns @

99.95% (L Class)

Cyclonic inlet, prevents filter blinding

Tough, easy to empty waste sack, holds at least 80 litres of waste

4m high quality smooth bore hose with rubber end cuffs and clips

Accessories include wall mounting bracket and 4m x 100mm extraction hose

Can be upgraded to M Class filtration using a HEPA module (210657)

WMD750 Mk2

The WMD 750 wall mounted vacuum extractor is intended for permanent siting on a load bearing wall

(wall bracket included). The extractor incorporates many features including cyclone entry port and easy disassembly for cleaning and maintenance. Included is a tough,rubberised woven waste sack, attached with a quick release strap, making waste disposal quick, easy and clean. The head assembly incorporates two “TwinFlo”

1,200W vacuum motors providing ample power for all but the most demanding of tasks. The extractor is fitted with a “Permatex” primary filter as standard, giving filtration of 0.5 micron. The drum assembly incorporates a 100-32mm cyclonic inlet connector, making this the perfect solution to many workshop applications. An extra layer of filtration can be provided by using an open

HepaFlo bag supplied with the machine. Fitted to the front 51mm inlet, it is best used for power tool extraction.

The accessory kit supplied with this machine includes a

4 metre x 100mm extraction hose with soft rubber cuffs for linking to a ducted system or for direct connection to most machines. A 32mm hose and stepped rubber reducer for extracting from many handheld power tools are part of the standard equipment supplied. This machine is ideal for those where workshop space is tight or where a sander is the prime machine in use. The whole machine is very ruggedly constructed in epoxy painted steel. Another class leading British made product. N.B. An

“M” Class version, 501300, is also available.

Vacuum Extractor

WMD750 Mk2 Workshop

Vacuum Extractor 230V

Inc.vat Code

£499.96

501299

Accessories

HEPA Module

Inc.vat Code

£208.50

210657

Supplied with 4m x 100mm flexible extraction hose, 2.9m x 32mm hose and step down adaptor for power tool use

Model Specification

WMD750 Mk2

Power

2 x 1,200W (230V, 1ph)

Air Flow 300m³/hr

Noise Level 79dB

Filtration

Permatrex filter + HEPAFLO bag

Particle Size

Hose Diameter

Bag Capacity

Overall L x W x H

0.5 micron @ 99.97% capture rate

100mm + 32mm

70 litres

500 x 400 x 1,110mm

Weight 26kg

Fitted with a red “Filtrex” primary filter and a secondary “Permatex” filter giving filtration down to 0.5 microns @ 99.95% (L Class)

50L capacity epoxy coated all steel drum with carrying handles

4m high quality smooth bore hose with rubber end cuffs and clips

NVD1500

Large capacity coupled with unrivalled performance make the NVD 1500 workshop vacuum extractor “the

answer” for today’s workshop requirements. The head assembly incorporates two 1,200W “TwinFlo” vacuum motors providing ample power for all but the most demanding of tasks. The extractor is fitted with a red “Filtrex” primary filter and a secondary “Permatex” filter as standard, offering L Class filtration down to 0.5 micron @ 99.95%, with the option of fitting a “HepaFlo” disposable filter bag if required, essential when machining MDF. The steel drum assembly has a maximum capacity of 50 litres, has two carrying grab handles and incorporates a 100mm cyclonic inlet connector with a 51mm - 32mm reducer making this the perfect solution to most workshop applications. This size of drum has been selected as the largest that can still be easily handled when full of waste material, anything larger would present possible problems when requiring emptying. The accessory kit included with the workshop vacuum extractor includes a 4 metre 100mm vacuum hose for linking to most workshop machines and a 2.9 metre 32mm hose and step down adaptor for connecting to hand operated power tools or small bench top machines. Many accessories are available to tailor this machine to your requirements, including a HEPA filter module for M Class filtration performance. This is a rugged and high performing machine, designed and built in England!

25

Model Specification

NVD1500

Power

2 x 1,200W (230V)

Air Flow 300m³/hr

Noise Level 79dB

Filtration

0.5 micron @ 99.97%

Hose Diameter

100mm + 32mm

Weight 23kg

Vacuum Extractor

NVD1500 Workshop

Vacuum Extractor 230V

All super strong

Structafoam tm power head

2 x 1,200W

“TwinFlo” low noise vacuum motors

Supplied with accessory kit which includes a 4 metre

100mm vacuum hose, a 2.9 metre 32mm hose and step down adaptor

Inc.vat Code

£629.94

702681

A sizable capacity and matchless performance

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

24_25_Vacuum Extractors.indd 25

Axminster Trade Series Vacuum Extractors

12/06/2014 17:09

26

Large plastic waste sack and quick fit metal straps standard

Trade Dust Extractors

Filter performance can be upgraded with optional filter cartridge

5 micron, multi-layer filter for chips and saw dusts

Superb, quiet running machine for the smaller trade workshop

UB-801F

A thoroughly modern design of dust extractor with many individual features of

note. The excellent performance comes from careful matching of the motor, impellor and housing, resulting in a quietly efficient machine able to extract chips and coarse dust from almost all small or medium sized machinery. An alloy impellor is fitted to reduce the risk of sparks and the standard filter is of 5 micron rating. A large capacity plastic waste sack and quick release straps are included. A clever feature is that you can divert the input air to a nozzle built into the base, enabling the machine to be used as a powered, mobile floor sweeper. Blast gates are fitted onto both inlet and floor sweep functions. A comfortable tubular handle and castor wheels are provided for easy mobility. The filtration performance can easily be upgraded by the addition of the CK-370Z filter cartridge, available as an optional extra. This is an excellent addition for those who wish to collect fine dust from saws or sanders. Easy to keep clean with the side-mounted crank handle, the extra surface area means that the overall air flow is not significantly reduced. Hose not supplied.

Dust Extractor

Inc.vat Code

UB-801F Chip Extractor 230V

£309.95

501215

Filter Cartridge

CK-370Z Filter Cartridge

Inc.vat Code

£139.94

951589

A fine, modern extractor for any trade workshop, or a quality machine for your workshop at home

1000m³/hr max air flow through

100mm inlet

Clever floor sweeping function, keeps your workshop tidy

Model Specification

UB-801F

Power

0.75kW (230V, 1ph)

Air Flow 1,000m³/hr

Noise Level

Particle Size

65dB(A) @ 3m

5 micron

Hose Diameter 100mm

Bag Capacity

50 litres

Overall L x W x H

700 x 380 x 1750mm

Weight 30kg

Filter performance can be upgraded with optional filter cartridge

A quiet, efficient modern extractor that will extract from most machines

Choice of 1 x

150mm or 2 x

100mm inlets

Plastic waste sack secured by quick fit metal strap

Wheeled base and handle for easy mobility

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

26_27_Dust Extractors.indd 26 12/06/2014 17:10

UB-802

This ruggedly built, highly efficient extractor is

intended for daily workshop use. With an efficient impellor running in a carefully designed housing and powered by a 1.5kW motor, it produces more than enough airflow to run either two machines simultaneously or one large machine such as a big panel saw. A 5 micron filter bag is complemented by a large plastic waste sack, secured by quick fit metal straps. A clever feature is the bag hook system, making it easy for one person to fit/replace the waste sack. With the air inlet facing downwards and offering a choice of 1 x

150mm or 2 x 100mm inlets it is easy to connect to either a duct system or flexible hoses. Use for chips or coarse dusts, or, with the addition of the optional CK-500S filter cartridge upgrade the performance to extract fine dusts.

Little air flow is lost due to the large surface area; a crank handle operated paddle keeps the filter clean. Fitted with castors and a grab handle, this unit is easily moved around the workshop. Supplied without hose. N.B.16A

supply required

Dust Extractor

Inc.vat Code

UB-802 Chip Extractor 230V

£559.94

501216

Filter Cartridge

CK-500S Cartridge Filter

Inc.vat Code

£209.94

951590

Filter performance can be upgraded with two optional filter cartridges

Generous air flow from the efficient impellor, 5 micron multi-layer filter

High efficiency impellor and carefully designed housing for high airflow

Rugged build for the trade workshop environment

Model Specification

UB-802

Power

Air Flow

Noise Level

Particle Size

Hose Diameter

Bag Capacity

Overall L x W x H

1.5kW (230V, 1ph)

2,000 m³/hr @ 150mm

80dB(A) @ 3m

5 micron

150 x 1, 100 x 2

170 litres

960 x 490 x 1,840mm

Weight 70kg

Choice of 1 x 203mm or

3 x 100mm inlet sizes

Easy fitting plastic waste sacks

Castors fitted for easy mobility around the workshop

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

26_27_Dust Extractors.indd 27

UB-803

This is a large extractor for trade workshop use. Ideal for connection to a simple ducted system or for a large individual machine. A high efficiency impellor, running in a carefully designed housing, produces a large airflow.

Robustly built and quiet running, this unit has twin 5 micron filters and large plastic waste sacks. The bag hook system makes fitting or replacing the waste sacks a quick and easy task. Both filters and bags are secured with quick fit metal straps. An adjustable diverter valve ensures that both waste sacks are filled evenly. Castors fitted to the base allow easy movement when required.

Used as it is, this extractor is best suited for chips and large dusts. However, you can upgrade the performance by fitting two of the optional CK-500S cartridge filters.

These 1 micron units will handle fine dusts. They are easy to keep clean with a crank handle operated paddle. Little air flow is lost due to the large surface area. Supplied without hose, this extractor is a quiet and efficient machine. N.B. 16A supply required

Dust Extractor

Inc.vat Code

UB-803 Chip Extractor 230V

£699.95

501217

Filter Cartridge

CK-500S Cartridge Filter

(two required)

Inc.vat Code

£209.94

951590

Suitable for a simple ducted system or connection to large machines

27

Model Specification

Power

Air Flow

Noise Level

Particle Size

Hose Diameter

Bag Capacity

Overall L x W x H

Weight

UB-803

2.2kW (230V, 1ph)

3,000m³/hr @ 203mm

88dB(A) @ 3m

5 micron

1 x 203mm, 3 x 100mm

330 litre

1,580 x 490 x 1,850mm

86 kg

Axminster Trade Series Dust Extractors

12/06/2014 17:10

28

Trade Cyclone Extractors

Manual filter cleaning system, easy to maintain air flow

High efficiency cyclone,

99% separation of dust and air before passing through the filter

Choice of 1x150mm or 2x 100mm inlets

Nice compact design, easy to move around the workshop

1 micron filter cartridge, optional 0.3 micron HEPA filter available

T-2000CK

This is a small, highly portable cyclone extractor, aimed at the smaller workshop with many different types of

machinery in use. Having a high efficiency separation system means that the air passing through the filter is

99% clean of waste, maintaining a high airflow for top performance. The filter has a 1 micron filtration performance and is fitted with a simple manual cleaning system. A manometer gauge gives an easy visual performance reference. The large waste bin 105 litres and is easy to remove and empty. Fitted with sturdy castors, this extractor is quite mobile so is easy to move from machine to machine.

However, with a 150mm inlet it also lends itself to be fitted to a permanent ducting system. Able to run from a standard

13A plug, it is an attractive proposition for a small trade workshop or a keen amateur in a home workshop.

Model Specification

T-2000CK

Power

0.75 kW (230V, 1ph)

Air Flow 1,100m³/hr

Noise Level

80 dB @ 3m

Filter Area 3.8m²

Filtration

Particle Size

Hose Diameter

Overall L x W x H

1 micron

1 micron

150mm x 1, 100mm x 2

1,300 x 1,100 x 1,560mm

Weight 71kg

Cyclone Extractor

T-2000CK

1HP Cyclone Extractor

Filter Cartridge

HEPA Filter

Inc.vat Code

£749.95

505087

Inc.vat Code

£179.95

505089

Perfect for smaller planer thicknessers, circular saws and spindle moulders

Large waste bin with internal waste sack for easy emptying

Easy to empty steel drum with castors for mobility

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

28_29_Cyclone Extractors.indd 28 12/06/2014 17:10

Nice compact design, perfect for a ducted system

Choice of 1x180mm or 2x 100mm inlets

High efficiency cyclone,

99% separation of dust and air before the filter

Manual filter cleaning system, easy to maintain air flow

T-2000CK-HR

This larger “Trade” rated extractor is also compact in size and is able to extract from larger, higher waste volume

producing machines. Sharing the same high efficiency air flow system ensures high, consistent performance. Over

99% of waste is separated from the air stream before the air is passed through the 1 micron filter; a simple manual filter cleaning system keeps the filter clean. There is a manometer fitted to give a quick, visual indication of the filter performance. The 155 litre waste container is easily detached from the machine and has castors to allow easy mobility. This machine is fitted with wheels for mobility, but we would suggest the best way to get the most benefit from this machine is to connect it to a permanent ducting system.

The 180mm inlet would allow a multiple ported system to be used. Quiet and unobtrusive in use, this would be a good choice in many workshops. N.B. 16A supply required

Model Specification

T-2000CK-HR

Power

1.5kW (230V, 1ph)

Air Flow 2,300m³/hr

Noise Level

84dB @ 3m

Filter Area 7.4m²

Filtration

Particle Size

Hose Diameter

Overall L x W x H

1 micron

1 micron

180mm x 1, 100mm x 2

1,250 x 1,000 x 1,800mm

Weight 83kg

Cyclone Extractor

T-2000CK

2hp Cyclone Extractor

Filter Cartridge

HEPA Filter

Inc.vat Code

£1,099.96

505088

Inc.vat Code

£259.96

505090

1 micron filter cartridge, optional 0.3 micron HEPA filter available

Compact and efficient with consistent performance

29

Large waste bin with internal waste sack for easy emptying

Easy to empty steel drum with castors for mobility

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

28_29_Cyclone Extractors.indd 29

Axminster Trade Series Cyclone Extractors

12/06/2014 17:10

Thick cast iron sections for vibration free running

30

Trade Woodturning Lathes

AT1416VS

Axminster drive centre

LED speed read-out in rpm

Quick and easy camlock clamps

Axminster revolving tailstock centre

The AT1416VS utilises the very reliable inverter technology usually found on much

larger machines. Electronic variable speed is a desirable feature for woodturners, enabling fine tuning of speed to suit larger diameters or out of balance workpieces. A three step polyvee pulley system allows three speed ranges which ensure maximum torque at all speeds. A versatile magnetic switch unit can be placed at a convenient position on the lathe to suit the work in hand and incorporates on/off buttons, a speed control knob and a forward and reverse switch. An LED digital read-out of the lathe speed in RPM is a useful feature and 400mm(16”) between centres and a 350mm(14”) swing over the bed capacity is unusual on a lathe this compact. Spindle indexing is achieved in 15° segments by insertion of a magnetic dowel pin.

Threaded holes (3/8”x16 UNC) are provided at each corner of the lathe for bench mounting. Tool post diameter 1” (25.4mm). Supplied with four prong Axminster drive centre, Axminster

revolving tailstock centre, 3” faceplate and a knock out bar.

N.B. The distance between centres will vary and be dependent on the type of centres or accessories used.

Electronic Inverter drive with Variable Speed and switchable reverse

Robust cast iron construction

Model Specification

AT1416VS

Power

Speed

Input 560W (230V)

0-800, 200-1,750, 400-3,600rpm

Spindle Taper 2MT

Spindle Thread

M33 x 3.5mm (Ref T38)

Taper Tailstock 2MT

Distance Between Centres 400mm

Max Diameter over Bed 350mm

Tool Rest Stem Diameter 25.4mm

Overall L x W x H

865 x 330 x 415mm

Weight 41kg

Versatile magnetic switch unit for optimum positioning

Shown with optional floor stand Shown with optional floor stand, bed extension and bed extension leg stand

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

Lathe

AT1416VS Lathe 230V

Inc.vat Code

£739.96

501214

Lathe Accessories

Inc.vat Code

Stand for AT1416VS Lathe £209.94

502498

Bed Extension for

Axminster AT1416VS Lathe £199.94

502496

Bed Extension Stand for AT1416VS £84.95

502497

30_31_Lathes.indd 30 12/06/2014 17:10

Thick cast iron sections for vibration free running

1.5kW motor with electronic speed control and two speed ranges

Digital read-out in RPM

Axminster drive centre

Axminster revolving tailstock centre

Quick and easy camlock clamps

Magnetic control box can be positioned where required

Robust deep section cast iron bed gives stability and vibration free running

Optional cast iron leg stand

AT1628VS

The AT1628VS is an excellent addition to our Trade Series range and we are expecting it to be a very popular choice among dis-

cerning woodturners. We are so impressed with its quality and performance that we have decided to equip our Skill Centre with several of these lathes. Supplied as a bench top model with the option to purchase a leg stand if required, the lathe and leg stand are of heavy cast iron construction to minimise vibration. It features electronic variable speed supplied via an inverter with two speed ranges for maximum torque at low speeds. The advantage of variable speed is that you can fine tune the speed of the lathe to the work in hand. This is especially important when turning large or out of balance workpieces and it is so convenient for fast speed changes. Spindle indexing is provided at 10° intervals and a magnetic control console with start/stop, speed control and forward/reverse can be conveniently positioned for the work in hand. Everything about the lathe feels just right, with cam-lock action of the tool rest banjo and tailstock, all controls work smoothly and effortlessly. A swivelling headstock can be very useful, especially if bench mounting the lathe but it will also slide along to the tailstock end of the bed. This allows the turning of larger diameter bowls and platters off the end of the bed and increases the capacity considerably. A 460mm bed extension kit is available as an optional extra and this can be bolted onto either end of the lathe bed. If you have the lathe fitted to the cast iron leg stand it can be attached in a lower position offering an impressive 875mm swing over the bed.

This is achieved by moving the tool rest banjo down onto the bed extension and fitting the tool rest extension post supplied with the bed extension kit. If you are serious about your woodturning and want a lathe that offers excellent performance, features and value, this lathe would be a sound choice. Supplied with Axminster four prong drive centre, Axminster revolving tailstock centre, 150mm (6”)

faceplate and a knockout bar.

N.B. The distance between centres will vary and be dependent on the type of centres or accessories used.

Model Specification

AT1628VS

Power 1.5KW

Speed

50-1,250 & 150-3,750

Spindle Taper MT2

Spindle Thread

M33 x 3.5mm (RefT38)

Taper Tailstock 2MT

Distance Between Centres 710mm

Max Diameter over Bed 406mm

Tool Rest Stem Diameter 25.4mm

Overall L x W x H

1150 x 560 x 550mm

Weight 96KG

Lathe

AT1628VS Lathe 230V

Accessories

Leg Stand

Bed Extension Kit

Inc.vat Code

£1,399.94

502703

Inc.vat Code

£359.94

502705

£159.95

502704

31

Optional bed extension in lower position Swivelling headstock

Axminster Tools & Machinery - call free 0800 371 822 mobile friendly 03332 406406 visit axminster.co.uk

30_31_Lathes.indd 31

Shown with optional leg stand and bed extension

Axminster Trade Series Woodturning Lathes

12/06/2014 17:11

The Complete Axminster Experience

See the range on display in store

Great service with knowledgeable and experienced staff

Regular events and live demonstrations

Save time by checking and reserving online

Refreshments available

We understand that looking at a machine isn’t always enough, these live workshops give an opportunity to see the machines in use and get hands-on.

Visit axminster.co.uk/stores to check times at your local

Axminster store .

Our machines are displayed throughout our stores.

(Please call us prior to visiting to check the machine you want to view is in store)

The Trafalgar Way,

Axminster

, Devon EX13 5SN Tel: 01297 35058

Winchester Road,

Basingstoke

, Hampshire RG22 6HN Tel: 01256 637477

Lincoln Road, Cressex Business Park,

High Wycombe

, Buckinghamshire HP12 3FF Tel: 01494 885480

Hamilton Way, Bermuda Trade Park,

Nuneaton

, Warwickshire CV10 7RA Tel: 02476 011402

Sheppey Way, Bobbing,

Sittingbourne

, Kent ME9 8QP Tel: 01795 437143

Gateway 49 Trade Park, Kerfoot Street,

Warrington

, Cheshire WA2 8NT Tel: 01925 595888

32_Extractor.indd 32

Buy with confidence from Axminster with the FREE 3 Year Guarantee – available on all Trade Series machines

Prices valid until 31st December 2014

16/06/2014 10:29

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
