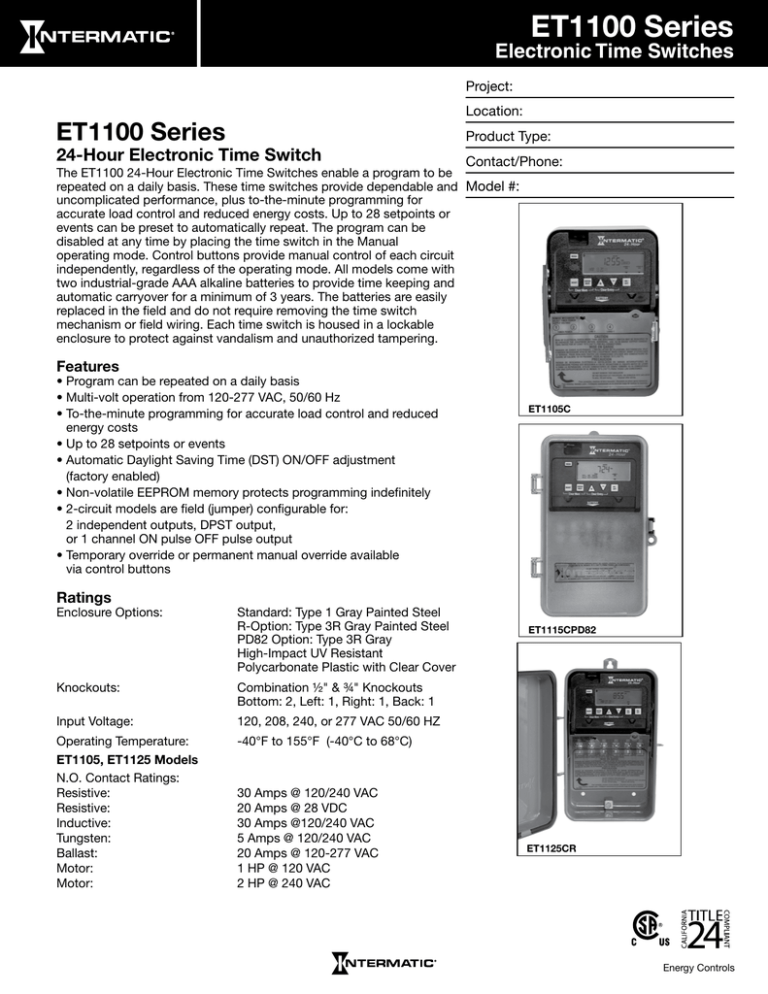

ET1100 Series
Electronic Time Switches
Project:
Location:
ET1100 Series
24-Hour Electronic Time Switch
Product Type:
Contact/Phone:
The ET1100 24-Hour Electronic Time Switches enable a program to be
repeated on a daily basis. These time switches provide dependable and Model #:
uncomplicated performance, plus to-the-minute programming for
accurate load control and reduced energy costs. Up to 28 setpoints or
events can be preset to automatically repeat. The program can be
disabled at any time by placing the time switch in the Manual
operating mode. Control buttons provide manual control of each circuit
independently, regardless of the operating mode. All models come with
two industrial-grade AAA alkaline batteries to provide time keeping and
automatic carryover for a minimum of 3 years. The batteries are easily
replaced in the field and do not require removing the time switch
mechanism or field wiring. Each time switch is housed in a lockable
enclosure to protect against vandalism and unauthorized tampering.
Features
• Program can be repeated on a daily basis
• Multi-volt operation from 120-277 VAC, 50/60 Hz
• To-the-minute programming for accurate load control and reduced
energy costs
• Up to 28 setpoints or events
• Automatic Daylight Saving Time (DST) ON/OFF adjustment
(factory enabled)
• Non-volatile EEPROM memory protects programming indefinitely
• 2-circuit models are field (jumper) configurable for:
2 independent outputs, DPST output,
or 1 channel ON pulse OFF pulse output
• Temporary override or permanent manual override available
via control buttons
ET1105C
Ratings
Enclosure Options:
Standard: Type 1 Gray Painted Steel
R-Option: Type 3R Gray Painted Steel
PD82 Option: Type 3R Gray
High-Impact UV Resistant
Polycarbonate Plastic with Clear Cover
Knockouts:
Combination ½" & ¾" Knockouts
Bottom: 2, Left: 1, Right: 1, Back: 1
Input Voltage: 120, 208, 240, or 277 VAC 50/60 HZ
Operating Temperature: -40°F to 155°F (-40°C to 68°C)
ET1105, ET1125 Models
N.O. Contact Ratings:
Resistive: 30 Amps @ 120/240 VAC
Resistive:
20 Amps @ 28 VDC
Inductive: 30 Amps @120/240 VAC
Tungsten: 5 Amps @ 120/240 VAC
Ballast: 20 Amps @ 120-277 VAC
Motor: 1 HP @ 120 VAC
Motor: 2 HP @ 240 VAC
ET1115CPD82
ET1125CR
Energy Controls
ET1100 Series
ET1115 Models
N.O./N.C. Contact Ratings: Resistive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
Inductive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
Tungsten: 5 Amps (N.O.) @ 120/240 VAC
Ballast: 20 Amps (N.O.), 3 Amps (N.C.) @ 120-277 VAC
Motor: 1 HP (N.O.); ¼ HP (N.C.) @ 120 VAC
Motor: 2 HP (N.O.); ½ HP (N.C.) @ 240 VAC
Pulse Feature: 2-circuit models feature 2 second pulse option for contactor and
bell ringing applications
Auto DST:
Automatic adjustment for Daylight Saving Time
Battery Backup: Two field-replaceable AAA batteries maintain date and accurate time for a minimum of
three years. Batteries can be replaced when power to mechanism is activated.
Wiring Terminals:
#18 to #10 AWG wire
Minimum ON/OFF Time: 1 minute
Maximum ON/OFF Time: 23 hours 59 minutes
Warranty:
Limited 1 year
Model Number
Circuits
Switch
Volts AC
Rating
Enclosure
Shipping Weights
ET1105C
1
SPST
120, 208, 240, 277
30 Amps
Type 1 Steel
2.9 lbs. (1.3 kg)
ET1105CPD82
1
SPST
120, 208, 240, 277
30 Amps
Type 3R Plastic
3.6 lbs. (1.6 kg)
ET1105CR
1
SPST
120, 208, 240, 277
30 Amps
Type 3R Steel
3.6 lbs. (1.6 kg)
ET1115C
1
SPDT
120, 208, 240, 277
20/10 Amps
Type 1 Steel
2.9 lbs. (1.3 kg)
ET1115CPD82
1
SPDT
120, 208, 240, 277
20/10 Amps
Type 3R Plastic
3.6 lbs. (1.6 kg)
ET1115CR
1
SPDT
120, 208, 240, 277
20/10 Amps
Type 3R Steel
3.6 lbs. (1.6 kg)
ET1125C*
2
SPST
120, 208, 240, 277
30 Amps
Type 1 Steel
2.9 lbs. (1.3 kg)
ET1125CPD82*
2
SPST
120, 208, 240, 277
30 Amps
Type 3R Plastic
3.6 lbs. (1.6 kg)
ET1125CR*
2
*Can be wired as DPST
SPST
120, 208, 240, 277
30 Amps
Type 3R Steel
3.6 lbs. (1.6 kg)
Specification
The time switch shall be of the 24-hour electronic type, capable of permitting up to 28 setpoints or events. The time
switch shall provide a minimum ON or OFF time of 1 minute. The time switch to be powered by ______ (120)(208)(240)
(277) VAC, ___ (50)(60) Hz power supply. The time switch mechanism shall be a snap-in design to provide ease of
mechanism removal for mounting the enclosure. The time switch enclosure shall be a ___________ (Type 1 steel)(Type 3R
steel)(Type 3R plastic) lockable enclosure, which shall be painted with an electrostatic process to eliminate the potential
for corrosion. The time switch shall provide clear terminal identification on a non-curling terminal insulator. Terminal
connections shall be made using teeter-type terminal screws to provide secure connections for wire sizes up to #10
AWG. Switch configuration shall be ______ (SPST)(DPST)(SPDT) with a UL or CSA listed switch rating of:
(If SPST:)
(If SPDT:)
• Resistive: 30 Amps @ 120/240 VAC • Resistive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
• Resistive: 20 Amps @ 28 VDC
• Inductive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
• Inductive: 30 Amps @ 120/240 VAC • Tungsten: 5 Amps (N.O.) @ 120/240 VAC
• Tungsten: 5 Amps @ 120/240 VAC
• Ballast: 20 Amps (N.O.), 3 Amps (N.C.) @ 120-277 VAC
• Ballast: 20 Amps @ 120-277 VAC
• Motor: 1 HP (N.O)., ¼ HP (N.C.) @ 120 VAC
• Motor: 1 HP @ 120 VAC
• Motor: 2 HP (N.O.), ½ HP (N.C.) @ 240 VAC
• Motor: 2 HP @ 240 VAC
The time switch shall be UL or CSA listed under UL category 916 Energy Management Equipment and shall be
Intermatic model ____________(See Model Numbers Listed).
Energy Controls
www.intermatic.com
XXXXXXXX
ET1100
Series
Diagrams
Timer Power
Timer Power
1
2
3
1
4
2
3
4
5
L2
Neutral
L1
Line
Load 1
Load
120 VAC
Input
Install jumper
only if timer input
and load voltage
are the same.
ET1105-120 VAC-SPST
Timer Power
Install jumper
only if timer input
and load voltages
are the same.
Load 2
ET1115-SPDT (load switching)
Timer Power
1
2
3
4
5
6
ON Pulse
1
2
3
4
OFF Pulse
5
6
L2
L2/Neutral
L1
L1
240 VAC Input
CLOSE
Load
COM
Configuration jumper set to “SIM”.
ET1125-240 VAC-DPST
Maintained
Contactor
OPEN
Configure jumper set to “PUL”.
ET1125-Pulse 2x SPST
Timer Power
Timer Power
2
1
3
4
5
1
6
L2/Neutral
2
3
4
5
6
L2/ Neutral
L1
120/208/240/277
VAC Input
L3
Load
1
L4/Neutral
Configuration jumper set to “IND”.
ET1125-2x SPST
L5
Load
2
L1
Load
L6/Neutral
Configuration jumper set to “PUL” Each event, ON or OFF, Rings Bell.
ET1125-Pulse 2x SPST (bell ringing)
Energy Controls
ET1100 Series
Notes
Energy Controls
www.intermatic.com
