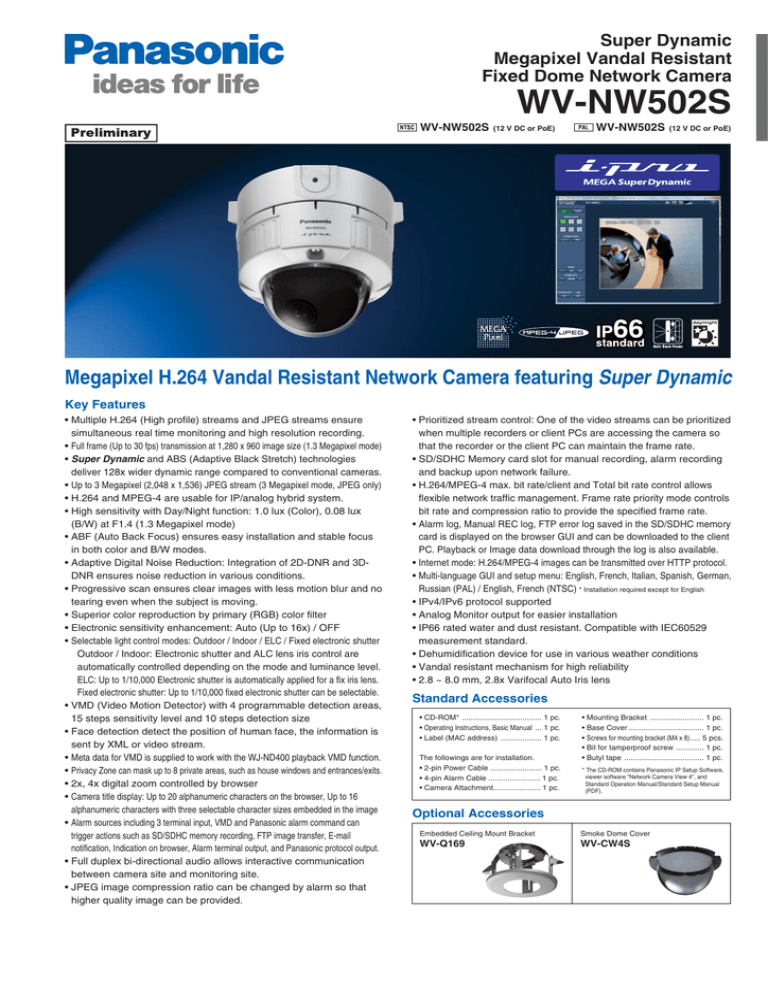

WV-NW502S Megapixel H.264 Vandal Resistant Network Camera featuring Super Dynamic Megapixel Vandal Resistant

WV-NW502S Megapixel H.264 Vandal Resistant Network Camera featuring Super Dynamic Megapixel Vandal Resistant
Super Dynamic
Megapixel Vandal Resistant
Fixed Dome Network Camera
WV-NW502S
WV-NW502S
(12 V DC or PoE)
WV-NW502S
(12 V DC or PoE)
Megapixel H.264 Vandal Resistant Network Camera featuring Super Dynamic
Key Features
• Multiple H.264 (High profile) streams and JPEG streams ensure
simultaneous real time monitoring and high resolution recording.
• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size (1.3 Megapixel mode)
• Super Dynamic and ABS (Adaptive Black Stretch) technologies
deliver 128x wider dynamic range compared to conventional cameras.
• Up to 3 Megapixel (2,048 x 1,536) JPEG stream (3 Megapixel mode, JPEG only)
• H.264 and MPEG-4 are usable for IP/analog hybrid system.
• High sensitivity with Day/Night function: 1.0 lux (Color), 0.08 lux
(B/W) at F1.4 (1.3 Megapixel mode)
• ABF (Auto Back Focus) ensures easy installation and stable focus
in both color and B/W modes.
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3DDNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no
tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Outdoor / Indoor / ELC / Fixed electronic shutter
Outdoor / Indoor: Electronic shutter and ALC lens iris control are
automatically controlled depending on the mode and luminance level.
ELC: Up to 1/10,000 Electronic shutter is automatically applied for a fix iris lens.
Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.
• VMD (Video Motion Detector) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Face detection detect the position of human face, the information is
sent by XML or video stream.
• Meta data for VMD is supplied to work with the WJ-ND400 playback VMD function.
• Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits.
• 2x, 4x digital zoom controlled by browser
• Camera title display: Up to 20 alphanumeric characters on the browser, Up to 16
alphanumeric characters with three selectable character sizes embedded in the image
• Alarm sources including 3 terminal input, VMD and Panasonic alarm command can
trigger actions such as SD/SDHC memory recording, FTP image transfer, E-mail
notification, Indication on browser, Alarm terminal output, and Panasonic protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site.
• JPEG image compression ratio can be changed by alarm so that
higher quality image can be provided.
• Prioritized stream control: One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.
• SD/SDHC Memory card slot for manual recording, alarm recording
and backup upon network failure.
• H.264/MPEG-4 max. bit rate/client and Total bit rate control allows
flexible network traffic management. Frame rate priority mode controls
bit rate and compression ratio to provide the specified frame rate.
• Alarm log, Manual REC log, FTP error log saved in the SD/SDHC memory
card is displayed on the browser GUI and can be downloaded to the client
PC. Playback or Image data download through the log is also available.
• Internet mode: H.264/MPEG-4 images can be transmitted over HTTP protocol.
• Multi-language GUI and setup menu: English, French, Italian, Spanish, German,
Russian (PAL) / English, French (NTSC) * Installation required except for English
• IPv4/IPv6 protocol supported
• Analog Monitor output for easier installation
• IP66 rated water and dust resistant. Compatible with IEC60529
measurement standard.
• Dehumidification device for use in various weather conditions
• Vandal resistant mechanism for high reliability
• 2.8 ~ 8.0 mm, 2.8x Varifocal Auto Iris lens
Standard Accessories
• CD-ROM* ..................................... 1 pc.
• Operating Instructions, Basic Manual ... 1 pc.
• Label (MAC address) ................... 1 pc.
The followings are for installation.
• 2-pin Power Cable ........................ 1 pc.
• 4-pin Alarm Cable ........................ 1 pc.
• Camera Attachment...................... 1 pc.
• Mounting Bracket ......................... 1 pc.
• Base Cover ................................... 1 pc.
• Screws for mounting bracket (M4 x 8)..... 5 pcs.
• Bit for tamperproof screw ............. 1 pc.
• Butyl tape ..................................... 1 pc.
* The CD-ROM contains Panasonic IP Setup Software,
viewer software "Network Camera View 4", and
Standard Operation Manual/Standard Setup Manual
(PDF).
Optional Accessories
Embedded Ceiling Mount Bracket
Smoke Dome Cover
WV-Q169
WV-CW4S
Specifications
Network
Network IF
Image Resolution*1
H.264 / Transmission Mode
MPEG-4 Max. Frame Rate
*1
Max.
Bit Rate/Client
Image Quality
Refresh Interval
Transmission Type
JPEG Image Quality
Transmission Type
Audio Compression
Audio Mode
Authentication for Audio
Total Bit Rate
Supported Protocol
FTP Client
No. of Simultaneous Users
SD Memory Card
(Option)
Alarm
Alarm Source
Alarm Actions
Weight (approx.)
–30 °C ~ +50 °C (–22 °F ~ 122 °F),
90 % or less (without condensation)
IP66, IEC60529 measuring standard compatible
ø164 mm x 146 mm (H), 191.5 mm (W) (Base Cover)
(ø6-7/16" x 5-3/4" (H), 7-9/16" (W) (Base Cover))
1.7 kg (3.74 lbs.) (with Mounting Bracket)
*1 H.264 and MPEG-4 are alternative.
Part Names and Functions
Enclosure
Inner Dome Cover
Focus Lever
Zoom Lever
Tilt Adjustment Seat
Panning Table
Network Cable
Alarm I/O Cable
Power Cable for 12 V DC
Mic./Line In Cable
Audio Out Cable
Attachment
Mounting Bracket
(Accessory)
Base Cover (Accessory)
SD Memory Card Slot
Tilting Lock Screw
Panning Lock Screw
Monitor Output Jack
LINK LED
Access LED (ACT)
INITIAL SET Button
SD Memory Card Error /
ABF LED
ABF Button
Appearance
138(5-7/16")
85(3-3/8")
ø164
(ø6-7/16")
4-ø14
4-ø5
138(5-7/16")
Supported Browser
Power Source and
Power Consumption
Ambient Operating
Temperature/Humidity
Water and Dust Resistance
Dimensions
85
(3-3/8")
System Log
Supported OS
Safety/EMC Standard
4-ø14
4-ø5
191.5(7-9/16")
75(2-15/16")
145(5-11/16")
SR52.5
46(1-13/16")
83.5
(3-5/16")
Digital Zoom
Camera Title
Clock Display
Alarm Control
One Shot Capture
Audio
SD Memory Data Download
GUI/Setup Menu Language
General
146(5-3/4")
Browser
GUI
Audio Output
External I/O Terminals
NTSC
PAL
With SD memory card: 4,000 logs, Without SD memory card: 100 logs
Alarm / VMD / Access permission
1.0 V [P-P] / 75 Ω, NTSC
1.0 V [P-P] / 75 Ω, PAL
composite, RCA Jack
composite, RCA Jack
MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack
(monaural input) (Applicable microphone: Plug-in power type)
Supply voltage: 2.5 V ±0.5 V Input impedance: 3 kΩ ±10 %
ø3.5 mm stereo mini jack (monaural output) Line level
ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT,
ALARM IN 3 / AUX OUT / EXPOSURE OUT
UL (UL60065), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024),
C-UL (CAN/CSA C22.2 No.60065),
GOST (GOST R 51558)
DOC (ICES003 ClassA)
12 V DC: 630 mA, PoE (IEEE 802.3af): 7.6 W
29
(1-1/8")
Lens
Super Dynamic
Dynamic Range
Adaptive Black Stretch
AGC
Electronic Sensitivity UP
Black and White Mode
Digital Noise Reduction
Video Motion Detection
Privacy Zone
Up Side Down
Auto Image Stabilizer
Camera Title (OSD)
Back Focus Adjustment
Vari Focal Length
Angular Field of View
Maximum Aperture Ratio
Focusing Range
Camera Control
Display Mode
TV System
Alarm
Alarm Log
Schedule
Input /
Monitor Output
Output
Microphone/Line Input
1
41 52.5 52.5
(1-5/8") (2-1/16") (2-1/16")
White Balance
Light Control Mode
NTSC
PAL
1/3 inch interline transfer CCD
1,296 (H) x 976 (V) x2
Progressive scan
4.86 mm (H) x 3.65 mm (V)
1. 3 Megapixel mode: Color: 1.0 lux, B/W: 0.08 lux at F1.4 (Shutter: 1/30 s, SD: OFF),
Color: 0.06 lux, B/W: 0.005 lux at F1.4 (Shutter: 16/30 s, SD: OFF)
3 Megapixel mode: Color: 2.0 lux, B/W: 0.16 lux at F1.4 (Shutter: 1/30 s),
Color: 0.12 lux, B/W: 0.01 lux at F1.4 (Shutter: 16/30 s)
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Outdoor: Automatic integration of ALC and ELC Indoor: Automatic integration of ALC
and ELC (up to 1/100 sec.) ELC: (up to 1/10,000 sec.) Fix shutter: 3/100 fix,
2/100 fix, 1/100 fix, 1/250 fix, 1/500 fix, 1/1,000 fix, 1/2,000 fix, 1/4,000 fix, 1/10,000 fix
ON / OFF (1.3 Megapixel mode only)
52 dB typical (Super Dynamic: ON, Light Control mode: Indoor)
ON / OFF
ON (LOW, MID, HIGH ) / OFF
OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Mode: AUTO1 / AUTO2 / AUTO3 / ON / OFF, Level: High / Low, with external control
High / Low
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Up to 8 zones, Gray / Mosaic
ON / OFF
ON / OFF
Up to 16 alphanumeric characters (3 selectable character sizes)
ABF / MANUAL, ABF mode upon CL/BW switching: AUTO / PRESET / FIX
2.8 mm ~ 8 mm
H: 35.0° (Tele) ~ 100° (Wide), V: 26.2° (Tele) ~ 73.5° (Wide)
F = 1.2 (Wide)
0.3 m ~ ∞
Brightness, AUX ON / OFF, Zoom (1x, 2x, 4x)
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
1x, 2x, 4x Controlled by browser GUI
Up to 20 alphanumeric characters
Time: 12H / 24H, Date: 5 formats on the browser, Summer time (Manual)
Reset
A still picture will be displayed on a newly opened window.
Mic (Line) Input: ON / OFF, Audio Output: ON / OFF
Images recorded in the SD memory card can be downloaded.
English, French
English, French, Italian,
(Installation required for French) Spanish, German, Russian
(Installation required except for English)
Up to 100 (Internal), Up to 4,000 (SD memory) error logs
Microsoft® Windows Vista® Business 32 bit, Microsoft® Windows® XP Home/Professional SP2
The language of the OS must be same as selected GUI language.
Microsoft® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business 32 bit),
Microsoft® Internet Explorer® 6.0 SP2 (Microsoft® Windows® XP Home/Professional SP2)
10Base-T / 100Base-TX, RJ-45 connector
1.3 Megapixel H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
mode:
MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
3 Megapixel H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 15 fps
mode:
MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 15 fps
JPEG: 2,048 x 1,536 / 1,280 x 960 / VGA (640 x 480), up to 15 fps
Constant bit rate / Frame rate priority
1 / 3 / 5 / 10 / 15 / 20* / 30* fps * 1.3 Megapixel mode only
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
4,096 / 8,192* kbps / Unlimited * H.264 mode only
LOW / NORMAL / FINE
0.1 fps ~ 30 fps
UNICAST / MULTICAST
10 steps
PULL / PUSH
G.726 (ADPCM) 32 kbps / 16 kbps
OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Level 1 only / Level 2 higher / All users
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS,
NTP, SNMP IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP
Alarm image transfer, Periodic image transfer, Active/Passive selectable (When the FTP
periodic transmission is failed, backup on an optional SD memory card is available.)
Up to 14 users (Depends on network conditions)
Manual REC / Alarm REC / Backup upon network failure
Compatible SD (SDHC) card: Panasonic SD (SDHC) card: 64 MB, 128 MB,
256 MB, 512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card
3 terminal inputs, VMD, Command alarm
SD memory recording, E-mail notification, Alarm terminal output,
Indication on browser, FTP image transfer, Panasonic protocol output
WV-NW502
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
191.5(7-9/16")
130(5-1/8")
200(7-7/8")
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– "Super Dynamic", "SDII", "SDIII", "SD5" and "i-Pro" logos are trademarks or registered trademarks of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
DISTRIBUTED BY:
http://panasonic.net/security/
Printed in Japan (2A-046A)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
