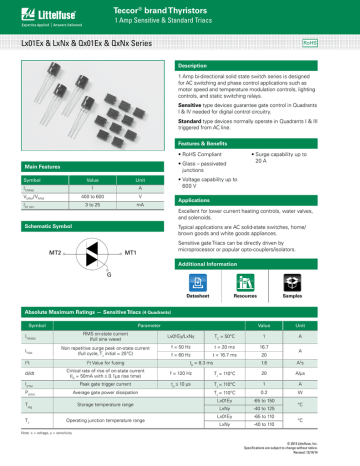

Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Lx01Ex & LxNx & Qx01Ex & QxNx Series
RoHS
Description
1 Amp bi-directional solid state switch series is designed
for AC switching and phase control applications such as
motor speed and temperature modulation controls, lighting
controls, and static switching relays.
Sensitive type devices guarantee gate control in Quadrants
I & IV needed for digital control circuitry.
Standard type devices normally operate in Quadrants I & III
triggered from AC line.
Features & Benefits
• RoHS Compliant
• Surge capability up to
20 A
• Glass – passivated
junctions
Main Features
Symbol
IT(RMS)
VDRM /VRRM
IGT (Q1)
Value
Unit
1
A
400 to 600
V
3 to 25
mA
• Voltage capability up to
600 V
Applications
Excellent for lower current heating controls, water valves,
and solenoids.
Schematic Symbol
Typical applications are AC solid-state switches, home/
brown goods and white goods appliances.
MT2
Sensitive gate Triacs can be directly driven by
microprocessor or popular opto-couplers/isolators.
MT1
Additional Information
G
Datasheet
Samples
Resources
Absolute Maximum Ratings — Sensitive Triacs (4 Quadrants)
Symbol
Parameter
RMS on-state current
(full sine wave)
IT(RMS)
ITSM
Non repetitive surge peak on-state current
(full cycle, TJ initial = 25°C)
I2t
I2t Value for fusing
Value
Unit
TC = 50°C
1
A
f = 50 Hz
t = 20 ms
16.7
f = 60 Hz
t = 16.7 ms
20
Lx01Ey/LxNy
tp = 8.3 ms
A
1.6
A2s
20
A/μs
Critical rate of rise of on-state current
(IG = 50mA with ≤ 0.1μs rise time)
f = 120 Hz
TJ = 110°C
IGTM
Peak gate trigger current
tp ≤ 10 μs
TJ = 110°C
1
A
PG(AV)
Average gate power dissipation
TJ = 110°C
0.2
W
di/dt
Storage temperature range
Tstg
TJ
Operating junction temperature range
Lx01Ey
-65 to 150
LxNy
-40 to 125
Lx01Ey
-65 to 110
LxNy
-40 to 110
°C
°C
Note: x = voltage, y = sensitivity
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Absolute Maximum Ratings — Standard Triacs
Symbol
Parameter
RMS on-state current
(full sine wave)
IT(RMS)
Value
Unit
TC = 60°C
1
A
f = 50 Hz
t = 20 ms
16.7
f = 60 Hz
t = 16.7 ms
20
Qx01Ey/QxNy
ITSM
Non repetitive surge peak on-state current
(full cycle, TJ initial = 25°C)
I2t
I2t Value for fusing
tp = 8.3 ms
A
1.6
A2s
di/dt
Critical rate of rise of on-state current
(IG = 200mA with ≤ 0.1μs rise time)
f = 120 Hz
TJ = 125°C
20
A/μs
IGTM
Peak gate trigger current
tp ≤ 10 μs;
IGT ≤ IGTM
TJ = 125°C
1
A
PG(AV)
Average gate power dissipation
TJ = 125°C
0.2
W
Qx01Ey
-65 to 150
QxNy
-40 to 150
Qx01Ey
-65 to 125
QxNy
-40 to 125
Storage temperature range
Tstg
TJ
Operating junction temperature range
°C
°C
Note: x = voltage, y = sensitivity
Electrical Characteristics (TJ = 25°C, unless otherwise specified) — Sensitive Triac (4 Quadrants)
Symbol
IGT
Test Conditions
I – II – III
VD = 12V RL = 60 Ω
VGT
VGD
VD = VDRM RL = 3.3 kΩ TJ = 110°C
IH
IT = 100mA
dv/dt
Quadrant
VD = VDRM Gate Open TJ = 100°C
IV
MAX.
Lx01E3
LxN3
Lx01E5
LxN5
Lx01E6
LxN6
Lx01E8
LxN8
3
5
5
10
3
5
10
20
Unit
mA
ALL
MAX.
1.3
V
ALL
MIN.
0.2
V
MAX.
400V
TYP.
600V
5
10
10
15
20
20
30
35
10
10
20
25
mA
V/μs
(dv/dt)c
(di/dt)c = 0.54 A/ms TJ = 110°C
TYP.
0.5
1
1
1
V/μs
tgt
IG = 2 x IGT PW = 15μs IT = 1.41 A(pk)
TYP.
2.8
3.0
3.0
3.2
μs
Electrical Characteristics (TJ = 25°C, unless otherwise specified) — Standard Triac
Symbol
IGT
Test Conditions
VD = 12V RL = 60 Ω
VGT
VGD
VD = VDRM RL = 3.3 kΩ TJ = 125°C
IH
IT = 200mA
dv/dt
VD = VDRM Gate Open TJ = 125°C
Quadrant
Qx01E3
QxN3
Qx01E4
QxN4
Unit
I – II – III
MAX.
10
25
IV
TYP.
25
50
I – II – III
MAX.
1.3
1.3
V
ALL
MIN.
0.2
0.2
V
MAX.
15
25
mA
30
40
20
30
400V
600V
MIN.
mA
V/μs
(dv/dt)c
(di/dt)c = 0.54 A/ms TJ = 125°C
TYP.
1
1
V/μs
tgt
IG = 2 x IGT PW = 15μs IT = 1.41 A(pk)
TYP.
2.5
3.0
μs
Note: x = voltage, y = sensitivity
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Static Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Test Conditions
ITM = 1.41A tp = 380 µs
VTM
MAX.
Lx01Ey / LxNy
IDRM
IRRM
VDRM = VRRM
MAX.
Qx01Ey / QxNy
Value
Unit
1.60
V
TJ = 25°C
400-600V
2
μA
TJ = 110°C
400-600V
0.1
mA
TJ = 25°C
400-600V
5
μA
TJ = 125°C
400-600V
1
mA
Thermal Resistances
Symbol
Parameter
Rθ(J-C)
Junction to case (AC)
Rθ(J-A)
Junction to ambient
Value
L/Qx01Ey
50
L/QxNy
40*
L/Qx01Ey
95
Unit
°C/W
°C/W
Note: * = Mounted on 1 cm2 copper (two-ounce) foil surface
Figure 2: Normalized DC Gate Trigger Current for
All Quadrants vs. Junction Temperature
Figure 1: Definition of Quadrants
ALL POLARITIES ARE REFERENCED TO MT1
(-)
+
I GT
GATE
(+)
I GT
(-)
MT1
I GT
GATE
(+)
MT1
REF
REF
QII QI
QIII QIV
MT2
MT2
I GT
GATE
MT1
REF
4.0
-
+ IGT
MT2
Ratio of IGT/IGT (Tj=25ºC)
MT2
MT2 POSITIVE
(Positive Half Cycle)
3.0
2.0
1.0
I GT
GATE
MT2 NEGATIVE
(Negative Half Cycle)
MT1
REF
0.0
-65
-40
-15
10
35
60
85
110
125
Junction Temperature (Tj) - ºC
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Figure 4: Normalized DC Gate Trigger Voltage for
All Quadrants vs. Junction Temperature
2.0
Ratio of VGT/VGT (Tj = 25ºC)
Ratio of IH / IH (Tj = 25ºC)
4.0
3.0
2.0
1.0
1.5
1.0
0.5
0.0
0.0
-65
-40
-15
10
35
60
85
110
-65
125
-40
-15
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
60
85
110
125
130
Max Allowable Case Temperature (TC) - ºC
Average On-State
Power Dissipation (PD(AV)) - Watts
35
Figure 6: M
aximum Allowable Case Temperature
vs. On-State Current
1.5
CURRENT WAVE FORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
1.0
0.5
0.0
0
0.25
0.5
0.75
1.0
1.25
CURRENT WAVE FORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360º
CASE TEMPERATURE: Measured as shown
on Dimensional Drawing
120
110
Qx01Ex /QxNx
100
90
Lx01Ex / LxNx
80
70
60
50
0
0.2
RMS On-State Current (IT(RMS)) - Amps
0.4
0.6
0.8
1
1.2
RMS On-State Current [IT(RMS)] - AMPS
Figure 7: Maximum Allowable Ambient Temperature
vs. On-State Current
Figure 8: O
n-State Current vs. On-State Voltage
(Typical)
120
8
Positive or Negative Instantaneous
On-State Current (IT) - AMPS
Max Allowable Ambient Temperature
(TA) - ºC
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360º
FREE AIR RATING - NO HEATSINK
100
80
60
40
20
10
Junction Temperature (Tj) - ºC
Junction Temperature (Tj) - ºC
7
6
5
TC = 25ºC
4
3
2
1
0
0.0
0.1
0.2
0.3
0.4
0.5
RMS On-State Current [IT(RMS)] - AMPS
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
0.6
0.7
0.6
0.8
1.0
1.2
1.4
1.6
Positive or Negative Instantaneous On-State Voltage
(VT) - Volts
1.8
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Figure 9: Surge Peak On-State Current vs. Number of Cycles
Peak Surge (Non-repetitive) On-State Current
(ITSM ) – Amps
100
Supply Frequency: 60Hz Sinusoidal
Load: Resistive
RMS On-State [IT(RMS)]: Max Rated Value at
Specific Case Temperature
Notes:
1. G
ate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
10
1
1
10
100
1000
Surge Current Duration – Full Cycles
Soldering Parameters
Pre Heat
Pb – Free assembly
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
60 – 150 seconds
Peak Temperature (TP)
260
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
+0/-5
tP
TP
Temperature
Reflow Condition
Ramp-up
TL
tL
TS(max)
Preheat
TS(min)
25
Ramp-do
Ramp-down
tS
time to peak temperature
Time
°C
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Physical Specifications
Environmental Specifications
Test
Terminal Finish
100% Matte Tin-plated
Body Material
UL recognized epoxy meeting flammability
classification 94V-0
Terminal Material
Copper Alloy
Specifications and Conditions
AC Blocking
Temperature Cycling
Temperature/
Humidity
Design Considerations
High Temp Storage
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Low-Temp Storage
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell time
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C; 85%
rel humidity
MIL-STD-750, M-1031,
1008 hours; 150°C
1008 hours; -40°C
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwell
time at each temperature; 10 sec (max)
transfer time between temperature
EIA / JEDEC, JESD22-A102
168 hours (121°C at 2 ATMs) and
100% R/H
Thermal Shock
Autoclave
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
MIL-STD-750, M-2036 Cond E
Dimensions - Compak (C Package)
TC / TL Temperature
Measurement Point
Dimension
B
D
M
A
P
C
MT1
MT2
H
F
L
E
J
0.079
(2.0)
K
0.079
(2.0)
G
0.079
(2.0)
0.040
(1.0)
0.030
(0.76)
0.110
(2.8)
Pad Outline
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Dimensions are in inches
(and millimeters).
Millimeters
Max
Min
Max
0.130
0.156
3.30
3.95
B
0.201
0.220
5.10
5.60
C
0.077
0.087
1.95
2.20
A
N
Inches
Min
Gate
D
0.159
0.181
4.05
4.60
E
0.030
0.063
0.75
1.60
F
0.075
0.096
1.90
2.45
G
0.002
0.008
0.05
0.20
H
0.077
0.104
1.95
2.65
J
0.043
0.053
1.09
1.35
K
0.006
0.016
0.15
0.41
L
0.030
0.055
0.76
1.40
M
0.022
0.028
0.56
0.71
N
0.027
0.033
0.69
0.84
P
0.052
0.058
1.32
1.47
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Dimensions - TO-92 (E Package)
TC Measuring Point
Dimension
MT1
MT2
Gate
E
H
M
L
G
Min
Max
A
0.176
B
0.500
0.196
4.47
4.98
-
12.70
D
0.095
-
0.105
2.41
2.67
E
0.150
-
3.81
-
F
0.046
0.054
1.16
1.37
3.68
G
0.135
0.145
3.43
H
0.088
0.096
2.23
2.44
J
0.176
0.186
4.47
4.73
K
0.088
0.096
2.23
2.44
L
0.013
0.019
0.33
0.48
M
0.013
0.017
0.33
0.43
All leads insulated from case. Case is electrically nonconductive.
F
D
Millimeters
Max
A
B
Inches
Min
K
J
Product Selector
Part Number
Lx01E3
Voltage
Gate Sensitivity Quadrants
400V
600V
I – II – III
IV
X
X
3 mA
3 mA
Type
Package
Sensitive Triac
TO-92
LxN3
X
X
3 mA
3 mA
Sensitive Triac
Compak
Lx01E5
X
X
5 mA
5 mA
Sensitive Triac
TO-92
LxN5
X
X
5 mA
5 mA
Sensitive Triac
Compak
Lx01E6
X
X
5 mA
10 mA
Sensitive Triac
TO-92
Lx01E8
X
X
10 mA
20 mA
Sensitive Triac
TO-92
Qx01E3
X
X
10 mA
Standard Triac
TO-92
QxN3
X
X
10 mA
Standard Triac
Compak
Qx01E4
X
X
25 mA
Standard Triac
TO-92
QxN4
X
X
25 mA
Standard Triac
Compak
Note: x- voltage
Packing Options
Marking
Weight
Packing Mode
Base Quantity
L/Qx01Ey
Part Number
L/Qx01Ey
0.188 g
Bulk
2000
L/Qx01EyRP
L/Qx01Ey
0.188 g
Reel Pack
2000
L/Qx01EyAP
L/Qx01Ey
0.188 g
Ammo Pack
2000
L/QxNy
0.081 g
Embossed Carrier
2500
L/QxNyRP
Note: x = Voltage; y = Sensitivity
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
TO-92 (3-lead) Reel Pack (RP) Radial Leaded
Meets all EIA-468-C Standards
1.6
(41.0)
0.02 (0.5)
0.236
(6.0)
0.708
(18.0)
0.098 (2.5) MAX
1.26
(32.0)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT2
MT1
0.2 (5.08)
Gate
0.157 DIA
(4.0)
14.17(360.0)
Flat up
1.97
(50.0)
Dimensions
are in inches
(and millimeters).
Direction of Feed
TO-92 (3-lead) Ammo Pack (AP) Radial Leaded
Meets all EIA-468-C Standards
0.236
(6.0)
1.62
(41.2)
0.708
(18.0)
0.02 (0.5)
0.098 (2.5) MAX
1.27
(32.2)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT2
0.2 (5.08)
0.157
(4.0) DIA
MT1
Gate
Flat down
n of Feed
Directio
25 Devices per fold
1.85
(47.0)
12.2
(310.0)
1.85
(47.0)
13.3
(338.0)
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Dimensions
are in inches
(and millimeters).
Teccor® brand Thyristors
1 Amp Sensitive & Standard Triacs
Compak Embossed Carrier Reel Pack (RP)
Meets all EIA-481-1 Standards
0.157
(4.0)
0.47
(12.0)
MT2
0.36
(9.2)
8.0
0.315
(8.0)
0.512 (13.0) Arbor
Hole Dia.
Gate
MT1
0.059 DIA
(1.5)
12.99
(330.0)
Cover tape
Dimensions
are in inches
(and millimeters).
0.49
(12.4)
Direction of Feed
Part Numbering System
Part Marking System
L 4 01 E 3
DEVICE TYPE
L : Sensitive Triac
Q : Triac
VOLTAGE RATING
4 : 400V
6 : 600V
SENSITIVITY & TYPE
Sensitive Triac:
3 : 3 mA (QI, II, III, IV)
5 : 5 mA (QI, II, III, IV)
6 : 5 mA (QI, II, III)
10 mA (QIV)
8 : 10 mA (QI, II, III)
20 mA (QIV)
Standard Triac:
3 : 10 mA (QI, II, III)
4 : 25 mA (QI, II, III)
TO-92 (E Package)
L401E3
®
YMLXX
Date Code Marking
CURRENT RATING
01 : 1.0A (TO-92)
N : 1.0A (Compak)
PACKAGE TYPE
Blank : Compak (Surface Mount)
E : TO-92
Y:Year Code
M: Month Code
L: Location Code
XX: Lot Serial Code
Compak (C Package)
L4N3
®
YMXXX
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
