Technical datasheet:

Technical datasheet:

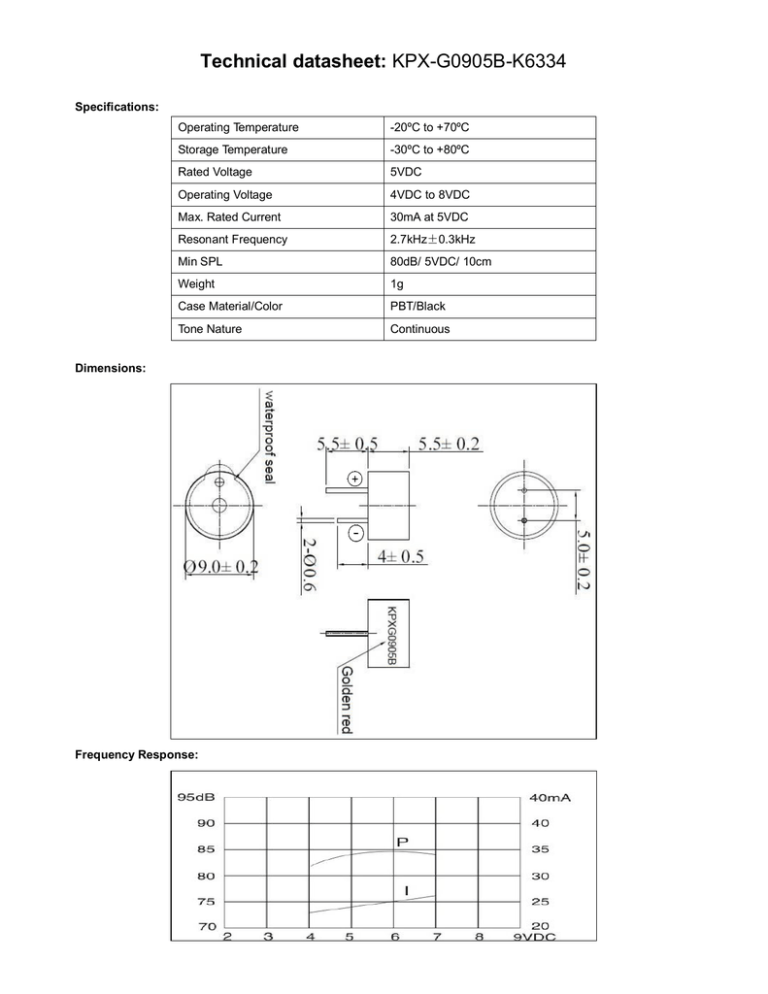

Technical datasheet: KPX-G0905B-K6334
Specifications:
Operating Temperature
-20ºC to +70ºC
Storage Temperature
-30ºC to +80ºC
Rated Voltage
5VDC
Operating Voltage
4VDC to 8VDC
Max. Rated Current
30mA at 5VDC
Resonant Frequency
2.7kHz±0.3kHz
Min SPL
80dB/ 5VDC/ 10cm
Weight
1g
Case Material/Color
PBT/Black
Tone Nature
Continuous
Dimensions:
Frequency Response:
