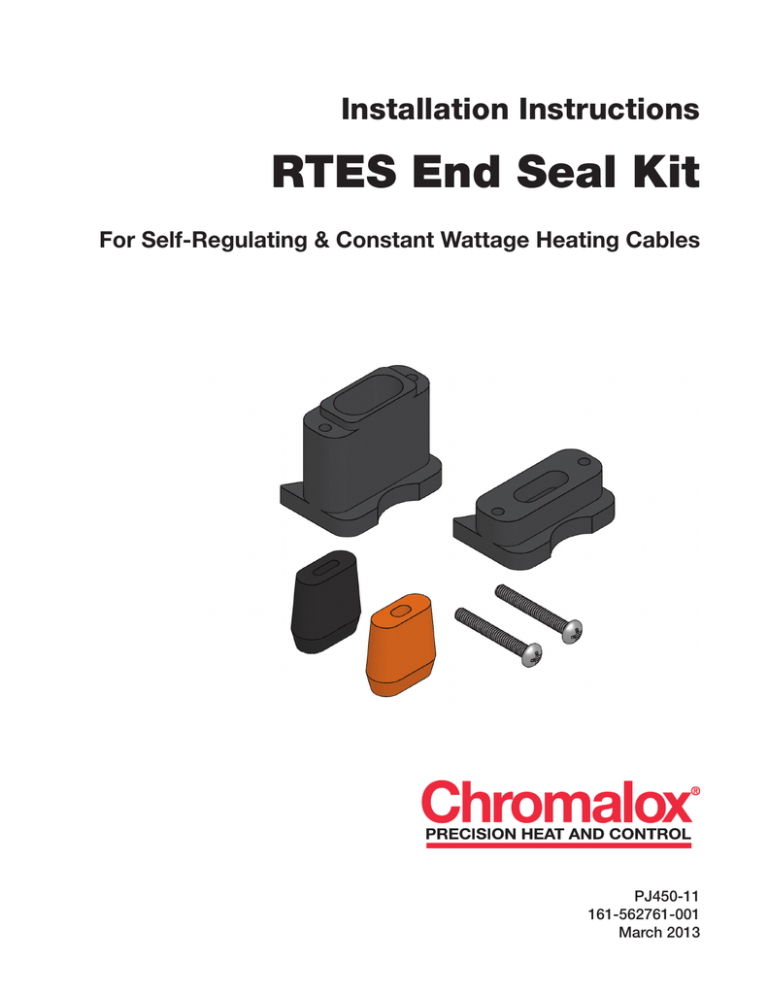

Installation Instructions
RTES End Seal Kit
For Self-Regulating & Constant Wattage Heating Cables
1
PJ450-11
161-562761-001
March 2013
2
RTES End Seal Kit
Self-Regulating & Constant Wattage Heating Cable Installation Instructions
Item
Qty
1
1
End Cap
Description
2
1
Pressure Plate
3
2
Screws
4
1
Constant Wattage Grommet
5
1
Self-Regulating Cable Grommet
General
Certifications & Approvals
The RTES End Seal kit is used for electrical termination
of self-regulating and constant wattage cables. Each
kit contains the terminations needed to make all electrical connections.
IP66 NEMA/Type 4x –60°C < Ta < +55°C
Ordinary & Hazordous Locations
Class I, Division 2 Groups A,B,C, & D, Zone 2 IIC
Class II, Division 2, Groups F & G, Class III
Tools Required for Kit Installation
Actual Kit Dimensions
3
Users should install adequate controls and safety devices with their electric heating equipment.
Where the consequences of failure may be severe,
back-up controls are essential. Although the safety
of the installation is responsibility of the user, Chromalox will be glad to assist in making equipment
recommendations.
HAZARD OF ELECTRIC SHOCK. Disconnect all power
before opening. All installations must be effectively
grounded in accordance with the National Electrical
Code to eliminate shock hazard.
Turn off power before removing junction box cover
at all times.
Order Separately
Pipe Straps
Caution Label CL-1 (382424)
PS - 1 (382352) - 1/2” to 3/4” pipes
PS - 3 (382360) - 1” to 3-1/2” pipes
PS - 10 (382379) - 2-1/2” to 9” pipes
Fiberglass Tape FT-3 (389941)
4
Cable installation instructions: SRL, SRF, SRM/E, SRP
CWM cable special instructions denoted by *
1. Slide the pressure plate and
grommet over the end of the
cable. If using –C cable, push
braid back three inches so that
braid is on opposite side of pressure plate.
*If using CWM cable, cut the
cable four inches from the last
module point*
Note: The pressure plate and end
cap have different size curved
surfaces on the top and bottom of
each piece designed to give a better fit on process equipment. The
side with the smaller radius curve is
for use on pipes with diameters up
to three inches or flat surfaces. The
other side is for sue on pipes with
diameters of three inches or more.
4. Slide the pressure plate and
grommet towards the end of the
cable leaving 5/8” of the cable
past the end of the grommet.
2. Score the outer jacket one inch
from the end of the cable. Remove the jacket to expose the
braid. Unravel and trim the braid
flush with the outer jacket. Pull
any strands of braid back towards
the outer jacket.
3. Using standard electrical cutters,
cut a “VEE” notch between the
buss wires.
5. Slide the end cap over the grommet. Using a screwdriver, connect
the pressure plate to the end cap.
6. Using a fastening device, fiber
reinforced electrical tape (Chromalox FT-3 or equal), secure the
assembly to the pipe. Wrap the
tape around the assembly between the legs.
5
Note: When using SLL cables,
score base insulation 3/4 inch
from end of the cable and remove
the jacket from the cable. Strip all
clear insulation from buss wires
and twist wires together.
