Gateway EC18T Series Service manual

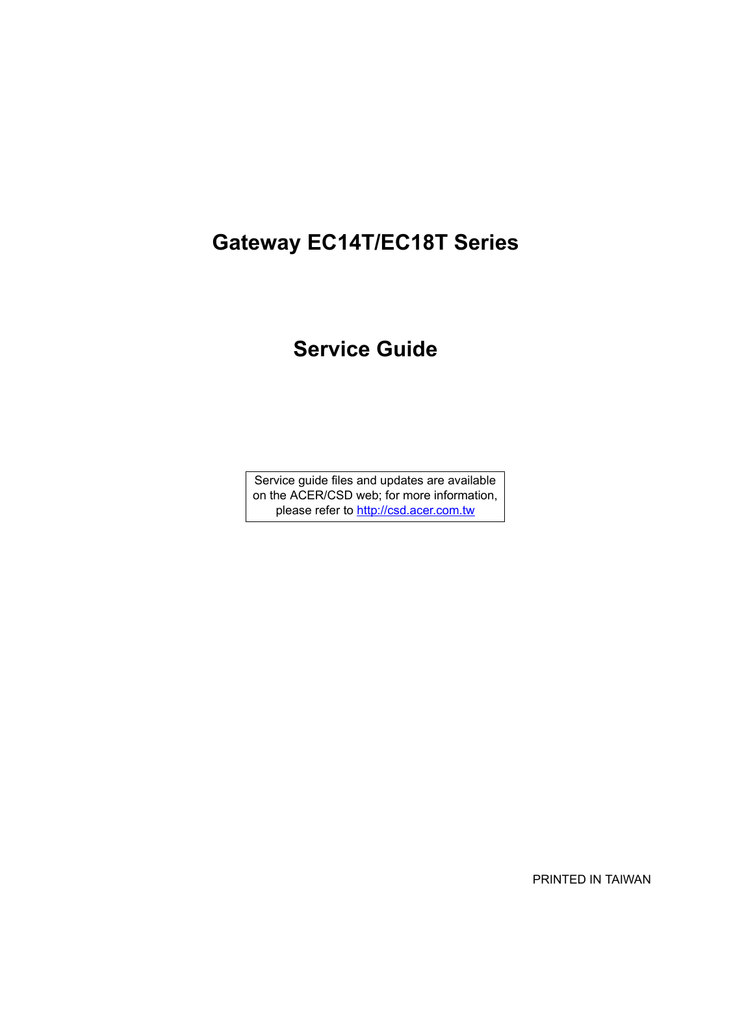

Gateway EC14T/EC18T Series
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
PRINTED IN TAIWAN
Revision History
Please refer to the table below for the updates made on this service guide.
Date
ii
Chapter
Updates
Copyright
Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
iii
Conventions
The following conventions are used in this manual:
iv
SCREEN MESSAGES
Denotes actual messages that
appear on screen.
NOTE
Gives bits and pieces of additional
information related to the current
topic.
WARNING
Alerts you to any damage that might
result from doing or not doing
specific actions.
CAUTION
Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT
Reminds you to do specific actions
relevant to the accomplishment of
procedures.
Preface
Before using this information and the product it supports, please read the following general information.
1.
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2.
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
v
vi
Table of Contents
System Specifications
1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Your Notebook Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Closed Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TouchPad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Lock Keys and embedded numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Special Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
System Utilities
23
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
DOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
WinFlash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Removing BIOS Passwords: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Miscellaneous Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Machine Disassembly and Replacement
39
Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Removing the Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Removing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Removing the Module Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Removing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Removing the WLAN Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Removing the 3G Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Removing the Hinge Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Removing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
vii
Table of Contents
Removing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Removing the Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Removing the I/O Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Removing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Removing the CRT Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Removing the Speaker Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Removing the Camera Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Removing the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Removing the LCD Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Removing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Removing the Touchscreen Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Removing the Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
LCD Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Replacing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Replacing the Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Replacing the Touchscreen Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Replacing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Replacing the LCD Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Replacing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Replacing the Microphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Replacing the Camera Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Replacing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Main Unit Reassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Replacing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Replacing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Replacing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Replacing the Speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Replacing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Replacing the CRT Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Replacing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Replacing the I/O Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126
Replacing the Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Replace the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Replacing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134
Replacing the Hinge Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Replacing the 3G Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Replacing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Replacing the DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Replacing the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Replacing the Module Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144
Replacing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
Replacing the Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
viii
Table of Contents
Troubleshooting
149
Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
Power On Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
No Display Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151
Random Loss of BIOS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152
LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153
Built-In Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
TouchPad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
Internal Speaker Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Internal Microphone Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157
HDD Not Operating Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
USB Failure (Right up/down side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Other Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160
Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161
Jumper and Connector Locations
171
Mainboard Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171
Mainboard Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172
Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .173
Mainboard CMOS Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173
BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
FRU (Field Replaceable Unit) List
175
Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175
LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175
Main Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178
Model Definition and Configuration
187
Test Compatible Components
193
On-line Support Information
197
Index
199
ix
Table of Contents
x
Chapter 1
System Specifications
Features
Below is a brief summary of the computer’s many features:
Operating System
•
Genuine Windows® 7
Platform
•
Intel® Core™2 Duo processor*
•
Intel® Pentium® mobile processor*
•
Intel® Celeron® mobile processor*
•
Mobile Intel® GS45 Express Chipset
System Memory
•
Dual-Channel SDRAM support
•
Up to 4 GB of DDR3 1066 MHz memory, upgradeable to 8 GB using two soDIMM modules
Display and graphics
•
11.6" HD 1366 x 768
•
Convertible display
•
Mobile Intel® GS45 Express Chipset
Storage subsystem
•
2.5" hard disk drive
•
Multi-in-1 card reader
Audio subsystem
•
Optimized 2nd Generation Dolby® Sound Room® audio enhancement
•
High-definition audio support
•
S/PDIF (Sony/Philips Digital Interface) support for digital speakers
•
MS-Sound compatible
•
Built-in microphone
Communication
Chapter 1
•
Integrated webcam*
•
WWAN: UMTS/HSPA at 850/900/1900/2100 MHz and quad-band GSM/GPRS/EDGE (850/900/
1800/1900 MHz)*
1
•
WLAN:
•
Intel® WiFi Link 5100 802.11a/b/g/Draft-N*
•
Intel® WiFi Link 5100 802.11a/b/g*
•
Intel® WiFi Link 1000*
•
WPAN: Bluetooth® 2.1+Enhanced Data Rate*
•
LAN: Gigabit Ethernet; Wake-on-LAN ready
Privacy control
•
BIOS user, supervisor, HDD passwords
•
Kensington lock slot
Dimensions and Weight
•
285 (W) 208.9 (D) 28.5/34.5 (H) mm (11.22 x 8.22 x 1.12/1.36 inches)
•
1.72 kg (3.79 lbs.) (non-3G SKU)
Power subsystem
•
ACPI 3.0
•
62.16 W 5600 mAh
•
3-pin 30 W AC adapter
•
ENERGY STAR®*
Special keys and controls
•
84-/85-/88-key keyboard
•
Multi-gesture touchpad pointing device
I/O interface
•
Multi-in-1 card reader (SD/MMC/MS/MS PRO/xD)
•
USB 2.0 port
•
HDMI™ port with HDCP support
•
External display (VGA) port
•
Headphones/speaker/line-out jack with S/PDIF support
•
Microphone-in jack
•
Ethernet (RJ-45) port
•
DC-in jack for AC adapter
Environment
•
•
Temperature:
•
Operating: 5 °C to 35 °C
•
Non-operating: -20 °C to 65 °C
Humidity (non-condensing):
•
Operating: 20% to 80%
•
Non-operating: 20% to 80%
NOTE: The specifications listed above are for reference only. The exact configuration of the PC
depends on the model purchased.
2
Chapter 1
System Block Diagram
Chapter 1
3
Your Notebook Tour
This section provides an overview of the features and functions of the notebook.
Front View
No.
Item
Description
1
Webcam
Web camera for video communication
2
Display screen
Also called Liquid-Crystal Display (LCD), displays
computer output (Configuration may vary by
models).
Programmable
key
Launch predefined programs or user defined
programs at the push of a button.
4
Backup key
Press to start automatic backup procedure.
5
HDD
Indicates when the hard drive is active.
Num Lock
Lights up when the Num Lock is activated.
Caps Lock
Lights up when Caps Lock is activated.
Power
Indicated the computer’s power status.
3
6
4
Icon
P
Chapter 1
No.
Icon
Item
Description
Battery
Indicates the computer's battery status.
1. Charging: The light shows amber when the
battery is charging.
2. Fully charged: The light shows blue when in AC
mode.
Bluetooth
communication
indicator
Indicates the status of Bluetooth communication.
(only for certain models)
Communication
indicator
Indicates the status of WLAN / 3G communication.
7
Click buttons (left
and right)
The left and right buttons function like the left and
right mouse buttons.
8
Touchpad
Touch-sensitive pointing device which functions like
a computer mouse.
9
Palmrest
Comfortable support area for your hands when you
use the computer.
10
Keyboard
For entering data into your computer.
11
Stylus
A pen tool for entering data into your computer
12
Microphone
Internal microphone for sound recording
13
Magnetic lock
A lock that snaps into place to prevent the screen
from inadvertently rotating.
Closed Front View
1
No.
Icon
2
Item
Description
1
Communication
key
Enables / disables the WLAN / 3G functions.
2
Speakers
Left and right speakers deliver stereo audio
output.
Chapter 1
5
Left View
1
No.
2
Icon
3
4
Item
5
Description
1
External display
(VGA) port
Connects to a display device (e.g. external
monitor, LCD projector).
2
DC-in jack
Connects to an AC adapter
3
Ventilation slots
Enable the computer to stay cool, even after
prolonged use.
HDMI port
Supports high definition digital video
connections.
USB 2.0 port
Connect to USB 2.0 devices (e.g., USB mouse,
USB camera).
4
HDMI
5
Right View
1
No.
6
Icon
2
Item
3
4
5
6
Description
1
Multi-in-1 card
reader
Accepts Secure Digital (SD), MultiMediaCard
(MMC), Memory Stick (MS), Memory Stick
PRO (MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card. Only one
card can operate at any given time.
2
Headphones/
speaker/line-out
jack with
S/PDIF support
Connects to audio line-out devices (e.g.,
speakers, headphones).
Microphone-in
jack
Accepts inputs from external microphones.
3
USB 2.0 port
Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
4
Power button /
indicator
Slide the power button to turn the computer on
and off. / Indicates the computer's power
status.
Chapter 1
5
Kensington lock
slot
Connects to a Kensington-compatible
computer security lock.
Note: Wrap the computer security lock cable
around an immovable object such as a table or
handle of a locked drawer. Insert the lock into
the notch and turn the key to secure the lock.
Some keyless models are also available.
6
Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based
network.
Base View
1
6
5
2
4
3
No.
Icon
Item
Description
1
Battery bay
Houses the computer's battery pack.
2
Hard disk bay
Houses the computer's hard disk (secured with
screws).
3
Memory
compartment
Houses the computer's main memory.
4
Ventilation slots
and cooling fan
Enable the computer to stay cool, even after
prolonged use.
Note: Do not cover or obstruct the opening of the fan.
5
Battery lock
Locks the battery in position.
6
Battery release
latch
Releases the battery for removal.
Chapter 1
7
Rear View
1
No.
Icon
Item
1
Battery bay
Description
Houses the computer's battery pack.
Indicators
The computer has several easy-to-read status indicators. The battery indicator is visible even when the
computer cover is closed.
Icon
Function
Description
Bluetooth
Indicates the status of Bluetooth communication.
Wireless LAN
Indicates the status of Wireless LAN/3G communication.
HDD
Indicates when the hard disk drive is active.
Num Lock
Lights up when Num Lock is activated.
Caps Lock
Lights up when Caps Lock is activated.
Battery
Indicates the computer's battery status.
NOTE: 1. Charging: The battery light shows amber when the battery is charging. 2. Fully charged: The light
shows green when in AC mode.
8
Chapter 1
TouchPad Basics
The following items show you how to use the TouchPad:
1
2
3
•
Move your finger across the TouchPad (1) to move the cursor.
•
Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and
execution functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the TouchPad is the same as clicking the left button.
Function
Left Button (2)
Right Button (3)
Main TouchPad (1)
Execute
Quickly click twice.
Tap twice (at the same speed
as double-clicking a mouse
button).
Select
Click once.
Tap once.
Drag
Click and hold, then use
finger on the TouchPad to
drag the cursor.
Tap twice (at the same speed
as double-clicking a mouse
button); rest your finger on
the TouchPad on the second
tap and drag the cursor.
Access
context menu
Click once.
NOTE: When using the TouchPad, keep it - and your fingers - dry and clean. The TouchPad is sensitive to
finger movement; hence, the lighter the touch, the better the response. Tapping too hard will not
increase the TouchPad’s responsiveness.
Chapter 1
9
Using the Keyboard
This computer has a close-to-full-sized keyboard and an embedded numeric keypad, separate cursor, lock,
function and special keys.
Lock Keys and embedded numeric keypad
The keyboard has three lock keys which you can toggle on and off.
Lock key
Description
Caps Lock
When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock
<Fn> + <F11>
When Num Lock is on, the embedded keypad is in numeric mode. The keys
function as a calculator (complete with the arithmetic operators +, -, *, and /). Use
this mode when you need to do a lot of numeric data entry. A better solution
would be to connect an external keypad.
Scroll Lock <Fn> +
<F12>
When Scroll Lock is on, the screen moves one line up or down when you press
the up or down arrow keys respectively. Scroll Lock does not work with some
applications.
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters
located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols
are not printed on the keys.
Desired access
10
Num Lock on
Num Lock off
Number keys on
embedded keypad
Type numbers in a normal manner.
Cursor-control keys on
embedded keypad
Hold <Shift> while using cursorcontrol keys.
Hold <Fn> while using cursorcontrol keys.
Main keyboard keys
Hold <Fn> while typing letters on
embedded keypad.
Type the letters in a normal
manner.
Chapter 1
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key
Description
Windows key Pressed alone, this key has the same effect as clicking on the Windows Start button;
it launches the Start menu. It can also be used with other keys to provide a variety of
functions:
<
>:
<
>
+ <D>: Display the desktop
<
>
+ <E>: Open Windows Explore
<
>
+ <F>: Search for a file or folder
<
>
+ <L>: Lock your computer (if you are connected to a network domain), or
switch users (if you're not connected to a network domain)
<
>
+ <M>: Minimizes all windows
<
>
+ <R>: Open the Run dialog box
<
>
+ <U>: Open Ease of Access Center
<
>
+ <BREAK>: Display the System Properties dialog box
<
>
+ <TAB>: Cycle through programs on the taskbar
Open or close the Start menu
<CTRL> + <
>
+ <F>: Search for computers (if you are on a network)
Note: Depending on your edition of Windows 7, some shortcuts may not function as
described.
Application
key
Chapter 1
This key has the same effect as clicking the right mouse button; it opens the
application's context menu.
11
Hot Keys
The computer employs hotkeys or key combinations to access most of the computer's controls like screen
brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Hotkey
12
Icon
Function
Description
<Fn> + <F1>
Power management
Launch Windows power management.
<Fn> + <F2>
System Properties
Display the System Properties dialog box.
<Fn> + <F3>
Bluetooth
communication switch
Enables/disables the Bluetooth function.
<Fn> + <F4>
Sleep
Puts the computer in Sleep mode.
<Fn> + <F5>
Display toggle
Switches display output between the display
screen, external monitor (if connected) and
both.
<Fn> + <F6>
Screen blank
Turns the display screen backlight off to save
power. Press any key to return.
<Fn> + <F7>
Touchpad toggle
Turns the internal touchpad on and off.
<Fn> + <F8>
Speaker toggle
Turns the speakers on and off.
<Fn> + < >
Brightness up
Increases the screen brightness.
<Fn> + < >
Brightness down
Decreases the screen brightness.
<Fn> + < >
Volume up
Increases the sound volume.
<Fn> + < >
Volume down
Decreases the sound volume.
Chapter 1
Special Keys
You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your
keyboard.
The Euro symbol
1.
Open a text editor or word processor.
2. Hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard.
NOTE: Some fonts and software do not support the Euro symbol. See www.microsoft.com/typography/faq/
faq12.htm for more information.
The US dollar sign
1.
Open a text editor or word processor.
2. Hold <Shift> and then press the <4> key at the upper-center of the keyboard.
NOTE: This function varies according to the language settings.
Chapter 1
13
Hardware Specifications and Configurations
Processor
Item
Specification
CPU type
Intel Penryn SFF (ULV)
CPU package
Micro-FCBGA 956 balls
Features
•
Supports Intel architecture with Dynamic execution.
•
On-die, primary 32-kB instruction cache and 32-kB write-back
data cache.
•
On-die, up to 3MB second level shared cache with advanced
transfer cache architecture.
•
Streaming SIMD Extensions 2 (SSE2),Streaming SIMD
Extensions 3 (SSE3)
•
Supplemental streaming SIMD extensions 3 (SSSE3) and
SSE4.1 instruction sets.
•
800MHz source-synchronous front side bus (FSB)
•
Advanced power management features including Enhanced
Intel SpeedStep®
•
Technology and dynamic FSB frequency switching.
•
Digital thermal sensor (DTS).
•
Execute disable bit support for enhanced security.
•
Intel® Dynamic Acceleration Technology and Enhanced Multi
Threaded
•
Thermal Management (EmTTM).
•
Support enhanced Intel Virtualization Technology.
•
Mobile Intel® GS45 Express Chipset
Core Logic
Processor Specifications
Item
CPU
Speed
Cores
Cache
Size
Core
Voltage
Package
Acer P/N
SU7300
1.4GHz
1
3MB
Micro-FCBGA 956
balls
1.050V1.150V
C2DSU7300B
SU4100
1.3GHz
2
2MB
Micro-FCBGA 956
balls
1.050V1.150V
PMDSU4100B
SU2300
1.2GHz
2
1MB
Micro-FCBGA 956
balls
1.050V1.150V
CMSU2300B
CPU Fan True Value Table
CPU Temperature
(Celsius)
Fan Speed (RPM)
SPL Spec (dBA)
38
2400
On
43
3300
26
49
4000
29
56
4500
31
Throttling 50%: On = 88°C; Off = 85°C
EC shut down at 95°C; H/W shut down at 98°C
North Bridge Specifications
Item
14
Specification
Chipset
Intel Crestline GS45 SFF
Package
FCBGA 1363 balls
Chapter 1
Item
Specification
Features
•
Processor host bus supports 667/800/1066Mhz FSB support.
•
Supports Dual Channel DDR3 SD-RAM at 800/1066MHz.
•
Integrated SDRAM controller up to *GB (2 SODIMM support)
•
DMI x2 and DMI x4 for connection between GMCH and
ICH9M.
South Bridge Specifications
Item
Specification
Chipset
ICH9M SFF
Package
BGA 676 balls
Features
•
Upstream accelerated Hub architecture interface for access to
GMCH.
•
PCI Express Base Specification, Revision 1.1 support.
•
PCI 2.3 interface. (4 PCI Request/Grant pairs).
•
ACPI Power Management Logic Support. Enhanced DMA
controller, interrupt controller, timers functions.
•
Integrated Serial ATA host controllers with independent DMA
operation on six ports and AHCI support.
•
USB 1.1 & USB 2.0 Host controllers.
•
Supports Intel High Definition Audio (Intel HD Audio) Interface.
•
Supports Intel® Matrix Storage Technology.
•
Supports Intel® Active Management Technology.
•
Low Pin Count (LPC) interface.
•
6 PCIe ports.
System Memory
Item
Specification
Memory size
0MB (No on-board Memory)
DIMM socket number
2 sockets
Supports memory size per socket
2GB
Supports maximum memory size
4GB for 64bit OS (with two 2GB SO-DIMM)
Supports DIMM type
DDR3 Synchronous DRAM
Supports DIMM Speed
800 MHz
Supports DIMM voltage
1.5V
Supports DIMM package
204-pin DDR3-800 SO-DIMM
Module Combination
Any combination permissible within the above specifications.
Hard Disk Drive Interface
Item
Specifications
Vendor &
Model
Name
Hitachi
HTS545050B
9A300
Hitachi
HTS545032B
9A300
Hitachi
HTS545025B
9A300
Hitachi
HTS545016B
9A300
Hitachi
HTS543225L
9A300
Hitachi
HTS543216L9
SA00
Capacity
(GB)
500
320
250
160
250
160
3
2
Bytes per
sector
Data heads
512
4
3
2
2
Drive Format
Chapter 1
15
Item
Disks
Specifications
2
2
1
Spindle
speed
(RPM)
1
2
1
5400
Performance Specifications
Buffer size
8MB
Interface
SATA
Internal
transfer
rate (Gbits/
sec., max)
3GB/s maximum
I/O data
transfer
rate
(Mbytes/
sec max)
1.5GB/s
maximum
875 Mbits/s maximum
845 Mbits/s
maximum
775Mbits/s
maximum
729Mbits/s
maximum
DC Power Requirements
Voltage
+5.0V ± 5%.
Item
Specifications
Vendor & Model
Name
Toshiba
MK1655GSX
Toshiba
MK2555GSX
Toshiba
MK3255GSX
Toshiba
MK5055GSX
Capacity (GB)
160
250
320
500
Bytes per sector
512
512
512
512
Data heads
2
2
4
4
1
1
2
2
Drive Format
Disks
Spindle speed
(RPM)
5400
Performance Specifications
Buffer size
8MB
Interface
SATA
Internal transfer
rate (Mbits/sec,
max)
363 ~ 952 typical
I/O data transfer
rate
(Mbytes/sec
max)
300
DC Power Requirements
Voltage
5V ±5%
Item
Specifications
Vendor & Model
Name
Western Digital
WD1600BEVT22ZCTO
Western Digital
WD2500BEVT-22ZCT0
Western Digital
WD3200BEVT-22ZCT0
Western Digital
WD5000BEVT-22ZAT0
Capacity (GB)
160
250
320
500
3
4
Bytes per sector
Data heads
16
512
2
4
Chapter 1
Item
Specifications
Drive Format
Disks
1
2
2
Spindle speed
(RPM)
2
5400
Performance Specifications
Buffer size
8 MB
Interface
SATA
Internal transfer
rate (Mbits/sec,
max)
N/A
I/O data transfer
rate
(Mbytes/sec
max)
300
DC Power Requirements
Voltage
5V ±5%
BIOS
Item
Specification
BIOS vendor
Insyde
BIOS ROM type
W25X16AVSSIG
BIOS ROM size
16Mb
BIOS package
8 PIN SOIC
Supported Protocols
SPI
BIOS password control
Set by setup manual
LCD 11.6”
Item
Vendor/model name
Specifications
AUO
B116XW02
Chi Mei
N116B6-L02
Screen Diagonal (mm)
LG
LP116WH1
Samsung
LTN116AT01A01
293.83
Active Area (mm)
256.125 (H) x 144.00 (V)
Display resolution (pixels)
1366x3(RGB) x 768
Pixel Pitch (mm)
0.1875 x 0.1875
0.2265(H) x
0.2265(V)
200 typ. (5 points average)
Typical White Luminance (cd/m2)
also called Brightness
Contrast Ratio
500:1 typ
Response Time (Optical Rise
Time/Fall Time) msec
8 typ / 16
Max
8 typ / 16 Max
9 typ / 16 max
16 typ / 25
max
Typical Power Consumption
(watt)
4.0 max.
(Include
Logic and
Blu power)
N/A
3.18 W Typ.
N/A
Weight (without inverter)
255g max.
240g max
Physical Size (mm)
Chapter 1
255g max.
268L x 161.5W x 5.0T
17
Item
Specifications
Electrical Interface
1 channel
LVDS
3.3V LVDS
LVDS
LVDS
45/45
10/30
45/45
20/45
30/30
10/20
45/45
15/35
Viewing Angle (degree)
Horizontal (Right) / (Left)
Vertical (Upper) / (Lower)
Bluetooth
Item
Specification
Bluetooth Controller
Foxconn T60H928.33
Features
•
Fully Qualified Bluetooth v2.1 with Class 2 specification RF output
power.
•
Enhanced Data Rate (EDR) compliant.
•
Full Piconet and Scatternet operation.
•
Integrated PIFA Antenna with better RF performance.
•
USB 2.0 compliant interface.
•
F/W upgradable via Flash downloads.
•
Very low power consumption.
•
Support Coexistence with Intel WCS (Wireless Coexistence System)
& AFH (Adaptive Frequency Hopping)
Radio Technology
FHSS
Operating Frequency
2.402GHz ~ 2.480GHz
Channel Numbers
79 channels with 1MHz BW
Transmitter Output Power
-6~4dBm output power for BT class 2 operation
Coverage
10m (Varies depending on operating environment)
Receiver Sensitivity
-75dBm, BER<0.1%
Maximum Receiver Signal
-10dBm
Operating Voltage
3.3V+/-0.3V
Working Temperature
Operating temp: 0 °C to +70 °C (+32 °F to +158 °F)
Non-operating temp: -10 °C to +75°C (+14 °F to +167 °F)
Interface
USB2.0 with JST SM08B-SURS-TF connector
Weight
1.75g
Audio Interface
Item
Codec Controller
18
Specification
Realtek ALC269X
Compatibility
•
•
•
Headphone-out
S/PDIF, Line-In and Microphone-In.
2 stereo ADCs support 16/20/24-bit PCM format recording simultaneously.
Sampling Rate
•
•
All DACs supports 16/20/24-bit, 44.1k/48k/96k/192kHz sample rate.
Two independent S/PDIF-OUT converters support 16/20/24-bit, 44.1k/48k/
88.2k/96k/192kHz sample rate. One for normal S/PDIF output, the other one
output an independent digital stream to HDMI transmitter.
Internal
Microphone
•
•
Digital MICRO PHONE ZK2(HFM-M101-006-L19-G)
Digital MICRO PHONE ZK2(A-OA2408FM-018)
Internal Speakers
•
Two Med-High Speakers (1W/4Ù)
Chapter 1
LAN Interface
Item
Specification
LAN Chipset
Atheros AR8131L
Package
48pin QFN
Features
•
It is an ultra-high performance, ultralow cost, and ultralow power fully integrated 10/100/1000 Mbps NIC/LOM
Ethernet.
•
The AR8131L combines a 10/100/1000BASE-T GbE
media access controller (MAC), a triplespeed Ethernet
physical layer transceiver (PHY), and a PCI Express bus
interface.
•
The AR8131L is compliant with IEEE 802.3u
specification for 10/100 Mbps Ethernet and IEEE
802.3ab specification for 1000 Mbps Ethernet.
•
The AR8131L device combines pulse shaping, Tx/Rx
PCS, echo canceller, NEXT canceller, equalizer,
decoder, and timing recovery functions to deliver robust
signal performance in noisy environments.
•
The AR8131L GbE controller supports checksum off-load
features for IP, TCP, and UDP, lowering CPU utilization
and optimizing network performance.
Keyboard
Item
Specification
Keyboard Controller
Winbond WPCE775LA0DG
Total number of keypads
US: 86
UK: 86
UI: 86
GERMAN: 86
Windows logo key
Yes
Internal & external keyboard work
simultaneously
Plug USB keyboard to the USB port directly: Yes
Features
•
Plug USB keyboard to the USB port directly: Yes
Media Card Reader
Item
Specification
Chipset
Alcor AU6433
Features
•
Fully compatible with USB2.0 High Speed and backward
compatible with USB1.1 specifications
•
Supports multiple flash card interfaces, including SD/
MMC/xD/MS.
•
Supports single LUN
•
48-pin LQFP
Chapter 1
19
Item
Specification
Compliance
•
Complies with USB Device Class Definition for Mass
Storage and Bulk-Transport V1.0
•
Complies with Secure Digital Card (SD) specification up
to ver. 2.0(SDHC)
•
Complies with MultiMedia Card (MMC) specification up
to ver. 4.2
•
Complies with Memory Stick (MS) specification up to ver.
1.43
•
Complies with Memory Stick PRO (MS_Pro) specification
up to ver. 1.03
•
Complies with Memory Stick PRO-HG (MS PRO-HG)
specification up to ver. 1.01
•
Complies with Memory Stick Interface Guideline for PC
peripheral devices with Memory Stick Slot ver. 1.16-00
•
Complies with xD-Picture Card (xD) specification up to
version 1.2
Interface
•
USB 2.0
Power
•
3.3V
Camera
Item
Specifications
Vendor and model
Chicony CNF9011/9048
Lite-on 09P2SF001
Interface
Suyin CN0316-S30COV06-1
USB 2.0
Optical aperture
N/A
Focusing range
17.4 cm - infinity
19 CM - infinity
40 CM - infinity
Dimensions (L x W x H
mm)
68 X 8 X 3.64 mm
68 X 8 X 3.84 mm
65 X 7.9 X 3.8 mm
Sensor type
CMOS
Pixel resolution
640X480
Wireless LAN
Item
Specification
Specification
Specification
Specification
Manufacturer
Foxconn
Foxconn
Intel
Intel
Type
Atheros AR9283
T77H121.01
WiFi Link 1000
Shirley Peak
PHY Mode
Supported
b,g,n.
b,g,n.
b, g, n.
a, b, g, n.
Item
Specification
Specification
Manufacturer
Intel
Lite-on
Type
Wifi Link 5000
Atheros AR5B93
PHY Modes
Supported
a, b, g, n.
b, g, n.
3G Module
Item
3G Module
Technical
Standard
20
Specifications
•
Qualcomm Gobi1000
•
Huawei EM770W
GSM / GPRS/ EGPRS MSC 12 / DTM Item/ WCDMA R5 / HSDPA 7.2Mbps / HSUPA
5.76Mbps
Chapter 1
Item
Specifications
Interface
USB 2.0
Antenna
1x2
Embedded Controller
Item
Specifications
Chipset
Winbond WPCE775LA0DG
Features
•
Shared SPI BIOS flash memory with page programming support.
•
High-accuracy, high-speed ADC.
•
Up to 95 GPIO ports (including keyboard scanning) with a variety of wake-up
events (up to 42 wake-up inputs).
•
16-bit RISC core, with up to 4 Mbytes of external address space, running at up to
25 MHz.
•
128-pin LQChipFP
Battery
Specifications
Item
6 Cell
Vendor & model name
SIMPLO UM09F70 3S2P
SANYO UM09F36 3S2P
Battery Type
Li-ion
Pack capacity
SANYO 6 cell 5600mAh
SAMSUNG 6 cell 5600mAh
LGC 6 cell 5600mAh
Number of battery cell
6
Package configuration
3 cells in series, 2 series in
parallel
Normal voltage
11.1
Charge voltage
12.6
Chapter 1
21
22
Chapter 1
Chapter 2
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press F2 during POST (when Press <F2> to enter Setup message is prompted
on the bottom of screen).
Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change
boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.
Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without
entering BIOS SETUP Utility.
Navigating the BIOS Utility
There are six menu options: Information, Main, Advanced, Security, Power, Boot, and Exit.
Follow these instructions:
•
To choose a menu, use the left and right arrow keys.
•
To choose an item, use the up and down arrow keys.
•
To change the value of a parameter, press F5 or F6.
•
A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.
•
Press Esc while you are in any of the menu options to go to the Exit menu.
In any menu, you can load default settings by pressing F9. You can also press F10 to save any
changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a
particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values. Please
note that system information is subject to different models.
•
Chapter 2
23
Information
The Information screen displays a summary of your computer hardware information.
Information
Main
InsydelH20 Setup Utility
Security
Boot
Rev. 3.5
Exit
CPU Type:
CPU Speed:
Genuine Intel (R) CPU
1.20GHz
IDE 0 Model Name:
IDE 0 Serial Number:
ATAPI Model Name:
TOSHIBA MK2555GSX
89IBP6AKT
None
System BIOS Version:
VGA BIOS Version:
v0.2103
Intel V1800
Serial Number:
Asset Tag Number:
Product Name:
Manufacturer Name :
UUID:
ZE80SK01C191A0792500
20202
F1 Help
Es c Exit
U2300
Acer
A570A794A5554A0BABFDC44254EFC55F
Select Item
Select Menu
F5/F6
Enter
C h a n g e Va l u e s
Select
Su b - M e n u
F9
F10
Setup Default
Save and Exit
NOTE: The system information is subject to different models.
Parameter
CPU Type
24
Description
This field shows the CPU type and speed of the system.
CPU Speed
This field shows the speed of the CPU.
HDD Model Name
This field shows the model name of HDD installed on primary IDE master.
HDD Serial Number
This field displays the serial number of HDD installed on primary IDE master.
ATAPI Model Name
This field displays the model name of the installed ODD drive.
System BIOS Version
Displays system BIOS version.
VGA BIOS Version
This field displays the VGA firmware version of the system.
Serial Number
This field displays the serial number of this unit.
Asset Tag Number
This field displays the asset tag number of the system.
Product Name
This field shows product name of the system.
Manufacturer Name
This field displays the manufacturer of this system.
UUID Number
Universally Unique Identifier (UUID) is an identifier standard used in software
construction, standardized by the Open Software Foundation (OSF) as part of
the Distributed Computing Environment (DCE).
Chapter 2
Main
The Main screen allows the user to set the system time and date as well as enable and disable boot option
and recovery.
Information
Main
InsydelH20 Setup Utility
Security
Boot
System Time
System Date
[13:52:10]
[10/06/2009]
Total Memory
Video Memory:
2048 MB
[64MB]
Quiet Boot
Network Boot
F12 Boot Menu
D2D Recovery
SATA Mode
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[AHCI Mode]
F1 Help
Es c Exit
Select Item
Select Menu
F5/F6
Enter
Rev. 3.5
Exit
Item Specific Help
This is the help for the
hour field. Valid range is
from 0 to 23. REDUCE
/ INCREASE : F5/F6
C h a n g e Va l u e s
Select
Su b - M e n u
F9
F10
Setup Default
Save and Exit
NOTE: The screen above is for your reference only. Actual values may differ.
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Description
Format/Option
System Time
Sets the system time. The hours are displayed with 24hour format.
Format: HH:MM:SS
(hour:minute:second)
System Date
Sets the system date.
Format MM/DD/YYYY
(month/day/year)
Total Memory
This field reports the memory size of the system.
Memory size is fixed to 2048 MB.
N/A
Video Memory
Shows the video memory size. VGA Memory size=32 MB
N/A
Quick Boot
Allows startup to skip certain tests while booting,
decreasing the time needed to boot the system.
Option: Enabled or Disabled
Network Boot
Enables, disables the system boot from LAN (remote
server).
Option: Enabled or Disabled
F12 Boot Menu
Enables, disables Boot Menu during POST.
Option: Enabled or Enabled
D2D Recovery
Enables, disables D2D Recovery function. The function
allows the user to create a hidden partition on hard disc
drive to store operation system and restore the system
to factory defaults.
Option: Enabled or Disabled
SATA Mode
Control the mode in which the SATA controller should
operate.
Option: AHCI or IDE
Chapter 2
25
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.
Information
Main
InsydelH20 Setup Utility
Security
Boot
Supervisor Password Is :
User Password Is :
HDD Password Is :
Clear
Clear
Clear
Set Supervisor Password
Set User Password
Set Hdd Password
Power on password
[Disabled]
F1 Help
Es c Exit
Select Item
Select Menu
Rev. 3.5
Exit
Item Specific Help
Install or Change the
password and the length
of password must be
greater than one word.
F5/F6
Enter
C h a n g e Va l u e s
Select
Su b - M e n u
F9
F10
Setup Default
Save and Exit
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Description
Option
Supervisor Password Is
Shows the setting of the Supervisor password
Clear or Set
User Password Is
Shows the setting of the user password.
Clear or Set
Set Supervisor Password
Press Enter to set the supervisor password. When
set, this password protects the BIOS Setup Utility
from unauthorized access. The user can not either
enter the Setup menu nor change the value of
parameters.
Set User Password
Press Enter to set the user password. When user
password is set, this password protects the BIOS
Setup Utility from unauthorized access. The user can
enter Setup menu only and does not have right to
change the value of parameters.
Set Hdd Password
Enter HDD password.
Power on password
Defines whether a password is required or not while
the events defined in this group happened. The
following sub-options are all requires the Supervisor
password for changes and should be grayed out if the
user password was used to enter setup.
Enabled or
Disabled
NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget
your password. If you forget your password, you may have to return your notebook computer to your
dealer to reset it.
26
Chapter 2
Setting a Password
Follow these steps as you set the user or the supervisor password:
1.
Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Supervisor Password box appears:
Set Supervisor Password
Enter New Password
Confirm New Password
2.
[
[
]
]
Type a password in the “Enter New Password” field. The password length can not exceeds 8
alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New
Password” field.
IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.
3.
Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.
4.
If desired, you can opt to enable the Password on boot parameter.
5.
When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
Removing a Password
Follow these steps:
1.
Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:
Set Supervisor Password
Enter Current Password
Enter New Password
Confirm New Password
[
[
[
]
]
]
2.
Type the current password in the Enter Current Password field and press Enter.
3.
Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields.
The computer then sets the Supervisor Password parameter to “Clear”.
4.
When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.
Chapter 2
27
Changing a Password
1.
Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears.
Set Supervisor Password
Enter Current Password
Enter New Password
Confirm New Password
[
[
[
]
]
]
2.
Type the current password in the Enter Current Password field and press Enter.
3.
Type a password in the Enter New Password field. Retype the password in the Confirm New Password
field.
4.
Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.
5.
If desired, you can enable the Password on boot parameter.
6.
When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
Setup Notice
Changes have been saved.
[Continue]
The password setting is complete after the user presses Enter.
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
Setup Warning
Invalid Password.
[Continue]
If the new password and confirm new password strings do not match, the screen displays the following
message.
Setup Warning
Passwords do not match.
Re-enter password.
[Continue]
28
Chapter 2
Boot
This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices
includes the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay.
Information
Main
InsydelH20 Setup Utility
Security
Boot
Item Specific Help
Boot priority order :
1. IDE0 : TOSHIBA MK2555GSX
2. IDE1 :
3. Network Boot : Atheros Boot Agent
4. USB HDD :
5. USB CDROM :
6. USB FDD :
F1 Help
Es c Exit
Select Item
Select Menu
Rev. 3.5
Exit
Use < > or < > to select
a device, then press
<F6> to move it up the
list, or <F5> to move it
down the list. Press
<Esc> to escape the menu
F5/F6
Enter
C h a n g e Va l u e s
Select
Su b - M e n u
F9
F10
Setup Default
Save and Exit
Follow the on-screen instructions to adjust the order in which the devices boot.
Chapter 2
29
Exit
The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility.
Information
Main
InsydelH20 Setup Utility
Security
Boot
Rev. 3.5
Exit
Item Specific Help
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
F1 Help
Es c Exit
Exit system setup and
save your changes.
Select Item
Select Menu
F5/F6
Enter
C h a n g e Va l u e s
Select
Su b - M e n u
F9
F10
Setup Default
Save and Exit
The table below describes the parameters in this screen.
Parameter
30
Description
Exit Saving Changes
Exit System Setup and save your changes to CMOS.
Exit Discarding
Changes
Exit utility without saving setup data to CMOS.
Load Setup Default
Load default values for all SETUP item.
Discard Changes
Load previous values from CMOS for all SETUP items.
Save Changes
Save Setup Data to CMOS.
Chapter 2
BIOS Flash Utility
The BIOS flash memory update is required for the following conditions:
•
New versions of system programs
•
New features or options
•
Restore a BIOS when it becomes corrupted.
To run the BIOS flash utility:
1.
Copy the BIOS flash tool and the BIOS into a USB flash disk.
2.
Set the computer to boot from the USB flash disk. See “Boot” on page 29.
3.
On boot-up enter at the DOS prompt:
C:\> flashit.exe v3106.fd /dc /beep:2000
Chapter 2
31
DOS Flash Utility
Perform the following steps to use the DOS Flash Utility:
1.
Press F2 during boot to enter the Setup Menu.
2.
Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move
USB HDD to position 1.
Information
Main
InsydelH20 Setup Utility
Security
Boot
Item Specific Help
Boot priority order :
1. IDE0 : TOSHIBA MK2555GSX
2. IDE1 :
3. Network Boot : Atheros Boot Agent
4. USB HDD :
5. USB CDROM :
6. USB FDD :
F1 Help
Es c Exit
3.
Select Item
Select Menu
Rev. 3.5
Exit
Use < > or < > to select
a device, then press
<F6> to move it up the
list, or <F5> to move it
down the list. Press
<Esc> to escape the menu
F5/F6
Enter
C h a n g e Va l u e s
Select
Su b - M e n u
F9
F10
Setup Default
Save and Exit
Execute the FLASH.BAT batch file to update BIOS.
The flash process begins as shown.
4. In flash BIOS, the message Please do not remove AC Power Source displays.
NOTE: If the AC power is not connected, the following message displays.
Plug in the AC power to continue.
5.
32
Flash is complete when the message Flash programming complete displays.
Chapter 2
WinFlash Utility
Perform the following steps to use the WinFlash Utility:
1.
Put the BIOS:ZE8_v3106.fd file under WinFlash file root.
1.
Double click the WinFlash executable.
2.
Click OK to begin the update. A progress screen displays.
3.
When the process is complete, close all programs and applications and reboot the system.
Chapter 2
33
Remove HDD/BIOS Password Utilities
This section provide you with removing HDD/BIOS method:
Remove HDD Password:
When the user keys in the wrong password three times, the system reports the following error code to user.
To unlock the HDD password, perform the following steps:
1.
Press Enter to display the Select Item screen.
2.
Select Enter Unlock Password and press Enter.
An Unlock Password displays.
3.
Make a note of the key, 76943488 in the example.
4.
Boot up the system to a removable bootable drive containing DOS and the UnlockHD.EXE program and
open a DOS prompt. For instructions on changing boot priority see “Boot” on page 29.
5.
Enter the UnlockHD.EXE command and input the key to create an unlock code. Make a note of the
result, for example 46548274.
6.
Reboot to the hard disk and wait for the error code to reappear.
7.
Press Enter to display the Select Item screen.
8.
Select Enter Unlock Password and press Enter.
9.
Enter the unlock code generated by UnlockHD.EXE.
10. Save and exit the BIOS to complete the process.
34
Chapter 2
Removing BIOS Passwords:
If you key in the wrong Supervisor Password three times, System Disabled displays on the screen. See the
image below.
To reset the BIOS password, run clnpwd.exe as follows:
1.
From a DOS prompt, Execute clnpwd.exe
2.
Press 1 or 2 to clean the desired password shown on the screen.
The onscreen message determines whether the function is successful or not.
Chapter 2
35
Miscellaneous Utilities
Using Boot Sequence Selector
Boot Sequence Selector allows the boot order to be changes without accessing the BIOS. To use Boot
Sequence Selector, perform the following steps:
1.
Enter into DOS.
2.
Execute BS.exe to display the usage screen.
3.
Select the desired boot sequence by entering the corresponding sequence, for example, enter BS2 to
change the boot sequence to HDD|CD ROM|LAN|Floppy.
Using DMITools
The DMI (Desktop Management Interface) Tool copies BIOS information to eeprom to be used in the DMI pool
for hardware management.
When the BIOS displays Verifying DMI pool data it is checking the table correlates with the hardware before
sending to the operating system (Windows, etc.).
To update the DMI Pool, perform the following steps:
1.
Enter into DOS.
2.
Execute dmitools.exe. The following messages show dmitools usage:
IMPORTANT:The following write examples (2 to 5) require a system reboot to take effect
36
Chapter 2
Example 1: Read DMI Information from Memory
Input:
dmitools /r
Output:
Manufacturer (Type1, Offset04h): Acer
Product Name (Type1, Offset05h): Aspire one xxxxx
Serial Number (Type1, Offset07h): 01234567890123456789
UUID String (Type1, Offset08h): xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Asset Tag (Type3, Offset04h): Acer Asstag
Example 2: Write Product Name to EEPROM
Input:
dmitools /wp Acer
Example 3: Write Serial Number to EEPROM
Input:
dmitools /ws 01234567890123456789
Example 4: Write UUID to EEPROM
Input:
dmitools /wu
Example 5: Write Asset Tag to EEPROM
Input:
dmitools /wa Acer Asstag
Using the LAN MAC Utility
Perform the following steps to write MAC information to eeprom:
1.
Use a text editor, for example Notepad, to edit the MAC.CFG file as shown:
•
WriteData= '001122334455' <------- MAC value
•
StartAddr=7A <------- MAC address
•
WriteLeng=6 <------- MAC value length
•
KeepByte=0 <------- can be any value
2.
Boot into DOS.
3.
Execute MAC.BAT to write MAC information to eeprom.
Chapter 2
37
38
Chapter 2
Chapter 3
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.
Disassembly Requirements
To disassemble the computer, you need the following tools:
•
Wrist grounding strap and conductive mat for preventing electrostatic discharge
•
Flat screwdriver
•
Philips screwdriver
•
Plastic flat screwdriver
•
Plastic tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
Related Information
The product previews seen in the disassembly procedures may not represent the final product color or
configuration.
IMPORTANT: Cable paths and positioning may not represent the actual model. During the removal and
replacement of components, ensure all available cable channels and clips are used and that the cables are
replaced in the same position.
General Information
Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make sure that you do the following:
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
3.
Place the system on a flat, stable surface.
4.
Remove the battery pack.
Chapter 3
39
Disassembly Process
The disassembly process is divided into the following sections:
•
External components disassembly
•
Main unit disassembly
•
LCD module disassembly
The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the Mainboard, you must first remove the Keyboard, and LCD Module then disassemble the
inside assembly frame in that order.
Main Screw List
Screw
40
Quantity
Part Number
M2*2.5
11
86.TPK07.001
M2*3
9
86.ARE07.002
M2*3 (Nickel)
4
86.W0907.001
M2*4
7
86.W0107.003
M2*5
33
86.TG607.004
Chapter 3
External Module Disassembly Process
NOTE: The product previews seen in the disassembly procedures may not represent the final product color or
configuration.
External Modules Disassembly Flowchart
Turn off system
and peripherals
power
Disconnect power
and signal cables
from system
Remove
Dummy Card
Remove
Battery
Remove
SIM Card
(Optional)
Remove
Lower Cover
Remove
HDD
Remove
DIMM
Remove
WLAN Board
Remove
3G Board
Screw List
Step
Screw
Quantity
Part No.
WLAN
M2*3
1
86.ARE07.002
3G Module
M2*3
1
86.ARE07.002
Chapter 3
41
Removing the Dummy Card
1.
Press the card in to allow it to spring out.
2.
Pull the dummy card out.
Removing the Battery Pack
42
1.
Turn the computer over.
2.
Slide the battery lock/unlock latch to the unlock position.
Chapter 3
3.
Slide and hold the battery release latch to the release position (1), grasp the battery edge closest to the
release latch and pull the battery up and away (2).
2
1
Chapter 3
43
Removing the SIM Card
44
1.
See “Removing the Battery Pack” on page 42.
2.
Press the SIM card in to allow it to spring out.
3.
Remove the SIM card.
Chapter 3
Removing the Module Cover
1.
See “Removing the Battery Pack” on page 42.
2.
Loosen the five (5) captive screws.
3.
Pry up the cover in the location indicated.
4.
Lift the cover up and away.
Chapter 3
45
Removing the Hard Disk Drive Module
46
1.
See “Removing the Module Cover” on page 45.
2.
Pry up the HDD FPC lock.
3.
Lift out the HDD FPC.
4.
Peel the adhesive black tape off the HDD.
Chapter 3
5.
Grasp the black tape, pulling up the HDD.
6.
Lift the HDD out of the bay.
7.
Remove the HDD cable from the HDD.
Chapter 3
47
Removing the DIMM Module
48
1.
See “Removing the Battery Pack” on page 42.
2.
See “Removing the Module Cover” on page 45.
3.
Push out the release latches on both sides of the DIMM socket to release the DIMM module.
4.
Lift the DIMM module out.
5.
Repeat steps 3 and 4 for any remaining DIMM modules.
Chapter 3
Removing the WLAN Board
1.
See “Removing the Battery Pack” on page 42.
2.
See “Removing the Module Cover” on page 45.
3.
Detach the two (2) cables.
4.
Remove the one (1) screw.
Step
WLAN
Chapter 3
Screw
M2*3
Quantity
Screw Type.
1
49
5.
Remove the WLAN board.
Removing the 3G Module
50
1.
See “Removing the Battery Pack” on page 42.
2.
See “Removing the Module Cover” on page 45.
3.
Detach the two cables.
Chapter 3
4.
Remove the one (1) screw.
Step
3G Module
5.
Screw
M2*3
Quantity
Screw Type.
1
Remove the 3G module.
Chapter 3
51
Main Unit Disassembly Process
IMPORTANT: Cable paths and positioning may not represent the actual model. During the removal and
replacement of components, ensure all available cable channels and clips are used and that the cables are
replaced in the same position.
NOTE: The product previews seen in the disassembly procedures may not represent the final product color or
configuration.
Main Unit Disassembly Flowchart
Remove
Keyboard
Remove
Hinge Covers
Remove
Bluetooth Module
Remove
Upper Cover
Remove
Button Board
Remove
LED Board
Remove
CRT Board
Remove
I/O Board
Remove
Thermal Module
Remove
Mainboard
Remove
RTC Battery
Remove
Speaker Module
Remove
LCD Module
Screw List
Step
Lower Cover
52
Screw
Quantity
Part No.
M2*5
18
86.TG607.004
M2*3 Ni
4
86.W0907.001
Chapter 3
Step
Upper Cover
Screw
Quantity
Part No.
M2*5
6
86.TG607.004
M2*2.5
3
86.TPK07.001
Hinge Cover
M2*5
2
86.TG607.004
Button Board
M2*3
2
86.ARE07.002
I/O Board
M2*5
1
86.TG607.004
LED Board
M2*5
2
86.TG607.004
CRT Board
M2*5
1
86.TG607.004
Mainboard
M2*5
2
86.TG607.004
Speaker
M2*3
2
86.ARE07.002
LCD Module
M2*5
2
86.TG607.004
M2*3
3
86.ARE07.002
Chapter 3
53
Removing the Keyboard
IMPORTANT: The keyboard is easily warped or damaged during the removal process. Take care not to use
excessive force when removing the keyboard and replace if any damage occurs.
54
1.
See “Removing the Dummy Card” on page 42.
2.
Push in the four (4) latches on the top edge of the keyboard.
3.
Lift the keyboard up and flip over.
Chapter 3
4.
Unlock the FPC.
5.
Remove the FPC and keyboard.
Chapter 3
55
Removing the Hinge Covers
1.
Remove the two (2) screws in the lower case.
Step
Hinge Cover
56
Screw
M2*5
2.
Remove the hinge bezel.
3.
Loosen the hinge cap.
Quantity
Screw Type.
2
Chapter 3
4.
Partially open the LCD module.
5.
Remove the hinge cap.
Chapter 3
57
Removing the Upper Cover
1.
See “Removing the Keyboard” on page 54.
2.
See “Removing the Hinge Covers” on page 56.
3.
Remove the twenty-two (22) screws in the lower cover.
Step
Lower Cover
4.
58
Screw
Quantity
M2*5 (Red Call Out)
18
M2*3 Nickel (Green Call
Out)
4
Screw Type.
Turn the computer over and unlock the button board cable.
Chapter 3
5.
Disconnect the button board cable.
6.
Remove the ten (10) screws in the upper cover.
Step
Upper Cover
Chapter 3
Screw
Quantity
M2*5 (Red Call Out)
6
M2*2.5 (Green Call Out)
3
Screw Type.
59
60
7.
Pry the upper and lower covers apart at the location shown.
8.
Hold the underside and pry the front side open.
9.
Hold the underside and pry the right side open.
Chapter 3
WARNING:The cover is still connected to the Bluetooth module. Do not attempt to pull away.
10. Loosen the upper cover. Do not remove.
11. Reach under the upper cover to disconnect the Bluetooth cable from the mainboard.
12. Remove the upper cover
Chapter 3
61
Removing the Bluetooth Module
1.
Remove the one (1) screw.
Step
Bluetooth Module
62
Screw
M2*3
Quantity
Screw Type.
1
2.
Pry the Bluetooth module from the adhesive.
3.
Remove the Bluetooth cable.
Chapter 3
Removing the Button Board
IMPORTANT: The Touchpad Board cannot be removed individually. To replace the Touchpad Board, replace the
entire Upper Cover.
1.
See “Removing the Upper Cover” on page 58.
2.
Unlock the button board cable.
3.
Disconnect the button board cable.
4.
Pull the button board cable off the adhesive.
Chapter 3
63
64
5.
Remove the button board cable.
6.
Unlock the touchpad cable from the button board.
7.
Disconnect the touchpad cable.
Chapter 3
8.
Pull the touchpad cable off the adhesive.
9.
Unlock the touchpad cable from the touchpad.
10. Remove the touchpad cable.
Chapter 3
65
11. Remove the two (2) screws.
Step
Button Board
Screw
M2*3
Quantity
Screw Type.
2
12. Remove the button board.
66
Chapter 3
Removing the I/O Board
1.
See “Removing the Upper Cover” on page 58.
2.
Unlock the I/O cable I/O board connector.
3.
Disconnect the IO cable from the I/O board.
4.
Unlock the I/O cable mainboard connector.
Chapter 3
67
5.
Remove the IO cable.
6.
Turn the LCD module to expose the I/O board screw underneath.
7.
Remove the one (1) screw.
Step
I/O Board
68
Screw
M2*5
Quantity
Screw Type.
1
Chapter 3
8.
Lift the inside edge of the I/O board and pull the I/O board away.
Removing the LED Board
1.
See “Removing the Upper Cover” on page 58.
2.
Unlock the LED cable LED board connector.
3.
Disconnect the LED cable from the LED board connector.
Chapter 3
69
4.
Unlock the LED cable mainboard connector.
5.
Remove the LED cable.
6.
Remove the two (2) screws.
Step
LED Board
70
Screw
M2*5
Quantity
Screw Type.
2
Chapter 3
7.
Remove the LED board.
Removing the CRT Board
1.
See “Removing the Upper Cover” on page 58.
2.
Turn the LCD module to expose the CRT board.
Chapter 3
71
3.
Remove the one (1) screw.
Step
CRT Board
4.
Screw
M2*5
Quantity
Screw Type
1
Lift the CRT board up one (1) centimeter (0.5 inch).
CAUTION: Do not lift too high and strain the cable and connector still attached.
5.
72
Turn the CRT board over.
Chapter 3
6.
Remove the CRT cable.
Chapter 3
73
Removing the Mainboard
74
1.
See “Removing the Upper Cover” on page 58.
2.
See “Removing the I/O Board” on page 67.
3.
See “Removing the LED Board” on page 69.
4.
See “Removing the CRT Board” on page 71.
5.
Remove the LCD connector cable clear protective cover.
6.
Disconnect the LCD cable.
7.
Disconnect the touchscreen cable.
Chapter 3
8.
Turn the computer over and remove the antenna cables from the retention guides.
9.
Turn the computer over and remove the antenna cables from the retention guides, well clear of the
mainboard.
10. Disconnect the speaker cable.
Chapter 3
75
11. Remove the two (2) screws.
Step
Mainboard
Screw
M2*5
Quantity
Screw Type.
2
12. Lift up the mainboard from the inside edge and pull away.
13. Remove the CRT cable.
76
Chapter 3
Removing the Thermal Module
1.
See “Removing the Mainboard” on page 74.
2.
Disconnect the thermal module cable.
3.
Loosen the five (5) captive screws. The three (3) captive screws for the CPU connection marked 1,2,3
must be loosened in reverse order: first 3, then 2, then 1.
2
3
1
4.
Remove the thermal module.
Chapter 3
77
Removing the RTC Battery
1.
See “Removing the Mainboard” on page 74.
2.
Carefully lift the battery out of the mainboard.
Removing the Speaker Modules
1.
See “Removing the Mainboard” on page 74.
2.
Remove the three (3) screws.
Step
Speaker
78
Screw
M2*3
Quantity
Screw Type.
3
Chapter 3
3.
Grasp the speaker housings, pull the cables free of the adhesive, removing the speaker module.
Chapter 3
79
Removing the LCD Module
1.
See “Removing the Mainboard” on page 74.
2.
Remove the three (3) screws in lower case.
Step
LCD Module
3.
80
Screw
M2*3
Quantity
Screw Type
3
Open the LCD module and turn the LCD module ninety (90) degrees to expose the hinge.
Chapter 3
4.
Remove the two (2) screws in the LCD module hinges.
Step
LCD Module
5.
Screw
M2*5
Quantity
Screw Type.
2
Lift the LCD module away from the chassis.
Chapter 3
81
LCD Module Disassembly Process
IMPORTANT: Cable paths and positioning may not represent the actual model. During the removal and
replacement of components, ensure all available cable channels and clips are used and that the cables are
replaced in the same position.
NOTE: The product previews seen in the disassembly procedures may not represent the final product color or
configuration.
LCD Module Disassembly Flowchart
IMPORTANT:See “Removing the LCD Module” on page 80. This details how the LCD module is removed from
the Main Unit.
Remove LCD
Module from Main
Unit before
proceeding
Remove
LCD Module
Bezel
Remove
Microphone
Remove
Camera Module
Remove
LCD Panel
Remove
LCD FPC Cable
Remove
Touchscreen
Board
Remove
LCD Brackets
Remove
Hinges
Remove
Antennas
82
Chapter 3
Screw List
Step
Screw
Quantity
Part No.
LCD Bezel
M2*5
2
86.TG607.004
LCD Panel
M2*4
4
86.W0107.003
LCD Brackets
M2*2.5
4
86.TPK07.001
Touchscreen
Board
M2*4
3
86.W0107.003
Hinge
M2*5
3
86.TG607.004
Chapter 3
83
Removing the LCD Bezel
84
1.
See “Removing the LCD Module” on page 80.
2.
Remove the stylus.
3.
Remove the screw covers
Chapter 3
4.
Remove the two (2) screws.
Step
LCD Bezel
Screw
M2*5
5.
Pry up the bezel from the top edge.
6.
Pry up the bezel sides.
Chapter 3
Quantity
Screw Type.
2
85
86
7.
Pry up the bezel bottom edge.
8.
Remove the bezel.
Chapter 3
Removing the Camera Board
1.
See “Removing the LCD Bezel” on page 84.
2.
Pry up the camera board from the adhesive.
3.
Disconnect the camera cable.
Chapter 3
87
Removing the Microphone
88
1.
See “Removing the LCD Bezel” on page 84.
2.
Disconnect the microphone cable.
3.
Pry up the microphone from the adhesive.
Chapter 3
Removing the LCD Panel
1.
See “Removing the Camera Board” on page 87.
2. See “Removing the Microphone” on page 88.
WARNING:The edges of the touchscreen surface are sharp and care should be taken when handling the
panel.
3.
Unlock the touchscreen FPC.
4.
Remove the four (4) screws.
Step
LCD Panel
Chapter 3
Screw
M2*4
Quantity
Screw Type.
4
89
5.
Lift the panel up a short distance from the top edge.
6.
Disconnect the touchscreen cable.
7.
Lift up the panel (1) and disconnect the touchscreen FPC (2).
2
1
90
Chapter 3
8.
Remove the LCD cable from the retention guide hook, removing the panel.
Removing the LCD Cable
1.
See “Removing the Microphone” on page 88.
2.
Turn the LCD panel face down on a dry clean soft surface.
3.
Pull the camera cable from the adhesive.
4.
Lift up the LCD connector clear protective cover.
Chapter 3
91
92
5.
Disconnect the LCD connector.
6.
Pull up the LCD cable from the adhesive.
7.
Pull the touchscreen cable from the adhesive.
Chapter 3
Removing the LCD Brackets
1.
See “Removing the Microphone” on page 88.
2.
Remove the four (4) screws from the left and right brackets.
Step
LCD Panel Brackets
3.
Screw
M2*2.5
Quantity
Screw Type.
4
Remove the brackets.
Chapter 3
93
Removing the Touchscreen Board
1.
See “Removing the LCD Panel” on page 89.
2.
Remove the three (3) screws.
Step
Touchscreen Board
3.
94
Screw
M2*4
Quantity
Screw Type.
3
Remove the touchscreen board.
Chapter 3
Removing the Hinge
1.
See “Removing the LCD Panel” on page 89.
2.
Remove the three (3) screws.
Step
Hinge
3.
Screw
M2*4
Quantity
Screw Type.
3
Pull the cables clear of the hinge.
Chapter 3
95
4.
96
Remove the hinge.
Chapter 3
Removing the Antennas
1.
See “Removing the Microphone” on page 88.
2.
See “Removing the Touchscreen Board” on page 94.
3.
See “Removing the Hinge” on page 95.
4.
Lift up the foil tabs over the cables.
5.
Peel the antenna foil off the cover.
6.
Peel the right antenna off the adhesive.
Chapter 3
97
98
7.
Remove the antenna cable from the retention guide hooks.
8.
Peel the left antenna foil off the cover.
Chapter 3
9.
Peel the antenna off the adhesive.
10. Remove the antenna cable from the retention guide hooks.
Chapter 3
99
11. Remove both antenna cables from the cover.
100
Chapter 3
LCD Reassembly Procedure
Replacing the Antennas
1.
Lay the two cables under the retention guide exit hook.
2.
Lay the left side cable under the retention guide hooks.
Chapter 3
101
102
3.
Adhere the left antenna pad (black cable) to the cover.
4.
Lay the right side cable under the retention guide hooks.
Chapter 3
5.
Adhere the right side antenna pad (yellow cable) to the cover.
6.
Replace the foil tabs over the cables.
Replacing the Hinge
1.
Place the hinge on the cover.
Chapter 3
103
2.
Replace the three (3) screws.
Step
LCD Hinge
Screw
M2*4
Quantity
Screw Type.
3
Replacing the Touchscreen Board.
1.
104
Place the touchscreen board onto the cover.
Chapter 3
2.
Replace the two (2) screws.
Step
Touchscreen Board
Screw
M2*4
Quantity
Screw Type.
3
Replacing the LCD Brackets
1.
Place the two brackets on the panel paying attention to the correct orientation.
Chapter 3
105
2.
Replace the four (4) screws (red call outs).
NOTE: The alignment of the brackets (green call outs).
Step
LCD Panel Brackets
Screw
M2*2.5
Quantity
Screw Type.
4
Replacing the LCD Cable
1.
106
Adhere the touchscreen cable to the panel.
Chapter 3
2.
Adhere the LCD cable to the panel.
3.
Connect the LCD connector to the panel.
4.
Adhere the clear protective cover over the LCD connector.
Chapter 3
107
5.
Adhere the camera cable to the panel.
NOTE: The correct location of the webcam connector (green call out).
Replacing the LCD Panel
108
1.
Lay the LCD cable first through the hinge.
2.
Lay the antenna cable through the hinge.
Chapter 3
NOTE: The correct cable arrangement as follows.
3.
Connect the touchscreen FPC (1) and lay the panel down in the cover (2).
1
4.
2
Replace the four (4) screws.
Step
LCD Panel
Chapter 3
Screw
M2*4
Quantity
Screw Type.
4
109
5.
Connect the touchscreen cable.
6.
Lock the touch screen FPC.
Replacing the Microphone.
1.
110
Adhere the microphone to the cover.
Chapter 3
2.
Connect the microphone cable.
3.
Make sure the cable tie is tucked securely under the panel.
Replacing the Camera Board
1.
Connect the cable to the camera board.
Chapter 3
111
2.
Adhere the camera board to the cover.
Replacing the LCD Bezel
112
1.
Place the bezel on the cover.
2.
Press down on the bezel bottom edge.
Chapter 3
3.
Press down the bezel sides.
4.
Press down the bezel top edge.
5.
Replace the two screws.
Step
LCD Bezel
Chapter 3
Screw
M2*5
Quantity
Screw Type.
2
113
114
6.
Replace the screw covers.
7.
Insert the stylus.
Chapter 3
Main Unit Reassembly Process
Replacing the LCD Module
1.
Lay the LCD cable into the retention guide.
2.
Lay the antenna cable into the retention guide.
NOTE: The location of the retention hook (green call out).
Chapter 3
115
3.
Replace the two (2) screws in the hinge. Left side 1, right side 2.
2
1
Step
LCD Module
4.
Quantity
Screw Type.
2
Close the LCD module and replace the three (3) screws in the lower cover rear side.
Step
LCD Module
116
Screw
M2*5
Screw
M2*4
Quantity
Screw Type.
3
Chapter 3
Replacing the RTC Battery
1.
Push the RTC battery into the holder.
Replacing the Thermal Module
IMPORTANT: Ensure all heat pads are in place before replacing the Thermal Module.
The following thermal pads are approved for use:
•
Eapus XR-PE
1.
Remove all traces of thermal grease or pad adhesive from the CPU and thermal module using a lint-free
cloth or cotton swab and Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2.
Place the thermal module on the mainboard.
Chapter 3
117
3.
Tighten the five (5) captive screws. First tighten the CPU captive screws in order: 1 then 2 then 3. Then
tighten the two (2) other screws.
2
3
1
4.
Connect the thermal module cable.
Replacing the Speakers.
5.
118
Place the speaker modules onto the bottom cover.
Chapter 3
1.
Lay the speaker cables into the retention guides and apply glue on the retention guide locations.
2.
Replace the three (3) screws.
Step
Speaker
Chapter 3
Screw
M2*3
Quantity
Screw Type.
3
119
Replacing the Mainboard
1.
Connect the CRT board cable.
2.
Replace the mainboard into the bottom cover inserting the external connector side first.
3.
Replace the two (2) screws.
Step
Mainboard
120
Screw
M2*4
Quantity
Screw Type.
2
Chapter 3
4.
Connect the speaker connector.
5.
Lay the LCD cable through the retention guides so it matches the mainboard connector locations.
6.
Turn the computer over and lay the antenna cable in the retention guides
Chapter 3
121
122
7.
Turn the computer over and connect touchscreen cable.
8.
Connect the LCD cable.
9.
Adhere the clear protective LCD connector cover.
Chapter 3
Replacing the CRT Board.
1.
Connect the CRT cable.
2.
Turn the CRT board over.
3.
Place the CRT board into the cover.
Chapter 3
123
4.
Replace the one (1) screw.
Step
CRT Board
Screw
M2*4
Quantity
Screw Type.
1
Replacing the LED Board
1.
Place the LED board onto the cover.
IMPORTANT:Take special care that the slider switch is properly aligned in the bottom case switch cover.
124
Chapter 3
2.
Replace the two (2) screws.
Step
LED Board
Screw
M2*4
Quantity
3.
Replace the LED board cable in the mainboard connector.
4.
Lock the mainboard connector.
Chapter 3
Screw Type.
2
125
5.
Replace the LED board cable in the LED board connector.
6.
Lock the LED board connector.
Replacing the I/O Board
1.
126
Replace the I/O board inserting the external port side first.
Chapter 3
2.
Replace the one (1) screw.
Step
IO Board
Screw
M2*4
Quantity
3.
Turn the LCD module.
4.
Replace the I/O cable in the I/O board connector.
Chapter 3
Screw Type.
1
127
128
5.
Lock the I/O board connector.
6.
Insert the I/O cable under the retention guide hook.
7.
Replace the I/O cable in the IO board.
Chapter 3
8.
Lock the I/O board connector.
Replacing the Button Board
1.
Replace the button board.
Chapter 3
129
2.
Replace the two (2) screws.
Step
Button Board
130
Screw
M2*3
Quantity
Screw Type.
2
3.
Replace the touchpad cable in the touchpad connector.
4.
Lock the touchpad connector.
Chapter 3
5.
Adhere the touchpad cable to the top cover.
6.
Connect the touchpad cable to the button board.
7.
Lock the button board connector.
Chapter 3
131
8.
Adhere the button board cable to the upper cover.
9.
Replace the button board cable in the button board connector.
10. Lock the button board connector.
132
Chapter 3
Replace the Bluetooth Module
1.
Replace the Bluetooth cable.
2.
Replace the Bluetooth module onto the upper cover.
3.
Replace the one screw.
Step
Bluetooth Module
Chapter 3
Screw
M2*4
Quantity
Screw Type.
1
133
Replacing the Upper Cover
134
1.
Replace the upper cover.
2.
Connect the Bluetooth cable to the mainboard.
3.
Press down on the upper cover sides.
Chapter 3
4.
Press down on the upper cover bottom edge.
5.
Connect the button board cable.
6.
Lock the button board cable.
Chapter 3
135
7.
Replace the nine (9) screws in the upper cover.
Step
Upper Cover
8.
Quantity
6
M2*2.5 (Green Call Out)
3
Screw Type.
Turn the computer over and replace the twenty-two (22) screws in the lower cover.
Step
Lower Cover
136
Screw
M2*5 (Red Call Out)
Screw
Quantity
M2*5 (Red Call Out)
18
M2*4 (Green Call Out)
4
Screw Type.
Chapter 3
Replacing the Hinge Covers
1.
Replace the hinge cap.
2.
Replace the hinge bezel.
3.
Replace the two (2) screws.
Step
Hinge Covers
Chapter 3
Screw
M2*5
Quantity
Screw Type.
2
137
Replacing the Keyboard
138
1.
Replace the keyboard FPC.
2.
Lock the keyboard FPC.
3.
Flip the keyboard over and insert the front edge of the keyboard.
Chapter 3
4.
Press down the keyboard top edge.
Replacing the 3G Module
1.
Replace the 3G module.
Chapter 3
139
2.
Replace the one (1) screw.
Step
3G Module
3.
140
Screw
M2*3
Quantity
Screw Type.
1
Connect the cables (Blue cable connects to Aux).
Chapter 3
Replacing the WLAN Module
1.
Replace the WLAN card.
2.
Replace the one (1) screw.
Step
WLAN
3.
Screw
M2*3
Quantity
Screw Type.
1
Connect the cables (Black cable connects to Main).
Chapter 3
141
Replacing the DIMM
1.
Replace the DIMM module.
2.
Press down the DIMM module to lock into place.
Replacing the Hard Disk Drive
1.
142
Replace the HDD FPC.
Chapter 3
2.
Replace the HDD in the bay.
3.
Adhere the black tape.
4.
Replace the HDD FPC.
Chapter 3
143
5.
Lock the HDD FPC.
Replacing the Module Cover
1.
Insert the side of the module cover into the outside edge slots (1)and lower into place (2).
1
2
144
Chapter 3
2.
Press firmly around the edges of the module cover.
3.
Tighten the five (5) captive screws.
Chapter 3
145
Replacing the SIM Card
1.
Insert the SIM card into the slot until you hear an audible click.
NOTE: The gold chip in the SIM card is face down.
Replacing the Battery
146
1.
Insert the battery outer edge into the slots.
2.
Push the battery down into place.
Chapter 3
3.
Lock the battery.
Replacing the Dummy Card
1.
Insert the dummy card into the slot.
Chapter 3
147
148
Chapter 3
Chapter 4
Troubleshooting
Common Problems
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1.
Obtain the failing symptoms in as much detail as possible.
2.
Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating
the same operation.
3.
Use the following table with the verified symptom to determine which page to go to.
Symptoms (Verified)
Go To
Power On Issue
Page 150
No Display Issue
Page 151
LCD Failure
Page 153
Internal Keyboard Failure
Page 154
TouchPad Failure
Page 155
Internal Speaker Failure
Page 156
Internal Microphone Failure
Page 157
USB Failure
Page 159
Other Function Failure
Page 159
4.
If the Issue is still not resolved, see “Online Support Information” on page 165.
Chapter 4
149
Power On Issue
If the system doesn’t power on, perform the following actions one at a time to correct the problem. Do not
replace non-defective FRUs:
Start
Start
OK
Check
AC/Battery
Power on
OK
Check
Daughter/B &
FFC Whether
OK
NG
Swap AC /Battery
to try
OK
NG
Swap Daughter/B
Re-plug PWR FFC
Swap M/B
Computer Shuts down Intermittently
If the system powers off at intervals, perform the following actions one at a time to correct the problem.
150
1.
Check the power cable is properly connected to the computer and the electrical outlet.
2.
Remove any extension cables between the computer and the outlet.
3.
Remove any surge protectors between the computer and the electrical outlet. Plug the computer directly
into a known good electrical outlet.
4.
Remove all external and non-essential hardware connected to the computer that are not necessary to
boot the computer to the failure point.
5.
Remove any recently installed software.
6.
If the Issue is still not resolved, see “Online Support Information” on page 165.
Chapter 4
No Display Issue
If the Display doesn’t work, perform the following actions one at a time to correct the problem. Do not replace
non-defective FRUs:
START
Replace LCD
Panel and
Cable
No
LCD Module OK?
Power On ?
Ext. DDRAM module
connected properly?
Replace the
main board
No
No
Go to No Power
troubleshooting
step
Reconnect
SDRAM Module
Ext. DDRAM
module functional?
No
Replace external
DDRAM module
CPU Thermal
Module properly
connected?
No
Remove and
replace thermal
module
No POST or Video
If the POST or video doesn’t display, perform the following actions one at a time to correct the problem.
1.
Make sure that the internal display is selected. On this notebook model, switching between the internal
display and the external display is done by pressing Fn+F5. Reference Product pages for specific model
procedures.
2.
Make sure the computer has power by checking at least one of the following occurs:
•
Fans start up
•
Status LEDs light up
If there is no power, see “Power On Issue” on page 150.
3.
Drain any stored power by removing the power cable and battery and holding down the power button for
10 seconds. Reconnect the power and reboot the computer.
4.
Connect an external monitor to the computer and switch between the internal display and the external
display is by pressing Fn+F5 (on this model).
If the POST or video appears on the external display, see “LCD Failure” on page 153.
5.
Disconnect power and all external devices including port replicators or docking stations. Remove any
memory cards and CD/DVD discs. Restart the computer.
Chapter 4
151
If the computer boots correctly, add the devices one by one until the failure point is discovered.
6.
Reseat the memory modules.
7.
Remove the drives (see “Disassembly Process” on page 34).
8.
If the Issue is still not resolved, see “Online Support Information” on page 165.
Abnormal Video Display
If video displays abnormally, perform the following actions one at a time to correct the problem.
1.
Reboot the computer.
2.
If permanent vertical/horizontal lines or dark spots display in the same location, the LCD is faulty and
should be replaced. See “Disassembly Process” on page 34.
3.
If extensive pixel damage is present (different colored spots in the same locations on the screen), the LCD
is faulty and should be replaced. See “Disassembly Process” on page 34.
4.
Adjust the brightness to its highest level. See the User Manual for instructions on adjusting settings.
NOTE: Ensure that the computer is not running on battery alone as this may reduce display brightness.
If the display is too dim at the highest brightness setting, the LCD is faulty and should be replaced. See
“Disassembly Process” on page 34.
5.
Check the display resolution is correctly configured:
a.
Minimize or close all Windows.
b.
If display size is only abnormal in an application, check the view settings and control/mouse wheel
zoom feature in the application.
c.
If desktop display resolution is not normal, right-click on the desktop and select
Personalize´ Display Settings.
d.
Click and drag the Resolution slider to the desired resolution.
e.
Click Apply and check the display. Readjust if necessary.
6.
Roll back the video driver to the previous version if updated.
7.
Remove and reinstall the video driver.
8.
Check the Device Manager to determine that:
9.
•
The device is properly installed. There are no red Xs or yellow exclamation marks.
•
There are no device conflicts.
•
No hardware is listed under Other Devices.
If the Issue is still not resolved, see “Online Support Information” on page 165.
10. Run the Windows Memory Diagnostic from the operating system DVD and follow the onscreen prompts.
11. If the Issue is still not resolved, see “Online Support Information” on page 165.
Random Loss of BIOS Settings
If the computer is experiencing intermittent loss of BIOS information, perform the following actions one at a
time to correct the problem.
1.
If the computer is more than one year old, replace the CMOS battery.
2.
Run a complete virus scan using up-to-date software to ensure the computer is virus free.
3.
If the computer is experiencing HDD or ODD BIOS information loss, disconnect and reconnect the power
and data cables between devices.
If the BIOS settings are still lost, replace the cables.
152
4.
If HDD information is missing from the BIOS, the drive may be defective and should be replaced.
5.
Replace the Motherboard.
Chapter 4
6.
If the Issue is still not resolved, see “Online Support Information” on page 165.
LCD Failure
If the LCD fails, perform the following actions one at a time to correct the problem. Do not replace nondefective FRUs:
Start
OK
Check LCD
module?
OK
Check MB LCD
connector and
cable ?
NG
Swap
LCD cable /LCD panel
OK
NG
Reassemble
Re- plug LCD cable
Swap M/B
Chapter 4
153
Built-In Keyboard Failure
If the built-in Keyboard fails, perform the following actions one at a time to correct the problem. Do not replace
non-defective FRUs:
Start
Keyboard properly
connected?
No
Disconnect and
reconnect
Keyboard functioning?
No
Replace Keyboard
Replace
mainboard
154
Chapter 4
TouchPad Failure
If the TouchPad doesn’t work, perform the following actions one at a time to correct the problem. Do not
replace non-defective FRUs:
Start
OK
Check M/B T/P
FFC
NG
OK
OK
Check
TouchPad
NG
Re-assemble the
T/P FFC to M/B
Swap/Reassemble
the T/P board or
T/P FFC
Swap M/B
Chapter 4
155
Internal Speaker Failure
If the internal Speakers fail, perform the following actions one at a time to correct the problem. Do not replace
non-defective FRUs:
Start
OK
Check M/B SPK
cable
OK
Check Logic
Upper/Logic
upper
NG
Re-assemble the
SPK cable to M/B
OK
NG
Swap Logic
lower/Logic upper
Swap M/B
Sound Problems
If sound problems are experienced, perform the following actions one at a time to correct the problem.
156
1.
Reboot the computer.
2.
Navigate to Start´ Control Panel´ System and Maintenance´ System´ Device Manager. Check
the Device Manager to determine that:
•
The device is properly installed.
•
There are no red Xs or yellow exclamation marks.
•
There are no device conflicts.
•
No hardware is listed under Other Devices.
3.
Roll back the audio driver to the previous version, if updated recently.
4.
Remove and reinstall the audio driver.
5.
Ensure that all volume controls are set mid range:
a.
Click the volume icon on the taskbar and drag the slider to 50. Ensure that the volume is not muted.
b.
Click Mixer to verify that other audio applications are set to 50 and not muted.
6.
Navigate to Start´ Control Panel´ Hardware and Sound´ Sound. Ensure that Speakers are selected
as the default audio device (green check mark).
NOTE: If Speakers does not show, right-click on the Playback tab and select Show Disabled Devices
(clear by default).
7.
Select Speakers and click Configure to start Speaker Setup. Follow the onscreen prompts to configure
the speakers.
Chapter 4
8.
Remove and recently installed hardware or software.
9.
Restore system and file settings from a known good date using System Restore.
If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
10. Reinstall the Operating System.
11. If the Issue is still not resolved, see “Online Support Information” on page 165.
Internal Microphone Failure
If the internal Microphone fails, perform the following actions one at a time to correct the problem. Do not
replace non-defective FRUs:
Start
OK
Check M/B Mic.
cable
OK
Check MIC wire
of LCD module
NG
Re-assemble the
MIC cable to M/B
OK
NG
Swap MIC wire of
LCD module
Swap M/B
Microphone Problems
If internal or external Microphones do no operate correctly, perform the following actions one at a time to
correct the problem.
1.
Check that the microphone is enabled. Navigate to Start´ Control Panel´ Hardware and Sound´
Sound and select the Recording tab.
2.
Right-click on the Recording tab and select Show Disabled Devices (clear by default).
3.
The microphone appears on the Recording tab.
4.
Right-click on the microphone and select Enable.
5.
Select the microphone then click Properties. Select the Levels tab.
6.
Increase the volume to the maximum setting and click OK.
7.
Test the microphone hardware:
a.
Select the microphone and click Configure.
b.
Select Set up microphone.
Chapter 4
157
8.
c.
Select the microphone type from the list and click Next.
d.
Follow the onscreen prompts to complete the test.
If the Issue is still not resolved, see “Online Support Information” on page 165.
HDD Not Operating Correctly
If the HDD does not operate correctly, perform the following actions one at a time to correct the problem.
1.
Disconnect all external devices.
2.
Run a complete virus scan using up-to-date software to ensure the computer is virus free.
3.
Run the Windows Vista Startup Repair Utility:
a.
insert the Windows Vista Operating System DVD in the ODD and restart the computer.
b.
When prompted, press any key to start to the operating system DVD.
c.
The Install Windows screen displays. Click Next.
d.
Select Repair your computer.
e.
The System Recovery Options screen displays. Click Next.
f.
Select the appropriate operating system, and click Next.
NOTE: Click Load Drivers if controller drives are required.
g.
Select Startup Repair.
h.
Startup Repair attempts to locate and resolve issues with the computer.
i.
When complete, click Finish.
If an issue is discovered, follow the onscreen information to resolve the problem.
4.
Run the Windows Memory Diagnostic Tool. For more information see Windows Help and Support.
5.
Restart the computer and press F2 to enter the BIOS Utility. Check the BIOS settings are correct and that
CD/DVD drive is set as the first boot device on the Boot menu.
6.
Ensure all cables and jumpers on the HDD and ODD are set correctly.
7.
Remove any recently added hardware and associated software.
8.
Run the Windows Disk Defragmenter. For more information see Windows Help and Support.
9.
Run Windows Check Disk by entering chkdsk /r from a command prompt. For more information see
Windows Help and Support.
10. Restore system and file settings from a known good date using System Restore.
If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
11. Replace the HDD. See “Disassembly Process” on page 34.
158
Chapter 4
USB Failure (Right up/down side)
If the rightside USB port fails, perform the following actions one at a time to correct the problem. Do not
replace non-defective FRUs:
Start
OK
Check USB/B to
M/B cable
NG
OK
OK
Check USB/B
NG
Re-assemble the
USB/B cable to M/B
Swap USB/B and
USB cable
Swap M/B
Other Failures
If the VGA board, LAN Port, external MIC or Speakers, PCI Express Card, 5-in-1 Card Reader or Volume
Wheel fail, perform the following general steps to correct the problem. Do not replace non-defective FRUs:
1.
Check whether the drive is OK.
2.
Verify that the Test Fixture is ok.
3.
Swap the mainboard and retest.
Chapter 4
159
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1.
Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2.
If no error is detected, do not replace any FRU.
3.
If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power On
Issue” on page 150.):
160
1.
Power-off the computer.
2.
Visually check them for damage. If any problems are found, replace the FRU.
3.
Remove or disconnect all of the following devices:
•
Non-Acer devices
•
Printer, mouse, and other external devices
•
Battery pack
•
Hard disk drive
•
DIMM
•
CD-ROM/Diskette drive Module
•
PC Cards
4.
Power-on the computer.
5.
Determine if the problem has changed.
6.
If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7.
If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
•
System board
•
LCD assembly
Chapter 4
Post Codes
These tables describe the Post Codes and components of the POST process.
Sec:
NO_EVICTION_MODE_DEBUG EQU
1 (CommonPlatform\sec\Ia32\SecCore.inc)
0x
C2
MTRR setup
0x
C3
Enable cache
0x
C4
Establish cache tags
0x
C5
Enter NEM, Place the BSP in No Fill mode, set CR0.CD = 1, CR0.NW = 0.
0xCF
Cache Init Finished
Memory:
DEBUG_BIOS EQU 1 (Chipset\Alviso\MemoryInitAsm\IA32\IMEMORY.INC)
0x
A0
First memory check point
0x
01
Enable MCHBAR
0x
02
Check for DRAM initialization interrupt and reset fail
0x
03
Verify all DIMMs are DDR or DDR2 and unbuffered
0x
04
Detect an improper warm reset and handle
0x
05
Detect if ECC SO-DIMMs are present in the system
0x
06
Verify all DIMMs are single or double sided and not asymmetric
0x
07
Verify all DIMMs are x8 or x16 width
0x
08
Find a common CAS latency between the DIMMS and the MCH
0x
09
Determine the memory frequency and CAS latency to program
0x
10
Determine the smallest common TRAS for all DIMMs
0x
11
Determine the smallest common TRP for all DIMMs
0x
12
Determine the smallest common TRCD for all DIMMs
0x
13
Determine the smallest refresh period for all DIMMs
Chapter 4
161
162
0x
14
Verify burst length of 8 is supported by all DIMMs
0x
15
Determine the smallest tWR supported by all DIMMs
0x
16
Determine DIMM size parameters
0x
17
Program the correct system memory frequency
0x
18
Determine and set the mode of operation for the memory channels
0x
19
Program clock crossing registers
0x
20
Disable Fast Dispatch
0x
21
Program the DRAM Row Attributes and DRAM Row Boundary registers
0x
22
Program the DRAM Bank Architecture register
0x
23
Program the DRAM Timing & and DRAM Control registers
0x
24
Program ODT
0x
25
Perform steps required before memory init
0x
26
Program the receive enable reference timing control register
Program the DLL Timing Control Registers, RCOMP settings
0x
27
Enable DRAM Channel I/O Buffers
0x
28
Enable all clocks on populated rows
0x
29
Perform JEDEC memory initialization for all memory rows
0x
30
0x
31
Perform steps required after memory init
Program DRAM throttling and throttling event registers
0x
32
Setup DRAM control register for normal operation and enable
0x
33
Enable RCOMP
0x
34
Clear DRAM initialization bit in the SB
0x
35
Initialization Sequence Completed, program graphic clocks
0x
AF
Disable access to the XMM registers
Chapter 4
BDS & Specific action:
Chapter 4
0x0
0
Report the legacy boot is happening
0x1
2
Wake up the APs
0x1
3
Initialize SMM Private Data and relocate BSP SMBASE
0x2
1
0x2
7
PC init begin at the stage1
Report every memory range do the hard ware ECC init
0x2
8
Report status code of every memory range
0x5
0
Get the root bridge handle
0x5
1
Notify pci bus driver starts to program the resource
0x5
8
Reset the host controller
0x5A
IdeBus begin initialization
0x7
0
Simple Text Output Protocol Functions(VGA class reset)
0x7
1
Report that VGA Class driver is being disabled
0x7
2
Report that VGA Class driver is being enabled
0x7
8
Terminal Console In reset and Console Out reset
0x7
9
Report that the remote terminal is being disabled
0x7A
Report that the remote terminal is being enabled
0x9
0
Keyboard reset
0x9
1
USB Keyboard disable
0x9
2
Keyboard detection
0x9
3
Report that the usb keyboard is being enabled
0x9
4
Clear the keyboard buffer
0x9
5
Init Keyboard
0x9
8
Mouse reset
163
0x9
9
0x9A
Mouse disable
Detect PS2 mouse
0x9B
Report that the mouse is being enabled
0xB8
Peripheral removable media reset(ex:IsaFloppy, USB device)
0xB9
Peripheral removable media disable
0xBB
Peripheral removable media enable
0xE
4
Report Status Code here for DXE_ENTRY_POINT once it is available
0xF
8
Report that ExitBootServices() has been called
0xF
9
Runtime driver set virtual address map
Each PEIM entry point used in 80_PORT
0x
00
164
0x
01
PEI_EVENT_LOG
0x
02
PEI_OEM_SERVICE
0x
03
PEI_SIO_INIT
0x
04
PEI_MONO_STATUS_CODE
0x
05
PEI_CPU_IO_PCI_CFG
0x
06
PEI_CPU_IO
0x
07
PEI_PCI_CFG
0x
08
PEI_CPU_PEIM
0x
09
PEI_PLATFORM_STAGE1
0x0A
PEI_VARIABLE
0x0B
0x0C
PEI_SB_INIT
PEI_CAPSULE
0x0D
PEI_PLATFORM_STAGE2
0x0
E
PEI_SB_SMBUS_ARP_DISABLED
0x
0F
PEI_HOST_TO_SYSTEM
0x
10
PEI_MEMORY_INIT
Chapter 4
0x
11
PEI_S3_RESUME
0x
12
PEI_CLOCK_GEN
0x
13
PEI_OP_PRESENCE
0x
14
PEI_TPM_TCG
0x
15
PEI_FIND_FV
0x
16
PEI_H2O_DEBUG_IO
0x
17
PEI_H2O_DEBUG_COMM
0x
18
PEI_SMM_CONTROL
0x19~0x1F
PEI_RESERVED
0x20~0x2E
PEI_OEM_DEFINED
0x2F
PEI_DXE_IPL
Each Driver entry point used in 80_PORT
Chapter 4
0x
30
RESERVED
0x
31
DXE_CRC32_SECTION_EXTRACT
0x
32
SCRIPT_SAVE
0x
33
ACPI_S3_SAVE
0x
34
SMART_TIMER
0x
35
JPEG_DECODER
0x
36
PCX_DECODER
0x
37
HT_CPU / MP_CPU
0x
38
LEGACY_METRONOME
0x
39
FTWLITE
0x3A
RUN_RIME
0x3B
MONOTONIC_COUNTER
0x3C
WATCH_DOG_TIMER
165
0x3D
SECURITY_STUB
0x3
E
DXE_CPU_IO
0x
3F
CF9_RESET
0x
40
PC_RTC
0x
41
166
STATUS_CODE
0x
42
VARIABLE
0x
43
EMU_VARIABLE
0x
44
DXE_CHIPSET_INIT
0x
45
DXE_ALERT_FORMAT
0x
46
PCI_HOST_BRIDGE
0x
47
PCI_EXPRESS
0x
48
DXE_SB_INIT
0x
49
IDE_CONTROLLER
0x4A
0x4B
SATA_CONTROLLER
SB_SM_BUS
0x4C
ISA_ACPI_DRIVER
0x4D
ISA_BUS
0x4
E
ISA_SERIAL
0x
4F
IDE_BUS
0x
50
PCI_BUS
0x
51
BOOT_PRIORITY
0x
52
FVB_SERVICE
0x
53
ACPI_PLATFORM
0x
54
PCI_HOT_PLUG
0x
55
DXE_PLATFORM
Chapter 4
Chapter 4
0x
56
PLATFORM_IDE
0x
57
SMBIOS
0x
58
MEMORY_SUB_CLASS
0x
59
MISC_SUB_CLASS
0x5A
CON_PLATFORM
0x5B
SAVE_MEMORY_CONFIG
0x5C
ACPI_SUPPORT
0x5D
CON_SPLITTER_UGA_VGA / CON_SPLITTER
0x5
E
VGA_CLASS
0x
5F
DATA_HUB
0x
60
DISK_IO
0x
61
0x
62
MEMORY_TEST
CRISIS_RECOVERY
0x
63
LEGACY_8259
0x
64
LEGACY_REGION
0x
65
LEGACY_INTERRUPT
0x
66
BIOS_KEYBOARD
0x
67
BIOS_VEDIO
0x
68
MONITER_KEY
0x
69
LEGACY_BIOS
0x6A
LEGACY_BIOS_PLATFORM
0x6B
PCI_PLATFORM
0x6C
ISA_FLOOPY
0x6D
PS2_MOUSE
0x6
E
USB_BOT
0x
6F
USB_CBI0
167
0x
70
USB_CBI1
0x
71
USB_KB
0x
72
USB_MASS_STORAGE
0x
73
BUS_PCI_UHCI
0x
74
USB_MOUSE
0x
75
168
USB_BUS
0x
76
SETUP_UTILITY
0x
77
FW_BLOCK_SERVICE
0x
78
0x
79
USB_LEGACY_PLATFORM
GRAPHICS_CONSOLE
0x7A
TERMINAL
0x7B
DATA_HUB_STD_ERR
0x7C
FAT
0x7D
PARTITION
0x7
E
ENGLISH
0x
7F
FRENCH
0x
80
HII_DATABASE
0x
81
SETUP_BROWSER
0x
82
OEM_SETUP_BROWSER
0x
83
OEM_BADGING_SUPPORT
0x
84
LEGACY_MOUSE
0x
85
BIOS_SNP16
0x
86
BUS_PCI_UNDI
0x
87
SETUP_MOUSE
0x
88
OEM_SETTING
Chapter 4
0x
89
MONITOR_KEY
0x8A
PLATFORM_BDS
0x8B
FAULT_TOLERANT_WRITE
0x8C
UPDATE_DISPATCHER
0x8D
CHINESE
0x8
E
TPM_S3_Resume
0x
8F
0x
90
USB_EHCI
0x
91
PXE_BC
0x
92
PXE_DHCP4
0x
93
EBC
0x94~0x9F
SNP_32_64
RESERVED
0xA0
DXE_H2O_DEBUG_IO
0xA1
DXE_H2O_DEBUG_IO
0xA2
DXE_TPM_TCG
0xA3
DXE_TPM_PHYSICAL_PRESENCE
0xA4
DXE_OEM_SERVICE
0xA5
DXE_EVENT_LOG
0xA6
0xA7
DXE_ SECURITY_HDD_PASSWORD_SERVICE
DXE_LAN_ASF_INIT
0xA8
DXE_BUS_PCI_SERIAL
0xA9
DXE_LAN_IDER_CONTROLLER
0xAA
DXE_LAN_AMT
0xAB
DXE_ SECURITY_SYSTEM_PASSWORD_SERVICE
0xAC
DXE_ SECURITY_ PASSWORD_CONSOLE
0xAD
DXE_ DATA_HUB_RECORD_POLICY
0xAE
DXE_TPM_DRIVER
0xAF
RESERVED
0xB0
0xB1
JAPANESE
DXE_UNICODE_COLLACTION
Each SmmDriver entry point used in 80_PORT
0xC0
Chapter 4
SMM_ACCESS
169
170
0xC1
SMM_CONTROL
0xC2
SMM_BASE
0xC3
SMMAP
0xC4
SMMCORE
0xC5
SMM_DISPATCH
0xC6
SMM_START
0xC7
SMM_RUNTIME
0xC8
SB_SMM_DISPATCH
0xC9
SMM_THUNK
0xCA
SMM_ACPI_SW_CHILD
0xCB
SMM_SB_S3_SAVE
0xCC
SMM_PLATFORM
0xCD
0xCE
SMM_GMCH_MBI
SMM_FW_BLOCK_SERVICE
0xCF
SMM_VARIABLE
0xD0
SMM_IHISI
0xD1
SMM_INT15_MICROCODE
0xD2
SMM_PNP
0xD3
SMM_USB_LEGACY
0xD4
SMM_INT13_HDD
0xD5
SMM_INIT_PPM
0xD6
SMM_OHCI1394
0xD7
SMM_ SECURITY_HDD_PASSWORD_SERVICE
0xD8
SMM_OEM_SERVICE
0xD9
SMM_PPM
0xDA
SMM_DIGITAL_THERMAL_SENSOR
Chapter 4
Chapter 5
Jumper and Connector Locations
Mainboard Top View
Item
Description
Item
PJ2
DC-in
CN1
LED connector
PJ1
Battery connector
CN17
USB connector
CN6
LCD connector
CN18
HDMI
CN5
Touchscreen connector
CN2
Keyboard connector
CN7
Bluetooth connector
CN3
Touchpad connector
CN8
Speaker connector
CN4
Card reader board connector
Chapter 5
171
Mainboard Bottom View
Item
Description
HDD connector
Item
CN17
Description
USB connector
CN9
172
JSIM1
SIM card connector
CN14
RTC battery connector
PJ1
Battery connector
CN13
Mini-card for 3G
CN16
CRT
CN10
Mini-card for WLAN
PJ2
DC-in
CN22
DRR2 DIMM2
U17
CPU
CN23
DDR2 DIMM1
U18
North Bridge GS45
U19
SB ICH9M
CN18
HDMI connector
CN15
Fan connector
Chapter 5
Clearing Password Check and BIOS Recovery
This section provides a procedure for clearing the password and BIOS. The Hardware Open Gap on the
mainboard clears the CMOS of all user settings and restores factory defaults.
Mainboard CMOS Discharge
Discharging the CMOS clears all user settings.
1.
Disassemble the notebook and take out the Mainboard. See “Removing the Mainboard” on page 69.
2.
Remove the RTC battery. See “Removing the RTC Battery” on page 73.
3.
Turn the mainboard over, lift up the DIMM protective cover, and short the G3 pad.
4.
Reconnect the RTC battery and reassemble the unit.
Chapter 5
173
BIOS Recovery by Crisis Disk
BIOS Recovery Boot Block
The BIOS Recovery Boot Block is a special block of BIOS. It is used to boot up the system with minimum BIOS
initialization. Users can enable this feature to restore the BIOS firmware to the factory settings if a BIOS flash
process fails.
BIOS Recovery Hotkey
The system provides a function hotkey: Fn+Esc, to enable the BIOS Recovery process when a system is
powered on during BIOS POST. To use this function, it is strongly recommended to have the AC adapter and
Battery present. If this function is enabled, the system will force the BIOS to enter a special BIOS block, called
Boot Block.
Steps for BIOS Recovery from USB Storage
Before performing this procedure, prepare a Crisis USB key. The Crisis USB key can be made by executing
the Crisis Disk program in a functioning system with a Windows XP, Vista or 7 OS.
IMPORTANT:The Crisis Disk program will overwrite all data on any drive that you use as a crisis disk.
Follow the steps below:
174
1.
Modify the archive name from ZE8 bios to ZE8X64.fd
2.
Save ROM file (file name: ZE8X64.fd) to the root directory of the USB storage.
3.
Plug the USB storage into a USB port of the machine to have the crisis utility run on.
4.
Remove the battery and AC adaptor of the machine.
5.
While pressing the Fn + ESC buttons plug in the AC adaptor and then press Power. Keep pressing
Fn+ESC till the power button flashes.
The LED of the USB flash disk flashes for three (3) to seven (7) minutes.
When CRISIS is complete, the system auto restarts with a workable BIOS.
6.
Update the latest version BIOS for this machine by the regular BIOS flashing process.
Chapter 5
Chapter 6
FRU (Field Replaceable Unit) List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of the computer. Refer to this
chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your
regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service
Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from
those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer
office to order FRU parts for repair and service of customer machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to
dispose it properly, or follow the rules set by your regional Acer office on how to return it.
Exploded Diagrams
LCD
Item
1
Description
Acer Part No.
Screw cover
47.WGV07.009
2
Touchscreen board assembly
55.PND07.001
3
Center hinge
33.WGV07.001
4
LCD bracket screw
86.W0107.003
5
LCD bracket (right)
33.PND07.001
6
LCD cover protector
N/A
7
LCD cover assembly
6M.BGU07.001
8
Camera
57.PND07.001
Chapter 6
175
Item
Description
Acer Part No.
9
LCD camera assembly
57.S6507.001
10
LCD panel
LK.11605.003
11
LCD bracket (left)
33.PND07.002
12
Screw
86.TPK07.001
13
Touch panel
56.PND07.004
14
Bezel
60.WGV07.004
15
Screw
86.TG607.004
Main Chassis
Item
176
Description
Acer Part No.
1
DIMM module
KN.1GB03.031
2
LED assembly
55.WGV07.002
3
LED FCC cable
50.PL907.002
4
Thermal module assembly
60.PL907.004
5
CPU
N/A
6
CRT Board assembly
55.WGV07.001
7
Hard disk drive
KH.16004.006
8
I/O board
55.WGV07.003
9
HDD FPC cable
50.PL907.005
10
Battery
BT.00603.105
11
Base screw rubber
47.WGV07.003
Chapter 6
Item
Description
Acer Part No.
12
Button board assembly
55.PL907.004
13
Bluetooth module
BT.21100.006
14
Bluetooth cable
50.PL907.001
15
Upper Cover
60.WGV07.005
16
Hinge cap
42.WGV07.002
17
Top cap
42.WGV07.004
18
Keyboard
KB.I110G.026
19
Screw
86.TG607.004
20
Lower cover
60.WGV07.002
21
HDD door
42.WGV07.001
22
I/O board FCC cable
50.PL907.004
23
WLAN Module
NI.23600.046
24
3G Module
LC.21300.011
Chapter 6
177
FRU List
CATEGORY
PARTNAME
ACERPARTNO.
ADAPTER
ADAPTER DELTA 30W 19V 1.7X5.5X11 BLACK ADP-30JH BA
LF
AP.03001.001
ADAPTER LITE-ON 30W 1.7X5.5X11 BLACK PA-1300-04AC
LF
AP.03003.001
ADAPTER HIPRO 30W 19V 1.7X5.5X11 BLACK HP-A0301R3
B1LF LF
AP.0300A.001
Battery SANYO UM-2009F Li-Ion 3S2P SANYO 6 cell
5600mAh Main COMMON
BT.00603.105
Battery SIMPLO UM-2009F Li-Ion 3S2P SAMSUNG 6 cell
5600mAh Main COMMON ID:UM09F70
BT.00607.114
TP BOARD
55.PL907.004
TOUCH PANEL CONTROL BOARD
55.PND07.001
CRT BOARD
55.WGV07.001
LED BOARB
55.WGV07.002
CARD READER BOARD
55.WGV07.003
Foxconn Bluetooth BRM 2046 BT2.1 (T60H928.33) f/w:861
BH.21100.004
Lan Intel WLAN 112BN.HMWG MM#903341
KI.CPH01.001
Lan Intel WLAN 512AN_HMWG Shirley Peak 5100
MM#895373
KI.SPH01.003
Lan Intel WLAN 512AG_HMWG Shirley Peak 5100
MM#897072
KI.SPH01.005
BATTERY
BOARD
Foxconn Wireless LAN Atheros HB93 1x2 BGN (HM)
NI.23600.046
Liteon Wireless LAN Atheris HB93 1x2 BGN (HM) WN6602AH
NI.23600.051
Qualcomm Gobi2000
LC.21300.011
POWER CORD UK 3PIN
27.A03V7.004
CABLE
178
Chapter 6
CATEGORY
PARTNAME
ACERPARTNO.
POWER CORD US 3PIN ROHS
27.TAXV7.001
BLUETOOTH CABLE
50.PL907.001
FFC CABLE - LED/B TO MB
50.PL907.002
CRT CABLE
50.PL907.003
FFC CABLE - CARD READER/B TO MB
50.PL907.004
HDD FPC CABLE
50.PL907.005
FFC CABLE - TP TO TP/B
50.PL907.006
FFC CABLE - MB TO TP/B
50.PL907.007
ANTENNA - WIFI
50.PL907.008
ANTENNA - 3G WIFI
50.PL907.009
LCD CABLE 11.6 IN.
50.PND07.001
CASE/COVER/BRACKET ASSEMBLY
Chapter 6
179
CATEGORY
180
PARTNAME
ACERPARTNO.
LCD BRACKET - R
33.PND07.001
LCD BRACKET - L
33.PND07.002
CENTER HINGE
33.WGV07.001
SD DUMMY CARD BK
42.BCC07.004
HDD COVER
42.WGV07.001
HINGE CAP
42.WGV07.002
TOP CAP BLACK
42.WGV07.004
TOP CAP RED
42.WHJ07.001
LCD COVER ASSY PB RED W/ANTENNA
60.BGU07.001
LCD COVER ASSY PB RED W/3G ANTENNA
60.BGV07.001
LCD BEZEL ASSY BLACK FOR PB
60.BGW07.001
LCD COVER ASSY PB BLACK W/ANTENNA
60.BGW07.002
LCD COVER ASSY PB BLACK W/3G ANTENNA
60.BGY07.001
Chapter 6
CATEGORY
PARTNAME
UPPER CASE ASSY BLACK W/TP , FFC*2
ACERPARTNO.
60.WGV07.001
LOWER CASE ASSY W/SPEAKER FOR 3G
60.WGV07.002
LOWER CASE ASSY W/SPEAKER FOR WIFI
60.WGV07.003
LCD BEZEL ASSY BLACK FOR GW
60.WGV07.004
LCD COVER ASSY GW BLACK W/ANTENNA
60.WGV07.005
UPPER CASE ASSY RED W/TP , FFC*2
60.WHJ07.001
LCD COVER ASSY GW RED W/ANTENNA
60.WHJ07.002
LCD COVER ASSY GW BLACK W/3G ANTENNA
60.WHN07.001
LCD COVER ASSY GW RED W/3G ANTENNA
60.WHP07.001
CAMERA MODULE
57.PND07.001
Camera
Chapter 6
181
CATEGORY
PARTNAME
ACERPARTNO.
HDD/HARD DISK DRIVE
HDD TOSHIBA 2.5" 5400rpm 160GB MK1655GSX Libra SATA
LF F/W: FG011J
KH.16004.006
HDD HGST 2.5" 5400rpm 160GB HTS545016B9A300 Panther
B SATA LF F/W:C60F Disk imbalance criteria = 0.014g-cm
KH.16007.026
HDD WD 2.5" 5400rpm 160GB WD1600BEVT-22ZCTO ML160
SATA LF F/W:11.01A11
KH.16008.022
HDD SEAGATE 2.5" 5400rpm 250GB ST9250315AS Wyatt
SATA LF F/W:0001SDM1
KH.25001.016
HDD TOSHIBA 2.5" 5400rpm 250GB MK2555GSX Libra SATA
LF F/W:FG001J
KH.25004.003
HDD HGST 2.5" 5400rpm 250GB HTS545025B9A300 Panther
B SATA LF F/W:C60F Disk imbalance criteria = 0.014g-cm
KH.25007.016
HDD WD 2.5" 5400rpm 250GB WD2500BEVT-22ZCT0 ML160
SATA LF F/W:11.01A11
KH.25008.021
HDD SEAGATE 2.5" 5400rpm 320GB ST9320325AS Wyatt
SATA LF F/W:0001SDM1
KH.32001.017
HDD HGST 2.5" 5400rpm 320GB HTS545032B9A300 Panther
B SATA LF F/W:C60F Disk imbalance criteria = 0.014g-cm
KH.32007.008
HDD TOSHIBA 2.5" 5400rpm 500GB MK5055GSX Libra SATA
LF F/W:FG001J
KH.50004.001
HDD WD 2.5" 5400rpm 320GB WD3200BEVT-22ZCT0 ML160
SATA LF F/W:11.01A11
KH.32008.013
HDD SEAGATE 2.5" 5400rpm 500GB ST9500325AS Wyatt
SATA LF F/W:0001SDM1
KH.50001.011
HDD WD 2.5" 5400rpm 500GB WD5000BEVT-22ZAT0 ML250
SATA LF F/W:01.01A01
KH.50008.013
HDD HGST 2.5" 5400rpm 500GB HTS545050B9A300 Panther
B SATA LF F/W:C60F Disk imbalance criteria = 0.014g-cm
KH.50007.010
THERMAL MODULE
60.PL907.004
HEATSINK
182
Chapter 6
CATEGORY
PARTNAME
ACERPARTNO.
KEYBOARD
Chapter 6
Keyboard GATEWAY GP1T SJM11 86KS Black Arabic Texture
KB.I110G.002
Keyboard GATEWAY GP1T SJM11 87KS Black Belgium
Texture
KB.I110G.003
Keyboard GATEWAY GP1T SJM11 87KS Black Brazilian
Portuguese Texture
KB.I110G.004
Keyboard GATEWAY GP1T SJM11 87KS Black CZ/SK Texture
KB.I110G.005
Keyboard GATEWAY GP1T SJM11 86KS Black Chinese
Texture
KB.I110G.006
Keyboard GATEWAY GP1T SJM11 87KS Black Danish Texture
KB.I110G.007
Keyboard GATEWAY GP1T SJM11 87KS Black FR/Arabic
Texture
KB.I110G.008
Keyboard GATEWAY GP1T SJM11 87KS Black French Texture
KB.I110G.009
Keyboard GATEWAY GP1T SJM11 87KS Black German
Texture
KB.I110G.010
Keyboard GATEWAY GP1T SJM11 86KS Black Greek Texture
KB.I110G.011
Keyboard GATEWAY GP1T SJM11 87KS Black Hungarian
Texture
KB.I110G.012
Keyboard GATEWAY GP1T SJM11 87KS Black Italian Texture
KB.I110G.013
Keyboard GATEWAY GP1T SJM11 91KS Black Japanese
Texture
KB.I110G.014
Keyboard GATEWAY GP1T SJM11 87KS Black Nordic Texture
KB.I110G.015
Keyboard GATEWAY GP1T SJM11 87KS Black Norwegian
Texture
KB.I110G.016
Keyboard GATEWAY GP1T SJM11 87KS Black Portuguese
Texture
KB.I110G.017
Keyboard GATEWAY GP1T SJM11 86KS Black Russian
Texture
KB.I110G.018
Keyboard GATEWAY GP1T SJM11 87KS Black SLO/CRO
Texture
KB.I110G.019
Keyboard GATEWAY GP1T SJM11 87KS Black Spanish
Texture
KB.I110G.020
Keyboard GATEWAY GP1T SJM11 87KS Black Sweden
Texture
KB.I110G.021
Keyboard GATEWAY GP1T SJM11 87KS Black Swiss/G
Texture
KB.I110G.022
Keyboard GATEWAY GP1T SJM11 86KS Black Thailand
Texture
KB.I110G.023
Keyboard GATEWAY GP1T SJM11 87KS Black Turkish
Texture
KB.I110G.024
Keyboard GATEWAY GP1T SJM11 87KS Black UK Texture
KB.I110G.025
Keyboard GATEWAY GP1T SJM11 86KS Black US
International Texture
KB.I110G.026
Keyboard GATEWAY GP1T SJM11 86KS Black US
International w/ Hebrew Texture
KB.I110G.027
Keyboard GATEWAY GP1T SJM11 87KS Black US w/
Canadian French Texture
KB.I110G.028
183
CATEGORY
PARTNAME
ACERPARTNO.
LCD
LCD MODULE ASSY NLED11.6WXGAG PB RED W/
ANTENNA
6M.BGU07.001
LCD MODULE ASSY NLED11.6WXGAG PB RED W/3G
ANTENNA
6M.BGV07.001
LCD MODULE ASSY NLED11.6WXGAG PB BLACK W/
ANTENNA
6M.BGW07.001
LCD MODULE ASSY NLED11.6WXGAG PB BLACK W/3G
ANTENNA
6M.BGY07.001
LCD MODULE ASSY NLED11.6WXGAG GW BLACK W/
ANTENNA
6M.WGV07.001
LCD MODULE ASSY NLED11.6WXGAG GW RED W/
ANTENNA
6M.WHJ07.001
LCD MODULE ASSY NLED11.6WXGAG GW BLACK W/3G
ANTENNA
6M.WHN07.001
LCD MODULE ASSY NLED11.6WXGAG GW RED W/3G
ANTENNA
6M.WHP07.001
LCD PANEL W/TOUCH PANEL
LED LCD SAMSUNG 11.6" WXGAG LTN116AT01-A01 W/
TOUCH PANEL
56.PND07.001
LED LCD AUO 11.6" WXGAG B116XW02 V0 1A (3G) W/
TOUCH PANEL
56.PND07.002
LED LCD LPL 11.6" WXGAG LP116WH1-TLA1 W/TOUCH
PANEL
56.PND07.003
LED LCD CMO 11.6" WXGAG N116B6-L02 C2 W/TOUCH
PANEL
56.PND07.004
Mainboard JM12_MS Intel G45 LF SU7300 w/o 3G
MB.PN306.001
MAINBOARD
184
Mainboard JM12_MS Intel G45 LF SU7300 w/ 3G
MB.PN306.002
Mainboard JM12_MS Intel G45 LF SU4100 w/o 3G
MB.PNA06.001
Mainboard JM12_MS Intel G45 LF SU4100 w/ 3G
MB.PNA06.002
Mainboard JM12_MS Intel G45 LF SU2300 WO/3G W/O RAM
MB.PND06.001
Mainboard JM12_MS Intel G45 LF SU2300 W/3G W/O RAM
MB.PND06.002
Chapter 6
CATEGORY
PARTNAME
ACERPARTNO.
MEMORY
Memory NANYA SO-DIMM DDRIII 1066 1GB
NT1GC64BH8A1PS-BE LF 64*16 0.07um
KN.1GB03.031
Memory MICRON SO-DIMM DDRIII 1066 1GB
MT8JSF12864HZ-1G1F1 LF 128*8 0.065um
KN.1GB04.015
Memory KINGSTON SO-DIMM DDRIII 1066 1GB
ACR128X64D3S1066C7 LF 128*8 0.07um
KN.1GB07.001
Memory ELPIDA SO-DIMM DDRIII 1066 1GB
EBJ10UE8BDS0-AE-F LF 128*8 0.065um
KN.1GB09.012
Memory SAMSUNG SO-DIMM DDRIII 1066 1GB
M471B2874DZ1-CF8 LF
KN.1GB0B.019
Memory SAMSUNG SO-DIMM DDRIII 1066 1GB
M471B2873EH1-CF8 LF 64*16 0.055um
KN.1GB0B.028
Memory HYNIX SO-DIMM DDRIII 1066 1GB
HMT112S6BFR6C-G7 N0 LF 64*16 0.055um
KN.1GB0G.025
Memory NANYA SO-DIMM DDRIII 1066 2GB
NT2GC64B8HA1NS-BE LF 128*8 0.07um
KN.2GB03.012
Memory MICRON SO-DIMM DDRIII 1066 2GB
MT16JSF25664HZ-1G1F1 LF 128*8 0.065um
KN.2GB04.015
Memory KINGSTON SO-DIMM DDRIII 1066 2GB
ACR256X64D3S1066C7 LF 128*8 0.07um
KN.2GB07.001
Memory ELPIDA SO-DIMM DDRIII 1066 2GB
EBJ21UE8BDS0-AE-F LF 128*8 0.065um
KN.2GB09.006
Memory SAMSUNG SO-DIMM DDRIII 1066 2GB
M471B5673DZ1-CF8 LF
KN.2GB0B.005
Memory SAMSUNG SO-DIMM DDRIII 1066 2GB
M471B5673EH1-CF8 LF 128*8 0.055um
KN.2GB0B.012
Memory A-DATA SO-DIMM DDRIII 1066 2GB
HY7YG1B1674ZM LF 128*8 0.065um
KN.2GB0C.002
Memory HYNIX SO-DIMM DDRIII 1066 2GB
HMT125S6BFR8C-G7 N0 LF 128*8 0.055um
KN.2GB0G.014
Memory SAMSUNG SO-DIMM DDRIII 1066 4GB
M471B5273BH1-CF8 LF 256*8 0.055um
KN.4GB0B.007
MIC
23.PND07.001
LOWER CASE RUBBER FOOT - FRONT
47.WGV07.001
LOWER CASE RUBBER FOOT - REAR
47.WGV07.002
LOWER CASE SCREW RUBBER
47.WGV07.003
LCD SUPPORT RUBBER
47.WGV07.004
FRONT LENS RUBBER
47.WGV07.005
UPPER CASE FRONT RUBBER BLACK
47.WGV07.006
UPPER CASE REAR RUBBER BLACK
47.WGV07.007
TOUCHPAD RUBBER BLACK
47.WGV07.008
LCD BEZEL SCREW MYLAR
47.WGV07.009
FOIL IN PANEL FOR 3G
47.WGV07.010
MIC PHONE
MISCELLANEOUS
Chapter 6
185
CATEGORY
PARTNAME
ACERPARTNO.
SPEAKER
SPEAKER SET
23.PL907.001
Screw List
Description
186
Acer Part Number
SCREW M2.0*3.0-I(BKAG)(NYLOK IRON
86.ARE07.002
SCREW M2*5-I(BZN)(NYLOK)
86.TG607.004
SCREW M2.0*2.5-I(BUWZN)
86.TPK07.001
SCREW 2.0*4.0
86.W0107.003
SCREW M2.0*3.0-I(NI)(NYLOK)
86.W0907.001
Chapter 6
Appendix A
Model Definition and Configuration
Model
Acer
Part No
Description
CPU
LCD
HDD
1(GB)
Wireless
LAN1
Blue
tooth
EC14T
03j
LX.WG
V02.011
EC14T03j
W7HP64WJP1
UMACkk 1*2G/
250/BT/6L2.8/
5R/
CB_bgn_0.3D_B
AG_AUk_JA11
CMSU2
300B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
BT
2.1
EC14T
05a
LX.WG
V02.010
EC14T05a
W7HP64WTAU1
UMACkk 1*2G/
250/BT/6L2.8/
5R/
CB_bgn_0.3D_A
Uk_ES61
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
BT
2.1
EC14T
03e
LX.WG
V02.009
EC14T03e EM
W7HP64EMWTE
A3 UMACkk
2G+1G/250/
6L2.8/5R/
CB_bgn_0.3D_A
Uk_ES31
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
02e
LX.WG
V02.008
EC14T02e EM
W7HP64EMWTE
A1 UMACkk
2G+1G/250/
6L2.8/5R/
CB_bgn_0.3D_A
Uk_ES31
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
05e
LX.WG
V02.007
EC14T05e EM
W7HP64EMWTE
A3 UMACkk
2G+1G/320/
6L2.8/5R/
CB_bgn_0.3D_A
Uk_ES31
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
N
EC14T
04e
LX.WG
V02.006
EC14T04e EM
W7HP64EMWTE
A1 UMACkk
2G+1G/320/
6L2.8/5R/
CB_bgn_0.3D_A
Uk_ES31
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
N
EC14T
01j
LX.WG
V02.001
EC14T01j
W7HP64WJP1
UMACkk 1*2G/
250/BT/6L2.8/
5R/
CB_bgn_0.3D_A
U_JA11
CMSU2
300B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
BT
2.1
Appendix A
187
188
Model
Acer
Part No
Description
CPU
LCD
HDD
1(GB)
Wireless
LAN1
Blue
tooth
EC14T
02u
LX.WG
V02.003
EC14T02u
W7HP64WTUS1
UMACkk 2G+1G/
250/6L2.8/5R/
CB_bgn_0.3D_A
Uk_ENP1
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
05u
LX.WG
V02.004
EC14T05u
W7HP64WTUS1
UMACkk 2*2G/
320/6L2.8/5R/
CB_bgn_0.3D_A
Uk_ENP1
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
N
EC14T
01i
LX.WG
V01.002
EC14T01i EM
W7HB64EMWTP
H1 UMACkk
1*2G/320/BT/
6L2.8/5R/
CB_bgn_0.3D_B
AG_AUk_ES61
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
BT
2.1
EC14T
02g
LX.WG
V02.005
EC14T02g
W7HP64WTSG1
UMACkk 1*2G/
320/BT/6L2.8/
5R/
CB_bgn_0.3D_A
Uk_ES61
CMSU2
300B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
BT
2.1
EC14T
01g
LX.WG
V02.002
EC14T01g
W7HP64WTSG1
UMACkk 1*2G/
320/BT/6L2.8/
5R/
CB_bgn_0.3D_A
Uk_ES61
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
BT
2.1
EC14T
01c
LX.WG
V01.001
EC14T01c
W7HB64SCWTC
N1 UMACkk
1*2G/250/6L2.8/
5R/
CB_bgn_0.3D_A
U_SC22
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
04j
LX.WHJ
02.007
EC14T04j
W7HP64WJP1
UMACrr 1*2G/
250/BT/6L2.8/
5R/
CB_bgn_0.3D_A
Ur_JA11
CMSU2
300B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
BT
2.1
EC14T
02j
LX.WHJ
02.006
EC14T02j
W7HP64WJP1
UMACrr 1*2G/
250/BT/6L2.8/
5R/
CB_bgn_0.3D_B
AG_AUr_JA11
CMSU2
300B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
BT
2.1
Appendix A
Model
Acer
Part No
Description
CPU
LCD
HDD
1(GB)
Wireless
LAN1
Blue
tooth
EC14T
01e
LX.WHJ
02.005
EC14T01e EM
W7HP64EMWTE
A1 UMACrr
2G+1G/320/
6L2.8/5R/
CB_bgn_0.3D_A
Ur_ES31
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
N
EC14T
04u
LX.WHJ
02.002
EC14T04u
W7HP64WTUS1
UMACrr 2*2G/
320/6L2.8/5R/
CB_bgn_0.3D_A
Ur_ENP1
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
N
EC14T
03u
LX.WHJ
02.001
EC14T03u
W7HP64WTUS1
UMACrr 2G+1G/
250/6L2.8/5R/
CB_bgn_0.3D_A
Ur_ENP1
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
04a
LX.WHJ
02.004
EC14T04a
W7HP64WTAU1
UMACrr 1*2G/
250/BT/6L2.8/
5R/
CB_bgn_0.3D_A
Ur_ES61
CMSU2
300B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
BT
2.1
EC14T
03a
LX.WHJ
02.003
EC14T03a
W7HP64WTAU1
UMACrr 1*2G/
320/BT/6L2.8/
5R/
CB_bgn_0.3D_A
Ur_ES61
PMDSU
4100B
NLED11.
6WXGAG
N320GB5
.4KS
INT1000
H
BT
2.1
EC14T
02c
LX.WHJ
01.001
EC14T02c
W7HB64SCWTC
N1 UMACrr
1*2G/250/6L2.8/
5R/
CB_bgn_0.3D_A
U_SC22
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
01u
LX.WG
X02.001
EC14T01u
W7HP64WTUS1
UMAGCkk
2G+1G/250/
6L2.8/5R/
CB_bgn_0.3D_G
1KVER_AU_EN
P7
PMDSU
4100B
NLED11.
6WXGAG
N250GB5
.4KS
INT1000
H
N
EC14T
02t
LX.WG
X02.002
EC14T02t EM
W7HP64EMWTT
H1 UMAGCkk
2*2G/500_L/BT/
6L2.8/5R/
CB_bgn_0.3D_G
2K_AU_TH41
PMDSU
4100B
NLED11.
6WXGAG
N500GB5
.4KS
INT1000
H
BT
2.1
Appendix A
189
190
Model
Acer
Part No
Description
CPU
LCD
HDD
1(GB)
Wireless
LAN1
Blue
tooth
EC18T
01n
LX.WHL
02.007
EC18T01n EM
W7HP64EMWTI
D1 UMACkk
2G+1G/320/BT/
6L2.8/5R/
CB_n2_0.3D_BA
G_AUk_ID22
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
01c
LX.WHL
01.002
EC18T01c
W7HB64SCWTC
N1 UMACkk
2*2G/320/6L2.8/
5R/
CB_n2_0.3D_AU
k_SC22
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
N
EC18T
01g
LX.WHL
02.004
EC18T01g
W7HP64WTSG1
UMACkk 2*2G/
500_L/BT/6L2.8/
5R/
CB_n2_0.3D_BA
G_AUk_ES61
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
01u
LX.WHL
02.003
EC18T01u
W7HP64WTUS1
UMACkk 2*2G/
500_L/6L2.8/5R/
CB_n2_0.3D_AU
k_ENP1
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
N
EC18T
04i
LX.WHL
02.006
EC18T04i EM
W7HP64EMWTP
H1 UMACkk
1*2G/320/BT/
6L2.8/5R/
CB_n2_0.3D_BA
G_AUk_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
03g
LX.WHL
02.005
EC18T03g
W7HP64WTSG1
UMACkk 1*2G/
320/BT/6L2.8/
5R/
CB_n2_0.3D_BA
G_AUk_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
01t
LX.WHL
01.001
EC18T01t EM
W7HB64EMWTT
H1 UMACkk
2*2G/500_L/BT/
6L2.8/5R/
CB_n2_0.3D_AU
k_TH41
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
02i
LX.WHL
02.002
EC18T02i EM
W7HP64EMWTP
H1 UMACkk
1*2G/320/BT/
6L2.8/5R/
CB_n2_0.3D_AU
_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
Appendix A
Model
Acer
Part No
Description
CPU
LCD
HDD
1(GB)
Wireless
LAN1
Blue
tooth
EC18T
01h
LX.WHL
02.001
EC18T01h
W7HP64WTCA2
UMACkk 2*2G/
320/BT/6L2.8/
5R/
CB_n2_0.3D_AU
_ENJ1
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
02n
LX.WH
M02.00
9
EC18T02n EM
W7HP64EMWTI
D1 UMACrr
2G+1G/320/BT/
6L2.8/5R/
CB_n2_0.3D_BA
G_AUr_ID22
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
05g
LX.WH
M02.00
8
EC18T05g
W7HP64WTSG1
UMACrr 2*2G/
500_L/BT/6L2.8/
5R/
CB_n2_0.3D_BA
G_AUr_ES61
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
02u
LX.WH
M02.00
3
EC18T02u
W7HP64WTUS1
UMACrr 2*2G/
500_L/6L2.8/5R/
CB_n2_0.3D_AU
r_ENP1
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
N
EC18T
03i
LX.WH
M02.00
7
EC18T03i EM
W7HP64EMWTP
H1 UMACrr
1*2G/320/BT/
6L2.8/5R/
CB_n2_0.3D_BA
G_AUr_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
04g
LX.WH
M02.00
6
EC18T04g
W7HP64WTSG1
UMACrr 1*2G/
320/BT/6L2.8/
5R/
CB_n2_0.3D_AU
r_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
02g
LX.WH
M02.00
5
EC18T02g
W7HP64WTSG1
UMACrr 2*2G/
500_L/BT/6L2.8/
5R/
CB_n2_0.3D_AU
r_ES61
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
05a
LX.WH
M02.00
4
EC18T05a
W7HP64WTAU1
UMACrr 2*2G/
320/BT/6L2.8/
5R/
CB_n2_0.3D_AU
r_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
Appendix A
191
Model
192
Acer
Part No
Description
CPU
LCD
HDD
1(GB)
Wireless
LAN1
Blue
tooth
EC18T
01i
LX.WH
M02.00
2
EC18T01i EM
W7HP64EMWTP
H1 UMACrr
1*2G/320/BT/
6L2.8/5R/
CB_n2_0.3D_AU
_ES61
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
02t
LX.WH
M01.00
1
EC18T02t EM
W7HB64EMWTT
H1 UMACrr
2*2G/500_L/BT/
6L2.8/5R/
CB_n2_0.3D_AU
r_TH41
C2DSU
7300B
NLED11.
6WXGAG
N500GB5
.4KS
SP1x2H
MW
BT
2.1
EC18T
02h
LX.WH
M02.00
1
EC18T02h
W7HP64WTCA2
UMACrr 2*2G/
320/BT/6L2.8/
5R/
CB_n2_0.3D_AU
_ENJ1
C2DSU
7300B
NLED11.
6WXGAG
N320GB5
.4KS
SP1x2H
MW
BT
2.1
Appendix A
Appendix B
Test Compatible Components
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system
functions are tested under Windows®7 environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the Compatibility Test Report
released by the Acer Mobile System Testing Department.
BRAND
Type
Description
3G
UNDP-1
3G UNDP-1
Gobi1000-Verizon
Qualcomm Gobi1000-Verizon
SJM12_MS GW Protection
Bag
Accessory SJM12_MS +SJM13_MS GW Protection Bag
SJM12_MS PB Protection
Bag
Accessory SJM12_MS+SJM13_MS PB Protection Bag
USB Bridge Dongle
Accessory USB Bridge dongle device - XSYNC
DELTA
30W
Adapter DELTA 30W 19V 1.7x5.5x11 Black ADP-30JH
BA LF
HIPRO
30W
Adapter HIPRO 30W 19V 1.7x5.5x11 Black HP-A0301R3
B1LF LF
LITE-ON
30W
Adapter LITE-ON 30W 19V 1.7x5.5x11 Black PA-130004AC LF
ALC269X
Realtek Audio Codec ALC269X
SANYO
6CELL2.8
Battery SANYO UM-2009F Li-Ion 3S2P SANYO 6 cell
5600mAh Main COMMON
SIMPLO
6CELL2.8
Battery SIMPLO UM-2009F Li-Ion 3S2P SAMSUNG 6
cell 5600mAh Main COMMON ID:UM09F70
BT 2.1
Foxconn Bluetooth BRM 2046 BT2.1 (T60H928.33) f/
w:861
Chicony
0.3M LDV
Chicony 0.3M LDV Lilac_3GA ( CNF9042-G )
Chicony
0.3M LDV
Chicony Camera Lilac_2G
Liteon
0.3M LDV
Liteon Camera Lily_2G
Suyin
0.3M LDV
Suyin Camera Rose_2G
5 in 1-Build in
5 in 1-Build in MS, MS Pro, SD, SC, XD
INTEL
CMSU2300B
CPU Intel Celeron SU2300 BGA 1.2G 1M 800 10W R-0
INTEL
PMDSU4100B
CPU Intel Core2Dual SU4100 2M 800
Qualcomm
Accessory
Adapter
Audio Codec
Realtek
Battery
Bluetooth
Foxconn
Camera
Card Reader
CPU
Appendix B
193
BRAND
INTEL
Type
Description
C2DSU7300B
CPU Intel Core2Dual SU7300 3M 800 R-0
LIS33DETR
G sensor LIS33DETR
HGST
N160GB5.4KS
HDD HGST 2.5" 5400rpm 160GB Falcon B
HTS543216L9SA00 SATA LF F/W:C40C
HGST
N160GB5.4KS
HDD HGST 2.5" 5400rpm 160GB HTS545016B9A300
Panther B SATA LF F/W:C60F Disk imbalance criteria =
0.014g-cm
HGST
N250GB5.4KS
HDD HGST 2.5" 5400rpm 250GB HTS545025B9A300
Panther B SATA LF F/W:C60F Disk imbalance criteria =
0.014g-cm
HGST
N320GB5.4KS
HDD HGST 2.5" 5400rpm 320GB HTS545032B9A300
Panther B SATA LF F/W:C60F Disk imbalance criteria =
0.014g-cm
HGST
N500GB5.4KS
HDD HGST 2.5" 5400rpm 500GB HTS545050B9A300
Panther B SATA LF F/W:C60F Disk imbalance criteria =
0.014g-cm
SEAGATE
N160GB5.4KS
HDD SEAGATE 2.5" 5400rpm 160GB ST9160314AS
Wyatt SATA LF F/W:0001SDM1
SEAGATE
N250GB5.4KS
HDD SEAGATE 2.5" 5400rpm 250GB ST9250315AS
Wyatt SATA LF F/W:0001SDM1
SEAGATE
N320GB5.4KS
HDD SEAGATE 2.5" 5400rpm 320GB ST9320325AS
Wyatt SATA LF F/W:0001SDM1
SEAGATE
N500GB5.4KS
HDD SEAGATE 2.5" 5400rpm 500GB ST9500325AS
Wyatt SATA LF F/W:0001SDM1
TOSHIBA
N160GB5.4KS
HDD TOSHIBA 2.5" 5400rpm 160GB MK1655GSX Libra
SATA LF F/W: FG011J
TOSHIBA
N250GB5.4KS
HDD TOSHIBA 2.5" 5400rpm 250GB MK2555GSX Libra
SATA LF F/W:FG001J
TOSHIBA
N500GB5.4KS
HDD TOSHIBA 2.5" 5400rpm 500GB MK5055GSX Libra
SATA LF F/W:FG001J
WD
N160GB5.4KS
HDD WD 2.5" 5400rpm 160GB WD1600BEVT-22ZCTO
ML160 SATA LF F/W:11.01A11
WD
N250GB5.4KS
HDD WD 2.5" 5400rpm 250GB WD2500BEVT-22ZCT0
ML160 SATA LF F/W:11.01A11
WD
N320GB5.4KS
HDD WD 2.5" 5400rpm 320GB WD3200BEVT-22ZCT0
ML160 SATA LF F/W:11.01A11
WD
N500GB5.4KS
HDD WD 2.5" 5400rpm 500GB WD5000BEVT-22ZAT0
ML250 SATA LF F/W:01.01A01
GP-1T
Keyboard GATEWAY GP-1T SJM11 Internal 11 Standard
Black NONE Texture
AR8131L
Atheros AR8131L
NLED11.6WXGAG
LED LCD AUO 11.6" WXGA Glare B116XW02 V0 1A
(3G) LF 200nit 8ms 500:1
G sensor
HDD
Keyboard
GATEWAY
LAN
Atheros
LCD
AUO
194
Appendix B
BRAND
Type
Description
CMO
NLED11.6WXGAG
LED LCD CMO 11.6" WXGA Glare N116B6-L02 C2 LF
200nit 10ms 500:1
LPL
NLED11.6WXGAG
LED LCD LPL 11.6" WXGA Glare LP116WH1-TLA1 LF
200nit 8ms 500:1
SAMSUNG
NLED11.6WXGAG
LED LCD SAMSUNG 11.6" WXGA Glare LTN116AT01A01 LF 200nit 8ms
A-DATA
SO2GBIII10
Memory A-DATA SO-DIMM DDRIII 1066 2GB
HY7YG1B1674ZM LF 128*8 0.065um
ELPIDA
SO1GBIII10
Memory ELPIDA SO-DIMM DDRIII 1066 1GB
EBJ10UE8BDS0-AE-F LF 128*8 0.065um
ELPIDA
SO2GBIII10
Memory ELPIDA SO-DIMM DDRIII 1066 2GB
EBJ21UE8BDS0-AE-F LF 128*8 0.065um
HYNIX
SO1GBIII10
Memory HYNIX SO-DIMM DDRIII 1066 1GB
HMT112S6BFR6C-G7 N0 LF 64*16 0.055um
HYNIX
SO2GBIII10
Memory HYNIX SO-DIMM DDRIII 1066 2GB
HMT125S6BFR8C-G7 N0 LF 128*8 0.055um
MICRON
SO1GBIII10
Memory MICRON SO-DIMM DDRIII 1066 1GB
MT8JSF12864HZ-1G1F1 LF 128*8 0.065um
MICRON
SO2GBIII10
Memory MICRON SO-DIMM DDRIII 1066 2GB
MT16JSF25664HZ-1G1F1 LF 128*8 0.065um
SAMSUNG
SO1GBIII10
Memory SAMSUNG SO-DIMM DDRIII 1066 1GB
M471B2873EH1-CF8 LF 64*16 0.055um
SAMSUNG
SO2GBIII10
Memory SAMSUNG SO-DIMM DDRIII 1066 2GB
M471B5673EH1-CF8 LF 128*8 0.055um
External USB Lite+LSI
modem
External USB Lite+LSI modem
INTEL
GS45
NB Chipset Intel CS GS45NB
INTEL
ICH9M-SFFE
SB Chipset Intel CS AM82801IUX MM#898134
UMA
UMA (Intel)
PIFA
PIFA
Wiping Cloth
Wiping Cloth Wiping Cloth BAP31-41-51 Wiping Cloth
15x15cm
INTEL
INT1000H
Lan Intel WLAN 112BN.HMWG MM#903341
INTEL
SP1x2HMW
Lan Intel WLAN 512AN_HMWG Shirley Peak 5100
MM#895373
MEM
Modem
Chipset
VGA Chip
None
WiFi Antenna
WNC
Wiping Cloth
Wireless LAN
Appendix B
195
196
Appendix B
Appendix C
On-line Support Information
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch
office. Acer Branch Offices and Regional Business Units may access our website. However some information
sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
•
Service guides for all models
•
User's manuals
•
Training materials
•
Bios updates
•
Software utilities
•
Spare parts lists
•
TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our
technical material.
Also contained on this website are:
•
Detailed information on Acer's International Traveler's Warranty (ITW)
•
Returned material authorization procedures
•
An overview of all the support services we offer, accompanied by a list of telephone, fax and email
contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or
comments, please do not hesitate to communicate these to us.
Appendix C
197
198
Index
A
