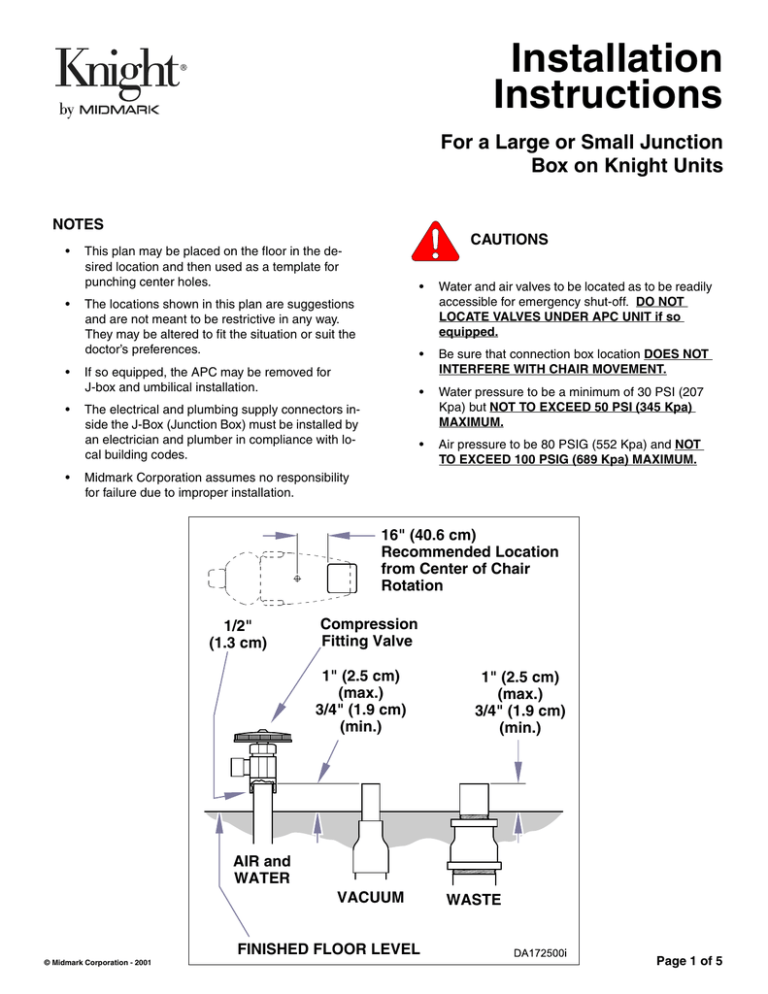

Installation
Instructions
For a Large or Small Junction
Box on Knight Units
NOTES
•
•
•
•
•
CAUTIONS
This plan may be placed on the floor in the desired location and then used as a template for
punching center holes.
•
The locations shown in this plan are suggestions
and are not meant to be restrictive in any way.
They may be altered to fit the situation or suit the
doctor’s preferences.
Water and air valves to be located as to be readily
accessible for emergency shut-off. DO NOT
LOCATE VALVES UNDER APC UNIT if so
equipped.
•
If so equipped, the APC may be removed for
J-box and umbilical installation.
Be sure that connection box location DOES NOT
INTERFERE WITH CHAIR MOVEMENT.
•
Water pressure to be a minimum of 30 PSI (207
Kpa) but NOT TO EXCEED 50 PSI (345 Kpa)
MAXIMUM.
•
Air pressure to be 80 PSIG (552 Kpa) and NOT
TO EXCEED 100 PSIG (689 Kpa) MAXIMUM.
The electrical and plumbing supply connectors inside the J-Box (Junction Box) must be installed by
an electrician and plumber in compliance with local building codes.
Midmark Corporation assumes no responsibility
for failure due to improper installation.
16" (40.6 cm)
Recommended Location
from Center of Chair
Rotation
1/2"
(1.3 cm)
Compression
Fitting Valve
1" (2.5 cm)
(max.)
3/4" (1.9 cm)
(min.)
1" (2.5 cm)
(max.)
3/4" (1.9 cm)
(min.)
AIR and
WATER
VACUUM
FINISHED FLOOR LEVEL
© Midmark Corporation - 2001
WASTE
Page 1 of 5
UTILITY SPECIFICATIONS
WATER
1/2" pipe terminating with a 1/2" pipe up 3/4" (1.9 cm) to 1" (2.5 cm) from
the finished surface as near to the connection box as possible.
Flush all debris from the lines before installation.
Water pressure to be a minimum 30 psi (207 kPa) and not to exceed a
maximum 50 psi (345 kPa).
AIR
1/2" pipe terminating with a 1/2" pipe up 3/4" (1.9 cm) to 1" (2.5 cm) from
the finished surface as near to the connection box as possible.
Flush all debris from the lines before installation.
Air pressure to be minimum 80 PSIG (552 kPa) and not to exceed a
maximum 100 PSIG (689 Kpa).
For maximum life of unit, air supply must be clean and dry.
It is recommended that a moisture separator and filter be installed as near
to the connection box as possible and be accessible for periodic cleaning.
Three (3) conductor #14 AWG cable on a 15 amp fused circuit to terminate
inside a 4" (10.1 cm) x 4" (10.1 cm) jiffy box (not supplied) in location
shown.
ELECTRICAL SUPPLY
If installing 115 VAC receptacle:
A right angle power plug is supplied.
If installing a 230 VAC receptacle:
An appropriate style power plug rated for 250 VAC, 15 amps (not supplied)
is required .
VACUUM
AUXILIARY WIRING
WASTE
Midmark Corporation
60 Vista Drive
P.O. Box 286
Versailles, Ohio 45380-0286
1-800-MIDMARK
Fax 877-249-1793
midmark.com
© Midmark Corporation - 2001
Terminate with 5/8" OD tube 3/4" (1.9 cm) to 1" ( 2.5 cm) above the
finished floor.
Install line according to vacuum system manufacturer’s specifications.
Low voltage.
“For class 2 circuits only”.
Install in compliance with all prevailing codes.
Required for the Gravity Drain Cuspidor.
Not less than 1 1/2" ID pipe from down pipe to trap decreasing to 3/4" pipe
from trap to connection box.
Terminate with 3/4" O.D. pipe 3/4" (1.9 cm) to 1" (2.5 cm) above finish floor.
Install trap in line and vent to conform with local codes.
003-1190-01 Rev.F (8/12)
Page 2 of 5
Throttle
Valve
(Rib)
Air
Regulator
Tubing
Layout
Air
Regulator
1/4 Grey (Ribbed)
1/8 Grey
(Chip Air)
Clear
Wet / Dry
Toggle
1/8 Orange
Clear
Clear
Clear
1/8 Grey
80
PSI
1/8 Green
Foot Control
1/8
Green
1/8 Green
1/8
Yellow
80
PSI
80
PSI
Foot Control
1/8 Green
To Handpiece Coolant Air (1/8 Green)
To Handpiece Coolant Air (1/8 Green)
1/8 Orange
1/8 Orange
To Pilot Air for Coolant Water (1/8 Orange)
To Pilot Air for Coolant Water (1/8 Orange)
1/4 Clear
5/16" Clear
To Handpiece Drive Air (1/4 Clear)
80 PSI
1/8 Yellow
Throttle
Valve
5/16" Clear
Wet / Dry
Toggle
1/8 Grey (above 1/4 ribbed)
80
PSI
5/16"
Clear
5/16"
Clear
1/8
w/ Dash
BN
5/16" Clear
(w/ Black Dash)
1/4 Grey (Plain)
1/8
Yellow
1/8 OR
1/8
GN
80 PSI
80 PSI
1/8 Yellow
80 PSI
Air to Syringe & Cuspidor
To Handpiece Drive Air
(5/16" Clear)
Air to Syringe & Cuspidor
Filter / Regulated Air
Filter / Regulated Air
1/4" or 5/16"
CLEAR TUBE
DRIVE AIR OUT
TO FOOT
CONTROL
1/8" ORANGE TUBE
COOLANT WATER
PILOT AIR
UMBILICAL
ELECTRICAL
BOX
5/16"
CLEAR
TUBE
FOOT CONTROL
TUBING INLET AIR
(5/16" Clear w/
Black Dash)
VACUUM
Blue
Green
4" x 4"
BOX FOR
POWER
SUPPLY
(not
supplied)
1/8" RED TUBE
PILOT AIR
MASTER VALVE
WASTE
White
1/4" BLUE TUBE
CUSPIDOR
(Optional)
Clear
TUBING FOR
OPTIONS
1/8" BROWN TUBE
1/8" PURPLE TUBE
NON-CONTROLLED
AIR MASTER VALVE
1/8" BROWN TUBE
AIR TO DISTILLED
WATER BOTTLE
WATER
AIR
AIR REGULATOR
FOR DISTILLED
WATER BOTTLE
1/8" RED TUBE
1/8" YELLOW TUBE
FOR SYRINGE AIR
1/8" YELLOW or
WHITE TUBE
(Tagged w/ "C")
FOR CUSPIDOR
(Optional)
5/16" CLEAR TUBE
(w/ BLACK DASH)
TO FOOT CONTROL
1/4" CLEAR TUBE
FOR AIR QUICK
CONNECT (Optional)
© Midmark Corporation - 2001
Page 3 of 5
SMALL JUNCTION BOX
(with Regulators)
1/4" CLEAR TUBE
DRIVE AIR OUT
1/8" ORANGE TUBE
COOLANT WATER
PILOT AIR
1/8" BLUE TUBE
COOLANT AND
UMBILICAL
SYRINGE WATER
WATER
OUT
IN
VACUUM
WASTE
1/4" YELLOW TUBE
ASST WATER
(OPTIONAL)
1/8" BROWN TUBE
CUSPIDOR
PILOT AIR
(OPTIONAL)
1/8" RED TUBE
PILOT AIR
MASTER VALVE
FOOT CONTROL INLET
(TUBE w/ RIB)
1/8" YELLOW TUBE
SYRINGE AIR
AIR
1/8" PURPLE TUBE
NON-CONTROLLED AIR
MASTER VALVE
NOTICE: These tubing
connections are required
only if the unit installed is
so equipped.
© Midmark Corporation - 2001
WATER
1/4" BLUE TUBE / CUSPIDOR WATER
UNFILTERED AND UNREGULATED (OPTIONAL)
Page 4 of 5
SMALL JUNCTION BOX
(without Regulators)
1/4" CLEAR TUBE
DRIVE AIR OUT
1/8" ORANGE TUBE
COOLANT WATER
PILOT AIR
1/4" YELLOW TUBE
DRIVE AIR IN
UMBILICAL
WATER
OUT
IN
VACUUM
WASTE
POWER SUPPLY
CABLE
1/8" RED TUBE
PILOT AIR
POWER UMBILICAL
(SUPPLIED WITH J-BOX)
1/4" BLUE TUBE
WATER
3/8" BLACK TUBE
WATER SUPPLY
(SUPPLIED WITH
J-BOX)
AIR
3/8" BLACK TUBE
AIR SUPPLY
WATER
WATER SHUT OFF VALVE
NOTICE: These tubing
connections are required
only if the unit installed is
so equipped.
© Midmark Corporation - 2001
Page 5 of 5
